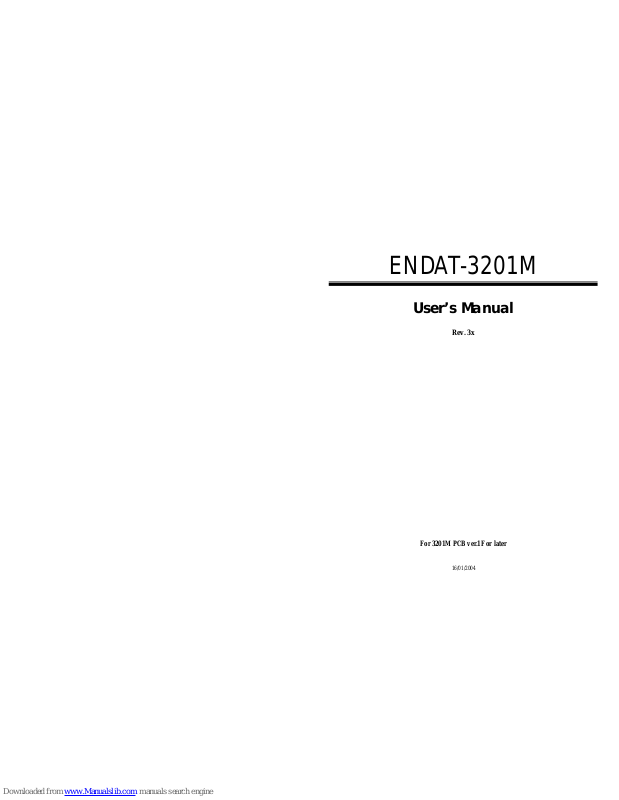

END AT-3201M
User’s Manual
Rev. 3x
For 3201M PCB ver.1F or later
16/01/2004
II
The low power consumption CPU embedded board
Copyright Notice
The content of this manual has been checked for accuracy. The manufacturer assumes no
responsibility for any inaccuracies that may be contained in this manual. The manufacturer
reserves the right to make improvements or modification to this document and/or the
product at any time without prior notice. No part of this document may be reproduced,
transmitted, photocopied or translated into any language, in any form or by any means,
electronic, mechanical, magnetic, optical or chemical, without the prior written permission
of the manufacturer.
VIA is registered trademark of VIA Technology Incorporation
VT82C686B may only be used to identify products of VIA Technology
Realtek is registered trademark of Realtek Technologies Inc.
Multiscan is a trademark of Sony Corp of America
IBM, EGA, VGA, PC/XT, PC/AT , OS/2 and PS/2 are registered tradem arks of International
Business Machines Corporation
Intel is a registered trademark of Intel Corporation
Plug and Play is registered trademarks of Intel Corporation
Microsoft, Windows and MS-DOS are trademarks of Microsoft Corporation
AMI is a trademark of American Megatrends Inc.
PCI is a registered trademark of PCI Special Interest Group
Other product names mentioned herein are u sed for identification purpose only and may be
trademarks and/or registered trademarks of their respective companies.
Installation Notice
The manufacturer recommends using a grounded plug to ensure proper motherboard
operation. Care should be used in proper conjunction with a grounded power receptacle to
avoid possible electrical shock. All integrated circuits on this motherboard are sensitive to
static electricity. To avoid damaging components from electrostatic discha rge, please do not
remove the board from the anti-static packing before discharging any static electricity to
your body, by wearing a wri st-groundi ng strap. T he manufa cturer is not res ponsible fo r any
damage to the motherboard due to improper operation.
User’s Manual III
Specification:
This manual covers three different layout models, and the respective board layouts
are shown in chapter 1-4. Please refer to the following description to make sure
which model on hand before using.
ENDAT-3201M
System Chipset
VIA VT8601A + VIA VT82C686B (APOLLO PLE-133)
Micro Processor
Embedded Low Power Consumption VIA Eden 533 MHz or C3-800 MHz CPU
Memory
1 DIMM Socket up to 512MB (max)
Ethernet
10/100 BaseT LAN onboard (Realtek 8139C or Intel 82559ER)
LCD / VGA
Support 24 Bits TFT LCD Panel with 2D / 3D Graphic Controller, SMA up to 8MB
IDE Connector
1x Enhance IDE Connectors Support UDMA 33/66/100
FDD Connector
1x FDD Connector
Expansion Slot
1x 188Pin EISA Connector for PCI/ISA expansion.
Flash Memory
Reserved Socket for DOC 2000 support
Keyboard / Mouse
Double-Deck + Pin Header
LAN/USB
USB+LAN Double-Deck
COM 1
Double-Deck
(COM 1+LPT1+VGA)
COM 2
D-SUB
COM 3
D-SUB
COM 4
D-SUB
LPT 1
Double-Deck
(COM1+LPT 1+VGA)
LPT 2
Box Header
VGA
Double-Deck
(COM1+LPT1+VGA)
TFT LCD Connector
44 Pin Box Header
LVDS output
Optional LVDS for LCD output via 16 Pin Pin Header.
Watch Dog Timer
Optional programmable Watch Dog Timer support 1-255s.
RS-422/485
Optional via COM2
COM Port Power
4 Serial port support Standard RI. / +5V / +12V power via Pin 9
Boot ROM
Reserve Socket for Boot ROM
Power Supply
AT or ATX Power support.
Form Factor
SBC / 203mm x 146mm (7.99” x 5.74”)
IV
The low power consumption CPU embedded board
TABLE OF CONTENTS
CHAPTER 1. INTRODUCTION.............................................................1
1-1. FEATURES............................................................................................................2
1-2. UNPACKING ........................................................................................................5
1-3. ELECTROSTATIC DISCHARGE PRECAUTIONS ............................................5
1-4. MOTHERBOARD LAYOUT (ENDAT-3201M)..................................................6
CHAPTER 2. SETTING UP THE MOTHERBOARD..........................9
2-1. JUMPERS AND CONNECTORS (ENDA T-3201M)............................................9
2-2. INSTALLING MEMORY....................................................................................30
2-3. SHARED VGA MEMORY..................................................................................30
2-4. INSTALLING RISER CARD...............................................................................30
2-5. ASSIGNING IRQs FOR EXPANSION CARDS..................................................31
2-6. ASSIGNING DMA CHANNELS FOR ISA CARDS...........................................32
CHAPTER 3. AMI BIOS SETUP..........................................................33
3-1. QUICK SETUP.....................................................................................................34
3-2. DESCRIPTION OF BIOS SETUP OPTIONS......................................................34
3-3. ADVANCED CMOS SETUP ...............................................................................35
3-4. DETAILS OF THE ADVANCED CHIPSET SETUP...........................................37
3-5. PERIPHERALS SETUP.......................................................................................39
3-6. POWER MANAGEMENT SETUP......................................................................42
3-7. PCI / PLUG AND PLAY SETUP.........................................................................44
3-8. HARDWARE MONITOR SETUP.......................................................................46
VI
The low power consumption CPU embedded board
CHPATER 4. VGA, LCD, DOC FEATURE.........................................47
4-1. AGP-BUS VGA FEA TURE..................................................................................47
4-2. LCD FLAT PANEL FEATURE............................................................................48
4-3. PCI BUS AUDIO ADAPTER FEATURES..........................................................49
4-4. DISKONCHIP FEATURE....................................................................................50
4-5. DRIVER UTILITY INSTALLATION GUIDE ....................................................51
CHPATER 5. LAN ADAPTER...............................................................53
5-1. FEATURES...........................................................................................................53
5-2. UTP CABLE/RJ-45 JACK DEFINITION............................................................54
5-3. CONNECTING 100BASE-TX FAST ETHERNET NETWORK........................55
5-4. CONNECTING 10BASE-T ETHERNET NETWORK .......................................55
5-5. 10M BASE/100MBASE INSTALLATION NOTICE..........................................55
5-6. REMOTE BOOT FUNCTION.............................................................................56
5-7. LED INDICATORS..............................................................................................57
5-8. THE SETUP PROGRAM ....................................................................................57
APPENDIX A: FLASH MEMORY UTILITY.....................................61
APPENDIX B: CONNECTOR PIN ASSIGNMENT...........................63
APPENDIX C: LIMITED WARRANTY..............................................71
Chapter 1. Introduction
In order to cope with the challenges of the heating issues and demand of much more
diminutive embedded system in diverse application, ENDAT-3201M series CPU boards
provides the ultimate solution by integrating with VIA’s technology low power consumption
VIA C3 series CPU and VIA EDEN fanless ESP series CPU. ENDAT-3201M series CPU
boards offer the assorted functions for various applications such as high-end POS systems,
kiosks, networking systems, controlling terminals and other embedded systems.
ENDAT-3201M is a 5.25” SBC uses
VIA chipsets built-in VGA and Audio feature
onboard, support TFT TTL LCD feature with LVDS interface as feature option; i
ntegrated
Super-I/O support 4 Serial with power selector and 2 parallel ports,
built-in Realtek
8139x LAN chipset with RJ45 Jack for 10BaseT/ 100BaseT. The option of Intel 82559/ER
chip is also provided for the LAN support. This SBC offers the highest performance PC
specification in the industry with embedded low power consumption VIA EDEN Fanless
ESP series CPU ESP5000, and with the option of the higher performed VIA C3 800MHz
CPU.
ENDAT-3201M provides the option of integrating Watch Dog Timer for ideal
unattended terminals. To of fer better flexibility, it also provides the options of riser
card for PCI or ISA expansion through a 188-pin slot. This CPU board is fully
compatible with industry standards, adding many technical enhancements and are
fully compatible with thousand of software application such as WIN 95, 98, WIN
NT 3.x / 4.x, WIN 2000, WIN ME, WIN CE (.NET), Linux, UNIX, Novell…etc.
The control logic provides high-speed performance for the most advanced
multi-user, multitasking application available today. “Tomorrow’s PC technology
is here today”.
2
The ENDAT-3201M
Embedded CPU Board
1-1. Features
Basic Feature:
ENDAT-3201M, embedded VIA C3
TM
, Eden
TM
, Ezra
TM
Low Power EBGA
processors.
133 / 100 MHz CPU Front Side Bus (FSB)
DRAM interface synchronous or pseudo synchronous with CPU FSB speed
of 133 / 100 / 66 MHz Mixed 1M / 2M / 4M / 8M / 16M / 32MxN DRAMs
1 DIMM 168 Pin socket supported up to 512MB
3.3V DRAM interface with 5V-tolerant inputs
Support single channel support two UltraDMA-100 / 66 / 33 enhance IDE
AC-97 link.
On-board built-in 2 USB ports.
Integrated Super-I/O support 4 Serial with power selector and 2 parallel
ports.
Optional RS-422/485 via COM2
System Hardware monitoring
Keyboard / mouse interfaces.
RTC / CMOS
PCI-2.0 compliant, 32 bit with 5V tolerant inputs.
33 MHz operation on the primary PCI bus
188pin expansion slot for both PCI and ISA Bus signals.
PC99 Hardware Support
Watch-Dog-Timer support 1-255sec programmable.
On-board support Realtek or Intel 82559/ER 10/100 LAN adapter with
RJ-45 port.
AGP v2.x compliant
Integrated AGP Bus 2D / 3D graphic accelerator.
Windows 95 OSR-2 VXD and integrated Windows 98 / NT 4.0 miniport
driver support
BIOS shadow at 16KB increment
Supports 2, 4 and 8 Mbytes of Frame Buffer with share memory.
DirectDrawTM and DirectVideoTM Hardware Support
Advanced Mobile Power Management
User’s Manual 3
CRT Power Management (VESA™ DPMS)
Optional for Flat Panel Interface (TTL or LVDS)
The board is designed to support industry standard TFT panel via 44pin connector
or LVDS transmitters. The interface supports both 18-bit and 24-bit display modes.
Optionally, an 18+18 panel can be supported utilizing external latches.
Optional Features
•
Supports RS422/RS485 interface with COM2
•
Support LVDS LCD panel
•
Supports Audio function (via AV Card Kit)
•
Supports TV-Out feature (via TV-Out adapter Kit)
•
Support Watch Dog Timer
•
Support BOOT ROM
Ordering information:
ENDAT-3201M
1. ENDAT-3201M-1R: Support 1 Realtek LAN
2. ENDAT-3201M-1i: Support 1 Intel LAN
3. ENDAT-3201M-1RL: Support 1 Realtek LAN + LVDS
4. ENDA-3201M-1iL: Support 1 Intel LAN + LVDS
Note: The standard version of ENDAT-3201M is embedded with VIA EDEN Fanless
ESP5000. Other option CPUs will be provided upon request.
4
The ENDAT-3201M
Embedded CPU Board
1-2. Unpacking
The motherboard comes securely packaged in a sturdy cardboard shipping carton. In
addition to the User's Manual, the motherboard package includes the following items:
•
ENDAT-3201M 5.25” SBC / CPU Board
•
HDD/FDD Cables
•
TV-Out adapter / cable
(Optional)
•
Audio Kit
(Optional)
•
LCD cable
(Optional)
•
IDE Driver includes: Drivers for Windows NT 3.x/4.x, Windows 95, 98, 2000,
Win Me, Linux, Novell Netware and AMI FLASH ROM utilities.
•
Driver utilities for on-board VGA drivers, LAN adapter and DOC 2000
If any of these items are missing or damage, please contact the dealer from whom you
purchase the motherboard. Save the shipping material and carton in the event that you want
to ship or store the board in the future.
Note:
Leave the motherboard in its original package until you are ready to install it!
1-3. Electrostatic Discharge Precautions
Make sure you properly ground yourself before handling the motherboard, or other system
components. Electrostatic discharge can easily damage the components. Note: You must
take special precaution when handling the motherboard in dry or air-conditioned
environments.
User’s Manual 5
1-4. ENDAT-3201M
Chapter 2. Setting up the CPU Motherboard
2-1. Jumpers and Connectors (ENDAT-3201M)
Jumpers/Connectors Overview:
Function Jumpers/Connectors
Cooling Fan Connector JFAN1, JFAN2
Power Supply: Power Good JP12: Pin 9~11
ATX Power On/Off Switch JP12: Pin 12~13
Audio Port Connector CN1
2nd Printer Port CN4
LAN Adapter Disable/Enable JP3
COM1 Port CN6
COM2 Port CN8
COM3 Port CN2
COM4 Port CN3
COM Ports Power Selector (COM1, 2, 3, 4) JP4, JP9
RS232/RS422/RS485 Selector (COM2) JP10, JP11
DiskOnChip Memory Address JP15
LCD: TFT LCD Panel Connector LCD-CON1
LVDS LCD Output Port CN5
LCD/L VDS Voltage Selector JP7
Clear CMOS JP2
Factory Setting
JP1, JP5, JP8, JP13, JP14, JT1,
JH1
PS/2 Keyboard Jack JKBMS
PS/2 Mouse Jack JKBMS
PS/2 Mouse/KB Pin Header CN7
IR J1
FDD Connector FDD1
IDE 1 IDE1
Header for Case Panel
JP12
8
The ENDAT-3201M
Embedded CPU Board
Function Jumpers/Connectors
IDE 1 LED JP12: Pin 1, Pin 2
External Speaker JP12: Pin 3, Pin 6
Buzzer On/Off JP12: Pin 4, Pin 5
Hardware Reset Switch JP12: Pin 7, Pin 8
External Power Good JP12: Pin 9, Pin 10
Internal Power Good JP12: Pin 10, Pin 11
ATX Power Supply On/Off Switch JP12: Pin 12, Pin 13
Power LED JP12: Pin 14, Pin 15
WDT Function Enable/Disable JP12: Pin 19, Pin 20
JP2: CMOS Data Clear:
Pin 1-2 *
Normal
Pin 2-3
Clear CMOS Data
JP15: DiskOnChip Memory Address Selector
JP15 Memory Address
1-2 7-8
0C800H-0C9FFH
1-2 9-10
0CC00H-0CDFFH
3-4 7-8
0D000H-0D1FFH
3-4 9-10
0D400H-0D5FFH
5-6 7-8
0D800H-0D9FFH(Default)
JP3: On-board LAN Disable/Enable
Pin 1-2
Enable On-Board LAN
Pin 2-3
Disable On-Board LAN
JP9 (COM1, 2) / JP4 (COM3, 4) Vo ltage Selector:
Voltage COM1(JP9) COM2(JP9) COM3(JP4) COM4(JP4)
+12V(DC) 1-2 7-8 1-2 7-8
R.I. 3-4 9-10 3-4 9-10
+5V(DC) 5-6 11-12 5-6 11-12
User’s Manual 9
JP10, JP11: RS232 / 422 / 485 Selector for COM2
TYPE JP10 JP11
RS-232 1-2, 4-5, 7-8, 10-11 1-2
RS-422/485 Full Duplex 2-3, 5-6, 8-9, 11-12 3-4, 7-8
* Make sure the port mode is set up correctly before installing any peripherals.
** Please also refer to the Appendix B
for the pin assignments
JP12’s Pin 9~11: On-board Power Good Selector
Pin 9-10
Using External Power Good
Pin 10-11
Using On Board Power Good
JFAN1, JFAN2: CPU / 2nd Cooling Fan Connector
Pin No. Function
Pin 1 Sensor Pin.
Pin 2 +12V
Pin 3 GND
JP12’s Pin12;13: For ATX Power Supply
Pin 12; Pin 13 On/Off Switch for ATX Power
JP12: Case Panel Connection:
Pin No. Description
1,2 HDD_LED –/+
3,6 External Speaker
4,5 Onboard Buzzer
7-8 HardwareRESET
Reserved 9-10
10-11
Reserved
12-13 ATX Power On/Off
14-15 Power LED (14:LED+, 15:LED–)
19-20 Close: Enable WDT function
J1: IR Pin Header.
Pin No. Function
1 +5V(DC)
2 N.C.
3 IRRX
4 GND.
5 IRTX
10
The ENDAT-3201M
Embedded CPU Board
CN1: Audio Output Port connector via AV Card Kit (Optional)
Please close pin13-14 to disable onboard Audio features if the AV Card Kit is not
inserted onto the CN1 connector. If AV card kit is inserted, please make sure the
BIOS is enabled with the audio function, since LPT2 and audio function can not be
used in the same time.
CN1: Audio Port.
Pin No. Function Pin No. Function
1 BITCLK 2 GND
3 SDIN 4 N.C.
5 SDIN2 6 N.C.
7 SDOUT 8 N.C.
9 SYNC 10 GND
11 –ACRST 12 GND
13 SPEAK 14 Strapping Low
15 +5V(DC) 16 +12V(DC)
17 JBCY 18 JAB2
19 JBCX 20 JAB1
21 JACY 22 JBB2
23 JACX 24 JBB1
25 MSO 26 MSI
AV Card
UC-A003
User’s Manual 11
CN7: Pin Header for PS2 KB / MS
Pin No. Signal (KB) Pin No. Signal(MS)
1 KB Data 2 MS Data
3 KEY 4 KEY
5 GND 6 GND
7 +5V(DC) 8 +5V(DC)
9 KB_CLK 10 MS_CLK
Printer (LPT1/LPT2) Port
Pin No. Description Pin No. Description
1 STB# 10 ACK#
2 PD0 11 BUSY
3 PD1 12 PE
4 PD2 13 SLCT
5 PD3 14 AFD#
6 PD4 15 ERR#
7 PD5 16 INIT#
8 PD6 17 SLIN#
9 PD7 18-25 GND
CN5: LCD - LVDS Output.
Pin No. Signal Pin No. Signal
1 Y0– 2 Y2–
3 Y0+ 4 Y2+
5 Y1– 6 Reserved
7 GND 8 Y3–
9 Y1+ 10 Y3+
11 CK– 12 VDD_PNL
13 CK+ 14 DISP_OFF
15 VBL 16 GND
12
The ENDAT-3201M
Embedded CPU Board
LCD_CON1: TFT LCD Panel Port
Pin No. Signal Pin No. Signal
1 VBL 2 VBL
3 GND 4 GND
5 VDDLCD 6 VDDLCD
7 ENPVEE 8 GND
9 FPD 23 10 FPD 22
11 FPD 17 12 FPD 16
13 FPD 11 14 FPD 10
15 FPD 9 16 FPD 8
17 FPD 21 18 FPD 20
19 FPD 15 20 FPD 14
21 FPD 7 22 FPD 6
23 FPD 5 24 FPD 4
25 FPD 19 26 FPD 18
27 FPD 13 28 FPD 12
29 FPD 3 30 FPD 2
31 FPD 1 32 FPD 0
33 GND 34 GND
35 P_CLK 36 FLM
37 DE 38 LP
39 GND 40 VDDLCD
41 VDDLCD 42
KEY
43 VDDLCD 44 VDDLCD
* Please make sure the Pin 1 location before inserting the LCD connector.
Please double-check the insertion and orientation of the LCD cable before applying power.
Improper installation will result in permanent damage LCD panel.
Factory Setting:
JP1: All Pin Open
JP7: LCD Voltage selector
Voltage JP7
3.3V 4-6
5V 2-4
ose PiJP8: Cl n 1-2
JP13: Factory Using only
JP14: Close Pin 2-3; Pin 5-6; Pin 8-9; Pin 11-12
JT1: Close Pin 2-3; Pin 4-5; Pin 8-9
User’s Manual 13
JH1: Close Pin 1-2; Pin 5-6; Pin 7-8
14
The ENDAT-3201M
Embedded CPU Board
2-2. Installing Memory
The ENDAT-3201M CPU board offers one 168pin DIMM sockets supporting up to 512MB
of memory. The DIMM memory can be 100MHz (PC-100) or 133 MHz (PC-133).
2-3. Shared VGA Memory
The ENDAT-3201M is using built-in AGP VGA controller with share memory architecture
(SMA) -
AGP mode with 2MB to 8MB
of system memory. The amount of video memory
on motherboard determines the number of colors and the video graphic resolution.
2-4. Installing Riser Card
Installing Riser Card (Max. 3 PCI Slot on Riser Card)
PCI Slot INT ADSEL
PCI 1 A,B,C,D AD24(Onboard LAN)
PCI 2 B,C,D,A AD23
PCI 3 C,D,A,B AD22
PCI 4 D,A,B,C AD21
There are two different riser cards that can be fitted to ENDAT-3201M CPU board. The first
one is a 98pin ISA only Bus riser card (traditional ISA Bus riser card), the second one is a
188pins PCI/ISA riser card.
Please note: PCI/ISA riser cards jumper settings have to be matched with the
motherboard INT/AD-select jumper .
The default INT/AD-select for ENDAT-3201M All-In-One motherboard is listed in the
above table. However, it could be revised by changing
JP14 setting
for different
INT/AD-select. The following table shows the variable configurations:
INT/AD Configurations:
Expansion for PCI Slot * Close 1-2 Close 2-3
Expansion PCI 1 INT =A,B,C,D INT = B,C,D,A
Expansion PCI 2 INT = B,C,D,A INT = C,D,A,B
Expansion PCI 3 INT = C,D,A,B INT = D,A,B,C
Expansion PCI 4 INT = D,A,B,C INT = A,B,C,D
Note: Even change the setting for different configuration the AD-select should be match to each INT.
User’s Manual 15
Please using the default setting as above if you are not familiar with the configuration of raiser card
and add-on card.
Caution:
Do not insert PCI Bus Add-On cards directly into the on-board expansion slot!
2-5. Assigning IRQs for Expansion Cards
Some expansion cards require an IRQ (Interrupt request vector) to operate. Generally, each
IRQ must be exclusively assigned to specific use. In a standard design, there are 16 IRQ
available with 11 of them already in used by other part of the system.
Both ISA and PCI expansion cards may need to use IRQ. Cards installed in the ISA
Expansion Bus have the first priority to use the available system IRQs. Any remaining IRQ
then, may be assigned to this PCI Bus. Microsoft's Diagnostic (MSD.EXE) utility included
in the Windows directory can be used to see their map. Make sure that there are no two
devices using the same IRQ in the system. Otherwise this will cause the system to hang up or
give unexpected results. To simplify the process, this motherboard complies with the Plug
and Play (PnP) specifications, which was developed to allow automatic system configuration.
Whenever a PnP-compliant card is added to the system, PnP cards and IRQs are
automatically assigned if available. If the system has both Legacy and PnP ISA cards
installed. IRQs are assigned to PnP cards from those not used by Legacy cards. The PCI and
PnP configuration in the BIOS setup utility can be used to indicate which IRQs have being
used by Legacy cards. For older Legacy cards that do not work with the BIOS, you can
contact your vendor for an ISA configuration utility.
An IRQ number is automatically assigned to PCI expansion cards after those used by Legacy
and PnP ISA cards. In the PCI Bus design, the BIOS is automatically assigned an IRQ to a
PCI slot that has a card in it which requires an IRQ. T o install a PCI card, you need to set the
correct "ADSEL" and "INT" (interrupt) assignment. Please refer to "Chapter 2-5" Installing
a Riser Card for detail assignments.
16
The ENDAT-3201M
Embedded CPU Board
IRQ Status Assignment
0 Used Timer
1 Used Keyboard
2 Used Second 8259
3 Used COM2
4 Used COM1
5 Used COM3
6 Used Floppy Disk
7 Used LPT1
8 Used RTC
9 Used LPT2 or Audio
10 Used COM4
11 Used LAN Adapter (on board)
12 Used PS/2 Mouse
13 Used Coprocessor
14 Used Hard Disk (IDE 1)
15 Used Reserved (IDE 2)
2-6. Assigning DMA Channels for ISA Cards
Since ISA cards, both Legacy and PnP may also need to use a DMA (direct memory access)
channel, DMA assignments for this motherboard are handled the same way as the IRQ
assignment process described above. You can select a DMA channel in the PCI and PnP
configuration section of the BIOS setup utility. In the BIOS setup, you should choose "Yes"
for those IRQ's and DMA's you wish to reserve for Legacy cards.
Chapter 3. AMI BIOS SETUP
AMI BIOS Setup Main Menu
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
PCI / Plug and Play Setup
Peripheral Setup
Hardware Monitor Setup
Setup HDD Security Password
Auto-Detect Hard Disks
Change User Password
Change Supervisor Password
Auto Configuration with Optimal Settings
Save Settings and Exit
Exit Without Saving
Use the CMOS setup program to modify the system parameters to reflect the environment
installed in your system and to customize the system as desired. Press the <DEL> key to
enter into the CMOS setup program when you turn on the power. Settings can be accessed
via arrow keys. Press <Enter> to choose an option to configure the system properly.
In the main menu, press F10 or “Save Settings and Exit” to save your changes and reboot the
system. Choose “Exit Without Saving” to ignore the changes and exit the setup procedure.
Pressing <ESC> at anywhere during the setup will return to the main menu.
“Advanced CMOS Setup”, “Details of the Advanced Chipset Features” and “PCI / Plug and
Play Setup” requires board knowledge on PC/AT system architecture and VIA chipset
specification. They intend to be used by well-trained technicians and experienced users.
Incorrect setup could cause system malfunctions.
18
The ENDAT-3201M
Embedded CPU Board
3-1. Quick Setup
In most cases, you can quickly configure the system by using the following procedure. The
manufacturer highly recommends that you use “Quick Setup” for setting CMOS to avoid any
unpredictable results.
1. Choose “Standard CMOS Setup” from the main menu, to configure the date and time, hard
disk type, floppy disk drive type etc.
2. Choose “Auto Configuration with Optimal Setting” from the menu for loading the defaults
parameters that is set by the manufacturer for the most stable normal configuration.
3. Press F10 or “Save Setting and Exit” to save the changes and reboot the system.
3-2. Description of the BIOS Setup Option
Please make clear the means of those optional parameters. Improper settings will cause the
system to hang up or perform poorly. Most items are clearly understood from the screen
prompt or “Help” by function key “F1”. The manufacturer highly recommends that
“Default” settings have been used to avoid any unpredictable results.
User’s Manual 19
3-3. Advanced CMOS Setup
Advanced CMOS
Setup
Quick Boot Enabled
1st Boot Device Floppy
2nd Boot Device IDE-0
3rd Boot Device CDROM
4th Boot Device Disabled
Try Other Boot Devices Yes
S.M.A.R.T. for Hard Disks Disabled
BootUp Num-Lock On
Floppy Drive Swap Disabled
Floppy Drive Seek Disabled
PS/2 Mouse Support Enabled
Typematic Rate Fast
System Keyboard Present
Primary Display VGA/EGA
Password Check Setup
Boot To OS/2 No
System BIOS Cacheable Enabled
C000, 32k Shadow Cached
C800, 16k Shadow Disabled
CC00, 16k Shadow Disabled
D000, 16k Shadow Disabled
D400, 16k Shadow Disabled
D800, 16k Shadow Disabled
DC00, 16k Shadow Disabled
S.M.A.R.T. For Hard Disks
Set this option to “Enabled” to permit AMIBIOS to use the SMART (Self –
Monitoring, Analysis, and Reporting Technologies) protocol for reporting system
information. The settings are “Enabled” or “Disabled”.
20
The ENDAT-3201M
Embedded CPU Board
Password Check
This option enables password checking every time the system boots or when you
run AMIBIOS Setup. If Always is chosen, a user password prompt appears every
time the computer is turned on. If Setup is chosen, the password prompt appears if
AMIBIOS is executed. See the Advanced Setup chapter for instructions on
changing a password.
Boot To OS/2
Set this option to “Enabled” if running OS/2 operating system and using more than
64 MB of system memory on the motherboard. The settings are “Enabled” or
“Disabled”.
System BIOS Cacheable
When set to “Enabled”, the contents of the F0000h system memory segment can be
read from or written to cache memory. The contents of this memory segment are
always copied from the BIOS ROM to system RAM for faster execution. The
settings are “Enabled” or “Disabled”.
User’s Manual 21
3-4. Details of the Advanced Chipset Setup
Advanced Chipset Setup
******** DRAM Timing ********
Configure SDRAM Timing by SPD Enabled
DRAM Frequency 133Mhz
SDRAM CAS# Latency 3
DRAM Bank Interleave Enabled
Memory Hole Disabled
AGP Read Synchronization Enabled
AGP Fast Write Enabled
AGP Aperture Size 128MB
AGP Master 1 W/S Write Disabled
AGP Master 1 W/S Read Disabled
PCI Delay Transaction Enabled
USB Controller All USB Port
USB Device Legacy Support All Device
Port 64/60 Emulation Disabled
Configure SDRAM Timing by SPD
SPD (Serial Presences Detect) is a device in memory module for storing the module
information such as DRAM timing and chip parameters. If this option is enabled,
BIOS will access SPD automatically to configure module timing. If disabled,
DRAM timing can be configured manually.
SDRAM Frequency
Allows you to set the SDRAM frequency with user set by SPD Disable.
<Choices: 66MHz / 100MHz / 133MHz>
Caution: Improper setting will cause unpredicted result
SDRAM CAS# Latency With SDRAM Timing by SPD disabled, you can
select
The SDRAM CAS# (Column Address Strode) latency manually. Choices:
2 Clocks; 3 Clocks
22
The ENDAT-3201M
Embedded CPU Board
SDRAM Bank Interleave
This function is to enable / disable SDRAM Bank Interleave function. Choices:
Disabled / Enabled
Memory Hole
To enabled / disabled (default) the support of Memory Hole which is reserved for
ISA card.
AGP Read Synchronization
To enabled / disabled the AGP Read Synchronization function.
AGP Fast Write
This function allows enabling / disabling the AGP Fast Write function
AGP Aperture Size
This function allows adjusting AGP Aperture Size from 2MB to 256MB to
increased VGA performance.
AGP Master 1 W/S Write
Allows you to enable / disable the AGP Master Write with 1 wait state
AGP Master 1 W/S Read
To enable / disable the AGP Master Read with 1 wait state
PCI Delay Transaction
To enable / disable the AGP Fast Write function
USB Controller
To enable / disable the on board USB Port function
Choices: USB Port 0&1 / USB Port 2&3 / All USB Device
USB Device Legacy Support
To enable / disable the on board USB support device with
Choices: Disabled / No Mice / All Device
Port 64/60 Emulation
To enable / disable the on board USB to support Mouse under NT4.0.
The default setting is “Disabled”, Choices: Enabled / Disabled
User’s Manual 23
3-5. Peripheral Setup
Peripheral Setup
OnBoard FDC Enabled
OnBoard Serial Port 1 3F8/COM1
OnBoard Serial Port 2 2F8/COM2
OnBoard Parallel Port 378
Parallel Port Mode ECP
EPP Version N/A
Parallel Port DMA Channel 3
Parallel Port IRQ 7
OnBoard Serial Port 3 3E8/COM3
Serial Port3 IRQ 9
OnBoard Serial Port 4 2E8/COM4
Serial Port4 IRQ 10
OnBoard Parallel Port 2 Disabled
Parallel Port Mode Normal
EPP Version N/A
Parallel Port DMA Channel N/A
Parallel Port IRQ 5
OnBoard AC'97 Audio Enabled
OnBoard Legacy Audio Enabled
Sound Blaster Enabled
SB I/O Base Address 220h-22Fh
SB IRQ Select 5
SB DMA Select 1
MPU-401 Enabled
MPU-401 I/O Address 330h-333h
Game Port (200h-207h) Enabled
Onboard FDC
Set this option to “Enabled” to enable the floppy drive controller on the
motherboard. The settings are Auto (AMIBIOS automatically determines if the
floppy controller should be Enabled, or Disabled).
24
The ENDAT-3201M
Embedded CPU Board
Onboard Serial Port 1/2/3/4
This option specifies the base I/O port address of serial port. The settings are Auto
(AMIBIOS automatically determines the correct base I/O port address), Disabled,
3F8h, 2F8h, 3E8h, or 2E8h.
Onboard Parallel Port
This option specifies the base I/O port address of the parallel port on the
motherboard. The settings are Disabled, 378h, 278h, or 3BCh. The Optimal default
setting is 378h
Parallel Port Mode
This option specifies the parallel port mode. The Optimal default setting is Normal.
The settings are:
Setting Description
Normal The normal parallel port mode is used.
Bi-Dir Use this setting to support bidirectional transfers on the
parallel port.
EPP The parallel port can be used with devices that adhere to
the Enhanced Parallel Port (EPP) specification. EPP uses
the existing parallel port signals to provide asymmetric
bidirectional data transfer driven by the host device.
ECP The parallel port can be used with devices that adhere to
the Extended Capabilities Port (ECP) specification. ECP
uses the DMA protocol to achieve data transfer rates up to
2.5 Megabits per second. ECP provides symmetric
bidirectional communication.
EPP Version
This option specifies the Enhanced Parallel Port specification version number that
is used in the system. This option only appears if the Parallel Port Mode option is
set to EPP. The settings are 1.7 or 1.9
.
Parallel Port IRQ
This option specifies the IRQ used by the parallel port. The settings are Auto, (IRQ)
5, or (IRQ) 7.
Parallel Port DMA Channel
This option is only available if the setting for the Parallel Port Mode option is
ECP. This option sets the DMA channel used by the parallel port. The settings are
DMA Channel 0, 1, or 3.
User’s Manual 25
Serial Port IRQ
This option specifies the IRQ used by the serial port.
The default settings are (IRQ)3, (IRQ)4, (IRQ)9 and (IRQ)10.
Onboard AC' 97 Audio
This function is to disable or enable AC’97 Audio. Choices: Auto; Disabled
Onboard Legacy Audio
This function allows configuring the Audio Codec to support legacy Sound Blaster
mode. Choices: Auto; Disabled
Sound Blaster
This option is to Enable / Disable the onboard Audio support Sound Blaster
decoding.
SB I/O Base Address
To configure the Sound Blaster decoding I/O range.
Choice: 220h, 240h, 260h, 280h
SB IRQ Select
To configure Sound Blaster IRQ channel.
Choice: 5,7 and 10
SB DMA Select
To configure Sound Blaster DMA channel.
Choice: 0,1,2 and 3
MPU-401
This option is to Enable / Disable onboard MIDI port decoding.
MIPU-401 I/O Address
If the onboard MPU-401 port is “Enabled”, it allows to set at 300h/310h/320h or
330h.
Game Port (200h-207h)
This option allows configuring onboard Game port address. The choices: Disabled;
200h; 207h
26
The ENDAT-3201M
Embedded CPU Board
3-6. Power Management Setup
Power Management Setup
Power Management/APM Enabled
Video Power Down Mode Disabled
Hard Disk Power Down Mode Disabled
Standby Time Out (Minute) Disabled
Suspend Time Out (Minute) Disabled
Display Activity Ignore
IRQ3 Monitor
IRQ4 Monitor
IRQ5 Ignore
IRQ7 Monitor
IRQ9 Ignore
IRQ10 Ignore
IRQ11 Ignore
IRQ13 Ignore
IRQ14 Monitor
IRQ15 Ignore
Power Button Function On/Off
Restore on AC/Power Loss Power On
Power Management/APM
Set this option to Enabled to enable the chipset power management and APM
(Advanced Power Management) features. The settings are Enabled or Disabled.
For detail information, please kindly refer to the Appendix C for “Operation guide
for enable APM function with WIN2000 / WIN XP”
Video Power Down Mode
This option specifies the power state that the video subsystem enters when
AMIBIOS places it in a power saving state after the specified period of display
inactivity has expired. The settings are Standby, Suspend or Disabled.
Hard Disk Power Down Mode
This option specifies the power conserving state that the hard disk drive enters after
the specified period of hard drive inactivity has expired. The settings are Disabled,
Standby, or Suspend.
User’s Manual 27
Standby/Suspend Timer Unit
This option specifies the unit of time used for the Standby and Suspend timeout
periods. The settings are 4 msec, 4 sec, 32 sec, or 4 min.
Display Activity
When set to Monitor, this option enables event monitoring on the video display. If
set to Monitor and the computer is in a power saving state, AMIBIOS watches for
display activity. The computer enters the Full On state if any activity occurs.
AMIBIOS reloads the Standby and Suspend timeout timers if display activity
occurs. The settings are Monitor or Ignore.
Power Button Function
This option specifies how the power button mounted externally on the computer
chassis is used. The default setting is On/Off.
Restore on AC/Power Loss
Power “Off” Set Restore on AC/Power Loss is Power off.
Power “On” Set Restore on AC/Power Loss is Power on. (Default Value)
28
The ENDAT-3201M
Embedded CPU Board
3-7. PCI / Plug and Play Setup
This section describes the configuration of the PCI bus system. PCI is a system that allows
I/O device to operate at speeds nearing the speed of the CPU itself, when communicating
with its own special components. This section covers some very technical items. It is strongly
recommended that only experienced users make any changes to the default settings.
PCI / Plug and Play Setup
Plug and Play Aware O/S No
OnChip VGA Frame Buffer Size 8MB
PCI Latency Timer (PCI Clocks) 32
Primary Graphics Adapter PCI
Display Device CRT Only
LCD Resolution 640 x 480
DMA Channel 0 PnP
DMA Channel 1 PnP
DMA Channel 3 PnP
DMA Channel 5 PnP
DMA Channel 6 PnP
DMA Channel 7 PnP
IRQ3 ISA/EISA
IRQ4 ISA/EISA
IRQ5 PCI/PnP
IRQ7 ISA/EISA
IRQ9 PCI/PnP
IRQ10 PCI/PnP
IRQ11 PCI/PnP
IRQ14 PCI/PnP
IRQ15 PCI/PnP
Plug and Play Aware O/S
Set this option to Yes to inform AMIBIOS that the operating system can handle plug
and Play (PnP) devices. The settings are No or Yes. The Optimal and Fail-Safe
default settings are No.
User’s Manual 29
Display Device
Select the display device for system. The available options are
CRT Only, CRT + LCD.
** Please note that the text form in the CRT+LCD mode will be shown as the format of LCD
mode, not CRT mode; therefore, it will be reading differently on the CRT display.
LCD Resolution
Select the display resolution for LCD panel. The available options are
640x480, 800x600,
1024x768.
PCI Latency Timer (PCI Clocks)
This option specifies the latency timings (in PCI clocks) for PCI devices installed in
the PCI expansion slots. The settings are 32, 64, 96, 128, 160, 192, 224, or 248.
IRQ3/4/5/7/9/10/11/14/15 Assigned to
These options specify the bus that the specified IRQ line is used on. These options
allow you to reserve IRQs for legacy ISA adapter cards. These options determine if
AMIBIOS should remove an IRQ from the pool of available IRQs passed to devices
that are configurable by the system BIOS. The available IRQ pool is determined by
reading the ESCD NVRAM. If more IRQs must be removed from the pool, the end
user can use these options to reserve the IRQ by assigning an ISA/EISA setting to it.
Onboard I/O is configured by AMIBIOS. All IRQs used by onboard I/O are
configured as PCI/PnP. IRQ12 only appears if the Mouse Support option in
Advanced Setup is set to Disabled. IRQ14 and 15 will not be available if the
onboard PCI IDE is enabled. If all IRQs are set to ISA/EISA and IRQ14 and 15 are
allocated to the onboard PCI IDE, IRQ9 will still be available for PCI and PnP
devices, because at least one IRQ must be available for PCI and PnP devices. The
settings are ISA/EISA or PCI/PnP. The Optimal and Fail-Safe default settings are
PCI/PnP.
DMA0/1/3/5/6/7 Assigned to
These options allow you to specify the bus type used by each DMA channel. The
settings are PnP or ISA/EISA
.
30
The ENDAT-3201M
Embedded CPU Board
3-8. Hardware Monitor Setup
Provide some information such as CPU temperature, speed of cooling fan and usage
voltage of CPU for user.
Chapter 4. VGA, LCD, DOC Feature
4-1. AGP-BUS VGA Feature
The ENDAT-3201M built-in Graphics Controller is a fully integrated 64-bit 2D/3D
Accelerator. The high performance graphics engine offers high speed 3D image
processing in full compliance and compatibility with IBM® VGA and VESA™
extended VGA.
The on-board Graphics Controller supports a full AGP implementation internally to
remain compatible with existing software and programming models. However,
since the engine is integrated it enjoys a higher bandwidth and lower latency than is
possible with discrete solutions. The Controller also supports two simultaneous
displays: CRT, Flat Panel Monitor.
The on-board Graphics Controller’s main system features include:
- High Performance single cycle GUI
- Highly Integrated RAMDAC™ and Triple Clock Synthesizer
- Full Feature High Performance 3D Graphics Engine
- High speed internal AGP Bus Mastering data bus supporting DVD video
playback & 3D
- Hardware implementation of motion compensation
- Dual Video Windows for Videoconferencing
- Versatile Motion Video Capture/Overlay/Playback Support
- Flexible Frame Buffer Memory Interface
- Advanced Mobile Power Management and CRT Power Management
(VESA™ DPMS)
- PC99 Hardware Support
32
The ENDAT-3201M
Embedded CPU Board
4-2. LCD Flat Panel Feature
Flat Panel Monitor Interface
The on-board graphic controller also support industry standard TFT LCD panel, the
interface supports both 18-bit and 24-bit display modes. Optionally, an 18+18 or
24+24 can be supported utilizing external kit (UC-T1848). LVDS interface to
provide a low voltage, high speed, low EMI serial DC-balanced differential data
via on board LVDS transmitters to support TFT LCD Panel with 18 bit LVDS
built-in. And 24, 18+18 or 24+24 can be supported utilizing external kit:
UC-LT1815 (24), UC-L1836 (18+18) and UC-2448 (24+24).
The flat panel interface provides or supports the following functions for various
panels:
- Generates flat panel interface signals like FLM, LP, SCLK, and DE
- Generates different video data formats to directly drive different types of
panels
- Vertical and horizontal expansion of video displays to LCD panel resolution
- Vertical and horizontal centering
- Panel power sequence
Please note that the default setting is with “CRT only”. If the LCD display
feature is required, the setting will need to be revised in the system BIOS setting:
“Display Device” under “
PCI / Plug and Play Setup”;
unless it is specified at the
time of order.
User’s Manual 33
4-3. PCI Bus Audio Adapter Features
The Chipset built-in SoundBlaster Pro Hardware and Direct Sound Ready AC97’ Digital
Audio Controller
•
Dual full-duplex direct sound channels between system memory and AC97’ link
•
PCI Master interface with scatter / gather and bursting capability
•
32byte FIFO of each direct sound channel
•
Host based sample rate converter and mixer
•
Standard v1.0 or v2.0 AC98’ Codec interface for single or cascaded AC97’ Codec’s
from multiple vendors
•
Loop back capability for re-directing mixed audio streams into USB and 1394 speakers
•
Hardware SoundBlaster Pro for Windows DOS box and real-mode DOS legacy
compatibility
•
Plug and Play with 4 IRQ, 4 DMA and 4 I/O space options for SoundBlaster Pro and
MIDI hardware
•
Hardware assisted FM synthesis for legacy compatibility
•
Complete software driver support for Windows-95, Windows-98 and Windows-NT
34
The ENDAT-3201M
Embedded CPU Board
4-4. DiskOnChip Feature
On board reserved is a 32-pin Socket for DiskOnChip 2000, it is a unique data storage
solution to offer a better, faster and more cost effective Flash Disk for applications.
The DiskOnChip 2000 provides a Flash Disk (as BIOS expansion) that does not require any
additional bus, slot or connector. Simply insert the DiskOnChip 2000 into a 32-pin socket on
your motherboard. With minimal installation costs, you have a bootable Flash Disk.
DiskOnChip 2000 has built-in True FFS (True Flash File System) technology, which
provides full Read/Write disk emulation.
True FFS provides hard disk compatibility at both the sector and file level. It works in a
variety of operating system environments, such as DOS, Win95, WinCE, WinNT, Psos+ and
QNX.
The correct memory address must be set correctly for DiskOnChip at the jumper
JP15
. The
driver utilities are placed onto CD-ROM
JP15 Memory Address
1-2 7-8 0C800H-0C9FFH
1-2 9-10 0 C C 0 0 H - 0 C D F F H
3-4 7-8 0D000H-0D1FFH
3-4 09-1 0D400H-0D5FFH
5-6 7-8 0D800H-0D9FFH
User’s Manual 35

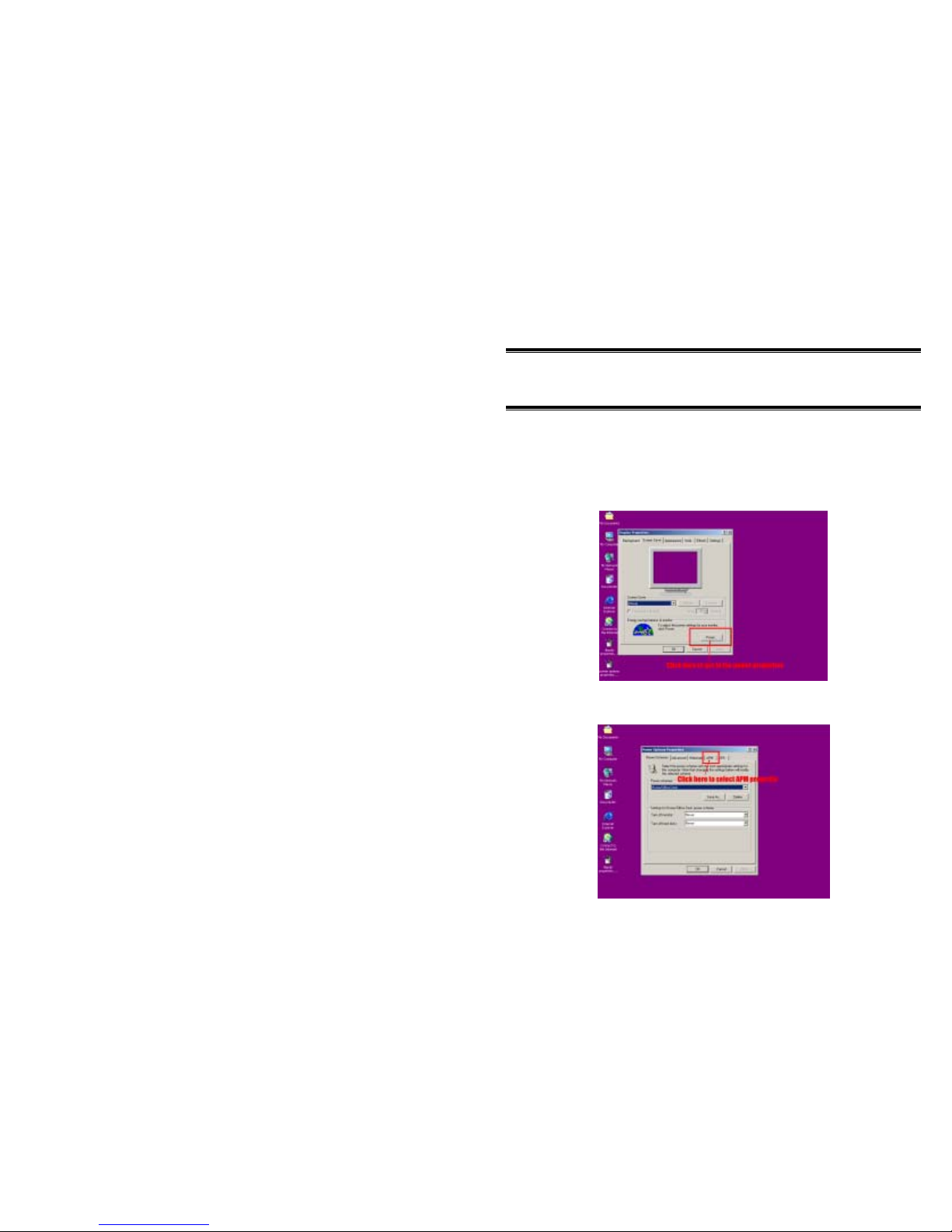

4-5. Driver Utility Installation Guide
1.
When finishing the installation of Windows platform (95/98/2000/NT), please install
the relative VIA driver (
4in1)
utilities for compliance compatibility of hardware
environment.

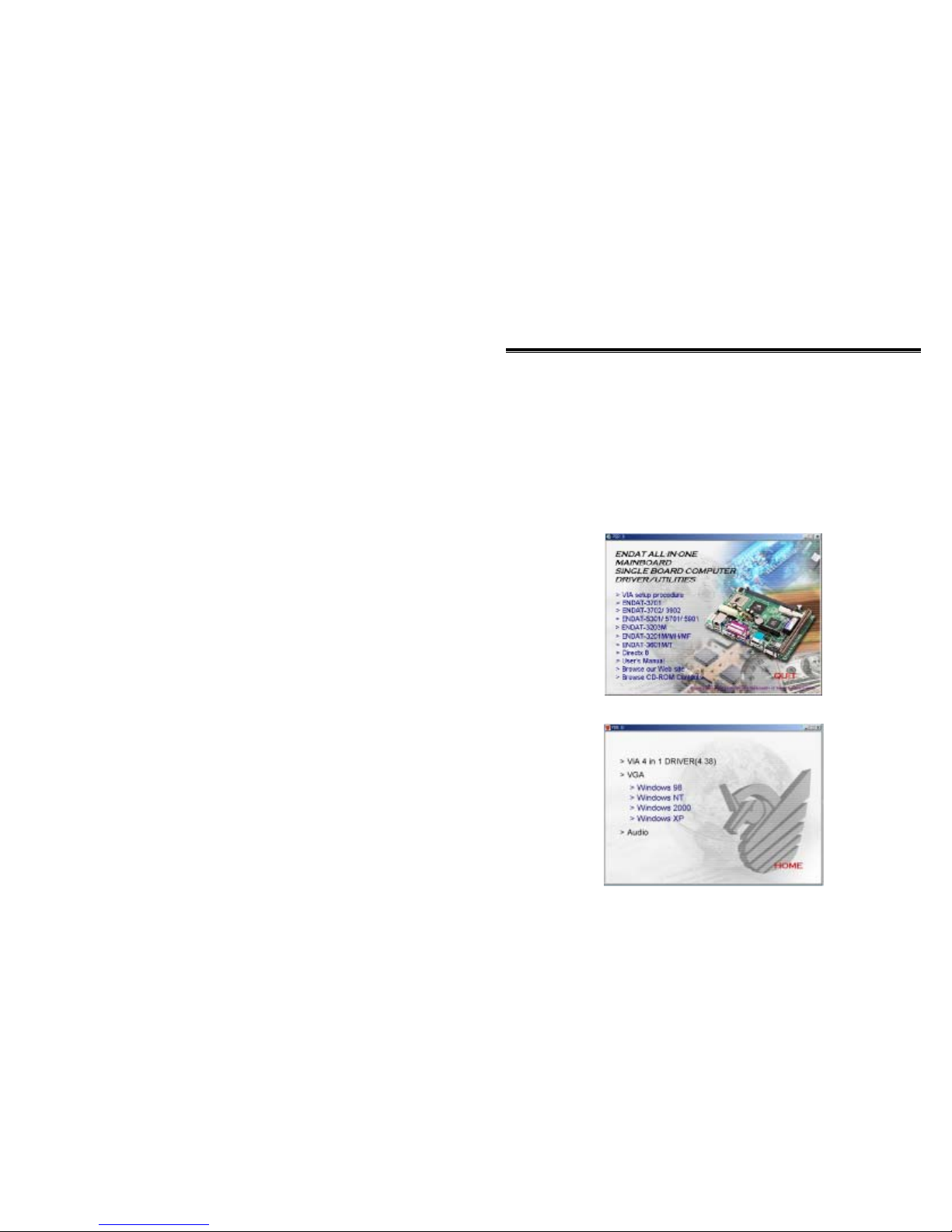

2. Insert the support CD that supplied with motherboard into CD-ROM driver
which enable the access with auto-run mode; or double –click the CD driver
icon in “My Computer” to bring up the screen.
3. Select correct motherboard to install driver / utility for the system
4. Select VIA 4in1 service pack driver install to the system
36
The ENDAT-3201M
Embedded CPU Board
5. The Screen will appear VIA 4in1 driver setup screen, please press “NEXT” to
continue. Please follow the steps instructed by each screen for the installation
of the VIA 4in1 driver. Restart the system after the completion of the
installation.
6. After installing the VIA 4in1 driver, please select VGA driver for install. The
system will request for “restart” after the completion of the driver installation.
7. The Screen can be adjusted at Display properties after the installation of VGA
driver.
We str ongly r ecommend using the 4in1 driv er to install the system since the 4in1
driver will automatically detect / update the necessary drivers.
This driver will automatically detect and install the latest utilities as following:
IDE Bus master , VIA AGP Driver,
IRQ Routing Driver, VIA INF Driver
LAN Driver:
Install the LAN driver for on-board LAN adapter. Please refer to Chapter 5,
The
Realtek 8139 LAN Driver Installation Procedure.
VGA Driver:
Install the VGA driver for on-board AGP VGA adapter
Please download or check from VIA Web-site:
www.via.com.tw
if you prefer to install the drivers
individually or you need more information.
Chapter 5. LAN Adapter
The on-board LAN adapter use of Single Chip Fast Ethernet Controller, that is highly
integrated and requires no “glue” logic external memory on board. It runs in the bus master
mode and directly sending/receiving Ethernet packet to/from memory. The On-board LAN
adapter can directly fetch the system CPU. Also, it can transfer data Directly between I/O
devices and system memory in the 32-bit bus master mode that provides low CPU utilization.
It complies with the IEEE 802.3u standard, IEEE802.3 standard and PCI Local Bus version
2.1 and transmits data on the network at 100 Mbps or 10 Mbps. It also operates in full-duplex
mode that
doubles the network speed up to 20/200 Mbps when working with Fast
Switching Hub.
Built-in one RJ-45 port for connection of 100Base-TX Fast Ethernet or
10Base-T Ethernet network, and automatically senses the connection type.
5-1. Features
•
Full compliancy with PCI Rev. 2.1
•
Complies with the Ethernet/IEEE 802.3u 100Base-TX and 10 Base-T industry
standard
•
Supports full-duplex operations, thus doubling the network speed up to 20Mbps on 10
Base-T Ethernet or 200Mbps on 100 Base-TX Fast Ethernet when setting in full duplex
mode
•
Two LED indicators to report network status
•
One RJ-45 connector with Auto-sense cable type of 10 or 100Mbps network operation
•
Supports PCI clock speed up to 33MHz, capable of zero wait states
•
Supports optional Remote Boot ROM socket
•
Provides a comprehensive setup program for displaying the adapter configuration and
includes diagnostic on board or network tests.
•
Complete drivers for Novell, ODI, SCO UNIX, LAN Manager, Windows NT and
Windows 95/98 Packet driver etc
38
The ENDAT-3201M
Embedded CPU Board

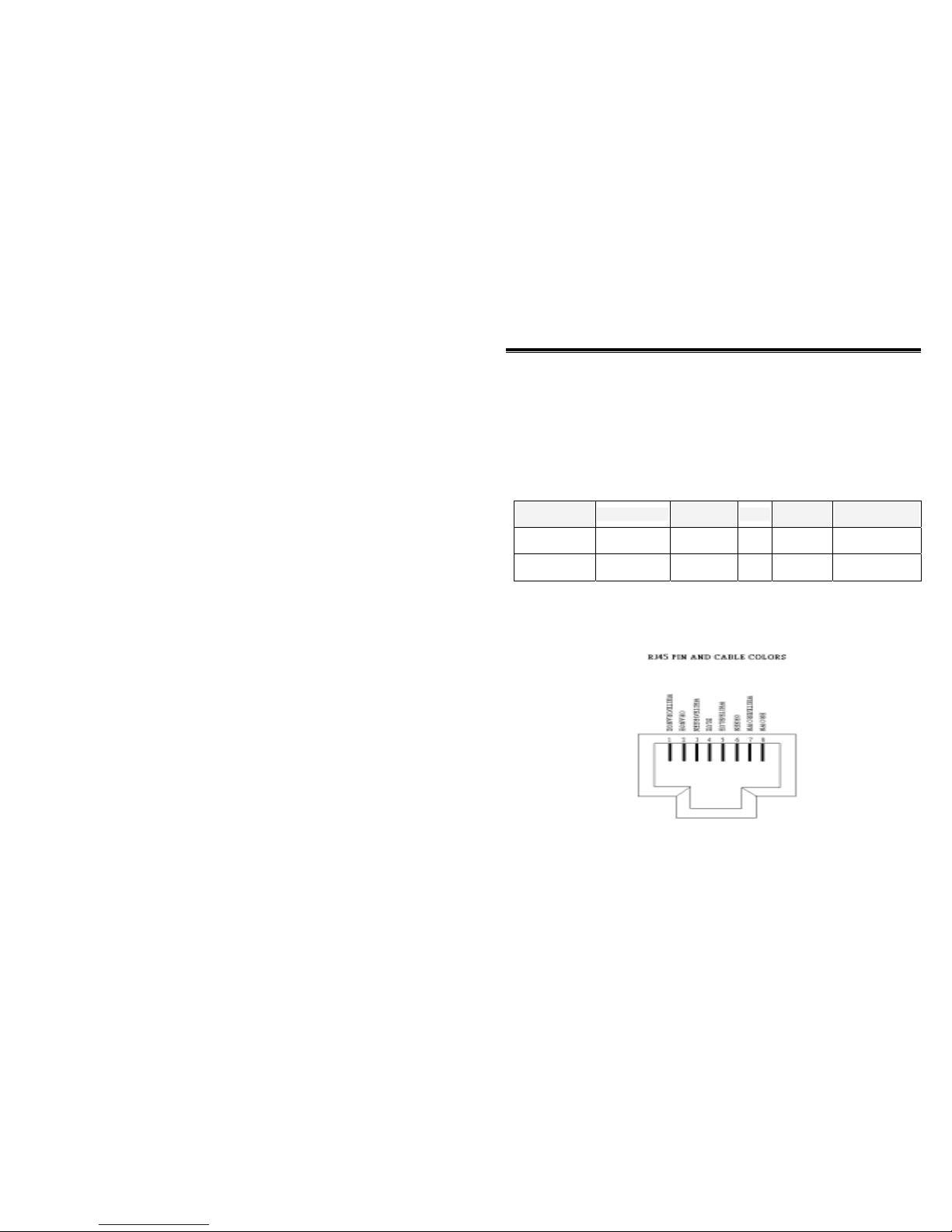

5-2. UTP Cable / RJ-45 Jack Definition
Straight through twisted pair cable is typically used to connect a hub to a server or
workstation. In a straight through connection, Pin 1 at the server, Pin 2 at the hub connects to
Pin 2 at the server, and so on. Figure A-1 shows the locations of pins on a standard RJ-45 plug
on a twisted-pair cable.
Table A-1 shows the wiring in a straight-through twisted-pair cable (Pins 4,5,7 and 8 are not
used).
Twisted Pair
Number
Pin Number
Signal
Description
To
Pin
Number
Signal
Description
1
1
2
TD+
TD–
1
2
TD+
TD–
2
3
6
RD+
RD–
3
6
RD+
RD–
RJ-45 Connector Pin Assignments
Figure A-1 shows the RJ-45 Connector pin assignments
User’s Manual 39
5-3. Connecting 100Base-TX Fast Ethernet Network
The system board provides an RJ-45 port for connection to 100Base-TX Fast Ethernet or
10Base-T Ethernet Network with a single connection over unshielded twisted-pair (UTP).
The adapter automatically operates at 10Mbps or 100Mbps when the appropriate 10/100Base
hub be connected.
To connect the adapter to 100Base-TX Fast Ethernet Network, you need a twisted-pair
Category 5 cable with RJ-45 modular jacks at both ends. This cable can have a maximum
length of 300 feet (100 meters).
5-4. Connecting 10Base-T Ethernet Network
To connect the adapter to a 10Base-T Ethernet Network, you need a twisted-pair Category 3,
4 or 5 cables with RJ-45 modular jacks at both ends. This cable can have a maximum length
of 300 feet (100 meters).
5-5. 10MBase/100MBase Installation Notice
•
100Mbps network must be shielded twisted-pair (STP) or Category 5 unshielded
twisted-pair cable. Do not use a Category 3 or 4 cable for 100Mbps-network operation,
it could cause data loss. Category 3 or 4 cable is good for 10Mbps network only.
•
Category 5 cable is also good for 10Mbps operation. Use UTP Category 5 cable for the
versatility to operate the network at either 100Mbps or 10Mbps speed without
changing cable.
•
Two pairs of wiring are required.
•
Depending on building codes, different insulation materials may be required.
Plenum-rated or TEFLON-coated wiring maybe required in some areas where fire
proofing is required.
•
The wire gauge should be between 18 and 26 AWG (Most telephone installations use
24-gauge wiring).
•
UTP cable should meet the following requirements:
1. Solid copper
40
The ENDAT-3201M
Embedded CPU Board
2. Nominal capacitance: less than 16pF/ft
3. Nominal impedance: 100 ohms
4. Nominal attenuation: less than 11.5db
Automatic Selection of the Media Type
While the driver installs, it automatically detects the media type based on the type of cable
connected. Once you change the cable type, you must reinstall the driver to execute
auto-detect again.
If the driver cannot detect which cable is connected or whether a cable is connected,
look at cabling network driver (Ex. Modify net.cfg file parameters—force line
speed=10 or 100).
10/100 Auto – Negotiation (N-Way)
Depending on the hub or connected device, the LAN adapter can automatically run at the
appropriate speed, by using N-way, a feature that complies with the IEEE802.3 standard. It
also works with any of the other IEEE-compliant products.
5-6. Remote BOOT function
This function is available with the BIOS programming for indicated operation system. The
remote boot function allows the computer to boot up over the network, instead of using the
local operating system device. This enables the system to be a diskless workstation
environment.
User’s Manual 41
5-7. LED Indicators
The system board comes with two LED indicators on the edge of the motherboard that
indicates the network system status. If you experience any problems with the adapter, first
make sure the appropriate driver is loaded, the proper cable is connected to the RJ-45 port
and the hub complies with the adapter specification, such as 10Mbps 10Base-T or 100Mbps
100Bast-TX. Finally, recheck the LEDs.
FUDUP (Full Duplex) Indicator
When indicator is ON, it indicates Full-duplex mode: otherwise, it is OFF. The adapter
supports full duplex at 10 or 100Mbps. If the switch-hub supports the N-way feature and full
duplex, the system automatically runs in full duplex mode.
Tx/Rx (Transmit/Receiver) Indicator
This indicator flashes to display that there is network activity – indicating transmission or
reception data from the network.
5-8. The Setup Program
The package includes a diskette containing the setup program. This program allows you to
verify the configuration and isolation of faults.
The adapter’s I/O port address and interrupt request levels (IRQ) are set by the BIOS. Other
default settings can be changed for situations as shown below.
Problem (RESET8139.exe) provides the following function:
•
Displays the current configuration of the adapter
•
Performs network diagnostic tests to verify the operation of the adapters basic
functions, and the adapters ability to communicate over the network with another
adapter.
•
Provides set up for new configuration to make a change specify settings: Remote
BOOT ROM, Flow Control and Full-Duplex mode Enable/or Disable
Full duplex operation is set automatically if the Full-duplex option is set to Disable. Please
follow the prompt instructions to set-up or change the system configuration.
42
The ENDAT-3201M
Embedded CPU Board
Note:
Before running the setup program, make sure the adapter’s driver is not loaded,
otherwise unpredictable results may arise!
The setup program can be set the on board configuration to provide diagnostic testing. It is
for testing the basic function verification, EEPROM data Access, loop back operation, and
the ability to communicate over the network with another adapter.
To access this program, insert the Driver Diskette into the floppy disk drive and then type the
following at the DOS prompt:
A:\REST8139.EXE <ENTER>
1. View Current Configuration
This allows you to find the PCI Fast Ethernet adapter current configuration in your
system.
2. Set Up New Configuration
Select New Set Up Configuration option from the main menu
The option settings can be changed, the table shown as below:
Option Default Setting Other Available Settings
Full-duplex Disabled Auto Selection Enable – Forces to full duplex operation
Flow Control TX Enable, RX Enable TX Disable, RX Disable
Note:
Before setting the adapter for full duplex, make sure the hub switch is also set to full
duplex. Before you activate the switching hub to server connection, make sure the
hub switch and adapter are configured for full duplex.
3. Run Diagnostics
Running diagnostic tests perform basic function verification for on board LAN adapters.
The basic Diagnostic tests include:
•
EEPROM T est
: EEPROM data read/write test
•
Diagnostics On Board
: Performs on board basic function verification
•
Diagnostics On Network
: T o run this test on the network, you will need another
computer set up as a Responder to receive packets from the adapter being tested and echo
them back to the adapter. This checks the adapter’ s ability for communication over the
User’s Manual 43
network with another adapter to receive and transmit network packets.
4. Software Installation
Installing Network Drivers
You must install a network driver to allow the adapter to work with your network operating
system.
The system board provides various network drivers on the driver diskette. The following
provides the installation procedures for different network drivers.
Note:
Please install the “VIA PATCH FILE” first if you want to link your LAN with
Windows 98
For detailed information of each OS installation, please refer to the README (.TXT) file on
the driver diskette.
Software Installation Examples
Before installing the driver programs, please refer to each directory that contains a
README file, which provides detailed installation instructions, or to execute the
HELP8139.EXE help file viewer in DOS. The utility will then present with a scr een
showing the information about how to install the network driver. Driver needed for
the adapter to work with the operating system.
44
The ENDAT-3201M
Embedded CPU Board
Appendix A: FLASH Memory Utility
Using this utility to update the system BIOS from a disk file to the on board Flash memory.
Be aware the improper change of the system BIOS will cause the system to malfunction.
Using utility as follows:
1. Insert the FLASH memory BIOS utility distribution floppy diskette in drive A:
2. At the DOS prompt, type A:\> F82725 xxxx.ROM <Enter>
---- Screen Message ---DOS/4G Protected Mode Run-time Version 2.01a
Copyright © Tenberry Software, Inc. 1996
Please wait for loading BIOS ROM ….
AMI Flash Utility V8.27.25
Flash ROM Programming report
Chipset Vendor
Chipset Code
ROM Filename
Boot Block Programming
: VIA
: VIA686A/B
: xxxx.ROM
: Y es
Flash ROM Vendor
Flash ROM Code
ROM File Size
: IC Brand
: IC P/N
: 512kb
>>>>>>>>>>>>>>>>>>>>>>……
Verify ROM data Now….
Flash ROM update Completed - Pass
Please restart your system.
A:\>
Please restart your system and load setup default
/
Appendix B: Connector Pin Assignment
PS/2 Keyboard / Mouse Pin Header Connector (CN7)
Pin No. Signal (KB) Pin No. Signal(MS)
1 KB Data 2 MS Data
3 KEY 4 KEY
5 GND 6 GND
7 +5V(DC) 8 +5V(DC)
9 KB_CLK 10 MS_CLK
D-SUB Type Connector for COM port (RS232)
Pin No. Description Pin No. Description
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND
Box Header Type Connector for COM port (RS232)
Pin No. Description Pin No. Description
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND 10 N.C
D-SUB Type Connector for COM2 port (RS-422/485)
Pin No. Description Pin No. Description
1 –TXD 6 NA
2 +RXD 7 NA
3 +TXD 8 NA
4 NA 9
–RXD
5 NA
48
The ENDAT-3201M
Embedded CPU Board
Printer (LPT1/LPT2) Port
Pin No. Description Pin No. Description
1 STB# 10 ACK#
2 PD0 11 BUSY
3 PD1 12 PE
4 PD2 13 SLCT
5 PD3 14 AFD#
6 PD4 15 ERR#
7 PD5 16 INIT#
8 PD6 17 SLIN#
9 PD7 18-25 GND
VGA Connector
Pin No. Description Pin No. Description
1 RED 9 N.C. / +5V
2 GREEN 10 GND
3 BLUE 11 N.C
4 N.C 12 DDC DAT
5 GND 13 H.Sync
6 GND 14 V.Sync
7 GND 15 DDC CLK
8 GND
FDD Connector
Pin No. Description Pin No. Description
1,3,5,7 GND 14 DSA#
9,11,13 GND 16 MOB#
15,17,19 GND 18 DIR
21,23,25 GND 20 STEP#
27,29,31 GND 22 WD#
33 GND 24 WE#
2 RWC# 26 TRAK0
4,6 N.C 28 WP#
8 INDEX# 30 RDATA#
10 MOA# 32 HEAD#
12 DSB# 34 DSKCHG#
User’s Manual 49
LCD - LVDS Output Connector (CN5)
TFT LCD Panel Port Connector (LCD-CON1)
Pin No. Signal Pin No. Signal
1 VBL 2 VBL
3 GND 4 GND
5 VDDLCD 6 VDDLCD
7 ENPVEE 8 GND
9 FPD 23 10 FPD 22
11 FPD 17 12 FPD 16
13 FPD 11 14 FPD 10
15 FPD 9 16 FPD 8
17 FPD 21 18 FPD 20
19 FPD 15 20 FPD 14
21 FPD 7 22 FPD 6
23 FPD 5 24 FPD 4
25 FPD 19 26 FPD 18
27 FPD 13 28 FPD 12
29 FPD 3 30 FPD 2
31 FPD 1 32 FPD 0
33 GND 34 GND
35 P_CLK 36 FLM
37 DE 38 LP
39 GND 40 VDDLCD
41 VDDLCD 42
KEY
43 VDDLCD 44 VDDLCD
Pin No. Signal Pin No. Signal
1 Y0– 2 Y2–
3 Y0+ 4 Y2+
5 Y1– 6 Reserved
7 GND 8 Y3–
9 Y1+ 10 Y3+
11 CK– 12 VDD_PNL
13 CK+ 14 DISP_OFF
15 VBL 16 GND
50
The ENDAT-3201M
Embedded CPU Board
Audio Output Port Connector (CN1)
Pin No. Function Pin No. Function
1 BITCLK 2 GND
3 SDIN 4 N.C.
5 SDIN2 6 N.C.
7 SDOUT 8 N.C.
9 SYNC 10 GND
11 –ACRST 12 GND
13 SPEAK 14 Strapping Low
15 +5V(DC) 16 +12V(DC)
17 JBCY 18 JAB2
19 JBCX 20 JAB1
21 JACY 22 JBB2
23 JACX 24 JBB1
25 MSO 26 MSI
IR Connector (J1)
Pin 1
VCC
Pin 4
GND
Pin 2
N.C
Pin 5
IRTX
Pin 3
IRRX
User’s Manual 51
IDE1 Connector
Pin No. Description Pin No. Description
2,19,22 GND 13 IDE data2
24.26.30 GND 14 IDE data13
40 GND 15 IDE data1
20,21,28 N.C 16 IDE data14
29,32,34 N.C 17 IDE data0
1 IDE reset 18 IDE data15
3 IDE data7 23 IDE Write
4 IDE data8 25 IDE Read
5 IDE data6 27 IDE Ready
6 IDE data9 31 IDE IRQ
7 IDE data5 33 IDE A1
8 IDE data10 35 IDE A0
9 IDE data4 36 IDE A2
10 IDE data11 37 IDECS1#
11 IDE data3 38 IDESC3#
12 IDE data12 39 HDLED0#
52
The ENDAT-3201M
Embedded CPU Board
Expansion Slot to PCI/ISA Pin Assignment
Pin No. Description A Description B Description E Description F
1
–IOCHK GND GND GND
2
SD7 RSTDRV GND GND
3
SD6 VCC –PCINT2 –PCINT4
4
SD5 IRQ9 –PCINT3 –PCINT1
5
SD4 –5V VCC VCC
6
SD3 DRQ2 KEY KEY
7
SD2 –12V VCC VCC
8
SD1 0WS –PCIRST PCLKF
9
SD0 +12V –GNT3 GND
10
IOCHRDY GND –REQ3 GNT1
11
AEN –SMEMW GND GND
12
SA19 –SMEMR PCLKE –REQ1
13
SA18 –IOW GND AD31
14
SA17 –IOR AD30 AD29
15
SA16 –DACK3 PCLKG N.C
16
SA15 DRQ3 KEY KEY
17
SA14 –DACK1 –GNT2 –REQ2
18
SA13 DRQ1 AD28 AD27
19
SA12 REFRESH AD26 AD25
20
SA11 SYSCLK –CBE3
21
SA10 IRQ7 AD22 AD23
22
SA9 IRQ6 AD20 AD21
23
SA8 IRQ5 AD18 AD19
24
SA7 IRQ4 N.C. N.C
25
SA6 IRQ3 KEY KEY
26
SA5 –DACK2 N.C N.C
27
SA4 TC AD16 AD17
28
SA3 BALE –FRAME –IRDY
29
SA2 VCC –CBE2 –DEVSEL
30
SA1 OSC –TRDY –PLOCK
31
SA0 GND –STOP –PERR
AD24
User’s Manual 53
Pin No. Description C Description D Description G Description H
1
–SBHE –MEMCS16 N.C –SERR
2
LA23 –IOSC16 N.C AD15
3
LA22 IRQ10 –CBE1 AD14
4
LA21 IRQ11 PAR AD12
5
LA20 IRQ12 GND GND
6
LA19 IRQ13 KEY KEY
7
LA18 IRQ14 GND GND
8
LA17 –DACK0 AD13 AD10
9
–MEMR DRQ0 AD11 AD8
10
–MEMW –DACK5 AD9 AD7
11
SD8 DRQ5 –CBE0 AD5
12
SD9 –DACK6 AD6 AD3
13
SD10 DRQ6 AD4 AD1
14
SD11 –DACK7 AD2 AD0
15
SD12 DRQ7 KEY KEY
16
SD13 VCC VCC VCC
17
SD14 MASTER VCC VCC
18
SD15 GND GND GND
19
GND GND
Power connector
ATX AT
3.3V
11 1
3.3V
POWER GOOD
1
–12V
12 2
3.3V +5V
2
GND
13 3
GND
+12V
3
PS ON
14 4
+5V
–12V
4
GND
15 5
GND GND
5
GND
16 6
+5V
GND
6
GND
17 7
GND GND
7
–5V
18 8
POWER OK GND
8
+5V
19 9
5V SB –5V
9
+5V
20 10
+12V +5V
10
+5V
11
+5V
12
54
The ENDAT-3201M
Embedded CPU Board
Appendix C: APM function
Operation guide for enable APM function with WIN2000 /
WINXP
Step1: Click the “Power…” button in “Display Properties” as the picture of below:
Step2: Select the “APM” tab in “Power Options Properties” as the picture of below:
User’s Manual 55

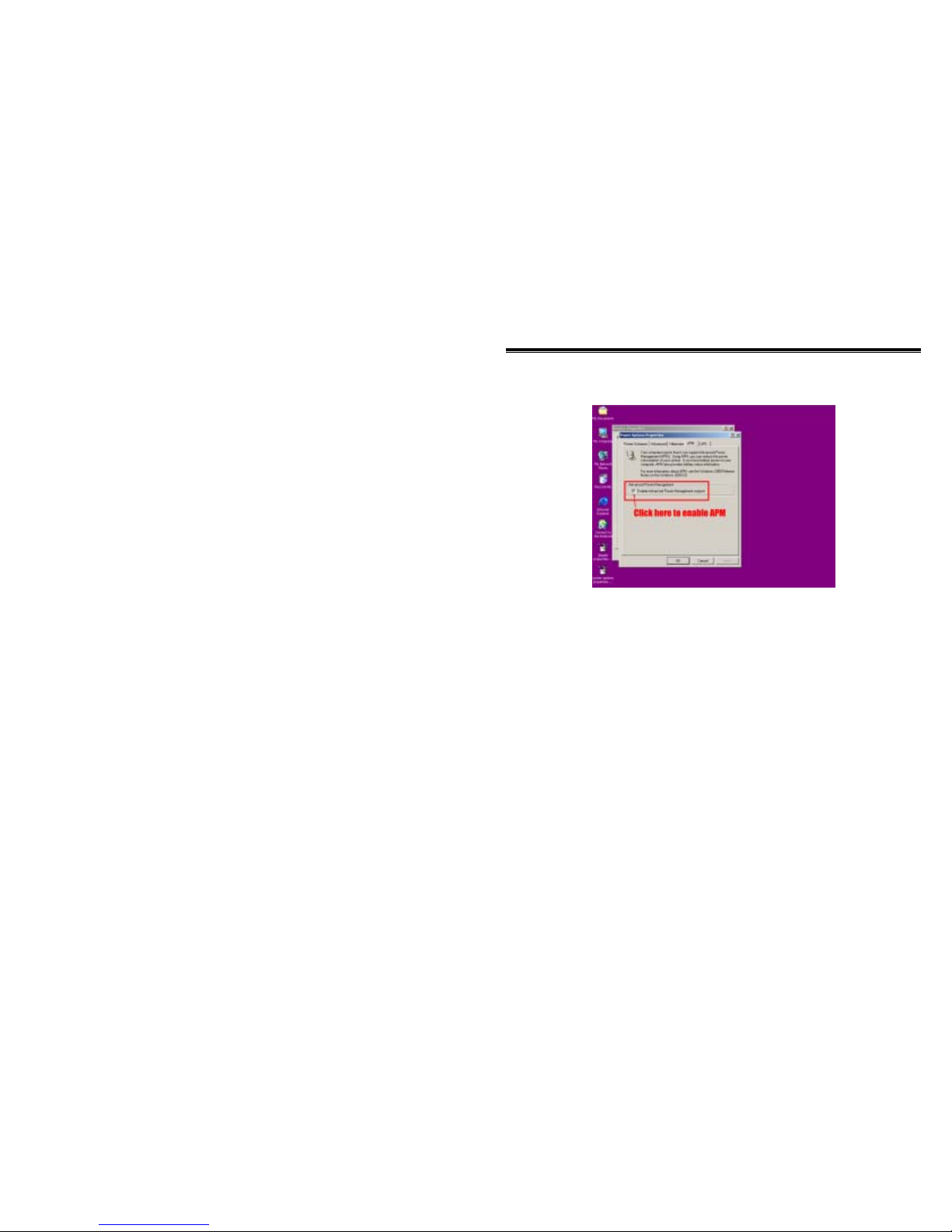

Step3: Click the check block to enable AMP function as follows:
56
The ENDAT-3201M
Embedded CPU Board
User’s Manual 57
Appendix D: LIMITED WARRANTY
Standard one year limited warranty on all our ENDAT series all-in-one
motherboards and embedded board. Products that become defective during the
warranty period shall be repaired, or subject to manufacturer’s option, replaced.
The limited warranty applies to normal proper usage of the hardware and does not
cover products that have been modified or subjected to unusual electrical or
physical stress. Wingtop CO., LTD is not liable to repair or replace defective goods
caused by improper using or use of unauthorized parts. The following situations
will be charged:
1. The products during the warranty but defective caused by improper using or
artificial external pressure and result in the components damages. According to
the damage situation, the manufacturer has the rights to decide to repair or not.
The manufacturer will charge the parts/repair cost and the returning shipping
charge.
2. The products out of warranty will charge the parts/repair cost and the returning
shipping charge as per the repair status.
3. The manufacturer has the rights to decide to repair or not based on the stock of
parts for the products which are phased out of the production.
4. Please e-mail or fax the RMA Service Request Form when have the defective
products.
58
The ENDAT-3201M
Embedded CPU Board
RMA SERVICE REQUEST FORM
When requesting RMA service, please fill out this “RMA Service Request Form”.
This form needs to be shipped with your returns. Service cannot begin until we
have this information.
RMA NO.:
Company: Person to Contact:
Phone No: Purchase Date :
Fax No. : Applied Date :
Return Shipping Address:
Model No. Serial No. Problem Code Remark
User’s Manual 59
Issue Code of defect.
01 Second Times R.M.A. 11 Memory Socket Bad
02 No Screen (No Boot) 12 Hang Up Hardware
03 VGA (Display) Fail 13 Hang Up Software
04 CMOS Data Lost 14 PCB Problem
05 FDC Fail 15 CPU Socket Bad
06 HDC Fail 16 LAN Fail
07 Bad Slot 17 Audio Fail
08 BIOS Problem 18 Serial Port Fail
09 Keyboard Controller Fail 19 Parallel Port Fail
10 Cache RAM Problem 20 Others
Please specify the following when returning the RMA boards:
(1) Hardware Configuration (2) OS or Software (3) Testing Program
___________________
Authorized Signature
Loading...
