User’s Manual I
END AT-9401F/H
User’s Manual
Rev. A1
9401F/H PCB ver: A2 or later
2008/04/08
II
The ENDAT-4946i/M System Board
Copyright Notice
The content of this manual has been checked for accuracy. The manufacturer
assumes no responsibility for any inaccuracies that may be contained in this
manual. The manufacturer reserves the right to make improvements or
modification to this document and/or the product at any time without prior
notice. No part of this documen t m ay be reproduced, transmitted, p hotocopied or
translated into any language, in any form or by any means, electronic, mechanical,
magnetic, optical or chemical, without the prior written permission of the
manufacturer.
Intel® Core™ Solo, Core™ Duo and Core™2 Duo mobile processor is registered
trademark of Intel Incorporation
Multiscan is a trademark of Sony Corp of America
IBM, EGA, VGA, PC/XT, PC/AT, OS/2 and PS/2 are registered trademarks of
International Business Machines Corporation
Plug and Play is registered trademarks of Intel Corporation
Microsoft, Windows and MS-DOS are trademarks of Microsoft Corporation
Award is a trademark of Phoenix Software Inc.
PCI is a registered trademark of PCI Special Interest Grou p
Other product names ment ioned herei n are used for i dentification purpose only and
may be trademarks and/or registered trademarks of their respective companies.
Installation Notice
The manufacturer recommends using a grounded plug to ensure proper
motherboard operation. Care should be used in proper conjunction with a
grounded power recept acle to avoid p ossible electri cal shock. All i ntegrated circ uits
on this motherboard are sensitive to static electricity. To avoid damaging
components from electrost atic disch arge, please do not remove the b oard from the
anti-static packi ng befor e disc hargi ng any st atic el ectricit y to y our body, by wearing
a wrist-grounding strap. The manufacturer is not responsible for any damage to the
motherboard due to improper operation.
User’s Manual III
IV
The ENDAT-4946i/M System Board
Specification:
Model ENDAT-9401F-L(D) / ENDAT-9401H-L(D)
Form Factor
System Chipset
CPU Supporting
Memory
Ethernet
VGA
LCD Interface
DVI Interface
Display ratio
Serial / Parallel
Watchdog Timer
IDE Connector
SATA Connector
AUDIO
Expansion Slot
Mini PCI Slot
I/O Port
Digital IO
RS-422/485
USB Port
Power Supply
5”25 SBC 203 mm x 146 mm (7.99”x6.69”) with 6 layers PCB
1 x 240 pin DDR2 socket supports DDR2 533/667 up to 2GB
INTEL® GMA950 Graphic Controller with DVMT up to 224MB(max)
Onboard LVDS support 18/24/36/48bit Single/Dual Channels via internal
box header (2
Onboard DVI output (Optional for ENDAT-9401F-D / ENDAT-9401H-D)
4 Serial Port w/+5V, +12V Power Selector / 1 Parallel port
Winbond 83627THG on-chip support 1 to 255 seconds/minutes
INTEL® 945GM + INTEL® ICH7
533/667 FSB with 478 pin Intel® Core™ Solo,
Intel® Core™ Duo and Intel® Core™2 Duo processor
2 x Realtek 8111B PCIE Gigabit LAN
nd
Optional for ENDAT-9401F-L / ENDAT-9401H-L)
4:3 and 16:9
1 x 40pin IDE connector support UDMA 33/66/100
2 ports 300MHz Serial ATA Device
On-board AC’97 with 1.2W amplifier
One PCI slot with PCI 2.2 compliance
One Mini PCI slot with PCI 2.2 compliance
4 x USB (2.0) + 2 x RJ-45 Connector w/LED indicator
8 bit input and 8 bit output (TTL level) by pin header
PS/2 Keyboard / Mouse
COM 1, 2, 3, 4 with POWER
Internal pin header: KB, MS, USB (2.0), LPT,
AUX/CD-IN, SPDIF IN/OUT, RF MIC IN, IR
1 x VGA Output
Via COM2 (Optional)
6 x USB2.0 onboard
ATX power supply
TABLE OF CONTENTS
CHAPTER 1. INTRODUCTION .......................................................1
1-1. FEATURES....... .......................................................................... ............. 2
1-2. UNPACKING .......................................... .................................................. 3
1-3. ELECTROSTATI C DI SCHARGE PRECAUTIONS................................... 3
1-4. ENDAT-9401F MOTHERBOARD LAYOUT.............................................. 4
1-5. ENDAT-9401H MOTHERBOARD LAYOUT.............................................. 5
CHAPTER 2. SETTING UP THE MOTHERBOARD.......................6
2-1. ENDA T-9401F JUMPERS AND CONNECTORS...................................... 6
2-2. ENDAT-9401H JUMPERS AND CONNECTORS....................................14
2-3. INSTALLING MEMORY................................................ .......................... 22
2-4. SHARED VGA MEMORY...................................... ................................. 22
2-5. ASSIGNING IRQs FOR EXPANSION CARDS....................................... 22
2-6. WATCHDOG TIMER……………………………… … ………………………. 23
2-7. DIGITAL I/O…………………………………………………………...………. 25
CHAPTER 3. AWARD BIOS SETUP.............................................27
3-1. STANDARD CMOS FEATURES.............................................................28
3-2. ADVANCED BIOS FEATURES............................................................... 29
3-3. ADVANCED CHIPSET FEATURES..................................................... ... 31
3-4. INTEGRATED PERIPHERALS............................................................... 33
3-5. POWER MANAGEMENT SETUP........................................................... 37
3-6. PnP/PCI CONFIGURATIONS................................................................. 39
3-7. PC HEALTH STATUS............................................................................. 40
User’s Manual V
CHPATER 4. VGA, LCD, FEATURE..............................................41
4-1. VGA FEATURE....................................................................................... 41
4-2. LVDS PANEL FEATURE......................................................................... 42
4-3. DRIVER UTILITY INSTALLATION GUIDE.............................................. 43
APPENDIX A: FLASH MEMORY UTILITY....................................44
APPENDIX B: CONNECTOR PIN ASSIGNMENT........................ 45
APPENDIX C: LIMITED WARRANTY...........................................46
User’s Manual 1
2
The ENDAT-4946i/M System Board
Chapter 1. Introduction
ENDAT-9401F/H supports high performance processor of Intel® Celeron® M 423,
Intel® Core™ Solo, Intel® Cor e™ Duo and In tel® C or e™2 Duo proc essor with 533
and 667 Front Side Bus. It also sup ports high speed DDR-2 memory with 64-b it
wide interfaces with non-ECC DIMM (up to 2GB). Only Double-Data-Rate Two
Synchronous Dynamic Random Access Memory is supported and the speed of
memory can be 533 and 667 MHz.
ENDAT-9401F/H provides an integrated graphics (Intel® Graphics Media
Accelerator 950) accelerator delivering cost competitive 3D, 2D, and video
capabilities.
ENDAT-9401F/H video engines support video conferencing and other video
applications. Instead of a dedicated local graphics memory interface,
ENDAT-9401F/H uses a UMA configuration for optimal memory utilization and
performance that deliver 3D graphics with sharp images, fast rendering, smooth
motion and extreme detail.
ENDAT-9401F/H contains one integrated Serial ATA host controllers capable of
independent DMA operation on t wo ports. The SATA controllers are complete ly
software transparent with the IDE interface, while providing a lower pin count and
higher performance. The data tr an sf er rate is up to 300 MB/s.
ENDAT-9401F/H is an ideal model for variou s kind of application:
- POS system
- KIOSK
- Interactive system
- Airport Terminal Controller
- Industrial controller
- Digital entertainment
- Embedded system equipment
1-1. Features
Basic Feature:
z Board format: SBC (203mm x 146 mm)
z Supports Socket 478 CPU (FSB 400/533/667 MHz)
z Digital I/O: 8 bits in and 8 bits out (5V)
z Supports DDR-2 533/667 SDRAM up to 2GB
z Serial ATA connector x 2
z Enhance IDE connector x 1
z Multiple I/O ports: COM port x 4; USB (2.0) x 6
z All COM ports with +5V, +12V power selector
z Watchdog Timer
z Realtek Gigabit LAN x 2 and Audio function onboard
Optional features:
z On board chip provides LVDS interface (18/24/36/48 bit, single/dual
channels, 2
z DVI Output interface(Optional)
z RS 422/485 via COM 2
z Barebones system: niche into Unicorn U-3500 Chassis
Ordering Information:
z ENDAT-9401F-D: w/ Support DVI and LVDS 1
z ENDAT-9401F-L: w/ Support LVDS 1 and LVDS 2
z ENDAT-9401H-D: w/ Support DVI and LVDS 1
z ENDAT-9401H-L: w/ Support LVDS 1 and LVDS 2
Full Software Support:
z Drivers for major operating systems and APIs: Windows 2000,
Windows XP, Direct3D, DirectDraw and DirectShow, OpenGL ICD
and DXVA for Windows 2000 and Windows XP
nd
LVDS optional)
User’s Manual 3
4
The ENDAT-4946i/M System Board
2-1. Unpacking
The motherboard comes securely packaged in a sturdy card bo ar d shipping carton.
In addition to the User’s Manual, the motherboard package includes the following
items:
ENDAT-9401F/H System Board
HDD / IO Cables
LCD cable (Optional)
CDROM Driver includes: Driver s for Windows 2000, XP and AMI / AWARD FLASH
ROM utilities.
Driver utilities for on-board VGA drivers, LAN adapter
If any of these items are missing or damage, please contact the dealer from whom
you purchase the mother b oar d. S ave t he s hipp in g m at erial a nd c a rt on i n t he e vent
that you want to ship or store the board in the future.
Note:
Please leave the motherboard in its original package until you are read y to
install it!
1-3. Electrostatic Discharge Precautions
Make sure you properly ground yourself before handling the motherboard, or other
system components. Electrostatic discharge can easily damage the components.
Note: You must take special precaution when handling the motherboard in dry or
air-conditioned environm ents.

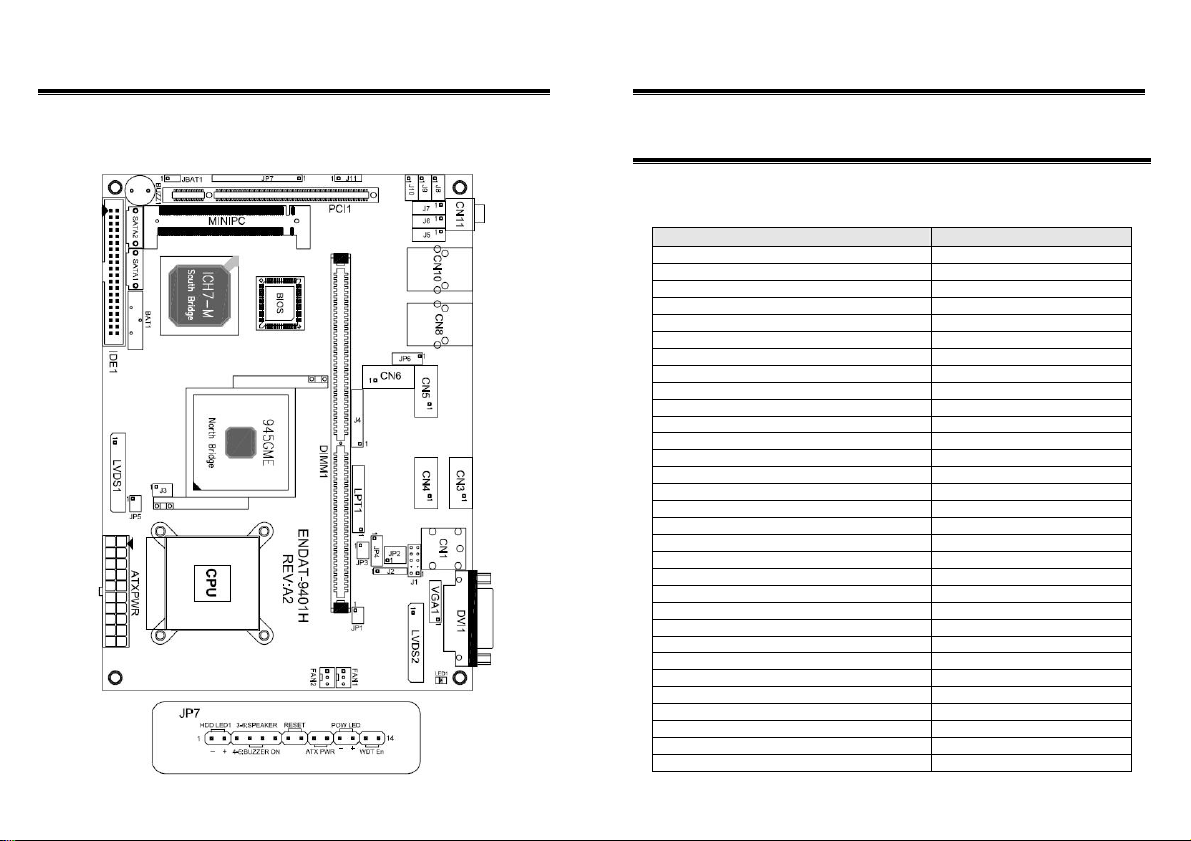

1-4. ENDAT-9401F Motherboard Layout
User’s Manual 5
6 The ENDAT-9401F/H System Board
1-6. ENDAT -9401H Motherboard Layout
Chapter 2. Setting up the Motherboard
2-1. ENDAT-9401F Jumpers And Connectors
Jumpers/Connectors Overview:
Function Jumpers/Connectors
ATX Power Connector ATXPWR
Cooling Fan Connector FAN1, FAN2
Buzzer BUZZ1
Battery BAT1
Clear CMOS JBAT1
DDR2 SDRAM socket DIMM1
LVDS Panel Connector LVDS1, LVDS2(Optional)
LVDS Voltage Selector JP1, JP5
IR Pin Header J2
PS/2 MS/KB Pin Header J1
PS/2 MS/KB Connector CN1
USB Port CN7, CN9, J7
Pin Header for Case Panel JP7
HDD active LED JP7: Pin 1(-), Pin 2(+)
External Speaker JP7: Pin 3, Pin 6
Buzzer On/Off JP7: Pin 4, Pin 5
Hardware Reset Switch JP7: Pin 7, Pin 8
ATX Power Supply On/Off Switch JP7: Pin 9, Pin 10
Power LED JP7: Pin 11(-), Pin 12(+)
WDT Function Enable/Dis a ble JP7: Pin 13, Pin 14
LAN Connector CN7, CN9
CRT Output COMVGA
DVI OUTPUT DVI1(Optional)
COM1, COM2 CN2
COM3 COMVGA
COM4 Box Header CN6
COM Port Voltage Selector JP4, JP6
RS232 / 422/ 485 Selector for COM2 JP2 & JP3
MINI PCI SLOT MINIPC
PCI SLOT PCI1
DIGITAL I/O Box Header J4
User’s Manual 7
Function Jumpers/Connectors
LPT1 Box Header LPT1
SATA 1, SATA 2 SATA1, SATA2
40-Pin IDE Connector IDE1
AC’97 Speaker Output Connector CN11
AC’97’ Speaker Output, MIC-In Pin Header J8
5.1Ch Speaker output Pin Header J9
Line-In, CD-In Pin Header J10
SPDIF Pin Header J11
System Power LED LED1
Please double-check the insertion and orientation of the LCD cable
before applying power. Improper installation will result in permanent
damage LCD panel.
Part 1: Onboard Jumpers
JBAT1: CMOS Data Clear (2.0mm)
Pin No. Function
Pin 1-2
Pin 2-3
JP1 (For LVDS2), JP5 (for LVDS1): LVDS Voltage Selector (2.0mm)
Pin No. Function
Pin-1, 2 *
Pin-3, 4
Pin-5, 6
Caution: Improper setting will damage LCD panel.
JP7: Pin Header for Case Panel (2.54mm)
Pin No. Function
1(-), 2(+)
3,6
4,5
7,8
9,10
11(-),12(+)
13,14
Normal (Defau l t )
Close for clear CMOS
+3.3V
+5V
+12V
HDD active LED
External Speaker
Buzzer On/Off
Hardware Reset Switch
ATX Power On/Off
Power LED
Close: Enable WDT function
8 The ENDAT-9401F/H System Board
JP2, JP3: RS232 / 422 / 485 Selector for COM2 (2.0mm)
TYPE JP3 (2x3/2mm) JP2 (3x4/2mm)
RS-232 *
RS-422
RS-485
JP4, JP6: COM Port Voltage Selector (2.0mm)
Voltage +12V(DC) R.I. * +5V(DC)
COM1 (JP4) 1-2 3-4 5-6
COM2 (JP4) 7-8 9-10 11-12
COM3 (JP6) 1-2 3-4 5-6
COM4 (JP6) 7-8 9-10 11-12
1-2 1-2, 4-5, 7-8, 10-11
3-4 2-3, 5-6, 8-9, 11-12
5-6 2-3, 5-6, 8-9, 11-12
Pin 4
Pin 5
2
4
6
8
10
12
14
16
18
20
22
GND
IRTX
+5V
DIO-O0
DIO-O1
DIO-O2
DIO-O3
DIO-O4
DIO-O5
GND
DIO-O6
DIO-O7
+12V
Part 2: Onboard connectors
JP2: IR Pin Header (2.54mm)
Pin No. Function Pin No. Function
Pin 1
Pin 2
Pin 3
J4: DIGITAL I/O Pin Header (2.0mm)
Pin No. Function Pin No. Function
1
3
5
7
9
11
13
15
17
19
21
VCC
N.C
IRRX
+5V
DIO-I0
DIO-I1
DIO-I2
DIO-I3
DIO-I4
DIO-I5
GND
DIO-I6
DIO-I7
+12V
User’s Manual 9
J8: AC’97 Speaker Output, MIC-In Pin Header (2.54mm)
Pin No. Function Pin No. Function
J9: 5.1Ch Speaker output Pin Header (2.54mm)
Pin No. Function Pin No. Function
J10: Line-In, CD-In Pin Header (2.54mm)
Pin No. Function Pin No. Function
J11: SPDIF Pin Header Connector (2.0mm)
Pin No. Function Pin No. Function
J1: PS/2 Keyboard / Mouse Box Header Connector (2.0mm)
Pin No. Signal (KB) Pin No. Signal (MS)
Speaker Output–RIGHT
1
3
5
Speaker Output–LEFT
7
Surround Output – LEFT
1
3
5
Surround Output – RIGHT
7
1
3
5
7
1
2
3
1
3
5
7
9
Line Input – RIGHT
Line Input – LEFT
+5V
N.C.
SPDIFOUT
KB Data
KEY
GND
+5V(DC)
KB_CLK
GND
GND
GND
GND
GND
GND
2
4
6
8
4
5
2
4
6
8
10
2
4
6
8
2
4
6
8
SPDIFIN
MS Data
+5V(DC)
MS_CLK
Alternative LFE–Output
GND
GND
First MIC Input/CEN–Output
Center Output
GND
GND
Low Frequency Effect Output
CD Input – RIGHT
GND
GND
CD Input – LEFT
GND
KEY
GND
10
The ENDAT-9401F/H System Board
CN6: Box Header Type Connector for COM4 port (RS-232) (2.54mm)
Pin No. Function Pin No. Function
1
2
3
4
5
DCD
RXD
TXD
DTR
GND
10
6
7
8
9
DSR
RTS
CTS
RI
N.C.
D-SUB Type Connector for COM1 ~ COM3 port (RS-232)
Pin No. Description Pin No. Description
1
2
3
4
5
D-SUB Type Connector for COM2 port (RS-422Æ 4 Wire)
Pin No. Function Pin No. Function
1
2
3
4
5
D-SUB Type Connector for COM2 port (RS-485Æ 2 Wire)
Pin No. Function Pin No. Function
1
2
3
4
5
DCD
RXD
TXD
DTR
GND
–TXD
+RXD
+TXD
NA
NA
Data –
NA
Data +
NA
NA
6
7
8
9
6
7
8
9
6
7
8
9
DSR
RTS
CTS
RI
NA
NA
NA
–RXD
NA
NA
NA
NA
User’s Manual 11
ATXPW R: ATX Power connector
3.3V 11 1 3.3V
–12V 12 2 3.3V
GND 13 3 GND
PS ON 14 4 +5V
GND 15 5 GND
GND 16 6 +5V
GND 17 7 GND
–5V 18 8 POWER OK
+5V 19 9 5V SB
+5V 20 10 +12V
LPT1: Printer (LPT1) Port Box Header (2.0mm)
Pin No. Description Pin No. Description
1
2
3
4
5
6
7
8
9
J7: Pin Header Type Connector for USB port (2.54mm)
Pin No. Function Pin No. Function
1
3
5
7
9
FAN1, FAN2: CPU / 2nd Cooling Fan Connector
Pin No. Function Pin No. Function
1
2
ATX
STB#
PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7
USB_VCC
USBD4-
USBD4+
USB_GND
USB_GND
GND
+12V
10
11
12
13
14
15
16
17
18-25
2
4
6
8
10
3
ACK#
BUSY
PE
SLCT
AFD#
ERR#
INIT#
SLIN#
GND
USB_VCC
USBD5-
USBD5+
USB_GND
USB_GND
Sensor Pin
12 The ENDAT-9401F/H System Board
IDE1: IDE1 Connector (40Pins)
Pin No. Description Pin No. Description
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
1
3
5
7
9
IDE Reset#
IDE data7
IDE data6
IDE data5
IDE data4
IDE data3
IDE data2
IDE data1
IDE data0
GND
IDE REQ
IDE IOW#
IDE IOR#
IDE Ready
IDE ACK#
IDE IRQ
IDE A1
IDE A0
IDECS1#
HDLED#
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
2
4
6
8
GND
IDE data8
IDE data9
IDE data10
IDE data11
IDE data12
IDE data13
IDE data14
IDE data15
N.C.
GND
GND
GND
GND
GND
N.C.
P66DET
IDE A2
IDESC3#
GND
User’s Manual 13
LVDS1, LVDS2: Dual LVDS Channel (1.25mm)
Pin No. Signal Pin No. Signal
Please make sure the Pin 1 location before inserting the LCD connector.
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
VBL (+12V)
GND
DISP.ON/OFF
LCD Power
GND
TxO0+
TxO1+
TxO2+
TxO3+
TxOC+
GND
TxE0+
TxE1+
TxE2+
TxE3+
TxEC+
LCD Power
GND
GND
VBL (+12V)
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
2
4
6
8
VBL (+12V)
GND
GND
LCD Power
GND
TxO0TxO1TxO2TxO3-
TxOC-
KEY
TxE0TxE1TxE2TxE3TxEC-
LCD Power
GND
GND
VBL (+12V)
LCD Panel Number:
Panel Number
1024x768 24Bit 1CH
1280x1024 48Bit 2CH
1280x768 24Bit 1CH
1366x768 24Bit 1CH
14 The ENDAT-9401F/H System Board
2-2. ENDAT-9401H Jumpers and Connectors
Jumpers/Connectors Overview:
Function Jumpers/Connectors
ATX Power Connector ATXPWR
Cooling Fan Connector FAN1, FAN2
Buzzer BUZZ1
Battery BAT1
Clear CMOS JBAT1
DDR2 SDRAM socket DIMM1
LVDS Panel Connector LVDS1, LVDS2(Optional)
LVDS Voltage Selector JP1, JP5
IR Pin Header J2
PS/2 MS/KB Pin Header J1
USB Port J5, J6, J7
Pin Header for Case Panel JP7
HDD active LED JP7: Pin 1(-), Pin 2(+)
External Speaker JP7: Pin 3, Pin 6
Buzzer On/Off JP7: Pin 4, Pin 5
Hardware Reset Switch JP7: Pin 7, Pin 8
ATX Power Supply On/Off Switch JP7: Pin 9, Pin 10
Power LED JP7: Pin 11(-), Pin 12(+)
WDT Function Enable/Dis a ble JP7: Pin 13, Pin 14
LAN Connector CN8, CN10
CRT Output Box Head er VGA1
DVI OUTPUT DVI1(Optional)
COM1, COM2 Box Header CN3, CN4
COM3 Box Header CN5
COM4 Box Header CN6
COM Port Voltage Selector JP4, JP6
RS232 / 422/ 485 Selector for COM2 JP2 & JP3
MINI PCI SLOT MINIPC
PCI SLOT PCI1
DIGITAL I/O Box Header J4
LPT1 Box Header LPT1
SATA 1, SATA 2 SATA1, SATA2
40-Pin IDE Connector IDE1
AC’97 Speaker Output Connector CN11
User’s Manual 15
Function Jumpers/Connectors
AC’97’ Speaker Output, MIC-In Pin Header J8
5.1Ch Speaker output Pin Header J9
Line-In, CD-In Pin Header J10
SPDIF Pin Header J11
System Power LED LED1
Please double-check the insertion and orientation of the LCD cable
before applying power. Improper installation will result in permanent
damage LCD panel.
Part 1: Onboard Jumpers
JBAT1: CMOS Data Clear (2.0mm)
Pin No. Function
Pin 1-2
Pin 2-3
JP1 (For LVDS2), JP5 (For LVDS1): LVDS Voltage Selector (2.0mm)
Pin No. Function
Pin-1, 2 *
Pin-3, 4
Pin-5, 6
Caution: Improper setting will damage LCD panel.
JP7: Pin Header for Case Panel (2.54mm)
Pin No. Function
1(-), 2(+)
3,6
4,5
7,8
9,10
11(-),12(+)
13,14
Normal (Defau l t )
Close for clear CMOS
+3.3V
+5V
+12V
HDD active LED
External Speaker
Buzzer On/Off
Hardware Reset Switch
ATX Power On/Off
Power LED
Close: Enable WDT function
16 The ENDAT-9401F/H System Board
JP2, JP3: RS232 / 422 / 485 Selector for COM2 (2.0mm)
TYPE JP3 (2x3/2mm) JP2 (3x4/2mm)
RS-232 *
RS-422
RS-485
JP4, JP6: COM Port Voltage Selector (2.0mm)
Voltage +12V(DC) R.I. * +5V(DC)
COM1 (JP4) 1-2 3-4 5-6
COM2 (JP4) 7-8 9-10 11-12
COM3 (JP6) 1-2 3-4 5-6
COM4 (JP6) 7-8 9-10 11-12
1-2 1-2, 4-5, 7-8, 10-11
3-4 2-3, 5-6, 8-9, 11-12
5-6 2-3, 5-6, 8-9, 11-12
Pin 4
Pin 5
2
4
6
8
10
12
14
16
18
20
22
GND
IRTX
+5V
DIO-O0
DIO-O1
DIO-O2
DIO-O3
DIO-O4
DIO-O5
GND
DIO-O6
DIO-O7
+12V
Part 2: Onboard connectors
JP2: IR Pin Header (2.54mm)
Pin No. Function Pin No. Function
Pin 1
Pin 2
Pin 3
J4: DIGITAL I/O Pin Header (2.0mm)
Pin No. Function Pin No. Function
1
3
5
7
9
11
13
15
17
19
21
VCC
N.C
IRRX
+5V
DIO-I0
DIO-I1
DIO-I2
DIO-I3
DIO-I4
DIO-I5
GND
DIO-I6
DIO-I7
+12V
User’s Manual 17
J8: AC’97 Speaker Output, MIC-In Pin Header (2.54mm)
Pin No. Function Pin No. Function
J9: 5.1Ch Speaker output Pin Header (2.54mm)
Pin No. Function Pin No. Function
J10: Line-In, CD-In Pin Header (2.54mm)
Pin No. Function Pin No. Function
J11: SPDIF Pin Header Connector (2.0mm)
Pin No. Function Pin No. Function
J1: PS/2 Keyboard / Mouse Box Header Connector (2.0mm)
Pin No. Signal (KB) Pin No. Signal (MS)
Speaker Output–RIGHT
1
3
5
Speaker Output–LEFT
7
Surround Output – LEFT
1
3
5
Surround Output – RIGHT
7
1
3
5
7
1
2
3
1
3
5
7
9
Line Input – RIGHT
Line Input – LEFT
+5V
N.C.
SPDIFOUT
KB Data
KEY
GND
+5V(DC)
KB_CLK
GND
GND
GND
GND
GND
GND
2
4
6
8
4
5
2
4
6
8
10
2
4
6
8
2
4
6
8
SPDIFIN
MS Data
+5V(DC)
MS_CLK
Alternative LFE–Output
GND
GND
First MIC Input/CEN–Output
Center Output
GND
GND
Low Frequency Effect Output
CD Input – RIGHT
GND
GND
CD Input – LEFT
GND
KEY
GND
18
The ENDAT-9401F/H System Board
CN3~CN6: COM1~COM4 Box Header (RS-232) (2.54mm)
Pin No. Function Pin No. Function
1
2
3
4
5
DCD
RXD
TXD
DTR
GND
10
6
7
8
9
DSR
RTS
CTS
RI
N.C.
CN3: COM2 Box Header (RS-422Æ 4 Wire)
Pin No. Function Pin No. Function
1
2
3
4
5
CN3: COM2 Box Header (RS-485Æ 2 Wire)
Pin No. Function Pin No. Function
1
2
3
4
5
ATXPW R: ATX Power connector
3.3V 11 1 3.3V
–12V 12 2 3.3V
GND 13 3 GND
PS ON 14 4 +5V
GND 15 5 GND
GND 16 6 +5V
GND 17 7 GND
+5V 19 9 5V SB
+5V 20 10 +12V
–TXD
+RXD
+TXD
NA
NA
Data –
NA
Data +
NA
NA
ATX
–5V 18 8 POWER OK
6
7
8
9
10
6
7
8
9
10
NA
NA
NA
–RXD
N.C.
NA
NA
NA
NA
N.C.
User’s Manual 19
LPT1: Printer (LPT1) Port Box Header (2.0mm)
Pin No. Description Pin No. Description
1
2
3
4
5
6
7
8
9
J5, J6, J7: Pin Header Type Connector for USB port (2.54mm)
Pin No. Function Pin No. Function
1
3
5
7
9
FAN1, FAN2: CPU / 2nd Cooling Fan Connector
Pin No. Function Pin No. Function
1
2
STB#
PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7
USB_VCC
USBD0-/2-/4-
USBD0+/2+/4+
USB_GND
USB_GND
GND
+12V
10
11
12
13
14
15
16
17
18-25
2
4
6
8
10
3
ACK#
BUSY
PE
SLCT
AFD#
ERR#
INIT#
SLIN#
GND
USB_VCC
USBD1-/3-/5-
USBD1+/3+/5+
USB_GND
USB_GND
Sensor Pin
20 The ENDAT-9401F/H System Board
IDE1: IDE1 Connector (40Pins)
Pin No. Description Pin No. Description
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
1
3
5
7
9
IDE Reset#
IDE data7
IDE data6
IDE data5
IDE data4
IDE data3
IDE data2
IDE data1
IDE data0
GND
IDE REQ
IDE IOW#
IDE IOR#
IDE Ready
IDE ACK#
IDE IRQ
IDE A1
IDE A0
IDECS1#
HDLED#
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
2
4
6
8
GND
IDE data8
IDE data9
IDE data10
IDE data11
IDE data12
IDE data13
IDE data14
IDE data15
N.C.
GND
GND
GND
GND
GND
N.C.
P66DET
IDE A2
IDESC3#
GND
User’s Manual 21
LVDS1, LVDS2: Dual LVDS Channel (1.25mm)
Pin No. Signal Pin No. Signal
Please make sure the Pin 1 location before inserting the LCD connector.
LCD Panel Number:
VBL (+12V)
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
GND
DISP.ON/OFF
LCD Power
GND
TxO0+
TxO1+
TxO2+
TxO3+
TxOC+
GND
TxE0+
TxE1+
TxE2+
TxE3+
TxEC+
LCD Power
GND
GND
VBL (+12V)
Panel Number
1024x768 24Bit 1CH
1280x1024 48Bit 2CH
1280x768 24Bit 1CH
1366x768 24Bit 1CH
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
2
4
6
8
VBL (+12V)
GND
GND
LCD Power
GND
TxO0TxO1TxO2TxO3-
TxOC-
KEY
TxE0TxE1TxE2TxE3TxEC-
LCD Power
GND
GND
VBL (+12V)
22 The ENDAT-9401F/H System Board
2-3. Installing Memory
ENDAT-9401F/H system board off ers on e 24 0pin DDR-2 SDRAM socket supports
up to 2GB memory and the speed can be 533 / 667 MHz.
2-4. Shared VG A Memory
ENDAT-9401F/H is using built-in INTEL® GMA950 Graphic with I NTEL DVMT 3.0
up to 224MB of system memory. The amount of video memory on motherboard
determines the number of colors and the video graphic resolution.
2-5. Assigning IRQs for Expansion Cards
Some expansion cards require an IRQ (Interrupt request vector) to operate.
Generally, each IRQ must be exclusively assigned to specific use. In a standard
design, there are 16 IRQ available with 11 of them already in used by other part of
the system.
Some PCI expansion car ds need IRQ; a ny remainin g IRQ could be assigned t o PCI
Bus. Microsoft’s Diagnostic (MSD.EXE) utility included in the Windows directory
can be used to see their map. Clients ca n not have mor e than one devi ce apply the
same IRQ in the system or it wil l caus e the sy stem hang up , crash, and unex pecte d
results. To simplify the process, this motherboard complies with the Plug and Play
(PnP) specifications, which was developed to allow automatic system configuration.
Whenever a PnP-compliant card is added to the system, PnP card and IRQs will
automatically assigned if available. The PCI and PnP configuration in the BIOS
setup utility can indicate which IRQs have being used by Legacy cards.
In the PCI Bus design, the BIOS is automatically assigned an IRQ to a PCI slot th at
has a card in it which requires an IRQ. To install PCI cards via riser card, you need
to set the correct “ADSEL” and “INT” (interrupt) assignment on the jumper of riser
card.
User’s Manual 23
IRQ Status Assignment
0 Used Timer
1 Used Keyboard
2 Used Second 8259
3 Used COM2
4 Used COM1
5 Used COM3
6 Used Floppy Disk
7 Used LPT1
8 Used RTC
9 Used Audio
10 Used COM4
11 Used LAN Adapter (on board)
12 Used PS/2 Mouse
13 Used Coprocessor
14 Us ed Hard Disk (IDE 1)
15 Us ed Reserved (IDE 2)
2-6. Watchdog Timer
Watchdog Timer (WDT) is a special design for system monito ring to secure the
system work normally. WDT has an independent clock from the oscillator and could
set time and clear/refresh WDT counter function. When time is up, WDT will send
hardware RESET signal to reset system.
Timeout Value Range
-1 to 255
-Second or Minute
24 The ENDAT-9401F/H System Board
Program Sample
#include <stdio.h>
#include <dos.h>
#include <dir.h>
void show_ver();
void main()
{
unsigned int tt;
clrscr();
show_ver();
tt=0;
while((tt==0)||(tt>255))
{
printf(“\n\nPlease key in how many seconds you want to reset system
(1~255):”);
scanf(“%d”,&tt);
}
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x07); //Set Logic Device number pointer
outportb(0x2f,0x08); //Set Logic Device number
outportb(0x2e,0xf5); //Set active register is CRF5
outportb(0x2f,0x00); //Set register value (bit3=1: minute. =0: second)
outportb(0x2e,0xf7); //Set active register is CRF7
outportb(0x2f,0x00); //Disable all WDT interrupt (bit7=Mouse,
bit6=Keyboard)
outportb(0x2e,0xf6); //Set active register is CRF6
outportb(0x2f,tt); //Set time out value of WDT
}
void show_ver()
{
unsigned char tmp0;
printf(“Designed by ROBERT LIOU of UNICORN computer corp.
\n2004/03/02 release version:1.0a\n”);
printf(“This program is design for test Watchdog Timer for W83627.\n”);
}
User’s Manual 25
2-7. Digital I/O
1) Pin out of digital I/O header (J2):
Pin No. Function Pin No. Function
1
3
5
7
9
11
13
15
17
19
21
This function is supported by onboard super I/O chip; it can be control easily by
change the register of super I/O chip via I/O por t “ 2E h” “2Fh” and “ 4 E h” “4F h”.
Please see the sample code of below for implement.
Voltage tolerance: +/- 5% with 0V to +5V.
2) Digital I/O control port (2E,2Fh):
Register configuration:
Bit No 7 6 5 4 3 2 1 0
Map IN3 IN2 OUT3 OUT2 OUT1 OUT0 IN1 IN0
Sample code for input bit 0~3 (using Turbo C/C++ 3.0):
#define input_port 0x2f
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x07); //Set Logic Device number pointer
outportb(0x2f,0x07); //Set Logic Device number
outportb(0x2e,0xF1); //Set active register is CRF1
read_data=inportb(input_port); // Read digital input data
printf(“DIO-Input=%02X\n”,read_data); //Show digital input data on screen
+5V
DIO-O0
DIO-O1
DIO-O2
DIO-O3
DIO-O4
DIO-O5
GND
DIO-O6
DIO-O7
+3.3V
10
12
14
16
18
20
22
2
4
6
8
+5V
DIO-I0
DIO-I1
DIO-I2
DIO-I3
DIO-I4
DIO-I5
GND
DIO-I6
DIO-I7
+3.3V
26 The ENDAT-9401F/H System Board
Sample code for output bit 0~3 (using Turbo C/C++ 3.0):
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x07); //Set Logic Device number pointer
outportb(0x2f,0x07); //Set Logic Device number
outportb(0x2e,0xF2); //Set active register is CRF2
outportb(0x2f,0x00); //Write data to digital output
3) Digital I/O control port (4E,4Fh):
Register configuration:
Bit No 7 6 5 4 3 2 1 0
Map IN7 IN6 OUT7 OUT6 OUT5 OUT4 IN5 IN4
Sample code for input bit 4~7(using Turbo C/C++ 3.0):
#define input_port 0x2f
outportb(0x4e,0x87); //Unlock register
outportb(0x4e,0x87); //Unlock register
outportb(0x4e,0x07); //Set Logic Device number pointer
outportb(0x4f,0x07); //Set Logic Device number
outportb(0x4e,0xF1); //Set active register is CRF1
read_data=inportb(input_port); // Read digital input data
printf(“DIO-Input=%02X\n”,read_data); //Show digital input data on screen
Sample code for output bit 4~7(usin g Turbo C/C++ 3.0):
outportb(0x4e,0x87); //Unlock register
outportb(0x4e,0x87); //Unlock register
outportb(0x4e,0x07); //Set Logic Device number pointer
outportb(0x4f,0x07); //Set Logic Device number
outportb(0x4e,0xF2); //Set active register is CRF2
outportb(0x4f,0x00); //Write data to digital output
User’s Manual 27
Chapter 3. AWARD BIOS SETUP
Phoenix – Award BIOS CMOS Setup Utility
> Standard CMOS Features
> Advanced BIOS Features
> Advanced Chipset Features
> Integrated Peripherals
> Power Management Setup
> PnP/PCI Configurat ions
Use the CMOS setup program to modify the system parameters to reflect the
environment installed in your system and to customize the system as desired.
Press the <DEL> key to enter in to th e C MOS se tu p p rog ram when you t u rn on th e
power. Settings can be accessed via arrow keys. Press <Enter> to choose an
option to configure the system pr op er l y.
In the main menu, press F10 or “SAVE & EXIT SETUP” to save your changes and
reboot the system. Choose “EXIT WITHOUT SAVING” to ignore the changes and
exit the setup procedure. Pressing <ESC> at anywhere during the setup will return
to the main menu.
“Advanced BIOS Features”, “Advanced Chipset Features” and “PnP/PCI
Configurations” requires board know ledge on PC /AT system architecture and Intel
chipset specification. They intend to be used by well-trained technicians and
experienced users. Press the <F10> key to save CMOS se tting to EEPROM, Pr ess
<F7> key can load CMOS setting from EEPROM. Incorrect setup could cause
system malfunctions.
> PC Health Status
> Load Optimized Defaults
> Set Supervisor Password
> Set User Password
> Save & Exit Setup
> Exit Without Sav ing
28 The ENDAT-9401F/H System Board
3-1. Standard CMOS Features
The Standar d Set up is used for th e basi c hardw are sy stem conf igur ation. The m ain
function is for Data/Time and Hard Disk Drive settings.
Date (mm:dd:yy)
Item Available Options:
Time (hh:mm:ss)
＞IDE Channel 0 Master:
＞IDE Channel 0 Slave :
＞IDE Channel 1 Master:
＞IDE Channel 1 Slave :
Video
Halt On
Auto
Auto
Auto
Auto
EGA/VGA
All , But Keyboar
User’s Manual 29
3-2. Advanced BIOS Features
This section allows you configuring your system for basic operation. You have the
opportunity to select the system’s default speed, boot-up priority, keyboard
operation and security.
＞CPU Feature
＞Hard Disk Boot Priority
Virus Warning Disabled
CPU L1 & L2 Cache Enabled
CPU L3 Cache Enabled
Hyper-Threading Technology Enabled
Quick Power On Self Test Enabled
First Boot Device Hard Disk
Second Boot Device CDROM
Third Boot Device LS120
Boot Other Device Enabled
Boot Up NumLock Status On
Gate A20 Option Normal
Typematic Rate Setting Disabled
Typematic Rate (Chars/Sec) 6
Typematic Delay (Msec) 250
Security Optio n Setup
APIC Mode Enabled
MPS Version Control For OS 1.4
OS Select For DRAM > 64MB Non-OS2
Delay Prior to Thermal 16 Min
Execute Disable Bit Enabled
․Hyper-Threading Technology
Hyper-Threading technology is a technique which enab les a single CPU to act
like multiple CPU’s.
Item Available Options:
Press Enter
Press Enter
CPU Feature
Item Available Options:
30 The ENDAT-9401F/H System Board
․APIC Mode
This item can enable or disable the APIC (Advanced Programmable Interrupt
Controller). Due to complian ce to PC2001 de sign guide, the system is abl e to run
in APIC mode. Enabling APIC mode will expand available IRQs resources for the
system. Leave this field in its default setting.
․MPS Version Control For OS
This item allows you selecting which MPS (Multi-Processor Specification)
version to be used for the operating system. You need to select the MPS version
that is supported by your operating system. To find out which version to use,
consult the vendor of your operating system.
User’s Manual 31
3-3. Advanced Chipset Features
This section allows you to configure the system based on the specific features of
the installed chipset. This chipset manages bus speeds and the access to the
system memory resources, such as DRAM and the external cache. It also
coordinates the communications with the PCI bus.
items should never be altere d. The default s ettings have been chosen because t hey
provide the best operating co nditions fo r your syste m. You might consider making
any changes only if you discover that the data has been lost while using your
system.
DRAM Timing Selectable By SPD
System Memory Frequency Auto
System BIOS Cacheable Enabled
Video BIOS Cacheable Enabled
Memory Hole At 15M-16M Disabled
** VGA Setting **
PEG/Onchip VGA Control Onboard VGA
On-Chip Frame Buffer Size 8MB
DVMT Mode DVMT
DVMT/FIXED Memory Size 128MB
Boot Display CRT
Panel Number 1024x768 24Bit 1CH
Item Available Options:
․
System Memory Frequency
This main board support s dif ferent memory frequenci es depend on the CPU FSB
(Front Side Bus) and the type of DDR DIMM.
CPU FSB DDR2 DIMM Type Memory Frequency
667 MHz PC2-5300/PC2-4200 667/533 MHz
533 MHz PC2-4200 533 MHz
․On-Chip Frame Buffer Size
This selection is supplied for legacy VGA and SVGA graphics support and
compatibility.
It must be stated that these
The ENDAT-9401F/H System Board
32
․DVMT Mode
This field is used to select the type of DVMT mode. DVMT (Dynamic Video
Memory Technology) is an architectur e tha t of fer s break throu gh per forma nce for
the motherboard through efficient memory utilization.
FIXED
DVMT
BOTH
A fixed-size fragment of the system memory is allocated to the
graphics core.
The graphics driver allocates memory as needed for running
graphics applications and is cooperatively using this memory with
other system components.
This mode guarantees that at least 64MB of memory is available to
the graphics core, with a possibility to increase this amount to
128MB, if necessary.
․Boot Display
This field is used to select the type of displ ay to use when the sy stem boot s. EFP
means DVI or LCD display by main board.
CRT Select this option if you want the system to boot the CRT display.
EFP
CRT+EFP
Select this option if you want the system to boot the DVI or LCD
flat panel display. (Optional Item)
Select this option if you want the system to boot both of the CRT
and DVI or LCD display. (Optional Item)
․Panel Number (Optional Item)
If you apply one of the standard panels shown above, select the appropriate
option according to the type of panel that you apply. Or, please contact your
dealer or sales representative for custom-made BIOS that will suit the panel that
you apply. When main board offers DVI output, this option will not be shown.
Panel Number
1024x768 24Bit 1CH
1280x1024 48Bit 2CH
1280x768 24Bit 1CH
1366x768 24Bit 1CH
User’s Manual 33
3-4. Integrated Pe ripherals
The IDE hard drive controllers su pport up to tw o separ ate hard driv es. These driv es
have a master/slave relationship that is determined by the cabling configuration
used to attach them to the contro ller. Your system supports two IDE cont rollers--a
primary and a secondary--so you can install up to four separate hard disks.
＞OnChip IDE Device
＞Onboard Device
＞SuperIO Device
Onboard Lan Boot ROM Disabled
Onboard Serial Port 3 3E8
Serial Port 3 Use IRQ IRQ5
Onboard Serial Port 4 2E8
Serial Port 4 Use IRQ IRQ10
IDE HDD Block Mode Enabled
IDE DMA transfer access Enabled
On-Chip Primary PCI IDE Enab led
IDE Primary Master PIO Auto
IDE Primary Slave PIO Auto
IDE Primary Master UDMA Auto
IDE Primary Slave UDMA Auto
On-Chip Secondary PCI IDE Enabled
IDE Secondary Master PIO Auto
IDE Secondary Slave PIO Auto
IDE Secondary Master UDMA Auto
IDE Secondary Slave UDMA Auto
*** On-Chip Serial ATA Setting ***
On-Chip Serial ATA Auto
SATA PORT Speed Setti ngs Disabled
PATA IDE Mode Secondary
SATA Port P0,P2 is Primary
Integrated Peripherals
Item Available Options:
Press Enter
Press Enter
Press Enter
OnChip IDE Device
Item Available Options:
34 The ENDAT-9401F/H System Board
Onboard Device
USB Controller Enabled
USB 2.0 Controller Enabled
USB Keyboard Support Enable d
AC97 Audio Select Enabled
Item Available Options:
SuperIO Device
POWER ON Function Button ONLY
KB Power ON Password Enter
Hot Key Power ON Ctrl-F1
Onboard Serial Port 1 3F8/IRQ4
Onboard Serial Port 2 2F8/IRQ3
UART Mode Select Normal
RxD, TxD Acitve Hi,Lo
IR Tra nsm ission Delay Enabled
UR2 Duplex Mode Half
Use IR Pins IR-Rx2Tx2
Onboard Parallel Port 378/IRQ7
Parallel Port Mode ECP+EPP
EPP Mode Select EPP1.7
ECP Mode Use DMA 3
PWRON After PWR-Fail Off
Item Available Options:
․Onboard LAN Boot ROM
The default setting is enabled or disabled LAN boot up function.
․
IDE HDD Block Mode
Block mode is also called block tr an sfer, multiple comma nd s, or multiple sectors
read/write.
․IDE Primary Master/Slave PIO and IDE Secondary
Master/Slave PIO
The four IDE PIO (programme d Input/ Outpu t) fields l et yo u set a PIO mode (0- 4)
for each IDE device that the internal PCI IDE interface supports. Modes 0
through 4 provide successively increased performance. In Auto mode, the
system automatically deter mi n es the best mode for each device.
User’s Manual 35
․IDE Primary Master/Slave UDMA and IDE Secondary
Master/Slave UDMA
These fields allow you to set the Ultra DMA in use. When Auto is selected, the
BIOS will select the best available option after checking your hard drive or
CD-ROM.
․On-Chip Serial ATA
Disabled
Auto
Combined Mode
Enhanced Mode
SATA Only
SATA PORT Speed Settings
․
The SATA PO RT Speed Settin gs opt i o n controls the maximum access speed
allowed for the connected SATA devices, wi th the GEN I setting used for
SATA-150 type devices and GEN II used for SATA II type devices.
․PATA IDE Mode
These fields are used to select the m aster/slave mode of the serial ATA dr ives.
Make sure they do not conflict with the settings of the IDE hard drives.
Disables the onboard SATA.
The system will detect the existing SATA and IDE drives
then automatically set them to the available master/slave
mode.
This option allows you to use both IDE and SATA drives;
allowing a maximum of 4 drives. You must manually set
the SATA drives’ master/slave mode in the “Serial ATA
Port0 Mode” and “Serial ATA Port1 Mode” fields.
This option allows you to use both IDE and SATA drives;
allowing a maximum of 6 drives.
This option automatically sets the SATA drives to Primary
Master and Secondary Master modes. Since both drives are
in master mode, you cannot set the IDE drives to Master
mode. The “Serial ATA Port0 Mode” and “Serial ATA
Port1 Mode” fields will not be configurable.
․USB Controll er
Select “Enabled” if your sy stem c ontains a Universal Serial Bus (USB) co ntr oll er
and you have a USB peripheral.
36 The ENDAT-9401F/H System Board
․USB 2.0 Controller
The options for this field are Enabled and Disabled. By default, this field is set to
Disabled. In order to use USB 2. 0, necessary OS drivers must be install ed first.
AC97 Audio Select
․
The AC97 Audio Select option allows th e user to enable or disable onboard
audio function.
․UART Mode Select
Select an operating mode for the serial port 2.
<Choice: IrDA, ASKIR, Normal>
․Parallel Port Mode
This field allows you to determine parallel port mode function.
<Choice: SPP, EPP, ECP, ECP + EPP, Normal>
․PWRON After PWR-Fail
This item allows you to select if you want to power on the system after power
failure
User’s Manual 37
3-5. Power Management Setup
The Power Management Setup allows us ers confi guring the system to sav e energy
in a most effective w ay while operati ng in a manner consistent wi th their own style of
computer use.
＞PCI Express PM Function
ACPI function Enabled
ACPI Support Type S1(POS)
Run VBIOS if S3 Resume Auto
Power Management User Define
Video Off Method Blank Screen
Video Off In Suspe nd Yes
Suspend Type Stop Grant
Suspend Mode Disabled
HDD Power Down Disabled
Soft-Off by PWR-BTTN Instant-Off
CPU THRM-Throttling 75.0%
USB KB Wake-Up From S3 Disabled
Resume by Alarm Disabled
Date(of Month) Alarm 0
Time(hh:mm:ss) Alarm 0 : 0 : 0
** Reload Global Timer Events **
Primary IDE 0 Disabled
Primary IDE 1 Disabled
Secondary IDE 0 Disabled
Secondary IDE 1 Disabled
FDD,COM,LPT Port Disabled
PCI PIRQ[A-D]# Disabled
PCI Express PME Enabled
Item Available Options:
Press Enter
PCI Express PM Function
Item Available Options:
38 The ENDAT-9401F/H System Board
․ACPI Function
This function should be enabled only in operating systems that support ACPI.
Currently, only Windows® 98SE/2000/ME/XP supports this function. When this
field is enabled, the syste m will ignore the set tings in the “Suspend Mode” and
“HDD Power Down” fields. If you want to use the Suspend to RAM function,
make sure this field is enabled then select“S3 (STR)” in the field below.
․ACPI Suspend Type
This field is used to select the type of Suspend mode.
S1(POS)
S3(STR)
S1 & S3
Enables the Power On Suspend function.
Enables the Suspend to RAM function.
If S3 state is supported by the system, by default [S3] is
automatically selected. Otherwise [S1] is selected.
․Power Management
This field allows you to select the type of power saving management modes.
․Video Off Method
This field defines the Video Off features.
Blank Screen
V/H SYNC + Blank
DPMS
Writes blanks to the video buffer.
Enables the Suspend to RAM function.
Allows BIOS to control the video display.
․Soft-Off by PWR-BTTN
This field defines the power-of f mode when using an ATX power supply.
․CPU THRM-Throttling
When the system enters Doze mode, the CPU clock runs only part of the t ime.
You may select the percent of time that the clock runs.
.
User’s Manual 39
3-6. PnP/PCI Configurations
This section describes the configuration of the PCI bus system. PCI is a system
that allows I/O device to operate at speeds nearing the speed of the CPU itself,
when communicating with its own special componen ts. This section cove rs some
very technical items. It is strongly recommended that only experienced users make
any changes to the default settings.
Init Display First PCI Slot
Reset Configuration Data Disabled
Resources Controlled By Auto(ESCD)
IRQ Resources Press Enter
PCI/VGA Palette Snoop Disabled
INT Pin 1 Assignment Auto
INT Pin 2 Assignment Auto
INT Pin 3 Assignment Auto
INT Pin 4 Assignment Auto
INT Pin 5 Assignment Auto
INT Pin 6 Assignment Auto
INT Pin 7 Assignment Auto
INT Pin 8 Assignment Auto
․Reset Configuration Data
Enabled
Disabled
․Resources Controlled By
Auto(ESCD)
Manual
․PCI/VGA Palette Snoop
When set to [Enabled], multiple VGA devices operating on different buses can
handle data from the CPU on each set of p alette regi sters on every video device .
Bit 5 of the command register in the PCI device configuration space is the VGA
Palette Snoop bit (0 is disabled).
Item Available Options:
The BIOS will reset the Extended System Configuration Data
(ESCD) once automatically. It will then recreate a new set of
configuration da ta.
The BIOS will not reset the configuration data.
The system will automatically detect the settings for you.
Choose the specific IRQ in the “IRQ Resources” field.
40 The ENDAT-9401F/H System Board
3-7. PC Health Status
This screen shows the information of te mp erature, Fan speed and Vcore etc.
Temperature 1
Temperature 2
Temperature 3
VcoreA
VcoreB
+3.3 V
+5 V
+ 12 V
CPU Fan
System Fan
PC Health Status
Item Available Options:
45℃
45℃
45℃
1.21V
1.05V
3.31V
5.13V
11.73V
0 RPM
6692 RPM
User’s Manual 41
Chapter 4. VGA, LCD Feature
4-1. VGA Feature
ENDAT-9401F/H provides an integrated graphics (Intel® Graphics Media
Accelerator 950) accelerator delivering cost competitive 3D, 2D, and video
capabilities. It contains an extensive set of instructions for 3D operations, BLT
(Block Level Transfers) an d Stretch BL T operations, m otion compen sation, overl ay,
and display control. ENDAT-9401F/H video engines support video conferencing
and other video applications. Instead of a dedicated local graphics memory
interface, ENDAT-9401F/H applies UMA configuration for optimal memory
utilization and performance that deliver 3D graphics with sharp images, fast
rendering, smooth motion and extreme detail.
The Intel® 945GM Express chipset' s low power design enables up to 28% less
average power consumption compared to previous generations. Featuring the
Intel® Graphics Media Accelerator 950, the Intel 945GM Express chipset delivers
up to 2 x improvements in graphics performance over the previous generation
chipset. The Intel® 945G M Express chipset enabl es up to 25% h igher data transfer
rate compared to the previous generation bus speed.
ENDAT-9401F/H applies Intel® DVMT 3.0 for optimum the system utilization via
system chipset. DVMT is a c oncept be applied in the Intel® 945G M chipset wher ein
the optimum amount of memory is dynamically allocated and de-allocated as
needed for balanced graphics and sy stem performanc e, through Int el® Direct A GP
and a highly efficient memory utilization scheme.
The on-board INTEL® GMA950 Graphic Controller supports a full AGP
implementation internally to remain compatible with existing software and
programming models. However, since the e ngine is integrated, it enjoys a higher
bandwidth and lower latency than is possible with discrete solutions.
The controller of ENDAT-9401F/H supports 3 types of display: CRT, DVI and LVDS
panel.
42 The ENDAT-9401F/H System Board
4-2. LVDS Panel Feature (optional)
The on-board graphic controller supports industry standard LCD panel, LVDS
interface only, with 1 channel ( 18 or 24) and 2 channels (36 or 48bit) data width.
LVDS interface provides low voltage, high speed and low EMI serial DC-balanced
differential data via optional onboard LVDS.
The flat panel interface pro vides or suppor ts foll owin g func tions for vario us pane ls:
- Generates LVDS flat panel channels like clock and data channel.
- Generates different video data formats to directly drive different types of
panels (18, 24, 36 or 48bit)
- Wide screen resolution as 16:9 or 16:1 0.
- Vertical and horizontal expa nsion of video displays to LCD panel resol u ti o n
- Vertical and horizontal cent er i n g
- Panel power sequence
Please note that the default setting is with “CRT”. If the LCD display features is
required, the setting will need to be revised in the system BIOS setting: “CRT+EFP”
under “Advanced Chipset Features
”
unless clients specified the display type while order.
User’s Manual 43
4-3. Driver Utility Installation Guide
When finishing the installation of Windows platform (2000/XP), please install the
relative “INF” driver of Intel® chipsets firstly for compliance compatibility of
hardware environment.
Please follow the step of CD-ROM driver and complete the VGA, AUDIO,
ETHERNET and USB2.0 setup pr ocedure. I nsert the s upport CD tha t supplied with
motherboard into CD-ROM driv er, which enable the ac cess with au to-run mode; or
double –click the CD driver icon in “My Computer” to bring up the screen.
Please download or check from
individually or you need more information.
Intel®
Web site:
www.intel.com
if you prefer to install the drivers
44 The ENDAT-9401F/H System Board
Appendix A: FLASH Memory Utility
Using this utility to update the system BIOS from a disk file to the on board Flash
memory. Be aware the improper change of the system BIOS will cause the system
to malfunction.
Using utility as follows:
1. Insert the FLASH memory utility distribution floppy diskette in drive A:
2. At the DOS prompt, type A:>AWDFLASH and press <Enter>
AwardBIOS FLASH Ut il ity V8.63E
C>Phoenix Technologies Ltd. All Rights Res erved
Flash Type –
File Name to Program:
Message:
3. Enter the name of the system BIOS disk file into the "File Name to Program" field
The following message appears in the "Message" field
4. Do you want to save BIOS (y/n)?
5. To update the FLASH memory from t he system BIOS disk file, type Y
F1
6. After complete updating, please re-boot the system (press “
7.
For upgrade BIOS procedure, please refer to our web site:
http://www.u nico rn-com puter.com.tw
* Please turn off system and clear CMOS data by JBAT1.
* Please restart your system and load optimal defaults setting.
” key)
User’s Manual 45
46 The ENDAT-9401F/H System Board
Appendix B: LCD Pin Assignment
LVDS1: Dual Channel LVDS (2.54mm)
Pin No. Signal Pin No. Signal
Please make sure the Pin 1 location before inserting the LCD connector.
BIOS LCD panel type list (Advance Chipset Setup/Panel Type)
VBL (+12V)
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
GND
DISP.ON/OFF
LVDD
GND
RxO0+
RxO1+
RxO2+
RxO3+
RxOC+
GND
RxE0+
RxE1+
RxE2+
RxE3+
RxEC+
LVDD
GND
GND
VBL (+12V)
Panel Number
1024x768 24Bit 1CH
1280x1024 48Bit 2CH
1280x768 24Bit 1CH
1366x768 24Bit 1CH
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
2
4
6
8
VBL (+12V)
GND
GND
LVDD
GND
RxO0RxO1RxO2RxO3-
RxOC-
KEY
RxE0RxE1RxE2RxE3RxECLVDD
GND
GND
VBL (+12V)
Appendix C: Limited Warranty
Standard two years limited warranty on all our ENDAT series all-in-one
motherboards and embedded boards. Products that become defective during the
warranty period shall be repaired, or subject to manufacturer’s option, replaced.
The limited warranty appli e s to nor mal pro per usa ge of t he ha r dwar e and doe s n ot
cover products that have been modified or subjected to unusual electrical or
physical stress. Unicorn Computer Corp is not liable to repair or replace defective
goods caused by improper using or use of unauthorized parts. The following
situations will be charged:
1. The products during the warranty but defective caused by improper using or
artificial external pressure and result in the components damages. According to
the damage situation, the ma nufacturer has the rights to decide to repair or not.
The manufacturer will charge the parts/repair cost and the returning shipping
charge.
2. The products out o f warranty wil l charge th e parts/repair cost an d the retu rning
shipping charge as per the repair status.
3. The manufacturer has the rights to decide to rep air or not based on the stock of
parts for the products which are phased out of the producti on.
4. Please e-mail or fax the RMA Service Request Form when have the defective
products.
User’s Manual 47
RMA SERVICE REQUEST FORM
When requesting RMA service, please fill out this “RMA Service Request Form”.
This form needs to be shipped with your returns. Service cannot begin until we
have this information.
RMA NO.:
Company: Person to Contact:
Phone No: Purchase Date :
Fax No. : Applied Date :
Return Shipping Address:
Model No. Serial No. Problem Code Remark
48
The ENDAT-9401F/H System Board
z Issue Code of defect.
Please specify the followin g wh en re turning the RMA board s:
(1) Hardware Config uration (2) OS or Software (3) Testing Program
___________________
Authorized Signature
01 Second Times R.M.A. 11 Memory Socket Bad
02 No Screen (No Boot) 12 Hang Up Hardware
03 VGA (Display) Fail 13 Hang Up Software
04 CMOS Data Lost 14 PCB Problem
05 FDC Fail 15 CPU Socket Bad
06 HDC Fail 16 LAN Fail
07 Bad Slot 17 Audio Fail
08 BIOS Problem 18 Serial Port Fail
09 Keyboard Controller Fail 19 Parallel Port Fail
10 Cache RAM Problem 20 Others
Loading...
