Unicorn Computer ENDAT-4946i/M User Manual

User’s Manual I

ENDAT-4946i/M

User’s Manual

Rev . A6

PCB version: A6 and later

Jan.4.2010

II

The ENDAT-4946i/M System Board

Copyright Notice

The content of this manual has been checked for accuracy. The manufacturer
assumes no responsibility for any inaccuracies that may be contained in this
manual. The manufacturer reserves the right to make improvements or

modification to this document and/or the product at any time without prior
notice. No part of this document may be reproduced, transmitted, photocopied or

translated into any language, in any form or by any means, elect ronic, mechanic al,
magnetic, optical or chemical, without the prior written permission of the
manufacturer.

Intel® Core™ Solo, Core ™ Duo and Core™2 Du o mobile pro cessor is regist ered
trademark of Intel Incorporation

Multiscan is a tradem ar k of So ny Corp of America
IBM, EGA, VGA, PC/XT, PC/AT, OS/2 and PS/2 are registered trademarks of

International Business Machines Corporation
Plug and Play is registered trademarks of Intel Corporation
Microsoft, Windows and MS-DO S ar e trademarks of Microsoft Corporation
Award is a trademark of Phoenix Software Inc.
PCI is a registered trademark of PCI Special Interest Group
Other product names mentioned herein are used for identification purpose only

and may be trademarks and/or registered trademarks of their respective
companies.

Installation Notice

The manufacturer recommends using a grounded plug to ensure proper
motherboard operation. Care should be used in proper conjunction with a
grounded power receptacle to avoid possible electrical shock. All integrated
circuits on this motherboard are sensitive to static electr icity. To avoid damaging
components from electrost atic discharge, please do not remove the board from the
anti-static pa cking before disc harging any static electricity to your body, by wearing
a wrist-grounding strap. The manufacturer is not responsible for any damage to the
motherboard due to improper operation.

User’s Manual III

Specification:

Model ENDAT-4946i/M

Form Factor

System Chipset

CPU Supporting

Memory

Ethernet

VGA

LCD Interface

DVI Interface

Display ratio

Serial / Parallel

Watchdog Timer

IDE Connector

SATA Connector

AUDIO

Expansion Slot

I/O Port

Digital IO

RS-422/485

USB Port

Power Supply

Mini-ITX 170 mm x 170 mm (6.69”x6.69”)

INTEL® 945GM + INTEL® ICH7

ENDAT-4946M: 533/667 FSB with 478 pin Intel® Celeron® M 423

processor

ENDAT-4946i: 533/667 FSB with 478 pin Intel® Core™ Solo , Intel®

Core™ Duo and Intel® Core™2 Du o processor

1 x 240 pin DDR2 socket supports DDR2 533/667 up to 2GB

Realtek 8111B PCIE Gigabit LAN

INTEL® GMA950 Graphic Controller with DVMT up to 224MB(max)

Onboard LVDS support 18/24/36/48bit Single/Dual Channels via internal

box header (optional)

Onboard DVI output via internal pin header (optional)

4:3 and 16:9

4 Serial Port w/+5V, +12V Power Selector / 1 Parallel port

Winbond 83627THG on-chip support 1 to 255 seconds/minutes

1 x 40pin IDE connector support UDMA 33/66/100

2 ports 300MHz Serial ATA Device

On-board AC’97 with 1.2W amplifier

One PCI slot with PCI 2.2 compliance

PS/2 Keyboard / Mouse Connector

2 x USB (2.0) + RJ-45 Connector w/LED indicator

D-sub Connector for COM 1, 2, 3 with POWER

1 x 25 Pins D-Sub Connector (LPT)

1 D-Sub Connector (VGA)

Internal pin header: KB, MS, USB (2.0) x4, AUX/CD-IN, SPDIF IN/OUT,

RF MIC IN, IR

8 bit input and 8 bit output (TTL level) by pin header

Via COM2 (Optional)

6 x USB2.0 onboard

ATX power supply

IV The ENDAT-4946i/M System Board

TABLE OF CONTENTS

CHAPTER 1. INTRODUCTION.......................................................1

1-1. FEATURES ..............................................................................................2

1-2. UNPACKING .......................... .................................................... .............. 3

1-3. ELECTROSTATIC DISCHARGE PRECAUTIONS ...................................3

1-4. MOTHERBOARD LAYOUT ...................................................................... 4

CHAPTER 2. SETTING UP THE MOTHERBOARD.......................5

2-1. JUMPERS AND CONNECTORS................................... ............... ............ 5

2-2. INSTALLING MEMORY.......................................................................... 15

2-3. SHARED VGA MEMORY.......................................................................15

2-4. ASSIGNING IRQs FOR EXPANSION CARDS .......................................15

2-5. WATCHDOG TIMER…………………………………………………………. 16
2-6. DIGITAL I/O…………………………………………………………...………. 18

CHAPTER 3. AWARD BIOS SETUP............................................20

3-1. STANDARD CMOS FEATURES.............................................................21

3-2. ADV ANCED BIOS FEATURES............................................................... 22

3-3. ADV ANCED CHIPSET FEA TURES................................... ..................... 24

3-4. INTEGRATED PERIPHERALS ..................... ................................ .......... 25

3-5. POWER MANAGEMENT SETUP........................................................... 39

3-6. PnP/PCI CONFIGURATIONS.................................................................31

3-7. PC HEALTH STATUS.............................................................................32

User’s Manual V

CHPATER 4. VGA, LCD, FEATURE............................................. 33

4-1. VGA FEATURE.......................................................................................33

4-2. LVDS PANEL FEATURE......................................................................... 34

4-3. DRIVER UTILITY INSTALLATION GUIDE.............................................. 35

APPENDIX A: FLASH MEMORY UTILITY...................................36

APPENDIX B: CONNECTOR PIN ASSIGN MENT .......................37

APPENDIX C: LIMITED WARRANTY.......................................... 39

User’s Manual 1

Chapter 1. Introduction

ENDAT-4946i/M supp orts high performance proce ssor of Intel® Celeron® M 423
(for ENDAT-4946M), Intel® Core™ Solo, Intel® Core™ Duo and Intel® Core™2
Duo processor (for ENDAT-4946i) with 533 and 667 Front Side Bus. It also
supports high speed DDR-2 memory with 64-bit wide interfaces with non-ECC
DIMM (up to 2GB). Only Double-Data- Rate Two Synchronous Dynamic Random
Access Memory is supported and the speed of memory can be 533 and 667 MHz.

ENDAT-4946i/M provides an integrated graphics (Intel® Graphics Media
Accelerator 950) accelerator delivering cost competitive 3D, 2D, and video
capabilities.
ENDAT-4946i/M video engines support video conferencing and other video
applications. Instead of a dedicated local graphics memory interface,
ENDAT-4946i/M uses a UMA configuration for optimal memory utilization and
performance that deliver 3D graphics with sharp images, fast rendering, smooth
motion and extreme detail.

ENDAT-4946i/M contains one integrated Serial ATA host controllers capable of
independent DMA operation on two ports. The SATA controllers are completely
software transparent with the IDE interface, while providing a lower pin count and
higher performance. The data transfer rate is up to 300 MB/s.

ENDAT-4946i/M is an ideal model for various kind of application:

- POS system

- KIOSK

- Interactive system

- Airport Terminal Controller

- Industrial controller

- Digital entertainment

- Embedded system equipment

2

The ENDAT-4946i/M System Board

1-1. Features

Basic Feature:

 Board format: Mini-ITX (170mm x 170 mm)
 Supports Socket 478 CPU (FSB 400/533/667 MHz)
 Digital I/O: 8 bits in and 8 bits out (5V)
 Supports DDR-2 533/667 SDRAM up to 2GB
 Serial ATA connector x 2
 Enhance IDE connector x 1
 Multiple I/O ports: COM port x 4; USB (2.0) x 6
 All COM ports with +5V, +12V power selector
 Watchdog Timer
 Realtek Gigabit LAN and Audio function onboard

Optional features:

 On board chip provides L VDS interface (18/24/36/48 bit, single/dual

channels)

 DVI Output interface
 RS 422/485 via COM 2
 Barebones system: niche into Unicorn U-6000 & U-8000 Chassis

Full Software Support:

 Drivers for major operating systems and APIs: Windows 2000,

Windows XP, Direct3D, DirectDraw and DirectShow, OpenGL ICD
and DXVA for Windows 2000 and Windows XP

User’s Manual 3

1-2Unpacking

The motherboard comes securely packaged in a sturdy cardboard shipping carton.
In addition to the User’s Manual, the motherboard package includes the followi ng
items:

ENDAT-4946i/M System Board
HDD / IO Cables
LCD cable (Optional)
CDROM Driver includes: D rivers for Windows 2000, XP and AM I / A W ARD FLASH

ROM utilities.
Driver utilities for on-board VGA drivers, LAN adapter
If any of these items are missing or damage, please contact the dealer from whom

you purchase the motherboard. Save the shipping material and carton in the event
that you want to ship or store the board in the future.

Note:

Please leave the motherboard in its original package until you are ready to
install it!

1-3. Electrostatic Discharge Precautions

Make sure you properly ground yourself before handling the motherboard, or other
system components. Electrostatic discharge can easily damage the components.
Note: You must take special precaution when handling the motherboard in dry or
air-conditioned environments.

4

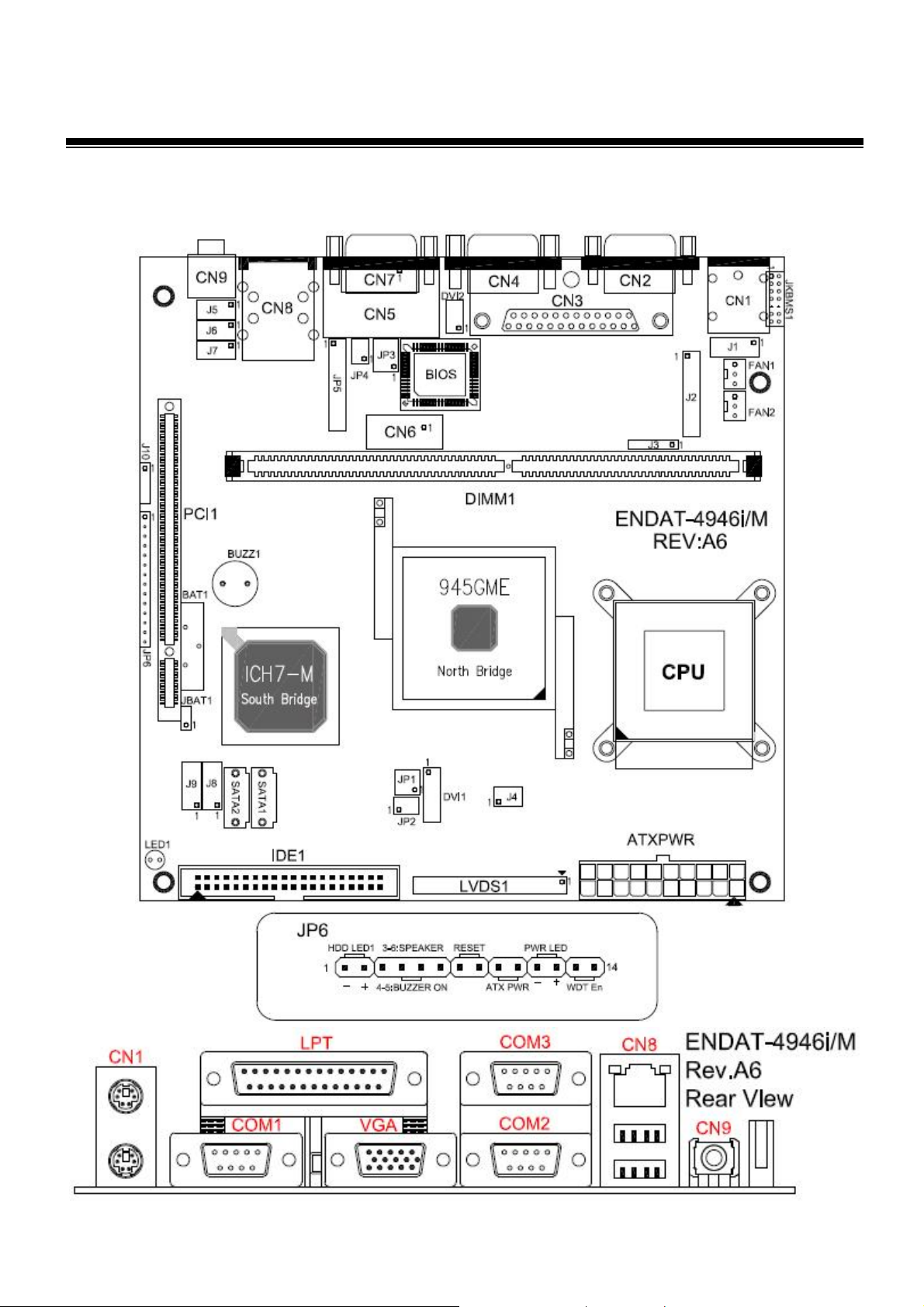

1-4. Motherboard Layout

The ENDAT-4946i/M System Board

User’s Manual 5

Chapter 2. Setting up the Motherboard

2-1. Jumpers And Connectors

Jumpers/Connectors Over vi e w:

Function Jumpers/Connectors

Cooling Fan Connector FAN1, FAN2
ATX Power Supply Connector ATXPWR
DVI Output Pin Header DVI1, DVI2
LCD Panel Connector LVDS1
LCD Voltage Selector JP2
Clear CMOS JBAT1
PS/2 Mouse/KB Pin Header J1
PS/2 Mouse/KB CN1
USB Port CN8, J8, J9
40-Pin IDE Connector IDE1
SATA 1, SATA2 SATA 1, SATA2
Header for Case Panel JP6
HDD LED JP6: Pin 1(-), Pin 2(+)
External Speaker JP6: Pin 3(-), Pin 6(+)
Buzzer On/Off JP6: Pin 4, Pin 5
Hardware Reset Switch JP6: Pin 7, Pin 8
ATX Power Supply On/Off Switch JP6: Pin 9, Pin 10
Power LED JP6: Pin 11(-), Pin 12(+)
WDT Function Enable/Disable JP6: Pin 13, Pin 14
External Power Good JP6: Pin 15, Pin 16
Internal Power Good JP6: Pin 16, Pin 17
DDR2 RAM Socket DIMM1
CRT Output CN4
IR Pin Header J3
COM1/2/3/4 Voltage Selector JP5
COM1 Connector CN2
COM2 & COM3 Connector CN5
LPT1 CN3
LAN Connector CN8
AC’97 Speaker Output CN9
AC’97’ Speaker Output, MIC-In Pin Header J5

6

Function Jumpers/Connectors

5.1Ch Speaker output Pin Header J6
Line-In, CD-In Pin Header J7
COM2 Box Header CN7
COM4 Box Header CN6
RS232 / 422 / 485 Selector for COM2 JP3, JP4
DIGITAL I/O Pin Header J2
SPDIF Pin Header J10

The ENDAT-4946i/M System Board

Please double-check the insertion and orientation of the LCD cable
before applying power. Improper installation will result in permanent
damage LCD panel.

Part 1: Onboard Jumpers

JP2: LCD Voltage Selector (2.0mm)

LCD power JP2 (2.54mm)

Pin-1, 2*

Pin-3, 4
Pin-5, 6

Caution: Improper setting will damage LCD panel.

JP3, JP4: RS232 / 422 / 485 Select or f or CO M 2 (2.0mm)

TYPE JP3 (3x4/2mm) JP4 (2x3/2mm)

RS-232 *

RS-422
RS-485

JP5: COM1/2/3/4 Voltage Selector (2.0mm)

Voltage COM1 COM2 COM3 COM4

+3.3V

+5V

+12V

1-2, 4-5, 7-8, 10-11 1-2
2-3, 5-6, 8-9, 11-12 3-4
2-3, 5-6, 8-9, 11-12 5-6

+12V 1-2 7-8 13-14 19-20

R.I* 3-4 9-10 15-16 21-22
+5V 5-6 11-12 17-18 23-24

User’s Manual 7

JP6: Header for Case Panel (2.54mm)

Pin No. Function
1(-), 2(+)
3(-), 6(+)

4,5
7,8

9,10

11(-), 12(+)

13,14
15,16
16,17

Hardware Reset Switch

Close: Enable WDT function

External Power Good

Internal Power Good(Default)

IDE LED

External Speaker

Buzzer On/Off

ATX Power On/Off

Power LED

Part 2: Onboard Connectors

J1: PS/2 Keyboard / Mouse Pin Header Connector (2.54mm)

Pin No. Function Pin No. Function

1
3
5
7
9

J2: Digital I/O Pin Header (2.54mm)

Pin No. Function Pin No. Function

1
3
5
7

9
11
13
15
17
19
21

KB Data

KEY

GND
+5V(DC)
KB_CLK

+5V
DIO-O0
DIO-O1
DIO-O2
DIO-O3
DIO-O4
DIO-O5

GND
DIO-O6
DIO-O7

+3.3V

2
4
6
8

10

2
4
6

8
10
12
14
16
18
20
22

MS Data

KEY

GND

+5V(DC)

MS_CLK

+5V
DIO-I0
DIO-I1
DIO-I2
DIO-I3
DIO-I4
DIO-I5

GND
DIO-I6
DIO-I7

+3.3V

8

J3: IR Pin Header (2.54mm)

Pin No. Function Pin No. Function

1
2
3

J5: AC’97 Speaker Output, MIC-In Pin Header (2.54mm)

Pin No. Function Pin No. Function

1
3
5
7

J6: 5.1Ch Speaker output Pin Header (2.54mm)

Pin No. Function Pin No. Function

1
3
5
7

J7: Line-In, CD-In Pin Header (2.54mm)

Pin No. Function Pin No. Function

1
3
5
7

J8, J9: USB Port Pin Header (2.54mm)

Pin No. Function Pin No. Function

1
3
5
7
9

VCC

N.C

IRRX

Speaker Output–RIGHT

GND
GND

Speaker Output–LEFT

Surround Output – LEFT

GND
GND

Surround Output – RIGHT

Line Input – RIGHT

GND
GND

Line Input – LEFT

USB_VCC
USBD 2/4-

USBD 2/4+

USB_GND
USB_GND

4
5

2
4
6
8

10

USB_VCC
USBD 3/5-

USBD 3/5+

USB_GND
USB_GND

The ENDAT-4946i/M System Board

GND

IRTX

2
4
6
8

2
4
6
8

2
4
6
8

Alternative LFE–Output

First MIC Input/CEN–Output

Center Output

Low Frequency Effect Output

CD Input – RIGHT

CD Input – LEFT

GND
GND

GND
GND

GND
GND

User’s Manual 9

J10: SPDIF Pin Header (2.54mm)

Pin No. Function Pin No. Function

1
2
3

ATXPWR: ATX Power Supply Connector (3.96mm)

Pin No. Function Pin No. Function

1
3
5
7

9
11
13
15
17
19

+5V

KEY

SPDIF-OUT

+3.3V
+3.3V

GND

+5V

GND

+5V

GND

POWER OK

5V_SB

+12V

4
5

2
4
6

8
10
12
14
16
18
20

GND

SPDIF-IN

+3.3V

-12V
GND

PS-ON

GND
GND
GND

-5V
+5V
+5V

FAN1, FAN2: Cooling Fan Connector

Pin No. Function

1
2
3

CN3: Printer (LPT1) Connector

Pin No. Function Pin No. Function

1
2
3
4
5
6
7

Sensor Pin.

+12V

GND

STB#

PD0
PD1
PD2
PD3
PD4
PD5

10
11
12
13
14
15
16

ACK#

BUSY

PE
SLCT
AFD#
ERR#
INIT#

8
9

PD6
PD7

17

18-25

SLIN#

GND

10

CN4: CRT Connector

Pin No. Function Pin No. Function

The ENDAT-4946i/M System Board

1
2
3
4
5
6
7
8

CN6: COM4 Pin Header (RS-232)

Pin No. Function Pin No. Function

1
2
3
4
5

D-SUB Type Connector for COM2 port (RS-422 4 Wire)

RED

GREEN

BLUE

n/c
GND
GND
GND
GND

DCD
RXD

TXD
DTR

GND

9
10
11
12
13
14
15

6

7

8

9
10

n/c / +5V

GND

n/c

DDC DAT

H-Sync
V-Sync

DDC CLK

DSR

RTS

CTS

RI

n/c

Pin No. Function Pin No. Function

1
2
3
4
5

D-SUB Type Connector for COM2 port (RS-485 2 Wire)

Pin No. Function Pin No. Function

1
2
3
4
5

–TXD
+RXD
+TXD

NA
NA

Data –

NA

Data +

NA
NA

6

7

8

9

6

7

8

9

NA
NA
NA

–RXD

NA
NA
NA
NA

User’s Manual 11

D-SUB Type Connector for COM port (RS-232)

Pin No. Function Pin No. Function

1 Data – 6 NA
2 NA 7 NA
3 Data + 8 NA
4 NA 9 NA
5 NA

DVI1: DVI-DIGITAL Output Pin Header (2.0mm)

Pin No. Function Pin No. Function

1
3
5
7

9
11
13

DVI2: DVI-ANALOG Output Pin Header (2.0mm)

Pin No. Function Pin No. Function

1

3

5

7

TD2-

TD2+

EDID DATA

EDID CLOCK

TD1-

TD1

TLC-

CRT_RED

CRT_GREEN

CRT_BLUE

n/c

2
4
6

8
10
12
14

2

4

6

8

+5V

KEY

HPDET

TD0-

TD0+

LVDS_GND

TLC+

VGAVSYNC

GND_CRT

VGAHSYNC

CRT-Pin-6

12

IDE1: IDE Box Header (2x20 with 2.54mm)

Pin No. Function Pin No. Function

1 IDE Reset# 2 GND
3 IDE data7 4 IDE data8
5 IDE data6 6 IDE data9
7 IDE data5 8 IDE data10
9 IDE data4 10 IDE data11

11 IDE data3 12 IDE data12
13 IDE data2 14 IDE data13
15 IDE data1 16 IDE data14
17 IDE data0 18 IDE data15
19 GND 20 N.C.

The ENDAT-4946i/M System Board

21 IDE REQ 22
23 IDE IOW# 24
25 IDE IOR# 26
27 IDE Ready 28
29 IDE ACK# 30
31 IDE IRQ 32 N.C.
33 IDE A1 34 P66DET
35 IDE A0 36 IDE A2
37 IDECS1# 38 IDESC3#
39 HDLED# 40 GND

GND
GND
GND
GND
GND

User’s Manual 13

LVDS1: Dual Channel of LVDS I/F (2.0mm)

Pin No. Function Pin No. Function

1

3

5

7

9

11
13
15
17
19
21
23
25
27
29
31
33
35
37
39

VBL (+12V)

GND

DISP.ON/OFF

LVDD

GND
RxO0+
RxO1+
RxO2+
RxO3+

RxOC+

GND

RxE0+
RxE1+
RxE2+
RxE3+

RxEC+

LVDD

GND

GND

VBL (+12V)

2
4
6

8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40

VBL (+12V)

GND
GND

LVDD

GND
RxO0­RxO1­RxO2­RxO3-

RxOC-

KEY
RxE0­RxE1­RxE2­RxE3-

RxEC­LVDD

GND
GND

VBL (+12V)

Please make sure the Pin 1 location before insertin g the LCD connector.

14

LVDS1: Single Channel of LVDS I/F (2.0mm)

Pin No. Signal Pin No. Signal

1
3
5
7

9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39

VBL (+12V)

GND

DISP.ON/OFF

LVDD

GND
Rx0+
Rx1+
Rx2+
Rx3+

RxCLK+

GND

n/c
n/c
n/c
n/c
n/c

LVDD

GND
GND

VBL (+12V)

2
4
6

8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40

The ENDAT-4946i/M System Board

VBL (+12V)

GND
GND

LVDD

GND

Rx0­Rx1­Rx2­Rx3-

TxCLK-

KEY

n/c
n/c
n/c
n/c
n/c

LVDD

GND
GND

VBL (+12V)

Please make sure the Pin 1 location before inserting the LCD connector.

LCD Panel Number:

Panel Number

1024x768 24Bit 1CH

1280x1024 48Bit 2CH

1280x768 24Bit 1CH
1366x768 24Bit 1CH

User’s Manual 15

2-2. Installing Memory

ENDAT-4946i/M system board offers one 240pin DDR-2 SDRAM socket supports
up to 2GB memory and the speed can be 533 / 667 MHz.

2-3. Shared VGA Memory

ENDAT-4946i/M is usin g built-in I NTEL® GMA950 Graphic with INTEL DVMT 3.0
up to 224MB of system memory. The amount of video memory on motherboard
determines the number of colors and the video graphic resolution.

2-4. Assigning IRQs for Expansion Cards

Some expansion cards require an IRQ (Interrupt request vector) to operate.
Generally, each IRQ must be exclusively assigned to specific use. In a standard
design, there are 16 IRQ available with 11 of them alr eady in us ed by other p a rt of
the system.

Some PCI expansion cards need IRQ; any remaining IRQ could be assigned to
PCI Bus. Microsoft’s Diagnostic (MSD.EXE) utility included in the Windows
directory can be used to see their map. Clients can not have more than one device
apply the same IRQ in the system or it will cause the system hang up, crash, and
unexpected results. To simplify the pr ocess, this motherboard com plies with the
Plug and Play (PnP) specifications, which was developed to allow automatic
system configuration. Whenever a PnP-compliant card is added to the system,
PnP card and IRQs will automatically assigned if available. The PCI and PnP
configuration in the B IOS setup utility can indicate w hich IRQs have being used by
Legacy cards.

In the PCI Bus design, the BIOS is automatically assigned an IRQ to a PCI slot that
has a card in it which requires an IRQ. To install PCI cards via riser card, you need
to set the correct “ADSEL” and “INT” (interrupt) assignment on t he jumper of riser
card.

16

IRQ Status Assignment

0 Used Timer
1 Used Keyboard
2 Used Second 8259
3 Used COM2
4 Used COM1
5 Used COM3
6 Used Floppy Disk
7 Used LPT1
8 Used RTC
9 Used Audio

10 Used COM4

11 Used LAN Adapter (on board)

The ENDAT-4946i/M System Board

12 Used PS/2 Mouse
13 Used Coprocessor
14 Used Hard Disk (IDE 1)
15 Used Reserved (IDE 2)

2-5. Watchdog Timer

Watchdog Timer (WDT) is a special design for system monitoring to secure the
system work normally. WDT has an independent clock from the oscillator and
could set time and clear/refresh WDT counter function. When time is up, WDT wil l
send hardware RESET signal to reset system.

Timeout Value Range

-1 to 255

-Second or Minute

User’s Manual 17

Program Sample

#include <stdio.h>
#include <dos.h>
#include <dir.h>
void show_ver();
void main()
{
unsigned int tt;
clrscr();
show_ver();
tt=0;
while((tt==0)||(tt>255))
{
printf(“\n\nPlease key in how many seconds you want to reset system
(1~255):”);
scanf(“%d”,&tt);
}
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x07); //Set Logic Device number pointer
outportb(0x2f,0x08); //Set Logic Device number
outportb(0x2e,0xf5); //Set active register is CRF5
outportb(0x2f,0x00); //Set register value (bit3=1: minute. =0: se c ond)
outportb(0x2e,0xf7); //Set active register is CRF7
outportb(0x2f,0x00); //Disable all WDT interrupt (bit7=Mouse,
bit6=Keyboard)
outportb(0x2e,0xf6); //Set active register is CRF6
outportb(0x2f,tt); //Set time out value of WDT
}

void show_ver()
{
unsigned char tmp0;
printf(“Designed by ROBERT LIOU of UNICORN computer corp.
\n2004/03/02 release version:1.0a\n”);
printf(“This program is design for test Watchdog Timer for W83627.\n”);
}

18

The ENDAT-4946i/M System Board

2-6. Digital I/O

1) Pin out of digital I/O header (J2):

Pin No. Function Pin No. Function

1
3
5
7

9
11
13
15
17
19
21

This function is supported by onboard super I/O chip; it can be control easily by
change the register of super I/O chip via I/O port “2Eh” “2Fh” and “4Eh” “4Fh”.
Please see the sample code of below for implement.
Voltage tolerance: +/- 5% with 0V to +5V.

+5V
DIO-O0
DIO-O1
DIO-O2
DIO-O3
DIO-O4
DIO-O5

GND
DIO-O6
DIO-O7

+3.3V

2
4
6

8
10
12
14
16
18
20
22

+5V
DIO-I0
DIO-I1
DIO-I2
DIO-I3
DIO-I4
DIO-I5

GND
DIO-I6
DIO-I7

+3.3V

2) Digital I/O control port (2E,2Fh):

Register configuration:

Bit No 7 6 5 4 3 2 1 0

Map IN3 IN2 OUT3 OUT2 OUT1 OUT0 IN1 IN0

Sample code for input bit 0~3 (using Turbo C/C++ 3.0):

#define input_port 0x2f
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x07); //Set Logic Device number pointer
outportb(0x2f,0x07); //Set Logic Devi ce number
outportb(0x2e,0xF1); //Set active register is CRF1
read_data=inportb(input_port); // Read digital input data
printf(“DIO-Input=%02X\n”,read_data); //Show digital input data on screen

User’s Manual 19

Sample code for output bit 0~3 (using Turbo C/C++ 3.0):

outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x87); //Unlock register
outportb(0x2e,0x07); //Set Logic Device number pointer
outportb(0x2f,0x07); //Set Logic Device number
outportb(0x2e,0xF2); //Set active register is CRF2
outportb(0x2f,0x00); //Write data to digital output

3) Digital I/O control port (4E,4Fh):

Register configuration:

Bit No 7 6 5 4 3 2 1 0

Map IN7 IN6 OUT7 OUT6 OUT5 OUT4 IN5 IN4

Sample code for input bit 4~7(using Turbo C/C+ + 3.0):

#define input_port 0x2f
outportb(0x4e,0x87); //Unlock register
outportb(0x4e,0x87); //Unlock register
outportb(0x4e,0x07); //Set Logic Device number poi nter
outportb(0x4f,0x07); //Set Logic Device numbe r
outportb(0x4e,0xF1); //Set active register is CRF1
read_data=inportb(input_port); // Read digital input data
printf(“DIO-Input=%02X\n”,read_data); //Show digital input data on screen

Sample code for output bit 4~7(using Turbo C/C++ 3.0):

outportb(0x4e,0x87); //Unlock register
outportb(0x4e,0x87); //Unlock register
outportb(0x4e,0x07); //Set Logic Device number poi nter
outportb(0x4f,0x07); //Set Logic Device numbe r
outportb(0x4e,0xF2); //Set active register is CRF2
outportb(0x4f,0x00); //Write data to digital output

20

The ENDAT-4946i/M System Board

Chapter 3. AWARD BIOS SETUP

Phoenix – A ward BIOS CMOS Setup Utility

> Standard CMOS Features
> Advanced BIOS Features
> Advanced Chipset Features
> Integrated Peripherals
> Power Management Setup
> PnP/PCI Configurations

Use the CMOS setup program to modify the system parameters to reflect the
environment installed in your system and to customize the system as desired.
Press the <DEL> key to enter into the CMOS setup program wh en you turn on the
power. Settings can be accessed via arrow keys. Press <Enter> to choose an
option to configure the system properly.

In the main menu, press F10 or “SAVE & EXIT SETUP” to save your changes and
reboot the system. Choose “EXIT WITHOUT SAVING” to ignore the changes and
exit the setup procedure. Pressing <ESC> at anywhere during the setup will retur n
to the main menu.

> PC Health Status
> Load Optimized Defaults
> Set Supervisor Password
> Set User Password
> Save & Exit Setup
> Exit Without Saving

“Advanced BIOS Features”, “Advanced Chipset Features” and “PnP/PCI
Configurations” requires bo ard knowle dg e o n PC /AT system architecture and In te l
chipset specification. They intend to be used by well-trained technicians and
experienced users. Press the <F10> key to save CMOS setting to EEPROM,
Press <F7> key can load CMOS setting from EEPROM. Incorrect setup could
cause system malfunctions.

User’s Manual 21

3-1. Standard CMOS Features

The S tandard Setup is used for the basic hardware system configuration. The main
function is for Data/Time and Hard Disk Drive settings.

Item Available Options:
Date (mm:dd:yy)
Time (hh:mm:ss)

＞IDE Channel 0 Master:

Auto

＞IDE Channel 0 Slave :
＞IDE Channel 1 Master:
＞IDE Channel 1 Slave :

Video
Halt On

All , But Keyboar

Auto
Auto
Auto

EGA/VGA

˙IDE HDD Auto-Detection

Press <Enter> to auto-detect the parameters of the IDE/SATA device on this
channel. IDE Channel 0, 1, 2 , 3 Mas t er /Slave configure your IDE/SATA devices
by using one of the three methods below:

˙IDE Channel Master/Slave

Configure your IDE/SATA devices by using one of the thre e methods below:

Auto: Lets BIOS automatically detect IDE/SATA devices during the POST.

(Default)

None: If no IDE/SATA devices are used, set this item to None so the system will

skip the detection of the device during the POST for faster system

startup.
Manual: Allows you to manually enter the specifications of the h ard drive when
the hard drive access mode is set to CHS.

˙Access Mode

Set the hard drive access mode. Options are: Auto (default), CHS, LBA,

and Large.

˙Video

Select the type of primary video subsystem.
<Choice: EGA / VGA, CGA 40, CGA 80, MONO>

22

The ENDAT-4946i/M System Board

3-2. Advanced BIOS Features

This section allows yo u conf i gur ing your syste m fo r basic oper ation . You have the
opportunity to select the system’s default speed, boot-up priority, keyboard
operation and se cu r it y.

Item Available Options:

＞CPU Feature

Press Enter
＞Hard Disk Boot Priority
Virus Warning Disabled

CPU L1 & L2 Cache Enabled
CPU L3 Cache Enabled
Hyper-Threading Technology Enabled
Quick Power On Self Test Enabled
First Boot Device Hard Disk
Second Boot Device CDROM
Third Boot Device LS120
Boot Other Device Enabled
Boot Up NumLock Status On
Gate A20 Option Normal
Typematic Rate Setting Disabled
Typematic Rate (Chars/Sec) 6
Typematic Delay (Msec) 250
Security Option Setup
APIC Mode Enabled
OS Select For DRAM > 64MB Non-OS2
Small Logo(EPA) Enabled

Press Enter

Hyper-Threading Technology

․

Hyper-Threading technology is a technique which enables a single CPU to act
like multiple CPU’s.

APIC Mode

․

This item can enable or disab le the APIC (Advanced Programmable Interrupt
Controller). Due to compliance to PC2001 design guide, the system is able to
run in APIC mode. Enabling APIC mode will expand available IRQs resources
for the system. Leave this field in its default setting.

User’s Manual 23

3-3. Advanced Chipset Features

This section allows you to conf igure the system b ased on the specifi c features of
the installed chipset. This chipset manages bus speeds and the access to the
system memory resources, such as DRAM and the external cache. It also
coordinates the communications with the PCI bus.
items should never be altered. The default settings have been chosen because
they provide the best operating conditions for your system. You might consider
making any changes only if yo u discover that the data has been lost while using
your system.

Item Available Options:
DRAM Timing Selectable By SPD
CAS Latency Time Auto
DRAM RAS# to CAS Auto
DRAM RAS# Precharge Auto
Precharge dealy Auto
System Memory Frequency Auto
SLP_S4# Assertion Width 4 to 5 Sec.
System BIOS Cacheable Enabled
Video BIOS Cacheable Enabled
Memory Hole At 15M-16M Disabled
** VGA Setting **
PEG/Onchip VGA Control Onboard VGA
On-Chip Frame Buffer Size 8MB
DVMT Mode DVMT
DVMT/FIXED Memory Size 128MB
Boot Display CRT
Panel Number 1024x768 24Bit 1CH

It must be stated that these

System Memory Frequency

․

This main board supports different memory frequencies depend on the CPU
FSB (Front Side Bus) and the type of DDR DIMM.

CPU FSB DDR2 DIMM Type Memory Frequency

667 MHz PC2-5300/PC2-4200 667/533 MHz
533 MHz PC2-4200 533 MHz

․On-Chip Frame Buffer Size

This selection is supplied for legacy VGA and SVGA graphics support and
compatibility .

24

The ENDAT-4946i/M System Board

․DVMT Mode

This field is used to select the type of DVMT mode. DVMT (Dynamic Video
Memory Technology) is an architecture that offers breakthrough performance
for the motherboard through efficient memory utilization.

FIXED

DVMT

BOTH

A fixed-size fragment of the system memory is allocated to the
graphics core.
The graphics driver allocates memory as needed for running
graphics applications and is cooperatively using this memory with
other system components.
This mode guarantees that at least 64MB of memory is available to
the graphics core, with a possibility to increase this amount to
128MB, if necessary.

․Boot Display

This field is used to select the type of display to use when the system boots.
EFP means DVI or LCD display by main board.

CRT Select this option if you want the system to boot the CRT display.

EFP

CRT+EFP

Select this option if you want the system to boot the DVI or LCD
flat panel display. (Optional Item)
Select this option if you want the system to boot both of the CRT
and DVI or LCD display. (Optional Item)

․Panel Number (Optional Item)

If you apply one of the standard panels shown above, select the appropriate
option according to the type of panel that you apply. Or, please contact your
dealer or sales representative for custom-made BIOS that will suit the p anel that
you apply. When main board offers DVI output, this option will not be shown.

Panel Number

1024x768 24Bit 1CH

1280x1024 48Bit 2CH

1280x768 24Bit 1CH
1366x768 24Bit 1CH

User’s Manual 25

3-4. Integrated Peripherals

The IDE hard drive controllers support up to two separate hard drives. These
drives have a master/slave relationship that is determined by the cabling
configuration used to attach them to t he contr oller. Your system supports two IDE
controllers--a primary and a secondary--so you can install up to four separate hard
disks.

Integrated Peripherals

Item Available Options:
＞OnChip IDE Device

Press Enter

＞Onboard Device
＞SuperIO Device

Onboard Lan Boot ROM Disabled
Onboard Serial Port 3 3E8
Serial Port 3 Use IRQ IRQ5
Onboard Serial Port 4 2E8
Serial Port 4 Use IRQ IRQ10

Press Enter
Press Enter

OnChip IDE Device

Item Available Options:
IDE HDD Block Mode Enabled
IDE DMA transfer access Enabled
On-Chip Primary PCI IDE Enabled
IDE Primary Master PIO Auto
IDE Primary Slave PIO Auto
IDE Primary Master UDMA Auto
IDE Primary Slave UDMA Auto
On-Chip Secondary PCI IDE Enabled
IDE Secondary Master PIO Auto
IDE Secondary Slave PIO Auto
IDE Secondary Master UDMA Auto
IDE Secondary Slave UDMA Auto

*** On-Chip Serial ATA Setting ***
On-Chip Serial ATA Auto
SATA PORT Speed Se t tings Disabled
PATA IDE Mode Secondary
SATA Port P0,P2 is Primary

26

The ENDAT-4946i/M System Board

Onboard Device

Item Available Options:
USB Controller Enabled
USB 2.0 Controller Enabled
USB Keyboard Support Enabled
AC97 Audio Select Enabled

SuperIO Device

Item Available Options:
POWER ON Function Button ONLY
KB Power ON Password Enter
Hot Key Power ON Ctrl-F1
Onboard Serial Port 1 3F8/IRQ4
Onboard Serial Port 2 2F8/IRQ3
UART Mode Select Normal
RxD, TxD Active Hi,Lo
IR Transmission Delay Enabled
UR2 Duplex Mode Half
Use IR Pins IR-Rx2Tx2
Onboard Parallel Port 378/IRQ7
Parallel Port Mode ECP+EPP
EPP Mode Select EPP1.7
ECP Mode Use DMA 3
PWRON After PWR-Fail Off

․Onboard LAN Boot ROM

The default setting is enabled or disabled LAN boot up function.

IDE HDD Block Mode

․

Block mode is also called block trans fer , multi ple commands, or multiple sectors
read/write.

․IDE Primary Master/Slave PIO and IDE Secondary

Master/Slave PIO

The four IDE PIO (programmed Input/Output) fields l et you set a PIO mode (0 -4)
for each IDE device that the internal PCI IDE interface supports. Modes 0
through 4 provide successively increased performance. In Auto mode, the

User’s Manual 27

system automaticall y det er m ine s th e best mode for each device .

․IDE Primary Master/Slave UDMA and IDE Secondary

Master/Slave UDMA

These fields allow you to set the Ultra DMA in use. When Auto is selected, the
BIOS will select the best available option after checking your hard drive or
CD-ROM.

․On-Chip Serial ATA

Disabled

Auto

Combined Mode

Enhanced Mode

SATA Only

Disables the onboard SATA.
The system will detect the existing SATA and IDE drives
then automatically set them to the available master/slave
mode.
This option allows you to use both IDE and SATA drives;
allowing a maximum of 4 drives. You must manually set
the SATA drives’ master/slave mode in the “Serial ATA
Port0 Mode” and “Serial ATA Port1 Mode” fields.
This option allows you to use both IDE and SATA drives;
allowing a maximum of 6 drives.
This option automatically sets the SATA drives to Primary
Master and Secondary Master modes. Since both drives are
in master mode, you cannot set the IDE drives to Master
mode. The “Serial ATA Port0 Mode” and “Serial ATA
Port1 Mode” fields will not be configurable.

․

SATA PORT Speed Settings

The SATA PORT Speed Settings option controls the maximum access speed
allowed for the connected SATA devices, with the GEN I setting used for
SATA-150 type devices and GEN II used for SATA II type devices.

․PATA IDE Mode

These fields are used to select the master/slave mode of the serial ATA drives.
Make sure they do not conflict with the settings of the IDE hard drives.

․USB Controller

Select “Enabled” if your system contains a Universal S erial Bus (USB) controller
and you have a USB peripheral.

28

The ENDAT-4946i/M System Board

․USB 2.0 Controller

The options for this field are Enabled and Disabled. By default, this field is set to
Disabled. In order to use USB 2.0, necessary OS drivers must be installed first.

AC97 Audio Select

․

The AC97 Audio Select option allows the user to enable or disable onboard
audio function.

․UART Mode Select

Select an operating mode for the serial port 2.
<Choice: IrDA, ASKIR, Normal>

․Parallel Port Mode

This field allows you to determine parallel port mode function.
<Choice: SPP, EPP, ECP, ECP + EPP, Normal>

․PWRON After PWR-Fail

This item allows you to select if you want to power on the system after power
failure

User’s Manual 29

3-5. Power Management Setup

The Power Managemen t Setup allows users configuring the system to save
energy in a most effective way while operating in a manner consistent with their
own style of computer use.

Item Available Options:

＞PCI Express PM Function
ACPI function Enabled

ACPI Support Type S1(POS)
Run VBIOS if S3 Resume Auto
Power Management User Define
Video Off Method Blank Screen
Video Off In Suspend Yes
Suspend Type Stop Grant
Suspend Mode Disabled
HDD Power Down Disabled
Soft-Off by PWR-BTTN Instant-Off
CPU THRM-Throttling 75.0%
USB KB Wake-Up From S3 Disabled
Resume by Alarm Disabled
Date(of Month) Alarm 0
Time(hh:mm:ss) Alarm 0 : 0 : 0

** Reload Global Timer Events **
Primary IDE 0 Disabled
Primary IDE 1 Disabled
Secondary IDE 0 Disabled
Secondary IDE 1 Disabled
FDD,COM,LPT Port Disabled
PCI PIRQ[A-D]# Disabled

Press Enter

PCI Express PM Function

Item Available Options:

PCI Express PME Enabled

30

The ENDAT-4946i/M System Board

․ACPI Function

This function should be enable d only in operating systems that su pport ACPI.
Currently, only Windows® 98SE/2000/ME/XP supports this funct ion. Wh en this
field is enabled, the system will ignore the settin gs in the “Suspend Mode” and
“HDD Power Down” fields. If you want to use the Suspend to RAM function,
make sure this field is enabled then select“S3 (STR)” in the field below.

․ACPI Suspend Type

This field is used to select the type of Suspend mode.

S1(POS)
S3(STR)
S1 & S3

Enables the Power On Suspend function.
Enables the Suspend to RAM function.
If S3 state is supported by the system, by default [S3] is
automatically selected. Otherwise [S1] is selected.

․Power Management

This field allows you to select the type of power saving management modes.

․Video Off Method

This field defines the Video Off features.

Blank Screen
V/H SYNC + Blank
DPMS

Writes blanks to the video buffer.
Enables the Suspend to RAM function.
Allows BIOS to control the video display.

․Soft-Off by PWR-BTTN

This field defines the power-off mode when using an ATX power supply.

․CPU THRM-Throttling

When the system ente rs Doze mode, t he CPU clock ru ns only par t o f t h e time.
You may select the percent of time that the clock runs.

.

User’s Manual 31

3-6. PnP/PCI Configurations

This section describes the configuration of the PCI bu s system. PCI is a system
that allows I/O device to op erate at speeds nearing the speed of the CPU itself,
when communicating wi th its own special components. This section covers some
very technical items. It is strongly recommended that only experien ced users make
any changes to the default settings.

Item Available Options:
Init Display First PCI Slot
Reset Configuration Data Disabled
Resources Controlled By Auto(ESCD)
IRQ Resources Press Enter

․Reset Configuration Data

The BIOS will reset the Extended System Configuration Data

Enabled

Disabled

(ESCD) once automatically. It will then recreate a new set of
configuration data.
The BIOS will not reset the configuration data.

․Resources Controlled By

Auto(ESCD)
Manual

The system will automatically detect the settings for you.
Choose the specific IRQ in the “IRQ Resources” field.

․PCI/VGA Palette Snoop

When set to [Enabled], mult iple VGA devices operating on different buses can
handle data from th e CPU on each set of palette registers on every video device.
Bit 5 of the command register in the PCI device configuration space is the VGA
Palette Snoop bit (0 is disabled).

32

The ENDAT-4946i/M System Board

3-7. PC Health Status

This screen shows the information of temperature, Fan speed and Vcore etc.

PC Health Status

Item Available Options:

Temperature 1

℃

Temperature 2
Temperature 3
VcoreA

VcoreB
+3.3 V
+5 V
+ 12 V
CPU Fan
System Fan

℃

℃

RPM
RPM

User’s Manual 33

Chapter 4. VGA, LCD Feature

4-1. VGA Feature

ENDAT-4946i/M provides an integrated graphics (Intel® Graphics Media
Accelerator 950) accelerator delivering cost competitive 3D, 2D, and video
capabilities. It contains an extensive set of instructions for 3D operations, BLT
(Block Level Transfers) and Stretch BLT operations, motion compensation,
overlay, and display control. ENDAT-4946i/M video engines support video
conferencing and other video applications. Instead of a dedicated local graphics
memory interface, ENDAT-4946i/M applies UMA configuration for optimal memory
utilization and performance that deliver 3D graphics with sharp images, fast
rendering, smooth motion and extreme detail.

The Intel® 945GM Express chipset's low power design enables up to 28% less
average power consumption compared to previous generations. Featuring the
Intel® Graphics Med ia Accelerato r 950, th e Intel 9 45GM Expr ess chipse t deliver s
up to 2 x improvements in graphics performance over the previous generation
chipset. The Intel® 945GM Express chipset enables up to 25% higher data
transfer rate compared to the previous generation bus speed.

ENDAT-4946i/M applies Intel® DVMT 3.0 for optimum the system utilization via
system chipset. DVMT is a concept be applied in the Intel® 945GM chipset
wherein the optimum amount of memory is dynamically allocated and de-allocate d
as needed for balanced graphics and system performance, through Intel® Direct
AGP and a highly efficient memory utilization scheme.

The on-board INTEL® GMA950 Graphic Controller supports a full AGP
implementation internally to remain compatible with existing software and
programming models. Howe ver, since the en gine is integrated, it enjoys a higher
bandwidth and lower lat ency than is possible with discrete solutions.

The controller of ENDAT-4946i/M supports 3 types of display: CRT, DVI and LVDS
panel.

34

The ENDAT-4946i/M System Board

4-2. LVDS Panel Feature (optional)

The on-board graphic controller supports industry standard LCD panel, LVDS
interface only, with 1 channel (18 or 24) and 2 channels (36 or 48bit) data width.

LVDS interface provides low v oltage, high speed and low EMI serial DC-balanced
differential data via optional onboard LVDS.

The flat panel interface provides or supports fo llowin g functio ns for various panels:

- Generates LVDS flat panel channels like clock and data channel.

- Generates different video data formats to directly drive different types of
panels (18, 24, 36 or 48bit)

- Wide screen resolution as 16:9 or 16:10.

- Vertical and horizo ntal expansion of vide o displays to LCD panel resolution

- Vertical and horizontal centering

- Panel power sequence

Please note that the default setting is with “CRT”. If the LCD display features is
required, the setting will need to be revised in the system BIOS setting: “CRT+EFP”
under “Advanced Chipset Features

”

unless clients specified the display type while order.

User’s Manual 35

4-3. Driver Utility Installation Guide

When finishing the installation of Windows platform (2 000/XP), please install the
relative “INF” driver of Intel® chipsets firstly for compliance compatibility of
hardware environment.

Please follow the step of CD-ROM driver and complete the VGA, AUDIO,
ETHERNET and USB2.0 setup procedure. Insert the support CD that supplied with
motherboard into CD-ROM driver, which enable the ac cess with auto-run mo de; or
double –click the CD driver icon in “My Computer” to bring up the screen.

Please download or check fro m
individually or you need more information.

Intel®

Web site:

www.intel.com

if you prefer to install the d rivers

36

The ENDAT-4946i/M System Board

Appendix A: FLASH Memory Utility

Using this utility to update the system BIOS from a disk file to the on board Flash
memory. Be aware the improper change of the system BIOS will cause the system
to malfunction.

Using utility as follows:

1. Insert the FLASH memory utility distribution floppy diskette in drive A:

2. At the DOS prompt, type A:>AWDFLASH and press <Enter>
AwardBIOS FLASH Utility V8.63E

C>Phoenix Technologies Ltd. All Rights Reserved

Flash T ype –

File Name to Program:

Message:

3. Enter the name of the system BIOS disk file into the "File Name to Program" field

The following message appears in the "Message" field

4. Do you want to save BIOS (y/n)?

5. To update the FLASH memory from the system BIOS disk file, type Y

F1

6. After complete updating, please re-boot the system (press “

7.

For upgrade BIOS procedure, please refer to our web site:
http://www .unicorn-computer.com.tw

” key)

* Please turn off system and clear CMOS data by JBAT1.
* Please restart your system and load optimal defaults setting.

User’s Manual 37

Appendix B: LCD Pin Assignment

LVDS1: Dual Channel LVDS (2.54mm)

Pin No. Signal Pin No. Signal

1
3
5
7

9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39

VBL (+12V)

GND

DISP.ON/OFF

LVDD

GND
RxO0+
RxO1+
RxO2+
RxO3+

RxOC+

GND

RxE0+
RxE1+
RxE2+
RxE3+

RxEC+

LVDD

GND

GND

VBL (+12V)

2
4
6

8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40

VBL (+12V)

GND
GND

LVDD

GND
RxO0­RxO1­RxO2­RxO3-

RxOC-

KEY
RxE0­RxE1­RxE2­RxE3-

RxEC­LVDD

GND
GND

VBL (+12V)

Please make sure the Pin 1 location before insertin g the LCD connector.

38

LVDS1: Single Channel of LVDS I/F (2.0mm)

Pin No. Signal Pin No. Signal

1
3
5
7

9
11
13
15
17
19
21
23
25
27
29

`31

33
35
37
39

VBL (+12V)

GND

DISP.ON/OFF

LVDD

GND
Rx0+
Rx1+
Rx2+
Rx3+

RxCLK+

GND

n/c
n/c
n/c
n/c
n/c

LVDD

GND
GND

VBL (+12V)

2
4
6

8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40

The ENDAT-4946i/M System Board

VBL (+12V)

GND
GND

LVDD

GND

Rx0­Rx1­Rx2­Rx3-

TxCLK-

KEY

n/c
n/c
n/c
n/c
n/c

LVDD

GND
GND

VBL (+12V)

Please make sure the Pin 1 location before inserting the LCD connector.

BIOS LCD panel type list (Advance Chipset Setup/Panel Type)

Panel Number

1024x768 24Bit 1CH

1280x1024 48Bit 2CH

1280x768 24Bit 1CH
1366x768 24Bit 1CH

User’s Manual 39

Appendix C: Limited Warranty

Standard two years limited warranty on all our ENDAT series all-in-one
motherboards and embedded board s. Produ cts that becom e defect ive d urin g the
warranty period shall be repaired, or subject to manufacturer’s option, replaced.
The limited warranty applies to normal proper usage of the hardware and does not
cover products that have been modified or subjected to unusual electrical or
physical stress. Unicorn Computer Corp is not liable to repair or replace d efec tiv e
goods caused by improper using or use of unauthorized parts. The following
situations will be ch arged:

1. The products duri ng the warranty but defective caused by improper using or
artificial external pressure and res ult in the components damages. According to
the damage situation, the manufacturer has the rights to decide to repair or not.
The manufacturer will charge the parts/repair cost and the returning shipping
charge.

2. The products out of warranty will charge t he parts/repair cost and the returning
shipping charge as per the repair status.

3. The manufacturer has the rights to decide to repair or not based on the stock of
parts for the products which are ph as ed ou t of t h e pr oduction.

4. Please e-mail or fax the RMA Service Request Form when have the defective
products.

40

The ENDAT-4946i/M System Board

RMA SERVICE REQUEST FORM

When requesting RMA service, please fill out this “RMA Service Request Form”.
This form needs to be shipped with your returns. Service cannot begin until we
have this information.

RMA NO.:

Company: Person to Contact:
Phone No: Purchase Date :
Fax No. : Applied Date :
Return Shipping Address:

Model No. Serial No. Problem Code Remark

User’s Manual 41

 Issue Code of defect.

01 Second Times R.M.A. 11 Memory Socket Bad
02 No Screen (No Boot) 12 Hang Up Hardwa re
03 VGA (Display) Fail 13 Hang Up Software
04 CMOS Data Lost 14 PCB Problem
05 FDC Fail 15 CPU Socket Bad
06 HDC Fail 16 LAN Fail
07 Bad Slot 17 Audio Fail
08 BIOS Problem 18 Serial Port Fail
09 Keyboard Controller Fail 19 Parallel Port Fail

10 Cache RAM Problem 20 Others
Please specify the following when returning the RMA boards:
(1) Hardware Configuration (2) OS or Software (3) Testing Program

___________________
Authorized Signature
