GENERAL INTRODUCTION

1.1 Overview

Echo-40F Series Slim Embedded System is a new generation compact integrated embedded engine in the market. Powered by leading-edge technology, 5th generation Intel

engine, dual DDR3L 1333/ 1600 MHz SO-DIMMs, up to 16GB memory. Advanced Intel® HD Graphics 6000 supports DVI-D and dual DisplayPort display interface, independent 4K displays with up to 20% enhanced graphics performance than former generation.

Core™ i7/ i5/ i3 U-Series SoC (Broadwell-U)

Featured with 2 front-access 2.5" SSD/ HDD trays, 6 Gigabit LAN ports with

4 IEEE 802.3at PoE Card/ mSATA, 2 External SIM Card sockets support 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS, 1 External CFast socket, 2 USB 3.0, 4 USB 2.0, 16 Isolated DIO, 6V to 36V wide range power input with up to 80V smart surge protection, 16-mode congurable ignition power control, fanless design and -25°C to 70°C operating temperature, just integrated in a 1.9"-height chassis, Echo-40F is ready to customize for your requirements.

Echo-40F Series Slim Embedded System delivers outstanding performance, compact integration, smart protection functions and trusted rugged reliability for your machine vision, intelligent automation, Intelligent Transportation System (ITS), in-vehicle information system, logistic system, Industry 4.0 and any Internet of Thing (IoT) applications.

ports, 2 Mini PCIe sockets for PCIe/ USB/ External SIM

1.2 Features

• 5th generation Intel® Core™ i7/ i5/ i3 U-Series Processor (Broadwell-U)

• Fanless, -25°C to 70°C Operating Temperature

• Supports 4K Ultra HD Resolution, up to 3 independent displays

• 6 Gigabit LAN with 4 IEEE 802.3at PoE

• 16 Isolated DIO (8 DI, 8 DO)

• 2 Mini PCIe for 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS

• 2 External SIM Card Socket

• 2 Front-access 2.5" HDD/ SSD Tray

• 4 COM RS-232/ 422/ 485, 2 USB 3.0, 4 USB 2.0

• 6V to 36V DC-in with 80V Surge Protection

• Configurable Ignition Power Control

GENERAL INTRODUCTION

©Echo-40F User Manual

1.3 Product Specication

1.3.1 Specications of Echo-40F-PoER

System

Processor 5th Generation Intel® Core™ i7/ i5/ i3 U-Series Processor

(Broadwell-U)

Chipset Intel

BIOS AMI

SIO IT8786E

Memory • DDR3L 1333/ 1600 MHz SO-DIMM, up to 16GB

I/O Interface

Serial 4 COM RS-232/ 422/ 485

USB • 2 USB 3.0 (External)

Isolated DIO 16 Isolated DIO : 8 DI, 8 DO

SoC (Broadwell-U)

• 2 204-pin SO-DIMM Socket

• 4 USB 2.0 (3 External, 1 Internal)

LED Power, HDD, PoE

SIM Card 2 SIM Card Socket (External)

Expansion

Mini PCIe 2 Mini PCIe Socket :

• 1 Mini PCIe for PCIe/ USB/ External SIM Card

• 1 Mini PCIe for PCIe/ USB/ External SIM Card/ mSATA

Graphics

Chipset Intel® HD 6000, up to 3 independent displays

Interface • DVI-D : Up to 1920 x 1080 @ 60Hz

• DisplayPort 1 : Up to 3840 x 2160 @ 60Hz

• DisplayPort 2 : Up to 3840 x 2160 @ 60Hz

Storage

SATA 2 SATA III (6Gbps)

mSATA 1 SATA III (Mini PCIe Type, 6Gbps)

Storage Device • 1 CFast Socket, Push-in/ Push-out Ejector

• 2 Front-access SSD/ HDD Tray

Audio

Audio Codec Realtek ALC892, 5.1 Channel HD Audio

Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I218 Gigabit LAN

LAN 2 Intel

I210 Gigabit LAN

GENERAL INTRODUCTION

PoE

LAN 3 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210

LAN 4 Gigabit IEEE 802.3at (25.5W/48V) PoE

LAN 5 Gigabit IEEE 802.3at (25.5W/48V) PoE

LAN 6 Gigabit IEEE 802.3at (25.5W/48V) PoE

by Intel® I210

Power

Power Input 6V to 36V, DC-in

Power Interface • 3-pin Terminal Block : V+, V-, IGN, Frame Ground

• Mini-DIN 4-pin

Ignition Control 16 Mode (Internal)

Remote Switch 3-pin Terminal Block : On, Off, IGN

Surge Protection Up to 80V/1ms Transient Power

Others

TPM Optional Inneon SLB9665 supports TPM 2.0, LPC

Interface

Watchdog Timer Reset : 1 to 255 sec./min. per step

Smart Management Wake on LAN, PXE supported

HW Monitor Monitoring temperature, voltages. Auto throttling control

when CPU overheats.

Software Support

OS Windows 10, Windows 8.1, Windows 7, Linux

Mechanical

Dimensions (WxDxH) 257mm x 141mm x 48mm (10.1” x 5.6” x 1.9”)

Weight 2.1 kg (4.6 lb)

Mounting • Wallmount by mounting bracket

• DIN Rail Mount

Environment

Operating Temperature -25°C to 70°C (-13°F to 158°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5% to 95% humidity, non-condensing

Relative Humidity 95% at 70°C

Shock • IEC 60068-2-27

• SSD : 50G @ wallmount, Half-sine, 11ms

Vibration • IEC 60068-2-64

• SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN 50155, EN 50121-3-2

GENERAL INTRODUCTION

©Echo-40F User Manual

1.3.2 Specications of Echo-40F-PoE

System

Processor 5th Generation Intel® Core™ i7/ i5/ i3 U-Series Processor

(Broadwell-U)

Chipset Intel

BIOS AMI

SIO IT8786E

Memory • DDR3L 1333/ 1600 MHz SO-DIMM, up to 16GB

I/O Interface

Serial 4 COM RS-232/ 422/ 485

USB • 2 USB 3.0 (External)

Isolated DIO 16 Isolated DIO : 8 DI, 8 DO

LED Power, HDD, PoE

SIM Card 2 SIM Card Socket (External)

SoC (Broadwell-U)

• 2 204-pin SO-DIMM Socket

• 4 USB 2.0 (3 External, 1 Internal)

Expansion

Mini PCIe 2 Mini PCIe Socket :

• 1 Mini PCIe for PCIe/ USB/ External SIM Card

• 1 Mini PCIe for PCIe/ USB/ External SIM Card/ mSATA

Graphics

Chipset Intel® HD 6000, up to 3 independent displays

Interface • DVI-D : Up to 1920 x 1080 @ 60Hz

• DisplayPort 1 : Up to 3840 x 2160 @ 60Hz

• DisplayPort 2 : Up to 3840 x 2160 @ 60Hz

Storage

SATA 2 SATA III (6Gbps)

mSATA 1 SATA III (Mini PCIe Type, 6Gbps)

Storage Device 1 CFast Socket, Push-in/ Push-out Ejector

Audio

Audio Codec Realtek ALC892, 5.1 Channel HD Audio

Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I218 Gigabit LAN

LAN 2 Intel

I210 Gigabit LAN

GENERAL INTRODUCTION

PoE

LAN 3 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210

LAN 4 Gigabit IEEE 802.3at (25.5W/48V) PoE

LAN 5 Gigabit IEEE 802.3at (25.5W/48V) PoE

LAN 6 Gigabit IEEE 802.3at (25.5W/48V) PoE

by Intel® I210

Power

Power Input 6V to 36V, DC-in

Power Interface • 3-pin Terminal Block : V+, V-, Frame Ground

• Mini-DIN 4-pin

Ignition Control 16 Mode (Internal)

Remote Switch 3-pin Terminal Block : On, Off, IGN

Surge Protection Up to 80V/1ms Transient Power

Others

TPM Optional Inneon SLB9665 supports TPM 2.0, LPC

Interface

Watchdog Timer Reset : 1 to 255 sec./min. per step

Smart Management Wake on LAN, PXE supported

HW Monitor Monitoring temperature, voltages. Auto throttling control

when CPU overheats.

Software Support

OS Windows 10, Windows 8.1, Windows 7, Linux

Mechanical

Dimensions (WxDxH) 257mm x 141mm x 48mm (10.1” x 5.6” x 1.9”)

Weight 2.1 kg (4.6 lb)

Mounting • Wallmount by mounting bracket

• DIN Rail Mount

Environment

Operating Temperature -25°C to 70°C (-13°F to 158°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5% to 95% humidity, non-condensing

Relative Humidity 95% at 70°C

Shock • IEC 60068-2-27

• SSD : 50G @ wallmount, Half-sine, 11ms

Vibration • IEC 60068-2-64

• SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN 50155, EN 50121-3-2

GENERAL INTRODUCTION

©Echo-40F User Manual

1.3.3 Specications of Echo-40F-2G

System

Processor 5th Generation Intel® Core™ i7/ i5/ i3 U-Series Processor

(Broadwell-U)

Chipset Intel

BIOS AMI

SIO IT8786E

Memory • DDR3L 1333/ 1600 MHz SO-DIMM, up to 16GB

I/O Interface

Serial 4 COM RS-232/ 422/ 485

USB • 2 USB 3.0 (External)

DIO 16 DIO : 8 DI, 8 DO

LED Power, HDD

SIM Card 2 SIM Card Socket (External)

SoC (Broadwell-U)

• 2 204-pin SO-DIMM Socket

• 4 USB 2.0 (3 External, 1 Internal)

Expansion

Mini PCIe 2 Mini PCIe Socket :

• 1 Mini PCIe for PCIe/ USB/ External SIM Card

• 1 Mini PCIe for PCIe/ USB/ External SIM Card/ mSATA

Graphics

Chipset Intel® HD 6000, up to 3 independent displays

Interface • DVI-D : Up to 1920 x 1080 @ 60Hz

• DisplayPort 1 : Up to 3840 x 2160 @ 60Hz

• DisplayPort 2 : Up to 3840 x 2160 @ 60Hz

Storage

SATA 2 SATA III (6Gbps)

mSATA 1 SATA III (Mini PCIe Type, 6Gbps)

Storage Device 1 CFast Socket, Push-in/ Push-out Ejector

Audio

Audio Codec Realtek ALC892, 5.1 Channel HD Audio

Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I218 Gigabit LAN

LAN 2 Intel

I210 Gigabit LAN

GENERAL INTRODUCTION

Power

Power Input 6V to 36V, DC-in

Power Interface • 3-pin Terminal Block : V+, V-, Frame Ground

• Mini-DIN 4-pin

Ignition Control 16 Mode (Internal)

Remote Switch 3-pin Terminal Block : On, Off, IGN

Surge Protection Up to 80V/1ms Transient Power

Others

TPM Optional Inneon SLB9665 supports TPM 2.0, LPC

Interface

Watchdog Timer Reset : 1 to 255 sec./min. per step

Smart Management Wake on LAN, PXE supported

HW Monitor Monitoring temperature, voltages. Auto throttling control

when CPU overheats.

Software Support

OS Windows 10, Windows 8.1, Windows 7, Linux

Mechanical

Dimensions (WxDxH) 257mm x 141mm x 48mm (10.1” x 5.6” x 1.9”)

Weight 2.1 kg (4.6 lb)

Mounting • Wallmount by mounting bracket

• DIN Rail Mount

Environment

Operating Temperature -25°C to 70°C (-13°F to 158°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5% to 95% humidity, non-condensing

Relative Humidity 95% at 70°C

Shock • IEC 60068-2-27

• SSD : 50G @ wallmount, Half-sine, 11ms

Vibration • IEC 60068-2-64

• SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN 50155, EN 50121-3-2

GENERAL INTRODUCTION

©Echo-40F User Manual

1.3.4 Specications of Echo-40F-2R

System

Processor 5th Generation Intel® Core™ i7/ i5/ i3 U-Series Processor

(Broadwell-U)

Chipset Intel

BIOS AMI

SIO IT8786E

Memory • DDR3L 1333/ 1600 MHz SO-DIMM, up to 16GB

I/O Interface

Serial 4 COM RS-232/ 422/ 485

USB • 2 USB 3.0 (External)

DIO 16 DIO : 8 DI, 8 DO

LED Power, HDD

SIM Card 2 SIM Card Socket (External)

SoC (Broadwell-U)

• 2 204-pin SO-DIMM Socket

• 4 USB 2.0 (3 External, 1 Internal)

Expansion

Mini PCIe 2 Mini PCIe Socket :

• 1 Mini PCIe for PCIe/ USB/ External SIM Card

• 1 Mini PCIe for PCIe/ USB/ External SIM Card/ mSATA

Graphics

Chipset Intel® HD 6000, up to 3 independent displays

Interface • DVI-D : Up to 1920 x 1080 @ 60Hz

• DisplayPort 1 : Up to 3840 x 2160 @ 60Hz

• DisplayPort 2 : Up to 3840 x 2160 @ 60Hz

Storage

SATA 2 SATA III (6Gbps)

mSATA 1 SATA III (Mini PCIe Type, 6Gbps)

Storage Device • 1 CFast Socket, Push-in/ Push-out Ejector

• 2 Front-access SSD/ HDD Tray

Audio

Audio Codec Realtek ALC892, 5.1 Channel HD Audio

Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I218 Gigabit LAN

LAN 2 Intel

I210 Gigabit LAN

GENERAL INTRODUCTION

Power

Power Input 6V to 36V, DC-in

Power Interface • 3-pin Terminal Block : V+, V-, IGN, Frame Ground

• Mini-DIN 4-pin

Ignition Control 16 Mode (Internal)

Remote Switch 3-pin Terminal Block : On, Off, IGN

Surge Protection Up to 80V/1ms Transient Power

Others

TPM Optional Inneon SLB9665 supports TPM 2.0, LPC

Interface

Watchdog Timer Reset : 1 to 255 sec./min. per step

Smart Management Wake on LAN, PXE supported

HW Monitor Monitoring temperature, voltages. Auto throttling control

when CPU overheats.

Software Support

OS Windows 10, Windows 8.1, Windows 7, Linux

Mechanical

Dimensions (WxDxH) 257mm x 141mm x 48mm (10.1” x 5.6” x 1.9”)

Weight 2.1 kg (4.6 lb)

Mounting • Wallmount by mounting bracket

• DIN Rail Mount

Environment

Operating Temperature -25°C to 70°C (-13°F to 158°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5% to 95% humidity, non-condensing

Relative Humidity 95% at 70°C

Shock • IEC 60068-2-27

• SSD : 50G @ wallmount, Half-sine, 11ms

Vibration • IEC 60068-2-64

• SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN 50155, EN 50121-3-2

GENERAL INTRODUCTION

©Echo-40F User Manual

1.4 Supported CPU List

CPU Name TDP Cache Max. Frequency Embedded

i7-5557U 28W 4M Up to 3.40 GHz

i7-5650U 15W 4M Up to 3.20 GHz Yes

i7-5600U 15W 4M Up to 3.20 GHz

i7-5550U 15W 4M Up to 3.00 GHz

i7-5500U 15W 4M Up to 3.00 GHz

i5-5287U 28W 3M Up to 3.30 GHz

i5-5257U 28W 3M Up to 3.10 GHz

i5-5350U 15W 3M Up to 2.90 GHz Yes

i5-5300U 15W 3M Up to 2.90 GHz

i5-5250U 15W 3M Up to 2.70 GHz

i5-5200U 15W 3M Up to 2.70 GHz

i3-5157U 28W 3M Up to 2.5 0 GHz

i3-5020U 15W 3M Up to 2.20 GHz

i3-5015U 15W 3M Up to 2.10 GHz Yes

i3-5010U 15W 3M Up to 2.10 GHz

i3-5005U 15W 3M Up to 2.00 GHz

Pentium 3805U 15W 2M Up to 1.90 GHz

Pentium 3825U 15W 2M Up to 1.90 GHz

Celeron 3765U 15W 2M Up to 1.90 GHz

Celeron 3755U 15W 2M Up to 1.70 GHz Yes

Celeron 3215U 15W 2M Up to 1.70 GHz

Celeron 3205U 15W 2M Up to 1.50 GHz

GENERAL INTRODUCTION

1.5 Mechanical Dimensions

1.5.1 Dimensions of Echo-40F-PoER

Unit: mm (inch)

1.5.2 Dimensions of Echo-40F-PoE

293,8 (11,6)

278,8 (11,0)

293,8 (11,6) 256,8 (10,1)

100,0 (3,9)

141,0 (5,6)

48,1 (1,9)

Unit: mm (inch)

293,8 (11,6)

278,8 (11,0)

293,8 (11,6) 256,8 (10,1)

100,0 (3,9)

141,0 (5,6)

48,1 (1,9)

GENERAL INTRODUCTION

©Echo-40F User Manual

1.5.1 Dimensions of Echo-40F-2G

Unit: mm (inch)

1.5.2 Dimensions of Echo-40F-2R

293,8 (11,6)

278,8 (11,0)

293,8 (11,6) 256,8 (10,1)

100,0 (3,9)

141,0 (5,6)

48,1 (1,9)

Unit: mm (inch)

293,8 (11,6)

278,8 (11,0)

293,8 (11,6) 256,8 (10,1)

100,0 (3,9)

141,0 (5,6)

48,1 (1,9)

GETTING TO KNOW YOUR Echo-40F

2.1 Packing List

Item Description Qty

1 Echo-40F Slim Embedded System

(According to the conguration you order, the Echo-40F series may contain SSD/HDD and DDR3L SO-DIMM. Please verify these items if necessary.)

2 Accessory box, which contains

● Drivers & Utilities DVD

● Wall-mounting bracket

● KHS#6-32x6 screw for wall-mounting bracket

● M2.5x6 screw for Mini PCIe Slot

● 3-pin Pluggable terminal block

● 20-pin pluggable terminal block

● Foot Pad

● HDD Tray Key

1 2

4 4

2 1

2.2 Front Panel I/O Functions

In Echo-40F series family, all I/O connectors are located on front panel and rear panel. Most of the general connections to computer device, such as USB, DVI-D, DisplayPort and any additional storage, are placed on the front panel.

HDD

PWR

POWER

RESET

DP2LAN1 LAN2 DVI-D

DP1

SIM 1 SIM 2

CFast

USB 2.0USB 3.0

GETTING TO KNOW YOUR Echo-40F©Echo-40F User Manual

2.2.1 Reset Tact Switch

HDD

PWR

POWER

RESET

DP2LAN1 LAN2 DVI-D

DP1

SIM 1 SIM 2

CFast

USB 2.0USB 3.0

It is a hardware reset switch. Use this switch to reset the system without power

off the Echo-40F. Press the Reset Switch for a few seconds, then reset will be

enabled.

2.2.2 Power Button

DP2LAN1 LAN2 DVI-D

HDD

PWR

RESET

POWER

DP1

The Power Button is a non-latched switch with dual color LED indication. It

indicates power status: S0, S3 and S5. More detail LED indications are listed as

follows:

SIM 1 SIM 2

CFast

USB 2.0USB 3.0

LED Color Power Status System Status

Solid Blue S0 System working

Solid Orange S3, S5

Suspend to RAM, System off with standby power

To power on Echo-40F, press the power button and then the blue LED is

lightened.

To power off Echo-40F, you can either command shutdown by OS operation, or

just simply press the power button.

If system error, you can just press the power button for 4 seconds to shut down

the machine directly.

Please do note that a 4-second interval between each 2 power-on/ power-off

operation is necessary in normal working status. (For example, once turning

off the system, you have to wait for 4 seconds to initiate another power-on

operation).

GETTING TO KNOW YOUR Echo-40F

2.2.3 CFast Card

HDD

PWR

POWER

RESET

DP2LAN1 LAN2 DVI-D

DP1

SIM 1 SIM 2

CFast

USB 2.0USB 3.0

There is a CFast socket on the front panel supporting Type-I/ Type-II Compact Flash card. It is implemented by a SATA II Port from Broadwell-U PCH.

Be sure to disconnect the power source and unscrew the CFast socket cover before installing a CFast card. The Echo-40F does not support the CFast hot swap and PnP (Plug and Play) functions.

It is necessary to remove power source first before inserting or removing the CFast card.

The pinouts of CFast port are listed as follows:

Pin No. Description Pin No. Description

S1 GND PC6 NC

S2 SATA_TXP PC7 GND

S3 SATA_TXN PC8 CFAST_LED

S4 GND PC9 NC

S5 SATA_RXN PC10 NC

S6 SATA_RXP PC11 NC

S7 GND PC12 NC

PC1 GND PC13 +3.3V

PC2 GND PC14 +3.3V

PC3 GND PC15 GND

PC4 NC PC16 GND

PC5 NC PC17 NC

GETTING TO KNOW YOUR Echo-40F©Echo-40F User Manual

2.2.4 PWR and HDD LED Indicator

HDD

PWR

POWER

RESET

DP2LAN1 LAN2 DVI-D

DP1

SIM 1 SIM 2

CFast

USB 2.0USB 3.0

Yellow-HDD LED: A hard disk/ CFast LED. If the LED is on, it indicates that the

system’s storage is functional. If it is off, it indicates that the system’s storage is

not functional. If it is ashing, it indicates data access activities.

Green-Power LED: If the LED is solid green, it indicates that the system is

powered on.

LED Color Power Status System Status

Yellow HDD/ CFast

• On/ Off : Storage status, function or not.

• Twinkling : Data transferring.

Green Power System power status (on/ off)

2.2.5 DVI-D Connector

HDD

PWR

POWER

RESET

DP2LAN1 LAN2 DVI-D

DP1

SIM 1 SIM 2

CFast

USB 2.0USB 3.0

The DVI-D connector on the front panel supports DVI display modes. The DVI

output mode supports up to 1920 x 1080 resolutions.

2.2.6 DisplayPort

DP2LAN1 LAN2 DVI-D

HDD

PWR

RESET

POWER

DP1

Onboard DisplayPort connection supports up to 3840 x 2160 resolutions at 60Hz. DP1 only supports DisplayPort, it does not support HDMI and DVI function.

SIM 1 SIM 2

CFast

USB 2.0USB 3.0

GETTING TO KNOW YOUR Echo-40F

2.2.7 External USB

HDD

PWR

RESET

POWER

DC-IN 6~36V

V+ V

IGN

On | Off

USB 2.0

DP2LAN1 LAN2 DVI-D

DP1

DIO

Isolated

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

PoE+

3 4 5 6

LAN4 LAN3

LAN6 LAN5

SIM 1 SIM 2

CFast

COM1

COM3

USB 2.0USB 3.0

COM2

COM4

There are 2 USB 3.0 connections available supporting up to 5GB per second data rate in the front side of Echo-40F. They also comply with the requirements of SuperSpeed (SS), High Speed (HS), Full Speed (FS) and Low Speed (LS).

2.2.8 Mini PCIe & SIM Card Comparison Table

DP2LAN1 LAN2 DVI-D

HDD

PWR

RESET

POWER

DP1

CN30 CN31

Note: The SIM card sockets do not support hot-plug. Please make sure to unplug the system power before inserting the SIM card(s).

SIM 1 SIM 2

CFast

USB 2.0USB 3.0

Mini PCIe SIM

CN18 CN30 (SIM 1)

CN16 CN31 (SIM 2)

GETTING TO KNOW YOUR Echo-40F©Echo-40F User Manual

2.2.9 10/ 100/ 1000 Mbps Ethernet Port

HDD

PWR

POWER

RESET

DP2LAN1 LAN2 DVI-D

DP1

SIM 1 SIM 2

CFast

USB 2.0USB 3.0

There are 2 8-pin RJ-45 jacks supporting 10/ 100/1000 Mbps Ethernet

connections in the front side of Echo-40F. LAN 1 is powered by Intel® 218LM

Ethernet engine; LAN 2 is powered by Intel I210 Ethernet engine. When both

LAN 1 and LAN 2 work in normal status, basic iAMT function is enabled.

Using suitable RJ-45 cable, you can connect Echo-40F system to a computer,

or to any other devices with Ethernet connection, for example, a hub or a switch.

Moreover, both of LAN 1 and LAN 2 supports Wake on LAN and Pre-boot

functions. The pinouts of LAN 1 and LAN 2 are listed as follows:

Pin No. 10/ 100Mbps 1000Mbps

1 E_TX+ MDI0_P

2 E_TX- MDI0_N

3 E_RX+ MDI1_P

4 ---- MDI2_P

5 ----- MDI2_N

6 E_RX- MDI1_N

7 ----- MDI3_P

8 ------ MDI3_N

Each LAN port is supported by standard RJ-45 connector with LED indicators to present Active/ Link/ Speed status of the connection. The LED indicator on the right bottom corner lightens in solid green when the cable is properly connected to a 100Mbps Ethernet network; The LED indicator on the right bottom corner lightens in solid orange when the cable is properly connected to a 1000Mbps Ethernet network; The left LED will keep twinkling/ off when Ethernet data packets are being transmitted/ received.

LED 10Mbps 100Mbps 1000Mbps

Right

Bottom Led

Off

Solid

Green

Orange

Solid

1 8

Left

Bottom Led

Twinkling

Yellow

Twinkling

Yellow

Twinkling

Yellow

GETTING TO KNOW YOUR Echo-40F

2.3 Rear Panel I/O and Functions

2.3.1 Power Terminal Block

DC-IN 6~36V

V+ V

IGN

USB 2.0

On | Off

DIO

Isolated

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

PoE+

3 4 5 6

LAN4 LAN3

LAN6 LAN5

COM1

COM3

COM2

COM4

Echo-40F supports 6V to 36V DC power input by terminal block in the rear

side. In normal power operation, power LED lightens in solid green. Echo-40F

supports up to 80V surge protection.

Pin No. Denition

1 V+

2 V-

3 Earth GND

2.3.2 Remote Power On/ O Switch

DC-IN 6~36V

V+ V

IGN

USB 2.0

On | Off

DIO

Isolated

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

PoE+

3 4 5 6

LAN4 LAN3

LAN6 LAN5

COM1

COM3

COM2

COM4

It is a 2-pin power-on or power-off switch through Phoenix Contact terminal

block. You could turn on or off the system power by using this contact. This

terminal block supports dual function of soft power-on/ power-off (instant off or

delay 4 second), and suspend mode.

Pin No. Denition

1 IGNITION

2 SW+

3 SW-

GETTING TO KNOW YOUR Echo-40F©Echo-40F User Manual

2.3.3 Isolated DIO

DC-IN 6~36V

V+ V

IGN

USB 2.0

On | Off

DIO

Isolated

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

PoE+

3 4 5 6

LAN4 LAN3

LAN6 LAN5

COM1

COM3

COM2

COM4

There is a 16-bit DIO (8-bit DI, 8-bit DO) connector in the rear side. Each DIO channel is equipped with a photocoupler for isolated protection. A power buffer device TPD2007F integrated in 8-DO circuit for motors, solenoids, and lamp driver applications. Please refer to Appendix A for more details.

Pin No. Denition Pin No. Denition

1 INPUT 0 11 OUTPUT 0

2 INPUT 1 12 OUTPUT 1

3 INPUT 2 13 OUTPUT 2

4 INPUT 3 14 OUTPUT 3

5 INPUT 4 15 OUTPUT 4

6 INPUT 5 16 OUTPUT 5

7 INPUT 6 17 OUTPUT 6

8 INPUT 7 18 OUTPUT 7

9 DI_COM 19 DIO_GND

10 DIO_GND 20 External 24~78VDC Input

GPI SINK Mode

Isolated GPI input circuit in SINK mode (NPN) is illustrated as follow :

GETTING TO KNOW YOUR Echo-40F

GPI SOURCE Mode

Digital GPI input signal circuit in SOURCE mode (PNP) is illustrated as follow :

GPO SINK Mode

Digital GPO output circuit in SINK mode (NPN) is illustrated as follow :

GETTING TO KNOW YOUR Echo-40F©Echo-40F User Manual

2.3.4 Serial Port COM

DC-IN 6~36V

V+ V

IGN

USB 2.0

On | Off

DIO

Isolated

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

PoE+

3 4 5 6

LAN4 LAN3

LAN6 LAN5

COM1

COM3

COM2

COM4

Serial port can be configured for RS-232, RS-422, or RS-485 with auto flow

control communication. The default denition is RS-232, if you want to change

to RS-422 or RS-485, you can nd the setting in BIOS.

BIOS Setting Function

RS-232

COM 1 (CN7) /

RS-422 (5-wire)

COM 2 (CN8) /

RS-422 (9-wire)

COM 3 (CN11) /

RS-485

COM 4 (CN12)

RS-485 w/z auto-ow control

The pin assignments are listed in the table as follow :

Serial

Port

1, 2

3, 4

Pin No. RS-232 RS-422

(5-wire)

1 DCD TXD- TXD- D ATA -

2 RXD TXD+ TXD+ DATA+

3 TXD RXD+ RXD+ -----------

4 DTR RXD- RXD- -----------

5 GND GND GND GND

6 DSR ----------- RTS- -----------

7 RTS ----------- RTS+ -----------

8 CTS ----------- CTS+ -----------

9 RI ----------- CTS- -----------

RS-422 (9-wire)

RS-485 (3-wire)

GETTING TO KNOW YOUR Echo-40F

2.3.5 PoE (Power over Ethernet) Ports

DC-IN 6~36V

V+ V

IGN

USB 2.0

On | Off

DIO

Isolated

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

PoE+

3 4 5 6

LAN4 LAN3

LAN6 LAN5

COM1

COM3

COM2

COM4

There are 4 RJ45 connectors in the rear side of Echo-40F. It supports IEEE

802.3at (PoE+) Power over Ethernet (PoE) connection delivering up to 25.5W/ 48V per port and 1000BASE-T gigabit data signals over standard Ethernet Cat 5/ Cat 6 cable.

Each PoE connection is powered by Intel® I210 Gigabit Ethernet controller and independent PCI express interface to connect with multi-core processor for network and data transmit optimization. Only when PoE port starts to supply power to power devices, the dedicated LED will be lightened.

PS. Suggest to use PoE when power input is over 11V

2.3.6 Audio Connector

DC-IN 6~36V

V+ V

IGN

USB 2.0

On | Off

There are 2 audio connectors, Mic-in and Line-out, in the front side of Echo-40F.

Onboard Realtek ALC892 audio codec supports 5.1 channel HD audio and fully

complies with Intel® High Denition Audio (Azalia) specications.

To utilize the audio function in Windows platform, you need to install

corresponding drivers for both Intel® Broadwell-U chipset and Realtek ALC892

codec. Please refer to Chapter 4 for more details of driver installation.

DIO

Isolated

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

PoE+

3 4 5 6

LAN4 LAN3

LAN6 LAN5

COM1

COM3

COM2

COM4

GETTING TO KNOW YOUR Echo-40F©Echo-40F User Manual

2.4 Main Board Expansion Connectors

2.4.1 Front View of Echo-40F Main Board With Connector Location

JP1

JP3

CN17

CN19

JP2

JP4

CN15

CN16

JP5

Battery

CON1

JP7JP8

JP6

CN18

SW1

JP10 JP11

BIOS

2.4.2 Rear View of Echo-40F Main Board With Connector Location

JP9

CPU

SIO

PLX-8608

TPM

GETTING TO KNOW YOUR Echo-40F

2.4.3 J6 Miscellaneous Pin Header

This pin header can be used as a backup for following functions, hard drive

LED indicator, reset button, power LED indicator, and power-on/ off button,

which already can be accessed by front panel and top panel. The pinouts of

Miscellaneous port are listed in following table:

Group Pin No. Description

1 HDD_LED_P

HDD LED

3 HDD_LED_N

5 FP_RST_BTN_N

RESET BUTTON

7 GND

2 PWR_LED_P

POWER LED

4 PWR_LED_N

6 FP_PWR_BTN_IN

POWER BUTTON

8 GND

GETTING TO KNOW YOUR Echo-40F©Echo-40F User Manual

2.4.4 CON1, J2 LVDS

CON1

Echo-40F supports dual-channel 24-bit LVDS display, up to 1920 x 1200 pixels resolution. The pin assignments of CON1 are listed in the following table:

Pin No. Denition Pin No. Denition Pin No. Denition

1 PANEL_VDD 15 GND 29 GND

2 TXO0- 16 TXOC+ 30 TXE2-

3 PANEL_VDD 17 GND 31 GND

4 TXO0+ 18 TXO3- 32 TXE2+

5 PANEL_VDD 19 GND 33 GND

6 TXO1- 20 TXO3+ 34 TXEC-

7 GND 21 GND 35 GND

8 TXO1+ 22 TXE0- 36 TXEC+

9 GND 23 GND 37 GND

10 TXO2- 24 TXE0+ 38 TXE3-

11 GND 25 GND 39 LVDS_DET#

12 TXO2+ 26 TXE1- 40 TXE3+

13 GND 27 GND

14 TXOC- 28 TXE1+

GETTING TO KNOW YOUR Echo-40F

The LCD inverter is connected to J2 via a JST 7-pin, 2.5mm connector providing

+5V/ +12V power to LCD display. The pin assignments are listed in the following

table:

Pin No. Denition Pin No. Denition

1 +5V 5 GND

2 +12V 6 GND

3 +12V 7 LBKLT_EN

4 LBKLT_CTL

2.4.5 CN17, CN19 : SATA III Connector

CN17

CN19

There are 2 onboard high performance Serial ATA III (SATA III) on EFKR).

It supports higher storage capacity with less cabling effort and smaller required space. The pin assignments of CN17 and CN19 are listed in the following table:

Pin No. Denition Pin No. Denition

1 GND 5 RXN

2 TXP 6 RXP

3 TXN 7 GND

4 GND

GETTING TO KNOW YOUR Echo-40F©Echo-40F User Manual

2.4.6 J1, J3 : SATA Power Connector

The EFKR) also equip with 2 SATA power connector. It supports 5V (Up to

2A) and 12V (Up to 1A) current to the hard drive or SSD. The pin assignments of J1 and J3 are listed in the following table:

Pin No. Denition Pin No. Denition

1 +12V 3 GND

2 GND 4 +5V

GETTING TO KNOW YOUR Echo-40F

2.4.7 J4 : Internal USB

The EFKR) main board provide one expansion USB port using plug-and-

play for Dongle Key or LCD touch Panel. The USB interface supports 480 Mbps transfer rate which comply with high speed USB specication Rev. 2.0.

The USB interface is accessed through one 4-pin JST 2.0mm connector. You will need an adapter cable if you use a standard USB connector. The adapter cable has a 4-pin connector on one end and a USB connector on the other.

The pin assignments of J4 are listed in the following table:

Connector Pin No. Description Pin No. Description

1 USB_VCC 3 USBD+

2 USBD- 4 GND

GETTING TO KNOW YOUR Echo-40F©Echo-40F User Manual

2.4.8 CN18 : Mini PCIe, mSATA

CN18

JP11

Both mSATA and Mini PCIe share the same form factor and similar electrical pinout assignments on their connectors. There was no clear mechanism to distinguish if a mSATA drive or a Mini PCIe device is plugged into the socket until recently that SATA I/O issued an ECN change (ECN #045) to redene Pin43 on mSATA connector as “no connect” instead of “return current path” (or GND).

When an mSATA drive is inserted, its Pin-43 is “no connect”, and the respective pin on the socket is being pulled-up to logic 1. When a Mini PCIe device is inserted, its Pin-43 forces the respective pin on the socket to ground, or logic 0.

IP11 Pin-43 is defined for switching mSATA/ Mini PCIe device, the header denitions are listed in the following table :

Header Interface

1-2 Auto Detection

2-4 Mini PCIe

1-3 mSATA

GETTING TO KNOW YOUR Echo-40F

The pin assignments of CN18 are listed in the following table:

Pin No. Signal Name Pin No. Signal Name

51 Reserved 52 +3.3Vaux

49 Reserved 50 GND

47 Reserved 48 +1.5V

45 Reserved 46 Reserved

43 Status 44 Reserved

41 +3.3Vaux 42 Reserved

39 +3.3Vaux 40 GND

37 GND 38 USB_D+

35 GND 36 USB_D-

33 PETp0 34 GND

31 PETn0 32 SMB_DATA

29 GND 30 SMB_CLK

27 GND 28 +1.5V

25 PERp0 26 GND

23 PERn0 24 +3.3Vaux

21 GND 22 PERST#

19 Reserved 20 reserved

17 Reserved 18 GND

Mechanical Key

15 GND 16 UIM_VPP

13 REFCLK+ 14 UIM_RESET

11 REFCLK- 12 UIM_CLK

9 GND 10 UIM_DATA

7 CLKREQ# 8 UIM_PWR

5 Reserved 6 1.5V

3 Reserved 4 GND

1 WAKE# 2 3.3Vaux

GETTING TO KNOW YOUR Echo-40F©Echo-40F User Manual

2.4.9 CN16 : Mini PCIe

CN16

The pin assignments of CN16 are listed in the following table:

Pin No. Signal Name Pin No. Signal Name

51 Reserved 52 +3.3Vaux

49 Reserved 50 GND

47 Reserved 48 +1.5V

45 Reserved 46 Reserved

43 GND 44 Reserved

41 +3.3Vaux 42 Reserved

39 +3.3Vaux 40 GND

37 GND 38 USB_D+

35 GND 36 USB_D-

33 PETp0 34 GND

31 PETn0 32 SMB_DATA

29 GND 30 SMB_CLK

27 GND 28 +1.5V

25 PERp0 26 GND

23 PERn0 24 +3.3Vaux

GETTING TO KNOW YOUR Echo-40F

21 GND 22 PERST#

19 Reserved 20 reserved

17 Reserved 18 GND

Mechanical Key

15 GND 16 UIM_VPP

13 REFCLK+ 14 UIM_RESET

11 REFCLK- 12 UIM_CLK

9 GND 10 UIM_DATA

7 CLKREQ# 8 UIM_PWR

5 Reserved 6 1.5V

3 Reserved 4 GND

1 WAKE# 2 3.3Vaux

2.4.10 Battery

Battery

The EFKR)’s real-time clock is powered by a lithium battery. It is Equipped

with Panasonic BR2032 190mAh lithium battery. It is recommended that you not replace the lithium battery on your own. If the battery needs to be changed, please contact the Unicomp RMA service team.

GETTING TO KNOW YOUR Echo-40F©Echo-40F User Manual

2.4.11 J5 : LAN2 I210 SDP

The pin assignments of J5 are listed in the following table:

Pin No. Function Pin No. Function

1 LAN2_SDP0 4 LAN2_SDP3

2 LAN2_SDP1 5 GND

3 LAN2_SDP2 6 GND

2.4.12 CN15 : +12V_SB Output

CN15

The pin assignments of CN15 are listed in the following table:

Pin No. Function Pin No. Function

1 GND 3 +12V_SB

2 GND 4 +12V_SB

GETTING TO KNOW YOUR Echo-40F

2.5 Main Board Jumper Settings

2.5.1 Front View of Echo-40F Main Board with Jumper Location

The figure below is the top view of the EFKR) main board which is the main board used in the EFKR) Series system. It shows the location of the

jumpers.

JP2

JP1

JP4

JP3

JP8

JP5

JP7

JP6

JP10

JP9

JP11

You may congure your card to match the needs of your application by setting jumpers. A jumper is a metal bridge used to close an electric circuit. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To “close” a jumper, you connect the pins with the clip. To “open” a jumper, you remove the clip. Sometimes a jumper will have three pins, labeled 1, 2 and 3. In this case you would connect either pins 1 and 2, or 2 and 3.

2.5.2 JP1, JP2, JP3, JP4

COM 1 to COM 4 Pin 9 Function:

Pin No. RI/ +5V/ +12V

1-2 +12V

3-4 +5V

JP4

JP2

JP1

JP3

5-6 RI

2.5.3 JP5 : LVDS Backlight, Power Selection

JP5

JP5 provides LVDS voltage selection function, closing Pin 1, 2 is for 3.3V LVDS power input; closing Pin 2, 3 is for 5V LVDS power input.

Pin No. Function Pin No. Function

1-2 +3.3V (Default) 2-3 +5V

GETTING TO KNOW YOUR Echo-40F

2.5.4 JP6 CMOS/ME

JP6

CMOS Header ME Header

1-2 Normal 2-4 Normal

2-3 Clear CMOS 4-6 Clear ME

2.5.5 JP7 External USB3.0/2.0 Power Select

JP7

Header Power Header Power

1-2 +5V Standby Power 3-4 +5V System Power

2.5.6 JP9 Internal USB Power Select

Internal USB PWR Select:

JP9 +V5A/ +V5/ +V3.3

1-2 +5V Standby

3-4 +5V

JP9

5-6 +3.3V

2.5.7 JP10 : MCU Spy-bi Wire Interface for Download FW

JP10

The pin assignments of JP10 are listed in the following table:

Pin No. Function Pin No. Function

1 GND 3 3.3V_MCU

2 MCU_RST# 4 MCU_PRG

GETTING TO KNOW YOUR Echo-40F

2.5.8 JP8 Backlight Control Level Select

JP8

Dimming Header

1-3 3.3V

3-5 5V

On/ Off Header

2-4 3.3V

4-6 5V

2.6 Ignition Control

EFKR) series provides ignition power control feature for in-vehicle

applications. The built-in MCU monitors the ignition signal and turns on/ off the system according to pre-dened on/ off delay period.

SW1

2.6.1 Adjust Ignition Control Modes

EFKR) series provides 16-mode adjustable power on/ off delay period via

DIP-Switch. The default DIP-Switch is set to 0 in ATX/ AT power mode. The

modes are listed in below table:

DIP-Switch

Position

0 ATX/AT mode

1 No delay No delay

2 No delay 5 seconds

3 No delay 10 seconds

4 No delay 20 seconds

5 5 seconds 30 seconds

6 5 seconds 60 seconds

7 5 seconds 90 seconds

Power on delay Power off delay Switch Position

8 5 seconds 30 minutes

9 5 seconds 1 hour

A 10 seconds 2 hours

B 10 seconds 4 hours

C 10 seconds 6 hours

D 10 seconds 8 hours

E 10 seconds 12 hours

F 10 seconds 24 hours

GETTING TO KNOW YOUR Echo-40F

2.6.2 Ignition Control Wiring

To activate ignition control, you need to provide IGN signal via the 3-pin

pluggable terminal block locates in the back panel. Please find below the

general wiring conguration.

V+

IGN

V+ : Positive polarity of DC power input (Car battery+ for 12/24V) V- : Ground of DC power input (Car battery -/GND line to GND) IGN : Ignition signal input (ACC power of vehicle)

For testing purpose, you can refer to the picture blow to simulate ignition signal input controlled by a latching switch.

Note:

1. DC power source and IGN share the same ground.

2. EFKR) supports 6V to 36V wide range DC power input in ATX/AT mode.

In Ignition mode, the input voltage is xed to 12/24V for car battery scenario.

3. For proper ignition control, the power button setting should be “Power Down”

mode.

In Windows for example, you need to set “When I press the power button” to Shut down.

SYSTEM SETUP

“Please make sure to assemble the system in an anti-static environment.”

3.1 How to Open Your EDIP'

3.1.1 Echo-40F-PoE/ Echo-40F-2G

Step 1 Remove 5pcs KHS#6-32 screws (circled in red) and 2pcs#4-40

screws (circled in yellow) on the front panel.

Step 2 Take off the front panel.

HARDWARE INSTALLATION

Step 3 Remove 4pcs F#6-32x6 screws (circled in red) in the bottom side.

Step 4 Remove 1pcs KHS#6-32 screw (circled in red) on the rear panel.

Step 5 Turn over EFKR) to keep the bottom side up. Then do open

the bottom cover carefully.

3.1.2 Echo-40F-PoER/ Echo-40F-2R

Step 1 Counterclockwise loosen the locks on each SSD/ HDD Tray.

Step 2 Remove the SSD/ HDD Tray from EFKR)-PoER/ EFKR)-

2R.

Step 3 Remove 5pcs KHS#6-32 screws (circled in red) and 2pcs#4-40

screws (circled in yellow) on the front panel. (EFKR)-PoER/ EFKR)-2R)

Step 4 Take off the front panel.

HARDWARE INSTALLATION

Step 5 Remove 4pcs F#6-32x6 screws (circled in red) in the bottom side.

Step 6 Remove 1pcs KHS#6-32 screw (circled in red) on the rear panel.

Step 7 Turn over EFKR) to keep the bottom side up. Then do open

the bottom cover carefully.

3.2 Installing DDR3L SO-DIMM Modules

Step 1 Install DDR3L RAM module into SO-DIMM slot.

(EFKR)-PoER/ EFKR)-PoE/ EFKR)-2G/ EFKR)-2R)

Step 2 Make sure the RAM module is locked by the memory slot.

(EFKR)-PoER/ EFKR)-PoE/ EFKR)-2G/ EFKR)-2R)

HARDWARE INSTALLATION

3.3 Installing Mini PCIe Cards

Step 1 Install Mini PCIe card into the Mini PCIe socket.

(EFKR)-PoER/ EFKR)-PoE/ EFKR)-2G/ EFKR)-2R)

Step 2 Fasten 2pcs M2.5 screws.

(EFKR)-PoER/ EFKR)-PoE/ EFKR)-2G/ EFKR)-2R)

3.4 Installing Antenna Cable

Step 1 Check Antenna cable and washers.

1 2 3

Step 2 Remove 3pcs rubber cork on rear panel.

(Pick up the location you want)

HARDWARE INSTALLATION

Step 3 Put Antenna cable connector into the hole on rear panel.

Step 4 Fasten the washer 1, washer 2 and washer 3 on Antenna cable

connector.

Step 5 Antenna cable is installed ready.

3.5 Installing CFast Card and SIM Card

Step 1 Remove 2pcs M3x4 Flat head screws on CFast & SIM Card cover

on front panel.

Step 2 Remove CFast Card and SIM Card cover from front panel.

HARDWARE INSTALLATION

Step 3 Insert CFast card and push to lock.

Step 4 Before Inserting SIM card, make sure the system power is not

plugged.

Step 5 Insert SIM card and push to lock.

Step 6 SIM card and CFast card are installed ready.

3.6 Installing SSD/HDD

3.6.1 Echo-40F-PoE/ Echo-40F-2G

Step 1

Step 2 Loosen 8pcs M4x4 screws (circled in red) on the bottom cover.

Take the bottom cover from EFKR)-PoE/ EFKR)-2G.

(Please refer to 3.1.1)

Step 3 Remove the SSD/HDD bracket from EFKR) bottom cover.

HARDWARE INSTALLATION

Step 4 Put 2.5" SSD/HDD into the bracket.

Step 5 Fasten 4pcs M3 screws to x the SSD/HDD on the bracket.

Step 6 Fix the SSD/HDD bracket with M3x4 screws.

Step 7 Cable to the SSD/HDD.

HARDWARE INSTALLATION

3.6.2 Echo-40F-PoER/ Echo-40F-2R

Step 1 Counterclockwise loosen the locks on each SSD/HDD Tray. Then

remove the SSD/HDD Tray from EFKR)-PoER/ EFKR)-2R.

Step 2 Fix the SSD/HDD on the SSD/HDD Tray with 2pcs M3x4 Flat

head screws.

Step 3 Put the SSD/HDD Tray back.

Step 4 Clockwise fasten the locks on each SSD/HDD Tray.

HARDWARE INSTALLATION

3.7 Mounting &DIP'

Step 1 Ensure the screw holes on the right and left side of upper case

match the ones on EFKR) wallmount bracket.

Step 2 Fasten 4pcs KHS#6-32 screws.

BIOS AND DRIVER SETTING

4.1 BIOS Settings

The board uses UEFI BIOS that is use Serial Peripheral Interface (SPI) Flash. The SPI Flash contains the BIOS Setup program, POST, the PCI autoconfiguration utility, LAN, EEPROM information, and Serial port support. The BIOS setup program is accessed by pressing the <Del> key after the PowerOn Self-Test (POST) memory test begins and before the operating system boot begins. The menu bar is shown below.

Figure 4-1-1: BIOS Menu Bar

BIOS AND DRIVER SETTING

4.2 Main Menu

Figure 4 2: BIOS Main screen

4.2.1 BIOS Main Menu

Figure 4-2-1: BIOS Main screen

System Time/ Date

Press “TAB” key to switch sub-items of value .Then press “ +” key or “-“ key number key for modify value.

In this page, you could make sure CPU type and DRAM type that you installed into this system.

BIOS AND DRIVER SETTING

4.3 Advanced Function

4.3.1 ACPI Setting

Figure 4-3-1: ACPI Setting setup screen

Enable ACPI Auto Conguration

This system support ACPI function as auto process. You should Enable/ Disable that depend as your OS.

Enable Hibernation

It is able to use Hibernate function if OS support. But some OS may not be effective with this function.

BIOS AND DRIVER SETTING

4.3.2 CPU Conguration

Figure 4-3-2: CPU Conguration setup screen

Intel Virtualization Technology

This for Virtualization Application or platform usage, when enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

BIOS AND DRIVER SETTING

4.3.3 SATA Conguration

Figure 4-3-3 : SATA Conguration setup screen

SATA Controller(s)

Enables or Disables integrate SATA controller for storage devices.

SATA Mode Selection

Determines how the SATA transfer mode for operate. Here have three option for choice [IDE] / [AHCI] / [RAID]. For the RAID mode operate, please see appendix E. for detail information.

Serial ATA Port 0 to Port 3

This system offers 4 SATA port for connection SATA device.

BIOS AND DRIVER SETTING

4.3.4 AMT Conguration

Figure 4-3-4: AMT Setup screen

Intel AMT

Enables or Disables Intel

Active Management Technology BIOS extension.

This option just controls the BIOS extension executes.

BIOS AND DRIVER SETTING

4.3.5 Serial Port 1 Conguration

Figure 4-3-5 : Serial Port 1 Setup screen

Serial Port

Enable or Disable Serial Port.

Device Setting

Current IO address and interrupt resource of Serial Port.

Change Settings

Select another device setting. There are 6 options as follow :

• Auto

• IO=3F8h; IRQ=4;

• IO=3F8h; IRQ=3,4,12;

• IO=2F8h; IRQ=3,4,12;

• IO=3E8h; IRQ=3,4,12;

• IO=2E8h; IRQ=3,4,12;

Interface Mode

There are 3 options as follow :

• RS-232 Mode

• RS-422 Mode

• RS-485 Mode

BIOS AND DRIVER SETTING

4.3.6 Serial Port 2 Conguration

Figure 4-3-6 : Serial Port 2 Setup screen

Serial Port

Enable or Disable Serial Port.

Device Setting

Current IO addresses and interrupts resource of Serial Port.

Change Settings

Select another device setting. There are 6 options as follow :

• Auto

• IO=2F8h; IRQ=3;

• IO=3F8h; IRQ=3,4,12;

• IO=2F8h; IRQ=3,4,12;

• IO=3E8h; IRQ=3,4,12;

• IO=2E8h; IRQ=3,4,12;

Interface Mode

There are 3 options as follow :

• RS-232 Mode

• RS-422 Mode

• RS-485 Mode

BIOS AND DRIVER SETTING

4.3.7 Serial Port 3 Conguration

Figure 4-3-7 : Serial Port 3 Setup screen

Serial Port

Enable or Disable Serial Port.

Device Setting

Current IO address and interrupt resource of Serial Port.

Change Settings

Select another device setting. There are 6 options as follow :

• Auto

• IO=3E8h; IRQ=12;

• IO=3E8h; IRQ=3,4,12;

• IO=2E8h; IRQ=3,4,12;

• IO=2F0h; IRQ=3,4,12;

• IO=2E0h; IRQ=3,4,12;

Interface Mode

There are 3 options as follow :

• RS-232 Mode

• RS-422 Mode

• RS-485 Mode

BIOS AND DRIVER SETTING

4.3.8 Serial Port 4 Conguration

Figure 4-3-8 : Serial Port 4 Setup screen

Serial Port

Enable or Disable Serial Port.

Device Setting

Current IO address and interrupt resource of Serial Port.

Change Settings

Select another device setting. There are 6 options as follow :

• Auto

• IO=2E8h; IRQ=12;

• IO=3E8h; IRQ=3,4,12;

• IO=2E8h; IRQ=3,4,12;

• IO=2F0h; IRQ=3,4,12;

• IO=2E0h; IRQ=3,4,12;

Interface Mode

There are 3 options as follow :

• RS-232 Mode

• RS-422 Mode

• RS-485 Mode

BIOS AND DRIVER SETTING

4.4 Chipset Function

Figure 4-4: Chipset Function Setup screen

4.4.1 WOL Conguration

Figure 4-4-1 : Network Setup screen

PCH LAN Controller

Enable or Disable on board network device.

Wake on LAN

Enable or Disable integrated LAN to wake the system. This function also can active by O.S.

BIOS AND DRIVER SETTING

4.5 Boot Function

Figure 4-5: Boot function Setup screen

4.5.1 Boot Option

Figure 4-5-1 Boot Option Setup screen

Boot option

When you press “Enter”, you can select which device you would like to boot.

Appendix A

APPENDIX A : ISOLATED DIO GUIDE

A.1 I/O Pin Denition

I/O Pin Base Adr Usage

GPIO 10~17 0xA00 CN16-GPIO

GPIO 20~27 0xA01 DIO Output

GPIO 30~37 0xA02 -----------

GPIO 40~47 0xA03 -----------

GPIO 50~57 0xA04 DIO Input

GPIO 60~67 0xA05 CN16-GPIO

A.2 Function Description

The EFKR) offers a 16-bit DIO (8-DI/ 8-DO) 20-pin terminal block connector.

Each bit of DI and DO equipped with a photo-coupler for isolated protection. All I/O pins are xed by Hardware design and cannot change in/out direction in runtime process. The denition is listed as follows:

No.

1 EXT_IN0 GPIO Input 0 11 EXT_OUT0 GPIO Output 0

2 EXT_IN1 GPIO Input 1 12 EXT_OUT1 GPIO Output 1

3 EXT_IN2 GPIO Input 2 13 EXT_OUT2 GPIO Output 2

4 EXT_IN3 GPIO Input 3 14 EXT_OUT3 GPIO Output 3

Denition Description

No.

Denition Description

5 EXT_IN4 GPIO Input 4 15 EXT_OUT4 GPIO Output 4

Appendix A

6 EXT_IN5 GPIO Input 5 16 EXT_OUT5 GPIO Output 5

7 EXT_IN6 GPIO Input 6 17 EXT_OUT6 GPIO Output 6

8 EXT_IN7 GPIO Input 7 18 EXT_OUT7 GPIO Output 7

9 DI_COM GPIO COM 19 Reserved NC

10 EGND GPIO GND 20 E24V External 24V DC

Signal Circuit of Input NPN

Digital GPIO input signal circuit in SINK mode (NPN) is illustrated as follow.

Signal Circuit of Input PNP

Digital GPIO input signal circuit in SOURCE mode (PNP) is illustrated as follow.

Signal Circuit of Output NPN

Digital GPIO output signal circuit in SINK mode (NPN) is illustrated as follow.

Appendix A

A.3 Software Package

There are 2 folders inside :

1. Driver Folder

2. DIO Demo Tool Folder

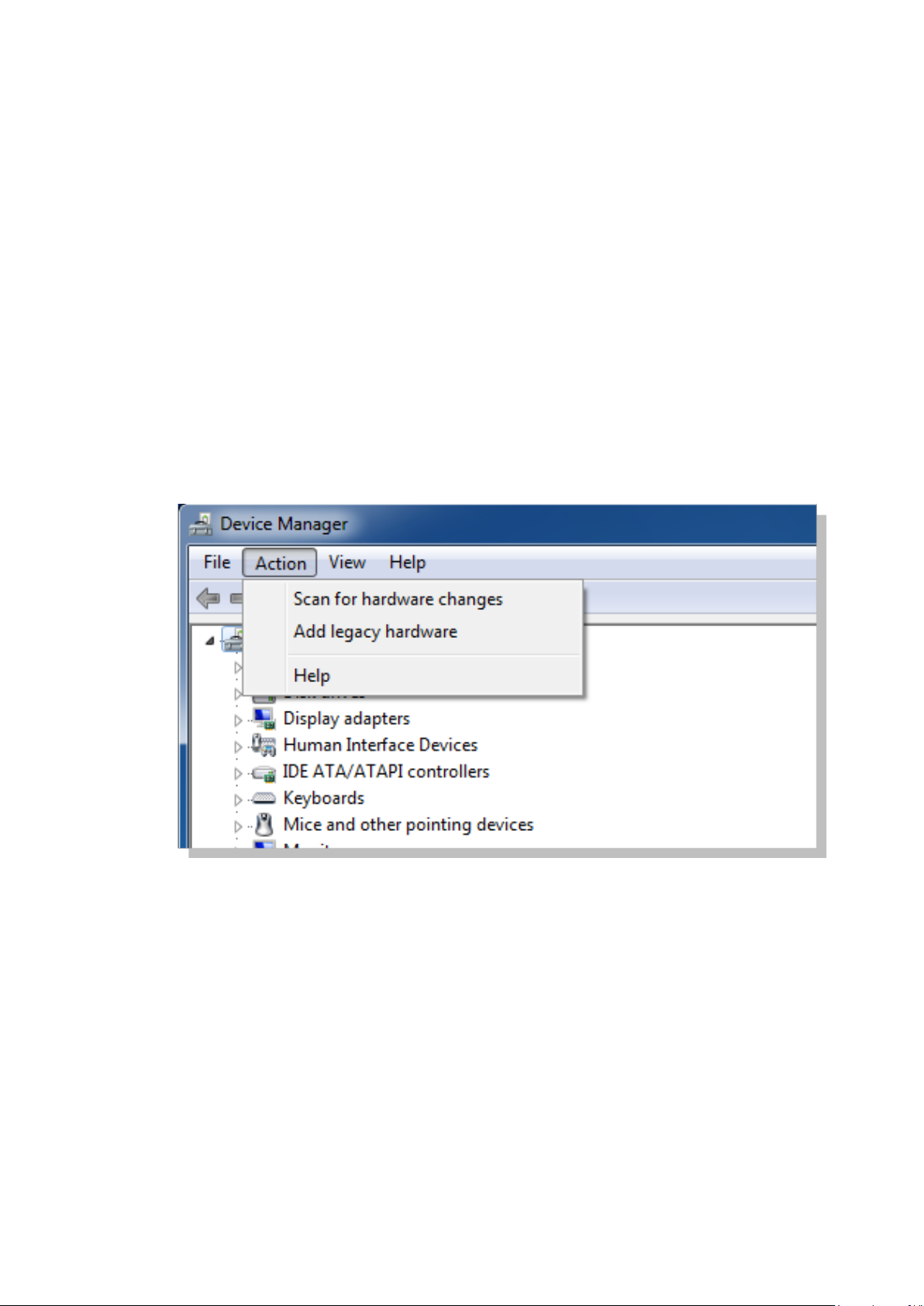

A.4 Driver Installing

Supports Windows 8.1 and Windows 7. Please do make sure your OS version before installing.

Please select “Add legacy hardware” on device management

Appendix B

APPENDIX B : GPIO and WDT Functions

B.1 Function Description

The WDT are using internal Super I/O function. However, you must entry super I/O conguration mode to set it.

Super I/O special address port = 0x2E Super I/O special data port = 0x2F GPIO Logical device is 0x07

B.2 Entry Functions

1. Entry MB PnP Mode.

//write twice 0x87 value.

outportb(Super I/O special address port, 0x87); outportb(Super I/O special address port, 0x01); outportb(Super I/O special address port, 0x55); outportb(Super I/O special address port, 0x55);

2. Located on Logical Device 7(LOGIC_DEVICE_WDT)

//write 0x07 on Reg [0x07] , this setup must follow Step A. that can be workable.

outportb(Super I/O special address port, 0x07); outportb(Super I/O special data port, 0x07);

3. Cong the WDT Register

outb(WDT_Cong,SPECIAL_ADDRESS_PORT); outb(WDT_As_Second|WDT_Pin_PWRGD,SPECIAL_DATA_PORT);

4. Start WDT TimeOut Value

Here have 2 Byte for WDT timing count, MSB and LSB should be write the value separate.

WDT_TimeOut_MSB,SPECIAL WDT_TimeOut_LSB,SPECIAL

outb(WDT_TimeOut_LSB,SPECIAL_ADDRESS_PORT); outb(WDT_TimeOutValue,SPECIAL_DATA_PORT);

Appendix C

APPENDIX C : Power Consumption

Echo-40F Power Consumption Testing :

Echo-40F

Storage-

CFast

Storage-

SATA 0

Storage-

SATA 1

Power Source :

CPU RAM

i7-5650U 4GB X 2 06V 0.330A 01.98W

i7-5650U 4GB X 2 09V 0.227A 02.04W

i7-5650U 4GB X 2 12V 0.190A 02.28W

Transcend SSD370 SATA

N/A

SSD 64GB

N/A

Input

Power

Aux card

Power

Source

Max Current Max Consumption

Chroma 62006P-100-25

Standby Mode

N/A

i7-5650U 4GB X 2 24V 0.215A 05.16W

i7-5650U 4GB X 2 28V 0.192A 05.38W

i7-5650U 4GB X 2 36V 0.137A 04.93W

Appendix C

Power-on and boot to Win7 64-bit

CPU

Idle Status :

CPU usage less 3%

Max

Current

Consumption

Max

Run 100% CPU usage

Max

Current

Max

Consumption

i7-5650U 2.200A 13.20W 3.600A 21.60W

i7-5650U 1.430A 12.87W 2.250A 20.25W

i7-5650U 1.070A 12.84W 1.610A 19.32W

i7-5650U 0.610A 14.64W 0.900A 21.60W

i7-5650U 0.530A 14.84W 0.760A 21.28W

i7-5650U 0.430A 15.48W 0.610A 21.96W

For further support information, please visit www.CappuccinoPC.com

This document is released for reference purpose only. All product offerings and specications are subject to change without prior notice. No part of this publication may be reproduced in any form or by any means, electric, photocopying, recording or otherwise, without prior authorization of the publisher. The rights of all the brand names, product names and trademarks belong to their respective owners. © Unicomp Labs, INC. 2015. All rights reserved.

Unicomp Labs ECHO 40FPoE350U, ECHO 40F-2R350U, ECHO 40FPoE650U, ECHO 40F-PoER350U, ECHO 40F User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

GENERAL INTRODUCTION

1.1 Overview

1.2 Features

1.4 Supported CPU List

1.5 Mechanical Dimensions

2.1 Packing List

2.2 Front Panel I/O Functions

2.3 Rear Panel I/O and Functions

2.4 Main Board Expansion Connectors

2.5 Main Board Jumper Settings

2.6 Ignition Control

SYSTEM SETUP

3.2 Installing DDR3L SO-DIMM Modules

3.3 Installing Mini PCIe Cards

3.4 Installing Antenna Cable

3.5 Installing CFast Card and SIM Card

3.6 Installing SSD/HDD

BIOS AND DRIVER SETTING

4.1 BIOS Settings

4.2 Main Menu

4.3 Advanced Function

4.4 Chipset Function

4.5 Boot Function

APPENDIX A : ISOLATED DIO GUIDE

APPENDIX B : GPIO and WDT Functions

APPENDIX C : Power Consumption
