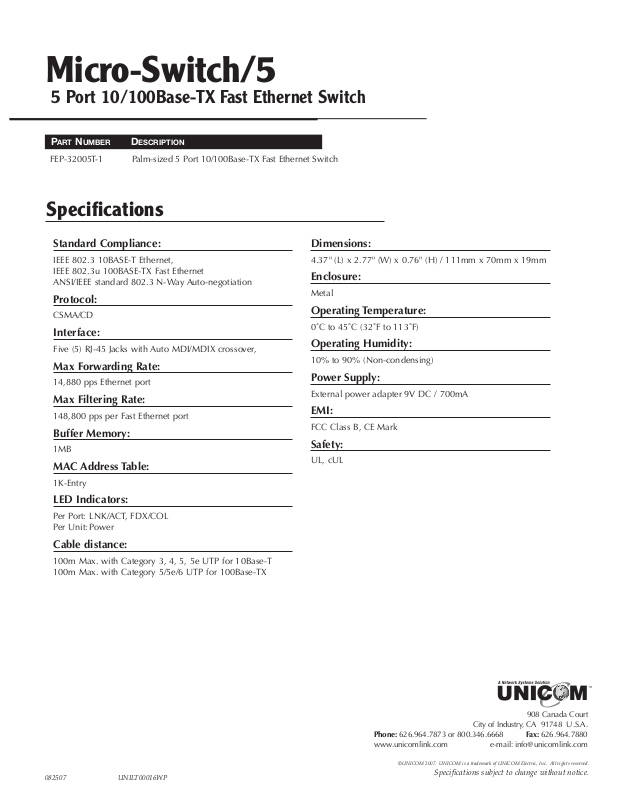

Micro-Switch/5
5 Port 10/100Base-TX Fast Ethernet Switch
PARTNU
FEP-32005T-1 Palm-sized 5 Port 10/100Base-TX Fast Ethernet Switch
MBER
SCRIPTION
DE
Specifications
Standard Compliance:
IEEE 802.3 10BASE-T Ethernet,
IEEE 802.3u 100BASE-TX Fast Ethernet
ANSI/IEEE standard 802.3 N-Way Auto-negotiation
Protocol:
CSMA/CD
Interface:
Five (5) RJ-45 Jacks with Auto MDI/MDIX crossover,
Max Forwarding Rate:
14,880 pps Ethernet port
Max Filtering Rate:
148,800 pps per Fast Ethernet port
Buffer Memory:
1MB
MAC Address Table:
1K-Entry
Dimensions:
4.37" (L) x 2.77" (W) x 0.76" (H) / 111mm x 70mm x 19mm
Enclosure:
Metal
Operating Temperature:
0˚C to 45˚C (32˚F to 113˚F)
Operating Humidity:
10% to 90% (Non-condensing)
Power Supply:
External power adapter 9V DC / 700mA
EMI:
FCC Class B, CE Mark
Safety:
UL, cUL
LED Indicators:
Per Port: LNK/ACT, FDX/COL
Per Unit: Power
Cable distance:
100m Max. with Category 3, 4, 5, 5e UTP for 10Base-T
100m Max. with Category 5/5e/6 UTP for 100Base-TX
082507 UNILT00016WP
908 Canada Court
City of Industry, CA 91748 U.S.A.
Phone: 626.964.7873 or 800.346.6668 Fax: 626.964.7880
www.unicomlink.com e-mail: info@unicomlink.com
©UNICOM 2007. UNICOM is a trademark of UNICOM Electric, Inc. All rights reserved.
Specifications subject to change without notice.
Micro-Switch/8
8 Port 10/100 Base-TX Fast Ethernet Switch
PARTNU
FEP-32008T-1 Compact 8-Port 10/100Base-TX Fast Ethernet Switch
MBER
SCRIPTION
DE
Specifications
Standard Compliance:
IEEE 802.3 10BASE-T Ethernet,
IEEE 802.3u 100BASE-TX Fast Ethernet
ANSI/IEEE standard 802.3 N-Way Auto-negotiation
Interface:
Eight (8) RJ-45 Jacks with Auto MDI/MDIX crossover
Switching Method:
Store-and-Forward
Forwarding Rate:
14,880pps for 10Mbps; 148,800pps for 100Mbps
Buffer Memory:
512KB DRAM
Power Supply:
External power adapter 9V DC / 700mA
Enclosure:
Metal
EMI:
FCC part 15 class A, CE Mark
Safety:
UL, cUL
MAC Address Table:
2K-Entry
Cable Distance:
100m Max. with Category 3, 4, 5, 5e UTP for 10Base-T
100m Max. with Category 5, 5e, 6 UTP for 100Base-TX
LED Indicators:
Per Port: Link/Activity, Full Duplex/Collision
Per Unit: Power
Dimensions:
6.5" (L) x 3.93" (W) x 0.98”(H)
165mm x 100mm x 25mm
Operating Temperature:
0˚C to 45˚C (32˚F to 113˚F)
Operating Humidity:
10% to 90% (Non-condensing)
908 Canada Court
City of Industry, CA 91748 U.S.A.
Phone: 626.964.7873 or 800.346.6668 Fax: 626.964.7880
www.unicomlink.com e-mail: info@unicomlink.com
082507 UNILT00017WP
©UNICOM 2007. UNICOM is a trademark of UNICOM Electric, Inc. All rights reserved.
Specifications subject to change without notice.
Micro-Switch/16 & 24
16 and 24 Port 10/100 Base-TX Fast Ethernet Switches
PARTNU
FEP-32016T 16 Port 10/100Base-TX Desktop Fast Ethernet Switch
EP-32024T 24 Port 10/100Base-TX Desktop Fast Ethernet Switch
F
MBER
SCRIPTION
DE
Specifications
Standard Compliance:
IEEE 802.3 10Base-T Ethernet,
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE802.3x Flow Control and Back-pressure
IEEE ANSI/IEEE802.3 N-Way Auto-negotiation
Interface:
Sixteen or twenty-four RJ-45 Jacks
with Auto MDI/MDIX crossover
Switching Method:
Store-and-Forward
Forwarding Rate:
14,880pps for 10Mbps; 148,800pps for 100Mbps
Buffer Memory:
1.25Mbits
LED Indicators:
Per Port: Link/Activity; Per Unit: Power
Dimensions:
250mmx 133 mm x 37mm (L x W x H)
9.85" x 4.45" x1.46"
Operating Temperature:
0˚C to 45˚C (32˚F to 113˚F)
Operating Humidity:
10% to 90% (Non-condensing)
Power Supply:
Internal power supply, 100-240 VAC, 50~60Hz
EMI:
FCC Class A, CE
MAC Address Table:
4K Mac address table
Back-plane:
4.8Gbps
Cable Distance:
10Base-T: 2-pair UTP/STP Cat. 3/5e/6 cable, EIA/TIA-568
100-ohm (up to 100m)
100Base-TX: 2-pair UTP/STP Cat. 5e/6 cable, EIA/TIA-568
100-ohm (up to 100m)
Safety:
CE/EN60950, UL, cUL
908 Canada Court
City of Industry, CA 91748 U.S.A.
Phone: 626.964.7873 or 800.346.6668 Fax: 626.964.7880
www.unicomlink.com e-mail: info@unicomlink.com
082507 UNILT00018WP
©UNICOM 2007. UNICOM is a trademark of UNICOM Electric, Inc. All rights reserved.
Specifications subject to change without notice.
