UNICOM SmartGST-2402M User Manual

UNICOM SmartGST-2402M

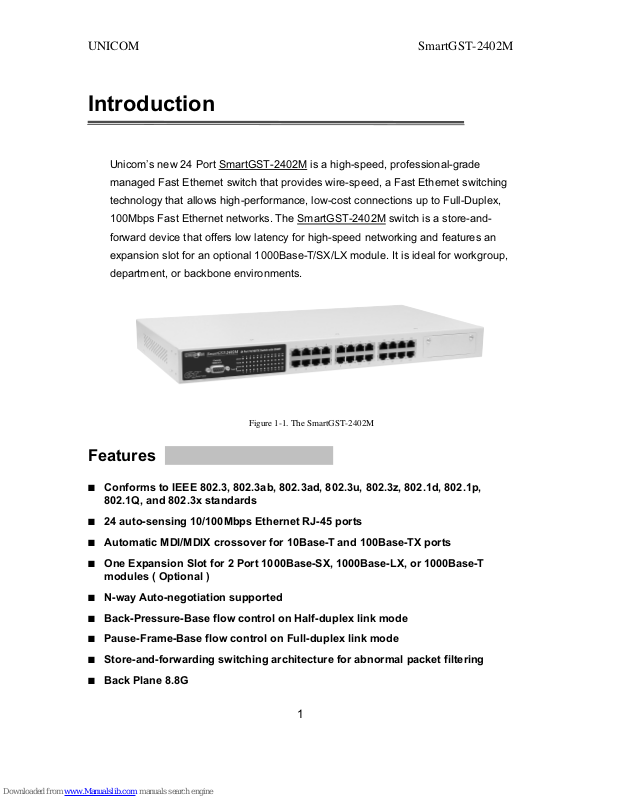

Introduction

Unicom’s new 24 Port SmartGST-2402M is a high-speed, professional-grade

managed Fast Ethernet switch that provides wire-speed, a Fast Ethernet switching

technology that allows high-performance, low-cost connections up to Full-Duplex,

100Mbps Fast Ethernet networks. The SmartGST-2402M switch is a store-and-

forward device that offers low latency for high-speed networking and features an

expansion slot for an optional 1000Base-T/SX/LX module. It is ideal for workgroup,

department, or backbone environments.

Figure 1-1. The SmartGST-2402M

Features

■ Conforms to IEEE 802.3, 802.3ab, 802.3ad, 802.3u, 802.3z, 802.1d, 802.1p,

802.1Q, and 802.3x standards

■ 24 auto-sensing 10/100Mbps Ethernet RJ-45 ports

■ Automatic MDI/MDIX crossover for 10Base-T and 100Base-TX ports

■ One Expansion Slot for 2 Port 1000Base-SX, 1000Base-LX, or 1000Base-T

modules ( Optional )

■ N-way Auto-negotiation supported

■ Back-Pressure-Base flow control on Half-duplex link mode

■ Pause-Frame-Base flow control on Full-duplex link mode

■ Store-and-forwarding switching architecture for abnormal packet filtering

■ Back Plane 8.8G

1

908 Canada Court

City of Industry, CA 91748 U.S.A.

Phone: [phone] or 800.346.6668 Fax: [phone]

www.unicomlink.com e-mail: [e-mail]

©UNICOM 2004. UNICOM and “A Network Systems Solution” are trademarks of UNICOM Electric, Inc.
All rights reserved. Specifications subject to change without notice.
Rev: 11.04

24 Port 10/100Base-TX Switch

Fully Managed with VLAN and a Gigabit

Fiber Optic Slot

SmartGST-2402M

USER’S MANUAL

GEP-60124T

series

™

www.unicomlink.com UNICOM

■ Full wire speed forwarding rate

■ 6K-entry MAC address table

■ 3Mbits for shared packet buffer

■ LED-indicators: Per unit: Power

Per UTP Port: 100M, LK/ACT, Full/Collision
Per Gigabit Module: UTP, LK/ACT, 100, 1000, Full

Fiber, LK/ACT

■ 19” Standard Rack-mounted size

Software Features

Management Telnet management, Web Management, In Band Local

Console (RS-232)

RFC Standard RFC 1157 SNMP, RFC 1213 MIB II, Bridge MIB, RFC

1643 ETHERNET LIKE, RFC 1493 BRIDGE MIB, RFC
1751 RMON 1, RFC 1215 Trap

Software Upgrade TFTP and Console firmware upgrade

Port Trunk Support IEEE802.3ad with LACP function and provide

7 Trunk group of 4 member ports within 26 ports.

Spanning Tree IEEE802.1d spanning Tree, IEEE802.1s rapid

spanning Tree, IEEE802.1w multiple spanning tree

VLAN Port Based VLAN

IEEE802.1Q Tag VLAN and GVRP supported
IEEE802.1v Protocol VLAN
VLAN groups up to 256, VLAN ID up to 4095

QoS Policy Supports 8 priority levels ID for two priority queue

Support IEEE802.1p Priority. Supports First Come First

Class of Service

Port Based
Priority

service, All High before Low, WRR for High or low
weight.

Support 3 setting, Disable, Low and High priority. When
set to Disable, the income packet will follow QoS
policy. Otherwise, the packet will follow port priority
setting to High/Low queue.

2

UNICOM SmartGST-2402M

IGMP IGMP Snooping for Multi-Media application, IGMP

group supports 256 groups

Port Security MAC address filter for ingress an egress packet

Static MAC address Lock for Source address.

Port Mirror Global System support 3 mirroring type RX, TX and

both packet. The maximum of mirror entries up to 25.

Bandwidth

Per port support Bandwidth control. Per level 100K.

Control

802.1x Support IEEE802.1x user authentication and can report

to Radius Server.

DHCP Support DHCP Client

Broadcast Storm Disable, 5%, 10%, 15% , 20%, 25%

Package Contents

Unpack the contents of the SmartGST-2402M and verify them against the checklist
below.

■ SmartGST-2402M ( Auto MDI/MDIX )

■ Power Cord

■ Four Rubber Feet

■ RS-232 cable

■ User Guide

SmartGST-2402M Managed Rubber Feet
Fast Ethernet Switch

Rack-mounting Kit Power Cord User Guide

Figure 1-2. Package Contents

IF any item is missing or damaged, please contact your local dealer or reseller for service.

3

www.unicomlink.com UNICOM

Ethernet Switching Technology

Ethernet Switching Technology dramatically boosted the total bandwidth of a
network, eliminated congestion problems inherent with Carrier Sense multiple
access with Collision Detection ( CSMA/CD ) protocol, and greatly reduced
unnecessary transmissions.

This revolutionized networking. First, by allowing two-way, simultaneous
transmissions over the same port ( Full-duplex ), which essentially doubled the
bandwidth. Second, by reducing the collision domain to a single switch-port, which
eliminated the need for carrier sensing. Third, by using store-and-forward
technology to inspect each packet and intercept corrupt or redundant data.
Switching eliminated unnecessary transmission that slows the network. Address­learning was employed to replace the inefficient receiving port.

Auto-negotiation regulates the speed and duplex of each port, based on the
capability of both devices. Flow-control allows transmission from a 100Mbps node
to a 10Mbps node without loss of data. Auto-negotiation and flow-control may need
to be disabled for some network applications involving legacy equipment. Disabling
the auto-negotiation is accomplished by fixing the speed or duplex of a port.

Ethernet Switching Technology supplied higher performance at lower costs than
other solutions. Wider bandwidth, no congestion, and the reduction in traffic is why
switching is replacing expensive routers and inefficient hubs as the ultimate
networking solution. Switching brings a new way of thinking to networking.

Hardware Description

This Section describes the hardware of the SmartGST-2402M and gives a physical and

functional overview of this Switch.

The physical dimensions of the SmartGST-2402M are: 440mm x 160mm x 44mm (

L x W x H )

Front Panel

The Front Panel of the SmartGST-2402M consists of twenty-four 10/100Base-TX
RJ-45 ports ( Auto MDI/MDIX ) and one Expansion slot. The LED Indicators are
also located on the front panel of the Switch.

4

UNICOM SmartGST-2402M

LED Indicators

Console Port

10/100Base-TX RJ-45 ports

2 4 6 8

1 3 5 7

10 12 14 16

9 11 13 15

Module slot

18 19 22 24

17 19 21 23

Figure 2-1. The Front panel of SmartGST-2402M

RJ-45 Ports ( Auto MDI/MDIX ): Twenty-four 10/100 N-way auto-sensing
connections for 10Base-T or 100Base-TX.

Module Slot: There are three types of 2-port expansion Module available for the
SmartGST-2402M, ( 1000Base-SX, 1000Base-LX, 1000Base-T ).

LED Indicators

The LED Indicators give real-time information of systematic operation status. The
following table provides descriptions of LED status.

Figure 2-2. LED indicators

LED Status Description

Green Power On

Power

Off Power is not connected

Green The port is connecting with the device.

Blinks The port is receiving or transmitting data.LNK/ACT

Off No device attached.

FDX/COL Yellow The port is operating in Full-duplex mode.

5

www.unicomlink.com UNICOM

Off No device attached or in half-duplex mode.

Table 2-1. The Description of LED Indicators

Rear Panel

The 3-pronged power plug and ventilation fan are located at the rear Panel of the
SmartGST-2402M as shown in Figure 2-2. The Switch will work with AC in the
range 100-240V AC, 50-60Hz.

Figure 2-3. The Rear Panel of SmartGST-2402M

Desktop Installation

Set the Switch on a sufficiently large flat space with a power outlet nearby. The
surface where you put your Switch should be clean, smooth, level and sturdy.
Make sure there is enough clearance around the Switch to allow attachment of
cables, power cord and allow air circulation.

Attaching Rubber Feet

A. Make sure mounting surface on the bottom of the Switch is grease and dust

free.
B. Remove adhesive backing from your Rubber Feet.
C. Apply the Rubber Feet to each corner on the bottom of the Switch. These

footpads can protect the Switch from shock and vibration.

Figure 2-4. Attaching Rubber Feet to each bottom

corner of the of the Switch

6

UNICOM SmartGST-2402M

Rack-mounted Installation

The SmartGST-2402M comes with a rack-mounting kit and can be mounted in an
EIA standard sized, 19-inch Rack. The Switch can be placed in a wiring closet with
other equipment.

Perform the following steps to rack mount the switch:

A. Align one bracket with the holes on one side of the switch and secure it with the

smaller bracket screws. Then attach the remaining bracket to the other side of
the Switch.

Figure 2-4. Attach mounting brackets with screws

B. After you’ve attached both mounting brackets, position the SmartGST-2402M in

the rack by lining up the holes in the brackets with the appropriate holes on the
rack. Secure the Switch to the rack with a screwdriver and the rack-mounting
screws.

Figure 2-5. Mount the SmartGST-2402M in a standard 19-inch Rack

Note: For proper ventilation, allow about at least 4 inches ( 10 cm ) of clearance on the

front and 3.4 inches ( 8 cm ) on the back of the Switch. This is especially important
for enclosed rack installation.

7

www.unicomlink.com UNICOM

Power On

Connect the power cord to the power socket on the rear panel of the Switch. The
other side of power cord connects to the power outlet. The internal power supply in
the Switch works with AC in the voltage range 100-240VAC, frequency 50~60Hz.
Check the power indicator on the front panel to see if power is properly supplied.

Network Application

This section provides you a few samples of network topology in which the Switch is
used. The SmartGST-2402M is designed as a segment switch. With its large
address table (6000 MAC addresses) and high performance, it is ideal for
interconnecting networking segments.

You can use the SmartGST-2402M to interconnect PCs, workstations, and servers
to each other by connecting these devices directly to the Switch. The switch
automatically learns node addresses, which are subsequently used to filter and
forward all traffic based on the destination address.

By using the Uplink feature, the Switch can connect with another switch or hub to
interconnect each of your switched workgroups forming a larger switched network.
Also you can also use the expansion port to connect switches for great distances.
The distance between two switches via fiber cable can be up to 10 Kilometers
(Gigabit LX port with Single Mode fiber).

Small Workgroup

The SmartGST-2402M can be used to create a small workgroup by directly
connecting personal computers, servers, and printer servers.

8

UNICOM SmartGST-2402M

Figure 3-1. Small Workgroup Application

Segment Bridge

In enterprise networks where large data broadcasts are constantly processed, this
switch is perfect for department users connecting to the corporate backbone.

In the illustration below, two Ethernet switches with PCs, a print server, and a local
server attached, are both connected to the SmartGST-2402M. Each device in this
network can communicate with the others through the SmartGST-2402M.
Connecting servers to the Switch allows other users to access the server’s data.

Figure 3-2 Department Bridge Application

9

www.unicomlink.com UNICOM

Connecting to the Switch

The Console port is a male DB-9 connector that enables connection of a PC or
terminal for monitoring and configuring the Switch. Use the supplied RS-232 cable
to connect a terminal or PC to the Console port.

The Console configuration (out of band) allows you to set your Switch to enable a
user at a remote console terminal to communicate with the Switch as if the remote
terminal were directly connected to it.

Console Management

Login in the Console Interface

Once you have connected the cable to the switch and the PC, turn on the PC and
run a terminal emulation program or Hyper Terminal and configure its
communication parameters to match the following default characteristics of the
console port:

Baud Rate: 9600 bps
Data Bits: 8
Parity: none
Stop Bit: 1
Control flow: None

Figure 3-3. The settings of

communication parameters

After you have completed the parameter settings, press “OK“.

10

UNICOM SmartGST-2402M

Main Menu

Login

1. When the Login screen appears, press Enter

2. You can type user name and password to login. The default user name is “root”

and the default password is “root ”.

4-1 Main Menu

There are five options available:

Status and Counters: Shows the status of the switch.
Switch Static Configuration: Configure the switch.
Protocol Related Configuration: Configure the protocol function.
Reboot Switch: Restart the system or reset switch to default configuration.
Logout: Exit the menu line program.

<Control Key>

The control keys in all menus are as follows:

Tab: Move to the next item.
Backspace: Move to the previous item.
Enter: Select item.
Space: Toggle selected item to next configure.

4-2. Status and Counters

11

www.unicomlink.com UNICOM

You can press the Tab or Backspace key to choose an item and then the Enter key to
select an item.

4-2-1. Port Status

This page displays the status of every port

Actions->

You can press the Tab or Backspace key to choose an item and the Enter key
to select an item.

<Quit>: Exit the port status page and return to previous menu.
<Previous Page>: Display previous page.
<Next page>: Display next page.

4-2-2. Port Counters

The following information provides a view of the current status of the unit.

12

UNICOM SmartGST-2402M

Actions->

You can press the Tab or Backspace key to choose an item and then the Enter key to
select an item.

<Quit>: Exit the page of port status and return to previous menu.
<Refresh>: Set all counts to 0.
<Previous Page>: Display previous page.
<Next page>: Display next page.

4-2-3. System Information

System Description: Display the name of the device.
MAC Address: The unique hardware address assigned by manufacturer.
Firmware Version: Display the switch’s firmware version.
Hardware Version: Display the switch’s hardware version.
Module Information: Display type of Module.

13

www.unicomlink.com UNICOM

4-3. Switch Static Configuration

You can press the Tab or Backspace key to choose an item and then the Enter key to
select an item.

4-3-1. Administration Configuration

14

UNICOM SmartGST-2402M

4-3-1-1. Device Information

This page provides configuration of the device information.

Actions->

<Edit>: Configure all items. When finished with configuration press Backspace to go

back to action menu line.

<Save>: Save all configured values.
<Quit>: Exit the device information page and return to previous menu.

15

www.unicomlink.com UNICOM

4-3-1-2. IP Configuration

Configuration of the IP setting.

Actions->

<Edit>: Configure all items. When finished with configuration press ESC to go back to

action menu line.

<Save>: Save all configured values.
<Quit>: Exit the IP configuration page and return to previous menu.

Note: Always restart the device after finishing setup.

4-3-1-3. Change Username

Use this page to change Web Management user name.

16

UNICOM SmartGST-2402M

4-3-1-4. Change Password

Use this page to change Web Management user password.

4-3-2. Port Configuration

This page can change all port statuses and configure the trunk group.
Press the TAB key to select an item to configure and press SPACE to make a change.

1. State: Current port status. The port can be set to disable or enable mode. If the
port setting is disable then it will not receive or transmit any packets.

2. Negotiation: Current auto negotiation setting status of each port.

3. Speed/Duplex: User can set each port for link speed and duplex mode.

4. FC / BP: User can set flow control function to enable or disable. FC (Flow control
for full duplex link mode), BP (Backpressure for half duplex mode)

5. Bandwidth In/ Out: For per port packet transmission rate control. Per port level is
100Kbps. It supports individual control method of TX and RX.

6. Priority: Set port to high or low priority.

7. Security: Enable or disable port security function.

17

www.unicomlink.com UNICOM

Actions->

<Quit>: Exit the port configuration page and return to previous menu.
<Edit>: Configure all items. When finished with configuration press ESC to go back to

action menu line.

<Save>: Save all configured values. Before you leave this session, please execute
this command or you will lose all changes.
<Previous Page>: Return to previous page.
<Next page>: Go to next page.

4-3-3. Port Trunk Configuration

Use this page to configure trunk group.
Press TAB key to select item and SPACE key to make change.

Actions->

<Quit>: Exit the port configuration page and return to previous menu.

18

UNICOM SmartGST-2402M

<Edit>: Configure all items. When finished with configuration press ESC to go back to
action menu line.

<Save>: Save all configured values. Before you leave this session, please execute
this command or you will lose all changes.

4-3-4. Port Mirroring Configuration

Port Mirroring is a method of monitoring traffic in switched networks. Traffic through
ports can be monitored by one specific port. All traffic going in or out of monitored ports
will be duplicated into monitoring port.
Press the Space key to change configuration of each item.

Mirroring state: Mirror mode for TX packet only, RX packet only, or both packets.
Analysis port: Set the destination port of the mirroring packet. All of the packets of
mirroring port will be duplicated and sent to Analysis port. Use the SPACE key to select.

Actions->

<Quit>: Exit the port configuration page and return to previous menu.
<Edit>: Configure all items. When finished with configuration press ESC to go back to

the action menu line.

<Save>: Save all configured values. Before you leave this session, please execute
this command or you will lose all changes.
<Previous Page>: Return to previous page.
<Next page>: Go to next page.

19

www.unicomlink.com UNICOM

4-3-5. VLAN Configuration

This is where you can configure the VLAN mode as port-based VLAN, 802.1Q VLAN, or
disabled VLAN.

NOTE: After changing the VLAN mode, you must reset the switch before changes will take

effect.

4-3-5-1. VLAN Configure

VLAN Mode: There are three options available: Port based VLAN, IEEE802.1Q Tag
based VLAN, and VLAN disabled.

VLAN (Port VID: 1 ~ 255): Type the PVID.
Acceptable Frame type: It matches the Ingress Filtering Rule 1 on the Web. It

forwards only packets with VIDs matching this port°¶s configured VID. Press Space to
choose whether to forward or drop the frames that do not match the VID for this port

configured VID.
Ingress Filter: It matches the Ingress Filtering Rule 2 on the web. It drops untagged
frames. Press Space to choose to drop and forward of untagged frames.

°¶s

20

UNICOM SmartGST-2402M

4-3-4-2. Create a VLAN Group

_Create Port-Based VLAN

Create a port-based VLAN and add member/nonmember ports to it.
Select <Edit>.
VLAN Name: Type a name for the new VLAN.

Group ID: Type the VLAN group ID. The group ID range is 1 ~ 4096.
Member: Press Space key to choose VLAN member. There are two choices:

Member: The port is a member port.
NO: The port is NOT a member port.
Press “ESC” to go back to the action menu line.
Select <Save> to save all configured values.

NOTE: If a trunk group exists, you can see it (ex: TRK1, TRK.) after port 26 and configure it
whether it is a member of the VLAN or not.

21

www.unicomlink.com UNICOM

_Create 802.1Q VLAN

Create an 802.1Q VLAN and add tagged /untagged member ports to it.

1. Select <Edit>.

2. VLAN Name: Type a name for the new VLAN.

3. VLAN ID: Type a VID (between 1~4096). The default is 1. There are 256 VLAN

groups available.

4. Protocol VLAN: Press the Space key to choose protocol type.

5. Member: Press the Space key to choose a VLAN member. There are three choices:

a. UnTagged: this port is a member port of this VLAN group and outgoing

frames are NO VLAN-Tagged frames.

b. Tagged: This port is a member port of this VLAN group and outgoing

frames are VLAN-Tagged frames.

c. No: The port is NOT a member of this VLAN group.

6. Press ESC to go back to the action menu line.

7. Select <Save> to save all changes.

22

UNICOM SmartGST-2402M

NOTE: If a trunk group exists, you can see it (ex: TRK1, TRK.) after port 26 and configure it
whether it is a member of the VLAN or not.

Actions->

<Quit>: Exit this page and return to previous menu.
<Edit>: Configure all items. When finished with configuration press ESC to go back to

the action menu line.

<Save>: Save all configured values.
<Previous Page>: Return to previous page.
<Next page>: Go to next page.

4-3-4-3. Edit / Delete a VLAN Group

This page allows users to edit or delete a VLAN group.

1. Press <Edit> or <Delete> item.

2. Choose the VLAN group that you want to edit or delete and then press Enter.

3. Users can modify the VLAN item protocol and mark the member ports as either
tagged or un-tagged. Member ports can also be removed from this VLAN group.

4. After editing or deleting VLAN, press <Save> to save all configured values.

NOTE: 1. The VLAN Name and VLAN ID cannot be modified.

2. The default VLAN cannot be deleted.

23

www.unicomlink.com UNICOM

4-3-4-4. Groups Sorted Mode

In this page, users can select the VLAN groups sorting mode: (1) sorted by name or
(2) sorted by VID.

In the Edit/Delete a VLAN group, this page will be displayed.

In the Edit/Delete a VLAN Group page, the result of sorted by VID.

24
