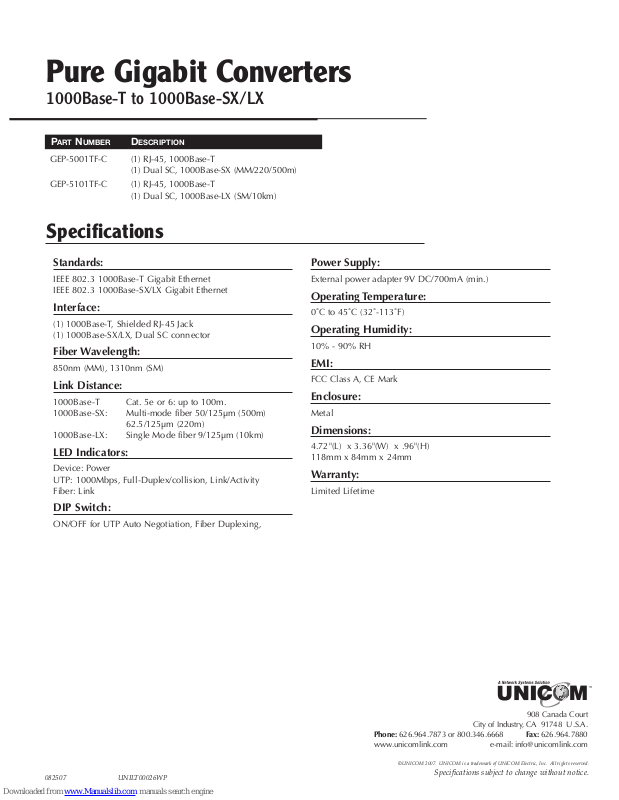

UNICOM GEP-5001TF-C, GEP-5101TF-C Specifications

Pure Gigabit Converters

1000Base-T to 1000Base-SX/LX

PARTNU

GEP-5001TF-C (1) RJ-45, 1000Base-T

GEP-5101TF-C (1) RJ-45, 1000Base-T

MBER

SCRIPTION

DE

(1) Dual SC, 1000Base-SX (MM/220/500m)

(1) Dual SC, 1000Base-LX (SM/10km)

Specifications

Standards:

IEEE 802.3 1000Base-T Gigabit Ethernet
IEEE 802.3 1000Base-SX/LX Gigabit Ethernet

Interface:

(1) 1000Base-T, Shielded RJ-45 Jack
(1) 1000Base-SX/LX, Dual SC connector

Fiber Wavelength:

850nm (MM), 1310nm (SM)

Link Distance:

1000Base-T Cat. 5e or 6: up to 100m.
1000Base-SX: Multi-mode fiber 50/125µm (500m)

62.5/125µm (220m)

1000Base-LX: Single Mode fiber 9/125µm (10km)

LED Indicators:

Device: Power
UTP: 1000Mbps, Full-Duplex/collision, Link/Activity
Fiber: Link

Power Supply:

External power adapter 9V DC/700mA (min.)

Operating Temperature:

0˚C to 45˚C (32˚-113˚F)

Operating Humidity:

10% - 90% RH

EMI:

FCC Class A, CE Mark

Enclosure:

Metal

Dimensions:

4.72"(L) x 3.36"(W) x .96"(H)
118mm x 84mm x 24mm

Warranty:

Limited Lifetime

DIP Switch:

ON/OFF for UTP Auto Negotiation, Fiber Duplexing,

082507 UNILT00026WP

908 Canada Court

City of Industry, CA 91748 U.S.A.
Phone: [phone] or 800.346.6668 Fax: [phone]
www.unicomlink.com e-mail: [e-mail]

©UNICOM 2007. UNICOM is a trademark of UNICOM Electric, Inc. All rights reserved.

Specifications subject to change without notice.
