UNICOM FEP-5300TF-C, FEP-5300TF-T, FEP-5400TF-C, FEP-5401TF-C, FEP-5300TF-M User Manual

908 Canada Court

City of Industry, CA 91748 U.S.A.

Phone: [phone] or 800.346.6668 Fax: [phone]

www.unicomlink.com e-mail: [e-mail]

©UNICOM 2004. UNICOM and “A Network Systems Solution” are trademarks of UNICOM Electric, Inc.
All rights reserved. Specifications subject to change without notice.
Rev: 02.04

USER’S MANUAL

FEP-5300TF-C ( SC/Multi-Mode/2km )
FEP-5300TF-T ( ST/Multi-Mode/2km )
FEP-5300TF-M ( MT-RJ/Multi-Mode/2km )

FEP-5400TF-C

( SC/Single Mode/15km )

FEP-5401TF-C ( SC/Single Mode/30km )
FEP-5402TF-C ( SC/Single Mode/60km )

10/100Base-TX/100Base-FX

Fast Ethernet Converter

For full coverage of your warranty, be sure
to register your product using the enclosed
registration card.

Package Contents

Package contents include the following:

1

Figure 1. Contents of package.

IMPORTANT: If any piece is missing or damaged, please contact your
local dealer or reseller for service.

For Your Records

Product Name:

Serial Number:

Date of Purchase:

Purchased from:

Notes:

10/100Base-TX/FX User’s Manual Power Adapter Rack Mount

Converter Brackets

(Multi-Mode or Single Mode)

■ 10/100Base-TX to 100Base-FX Conver ter (Multi-Mode or Single Mode)

■ DC Power Adapter

■ User’s Manual

■ Rack Mount Brackets

■ Warranty card (not shown)

Introduction

Congratulations on purchasing a quality UNICOM product.

Unicom’s VELOCITY Series represents the newest, most advanced
generation of signal conversion technology.

This converter is designed to expand your network through a fiber optic
connection extending a fiber link up to 60 km (Single mode in full duplex
mode).

The 10/100TX/100FX Converters offer the most popular fiber cabling
connectors: MT-RJ, SC, and ST formats in Multi-mode and SC in Single
Mode. The UTP port suppor ts the Auto MDI/MDIX function and there are
4 DIP switches to set the operation mode for the UTP ports, Fiber ports,
the Link Loss Forwarding function, and the converter mode. These
converters can be used in Unicom’s 10 bay VELOCITY Media Chassis or
as stand-alone components.

Key Features

■

Complies with IEEE 802.3, 802.3u, and 802.3x standards.

■

Converts between UTP cabling and Fiber Optic cabling.

■

One RJ-45 connector, Auto-MDI/MDIX for UTP port.

■

Supports 10/100 Mbps Auto-negotiation for UTP port.

■

Fiber cabling connectivity up to 60Km.

■

Uses store-and-forward switching to separate collision domains.

■

One fiber connector (SC/Single Mode or MT-RJ, SC, and ST/Multi­Mode) for 100Base-FX.

■

Prevents packet loss by supporting back-pressure & flow control.

■

Four DIP-switches for operation mode setup and Link-Loss
Forwarding function.

■

Per port LEDs for diagnosis and maintenance

■

External DC power adapter, 9V DC/700mA

■

Can be mounted in chassis or used as stand-alone.

■

FCC Class A, CE Mark certification

2

3

Hardware Description

The Front Panel

The Front Panel of the 10/100TX/100FX converters consists of one
RJ-45 Port ( Auto MDI/MDIX ), 6 LED Indicators (TX SPD, LK/ACT,
FDX/COL, Fiber LK/ACT, FDX and PWR ) and one fiber 100Base-FX Port.

Ports

• RJ-45 Port (Auto MDI/MDIX): the Ethernet RJ-45 features Auto­Sensing for 10Base-T or 100Base-TX connections and Auto
MDI/MDIX which is basically an auto crossover feature. This
means you can connect to another Switch or workstation without
changing to a crossover cable.

• Fiber Port: This port is for the 100Base-FX connection. Unicom
provides three different styles of fiber connectors (MT-RJ/SC/ST,
Multi-Mode or SC, Single-mode).

1 2 3 4

1 2 3 4

1 2 3 4

FEP-5300TF-C 2km

1 2 3 4

FEP-5300TF-M 2km

FEP-5400TF-C 15km
FEP-5401TF-C 30km
FEP-5402TF-C 60km

FEP-5300TF-T 2km

10

Fiber

DIP Setting

Fast Ethernet

Switch

Fast Ethernet

Switch

DIP Setting

UTP

2

UTP

1

1 2 3 4

off

on

1 2 3 4

off

on

Fiber UTPUTP

1 2 3 4

off

on

1 2 3 4

off

on

Work

Stations

Back

Bone

Loss Link Forwarding

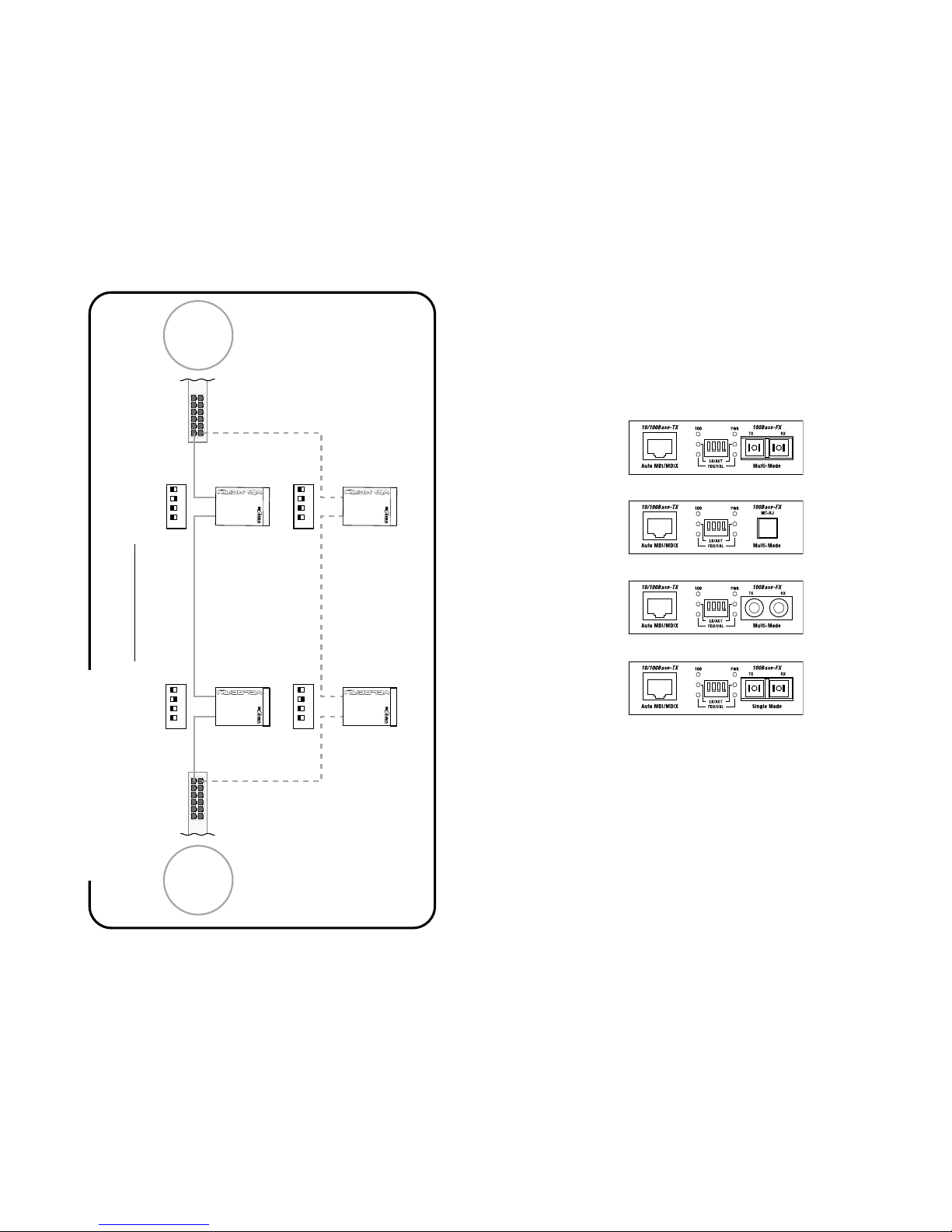

Configuration Example

DIP Explanation

1 - 10/100TX Auto Negotiation

2 - 100FX Full Duplex

3 - LLF Enabled

4 - Switch Mode

4

LED Indicators

There are six diagnostic LEDs located on the Front panel of these
Converters. The LEDs provide real-time information on system sta­tus. The indicators include Power, UTP 100, LK/ACT, FDX/COL, Fiber
LK/ACT, and FDX/COL. The following table provides descriptions of

the LEDs.

LED Status Color Description

PWR On Green • The converter is supplied with

suitable power.

100 On Green • Current UTP Speed

LK/ACT On Green • Unit is connected with a link

( UTP ) Blinking - • Unit is transmitting data

Off - • No device attached

LK/ACT On Green • Unit is connected with a link

( Fiber ) Blinking - • Unit is transmitting data

Off - • No device attached

FDX/COL On Orange • The UTP por t is in full-duplex mode.

( UTP )

Blinking - • Packet Collisions occurring in por t in

Half-duplex mode.

Off - • Half-duplex mode/no device attached

FDX/COL On Orange • The fiber por t is in full-duplex mode.

( Fiber ) Blinking - • Packet Collisions occur ring in port in

Half-duplex mode.

Off - • Half-duplex mode/no device attached

Product Specifications

Standard Compliance: IEEE 802.3 10Base-T/100Base-TX

IEEE 802.3 100Base-FX

Interface: (1) 10/100Base-TX Shielded RJ-45 Jack

(1) 100Base-FX Dual SC, ST, or MT-RJ connector

Wavelength: 1310nm.

Link Distance: 10/100Base-TX, Category 5e/6, UTP/ScTP:

100m Max.

100Base-FX (MM), FEP-5300TF-C, M, and T:
2km Max.

100Base-FX (SM):
FEP-5400TF-C, 15km Max.
FEP-5401TF-C, 30km Max.
FEP-5402TF-C, 60km Max.

DIP Switches: Auto Negotiation, Fiber Duplexing, Loss Link

Forwarding, and Converter Mode

LED Indicators: Power, Link/Activity, Receive/Full-Duplex, 100

Power Supply: External power adapter 9V DC/700mA

Operating Temperature:

0˚C to 55˚C

Operating Humidity: 10% - 80% RH

EMI: FCC Class A, CE Mark

Enclosure: Metal

Dimensions: 4.72"(L) x 3.36"(W) x .96"(H)

118mm x 84mm x 24mm

Warranty: Limited Lifetime

FCC Statement

This equipment has been tested and found to comply with the limits for a class B
device, pursuant to part 15 of the FCC r ules. These limits are designed to provide
reasonable protection against harmful inter ference in a commercial installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with instructions, may cause harmful
interference with radio communications. Operation of this equipment in a
residential area is likely to cause harmful inter ference, in which case, the user will
be required to correct the inter ference at the user’s expense.

9

DIP Switch

The DIP-switches are used to configure operation mode for LLF ( Link
Loss Forwarding ) and operation modes for the UTP/Fiber ports.

DIP-switch setup is as follows:

Note: To activate DIP switch 4, DIP 3 must be enabled.

Link Loss Forwarding: The Link Loss For warding feature sends fiber

or UTP link failure information to the switches. Any failure along the
signal link is passed to and can be seen by an attached device. This
feature is used for easy network diagnosis and supports switches
utilizing Spanning Tree Protocol.

Note: Do not change the DIP-switch setting while the UTP or fiber
ports are transmitting or receiving data as data error may occur.
Refer to page 10 for application diagram.

Rear Panel

The rear panel contains a power socket. This power socket accepts

DC 9V voltage and minimum 700mA supplied current.

5

DC IN

No. Status Description

1 OFF UTP Por t Auto Negotiation Enable

ON UTP Port - 100M Full Duplex

2 OFF Fiber Port - 100M Full Duplex

ON Fiber Port - 100M Half Duplex

3 OFF LLF Function Disable

ON LLF Function Enable

4 OFF 10/100Base-TX (use between Switches)

ON 100Base-TX only (use for workstations)

8

Troubleshooting

• Verify that you are using the right power adapter ( DC 9V, 700mA ).
Using a power adapter with DC output greater than 9V could result
in damage to the unit and/or personal injury.

• Check the configuration DIP switch. It must be set in the same
operation mode as its link partner.

• Confirm the proper UTP/Fiber cable is being used. The Single Mode
converter must use Single Mode fiber optic cable.

Optical Fiber Spec

The following table shows the optical fiber specification:

Module Name Wavelength Avg. Launch Avg. Sensitivity

( nm ) Power ( dB ) ( dB )

FEP-5300TF-C 1310 nm -19 dB -31 dB

FEP-5300TF-M 1310 nm -19 dB -31 dB

FEP-5300TF-T 1310 nm -19 dB -31 dB

FEP-5400TF-C (15km) 1310 nm -20 dB -31 dB

FEP-5401TF-C

(30km) 1310 nm -15 dB -34 dB

FEP-5402TF-C

(60km) 1310 nm -5 dB -34 dB

Module Name Avg. Power Max. FDX Fiber Size

Loss Budget Fiber Distance (µm)

(dBm) (Km)

FEP-5300TF-C 12 dBm 2 Km 62.5/125

50/125

FEP-5300TF-M 12 dBm 2 Km 62.5/125

50/125

FEP-5300TF-T 12 dBm 2 Km 62.5/125

50/125

FEP-5400TF-C 11 dBm 15 Km 9/125, 8/125

FEP-5401TF-C 19 dBm 30 Km 9/125, 8/125

FEP-5402TF-C 29 dBm 60 Km 9/125, 8/125

Network Connection

A. Select the appropriate length Category 5e or 6 twisted pair cable.

Connect one end of the twisted pair cable to the RJ-45 connector
on the converter and the other end of twisted pair cable to the RJ­45 connector on any 10/100Base-TX device.

B. Connect one end of a fiber jumper to the fiber connector on this

converter and the other end of the fiber jumper to the fiber
connector on the other 100Base-FX device.

C. Attach the power adapter DC jack to the conver ter. Verify that the

Power LED is on.

D. Verify that the UTP “LK/ACT” LEDs light when cable connection is

installed correctly. Verify that Fiber “LK/ACT” LED blinks to indicate
network activity.

Installing Converters into Chassis

Follow the steps below to install modular converters into the 10 space
Velocity Converter Chassis (

pn: FEP-593110).

A. Remove the blank bracket from the chassis by rotating

thumbscrew counterclockwise. Put the blank bracket aside.

B. Open the rack mount bracket kit. The kit contains two rack mount

brackets and four screws.

6

Fiber

100Base-FX

UTP
10/100Base-TX

UTP
10/100Base-TX

10/100Base-TX Port
( RJ-45 connector )

on switch/workstation

10/100Base-TX Port

( RJ-45 connector )

on switch/workstation

1 2 3 4 1 2 3 4

C. Use a screwdriver to attach the rack mount ears to both sides of

the modular converter.

D. Install the modular converter by inser ting it into the chassis

guides and sliding it in until it stops. Press it firmly to seat the
chassis power plug into the modular converter receptacle.

E. Gently push the thumbscrews in and turn clockwise to tighten.

Do not over tighten.

Cabling

• Twisted-pair segments can be Unshielded Twisted Pair (UTP) or
Shielded Twisted Pair (STP) cabling. The cable must comply with the
IEEE 802.3u 100Base-TX standard for Category 5e. The cable
between the converter and the link partner (switch, hub,
workstation, etc.) must be 100 meters (328 ft.) or less in length.

• Fiber segments using Single Mode connectors must use 8/125 or
9/125 µm Single Mode fiber cable. The maximum link distance is
15, 30, or 60 Kilometers (depending on model) in full duplex
operation. For half-duplex operation, the recommended maximum
distance is 412 meters (1352 ft.).

• Fiber segments using Multi-Mode connectors must use 50 or

62.5/125 µm Multi-Mode fiber cable. The maximum link distance is
2 Kilometers (6562 ft.).

7
