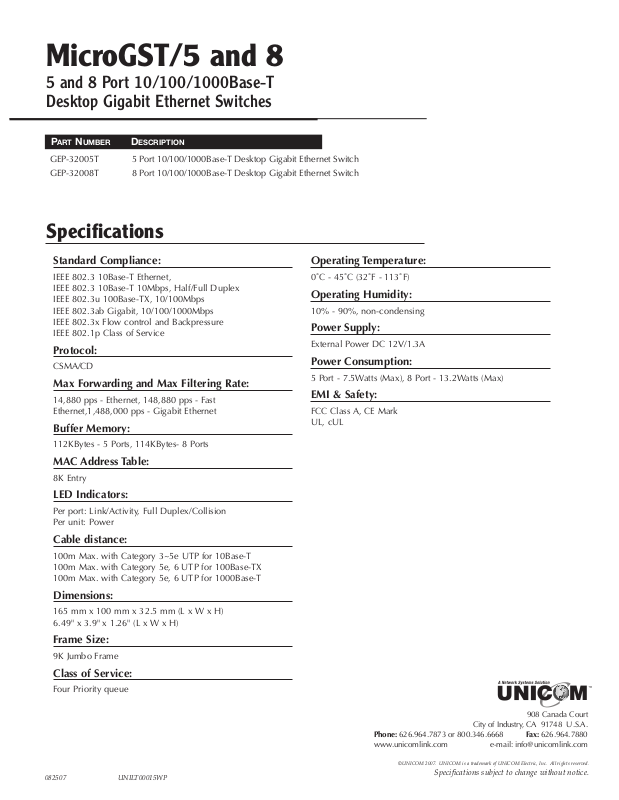

UNICOM Dyna-Switch 5 User Manual

MicroGST/5 and 8

5 and 8 Port 10/100/1000Base-T
Desktop Gigabit Ethernet Switches

PARTNU

GEP-32005T 5 Port 10/100/1000Base-T Desktop Gigabit Ethernet Switch

EP-32008T 8 Port 10/100/1000Base-T Desktop Gigabit Ethernet Switch

G

MBER

SCRIPTION

DE

Specifications

Standard Compliance:

IEEE 802.3 10Base-T Ethernet,
IEEE 802.3 10Base-T 10Mbps, Half/Full Duplex
IEEE 802.3u 100Base-TX, 10/100Mbps
IEEE 802.3ab Gigabit, 10/100/1000Mbps
IEEE 802.3x Flow control and Backpressure
IEEE 802.1p Class of Service

Protocol:

CSMA/CD

Max Forwarding and Max Filtering Rate:

14,880 pps - Ethernet, 148,880 pps - Fast
Ethernet,1,488,000 pps - Gigabit Ethernet

Buffer Memory:

112KBytes - 5 Ports, 114KBytes- 8 Ports

Operating Temperature:

0˚C - 45˚C (32˚F - 113˚F)

Operating Humidity:

10% - 90%, non-condensing

Power Supply:

External Power DC 12V/1.3A

Power Consumption:

5 Port - 7.5Watts (Max), 8 Port - 13.2Watts (Max)

EMI & Safety:

FCC Class A, CE Mark
UL, cUL

MAC Address Table:

8K Entry

LED Indicators:

Per port: Link/Activity, Full Duplex/Collision
Per unit: Power

Cable distance:

100m Max. with Category 3~5e UTP for 10Base-T
100m Max. with Category 5e, 6 UTP for 100Base-TX
100m Max. with Category 5e, 6 UTP for 1000Base-T

Dimensions:

165 mm x 100 mm x 32.5 mm (L x W x H)

6.49" x 3.9" x 1.26" (L x W x H)

Frame Size:

9K Jumbo Frame

Class of Service:

Four Priority queue

908 Canada Court

City of Industry, CA 91748 U.S.A.
Phone: [phone] or 800.346.6668 Fax: [phone]
www.unicomlink.com e-mail: [e-mail]

082507 UNILT00015WP

©UNICOM 2007. UNICOM is a trademark of UNICOM Electric, Inc. All rights reserved.

Specifications subject to change without notice.
