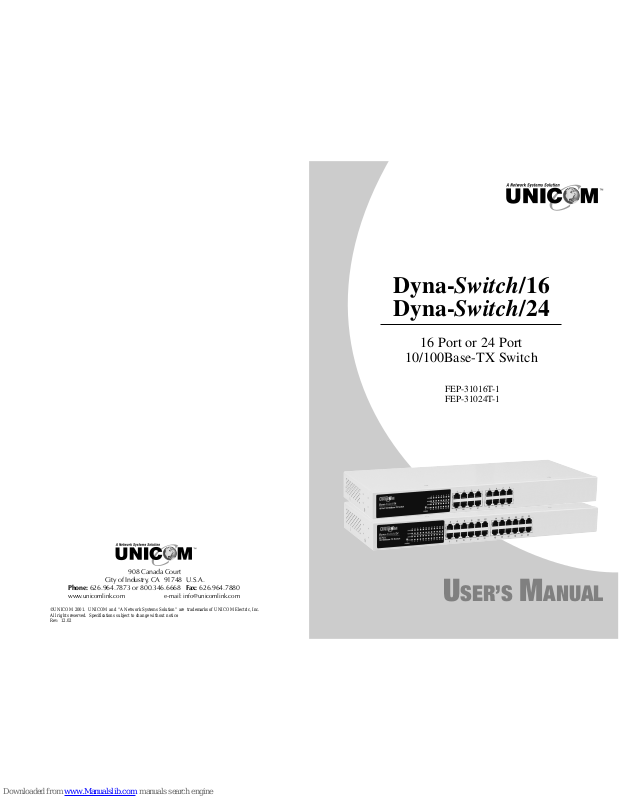

UNICOM Dyna-Switch/16, Dyna-Switch/24 User Manual

908 Canada Court

City of Industry, CA 91748 U.S.A.

Phone: [phone] or 800.346.6668 Fax: [phone]

www.unicomlink.com e-mail: [e-mail]

©UNICOM 2001. UNICOM and “A Network Systems Solution” are trademarks of UNICOM Electric, Inc.
All rights reserved. Specifications subject to change without notice.
Rev: 12.02

16 Port or 24 Port

10/100Base-TX Switch

Dyna-Switch/16
Dyna-Switch/24

USER’S MANUAL

FEP-31016T-1
FEP-31024T-1

Package Contents

Package includes the following:

18

Necessary Cables: UTP (Unshielded Twisted Pair) Cable
LED Indicators: Per Device: Power

Per Port: LINK/ACT, FDX/COL

Performance Specifications

Transmission Method: Store and for ward
MAC address table: 8K-entry MAC address table
Maximum Forwarding Rate: 14,880 pps /10Base-T

(64byte packets) 148,800 pps /100Base-TX
Maximum Filtering Rate: 14,880 pps /10Base-T

(64byte packets) 148,800 pps/100Base-TX
Flow control: Back-pressure (half-duplex)

Pause frame (full-duplex)

Duplex mode: Supports both Half-duplex and

Full-duplex mode

Physical & Environmental Specification

Power Supply: 100-240V AC, 50-60Hz

Internal universal power supply

Dimensions: 440mm x 161mm x 44mm (LxWxH)

17.6” x 6.44” x 1.76” (LxWxH)
Operating temperature: 0˚C to 45˚C (32˚F to 113˚F)
Storage temperature: -40˚C to 70˚C ( -40˚F to 158˚F)
Humidity: 10% to 90% (non-conditioning)
EMI: FCC Class A, CE mark
Safety: UL, cUL

FCC Statement

This equipment has been tested and found to comply with the limits for a class B device,
pursuant to part 15 of the FCC r ules. These limits are designed to provide reasonable
protection against harmful inter ference in a commercial installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with instructions, may cause harmful inter ference with radio communications.
Operation of this equipment in a residential area is likely to cause harmful inter ference, in
which case, the user will be required to correct the inter ference at the user’s expense.

■ Dyna-Switch/16 or 24

■ Rack-mounting brackets

■ AC power cord

■ Four (4) adhesive-backed rubber feet

■ User’s manual

■ Warranty card

Dyna-Switch/16 or 24 AC power cord rubber feet User’s Guide

Rack-mounting Brackets Figure 1. Contents of package.

IMPORTANT: If any piece is missing or damaged, please contact your
local dealer or reseller for service.

For Your Records

Product Name:

Serial Number:

Date of Purchase:

Purchased from:

Notes:

Introduction

The Dyna-Switch/16 and Dyna-Switch/24 (Auto MDI/MDIX) are Fast
Ethernet switches that provide wire-speed, a Fast Ethernet switching
function which allows high-performance, low-cost connections to Full­duplex, Half-duplex, 10Mbps and 100Mbps Ethernet networks. The
Switches are targeted at workgroup, depar tment, or backbone computing
environments in SME (small, medium enterprise) businesses.

These Switches provides auto-sensing 10/100Mbps Ethernet RJ-45 por ts
which automatically detect the speed of the device that you plug into them.
This switching function allows 10Mbps, 100Mbps, Full-duplex and Half­duplex devices to communicate on the same network without having to
replace any infrastructure. This flexible feature allows your network a
timely, economical migration to 100Mbps Fast Ethernet.

Key Features

■

Automatic MDI/MDIX crossover for all ports

■

N-Way Auto-negotiation for 10/100Mbps transmissions

■

Store-and-Forward switching architecture

■

Auto-detection of full/half-duplex mode in all ports

■

Performs non-blocking full wire speed

■

8K-entry MAC address table

■

LED indicators for Power, Link/activity, and Full Duplex/Collision

■

19” Rack-mountable with included brackets

■

Conforms to IEEE 802.3, 802.3u, and 802.3x standard

Troubleshooting

The Switch can be easily monitored through panel indicators to assist in
identifying problems. This section describes common problems you may
encounter and possible solutions.

■ Power

If the power indicator does not light when the power cord is plugged
in, you may have a problem with the power outlet or cord. However, if
the power LED goes off after running for a while, check for loose power
connections, power losses or surges at the power outlet. Turn off
power, wait 30 seconds and turn power on again. If problem is still
not resolved, call for dealer’s assistance.

■ Cabling

Verify that the cabling type is correct. Make sure all cable connectors
are securely seated in the required por ts. Use only standard
Unshielded Twisted-Pair (UTP), Category 3, 4, 5, or 5e cables. Use
only Category 5 or 5e when connecting with Fast Ethernet. Make
certain the maximum distance between the Switch and what it’s
connected to is 100 meters or less.

NOTE: Do not plug a standard telephone cord into an RJ-45 por t.

This may damage the switch.

Product Specifications

General Specifications

Standard IEEE 802.3 10Base-T Ethernet
Compliance: IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3x Flow Control and Back-pressure

IEEE ANSI/IEEE 802.3 N-way Auto-negotiation
Protocol CSMA/CD
Ports: 10/100Mbps Auto-sensing RJ-45 ports with

Auto MDI/MDIX crossover
Data Transfer Rate: Ethernet: 10Mbps (half-duplex)

20Mbps (full-duplex)

Fast Ethernet: 100Mbps (half-duplex)

200Mbps (full-duplex)

72

For full coverage of your warranty, be sure
to register your product using the enclosed
registration card.

Hardware Description

The Front Panel

The Front Panels of the Dyna-Switch/16 and 24 consist of
10/100Base-TX RJ-45 ports and LED Indicators.

Figure 2. Front Panel views of Dyna-Switch/16 and 24

The Rear Panel

The 3-pronged power plug is located at the rear panel of the
switches as shown in the Figure 3. The Switch operates on AC in the
range 100-240V AC, 50-60Hz.

Figure 3. Rear panel view of the Dyna-Switch/16 and 24

LED Indicators

The LED Indicators give real-time information of systematic operation
status. The following table provides descriptions of the LED status
and their meanings.

Per Device: Power
Per Port: LINK/ACT ( Link/Activity )

FDX/COL ( Full duplex/Collision )

For LED indication details, please refer to page 4.

36

LK/ACT

FD/COL

FD/COL

LK/ACT

Dyna-Switch/16

16 Port 10/100Base-TX Switch

POWER

POWER

LK/ACT

FD/COL

FD/COL

LK/ACT

Dyna-Switch/24

24 Port
10

/

100Base-TX Switch

Segment Bridge

For enterprise networks where large data broadcasts are constantly
processed, these switches are an ideal solution for depar tment users to
connect to the corporate backbone.

In the illustration below, two Ethernet switches, with PCs, print servers,
and a local server attached, are both connected to a Dyna-Switch. All of
the devices in this network can communicate with each other through
the Dyna-Switch. Connecting ser vers to the switch allows other users to
access the server’s data.

Printers

Server

Workstations

L

K

/

A

C

T

F

D

/COL

F

D

/CO

L

L

K

/

A

C

T

D

yn

a

-S

witc

h

/1

6

1

6

Po

r

t

1

0

/

1

0

0

B

a

s

e-T

X

S

w

itc

h

P

O

W

E

R

Figure 6. Segment Bridge Application

Figure 4. Front panel view of LED indicators

Status LEDs

Network Application

This section provides a few samples of network topology in which the
Switches are used. The Dyna-Switch/16 and 24 are designed to be
used as segment switches. With their large address tables (8K MAC
address) and high performance, they are ideal for interconnecting
networking segments.
You can use the Dyna-Switch/16 and 24 to connect PCs, workstations,
and servers to each other by connecting these devices directly to a
Switch. The switch automatically learns node addresses, which are
subsequently used to filter and forward all traffic based on the
destination address.

Small Workgroup

The Dyna-Switch/16 and 24 can be used as standalone switches
interconnecting personal computers, servers, and print servers forming a
small workgroup.

54

LK/ACT

FD/COL

FD/COL

LK/ACT

Dyna-Switch/16

16 Port 10/100Base-TX Switch

POWER

LINK/ACT and FDX/COL

Indicators

Power Indicator

LED Status Color Description

Power On Green The switch is supplied with

suitable power.

On Green The por t is connecting with

the device.

LINK/ACT Blinks The port is receiving or

transmitting data.

Off The port is not linked

successfully with the device.

On Orange The port is operating in Full

Duplex mode.

FDX/COL Blinks A packet collision occurred at

this port.

Off No device attached or the port is

operating in Half Duplex mode.

Printers

Server

Workstations

L

K

/

A

C

T

F

D

/

COL

F

D

/

C

OL

L

K

/A

C

T

D

yn

a

-S

w

itc

h/16

1

6

Port 10

/

10

0

B

ase-T

X

Switc

h

POW

E

R

Figure 5. Small Workgroup Application
