Unical D81, D81H Users Manual

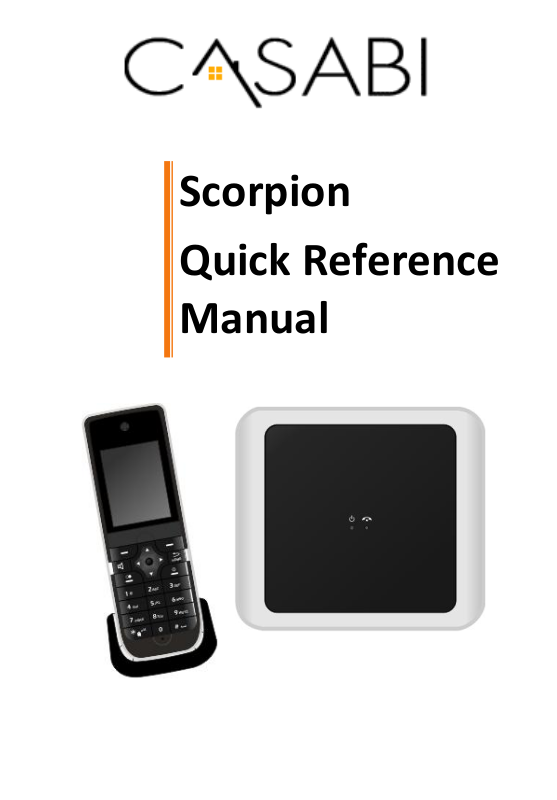

Scorpion
Quick Reference
Manual
1. Minimum Requirements
1
Quick Reference Manual
2
Telephone Base
3
Handset
4
Handset Charger
5
Battery
6
Ethernet Cable
7
Telephone Line Cord
8
Power Adapter (two
identical adapters for
Telephone Base and for
Handset Charger)
Telephone connection (for making telephone calls)
AC power connection
Broadband Internet access (cable/DSL for accessing Scorpion
features)
Broadband router with an available LAN port
2. Parts Checklist
Verify that the package includes the following:
Note: Save the original packaging in case you may have to ship your telephone
for warranty service.
1
3. Specifications
Standard
DECT (Digital Enhanced Cordless
Telecommunications), GAP (Generic
Access Profile)
Number of channels
120 duplex channels
Frequency range
1.88 GHz to 1.9 GHz
Duplex procedure
TDMA (Time Division Multiple Access)
Channel spacing
1,728 kHz
Bit rate
1,152 Kbps
Modulation
GFSK (Gaussian Frequency Shift Keying)
RF transmission power
250 mW (approx.)
Voice coding
ADPCM 32 Kbps
Power source
120 V, 60 Hz
Power consumption
Base unit
Standby*: 2.5 W (approx.)
Maximum: 4.5 W (approx.)
Charger
Standby: 1.0 W (approx.)
Maximum: 4.5 W (approx.)
Operating conditions
Temperature
5 °C–40 °C (41 °F–104 °F),
Relative humidity (dry)
20%–80%
Length
(mm)
Width
(mm)
Height
(mm)
Weight
g (lb)
Handset
138.8
49.0
23.2
105 (0.23)
Base
122.2
118.9
42.7
151 (0.33)
Charger
68.0
64.0
34.6
59 (0.13)
* Handset is off the charger but not in use.
Dimensions
Note
Specifications are subject to change.
The illustrations used in this manual may differ slightly from the
actual product.
2
4. Installing the Scorpion Telephone Base
Before installing the Scorpion telephone base, ensure that the DHCP is
enabled in the router. To configure the DHCP, refer to your router’s
documentation. To install the Scorpion telephone base:
1. Connect the telephone line cord to the telephone base and to the
telephone outlet.
2. Connect the ethernet cable to the telephone base and to the
broadband router.
3. Plug the base power adapter into the telephone base and connect
the other end to an electrical outlet.
The power light should be steady, which indicates that the power is on.
The following diagram illustrates a typical network layout after installing the
Scorpion.
3
4. Installing the Handset
Operation
Operating Time
While in use (handset/headset)
5 hours
While standby
5 days
To install the handset:
1. Plug the power adapter into the handset charger and connect the
other end to an electrical outlet. The power adapters for the base
and for the handset are identical.
2. Insert the battery into the handset.
3. Place the handset on the charger for charging. It is recommended
After the battery is fully charged, you can expect the following performance:
You need to charge the battery when:
Registering the Handset
You can register a maximum of five handsets for a telephone base. To register
a handset:
After registration is successful, a circle is displayed in the upper-left corner of
the screen. A filled green circle indicates a healthy signal from the telephone
base, whereas an empty red circle indicates that there is no signal.
that you charge the handset for 16 hours before first use.
The battery is new.
The battery indicator on the handset display is empty and flashing
red.
1. Press and hold the paging button on the telephone base until the
“Line in use” LED starts blinking.
2. On the handset, select the Menu softkey. If the Menu softkey is not
available, press and hold the Off button until you see the idle
screen with the Menu softkey.
3. From Menu Settings, select Phone Settings.
4. From Phone Settings, select Registration.
5. Select Yes to confirm registration.
4
5. Scorpion Handset Layout
1
Earpiece
Audio output of the telephone.
2
Left softkey
For selecting the function displayed
on the lower left of the screen.
3
Speaker
For turning the speaker on or off.
4
Talk
For getting a dial tone and for
making a call.
5
1 Key
For typing “1” and selecting a special
character.
6
* Key
For typing * and for switching
between character input modes, Ab,
AB, ab, 12.
7
Microphone
Audio input of the telephone.
8
# Key
For typing # and for entering a space
between words.
9
Keypad
For dialing phone numbers and
entering text.
10
Off
For ending a call and for returning to
the idle screen.
11
Home
Press quickly to go back one level.
Press and hold to go back to the
Main screen.
12
Right softkey
For selecting the
function displayed on
the lower right of the
screen.
13
Navigation Keys
For navigating menu
screens and for
positioning the cursor
while writing or editing
text. Press the center
button to open the
selected item.
14
Screen
The display.
5
