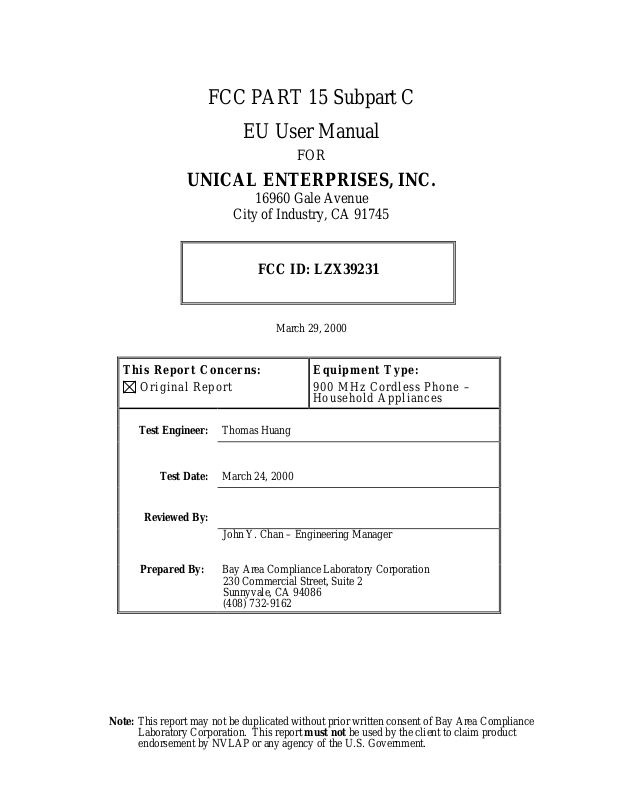

Unical 39231 User Manual

FCC PART 15 Subpart C

EU User Manual

FOR

UNICAL ENTERPRISES, INC.

16960 Gale Avenue

City of Industry, CA 91745

FCC ID: LZX39231

March 29, 2000

This Report Concerns:

Original Report

Test Engineer: Thomas Huang

Test Date: March 24, 2000

Reviewed By:

John Y. Chan – Engineering Manager

Prepared By: Bay Area Compliance Laboratory Corporation

230 Commercial Street, Suite 2
Sunnyvale, CA 94086
[phone]

Equipment Type:

900 MHz Cordless Phone –
Household Appliances

Note: This report may not be duplicated without prior written consent of Bay Area Compliance

Laboratory Corporation. This report must not be used by the client to claim product
endorsement by NVLAP or any agency of the U.S. Government.

Unical Enterprises, Inc. FCC ID: LZX39231

TABLE OF CONTENTS

1 - GENERAL INFORMATION................................................................................................................................. 3

1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).............................................................................. 3

1.2 PURPOSE ............................................................................................................................................................... 3

1.3 RELATED SUBMITTAL(S)/GRANT(S)...................................................................................................................... 3

1.4 TEST METHODOLOGY............................................................................................................................................ 3

1.5 TEST FACILITY...................................................................................................................................................... 3

1.6 TEST EQUIPMENT LIST .......................................................................................................................................... 4

1.7 EQUIPMENT UNDER TEST (EUT)........................................................................................................................... 4

APPENDIX A – USER MANUAL .............................................................................................................................. 5

FCC PART 15 WARNING:............................................................................................................................................ 6

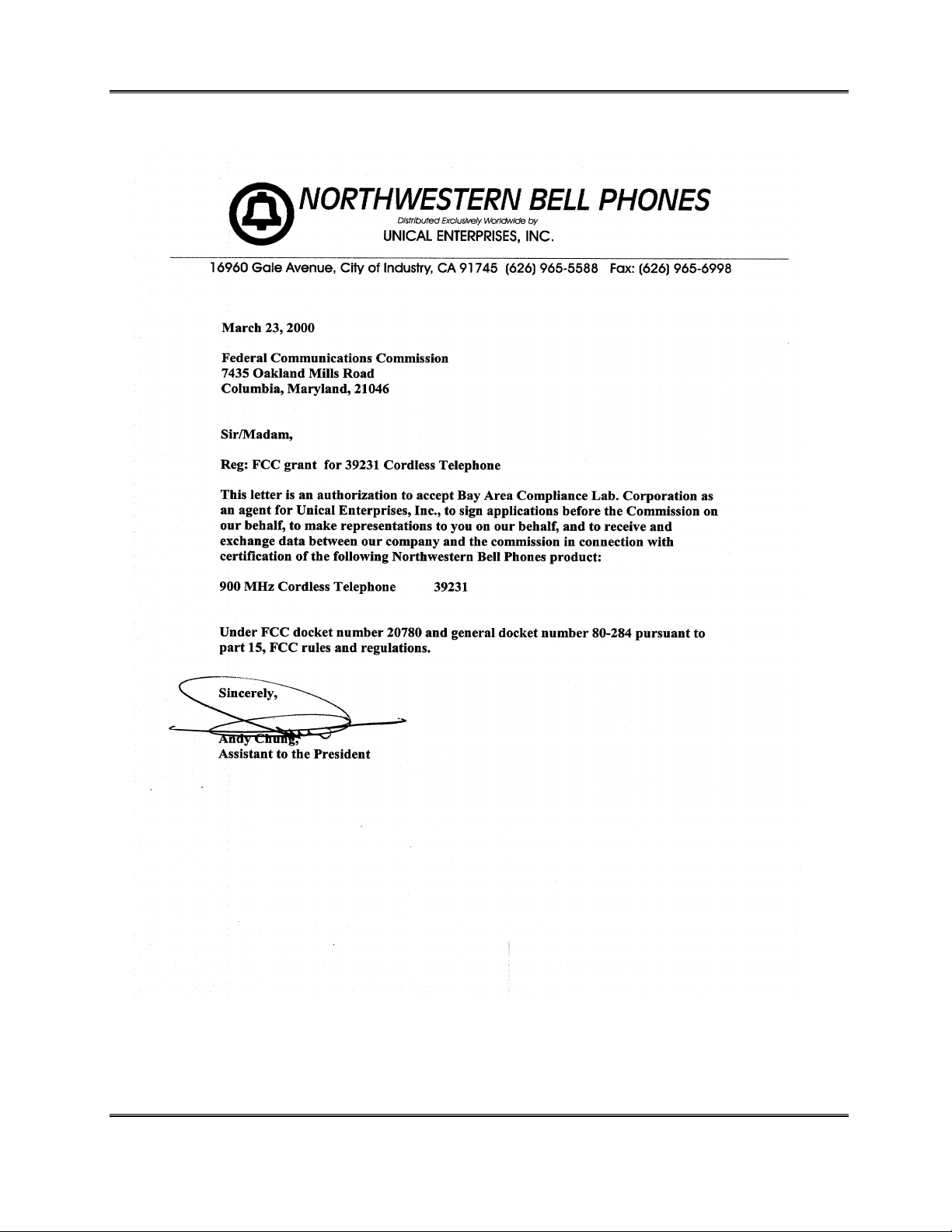

APPENDIX B – AGENT AUTHORIZATION LETTER....................................................................................... 22

Report # EUT User Manual.doc FCC Part 15 Subpart C Test Report

Page 2 of 23

Unical Enterprises, Inc. FCC ID: LZX39231

1 - GENERAL INFORMATION

1.1 Product Description for Equipment Under Test (EUT)

The UNICAL ENTERPRISES, INC.’s 39231 or the "EUT" as referred to in this report is a 900 MHz
cordless telephone. The EUT was composed of two parts, one is a Handset which measured 7.5” L x

2.25” W x 1.5”H, and the other is a Base which measures 8.00”L x 4.25”W x 1.75”H.

1.2 Purpose

This document is a qualification test report based on the Electromagnetic Interference (EMI) tests
performed on the 900 MHz Cordless Phone, Model is 39231. The EMI measurements were performed
according to the measurement procedure described in ANSI C63.6: 1992. The tests were performed in
order to determine whether the electromagnetic emissions from the equipment under test, referred to as
EUT hereafter, are within the specification limits defined by FCC Title 47, Part 15, Subpart C, section

15.205, 15.207, and 15.249.

1.3 Related Submittal(s)/Grant(s)

No Related Submittals

1.4 Test Methodology

All measurements contained in this report were conducted with ANSI C63.4 –1992, American National
Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and
Electronic Equipment in the range of 9 kHz to 40 GHz. All radiated and conducted emissions
measurement was performed at Bay Area Compliance Laboratory, Corp. The radiated testing was
performed at an antenna-to-EUT distance of 3 meters.

1.5 Test Facility

The Open Area Test site used by Bay Area Compliance Laboratory Corporation to collect radiated and
conducted emission measurement data is located in the back parking lot of the building at 230 Commercial
Street, Suite 2, Sunnyvale, California, USA.

Test sites at Bay Area Compliance Laboratory Corporation has been fully described in reports submitted to
the Federal Communication Commission (FCC) and Voluntary Control Council for Interference (VCCI).
The details of these reports has been found to be in compliance with the requirements of Section 2.948 of
the FCC Rules on February 11 and December 10, 1997 and Article 8 of the VCCI regulations on
December 25, 1997. The facility also complies with the radiated and AC line conducted test site criteria
set forth in ANSI C63.4-1992.

The Federal Communications Commission and Voluntary Control Council for Interference has the reports
on file and is listed under FCC file 31040/SIT 1300F2 and VCCI Registration No.: C-674 and R-657. The
test sites has been approved by the FCC and VCCI for public use and is listed in the FCC Public Access
Link (PAL) database.

Additionally, Bay Area Compliance Laboratory Corporation is a National Institute of Standards and
Technology (NIST) accredited laboratory, under the National Voluntary Laboratory Accredited Program
(NVLAP). The scope of the accreditation covers the FCC Method - 47 CFR Part 15 - Digital Devices,

Report # EUT User Manual.doc FCC Part 15 Subpart C Test Report

Page 3 of 23

Unical Enterprises, Inc. FCC ID: LZX39231

IEC/CISPR 22: 1993, and AS/NZS 3548: Electromagnetic Interference - Limits and Methods of
Measurement of Information Technology Equipment test methods under NVLAP Lab Code 200167-0.

1.6 Test Equipment List

Manufacturer Description Model

HP

HP
HP Amplifier 8349B 2644A02662 12/20/2000
HP
HP Amplifier 8447E 1937A01046 12/6/2000

A.H. System Horn Antenna SAS0200/571 261 12/27/2000

Com-Power

Com-Power

Solar Electronics LISN 8012-50-R-24-BNC 968447 12/28/2000

Com-Power LISN LI-200 12208 12/20/2000
Com-Power LISN LI-200 12005 12/20/2000

BACL

Spectrum

Analyzer

Spectrum

Analyzer

Quasi-Peak

Adapter

Log Periodic

Antenna

Biconical

Antenna

Data Entry

Software

1.7 Equipment Under Test (EUT)

Serial

Number

8566B 2610A02165 12/6/2000

8593B 2919A00242 12/20/2000

85650A 917059 12/6/2000

AL-100 16005 11/2/2000

AB-100 14012 11/2/2000

DES1 0001 12/20/2000

Cal. Due

Data

Manufacturer Description Model

Unical Enterprises, Inc. Cordless Phone 39231 None LZX39231

Report # EUT User Manual.doc FCC Part 15 Subpart C Test Report

Page 4 of 23

Serial

Number

FCC ID

Unical Enterprises, Inc. FCC ID: LZX39231

Appendix A – USER MANUAL

Report # EUT User Manual.doc FCC Part 15 Subpart C Test Report

Page 5 of 23

Unical Enterprises, Inc. FCC ID: LZX39231

FCC Part 15 Warning:
