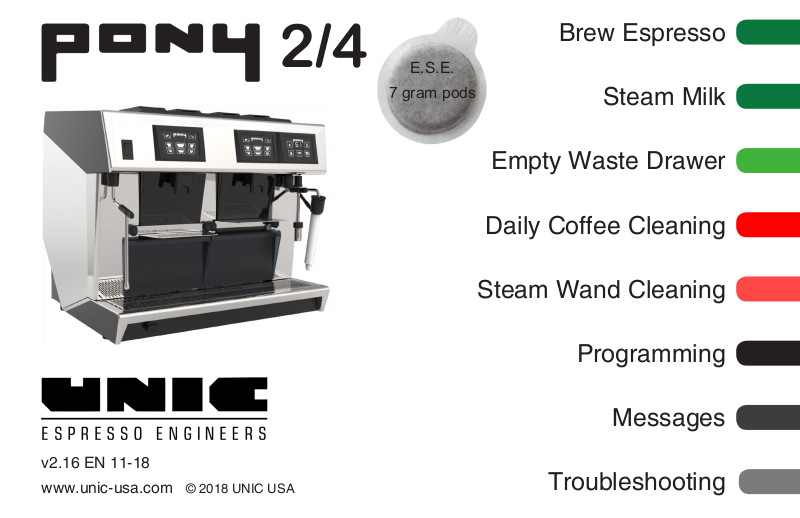

Unic Pony 4, Pony 2 User Manual

Download

Brew Espresso

2/4

E.S.E.

7 gram pods

Steam Milk

Empty Waste Drawer

Daily Coee Cleaning

Steam Wand Cleaning

Programming

Messages

Troubleshooting

Insert Pod

Start Brewing

Hot Water Tap

Cup tray can be mounted

in 3 positions:

Up Down

2/4

Power Switch

Start Steam

Start Water Tap

Adjust Foam Setting

Empty Waste Drawer when full

no heat

ON with heat

Attached to drawer

OFF

Brew Espresso

Open packet

Take care not to tear the pod

E.S.E.

Easy Serve Espresso

7 gram pods

Insert a pod into 1 of the 2 slots on top

Place pod halfway in slot before releasing

Do not drop pod in from

above the slot

Do not force pod

Store pods so they are

not crushed or damaged!

Do not use misshapen or

Place cup under spout

on same side as pod

torn pods!

Brew Espresso

Select

Short or

Long pour

Double Shot See Next Page

Brew Double Shot

Brew Espresso

Use Two E.S.E.

Easy Serve Espresso

7 gram pods

Insert 1 pod into both slots on top

Place pods halfway in slot before releasing

Open packets

Take care not to tear the pods

Store pods so they are

not crushed or damaged!

Do not use misshapen or

torn pods!

above the slot

Do not force pods

Place cup(s) under spoutsDo not drop pods in from

Select

Short or

Long pour

Steam Milk

••• More air

•

• Less air

• •

•

Fill the Pitcher with

milk

The SteamAir wand

MUST be wiped and

purged after each

use to prevent milk

build-up

Steam Wand should be

centered in the pitcher Tip must be at least 1”

below surface of milk

Remove the pitcher and

wipe the wand and tip with a

clean, damp towel.

Press SteamAir Button

Steam will automatically

shut OFF at the pre-set

temperature

Press the Steam or the

SteamAir Button

ON then OFF

to purge

Turn the adjusting

collar to vary the

amount of air in

the milk

See Cleaning Section

Steam or Water leaking from

the top of the wand ?

No Foam in milk?

Steam Milk

Empty Waste Drawer

Empty waste drawer

when full

Drawer must be re-

moved for 8 seconds.

The counter will

automatically re-set

after 8 seconds

Drawer holds 45 spent

pods

Screen displays “dA”

(drawer absent) when

drawer is removed

Drawer icon turns red

when full

Empty Waste Drawer

Screen also ashes “dF”

Icon turns green when

counter resets - Replace

drawer

Drawer Level Alerts

Empty Waste Drawer

Drawer Level Alert

Empty Waste Drawer

Drawer icon turns

orange when almost

full

No drinks can be made

when the drawer is full

Screen ashes “dF” and

displays the number of

drink remaining

Empty Waste Drawer

Follow instructions on

Drinks can still be

made when the drawer

icon is orange

The drawer may be emptied at any time, even before the

full message appears

Machine will continue

counting down and

ashing a warning

after each cycle

The drawer counter re-

sets to green every-time

the drawer is removed

for 8 seconds

Daily Coee Cleaning

Cleaning Tools Needed:

Cleaning Tablets

#Caza-1.2 tabs

Install Funnel:

Attach the

Spout Funnel.

Align notches and press

up onto spout.

2 Silicone Tablet

Holders

#RB 0100

Attach Tablets:

Insert one cleaning

tablet into each holder.

Before Starting the

Spout Funnel

#RB 1120

Stretch the silicone

around the edge of the

tablet.

See next page to start the automatic cleaning cycle:

Automatic Cleaning

Cycle:

1. Install the Spout Funnel

2. Load Tablets into the Cleaning Tablet Holders

Properly attached

tablet

Daily Coee Cleaning

Before starting

cleaning see previ-

ous page for set-up

instructions

Daily Coee Cleani ng

cL ashes when the

inserts are in place.

Start Cycle:

Press and hold the

cleaning button until cL

appears on the screen.

Press the blue cleaning button to start the

cleaning cycle.

The cleaning button

starts ashing blue.

Soap and rinse water

will ush through the

spout funnel.

Carefully insert one

cleaning holder with tab-

let into each pod slot.

The full cycle

takes 3 minutes

See next page

for nal cleaning

steps

Daily Coee Cleaning

Finish Cleaning Cycle:

When nished the dF

(drawer full) or PE (pod

error) message ashes.

Ready

Remove the

Cleaning Inserts.

Empty and replace

the waste drawer.

See next page for cleaning alerts:

Press either double

drink button to clear

the display.

Daily Coee Cleaning

Mandatory Cleaning

Operation is locked out after a pre-set number of pods

are brewed. This is to ensure continued performance. Each cleaning re-set the counter. The number can be

changed in the programming section.

For low volume machines set the number lower so it will

request a cleaning once a day

Mandatory Cleaning Alert

Do not set the alert higher than 250!

Daily Coee Cleani ng

The screen will ash “cL” and display the

number of drinks remaining before cleaning

lock-out

The cleaning button turns orange when a cleaning is due soon

Start Cycle:

CL CL

The button turns red

when the when cleaning

is required

20 more drinks are

possible when clean-

ing alert is active

Press and hold the

cleaning to start the

cleaning cycle

Steam Wand Cleaning

or if steam leaks from the top of the wand

The SteamAir Wand may be removed for

cleaning if it has heavy milk build-up

Switch OFF

Turn switch all the way

to the left (2 clicks)

Clean the Steam Tip everyday

Switch the machine OFF

before removing the Wand!

NEVER soak the

steam wand in

cleaner!

Clean Steam Wand

Unscrew Steam Tip

Remove Outer wand Carefully remove the

Temperature Probe

Steam Wand Cleaning

Clean Steam Wand

Wipe Inner wand

Insert Temperature

Probe into outer wand

Wipe Temperature

Probe

Install Outer wand

with probe

Clean Outer Wand

and Steam Tip in sink

Replace Steam Tip

Make sure all 12 steam tip

holes are clear!

Make sure the probe tip is

pushed all the way down when

reassembling

Program Steam & Hot Water

Small Hot Water

Large Hot Water

All Buttons ash when

programming is active

Set volume

Hold triangular stop button for 5 seconds to

enter programming mode.

Program each button by pressing once to start

and once again when desired Time, Temerature,

STOPSTART

Manual Steam

Set Time 30 sec standard or 1 sec purge

Auto shut-o󰀨 Steam

Set Temperature

or Volume is reached.

Programming

Switch the machine OFF to

save the values (2 clicks)

Wait 3 seconds!

Turn switch ll the way

back ON (2 clicks)

Programming

Program Coee Dose part 1

Each of the 4 single buttons needs to

be programmed individually

Press and hold the

green drawer button for

3 seconds to start

Button turns yellow and screen shows do

Press star button to enter programming mode

Program each button to

the desired level using a

pod (Not just water)

(dose)

Star button turns violet

The center double buttons are auto-

matically set from the single values

Ready to program!

All drink buttons ash

Programming

Program Coee Dose part 2

START

Set machine into

programming mode

(See previous page)

Co󰀨ee starts dispensing

Place measuring cup

under spout

STOP

Press the same button

again to stop the ow when

the desired level is reached

Insert a pod on the

side you wish to

program

Repeat for the other 3 buttons

No need to program the

Press desired button

to start programming

center buttons

Save & Exit Coee Dose Programming

When nished Pro-

gramming press the

stars key to exit

Switch the machine OFF

to save the values

(2 clicks)

Wait 3 seconds!

Turn switch all the way

back ON

(2 clicks)

Programming

Set Mandatory Cleaning Alert

Co󰀨ee Dose (Level in the cup) & Cleaning Alert

are the only user changeable sections

Dose: Program co󰀨ee doses, see

Press and hold the

green drawer button for

3 seconds

(Will turn yellow)

Press yellow button to cycle through the pro-

gramming options

Pre-infusion: Do Not Change

Exhaust: Eject delay Do Not Change

Drawer capacity: Do Not Change

Mandatory Cleaning: Default setting is 250 drinks.

Machine will lock out and require a cleaning. Must be set for each group.

Set Mandatory Cleaning Alert

Press and hold the

green drawer button for

3 seconds

16.

Use the center cup

buttons to adjust up or

down (shows 160)

Press yellow button to cycle through the pro-

gramming options

Press stars button to

save

Stop at cL for Cleaning

Warning and Press the

stars button

Switch the machine OFF

to save the values

(2 clicks)

Wait 3

seconds!

25.

Shows 250 drinks

dot = times ten

Programming

Turn switch all the way

back ON

(2 clicks)

Programming

See troubleshooting section for details

8f 8a pe

Cleaning: Cleaning required

Top Open: Top cover open

Drawer Full: Waste drawer full (45 pods)

Drawer Absent: Waste drawer removed

Pod Error: Pod insertion slots in top cover are blocked

Dose Error: Unable to measure water volume when brewing

Normal Operation

Messages / Codes

Messages on Steam & Hot Water display:

See troubleshooting section for details

Filling: Displays on startup

See troubleshooting section

Filling Error: Water lling error

99: SteamAir milk temperature probe defective

Call for Service

Alternate ashing rows: Normal water lling during startup

See troubleshooting section

Troubleshooting

Cleaning: Cleaning required

See Clean Coee Groups section

el el

Orange button: ashes number of

drinks left before cleaning.

Red button: No drinks possible, machine must be cleaned.

Top Open: Top cover open

• Make sure the top cover is completely closed.

• Check that switch at rear of cover makes an audible click when top is closed.

• Check thet the Switch Spacer Pad is in place. Call for Service

Switch

Click!

Spacer

Troubleshooting

Drawer Absent: Waste drawer removed

Troubleshooting

Make sure drawer is

pushed all the way in

Drawer Full: Waste drawer full (45 pods)

See Empty Waste Drawer section

Check for an obstruction

such as fallen pods

behind the drawer

Troubleshooting

Call Service if the

message doesn’t clear

See the end of this section for a temporary

override setting

Troubleshooting

Pod Error: Pod Sensors in top cover are blocked

Check for a jammed pod

Clean with a soft dry

brush if possible

Remove the cleaning

inserts if they are still in

place

Or the corner of a dry

paper towel

Brush dirt o󰀨 sensors just

inside each side of pod slots

Call Service if the

message doesn’t clear

See the end of this section for a temporary

override setting

Never Use

Water to

clean!

Troubleshooting

• Make sure that water to the machine is turned on.

• Change water lters if they are clogged.

• Run a cleaning cycle.

• Call service if the message doesn’t clear.

Troubleshooting

• Call for Service if message does not clear

Troubleshooting

Dose Error: Unable to measure water volume when brewing

Group 1: Displays briey on startup

Troubleshooting

Alternate ashing rows: Water lling error

and / or

Filling Error: Water lling error (Steam & Hot Water display)

• Make sure that water to the machine is turned on.

• Change water lters if they are clogged.

• Switch machine OFF and ON to reset.

• Call for Service

99: SteamAir milk temperature probe defective

Call for Service

Troubleshooting

Cold Coee or No Steam:

Machine may be on the power only setting (Position 1) Turn main power switch fully to the right

Troubleshooting

Position 0

Full OFF position

Troubleshooting

No Foam in Milk / Steam Wand leaking from top:

Position 1

Power with no heating

(used for servce)

Position 2

Power and Heating

Steam wand and steam tip may be dirty or clogged

See Steam Wand Cleaning Section

Troubleshooting

Jammed or Broken Pod:

Open the top cover and

try to lift pod out of the

holder

Wipe area with a damp

towel

Carefuly remove as much

of the pod as possible

Use your ngers to

activate the goups with

no co󰀨ee

Use the handle of a spoon

to gently push any remaining

pods through to the drawer

Run several cycles

with no co󰀨ee to rinse

groups

Never pour water into

the group

Call for Service

if these steps are unsuccessful

Troubleshooting

Emergency settings to allow operation if pod or drawer sensors are not working

Override PE “pod error” message:

Manual drink mode:

Press all 3 top row buttons at the same time for 10 seconds.

Buttons ash 3 times to conrm.

Screen shows 2 lines blinking. All drink buttons are lighted. All drink buttons will work with or withpout a pod inserted.

Troubleshooting

Call for Service as soon as

possible after making these

changes!

Override dA “drawer absent” error message: Manual drawer mode:

Press all 3 bottom row buttons at the same time for 10 seconds.

Buttons ash 3 times to conrm. Drawer icon ashes red.

EMPTY DRAWER WARNING IS DISABLED Drawer MUST be emptied manually.

Switch OFF to reset

the machine to normal

opation

Parts & Supplies

Cleaning Tablets

#Caza-1.2 tabs

100 count

Steam Tip

25909

Silicone Tablet

Holders

#RB 0100

Cup Shelf

RB 3066

Spout Funnel

#RB 1120

Waste Drawer

RB 1200

Parts & Supplies

Unic Pony 4, Pony 2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
