UltraViolet Devices MP36C, MP16A, MP49C, MP22A, MP13A User Manual
375 Marcus Boulevard • Hauppauge, NY 11788 • USA
631.273.0500
• Fax: 631.273.0771
e-mail: info@ultraviolet.com
Extensive Product Information Available at:
Document No. 98 -1123E1 • Revised February 2007 • ©1994-2007 Atlantic Ultraviolet Corporation
www.ultraviolet.com
2
TABLE OF CONTENTS
SAFETY WARNINGS.....................................................................................................................................................3
SAFETY INSTRUCTIONS............................................................................................................................................3
PRODUCT APPLICATION ...........................................................................................................................................4
C
ONSTRUCTION ............................................................................................................................................................4
PRINCIPLE OF OPERATION .............................................................................................................................................4
LIMITATION OF
USE......................................................................................................................................................4
W
ATER QUALITY ..........................................................................................................................................................4
INSTALLATION.............................................................................................................................................................5
LOCATION.....................................................................................................................................................................5
D
IMENSIONAL DATA
.....................................................................................................................................................5
I
NSTALLATION...............................................................................................................................................................6
RECOMMENDED OPTIONS..............................................................................................................................................7
MAINTENANCE.............................................................................................................................................................8
I
NSPECTION ..................................................................................................................................................................8
LAMP-OUT PROTECTION ...............................................................................................................................................8
LAMP INSTALLATION OR REPLACEMENT .......................................................................................................................9
Q
UARTZ SLEEVE CLEANING OR REPLACEMENT...........................................................................................................10
R
EPLACEMENT OF BROKEN QUARTZ SLEEVE ..............................................................................................................11
DISPOSAL OF MERCURY ADDED LAMP........................................................................................................................11
O
PTIONAL GUARDIAN™ ULTRAVIOLET MONITOR SENSOR PROBE CLEANING.............................................................12
TROUBLESHOOTING................................................................................................................................................13
TECHNICAL SPECIFICATIONS...............................................................................................................................14
OPTIONALACCESSORIES.......................................................................................................................................15
REPLACEMENT PARTS.......................................................................................................................................16-19

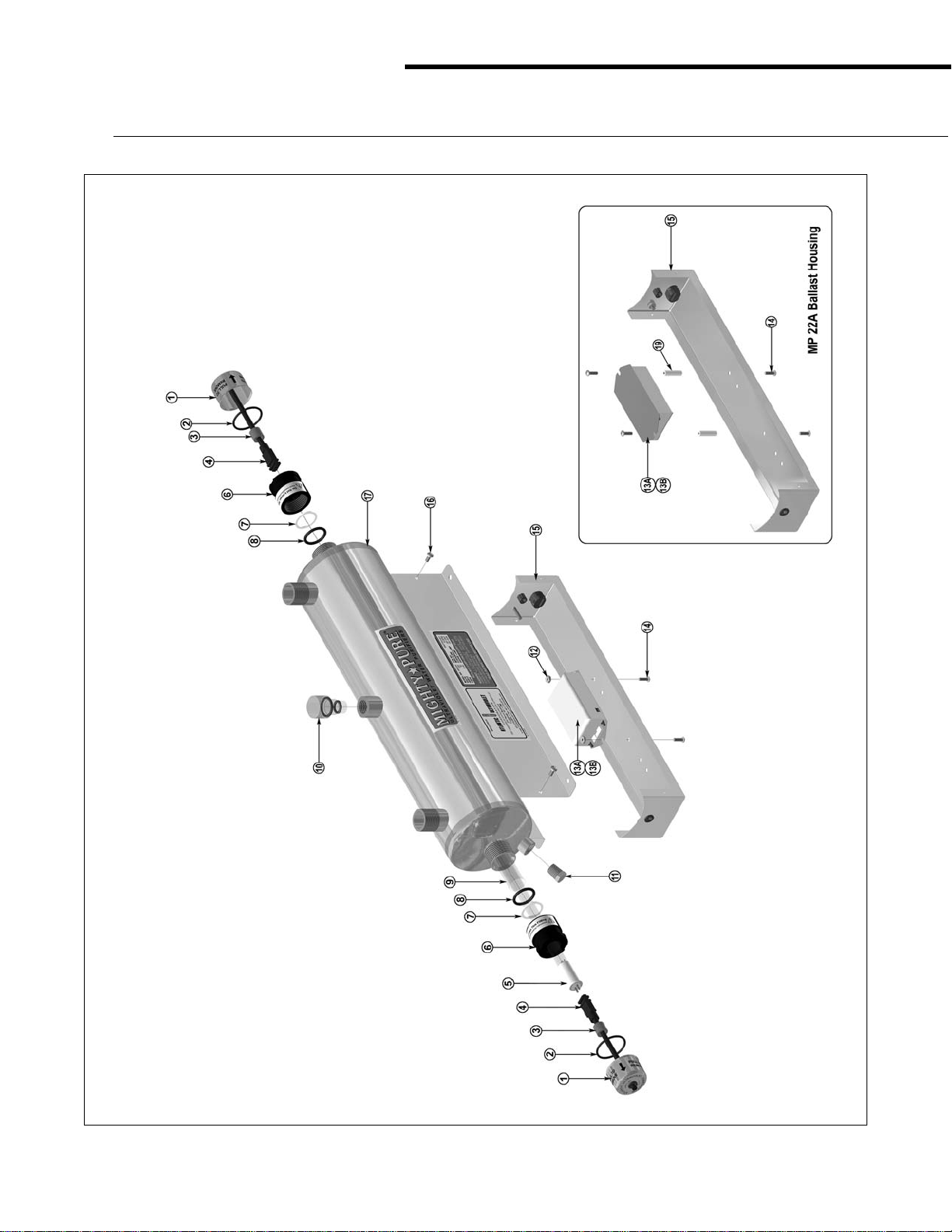

MightyPure™ M
ODELS MP13A, MP16A & MP22A.....................................................................................16-17

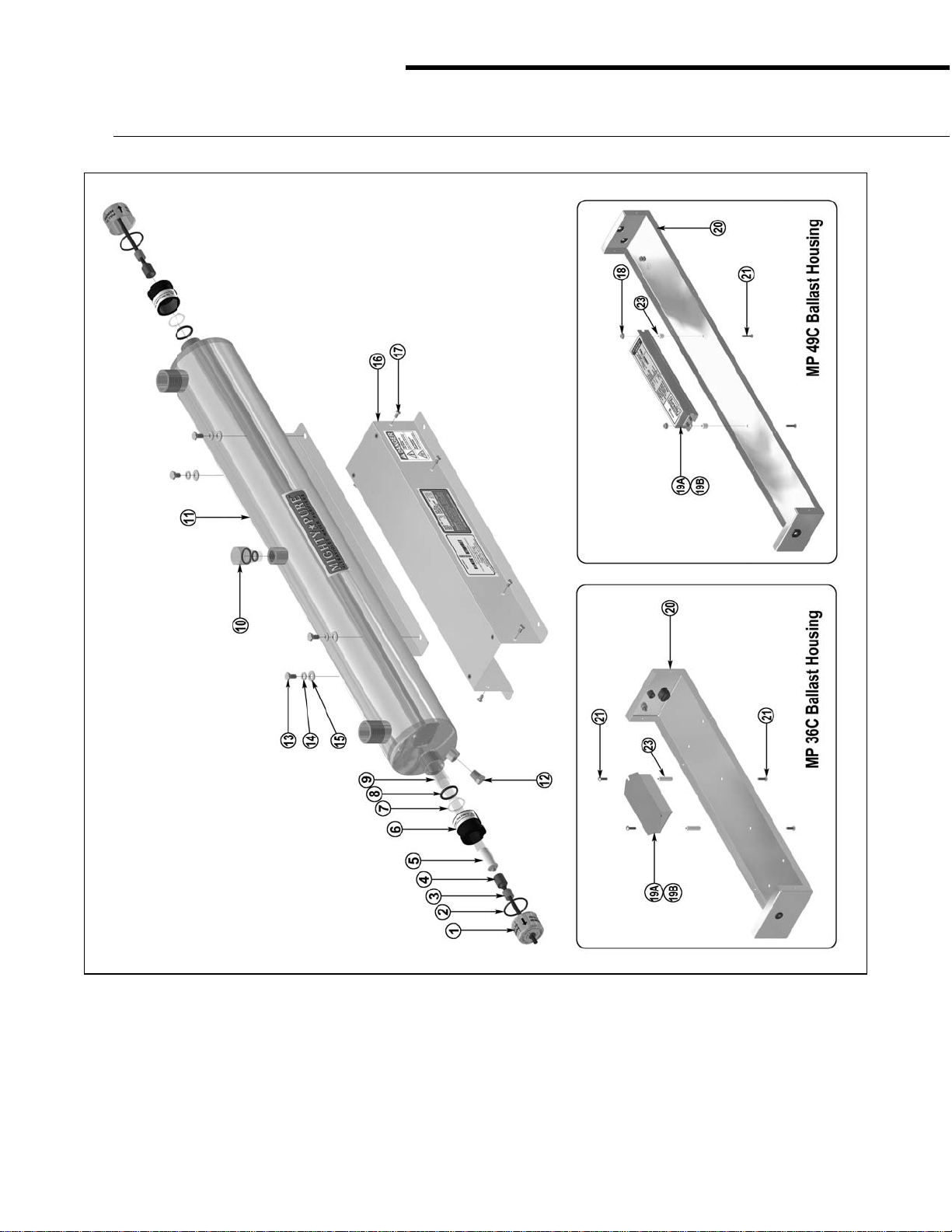

MightyPure™ M
ODELS MP36C, & MP49C...................................................................................................18-19
USER ASSIST ANCE.....................................................................................................................................................20
WARRANTY..................................................................................................................................................................20
PATENT NOTICE...........................................................................................................................................................20
These instructions generally describe the installation, operation and maintenance of the MightyPure™
line of water purifiers, Models MP13A, MP16A, MP22A, MP36C and MP49C.
Questions that are not specifically answered by these instructions should be directed to the Factory.
Atlantic Ultraviolet Corporation takes all possible precautions when packaging equipment to prevent
damage. Carefully inspect and report all damage upon receipt of product. Do not install damaged equipment.
Follow all instructions on all labels and tags. Carefully inspect all packing materials before discarding to
prevent the loss of accessories, mounting hardware, spare parts or instructions
.
3
SAFETY WARNINGS
• All personnel should be alerted to the potential hazards indicated by the product safety labeling on this unit.
• The following conventions are used to indicate and classify precautions in this manual and on product safety
labeling. Failure to observe precautions could result in injury to people or damage to property.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Danger indicates an IMMINENTLY hazardous situation, which, if not avoided,
WILL result in death or serious injury.
Warning indicates a POTENTIALLY hazardous situation, which, if not avoided,
COULD result in death or serious injury.
Caution indicates a POTENTIALLY hazardous situation, which, if not avoided,
MAY result in minor or moderate injury.
Caution used without the safety alert symbol indicates a potentially hazardous
situation, which, if not avoided, may result in property damage.
This symbol/pictorial is used to identify an ELECTRICAL SHOCK or
ELECTROCUTION hazard.
This symbol/pictorial is used to identify an ULTRAVIOLET LIGHT hazard.
• Product safety labels should be periodically inspected and cleaned, as necessary, to maintain good legibility.
Always replace illegible safety labels. Contact factory to obtain replacement safety labels.
!
SAFETY INSTRUCTIONS
WARNING: To guard against injury, basic safety precautions should be observed, including the following:
1. Read and follow ALL
safety instructions.
2. Do not use this water purifier for other than its intended purpose as described in this manual.
3. Do not alter design or construction.
4. DANGER: To prevent the risk of severe or fatal electrical shock, special precautions must be
taken since water is present near electrical equipment. Always disconnect power before performing
any maintenance.
5. WARNING: Avoid exposure to direct or strongly reflected germicidal ultraviolet rays.
Germicidal ultraviolet rays are harmful to the eyes and skin.
6. Intended for indoor use only. The water purifier should be protected from the elements and from
temperatures below freezing.
7. Do not operate water purifier if power cord or plug is damaged.
8. Electrical power supplied, to the water purifier, MUST
match power requirements listed on the
water purifier.
9. Plug the water purifier into an approved ground fault circuit interrupt (GFCI) receptacle.
10. CAUTION: Do not operate without proper electrical ground.
11. Do not exceed water purifier’s maximum rated flow capacity.
12. Do not exceed maximum operating pressure of 100 PSI.
13. Read and follow all notices and warnings on the water purifier.
14. SAVE THESE INSTRUCTIONS.
!
!!!
4
PRODUCT APPLICATION
CONSTRUCTION
• The water purifier is designed to mount horizontally.
• A drain port on the chamber aids in draining of the purifier.
• The water purifier chamber is passivated and electropolished type 316 Stainless Steel.
• The ballast housing is a combination of Stainless Steel Type 304 and Aluminum Alloy.
• Coated chambers are available for uses with special applications, consult Factory.
• Easy-off end caps allow for quick and easy lamp change, without disconnecting from the water supply or draining
the purifier. No tools are required.
P
RINCIPLE OF OPERATION
The MightyPure™ design has been carefully conceived to provide adequate germicidal dosage throughout the
disinfection chamber. The dosage, as it applies to ultraviolet disinfection, is a function of time and the intensity of
ultraviolet radiation to which the water is exposed. The exposure time, in seconds, is the total time it takes the water to
flow through the disinfection chamber exposing it to the germicidal lamp. Exposure time is related to the flow rate; the
higher the flow rate, the lower the exposure time or the lower the flow rate, the higher the exposure time. The
ultraviolet intensity is the amount of energy, per unit time, emitted by the germicidal lamp. The Dosage is the product
of ultraviolet intensity and the exposure time. The operation of the MightyPure™ is as follows:
1. Water enters the purifier and flows into the annular space between the quartz sleeve and the chamber wall.
2. Suspended microorganisms are exposed to the ultraviolet rays emitted by the germicidal lamp.
3. The translucent sight port, or optional ultraviolet monitor, provides visual indication of germicidal lamp operation.
4. Water leaving the purifier is instantly ready for use, no further contact time is required.
L
IMITATION OF
USE
The water purifier is intended for the use with visually clear water, not colored, cloudy or turbid.
See “Water Quality” section below.
The water purifier is NOT
intended for the treatment of water that has an obvious contamination or intentional source,
such as raw sewage; nor is the unit intended to convert wastewater to microbiologically safe drinking water.
WATER QUALITY
Water quality plays a major role in the transmission of germicidal ultraviolet rays. It is recommended that the water
does not exceed the following maximum concentration levels:
Table 1 - Maximum Concentration Levels
Effectively treating water with higher concentration levels than listed above can be accomplished, but may require
added measures to improve water quality to treatable levels. If, for any reason, it is believed the ultraviolet transmission
is not satisfactory, contact the factory.
Turbidity: 5 NTU
Manganese: 0.05mg/l
Total Suspended Solids: 10 mg/l
pH: 6.5 - 9.5
Color: None
Hardness: 6 GPG or 102.6 PPM
Iron: 0.3 mg/l
5
INSTALLATION
LOCATION
1. The water purifier is intended for indoor use only. The water purifier should be protected from the elements and
from temperatures below freezing. The ambient temperature, in the area surrounding the water purifier, should be
between 33 F and 100 F.
2. Electrical power supplied to the water purifier MUST
match power requirements listed on the water purifier. Use
of a voltage surge protector is recommended.
3. Plug water purifier into an approved ground fault circuit interrupt (GFCI) receptacle.
4. The water purifier should be located in a dry, well-lit area, which provides enough room to perform routine
maintenance. This includes a minimum distance of one chamber length from the chamber end, to allow for
cleaning and/or the changing of the lamp and quartz sleeve as well as a minimum of 6" on the opposite end of the
water purifier.
5. The water purifier should always be located closest to the point of use. This reduces the chance of the purified
water being re-contaminated by bacteria in the water distribution system after the water purifier.
6. CAUTION: As with any water handling device, the water purifier should be located in an area where any possible
condensation or leakage from the water purifier, any purifier accessory and/or plumbing will not result in damage
to the area surrounding the water purifier. For added protection, it is recommended that a suitable drain pan be
installed under the purifier. The drain pan must be plumbed to an adequate, free flowing, drain to prevent water
damage in the event of a leak. There are numerous leak detection/flood stop devices, available on the market today,
designed to stop the flow of water, reducing the chance of water damage due to leakage. For more details regarding leak prevention and/or limiting damages due to leaks, please contact the factory.
7. The water purifier should be located after all other water devices, such as De-ionizers, Water Softeners, Carbon
Filters, Pre-Filters, Reverse Osmosis, Pressure Tanks, and Pumps. This reduces the chance of the purified water
being re-contaminated by bacteria in any of these units.
D
IMENSIONAL DATA
Figure 1 - MightyPure™ Dimensional Drawing
Table 2 - MightyPure™ Dimensional Data
Model: A B C D E F G H Inlet/Outlet
MP13A 6" 13" 5-3/4" 7" 13-1/2"3-
5
/8"4-
15
/16"8-3/8"
1
/2"m NPT
MP16A 8-3/4" 16" 8-3/4" 10" 16-1/2"3-
5
/8"4-
15
/16"8-3/8"
3
/4"m NPT
MP22A 14-3/4" 22" 13-1/4" 14-1/2" 22-1/2"3-
5
/8"4-
15
/16"8-3/8"
3
/4"m NPT
MP36C 28-1/2" 36" 16" 18" 36-1/2"4-
15
/16"5-
11
/16"9-1/2" 1"m NPT
MP49C 40-7/8" 49" 26" 30" 49-1/2"4-
15
/16"5-
11
/16"9-1/2"1-1/2"m NPT
66
3. The water purifier should be mounted horizontally on a flat dry surface. Secure the water purifier using the mounting
holes in the ballast housing or with the optional wall mounting kit. The purifier should not be solely supported by its
plumbing connections.
4. The water purifier must be connected to the cold water line only.
5. It is recommended that a 5-micron sediment filter be installed, in line, prior to the water purifier. The sediment filter will
stop or trap any particulates from entering the water purifier. Particulates may cause damage to the quartz sleeve, as well
as interfere with the purifier’s ability to disinfect the water. The sediment filter may also help to reduce the amount of
routine cleaning of the quartz sleeve.
6. Shut off valves should be installed on both the inlet and outlet sides of the water purifier. The use of bypass valves is
not recommended. The shut off valves allow the purifier to be isolated from the water supply, which is required when
removing the quartz sleeve.
7. Unions should be installed on both the inlet and outlet of the water purifier; this will allow easy removal of the water
purifier from the plumbing, if required. Apply Teflon®tape to threads of inlet and outlet ports to ensure a tight seal.
8. When all plumbing connections are complete, allow water to enter the water purifier at a low flow rate, until the purifier
is pressurized. With the purifier pressurized, it should be checked for leaks. Once it is determined that there are no leaks,
the inlet valve can be fully opened.
9. For Models with lamps packed separately, install lamp following the steps in “Lamp Installation or Replacement” section.
CAUTION: Lamp and quartz sleeve are easily damaged. Exercise care when installing lamp.
10. Once the plumbing hook ups are made, it is a good practice to disinfect the “downstream” plumbing between the purifier
and point of use. This is done by introducing chlorine into the purifier chamber, a 100-ppm solution of chlorine is
suggested. With the chlorine in the purifier chamber, turn the ultraviolet purifier on. Open the “downstream” outlet until a
chlorine odor is noticed. Close the outlet and allow the chlorine to remain in the plumbing for three (3) hours. Flush the
plumbing with ultraviolet purified water; allow the water to run for several minutes before use. This will allow the
chlorine to be flushed from the pipes.
!
INSTALLATION
1. Remove water purifier from shipping carton. Inspect water purifier, power cord and plug for damage. Do not operate if
there is any damage to the purifier, power cord or plug. Models MP13Athrough MP22Aare shipped with the lamps
already installed, while the MP36C and MP49C lamps are packed separately. Keep the lamp aside for installation once
the purifier has been properly installed.
2. Units occasionally experience damage in shipment due to the fragility of the quartz sleeve. It is therefore recommended
to inspect the water purifier for damage to the quartz sleeve after it has been removed from the shipping carton. Each end
of the unit as well as the inlet and outlet should be viewed to see if the quartz sleeve has experienced damage. If the
quartz sleeve shows signs of damage it should be replaced before the purifier is pressurized. See “Quartz Sleeve
Cleaning or Replacement” in the “Maintenance” section for the proper method of replacing the quartz sleeve in your
water purifier.
Figure 2 - Recommended Installation
Loading...
