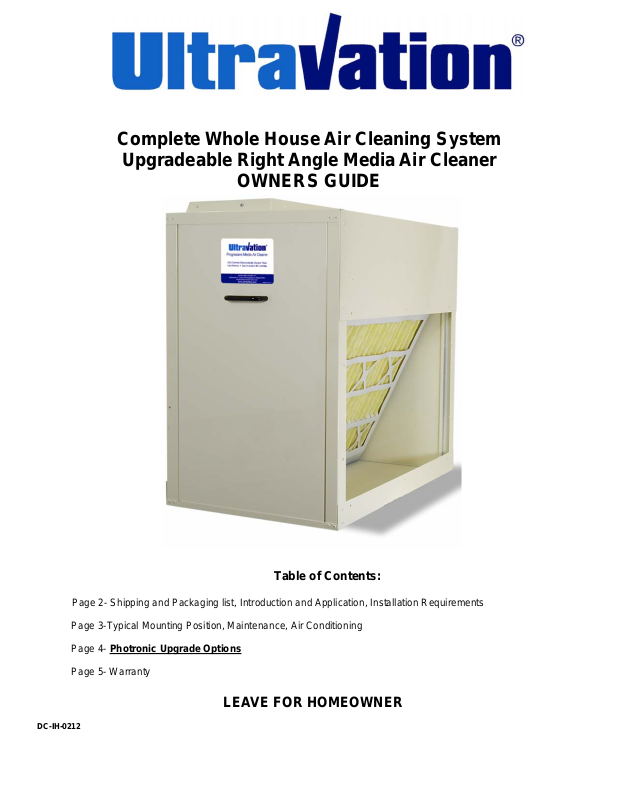

Complete Whole House Air Cleaning System
Upgradeable Right Angle Media Air Cleaner
OWNERS GUIDE
Models: 90-026, 90-027
Table of Contents:
Page 2- Shipping and Packaging list, Introduction and Application, Installation Requirements
Page 3-Typical Mounting Position, Maintenance, Air Conditioning
Page 4- Photronic Upgrade Options
Page 5- Warranty
LEAVE FOR HOMEOWNER
DC-IH-0212
Shipping and Packaging List:
`
• Filter Housing including 2 Access Doors
• MERV-11 Media Air Filter
• 1- Adjustable Top
• 4- ¾ inch 5/16 self tapping sheet metal screws
• 8’ x ½” Installation foam
• 1- Door Handles with hardware
Introduction and Applications:
This Ultravation Media Air Cleaner is a high efficiency air
filtration unit designed to remove dirt, dust, pollen, and
other microscopic particles from the air that circulates
through it. By adding this device to your HVAC system, you
are helping to create a cleaner indoor living environment for
your whole household.
The filter works by trapping particles in the pleats of the
media filter. With an extra large surface area, the filter
allows for maximum dirt holding capacity and a long, useful
filter life with minimum air flow restriction.
This media air cleaner is to be installed in a forced air
heating, cooling and ventilation system.
It should be installed so that all the system air is circulated
through the filter. The air cleaner will only filter the air that
is circulated through it. For maximum filtration effect, set
your blower to operate continuously.
Installation Requirements:
The desired location for installation of the Ultravation Right
Angle Media Air Cleaner is in the return air next to the
blower compartment. In this location, the blower motor and
internal components will be kept clean.
By installing the air cleaner in this location (upstream from
the cooling coils) you also will assure that the cooling coils
of the air conditioning system will be kept clean. This
increases coil life, improves system efficiency, and reduces
maintenance costs.
Once the Ultravation Right Angle Media Air Cleaner is
installed, it is very important to maintain the unit by
changing the filter periodically so as not obstruct airflow,
damage components or increase energy costs.
The Ultravation Right Angle Media Air Cleaner has been
designed for use in conjunction with Highboy HVAC
systems.
The duct opening of this unit is adjustable for either an 8” x
24” duct, 10” x 24” duct. –or- 12” x 24” duct.
Just remove the three sheet metal screws on the top,
adjust the flange, and reattach.
Do not install this unit in the supply duct.
Be sure to plan adequate space for filter replacement.
Before installation is complete, seal all joints and seams
with duct tape or caulking.
Gasket material included to optimize IAQ performance.
Note: Handle fits either door. A Phillips screw driver will be
required to install the handle. Handle holes are behind the
label on either door, depending on the orientation of the
installation.
2
Maintenance:
The filter media in your air cleaner must be changed
periodically. The frequency of filter replacement is best
determined by visual examination. However, a bi-annual
replacement of the filter is strongly recommended.
Replacement filters can be obtained through your
installing contractor or local dealer.
Steps for replacing pleated filter:
Note: a gasket is provided to seal between the opening on
the side of the filtration cabinet and the side of the air
handler.
Air Conditioning:
The air cleaner should be installed upstream of the cooling
coil. This will keep the coil clean and reduce air
conditioning coil maintenance. Improved cooling efficiency
is the result, which directly affects energy costs. A clean
coil will reduce utility costs. Failure to replace media can
cause damage to the cooling system.
1. Open the access door by lifting up on the handle
and pulling the bottom of the door toward you.
Then slide the top of door down, removing the door
completely.
2. Tilt used filter to allow it to be removed through
door opening. Pull out and discard.
3. Slide new filter into cabinet with “airflow label
pointing in the direction of the airflow. Be sure to
seat new filter into top and bottom brackets to
assure a good seal.
4. Replace access door.
Typical installation of an Ultravation Right
Angle Media Air Cleaner
RETURN
AIR
DUCT
RIGHT ANGLE
MEDIA AIR CLEANER
3
Photronic Upgrade Options:
Most of Ultravations media air cleaners are designed for the future upgrades. Excluding a few of
Ultravations media air cleaners all of the units are upgradeable to high efficiency Photronic air
disinfection. The units come equipped with removable knock outs and designed to fit the Ultra-Ion
Re-fresh PCO module. Another option to the upgrade is remote UVC lamps which can be located
within 12 ft. of the electrical Photronic housing. With these upgrades your unit becomes a high
efficiency multi stage air disinfection system. The Photronic works in 3 stages to remove almost
everything in your air stream, starting with large particles (dust and other airborne debris), then
removing odors through the Ultra-Ion Re-fresh PCO module, and finally removing
microorganisms (germs, mildew, mold) using Ultravations patented T3 UVC lamps.
Upgrade Options and Replacement Components
Ultravations remote T3 UVC
lamps
Ultravations complete Upgraded
Photronic Air disinfection system
Photronic Electrical Housings
1. Photronic Electronics Upgrade
no Remote UVC (94-001)
Ultravations Ultra-Ion Re-fresh
PCO Module
Progressive Media Filtration
2. Photronic Electronics Upgrade
with 12” Remote UVC (94-002)
3. Photronic Electronics Upgrade
with 17” Remote UVC (94-003)
Models Photronic Electronics Housing Re-fresh PCO Filter
90-026 / 90-027 1,2,3 91-031
*See List Above
4
Replacement filters:
Model Dimensions Replacement Filters
20 x 25 x 5 91-006 MERV-11
*(See Serial Number Label on bottom inside panel for unit replacement part numbers)
Warranty:
Ultravation warrants this product against any defects in material or workmanship for a period of
10 years after date of purchase, with the exception of the disposable media filter, the UV Lamps,
the battery, the ductwork and installation.
The UV lamps and the battery are warranted for a period of 1year.
This warranty does not include damage to the unit from accident, misuse or improper installation.
If this product should become defective during the warranty period, Ultravation will repair or elect
to replace the product free of charge. Ultravation will return repaired or replaced warranted
products pre-paid, provided that the product was delivered pre-paid.
Ultravation shall have no responsibilities for charges incurred by the customer for installation or
removal of warranted items. Liability is limited only to the replacement or repair of this product.
This warranty gives you specific legal rights, and you may also have other rights, which vary from
state to state.
All returns must be accompanied by a return authorization number, which may be obtained by
contacting Ultravation, Inc.
Ultravation, Inc. ~ P.O. Box 234 ~ 218 Jones Drive ~ Brandon, Vermont 05733
Phone: 802-247-0034 ~ Fax: 802-247-0033 ~ www.ultravation.com
