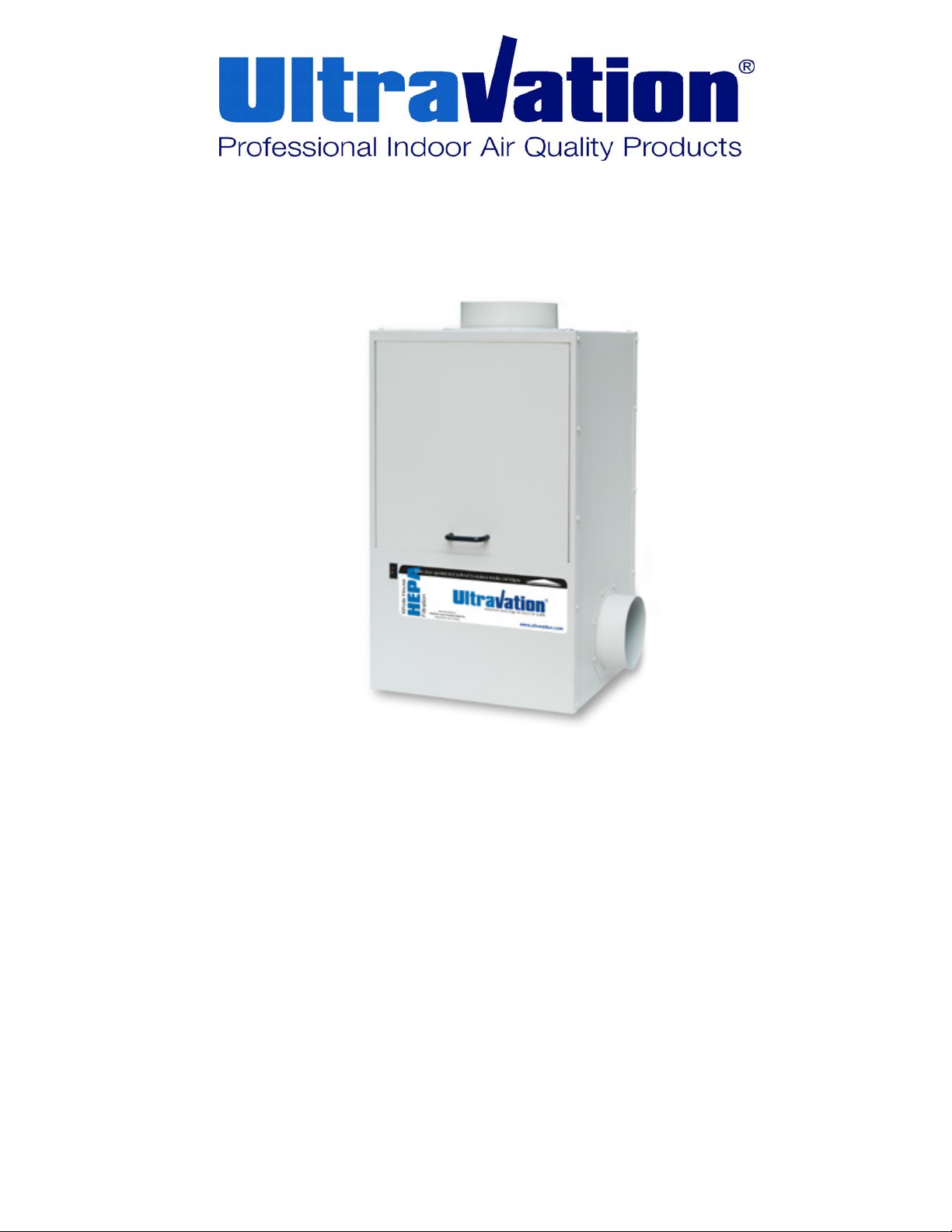

HEPA Complete Whole House Air Cleaning System
OWNERS GUIDE
Page 2- Shipping and Packaging list, Introduction and Application, Maintenance, Replacing Filter
Page 3- Typical installation, Photronic Upgrade Option, Replacement Part Numbers
Page 4- Warranty
DC-IH-0206
Models: 93-002 650 CFM, 93-004 950 CFM
Table of Contents:
LEAVE FOR HOMEOWNER
Shipping and Packaging List:
• Filter Housing including Access Doors
• MERV-11 Media Air Filter
• 4- ¾ inch 5/16 self tapping sheet metal screws
• 1- Door Handle with hardware
Introduction and Application:
This Ultravation Whole House HEPA Filtration system provides
relief from allergies and other respiratory related health issues as
well as reducing particulates such as dust, mites, pollen, mold
spores, pet dander and bacteria. The Ultravation Whole House
HEPA system is 99.97% efficient at removing particles as small
as .3 micron.
THIS PRODUCT IS DESIGNED TO OPERATE
CONTINUOUSLY. DO NOT WIRE TO BLOWER
CONTROL.
Installation requirements:
The desired location for installation of the Ultravation Whole
House HEPA system is in the return air ductwork; This Product
should never be installed on the supply side.
This product requires 120v 60hz power.
Once the Ultravation Whole House HEPA system is installed, it is
very important to maintain the unit by changing the pre- filter
periodically (typically in 6 month intervals) so as not to obstruct
airflow, damage components or increase energy costs.
The Ultravation Whole House HEPA system has been designed
for use in conjunction with virtually any HVAC system.
Do not install this unit in the supply duct.
Be sure to plan adequate space for filter replacement.
Before installation is complete, seal all joints and seams
with duct tape or caulking.
Note: Handle fits either door. A Phillips screw driver will be
required to install the handle. Handle holes are behind the
label on either door, depending on the orientation of the
installation.
Maintenance:
The filter media in your air cleaner must be changed
periodically. The frequency of filter replacement is best
determined by visual examination. However, a 6 month
replacement of the pre-filter is strongly recommended (this
will greatly pro-long the life of the HEPA Filter. The HEPA
(larger) filter is recommended for a 5-year replacement
(individual results vary)

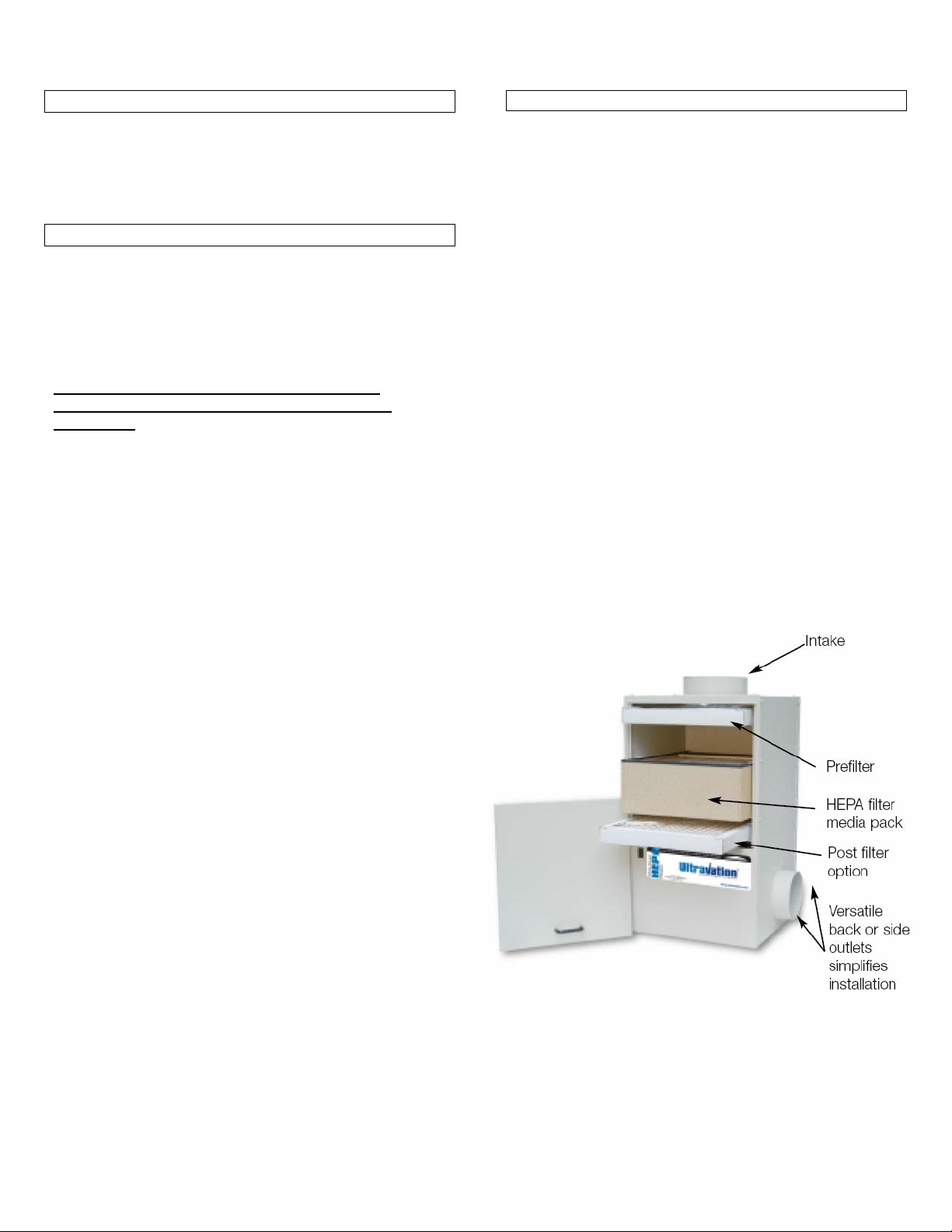

HEPA and MERV-11 Filter Replacement:
Steps for replacing filter:
1. Open the access door by lifting up on the handle and
pulling the bottom of the door toward
you. Then slide the top of door down, removing the
door completely.
2. Remove the desired filter by pulling out used filter
and discard accordingly.
3. Slide new filter into cabinet with “airflow label
pointing in the direction of the airflow.
4. Replace access door.
Replacement filters can be obtained through your
installing contractor or local dealer.
2

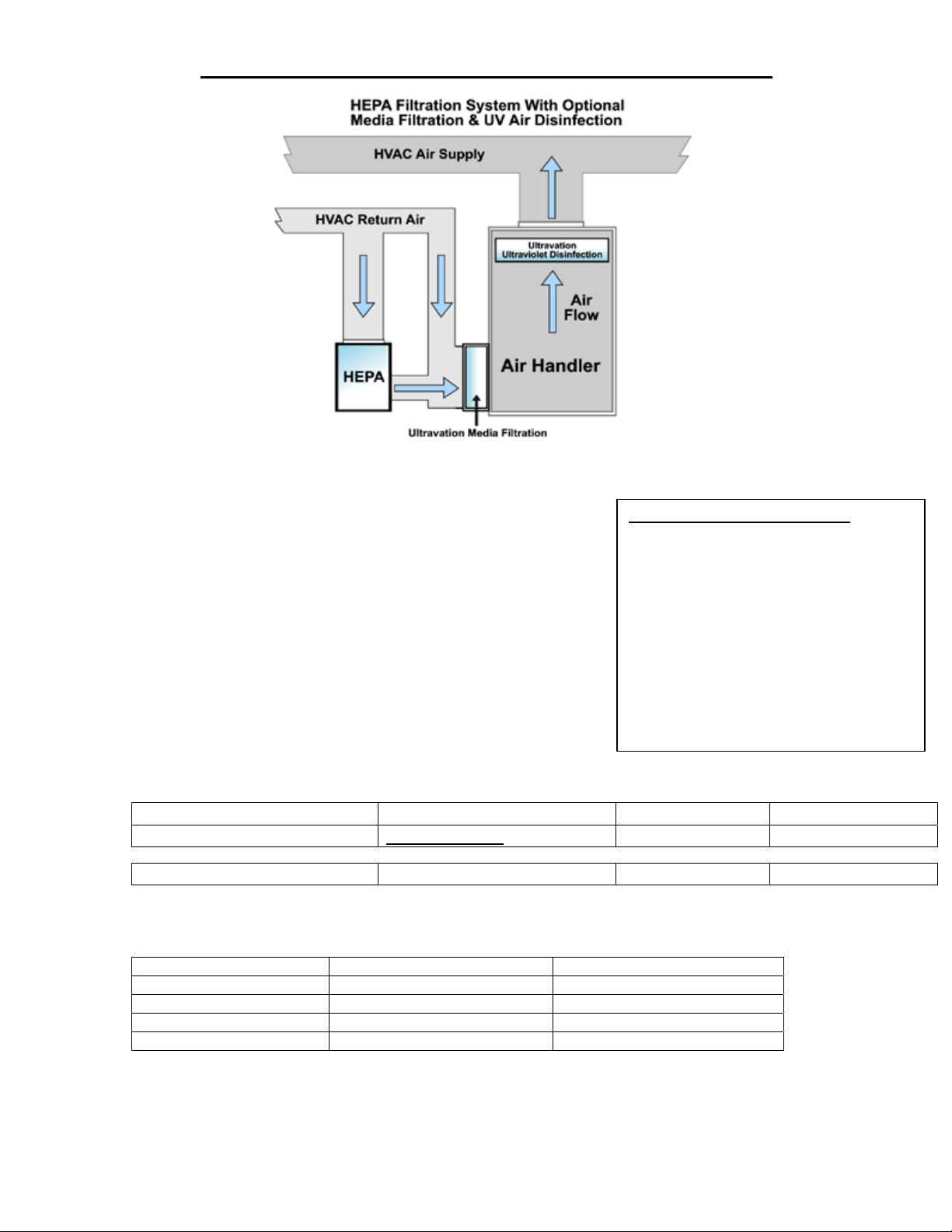

Typical installation of an Ultravation Whole House HEPA System
Photronic Upgrade Options:
Most of Ultravations media air cleaners are designed for the future
upgrades. Excluding a few of Ultravations media air cleaners all of
the units are upgradeable to high efficiency Photronic air
disinfection. The units come equipped with an auxiliary power input
and designed to fit the Ultra-Ion Re-fresh PCO module. Another
option to the upgrade is remote UVC lamps which can be located
within 12 ft. of the electrical Photronic housing. With these upgrades
your unit becomes a high efficiency multi stage air disinfection
system. The Photronic works in 3 stages to remove almost
everything in your air stream, starting with large particles (dust and
other airborne debris), then removing odors through the Ultra-Ion
Re-fresh PCO module, and finally removing microorganisms
(germs, mildew, mold) using Ultravations patented T3 UVC lamps.
Upgrade Options and Replacement Components
Photronic Electrical Housings
1. Photronic Electronics Upgrade
no Remote UVC (Large- 94-037)
2. Photronic Electronics Upgrade
with 12” Remote UVC (Large94-038)
3. Photronic Electronics Upgrade
with 17” Remote UVC (Large94-039)
Models Photronic Electronics Housing 1” MERV-11 Filters Re-fresh PCO Filter
93-002 / 93-004 Large 1,2,3 N/A 91-042
Replacement filters:
Model Replacement HEPA Filters Replacement MERV-11 Filters
93-002, 93-004 91-011 91-010
93-002, 93-004 91-050
*(See Serial Number Label inside of equipment door for unit replacement part numbers)
Optional Carbon Post-Filters
*See List Above
3
Warranty:
Ultravation warrants this product against any defects in material or workmanship for a period of
10 years after date of purchase, with the exception of the disposable media filter, the UV Lamps,
the battery, the ductwork and installation.
The UV lamps and the battery are warranted for a period of 1year.
This warranty does not include damage to the unit from accident, misuse or improper installation.
If this product should become defective during the warranty period, Ultravation will repair or elect
to replace the product free of charge. Ultravation will return repaired or replaced warranted
products pre-paid, provided that the product was delivered pre-paid.
Ultravation shall have no responsibilities for charges incurred by the customer for installation or
removal of warranted items. Liability is limited only to the replacement or repair of this product.
This warranty gives you specific legal rights, and you may also have other rights, which vary from
state to state.
All returns must be accompanied by a return authorization number, which may be obtained by
contacting Ultravation, Inc.
Ultravation, Inc. ~ P.O. Box 165 ~ 212 Ideal Way ~ Poultney, Vermont 05764
Phone: 802-287-9735 ~ Fax: 802-287-9203 ~ www.ultravation.com
4
