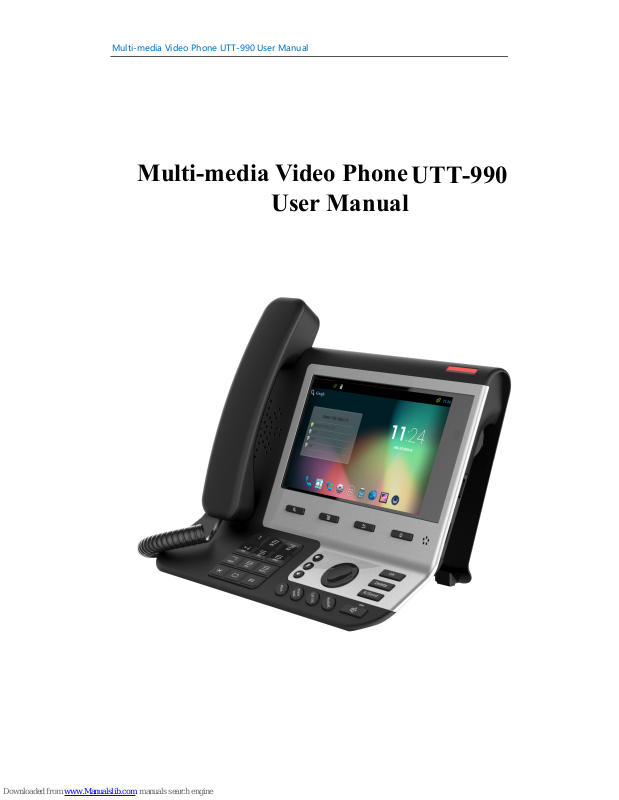

Multi-media Video Phone
UTT-990 User Manual
Multi-media Video Phone
User Manual
UTT-990
1
Safety Notices
Please read the following safety notices before installing or using this
phone. They are crucial for the safe and reliable operation of the device.
Please use the external power supply that is included in the package.
Other power supplies may cause damage to the phone, affect the behavior
or induce noise.
Before using the external power supply in the package, please check with
home power voltage. Inaccurate power voltage may cause fire and
damage.
Please do not damage the power cord. If power cord or plug is impaired,
do not use it, it may cause fire or electric shock.
The plug-socket combination must be accessible at all times because it
serves as the main disconnecting device.
Do not drop, knock or shake it. Rough handling can break internal circuit
boards.
Do not install the device in places where there is direct sunlight. Also do
not put the device on carpets or cushions. It may cause fire or breakdown.
Avoid exposure the phone to high temperature, below 0℃ or high
humidity. Avoid wetting the unit with any liquid.
Do not attempt to open it. Non-expert handling of the device could
damage it. Consult your authorized dealer for help, or else it may cause
fire, electric shock and breakdown.
Multi-media Video Phone UTT-990 User Manual
2
Do not use harsh chemicals, cleaning solvents, or strong detergents to
clean it. Wipe it with a soft cloth that has been slightly dampened in a mild
soap and water solution.
When lightning, do not touch power plug or phone line, it may cause an
electric shock.
Do not install this phone in an ill-ventilated place.
You are in a situation that could cause bodily injury. Before you work on
any equipment, be aware of the hazards involved with electrical circuitry
and be familiar with standard practices for preventing accidents.
Multi-media Video Phone UTT-990 User Manual
UTT-990
3
Contents
INTRODUCTION ............................................................................. 6
MULTI-MEDIA VIDEO PHONE OVERVIEW ............................................... 6
WITH ATTACHMENT ..................................................................................................... 6
PHONE COMPONENT DESCRIPTIONS ............................................................................. 7
INTERFACE INTRODUCTION .......................................................................................... 9
TOUCH SCREEN DESCRIPTION ................................................................................... 11
UPDATE OF THE PHONE .............................................................................................. 13
BASIC FUNCTION ......................................................................... 15
SCREEN KEYBOARD .................................................................................................. 15
STATUS BAR .............................................................................................................. 16
MAIN SCREEN ........................................................................................................... 18
FUNCTIONAL APPLICATIONS:...................................................................................... 20
DESKTOP WIDGETS .................................................................................................... 22
SETTINGS ..................................................................................... 27
SYSTEM INFO ............................................................................................................. 27
NETWORK .................................................................................................................. 28
Network................................................................................................................................. 28
PPPoE .................................................................................................................................... 29
QoS ........................................................................................................................................ 31
Port ........................................................................................................................................ 33
Stun ....................................................................................................................................... 34
ACCOUNT .................................................................................................................. 35
CALL ......................................................................................................................... 40
General .................................................................................................................................. 40
Dial plan ................................................................................................................................ 48
Account ................................................................................................................................. 49
DISPLAY .................................................................................................................... 52
Screen saver .......................................................................................................................... 52
Power indicator ..................................................................................................................... 54
TONE ......................................................................................................................... 54
Tone ....................................................................................................................................... 54
Volume .................................................................................................................................. 55
Tone profile ........................................................................................................................... 56
DATE TIME ................................................................................................................. 57
MAINTAIN.................................................................................................................. 58
Update ................................................................................................................................... 58
Multi-media Video Phone UTT-990 User Manual
UTT-990
..........
4
Service port ........................................................................................................................... 63
Password ............................................................................................................................... 64
CWMP set .............................................................................................................................. 64
Backup ................................................................................................................................... 66
Update ................................................................................................................................... 67
AUDIO ....................................................................................................................... 67
Audio ..................................................................................................................................... 67
Audio param .......................................................................................................................... 68
VIDEO ........................................................................................................................ 69
Video param .......................................................................................................................... 69
Bandwidth ............................................................................................................................. 70
REBOOT ..................................................................................................................... 71
PHONE APPLICATION ................................................................... 72
PHONE ....................................................................................................................... 72
CONTACTS ................................................................................................................. 79
CALL LOGS ................................................................................................................ 84
NETWORK PHONEBOOK ............................................................................................. 85
MWI ......................................................................................................................... 87
MULTI-LINE OPERATION ............................................................................................ 88
OTHER APPLICATION ................................................................... 89
EMAIL ....................................................................................................................... 89
CALCULATOR ............................................................................................................. 92
NOTE PAD .................................................................................................................. 94
BROWSER .................................................................................................................. 96
RECORDER ................................................................................................................. 97
CLOCK ....................................................................................................................... 98
GALLERY ................................................................................................................. 101
FILE MANAGER ....................................................................................................... 103
FUNCTION—KEY ..................................................................................................... 105
EXPORTMANAGER ................................................................................................... 109
CAMERA .................................................................................................................. 112
SMS ........................................................................................................................ 114
MUSIC ..................................................................................................................... 115
CALENDAR .............................................................................................................. 118
MOVIE STUDIO ........................................................................................................ 119
PPPOE ..................................................................................................................... 120
DOWNLOADS ........................................................................................................... 121
ANDROID SYSTEM SETTING ....................................................... 122
WIRELESS&NETWORKS .......................................................................................... 122
Multi-media Video Phone UTT-990 User Manual
5
Ethernet configuration ........................................................................................................ 122
EQUIPMENT ............................................................................................................. 123
Voice .................................................................................................................................... 124
Display ................................................................................................................................. 124
Store .................................................................................................................................... 124
Application .......................................................................................................................... 124
PERSONAL ............................................................................................................... 125
Security ............................................................................................................................... 125
Language and input method ............................................................................................... 126
Backup and reset ................................................................................................................. 126
WEB PAGE CONFIGURATION DESCRIPTION ................................ 126
BASIC ...................................................................................................................... 127
NETWORK ................................................................................................................ 128
VOIP ........................................................................................................................ 131
PHONE ..................................................................................................................... 136
MAINTENANCE ........................................................................................................ 138
SECURITY ................................................................................................................ 145
LOGOUT .................................................................................................................. 146
Multi-media Video Phone UTT-990 User Manual
D900
6
Introduction
Multi-media Video Phone UTT-990 Overview
With Attachment
Item Function
Power Adapter Power supply for telephone.
Network Cable Used to access network for the phone.
Handset Make phone calls with the phone’s basic functions.
Handset Line Connected with the Handset and the phone.
Multi-media Video Phone UTT-990 User Manual
7
Phone component descriptions
Phone elements icon
Key Function
Search key. Tap the key and you can enter the search
interface.
Option key. You can browse and accomplish all
functions of the phone through pressing this key.
Return key. Press this button in the detailed interface, it
will return to the previous interface; If it is pressed in the
application program interface, the current program will be
closed.
Home key. Press this key, the phone will return to the idle
screen.
Multi-media Video Phone UTT-990 User Manual
8
Volume control key. Turn down or turn up all kinds of
volume by pressing these two keys.
Mute key. In the call mode, press this key in calling mode,
you can hear the other side, and the other side cannot hear
you; press this button again to leave this mode.
When the phone call is ringing, press this button to turn
off the ring tips.
Confirm key.
Delete key.
R/Send key. Use the key to dial the last call number. It
also could be used to make a phone call by sending a
phone number.
Navigation key.
Menu key.
Phone book. Tap to enter the contacts interface.
Call log. Tap to see call logs.
Headset key.
Digital keyboard.
Multi-media Video Phone UTT-990 User Manual
9
The hands-free key.
Interface introduction
Interface illustration picture 1
Name Meaning
（Left first）
SD Card interface
Connect SD Card for
saving data.
（Left second）
DC Power Interface
Input: 220V AC
Output: 12V DC
LAN Network interface
Specification RJ45, connect it
computer.
Multi-media Video Phone UTT-990 User Manual
10
（Left third）
(Right second）
WAN Internet interface
Specification RJ45, connect it
to network.
（Right first）
Handset interface
Specification RJ9, used to
connect the Handset to the
phone.
Interface illustration picture 2
Name Meaning
(Left)
USB interface. Connect it to USB disk.
(Center)
Headset interface. Connect the Headset.
Multi-media Video Phone UTT-990 User Manual
11
(Right)
HDMI interface.
Interface for high-definition
audio and video. A-A interface,
A to A interface.
Note:
1. Put the handset line into the handset interface according to the interface
illustration picture 1.
2. Install the backplane to the bottom of the phone with any of the above two
methods.
3. Plug the power adapter into the DC port; poke the other side of the power
adapter into an electric socket.
4. Insert one end of RJ45 network cable into the phone’s WAN port (Please
refer to the interface illustration picture 1) and put the other end into the
network equipment. After that, if the network connection status on the status
bar is displayed as , actions such as making some telephone calls and
surfing the internet could be done. If the network connection status on the
status bar is displayed as , please verify whether the network was
configured correctly and the network cable was plugged in correctly.
Touch Screen Description
You can touch the screen manually to complete the corresponding operation.
Here are three ways to use:
Click: Any icon or button can be clicked to realize its function.
Multi-media Video Phone UTT-990 User Manual
12
Long press:
Long press the standby will pop-up choice wallpaper desktop option box,
you can according to the prompt to change the wallpaper.
Figure:
Slide:
Slide your finger on the screen upward or downward slowly to move the
interface on the screen.
On some kinds of screen such as idle desktop, you can switch the desktop just
Multi-media Video Phone UTT-990 User Manual
13
by moving your fingers on the screen to left or right. Dragging your finger to
slide will not select or activate anything on the screen.
You can just wait or gently press any place of the screen to stop the sliding
after your finger rapidly sliding on the screen. Gently pressing or touching to
stop the scrolling will not select or activate anything on the screen.
Update of the phone
Please contact with service provider to get the new version to upgrade.
Strongly recommended:
1）Before the upgrade the new version, please send personal data backup to
mobile devices, to prevent accidental loss.
2）Once the upgrade process, please do not power blackout, equipment may not
be able to start.
Auto provision: Keep phone registered successfully and configure parameters
about automatic updates such as server address, upgrade file name, time
interval and so on. And then the phone will check for updates from the server at
a fixed time intervals and upgrade itself. See the specific automatically upgrade
instructions, please switch to Update.
Manual upgrade---- USB:Will upgrade package in U disk and inserted the U
disk into the USB interface (the content of the need to be updated).Before the
phone restart, at the same time hold down the "handfree sets" and "headset
button", then insert the power supply and will enter the unit at this time to
Recovery mode, you can see under the Recovery operation menu, shown below：
Multi-media Video Phone UTT-990 User Manual
14
Through the hard on the keyboard "navigation button", "backspace", "enter", to
operate on the Recovery menu.
Select “apply update from udisk” or “apply update from external storage” (SD
card), enter the subdirectory and select the upgrade packages, click on “OK”
key to start upgrade .After the success of the upgrade, there will be prompt on
interface, the user can immediately return to the main menu select “reboot
system now ” to restart the system to start using the new version.
Notes: In some cases after upgrading, in order to avoid new and old version
data of incompatible problems, needs to remove user data and system cache
(the so-called double wiper) whether you need specific clear, please refer to the
Release Note.
Web Update：
Input the phone’s IP on the web;
Input the username and password to phone’s web;
Enter “MAINTENANCE”—“UPDATE”;
Click the button “Browser”to select the image on your PC and click the button
“Update”;
Waiting, the system will be update success.
Multi-media Video Phone UTT-990 User Manual
15
Basic Function
Screen Keyboard
If you need to input, click on the input box. A screen keyboard will
automatically be displayed. (Every input method has its own unique screen
keyboard).For instance:
Press the “return key” to close the screen keyboard after finishing the input.
Input Text:
1. Tap the text field.
2. Tap the screen keys on the keyboard.
Type in capital letters
Shift key , tapping shift key can switch
the uppercase and lowercase.
Delete character
Delete character, tab key to delete a
character, if you want to delete many characters,
tap this icon for a long time.
Type in digital,
Tap key to switch to digital,
Multi-media Video Phone UTT-990 User Manual
16
punctuation and
symbols
punctuation and symbols input interface.
Space
Space symbol.
Enter
Enter symbol, tap this key to switch to next line.
Status Bar
All of the status information about UTT-990 is displayed on the top of the screen.
You can click on the notification icon in the left of the status bar or drag down
the drop-down list with your fingers to enter the notification panel to further
review and deal with all of the information.
Note:The right icon of the status bar can’t be drag, just the left can.
Status bar Meaning
Handset mode
Indicates that the phone is in the handset
mode.
Headset mode
Indicates that the phone is in the headset
mode.
Silent mode
Shows that the phone is in silent mode.
This mode can be canceled by directly
clicking the mute button when the
screen is in the idle interface.
Hands-free mode
Indicates that the call is in hands-free
status.
Alarm clock
If you set an alarm clock, the alarm
clock icon will display on the status bar.
The left icon of the status bar
Network
status (successful)
Displays that the network connection is
successful. Tap the icon directly into
Multi-media Video Phone UTT-990 User Manual
17
the network settings.
Network status
(failed)
Shows that the network connected
failed. You need to check the network is
properly connected and the parameters
are configured correctly.
SD card
Displays that the phone successfully
identifies the USB device. Tap the icon
directly to switch into the USB
application wizard.
Missed calls
Shows that there are several missed
calls. You can click on the icon
directly to switch into the call log.
Open the DND
Shows that the phone is on “Do Not
Disturb” mode. Any of the call could
be directly rejected before it’s ring
interface appears. There is only a
missed call icon leaving in the status
bar.
Call forward
Shows that the call forward function is
opened.
Auto answer
Shows that the auto answer function is
opened.
Black list
If a phone number is
added to the firewall, then open
the firewall function, all calls about this
phone number could be rejected
directly.
New record
Indicates that there are several new
Multi-media Video Phone UTT-990 User Manual
18
unread phone recordings.
Main Screen
UTT-990 will go directly to the main screen after rebooting.
The main screen contains five idle interfaces. Each one can display some
programs shortcuts. You can switch the desktop just by moving your fingers on
the screen to left or right.
Default Screen:
The idle interface
The icon at the upper left of the idle interface is the phone status icon. It can
display some status including network connection status and the registration
status of each line in time.
Click the "Application" icon , and then it will jump to the following
interface.
You can slide your fingers on this interface to glance over all of the
applications. You can click on some program icons to open the corresponding
Multi-media Video Phone UTT-990 User Manual
19
application program.
The application program interface
If you want to delete application shortcuts on the idle interface, you can long
press the shortcut, and then put it into the dustbin at the bottom of the interface.
(Note: Let it go just as the icon and the dustbin turned red as is shown at the
following picture.)
Multi-media Video Phone UTT-990 User Manual
20
Functional applications:
Phone
Click this icon, and it will switch to pre-dial interface. You can
make some phone calls through the screen or keyboard.
Email
Has the function of sending and receiving e-mail. When an
account has been configured successfully, you can send and
receive your e-mail on the phone and this account will
automatically sync the contacts to the mailbox account.
Settings
It contains System, Network, Account, Call, Display and so on.
You can configure some settings.
Calculator
Work with simple calculation operations such as add, subtract,
multiply, divide and some advanced operations.
Note pad
Record a number of important events or you can record
information such as phone number when press the "Note pad"
during a call.
Contacts
Support functions such as search, add, remove and edit.
Browser
You can surf the internet through this browser as convenient as
a computer.
Recorder
Provide call recording and the ordinary recording.
Alarm
Clock
You can set your own time and the alarm will remind you at
your appointed time.
Multi-media Video Phone UTT-990 User Manual
21
Android
settings
It contains the Call settings, Basic settings,Advanced settings,
VOIP and so on, you can configure some settings in the
corresponding menu.(Android system settings)
Gallery
View photos stored on the phone, or through the USB storage
device storing photos or videos, you can enter the photo gallery
for dynamic playing.
File
Manager
You can easily manage the files.
Camera
Through the camera you can take High-definition pictures and
make other operations.
Message
Like the phone, with messages to write, read and send function.
Music
Music player. It can play music in various formats.
MWI
All calls will be transferred into voice mail when the MWI is
enabled.
Calendar
Enter into the calendar and you can view the accurate date.
Call log
Enter the call log and you can view all call records. You can
also view the "Incoming Calls", "Outgoing Calls" and "Missed
Calls" records by pressing the Option key.
Multi-media Video Phone UTT-990 User Manual
22
Import and
Export
Managemen
t
Have export contacts, add blacklists and outgoing call barring
functions.
Movie studio
Through pictures, videos, sounds to make your own DIY film.
Function
Keys
Customize a variety of shortcut keys.
Search
Can search for local applications, contacts, etc., and network
retrieval.
PPPOE
Connect pppoe.
Download
Can be displayed through the website to download the application
or file.
Desktop Widgets
Operation steps:
Long press the idle screen and the list named "Add to Home Screen" will
appear. Tap the "Widgets" and then choose the widgets you want to display on
the desktop. It is easy to quick operate which saves the time and look beautiful.
Power
It can control the power light to turn on or turn off. If the power
light is turned off, like the first picture. As this time whether
making calls or doing other operations, power light is often
Multi-media Video Phone UTT-990 User Manual
23
indicator：
destroyed.
If power light is turned on, like the second picture. As this time
when the telephone is called or it has missed calls, the power
light will twinkle；when the telephone is calling or in the idle
status, the power light have been always light；when the
telephone has one call, then another call is ringing, the power
light will twinkle.
Idle screen display:
E-mail
Displays the user's e-mail list, and click to send mail interface
（Provided that the registered accounts）
Desktop display：
SMS
Show all received text messages, and click to send SMS
interface
Desktop display：
Contact
Display the selected contact, by clicking on the realization of
the contacts call or send a text message
Desktop display：
Multi-media Video Phone UTT-990 User Manual
24
Call directly
With this component you can directly call the selected contac
Desktop display：
Send text
messages
directly
Direct access via the component selected contact SMS edit
page
Desktop display：
Setting
Shortcuts
Can generate a sound, display, application shortcuts, user
directly click Settings
Desktop display：
Bookmarks
To fast map display browser bookmarks, click on each to enter
the corresponding page
Desktop display：
Pointer
Clock
Analog clock with a dial in the form displayed on the desktop,
can be placed anywhere on the desktop,
Easy to check the time.
Desktop display：
Digital
Digital clock display with white lettering "Time, month, date,
day of the week."Desktop display：
Multi-media Video Phone UTT-990 User Manual
25
Clock
Search
The default is the Google search bar for quick search box, you
can enter any URL for browsing.
Desktop display：
Playlists
Click to play the selected music playlists inside
Desktop display：
Phone status
Phone status widget displays the phone network connection
status and registration status of each line.
Network connection status:
Displayed when the connection is successful network
connection mode and IP, the connection fails to display the
"Network not connected";
Line registration status:
Status
lights
Registered Contents Registration status
gray
Light
Not set Line is not registered
Red
light
Phone Number @ server
address
Line registration failed
Green
light
phone number @ Master
server address
Successful registration
on the master serve
Yellow Phone Number @ Backup Successfully registered
Multi-media Video Phone UTT-990 User Manual
26
light Server Address on the backup server
Desktop display：
You can photograph an arbitrary one of your favorite pictures
on the desktopDesktop display：
Music
You can use this widget fast playback of music stored in your
phone, ready to enjoy the joy of music.
Desktop display：
Calendar
View the date, add events and reminders.
Desktop display：
Multi-media Video Phone UTT-990 User Manual
27
Settings
System info
Tapping "Settings" can directly enter the default window "System info". It
displays the current system information state.
System info interface
Configuration item Meaning
PPPoE
Displays the connection status of the PPPoE, there
are three display states : Disabled、Connecting and
the IP address.
Connect mode
Displays the selected network mode, DHCP or
Static IP.
IP address
Displays the IP address of the current network
model.
Netmask
Displays the Subnet Mask of the current network
model.
Gateway
Displays the default gateway of the current network
model.
Multi-media Video Phone UTT-990 User Manual
28
Primary DNS
Displays the primary DNS server address of the
current network model.
Secondary DNS
Displays the standby DNS server address of the
current use of the network model.
MAC address
Displays the current MAC address.
Version
Displays the current version of the phone.
Phone model
Displays the current phone model.
Account
Displays the current configuration of the Accounts
and more detailed information will be displayed on
the desktop widget.
Network
Network
Tap "Network"----> "WAN mode" interface, the default interface is "DHCP":
click "Save" button to save successfully after the configuration of each
interface is finished. Then a tip box "save successfully" will be shown.
DHCP interface
Multi-media Video Phone UTT-990 User Manual
29
Static IP interface
Configuration Meaning
DHCP
You can select to use DHCP, which means whether
Use the DNS to connect network assigned by the
DHCP server.
Static IP
IP address: Input your assigned IP address.
Subnet mask: Input your assigned subnet mask.
IP gateway: Input your assigned gateway.
Primary DNS: Input your assigned DNS server
address.
Secondary DNS: Input your assigned Alert DNS
server address.
PPPoE
Tap "Network" ----> "PPPoE". After configuring the parameters, you can click
"Save" button to save.
Multi-media Video Phone UTT-990 User Manual
30
PPPoE interface
Configuration Meaning
PPPoE
User name: Input your assigned PPPoE Username.
Password: Input your assigned PPPoE Password.
Auto connect on power up: Whether to
automatically connect PPPoE on power up.
Auto reconnect: When connecting failed whether to
automatically connect PPPoE.
PPPoE connection: Whether to enable PPPoE.
After the parameter configuration completed, and
you do not select " PPPoE connection", it will only
saves the configuration parameters when you click
on the “save ” button ; but if you select " PPPoE
connection" and click "save" button, it can
immediately use the PPPoE mode to connect the
network, at the same time it will pop up PPPoE
connection box, clicking the "disconnected" will
pop up PPPoE configuration frame; if you click
"connect", it will reconnect PPPoE; if you click
"Cancel" button, it will only save the
Multi-media Video Phone UTT-990 User Manual
31
configuration parameters which have been set, not to
enable PPPoE connection.
QoS
Tap "Network"----> "QoS", after selecting or modifying the default settings
click the "Save" button to save.
QoS-DSCP Settings
DSCP is one standard of QoS. It can set the priority of Voice, Video and Signal.
Configuration item Meaning
QoS- DSCP
Enable DSCP: Enable/Disable DSCP.
Voice DSCP: Set the number of Voice DSCP.
Video DSCP: Set the number of Video DSCP.
Signal DSCP: Set the number of Signal DSCP.
Tap “Next” to enter the QoS-WAN VLAN page.
Multi-media Video Phone UTT-990 User Manual
32
QoS-WAN VLAN interface
VLAN is Virtual Local Area Network.
Enable VLAN, then you can set VLAN ID, the range of ID number is 0~4095;
you can also set the priority of 802.1p, the range is 0~7.
Note: You must enable DSCP if you want to set 802.1P priority.
Configuration item Meaning
QoS- WAN VLAN
Enable WAN port VLAN: Enable/Disable WAN
port VLAN.
WAN port VLAN ID: Set the number of VLAN
ID.
Audio 802.1P priority: Set the priority number of
Video802.1p priority.
Video 802.1P priority: Set the priority number of
Video 802.1p priority.
SIP 802.1P priority: Set the priority number of
SIP 802.1p priority.
Tap “Next”，enter QoS-Port VLAN interface
Multi-media Video Phone UTT-990 User Manual
33
Port VLAN interface
Port VLAN is based on port VLAN, in the same VLAN port to communicate
with each other.
Configuration item Meaning
QoS- Port VLAN
Port VLAN mode: Select the status of LAN Port
VLAN.
Disable: Disable Port VLAN.
Follow WAN: Follow the ID number of WAN.
Enable: Enable Port VLAN and you can set
the LAN Port VLAN ID different from WAN.
LAN port VLAN ID: Set the number of LAN Port
VLAN ID.
Port
Tap "Network" ----> "Port", after selecting or modifying the default settings
click "Save" button to save.
Multi-media Video Phone UTT-990 User Manual
34
Port Settings
Configuration item Meaning
Port
RTP port range start(10000-60000): Set the
telephone’s RTP start port. This port is distributed
to dynamic allocation.
RTP port quantity: Set the maximum number of
allocated RTP port. The default is 200.
Stun
Tap "Network" ----> "Stun", after selecting or modifying the default settings
click "Save" button to save.
Multi-media Video Phone UTT-990 User Manual
35
STUN interface
Configuration item Meaning
STUN
Server address: Configure the SIP STUN server
address.
Server port: Configure the SIP STUN server
port .The default is 3478.
Account
Tap "Account"---->"Account1", after setting the parameters you can click the
"More" button to switch to the next page to set; it has a total of five interfaces,
after all the parameters are set, you can click "Save" button to save. (You can
also save single page.)
(Note: The Account1, 2, 3, 4 has the same settings.)
Multi-media Video Phone UTT-990 User Manual
36
Account page 1
Configuration item Meaning
Account
Enable registration: Enable/Disable registration.
Disable register, Enable register.
Server address: Set your SIP server address.
It supports the address in the form of domain
name.
SIP user: Input the phone number assigned by
your VoIP service provider. Phone will not
register if there is no phone number configured.
Authentication user: Set your SIP account.
Authentication Password: Set your SIP
password.
Domain realm: Configure the SIP domain name
(You do not need to configure it because the
system will configure automatically).
Multi-media Video Phone UTT-990 User Manual
37
Account page 2
Display name: Configure the display name, it
allows the English alphabet input (does not
support Chinese).
Server name: Configure the SIP register server
name.
Server port: Configure the SIP register server
port.
Registration expire(s): Configure the server
registration expire(s), default is 60 seconds. If the
registration time of the server required is greater
or less than the time of the phone to configure,
telephone can automatically modify to the time
limit that server recommended, and register
again.
DTMF mode: Set DTMF mode, there are four
types:
In-band(Relay)
RFC2833
SIP_INFO
AUTO
Multi-media Video Phone UTT-990 User Manual
38
Different server vendors can provide different
models.
RFC protocol edition: Configure the protocol
version of the phone. When your phone needs to
communicate with gateway which uses SIP1.0,
such as CISCO5300, you need to configure to
RFC2543 to conduct normal communication.
RFC3261 is used by default.
Anonymous call edition: Configure whether to
use anonymous security call. It supports
RFC3323 and RFC3325.
Transport protocol: Configure the transport
protocol, TCP, UDP or TLS.
Ban anonymous call: Configure whether to ban
anonymous call.
Enable strict proxy: Compatible with special
server. (Using source address of opposite side
when return message, no longer use the address
in via field).
Subscribe for MWI: After successful
registration, you can subscribe to information,
such as someone else's status or voice mail and so
on.
Enable rport: Configure whether to support
RFC3581, rport mechanism is used in internal
network, and requires a SIP server to support, it
is used for keeping the NAT connect of the
internal network and the external network.
Enable PRACK: Configure whether to support
Multi-media Video Phone UTT-990 User Manual
39
SIP-PRACK function (used by "Color Ring Back
Tone") Recommend：Use the default
configuration.
Convert URI: When you send URI it will
convert # to %23.
Enable DNS SRV: Configure whether to enable
RFC2782 protocol edition.
Enable displayname quote: Set to make
quotation mark to display name as the phone
sends out signal, in order to be compatible with
server.
Use Stun: Enable/Disable SIP STUN.
Enable BLF List: Enable/Disable BLF List.
BLF List number: Input the number of BLF List.
Enable session timer: Enable/Disable session
timeout.
Session timeout(s): Set the time of session
timeout.
Backup server address: Configure a backup
server address. When the primary server is not
connected, you can use the backup server for
calling communications (The backup server can
be connected only when the primary server
cannot connect); When the primary server is
connected, the phone will automatically switch
back to the primary server to communicate.
Backup server port: Configure the backup server
port.
Multi-media Video Phone UTT-990 User Manual
40
Call
Tap "Call" enter the interface, after configuring the parameters of each
interface, you can click "Save" button to save.
General
Tap “Call” ——>”General” interface, after configuring the parameters, you can
click "Save" button to save.
General interface
Configuration item Meaning
General
Do not disturb：It will not allow any phone call while
enable the function, but there will have prompt in the
missed calls.
Enable call waiting：Whether enable call waiting.
Call waiting tone：If enable the function, there will have
call waiting tone if there has a call waiting.
Default calling mode：Set the default call mode of the
phone, there has two choices: Audio and Video.
Multi-media Video Phone UTT-990 User Manual
41
Default answering mode：Set the default answer mode
of the phone, there has two choices: Audio and Video.
Tap “Next”，enter the second page
The second page of General
The second page of
General
Enable password dial ： Whether enable the
password dial.
Password dial prefix：Set the prefix of the number.
Password length ： After setting the length
successfully, the number dialed out will hide the
appropriate length .For example, sets the prefix
number to 138,the password length is 5, and dial
the number 138142658941 ,then it will display as
138*****8941 on the dial interface.
Hide DTMF：It has four choices: Disable, All,
Delay and Last show.
Disable that is the content you input is clear text
and it can be seen.
All that is the content you input is hidden
immediately and displayed as “*”
Delay that is the content you input will display in
clear text first and then displayed as “*”
Last show that is the last one inputted will
displayed in clear text and the others will displayed
as “*”.
Multi-media Video Phone UTT-990 User Manual
42
Default answer mode ： You can choose
“Handsfree” or “Headset”.
Tap “Next”, enter the third page
The third page of General
The third page of
General
Hide local code：Enable /disenable the function, if
enable the function it will hide the local number.
Country code：Input the country number, such as
the number of China is 86.
Area code：input the region number，that is the area
number ,for example ,the number of Beijing is 10.
Call waiting response code：You can choose the
Call waiting response, 180 or 182.
Tap “Next ”，enter the fourth page
Multi-media Video Phone UTT-990 User Manual
43
the fourth page of General
the fourth page of
General
Accept video mode：You can choose “Manual
accept video”, “Auto accept video” or “Auto reject
video”.
Manual accept video ： If there has a video
invitation call you need to receive the video
manually.
Auto accept video：If there has a video invitation
call it will be received automatically.
Auto reject video: if there has a video invitation
call it will be rejected automatically.
Tap ”Next”, enter the fifth page
the fifth page of General
the fifth page of
General
Default externline：Choose the default line to dial
Multi-media Video Phone UTT-990 User Manual
44
out
Ban outgoing: if you enable the function, it will
play busy tone while off hook and prompt hang up .
Enable call transfer： You can do transfer if you
enable the function.
Semi-attended transfer: You can do
Semi-attended transfer if you enable the function.
Enable auto handdown：Enable this function, then
you can press the speakerphone key while in the
phone to hang up the phone automatically.
Auto handdown timeout：Setting the handdown
time, if in the speaker mode, the phone will
automatically to the standby when exceeded
the Auto handdown timeout ;if in the
handles mode the phone will play dial tone
when over the auto handdown time.
Note:the call forward manner
Blind transfer：In the phone, press the transfer
key, and input the number and press the “#”, then
you can transfer the number to other .The phone
you set up before will be end after transferred. You
cannot choose SIP line while do the call transfer.
Attended transfer ：When you in the phone,
you can press the transfer key ,and input the
number you want to transfer to, and tap “send”,
then press transfer key after the call heared , and
transferred successfully.（If you want to use this
function, you need to enable the call waiting and
call transfer）.
Semi-attended transfer：During the talk,
press Transfer firstly, and then press Send after
inputting the number that you want to transfer to.
You are waiting for connection, now, press
Transfer and the transfer will be done. (To use
this feature, you need enable call waiting and call
transfer first).
Multi-media Video Phone UTT-990 User Manual
45
Tap “Next”, entered the sixth page
the sixth page of General
the sixth page of
General
Enable conference：Enable the function you can
set up conference.
Enable silent ring：Enable the function, there will
no ring when there has call.
Enable call completion: Enable Call Completion
by selecting it, If the callee is busy, the sip server
will inspect the callee status at intervals. If the
callee is idle, the server will send notify message to
inform the caller whether redial.
Enable auto redial：Enable this function, calling
out someone, if he is in busy, it will pop up a
prompt box whether to auto redial, press OK, the
phone will call out him according the Interval and
Times that you set.
Auto redial interval：Specify the Auto Redial
interval.
Auto redial times：Specify the Auto Redial times.
Tap “Next”，enter the seventh page
Multi-media Video Phone UTT-990 User Manual
46
the seventh page of General
the seventh page of
General
Enable intercom ： Enable Intercom Mode by
selecting it. Then you can set up connection to the
operator or the secretary quickly, and it widely used
in office environments.
Enable intercom ： Enable Intercom Mode by
selecting it.
Enable intercom mute：Enable mute mode during
the intercom call.
Enable intercom tone：If the incoming call is
intercom call, the phone plays the intercom tone.
Enable intercom barge：Enable Intercom Barge by
selecting it, the phone auto answers the intercom
call during a call. If the current call is intercom call,
the phone will reject the second intercom call.
Tap “Next “, enter the eighth page
Multi-media Video Phone UTT-990 User Manual
47
the eighth page of General
the eighth page of
General
Ring from headset：Enable Ring From Handset
by selecting it, the phone plays ring tone from
handset
Press # for blind transfer：Input the number you
want to transfer to, then press“#” you can transfer
the current call to the number.
Blind transfer onhook：Input the number you
want to transfer to then hang up handle or press
speaker, you can transfer the current call to the
number.
Attend transfer onhook：Hang up after the third
party answers, the phone will be transferred.
Enable blacklist：Enable blacklist, it will
screened the number in the blacklist list.
Multi-media Video Phone UTT-990 User Manual
48
Enable call barring：Enable the function, you
cannot call the number in the limited list.
Dial plan
Tap "Call"----> "Dial plan" interface. After configuring the parameters, you
can click "Save" button to save.
Dial interface
Configuration item Meaning
Dial plan
Use E164: Enable/Disable E164. After it is
enabled, it will directly dial numbers according
with E164 rules.
Use # as dial key: Enable/Disable. After enabling
the function, input the number end with "#" in the
non-pre-dial mode, it will directly dial the phone
number.
Multi-media Video Phone UTT-990 User Manual
49
Dial with fixed length (1-30): Enable/Disable.
After enabling the function, inputting the number
of specified length in the non-pre-dial mode will
make the call directly.
Dial timeout (3-99): Enable/Disable. After
enabling the function, input the number in the
non-pre-dial mode, it will dial the phone number in
the specified time.
Dial plan prefix: Enable/Disable. After enabled
the function, it will be automatically added the
outside line prefix number before the outgoing
number when you are going to call.
Method to use the prefix: Example
If you set the prefix is 135856, and you want to
dial the number 13585679801. Then when you dial
the number, you can long press 0, when the
“+”appears, you can just input 79801and send the
number, the “+79801” is the numb you input, but
you can see the dialing number is 13585679801.
Account
Tap “Call” ——>”Account1\2\3\4” interface, after configuring the parameters,
you can click "Save" button to save.
Multi-media Video Phone UTT-990 User Manual
50
Account 1
Configuration item Meaning
Account1
Call forward：Whether enable the call forward (there
have four choices: Always, No answer, Busy or Off).
Forward number：Specify the number you want to
forward.
No Ans. Fwd wait time（0-120）：Specify the No
Answer Forward Delay Time，if the Forward Type is
No answer, incoming calls will be forwarded after the
no answer forward wait time
MWI number：Specify the MWI number for the SIP
line
Hotline number：You can set hotline number for every
sip, and then enter the dialer interface and after Warm
Line Time, the phone will call out the hotline number
automatically
Warm line wait time（0-99）：Specify the wait time, it
Multi-media Video Phone UTT-990 User Manual
51
will call the hot number over the time, if you in the
mode, off hook, speaker or headset. The default value
is 0.
Tap “Next”, enter the second page
the second page
Account 1
Enable auto answer：Setting whether enable auto
answer.
Auto answer timeout（0-120）：Specify Auto Answer
Time, the phone auto answers the incoming call after
Auto Answer Time.
Display PAI number：It is default display long
number, and support standard ISP number .If not
enable, the phone will display last few numbers
matched.
User is phone：Enable the User is phone, the phone
can make call directly, if not, you need to precede the
phone number with country code and Area code,
Depending on your environment.
Enable missed call log：Enable the missed call log, the
Multi-media Video Phone UTT-990 User Manual
52
phone will save the missed call log into the call history
record and display the missed calls on the idle screen,
or won’t save the missed call log into the call history
record and display the missed calls on the idle screen.
Dial without registered：Set call out by proxy without
registration.
Display
Configuring the phone screen displays a number of parameters, including
screensavers and power indicator
Tap "Display" ----> "Display" interface. After configuring the parameters,
you can click "Save" button to save successfully.
Screen saver
Tap "Display settings"----> "Screen saver" interface. After configuring the
parameters, you can click "Save" button to save successfully.
Multi-media Video Phone UTT-990 User Manual
53
Screen saver interface
Configuration item Meaning
Screen
Use screen saver: Select screen saver mode，There
are third types of screen saver mode("Disabled",
"LCD power off"and "Start screen saver") for you
to choose.
Timeout: Input the waiting time after enabling the
screen saver mode, the default unit is minute.
Screen saver app: Select the screen saver,There
are two types of screen saver ("Colours" and
"Clock") for you to choose.
Sleep after active: Enable hibernation after the
first enable screensavers
Timeout to sleep：Enter the phone screensavers
enabled to enter sleep latency
Active period: Set period of time to enable
screensavers
Multi-media Video Phone UTT-990 User Manual
54
Power indicator
Tap "Display settings"----> "Power indicator" interface. After configuring the
parameters, you can click "Save" button to save successfully.
Power indicator interface
Configuration item Meaning
Power indicator
Power Status：Whether to open the power indicator
light. If turned on, the power lamp
Tone
Configuration of the telephone voice parameters, including selecting a
ringtone, SMS notification tones, keypad tones, and other
Tap "Settings" ----> "Sound" interface. After configuring the parameters,
you can click "Save" button to save successfully.
Tone
Tap "Sound settings" ----> "Tone" interface. After configuring the parameters,
Multi-media Video Phone UTT-990 User Manual
55
you can click "Save" button to save successfully.
Tone interface
Configuration item Meaning
Tone
Phone ringtone: Set telephone ringtone of
incoming calls.
Notification ringtone: Set notification ringtone of
the telephone.
Audible touch tones: Enable/Disable. After
enabling the function, when you use a dialing
keyboard it can play sound.
Audible selection: Enable/Disable. After enabled
the function, when you select the screen it can play
sound.
Volume
Tap "Sound" ----> "Volume" interface. After configuring the parameters, you
can click "Save" button to save successfully.
Multi-media Video Phone UTT-990 User Manual
56
Volume interface
Configuration item Meaning
Volume
Ring volume: Adjust the volume size of ring
volume.
Alarm volume: Adjust the volume size of alarm.
Media volume: Adjust the volume size of media.
Enable silent mode: Set whether to enable Silent
mode. After enabling the function,
all sounds will not take effect expect media volume
and alarm clock.
Tone profile
Tap "Tone" ----> "Tone profile" interface. After configuring the parameters,
you can click "Save" button to save successfully.
Multi-media Video Phone UTT-990 User Manual
57
Tone profile Interface
Configuration item Meaning
Select your tone
Select the Tone of different countries.
Date time
Tap "Settings" ----> "Date time" interface. After configuring the parameters,
you can click "Save" button to save successfully.
Date time interface
Configuration item Meaning
Multi-media Video Phone UTT-990 User Manual
58
Date time settings
Use DHCP time: Enable/Disable NTP time. After
enabling, the phone will automatically
synchronize the network time in a certain period of
time .
NTP server: Configure SNTP server address of
the phone to get the current time.
Time zone: Select the current time zone.
Time format: Select the current time format. You
can choose "Use 12-hour format" or "Use 24-hour
format."
Date format: Select the current date format. There
are three types for you to choose ("Year - Month Day", "Day - Month - Year" or "Month - Day Year").
Manual set time: You can manually set the current
date and time.
Maintain
Tap "Settings" ----> "Maintain" Enter the interface.
Update
Tap "Settings" ----> "Maintain" ----> "Update" interface. After configuring the
parameters, you can click "Save" button to save successfully.
Endpoint supports PnP and DHCP and Phone Flash to obtain the parameters.
The PnP and DHCP and Phone Flash are all deployed, endpoint will go by the
following process to try to obtain the server address and other parameters,
when it boots up:
Multi-media Video Phone UTT-990 User Manual
59
DHCP option
Tap "Upgrade", enter the PNP interface:
Plug and Play interface
Support Common CFG file and MAC-Oriented CFG file and ID-Oriented
CFG file auto provision. The endpoints download Common CFG file firstly,
and then download MAC-Oriented CFG file or ID-Oriented file.
Configuration Meaning
Plug and play
Enable PNP: Enable/Disable PNP. Enable PnP by
selecting it, then the phone will send SIP
SUBSCRIBE messages to a multicast address
when it boots up. Any SIP server understanding
that message will reply with a SIP NOTIFY
message containing the Auto Provisioning Server
URL where the phones can request their
configuration.
PNP server: Input the PNP Server name. The
default is 224.0.1.75. It depends on your
environment.
Multi-media Video Phone UTT-990 User Manual
60
PNP port: Input the PNP port number.
PNP transport: Select the transport protocol,
“TCP” or “UDP”
PNP Iiterval (h): Input automatic update interval.
Unit is hour.
Update-DHCP custom
Support Common CFG file and MAC-Oriented CFG file and ID-Oriented
CFG file auto provision. The endpoints download Common CFG file firstly,
and then download MAC-Oriented CFG file or ID-Oriented file.
Configuration Meaning
DHCP custom
DHCP option setting: Select "DHCP Option
43","DHCP Option 66" or "DHCP Option
Custom".
Custom DHCP option: After select "Custom
DHCP option", you need to input the DHCP value.
A valid Custom DHCP Option is from 128 to 254.
The Custom DHCP Option must be in accordance
with the one defined in the DHCP server.
Multi-media Video Phone UTT-990 User Manual
61
Update-Phone flash
Support Common CFG file and MAC-Oriented CFG file or Custom CFG
file. If customer deploys Custom CFG file name in the web page, the endpoint
will download Custom CFG file. If customer doesn’t deploy Custom CFG file
name, the endpoint will download MAC-Oriented.
Configuration Meaning
Phone flash
Server address: Set FTP/TFTP/HTTP server IP
address for auto update. The address can be IP
address or Domain name with subdirectory.
Protocol type: Select Protocol, including
"FTP","TFTP","HTTP", and “HTTPS".
User name: Set FTP server Username. System
will use anonymous if username keep blank.
Password: Set FTP server Password.
Multi-media Video Phone UTT-990 User Manual
62
Update--Phone flash 2
Config file name: Input MAC-Oriented
configuration file or defined configuration name of
user.
Commen cfg encrypt key: Input the Common
Encrypt Key, if the Common Configuration file is
encrypted. The keys must be 64 characters and the
supported characters are: 0 ~ 9, A ~ F, a ~ f.
Config encrypt key: Input the Encrypt Key, if the
configuration file is encrypted.
Update mode: Different update modes:
1. Disable: means no update
2. Update after reboot: means update after reboot.
3. Update at time interval: means periodic update
Update interval time(h): If you select Time
Interval，you should fill out the update time, unit is
hour.
Multi-media Video Phone UTT-990 User Manual
63
Service port
Tap "Maintain"---->"Service port" interface. After configured the parameters,
you can click "Save" button to save successfully.
Service port interface
Configuration Meaning
Service port
Enable telnet: Open telnet function.
Telnet is a common method of remote control of
the Web server, end users can enter the command
telnet program, these commands will be run on the
server, just like directly on the server console, enter
the same. Can locally be able to control the server.
Web server type: Select "HTTP" or "HTTPS".
After selecting one server, you can use the selected
server to login the telephone’s web page.
Such as: https://192.168.1.20
HTTP port: Input server port, default is 80.
Multi-media Video Phone UTT-990 User Manual
64
Password
Tap "Maintain"---->" Password" interface. After configured the parameters,
you can click "Save" button to save successfully.
Password interface
Configuration Meaning
Password
Current Password: Default password: 123456.
New password: Input your new password.
Confirm password: Input your new password
again.
CWMP set
Tap "Maintain"---->" CWMP set" interface. After configured the parameters,
you can click "Save" button to save successfully.
Multi-media Video Phone UTT-990 User Manual
65
CWMP set Interface 1
CWMP set Interface 2
Configuration Meaning
CWMP set
Enter the password to access the network menu landing
configuration interface。
Enable TR069： Enable network mode，select China Telecom
or Normal。
ACS Server：Input the address of the ACS server provider。
Account：Input service provider assigns the account。
Multi-media Video Phone UTT-990 User Manual
66
Password：Input the account corresponding password。
Serial Number：Input the Serial number。
Auto connect：When enabled, you can fill out the account
and password。
Backup
Tap "Maintain"---->" Backup" , enter the backup interface。
Backup Interface
Configuration Meaning
Backup
ResetPhone：This will erase all data from your
phone’s internal storage。
Backup：The contact data, phone settings data
backup to a specified folder.
Recovery：Recovery has backup contacts, phone
settings configuration.
Multi-media Video Phone UTT-990 User Manual
67
Update
Tap "Maintain"---->" Update", enter the update interface.
Update Interface
Configuration Meaning
System update
For ACS certification, authentication is successful
you can check the system updates
Audio
Touch "Settings" ----> "Audio", enter the detailed view.
Audio
Touch "Audio"----> "Audio" interface. After configuring the parameters, you
can click "Save" button to save successfully.
Multi-media Video Phone UTT-990 User Manual
68
Audio interface
Configuration item Meaning
Audio
First codec: Set the first priority in the use of
voice coding.
Second codec: Set the second priority in the use of
voice coding.
Third codec: Set the third priority in the use of
voice coding.
Four codec: Set the four priority in the use of
voice coding.
Enable VAD: Whether to enable VAD. (Voice
Activity Detection); If you enabling VAD function,
then the G.729 payload length cannot be set greater
than 20ms.
Audio param
Touch "Audio"----> "Audio param" interface. After configuring the
parameters, you can click "Save" button to save successfully.
Multi-media Video Phone UTT-990 User Manual
69
Audio param interface
Configuration item Meaning
Audio param
G729 payload length: Set G729 codec payload
length.
DTMF payload type: Set DTMF payload type,
values between 96 and 127.
ILBC payload type: Set ILBC payload type,
values between 96 and 127.
ILBC payload length: Set ILBC payload length.
G723 bit rate: Set the rate of G723, you can
choose 5.3kb / s or 6.3kb / s.
Video
Touch "Settings" ----> "Video" and enter the settings interface.
Video param
Touch "Video"----> "Video param" interface. After configuring the parameters,
Multi-media Video Phone UTT-990 User Manual
70
you can click "Save" button to save successfully.
Video param interface
Configuration item Meaning
Video param
First video codec:Set the first priority in the use of
video coding.
Second video codec: Set the second priority in the
use of video coding.
H.264 payload type: Set payload type of H.264,
value between 96 and 127.
Bandwidth
Touch "Video"----> "Bandwidth" interface. After configuring the parameters,
you can click "Save" button to save successfully.
Multi-media Video Phone UTT-990 User Manual
71
Bandwidth interface
Configuration item Meaning
Bandwidth
Video bit rate: Set receiving video bandwidth in
video calls. You can choose 11 kinds of video
bandwidth types ("64Kbps", "192Kbps",
"256Kbps", "384Kbps", "512Kbps", "768Kbps",
"1Mbps", "1.6Mbps",
"2Mbps","3Mbps"or"4Mbps").
Video Resolution: Set video encoding resolution
in a video call. You can choose 4 types of video
resolution ("QCIF (176*144)", " CIF (352*288)"
"VGA(640*480)"or " 4CIF (704*576)").
Reboot
Tap "Maintain"----> "Reboot" interface. You can click "Reboot" button to
pop-up "reboot" dialog box, click "OK" to reboot the phone, click "Cancel"
will have no operation.
Multi-media Video Phone UTT-990 User Manual
72
Reboot interface
Phone Application
Phone
This terminal support VoIP to communicate with each other.
Dialing
Dialing on the dialer view
1. Directly dial a phone number.
1. Press the phone icon in the launcher；
2. Select the line to dialing (SIP1, SIP2, SIP3, SIP4)，You can press the
screen to select the line by hand and you can also navigate left and right
keys to select;
3. Enter telephone number on the keypad, if it is wrong, you can select
to delete. If you want to delete the entire input, please long press
；
Multi-media Video Phone UTT-990 User Manual
73
4. To make a call, perform the following steps：
Enter the full number, tap the "Audio" or "Video" button; In the
talking state, the icon will be shown.
2. Direct the other IP address.
1. Press the phone icon in the launcher；
2. Enter IP address on the keypad； if it is wrong, you can select
to delete. If you want to delete the entire input, please long press
；
3. Enter the IP address of the process, through the "*" key to replace "."。
4. To make a call, perform the following steps：
Enter the full IP address，tap the "Audio" or "Video" button; In the
talking state, the icon will be shown.
3. Making a call using the function keys(Function keys detailed settings）
1. Press the phone icon in the launcher；
Click the button to enter the function key function interface, click the
Settings button to store a good number of the party, the number will be
displayed in the input box;
2. To make a call, perform the following steps：
tap the "Audio" or "Video" button，Click on the button to set a good SIP
line（Detailed settings）； In the talking state, the icon will be shown.
Make a call using the function keys
1. Press the phone icon in the launcher ；
2. Click an empty Speed Dial button, click Edit to enter edit mode；
3. Type Select memory key，Fill in the options list（Please refer to the
Multi-media Video Phone UTT-990 User Manual
74
function keys storage keys）， Click the OK button；
4. Click on the function key interface directly edit the speed dial button
can just call set up good numbers.
Editing interface
Editted interface
Make a call using the call log
Press the "Phone" icon in the launcher. ；
Tap the contact you want to call and tap "OK" button or double-click to
the contact；
Tap the "Video" or "Audio" button to dial.
ou can also use the R/send key. In the dialer view or the standby, press the
Multi-media Video Phone UTT-990 User Manual
75
R/send key will dial the call log number in the last breath.
Make a call using the contacts
Touch the Contacts icon in the launcher, or enter the dialer view ,
tap the "Contacts" tab, select a contact you want to call, a context menu will be
shown, select the "Call contact" and select a line to dial.
Answer the ringing
1. When you receive a call from the contact occurs when talking views
displays the caller's local picture, name, phone number and location as shown
in Figure:
2. When you receive an incoming call that is not from a stored contact, the
call will appear on the screen of default contact picture, phone numbers and
the location (need to be opened in the Call settings), the name will be
displayed as Unknown.
Figure: caller interface (contact / non-contact)
(Note: This diagram shows the voice call interface)
Ringing view (Known contact)
Multi-media Video Phone UTT-990 User Manual
76
Ringing view (Unknown contact)
Call options
Video call
You can make a video call by the following way:
If the remote terminal supports video calls, you can tap the "Video" button
to enter the video call.
Video calling interface
Multi-media Video Phone UTT-990 User Manual
77
Video talking interface
Tap the video button to start a video invite in the audio talking,
waiting for the "Accept" of the others to enter the video call.
When you receive a remote video invite in the audio talking, tap the
"Accept" button to enter the video call.
In the video talking, press button to switch the different views of
video.
If you want to go back to the audio talking, tap the button .
Note:
If you want to enter the three-ways conference from video talking, the
video will be stopped first. The conference cannot support video call.
Call recording
You can press the button to record the talking, the view will be
shown, and the record button will turn .
Press the button to stop recording. The record file will be shown in the
"Talking record" content of the Record application, as the Figure:
Hold/resume the call
During the talking, tap the "Hold" button to hold the current call, then we
cannot hear each other. The state "Holding" will be shown in the current
contact card, you can tap the "Resume" button to resume the call.
Call mute
During the talking, you can tap the button to mute the call, then the
Multi-media Video Phone UTT-990 User Manual
78
remote cannot hear your voice, but you can hear the others’. The button will turn
in the mute state; tap again will recover the talking.
Attended transfer
You can complete the Attended transfer by the following ways:
1. Press the "Transfer" button, input the third number and dial, tap the
"Transfer" button again to complete attended transfer after remove answered.
2. If there are two or more talking calls, tap the "Transfer" button and select
the attended number to Complete attended transfer.
Blind transfer
Press the "Transfer" button, input the third number, and tap "Transfer" to
transfer the current call to the third one.
Three-ways conference
If there are two or more talking calls, tap the "Conference" button and select a
number to enter the three-ways conference with the current call.
The figure:
Figure：
hree-ways conference
Multi-line calls
This phone supports multi-line calls. When there are two or more calls, you can
tap "Transfer" or "Conference" button and select "New call" to make a new call,
and it can support up ten calls exists at the same time. The current talking will
be highlight shown. You can press the small contact card of the other call and
resume it.
call application
1. Dial: Click mini dials, digital input.
Multi-media Video Phone UTT-990 User Manual
79
2. Notepad: click Notepad application, you can call, write down important
information, the default title name to the current date, click OK to save
the memo, notepad application can view notes.
3. Call parameters: Parameters button click to call, the call will be
displayed in a number of parameters, including: speech coding, speech
codec rate, video encoding, video codec rate, video resolution. (Video
part only video call will be displayed).
Automatic message（MWI）
1. The phone supports voice messages, but you need your VoIP phone system
support. Voice mail is usually stored in the telephone system's media server,
users can connect your phone to the server.
You can view or listen to the following new voice message.
2. In the Phone "Settings" --- "Call" ---- "service (support 4 lines were set)"
--- "MWI" fill listen to voice mail number, when you want to listen to the
voice message , direct dial set to listen to number.
3. You can enter " application " --- "MWI" if a message, you can press on the
screen of the "little horn" has set a good dial directly listen to the
message number.
4. If a new message, when there will be appropriate in the notification bar to
remind.
5. Connected to a VoIP phone system, you need to enter a password. The
password is determined by your system
6. Connected to the voice mail later, you can view the system automatically
prompts a voice message.
Contacts
Telephone contact address book. A contact can store more than one number,
email and house information.
Search contacts
You can search the contacts on the VOIP by the contacts’ first letter (Chinese
names are searched by its first letter of the alphabets).
1. Tap the contacts button
2. Tap the "Search" button, or press , then tap the search button
, input the name of the contact you are searching for.
Multi-media Video Phone UTT-990 User Manual
80
As you type, contacts with matching names appear below the search box.
For example, the contact name is Kobe, and number is 123456, then input K
in the search box, you will see Kobe in the search box. When more than one
message matches your input, all will be displayed.
3. Contacts with matching names may appear below the search box when you
are typing in. For example, you have the contact with name " Kobe " and
number 123456. You will see " Kobe " below the search box after you have
inputted "F". It will display more than one message if more names match with
the letter "F".
4. Tap the correct contact in the list to open its detail.
New contact
1. Tap the contacts button.
2. Tap the “New” button or press Option and tap New contact button.
3. Add a picture for a contact. Tap into the picture selection interface to
select photos in your list of photos when editing contacts. It will automatically
return to the editing interface after you save it. If you want to change the
picture, tap the Contacts icon to select "use this photo", "delete the icon" or
"change the icon".
4. In the given and family name field, input the contact's given and family
name, and then add the contact's phone, e-mail and other information. Tap a
category’s plus button to add the other item options in every application. For
example, you can add both work and home numbers by pressing this button.
5. When you have finished it, tap Done button.
Figure:
Contacts interface 1
Multi-media Video Phone UTT-990 User Manual
81
Contacts interface 2
Delete a contact
1. Tap "Contacts" button.
2. Select the contact you want to delete, and then tap the "Picture Trash" to
delete or you can bulk delete, by tapping the right button of the contact you
want to delete
3. Press "Option " and tap "Options"；
4. Select the delete option；
5. Click OK to delete the contact；
Set a ringtone for a contact
1. Tap "Contacts" button.
2. Tap the name of a contact in the list；
3. Press "Option " and tap "Options";
4. Tap "Ringtones" and select the ringtone that you want in the pop-up box;
Tap "OK" button. When the contact calls you, it will play the ringtone just
set.
Add contacts to the firewall
See ExportManager。
Add a contact to your favorites
You can add contacts to your favorites, so that it will be convenient for you to
Multi-media Video Phone UTT-990 User Manual
82
contact them.
1.Tap "Contacts" button.
2.Tap the contact you want to add favorite, enter the contact details interface;
3.You can add the contact to your favorite just by tapping the star icon on
the right until it turns to . You can also long press one contact and tap "Add
to favorites" in the prompting box.
Set a default phone number for the contact
When a contact has more than one phone number, it will not be convenient for
you to call him/her, so you can set a default phone number to solve this
problem.
1. Tap "Contacts" button.
2. Tap the name of a contact in the list that you want to set a default phone
number for it.
3. The view will display many numbers of this contact. Long tap the number
you want to set as the default phone number and select "Make default
number" in the prompt box. Then the default phone number is marked with a
checkmark.
Later to make a call through the contacts, you can call directly the
default number just set.
Import/export contacts
The first method:Tap "Contacts", and then tap the "I/E port" button or press
Option key . Then select the "Import/Export" label, you can
choose to import or export at the option box "Import/Export contacts".
Tap "Contacts", and then tap the "I/E port" button or press Option key
. Then select the "Import/Export" label, you can choose to
import or export at the option box "Import/Export contacts".
1. Import: You can select the way to import (from SD card or USB) from the
option box "Import/Export contacts". Choose to importing one, multiple or all
vCard files in the following option box, and then select the file which you
want to import.
2. Export: You can select the way to export (to SD card or USB) from the
option box "Import/Export contacts" if there are some contacts in the
"Contacts". Press "OK" to export the file in the option box "Confirm export".
The file will be named by the current time and stored at root directory of USB
or SD card.
It supports three formats to import or export, vcf/csv/xml format.
The second method: See ExportManager。
Multi-media Video Phone UTT-990 User Manual
83
All calls to MWI
1. Tap "Contacts" button.
2. Click to set the contact name, enter the contact details interface;
3. Press "Option " and tap "Options"；
Set up a shortcut for a contact
1. Tap "Contacts" button.
2. Click to set the contact name, enter the contact details interface；
3. Press "Option " and tap "Options"；
4. Select "on the main screen."；
Later you can click directly on the main screen and then the contact's shortcut
icon, the contact call or send text messages.
Contacts Group
You can add contacts to a group specified, and then you can easily send a
message to all members of the group.
Click on "Contacts" application, slide your finger to the left or click on the contact
group icon ，into contact groups.
Note: You must register an account (Exchange account) in order to manipulate the
contact groups.
New Group
1. Press ；
In the dialog box, enter the group name, type the name of the contact group, or
click the Add button to enter the contact interface to add, tap "OK" button;
Edit Group
1. Click the contact you want to edit the group name into the detail interface
2. Press the "Options" button, click "Edit" option, you can modify the group
name or add the contact group
3. Modify finished, click the Done button top left corner.
Delete Group
1. Click the name of the group you want to delete into the detail interface
2. Press the "Options" button, click the "Delete" option, make sure pop-up
Multi-media Video Phone UTT-990 User Manual
84
box.
Call logs
The Call logs is a list of all the calls you’ve dialed, received, or missed. It
offers a convenient way for you to R/send a number, call back, or add a
number to your contacts.
Interface of all calls
To view missed calls
When you have some missed calls, the status bar will show us the missed
call icon ，open notification panel and touch "Missed call" to view all
of the missed call；
The missed call would be marked with icon .
View dialed Phone
Tap the "Call History" Direct View dialed calls, dialed calls will be displayed.
View received calls
ap the "Call History" Direct View dialed calls, dialed calls will be displayed.
Multi-media Video Phone UTT-990 User Manual
85
Working with the Call log
Delete the Call log
1. Remove one: Touch the record then touch "Remove from call log" in the
box that opens. You can remove it which you selected from call log.
2. Clear by type: The main interface in the call log,press , Select
"Clear call log."
Dial a number in the Call log：
Touch the icon or at the right of the record, then can call the
number.
Touch the record to open a menu with options for communicating with that
contact in other way.
Touch the record to open a menu with options then touch
"Edit" number before call, it will open the dial-up interface. You can call the
number which you edit and select from call log.
Add a record’s number to your Contacts
Touch the record. Touch "Add to contacts" in the menu that opens, in the
list of contacts that opens, touch "Create new contact" at the top, or scroll
to find an existing contact which you want to add the number to.
Send SMS
Tap into the details of a call record interface, tap the icon to enter the SMS
interface, you can directly enter the message content to send text messages.
Network Phonebook
Multi-media Video Phone UTT-990 terminal can download contacts the
from the Internet where the information stored by the users . If you use
Network Phonebook, you can follow these steps：
1. Configure parameters related to the network phonebook in settings
Tap "Contacts"----> "network phonebook" .
Basic Setting
Multi-media Video Phone UTT-990 User Manual
86
Configuration Meaning
Account
The name of your network phonebook. It will display
on the screen.
Protocol Type
Support HTTP/FTP/TFTP/LDAP server.
The time required to complete configuration of the
FTP server username and password.
LDAP configuration can choose to remain
anonymous, do not need to enter a password. You can
also select the authentication mechanism to support
the Simple Authentication and DIGEST-MD5
encryption and authentication.
Server
The address of your HTTP/FTP/TFTP/LDAP server.
File Name
Configure the network phone book names, such as
network contacts, do not need to fill out the extension.
Xml. On the file name and server need to be
consistent, otherwise download failed.
User Name
When your server need authentication, you need to fill
it. It's server's username.
Password
When your server need authentication, you need to fill
it. It's server's password.
Note: When you use LDAP to download the network phonebook, it will
appear the follow steps.
Profile
Host
LDAP server's host.
Port
LDAP server's port.
Base DN
You can just click "Fetch base DNs" to get the "Base
DN".
Use secure
connection(SSL)
Enable it can make the operational process more
safely.
Credentials
Anonymous
Enable/Disable anonymous.
Mechanisms
Simple and DIGEST-MD5 .
Principal
Input the authentication name of LDAP server.
Password
Input the authentication password of LDAP server..
2. use the network Phonebook
Phone into the network interface, clickc , click the name of
Multi-media Video Phone UTT-990 User Manual
87
the configured network phone. Terminal server will be configured to download
a specified file to the / external directory (in the FileManager can be found),
and display relevant information (group name, contact name, number). At this
point the user can view the network phone book contact information and
associated operations
Click the contacts can make a call
Press the selected contact, can be related to operations, including voice
calls, call former editor, send messages, increased to blacklist.
MWI
Easily view voice messages, quickly listen in voice messages.
Touch the MWI icon on the home screen or in the Launcher, you can
view voice messages information.
Set the number to listen in voice messages
Touch "Settings" ----> "Call settings" ----> "Voicemail", open voice mail
settings screen, then touch "Number to dial for checking voicemail", enter the
number to listen in voice messages.
View and Listen in voice messages
On the MWI screen, you can view count of unread voice messages and count
of read messages when there were voice messages, and touch listen icon
corresponding line to listen in voice message. If you do not set the
number to listen in voice messages, touch will open a dialog to open
voice mail settings screen or enter numbers in the dial pad to dial.
Attachment:
When there is a new voice message, you can touch new voice message
notification on status bar to open MWI screen.
Multi-media Video Phone UTT-990 User Manual
88
Voice Mail Interface
Multi-line operation
Multi-line is to satisfy the multi-way call queuing of some enterprise, that is a
SIP line can accommodate multiple calls, the user can have the option of a call
to operate. A SIP line on this phone most can accommodate ten way SIP calls,
and if there is a call in the call status, other calls will be put on hold.
When in called, you can click on the soft key "New Call" in call interface to
make a new call. If the existing call is no more than ten, when there is a new
call, you can answer the new call by off-hook, press the "Speaker" key, tap the
"Audio" or "Video" key to answer new calls. You can achieve to switch
multiple calls by clicking the small card in call interface to cooperate with four
keys below.
Multi-line operate also can be achieved by one SIP line mapping for
multiple lines.
Multi-media Video Phone UTT-990 User Manual
89
Other Application
Email
Press the E-mail, the phone will skip to the email interface. If you use it for the
first time, you need to configure a valid user name and password to it.
.As shown in the following image:
Click next; you will enter the interface of account type interface. You can
choose the type among the following three options: POP3, IMAP and
Exchange. The following is the introduction to the configuration of Exchange:
Gmail account
In the Contact interface， you can press Option and select "account" ---->
"add account" (You can also directly tap "Email" application to enter the
interface );
Multi-media Video Phone UTT-990 User Manual
90
Input your user name and password, and then click on the "Next";
Domain\Username: gmail.com\username (**@gmail.com);
Password: Input your password;
Exchange server: m.google.com.
QQ account
Log on QQ mailbox in web page, you can click "Settings" ----> "experience
room" "Exchange mobile terminal synchronization service" ----> "I want to
open";
In the Contact interface you can press and select "account" ---->
"add account" (or you can directly tap "Email" application to enter);
Input your QQ user name and password, and then click on the "Next";
Domain\Username : gmail.com\username（**@gmail.com）;
Password: Input your password;
Exchange server: ex.qq.com.
Click "Next" to the Exchange server Settings.
Multi-media Video Phone UTT-990 User Manual
91
After the completion of the configuration, you can click "Next" to the interface
of account options;
In the interface you can choose "Email checking frequency". It contains
"Automatic (Push)", "Never", "Every 5 minutes", " Every 10 minutes"," Every
15 minutes"," Every 30 minutes" and " Per hour" and so on. You can also
choose "Amount to synchronize". It contains "One day", "Three days", "One
week", "Two weeks" or "One month". And you can decide whether to enable
"Send email from this account by default", "Notify me when email arrives" or
"Sync contact from this account".
Click "next" to enter the interface of account names setting, you can set "Give
this account a name (optional)" and "Your name (display on outgoing
message)".
Click "Done", then you can go directly to the inbox interface to view mails.
In the Inbox interface, you can press , and then choose "Refresh",
"Compose", "Folders", "Accounts" or "Account settings".
The "Folders" contains "Inbox", "Drafts", "Outbox", and "sent", "Trash" and so
on.
Click on the "Accounts," you can go into the current account interface, and
then press the Option key, you will see "add account" screen. You can add a
new account there.
Multi-media Video Phone UTT-990 User Manual
92
Long press an email, it will pop up a tip box in which you can choose "Open",
"Delete", "Forward", "Reply all" or "Reply" for operation;
"Account settings" which has been mentioned groups all the Settings together.
We will not repeat it here.
Calculator
The use of the calculator
You can touch the numbers and functions of the "calculator", just like the use
of a standard calculator. If you touch the buttons of addition, subtraction,
multiplication, and division, the display window will show you the
corresponding operation symbols. So you can know the operations to perform.
The Basic panel
Touch "Calculator" to enter the basic panel.
The basic panel includes the most basic functions of the electronic calculators,
which are very simple and practical, such as addition, subtraction,
multiplication, and division.
The Advanced panel
Multi-media Video Phone UTT-990 User Manual
93
Figure:
In the basic panel, you can enter the "advanced panel" either by selecting the
"advanced panel" after touching the "Option " button, or sliding your single
finger from right to left; In the advanced panel, you can return to the "basic
panel" either by selecting the "basic panel" after touching the "Option " button,
or sliding your single finger from left to right.
sin, cos, tan
To calculate a numerical value of trigonometric function(sin,
cos, tan)
π
To input the value of π.
!
To calculate the factorial of a numeric.
ln To calculate the natural logarithm of a numeric.
log To calculate the logarithm of a numeric.
e To input the value of e.
^
To calculate the n exponent of a numeric.
√
To calculate the square root of a numeric.
View history
After opening the calculator, you can check the historical data that have been
operated by touching the up and down navigation keys.
Clear history
Multi-media Video Phone UTT-990 User Manual
94
After opening the calculator, you can press the "Option” button
and then select "clear history" to clear all of the historical data saved before.
Edit text
When entering text, you can select one input method after long pressing the
input box. If there is text in the input box already, you can choose the following
operations in the pop-up window: "Select all", "Select text", "Cut all", "and
Copy all", "Input method".
Exit calculator
By pressing the "return" key, you can exit and close calculator application.
Note pad
You can write down a memo for checking at any time.
Add a memo record
You can either touch "Add note", or select the "Add note" after touching the
"Option” button to enter the interface of "edit notepad". You
can enter the information that you want to record. The memo will be saved if
you touch the return key. If you select "Discard", the memo will not be saved.
Then you will exit from the edit interface. As shown in the following figure:
Besides, you can touch the icon of the notepad to enter the interface of editing
where you can add a memo needed.
Multi-media Video Phone UTT-990 User Manual
95
View a memo
You can check a memo by touching it after opening the notepad.
Edit a memo
Touch "Note pad", select the memo needed to be modified, touch the "Option”
button and choose "edit text" to enter the notepad editing screen,
after modification completion, press the return key to be saved, or press the
"Option " button to choose "Discard" don't save exit editing screen.
Edit the title of a memo
Firstly, you need to touch "Note pad "and choose the title needed to be
modified. Secondly, you should press “option” button and
choose "Edit the title" in the in the pop-up dialog box. Lastly, you should click
"Yes" to save the new title and exit from the "Edit the title" window.
Besides, you can touch the “option” button in the text editing screen at first,
and select "Edit title". Then do the above operations.
Delete a memo
You need to touch "Note pad "and choose the memo that you want to
delete .Then you can delete it if you touch the "Option " button and select
"Delete".
Besides, you can delete a memo by choosing "delete" in the pop-up window
Multi-media Video Phone UTT-990 User Manual
96
after long-pressing on the memo.
Closed notepad
By touching the return key, you can exit the notepad.
Browser
You can surf and browse web with the terminal just like using a computer.
The default home page is Google search home page; you can change it by
setting.
Open web
For the first time, please touch "Browser" and go into the page, the default
home page is Google search home page. If you have changed it, it will jump
into the home page which is set. The pre-installed browser of android operation
system does not have the feature of auto-exit. When you go into the browser
once again, it may be the last interface before you tap the return key.
Input the website
You can directly input the website you want to scan at the address bar, and then
tap "Go" or to search in the input box.
Multi-media Video Phone UTT-990 User Manual
97
If the contents of the webpage are too many, you can quickly click the screen
twice, and then it will zoom in or zoom out.
When you press the button on the phone, it will show you all
functions of the browser.
If you click "More", it will show you other functions.
If you click "setting", you can set the browser more detailed.
Recorder
You can record at any time and at any place.
Tap "Recorder" to open the recorder application.
The recording documents mainly include "Local Record" and "Talking
Record".
You can tap "Recorder" application to make local record or you can make
talking record when you have a call.
Add record
You can enter the interface of recording, if you touch "Add a recording" in the
recorder window. Then, you can tap the "Record" button to start recording. If it
Multi-media Video Phone UTT-990 User Manual
98
is finished, you can tap the "Stop" button to stop. The user can choose "Yes" to
save it or choose "Cancel" to discard it in the pop-up dialog box. As shown in
the following figure:
Play the records
Firstly, you should use the navigation key up and down button to select a sound
recording. And then, you need to touch "Play" button to go into the playing
interface. At last, you should touch "Play" to start. Besides you can touch
"Pause" to stop playing temporarily .In this way, you can realize the switch
between playing and pausing.
You can also directly tap a recording document in your single finger to go into
the playing interface and to play the document.
Delete the records
Firstly, you should use the up and down navigation button to select a recording
documents, and then you just need to touch the "Delete" button to delete the
selected documents.
Backup the records
When you plug in an external device, you can see the tape "backup" option on
the screen. Please touch "backup" and select the recording document needed to
be backed, and then touch "OK" to start. You can also touch "Cancel" button to
cancel the backup.
Close the Recorder
You can exit and turn off the recorder either by touching the return key or click
"Quit".
Clock
This app includes world time, timer, stopwatch, alarm clock and so on.
Multi-media Video Phone UTT-990 User Manual
99
World Time: Click the "clock" application, you can choose to display different time
of some countries when you click the icon of address.
World time interface
Timer: You should first click the "Clock" application, and then press the first icon in
the upper right corner to enter the timer interface, finally, enter a time and
some countries when you click the icon of address.
Timer interface
Multi-media Video Phone UTT-990 User Manual
Loading...
