Ultratec Miniprint 225 User Manual

POWER

SIGNAL



Shift

SK GA

Esc

Ctrl

Shift

Back
Space

Return

!

1

Q W E R T Y U I O P

A S D F G H J K L

Z X C V B N M

@

2

#

3

$

4

+
=

"
'

)

0

(

9

%

5

-

6

&

7

8

PRINT OPTIONS

305–003003

USING YOUR

MINIPRINT

225

™

Ultratec, Inc.
450 Science Drive, Madison, WI 53711
608 238-5400 (voice/TTY)
Fax: [phone]
Email: [e-mail]

Fourth edition
March 1999

First printing

© 1997, 1999 Ultratec, Inc.

and Turbo Code are registered trademarks of Ultratec, Inc.

Miniprint 225 and Auto ID are trademarks of Ultratec, Inc.

Acknowledgement

In 1963, Dr. Robert H. Weitbrecht, an
American physicist who was deaf, developed
an acoustic coupler that could send and
receive teletypewriter signals over the
telephone lines. His invention, the
Weitbrecht Modem, enabled people who
are deaf to use the telephone for the first
time.

While modern technology now
makes it possible to build advanced micro­computer devices like your
new Ultratec text telephone, the
Weitbrecht modem remains the major
technological breakthrough that began
telecommunications for the deaf. Ultratec
wishes to acknowledge the importance of Dr. Weitbrecht’s contribution
to the welfare of people who are deaf the world over.

Dr.Robert H.
Weitbrecht, 1920–1983,
inventor of the first TTY
modem.

CONTENTS • 1

CONTENTS

Important safety instructions p. 3
Introduction p. 5

Overview of the Miniprint 225 6

CHAPTER 1 Set-up p. 7

Charging the batteries 8
About Auto ID

™

8

About the printer 9

CHAPTER 2 Calling p. 11

Making a call 12
Answering a call 13
About Turbo Code

®

14

Using interrupt 15

CHAPTER 3 Options p. 16

Setting the print case 16
Setting the print size 16
Setting the Baudot code baud rate 17
Turning off Turbo Code

®

18

Turning off Auto ID

™

18

Turning off interrupt 18

CHAPTER 4 Care & Repair p. 19

Replacing the printer paper 20
About the batteries 21

2 • CONTENTS

Replacing the batteries 22
Troubleshooting 23
Repair 25

Sticky keys p. 26
Specifications p. 27
Other TTYs available from Ultratec p. 28
FCC information p. 30
Index p. 32
Conversation etiquette Back cover

SAFETY INSTRUCTIONS • 3

Important safety instructions

When using your Miniprint 225, basic safety precautions
should always be followed to reduce the risk of fire, electric
shock, and injury to persons.

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not

use liquid or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this product near water, for example, near a bath

tub, wash bowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool.

5. Do not place this product on an unstable cart, stand, or table.

The product may fall, causing serious damage to the product.

6. Operate this product only from the type of power source

indicated on the marking label. If you are not sure of the
type of power supply to your home, consult your dealer or
local power company.

7. Do not allow anything to rest on the power cord. Do not

locate this product where the cord will be abused by persons
walking on it.

8. Do not overload wall outlets and extension cords. This over-

loading can result in a fire or electric shock.

9. To reduce the risk of electric shock, do not disassemble this

product, but take it to a qualified service person when service
or repair work is required. Opening or removing covers may
expose you to dangerous voltages or other risks. Incorrect
re-assembly can cause electric shock when the appliance is
subsequently used.

10. Avoid using a telephone (other than a cordless type) during

an electrical storm. There is a remote risk of electric shock
from lightning.

4 • SAFETY INSTRUCTIONS

11. Unplug this product from the wall outlet and refer servicing

to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged or frayed.
b. If liquid has been spilled into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the

operating instructions. Adjust only those controls that are
covered by the operating instructions because improper
adjustment of other controls may result in damage and
will often require extensive work by a qualified technician
to restore the product to normal operation.

e. If the product has been dropped and/or damaged.
f. If the product exhibits a distinct change in performance.

12. Do not use the telephone to report a gas leak in the vicinity

of the leak.

Battery safety

Caution: To reduce the risk of fire or injury to persons, read

and follow these instructions:

1. Use only the type and size battery specified in the battery

instructions for your unit.

2. Do not dispose of the batteries in a fire. Cells may explode.

Check local codes for possible special disposal instructions.

3. Do not open or mutilate the batteries. Released electrolyte is

corrosive and may cause damage to the eyes or skin. It may
be toxic if swallowed.

4. Exercise care in handling batteries in order not to short them

with conducting materials such as rings, bracelets, and keys.
The battery or conductor may overheat and cause burns.

Save these instructions

INTRODUCTION • 5

INTRODUCTION

Welcome to the Miniprint 225™TTY from Ultratec. You can use
the Miniprint 225 with any standard telephone and handset.

Turbo Code

®

communication protocol transmits signals to other
Turbo-equipped TTYs as fast as you can type. Turbo Code also
lets you interrupt the other person’s typing.

Auto ID

™

alert system tells the answering party that you are

calling by TTY.

You can change the print size from 24 characters per line (normal)
to 19 characters (bold) or 14 characters (wide) per line.

The rechargeable batteries allow you to use your Miniprint 225
when you are traveling or during a power failure.

The signal light on the left side of the display tells you what is
happening on the telephone line.

The power light, below the signal light, glows steadily red when
you have power.

Please note that in this manual TTY, TDD, and text telephone
all refer to the same device.

6 • INTRODUCTION

Special keys

Escape key

quits whatever you are doing and saves changes.

Control key

gives instructions to the Miniprint 225 when

you hold it down and press a function key.
Function keys give commands to the Miniprint 225 when you

hold down the key.

Ctrl

Ctrl

Esc

PRESS

HERE

PRESS

HERE

back view

top view

POWER

SIGNAL



Shift

SK GA

Esc

Ctrl

Shift

Back
Space

Return

!

1

Q W E R T Y U I O P

A S D F G H J K L

Z X C V B N M

@



2

#



3

$



4

+
=

"
'

)



0

(



9

%



5

-



6

&



7


8

PRINT OPTIONS

Overview of the Miniprint 225

™

Acoustic cups

Printer

On/Off switch

Display

Signal light

Power light

Printer on/off

Options key

Sensitivity key

AC adapter
jack

Battery compartment

SET–UP • 7

11

SET-UP

All you need to do to set up the Miniprint 225 is plug it in! You
must plug in the AC adapter for 24 hours to charge the
batteries. After the batteries are charged, you can leave the AC
adapter plugged in all the time unless you need to use the
batteries during a power outage or while traveling.

Be sure to pull the plastic tab out of the battery compartment on
the bottom of the Miniprint 225 before you plug in the AC adapter.

CHAPTER

POWER

SIGNAL



Ctrl

A S D F G H J K L

"
'

Shift

SK GA

PRINT OPTIONS

Esc

Shift

Back
Space

Return

!

1

Q W E R T Y U I O P

Z X C V B N M

@



2

#



3

$



4

+
=

)



0

(



9

%



5

-



6

&



7


8

Place the
Miniprint
225 next to a
telephone.

Plug the AC
adapter into
a wall outlet.

Plug the AC
adapter cord
into the
Miniprint 225.

Step 1

Step 2

Step 3

8 • SET–UP

Charging the batteries

The AC adapter supplies electricity to the Miniprint 225 and
charges the built-in batteries. Leaving the AC adapter plugged
in will not harm the Miniprint 225 or the batteries.

The first time you set up your Miniprint 225, leave the AC
adapter plugged in for 24 hours to charge the batteries. You can
use the Miniprint 225 at the same time. Fully-charged batteries
will provide 45 to 60 minutes of normal use. For more
information on using battery power, see About the batteries on
page 21.

About Auto ID

™

The Auto ID™feature alerts a hearing person that you are calling
from a TTY. It alerts the person by sending several audible tones
over the telephone line every few seconds. Auto ID helps
emergency service centers such as 911 automatically detect that
you are calling by TTY.

Auto ID comes on when you turn on your Miniprint 225 and
continues until you start a conversation. If you are on-line, you
will see SENDING AUTO ID every time the Miniprint 225
sends out tones. Auto ID will also begin sending tones
whenever no one types for a few minutes during a conversation.
It will continue until someone starts typing.

You can turn off Auto ID in the Options section. See Turning off
Auto ID on page 18.

Note that when you turn off Auto ID, it stays off and will not
send tones until you turn it on again. This means that an
emergency service center such as 911 cannot use Auto ID tones
to detect your TTY call.

SET–UP • 9

10 • SET–UP

About the printer

The printer is on when you turn on your Miniprint 225 for the
first time. Press the print key ( + ) to turn the printer off.
The display says PRINTER OFF. Press the print key again to
turn the printer back on. You can turn the printer on or off at
any time, including during a call.

The printer starts a new line after 24 characters are typed. If a
word is too long to fit at the end of a line, the printer divides it
with a dash. You can also start a new line yourself by pressing
the key. Often a few characters will not be printed at the
end of a conversation unless you press the key before you
turn off the machine.

Setting the print case

The Miniprint 225 prints everything you type in lowercase
(small) letters and everything the other person types in
uppercase (CAPITAL) letters. You can also set the Miniprint
225 so that everything is printed in uppercase letters. Follow
these steps to change the print case:

1. Press the options key ( + ). The display says PRINT

(UP/LOW) CASE.

2. Press the to change the setting to UPPER.

3. Press the key to save the setting and leave the options.

This option stays changed until you change it again or
completely reset the Miniprint 225.

Setting the print size

Your Miniprint 225 is set to print 24 characters on each line
(normal). You can change this setting and print 19 characters
(bold) or 14 characters (wide) per line. Follow these steps to
change the print size:

Esc

Spacebar

3Ctrl

Return

Return

2Ctrl

CALLING • 11

CHAPTER

22

CALLING

This chapter explains how to make and answer calls. It also
describes Turbo Code and how to interrupt the other person
during a conversation.

12 • CALLING

ON

OFF

Making a call

1. Put the telephone hand-

set in the acoustic cups
on the Miniprint 225.
Make sure the telephone
cord is on the left side.

2. Turn on the Miniprint 225.

3. Dial the telephone

number you are calling.

4. When you see an answer

on the display, type a
greeting.

When your conversation is
finished, turn off the
Miniprint 225 and replace
the telephone handset.

CALLING • 13

Ctrl

Return

/
,

Shift

SK GA

Shift

Z X C V B N M

?
.

A S D F G H J K L

:;"

'

Q W E R T Y U I O P

Back
Space

1 2 3 4 5 6 7 8 9 0 =

! @ # $ % – & * ( ) +

Esc

HELLO JOHN HERE GA

Type

ON

OFF

Answering a call

1. Put the telephone

handset in the acoustic
cups on the Miniprint

225. Make sure the
telephone cord is on the
left side.

2. Turn on the Miniprint

225.

3. Type a greeting and

wait for an answer.

4. When you are finished

with your conversation,
turn off the Miniprint
225 and replace the
telephone handset.

14 • CALLING

Signal light and display

The signal light shows what is happening on the telephone line
in the following ways:

Signal light

steadily on:

dial tone.

Signal light

flashing slowly:

telephone ringing.

Signal light

flashing quickly:

telephone busy.

Signal light

flickering:

person picking up the telephone or

speaking.

Dialing tips

In an office, type a 9 or another number to reach an outside line.
For long distance, include a 1 and the area code.

About Turbo Code

®

Turbo Code is an alternative to Baudot Code. It sends signals
to other Turbo Code TTYs as fast as you can type. The
Miniprint 225 takes care of connecting in Turbo Code or
Baudot code, depending on which code the other TTY is using.
It only uses Turbo Code with other Turbo Code TTYs.

You know you are connected in Turbo Code when a dot appears
in the lower left-hand corner of the display.

If necessary, you can turn off Turbo Code at anytime. If you do,
the Miniprint 225 will not use it. Follow these steps to turn off
Turbo Code:

1. Press the options key ( + ). You will see PRINT

(UP/LOW) CASE.

2. Press the key until you see TURBO CODE ( ON) on

the display.

3. Press the to change the setting to OFF.

Spacebar

Return

3Ctrl

CALLING • 15

4. Press the key to leave options. Turbo Code is now turned

off until you turn it on again.

Note: During a call, you may temporarily turn off Turbo Code

and switch to Baudot (45) code by pressing the key, the

key, and the key ( + + ).

Using interrupt

You can interrupt the other person when he or she is typing
by pressing the interrupt key ( + ). Your display says
INTERRUPT REQUESTED. The other person’s display says
INTERRUPT. The other person can choose to stop typing and
let you go ahead or ignore your interruption and continue.

If you see INTERRUPT on your display while you are typing, it
means that the other person wants to interrupt you and start
typing. You can choose to stop and let the other person go
ahead or continue typing yourself.

Interrupt only works with newer TTYs and when the other
person is typing continuously. If the other person does not stop
typing when you press + , the other TTY probably does
not have the interrupt feature.

You can turn off the interrupt feature so that the other person
cannot send an interrupt to you by following the steps on page

18. Turning off interrupt does not affect your outgoing
interrupts—you can still send an interrupt to the other person.

ICtrl

ICtrl

BShiftCtrlBShift

Ctrl

Esc

16 • OPTIONS

33

OPTIONS

This chapter describes all of the settings you can change with
the options key. They are listed in the order they appear on the
display when you press the options key ( + ) and then the

key. Use the

to show the different settings for each

option. Use the key to select a setting.

Setting the print case

Follow these steps to print in all uppercase letters instead of in
upper and lower case:

1. Press the options key ( + ). You will see PRINT

(UP/LOW) CASE on the display.

2. Press the to change the setting to UPPER.

3. Press the key to save the new setting and leave options

or press the key to save and go to the next option.

Setting the print size

Follow these steps to print either 14 or 19 characters on a line
instead of 24 characters:

1. Press the options key ( + ). You will see PRINT

(UP/LOW) CASE on the display.

3Ctrl

Return

Esc

Spacebar

3Ctrl

Return

SpacebarReturn

3Ctrl

CHAPTER

OPTIONS • 17

2. Press the key until you see PRINT SIZE (NORMAL)

on the display.

3. Press the to change the setting to BOLD or WIDE.

4. Press the key to save the new setting and leave options

or press the key to save and go to the next option.

Setting the Baudot code baud rate

Each time you turn on the Miniprint 225, the Baudot code baud
rate is set to the auto setting. The auto setting uses whichever
code it needs to answer a call. If you need to specify the code that
the Miniprint 225 uses, you can set the unit so that it will only
use either 45.5-baud or 50-baud Baudot code. When you do, the
Miniprint 225 will not try to use other codes. Follow these steps
to change the Baudot code baud rate setting:

1. Press the options key ( + ). You will see PRINT

(UP/LOW) CASE on the display.

2. Press the key until you see BAUDOT (AUTO) BAUD

on the display.

3. Press the to choose one of the following:

• AUTO to automatically use either 45.5 baud Baudot code
or Turbo Code.

• 45 to use only 45.5-baud Baudot code. Most Baudot TTYs
use 45.

• 50 to use only 50-baud Baudot code. TTYs purchased in
Australia, New Zealand, and South Africa use 50-baud
Baudot code. Note that in order to use 50-baud Baudot
code, you must change the setting to 50. The Auto setting
does not use 50-baud Baudot code.

4. Press the key to save the new setting and leave options

or press the key to save and go to the next option.

The Baudot code baud rate setting always returns to auto when
you turn off the Miniprint 225.

Return

Esc

Spacebar

Return

3Ctrl

Return

Esc

Spacebar

Return

18 • OPTIONS

Turning off Turbo Code

®

Follow these steps to turn off Turbo Code:

1. Press the options key ( + ). You will see PRINT

(UP/LOW) CASE on the display.

2. Press the key until you see TURBO CODE ( ON) on

the display.

3. Press the to change the setting to OFF.

4. Press the key to save the new setting and leave options

or press the key to save and go to the next option.

Turning off Auto ID

™

Follow these steps to turn off Auto ID:

1. Press the options key ( + ). You will see PRINT

(UP/LOW) CASE on the display.

2. Press the key until you see AUTO ID (ON) on the

display.

3. Press the to change the setting to OFF.

4. Press the key to save the new setting and leave options

or press the key to save and go to the next option.

Turning off interrupt

Follow these steps to turn off interrupt:

1. Press the options key ( + ). You will see PRINT

(UP/LOW) CASE on the display.

2. Press the key until you see INTERRUPT (ON) on the

display.

3. Press the to change the setting to OFF.

4. Press the key to save the new setting and leave options.

Esc

Spacebar

Return

3Ctrl

Return

Esc

Spacebar

Return

3Ctrl

Return

Esc

Spacebar

Return

3Ctrl

CARE AND REPAIR • 19

44

CARE & REPAIR

Ordinary care of your Miniprint 225 requires changing the
printer paper when it runs out and replacing the batteries
when they no longer hold a full charge. You may be able to
solve other problems by reading the troubleshooting section.

Besides the printer paper and battery compartments, the
Miniprint 225 has no other user-serviceable parts. Any repair
work should be done by a qualified service person. If you try to
repair the unit yourself, you may damage the Miniprint 225
and you will void your warranty. The repair section explains
how to get help.

CHAPTER

20 • CARE AND REPAIR

PRESS

HERE

Step 3

Step 2

Step 1

Step 4

Step 5

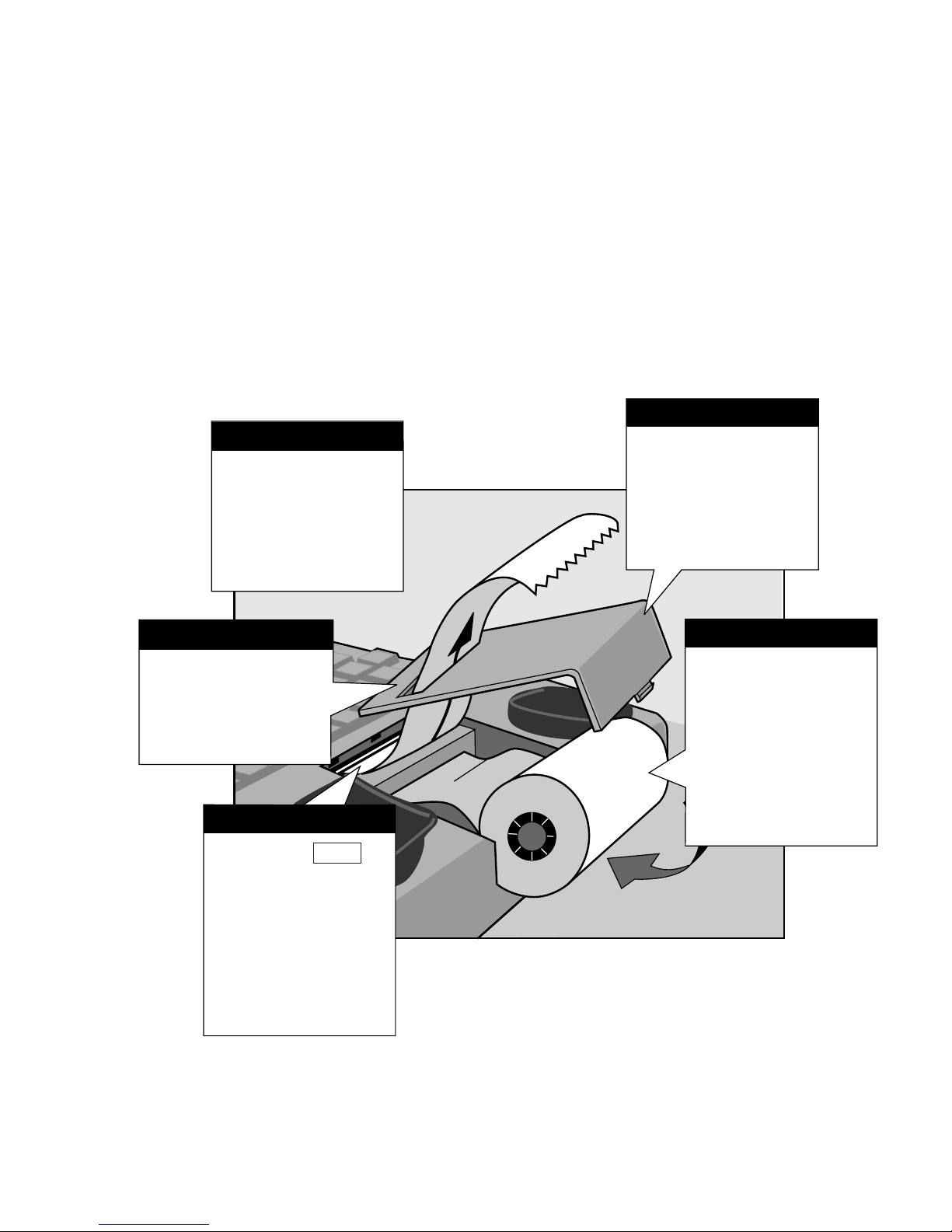

Replacing the printer paper

The printer uses high-quality thermal paper. Use the order
card that comes with the Miniprint 225 to order paper. If you
do not have a card, contact your dealer or Ultratec (the
Ultratec address is on the inside front cover of this manual.)

Turn on the Miniprint 225 and be sure the printer is on, then
follow these steps to put in a new roll of paper:

Put the roll in
the holder be­hind the printer.
Replace the
printer cover.

Feed the paper
through the slot
in the printer
cover.

Press the
key a few times
until the paper
comes out of the
top of the printer.
Pull the paper up
gently.

Return

Hold the new
roll so it unrolls
from the bottom.
Feed the end
into the slot in
the back of the
printer.

Take off the
printer cover by
pushing in on the
back and lifting
up.

CARE AND REPAIR • 21

About the batteries

The Miniprint 225 runs on batteries when you unplug the AC
adapter or the power fails. The six AA rechargeable NiCad
batteries will provide 45 to 60 minutes of normal use when fully
charged.

When the power light blinks, you have about 5 minutes of battery
power left.The batteries will last longer if you turn off the
printer when you use battery power.

Checking the batteries

The batteries lose their ability to hold a full charge if you keep
the Miniprint 225 plugged in all the time. If you want to be
sure the batteries stay fully-charged, check them once a month.
Follow these steps to check the batteries:

1. Unplug the AC adapter.

2. Turn on the Miniprint 225 for 30 minutes. (You can still use

it for calls during this time).

3. If the power light glows steadily after 30 minutes, the batteries

are fine. Plug the AC adapter back in and turn off the
Miniprint 225.

If the power light blinks within 30 minutes, exercise the batteries.

Exercising the batteries

1. Leave the Miniprint 225 on with the AC adapter unplugged

until the power light flashes.

2. Plug in the AC adapter for 24 hours. (You can use the

Miniprint 225 for calls during this time).

3. Unplug the AC adapter and leave the Miniprint 225 on for

30 minutes.

4. Repeat steps 1 to 3 until the power light glows steadily after

30 minutes without the AC adapter.

22 • CARE AND REPAIR

W

A

R

N

IN

G



U

S

E

O

N

L

Y

N

iC

a

d

B

A

T

T

E

R

IE

S

.

S

IZ

E

A

A

Step 2

Step 1

Step 3

Replacing the batteries

Replace the batteries every two or three years, or when they
always run down in less than 30 minutes and exercising them
does not help. To change the batteries, turn over the Miniprint
225 and follow these steps:

Put the battery
cover back on.

Take out the old
batteries and put
in new ones. Be
sure the + and ­ends match the
symbols on the
holder.

Take off the
battery cover by
pushing in on
the latch and
lifting up.

CAUTION!

The rechargeable batteries contain nickel and cadmium. Do
not burn or puncture them. If you do, they could release
toxic material that could injure you. Do not dispose of them
in household trash. For information about recycling or
proper disposal, consult your local trash collection or dis­posal organization.

CARE AND REPAIR • 23

Troubleshooting

Poor reception

The display shows all numbers and punctuation marks instead
of words.

Press the . The text should change to words.

An incoming message does not make sense.

Press the handset down firmly into the acoustic cups on the
Miniprint 225.

The telephone connection may be weak or the other TTY is
sending the wrong signals. If you are using Baudot code, press
the sensitivity key (hold down the key and press the key).
The display says HIGH SENSITIVITY. Sensitivity returns to
normal when you press the sensitivity key again or turn off the
Miniprint 225.

Printer

The printer does not work.

Be sure the printer is on. You can also try resetting the printer
by turning the Miniprint 225 off and on.

The printer works, but it prints too lightly or not at all.

Make sure you have high-grade thermal printer paper and it is
correctly installed. See Replacing the printer paper on page 20.

The printer only prints the bottom half of characters.

The print head should be replaced. Contact your dealer or
Ultratec.

On battery power, the printer prints too slowly or lightly.

The batteries are low. Plug in the AC adapter for 24 hours to
recharge the batteries.

SCtrl

Spacebar

24 • CARE AND REPAIR

Power

The batteries run down too soon.

You may not be regularly using your Miniprint 225 on battery
power, or the batteries are old. See About the batteries on page 21.

The Miniprint 225 does not turn on when you press the On/Off
switch, or the power light blinks, even when the AC adapter is
plugged in.

Be sure the electrical outlet is working. Be sure you are using the
correct AC adapter—it should be a 9VDC, 650 ma AC adapter. If
you still have a problem, contact your dealer or Ultratec.

The Miniprint 225 works fine in the evening, but does not work
during the day.

You may have plugged the AC adapter into a switch-controlled
outlet. Try a different outlet that you are sure is not controlled
by a switch.

Resetting the Miniprint 225

Resetting the Miniprint 225 returns all options to their default
settings. Follow these steps to reset the Miniprint 225:

1. Press the left key, the right key, and the key all

at the same time. The display will give a version number and
say RESET Y/N.

2. Press the key to reset. The display says MINIPRINT IS

RESET!

Press the key if you change your mind and decide not to
reset the Miniprint 225.

N

Y

CtrlShiftShift

CARE AND REPAIR • 25

Repair

Calling for help

If your Miniprint 225 is not working, we may be able to help
you solve the problem over the telephone. Call Ultratec at the
number on the inside front cover.

Sending the Miniprint 225 for repair

If you need to send the Miniprint 225 to our repair center,
follow these steps:

1. Pack it in the original shipping carton or a similar sturdy box.

2. Include a note that describes the problem you are having.

The note will help the technicians find the problem.

3. Insure the Miniprint 225 for shipment. Ultratec or an

authorized Ultratec repair center is not responsible for
damage during shipping to the center.

4. Send the Miniprint 225 to:

Ultratec National Service Center

5901 Research Park Blvd.

Madison, WI 53719

Email: [e-mail]

26 • STICKY KEYS

STICKY KEYS

Ordinarily, when you use the or keys, you must hold
down either key while you press another key. If you have
trouble pressing two keys at once, the sticky keys feature lets
you use the and keys by pressing one key at a time.

To turn on sticky keys, press either key five times. The
display says STICKY KEYS ON.

Now you can type a $ by pressing and releasing the key,
then pressing and releasing the key.

When sticky keys is on, you can also lock down the key or a

key so that it affects every other key until you unlock it.
To lock the key or a key, press the key twice. To unlock
the key, press it once more.

Press either key five more times to turn off sticky keys.
The display says STICKY KEYS OFF.

If you use sticky keys all the time, you do not have to turn it on
each time you turn on the Miniprint 225. After you turn on the
sticky keys feature, it stays on until you turn it off or reset the
machine.

Shift

ShiftCtrl

Shift

Ctrl

4

Shift

Shift

ShiftCtrl

ShiftCtrl

SPECIFICATIONS • 27

SPECIFICATIONS

Physical Dimensions

Size—10” x 9.5” x 3” (25.4 cm x 24.1 cm
x 7.6 cm)

Weight—3.75 lbs (1.7 Kg) with batteries

Power

AC adapter–9VDC,650 ma (barrel is
positive)

AC adapter is UL/CSA listed

The six AA NiCad rechargeable
batteries are user replaceable. They
power the unit for 45 to 60 minutes of
normal use.

Keyboard

50 ergonomic keys in 5 rows
Control key plus 4 function keys
Sticky Keys for single-handed typists
Character set: A-Z, 0-9, Backspace,
Return/LF, Space, +=-$’()”/:;?,.*# GA, SK.

Display

Blue/green vacuum-fluorescent
20 characters

0.25” (6mm) character height

Acoustic Coupler

Accepts both circular and square
telephone handsets

Communication Codes

Automatic code detection on incoming
and outgoing calls (Turbo Code or
Baudot)

Baudot Code:

45.5 and 50 baud
Sensitivity = -45 dbm, 67 dBSPL (min)
Output = -10 dbm

Turbo Code:

Enhanced communication protocol

Printer

Prints 24, 19, and 14 characters per line
Uses 2.25” (58mm) thermal paper

Approvals

FCC approved. FCC Registration No.
(Part 68): D8KUSA-18408-DT-N

Other TTYs available from Ultratec

Superprint 4425

™

The most advanced printing TTY.

• Built-in 24-character printer
(3 print sizes)

• Turbo Code

®

• Auto ID

™

• Direct connect

• Auto-answer with remote message
retrieval

• 32k memory with 9500 characters
for memos and telephone numbers

• Time and date stamp

• Built-in ring flasher

• Advanced calling options

• ASCII option

Supercom 4400

™

The most sophisticated non-printing TTY.

• Turbo Code

®

• Auto ID

™

• Direct connect

• Auto-answer with remote message

retrieval

• 32k memory with 9500 characters

for memos and telephone numbers

• Two telephone jacks

• Built-in ring flasher

• Advanced calling options

• Printer port to connect with your

external printer

• ASCII option

Supercom 4400

™

Superprint 4425

™

28 • OTHER TTYS

Compact

™

Pocket-sized, personal TTY to carry
in purse, briefcase or backpack.

• Turbo Code

®

• Auto ID

™

• Portable

• 2-line, 80-character LCD display

• 8k memory

• ASCII/32k memory option

• 7–10 hour rechargeable batteries

• Weighs only 1 lb.

Minicom IV

™

Basic, non-printing TTY with no
memory and acoustic use only

• Turbo Code

®

• Auto ID

™

• Printer port to connect with your
external printer

Uniphone 1140

™

Combination telephone and TTY
with amplified handset and VCO
capabilities with 8k memory and
some advanced features.

• Turbo Code

®

• Auto ID

™

• Volume control

• VCO request key

• 8k conversation/auto-answer

memory

• Ten Fastdial numbers

• Built-in ring flasher

• Auto-answer

OTHER TTYS • 29

Minicom IV

™

Uniphone 1140

™

Compact

™

30 • FCC & DOC INFORMATION

FCC Information

This equipment generates and uses radio
frequency energy and if not installed and
used properly, that is, in strict accordance
with the manufacturers instructions, may
cause interference with the radio and
television reception. The Miniprint 225 has
been tested and found to comply with the
specifications for a Class B computing device
in accordance with the specifications in
Subpart J of Part 15 of the FCC Rules. These
rules are designed
to provide reasonable protection against
radio frequency interference in residential
installations.

There is no guarantee that interference will
not occur during use. You can determine if
this equipment causes interference to radio
or television reception by turning the
Miniprint 225 on and off while the television
or radio is on.

If this equipment does cause interference
the user is encouraged to try to correct the
interference by one or more of the following

measures:
– Reorient the radio or television receiving

antenna.

– Move the Miniprint 225 further away from

the radio or television.

– Plug the Miniprint 225 into a different

outlet so it is on a different branch circuit
than the television or radio.

– If necessary, consult an experienced

radio/television technician or the
manufacturer for additional suggestions.

The user may find the following booklet
prepared by the Federal Communications
Commission helpful: Interference Handbook.
This booklet is available from the
Superintendent of Documents, U.S.
Government Bookstore, 310 W. Wisconsin
Ave., Suite 150, Milwaukee, WI 53203.

Other than replacing the batteries, the
Miniprint 225 does not have any user
serviceable parts.

FCC & DOC INFORMATION • 31

32 • INDEX

INDEX

AC adapter, 6, 7, 21, 24

jack, 6

Acoustic cups, 6

using, 12, 13, 23
Adapter, See AC adapter
Address, Ultratec, inside front cover
Answering calls, 13
Auto ID, 5, 8

turning off, 18

Batteries, 5, 21

charging, 7, 21

checking, 21

disposing of, 4, 22

exercising, 21

how long they last, 8, 21

low power in, 21

safety, 4

replacing, 22
Baud rate

for Baudot code, 16
Baudot code

auto setting, 17

baud rates, 17

Cleaning, 3
Control key, 6

Dialing, 12, 14

Electrical power, See Power
Escape key, 6

GA, back cover

Interrupt key, 15

Lightning danger, 4
Light, power, 6, 21
Light, signal, 6, 14

Options key, 16

Paper

replacing, 20

type needed, 20
Phone, See Telephone
Power

connecting, 7

problems, 24
Power jack, See AC adapter jack
Power light, See Light, power
Print key, 9
Printer

last line of conversation and, 9

paper, See Paper

resetting, 23

print case, 9, 16

print size, 9, 16

problems, 23

turning on and off, 9

Reception problems, 23
Repair, 25
Resetting the Miniprint 225, 24
Return key, 16

Safety instructions, 3–4
Sensitivity key, 6, 23
Signal light, See Light, signal
SK, back cover
Spacebar, 16
Specifications, 27
Sticky Keys, 26

Telephone, 7, 12

dialing with a, 12
Troubleshooting, 23–24
Turbo Code, 5, 14, 18

turning off, 18

Conversation etiquette

GA When you talk with another person by TTY, you

type while the other person reads. When you want
the other person to respond, type GA for “Go
ahead.”

GA OR SK To say goodbye, type GA OR SK. This gives the

other person a chance to say any last words before
ending the conversation.

SKSK To end the conversation, type SKSK.

Q Some people prefer to type Q instead of a question

mark because it saves time and is easier to type.

You can use punctuation marks such as commas and periods,
although many people choose to omit them. You may also
abbreviate words, such as:

GA go ahead OPR operator
SK stop keying PLS please
CD could Q question mark
CUL see you later R are
CUZ because SHD should
HD hold THX thanks
MTG meeting TMW tomorrow
NBR number U you
OIC oh, I see UR your
