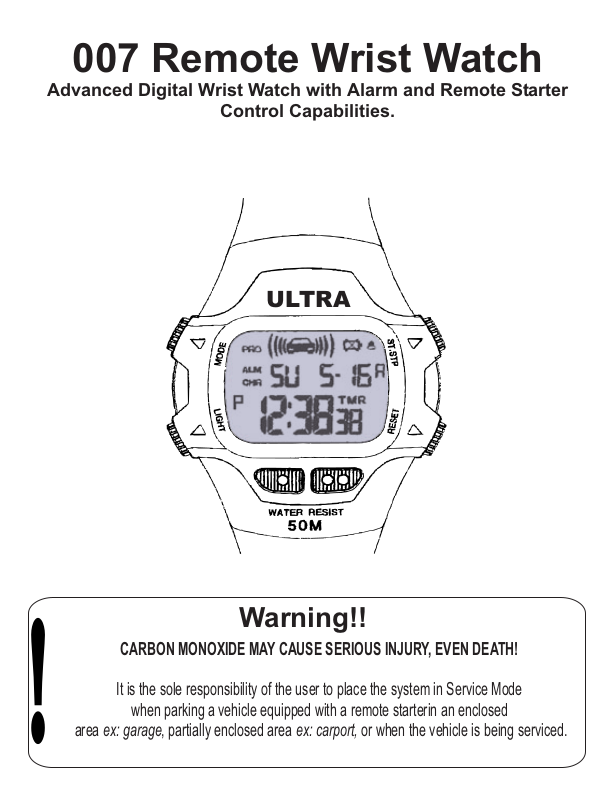

Ultra Start 007 User Manual

007 Remote Wrist Watch

Advanced Digital Wrist Watch with Alarm and Remote Starter

CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH!

The system must be placed into Service Mode before any service work is started on the

It is the sole responsibility of the user to place the system in Service Mode

vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done. The manufacturer accepts no liability or responsibility for accidental starting of the vehicle.

when parking a vehicle equipped with a remote starterin an enclosed

CARBON MONOXIDE - Never Start in an Enclosed Building (Garage, Carport etc...)

area ex: garage, partially enclosed area ex: carport, or when the vehicle is being serviced.

- The Hood Pin Safety Switch Must Always be Installed!

Control Capabilities.

ULTRA

Warning!!

1. Change from Mode to Mode Page 2

MODE

ALM

6:00

Alarm Mode

MODE

TMR

0:00

Timer Mode

MODE SELECT

Real Time Mode Alarm Mode Chronograph Mode Timer Mode Program Start Mode Returns to Real Time Mode

CHR

0:00

Chronograph Mode

SU 5-16

12:38

Real Time Mode

18:88

Program Start Mode

Press and release the MODE button to switch from Mode to Mode.

MODE BUTTON

Default Screen Mode Button Once Mode Button Twice Mode Button Three times Mode Button Four times Mode Button Five times

MODE

SU 5-16

MODE

2. Real Time Mode- How to Set Time and Date Page 3

2 seconds

MODE

RESET

SU 12-16

12:38

1. Press and hold the MODE button to enter the Real Time Setting Mode.

2. Press the ST.STP button to select 12 or 24 hour format.

3. Press the RESET button to go to the next field, hour digits will begin to flash.

4. While the hour digits are flashing, press the ST.STP button to increase the number. Hold the ST.STP button to change the number at a greater speed.

5. Aftter you set the 12/ 24 hour format, hour, minute, second, year, month and date, press the MODE button to exit.

3. Dual Time Mode

12:38

1. In real time mode, press the ST.STP button to switch between the Real Time Mode and Digital Time Mode.

2.Set the Dual Time in the same manner as the Real Time.

ST.STP

SU 12-16

12:38

12 1-38

3:38

TMR

ST.STP

SU 12-16

18:38

TMR

4. Alarm Mode Page 4

ST.STP

MODE

ST.STP

ALM

6:00

ALM

6:00 8:00

ST.STP

RESET

ALM

ST.STP

ALM

6:00

1. In real time mode, press the MODE button to enter the Alarm Mode.

2. Press the ST.STP button to set the alarm ON/OFF. When the Bell Icon is displayed, the alarm will sound at the preset time every day for 30 seconds.

-To stop the alarm, press any button. If the alarm is ON, the Bell Icon will be turned ON in all other modes.

How to Set Alarm Time

ALM

6:00

1. In real time mode, press the MODE button to enter Alarm Mode.

2. Hold the MODE button for 2 seconds, the hour digits will begin to flash.

3. While the hour digits are flashing, press the ST.STP button to increase the number. Hold the ST.STP button to increase the digits at a greater speed.

4. Press RESET to enter the next field, minute digits will begin to flash.

5. To set the minute press the ST.STP button.

6. After you have set the minute, press the MODE button to exit and save.

2 seconds

5. Chronograph Mode Page 5

ST.STP

CHR

0:00

1. In real time mode, press the MODE button to enter the Chronograph Mode.

2. Press the ST.STP button to start chrono. To stop the chrono, press the ST.STP button. When the chrono is stopped press the RESET button so reset the time to zero When the chrono time is running, the “CHR” icon will begin to flash in all other modes with the exception of Setting Modes.

RESET

CHR

0:01

CHR

0:08

ST.STP

TMR

6. Timer Mode Page 6

TMR

RESET

0:00

ST.STP

TMR

ST.STP

TMR

00:20

1. In real time mode, press the MODE button 3 times to enter Timer Mode.

2. Press the ST.STP button to start the timer. To stop, press the ST.STP again. If the timer is stopped, press RESET to reset the time to the present value. When the timer is running, the TMR Icon flashes in all other modes with the exception of setting modes.

3. Press the MODE button to exit.

How to Set the Timer

00:00

1. In real time mode, press the MODE button to enter the Timer Mode.

2. Hold the MODE button for 2 seconds, the hour digits will begin flashing.

3. While the hour digits are flashing press the ST.STP button to increase the number. Hold the ST.STP button to increase the number at a greater speed.

4. Press RESET to go to the next field, minute and seconds will begin flashing.

5. After you have set the minute and seconds , press the MODE button to save and exit

2 seconds

MODE

TMR

00:18

00:00 6:00

ST.STP

7. Program Start Mode Page 7

ST.STP

PRO

PS 6-20

12:38

1. In real time mode, press the MODE button 4 times to enter the Program Start mode.

2. Press the ST.STP button to change the ON/OFF function of the Program Start. When the “PRO” icon is ON, the engine will start and run at the preset time. The remote will beep three times to confirm starting of the engine. The remote start will only activate when the system is armed and within RF operating range.

3. Press the MODE button to exit.

How to Set the Engine Start

PS 6-20

12:38

1. Press the MODE button to enter the Program Start Mode.

2. Hold the MODE button for 2 seconds, the hour digits will start flashing.

3. While the digits are flashing, press the ST.STP button to increase the number. Hold down the ST.STP button to change the number at a greater speed.

4. To set the minute, press the RESET button.

5. After you set the hours and minutes, press the MODE button to exit and save.

2 seconds

MODE

TMR

12:38

PRO

12:38

PS 6-20

ST.STP

TMR

MODE

RESET

PRO

12:38

PRO

12:38

SU 5-16

PS 8-20

TMR

ST.STP

Remote Control Mode For Vehicles Page 8

Button 1

Arm/ Lock- Press and release. Panic Mode- Press and hold for

2 seconds.

Light Button

Remote Start- Press and release Remote Stop- Press and hold for

2 seconds.

Program Start On

MODE Button

Button 2

Disarm/ Unlock- Press and release Trunk Release- Press and hold for 2 seconds.

Low Battery

ST.STP Button

Alarm On

Light Button

Button 1

Reset Button

Button 2

Battery Replacement

Change the battery when the Low battery icon is displayed on the LCD screen. Replace with Lithium CR2032 Battery. *To avoid possible water damage, have the battery changed professionally.

Caution

DO NOT DISASSEMBLE THIS WATCH FOR ANY OTHER REASON THEN TO REPLACE THE BATTERY. REMOVING ANY OTHER COMPONENT(S) WILL VOID THE WARRANTY.

FCC Notice

This device complies with Part 15 of the FCC rules. Operation of this device is subject to the following conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the part responsible for compliance voids the users authority to operate this device.
