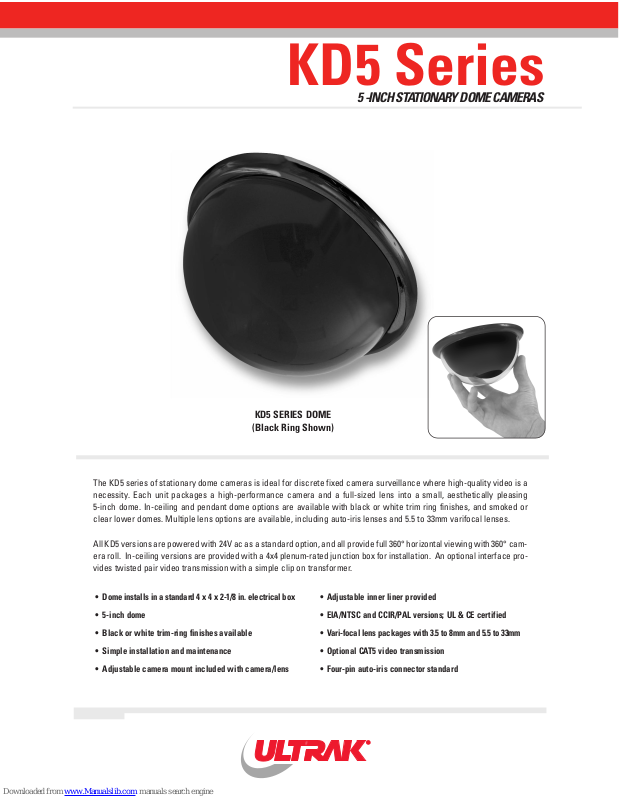

The KD5 series of stationary dome cameras is ideal for discrete fixed camera surveillance where high-quality video is a
necessity. Each unit packages a high-performance camera and a full-sized lens into a small, aesthetically pleasing
5-inch dome. In-ceiling and pendant dome options are available with black or white trim ring finishes, and smoked or
clear lower domes. Multiple lens options are available, including auto-iris lenses and 5.5 to 33mm varifocal lenses.
All KD5 versions are powered with 24V ac as a standard option, and all provide full 360° horizontal viewing with 360° camera roll. In-ceiling versions are provided with a 4x4 plenum-rated junction box for installation. An optional interface provides twisted pair video transmission with a simple clip on transformer.
• Dome installs in a standard 4 x 4 x 2-1/8 in. electrical box
• 5-inch dome
• Black or white trim-ring finishes available
• Simple installation and maintenance
• Adjustable camera mount included with camera/lens
• Adjustable inner liner provided
• EIA/NTSC and CCIR/PAL versions; UL & CE certified
• Vari-focal lens packages with 3.5 to 8mm and 5.5 to 33mm
• Optional CAT5 video transmission
• Four-pin auto-iris connector standard
KD5 Series
5 -INCH STATIONARY DOME CAMERAS
KD5 SERIES DOME
(Black Ring Shown)
ELECTRICAL (HOUSING)
Input Voltage 24V ac
MECHANICAL (HOUSING)
Angular Travel:
Horizontal ± 180°
Vertical:
Dome 0 to 90° up
Roll 360°
Camera Mounting: Universal mount attached to yoke assembly
will accommodate CS-mount & fixed lens
board cameras
Cable Entry:
Dome Conduit knock-out in standard 4 x 4 in.
electrical box
Cable Connection:
Terminal strip & BNC at top of upper housing
Construction:
Back Can/Box:
Dome Plenum-rated steel (standard 4 x 4 in.
electrical box)
Upper Housing UL-approved, flame-retardant ABS plastic
Lower Housing Optically graded acrylic, distortion free
Finish:
Back Can/Box:
Dome Standard galvanized steel
Lower Housing:
Dome Smoked, clear with liner
Trim Ring White, black
Dimensions See drawings
Weight
Dome 1.0 lb. (w/o 4 x 4 in. back box)
GENERAL (HOUSING)
Optical Losses:
Clear/Liner Virtually no light loss
Smoked Equivalent F-stop 1.0 ± 15%
Filtration Neutral density
Environment Indoor
Regulatory Agencies/
Approvals:
CE
ELECTRICAL (CAMERA)
Specification: High Resolution Color
Image Sensor 1/3" interline transfer CCD (Sony chip set)
Active Pixels 768H x 494V
Horiz. Resolution 470 lines
Min Scene Illum. 0.9 Lux (F1.2, 50IRE)
Signal to Noise >45dB (AGC Off)
AGC On/Off selectable
White Balance ATW/AWC selectable
Backlight Comp. Selectable
Auto Iris Video or dc (4-pin connector)
Video Output VBS 1.0Vp-p 75Ω
Power Req. 12V dc ± 10%
Power Consumpt. 190mA
KD5 Series
TECHNICAL SPECIFICATIONS
ELECTRICAL (CAMERA)
Specification: Standard Resolution B&W
Image Sensor 1/3" interline transfer CCD (Sony chip set)
Active Pixels 510H x 492V
Horiz. Resolution 420 lines
Min Scene Illum. 0.2 Lux @ F1.2
Signal to Noise >45dB
AGC On/Off selectable
Backlight Comp. Y selectable
Auto Iris Video or dc (4-pin connector)
Signal Format RS170/EIA
Video Output VBS 1.0Vp-p 75Ω
Power Req. 12V dc ±10%
Power Consumpt. 100mA
MECHANICAL (CAMERA/LENS)
Vari-focal Lens 3.5 to 8.0mm or 5.5 to 33mm
Weight 5.0 oz.
GENERAL (CAMERA/LENS)
Ambient Temp. 32°F to 104°F (0°C to 40°C)
Ambient Humidity 0% to 95% (non-condensing)
5" DOME
6.50" (165.1mm)
6.81" (173mm)
3.75" (95.3mm)
3/4" NPSM (STRAIGHT) THREAD
FORM 4205 REV 06/19/02 ©Ultrak®is a registered trademark of Ultrak, Inc.2002.
Ultrak Worldwide Support Center:
1305 Waters Ridge Drive
Lewisville, TX 75057
(800) 796-2288 (972) 353-6500
Fax (972) 353-6670
www.ultrak.com
Conversion: 1" = 25.4mm
Measurement conversions are approximate
Design and specifications subject to change without notice.
KD5 Series
Dome Configurator
Part Number:
KD5K
24VAC A
In Ceiling 4
Pendant B
Clear 0
Smoked 1
Power Type
C
CAT5 Transmission
CAT5 Option
Dome Type
Lower Dome Tint
Lens
Camera
Trim Ring
1
3.5 to 8mm MI Verifocal
A
3.5 to 8mm AI Verifocal
E
5.5 to 33mm MI Verifocal
G
5.5 to 33mm AI Verifocal
1
High Res Color
4
Standard Res B/W
1
White Trim
2
Black Trim
5" PENDANT
