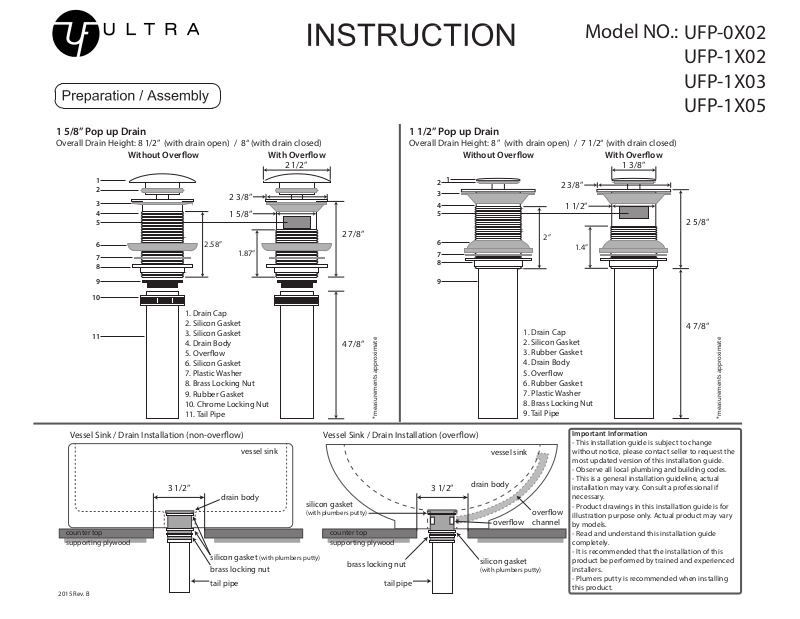

Page 1
Model NO.:
UFP-0X02
UFP-1X02
UFP-1X03
UFP-1X05

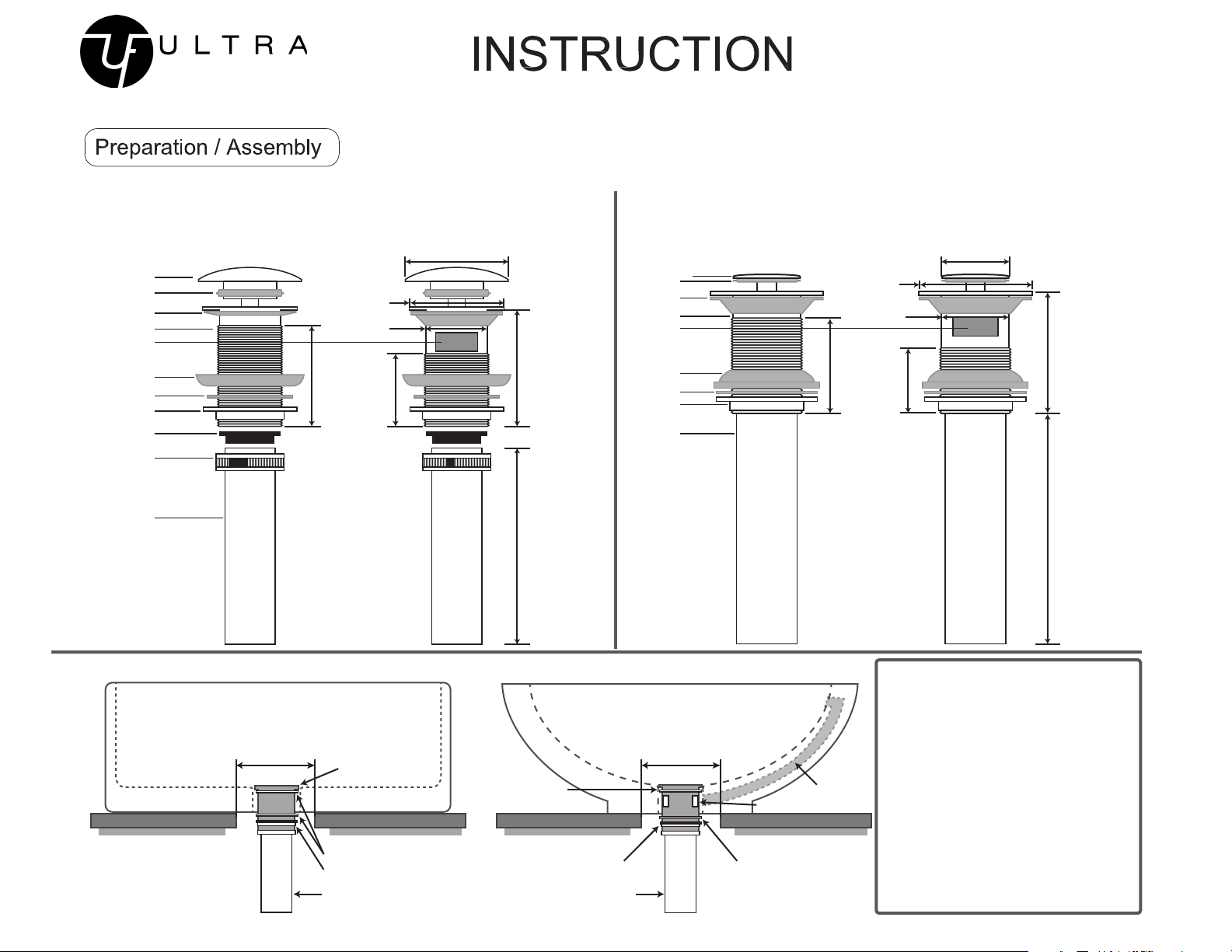

1 5/8” Pop up Drain
Overall Drain Height: 8 1/2” (with drain open) / 8“ (with drain closed)
10
11
Without Overow
1
2
3
4
5
6
7
8
9
1. Drain Cap
2. Silicon Gasket
3. Silicon Gasket
4. Drain Body
5. Overow
6. Silicon Gasket
7. Plastic Washer
8. Brass Locking Nut
9. Rubber Gasket
10. Chrome Locking Nut
11. Tail Pipe
2 3/8”
1 5/8”
2.58”
1.87”
With Overow Without Overow With Overow
2 1/2” 1 3/8”
2 7/8”
4 7/8”
1 1/2” Pop up Drain
Overall Drain Height: 8 ” (with drain open) / 7 1/2“ (with drain closed)
1
2
3
4
5
6
7
8
9
1. Drain Cap
2. Silicon Gasket
3. Rubber Gasket
4. Drain Body
5. Overow
6. Rubber Gasket
7. Plastic Washer
8. Brass Locking Nut
*measurements approximate
9. Tail Pipe
2 3/8”
1 1/2”
2 5/8”
2”
1.4”
4 7/8”
*measurements approximate
Vessel Sink / Drain Installation (non-overow) Vessel Sink / Drain Installation (overow)
vessel sink
3 1/2” 3 1/2”
counter top
supporting plywood
2015 Rev. B
drain body
silicon gasket
brass locking nut
tail pipe
(with plumbers putty)
silicon gasket
(with plumbers putty)
counter top
supporting plywood
brass locking nut
tail pipe
vessel sink
drain body
overow
silicon gasket
(with plumbers putty)
overow
channel
Important Information
- This installation guide is subject to change
without notice, please contact seller to request the
most updated version of this installation guide.
- Observe all local plumbing and building codes.
- This is a general installation guideline, actual
installation may vary. Consult a professional if
necessary.
- Product drawings in this installation guide is for
illustration purpose only. Actual product may vary
by models.
- Read and understand this installation guide
completely.
- It is recommended that the installation of this
product be performed by trained and experienced
installers.
- Plumers putty is recommended when installing
this product.
