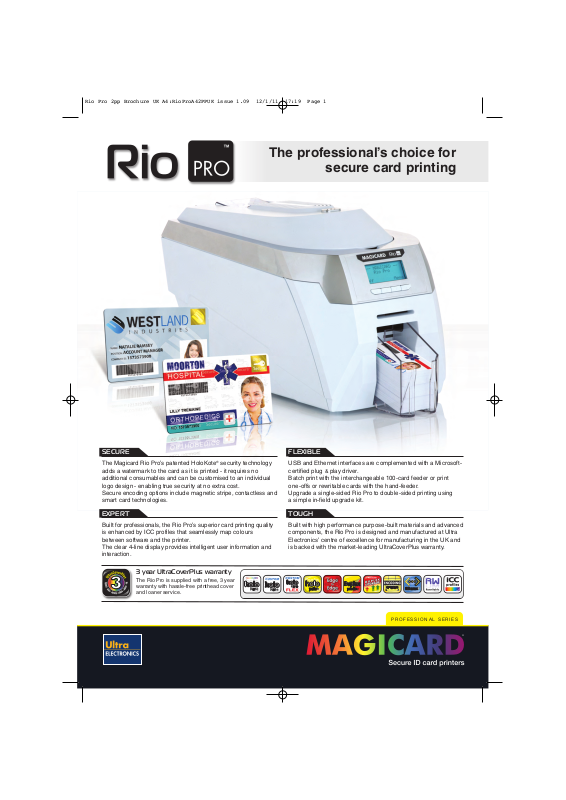

Ultra Electronics 316-2025 Product Data Sheet

The professional’s choice for

secure card printing

SECURE

The Magicard Rio Pro’s patented HoloKote®security technology
adds a watermark to the card as it is printed - it requires no
additional consumables and can be customised to an individual
logo design - enabling true security at no extra cost.
Secure encoding options include magnetic stripe, contactless and
smart card technologies.

EXPERT

Built for professionals, the Rio Pro’s superior card printing quality
is enhanced by ICC profiles that seamlessly map colours
between software and the printer.
The clear 4-line display provides intelligent user information and
interaction.

3 year UltraCoverPlus warranty

The Rio Pro is supplied with a free, 3 year
warranty with hassle-free printhead cover
and loaner service.

FLEXIBLE

USB and Ethernet interfaces are complemented with a Microsoft­certified plug
Batch print with the interchangeable 100-card feeder or print
one-offs or rewritable cards with the hand-feeder.
Upgrade a single-sided Rio Pro to double-sided printing using
a simple in-field upgrade kit.

& play driver.

TOUGH

Built with high performance purpose-built materials and advanced
components, the Rio Pro is designed and manufactured at Ultra
Electronics’ centre of excellence for manufacturing in the UK and
is backed with the market-leading UltraCoverPlus warranty.

PROFESSIONAL SERIES

PRINTER SPECIFICATIONS

100-card feeder

High-performance, purpose-built
composites for durability

USB and Ethernet
interfaces

Simple field upgrade to
double-sided printing

Magnetic stripe and smart card encoding options

3 year printhead warranty

Rewritable technology

Custom HoloKote card (option)

ICC colour enhanced prints

Clear, intuitive 4-line display

Hand-feed capability

Patented HoloKote®watermark

70-card stacker

SPECIFICATIONS

Print mode Colour dye sublimation, monochrome thermal printing and rewritable technology.
Card security A HoloKote security watermark can be printed across the card surface. When used with HoloPatch

is highlighted as a high visibility security seal. A choice of 4 standard HoloKote designs and 1 standard HoloKote Flex design are selectable from

Warranty

†

the printer driver. For added security, Custom HoloKote enables customisation of the watermark to an individual logo or security design.
3 years UltraCoverPlus warranty and support which includes full printhead coverage and free loaner service

- Available in North America, EU and other selected territories. Elsewhere 12 months limited warranty.

Printer interfaces USB and Ethernet both fitted as standard.
Software drivers Windows 2000 Professional (SP4), XP, Vista and 7 (32/64 bit compatible),Windows Server 2003 R2 SP2, Server 2008 (32/64 bit compatible).
Card capacity 100-card feeder, 70-card stacker.
Weight 4.9kg (10.8 lbs).
Power source External power supply 100-240V 50-60Hz autoranging.
Dimensions 470mm L x 220mm W x 250mm H (18.5” L x 8.6” W x 9.8” H) including feeder and stacker.
Print speed *Colour standard mode: 31 seconds, *Colour fast mode: 23 seconds, *Monochrome resin: 6 seconds (*single-sided card)
Operating environment Sheltered office environment 10°C to 30°C (50°F to 85°F).

®

cards, one area of the HoloKote watermark

CONSUMABLES PART NUMBERS

Dye film • YMCKO 5 panel dye film, 300 images. MA300YM CKO

Card types/thickness All standard PVC ISO CR80/CR79 sized cards / 0.51mm to 1.27mm (0.020” to 0.050”).

Cleaning kit 10 cleaning cards, 1 pen. 3633-0053
Cleaning roller kit 5 cleaning rollers, 1 metal roller bar. 3633-0054

• Monochrome resin black dye film, 1000 images. MA1000K-Black*
Also available in *White, *Blue, *Red, *Gold and *Silver.

• KO black and overcoat resin dye film, 600 images. MA600KO

• YMCKOK 6 panel dye film, 250 double-sided images, colour on front, black on back (double-sided only). MA250YMCKOK

HoloPatch cards. Use HoloKote with HoloPatch for a highly-visible gold seal on the card.

VARIANTS

Rio Pro Magicard Rio Pro: single-sided printer. 3652-0001
Rio Pro Duo Magicard Rio Pro Duo: double-sided printer. 3652-0021
Variants Magnetic stripe card encoding, combi smart card encoding Call for

(contact chip, Mifare, Desfire, iClass). Other smart card encoders also available. part numbers

OPTIONS

Double-sided upgrade Upgrade the single-sided Rio Pro to the Rio Pro Duo. 3633-0052
Custom HoloKote kit Kit contains a CD to install the data and a Custom HoloKote card that fits into your printer. HoloSet

CARD SECURITY OPTIONS

HoloKote

®

A standard anti­counterfeiting watermark
printed in a grid pattern
across the entire card
surface.

Custom HoloKote

A customisable anti­counterfeiting watermark
printed in a grid pattern
across the entire card
surface.

®

Custom HoloKote FLEX

A fully flexible and
customisable anti­counterfeiting watermark
printed across the entire
card surface.

TM

HoloPatch

®

HoloPatch cards have a
highly reflective gold 'super
diffuser' foil square that
enhances the visibility of the
overprinted HoloKote logo.

Encoding

Magnetic stripe - Encoder for access control,

time and attendance.

Smart card - Combi (contact chip, Mifare, Desfire,

iClass) option. Other encoders available.

Magicard, HoloKote, Custom HoloKote, HoloPatch, HoloKote FLEX, and Rio Pro
are trademarks or registered trademarks of Ultra Electronics Limited. All other
trademarks, brand names, or product names belong to their respective holders.

The information contained in this document reflects the current state of design
and we reserve the right to change the specification without notice or obligation.

Ultra Electronics Card Systems

Hampshire Road, Weymouth,
Dorset DT4 9XD, United Kingdom
Tel: [phone]
Fax: [phone]
Email: [e-mail]

†

Warranty subject to the observance of specific

conditions of use and maintenance, as well as the
use of certified ‘Original Magicard’ dye films.

Ultra Electronics Card Systems Inc.

North American Sales & Support Center
6711 - 176th Avenue NE Redmond, WA 98052
Toll free: 877 236 0933 Tel: [phone]
Fax: [phone]
Email: [e-mail]

RioProA42PPUK issue 1.09
