Model: UC510PSS
ASSEMBLY INSTRUCTIONS HOODED GAS GRI LL
FOR OUTDOOR USE ONLY
PLEASE READ INSTRUCTIONS CAREFULLY BEFO RE ASSEMBLY
RETAIN THIS MANUAL FOR FUTURE REFERENCE
WARNING
Hazardous fire or explosion may result if instruct i ons are ignored
It is the consumer’s responsibility to see that the barbecue is properly assembled, installed, and taken care
of. Failure to follow instructions in this manual could result in bodily injury and/or property damage.
FOR YOUR SAFETY IF YOU SMELL GAS:
1. Turn off gas supply at bottle.
2. Extinguish all naked flames; do not operate any electrical appliances.
3. Ventilate the area.
4. Check for leaks as detailed in this manual.
5. If odour persists, contact your dealer or gas supplier immediately.
PRECAUTIONS:
1. Leak test all connections after each tank refill.
2. Never check for leaks with a match or open flame.
3. Do not store of use gasoline or other flammable vapours and liquids in the vicinity of this or any other
appliance.
4. Any LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
Assembly
WARNING: Whilst every effort has been made in the manufacturing process of your barbecue to remove
any sharp edges, you should handle all components with care to avoid accidental injury.
Tools required: Either a Philips crosshead or flat-bladed screwdriver and either a spanner (we have supplied
a multifunction spanner ) or a pair pliers.
ASSEMBLY:
Please read all instructions thoroughly before proceeding. Find a large, clean area in which to assemble your trolley
barbecue. Please refer to the parts list and assembly diagram as necessary. Assembly of the barbecue involves many
large components, it is advisable to have two people assemble the unit.
NOTICE: Make sure all the plastic prot ection is peeled off before assembling!
Expanded view UC510PSS
8
1
2
3
4
5
6
7
8
9
10
11
12
7
13
14
15
16
17
18
19
20
54
42
44
46
47
46
48
49
50
50
40
41
39
43
45
51
52
52
53
53
54
55
21
22
23
24
25
26
27
28
29
30
31
32
33
33
32
34
36
38
35
37
10
PARTS LIST UC510PSS
Ref Description 8240
1 Hood assembly 1
2 Temperature gauge 1
3 Protective pad 2
4 Hood handle 1
5 Body back cover board 1
6 Cooking rack-fixed 1
7 Cooking rack-fixed support 2
8 Body outer side panel 2
9 Body panel-left 1
10 Grill plate 2
11 Flame tamer 4
12 Body panel-rear 1
13 Body panel-right 1
14 Burner-main 4
15 Electronic wire set 4
16 Burner support bracket 1
17 Body panel-front 1
18 Gas valve heat shield panel-max 1
19 Gas valve heat shield panel-min 1
20 Gas valve 1
21 Decorative front panel 1
22 Control panel 1
23 Control knob seat 4
24 Control knob 4
25 Electronic igniter-4 port/5 port/6 port 1(4port)
26 Drip tray-handle
1
27 Drip tray-main burner
1
28
Tool hook 5
29 Tool holder
1
30 Side shelf-left 1
31 Side shelf decoration panel-left 1
32 Side shelf support-left front/right rear 2
33 Side shelf support-left rear/right front 2
34 Side shelf-right 1
35 Side shelf -right 1
36 Trolley rear panel 1
37
Gas transfer channel 3
38 Trolley side panel-left 1
39 Trolley side panel-right 1
40 Trolley legs assembly-left 1
41 Trolley legs assembly-right 1
42 Door hinge bracket-top left 1
43 Door hinge bracket-top right 1
44 Door hinge bracket-bottom left 1
45 Door hinge bracket-bottom right 1
46 Door handle 2
47 Door-left 1
48 Door-right 1
49 Trolley bracket-front 1
50 Door magnet 4
51 Trolley bottom shelf 1
52 wheel seat
2
53 Wheel-3" no brake
2
54 Wheel-3" with brake
2
55 Gas support
2
ASSEMBLY : UC510PSS
1
2
3 4 5
6
Ref # 48
M6x12x 16 PCS
Ref # 54
Ref # 51
Ref #53
Ref #53
Ref #54
Please note the
direction of the hole
M5x50x 4 PCS
Ref # 38
Ref #39
Ref #47
Ref # 46
Ref #46
M6 Nut x 4PCS
M6x50x4PCS
Ref # 36
Ref # 1
M5x12x 4 PCS
Ref # 49
M6x12x 4 PCS
7
8
9
10
M6x12x 2 PCS
Ref # 28
Ref # 29
Ref # 30
Hang the side table on the pre-
fixed screws,
then tighten the screws with a
screwdriver.
Ref # 35
Ref #30
M6x12x 2 PCS
Ref #11
M6x30x 4 PCS
Ref # 6
Ref # 10
WARNINGS INFORMATION
IMPORTANT:
Read the following instructions carefully and be sure your barbecue is properly installed, assembled and
cared for. Failure to follow these instructions may result in serious bodily injury and/or property damage.
If you have any questions concerning assembly or operation, consult your dealer or LPG Gas Company.
When used on the ground always place the appliance and cylinder on flat level ground.
Never light the GRILL OR REAR BURNERS with the HOOD in the closed position.
Never light the SIDE BURNER with the lid in the closed position.
Your barbecue can be used on gas cylinders between 11 kg and 15 kg. Your barbecue will perform better if
propane or LPG mixtures are used. Butane can be used but because of the rate of the appliance the
cylinder will tend to freeze and supply gas at reduced pressures affecting the performance of your
barbecue.
NOTE FOR CONSUMER: Retain for futur e Refer e nc e
CONNECTING THE GAS CYLINDER TO THE APPLIANCE
This appliance is only suitable for use with low-pressure butane or propane gas or LPG mixtures, fitted with
the appropriate low-pressure regulator via a flexible hose. The hose should be secured to the regulator
and the appliance with hose clips. This barbecue is set to operate a 28 mbar regulator with butane gas and
a 37 mbar regulator with propane gas 30 mbar for LPG mixtures or 50 mbar for LPG mixtures. Use a
suitable regulator certified to BSEN 12864: 2001. Please consult your LPG dealer for information
regarding a suitable regulator for the gas cylinder.
Regulator and Hose
These items are supplied with the barbecue, but replacements are available from your equipment retailer
or an authorized LPG gas stockist. Use only regulators and hose approved for LP Gas at the above
pressures. The life expectancy of the regulator is estimated as 2 years. It is recommended that it the
regulator be changed within 2 years of the date of manufacture.
The use of the wrong regulator or hose is
unsafe
; always check that you have the correct items before
operating the barbecue.
The hose used must conform to the relevant st andard for the country of use. The
length of the hose must be 1.5 metres (maximum). Worn or damaged hose must be
replaced. Ensure that the hose is not obstructed, kinked, or in contact with any part
of the barbecue other than at its connection.
Storage of Appliance
Storage of an appliance indoors is only permissible if the cylinder is disconnected and removed from the
appliance. When the appliance is not to be used for a period of time it should be stored in its original
packaging and stored in a dry dust free environment.
Gas Cylinder
The gas cylinder should not be dropped or handled roughly! If the appliance is not in use, the cylinder
must be disconnected. Replace the protective cap on the cylinder after disconnecting the cylinder from the
appliance. The gas cylinder must be seated outside the body of the appliance.
Cylinders must be stored outdoors in an upright position and out of the reach of children. The cylinder
must never be stored where temperatures can reach over 50°C. Do not store the cylinder near flames,
pilot lights or other sources of ignition. DO NOT SMOKE.
This barbecue is designed for use outdoors, away from any flammable materials. It
is important that there are no overhead obstructions and that there is a minimum
distance of 1 m from the side or rear of the appliance. It is important that the
ventilation openings of the appliance are not obstructed. The barbecue must be
used on a level, stable surface. The appliance should be protected from direct draughts and shall be
positioned or protected against direct penetration by any trickling water (e.g. rain).
Parts sealed by the manufacturer or his agent must not be altered by the user. No modifications
should be made to any part of this barbecue and repairs and maintenance should only be carried
out by a CORGI registered service engineer.
Connection to Appliance
Before connection, ensure that there is no debris caught in the head of the gas cylinder, regulator, burner
and burner ports. Spiders and insects can nest within and clog the burner/venturi tube at the orifice. A
clogged burner can lead to a fire beneath the appliance.
Clean burner holes with a heavy-duty pipe cleaner.
Fit the hose to the appliance using a spanner to tighten it onto the connection thread. If the hose is
replaced it must be secured to the appliance and regulator connections with hose clips. Disconnect the
regulator from the cylinder (according to the directions supplied with the regulator) when the barbecue is
not in use.
The Barbecue must be used in a well ventilated area. Do not obstruct the flow of combustion air to the
burner when the barbecue is in use. ONLY USE THIS BARBECUE OUTDOORS.
BEFORE USE CHECK FOR LEAKS
Never check for leaks with a naked flame, always use a soapy water solution
TO CHECK FOR LEAKS
Make 2-3 fluid ounces of leak detecting solution by mixing 1 part dish soap with 3 parts water.
Ensure the control valve is “OFF”.
Connect the regulator to the cylinder and ON/OFF valve to the burner, ensure the connections are secure
then turn ON the gas.
Brush the soapy solution onto the hose and all joints. If bubbles appear you have a leak, which must be
rectified before use.
Retest after fixing the fault
Turn OFF the gas at the cylinder after testing.
If leakage is detected and cannot be rectified. Do not attempt to cure leakage but consult your gas dealer.

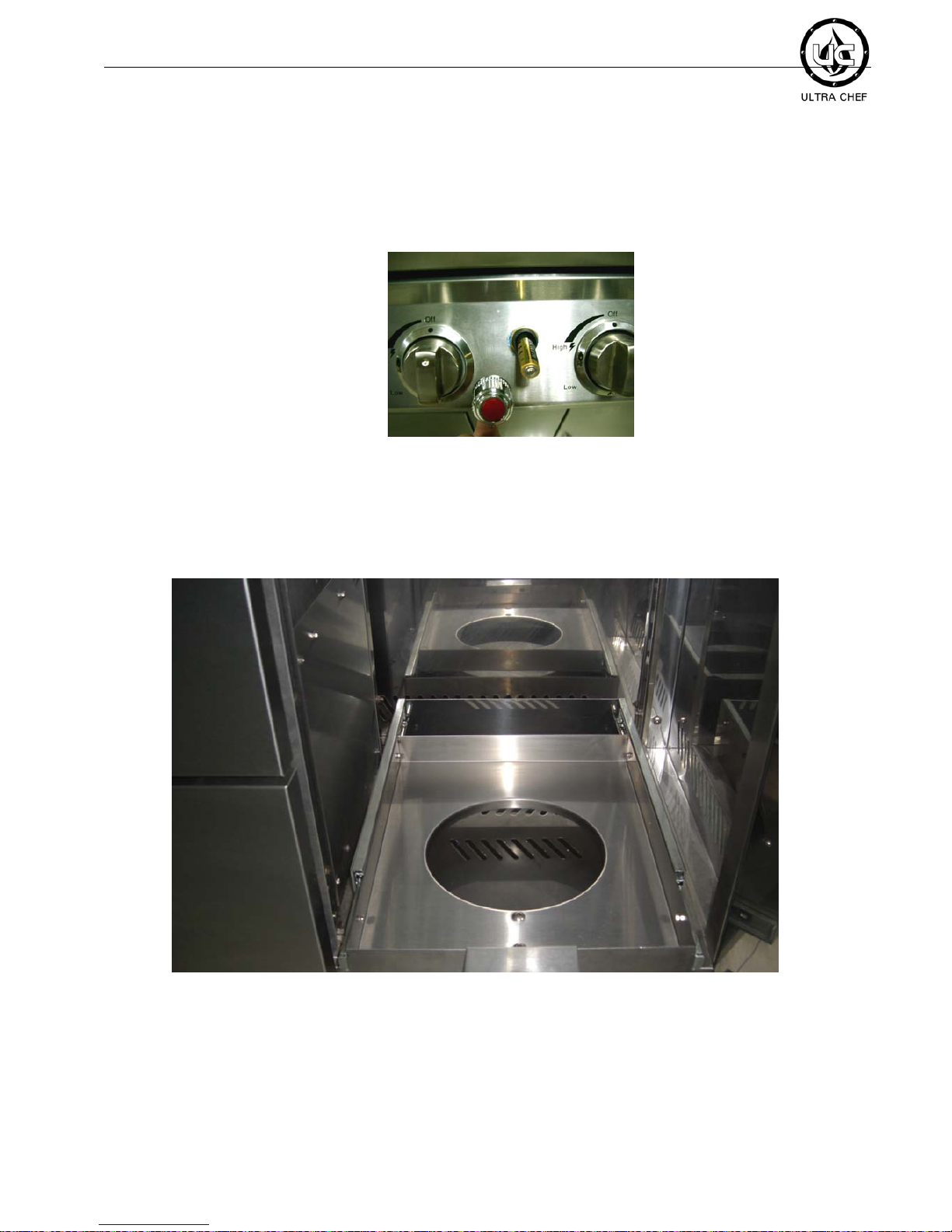

Lighting Instructions for barbecue
1. Open the hood of the barbecue before attempting to light the burners.
2. Turn all the control knobs clockwise to “OFF” position.
3. Connect the regulator to the gas bottle. Turn the gas supply “ON” at the regulator. Check with the use of
soapy water for any gas leakage between the bottle and the regulator.
4. Push down the left hand control knob and turn it anti-clockwise to the “Full rate” position, A click will be
heard this will be the piezo ignition device repeat this 4 or 5 times, this will light the burner. Observe if the
burner has lit. If not repeat this process.
5. If the burner has not lit after retrying wait 5 minutes and repeat step 4.
6. Adjust the heat by turning the knob to the High/Low position.
7. If the burner does not light. Light the appliance with a match using the lighting hole in the side of the
appliance. Consult your gas dealer to rectify the ignition.
8. To light the remaining burners in sequence from left to right, and repeat 4 above. The crosslighting channel
between the burners will light the burner adjacent to it. NEVER ATTEMPT TO LIGHT THE LEFT HAND
MIDDLE, CENTRE, RIGHT HAND MIDDLE or RIGHT HA ND BURNER F IRST.
9. To turn the barbecue ‘OFF’ turn the cylinder valve or regulator switch to the ‘OFF’ position and then turn
the control knob on the appliance clockwise to the ‘OFF’ position.
Warning: If the burner fails to ignite, turn the control knob off (clockwise) and also turn the cylinder valve off.
Wait five minutes before attempting to relight with ignition sequence.
Lighting Instructions (Side burner)
1. Open the lid of the side burner.
2. Push down the side burner control knob and turn it ant i-clockwise to the “Full rate” position, this will
light the side burner. Observe if the burner has lit. If not repeat this process.
3. If the burner has not lit after retrying wait 5 minutes and repeat step 2.
4. Adjust the heat by turning the knob to the High/Low position.
5. If the burner does not light. Light the appliance with a match using a long match or taper. Consult
your gas dealer to rectify the ignition.
6. To turn the side burner ‘OFF’, turn the control knob clockwise to the ‘OFF’ position. If you wish to
turn the complete barbecue ‘OFF’ turn the cylinder valve or regulator switch to the ‘OFF’ position
and then turn the control knob on the appliance clockwise to the ‘OFF’ position.
Warning: If the burner fails to ignite, turn the control knob off (clockwise) and also turn the cylinder valve
off. Wait five minutes before attempting to relight with ignition sequence.
Before cooking for the first time, operate the barbecue for about 15 minutes with the lid closed and the gas
turned on LOW. This will “heat clean” the internal parts and dissipate odour from the painted finish.
Clean your barbecue after each USE. DO NOT use abrasive or flammable cleaners, as it will damage the
parts of the product and may start a fire. Clean in warm soapy water.
WARNING: Accessible parts may be very hot. Keep young children away from the hot appliance at all
times (even while cooling down!). It is recommended that protective gloves (eg oven gloves) be used when
handling particularly hot components.
CLEANING AND CARE
CAUTION: All cleaning and maintenance should be carried out when the barbecue is cool and with the
fuel supply turned OFF at the gas cylinder.
CLEANING
“Burning off” the barbecue after every use (for approx 15 minutes) will keep excessive food residue to a
minimum.

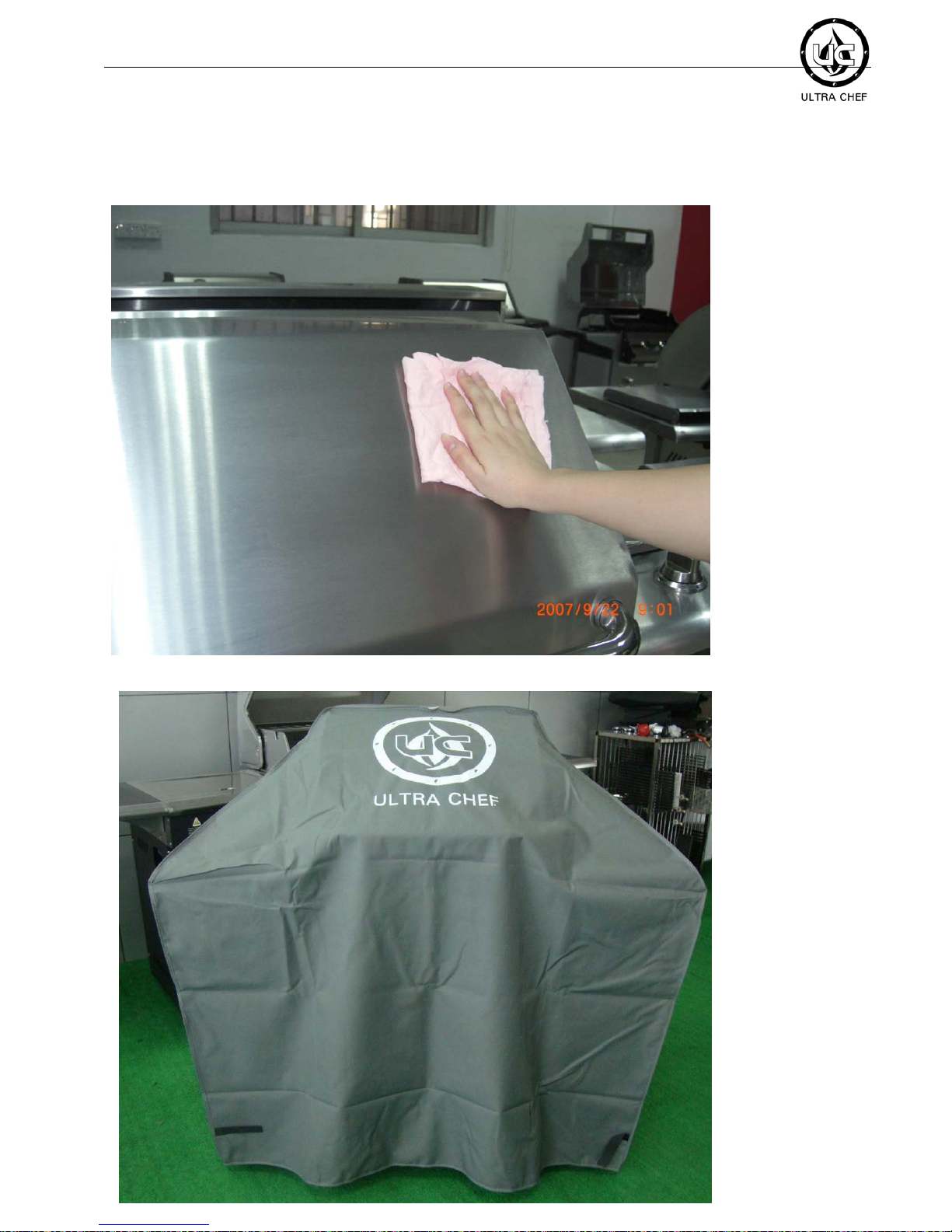

OUTSIDE SURFACE
Use mild detergent or baking soda and hot water solution. Non-abrasive scouring powder can be used on
stubborn stains, then rinse with water.
If the inside surface of the barbecue lid has the appearance of peeling paint, baked on grease build-up has
turned to carbon and is flaking off. Clean thoroughly with strong hot soapy water solution. Rinse with
water and allow to completely dry. NEVER USE OVEN CLEANER.
INTERIOR OF BARBECUE BOTTOM
Remove residue using brush, scraper and/or cleaning pad then wash with a soapy water solution. Rinse
with water and allow to dry.
WOODEN SURFACES
Wash with a soft cloth and hot soapy water solution. Rinse with water. Do not use abrasive cleaners,
degreasers or a concentrated barbecue cleaner on wooden parts.
COOKING GRID
Use a mild soapy water solution. Non-abrasive scouring power can be used on stubborn stains then rinse
with water.
CLEANING THE BURNER ASSEMBLY
Turn the gas OFF at the control knob and disconnect the cylinder.
Remove cooling grate.
Clean the burner with a soft brush or blow clean with compressed air and wipe with a cloth.
Clean any clogged ports with a pipe cleaner or stiff wire (such as an opened paper clip).
Inspect burner for any damage (cracks or holes). If damage is found, replace with a new burner. Reinstall
the burner, check to ensure that the Gas valve orifices are correctly positioned and secured inside the
burner inlet (venturi).

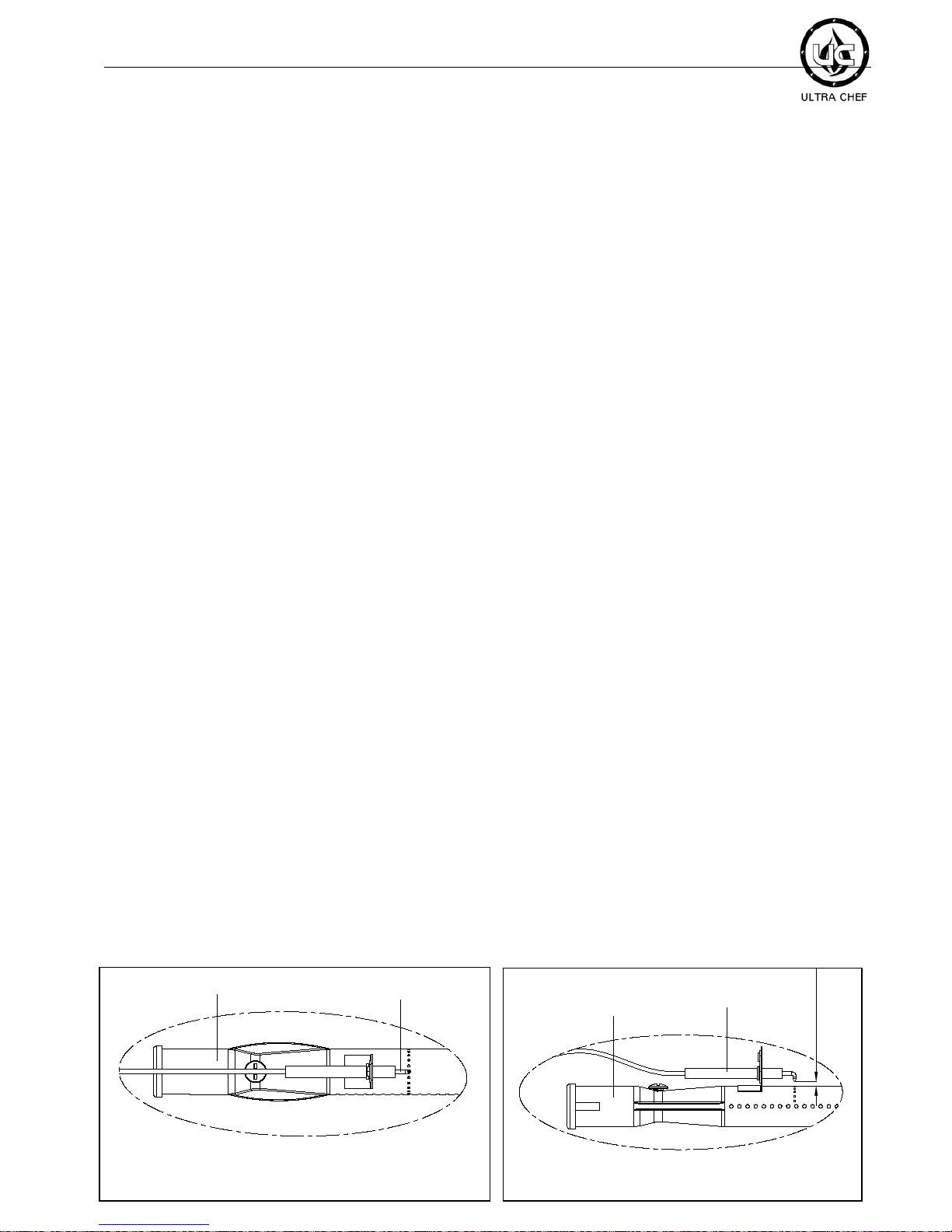

IGNITER TIP CLEANING:
If lighting the burners is difficult you may need to clean and adjust the igniter tip located near the burner
orifice. (FIG. 1 2). To ensure that the igniter lights properly, clean off any cooking residue from igniter tip
and burner. Use a very fine grit sand paper to clean igniter tip an edge of burner. Igniter tip should be
4–6 mm away from burner edge. (FIG. 13)This is the ideal distance for most effective ignition.
Burner
Igniter tip
FIG. 12
5¡À1mm
Burner
Igniter tip
FIG. 13
SERVICING
Your gas barbecue should be serviced annually by a competent registered person.
TROUBLE SHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Burners will not light using the
ignition system
1.LP gas cylinder is empty
2.faulty regulator
3.obstructions in burner
4.obstructions in gas jets or gas hose
5. electrode wire loose or
disconnected on electrode or
ignition unit
6.electrode or wire is damaged faulty
pushbutton igniter
1.replace with full cylinder
2.have regulator checked
or replace
3.clean burner
4.clean jets and gas hose
5.reconnect wire
6.change electrode and
wire
change igniter
Burner will not light with a
match
1.LG gas cylinder is empty
2.Faulty regulator
3.Obstructions in burner
4.Obstructions in gas jets or gas hose
1.Replace with full
cylinder
2.Have regulator checked
or replace
3.Clean burner
4.Clean jets and gas hose
Low flame or flashback (fir e in
burner tube-a hissing or
roaring noise may be heard)
1.LP gas cylinder too small
2.Obstructions in burner
3.Obstructions in gas jets or gas hose
4.Windy conditions
1.Use larger cylinder
2.Clean burner
3.Clean jets and gas hose
4.Use BBQ in a more
sheltered position
Warning label:
Stick on the hood:
Remove any tra nsi t protection fil m on metal panels prior to operating the BBQ
Stick on the hood:
The maximum cooking condition wi t h the hood down is all main burners on LOW.
Stick on the storage:
Here for storage only, the gas cylinder cannot be placed inside when the BBQ is in
use.
How to maintain your BBQ
1 Wipe over the stainless steel surface with rusty resistant oil when you storage the BBQ or
after used.
2.Fit a rainproof cover over the BBQ when it is not in use.
Battery insert :
Remove ignition button,
insert 1 AA battery
Warning:
Here for storage only, the gas cylinder cannot be placed inside when the BBQ is in
use.
2010
Ultra Chef 375 Model
Limited Warranty
3 YEARS STAINLESS STEEL BURNERS-PERFORATION
1 YEAR ALL OTHER COMPONENTS
To process a warranty claim please contact ONE of the following:
WOLF STEEL, UK
T. 01676 522788
Email: info@napoleongrills.co.uk
Napoleon Gr ills by Heartland
T. 0031-30-2383093
Email: info@napoleongrills.nl
Napoleon Appliance Corporation (Corporate Head Office)
T: 1-866-820-8686
Email: wecare@napoleonproducts.com
Napoleon Appliance Corporation or any of its divisions reser ves the right to have its
representat iv es in s pe ct any product or part prior t o honouring a ny warranty claim.
Napoleon Appliance Corporation or any of its divisions shall not be liable f or any
transportation charges, labour costs, or export duties.
Loading...
