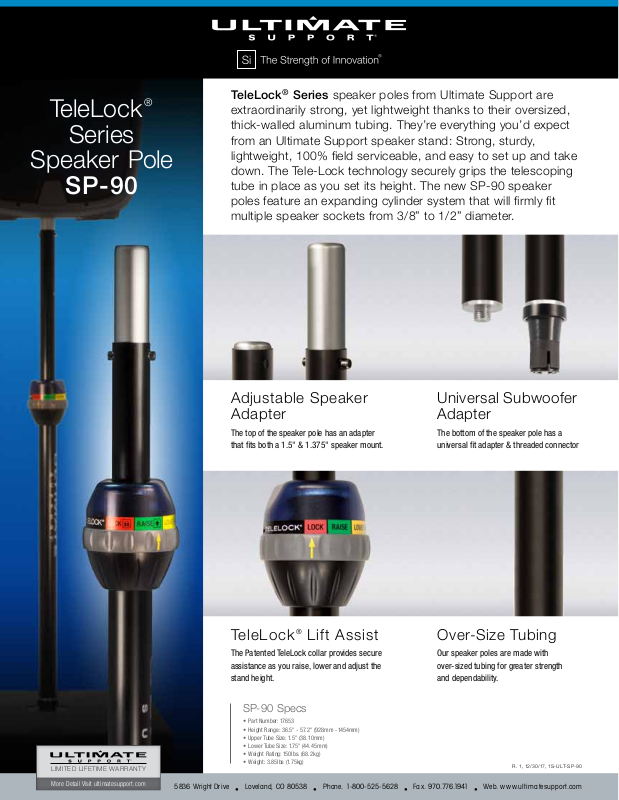

Ultimate Support SP-90 Users Manual

TeleLock®

Series

Speaker Pole

SP-90

TeleLock® Series speaker poles from Ultimate Support are

extraordinarily strong, yet lightweight thanks to their oversized,
thick-walled aluminum tubing. They’re everything you’d expect
from an Ultimate Support speaker stand: Strong, sturdy,
lightweight, 100% field serviceable, and easy to set up and take
down. The Tele-Lock technology securely grips the telescoping
tube in place as you set its height. The new SP-90 speaker
poles feature an expanding cylinder system that will firmly fit
multiple speaker sockets from 3/8” to 1/2” diameter.

Adjustable Speaker
Adapter

The top of the speaker pole has an adapter
that fits both a 1.5" & 1.375" speaker mount.

TeleLock® Lift Assist

The Patented TeleLock collar provides secure
assistance as you raise, lower and adjust the
stand height.

Universal Subwoofer
Adapter

The bottom of the speaker pole has a
universal fit adapter & threaded connector

Over-Size Tubing

Our speaker poles are made with
over-sized tubing for greater strength
and dependability.

LIMITED LIFETIME WARRANTY

More Detail Visit ultimatesupport.com

SP-90 Specs

• Part Number: 17653

• Height Range: 36.5" - 57.2" (928mm - 1454mm)

• Upper Tube Size: 1.5" (38.10mm)

• Lower Tube Size: 1.75" (44.45mm)

• Weight Rating: 150lbs. (68.2kg)

• Weight: 3.85lbs (1.75kg)

5836 Wright Drive • Loveland, CO 80538 • Phone. [phone] • Fax. [phone] • Web. ww w.ult imatesuppor t.com

R. 1, 12/30/17, 1S-ULT-SP-90
