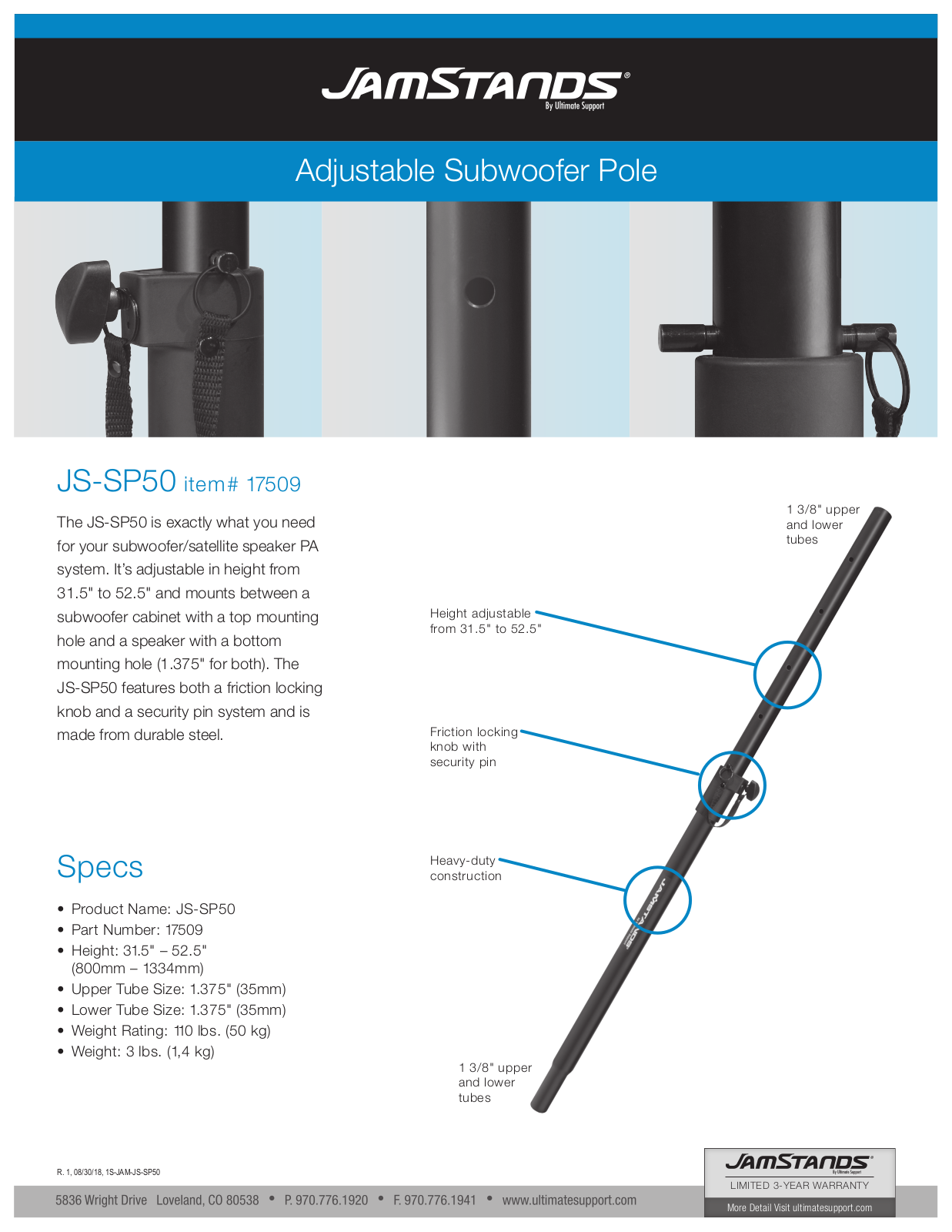

Ultimate Support JS-SP50 Users Manual

Adjustable Subwoofer Pole

JS-SP50 item# 17509

The JS-SP50 is exactly what you need

for your subwoofer/satellite speaker PA

system. It’s adjustable in height from

31.5" to 52.5" and mounts between a

subwoofer cabinet with a top mounting

hole and a speaker with a bottom

mounting hole (1.375" for both). The

JS-SP50 features both a friction locking

knob and a security pin system and is

made from durable steel.

1 3/8" upper
and lower
tubes

Height adjustable
from 31.5" to 52.5"

Friction locking
knob with
security pin

Specs

• Product Name: JS-SP50

• Part Number: 17509

• Height: 31.5" – 52.5"
(800mm – 1334mm)

• Upper Tube Size: 1.375" (35mm)

• Lower Tube Size: 1.375" (35mm)

• Weight Rating: 110 lbs. (50 kg)

• Weight: 3 lbs. (1,4 kg)

R. 1, 08/30/18, 1S-JAM-JS-SP50

Heavy-duty
construction

1 3/8" upper
and lower
tubes

LIMITED 3-YEAR WARRANTY

More Detail Visit ultimatesupport.com
