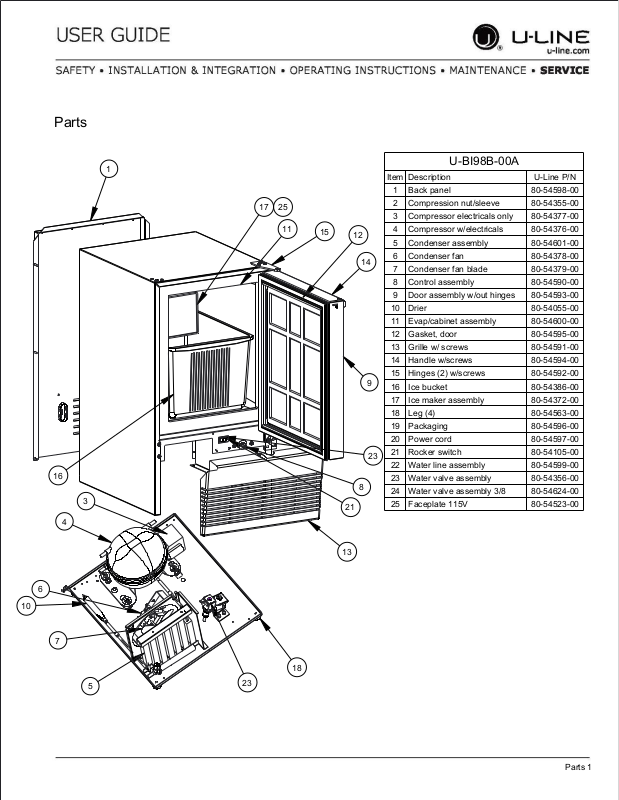

U-Line U-BI98B-00A Parts List

Parts

16

1

17 25

11

3

4

15

12

21

Item Description U-Line P/N

1 Back panel 80-54598-00

2 Compression nut/sleeve 80-54355-00

3 Compressor electricals only 80-54377-00

4 Compressor w/electricals 80-54376-00

5 Condenser assembly 80-54601-00

14

8

6 Condenser fan 80-54378-00

7 Condenser fan blade 80-54379-00

8 Control assembly 80-54590-00

9 Door assembly w/out hinges 80-54593-00

10 Drier 80-54055-00

11 Evap/cabinet assembly 80-54600-00

12 Gasket, door 80-54595-00

13 Grille w/ screws 80-54591-00

14 Handle w/screws 80-54594-00

15 Hinges (2) w/screws 80-54592-00

9

16 Ice bucket 80-54386-00

17 Ice maker assembly 80-54372-00

18 Leg (4) 80-54563-00

19 Packaging 80-54596-00

20 Power cord 80-54597-00

21 Rocker switch 80-54105-00

23

22 Water line assembly 80-54599-00

23 Water valve assembly 80-54356-00

24 Water valve assembly 3/8 80-54624-00

25 Faceplate 115V 80-54523-00

U-BI98B-00A

10

13

6

7

18

5

23

Parts 1
