Page 1
®
SERVICE MANUAL
MODULAR 3000 SERIES
230V, 3090 MODELS
U-3090WCWCOL-00
U-3090WCWCS-00
ALL MODULAR 3000 MODELS ARE INTENDED FOR BUILT-IN INSTALLATIONS ONLY
The American Built-In Undercounter Leader Since 1962
U-LINE.COM
Page 2
INTERNATIONAL PRODUCT LIABILITY POLICY (as of 11/4/2011)
Field service engineers are authorized to make an initial assessment. If in the engineer’s judgment the damage is the result of a product
defect, the product would be removed and returned to the importer in an unaltered condition. The importer would then be authorized to
permanently replace the end-user’s product at no cost to the end-user. The importer will notify U-Line and initiate a discussion regarding
disposition along with holding the product unaltered for evaluation.
If in the engineer’s judgment, the damage is the result of installation, the end-user would be so notified and the correction would be made
by the engineer or installer without requiring removal of the product. Any claim for damages should be directed to the original installer of
the product.
Any U-Line product involved in an alleged property damage claim must remain unaltered and unrepaired, for evaluation. No service
or repairs should be performed on any product suspected to be involved in property damage. If a product has been
altered or repaired in the field prior to the evaluation, any claim for damage may be declined. The product will be held
(unaltered) at the importer for disposition until notified by U-Line.
To complete the damage claim process for the end-user, the importer must obtain the following and forward to U-Line at the email
intl@u-line.com:
1. Pictures of the product, installation and any alleged property damage.
2. Inquire when the problem first appeared, any prior problems with the product and provide a brief description of the alleged damages.
3. To expedite the claim process, two damage repair estimates will be needed.
4. Reference the Return Authorization (RA) number and end-user name when providing this information.
If a product is returned to the importer, the importer will work with U-Line to facilitate the evaluation. U-Line reserves the right to
evaluate the product and will provide written (via email) approval for any person performing this evaluation. No field service engineer is
authorized to perform this evaluation without approval from U-Line. When a Return Authorization Number is issued, and the
product has been boxed in a U-Line carton, importer should be contacted and then will make arrangements for shipping, or designate a
truck line to have the product shipped freight collect to the importer.
If the evaluation finds the product to be defective, the damage claim will be reviewed by the U-Line Customer Assurance Department.
If the evaluation finds the product not to be defective, all claims for damage will be declined.
When a product evaluation is needed, it is the end-user’s responsibility to assure that the product is released for evaluation. If the end-user
fails to do so, or has the product repaired in the field prior to the evaluation, any claim for damage will be declined.
Website: u-line.com
Mailing Address:
P.O. Box 245040
Milwaukee, WI 53224-9540
U.S.A.
Physical Address:
8900 N. 55th St.
Milwaukee, WI 53223
U.S.A.
Phone 1-414-354-0300
Fax 1-414-354-7905
u-line.com
Page 3
Table of Contents
General Information
3000 Series Maintenance
3000 Series Doors
Troubleshooting
Safety Alert Definitions.........................................................................................................................................1
General Precautions..............................................................................................................................................1
Models Covered.....................................................................................................................................................3
System Default Values...........................................................................................................................................3
Temperature Ranges of the Various Preset U-Select™ Control..........................................................................3
Warranty Claims Procedure ...............................................................................................................................4
Proof of Purchase...................................................................................................................................................4
Serial Number.........................................................................................................................................................4
Replacement Parts .................................................................................................................................................4
Thermistor Info ......................................................................................................................................................5
Viewing Temperature............................................................................................................................................5
Thermistor Calibration.........................................................................................................................................5
Air Flow....................................................................................................................................................................6
Initial Startup ...........................................................................................................................................................6

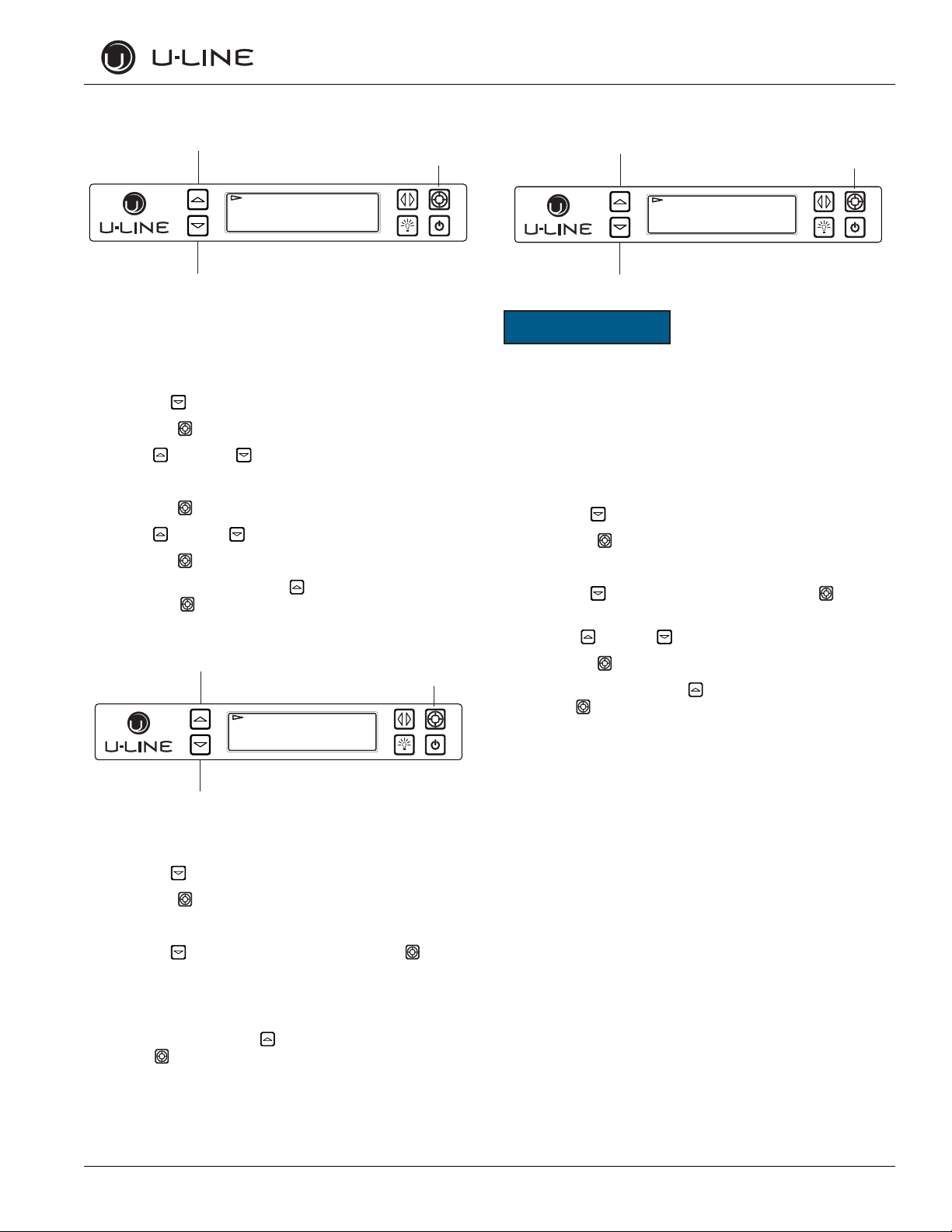

U-Select
®
Control .................................................................................................................................................6
Adjusting Temperature Settings .........................................................................................................................6
Interior Lighting......................................................................................................................................................7
Error Notification ..................................................................................................................................................7
Customer Menu .....................................................................................................................................................7
Service Menu...........................................................................................................................................................9
USB Communication...........................................................................................................................................14
Quick Guide..........................................................................................................................................................18
Convection Cooling ............................................................................................................................................20
Leveling...................................................................................................................................................................21
Removing and Installing Grille...........................................................................................................................21
Adjusting Grille.....................................................................................................................................................21
Door Alignment and Adjustment.....................................................................................................................22
Main Control.........................................................................................................................................................23
Component Testing.............................................................................................................................................24
Customer Call Guide..........................................................................................................................................25
Troubleshooting ..................................................................................................................................................26
Compressor Information ...................................................................................................................................27
Thermistors...........................................................................................................................................................28
Thermistor Failure...............................................................................................................................................28

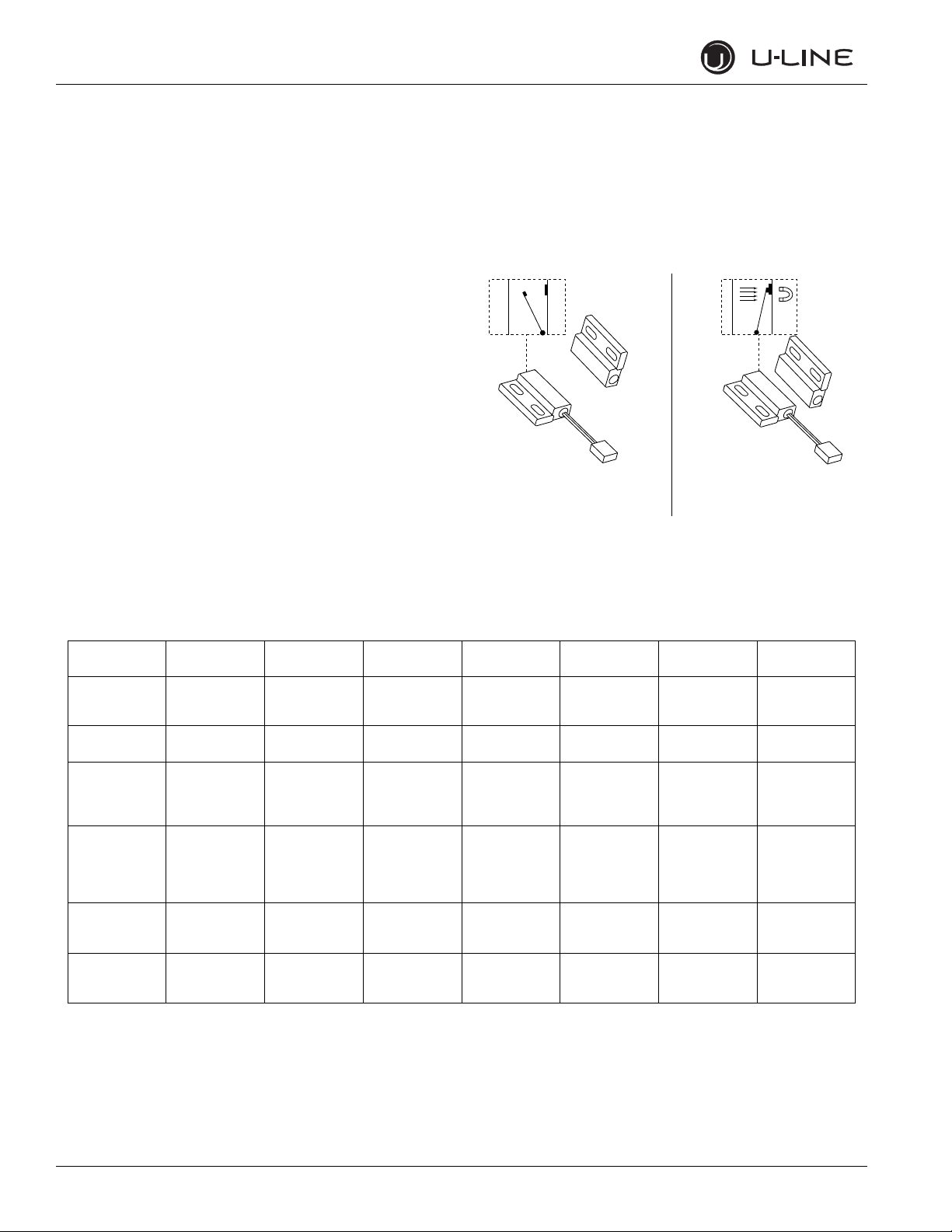

Reed Switch...........................................................................................................................................................28
Refrigeration System Diagnosis Guide............................................................................................................28
Fault System Diagnosis Guide ..........................................................................................................................29
Page 4
General Information
NOTICE
DANGER
!
WARNING
!
CAUTION
!
General Information
• PLEASE READ all instructions before installing,
operating, or servicing the appliance.
• Proper installation procedures must be followed when
completing an installation or relocation of a unit. An
INSTALLATION GUIDE for the unit, providing complete
installation information, is available from U-Line
Corporation direct. Consult the installation guide before
any installation begins. U-Line contact information
appears on the rear cover of this guide.
• This unit requires connection to a dedicated 15 Amp
grounded (three-prong), polarized receptacle, installed by
a qualified electrician, compliant with applicable electrical
codes.
Safety Alert Definitions
Throughout this guide are safety items labeled with a Danger,
Warning or Caution based on the risk type:
Danger means that failure to follow this safety statement will
result in severe personal injury or death.
Warning means that failure to follow this safety
statement could result in serious personal injury or death.
Caution means that failure to follow this safety statement
may result in minor or moderate personal injury, property
or equipment damage.
General Precautions
Use this appliance for its intended purpose only and follow these
general precautions with those listed throughout this guide:
DANGER
!
RISK OF CHILD ENTRAPMENT. Before you throw away your
old refrigerator or freezer, take off the doors and leave shelves
in place so children may not easily climb inside.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience or knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure that they do
not play with this appliance.
Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
WARNING
!
SHOCK HAZARD - Electrical Grounding Required.
• Never attempt to repair or perform maintenance on
the unit until the electricity has been disconnected.
• Never remove the round grounding prong from the
plug and never use a two-prong grounding adapter.
• Altering, cutting of electric cord, removal of electric
cord, removal of electric plug, or direct wiring can
cause serious injury, fire and/or loss of property and/or
life, and will void the warranty.
• Never use an extension cord to connect electric
current to the unit.
• Always keep your working area dry.
If the detachable type electric supply cord is damaged, it must be
replaced by an equivalent cord available from the manufacturer or its
service agent.
WARNING
!
Install provided Anti-Tip kit on all 3000 series models.
WARNING
!
Do not store explosive substances such as aerosol cans
with flammable propellant in this appliance.
WARNING
!
Requirement for an external switch in the fixed wiring is
specified.
u-line.com 1
Page 5
General Information
CAUTION
!
NOTICE
• Use care when moving and handling the unit. Use gloves
to prevent personal injury from sharp edges.
• If your model requires defrosting, DO NOT use an ice pick
or other sharp instrument to help speed up defrosting.
These instruments can puncture the inner lining or
damage the cooling unit. DO NOT use any type of heater
to defrost. Using a heater to speed up defrosting can
cause personal injury and damage to the inner lining.
Do not lift unit by door handle.
• Never install or operate the unit behind closed doors. Be
sure front grille (plinth strip/base fascia) is free of
obstruction. Obstructing free airflow can cause the unit to
malfunction and will void the warranty.
• Failure to clean the condenser every six months can cause
the unit to malfunction. This could void the warranty.
• Allow unit temperature to stabilize for 24 hours before
use.
• Do not Block any internal Fans.
Use only genuine U-Line replacement parts. Imitation parts
can damage the unit, affect its operation or performance
and may void the warranty.
This appliance is intended to be used in household and similar
applications such as:
• Staff kitchen areas in shops, office and other working
environments.
• Farm houses and by clients in hotels, motels and other residential
type environments.
• Bed and breakfast type environments.
• Catering and similar non-retail applications.
2 u-line.com
Page 6
General Information
Models Covered
This guide covers the following models:
Cabinet Configuration
Model Door Configuration Left Zone Right Zone
U-3090WCWCOL-00 Overlay Glass Doors Wine Racks Wine Racks
U-3090WCWCS-00 Stainless Steel Glass Doors Wine Racks Wine Racks
System Default Values
Available Modes Default Mode Offset
Model Left
U-3090WCWCOL-00 Red Wine,
U-3090WCWCS-00 Red Wine,
Model Left Right Left
U-3090WCWCOL-00 2 2 12 7 10 7 1 2 1 2
U-3090WCWCS-00 2 2 12 7 10 7 1 2 1 2
Zone
Sparkling, White
Wine
Sparkling, White
Wine
Differential Set Points Fan Delay
Right
Zone
Red Wine,
Sparkling, White
Wine
Red Wine,
Sparkling, White
Wine
Zone
Left
Zone
Red Wine White Wine 5 0 0 0 0
Red Wine White Wine 5 0 0 0 0
Left
Evap
Right
Zone
Right
Zone
Left
Zone
Right
Evap
Left
Evap
Fan 1
On
Right
Zone
Fan 1
Off
Right
Evap
Fan 2
On
Ambient
Fan 2
Off
Temperature Ranges of the Various
Preset U-Select™ Control
Deli
• 1°C – 4°C, set point 2°C
• meats, fish, cheeses, dairy, butter, garlic, oils, nuts, condiments,
drinks
Fresh
• 1°C – 4°C, set point 3°C
• fruits, vegetables, berries, lettuce
Pantry
• 1°C – 21°C, set point 6°C
• dry goods, breads, baking items, spices, seasonings
Root Cellar
• 7°C – 13°C, set point 10°C
• root vegetables, potatoes, onions, lemon, lime, melon,
peppers, beans, cucumber, cut/open veggies
Drinks
• 1°C – 18°C, set point 3°C
Sparkling Wine
• 4°C – 10°C, set point 7°C
White Wine
• 7°C – 13°C, set point 10°C
Red Wine
• 13°C – 18°C, set point 13°C
u-line.com 3
Page 7
General Information
NOTICE
1214997-08-0005
Year
Month
Factory
Use Only
Factory
Use Only
Warranty Claims Procedure
Warranty claims must be filed within 60 days after the
completion of the service call.
When submitting claims for warranty payment, please see
u-line.com/intl.
Proof of Purchase
If a copy of the Proof of Purchase/Proof of Install is not available, the
technician should record the following information on the Labor
Invoice:
Name of the selling dealer
Date of purchase/installation
Sales order or Invoice number
Description of verification document (i.e. Store Receipt, Closing
Papers, Sign-Off of Building Permit, Final Walk Through, etc.)
Confirm model and serial number
Serial Number
The serial number is divided into four segments. A typical serial
number is 1214997-08-0005.
Replacement Parts
Please refer to your importer for replacement parts or see
u-line.com/intl.
4 u-line.com
Page 8
General Information
Thermistor Info
There are 5 thermistors used with the 3090 models.
• Left Zone Thermistor - Located on the right hand wall in the left
zone and is used to maintain temperature.
• Right Zone Thermistor - Located on the right hand wall in the
right zone and is used to maintain temperature.
• Left Evaporator Thermistor - Located on the back of the
evaporator plate in the left zone and is used during defrost.
• Right Evaporator Thermistor - Located on the back of the
evaporator plate in the right zone and is used during defrost.
• Ambient Thermistor - Located in the base of the unit on the
condenser and is used to monitor ambient air temperatures.
Viewing Temperature
Note: The display shows set point NOT the actual temperature.
The 3000 series is equipped with an advanced electronic display and
control. Thermistor readings can be obtained through both the
customer and service menu. The customer menu will display readings
while using offset calculations. It is important to note that the system
will use these adjusted readings when determining cooling and
defrost cycles. The service menu will display the actual thermistor
reading while disregarding offsets.
Customer Menu
To view the adjusted temperature of each available thermistor, follow
the steps below.
1. Initiate the customer menu by holding Select
2. Use Down to scroll to “Actual Temperatures”.
3. Press select .
4. Use Up or Down to scroll through available information.
Service Menu
To view the actual temperature without having the offsets taken into
consideration, follow the steps below.
1. Initiate the service menu by holding both up
Zone Toggle
2. Use Up or Down to scroll to “Actual Temperatures”.
3. Press select .
Use Up or Down to scroll through available information.
.
for 5 seconds.
and
Thermistor Calibration
While thermistors generally do not require calibration, over time
contact corrosion and or element wear may make calibration
necessary.
Calibration
To calibrate a thermistor one must first prepare an ice water of
crushed ice and water in a suitable container. Allow the ice water
temperature to stabilize for at least 5 minutes before beginning.
NOTICE
Offsets are preset at the factory to efficiently maintain
product temperature. If modifying offset, existing values
must be taken into consideration.
NOTICE
Customer Care must be notified before any changes are
made to factory set offsets. Failure to notify Customer Care
will void the warranty.
1. Enter the service menu and record existing offset values for each
thermistor to be calibrated. See page 12. Some models have a
factory offset setting of 0.
2. Change offset of each thermistor to be calibrated to 0.
3. Enter “Actual Temps” through the
“Viewing Temperature”.
4. Submerge the thermistor in the ice
out through the menu should be 0°C (32°F). If different, record
difference.
5. Enter “Offsets” through the service menu and set the value
recorded in step 4 to the thermistor to be calibrated.
6. Enter “Actual Temps” through the
temperature readout should now be 0°C (32°F). If the readout is
still incorrect reset the offset to 0 and perform steps 4 & 5 again.
7. Enter the “Offsets” menu and add the value recorded in step 1 to
the new offset setting. For example, if after the ice
of 1 was needed and the existing offset value recorded in step 1
was -2 the new offset value would be -1. If the calculated value is
outside the maximum range capable in the offset menu the
thermistor must be replaced. The offset menu has a maximum
range of -5°C through 5°C.
Customer Menu
water
. The temperature read
Customer Menu
. See
, the
water
an offset
Note: If a mistake is made in the calibration process a Factory Reset
will restore offsets to their factory pre-set values. See “Factory
Default” on page 13.
u-line.com 5
Page 9
General Information
NOTICE
NOTICE
Door Removed For Illustration Purposes
Internal Air Flow And Unit Ventilation Diagram
Air Flow
The unit requires proper air flow to perform at its highest
efficiency. Do not block the front grille, internal fans or vents
at any time, or the unit will not perform as expected. Do not
install the unit behind a door.
Note: A U-Line Control Simulator is available on-line. It is located on
the service website. To access this website you must have a user
name and password. Please go to http://www.u-line.com/controlsimulator/ to access the U-Line Control Simulator.
Adjusting Temperature Settings
Each zone has a Series of Mode Settings with a default value for each
setting. Each Mode Setting can be further customized by fine tuning
the temperature set point. See the table below for a description of
each Mode and temperature ranges. Mode selection will vary by
model.
Mode Settings Chart
Setting Default (°C) Range (°C)
Red Wine 12° 12° - 18°
White Wine 10° 7° - 12°
Sparkling Wine 7° 3° - 10°
Drinks 3° 1° - 18°
Fresh 3° 1° - 4°
Vegetable 10° 7° - 12°
Pantry 5° 1° - 21°
Deli 2° 1° - 4°
The 3090 Models have two independently controlled zones. Each
zone may have its own Mode and set point.
Initial Startup
All U-Line controls are preset at the factory. Initial startup requires
no adjustments.
U-Line recommends allowing the unit to run overnight
before loading refrigerator with product.
To power the unit on simply press POWER and the unit will
immediately switch on.
To power the unit down, press and hold POWER for 5 seconds
and release. The display will show a countdown to switching the unit
off.
U-Select® Control
Digital Display
The 3000 Series units are controlled by a feature rich, advanced
OLED display control unit. The control panel allows adjustment to
temperature set point, access to Energy Saver Mode, internal
temperature readings, and many other features.
1. In order to adjust set points you must first select a Zone to
adjust. To select, press Zone Toggle . The left side Zone
Setting will flash. Pressing Zone Toggle again will select the
right side and the right side Zone Setting will flash.
2. Pressing Select will cycle through each available mode.
Reference the Mode Settings Chart above for each Setting’s
default set point and range.
3. Once you have selected your desired mode, the default set
temperature will display. You may further fine tune the
temperature by pressing Up or Down .
Quick Chill
CAUTION
!
Quick chill is designed to quickly pull warm beverages and
foods down to optimum storage temperature. It is
important to only initiate quick chill modes when the zone
has been fully loaded with warm product. Failure to follow
this notice could result in food or beverages that are cooled
to a point below optimum or frozen.
The Quick Chill feature allows the user to rapidly cool their product
by cooling the cabinet to the lowest zone setting for the duration of 4
hours. After 4 hours, the temperature will return to the previous set
point before Quick Chill activation. Quick Chill is activated by
pressing the down button until “Quick Chill” is displayed.
6 u-line.com
Page 10
General Information
Up
Zone Indicator Zone Indicator
Zone Toggle
Select
Down
U-Select Lighting
Power
3036 Model Display Shown
U-SELECT LIGHTING
ON WITH DOOR
LIGHTING
HIGH
LEVEL
Up
Select
Down
WELCOME TO THE
CUSTOMER MENU. USE
UP/DOWN ARROWS TO
SCROLL SETTINGS.
To Initiate quick chill
1. Use Zone Select
to select the desired zone, left or right.
2. Press Select to select the desired mode setting.
3. Press Down until the temperature set point reads “Quick”.
The quick chill feature will then begin for the period of time dictated
by the mode type. To cancel quick chill simply select a set point other
then “quick”.
Note: There may be a delay before quick chill is activated. If the
opposite zone is currently in a cooling cycle and quick chill is
selected, the cooling cycle on the opposite side will first be
completed before beginning quick chill.
Note: When quick chill is activated, the zone opposite the active quick
chill zone will not return to a cooling cycle until quick chill is
complete. If storing product in the opposite zone, it is important to
limit the number of times the door is opened in the zone not
currently under quick chill.
Interior Lighting
U-Line 3000 Series unit uses a state of the art theatre style LED
lighting system.
Note: Lighting system is designed to fade in and out when switching
states.
ID Description Solution
No Comm Unit lost
(L) (R) Zone T
Open
Amb Thrm Open Ambient thermistor
(L) (R) Zone T
Short
Amb Thrm Short Ambient thermistor
(L) (R) Temp Hi
6H+
(L) (R) Temp Hi
12H+
(L) (R) Temp Lo
6H+
(L) (R) Temp Lo
12H+
(L) (R) Door
Open 5M
communication to the
display.
Left or right zone
thermistor circuit
open.
circuit open.
Left or right zone
thermistor circuit
shorted.
circuit shorted.
Left or right Zone
temperature +5° over
set point for over 6
hours.
Zone temperature +5°
over set point for over
12 hours.
Zone temperature
-5° under set point for
over 6 hours.
Zone temperature
-5° under set point for
over 12 hours.
Door switch open for
more then 5 minutes.
Inspect Customer UI and
Data Cable (if defective
replace entire door)
Check connection.
Replace if necessary.
Check connection.
Replace if necessary.
Check connection.
Replace if necessary.
Check connection.
Replace if necessary.
Verify door is closed and
sealing. Contact customer
care if persistent.
Check compressor,
evaporator fan and related
relays and DC outputs.
Check compressor,
evaporator fan and related
relays and DC outputs.
Check compressor,
evaporator fan and related
relays and DC outputs.
Verify door is closed and
sealing. Check reed switch
and related connections.
1. To begin, press U-Select Lighting to enter the lighting menu.
2. The unit initially defaults to control the lighting in both Zones
simultaneously. To select a single zone press Zone Toggle .
Notice the arrows on top of the display changing state. Pressing
Zone Toggle once will select the left side zone, pressing it
again will select the right side zone, pressing it a third time will
select both zones again.
3. Use Up or Down to cycle through each available
brightness setting; Low, Medium, or High.
4. Use U-Select Lighting to cycle through each available timer
setting. Selections include “On With Door”, “On 3 Hours”, “On
6 Hours”, or “On 24 Hours”.
5. To exit, press Select or simply wait for the menu to time out.
Error Notification
The 3000 model series continuously monitors a series of inputs and
parameters to ensure proper and efficient operation of the unit. Should
the system detect a fault, an error notification will be displayed on the
user interface. See below for a list of errors.
Customer Menu
The 3000 Series of U-Line undercounter refrigeration appliances
contain a feature rich customer menu. The Customer Menu allows
access to a series of advanced features including Energy Saver Mode,
Sabbath mode, Actual Temperature readings as well as a method to
restore factory defaults.
1. To access the Customer Menu hold down Select for 5
seconds.
2. Use Up or Down to scroll through available selections.
3. Use Select to enter selected sub-menu.
4. To exit Customer menu, Use Down to scroll to the bottom
of the display and use Select to Select “Exit.”
u-line.com 7
Page 11
General Information
Up
Select
Down
3090 Model Display Shown
RETURN TO MENU
ACTUAL TEMPS
LEFT ZONE = 3°C
RIGHT ZONE = 3°C
WHITE WINE WHITE WINE
99
C
C
1
00
OO OO
Up
Select
Down
Power
3090 Model Display Shown
Energy Saver Mode
Indicator
Up
Select
Down
RETURN TO MENU
SABBATH MODE
OFF
Up
Select
Down
RETURN TO MENU
LANGUAGES
ENGLISH
Actual Temps
The “Actual Temps” option displays the offset corrected temperature
of each zone, evaporator, as well as ambient temperature.
1. To view actual temperatures first select “Actual Temps” from the
customer menu.
2. Use Up or Down to scroll through available information.
3. To exit, Select Return to Menu.
Energy Saver
Sabbath Mode
The U-line 3000 Series of models offer a Sabbath mode for users
who celebrate certain Sabbaths. Sabbath mode disables system
responses to user initiated activities and all external functions;
including lighting, display and audible alarms. The unit will still
maintain internal temperatures and set points.
1. To enter Sabbath Mode, select Sabbath Mode from the Customer
Menu.
2. Use Down to select “Off”.
3. Press Select , “Off” will begin to flash.
4. Use Up or Down to change “Off” to “On”.
5. Press Select to Confirm your selection.
The Display will fade out as the unit enters Sabbath Mode. Sabbath
remains active until Power is pushed.
Energy Saver mode reduces overall energy consumption by altering
user set point, differential, lighting and tone settings. When in Energy
Saver mode a small leaf icon will be displayed on the main screen.
1. To enter Energy Saver first select Energy Saver from the
Customer Menu.
2. Use Down to select “Off” in the menu.
3. Press Select .
4. Use Up or Down to change the selection from Off to On.
5. Press Select to confirm your selection.
6. To exit Energy Saver mode simply return to the Customer Menu,
Select Energy Saver mode and change “On” to “Off”.
Languages
The U-Line 3000 Series of models supports a number of Display
Languages including English, Spanish, French and German.
To Change Display Language select Languages from the Customer
Menu.
1. Use Down to select “English”.
2. Press Select , “English” will begin to flash.
3. Use Up or Down to cycle through the available Languages.
4. Press Select to confirm your choice.
8 u-line.com
Page 12
General Information
Up
Select
Down
RETURN TO MENU
TONE LEVEL
HIGH
Up
Select
Down
RETURN TO MENU
FARENHEIT/CELSIUS
DEGREES = °C
Up
Select
Down
RETURN TO MENU
FACTORY DEFAULT
RESTORE?
Up
Select
Down
RETURN TO MENU
Help
Model 3045WC
1-800-779-2547
Up
Select
Down
3090 Model Display Shown
RETURN TO MENU
ACTUAL TEMPS
LEFT ZONE = 3°C
RIGHT ZONE = 3°C
Sound Level
Audible alarms and alert tones support four different Sound Level
settings, High, Medium, Low, and Off.
To select a new sound level, enter the Sound Level menu from the
Customer Menu.
1. Use
Down
to select the current sound level.
2. Press Select , the current setting will begin to flash.
3. Use Up or Down to select a different level.
4. Use Select to confirm your choice.
Celsius / Fahrenheit
Temperature and set point information can be displayed in either
Fahrenheit or Celsius.
To change from Celsius to Fahrenheit enter the Fahrenheit / Celsius
menu from within the Customer Menu.
1. Use
2. Press Select . The selection will begin to flash.
3. Use Up or Down to select between °F (Fahrenheit) or °C
4. Press Select to confirm your choice.
Down
(Celsius).
to select “Degrees”.
2. Press Select .
To restore settings to their factory default
3. Use Down to select “Restore?” and press Select
4. “Restore?” will change to “Restoring...” while settings are
restored. When restoration is complete, “Restoring...” will return
to “Restore?”.
To exit Factory Default use Up to select “Return to Menu” and
press Select to confirm.
Help
To access the Help menu select Help from the Customer Menu. Use
Up or Down to scroll through available information. The Help
screen displays the following.
•Model.
• U-Line contact information.
•Software version.
•Serial Number.
To exit the Help menu use Up to select “Return to Menu” and
press Select to confirm.
Service Menu
In addition to a feature rich customer menu, the 3000 series also
offers a service menu with the ability to fine tune and monitor unit
operation.
To initiate the Service menu hold both Up and Zone Toggle
for 5 seconds.
Actual Temps
Factory Default
Factory Default will restore all settings to their factory default.
To access Factory Default
1. Use Down to select “Factory Default”.
The Actual Temp option in the service menu will display raw
thermistor readings without calculating offsets.
1. Use Down to select “Actual Temps”.
2. Press Select .
3. Use Up and Down to scroll through available thermistor
readings.
u-line.com 9
Page 13
General Information
Up
Error ID
Number
Of Occurrences Select
Down
RETURN TO MENU
ALL ERRORS
NO COMM 0
ZONE T OPEN 0
Up
Select
Down
RETURN TO MENU
RELAY STATUS
MULL COND DEF LVLV
OFF OFF OFF OFF
To exit the Actual Temps menu use Up to select “Return to
Menu” and press Select to confirm.
ID Description Solution
L Temp Lo
12H+
All Errors
R Temp Lo
12H+
L Door
Open 5M
R Door
Open 5M
The All Errors option keeps record of any system errors. When an
error occurs it is recorded to all errors. The number next to the
error indicates the number of recorded instances. Errors in the log
may not be currently active. The error log memory is non volatile and
is persistent should power be lost and restored to the unit. See
below for a list of logged errors and their respective descriptions.
ID Description Solution
No Comm Unit lost communication to the
L Zone T
Open
R Zone T
Open
L Evap T
Open
R Evap T
Open
Amb Thrm
Open
L Zone T
Short
R Zone T
Short
L Evap T
Short
R Evap T
Short
Amb Thrm
Short
L Temp Hi
6H+
R Temp Hi
6H+
L Temp Hi
12H+
R Temp Hi
12H+
L Temp Lo
6H+
R Temp Lo
6H+
10 u-line.com
display.
Left Zone thermistor circuit
open.
Right Zone thermistor circuit
open.
Left evaporator thermistor circuit
open.
Right evaporator thermistor
circuit open.
Ambient thermistor circuit open. Check connection. Replace
Left Zone thermistor circuit
shorted.
Right Zone thermistor circuit
shorted.
Left evaporator thermistor circuit
short.
Right evaporator thermistor
circuit short.
Ambient thermistor circuit
shorted.
Left Zone temperature +5° over
set point for over 6 hours.
Right Zone temperature +5° over
set point for over 6 hours.
Left Zone temperature +5° over
set point for over 12 hours.
Right Zone temperature +5° over
set point for over 12 hours.
Left Zone temperature -5° under
set point for over 6 hours.
Right Zone temperature -5°
under set point for over 6 hours.
Check display cable. Replace
if necessary.
Check connection. Replace
if necessary.
Check connection. Replace
if necessary.
Check connection. Replace
if necessary.
Check connection. Replace
if necessary.
if necessary.
Check connection. Replace
if necessary.
Check display cable. Replace
if necessary.
Check connection. Replace
if necessary.
Check connection. Replace
if necessary.
Check connection. Replace
if necessary.
Check compressor,
evaporator fan and related
relays and DC outputs.
Check compressor,
evaporator fan and related
relays and DC outputs.
Check compressor,
evaporator fan and related
relays and DC outputs.
Check compressor,
evaporator fan and related
relays and DC outputs.
Check compressor,
evaporator fan and related
relays and DC outputs.
Check compressor,
evaporator fan and related
relays and DC outputs.
To access All Errors follow the steps below.
1. Use Down to select “All Errors”.
2. Press Select .
3. Use Up and Down to scroll through available information.
To clear the error log use Down to select “Clear Errors” and
press Select to confirm.
To exit the Actual Temps menu use Up to select “Return to
Menu” and press Select to confirm.
Relay Status
Relay status displays the current state of each relay. While all available
relays are displayed, only a portion are used.
ID Description Status
Mull Mullion Heater Not Used
Cond Condenser Fan Not Used
Def Defrost Valve Not Used
LVLV Lef t Valve Used
RVLV Righ t Va l ve Used
Pan Pan Heater Not Used
Comp Compressor Used
Note: The Cond (Condenser Fan) will switch state with the
compressor relay, however the condenser fan is actually powered
through a DC output. Condenser fan status can be viewed through
the “Output” service menu option.
To access Relay Status
1. Use Down to select “Relay Status”.
2. Press Select .
3. Use Up and Down to scroll through available information.
To exit the Relay Status simply press Select to exit.
Left Zone temperature -5°
under set point for over 12
hours.
Right Zone temperature -5°
under set point for over 12
hours.
Left door switch open for
more then 5 minutes.
Right door switch open for
more then 5 minutes.
Check compressor, evaporator
fan and related relays and DC
outputs.
Check compressor, evaporator
fan and related relays and DC
outputs.
Check compressor, evaporator
fan and related relays and DC
outputs.
Check compressor, evaporator
fan and related relays and DC
outputs.
Page 14
General Information
Up
Select
Down
RETURN TO MENU
RELAY TOGGLE
MULL OFF
COND OFF
Up
Select
Down
RETURN TO MENU
INPUT STATUS
DOOR OPEN
IN2 OPEN
Up
Select
Down
RETURN TO MENU
OUTPUTS
EVAP FAN=0%
CONDENSER FAN=0%
Relay Toggle
Relay toggle is used to manually switch the state of each relay to test
for proper operation. In addition to the AC relays, DC switches may
also be toggled. Relay toggle can also be used to force the unit into a
particular state. For example, to force a 3090 into a cooling cycle
activate LVLV, Comp, F1, and F3.
ID Description Type
Mull Mullion Heater (Not Used) AC
Cond Fan (Not Used) AC
Def Defrost Valve (Not Used) AC
LVLV Le f t Val v e AC
RVLV Right Va lve AC
Pan Pan Heater (Not Used) AC
Comp Compressor AC
F1 Left Evaporator Fan DC
F2 Right Evaporator Fan DC
F3 Condenser Fan DC
L1 Left Zone Lighting DC
L2 Right Zone Lighting DC
Input Status
Input status displays the current state of each available input as well as
the current USB connection state.
ID Description States
Left Door Left Door Switch Open - Closed
Right Door Right Door Switch Open - Closed
Test Input Factory Test Input Open
USB USB Connection State Flash - Com Port
Note: USB status shows current connection state. In order to make a
successful connection, USB connection type must be properly set in
“USB Port” under the service menu.
To access Input Status
1. Use Down to select “Input Status”.
2. Press Select .
3. Use Up and Down to scroll through available information.
To exit the Input Status menu use Up to select “Return to Menu”
and press Select to confirm.
Outputs
To a c c e ss R e la y Tog g le
1. Use Down to select “Relay Toggle”.
2. Press Select .
3. Use Up and Down to scroll through each relay and DC
output.
4. Press Select to toggle.
To exit the Relay Toggle menu use Up to select “Return to Menu”
and press Select to confirm.
u-line.com 11
Outputs is used to monitor the state of DC outputs.
ID Description States
L Evap Fan Left Evaporator Fan 0 - 100%
R Evap Fan Right Evaporator Fan 0 - 100%
Condenser Fan Condenser Fan 0 - 100%
L Light Left Zone Lighting Off - Low - Med - High
R Light Right Zone Lighting Off - Low - Med - High
To access Outputs
1. Use Down to select “Outputs”.
2. Press Select .
3. Use Up and Down to scroll through available information.
Page 15
General Information
NOTICE
Up
Select
Down
RETURN TO MENU
OFFSETS
ZONE = 1°C
EVAP = 1°C
Up
Select
Down
RETURN TO MENU
SELF TEST
NO ERRORS
try “RELAY TOGGLE”
Up
Select
Down
RETURN TO MENU
DIFFERENTIALS
ZONE = 1°C
45° Set Point
1° Differential
2° Differential
3° Differential
Temperature (°C)
To exit the Input Status menu use Up to select “Return to Menu”
and press Select to confirm.
Offsets
Customer care MUST be notified and approve of any
changes to the differential before they are made. Failure to
notify customer care will void the warranty.
Offsets are used to adjust or correct thermistor readings. Offset
values are added to the current thermistor reading and are then used
by the control board to determine cooling and defrost cycle times.
Offsets have a range of +/- 5°C. Corrected values may be viewed
through the customer “All Temps” menu or TTY output.
To access Offsets
1. Use Down to select “Offsets”.
2. Press Select .
3. Use Up and Down to scroll through available thermistors.
To change offset
4. Press Select , the selected thermistor will begin to flash.
To access Self Test
1. Use Down to select “Self Test”.
2. Press Select .
3. Use Up and Down to scroll through available information.
To exit the Self Test use Up to select “Return to Menu” and press
Select to confirm.
Differentials
Differentials are used to determine the maximum variation from set
point and have a range of 0 through 5. The table below shows the
effect of differentials on cooling cycles with a set point of 10°.
Note: Air temperature does not reflect product temperatures.
Differential Cycle Start Cycle End
0 11° 9°
1 12° 8°
2 13° 7°
3 14° 6°
4 15° 5°
5 16° 4°
5. Use Up or Down to modify offset value.
6. Press Select to confirm setting.
To exit the Offset menu use Up to select “Return to Menu” and
press Select to confirm.
Self Test
Self test is used to initiate a self diagnostic report. Any system faults
will be displayed under Self test. If no errors are present “no errors”
will be displayed and the main control board is functioning properly.
The main control board is extremely robust and should rarely require
service. Most issues are external to the control. Reference
troubleshooting for more information.
12 u-line.com
The graph below shows a unit’s cooling cycle over time with various
differentials.
Page 16
General Information
Up
Select
Down
RETURN TO MENU
SET POINTS
ZONE = 3°C
EVAP = 5°C
Up
Select
Down
RETURN TO MENU
FACTORY DEFAULT
RESTORE?
Up
Select
Down
RETURN TO MENU
RE-SELECT MODEL #
3018R
Set Points
The Set points menu contains options to modify both the Zone and
Evap set points. Changes to the zone set point will be reflected on
the main screen. Changes to the evap set point alter the temperature
the evaporator needs to meet during a defrost cycle.
To access Set Points
1. Use Down to select “Set Points”.
2. Press Select .
3. Use Up and Down to scroll through available set points.
To change set point
4. Press Select , the selected set point will begin to flash.
5. Use Up or Down to modify the value.
6. Press Select to confirm setting.
To exit the Set Points menu use Up to select “Return to Menu”
and press Select to confirm.
Factory Default
Re-Select Model
NOTICE
Before altering model selection U-Line customer service
must be notified. Failure to notify customer service will
result in voiding of the manufacturer warranty. Call U-Line
Customer Service for assistance.
Re-Select Model allows the unit’s model information to be modified.
Changing the unit’s model completely reprograms available zones,
relay assignments, DC output assignments, etc.
To access Re-Select Model
1. Use Down to select “Re-Select Model”.
2. Press Select .
To alter model setting
3. Use Down to select “Model=” and press Select . “Model”
will begin to flash.
4. Press Up or Down to scroll through each available model.
5. Press Select to confirm.
Factory Default will restore all settings to their factory default.
To access Factory Default
1. Use Down to select “Factory Default”.
2. Press Select .
To restore settings to their factory default
3. Use Down to select “Restore?” and press Select .
4. “Restore?” will change to “Restoring...” while settings are
restored. When restoration is complete, “Restoring...” will return
to “Restore?”.
To exit Factory Default use Up to select “Return to Menu” and
press Select to confirm.
To exit Re-Select Model use Up to select “Return to Menu” and
press Select to confirm.
u-line.com 13
Page 17
General Information
Up
Select
Down
RETURN TO MENU
FAN DELAY
FAN DELAY ON = 1
FAN DELAY OFF = 2
Up
Select
Down
RETURN TO MENU
USB PORT
PC Link
USB
Grille
Fan Delay
The Fan Delay menu option allows the modification of fan run times
during and after a cooling cycle. In order to allow time for the
evaporator to properly cool, the evaporator fan is delayed from
starting with the cooling cycle for a given amount of time. In order to
remove as much warmth as possible from the cabinet, the evaporator
fan will continue to run at the end of the cooling cycle for a given
amount of time.
Fan Delay On=
“Fan Delay On” is the amount of time in minutes the fan will be
delayed from starting from the beginning of a cooling cycle.
Fan Delay Off=
“Fan Delay Off” is the amount of time in minutes the fan will
continue to run at the end of a cooling cycle.
To access Fan Delay
1. Use Down to select “Fan Delay”.
immediately as data is recorded to the drive. Data is recorded in one
second increments and is only limited by the capacity of the flash disk.
The system will create a file named “uline.csv” on the flash disk. In
the event the file already exists, new data will automatically be
appended to the end of the existing file. The file is output in a comma
delineated text format and may be viewed in a wide variety of simple
text readers or spreadsheet programs.
For information on identifying each data point, see the
“Communication Data” table on page 16.
USB Communication (PC Link)
Data can be transmitted directly to a client PC via a serial
connection. Verify the USB port is set to “PC Link”. Use a Type A to
Type A male to male USB cable to connect the system to a
®
Windows
compatible PC. It is necessary to install communication
drivers to the client PC. Drivers may be downloaded at
u-lineservice.com. Establish a connection using a Telnet / TTY
terminal application. U-Line recommends PuTTY. PuTTY is available
for download at u-lineservice.com. Once the connection is
established, the controller will output a series of 41 data points in 1
second increments. For information on identifying each data point,
see the “Communication Data” table on page 16.
USB Port
2. Press Select .
To alter fan settings
3. Use Down to select either “Fan Delay On” or “Fan Delay
Off” and press Select . The chosen option will begin to flash.
4. Press Up or Down to change settings.
5. Press Select to confirm.
To exit Fan Delay use Up to select “Return to Menu” and press
Select to confirm.
USB Communication
The 3000 series uses an advanced USB logging feature for system
The USB Port menu option allows the selection of a communication
mode. The 3000 Series can communicate either via TTY to a PC or
log diagnostic information directly to a USB flash disk.
ID Communication
PC Link PC TTY
Flash USB Flash Drive
NOTE: Unit ships in PC link mode.
logging and diagnostics. The controller outputs 41 separate data
points per second to either a USB flash disk or transmits over USB
via TTY to a client PC. To prepare the unit for logging, first verify the
USB port is set to the proper configuration. See “USB Port” for
information on configuring the USB port.
Flash Mode:
Suitable for logging directly to a USB flash disk.
PC Link Mode:
Suitable for communicating directly with another PC via USB.
USB Communication (Flash)
The main control can host a wide range of flash disks up to a max
capacity of 8GB. After verifying the USB port is set to “Flash”, simply
insert a flash disk in to the USB port located above the grille. The
flash disk activity light (located on the flash disk) will begin flashing
14 u-line.com
To alter communication settings
1. Use Down to select the current setting and press Select .
2. Press Up or Down to change settings.
3. Press Select to confirm.
Page 18
To exit “USB Port” use Up to select “Return to Menu” and press
Up
Select
Down
RETURN TO MENU
SHOWROOM MODE
OFF
Select to confirm.
To access USB Port
4. Use Down to select “USB Port”.
5. Press Select .
Showroom Mode
Showroom displays a number of features and allows the unit to be
powered on without running the cooling system.
To toggle showroom mode
1. Use Down to select “Showroom Mode”.
General Information
2. Press Select .
3. Use Down to select “Off” and press Select . “Off” will
begin to flash.
4. Press Up or Down to toggle between off and on.
5. Press Select to confirm.
If set to “on” showroom mode will begin immediately. To exit
showroom mode press and release Power .
To exit the showroom mode menu use Up to select “Return to
Menu” and press Select to confirm.
u-line.com 15
Page 19
General Information
Communication Data ID Table (Sample Temperatures shown in F)
Field 12345678910
ID
Sample
Data
Field 11 12 13 14 15 16 17 18 19 20
ID
Sample
Data
Field 21 22 23 24 25 26 27 28 29 30
ID
Sample
Data
Time
Live
1525 36 40 5 25 85 111 Beverage 34 1
Left Zone
Offset
0 0 Beverage 34 1 0 0 --- --- ---
Relay 2
Indicator
2 --- 4 --- --- 7 1 --- 3 0
Left Zone
Te m p
Left Evap
Offset
Relay 3
Indicator
Right Zone
Te m p
Right ZoneIDRight Set
Relay 4
Indicator
Left Evap
Te m p
Point
Relay 5
Indicator
Right Evap
Te m p
Right Zone
Differential
Relay 6
Indicator
Ambient
Te m p
Right Zone
Offset
Relay 7
Indicator
Proc
Te m p
Right Evap
Offset
Fan 1
Indicator
Left ZoneIDLeft Set
Point
L Door
Indicator
Fan 2
Indicator
R Door
Indicator
Fan 3
Indicator
Left
Differential
Relay 1
Indicator
Left Lamp
Power
Field 31 32 33 34 35 36 37 38 39 40
ID
Sample
Data
Field 41
ID
Sample
Data
Right Lamp
Power
Right Limp
Timer
0 --- --- --- 32 1523 0 0 0 0
0
Energy
Saver
Sabbath
Indicator
Power
Indicator
Comp
Timer
Comp
Cum Time
Defrost
Timer
Fan 1
Timer
Fan 2
Timer
Left Limp
Timer
16 u-line.com
Page 20
Field Descriptions:
Field Value Field Value
1 Time in seconds since unit plugged in. 22 Relay 3 (unassigned). “3” = active, “---” = inactive.
2 Temperature of Left Zone in °F/°C. 23 Left Valve Relay “4” = active, “---” = inactive.
3 Temperature of Right Zone in °F/°C. 24 Right Valve Relay 5. “5” = active, “---” = inactive.
4 Left evaporator temperature in °F/°C. 25 Relay 6 (unassigned). “6” = active, “---” = inactive.
5 Right evaporator temperature in °F/°C. 26 Compressor relay. “7” = active, “---” = inactive.
6 Ambient temperature in base of unit °F/°C. 27 Left evaporator fan. “1” = active, “---” = inactive.
7 Board processor temperature. 28 Right evaporator fan. “2” = active, “---” = inactive.
8 Left Zone identification tag. 29 Condensor fan. “3” = active, “---” = inactive.
9 Left Zone set point in °F/°C. 30 Left LED intensity, provided in %.
10 Left Zone Differential value in °F/°C. 31 Right LED intensity, provided in %.
11 Left Zone offset value in °F/°C. 32 Energy Saver mode indicator. “E” = active.
12 Left evaporator offset value in °F/C. 33 Sabbath mode indicator. “S” = active.
13 Right Zone identification tag. 34 Soft power indicator. “P” = unit in “On” mode.
14 Right Zone set point in °F/°C. 35 Compressor state change timer, in seconds.
15 Right Zone Differential value in °F/°C. 36 Compressor cumulative run time, in seconds.
16 Right Zone offset value in °F/°C. 37 Max remaining defrost time, in seconds.
17 Right evaporator offset value in °F/C. 38 Left Evaporator fan state change timer, in seconds.
18 Left door indicator. “L” = Open, “---” = closed. 39 Right Evaporator fan state change timer, in sec.
19 Right door indicator. “R” = Open, “---” = closed. 40 L Cumulative time spent in limp mode, in seconds.
20 Relay 1 (unassigned). “1” = “active”, “---” = inactive. 41 R Cumulative time spent in limp mode, in seconds.
21 Relay 2 (unassigned). “2” = “active”, “---” = inactive.
General Information
Note: Relay 2 will cycle with relay 7, this is considered normal.
u-line.com 17
Page 21
General Information
ZONE - THE 3045 & 3090 ZONE IS AN 45 CM SPACE.
THE 3090 HAS 2 ZONES, THE 3045 HAS 1 ZONE
THE 3060 ZONE IS AN 60 CM SPACE. THE 3060 HAS 1 ZONE.
MODE - EACH ZONE CAN BE SET TO DIFFERENT MODES. (see list)
7° - 13° White Wine
13° - 18° Red Wine
MODES
Wine Captain Zones
Sparkling Wine
Temperature Ranges
1° - 4°
1° - 18°
1° - 4°
7° - 13°
1° - 21°
Root
Refrigerator Zones
Pantry
Fresh
Temperature Ranges
Drinks
1 OFF PRESS AND HOLD
DISPLAY WILL COUNT DOWN
FROM 5 TO OFF
YLETAIDEMMI NO EMOC LLIW TINUESAELER DNA SSERPNO2
3
3090 ADJUST
MODE PRESS TO SELECT ZONE
PRESS AND RELEASE TO SCROLL
THROUGH THE MODES
3045 & 3060
ADJUST MODES
PRESS AND RELEASE TO SCROLL
THROUGH THE MODES
4
3090 ADJUST
TEMPERATURE PRESS TO SELECT ZONE
PRESS TO SET THE
TEMPERATURE
3045 & 3060
ADJUST TEMP
PRESS TO SET THE
TEMPERATURE
5
3090 ADJUST
LIGHTING PRESS TO ADJUST LIGHTING PRESS TO SELECT ZONE
PRESS TO SET LOW
MEDIUM OR HIGH
3045 & 3060
PRESS TO ADJUST LIGHTING
PRESS TO SET LOW
MEDIUM OR HIGH
LIGHT ON/OFF
WITH DOOR
PRESS TO HAVE LIGHT
ON/OFF WITH DOOR
PRESS AND RELEASE TO SCROLL
THROUGH TIMER SETTINGS
3090 ZONES WILL DEFAULT TO TH
E SAME
TIMER SETTING
6
CUSTOMER
MENU
PRESS AND HOLD
FOR 5 SECONDS
PRESS TO SCROLL
THROUGH MENU
7
SERVICE
MENU
PRESS AND HOLD
FOR 5 SECONDS
PRESS TO SCROLL
THROUGH MENU
OR
OR
AND
OR
OR
OR
OR
“ACTUAL TEMPERATURES” DISPLAY
INCLUDES OFFSETS
“ACTUAL TEMPERATURES” DISPLAY
DOES NOT INCLUDE OFFSETS
Up
Zone Indicator
Zone Indicator
Zone Toggle
Select
Down
U-Select Lighting
Power
ADJUST
LIGHTING
Quick Guide
3000 Series
MODES
3° - 10°
Deli
18 u-line.com
Page 22
General Information
REVIEW ACTUAL TEMPS
REVIEW ERROR LOG
RELAY STATUS
RELAY TOGGLE
INPUTS
OUTPUTS
OFFSETS
SELF TEST
DIFFERENTIALS
SET POINTS
FACTORY DEFAULTS
RESELECT MODEL
FAN DELAY
USB PORT
SHOWROOM MODE
EXIT
TO ENTER THE MAIN SERVICE MENU
PRESS AND HOLD
FOR 5 SECONDS
AND
SERVICE MENU
ACTUAL TEMPS
RELAY STATUS
ALL ERRORS
ENTER & EXIT
SUB-MENU ITEM
SCROLL
THROUGH
MENU
SHOWS TEMPERATURES WITHOUT OFFSETS. EACH ZONE HAS AN
EVAP AND AIR THERMISTOR. EACH UNIT HAS AN AMBIENT THERMISTOR
RETURN TO MENU
ACTUAL TEMPS
LEFT ZONE = 52°
LEFT EVAP = 52°
RETURN TO MENU
ALL ERRORS
NO COMM 3
L ZONE T OPEN 0
RETURN TO MENU
RELAY STATUS
MULL COND DEF LVLV
OFF OFF OFF ON
RETURN TO MENU
RELAY TOGGLE
MULL OFF
COND OFF
RETURN TO MENU
INPUTS
LEFT DOOR CLOSED
RIGHT DOOR OPEN
RETURN TO MENU
OUTPUTS
L EVAP FAN = 0%
R EVAP FAN = 0%
RETURN TO MENU
OFFSETS
RIGHT ZONE = -2°F
RIGHT EVAP = 0°F
RETURN TO MENU
SELF TEST
NO ERRORS
RETURN TO MENU
DIFFERENTIALS
LEFT = 2°F
RIGHT = 2°F
RETURN TO MENU
SET POINTS
LEFT ZONE = 55°F
LEFT EVAP = 45°F
RETURN TO MENU
FACTORY DEFAULT
RESTORE?
RETURN TO MENU
RE-SELECT MODEL
3036WCWC
RETURN TO MENU
FAN DELAY
FAN 1 DELAY OFF = 1
FAN 2 DELAY ON = 2
RETURN TO MENU
USB PORT
FLASH DRIVE
RETURN TO MENU
SHOWROOM MODE
OFF
FAN DELAY
USB PORT
SHOWROOM MODE
EXIT
RANDOMLY SCROLLS THROUGH ZONES, MODES, TEMPERATURES AND OTHER
FEATURES. TOUCH AND HOLD
TO EXIT SHOWROOM MODE
SCROLL DOWN TO “EXIT”. TOUCH AND RELEASE TO EXIT SERVICE MODE.
CONFIGURES THE ON-BOARD USB PORT FOR FLASH DRIVE OR PC LINK
DISPLAYS THE NUMBER OF TIMES AN ERROR HAS OCCURRED.
SCROLL TO THE END TO ERASE THE ERROR CODES
DISPLAYS THE CURRENT STATUS OF THE RELAYS ON THE BOARD
(not all relays are used on all models)
ALLOWS THE RELAYS TO BE TOGGLED ON/OFF TO CHECK RELAY & COMPONENT.
YOU CAN TURN ON MULTIPLE RELAYS TO CHECK A ZONE, (COMP FAN ETC)
DISPLAYS DOOR SWITCH STATE, TEST INPUT, AND USB STATE
MONITORS THE STATE OF DC OUTPUTS
(evap & condenser fans 0 - 100% and lighting off - low - med - high)
OFFSETS ARE USED TO ADJUST OR CORRECT THERMISTOR READINGS.
CORRECTED VALUES MAY BE VIEWED THROUGH THE CUSTOMER MENU
SELF TEST IS USED TO DIAGNOSE THE BOARD. IF NO ERRORS ARE PRESENT
“NO ERRORS” WILL BE DISPLAYED, THE MAIN BOARD IS FUNCTIONING PROPERLY
DIFFERENTIALS ARE USED TO DETERMINE AT WHAT TEMPERATURE THE UNIT
CYCLES. “O” SETTING IS +/- 2° DIFFERENTIAL
THE SET POINTS MENU IS USED TO MODIFY BOTH THE ZONE AND EVAP SET
POINTS. THE EVAP SET POINT IS USED DURING DEFROST, IT MUST REACH 42°
FACTORY DEFAULT IS USED TO RESTORE ALL SETTINGS TO THE FACTORY
DEFAULT FOR THE SELECTED MODEL
FAN DELAY ALLOWS MODIFICATION OF FAN RUN TIMES BOTH AT THE START
OF A COOLING CYCLE AND AT THE END AFTER THE COMPRESSOR STOPS
RE-SELECT MODEL IS USED TO MODIFY THE MODEL INFORMATION. CHANGING
THE MODEL COMPLETELY REPROGRAMS AVAILABLE ZONES
TO GO TO NEXT SUB-MENU ITEM
YOU MUST ARROW UP TO “RETURN TO MENU”
TOUCH AND RELEASE
TO RETURN TO THE MAIN MENU
Note: Temperature samples shown above are in F
(The display will indicate temperatures in C for the appropriate models)
u-line.com 19
Page 23
General Information
Upper
Back Panel
Fan
Electrical
Connection
(Left Zone)
Fan
Electrical
Connection
(Right Zone)
Evaporator Plate
Screws
Evaporator Plate
Screws
Convection Cooling
All 3000 series units are equipped with an advanced convection
cooling system. Convection cooling stabilizes cabinet temperature,
cools product faster and increases energy efficiency.
Evaporator Fan
The evaporator fan is responsible for circulating warm air from the
refrigeration zone, past the evaporator and back into the refrigerated
zone.
The evaporator fan is factory set to have a 1 minute delay at the
beginning of a cooling cycle. This delay gives the evaporator time to
cool properly before warm air is passed over it. The fan will continue
to run for an additional 2 minutes at the end of a cooling cycle. Fan
delay times can be modified through the service menu. See “Fan
Delay” on page 14.
Evaporator fan operation is also determined by door switch state. If
the door switch circuit opens, the fan will stop. When the door
switch circuit is closed the fan will either continue running with the
cooling cycle, or if not currently cooling, the fan will run for 1 minute
to circulate air and clear any condensation that may have appeared on
glass doors and shelves.
Note: If the unit is set to sabbath mode, the evaporator fan will no
longer respond to the state of the door switch.
In order to operate efficiently, the evaporator fan blade and vents
should be unobstructed and free of any dust buildup.
Evaporator Fan Replacement
Should the evaporator fan need to be replaced follow the steps
below.
1. Remove any product from the unit.
2. Disconnect power to the unit.
5. Remove insulating foam from refrigerant line pass-through hole.
6. Remove internal shelving, bins, or wine racks.
7. Remove shelf clips, rack, or bin mounting rails.
8. Remove thermistor cover.
9. Remove two evaporator plate screws from top of evaporator
plate.
10. Grasp evaporator fan shroud and gently pull plate away from the
rear of the unit.
11. While pulling the evaporator plate clear of the unit, it may be
necessary to use your free hand to manipulate the fan plug end
through the pass-through hole.
12. Remove the 4 screws mounting the fan shroud to the evaporator
plate.
3. Remove upper back panel.
4. Disconnect fan electrical connection
20 u-line.com
Note: When installed, arrow on fan points away from evaporator.
13. Remove and replace fan. Take special care to properly route fan
wire.
NOTICE
Fan must be oriented to pull air in through lower evaporator
plate vents and push air out at fan mounting location.
14. Installation is the reverse of removal. Before replacing back panel
fill refrigerant line pass-through hole with sealant gum.
Page 24
General Information
NOTICE
2
1
Rotate Clockwise to raise rear leg.
Rotate Counter-Clockwise to lower leg.
Rotate Forward Feet to Adjust
Grille Mounting
Screws
Grille
Skirt
3000 Series Maintenance
Leveling
Unit must be level for proper door operation.
1. Use a level to check the levelness of the unit from front to back
and from side to side. Place the level along top edge and side edge
as shown (1).
2. If the unit is not level, rotate the adjustable leveling legs to raise
or lower each corner of the unit (2) as necessary.
3. To rotate rear leveler legs remove grille. See Removing and
Installing Grille.
4. Using the provided 6mm T bar Allen wrench, rotate the 2
adjustment screws as shown below.
Removing and Installing Grille
WARNING
!
• Disconnect electrical power to the unit before
removing the grille.
• Edges of sheet metal may be sharp.
Removing the grille
1. Disconnect power to unit.
2. Using the included 7/64" Allen wrench, loosen, but do not
remove both grille lock screws. See below.
3. Gently pull grille away from unit until it stops.
4. Push grille rails towards the center of the unit to lift rails off lock
screws.
5. Pull grille free from unit.
Installing the grille
1. Align slots in grille rail with screw heads in base of unit.
2. Push grille rails towards the center of the unit and set rails over
screw head.
3. Slide grille into position. Using included 7/64" Allen wrench,
tighten grille lock screws.
Note: Do not use any power tools to adjust the leveler legs.
5. Check levelness after each adjustment and repeat the previous
steps until the unit is level.
Adjusting Grille
The grille has an automatic vertical plane adjustment and can also be
adjusted on its horizontal plane as well. To adjust your grille to match
your surrounding cabinetry follow the instructions below.
1. Loosen, but do not remove, the lock screws on the inside of the
grille rails. Lock screws are located on the inside of each grille
rail.
2. Pull grille out to desired position and secure lock screws.
3. The grille skirt may be manually adjusted to the height of your
floor. Simply raise or lower the skirt as needed.
u-line.com 21
Page 25
General Information
NOTICE
NOTICE
Wrap Screws
Cable Arm
Step 1
Step 2
Door Top
Door Bottom
Press Tab Down
T-25 Torx Screw
T-25 Torx Screw
3000 Series Doors
Door Alignment and Adjustment
Align and adjust the door if it is not level, or is not sealing properly. If
the door is not sealed the unit may not cool properly, or excessive
frost or condensation may form in the interior.
Properly aligned, the door’s gasket should be firmly in
contact with the cabinet all around the door (no gaps) and
fully seated in gasket pocket. Carefully examine the door’s
gasket to assure that it is firmly in contact with the cabinet.
Also make sure the door gasket is not pinched on the hinge
side of the door.
Do not attempt to use the door to raise or pivot your unit.
This would put excessive stress on the hinge system.
• Pay special attention to the Cable Arm. Make sure not to
over extend or damage it during door alignment.
Overlay Models (Removing Overlay)
1. Open door completely.
2. Remove gasket.
3. Remove six screws seated in gasket pocket.
Stainless Models (Removing Wrap)
1. Open door completely.
2. Remove the two wrap screws from the bottom of the stainless
steel door wrap.
4. The wrap hinges on top of the door. Carefully pull wrap away and
. See below.
then up
5. If door being adjusted houses the
display unit, remove cable from display
by pressing in the release tab on the
cable connector.
Alignment and Adjustment
1. Using a T-25 Torx Bit, loosen each
pair of Torx head screws on both the upper and lower hinge
plate.
2. Square and align door as necessary.
3. Gently pull bottom of wrap away from door.
22 u-line.com
3. Tighten Torx head screws on hinge.
4. If necessary re-connect display and re-install stainless steel wrap.
Page 26
Troubleshooting
Check Voltage
At Wall Outlet
Verify Voltage At Main
Control Voltage Input
Check Fuse F1
For Continuity
Open Door.
Is the UI Now
Functional?
Replace Main
Board
Replace Reed
Switch.
Replace
Fuse
Replace
Power Cord
Alert Customer
Of Power Failure
Is the Reed
Switch Operating
Properly?
Is the door open? The
Display will not activate
while the door is closed
Inspect Customer UI
and Data Cable
(if defective replace
entire door)
Connect Test Display To J5.
Cycle Power And Check For
Operation
No Voltage
No Voltage
Voltage
Continuity
Operating
Not Operating
No Continuity
No
No
No
Ye s
Ye s
Ye s
Voltage
Troubleshooting
Main Control
The main control board is very robust and is rarely the cause of
system issues. It is important to fully diagnose the board for any
suspected failures before attempting to remove the board for
replacement or service. Follow the guidelines below to fully test and
diagnose the main control.
Power Fault
If the unit does not power on, follow the flow chart below to help
diagnose the issue. It is important to first verify the unit is not simply
set to sabbath mode.
Testing The Main Control
If the main control is suspected of being faulty, the following
procedure should be performed to verify main control for
functionality.
Relay & DC Outputs
One of the primary functions of the main control is to operate the
multiple relay and dc outputs during each cycle. Verify proper
operation of these relays using the following procedure.
1. Enter “Relay Toggle” through the service menu.
NOTICE
Frequently toggling the compressor relay could force the
compressor into overload. The compressor will
automatically deactivate during an overload and will remain
deactivated until the overload switch cools. This could take
some time. It is important to allow the compressor at least
5 minutes off time between relay cycles.
2. Toggle the relay. Its related component should activate / deactivate
with the switching of the relay. If it does not, see “Component
24
Te s ti n g ” on p a g e
Inputs
The main control monitors a number of thermistor inputs and switch
states during operation. It would be unlikely that an error in reading
an input would be at the board level. Always attempt to replace the
faulty switch or thermistor input with a known working sample to
verify proper board operation.
.
Other Suspected Main Control Faults
If other components have been ruled out as being faulty but the unit
continues to have operating issues, it is most likely due to a
configuration error. Configuration errors can be cleared by restoring
the unit to its factory default setting. Factory defaults may be
restored through the service menu. See page 13.
CAUTION
!
Precautions must be taken while working with live electrical
equipment. Be sure to follow proper safety procedures while
performing tests on live systems.
u-line.com 23
Page 27
Troubleshooting
NOTICE
NOTICE
J2
J5
J4
J1
F1
J2
J4
J1
16
1
10
10
6
1
5
9
81
Connector & Pin ID
Voltage Checked
At Connection
J4
Voltage Checked
At These Pins
Component Testing
Frequently toggling the compressor relay could force the
compressor into overload. The compressor will
automatically deactivate during an overload and will remain
deactivated until the overload switch cools, regardless of
relay and voltage state.
If the compressor is suspected of being faulty it is important
to verify all copper tubing, dryers, capillary lines,
evaporators and condensers are free from kinks, excessive
bends or blockages. A restriction in any of these
components would force the compressor to overload,
making it appear as if it is faulty.
If a component is suspected as being faulty, follow the
troubleshooting steps below to help isolate the cause.
1. Initiate Self Test Mode, address any current errors before
beginning component testing.
2. Activate the component’s relay or DC output through “Relay
Toggle” under the service menu.
3. Test for voltage at the component.
Voltage Present
If voltage is present and the component does not function, suspect a
faulty component. If the component being tested is the compressor,
make certain it is not overloaded by disconnecting power to the unit
for at least 15 minutes and re-testing.
No Voltage Present
L1 Pin J4-4 Pin J4-9 8-12 DC < 7 DC
L2 Pin J4-5 Pin J4-10 8-12 DC < 7 DC
If no voltage is present check for voltage at the relay / DC output.
Reference the diagram for component relay / DC output pins. If
voltage is present, suspect a faulty component cable. If voltage is not
present at the relay / DC output, cycle the power to the unit and retest. If voltage is still not present, suspect the main control of being
faulty.
Component Testing Example
Below is an example of how to properly test a component for
functionality. The left zone evaporator fan is used.
Condition
Customer complains of the unit not cooling properly. The main
screen of the display lists an error “L Temp Hi 12H+”. The
compressor seems to be functioning properly, however the left zone
evaporator fan does not activate after a door cycle.
In the above case it would be wise to test the evaporator fan for
functionality.
Te s t i n g
1. Check “Self Test” for any additional errors that may be current.
2. Visually examine the fan through the fan cover. Note any ice
buildup. In this case no ice buildup was noticed. The fan appeared
as if it could spin freely.
3. Enter “Relay Toggle” and manually activate FAN1.
4. Check for fan operation. In this case the fan does not operate.
5. Remove the upper and lower back panel from the refrigeration
unit.
6. Ensuring the DC output is still active,
use a meter to check voltage at the fan
power connection point. In this instance
no voltage is present.
Relay Output IDTe s t
LVLV Pin J2-1 Pin J2-7 230 AC 0
RVLV Pin J2-1 Pin J2-6 230 AC 0
Comp Pin J2-1 Pin J2-4 230 AC 0
F1 Pin J4-1 Pin J4-6 12 DC < 3 DC
24 u-line.com
F2 Pin J4-2 Pin J4-7 12 DC < 3 DC
F3 Pin J4-3 Pin J4-8 12 DC < 3 DC
Poin t 1
Te s t
Poin t 2
Vol ta ge OnVol ta ge
Off
7. Ensuring the DC output is still active and
referencing the Connector & Pin ID
chart, a voltage test is performed across pins 1 and 6 of the header
labeled J4. In this case a stable 12 volts DC was noted.
8. Confirming that the board is sending voltage, the cabling between
the board and fan is inspected for damage. In this case some
damage is noted.
9. The fan cable harness is replaced, and the fan DC output is tested
again. It is noted the fan now spins freely.
10. The unit is then monitored for proper operation and any further
faults.
Page 28
Troubleshooting
Customer Call Guide
The following guide has been developed to help answer frequently asked questions. It can be used by persons scheduling service calls. These are
things the customer should consider before scheduling a service call.
Concern Potential Causes Suggested Remedy
The unit is not cold enough Door not closed (excessive frost,
sweating or icing may be observed)
Control set too warm Refer to the General Information section of this manual
Dirty condenser Refer to the maintenance section of this service manual
Installation problem Airflow through the grill (below the door in front)
The unit is too cold or freezing product Control set too cold Refer to the General Information section of this manual
Product not properly loaded in unit Ensure product is not pushed up against the back wall
Frost or ice accumulating within the unit Heavy usage or high ambient If the frost is persistent (most will clear up when the
Door not closed (excessive frost,
sweating or icing may be observed)
Normal Some U-Line units are manual defrost and frost buildup
Manually defrost your unit and ensure that there are no
obstructions interfering with proper door closure.
for information on how to adjust the control colder
(allow 24 hours for temperature stabilization).
for condenser cleaning instructions.
cannot be obstructed. Also, the unit cannot be installed
behind a closed door or in a closet.
for information on how to adjust the control warmer
(allow 24 hours for temperature stabilization).
or rear cooling plate of the unit when loading.
ambient resumes normal), manually defrost the unit.
Manually defrost unit and ensure that there are no
obstructions holding the door open.
is normal. Refer to the General Information section of
this manual for information regarding defrosting your
unit.
u-line.com 25
Page 29
Troubleshooting
CAUTION
!
Troubleshooting
Never attempt to repair or perform maintenance on the unit until the main electrical power has been disconnected from
the unit.
Concern Potential Causes Suggested Remedy
Not Cooling Compressor overheating Verify proper air flow through condenser (Refer to Airflow/General
Information Section of this manual).
Confirm condenser fan operation (Refer to Airflow/General
Information Section of this manual).
Confirm proper compressor operating voltage (Refer to Relay Toggle/
General Information Section of this manual to initiate power to the
compressor).
Compressor not operating Confirm proper compressor operating voltage (Refer to Relay Toggle/
General Information Section of this manual to initiate power to the
compressor).
Test overload and relay, replace as needed.
Compressor operating - no cooling Refer to Refrigeration System Diagnosis Guide Section of this manual.
Evaporator fan not operating Refer to Convection Cooling Section of this manual.
Frozen Product Ensure proper use of Quick Chill mode Refer to Quick Chill Section of this manual.
Control set too cold Refer to Adjusting Temperature Settings Section of this manual.
Review logged error codes Refer to Fault System Diagnosis Guide Section of this manual.
Thermistor failure Refer to Thermistor Failure Section of this manual.
Frost Buildup
Inside Unit
Display Not
Working
Internal Lights Not
Working
Noisy Refrigeration tubing touching cabinet Carefully reposition tubing.
Door Ajar or Restricted from Closing Refer to All Errors Section of this manual to read errors such as Door
Open 5M.
Evaporator fan not operating Refer to Convection Cooling Section of this manual.
Thermistor failure Refer to Thermistor Failure Section of this manual.
Unit placed in Sabbath mode Refer to Sabbath Mode Section of this manual.
Display unplugged Verify that both ends of the display wiring are firmly connected.
Display wiring broken or damaged Perform continuity test of wiring and replace as needed.
Control Setting Refer to the Interior Lighting Section of this manual.
Unit set to Sabbath Mode. Refer to the Sabbath Mode Section of this
manual.
Door switch misaligned or defective Refer to Reed Switch Section of this manual.
Fan blade obstruction (wiring, foam insulation,
packaging material)
Remove obstruction.
26 u-line.com
Page 30
Troubleshooting
C
S
R
OVERLOAD PROTECTOR
STARTING RELAY
CAPACITOR (IF EQUIPPED)
RELAY COVER
CAPILLARY TUBE
SOLENOID VALVE
SOLENOID VALVE
DRYER
CONDANSER
COMPRESSOR
EVAPORATOR
DRYER
EVAPORATOR
CAPILLARY TUBE
LEFT ZONE
RIGHT ZONE
Compressor Information
Cooling process
Refrigerant is pumped from the compressor to the condenser as a
high pressure, high temperature vapor.
As the refrigerant cools in the high pressure condenser, the vapor
condenses to liquid. During this phase change, a great amount of heat
is rejected with the help of the condenser fan.
The liquid then flows through the open solenoid valve to the dryer
where it is strained and filtered.
From the dryer, the refrigerant flows through the capillary tube which
meters the liquid refrigerant to the evaporator.
The pressure of the refrigerant is reduced to the evaporating or low
side pressure.
The reduction of pressure on the liquid refrigerant causes it to boil
or vaporize until it reaches saturation temperature. As the low
temperature refrigerant passes through the evaporator coil, it
continues to absorb a lot of heat, causing the boiling action to
continue until the refrigerant is completely vaporized. It is during this
phase that the most heat is absorbed (the cooling takes place) in the
refrigerator.
The refrigerant vapor leaving the evaporator travels through the
suction line to the compressor inlet. The compressor takes the low
pressure vapor and compresses it, increasing both pressure and
temperature. The hot, high pressure gas is pumped out the discharge
line and into the condenser. The cycle continues.
Compressors
DANGER
!
Electrocution can cause death or serious injury. Burns from hot
or cold surfaces can cause serious injury. Take precautions when
servicing this unit.
• Disconnect the power source.
• Do not stand in standing water when working around
electrical appliances.
• Make sure the surfaces you touch are not hot or frozen.
• Do not touch a bare circuit board unless you are wearing
an anti-static wrist strap that is grounded to an electrical
ground or grounded water pipe.
• Handle circuit boards carefully and avoid touching
components.
To measure the start winding resistance, measure across the C and S
pins.
To measure the run winding resistance, measure across the C and R
pins.
Also check S to R and you should get the sum of the run and start
windings.
To ensure the windings are not shorted, check the S and R to ground.
EMX20CLC
Voltage 230VAC
Frequency 50Hz
Start Winding 34.9 ohms
Run Winding 47.8 ohms
u-line.com 27
Page 31
Troubleshooting
Magnet Close To Switch
(Door Closed)
(Switch Closed)
Magnet Away From Switch
(Door Open)
(Switch Open)
Thermistors
Thermistors are used for various temperature readings. Thermistors
provide reliable temperature readings using a resistance which varies
based on surrounding temperatures. If a faulty thermistor is
suspected it may be tested using an accurate ohmmeter. In an ice
water (0°C / 32°F) resistance should measure 16.1 kilohms,
Thermistor Failure
Zone Thermistors
If a zone thermistor fails, the unit will continue to operate the
zone on a preset time interval of 10 minutes on and 30 minutes
off. The unit will otherwise operate normally. The error will be
displayed on the main display and “Self Test” and logged in “All
Errors”.
Evaporator Thermistors
If an evaporator thermistor fails, the unit will rely on a preset
defrost timer during defrost cycles. The unit will otherwise
operate normally. Evaporator thermistor errors are hidden from
the display and recorded in “All Errors” and displayed in “Self
Te s t” m o de s .
Ambient Thermistor
The ambient thermistor is mainly used for diagnostics. If the
thermistor fails, the unit will operate normally.
Reed Switch
A reed switch is used to monitor door state. The switch side for each
zone is mounted under the cabinet and the magnet is mounted to the
cable arm of each respective door. When the door is closed magnetic
force pulls the reed to its contact and closes the circuit which turns
the light and display off. When the door is open the reed pulls away
from the contact and opens the circuit. If the door(s) are left open
for longer than 5 minutes, the switch will trigger an error code and
set an audible warning.
Refrigeration System Diagnosis Guide
System
Condition
Normal Normal
Overcharge
Undercharge
Partial
Restriction
Complete
Restriction
No Gas
Suction
Pressure
Higher than
normal
Lower than
normal
Somewhat lower
than normal -
in vacuum
In deep
vacuum
0 PSIG (0 bar)
to 25" (63.5 cm)
vacuum
Suction
Line
Slightly below
room
temperature
Ver y c o ld -
may frost heavily
Warm -
near room
temperature
Warm -
near room
temperature
Room
temperature
(cool)
Room
temperature
(cool)
Compressor
Discharge
Very hot Very hot Warm Cold Normal
Slightly warm to
Ver y h o t
Room
temperature
(cool)
Cool to hot
Condenser Capillary
hot
Hot Warm Warm
Hot to warm Cool Cold
Top passes warm
lower passes cool
(near room
temperature due
to liquid
Room
temperature
(cool)
Room
temperature
(cool)
Tube
Room
temperature
(cool) or colder
Room
temperature
(cool)
Room
temperature
(cool)
Evaporator Wattage
Higher than
normal
Extremely cold
near inlet - outlet
below room
temperature
Extremely cold
near inlet -outlet
below room
temperature
backing up
No refrigeration
No refrigeration
Lower than
normal
Lower than
normal
Lower than
normal
Lower than
normal
28 u-line.com
Page 32
Fault System Diagnosis Guide
Error Solution 1 Solution 2 Solution 3
No Comm
(L) (R) Zone T Open
(L) (R) Evap T Open
Amb Thrm Open
(L) (R) Zone T Short
(L) (R) Evap T Short
Amb Thrm Short
(L) (R) Temp Hi 6H+
(L) (R) Temp Hi 12H+
(L) (R) Temp Lo 6H+
(L) (R) Temp Lo 12H+
(L) (R) Door Open 5M Verify door closes properly.
Inspect Customer UI and Data Cable
(if defective replace entire door)
Inspect zone thermistor connection.
Replace if necessary.
Inspect evaporator thermistor
connection. Replace if necessary.
Inspect ambient thermistor
connection. Replace if necessary
Inspect thermistor cable for pinch
points or damage. Replace if
Inspect thermistor cable for pinch
points or damage. Replace if
Inspect thermistor cable for pinch
points or damage. Replace if
If excessive frost is also noted,
inspect door and door gasket for
proper seal and alignment.
If excessive frost is also noted,
inspect door and door gasket for
proper seal and alignment.
Inspect main control for proper relay
Inspect main control for proper relay
necessary.
necessary
necessary.
operation.
operation.
Inspect main control wire harness for
splits or breaks. Repair split or cut
cabling.
Inspect main control wire harness for
splits or breaks. Repair split or cut
cabling.
Inspect main control wire harness for
splits or breaks. Repair split or cut
cabling.
Inspect wire harness from main
control board for pinch points or
damage. Repair split or pinched
cabling.
Inspect wire harness from main
control board for pinch points or
damage. Repair split or pinched
cabling.
Inspect wire harness from main
control board for pinch points or
damage. Repair split or pinched
cabling.
Inspect evaporator fan for proper
operation.
Inspect evaporator fan for proper
operation.
Inspect refrigeration system.
Reference the Refrigeration System
Diagnosis Guide on page 28.
Inspect refrigeration system.
Reference the Refrigeration System
Diagnosis Guide on page 28.
Inspect cable arm, verify presence of
magnet, verify proper operation and
movement of arm.
Troubleshooting
Inspect refrigeration system.
Reference the Refrigeration System
Diagnosis Guide on page 28.
Inspect refrigeration system.
Reference the Refrigeration System
Diagnosis Guide on page 28.
Inspect reed switch wiring.
u-line.com 29
Page 33
®
SERVICE MANUAL
PRODUCT INFORMATION
Complete Installation Instructions, Operating Instructions, Product Fiche, CAD Drawings, Integrated Panel/Frame
Instructions, Compliance Documentation and Applicable Energy Guides are available for reference and download at
u-line.com.
SERVICE INFORMATION
Please consult your Operating Instructions for troubleshooting information. Answers to Customer Frequently
Asked Questions are available at u-line.com under Customer Service.
IMPORTER LISTING: u-line.com/intl
U-LINE DIRECT:
Phone: +1 414-354-0300
Fax: +1 414-354-5696
Email: intl@u-line.com
BUILDING ON THREE GENERATIONS OF INNOVATION
For over five decades and through three generations, U-Line continues to be the leader in innovation, quality
and performance in the premium built-in undercounter ice making, refrigeration and wine preservation market.
U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired
innovation and attention to even the smallest details. We are known and respected for our unwavering dedication
to product design, quality and selection.
In 1962, Henry Uihlein founded U-Line Corporation as an outgrowth of Ben-Hur Freezer Company and was the first
to develop and patent an automatic stand-alone undercounter residential ice maker. His foresight and determination
to develop new ideas and to succeed when there were no clear guidelines or solutions are evident today. The newest
Uihlein generation continues to build upon the family’s innovative legacy at the Milwaukee, Wisconsin based business
by providing continuity and vision from which new designs and technology continue to be born.
Today the complete U-Line product collection includes Ice Makers, Wine Captain® Models, Freezers, Refrigerators,
and Drink Cabinets. U-Line’s approach to its breadth of products, multiple price points and features allows a choice
and product that will fit any lifestyle.
DESIGNED, ENGINEERED AND ASSEMBLED IN WISCONSIN, USA
The American Built-In Undercounter Leader Since 1962
U-LINE.COM
Publication Number 30365 4/2013 Rev.E
©2013 U-Line Corporation
Loading...
