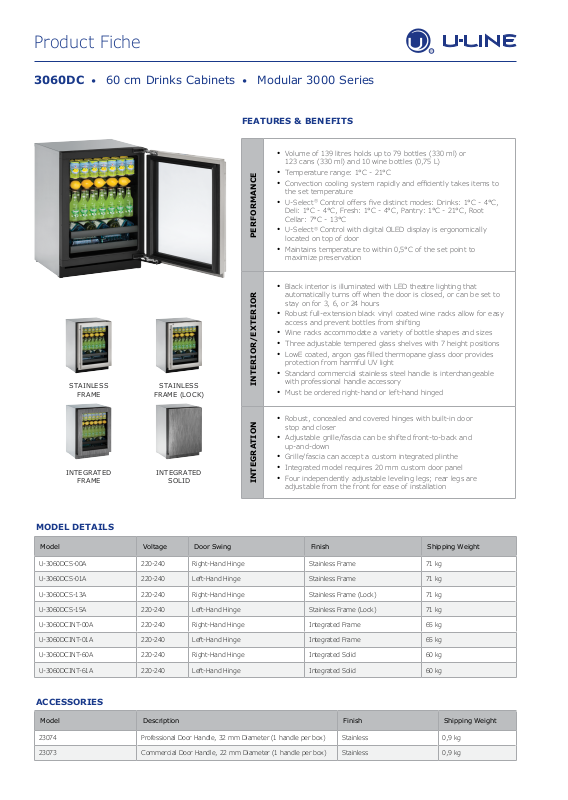

Product Fiche
3060DC • 60 cm Drinks Cabinets • Modular 3000 Series
FEATURES & BENEFITS
• Volume of 139 litres holds up to 79 bottles (330 ml) or
123 cans (330 ml) and 10 wine bottles (0,75 L)
• Temperature range: 1°C - 21°C
• Convection cooling system rapidly and eciently takes items to
STA INL ESS
FRAME
STA INL ESS
FRAME (LOCK)
the set temperature
• U-Select
Deli: 1°C - 4°C, Fresh: 1°C - 4°C, Pantry: 1°C - 21°C, Root
Cellar: 7°C - 13°C
• U-Select
PERFORMANCE
located on top of door
• Maintains temperature to within 0,5°C of the set point to
maximize preservation
• Black interior is illuminated with LED theatre lighting that
automatically turns o when the door is closed, or can be set to
stay on for 3, 6, or 24 hours
• Robust full-extension black vinyl coated wine racks allow for easy
access and prevent bottles from shifting
• Wine racks accommodate a variety of bottle shapes and sizes
• Three adjustable tempered glass shelves with 7 height positions
• LowE coated, argon gas lled thermopane glass door provides
protection from harmful UV light
• Standard commercial stainless steel handle is interchangeable
INTERIOR/EXTERIOR
with professional handle accessory
• Must be ordered right-hand or left-hand hinged
®
Control oers ve distinct modes: Drinks: 1°C - 4°C,
®
Control with digital OLED display is ergonomically
• Robust, concealed and covered hinges with built-in door
stop and closer
• Adjustable grille/fascia can be shifted front-to-back and
up-and-down
• Grille/fascia can accept a custom integrated plinthe
INTEGRATED
FRAME
INTEGRATED
SOLID
• Integrated model requires 20 mm custom door panel
• Four independently adjustable leveling legs; rear legs are
INTEGRATION
adjustable from the front for ease of installation
MODEL DETAILS
Model Voltage Door Swing Finish Shipping Weight
U-3060DCS-00A 220-240 Right-Hand Hinge Stainless Frame 71 kg
U-3060DCS-01A 220-240 Left-Hand Hinge Stainless Frame 71 kg
U-3060DCS-13A 220-240 Right-Hand Hinge Stainless Frame (Lock) 71 kg
U-3060DCS-15A 220-240 Left-Hand Hinge Stainless Frame (Lock) 71 kg
U-3060DCINT-00A 220-240 Right-Hand Hinge Integrated Frame 65 kg
U-3060DCINT-01A 220-240 Left-Hand Hinge Integrated Frame 65 kg
U-3060DCINT-60A 220-240 Right-Hand Hinge Integrated Solid 60 kg
U-3060DCINT-61A 220-240 Left-Hand Hinge Integrated Solid 60 kg
ACCESSORIES
Model Description Finish Shipping Weight
23074 Professional Door Handle, 32 mm Diameter (1 handle per box) Stainless
23073 Commercial Door Handle, 22 mm Diameter (1 handle per box) Stainless
0,9 kg
0,9 kg
Product Fiche
Modular 3000 Series • 60 cm Drinks Cabinets • 3060DC
PRODUCT FICHENICHE / RECESS
Dimensions shown apply to all nishes, including Integrated
(INT) models with 20 mm integrated panel/frame installed.
Not Including Handle
23-7/16" (590 mm)
33-11/16" to
34-11/16"
(856 to
881 mm)
3-5/8" to 4-5/8"
(92 mm to
118 mm)
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
24"
(610 mm)
(178 mm)
(102 mm)
23-5/8" (600 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
7"
4"
23-3/4"
(605 mm)
5/8"
(16 mm)
Model 3060DC
Category 3
Energy eciency class on a scale of A+++ to G A+
Energy consumption in kWh per year: Stainless 123
Energy consumption in kWh per year: Integrated 122
Total volume: fridge compartment (net): Stainless 139 litres
Total volume: fridge compartment (net): Integrated 133 litres
Total volume: wine compartment (net): Stainless N/A
Total volume: wine compartment (net): Integrated N/A
Total volume: freezer compartment (net) N/A
Total fridge: freezer capacity (net) N/A
Frost-free compartment N/A
Temperature rise time in event of blackout (hrs) N/A
Climate class ST
Noise emissions 46 dBA
Dimensions: Width (mm) 600
Dimensions: Depth (mm) 590
Dimensions: Height (mm) 856
Net weight: Stainless 70 kg
Net weight: Integrated 68 kg
Rated frequency 50 Hz
Rated voltage 220-240 v
Refrigerant charge (g) 45 g
Foam blowing agent 245FA
IN STALLATION NOTE S
COOLING SYSTEM
When installing adjacent to wall, ensure 63.5 mm
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
1°-21°
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille/fascia air ow.
For cabinet depths less than 620 mm, electrical
socket must be located in the adjacent cabinet or
recess in the wall. The power cord length is 180 cm.
Sound testing independently completed by Owens Corning™ Acoustic and
Insulation Product Testing Laboratories, an accredited laboratory by NVLAP
of the National Institute of Standards and Technology for specied tests in
accordance to IEC60704-1/ISO 896 0.
Please visit u-line.com to view this model’s User Guide. All specications are
subject to change without notice.
