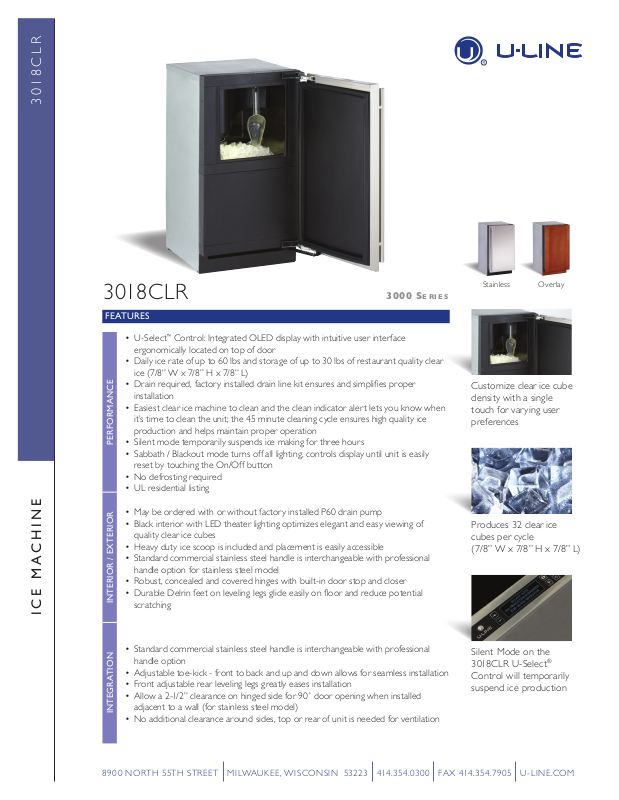

U-Line U-3018CLRS-00, U-3018CLRS-40, U-3018CLRS-01, U-3018CLRS-41, U-3018CLROL-40 Specification Sheet
...
3018CLR
3018CLR 30 00 SE RI E S
FEATU R E S
™
• U-Select
ergonomically located on top of door
• Daily ice rate of up to 60 lbs and storage of up to 30 lbs of restaurant quality clear
ice (7/8” W x 7/8” H x 7/8” L)
• Drain required, factory installed drain line kit ensures and simplifi es proper
installation
• Easiest clear ice machine to clean and the clean indicator alert lets you know when
it’s time to clean the unit; the 45 minute cleaning cycle ensures high quality ice
production and helps maintain proper operation
• Silent mode temporarily suspends ice making for three hours
• Sabbath / Blackout mode turns off all lighting, controls display until unit is easily
reset by touching the On/Off button
• No defrosting required
• UL residential listing
Control: Integrated OLED display with intuitive user interface
Stainless Overlay
Customize clear ice cube
density with a single
touch for varying user
preferences
ICE MACHINE
• May be ordered with or without factory installed P60 drain pump
• Black interior with LED theater lighting optimizes elegant and easy viewing of
quality clear ice cubes
• Heavy duty ice scoop is included and placement is easily accessible
• Standard commercial stainless steel handle is interchangeable with professional
handle option for stainless steel model
• Robust, concealed and covered hinges with built-in door stop and closer
• Durable Delrin feet on leveling legs glide easily on fl oor and reduce potential
scratching
• Standard commercial stainless steel handle is interchangeable with professional
handle option
• Adjustable toe-kick - front to back and up and down allows for seamless installation
• Front adjustable rear leveling legs greatly eases installation
• Allow a 2-1/2” clearance on hinged side for 90˚ door opening when installed
adjacent to a wall (for stainless steel model)
INTEGRATION INTERIOR / EXTERIOR PERFORMANCE
• No additional clearance around sides, top or rear of unit is needed for ventilation
8900 NORTH 55TH STREET MILWAUKEE, WISCONSIN 53223 414.354.0300 FAX 414.354.7905 U-LINE.COM
Produces 32 clear ice
cubes per cycle
(7/8” W x 7/8” H x 7/8” L)
Silent Mode on the
3018CLR U-Select
®
Control will temporarily
suspend ice production
3018CLR
24"
23-1/4"
ICE MACHINE
33-11/16"
To
34-11/16"
3-5/8" To 4-5/8"
17-3/4"
3018CLRS Stainless Model
*No additional depth required for water hook-up
DiMeNSioNS aND SPeciFicatioNS
overall DiMeNSioNS
Height 33 -11/ 16 " (8 5 . 2)
Width 17-3/4" (45)
Depth 24" (61)
Shipping weight:
Overlay model (w/o pump) 110 lbs (50 kg)
Stainless model (w/o pump) 118 lbs (53 kg)
Overlay model (w/ pump) 117 lbs (53 kg)
Stainless model (w/ pump) 125 lbs (56 kg)
Running amps 4.0
Amps pertain to voltage rating 110/115 volt, 60Hz
Approximate daily ice production Up to 60 lbs
Ice storage Up to 30 lbs
33-11/16"
To
34-11/16"
4-3/4" To 5-3/4"
17-3/4"
3018CLROL Overlay Model
3018CLR
Stainless Right-hand, no pump U-3018CLRS-00
Stainless Right-hand, with pump U-3018CLRS-40
Stainless Left-hand, no pump U-3018CLRS-01
Stainless Left-hand, with pump U-3018CLRS-41
Overlay Right-hand, no pump U-3018CLROL-00
Overlay Right-hand, with pump U-3018CLROL-40
Overlay Left-hand, no pump U-3018CLROL-01
Overlay Left-hand, with pump U-3018CLROL-41
Preferred location for
3018CLR drain, water
line and receptacle is
in adjacent cabinet.
33-7/8"
to
34-7/8"
24"
5/8"
Please visit www.u-line.com for installation guide.
All specifications are subject to change without notice.
8900 North 55th Street Milwaukee, wiScoNSiN 53223 414.354.0300 Fax 414.354.7905 u-liNe.coM
17-3/4"
