INTRODUCTION
Congratulations on your purchase of U-Line ice making or refrigeration
products. A pioneer in the field for nearly 40 years, U-Line is the world’s
number one manufacturer of built-in, under-counter ice making and
specialty refrigeration products. U-Line dedicates 100% of its research
and development to these products. The result: U-Line technology
leads the market with innovation, design, depth of product line and
performance.
U-Line also backs customers with a strong dealer network. U-Line’s
commitment to quality even extends to environmentally safe packaging.
U-Line products are making life more convenient in homes, businesses,
and hotels around the world.
PLEASE READ all instructions completely before attempting
to install or operate the unit. All models of Ice Makers and
Combos require a connection to the water supply. Improper
hook-up can result in substantial property damage! If you
are unsure of your ability to safely connect the water
supply to the unit, consult a licensed plumber for assistance.
Once you have your unit installed, we suggest you keep this manual in
a safe place for future reference. Should any problems occur, refer to
the TROUBLESHOOTING section of this manual. This information will
help you quickly identify a problem and get it remedied. In the event you
require assistance, please contact the dealer where you purchased
your unit.
PLEASE RECORD YOUR MODEL’S INFORMATION
Whenever you call to request information or service, you will need to
know your model number and serial number. You can find this information on the serial plate located on the inside wall of your unit and on
the warranty registration card.
WARRANTY REGISTRATION CARD
The package containing this manual also includes your warranty registration information. Warranty coverage begins at the time your unit
was purchased.
NOTE
Complete and mail the Warranty Registration Card as soon
as possible to validate the registration date.
1
If you do not return your Warranty Registration Card, U-Line will use
the date of sale to the U-Line distributor as the first date of warranty
for your unit. Please also record the purchase date of your
U-Line unit and your dealer’s name, address and telephone number.
Model Number: ________________________________________
Serial Number: ________________________________________
Purchase Date: ________________________________________
Dealer Name: ________________________________________
Dealer Address: ________________________________________
Dealer Telephone: ________________________________________
Keep this manual and the sales receipt together in a safe place for further reference.
TABLE OF CONTENTS
INTRODUCTION..........................................................................1
SAFETY PRECAUTIONS ...............................................................3
INSTALLATION ...........................................................................5
CONNECTING THE WATER SUPPLY..............................................7
LEVELING THE UNIT ...................................................................9
REVERSING THE DOOR ...............................................................9
CUSTOM DOOR PANELS ...........................................................12
BUILT-IN INSTALLATION.............................................................14
INITIAL START-UP.....................................................................14
NORMAL OPERATION ...............................................................16
ADJUSTING THE TEMPERATURE CONTROL.................................17
OUTDOOR & MARINE USE ........................................................18
ADJUSTING ICE CUBE SIZE .......................................................18
MAINTENANCE........................................................................19
DEFROSTING ...........................................................................24
STORAGE ................................................................................25
TROUBLESHOOTING .................................................................26
IF SERVICE IS REQUIRED...........................................................28
2
User’s Manual
3
SAFETY PRECAUTIONS
Do not attempt to install or operate your unit until you have read the
safety precautions in this manual. Safety items throughout this manual
are labeled with a Danger, Warning or Caution based on the risk type.
DEFINITIONS
Danger means that failure to follow this safety statement
may result in severe personal injury or death.
Warning means that failure to follow this safety statement
may result in extensive product damage, serious personal
injury, or death.
CAUTION
Caution means that failure to follow this safety statement
may result in minor or moderate personal injury, property
or equipment damage.
!
WARNING
DANGER
! !
GENERAL PRECAUTIONS
RISK OF CHILD ENTRAPMENT. Before you throw away your
old refrigerator or freezer, take off the doors and leave
shelves in place so that children may not easily climb inside.
• Never attempt to repair or perform maintenance on the
unit until the electricity has been disconnected.
• Altering, cutting of power cord, removal of power cord,
removal of power plug, or direct wiring can cause serious
injury, fire and/or loss of property and/or life and will
void the warranty.
CAUTION
• Do not lift unit by door handle.
• Never use an ice pick or other sharp instrument to help
speed up defrosting. These instruments can puncture
the inner lining or damage cooling unit.
• Failure to clean the condenser every three months can
cause the unit to malfunction. This could void the
warranty.
• Never install the unit behind closed doors. Be sure front
grille is free of obstruction. Obstructing free air flow can
cause the unit to malfunction, and may void the warranty.
CAUTION
• DO NOT use any type of heater to defrost. Using a heater
to speed up defrosting can cause personal injury and
damage to the inner lining.
• Use only genuine U-Line replacement parts. Imitation
parts can reduce ice rate, cause water to overflow from
ice maker mold, damage the unit, and may void the warranty.
!
WARNING
DANGER
! !
4
User’s Manual
INSTALLATION
SITE PREPARATION
1. Position the unit on a flat, level surface, capable of supporting the
entire weight of the unit. Remember the unit will be significantly
heavier once it is fully loaded.
2. This unit requires grounded and polarized 115 VAC, 60Hz, 15A
circuit (normal household current).
ELECTROCUTION HAZARD!
Electrical Grounding Required. This appliance
is equipped with a three prong (grounding)
polarized plug for your protection against
possible shock hazards.
• NEVER remove the round grounding prong from the plug.
• NEVER use a two-prong grounding adapter.
• NEVER use an extension cord to connect power to the
unit.
Where a two-prong wall receptacle is encountered or a
longer power cord is required, contact a qualified electrician
to have it replaced in accordance with applicable electrical
codes.
NOTE
All U-Line units (except
Stainless Steel models) have
a zero clearance for the door
to open (see Figure 1). See
BUILT-IN INSTALLATION for
additional clearance requirements. Stainless steel models
require a minimum of 2-1/2"
door handle clearance when
installed against a wall.
Figure 1
5
DANGER
! !
DOOR
SWING
CABINET
OR WALL
0"
CLEARANCE
NEEDED
UL124A
3. If installing an Ice Maker model, install and connect the water supply line. See CONNECTING THE WATER SUPPLY for installation
requirements.
4. Position the unit to allow free air flow through the front grille
(see Figure 2).
Figure 2
5. Wipe out inside of unit and ice bucket with a damp cloth.
OFF
ON
1
2
3
4
5
6
7
C
O
L
D
E
R
W
A
R
M
E
R
UL307
INTAKE
EXHAUST
6
User’s Manual
CONNECTING THE WATER SUPPLY
On Ice Maker models BI 2015 and Combo 2075FF, install a 1/4 inch
outside diameter copper water line (not supplied with unit) from the
nearest COLD water pipe. When connecting the water supply, follow
these guidelines:
• Review the local plumbing codes before you install the unit.
• In most instances, the cold water supply will come from the
basement through a hole in the floor.
• The water pressure should be between 15 and 150 psi.
• Install a shut-off valve in the 1/4 inch outside diameter supply
line.
• Connect sufficient tubing to the unit to allow the unit to be
moved for cleaning and servicing. However, make certain that
the tubing is not pinched or damaged during installation.
• U-Line recommends the use of copper tubing for installation.
Figure 3
7
1. Locate the compression fitting and ferrule packed in the
unit. Slide the compression
fitting and ferrule over the
1/4 inch outside diameter
water supply line. Do not use
thread sealing compound or
tape. Using two wrenches,
tighten the compression fitting on the supply line (see
Figure 3).
2. Carefully bend the water supply
line into position and connect
the line to the solenoid valve
(see Figure 4). Avoid kinking
the water supply line.
UL103
WATER
CONNECTION
UL134
3. For recessed installations,
allow extra water supply line
length to provide slack for easy
removal from the recessed
area (see Figure 5). This will
also safeguard against kinking
the line.
Figure 5
CAUTION
If you are not intending to use
the ice maker and do not connect the water supply (or turn
the supply valve off), it is
imperative to raise the bin
arm of the ice maker (see
Figure 6). Failure to raise the
bin arm may result in damage
to the water valve.
Figure 6
NOTE
After completing the installation, turn on the water and
recheck water connection for leaks. Apply additional tightening if needed. Do not use thread sealing compound or
tape.
4. Plug in the power cord.
5. Gently push the unit into position. If desired the unit may be recessed
into cabinet or wall.
UL002A
8
User’s Manual
9
LEVELING THE UNIT
It is important that the unit, primarily the Ice Maker models, are level.
All Échelon™ Series units are equipped with adjustable feet for leveling and height adjustment (see Figures 7 & 7A).
Figure 7 Figure 7A
REVERSING THE DOOR
All U-Line units (except Stainless Steel
models which must be ordered left or
right hand opening) are field reversible
for left or right hand opening. The
door opening is easily reversed by
moving the hinge hardware to the
opposite side (see Figure 8).
Figure 8
CHECK
LEVEL
TURN FOOT TO ADJUST
UL105
UL314
UL318
To reverse the door:
1. Remove top hinge screw pin
(7/64" Allen wrench) from
cabinet (see Figure 9). Remove door by tilting forward
and lifting off bottom hinge pin.
Figure 9
2. Remove plastic screw plugs
(3 each, top and bottom)
from new hinge location. Do
not discard (see Figure 10).
Figure 10
3. Remove top hinge (3 screws),
reinstall hinge screw pin, and
remount on opposite side
BOTTOM (see Figure 11).
Figure 11
4. Remove the two door closer
plastic inserts from the existing bottom hinge and install
as shown on the new bottom
hinge (see Figure 12).
Figure 12
PLASTIC
10
User’s Manual
HINGE
SCREW
PIN
UL310
UL313
SCREW
PLUGS
UL308
DOOR
CLOSER
INSERTS
UL312
5. Remove existing bottom hinge (3 screws) and remount on opposite side TOP. Remove top hinge screw pin.
6. With bottom of door facing up, remove pivot plate (2 screws), flip
over, and remount on opposite side of door (see Figure 13).
Figure 13
7. Holding door upright with top of
door tilted forward, place hole of
door pivot plate on bottom hinge
screw pin (see Figure 14).
8. Tilt top of door into position in top
hinge and install top hinge screw
pin.
9. Install plastic screw plugs
removed in Step 2 in existing hinge
holes (3 each, top and bottom).
Figure 14
11
UL319
UL312A

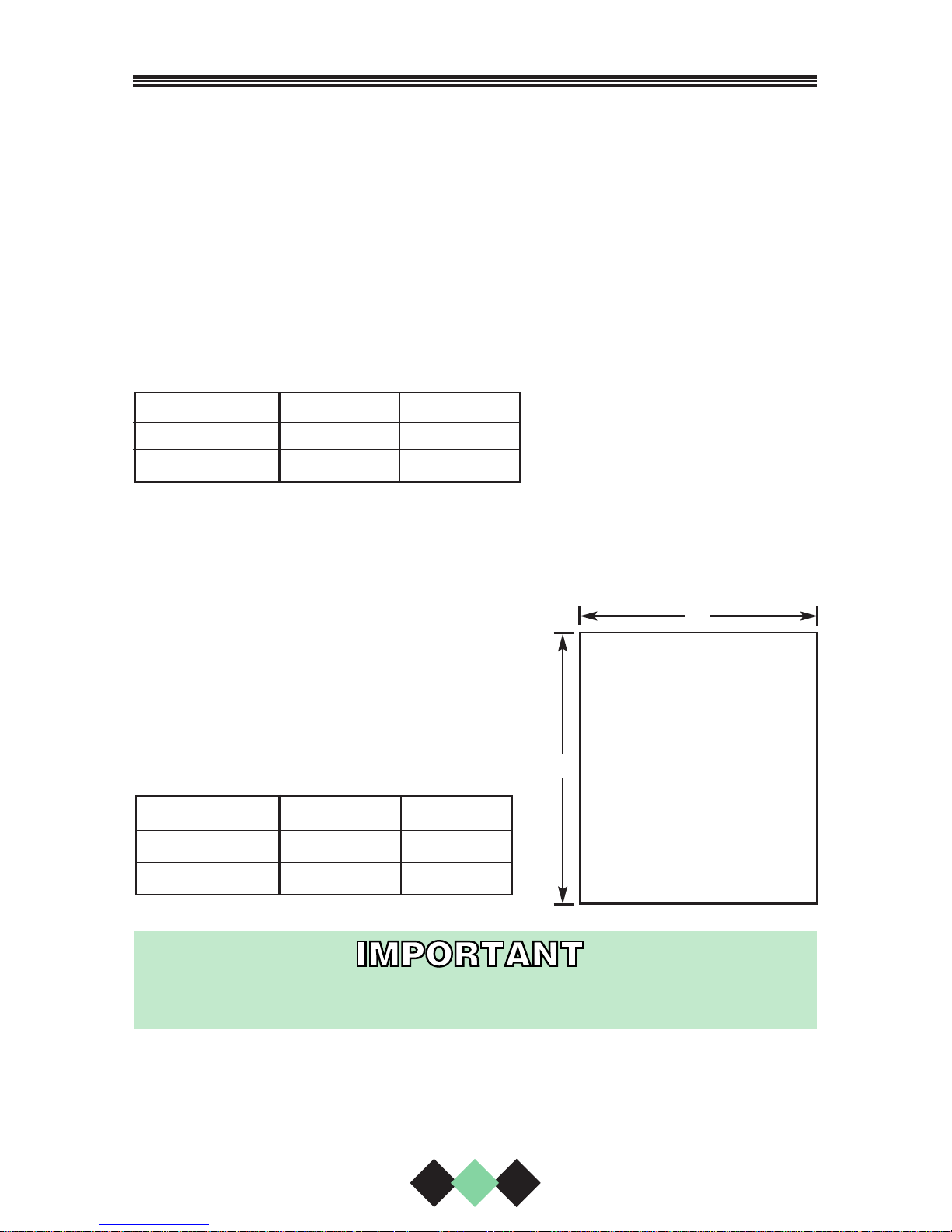

CUSTOM DOOR PANELS
Two types of custom door panels can be installed on your U-Line unit to
harmonize with or accent the surrounding decor.
FULL OVERLAY DOOR PANEL
A full overlay door panel completely covers the door frame and handle
to give a built-in appearance. See your U-Line dealer for the optional Full
Overlay Door Panel Kit which contains the Panel Preparation Document
for building and installing a full overlay panel. See Table 1 for full overlay door panel dimensions.
Table 1. Full Overlay Panel Dimensions
Model A B
2015 Series 29-7/8" 14-3/4"
2075 Series 29-7/8" 23-3/4"
CUSTOM INSERT DOOR PANEL
A custom door panel can be inserted into the door frame to better match
the surrounding decor. Custom door panels can be flat or raised, as long
as the maximum panel thickness where
inserted into the door reveal (channel) is
1/4" thick. For raised panels, the depth
of the reveal is 1/4" on all four sides.
See Table 2 for custom door panel insert
dimensions.
Table 2. Custom Insert Door Panel
Dimensions
Door panel insert must not weigh more than 20 lbs.
Model A B
2015 Series 28–5/32” 14–1/32”
2075 Series 28–5/32” 23–1/32”
12
User’s Manual
B
A
Install the insert as follows:
Insert edges may be SHARP!
Use care when installing.
1. Remove top hinge screw pin
(7/64" Allen wrench, see
Figure 15). Remove door by
tilting forward and lifting off
bottom hinge pin.
2. Remove two outside screws
holding door handle. Slightly
separate door handle from
door (see Figure 16).
3. Pull door gasket out of
groove (top edge of door
only). Start in the middle and
pull outward, moving toward
the edge (see Figure 17).
This may take some force.
Do not remove the three
screws behind the gasket.
4. Pull handle up and off.
NOTE
Use care not to bend light
switch bracket (where
installed), located on door
bottom when installing door
insert. Do not set door on
bottom edge when pushing
insert into place.
5. Slide custom door panel
insert into 1/4 inch channel
in door front.
13
Figure 15
Figure 17
Figure 16
WARNING
!
UL310
UL117
UL132
6. Holding door gasket out of the way, replace handle on door making sure it is seated properly on insert and that screw holes line
up.
7. Install two small screws removed in step 2.
8. Starting at the corners and working inward, push door gasket into
place on door.
9. Place door on bottom hinge pin and install upper hinge screw.
BUILT-IN INSTALLATION
Your U-Line product has been designed for either free-standing or builtin installation. When built-in, your U-Line product does not require additional air space for top, sides, or rear. However, the front grille must
NOT be obstructed.
NOTE
To ease unit installation and removal, it is recommended
that the cabinet rough opening dimensions be increased by
at least 1/4" over the dimensions given for your unit.
Unit Dimensions
* For full overlay door panels, add 3/4".
INITIAL START-UP
Once installation is complete, the unit is ready for initial start-up and
operation.
CONTROL SETTINGS-COMBO/REFRIGERATOR
Models 2015R, 2075R and
2075RF are turned ON with the
control knob located on the grille.
Turn the knob clockwise for ON,
counterclockwise for OFF. Models
2015R, 2075R and 2075RF
turn OFF when the temperature
control is turned counterclockwise all the way toward warmer
until it stops (until “click” is heard).
Model Width Height Depth*
2015 Series 14-15/16" 34-1/8" 24"
2075 Series 23-15/16" 34-1/8" 24"
14
User’s Manual
Figure 18
2
W
A
R
4
3
1
R
E
M
5
6
7
C
O
L
R
D
E
UL315
CONTROL SETTINGS - COMBO/ICE MAKER
Models BI 2015 and
2075FF are turned
ON with the ON/OFF
switch recessed in
the front grille (see
Figure 19). In these
units, the control dial
is used only for temperature control.
Figure 19
1. Plug the appliance cord into a 115V polarized and grounded electrical outlet.
2. All units are shipped in the ON position.
3. Open the water supply valve in the main water source. As soon as
the ice maker mold reaches the proper temperature, the ice
maker mechanism will fill the mold with water. The first cubes may
be small because of air in the water line. Subsequent cubes will be
of standard size. Allow 2 hours for Frostfree models.
It is possible that dirt or scale will dislodge in the water line.
Always throw away all ice cubes made during the first two
to three hours of operation.
15
TEMPERATURE CONTROL KNOB
4
3
5
2
W
A
R
6
7
1
M
R
E
D
L
E
O
R
C
ON/OFF SWITCH
OFF
ON
UL316B
NORMAL OPERATION
On units with refrigerator sections, the unit has been designed to
achieve a fresh food temperature of approximately 38°F. Those units
with a freezer section are designed to have a freezer temperature of
approximately 0°F.
On units with ice makers, when the ice bucket is full, the ice making mechanism will shut
off. However, the refrigeration system will
continue to cool and maintain the cube supply. Frost free icemaker units have lower ice
production than manual defrost units.
Ice production may be interrupted by raising
the bin arm into an upright and locked position (the unit will maintain temperature for
ice storage, see Figure 20).
Certain sounds are normal during the unit’s operation. You may hear
the compressor or fan motor, the water valve, sounds of defrost, or
ice dropping into the ice bucket.
NEVER use an ice pick, knife, or other sharp instrument to
separate cubes. Shake the ice bucket instead.
The ice bucket MUST be fully inserted to avoid freezing products in the
refrigerator section of the Combo 2075FF.
During periods of limited usage or high ambient temperatures, it is
common for cubes to fuse together. Shake the bucket to break apart
cubes.
If ice maker is not used regularly, the ice bucket should be emptied periodically to ensure fresh cubes.
It is normal for cubes to appear cloudy. This is caused by air being
trapped in the water due to fast freezing. It has nothing to do with the
health, taste or chemical make-up of the water. It is the same air that
is in every glass of water you drink.
!
WARNING
16
User’s Manual
Figure 20
UL002A
The ice bin door must be fully closed with the door lip inside the ice
bucket.
Frost free models: Do not place any objects over air inlet or outlet in
freezer section.
For frost free models: Light frosting may occur in high humidity conditions or if the ice bucket is not pushed in completely.
BI 2015 is not frost free and must be defrosted periodically. Refer to
MAINTENANCE.
Do not place cans or bottles so they are touching the back of the unit.
If placed against the evaporator section, cans or bottles may freeze.
ADJUSTING THE TEMPERATURE
CONTROL
CONTROL KNOB
Series 2015 and 2075: Adjust
control setting by turning the
numbered knob attached to the
front grille (see Figure 21).
CHECKING TEMPERATURE
To accurately check the temperature, insert an accurate
thermometer into a plastic
(non-breakable) bottle, partially filled with water. Tighten the
bottle cap securely (see
Figure 22).
Place the bottle in the desired
area for 24 hours. Refrain
from opening the unit during
the testing period. After 24
hours, check the temperature
of the water. Adjust the control
knob if necessary and retest.
Figure 21
Figure 22
17
3
2
1
W
R
A
E
R
M
4
5
6
7
C
O
L
R
D
E
UL315
UL320
18
User’s Manual
OUTDOOR & MARINE USE
Many U-Line models are designed to operate in harsh outdoor/marine
environments. Special considerations include the following:
• For best performance, keep the unit out of direct sunlight.
• On Ice Maker models, turn the unit OFF and dispose of any ice cubes
if the unit will not be used for 5 days or more. Prop door open to
allow for air circulation and prevent mold and mildew.
• If the ambient temperature is expected to drop below 45°F, drain all
water from the unit to prevent freezing damage not covered by the
warranty.
• High ambient temperatures (110°F or higher) may reduce the unit’s
ability to reach low temperatures and may also reduce the ice production rate.
ADJUSTING ICE CUBE SIZE
On models equipped with an ice maker, the cube size may be adjusted
by changing the amount of water injected into the ice maker assembly.
1. Remove the ice maker assembly cover (see Figure 23).
2. Locate the adjusting screw on the ice maker assembly control box.
The adjusting screw is just below the minus (–) and plus (+) signs
on the control box (see Figure 24).
Figure 23
Figure 24
+–
+–
UL122
UL122
3. Turn the adjusting screw toward the minus (–) sign (clockwise) for
smaller cubes or toward the plus (+) sign (counterclockwise) for
larger cubes.
4. Install the ice maker assembly cover.
MAINTENANCE
Periodic cleaning and proper maintenance will ensure efficiency, top
performance, and long life. The maintenance intervals listed are based
on normal conditions. You may want to shorten the intervals if you have
pets, the unit is used outdoors, or other special considerations.
EXTERIOR CLEANING — AS REQUIRED
The door, grille and cabinet may be cleaned with a mild detergent and
warm water solution. Do not use solvent based or abrasive cleaners.
Use a soft sponge and rinse with clean water. Wipe with a soft, clean
towel to prevent water spotting.
Stainless steel models can discolor when exposed to chlorine gas and
should be cleaned. Clean stainless steel models with a mild detergent
and warm water solution and a damp cloth. Never use abrasive cleaning agents.
Stainless steel models exposed to chlorine gas and moisture, such as areas with spas or swimming pools, may have
some discoloration of the stainless steel. Discoloration
from chlorine gas is normal.
INTERIOR CLEANING — AS REQUIRED
1. Disconnect power to the unit.
2. Remove shelves if desired, see GLASS SHELF REMOVAL/
INSTALLATION.
3. Open the door and remove any ice from the storage bin (if equipped).
4. Wipe down the interior with a solution of non-abrasive mild
detergent and warm water.
5. Rinse thoroughly with clear water.
6. Reconnect power to the unit.
19
• DO NOT use solvent cleaning agents or abrasives on the
interior. These cleansers may transmit taste to the ice
cubes, or damage or discolor the interior.
CONDENSER CLEANING - EVERY 3 MONTHS
Disconnect electric power to the unit before
cleaning the condenser.
To remove and replace the grille for access to the condenser fins
follow this procedure:
Figure 25
1. Remove the control knob by grasping the knob and pulling straight
off (see Figure 25).
20
User’s Manual
WARNING
!
WARNING
!
CONDENSER
F
F
O
N
O
4
3
5
6
2
7
1
R
E
D
W
L
A
O
R
C
M
E
R
UL317
2. Remove the screws at each end of the grille.
3. Remove the grille.
DO NOT touch the condenser fins. The condenser fins are
SHARP and can be easily damaged.
4. Clean the condenser coil using a brush or vacuum cleaner. Do not
touch.
5. Position the grille to align the screw holes with the cabinet.
6. Insert the grille screws and tighten being careful not to overtighten.
7. Install the control knob by aligning the flat of the control knob with
the flat on the shaft. Push firmly.
INLET SCREEN CLEANING
The solenoid valve inlet screen must be cleaned at least once each year
as follows:
1. Shut off the water at the water supply valve.
2. Remove the entire hose connector from the solenoid valve.
3. Use a tooth brush to clean
sediment from the inlet screen
(see Figure 26). DO NOT
remove the screen.
4. Attach the hose connector to
the solenoid valve. Tighten connector securely with a pliers.
Open the water supply valve
and check for leakage at the
hose connector.
!
WARNING
21
Figure 26
UL123
22
User’s Manual
Figure 28
DOOR SHELF
REMOVAL/INSERTION
To Remove Door Shelf (see
Figure 28):
1. Grasp shelf in center, lift
slightly, and tilt 15°-20°.
2. Carefully pull shelf off bosses.
To Install Door Shelf:
1. Holding shelf in center, align
notches in shelf with bosses
in door.
2. Tilt shelf at a 15°-20° angle
and slide onto bosses at the
desired location.
GLASS SHELF REMOVAL/INSTALLATION
Removal (see Figure 27)
1. Pull shelf out about 6" until
back of shelf clears the
“hump” on the right hand
side.
2. Tilt right hand edge of shelf
up.
3. Remove shelf from unit by
pulling out.
Adjustment/Installation
1. To move to a different position in the unit, insert shelf at an angle,
approximately 15-20°, over the rib in the side of the unit where you
want to place the shelf. The shelf must be started into the unit at
an angle to clear the door.
2. Continue to slide the shelf into the unit at an angle until it clears
the door. Lower the shelf and rest it on the rib.
Figure 27
3
1
2
NOTCH
UL301
BOSS
UL303
CRISPER
Slowly pull out the crisper.
If it is pulled out too far, it
could come out all the way
and possibly cause damage
or injury.
Combo 2075FF, 2075R and
2075RF models have a crisper for
storage. Grasp the crisper handle
and pull out to access the contents
(see Figure 29). The crisper may be
completely removed for cleaning.
LIGHT BULB REPLACEMENT
Light bulb replacement in the
Échelon™ series is simple.
1. Remove the light housing cover
by sliding the cover toward the
tab, swinging the end opposite
the tab down and pulling down
and away (see Figure 30).
2. Replace bulb with genuine U-Line
replacement.
3. Replace the light housing cover
by inserting the tab FIRST, sliding
the cover toward the tab and
pushing up the other end. You
should hear a snap/click.
23
Figure 29
UL304
Figure 30
2
3
TAB
1
UL305
DEFROSTING
DO NOT use any type of electrical heating device, ice pick,
knife, or other sharp instrument to defrost. Doing so may
cause personal injury or damage the inner lining or refrigeration system and void the warranty.
BI 2015 is a manual defrost model and should be defrosted approximately every 8 weeks. However, this interval may not be adequate in
periods of high humidity or heavy usage. Defrost your unit whenever the
frost thickness is 1/4" or greater. To defrost, turn the unit OFF, remove
cubes and prop door open at least two inches.
NOTE
Frost free units will never
need defrosting. Cycle defrost
models do not normally require manual defrosting.
However, in extremely high humidity or during periods of
unusually high usage, minimal manual defrosting may be
required.
!
WARNING
24
User’s Manual
25
STORAGE
If the unit is to be stored or not used for extended periods, it will be
necessary to drain the system of water.
1. Shut off water supply at the main water source.
2. Disconnect the water supply line from the solenoid valve.
3. Disconnect the water line from the solenoid valve outlet.
4. Allow the unit to run for an hour or more until all remaining ice
cubes have been ejected from the ice maker assembly.
5. Dry out excess water from the ice maker assembly.
6. Prop the door open at least two inches to allow for air circulation
and prevent mold and mildew.
7. Disconnect unit from main electrical power source.
8. Leave water supply line and power cord disconnected until ready
to reuse.
NOTE
The use of anti-freeze or other products of this nature is not
necessary and is not recommended.
26
User’s Manual
TROUBLESHOOTING
BEFORE CALLING FOR SERVICE
If the unit appears to be malfunctioning, read through NORMAL OPERATION first. If the problem persists, check the TROUBLESHOOTING
GUIDE. Locate the problem in the guide and refer to the cause and its
remedy before calling for service. The problem could be something very
simple which can be solved without a service call.
TROUBLESHOOTING GUIDE
ELECTROCUTION HAZARD
NEVER attempt to repair or perform maintenance on the unit until the main electrical
power has been disconnected.
Troubleshooting — What to check when problems occur
Problem Possible Cause Remedy
No interior light. Loose or burned out Tighten or replace bulb.
bulb. See page 23 for light
replacement instructions.
The unit is not Light staying on. Call for service.
cold enough.
Inaccurate temperature Properly check
reading. temperature. See page 17.
Dirty condenser coils. Clean condenser. See
CARE AND CLEANING.
Airflow to front grille Airflow must not be
blocked. obstructed to front grille.
See INSTALLATION.
Temperature not set Turn control knob
cold enough. CLOCKWISE to set
temperature colder.
Allow 24 hours for
temperature to stabilize.
DANGER
! !
Problem Possible Cause Remedy
The unit frosts Unit is manual Model B2015 is a
up. defrost model. manual defrost.
Refer to DEFROSTING.
High ambient Defrost unit manually.
temperatures or See DEFROSTING.
humidity.
Water is leaking Water supply Tighten fitting. See
out the back connection leaking. CONNECTING THE
of the unit. WATER SUPPLY.
Ice cubes Infrequent use of cubes. Break apart cubes.
sticking together.
Noise during Copper water supply Carefully bend tubing
operation. tubing contacting away from cabinet and
internal components. components.
Certain sounds Soft sounds from the fan
are normal. and water/dropping
sounds from the ice maker
will be heard.
No ice. Bin arm locked in Lower bin arm.
upright position.
No water to unit. Turn on water or contact
plumber.
Not enough ice. Ice cube size too Set cube size smaller.
large. See ADJUSTING ICE
CUBE SIZE.
Dirty condenser coils. Clean condenser.
See MAINTENANCE.
Water leaks into Water level set too Set cube size smaller.
ice bucket. high. See ADJUSTING ICE
CUBE SIZE.
Fresh food section Ice bucket not fully Push ice bucket
on Combo units inserted. into place.
too cold.
Flap door not closed Be sure Flap door is
correctly. closed correctly.
Temperature control Set control to warmer
set too cold. setting (COUNTER-
CLOCKWISE).
Inaccurate temperature Properly check temperareading. ture. See Page 17.
27
28
User’s Manual
IF SERVICE IS REQUIRED
If the need for service arises, contact the dealer from whom the unit
was purchased. State the Model Number and Serial Number and
explain the problem. The Model and Serial Number plate is located
inside unit at upper right hand corner.
™
Loading...
