WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over five decades of premium

modular ice making, refrigeration, and wine preservation experience. U-Line continues to be the American leader,

delivering versatility and flexibility for multiple applications including residential, light commercial, outdoor and marine

use. U-Line’s complete product collection includes Wine Captain® Models, Beverage Centers, Clear Ice Machines,

Crescent Ice Makers, Glass & Solid Door Refrigerators, Drawer Models, Freezers, Combo® Models, and more.

USER

GUIDE

u-line.com

USER GUIDE

u-line.com

U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired
innovations and attention to even the smallest details. We are known and respected for our unwavering dedication
to product design, quality and selection. U-Line is headquartered in Milwaukee, Wisconsin and has shipped product
to five continents for over two decades and is proud to have the opportunity to ship to you.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance
Documentation, and Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the
following steps:

1. U-Line Customer Care must be contacted immediately at +1.800.779.2547.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit

has been altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation
8900 N. 55th Street
Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm
CST

T: +1.414.354.0300

F: +1.414.354.7905
Email: [e-mail]
u-line.com

CONNECT WITH US

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm
CST

T: +1.800.779.2547
F: +1.414.354.5696

Service Email: onlineservice@u­line.com

Parts Email: [e-mail]

Designed, engineered and assembled in WI, USA

Introduction 1

u-line.com

USER GUIDE

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and
follow these general precautions with those listed
throughout this guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a
Danger, Warning or Caution based on the risk type:

DANGER

Danger means that failure to follow this safety

statement will result in severe personal injury or
death.

WARNING

Warning means that failure to follow this safety

statement could result in serious personal injury
or death.

CAUTION

Caution means that failure to follow this safety

statement may result in minor or moderate
personal injury, property or equipment damage.

DANGER

This unit contains R600a (Isobutane) which is a

flammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite
defrosting. Do not service without consulting the

“R600a specifications” section included in the

User Guide. Do not damage the refrigerant
circuit.

WARNING

Service must be done by factory authorized

service personnel. Any parts shall be replaced

with like components. Failure to comply could

increase the risk of possible ignition due to
incorrect parts or improper service.

Safety and Warning 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Disposal and Recycling

DANGER

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take off

the doors and leave shelves in place so children
may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state and local regulations

regarding the disposal and recycling of refrigeration
appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

Disposal and Recycling 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Environmental Requirements

This model is intended for indoor/interior applications

only and is not to be used in installations that are
open/ exposed to natural elements.

This unit is designed to operate between 50°F (10°C)

and 100°F (38°C). Higher ambient temperatures may

reduce the unit’s ability to reach low temperatures

and/or reduce ice production on applicable models.

For best performance, keep the unit out of direct
sunlight and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside

surfaces. This is considered normal. The condensation
will evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the
warranty.

Environmental Requirements 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has
been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding
adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,
and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle
that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current).

An individual, properly grounded branch circuit or

circuit breaker is recommended. A GFCI (ground fault

circuit interrupter) is usually not required for fixed

location appliances and is not recommended for your

unit because it could be prone to nuisance tripping.
However, be sure to consult your local codes.

See CUTOUT DIMENSIONS for recommended
receptacle location.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Electrical 1

Cutout Dimensions

PREPARE SITE

Your U-Line product has been designed exclusively for

a built-in installation. When built-in, your unit does
not require additional air space for top, sides, or rear.
However, the front grille must NOT be obstructed.

The product is designed and manufactured for

seamless integration in the specified cutout opening

shown, which requires precise measurements. The

opening must be square and plumb front to back.

Although not required, you may choose to increase
the overall cutout width for ease of installation.

The Modular 3000 Series units are engineered with a

variety of adjustment features to help ensure a

seamless installation. Adjustable doors, leveling legs
and grille will assist in fine tuning the installation.

All 3000 Series models fully integrate into

overlay/face frame, inset or European/frameless

cabinet styles and install seamlessly into standard 24"
(610 mm) depth cabinet base.

CAUTION

Unit can NOT be installed behind a closed
cabinet door.

CUTOUT DIMENSIONS

Metric measurements rounded and optimized.

Cutout Dimensions 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Product Dimensions

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Product Dimensions 1

Side-by-Side Installation

OTHER SITE REQUIREMENTS

Side-by-Side Installation

Units must operate from separate, properly grounded

electrical receptacles placed according to each unit’s

electrical specifications requirements.

Cutout width for a side-by-side installation is the total

of the widths listed under Cutout Dimensions in each

unit’s Installation Guide. Each door can be opened

individually (one at a time) without interference.

However, to ensure unobstructed door swing

(opening both doors at the same time), 1/4" (6.4

mm) of space needs to be maintained between the
units.

Hinge-by-Hinge Installation (Mullion)

When installing two units hinge-by-hinge, 13/16" (22

mm) is required for integrated models. Additional

space may be needed for any knobs, pulls or handles
installed.

Stainless steel models which include the standard

stainless handle will require 4-9/16" (116 mm) to
allow both doors to open to 90° at the same time.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Side-by-Side Installation 1

Anti-Tip Bracket

CAUTION

The anti-tip bracket must be installed to prevent
the unit from tipping when doors are fully
opened or excess weight is placed on the front
of the unit.

The anti-tip bracket has multiple mounting options.

Mounting will depend on your particular cabinet

configuration. Locate 3 #8x5/8" screws included with
your unit.

TOP MOUNT

For ease of installation, the anti-tip bracket is pre­installed in the top mount position.

1. Completely slide the unit into its position in the

cabinet. Be certain unit height is properly adjusted.
(See GENERAL INSTALLATION).

2. Open door completely. Make certain door clears

surrounding cabinetry.

3. Using a 3/32" (2.50 mm) drill bit, drill 3 pilot holes

5/8" (16 mm) deep into bottom of counter top. Use
the anti-tip bracket as a template.

4. Install 3 #8x5/8" screws into the plate using a #2

Phillips head screwdriver.

SIDE MOUNT

Side mount position is used when you are unable to

mount the bracket to the underside of your
countertop.

1. Remove the pre-installed anti-tip bracket from the

top mount position and align the bracket to the
hinge side of the unit as shown above.

2. Reinstall the 2 #8x5/8" screws into the plate using

a #2 Phillips head screwdriver.

3. Completely slide the unit into its position in the

cabinet. Be certain unit height is properly adjusted.
(See GENERAL INSTALLATION).

4. Open door completely. Make certain door clears

surrounding cabinetry.

5. Using a 3/32" (2.50 mm) drill bit, drill 3 pilot holes

5/8" (16 mm) deep into cabinetry frame using the
anti-tip bracket as a template.

6. Install 3 #8x5/8" screws into the plate using a #2

Phillips head screwdriver.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Anti-Tip Bracket 1

General Installation

1. Use a level to confirm

the unit is level. Level

should be placed along

top edge and side edge

as shown.

2. If the unit is not level, remove grille and adjust legs

as necessary. Use included tool to adjust the height
of the rear legs.

3. Confirm the unit is level after each adjustment and

repeat the previous steps until the unit is level.

INSTALLATION TIP

If the room floor is higher than the floor in the cutout

opening, adjust the rear legs to achieve a total unit

rear height of 1/8" (3 mm) less than the opening’s

rear height. Shorten the unit height in the front by

adjusting the front legs. This allows the unit to be

gently tipped into the opening. Adjust the front legs

to level the unit after it is correctly positioned in the
opening.

INSTALLATION

1. Plug in the power/electrical cord.

2. Gently push the unit into position. Be careful not

to entangle the cord.

3. Re-check the leveling, from front to back and side

to side. Make any necessary adjustments. The

unit’s top surface should be approximately 1/8" (3

mm) below the countertop.

4. Install the anti-tip bracket.

5. Remove the interior packing material and wipe out

the inside of the unit with a clean, water­dampened cloth.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

General Installation 1

Integrated Grille - Plinth
Dimensions

PREPARE AND INSTALL INTEGRATED GRILLE
(PLINTH STRIP/BASE FASCIA)

1. Use the dimensions provided in the diagram to cut

and shape your integrated grille (plinth strip/base

fascia) panel. Recommended panel thickness is

between 1/4" (6 mm) and 3/8" (9 mm). Height
will vary from 3-5/16"

(84 mm) to 4-5/16" (110 mm) based on your
grille (plinth strip/base fascia) height.

2. Finish or stain your grille (plinth strip/base fascia)

panel to match your surrounding furniture. Finish

front, back and edges to prevent warping.

Carefully follow the manufacturer’s

recommendations for finish application and cure
times.

3. Apply double sided tape to the backside of the

integrated grill (plinth strip/base fascia). Use the

diagram below for reference. U-Line recommends
3M™ VHB™ tape, a high strength bonding tape.

Apply Tape To Shaded Area

4. Remove backing paper from double sided tape.

5. Carefully align grille (plinth strip/base fascia) over

integrated panel and press into position.

INTEGRATED GRILLE (PLINTH STRIP/BASE
FASCIA) DIMENSIONS

Integrated Grille - Plinth Dimensions 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Grille - Plinth Installation

REMOVING AND INSTALLING GRILLE
(PLINTH STRIP/BASE FASCIA)

WARNING

Disconnect electrical current to the unit before
removing the grille (plinth strip/base fascia).

When using the unit, the grille (plinth
strip/base fascia) must be installed.

Edges of sheet metal may be sharp.

Removing the grille
(plinth strip/base fascia)

1. Disconnect electrical current to unit.

2. Using the included 7/64" Allen wrench, loosen (but

do not remove) both grille (plinth strip/base
fascia) lock screws. See below.

3. Gently pull grille (plinth strip/base fascia) away

from unit until it stops.

4. Push grille (plinth strip/base fascia) rails towards

the center of the unit to lift rails off lock screws.

5. Pull grille (plinth strip/base fascia) free from unit.

Installing the grille

(plinth strip/base fascia)

1. Align slots in grille (plinth strip/base fascia) rail

with screw heads in base of unit

2. Push grille (plinth strip/base fascia) rails towards

the center of the unit and set rails over screw
head.

3. Slide grille (plinth strip/base fascia) into position.

Using included 7/64" Allen wrench tighten grille
(plinth strip/ base fascia) lock screws.

ADJUSTING GRILLE
(PLINTH STRIP/BASE FASCIA)

The grille (plinth strip/base fascia) has an automatic

vertical plane adjustment and can also be adjusted

on its horizontal plane as well. To adjust your grille

(plinth strip/ base fascia) to match your surrounding
furniture, follow the instructions below.

1. Loosen, but do not remove, the lock screws on the

inside of the grille (plinth strip/base fascia) rails.

Lock screws are located on the inside of each grille
(plinth strip/base fascia) rail.

2. The grille (plinth strip/base fascia) can be

extended horizontally by pulling out a maximum

of 1-1/2" (38 mm). Do not exceed 1-1/2" (38
mm). Secure the lock screws after adjusting.

3. The grille (plinth strip/base fascia) skirt may be

manually adjusted to the height of your floor.
Simply raise or lower the skirt as needed.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Grille - Plinth Installation 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Drawers 1

USER GUIDE

u-line.com

Drawers

CHECKING DRAWER ALIGNMENT

The unit’s drawers are aligned at the factory before

shipment. However, their alignment could have been

disturbed during shipment or during overlay panel

installation. Check each drawer to confirm that it is
aligned:

• Side-to-Side — When viewed from the top, the

drawer front should be square with the sides of the
cabinet.

• Front-to-Back — When viewed from the side,

the

drawer front should be

straight with the cabinet’s

sides, not cocked forward
or back.

• Top-to-Bottom —

When viewed from the front, the drawer should be
level horizontally.

ADJUSTING DRAWER ALIGNMENT

WARNING

SHOCK HAZARD — The unit must be unplugged

from the wall outlet during drawer removal,
adjustment and re-installation.

DRAWER REMOVAL

1. Confirm that the unit is

unplugged from wall
outlet

2. Remove the mounting

screws.

3. Pull the drawer completely out of the unit.

CAUTION

Use care when handling the drawer. Drawer

edges, drawer rail and the unit’s slide may be

sharp.

NOTICE

Drawer adjustments are made by moving the

slide that carries the drawer’s rail. Minor

adjustments may be made by loosening one of

the slide’s mounting screws, adjusting the slide

and retightening the screw. Severe adjustments

may be made by removing the slides’ mounting

screws, drilling new mounting holes and
remounting the slide.

SIDE-TO-SIDE ADJUSTMENT

The drawer will need a Sideto-Side Adjustment if,

when viewed from the top, the drawer front is not

square with the sides of the cabinet. This is caused by

one of the slides being mounted too far forward on the

unit’s liner.

Minor Adjustment:

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Drawers 2

USER GUIDE

u-line.com

Note: The mounting holes on

the slide are slightly larger

than the screws’ diameter.

1. Loosen the slide’s

mounting screws.

2. Push the slide backward.

3. Retighten the screws.

Severe Adjustment:

Note: The slides have extra mounting holes that may
be used.

1. Remove the slide’s mounting screws.

2. Reposition the slide so it is the same distance

FRONT-TO-BACK ADJUSTMENT

The drawer will need a

Frontto-Back Adjustment if,

when viewed from the side,

the drawer front is cocked

forward or back. This is

caused by the front slide

mountings not being level

with the rear slide
mountings.

Minor Adjustment:

Note: The mounting holes

on the slide are slightly

larger than the screws’

diameter.

1. Loosen one slide’s

mounting screws.

2. Level the slide.

3. Retighten the screws.

Mark and Drill

New Mounting

Holes

4. Repeat procedure for the other slide.

from the front of the liner as the other slide.
Measure to confirm.

Push Slide

Backward

Loosen

Mounting Screws

Screws Should

Be Loose

Level the Slide

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS •
MAINTENANCE • SERVICE

Drawers 3

USER GUIDE

u-line.com

3. Mark new drilling holes using different sets of mounting holes on the slide.

Note: Front location holes are shown. Corresponding rear
holes will also need to be marked.

4. Drill all the new holes with a #30 drill bit.

5. Remount the slide.

Severe Adjustment:

Note: The slides have extra

Mark and Drill New

mounting holes that may be
Mounting Holes used.

1. Loosen one slide’s rear

mounting screws.

2. Remove the slide’s front

mounting screws.

3. Reposition the slide so it is level.

4. Mark new front drilling holes using a different set

of mounting holes on the slide.

5. Drill the new holes with a #30 drill bit.

6. Remount the slide.

7. Repeat procedure for the other slide.

TOP-TO-BOTTOM (AND LEFT-TO-RIGHT)
ADJUSTMENT

The drawer will need a Top-to-Bottom Adjustment if,

when viewed from the front, the drawer is not level

horizontally. Viewed from the top, one side will

protrude. This is caused by one of the slides being
mounted higher than the other slide on the unit’s liner.

Minor Adjustment:

Note: The mounting holes on the slide are slightly

larger than the screws’ diameter.

1. Loosen one slide’s

Loosen

mounting screws.

2. Push the slide upward or

downward to match the

position of the other
slide.

3. Retighten the screws.

4. Repeat the procedure with the other slide if

necessary.

Severe Adjustment:

Note: The slides have extra mounting holes that

may be used. 1. Remove one slide’s

Mark and Drill New

mounting screws.

Mounting Holes

Push Slide

Upward or

Downward

Mounting Screws

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Drawers 4

USER GUIDE

u-line.com

2. Reposition the slide so it

is the same distance

from the bottom of the

liner as the other slide.
Measure to confirm.

3. Mark new drilling holes using different sets of

mounting holes on the slide.

Note: Front location holes are shown. Corresponding
rear holes will also need to be marked.

4. Drill all the new holes with a #30 drill bit.

5. Remount the slide.

RE-INSTALLATION OF DRAWER

CAUTION

Use care when handling the drawer. Drawer

edges, drawer rail and the unit’s slide may be

sharp.

1. Set the drawer’s rails onto the slides.

2. Re-install the rails’ mounting screws.

SAFETY • INSTALLATION & INTEGRATION •

USER GUIDE

u-line.com

OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

First Use

All U-Line controls are preset at the factory. Initial startup
requires no adjustments.

NOTICE

U-Line recommends allowing the unit to run

overnight before loading with product.

When plugged in, the unit will begin operating under the
factory default setting. Follow the on screen prompt for
language selection and temperature units.

To turn the unit off, press and hold for 5 seconds

and release. The display will show a countdown to
switching the unit off.

To power your unit on, simply press and the unit will
immediately switch on.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Control Operation 1

USER GUIDE

u-line.com

First Use 1

Control Operation

Your unit is equipped with two zones. Each zone can be set to a different mode.

CONTROL FUNCTION GUIDE

FUNCTION

COMMAND

DISPLAY/OPTIONS

OFF

Press and hold

Display will count down from 5 to off.

ON

Press and release

Unit will come on immediately.

Adjust mode

Press to select zone. Press and
release to scroll through the modes.

Modes available in table below. Press
to confirm mode or wait 5 seconds.

Adjust temperature

Press to select zone. Press to
select mode. Press or to set
temperature.

Press to confirm temperature or
wait 5 seconds.

Adjust lighting

Press to adjust lighting

Press to select zone. Press to set
low, medium or high.

Light ON/OFF with door

Press to have light ON/OFF with
door

Press and release to scroll through timer
settings. Both zones will default to the same
timer setting.

Customer menu

Press and hold or 5 seconds

Press to scroll through menu.

Mode

Set
Point °F
(°C)

Temperature Range
°F (°C)

Beverage/Drinks

38 (3)

34 - 65 (1 - 18)

Market/Fresh

38 (3)

34 - 40 (1 - 4)

Root

50 (10)

45 - 55 (7 - 12)

Pantry

42 (5)

34 - 70 (1 - 21)

Deli

36 (2)

34 - 40 (1 - 4)

or

or

or

Up

Select

Zone Indicator

Zone Toggle

Zone Indicator

Down

Can be displayed in Celsius

Power

Root

5

O°F

Deli

°F

36

U-Select Lighting

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Control Operation 2

USER GUIDE

u-line.com

U-SELECT® CONTROL Digital Display

The 3000 Series units are controlled by a feature rich,

advanced OLED display control unit. The control panel

allows adjustment to temperature set point, access to

Energy Saver Mode, internal temperature readings,
and many other features.

Zone Control

Your model has a single control module for both
zones.
Each side of the control refers to a specific zone.

Adjusting Temperature Settings

Up Zone Toggle

Display

Down U-Select Lighting

Each zone has a series of Mode Settings with a

default value for each setting. Each Mode Setting can

be further customized by fine tuning the temperature

set point. See the chart below for a description of

each mode and mode temperature ranges. Mode
selection will vary by model.

Mode Settings Chart

Setting

Default °F (°C)

Range °F (°C)

Beverage/Drinks

38 (3)

34 - 65 (1 - 18)

Market/Fresh

38 (3)

34 - 40 (1 - 4)

Root

50 (10)

45 - 55 (7 - 12)

Pantry

42 (5)

34 - 70 (1 - 21)

Deli

36 (2)

34 - 40 (1 - 4)

Many food types have an optimum storage

temperature. Storing your food properly will help

maintain its freshness and flavor. The Food Storage

Chart contains food types and their respective
optimum storage temperatures.

Food Storage Chart

Mode

Food Types

Deli

Meats, Fish, Cheeses, Dairy, Butter, Garlic,
Oils, Nuts, Condiments

Market/Fresh

Fruits, Vegetables, Berries, Lettuce

Pantry

Dry Goods, Breads, Baking Items, Spices,
Seasonings

Root

Root Vegetables, Potatoes, Onions, Lemon,
Lime, Melon, Peppers, Beans, Cucumber,
Cut Vegetables

Each zone may have its own mode and set point.
Available Mode Settings will vary with model.

1. In order to adjust temperatures, you must first

select a zone to adjust. To select, press . The left
side Mode

Setting will flash. Pressing again will select the

right side and the right side Mode Setting will
flash.

2. Pressing will cycle through the available modes

for your model. Reference the Mode Settings Chart

for each Setting’s default set point and range.

3. Once your have selected your desired mode the

default set temperature will display. You may
further fine tune the temperature by pressing or .

Quick Chill

CAUTION

A number of zones include a quick chill feature.
Quick chill is designed to quickly pull warm
beverages and foods down to optimum storage
temperature. It is important to only initiate
quick chill modes when the unit has been fully
loaded with warm product. Failure to follow this
notice could result in food or beverages that are
cooled to a point below optimum or frozen.

The following table lists modes which include the

quick chill feature and the time which quick chill will
run.

Mode

Run Time

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Control Operation 3

USER GUIDE

u-line.com

Beverage/Drinks

4 Hours

Market/Fresh

4 Hours

Root

1 Hour

Pantry

4 Hours

Deli

5 Hours

To initiate quick chill:

1. Press to select the desired zone, left

or right.

2. Press to select the desired mode
setting.

3. Press until the temperature set point reads

“Quick”.

The quick chill feature will then begin for the period

of time dictated by the mode type. To cancel quick

chill, simply select a set point other then “quick”.

NOTE: There may be a delay before quick chill is

activated. If the opposite zone is currently in a

cooling cycle while quick chill is selected, the cooling
cycle on the opposite zone will first be completed.

NOTE: Please note, that when quick chill is activated,

the zone opposite the active quick chill zone will not

return to a cooling cycle until quick chill is complete.

If storing product in the opposite zone it is important

to limit the number of times the door is opened in the
zone not currently under quick chill.

INTERIOR LIGHTING

Your U-Line 3000 Series unit uses a state of the art
LED lighting system.

Up Zone Toggle

Down U-Select Lighting

1. To begin, press to enter the lighting menu.

2. The unit initially defaults to control the lighting in

both zones simultaneously. To select a single zone
press

. Notice the arrows on top of the display

changing state. Pressing once will select the left

side zone, pressing it again will select the right

side zone, pressing it a third time will select both
zones.

3. Press to cycle through each available

brightness setting (Low, Medium or High).

4. Press to cycle through each available timer

setting. Selections include “On With Door”, “On 3
Hours”, “On 6 Hours”, or “On 24 Hours”.

5. To exit, press or simply wait for the menu to

time out.

ERROR NOTIFICATION

The 3000 model series continuously monitors a series

of inputs and parameters to ensure proper and

efficient operation of your unit. Should the system

detect a fault, an error notification will be displayed
on the user interface. See below for a list of errors.

NOTE: Singe zone models will not use (L) left or (R)
right zone indicators in error notification.

ID

Description

Solution

or

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Control Operation 4

USER GUIDE

u-line.com

No Comm

Unit lost
communication to
the display.

Disconnect and
reconnect power to
unit. Contact
Customer Care if
persistent.

(L) (R) Zone T
Open

Left or right zone
thermistor circuit
open.

Contact Customer
Care.

Amb Thrm
Open

Ambient thermistor
circuit open.

Contact Customer
Care.

(L) (R) Zone T
Short

Left or right zone
thermistor circuit
shorted.

Contact Customer
Care.

Amb Thrm
Short

Ambient thermistor
circuit shorted.

Contact Customer
Care.

(L) (R) Temp
Hi
6H+

Left or right zone
temperature +10°
over set point for
over 6 hours.

Verify door is closed
and sealing. Contact
Customer Care if
persistent.

(L) (R) Temp
Hi
12H+

Left or right zone
temperature +10°
over set point for
over 12 hours.

Verify door is closed
and sealing. Contact
Customer Care if
persistent.

(L) (R) Temp
Lo
6H+

Left or right zone
temperature

-10° under set
point for over 6
hours.

Verify door is closed
and sealing. Contact
Customer Care if
persistent.

(L) (R) Temp
Lo
12H+

Left or right zone
temperature

-10° under set
point for over 12
hours.

Verify door is closed
and sealing. Contact
Customer Care if
persistent.

(L) (R) Door
Open 5M

Left or right door
switch open for
more then 5
minutes.

Verify door is closed
and sealing. Contact
Customer Care if
persistent.

CUSTOMER MENU

The 3000 Series of U-Line undercounter refrigeration

appliances contain a feature rich customer menu. The

Customer Menu allows access to a series of advanced

features including Energy Saver Mode, Sabbath Mode,

actual temperature readings as well a method to
restore factory defaults.

3000 SERIES - CUSTOMER MENU

6. To access the Customer Menu hold for 5

seconds.

7. Press to scroll through
available selections.

8. Press to enter selected sub-menu.

9. To exit Customer Menu, press to scroll to

the bottom of the display and press to select

“Exit”.

Actual Temps

The Actual Temps option displays the actual

temperature of each zone, evaporator, as well as
ambient temperature.

1. To view actual temperature, press and select

“Actual Temps” from the Customer Menu.

2. Press to scroll through available

information.

3. To return to the Customer Menu, press and

select “Return to Menu”.

Energy Saver Mode

Up

Select

Down

Can be displayed in Celsius

or

Up

Select

Down

Energy Saver Mode

Indicator

R

OOT

50

° F

DELI

36

° F

Can be displayed in Celsius

or

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Control Operation 5

USER GUIDE

u-line.com

Energy Saver mode reduces overall energy

consumption by altering user set point, differential,

lighting and tone settings. When in Energy Saver mode
a small leaf icon will be displayed on the main screen.

1. To enter Energy Saver Mode, first select Energy

Saver from the Customer Menu.

2. Press to select “Off” in the
menu.

3. Press

4. Press to change the selection
from Off to On.

5. Press to confirm your selection.

6. To return to the Customer Menu, press and

select “Return to Menu”.

7. To cancel Energy Saver Mode simply return to the

Customer Menu, select Energy Saver and change

“On” to “Off”.

Languages

The U-Line 3000 Series of models supports a number

of display languages including English, Spanish,
French, German, Dutch, and Italian.

1. To change display language select Languages from

the Customer Menu.

2. Press to select “English”.

3. Press . “English” will begin

to flash.

4. Press to cycle through the available languages.

5. Press to confirm your choice.

Sound Level

Audible alarms and alert tones support four different
Sound Level settings, High, Medium, Low, and Off.

To select a new sound level, enter the Sound Level
Menu from the Customer Menu.

1. Press to select the current sound level.

2. Press . The current setting

will begin to flash.

3. Press to select a different
level.

4. Press to confirm your choice.

Up

Select

Down

RETURN TO MENU

SOUND LEVEL

HIGH

.

or

or

or

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Control Operation 6

USER GUIDE

u-line.com

Fahrenheit/Celsius

Temperature and set point information can be
displayed in either Fahrenheit or Celsius.

To change from Fahrenheit to Celsius enter the

Fahrenheit / Celsius menu from within the Customer
Menu.

1. Press to select “Degrees”.

2. Press . The selection will
begin to flash.

3. Press to select between °F (Fahrenheit) or °C

(Celsius).

4. Press to confirm your choice.

Factory Default

Factory Default will restore all settings to their factory
default.

To access Factory Default:

1. Press to select “Factory Default”.

2. Press .

To restore settings to their factory default:

3. Press to select “Restore?” and press .

4. “Restore?” will change to “Restoring...” while

settings are restored. When restoration is

complete, “Restoring...” will return to “Restore?”.

To exit Factory Default, press to select “Return to
Menu” and press to confirm.

Help

To access the Help Menu, select “Help” from the

Customer Menu. Press to scroll through

available information. The Help screen displays the
following:

• Model.

• U-Line contact information.

• Software version.

• Serial Number.

To exit the Help Menu, press to select “Return to
Menu” and press to confirm.

Up

Select

Down

RETURN TO MENU

FARENHEIT/CELSIUS

DEGREES = °F

Up

Select

Down

RETURN TO MENU

FACTORY DEFAULT

RESTORE?

Up

Select

Down

RETURN TO MENU

Help

Model 3018WC

1-800-779-2547

or

or

SAFETY • INSTALLATION & INTEGRATION •

USER GUIDE

u-line.com

OPERATING INSTRUCTIONS • MAINTENANCE •

SERVICE

L

Sabbath Mode

This unit offers a Sabbath mode for users who require
this functionality during Sabbaths. Sabbath mode
disables system responses to user initiated activities
and all external functions, including lighting, display
and audible alarms. The unit will still maintain internal
temperatures and set points.

To enable Sabbath Mode:

1. Open the unit’s door to activate the display.

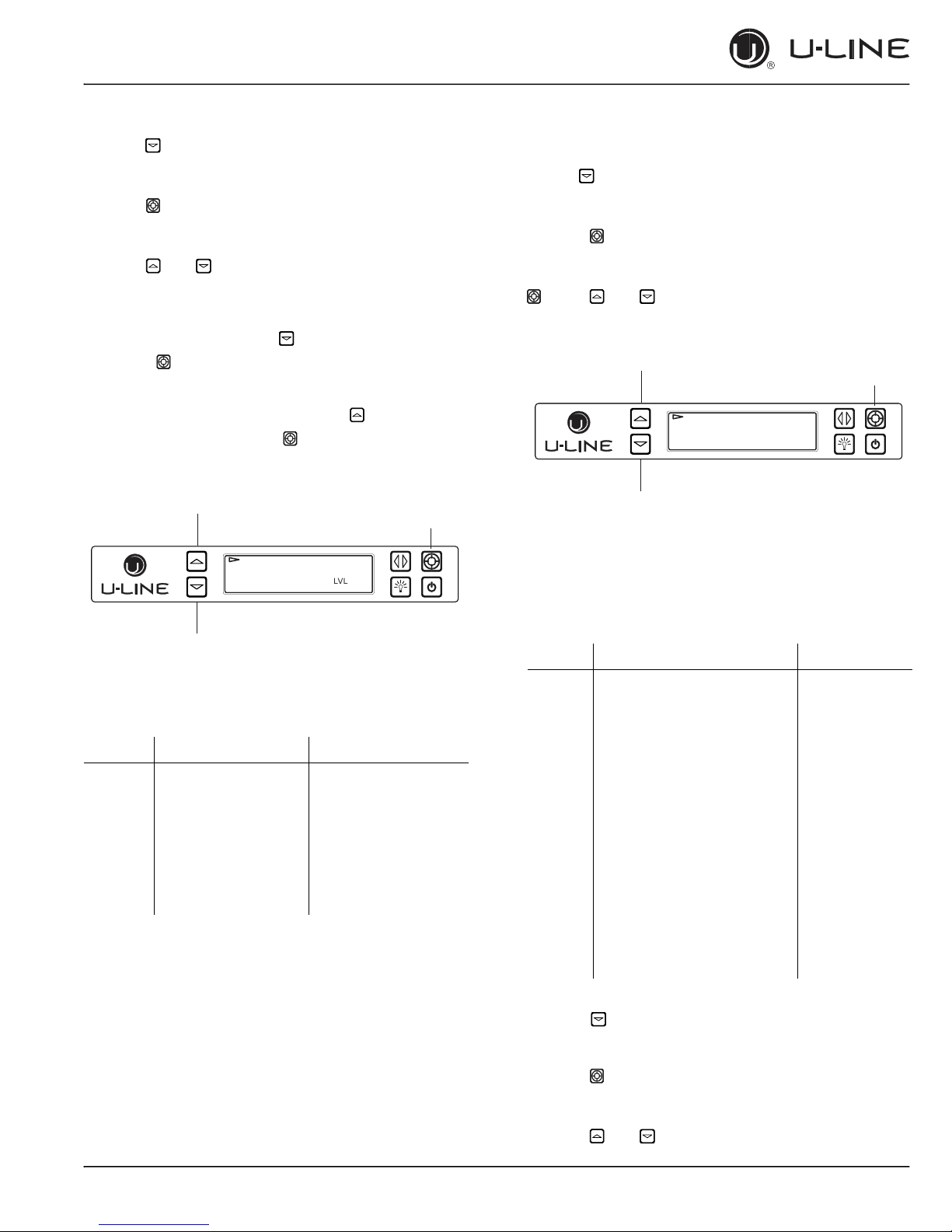

2. To access the Customer Menu, hold for 5

seconds.

3. Press or to scroll through available

selections.

4. Select Sabbath Mode from the Customer Menu by

pressing .

5. Press to select “Off”.

6. Press . “Off” will begin to flash.

7. Press to change “Off” to

“On”.

8. Press to confirm your selection.

The Display will fade out as the unit enters Sabbath

Mode. Sabbath

Mode remains active until is quickly pressed and

released.

Sabbath Mode 1

Up

Select

Down

RETURN TO MENU

SABBATH MODE

OFF?

or

USER GUIDE

u-line.com

OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Airflow and Product Loading

NOTICE

The unit requires proper airflow to perform at its

highest efficiency. Do not block the front grille,
or the unit will not perform as expected. Do not
install the unit behind a door. When loading your
unit, leave space between the evaporator and
product loaded. Anything in direct contact with
the evaporator is subject to freezing.

When properly loaded, your U-Line unit will store up to
142 (12 oz. [330 ml]) cans or 90 (12 oz. [330 ml]) bottles.

USER GUIDE

u-line.com

Airflow and Product Loading 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Cleaning

EXTERIOR CLEANING

Stainless Models

Stainless door panels and handles can discolor when

exposed to chlorine gas, pool chemicals, saltwater or
cleaners with bleach.

Keep your stainless unit looking new by cleaning with

a good quality all-in-one stainless steel cleaner and

polish monthly. For best results use Claire® Stainless

Steel Polish and Cleaner. Comparable products are

acceptable. Frequent cleaning will remove surface

contamination that could lead to rust. Some
installations may require cleaning weekly.

Do not clean with steel wool pads.

Do not use stainless steel cleaners or polishes
on any glass surfaces.

Clean any glass surfaces with a non-chlorine glass
cleaner.

Do not use cleaners not specifically intended for
stainless steel on stainless steel surfaces (this
includes glass, tile and counter cleaners).

If any surface discoloring or rusting appears, clean it

quickly with Bon-Ami® or Barkeepers Friend

Cleanser® and a nonabrasive cloth. Always clean with

the grain. Always finish with Claire® Stainless Steel

Polish and Cleaner or comparable product to prevent
further problems.

Using abrasive pads such as Scotchbrite™ will

cause the graining in the stainless steel to
become blurred.

Rust not cleaned up promptly can penetrate the
surface of the stainless steel and complete
removal of the rust may not be possible.

Integrated Models

To clean integrated panels, use household cleaner per

the cabinet manufacturer’s recommendation.

INTERIOR CLEANING

Disconnect power to the unit.

Clean the interior and all removed components using

a mild nonabrasive detergent and warm water

solution applied with a soft sponge or non-abrasive
cloth.

Rinse the interior using a soft sponge and clean water.

Do not use any solvent-based or abrasive

cleaners. These types of cleaners may transfer taste

to the interior products and damage or discolor the
lining.

DEFROSTING

Under normal conditions this unit does not require

manual defrosting. Minor frost on the rear wall or

visible through the evaporator plate vents is normal
and will melt during each off cycle.

If there is excessive build-up of 1/4" (6 mm) or more,

manually defrost the unit.

Ensure the door is closing and sealing properly.

High ambient temperature and excessive humidity can

also produce frost.

CAUTION

DO NOT use an ice pick or other sharp

instrument to help speed up defrosting. These
instruments can puncture the inner lining or
damage the cooling unit. DO NOT use any type
of heater to defrost. Using a heater to speed up
defrosting can cause personal injury and
damage to the inner lining.

USER GUIDE

u-line.com

Cleaning 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

NOTICE

The drain pan was not designed to capture the
water created when manually defrosting. To
prevent water from overflowing the drain pan
and possibly damaging water sensitive flooring,
the unit must be removed from cabinetry.

To defrost:

1. Disconnect power to the unit.

2. Remove all products from the interior.

3. Prop the door in an open position (2 in. [50 mm] minimum).

4. Allow the frost to melt naturally.

5. After the frost melts completely clean the interior and all removed components. (See

INTERIOR CLEANING).

6. When the interior is dry, reconnect power and turn unit on.

USER GUIDE

u-line.com

Cleaning 2

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Cleaning Condenser

INTERVAL - EVERY SIX MONTHS

To maintain operational efficiency, keep the front grille

(plinth strip/base fascia) free of dust and lint, and clean

the condenser when necessary. Depending on

environmental conditions, more or less frequent
cleaning may be necessary.

WARNING

Disconnect electric current to the unit before
cleaning the condenser.

NOTICE

DO NOT use any type of cleaner on the condenser
unit. Condenser may be cleaned using a vacuum,
soft brush or compressed air.

1. Remove the grille (plinth strip/base fascia). (See

GRILLE-PLINTH INSTALLATION).

2. Clean the condenser coil using a soft brush or

vacuum cleaner.

USER GUIDE

u-line.com

Cleaning Condenser 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Extended Non-Use

VACATION/HOLIDAY, PROLONGED SHUTDOWN

The following steps are recommended for periods of
extended non-use:

1. Remove all consumable content from the unit.

2. Disconnect the power cord from its outlet/socket

and leave it disconnected until the unit is returned
to service.

3. If ice is on the evaporator, allow ice to thaw

naturally.

4. Clean and dry the interior of the unit. Ensure all

water has been removed from the unit.

5. The door must remain open to prevent formation of

mold and mildew. Open door a minimum of 2" (50
mm) to provide the necessary ventilation.

WINTERIZATION

If the unit will be exposed to temperatures of 40°F
(5°C) or less, the steps above must be followed.

For questions regarding winterization, please call
U-Line at +1.800.779.2547.

CAUTION

Damage caused by freezing temperatures is not
covered by the warranty.

USER GUIDE

u-line.com

Extended Non-Use 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Troubleshooting

BEFORE CALLING FOR SERVICE

If you think your U-Line product is malfunctioning,

read the CONTROL OPERATION section to clearly
understand the function of the control.

If the problem persists, read the NORMAL OPERATING

SOUNDS and TROUBLESHOOTING GUIDE sections

below to help you quickly identify common problems

and possible causes and remedies. Most often, this will

resolve the problem without the need to call for
service.

IF SERVICE IS REQUIRED

If you do not understand a troubleshooting remedy,

or your product needs service, contact U-Line
Corporation directly at +1.414.354.0300

When you call, you will need your product Model and

Serial Numbers. This information appears on the Model

and Serial number plate located on the upper right or
rear wall of the interior of your product.

NORMAL OPERATING SOUNDS

All models incorporate rigid foam insulated cabinets to

provide high thermal efficiency and maximum sound

reduction for its internal working components. Despite

this technology, your model may make sounds that are
unfamiliar.

Normal operating sounds may be more noticeable

because of the unit’s environment. Hard surfaces such

as cabinets, wood, vinyl or tiled floors and paneled

walls have a tendency to reflect normal appliance
operating noises.

Listed below are common refrigeration components

with a brief description of the normal operating

sounds they make. NOTE: Your product may not
contain all the components listed.

• Compressor: The compressor makes a hum or

pulsing sound that may be heard when it operates.

• Evaporator: Refrigerant flowing through an

evaporator may sound like boiling liquid.

• Condenser Fan: Air moving through a condenser

may be heard.

• Automatic Defrost Drain Pan: Water may be heard

dripping or running into the drain pan when the
unit is in the defrost cycle.

TROUBLESHOOTING GUIDE

DANGER

ELECTROCUTION HAZARD. Never attempt to

repair or perform maintenance on the unit
before disconnecting the main electrical power.

Troubleshooting - What to check when problems

occur:

Problem

Possible Cause and Remedy

Light Remains
on When Door
Is Closed.

Turn off light switch if equipped.
Check reed switch.

Unit Develops
Frost on
Internal
Surfaces.

Frost on the rear wall is normal and will
melt during each off cycle.

If there is excessive build-up of 1/4" or
more, manually defrost the unit.

Ensure the door is closing and sealing
properly.

High ambient temperature and excessive
humidity can also produce frost.

Unit Develops
Condensation
on External
Surfaces.

The unit is exposed to excessive humidity.
Moisture will dissipate as humidity levels
decrease.

Product Is
Freezing.

Because product in contact with the rear
wall may freeze, ensure no product is
touching the rear wall.

Adjust the temperature to a warmer set
point.

Troubleshooting 1

Problem

Possible Cause and Remedy

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Product is Not
Cold Enough.

Air temperature does not indicate product
temperature. See CHECKING PRODUCT
TEMPERATURE below.

Adjust the temperature to a cooler set
point. Ensure unit is not located in
excessive ambient temperatures or in
direct sunlight. Ensure the door is closing
and sealing properly.
Ensure the interior light has not remained
on too long.
Ensure nothing is blocking the front grille,
found at the bottom of the unit.

Ensure the condenser coil is clean and free
of any dirt or lint build-up.

CHECKING PRODUCT TEMPERATURE

To check the actual product temperature in the
unit:

1. Partially fill a plastic (nonbreakable) bottle with

water.

2. Insert an accurate thermometer.

3. Tighten the bottle cap securely.

4. Place the bottle in the desired area for 24 hours.

5. Avoid opening the unit during the testing period.

6. After 24 hours, check the temperature of the

water. If required, adjust the temperature control
in a small increment (see CONTROL OPERATION).

Causes which affect the internal temperatures of
the cabinet include:

• Temperature setting.

• Ambient temperature where installed.

• Installation in direct sunlight or near a heat source.

• The number of door/drawer openings and the time

the door/drawer is open.

• The time the internal light is illuminated. (This

mainly affects product on the top rack or shelf.) •

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Obstruction of front grille or condenser.

Troubleshooting 2

U-Line Corporation (U-Line) Limited Warranty

One Year Limited Warranty

For one year from the date of original purchase, this U-Line product warranty covers all parts and labor to repair or replace any
part of the product that proves to be defective in materials or workmanship. For products installed and used for normal residential
use, material cosmetic defects are included in this warranty, with coverage limited to 60 days from the date of original purchase.
All service provided by ULine under the above warranty must be performed by U-Line factory authorized service, unless otherwise
specified by U-Line. Service provided during normal business hours.

Available Second Year Limited Warranty

Beyond the standard one year warranty outlined above, U-Line offers an extension of the one year warranty coverage for an
additional second year from the date of purchase, free of charge. To take advantage of this second year warranty, you must register
your product with U-Line within two months from the date of purchase at u-line.com providing proof of purchase.

Five Year Sealed System Limited Warranty

For five years from the date of original purchase, U-Line will repair or replace the following parts, labor not included, that prove to
be defective in materials or workmanship: compressor, condenser, evaporator, drier, and all connecting tubing. All service
provided by U-Line under the above warranty must be performed by U-Line factory authorized service, unless otherwise specified
by U-Line. Service provided during normal business hours.

Terms

These warranties apply only to products installed in any one of the fifty states of the United States, the District of Columbia, or the
ten provinces of Canada. The warranties do not cover any parts or labor to correct any defect caused by negligence, accident or

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

improper use, maintenance, installation, service, repair, acts of God, fire, flood or other natural disasters. The product must be
installed, operated, and maintained in accordance with the U-Line User Guide.

The remedies described above for each warranty are the only ones that U-Line will provide, either under these warranties or under
any warranty arising by operation of law. U-Line will not be responsible for any consequential or incidental damages arising from
the breach of these warranties or any other warranty, whether express, implied, or statutory. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. These
warranties give you specific legal rights, and you may also have other rights which vary from state to state.

Any warranty that may be implied in connection with your purchase or use of the product, including any warranty of merchantability
or any warranty fit for a particular purpose is limited to the duration of these warranties, and only extends to five years in duration
for the parts described in the section related to the five year limited warranty above. Some states do not allow limitations on how
long an implied warranty lasts, so the above limitations may not apply to you.

• The warranties only apply to the original purchaser and are non-transferable.

• The second year and five year warranties cover products installed and used for normal residential or designated marine use

only.

• The warranties apply to units operated outside only if designed for outdoor use by model and serial number.

• Replacement water filters, light bulbs, and other consumable parts are not covered by these warranties.

• The start of U-Line’s obligation is limited to four years after the shipment date from U-Line.

• In-home instruction on how to use your product is not covered by these warranties.

• Food, beverage, and medicine loss are not covered by these warranties.

• If the product is located in an area where U-Line factory authorized service is not available, you may be responsible for a trip

charge or you may be required to bring the product to a U-Line factory authorized service location at your own cost and
expense.

• Units purchased after use as floor displays are covered by the limited one year warranty only and no coverage is provided for

cosmetic defects.

• Signal issues related to Wi-Fi connectivity are not covered by these warranties.

For parts and service assistance, or to find U-Line factory authorized service near you, contact U-Line:
8900 N. 55th Street, Milwaukee, WI 53223 • u-line.com • [e-mail] • +1.800.779.2547

Copyright © 2014/2017 U-Line Corporation. All Rights Reserved. | Publication Number 30379 | 04/2017 Rev. K

Warranty 1

Wire Diagram

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Wire Diagram 1

Product Liability

Field service technicians are authorized to make an

initial assessment in the event of reported damages.

If there are any questions about the process involved,

the technician should call U-Line for further
explanation.

While inspecting for defects or installation issues,

photos should be taken to document any damages or
issues found.

During the assessment, if the service technician is able

to find the source of the damage and it can be

resolved by replacement of a part, the servicer is

authorized to replace the part in question. The part

that caused the damage must be returned to U-Line in

its entirety. The part must be clearly labeled with the

serial number of the unit it was removed from, the
date, and the servicer who removed the part.

If the service technician determines the damage is the

result of installation issues (water connection/drain,

etc.), the consumer would be notified and the issues
shall be resolved at the direction of the consumer.

If damage is evident and the service technician is

unable to find the source, U-Line must be contacted at
1-800799-2547 for further direction

8900 N. 55th Street • Milwaukee, WI 53223

T: +1.414.354.0300 • F: +1.414.354.354.5696

Website: www.u-line.com

Right product. Right place.

Right temperature Since 1962.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Product Liability 1

Warranty Claims

The following information defines the parameters for
filing a warranty claim:

• Valid serial number needed

• Valid model number needed

• Narda (or equivalent) form or submitted online at

www.u-line.com

• 60 day submittal deadline from date of completed

service

• Only one repair or unit per warranty claim

• Refrigerant should be labeled and included on the

labor submittal

• Door and water level adjustments are covered 30

days from install date.

Serial Number Requirements:

14 30911 12 XXXX

Year Month

A typical serial number is shown above. The first two

digits of the first segment, 14, represents the

production year. The number between the dashes, 12,

represents the production month. In most cases,

warranty status can be verified by the production date
information within the serial number.

• Alternatively, a Proof of Purchase (or equivalent)

may submitted with the warranty claim to
document

warranty status. We also accept the following

information to verify warranty status:

• New Construction Occupancy Documents

• Closing Paperwork

• Final Billing – Remodel

Noting all of the following on the warranty claim will

be considered proof of purchase, hard copy will not be
required:

• Name of the selling Dealer

• Date of purchase/installation

• Order or Invoice number (if available)

• Description of document reviewed (i.e. store

receipt, closing paperwork, etc)

Parts and labor claims are paid separately. Indicate

part numbers and description for parts used in the

warranty repair. Include the purchase invoice and
name of the parts supplier used to procure the parts.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Warranty Claims 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Ordering Replacement Parts

If you have a purchasing account, please utilize our
service website to order parts.

Orders may also be placed by Fax or phone. See our
contact information below:

www.U-LineService.com (with service login)
FAX Number: +1.414.354.5696
Phone Number: +1.800.779.2547

NOTICE

Use only genuine U-Line replacement parts. The

use of non-U-Line parts can reduce speed of ice
production, cause water to overflow from ice
maker mold, damage the unit, and void the
warranty.

Warranty parts will be shipped at no charge after U-

Line confirms warranty status. Please provide the

model, serial number, part number and part

description. Some parts will require color or voltage
information.

If U-Line requires the return of original parts, we will

inform you when the parts order is taken. This

requirement will be noted on your packing list. A

prepaid shipping label will be included with the

replacement part. Please enclose a copy of the parts

packing list and any labor claims with your return.

Please be sure the model and serial numbers are

legible on the paperwork. Tag the part with the
reported defect.

When ordering a non-warranty part, you will need an

open account and tax exemption on file at U-Line.

Another option would be to visit www.u-line.com to
locate an authorized parts distributor in your area.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

u-line.com

Ordering Replacement Parts 1

USER GUIDE

System Diagnosis Guide

REFRIGERATION SYSTEM DIAGNOSIS GUIDE

System
Condition

Suction
Pressure

Suction
Line

Compressor
Discharge

Condenser

Capillary
Tube

Evaporator

Wattage

Normal

Normal

Slightly below

room
temperature

Very hot

Very hot

Warm

Cold

Normal

Overcharge

Higher than
normal

Very cold
may frost
heavily

Slightly warm
to hot

Hot to warm

Cool

Cold

Higher than

normal

Undercharge

Lower than
normal

Warm-near
room
temperature

Hot

Warm

Warm

Extremely cold

near inlet ­Outlet below
room
temperature

Lower than
normal

Partial
Restriction

Somewhat
lower than
normal
vacuum

Warm - near
room
temperature

Very hot

Top passes
warm - Lower
passes cool
(near room
temperature)
due to liquid

Room
temperature
(cool) or
colder

Extremely cold
near inlet ­Outlet below
room
temperature
backing up

Lower than
normal

Complete
Restriction

In deep
vacuum

Room
temperature
(cool)

Room
temperature
(cool)

Room
temperature
(cool)

Room
temperature
(cool)

No refrigeration

Lower than
normal

No Gas

0 PSIG to 25"

Room
temperature
(cool)

Cool to hot

Room
temperature
(cool)

Room
temperature
(cool)

No refrigeration

Lower than
normal

System Diagnosis Guide 1

Compressor Specifications

DANGER

Electrocution can cause death or serious injury.

Burns from hot or cold surfaces can cause

serious injury. Take precautions when servicing
this unit.

Disconnect the power source.

Do not stand in standing water when working
around electrical appliances.

Make sure the surfaces you touch are not hot or
frozen.

Do not touch a bare circuit board unless you are

wearing an anti-static wrist strap that is

grounded to an electrical ground or grounded
water pipe.

Handle circuit boards carefully and avoid

touching components.

To measure the start winding resistance, measure

across the C and S pins.

To measure the run winding resistance, measure

across the C and R pins.

Also check S to R and you should get the sum of the

run and start windings.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

To ensure the windings are not shorted, check the S
and R to ground.

EMX20CLC

Refrigerant

R600a

Voltage

115 - 127 VAC

Frequency

60 Hz

Run Cap

12μF/165 VAC

Start Winding

6.7 Ohm at 77°F

Run Winding

12.6 Ohm at 77°F

LRA

3.7 A

FLA

0.5 A

Starting Device

8EA14C

Overload

4TM142RFBYY-53

* All resistance readings are ±10%

Compressor Specifications 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Troubleshooting - Extended 1

USER GUIDE

u-line.com

Troubleshooting - Extended

SPECIFIC ERRORS AND ISSUES

The technically advanced diagnostic capabilities of

the electronic controls utilized on the 3000 series
units allows for easy and thorough trouble shooting.

Navigation of the control is the key and is explained in

the CONTROL OPERATION section of the manual,

along with control button layout, control function

descriptions, a service mode menu and service menu
selection explanations.

Verification of temperature and thermistor

performance can be identified by directly viewing
actual temperature readings in the service mode.

Component failure issues can be identified through

service mode menu selection, “Relay Toggle”

Individual components can be switched on and off to

check for both proper function of a specific component

and also delivery of supply voltage to the components

through the relays and DC outputs located on the
relay/power board.

Included in this section is some diagnostic tips and as

always, if additional help is required please contact the

U-Line Corp, “Customer Care Facility” at
+1.800.779.2547 for assistance.

CAUTION

Never attempt to repair or perform
maintenance on the unit until the main

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Troubleshooting - Extended 2

USER GUIDE

u-line.com

electrical power has been disconnected from
the unit.

TROUBLESHOOTING GUIDE

Concern

Potential Causes

Suggested Remedy

Not Cooling

Compressor overheating

Verify proper air flow through condenser (Refer to Airflow/General
Information Section).

Confirm condenser fan operation (Refer to Airflow/General
Information Section).

Confirm proper compressor operating voltage (Refer to Toggle/
Compressor Information Section).

Compressor not operating

Confirm proper compressor operating voltage (Refer to Toggle/
Compressor Information Section to initiate power to the
compressor).

Test overload and relay, replace as needed.

Compressor operating - no cooling

Refer to System Diagnosis Guide.

Evaporator fan not operating

Refer to Convection Cooling Section.

Frozen Product

Ensure proper use of Quick Chill mode

Refer to Control Operation Section.

Control set too cold

Refer to Adjusting Temperature Settings Section

Review logged error codes

Refer to Fault System Diagnosis Guide.

Thermistor failure

Refer to Thermistor Failure Section

Frost Buildup
Inside Unit

Door Ajar or Restricted from Closing

Check door clearance to adjoining cabinetry. Check distribution of
product in unit.

Evaporator fan not operating

Use #19, Component Testing in Service Mode.

Thermistor failure

Refer to Thermistor Failure Section.

Display Not
Working

Unit placed in Sabbath mode?

Refer to Sabbath Mode Section.

Display unplugged

Verify that both ends of the display wiring are firmly connected.

Display wiring broken or damaged

Perform continuity test of wiring and replace as needed.

Internal Lights
Not Working

Control Setting

Refer to the Interior Lighting Section.

Unit set to Sabbath Mode. Refer to the Sabbath Mode Section.

Door switch misaligned or defective

Refer to Reed Switch Section.

Noisy

Refrigeration tubing touching cabinet

Carefully reposition tubing.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Troubleshooting - Extended 3

USER GUIDE

u-line.com

Fan blade obstruction (wiring, foam
insulation, packaging material)

Remove obstruction.

MAIN CONTROL

The main control board is very robust and is rarely

the cause of system issues. It is important to fully

diagnose the board for any suspected failures before

attempting to remove the board for replacement or

service. Follow the guidelines below to fully test and
diagnose the main control.

Power Fault

If the unit does not (or seems to not) power on, follow

the flow chart below to help diagnose the issue. Before

beginning it is important to first verify the unit is not
simply set to sabbath mode.

Testing The Main Control

If the main control is suspected of being faulty, the

following procedure should be performed to verify
main control for functionality.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Relay & DC Outputs

One of the primary functions of the main control is to

operate the multiple relay and DC outputs during

each cycle. Verify proper operation of these relays
using the following procedure.

1. Enter “Relay Toggle” through the service menu.

NOTICE

Frequently toggling the compressor relay could

force the compressor into overload. The

compressor will automatically deactivate during

an overload and will remain deactivated until the

overload switch cools. This could take some time.

It is important to allow the compressor at least 5
minutes off time between relay cycles.

2. Toggle the relay. Its related component should

activate / deactivate with the switching of the

relay. If it does not, see “Component Testing.”

Inputs

The main control monitors a number of thermistor

inputs and switch states during operation. It would be

unlikely that an error in reading an input would be at

the board level. Always attempt to replace the faulty

switch or thermistor input with a known working
sample to verify proper board operation.

Other Suspected Main Control Faults

If other components have been ruled out as being

faulty but the unit continues to have operating issues,

it is most likely due to a configuration error.

Configuration errors can be cleared by restoring the

unit to its factory default setting. Factory defaults
may be restored through the service menu.

CAUTION

Precautions must be taken while working with
live electrical equipment. Be sure to follow

proper safety procedures while performing tests
on live systems.

CONVECTION COOLING

All 3000 series units are equipped with an advanced

convection cooling system. Convection cooling

stabilizes cabinet temperature, cools product faster
and increases energy efficiency.

Evaporator Fan

The evaporator fan is responsible for circulating warm

air from the refrigeration zone, past the evaporator and
back into the refrigerated zone.

The evaporator fan is factory set to have a 1 minute

delay at the beginning of a cooling cycle. This delay

gives the evaporator time to cool properly before warm

air is passed over it. The fan will continue to run for an

additional 2 minutes at the end of a cooling cycle. Fan
delay times can be modified through the service menu.

Evaporator fan operation is also determined by door

switch state. If the door switch circuit opens the fan

will stop. When the door switch circuit is closed the

fan will either continue running with the cooling cycle,

or if not currently cooling, the fan will run for 1

minute to circulate air and clear any condensation
that may have appeared on glass doors and shelves.

NOTE: If the unit is set to sabbath mode the

evaporator fan will no longer respond to the state of
the door switch.

In order to operate efficiently the evaporator fan

blade and vents should be unobstructed and free of
any dust buildup.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

FAULT SYSTEM DIAGNOSIS GUIDE

Error

Solution 1

Solution 2

Solution 3

No Comm

Inspect Customer UI and Data
Cable (if defective replace entire
door)

Zone T Open

Inspect zone thermistor
connection. Replace if
necessary.

Inspect main control wire
harness for splits or breaks.
Repair split or cut cabling.

Evap T Open

Inspect evaporator thermistor
connection. Replace if
necessary.

Inspect main control wire
harness for splits or breaks.
Repair split or cut cabling.

Amb Thrm Open

Inspect ambient thermistor
connection. Replace if
necessary.

Inspect main control wire
harness for splits or breaks.
Repair split or cut cabling.

Zone T Short

Inspect thermistor cable for
pinch points or damage.
Replace if necessary.

Inspect wire harness from main
control board for pinch points or
damage. Repair split or pinched
cabling.

Evap T Short

Inspect thermistor cable for
pinch points or damage.
Replace if necessary.

Inspect wire harness from main
control board for pinch points or
damage. Repair split or pinched
cabling.

Amb Thrm Short

Inspect thermistor cable for
pinch points or damage.
Replace if necessary.

Inspect wire harness from main
control board for pinch points or
damage. Repair split or pinched
cabling.

Temp Hi 6H+

If excessive frost is also noted,
inspect door and door gasket for
proper seal and alignment.

Inspect evaporator fan for
proper operation.

Inspect refrigeration system.
Reference the System Diagnosis
Guide.

Temp Hi 12H+

If excessive frost is also noted,
inspect door and door gasket for
proper seal and alignment.

Inspect evaporator fan for
proper operation.

Inspect refrigeration system.
Reference the System Diagnosis
Guide.

Temp Lo 6H+

Inspect main control for proper
relay operation.

Inspect refrigeration system.
Reference the System Diagnosis
Guide.

Temp Lo 12H+

Inspect main control for proper
relay operation.

Inspect refrigeration system.
Reference the System Diagnosis
Guide.

Door Open 5M

Verify door closes properly.

Inspect cable arm, verify
presence of magnet, verify
proper operation and
movement or arm.

Inspect reed switch wiring.

THERMISTORS

Thermistors are used for various temperature

readings. Thermistors provide reliable temperature

readings using a resistance which varies based on

surrounding temperatures. If a faulty thermistor is

suspected it may be tested using an accurate

ohmmeter. In an ice water bath (32°F) resistance
should measure 16.1 kilohms.

5K OHMS @ 77°

16.1K OHMS - 32°F ambient

THERMISTOR FAILURE

Limp Mode Data Table

Mode

ON

OFF

Beverage/Drinks

10 min.

45 min.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Market/Fresh

10 min.

45 min.

Root

5 min.

90 min.

Pantry

10 min.

45 min.

Deli

10 min.

45 min.

Zone Thermistor

If the zone thermistor fails, the unit will continue to

operate in a timed limp mode which varies by model.

The unit will otherwise operate normally. The error
will be displayed in the error log.

Evaporator Thermistor

If the evaporator thermistor fails, the unit will rely on

a preset defrost time during defrost cycles. The unit

will otherwise operate normally. Evaporator
thermistor errors will be displayed in the error log.

Always assure that all thermistor connections are

clean and dry. Whenever opening a thermistor

connection be sure to apply a fresh dab of die electric
grease.

REED SWITCH

A reed switch is used to monitor door state. When the

door is closed magnetic force pulls the reed to its

contact and closes the circuit which turns the light and

display off. When the door is open the reed pulls away

from the contact and opens the circuit. If the door is

left open for longer than 5 minutes, the switch will
trigger an error code and set an audible warning.

(Switch Closed)

Magnet Away From Switch

)

Door Open

(

Switch Open

(

)

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Control Operation - Service 1

USER GUIDE

u-line.com

Control Operation - Service

ACTUAL TEMPS

SHOWS TEMPERATURES WITHOUT OFFSETS. EACH ZONE HAS AN
EVAP AND AIR THERMISTOR. EACH UNIT HAS AN AMBIENT THERMISTOR

RETURN TO MENU

ACTUAL TEMPS

LEFT ZONE = 52°

LEFT EVAP = 52°

ALL ERRORS

DISPLAYS THE NUMBER OF TIMES AN ERROR HAS OCCURRED
SCROLL TO THE END TO ERASE THE ERROR CODES

RETURN TO MENU

ALL ERRORS

NO COMM 3

L ZONE T OPEN 0

RELAY STATUS

DISPLAYS THE CURRENT STATUS OF THE RELAYS ON THE BOARD
(not all relays are used on all models)

RETURN TO MENU

RELAY STATUS

MULL COND DEF LVLV
OFF OFF OFF ON

RELAY TOGGLE

ALLOWS THE RELAYS TO BE TOGGLED ON/OFF TO CHECK RELAY &
COMPONENT
YOU CAN TURN ON MULTIPLE RELAYS TO CHECK A ZONE, (COMP FAN ETC)

INPUT STATUS

DISPLAYS DOOR SWITCH STATE, TEST INPUT, AND USB STATE

RETURN TO MENU

INPUT STATUS
LEFT DOOR CLOSED
RIGHT DOOR OPEN

OUTPUTS

MONITORS THE STATE OF DC OUTPUTS
(evaS FRQGHQVHUIDQVDQGOLJKWLQJRɞ Oow - med - high)

RETURN TO MENU

OUTPUTS
L EVAP FAN = 0%
R EVAP FAN = 0%

OFFSETS

OFFSETS ARE USED TO ADJUST OR CORRECT THERMISTOR READINGS
CORRECTED VALUES MAY BE VIEWED THROUGH THE CUSTOMER MENU

RETURN TO MENU

OFFSETS

RIGHT ZONE = -18°C

RIGHT EVAP = -17°C

SELF TEST

SELF TEST IS USED TO DIAGNOSE THE BOARD IF NO ERRORS ARE
PRESENT

“NO ERRORS” WILL BE DISPLAYED, THE MAIN BOARD IS FUNCTIONING

PROPERLY

DIFFERENTIALS

DIFFERENTIALS ARE USED TO DETERMINE AT WHAT TEMPERATURE THE UNIT
CYCLES. “O” SETTING IS +/- 2° DIFFERENTIAL

RETURN TO MENU

DIFFERENTIALS

LEFT = -16°C

RIGHT = -16°C

EVAP FAN

THIS MENU IS USED TO SET THE DURATION THE EVAPORATOR FAN WILL RUN
AFTER THE COMPRESSOR CYCLES OFF

RETURN TO MENU

EVAP FAN

EVAP FAN ON = 1

EVAP FAN OFF = 60

MULLION

THIS MENU IS USED TO SET THE DURATION THE MULLION HEATER WILL BE
ON AFTER THE COMPRESSOR CYCLES OFF

FACTORY DEFAULT

FACTORY DEFAULT IS USED TO RESTORE ALL SETTINGS TO THE FACTORY
DEFAULT FOR THE SELECTED MODEL

RE-SELECT MODEL #

RE-SELECT MODEL IS USED TO MODIFY THE MODEL INFORMATION
CHANGING
THE MODEL COMPLETELY REPROGRAMS AVAILABLE ZONES

FACTORY Wi Fi

THIS SETTING IS FOR FACTORY USE ONLY AND SHOULD REMAIN OFF

SET POINTS

THE SET POINTS MENU IS USED TO MODIFY BOTH THE ZONE AND EVAP SET
POINTS
THE EVAP SET POINT IS USED DURING DEFROST, IT MUST REACH 42°F (6°C)

SET POINTS

LEFT ZONE = 12°C

LEFT EVAP = 7°C

FAN DELAY

FAN DELAY ALLOWS MODIFICATION OF FAN RUN TIMES BOTH AT THE START
OF A COOLING CYCLE AND AT THE END AFTER THE COMPRESSOR STOPS

RETURN TO MENU

FAN DELAY

FAN 1 DELAY OFF = 1
FAN 2 DELAY ON = 2

SHOWROOM MODE

RANDOMLY SCROLLS THROUGH ZONES, MODES, TEMPERATURES

TOUCH AND HOLD TO EXIT SHOWROOM

AND OTHER FEATURES.

MODE

EXIT

SCROLL DOWN TO “EXIT”. TOUCH AND RELEASE TO EXIT SERVICE
MODE

RETURN TO MENU

RELAY TOGGLE

MULL OFF

COND OFF

RETURN TO MENU

SELF TEST

NO ERRORS

RETURN TO MENU

MULL

MULL ON=5

MULL OFF=30

RETURN TO MENU

FACTORY DEFAULT

RESTORE?

RETURN TO MENU

RE-SELECT MODEL

3090

WCWC

RETURN TO MENU

FACTORY WiFi

OFF

RETURN TO MENU

SHOWROOM MODE

OFF

FAN DELAY

USB PORT

SHOWROOM MODE

EXIT

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Control Operation - Service 2

USER GUIDE

u-line.com

SERVICE MENU

In addition to a feature rich customer menu, the 3000
series also offers a service menu with the ability to
fine tune and monitor unit operation.

To initiate the Service menu hold both and for 5
seconds.

Actual Temps

The Actual Temp option in the service menu will
display raw thermistor readings without calculating
offsets.

1. Press to select “Actual

Temps”.

2. Press

3. Use to scroll through available thermistor

readings.

To exit the Actual Temps menu press to select

“Return to Menu” and press to confirm.

All Errors

The All Errors option keeps record of any system

errors. When an error occurs it is recorded to all errors.

The number next to the error indicates the number of

recorded instances. Errors in the log may not be

currently active. The error log memory is non volatile

and is persistent should power be lost and restored to

the unit. See below for a list of logged errors and their
respective descriptions.

Descr

So

Unit lost communication to
the display

Check connection to Display board and
Main board. Check integrity of wires. If
unit not operational, replace wire, if
functioning properly, then software re­set and no adjustments are needed.

Left Zone thermistor circuit
open

Check thermistor connection to harness

for moisture or corrosion. Also check
connection where thermistor harness

attaches to main board. If connections

are valid replace the thermistor.

NOTE: DWR/ZWC models, L indicates
TOP zone, R indicates BOTTOM zone.

Right Zone thermistor circuit
open

Left Evaporator thermistor
circuit open

Right Evaporator thermistor
circuit open

Ambient thermistor circuit
open

Left Zone thermistor circuit
short

Right Zone thermistor circuit
short

Left Evaporator thermistor
circuit short

Right Evaporator thermistor
circuit short

Ambient thermistor circuit
short

Left Zone temperature +10°F
(+5°C) over set point for over
6 hours

Is condenser coil clean? Is condenser fan

operating? Check zone thermistor for

correct resistance. Verify thermistor

connections are clean and intact. Check

zone valve op eration. Sealed system
issue?

NOTE: DWR/ZWC models, L indicates
TOP zone, R indicates BOTTOM zone.

R Zone temperature +10°F
(+5°C) over set point for
over 6 hours

Left Zone temperature +10°F
(+5°C) over set point for
over
12 hours

R Zone temperature +10°F
(+5°C) over set point for
over
12 hours

Left Zone temperature -10°F
(-5°C) over set point for over
6 hours

Verify thermistor connections are clean

and dry. Verify thermistor resistance.

Verify correct operation of zone valve.

NOTE: DWR/ZWC models, L indicates

TOP zone, R indicates BOTTOM zone.

R Zone temperature -10°F
(-5°C) over set point for over
6 hours

Left Zone temperature -10°F
(-5°C) over set point for over
12 hours

R Zone temperature -10°F
(-5°C) over set point for over
12 hours

Left door switch open for
more than 5 minutes.

Check door switch magnet reed switch

alignment when door is in closed

position.

Check reed switch connection at the

harness and the main board.

NOTE: DWR models, L indicates TOP

drawer, R indicates BOTTOM drawer.

NOTE: ZWC models indicate L Door for

the only door present.

Right door switch open for
more than 5 minutes.

To access All Errors follow the steps below.

Up

Select

Down

RETURN TO MENU

ACTUAL TEMPS

ZONE = 2°C

EVAP = °C

Up

Error ID

Number

Of Occurrences

Select

Down

RETURN TO MENU

ALL ERRORS

NO COMM 0

ZONE T OPEN 0

.

and

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Control Operation - Service 3

USER GUIDE

u-line.com

1. Press to select “All Errors”.

2. Press

3. Press to scroll through

available information.

To clear the error log press to select “Clear Errors”

and press to confirm.

To exit the Actual Temps menu press to select

“Return to Menu” and press to confirm.

Relay Status

Relay status displays the current state of each relay.
While all available relays are displayed, only a portion
are used.

ID

Description

Availability

Mull

Mullion Heater

Drawer Models

N/A

N/A

N/A

LVLV

Left (top) valve

All Models

RVLV

Right (bottom) valve

All Models

Cond

Condenser Fan

All Models

Comp

Compressor

All Models

NOTE: The Cond (Condenser Fan) will switch state
with the compressor relay, however the condenser fan
is actually powered through a DC output. Condenser

fan status can be viewed through the “Output” service

menu option.

To access Relay Status

1. Use to select “Relay Status”.

2. Press

3. Press to scroll through
available information.

To exit the Relay Status simply press

to

exit.

Relay Toggle

Relay toggle is used to manually switch the state of

each relay to test for proper operation. In addition to

the AC relays, DC switches may also be toggled. Relay

toggle can also be used to force the unit into a
particular state.

ID

Description

Voltage

Mull

Mullion Heater (Drawers)

AC

N/A

N/A

N/A

LVLV

Left (top) valve

AC

RVLV

Right (bottom) valve

AC

Cond

Condenser fan (Not Used)

AC

Comp

Compressor

AC

Fan 1

Left/Top Condenser Fan
(Excludes ZWC)

DC

Fan 2

Condenser Fan

DC

Fan 3

Right/Bottom Evaporator Fan
(Excludes ZWC)

DC

Light 1

Left (top) light

DC

Light 2

Right (bottom) light

DC

To access Relay Toggle

4. Press to select “Relay Toggle”.

5. Press

Up

Select

Down

RETURN TO MENU

RELAY STATUS

LVLV

MULL COND DEF

OFF

OFF

OFF

OFF

Up

Select

Down

RETURN TO MENU

RELAY TOGGLE

MULL OFF

COND OFF

.

and

.

and

.

and

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Control Operation - Service 4

USER GUIDE

u-line.com

6. Press to scroll through each relay and DC output.

7. Press to toggle.

To exit the Relay Toggle menu press to select

“Return to Menu” and press to confirm.

Input Status

Input status displays the current state of each
available input.

ID

Description

State

Left Door

Left (top) Door Switch

Open - Closed

Right Door

Right (bottom) Door
Switch
(excludes ZWC)

Open - Closed

To access Input Status

1. Press to select “Input
Status”.

2. Press

3. Press to scroll through available information.

To exit the Input Status menu press to select

“Return to Menu” and press to confirm outputs.

Outputs

Outputs is used to monitor the state of DC outputs.

ID

Description

Value

L Evap Fan

Left (top)
Evaporator Fan
(excludes ZWC)

On - Off

R Evap Fan

Right (bottom)
Evaporator Fan
(excludes ZWC)

On - Off

Condenser Fan

Condenser Fan

On - Off

L Light

Left (top) Light

Off - Low - Med ­High

R Light

Right (bottom)
Light

Off - Low - Med ­High

To access Outputs

1. Press to select “Outputs”.

2. Press

3. Press to scroll through

available information.

To exit the Input Status menu, press to select

“Return to Menu” and press to confirm.

Offsets

NOTICE

Do not make an adjustment to this without first
contacting the tech line: [phone].

Offsets are used to adjust or correct thermistor
readings. Offset values are added to the current
thermistor reading and are then used by the control
board to determine cooling and defrost cycle times.
Offsets have a range of +/- 10°F. Corrected values
may be viewed through the customer “All Temps”
menu.

Up

Select

Down

RETURN TO MENU

INPUT STATUS

DOOR OPEN

IN2 OPEN

Up

Select

Down

RETURN TO MENU

OUTPUTS

EVAP FAN=0%

CONDENSER FAN=0%

Up

Select

Down

RETURN TO MENU

OFFSETS

ZONE = 1°F

EVAP = 1°F

Can be displayed in Celsius

.

and

.

and

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Control Operation - Service 5

USER GUIDE

u-line.com

To access Offsets

1. Press to select “Offsets”.

2. Press

3. Press to scroll through

available thermistors.

To change offsets

4. Press , the selected
thermistor will begin to flash.

5. Press to modify offset value.

6. Press to confirm setting.

To exit the Offset menu, press to select “Return to

Menu” and press to confirm.

Self Test

Self test is used to initiate a self diagnostic report.
Any system faults will be displayed under Self test. If

no errors are present “no errors” will be displayed and

the main control board is functioning properly. The
main control board is extremely robust and should
rarely require service. Most issues are external to the
control. Reference troubleshooting for more
information.

To access Self Test

1. Press to select “Self Test”.

2. Press

3. Press to scroll through available information.

the Self Test, Press to select

To exit

“Return to Menu” and press to
confirm.

Differentials

(DO NOT MAKE AN ADJUSTMENT TO THIS WITHOUT
CONTACTING TECH LINE: 800-779-2955)

Differentials are used to determine the maximum

variation from set point and have a range of 0 through

10. The table below shows the effect of differentials on
cooling cycles with a set point of 45°F (7°C).

NOTE: Air temperature does not reflect product
temperatures.

Differential

Cycle Start °F (°C)

Cycle End °F (°C)

0

45° (7°)

43° (6°)

1

46° (8°)

43° (6°)

2

47° (8°)

41° (5°)

3

48° (9°)

41° (5°)

4

49° (10°)

39° (4°)

5

50° (10°)

37° (3°)

The graph below shows a unit’s cooling cycle over

time with various differentials.

Evap Fan (excludes ZWC)

Up

Select

Down

RETURN TO MENU

SELF TEST

NO ERRORS

try “RELAY TOGGLE”

Up

Select

Down

RETURN TO MENU

DIFFERENTIALS

ZONE = 1°F

Can be displayed in Celsius

p'Lɞ HUHQWLDO

p'Lɞ HUHQWLDO

p'Lɞ HUHQWLDO

.

and

or

.

and

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Control Operation - Service 6

USER GUIDE

u-line.com

The Evap Fan option in the service menu allows

servicers to change the Evaporator Fan runtime (in
minutes) from 0 to 98 and OFF cycle time 0 to 98.

To access Evap Fan

1. Press to select “Evap Fan”.

2. Press

3. Press to scroll through

available settings.

To exit the Evap Fan menu, press to select “Return

to Menu” and press to confirm.

Mullion (Drawer Models)

The Mullion (MULL) option in the service menu allows
servicers to change the ON/OFF time in minutes of the
MULL heater (DWR only) from 0 to 98.

To access Mullion

1. Press to select “MULL”.

2. Press

3. Press to scroll through

available settings.

To exit the MULL menu, press to select “Return to

Menu” and press to confirm.

Factory Default

Factory Default will restore all settings to their factory
default.

To access Factory Default 1.

Press to select “Factory

Default”.

2. Press .

To restore settings to their factory default.

3. Press to select “Restore?” and press

4. “Restore?” will change to “Restoring...” while

settings are restored. When restoration is
complete, “Restoring...” will return to “Restore?”.

To exit Factory Default, press to select “Return to

Menu” and press to confirm.

Re-Select Model

NOTICE

Before altering model selection U-Line customer
service must be notified. Failure to notify

Up

Select

Down

RETURN TO MENU

EVAP FAN

EVAP FAN ON = 1

EVAP FAN OFF = 60

Up

Select

Down

RETURN TO MENU

MULL

MULL ON = 5

MULL OFF = 30

Up

Select

Down

RETURN TO MENU

FACTORY DEFAULT

RESTORE?

Up

Select

Down

RETURN TO MENU

RE-SELECT MODEL #

3018

R

.

and

.

and

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Control Operation - Service 7

USER GUIDE

u-line.com

or

customer service will result in voiding of the
manufacturer warranty.

Re-Select Model allows the units model information to

be modified. Changing the units model completely

reprograms available zones, relay assignments, DC
output assignments etc.

To access Re-Select Model 1.

Press to select “Re-Select

Model”.

2. Press .

To change model setting

3. Press to select “Model=” and press . “Model”

will begin to flash.

4. Press to scroll through each
available model.

5. Press to confirm. While processing, the

will momentarily change to .*

To exit Re-Select Model, press to select “Return to
Menu” and press to confirm. (Power cycling unit is

recommended after re-selecting model.)

Factory Wi Fi

The Factory Wi-Fi option is only used in manufacturing
and should always be OFF.

1. Press to select “Factory Wi

Fi”.

2. Press

3. Press select “OFF”.

To exit the Factory Wi Fi menu press to select

“Return to Menu” and press to confirm outputs.

Set Points

The Set points menu contains options to modify both
the Zone and Evap set points. Changes to the zone
set point will be reflected on the main screen.
Changes to the evap set point alter the temperature
the evaporator needs to meet during a defrost cycle.

To access Set Points

1. Press to select “Set Points”.

2. Press

3. Press to scroll through

available set points.

To change set points

4. Press , the selected set point will begin to

flash.

5. Press to modify the value.

6. Press to confirm setting.

To exit the Set Points menu, press to select “Return
to Menu” and press to confirm.

Up

Select

Down

Up

Select

Down

RETURN TO MENU

SET POINTS

ZONE = 3°C

EVAP = 5°C

or

.

or

.

and

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Control Operation - Service 8

USER GUIDE

u-line.com

Fan Delay (excludes ZWC)

The Fan Delay menu option allows the modification of
fan run times during and after a cooling cycle. In
order to allow time for the evaporator to properly
cool, the evaporator fan is delayed from starting with
the cooling cycle for a given amount of time. In order
to remove as much warmth as possible from the
cabinet the evaporator fan will continue to run at the
end of the cooling cycle for a given amount of time.

Fan Delay On=

“Fan Delay On” is the amount of time in minutes the

fan will be delayed from starting from the beginning
of a cooling cycle.

Fan Delay Off=

“Fan Delay Off” is the amount of time in minutes the

fan will continue to run at the end of a cooling cycle.

To access Fan Delay 1. Press

to select “Fan Delay”.

2. Press .

To change fan delay

3. Press to select either “Fan Delay On” or “Fan

Delay

Off” and press . The chosen option will begin
to flash.

4. Press or to change settings.

5. Press to confirm.

To exit Fan Delay, press to select “Return to Menu”
and press to confirm.

Showroom Mode

Showroom displays a number of features and allows
the unit to be powered on without running the cooling
system.

To toggle showroom mode

1. Press to select “Showroom
Mode”.

2. Press

3. Press to select “Off” and
press . “Off” will begin to flash.

4. Press to toggle between off
and on.

5. Press to confirm.

If set to “on” showroom mode will begin immediately.

To exit showroom mode press and hold for 5
seconds and release. The display will show a

countdown to switching the unit off. Press again
and the unit will immediately switch on retaining the
presets from before it entered showroom mode.

To exit the showroom mode menu, press to select

“Return to Menu” and press to confirm.

Up

Select

Down

RETURN TO MENU

FAN DELAY

FAN DELAY ON = 1

FAN DELAY OFF = 2

Up

Select

Down

RETURN TO MENU

SHOWROOM MODE

OFF

.

or

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Thermistors

Thermistors are used for various temperature

readings. Thermistors provide reliable temperature

readings using a resistance which varies based on

surrounding temperatures. If a faulty thermistor is

suspected it may be tested using an accurate
ohmmeter.

All thermistors in the unit are identical. If a thermistor

is suspected of being defective the resistance can be

verified. Place the thermistor in an ice water bath, the

resistance should read 16.1k OHMs +/-5% on your
meter.

Thermistor connections must be kept clean. A

thermistor connection that has become corroded can

cause resistance values from the thermistor to change
as they pass through a dirty connection to the board.

It is for that reason that we apply dielectric grease to

all of our thermistor connections. Dielectric grease will
help to keep thermistor connections clean and dry.

If you change a thermistor in the unit please re-apply

dielectric grease to the connection. If you encounter a

dirty thermistor connection, you should replace the
thermistor and the thermistor harness.

Thermistor error information can be found in the
Control Operations - Service section.

This unit has five thermistors.

Thermistor one (Zone):

Located along the right hand side wall in the top/left

compartment. It is used to maintain the operating
temperature within that zone.

Thermistor two (Evaporator):

Located on the evaporator in the top/left
compartment. It is used for defrost.

Thermistor three (Zone):

Located along the right hand side wall in the

bottom/right compartment. It is used to maintain the
operating temperature within that zone.

Thermistor four (Evaporator):

Located on the evaporator in the bottom/right

compartment. It is used for defrost.

Thermistor five (Ambient):

Located in the base of the unit (secured to the

condenser). It is used to monitor the ambient

temperature within the base compartment. It is used
for diagnostics.

THERMISTOR FAILURE

Zone Thermistors

If a zone thermistor(s) in the unit fails the unit will

continue to cool in a backup mode (Self Preservation

Mode) to preserve the integrity of the contents. The
unit will otherwise operate normally.

2000 Series Self Preservation Mode:

The unit will cycle on for 10 minutes then off for 40

minutes.

3000 Series Self Preservation Mode:

Cycle times determined by zone - see chart. The error

will be displayed on the main display, “Self Test” and
logged in “All Errors.”

Self Preservation Mode Data Table - 3000 Series

Mode

ON

OFF

Beverage/Drinks

10

45

Market/Fresh

10

45

Root 5 90

Pantry

10

45

Deli

10

45

White Wine

5

60

Red Wine

5

60

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Sparkling Wine

10

60

Polar

55

5

Thermistor 1

Evaporator Thermistors

If an evaporator thermistor fails the unit will rely on a

preset defrost timer during defrost cycles. The unit will
otherwise operate normally. Refer to defrost section.

Ambient Thermistor

If the thermistor fails the unit will operate normally.

Thermistor Resistance Data

Temp (F)

Temp (C)

Nominal Resistance

(OHMS)*

-40

-40

169157

-31

-35

121795

-22

-30

88766

-13

-25

65333

-4

-20

48614

5

-15

36503

14

-10

27681

23

-5

21166

32 0 16330

41 5 12696

50

10

9951

59

15

7855

68

20

6246

77

25

5000

86

30

4029

95

35

3266

104

40

2665

113

45

2186

122

50

1803

131

55

1495

140

60

1247

149

65

1044

158

70

879

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

167

75

743

176

80

631

* (+/-5%)

Thermistor 2

Defrost

The models below have automatic or frost free design and do not require manual defrosting under normal
conditions.

Defrost Settings

Base Model

Variant(s)

Compressor Run Time

Between Defrost (Hours)

Duration in Minutes

(Maximum)

Stop Temperature

°F (°C)

1224

RF

12

45

15 (-9)

1215/1224/2218/2245/

2224/2260

WC, ZWC

12

45

45 (7)

1215/1224/2218/2245/

2224/2260

R, RSOD, RDC,
BEV, DC, DWR,

RGL

12

45

42 (6)

CO29 F 12

18

n/a

CO1224 F 12

18

45 (7)

1224FZR

Freezer Mode

6

45

42(6)

1224FZR

Refrigerator Mode

12

45

42(6)

The defrost settings for 3000 series models are determined by zone.

Defrost Settings by Zone (3000 Series)

Zones

Compressor Run Time

Between Defrost (Hours)

Duration in Minutes

(Minimum)

Duration in Minutes

(Maximum)

Stop Temperature

°F (°C)

Beverage/Drinks

12

5

60

42 (6)

Market/Fresh

12

5

60

42 (6)

Root/Root Cellar

12

5

60

45 (7)

Pantry

12

5

60

42 (6)

White Wine

12

5

60

45 (7)

Red Wine

12

5

60

45 (7)

Sparkling Wine

12

5

60

45 (7)

Polar

6

5

20

42 (6)

Deli

12

5

60

42 (6)

Defrost 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Remove Fan and Cover

CONVECTION COOLING

This unit is equipped with an advanced convection

cooling system. Convection cooling stabilizes cabinet

temperature, cools product faster and increases
energy efficiency.

Evaporator Fan

The evaporator fan is responsible for circulating warm

air from the refrigeration zone, past the evaporator
and back into the refrigerated zone.

The evaporator fan is factory set to have a 1 minute

delay at the beginning of a cooling cycle. This delay

gives the evaporator time to cool properly before

warm air is passed over it. The fan will continue to run

for an additional 2 minutes at the end of a cooling
cycle.

Evaporator fan operation is also determined by door

switch state. If the door switch circuit opens, the fan

will stop. When the door switch circuit is closed the

fan will either continue running with the cooling cycle,

or if not currently cooling, the fan will run for 1

minute to circulate air and clear any condensation
that may have appeared on glass doors and shelves.

Note: If the unit is set to sabbath mode, the

evaporator fan will no longer respond to the state of
the door switch.

In order to operate efficiently, the evaporator fan

blade and vents should be unobstructed and free of
any dust buildup.

Evaporator Fan Replacement

Should the evaporator fan need to be replaced follow
the steps below.

1. Remove any product from the unit.

2. Uninstall unit.

3. Disconnect power to the unit.

4. Remove back panel from unit.

5. Disconnect fan electrical connection

6. Remove insulating foam from refrigerant line

passthrough hole as needed to gain clearance for
fan plug.

7. Remove the drawer from the zone with defective

fan.

8. Remove thermistor cover.

9. Remove two evaporator cover screws from top of

evaporator cover.

10.Grasp evaporator fan cover and gently pull away

from the rear of the unit.

11.While pulling the evaporator cover clear of the unit,

it may be necessary to use your free hand to

manipulate the fan plug end through the pass­through hole.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Remove Fan and Cover 1

12.Remove the 4 screws mounting the fan shroud to the

evaporator plate.

13.Remove and replace fan. Take special care to properly

route fan wire.

NOTICE

Fan must be oriented to pull air in through lower
evaporator plate vents and push air out at fan
mounting location.

14.Installation is the reverse of removal.

15.Use seanant gum to seal any holes in the rear of the

unit before replacing the rear cover.

16.Reinstall the unit taking care to level, center and

secure as you found it.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Remove Fan and Cover 2
