Modular 3000 Series • 3018CLR • 18" Clear Ice Machine

USER GUIDE

u-line.com

Contents

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Intro

Safety

Safety and Warning
Disposal and Recycling

Installation

Environmental Requirements
Electrical
Cutout Dimensions
Product Dimensions
Side by Side Installation
Water Hookup
Drain
Drain Pump
Anti-Tip Bracket

Cleaning
Cleaning Condenser
Extended Non-Use

Service

Troubleshooting
Warranty

Service Extended

Wire Diagram
Product Liability
Warranty Claims
Ordering Replacement Parts
System Diagnosis Guide
Compressor Specifications

Troubleshooting Extended
General Installation
Integrated Grille / Plinth Dimensions
Grille / Plinth Installation
Door Swing
Door Stop
Door Adjust

Operating Instructions

First Use
Control Operation
Ice
Sabbath Mode
Airflow and Product Loading

Maintenance

Control Quick Guide

Control Defaults

Service Mode

Thermistor

Defrost

USER GUIDE

u-line.com

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over five decades and three generations

of premium modular ice making, refrigeration, and wine preservation experience. U-Line continues to be the American

leader, delivering versatility and flexibility for multiple applications including residential, light commercial, outdoor and marine

use. U-Line’s complete product collection includes modular Wine Captain

Crescent Ice Makers, Glass & Solid Door Refrigerators, Drawer Models, Freezers, and Combo® Models.

U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired innovations

and attention to even the smallest details. We are known and respected for our unwavering dedication to product design,

quality and selection. U-Line is headquartered in Milwaukee, Wisconsin with a west coast office located in Laguna Beach,

California and European support in Dublin, Ireland. U-Line has shipped product to five continents for over two decades and is

proud to have the opportunity to ship to you.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Quick Reference Guides, CAD Drawings, Compliance

Documentation, and Product Warranty information are all available for reference and download at u-line.com under

Documentation.

®

Models, Beverage Centers, Clear Ice Machines,

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.800.779.2547.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.

SERVICE INFORMATION

Answers to Customer Frequently Asked Questions are available at u-line.com under Customer Care or you may contact our

Customer Care group directly, contact information below.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

F: +1.414.354.7905

Email: [e-mail]

u-line.com

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 5:30 pm CST

T: +1.800.779.2547

F: +1.414.354.5696

Service Email: [e-mail]

Parts Email: [e-mail]

CONNECT WITH US

Designed, engineered and assembled in WI, USA

Introduction 1

USER GUIDE

NOTICE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Safety and Warning

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning or Caution based on the risk type:

DANGER

!

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

WARNING

!

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

CAUTION

!

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property or equipment damage.

Safety and Warning 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Disposal and Recycling

DANGER

!

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take off

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

Disposal and Recycling 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

!

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

Environmental Requirements 1

USER GUIDE

NOTICE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Electrical

WARNING

!

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

See CUTOUT DIMENSIONS for recommended receptacle

location.

Electrical 1

USER GUIDE

17-3/4"

33-7/8"

to

34-7/8"

Preferred location
for drain, water
line and receptacle
is in adjacent
cabinet.

24"

(610 mm)

5/8"

(16 mm)

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Cutout Dimensions

PREPARE SITE

Your U-Line product has been designed exclusively for a

built-in installation. When built-in, your unit does not

require additional air space for top, sides, or rear.

However, the front grille must NOT be obstructed.

The Modular 3000 Series units are engineered with a

variety of adjustment features to help ensure a seamless

installation. Adjustable doors, leveling legs and grille will

assist in fine tuning the installation.

All 3000 Series models fully integrate into overlay/face

frame, inset or European/frameless cabinet styles and

install seamlessly into standard 24" (610 mm) depth

cabinet base.

CAUTION

!

CUTOUT DIMENSIONS

(860 mm)

(886 mm)

(450 mm)

Unit can NOT be installed behind a closed cabinet

door.

U-Line products are designed and manufactured

to be seamlessly installed in the specified cutout

openings shown, and variance to the floors or

cabinetry must be accounted for in your

installation.

Cutout Dimensions 1

USER GUIDE

Not Including Handle

24" (610 mm)

33-11/16" to 34-11/16"

(856 mm to 881 mm)

17-3/4" (450 mm)

3-5/8" to 4-5/8"

(92 mm to 118 mm)

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Product Dimensions

Product Dimensions 1

USER GUIDE

1/4" (6 mm)

13/16" (22 mm)

4-9/16" (116 mm)

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Side-by-Side Installation

OTHER SITE REQUIREMENTS

Side-by-Side Installation

Units must operate from separate, properly grounded

electrical receptacles placed according to each unit’s

electrical specifications requirements.

Cutout width for a side-by-side installation is the total of

the widths listed under Cutout Dimensions in each unit’s

Installation Guide. Each door can be opened individually

(one at a time) without interference.

Hinge-by-Hinge Installation (Mullion)

When installing two units hinge-by-hinge, 13/16" (22 mm)

is required for integrated models. Additional space may be

needed for any knobs, pulls or handles installed.

Stainless steel models which include the standard stainless

handle will require 4-9/16" (116 mm) to allow both doors

to open to 90° at the same time.

However, to ensure unobstructed door swing (opening

both doors at the same time), 1/4" (6.4 mm) of space

needs to be maintained between the units.

Side-by-Side Installation 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Water Hookup

PREPARE PLUMBING

Please use the braided stainless steel water supply line

which comes attached. The water line is fitted with a

standard 1/4" (6.35 mm) compression fitting.

WARNING

!

Prior to installation, determine if this product

contains a gravity style drain or factory installed

drain pump. Products without a drain pump may

only use a gravity style drain. Failure to connect

water supply or drain line connections properly

may result in water leakage, personal injury,

and/or property damage. Disconnect power and

turn off water to the unit before attempting to

alter these connections. These connections are

the responsibility of the owner and must be

connected per local plumbing code. If you are

uncertain of how to safely and properly install

this product, contact a licensed plumber.

CAUTION

!

Do not use any plastic water supply line. The line

is under pressure at all times. Plastic may crack

or rupture with age and cause damage to your

home.

Do not use tape or joint compound when

attaching a braided flexible water supply line

that includes a rubber gasket. The gasket

provides an adequate seal – other materials

could cause blockage of the valve.

Failure to follow recommendations and

instructions may result in damage and/or harm,

flooding or void the product warranty.

CAUTION

!

Turn off water supply and disconnect electrical

supply to unit prior to installation.

Water Supply Connection

CAUTION

!

Review, obey, and understand the local

plumbing codes before you install your unit.

Connect to the cold water supply. The water

pressure should be between 20 and 120 psi (138

and 827 kPa). The water line MUST

off valve on the supply line.

have a shut-

1. Turn off water supply and disconnect electrical supply

to product prior to attempting installation.

2. Locate the desired cold water supply location.

3. Locate braided stainless steel

water supply line and connect

to your cold water supply. The

water line should be looped into

2 coils. This will allow the unit

to be removed for cleaning and

servicing. However, make

certain that the tubing is not

pinched or damaged during installation.

Water Hookup 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

4. Turn on water and check for leaks.

5. Route water supply line in cable clamp and secure with

screw.

Water Hookup 2

USER GUIDE

NOTICE

Normal

Proper Drain

With Trap

Poor Drainage, Water Will Back Up

With Trap and Vent

Proper Drain

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Drain

Model numbers including “-00” or “-07” do not include a

factory installed drain pump.

Model numbers including “-40” or “-47” include a factory

installed drain pump.

DRAIN CONNECTION

CAUTION

!

If your U-Line unit did not come with a factory

installed drain pump you must use a gravity

style drain connection. For assistance in

determining if your unit has a pump please

contact U-Line. The floor drain must be large

enough to accommodate drainage from all

attached drains. Follow these guidelines when

installing drain lines to prevent water from

flowing back into the ice maker storage bin and/

or potentially flowing onto the floor, which may

result in personal injury or property damage.

GRAVITY DRAIN

A gravity drain may be used if:

Drain line has at least a 1" drop per 48" (approximately

2 cm drop per 100 cm) of run.

Drain line does not create traps and is vented per local

code.

1. Cut the pre-installed drain tube to length.

Drain can NOT be located directly below the unit.

Unit has a solid base that will not allow the unit

to drain below itself.

There is a possibility that hose connections may

have loosened during shipment.

Verify all connections and fittings are free from

leaks.

2. Connect to your local plumbing per the local code.

3. If necessary, insulate drain line to prevent

condensation.

CAUTION

!

Failure to connect water supply or drain line

connections properly can result in personal

injury and property damage. Gravity drain

connections must be routed downward from the

rest of the unit at the rate of 1/4" per foot (1 cm

per 50 cm).

Drain 1

USER GUIDE

NOTICE

Cold

Water

Hot

Water

Waste

Waste

6KXW2ɞ

Valve

Stand Pipe
P60 Pump Required

Air Gap

(Optional Hook-Up)

Cold

Water

Hot

Water

Waste

6KXW2ɞ

Valve

Disposal Assembly
P60 Pump Required

Cold

r

6KXW2ɞ

Valve

Hot

Water

Air Gap

(Optional Hook-Up)

P60 Pump Required

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

FACTORY INSTALLED DRAIN PUMP

If your drain line will run up to a stand pipe, disposal or

spigot assembly, or does not otherwise meet the

requirements for a gravity drain, you may have ordered a

pre-installed U-Line P60 drain pump.

If you need to install a P60 drain pump into your unit, see

DRAIN PUMP section in the User Manual.

See below for typical installations requiring a drain pump.

Y-Branch Tailpiece

Waste

Wate

The maximum lift for the P60 drain pump is

10 feet. This must be done as close to the rear of

the unit as possible.

Drain 2

USER GUIDE

NOTICE

NOTICE

1

3

4

5

6

7

2

9

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Drain Pump

PLEASE READ this instruction completely before

attempting to install or operate the unit.

Improper hook-up can result in substantial

property damage! If you are unsure of your

ability to safely connect the drain pump to the

unit, consult a licensed plumber for assistance.

Use these instructions to install the U-Line P60-

00 drain pump in the U-Line Clear Ice Machine

(unit). The drain pump should be installed

before installing the unit.

• The U-Line P60-00 drain pump is designed to be used

exclusively on the U-Line Clear Ice Machine and is UL

recognized only for use on the U-Line Clear Ice

Machine.

• U-Line Corporation assumes no warranties or

responsibility, whether express or implied, if the P60-00

drain pump is used on another ice machine or product

for which it is not UL recognized or listed.

INCLUDED IN KIT:

1. 1x S-shaped Drain Tube

2. 1x Straight Drain Tube

(Not used)

3. 1x Vent Tube

4. 1x Braided Discharge Tube

(Not included in pump kit.

Ice Machine ships with

discharge tube installed.)

5. 2x Vent tube Zip Ties

6. 2x Small Worm Gear

Clamps

7. 1x Large Worm Gear

Clamp

8. 1x P60 Pump

• Modification of the P60-00 drain pump will void all

warranties.

9. 1x Discharge Tub

(Used on older models only)

Keep your proof of purchase for warranty

purposes.

TOOLS REQUIRED:

• 1/4" x 6" Blade Screwdriver

•Adjustable Pliers

•1/4" Nut Drive

Drain Pump 1

USER GUIDE

Discharge Tube Connector

Drain Tube Connector

Vent Tube Connector

Pump Assembly

Ground Terminal

Wiring Plug

8

Drain Tube

Vent Tube

Discharge Tube

Jumper

Block

Plug

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Note: Slide clamp on hose end before installing hose. Do

not tighten clamp until pump and hoses have been

installed.

4. Install the 3 hoses and hose clamps to the pump

assembly as shown below. Do not tighten clamps at

this time.

INSTALLATION PROCEDURE

WARNING

!

To prevent accidental electrocution, make

certain that the floor surfaces surrounding the

unit are dry whenever power/electricity is

removed from, or applied to the unit.

1. Disconnect your unit from its electrical outlet/socket.

2. Using a screwdriver or 1/4" nut driver, remove the 9

screws from the back panel.

3. Remove the drain line/pipe from the storage bin drain

nipple. Save the clamp for pump installation.

CAUTION

!

To prevent damage to the pump, leave sufficient

space between leveling leg and pump.

5. Remove the protective paper from the adhesive strip

and carefully set pump inside of unit.

6. Unplug jumper block from ice

machine wiring harness

(jumper block has a single

pink wire). Discard jumper

block.

7. Connect pump wiring plug

to the ice machine wiring

harness connector, where

the jumper block was

Pump Wiring

removed. The connector is

keyed and can only be

inserted one way.

Drain Pump 2

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

8. Route the vent tube up

CAUTION

!

When working with tools inside of unit, be

careful so as not to nick or damage any

refrigerant lines/pipes or wires.

WARNING

!

The back panel serves as a guard. Do not put

your hands inside the ice machine cabinet or

attempt to touch any components except the

discharge tube during testing.

CAUTION

!

the back of the unit, next

to the insulated tubes.

Secure vent tube vertical

to the insulated tubes

using plastic tie wraps.

9. Connect pump drain tube

to storage bin drain nipple

with clamp removed from

step 3. Ensure that no

kinks are present in the

tube.

10.Tighten the clamps on the

drain, discharge, and vent tubes with a screwdriver or

1/4" nut driver.

Failure to properly secure the vent tube will

result in water damage to the unit and

surrounding areas. Do not allow vent tube to

kink, bend or be obstructed in any way.

CAUTION

!

Vent tube must be straight and parallel to

insulated tubes. Do not over-tighten the plastic

tie wraps. Over-tightening can pinch vent tube

closed or cut into insulation.

Note: The discharge tube will need to be trimmed. Cut

back the tube (MAX of 1/4" on each end) so that no kinks

are formed in drain tube.

Drain Pump 3

USER GUIDE

Left Hinged Cabinet

Right Hinged Cabinet

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Anti-Tip Bracket

CAUTION

!

The anti-tip bracket must be installed to prevent

the unit from tipping when doors are fully

opened or excess weight is placed on the front of

the unit.

The anti-tip bracket has multiple mounting options.

Mounting will depend on your particular cabinet

configuration. Follow the instructions below to secure the

anti-tip plate to the unit. Locate your anti-tip bracket and

5 #8x5/8" screws included with your unit.

TOP MOUNT

5. Using a 3/32" drill bit, drill 3 pilot holes 5/8" (16 mm)

deep into bottom of countertop. Use the anti-tip

bracket as a template.

6. Install the 3 remaining #8x5/8" screws into the plate

using a #2 Phillips head screwdriver.

SIDE MOUNT

Top mount configurations work well with fully secured

wood or laminate countertops.

1. Align the bracket on top of your unit as shown above.

The bracket must be used to ensure a secure mount.

2. Using 2 of the supplied #8x5/8" screws, install screws

into the plate using a #2 Phillips head screwdriver.

3. Completely slide the unit into its position in the

cabinet. Be certain unit height is properly adjusted.

(See GENERAL INSTALLATION).

4. Open door completely. Make certain door clears

surrounding cabinetry.

Side mount configurations work well if you have a granite

countertop or do not wish to mount the bracket to the

underside of your countertop.

1. Align the bracket to the hinge side of the unit as shown

above.

2. Using 2 of the supplied #8x5/8" screws, install screws

into the plate using a #2 Phillips head screwdriver.

3. Completely slide the unit into its position in the

cabinet. Be certain unit height is properly adjusted.

(See GENERAL INSTALLATION).

4. Open door completely. Make certain door clears

surrounding cabinetry.

Anti-Tip Bracket 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

5. Using a 3/32" drill bit, drill 3 pilot holes 5/8" (16 mm)

deep into cabinetry frame using the anti-tip bracket as

a template.

6. Install the 3 remaining #8x5/8" screws into the plate

using a #2 Phillips head screwdriver.

Anti-Tip Bracket 2

USER GUIDE

2

1

Rotate Clockwise to raise rear leg.

Rotate Counter-Clockwise to lower leg.

Rotate Front Legs to Adjust

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

General Installation

1. Use a level to confirm

the unit is level. Level

should be placed along

top edge and side

edge as shown.

2. If the unit is not level,

remove grille and

adjust legs as

necessary. Use

included tool to adjust the height of the rear legs.

INSTALLATION

1. Plug in the power/electrical cord.

2. Gently push the unit into position. Be careful not to

entangle the cord or water and drain lines.

3. Re-check the leveling, from front to back and side to

side. Make any necessary adjustments. The unit’s top

surface should be approximately 1/8" (3 mm) below

the countertop.

4. Install the anti-tip bracket.

5. Remove the interior packing material and wipe out the

inside of the unit with a clean, water-dampened cloth.

3. Confirm the unit is level after each adjustment and

repeat the previous steps until the unit is level.

INSTALLATION TIP

If the room floor is higher than the floor in the cutout

opening, adjust the rear legs to achieve a total unit rear

height of 1/8" (3 mm) less than the opening’s rear height.

Shorten the unit height in the front by adjusting the front

legs. This allows the unit to be gently tipped into the

opening. Adjust the front legs to level the unit after it is

correctly positioned in the opening.

General Installation 1

USER GUIDE

Apply Tape To Shaded Area

1" (25 mm)

1-1/2"

(38 mm)

17-3/4"

(450 mm)

14-3/4"

(374 mm)

3-5/16" to 4-5/16"

(84 mm to 110 mm)

1-1/2"

(38 mm)

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Integrated Grille - Plinth
Dimensions

PREPARE AND INSTALL INTEGRATED GRILLE
(PLINTH STRIP/BASE FASCIA)

1. Use the dimensions provided in the diagram to cut and

shape your integrated grille (plinth strip/base fascia)

panel. Recommended panel thickness is between 1/4"

(6 mm) and 3/8" (9 mm). Height will vary from 3-5/16"

(84 mm) to 4-5/16" (110 mm) based on your grille

(plinth strip/base fascia) height.

2. Finish or stain your grille (plinth strip/base fascia)

panel to match your surrounding furniture. Finish

front, back and edges to prevent warping. Carefully

follow the manufacturer’s recommendations for finish

application and cure times.

3. Apply double sided tape to the backside of the

integrated grill (plinth strip/base fascia). Use the

diagram below for reference. U-Line recommends

3M

™ VHB™ tape, a high strength bonding tape.

INTEGRATED GRILLE (PLINTH STRIP/BASE
FASCIA) DIMENSIONS

4. Remove backing paper from double sided tape.

5. Carefully align grille (plinth strip/base fascia) over

integrated panel and press into position.

Integrated Grille - Plinth Dimensions 1

USER GUIDE

Grille Mounting

Screws

Grille Rail

Grille

Skirt

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Grille - Plinth Installation

REMOVING AND INSTALLING GRILLE
(PLINTH STRIP/BASE FASCIA)

WARNING

!

Disconnect electrical current to the unit before

removing the grille (plinth strip/base fascia).

When using the unit, the grille (plinth strip/base

fascia) must be installed.

Edges of sheet metal may be sharp.

Removing the grille
(plinth strip/base fascia)

1. Disconnect electrical current to unit.

2. Using the included 7/64" Allen wrench, loosen (but do

not remove) both grille (plinth strip/base fascia) lock

screws. See below.

Installing the grille
(plinth strip/base fascia)

1. Align slots in

screw heads in base of unit

2. Push grille (plinth strip/base fascia) rails towards the

center of the unit and set rails over screw head.

3. Slide grille (plinth strip/base fascia) into position. Using

included 7/64" Allen wrench tighten grille (plinth strip/

base fascia) lock screws.

ADJUSTING GRILLE
(PLINTH STRIP/BASE FASCIA)

The

grille (plinth strip/base fascia

vertical plane adjustment and can also be adjusted on its

horizontal plane as well. To adjust your

base fascia

the instructions below.

grille (plinth strip/base fascia)

) has an automatic

) to match your surrounding furniture, follow

rail with

grille (plinth strip/

3. Gently pull grille (plinth strip/base fascia) away from

unit until it stops.

4. Push grille (plinth strip/base fascia) rails towards the

center of the unit to lift rails off lock screws.

5. Pull grille (plinth strip/base fascia) free from unit.

1. Loosen, but do not remove, the lock screws on the

inside of the

screws are located on the inside of each

strip/base fascia)

2. The grille (plinth strip/base fascia) can be extended

horizontally by pulling out a maximum of 1-1/2"

(38 mm). Do not exceed 1-1/2" (38 mm). Secure the

lock screws after adjusting.

3. The grille (plinth strip/base fascia) skirt may be

manually adjusted to the height of your floor. Simply

raise or lower the skirt as needed.

grille (plinth strip/base fascia)

rail.

Grille - Plinth Installation 1

rails. Lock

grille (plinth

USER GUIDE

Wall

Wall

90°

Door Swing

90°

Door Swing

Space Required

For any Knobs or Pulls

2-1/4" MIN
(57 mm MIN)

Integrated

Stainless

1/4" (6 mm)

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Door Swing

For Integrated models that are installed adjacent to a wall,

1/4" (6 mm) clearance is recommended from wall on

hinge side to allow the door to open 90°. Allow for

additional space for any knobs or pulls installed on the

integrated panel/frame.

Stainless Steel models that are installed adjacent to a wall

require 2-1/4" (57 mm) door clearance on hinge side to

allow for door handle.

Units have a zero clearance when installed adjacent to

cabinets.

Door Swing 1

USER GUIDE

NOTICE

NOTICE

1

3

2

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Door Stop

Your U-Line unit was shipped to you with the optional 90°

pin.

Your unit’s door(s) will open 115° straight from the

factory. If you would like the door stop at 90° follow these

instructions.

If your unit is already undercounter, it will need

to be moved out to access the hinge. With the

90° stop pin in place, you will not be able to

replace the hinge cover.

1. Open door approximately 90°.

3. Once cover is removed, slide hinge pin into hole as

shown. Pin should slide into place, stopping the door at

90°; if the pin does not go into the hole shown, hold

the door less than 90° open and try again.

4. To fully seat the pin, tap it lightly with a hammer.

2. Remove hinge cover by lifting top and bottom of hinge

cover and sliding the cover inwards to remove from

hinge.

5. Carefully slide your unit back in place.

The pin can be removed to return the door swing

back to its original 115° swing by tapping the pin

out from the bottom of the hinge.

CLOSER

The door hinge has a self-closing feature that engages

when the door is open approximately 6" (150 mm) (about

25°).

Door Stop 1

USER GUIDE

NOTICE

Wrap Screws

Cable Arm

Step 1

Step 2

Door Top

Door Bottom

Press Tab Down

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Door Adjustments

DOOR ALIGNMENT AND ADJUSTMENT

Align and adjust the door if it is not level or is not sealing

properly. If the door is not sealed, the unit may not cool

properly, or excessive frost or condensation may form in

the interior.

Properly aligned, the door’s gasket should be

firmly in contact with the cabinet all the way

around the door (no gaps). Carefully examine

the door’s gasket to ensure that it is firmly in

contact with the cabinet. Also make sure the

door gasket is not pinched on the hinge side of

the door.

4. The wrap hinges on top of the door. Carefully pull wrap

away and then up. See below.

CAUTION

!

Do not attempt to use the door to raise or pivot

your unit. This would put excessive stress on the

hinge system.

Stainless Models (Removing Wrap)

1. Open door completely.

2. Remove the two wrap screws from the bottom of the

stainless steel door wrap.

5. If door being adjusted houses

the display unit, remove cable

from display by pressing in the

release tab on the cable

connector.

3. Gently pull bottom of wrap away from door.

Door Adjustments 1

USER GUIDE

T-25 Torx Screw

T-25 Torx Screw

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

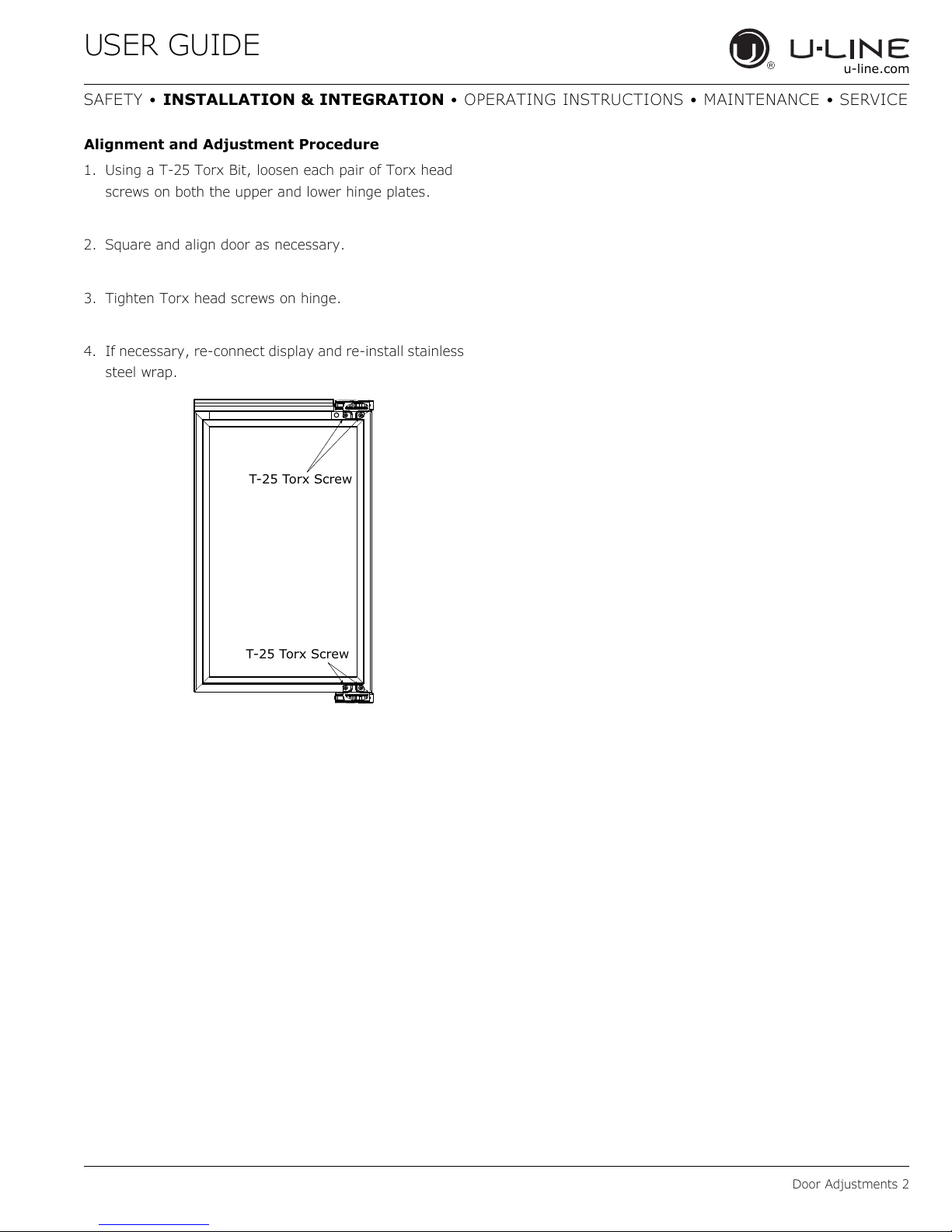

Alignment and Adjustment Procedure

1. Using a T-25 Torx Bit, loosen each pair of Torx head

screws on both the upper and lower hinge plates.

2. Square and align door as necessary.

3. Tighten Torx head screws on hinge.

4. If necessary, re-connect display and re-install stainless

steel wrap.

Door Adjustments 2

USER GUIDE

NOTICE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

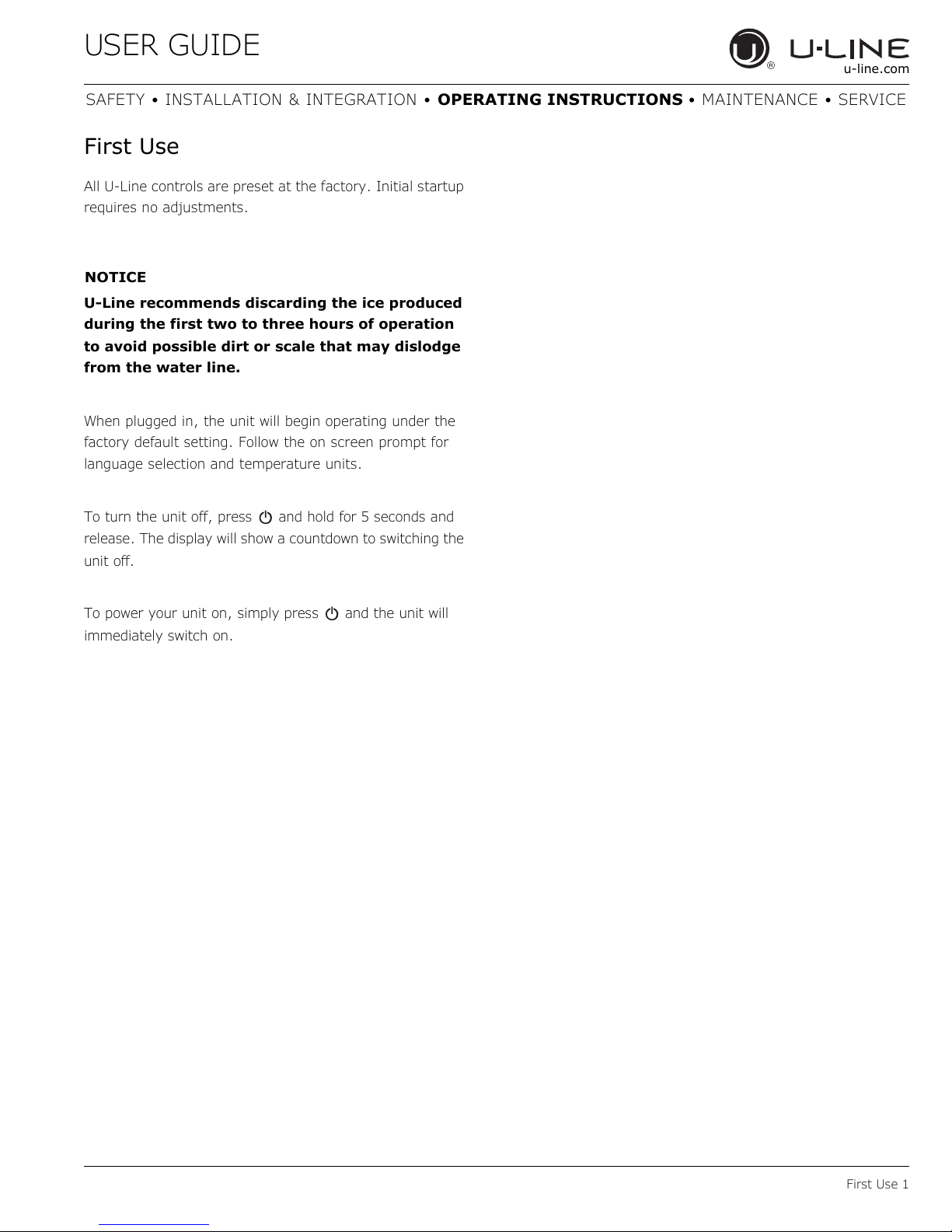

First Use

All U-Line controls are preset at the factory. Initial startup

requires no adjustments.

U-Line recommends discarding the ice produced

during the first two to three hours of operation

to avoid possible dirt or scale that may dislodge

from the water line.

When plugged in, the unit will begin operating under the

factory default setting. Follow the on screen prompt for

language selection and temperature units.

To turn the unit off, press and hold for 5 seconds and

release. The display will show a countdown to switching the

unit off.

To power your unit on, simply press and the unit will

immediately switch on.

First Use 1

USER GUIDE

Up

Select

Zone Toggle

Down

Power

ICE PRODUCTION

U-Select Lighting

or

or

or

or

Up

Select

Down

U-Select Lighting

Power

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Control Operation

CONTROL FUNCTION GUIDE

FUNCTION COMMAND DISPLAY/OPTIONS

OFF Press and hold Display will count down from 5 to off.

ON Press and release Unit will come on immediately.

Adjust lighting Press to adjust lighting Press to set low, medium or high.

Customer menu Press and hold for 5 seconds Press to scroll through menu.

Service menu Press and hold for 5 seconds Press to scroll through menu.

U-SELECT® CONTROL

Digital Display

The 3000 Series units are controlled by a feature rich,

advanced OLED display control unit. The control panel

allows adjustment to temperature set point, access to

Energy Saver Mode, internal temperature readings, and

many other features.

U-Select Lighting

1. To begin, press to enter the lighting menu.

2. Press or to cycle through each available

brightness setting (Low, Medium or High).

3. Press to cycle through each available timer setting.

Selections include “On With Door”, “On 3 Hours”, “On 6

Hours”, or “On 24 Hours”.

4. To exit, press or simply wait for the menu to time

out.

CUSTOMER MENU

The 3000 Series of U-Line undercounter refrigeration

appliances contains a feature rich customer menu. The

Customer Menu allows access to a series of advanced

features including Energy Saver Mode, Sabbath Mode,

actual temperature readings as well as a method to

restore factory defaults.

Control Operation 1

USER GUIDE

Up

Select

Down

WELCOME TO THE

CUSTOMER MENU. USE

UP/DOWN ARROWS TO

SCROLL SETTINGS.

Up

Select

Down

RETURN TO MENU

ACTUAL TEMPS
BIN TEMP = 1.6

COND TEMP = 45.5

Can be displayed in Celsius

Up

Select

Down

Energy Saver Mode

Indicator

ICE PRODUCTION

(12m remaining)

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

3000 Series - Customer Menu

1. To access the Customer Menu hold for 5 seconds.

2. Press or to scroll through available selections.

3. Press to enter selected sub-menu.

4. To exit Customer Menu, press to scroll to the

bottom of the display and press to select “Exit”.

Actual Temps

Energy Saver Mode

Energy Saver mode reduces overall energy consumption

by reducing the amount of ice stored in the bin, along with

decreasing the lighting.

1. To enter Energy Saver Mode, first select Energy Saver

from the Customer Menu.

2. Press to select “Off” in the menu.

3. Press .

The Actual Temps option displays the actual temperature

of the ice bin and condenser, as well as ambient

temperature.

1. To view actual temperature, press and select

“Actual Temps” from the Customer Menu.

2. Press or to scroll through available information.

3. To return to the Customer Menu, press and select

“Return to Menu”.

4. Press or to change the selection from Off to On.

5. Press to confirm your selection.

6. To return to the Customer Menu, press and select

“Return to Menu”.

7. To cancel Energy Saver Mode simply return to the

Customer Menu, select Energy Saver and change “On”

to “Off”.

Control Operation 2

USER GUIDE

Up

Select

Down

RETURN TO MENU

LANGUAGES

ENGLISH

Up

Select

Down

RETURN TO MENU

SOUND LEVEL

HIGH

Up

Select

Down

RETURN TO MENU

FARENHEIT/CELSIUS

DEGREES = °F

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

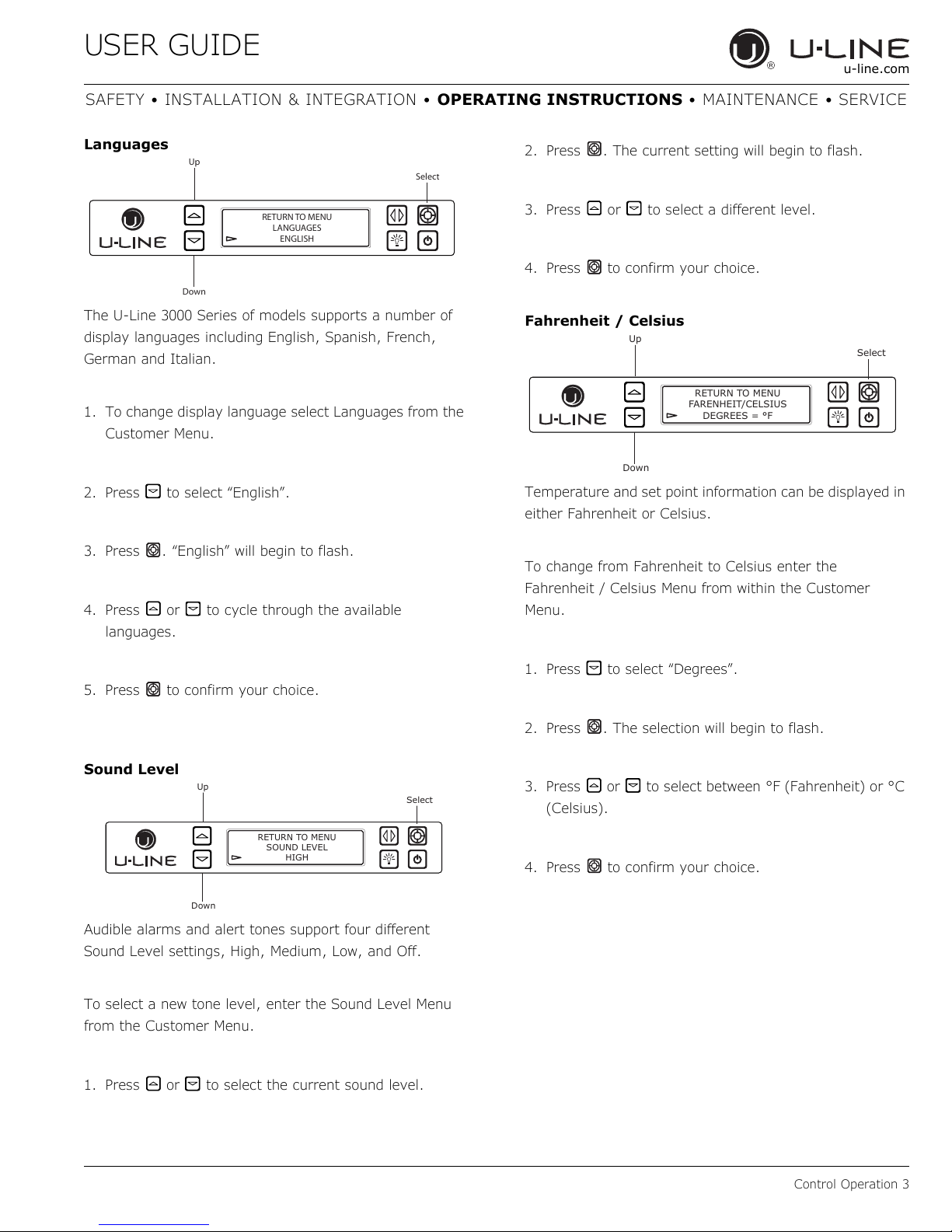

Languages

The U-Line 3000 Series of models supports a number of

display languages including English, Spanish, French,

German and Italian.

1. To change display language select Languages from the

Customer Menu.

2. Press to select “English”.

3. Press . “English” will begin to flash.

4. Press or to cycle through the available

languages.

2. Press . The current setting will begin to flash.

3. Press or to select a different level.

4. Press to confirm your choice.

Fahrenheit / Celsius

Temperature and set point information can be displayed in

either Fahrenheit or Celsius.

To change from Fahrenheit to Celsius enter the

Fahrenheit / Celsius Menu from within the Customer

Menu.

5. Press to confirm your choice.

Sound Level

Audible alarms and alert tones support four different

Sound Level settings, High, Medium, Low, and Off.

To select a new tone level, enter the Sound Level Menu

from the Customer Menu.

1. Press

or

to select the current sound level.

1. Press to select “Degrees”.

2. Press . The selection will begin to flash.

3. Press or to select between °F (Fahrenheit) or °C

(Celsius).

4. Press to confirm your choice.

Control Operation 3

USER GUIDE

Up

Select

Down

RETURN TO MENU

CLEAN CYCLE

CLEAN?

Up

Select

Down

RETURN TO MENU

SILENT MODE

SILENCE?

Up

Select

Down

RETURN TO MENU

ICE ADJUST

ICE ADJUST = 0

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Clean Cycle

A clean cycle can be initiated through this menu. Once the

cleaning cycle starts, the cycle cannot be stopped until

complete.

To initiate a clean cycle, select “Clean Cycle” from the

Customer Menu. Please refer to CLEANING section

regarding proper cleaning procedure.

1. Press to select “Clean Cycle”.

2. Press . The clean cycle will now begin.

To activate Silent Mode:

1. Press to select “Silence?”.

2. Press . Silent Mode will now begin.

To cancel Silent Mode:

1. Press to select “Cancel?”.

2. Press . Silent Mode will end.

Ice Adjust

3. Refer to CLEANING section regarding proper cleaning

procedure.

Silent Mode

Users can halt ice production for 3 hours with an option

called “Silent Mode” in the Customer Menu. Silent Mode

will begin once the current ice making cycle is complete.

After 3 hours in Silent Mode, normal ice production will

continue.

NOTE: Silent Mode will not silence any alerts.

To initiate Silent Mode, enter Silent Mode Menu from

within the Customer Menu.

The Ice Adjust option adjusts ice thickness by adding or

subtracting up to 5 minutes of ice production.

To change the ice thickness, enter the Ice Adjust Menu

from within the Customer Menu.

To adjust thickness:

1. Press to select “Ice Adjust”.

2. Press . The selection will begin to flash.

3. Press to make the ice thicker or to make the ice

thinner.

4. Press to confirm your choice.

Control Operation 4

USER GUIDE

Up

Select

Down

RETURN TO MENU

Help
Model 3018CLR
1-800-779-2547

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

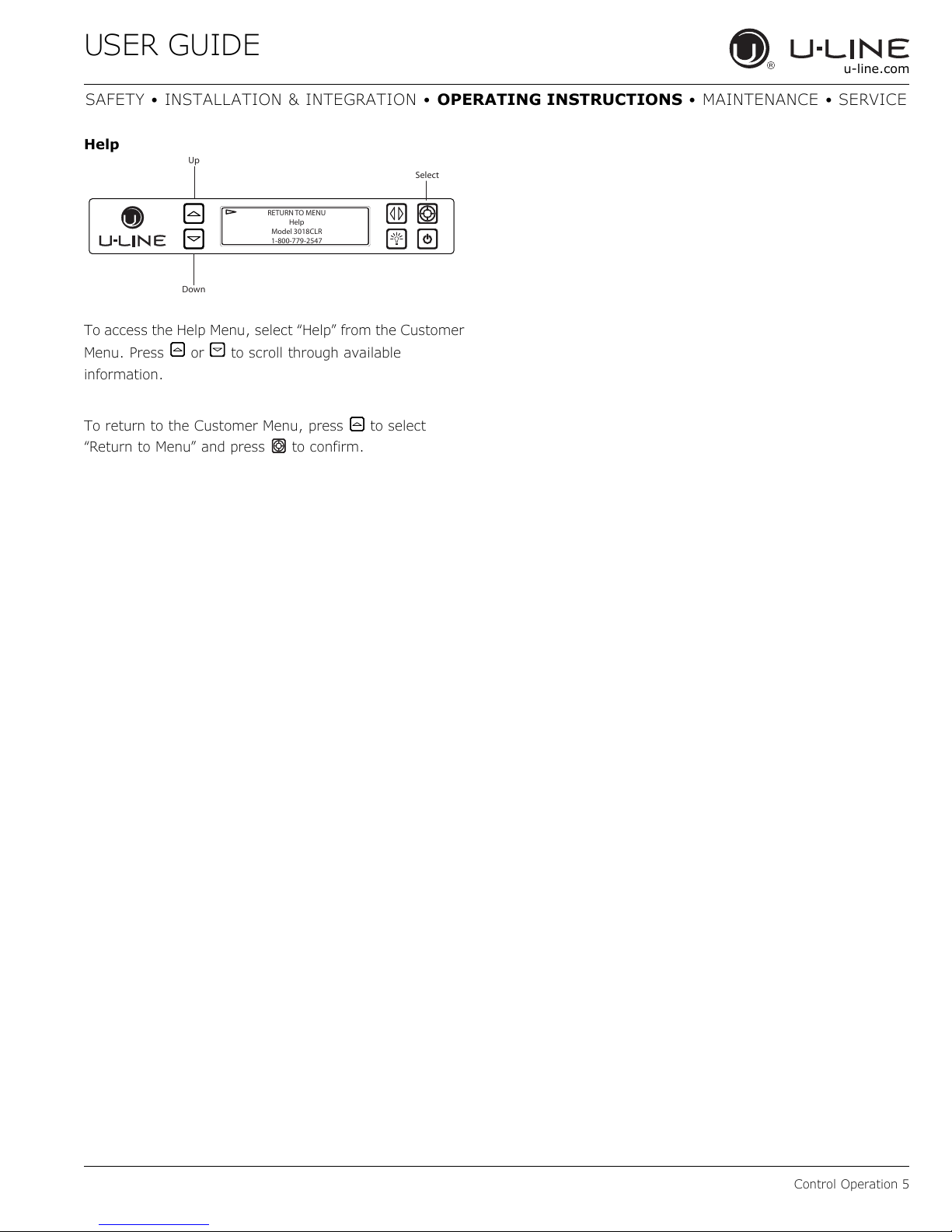

Help

To access the Help Menu, select “Help” from the Customer

Menu. Press or to scroll through available

information.

To return to the Customer Menu, press to select

“Return to Menu” and press to confirm.

Control Operation 5

USER GUIDE

NOTICE

DIMPLES

ICE BRIDGE

Ice Bridge and Dimples

1/4" TO 1/2"

(6.4 mm to 12.7 mm)

DIMPLE

1/16" TO 1/8"
(1.6 mm to 3.2 mm)
ICE BRIDGE

Cube Types

THIN BRIDGE THICK BRIDGE

DEEP DIMPLE

LITTLE OR

NO DIMPLE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Ice

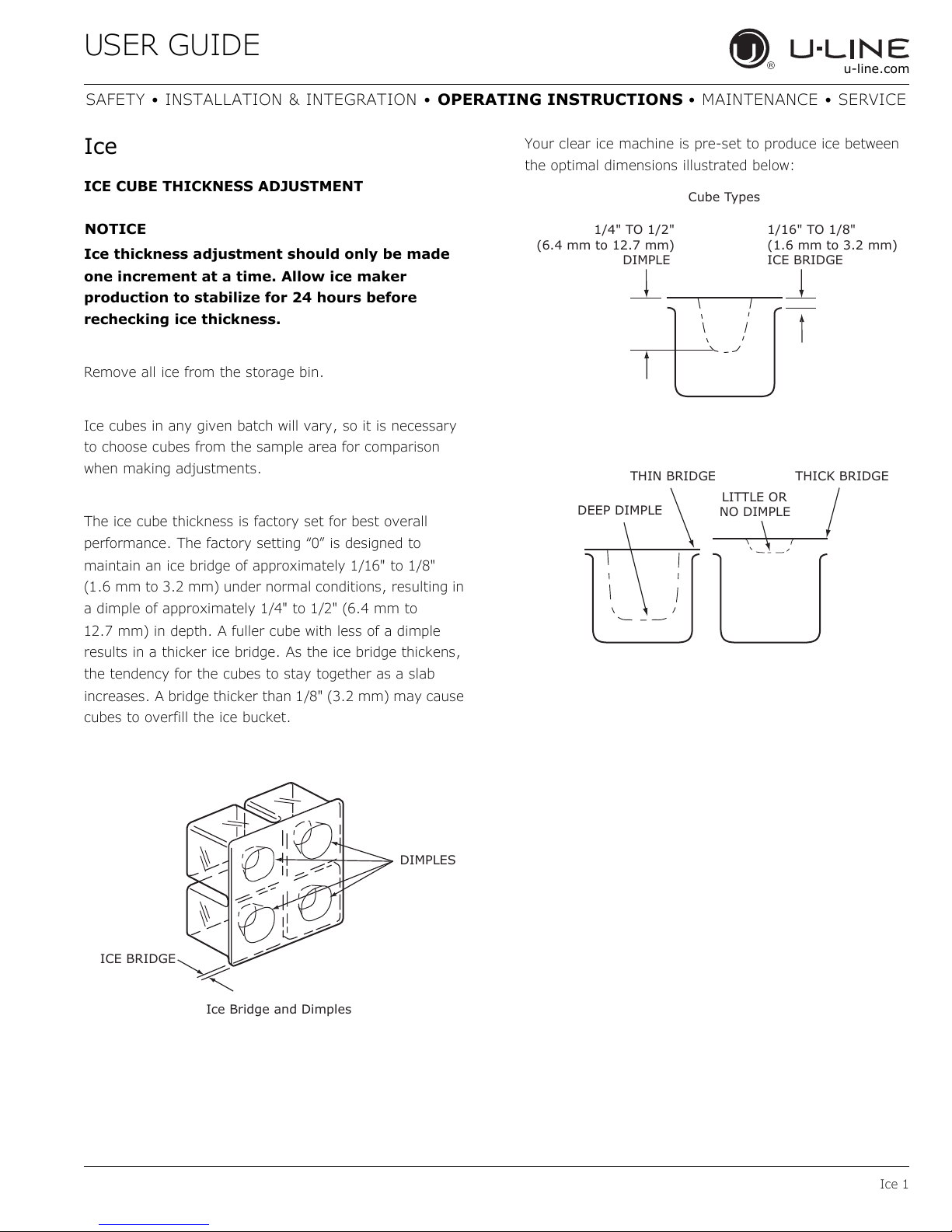

ICE CUBE THICKNESS ADJUSTMENT

Ice thickness adjustment should only be made

one increment at a time. Allow ice maker

production to stabilize for 24 hours before

rechecking ice thickness.

Remove all ice from the storage bin.

Ice cubes in any given batch will vary, so it is necessary

to choose cubes from the sample area for comparison

when making adjustments.

The ice cube thickness is factory set for best overall

performance. The factory setting “0” is designed to

maintain an ice bridge of approximately 1/16" to 1/8"

(1.6 mm to 3.2 mm) under normal conditions, resulting in

a dimple of approximately 1/4" to 1/2" (6.4 mm to

12.7 mm) in depth. A fuller cube with less of a dimple

results in a thicker ice bridge. As the ice bridge thickens,

the tendency for the cubes to stay together as a slab

increases. A bridge thicker than 1/8" (3.2 mm) may cause

cubes to overfill the ice bucket.

Your clear ice machine is pre-set to produce ice between

the optimal dimensions illustrated below:

Ice 1

USER GUIDE

Up

Select

Down

RETURN TO MENU

ICE ADJUST

ICE ADJUST = 0

and

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

ICE ADJUST

Adjust ice thickness as follows:

1. Press and hold for 5 seconds to enter the

Customer Menu.

2. Press

to select “Ice Adjust”.

3. Press . The selection will begin to flash.

4. Press to make the ice thicker or to make the ice

thinner.

Press to confirm your choice.

The total range of adjustment is -5 (thinest) to +5

(thickest). If further adjustments are desired, repeat

Steps 1 through 4.

Ice 2

USER GUIDE

Up

Select

Down

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

L



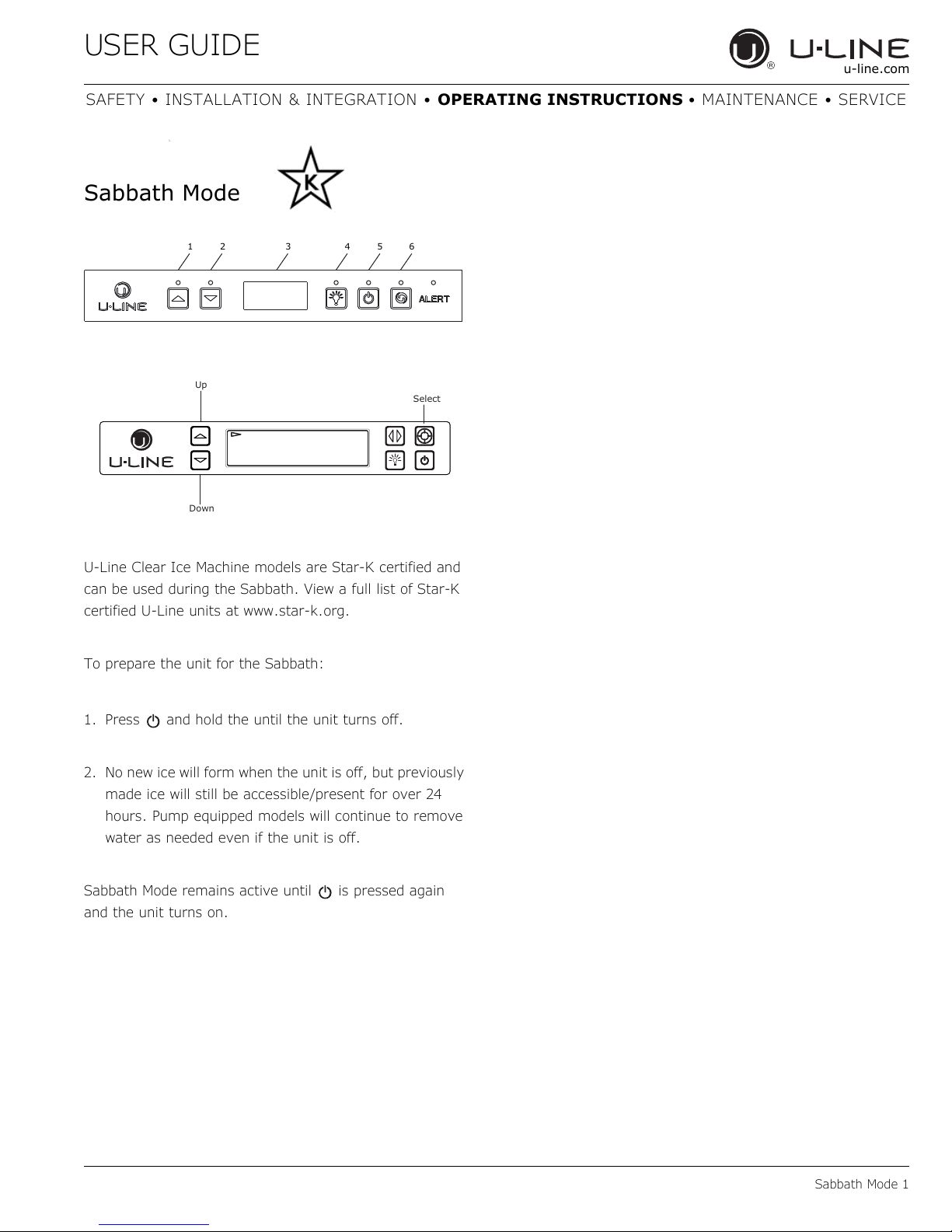

Sabbath Mode

12 3 456

U-Line Clear Ice Machine models are Star-K certified and

can be used during the Sabbath. View a full list of Star-K

certified U-Line units at www.star-k.org.

To prepare the unit for the Sabbath:

1. Press and hold the until the unit turns off.

2. No new ice will form when the unit is off, but previously

made ice will still be accessible/present for over 24

hours. Pump equipped models will continue to remove

water as needed even if the unit is off.

Sabbath Mode remains active until is pressed again

and the unit turns on.

Sabbath Mode 1

USER GUIDE

NOTICE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

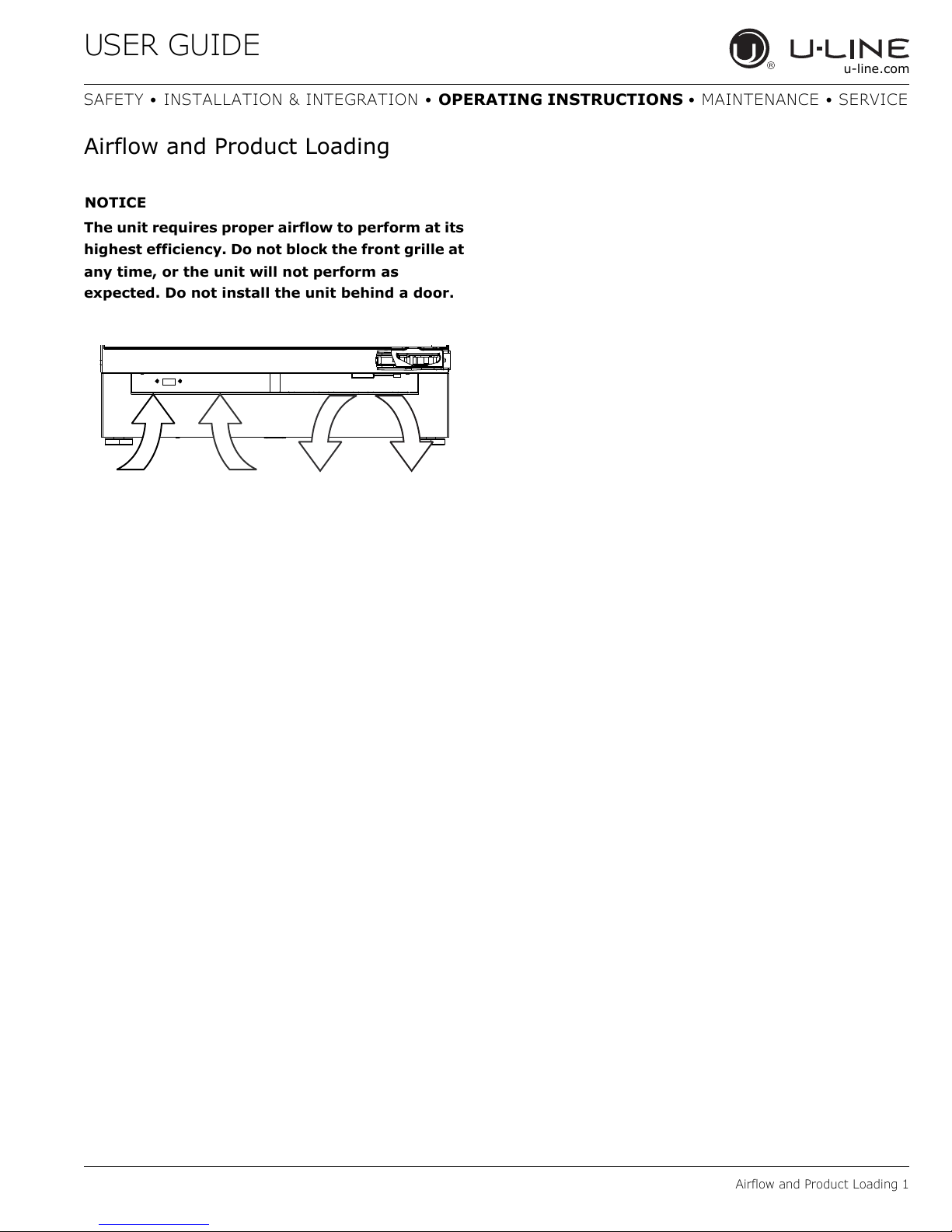

Airflow and Product Loading

The unit requires proper airflow to perform at its

highest efficiency. Do not block the front grille at

any time, or the unit will not perform as

expected. Do not install the unit behind a door.

Airflow and Product Loading 1

USER GUIDE

NOTICE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

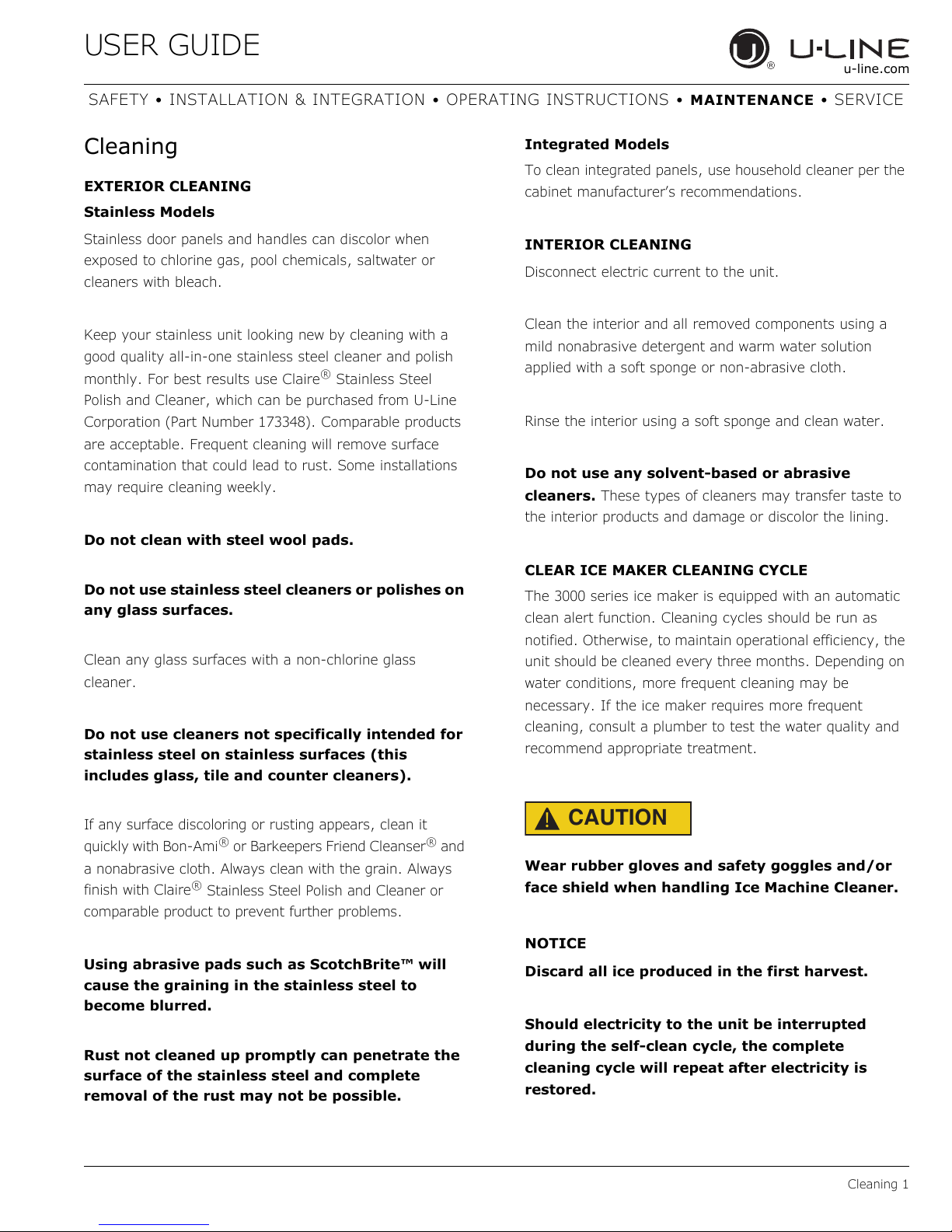

Cleaning

EXTERIOR CLEANING

Stainless Models

Stainless door panels and handles can discolor when

exposed to chlorine gas, pool chemicals, saltwater or

cleaners with bleach.

Keep your stainless unit looking new by cleaning with a

good quality all-in-one stainless steel cleaner and polish

monthly. For best results use Claire

Polish and Cleaner, which can be purchased from U-Line

Corporation (Part Number 173348). Comparable products

are acceptable. Frequent cleaning will remove surface

contamination that could lead to rust. Some installations

may require cleaning weekly.

Do not clean with steel wool pads.

Do not use stainless steel cleaners or polishes on
any glass surfaces.

Clean any glass surfaces with a non-chlorine glass

cleaner.

Do not use cleaners not specifically intended for
stainless steel on stainless surfaces (this
includes glass, tile and counter cleaners).

®

Stainless Steel

Integrated Models

To clean integrated panels, use household cleaner per the

cabinet manufacturer’s recommendations.

INTERIOR CLEANING

Disconnect electric current to the unit.

Clean the interior and all removed components using a

mild nonabrasive detergent and warm water solution

applied with a soft sponge or non-abrasive cloth.

Rinse the interior using a soft sponge and clean water.

Do not use any solvent-based or abrasive

cleaners. These types of cleaners may transfer taste to

the interior products and damage or discolor the lining.

CLEAR ICE MAKER CLEANING CYCLE

The 3000 series ice maker is equipped with an automatic

clean alert function. Cleaning cycles should be run as

notified. Otherwise, to maintain operational efficiency, the

unit should be cleaned every three months. Depending on

water conditions, more frequent cleaning may be

necessary. If the ice maker requires more frequent

cleaning, consult a plumber to test the water quality and

recommend appropriate treatment.

If any surface discoloring or rusting appears, clean it

quickly with Bon-Ami

a nonabrasive cloth. Always clean with the grain. Always

finish with Claire

comparable product to prevent further problems.

Using abrasive pads such as ScotchBrite™ will
cause the graining in the stainless steel to
become blurred.

Rust not cleaned up promptly can penetrate the
surface of the stainless steel and complete
removal of the rust may not be possible.

®

or Barkeepers Friend Cleanser® and

®

Stainless Steel Polish and Cleaner or

CAUTION

!

Wear rubber gloves and safety goggles and/or

face shield when handling Ice Machine Cleaner.

Discard all ice produced in the first harvest.

Should electricity to the unit be interrupted

during the self-clean cycle, the complete

cleaning cycle will repeat after electricity is

restored.

Cleaning 1

USER GUIDE

Standpipe

Evaporator

Water trough

Brush

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Use only U-Line Ice Machine Cleaner (Part No.

37050), available from your dealer or direct from

your local parts distributor. To locate a parts

distributor near you, visit www.u-line.com. It is

a violation of federal law to use this solution in a

manner inconsistent with its labeling. Use of any

other cleaner can ruin the finish of the

evaporator and will void the warranty. Read and

understand all labels printed on the package

before use.

U-Line Ice Machine Cleaner is used to remove lime scale

and other mineral deposits. Refer to the following steps to

initiate the self-cleaning cycle.

CAUTION

!

Never use anything to force ice from the

evaporator. Damage may result.

5. Re-install the standpipe into the water trough.

6. Clean the Interior Bin as follows:

• Dilute one packet of CLR cleaner into two quarts of

water.

• Using a sponge or cloth, clean interior of ice bin,

tubing and door. This cleaner will remove all mineral

deposits and other contaminants from the surfaces.

1. Switch the ice maker

off and allow any ice

to melt off of the

evaporator.

2. Remove all ice from

the storage bin.

3. Remove evaporator

cover.

4. Remove the standpipe by lifting it up while using a

slight back and forth motion to loosen it from the drain

hole. The water in the reservoir will flow down the

drain.

Evaporator cover

• Using a bottle brush, clean out the trough drain tube

and pump tubing where needed.

7. Switch on unit on by pressing .

8. Place unit in cleaning mode. See CONTROL

OPERATION for more detail.

Cleaning 2

USER GUIDE

NOTICE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

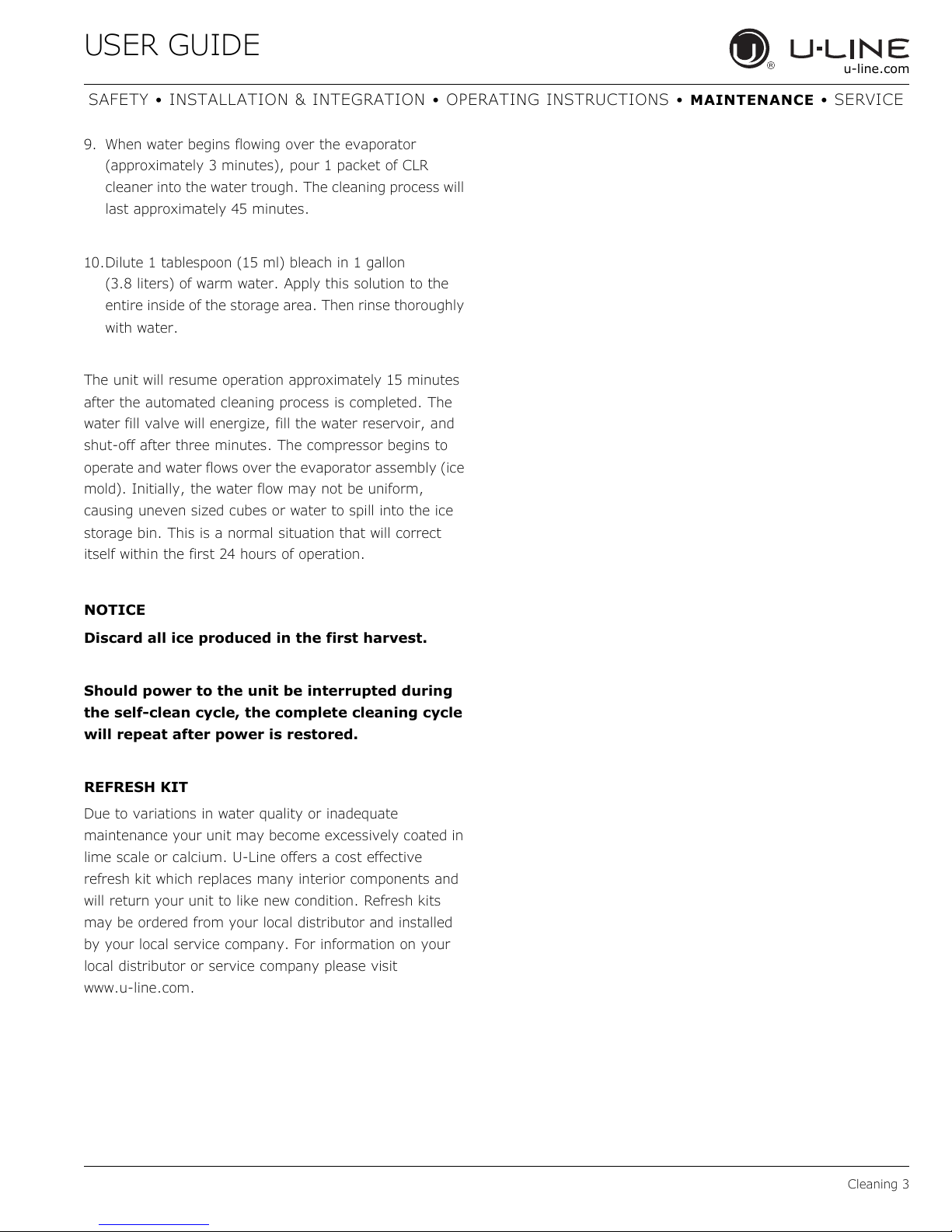

9. When water begins flowing over the evaporator

(approximately 3 minutes), pour 1 packet of CLR

cleaner into the water trough. The cleaning process will

last approximately 45 minutes.

10.Dilute 1 tablespoon (15 ml) bleach in 1 gallon

(3.8 liters) of warm water. Apply this solution to the

entire inside of the storage area. Then rinse thoroughly

with water.

The unit will resume operation approximately 15 minutes

after the automated cleaning process is completed. The

water fill valve will energize, fill the water reservoir, and

shut-off after three minutes. The compressor begins to

operate and water flows over the evaporator assembly (ice

mold). Initially, the water flow may not be uniform,

causing uneven sized cubes or water to spill into the ice

storage bin. This is a normal situation that will correct

itself within the first 24 hours of operation.

Discard all ice produced in the first harvest.

Should power to the unit be interrupted during

the self-clean cycle, the complete cleaning cycle

will repeat after power is restored.

REFRESH KIT

Due to variations in water quality or inadequate

maintenance your unit may become excessively coated in

lime scale or calcium. U-Line offers a cost effective

refresh kit which replaces many interior components and

will return your unit to like new condition. Refresh kits

may be ordered from your local distributor and installed

by your local service company. For information on your

local distributor or service company please visit

www.u-line.com.

Cleaning 3

USER GUIDE

NOTICE

Condenser

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

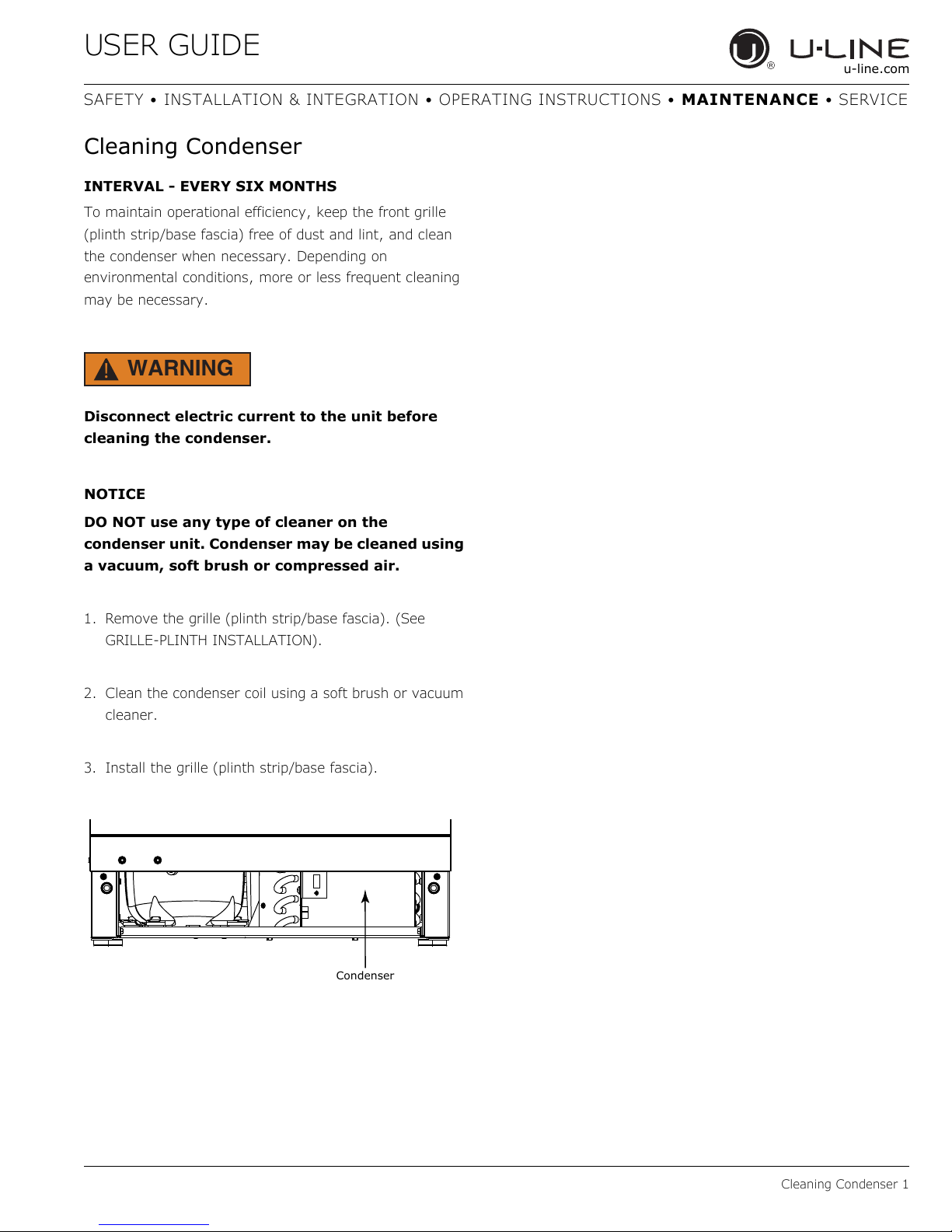

Cleaning Condenser

INTERVAL - EVERY SIX MONTHS

To maintain operational efficiency, keep the front grille

(plinth strip/base fascia) free of dust and lint, and clean

the condenser when necessary. Depending on

environmental conditions, more or less frequent cleaning

may be necessary.

WARNING

!

Disconnect electric current to the unit before

cleaning the condenser.

DO NOT use any type of cleaner on the

condenser unit. Condenser may be cleaned using

a vacuum, soft brush or compressed air.

1. Remove the grille (plinth strip/base fascia). (See

GRILLE-PLINTH INSTALLATION).

2. Clean the condenser coil using a soft brush or vacuum

cleaner.

3. Install the grille (plinth strip/base fascia).

Cleaning Condenser 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

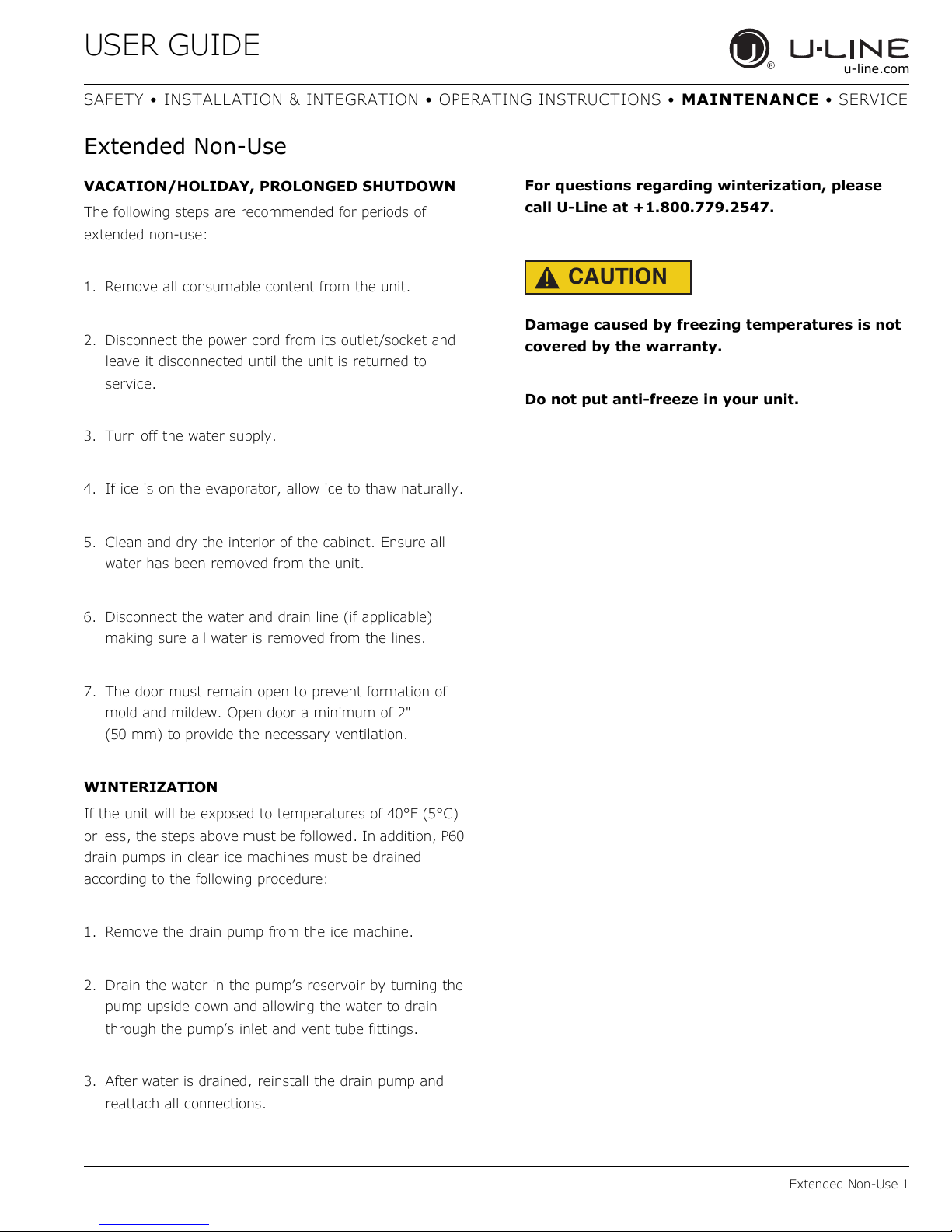

Extended Non-Use

VACATION/HOLIDAY, PROLONGED SHUTDOWN

The following steps are recommended for periods of

extended non-use:

1. Remove all consumable content from the unit.

2. Disconnect the power cord from its outlet/socket and

leave it disconnected until the unit is returned to

service.

3. Turn off the water supply.

4. If ice is on the evaporator, allow ice to thaw naturally.

5. Clean and dry the interior of the cabinet. Ensure all

water has been removed from the unit.

6. Disconnect the water and drain line (if applicable)

making sure all water is removed from the lines.

For questions regarding winterization, please

call U-Line at +1.800.779.2547.

CAUTION

!

Damage caused by freezing temperatures is not

covered by the warranty.

Do not put anti-freeze in your unit.

7. The door must remain open to prevent formation of

mold and mildew. Open door a minimum of 2"

(50 mm) to provide the necessary ventilation.

WINTERIZATION

If the unit will be exposed to temperatures of 40°F (5°C)

or less, the steps above must be followed. In addition, P60

drain pumps in clear ice machines must be drained

according to the following procedure:

1. Remove the drain pump from the ice machine.

2. Drain the water in the pump’s reservoir by turning the

pump upside down and allowing the water to drain

through the pump’s inlet and vent tube fittings.

3. After water is drained, reinstall the drain pump and

reattach all connections.

Extended Non-Use 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

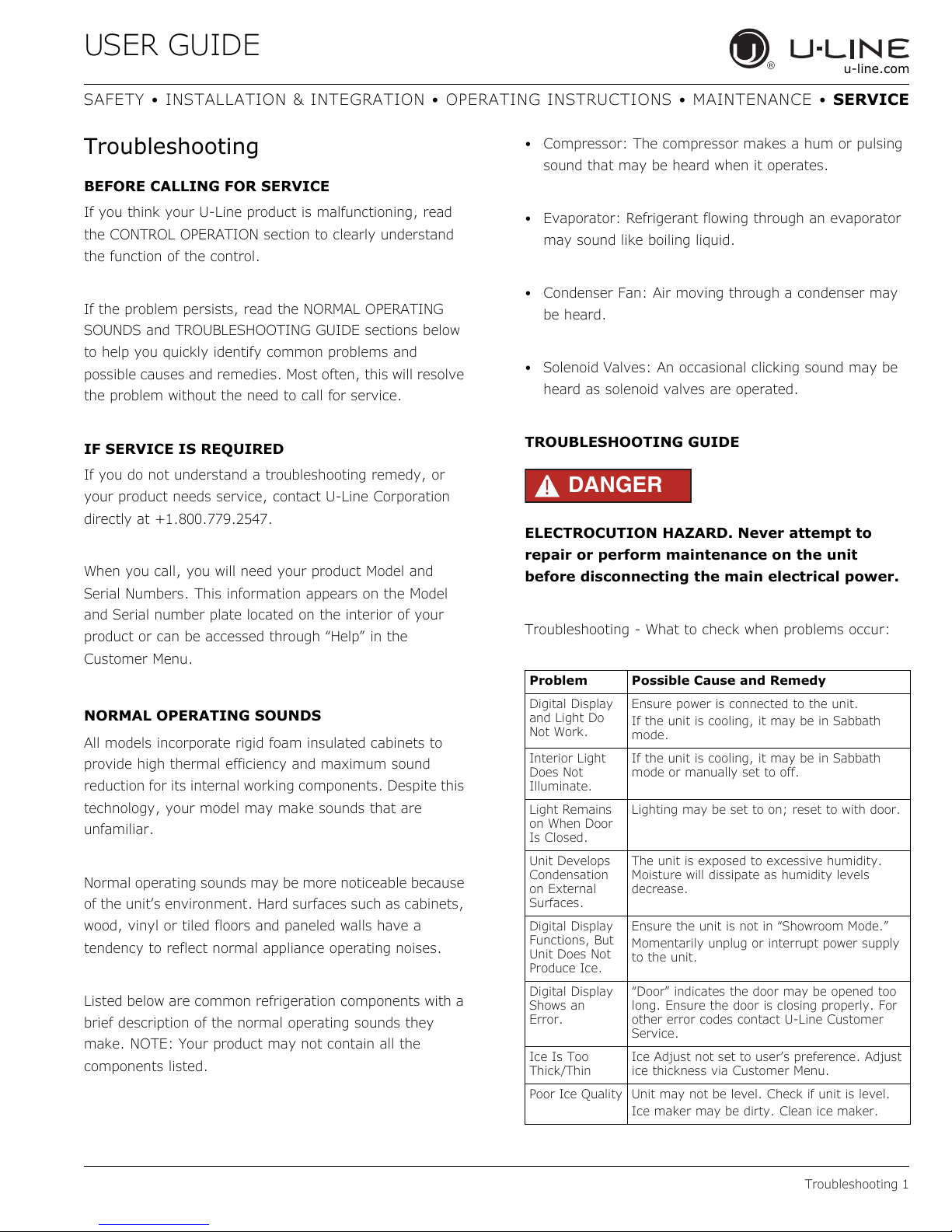

Troubleshooting

BEFORE CALLING FOR SERVICE

If you think your U-Line product is malfunctioning, read

the CONTROL OPERATION section to clearly understand

the function of the control.

If the problem persists, read the NORMAL OPERATING

SOUNDS and TROUBLESHOOTING GUIDE sections below

to help you quickly identify common problems and

possible causes and remedies. Most often, this will resolve

the problem without the need to call for service.

IF SERVICE IS REQUIRED

If you do not understand a troubleshooting remedy, or

your product needs service, contact U-Line Corporation

directly at +1.800.779.2547.

When you call, you will need your product Model and

Serial Numbers. This information appears on the Model

and Serial number plate located on the interior of your

product or can be accessed through “Help” in the

Customer Menu.

NORMAL OPERATING SOUNDS

All models incorporate rigid foam insulated cabinets to

provide high thermal efficiency and maximum sound

reduction for its internal working components. Despite this

technology, your model may make sounds that are

unfamiliar.

Normal operating sounds may be more noticeable because

of the unit’s environment. Hard surfaces such as cabinets,

wood, vinyl or tiled floors and paneled walls have a

tendency to reflect normal appliance operating noises.

Listed below are common refrigeration components with a

brief description of the normal operating sounds they

make. NOTE: Your product may not contain all the

components listed.

• Compressor: The compressor makes a hum or pulsing

sound that may be heard when it operates.

• Evaporator: Refrigerant flowing through an evaporator

may sound like boiling liquid.

• Condenser Fan: Air moving through a condenser may

be heard.

• Solenoid Valves: An occasional clicking sound may be

heard as solenoid valves are operated.

TROUBLESHOOTING GUIDE

DANGER

!

ELECTROCUTION HAZARD. Never attempt to

repair or perform maintenance on the unit

before disconnecting the main electrical power.

Troubleshooting - What to check when problems occur:

Problem Possible Cause and Remedy

Digital Display
and Light Do
Not Work.

Interior Light
Does Not
Illuminate.

Light Remains
on When Door
Is Closed.

Unit Develops
Condensation
on External
Surfaces.

Digital Display
Functions, But
Unit Does Not
Produce Ice.

Digital Display
Shows an
Error.

Ice Is Too
Thick/Thin

Poor Ice Quality Unit may not be level. Check if unit is level.

Ensure power is connected to the unit.
If the unit is cooling, it may be in Sabbath

mode.

If the unit is cooling, it may be in Sabbath
mode or manually set to off.

Lighting may be set to on; reset to with door.

The unit is exposed to excessive humidity.
Moisture will dissipate as humidity levels
decrease.

Ensure the unit is not in “Showroom Mode.”
Momentarily unplug or interrupt power supply

to the unit.

“Door” indicates the door may be opened too
long. Ensure the door is closing properly. For
other error codes contact U-Line Customer
Service.

Ice Adjust not set to user’s preference. Adjust
ice thickness via Customer Menu.

Ice maker may be dirty. Clean ice maker.

Troubleshooting 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Problem Possible Cause and Remedy

No Ice
Production

Not Enough Ice Ensure the condenser coil is clean and free of

Water in Bin Ensure the unit is plugged in. Check if the

Hear Running
Water

Hear Ice Falling After each harvest, ice will fall into the bin.

ERROR NOTIFICATION

The 3000 model series continuously monitors a series of

inputs and parameters to ensure proper and efficient

operation of your unit. Should the system detect a fault, an

error notification will be displayed on the user interface.

See below for a list of errors.

Ensure water is being supplied to the unit.
Verify the ice making unit is turned on.

any dirt or lint buildup.

drain is restricted. Ensure drain is free of
foreign debris and hose is not kinked or
twisted.

During ice creation, the water running over the
evaporator may be heard.

ID Description Solution

No Comm Unit lost

communication to
the display.

Zone T Open Left or right zone

thermistor circuit
open.

Amb Thrm Open Ambient thermistor

circuit open.

Zone T Short Left or right zone

thermistor circuit
shorted.

Disconnect and
reconnect power to
unit. Contact Customer
Care if persistent.

Contact Customer
Care.

Contact Customer
Care.

Contact Customer
Care.

Troubleshooting 2

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Warranty

U-LINE CORPORATION LIMITED WARRANTY

1. U-Line Corporation (“U-Line”) warrants each U-Line

product to be free from defects in materials and

workmanship for a period of one year (two years on

Modular 3000 Series) from the date of purchase.

U-Line further warrants the sealed system (consisting

of the compressor, condenser, evaporator, hot gas

bypass valve, dryer, and connecting tube) in each

U-Line product to be free from defects in materials and

workmanship for a period of five years from the date of

purchase.

2. During the initial one year warranty period (two years

on Modular 3000 Series) for all U-Line products U-Line

shall: (1) repair any product or replace any part of a

product; and (2) for all Marine, RV, and Domestic

U-Line products sold and serviced in the United States

(including Alaska and Hawaii) and Canada, U-Line

shall be responsible for the labor costs performed by a

U-Line authorized service company, incurred in

connection with the replacement of any defective part.

During years two through five of the warranty period

for the sealed system, U-Line shall: (1) at U-Line’s

option repair or replace any part of the sealed system;

and (2) for all Marine, RV, and Domestic U-Line

products sold and serviced in the United States

(including Alaska and Hawaii) and Canada, U-Line shall

be responsible for the labor costs incurred in

connection with the replacement of any defective part

of the sealed system. All other charges, including

transportation charges for replacements under this

warranty and labor costs not specifically covered by

this warranty, shall be the responsibility of the

purchaser. This warranty extends only to the original

purchaser of the U-Line product. The Product

Registration Card included with the product should be

promptly completed by you and mailed back to U-Line,

or you can register on-line at www.u-lineservice.com.

3. The warranty listed above does not apply to floor

display models. The warranty for these models shall

be 30 days from the date of retail purchase and only if

U-Line’s Product Registration Card included with the

unit is completed and mailed back or electronically

submitted to U-Line. This 30 day warranty does not

apply to cosmetic damages. A proof of purchase may

be required.

4. The following conditions are excluded from this limited

warranty: use of cleaners other than the recommended

stainless steel cleaners and U-Line Clear Ice Maker

cleaner; installation charges; damages caused by

disasters or acts of God, such as fire, floods, wind, and

lightning; damages incurred or resulting from shipping,

improper installation, unauthorized modification, or

misuse/abuse of the product; customer education

calls; food loss and spoilage; door and water level

adjustments (except during the first 30 days from the

date of installation); defrosting the product; adjusting

the controls; door reversal; and cleaning the

condenser.

5. U-Line products are designed to operate in ambient

temperatures between 50°F and 100°F unless

otherwise noted in the product manual. Exposure to

temperatures outside this range may cause

degradation of performance and issues, such as lower

ice production or spoiled contents, that are not

covered under the terms of this warranty as a result of

that exposure. U-Line product may not be subjected to

temperatures below 40°F without following the

winterization and vacation shutdown procedures in the

user guide.

6. U-Line’s Outdoor Limited Warranty, set forth in this

Paragraph 6 shall apply to U-Line models deemed

suitable for outdoor use by Underwriters Laboratory

(“UL”) as noted in the U-Line Product Catalog, U-Line’s

website, and/or on the serial tag located inside the

product.

A. Outdoor product may come into contact with rain by

virtue of outdoor use. Exposure to other sources of

water shall also cause this warranty to be void,

including flooding of the area in proximity of the unit

greater than 1/8" deep in water, hurricanes, splashing

Warranty 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

of pool water, or directing a spray from a hose or

similar device into and around the unit.

7. If a product defect is discovered during the applicable

warranty period, you must promptly notify either

U-Line at 8900 N. 55th Street, Milwaukee, Wisconsin

53223 USA or at +1.800.779.2547 or the dealer from

whom you purchased the product. In no event shall

such notification be received later than 30 days after

the expiration of the applicable warranty period. U-Line

may require that defective parts be returned, at your

expense, to U-Line’s factory in Milwaukee, Wisconsin,

for inspection. Any action by you for breach of

warranty must be commenced within one year after

the applicable warranty period.

8. THIS LIMITED WARRANTY IS IN LIEU OF ANY AND ALL

OTHER WARRANTIES, EXPRESS OR IMPLIED,

INCLUDING ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR IMPLIED WARRANTY OF

FITNESS FOR A PARTICULAR PURPOSE, ALL OF WHICH

ARE DISCLAIMED. U-Line’s sole liability, and your

exclusive remedy, under this warranty is set forth in

the paragraphs above. U-Line shall have no liability

whatsoever for any incidental, consequential, or

special damages arising from the sale, use, or

installation of the product or from any other cause

whatsoever, whether based on warranty (express or

implied) or otherwise based on contract, tort, or any

other theory of liability.

Some states do not allow limitations on how long an

implied warranty lasts or the exclusion or limitation of

incidental or consequential damages, so the above

limitations may not apply to you. This warranty gives you

specific legal rights, and you may also have other rights

which vary from state to state.

Warranty 6/2014 Rev.G

Warranty 2

USER GUIDE

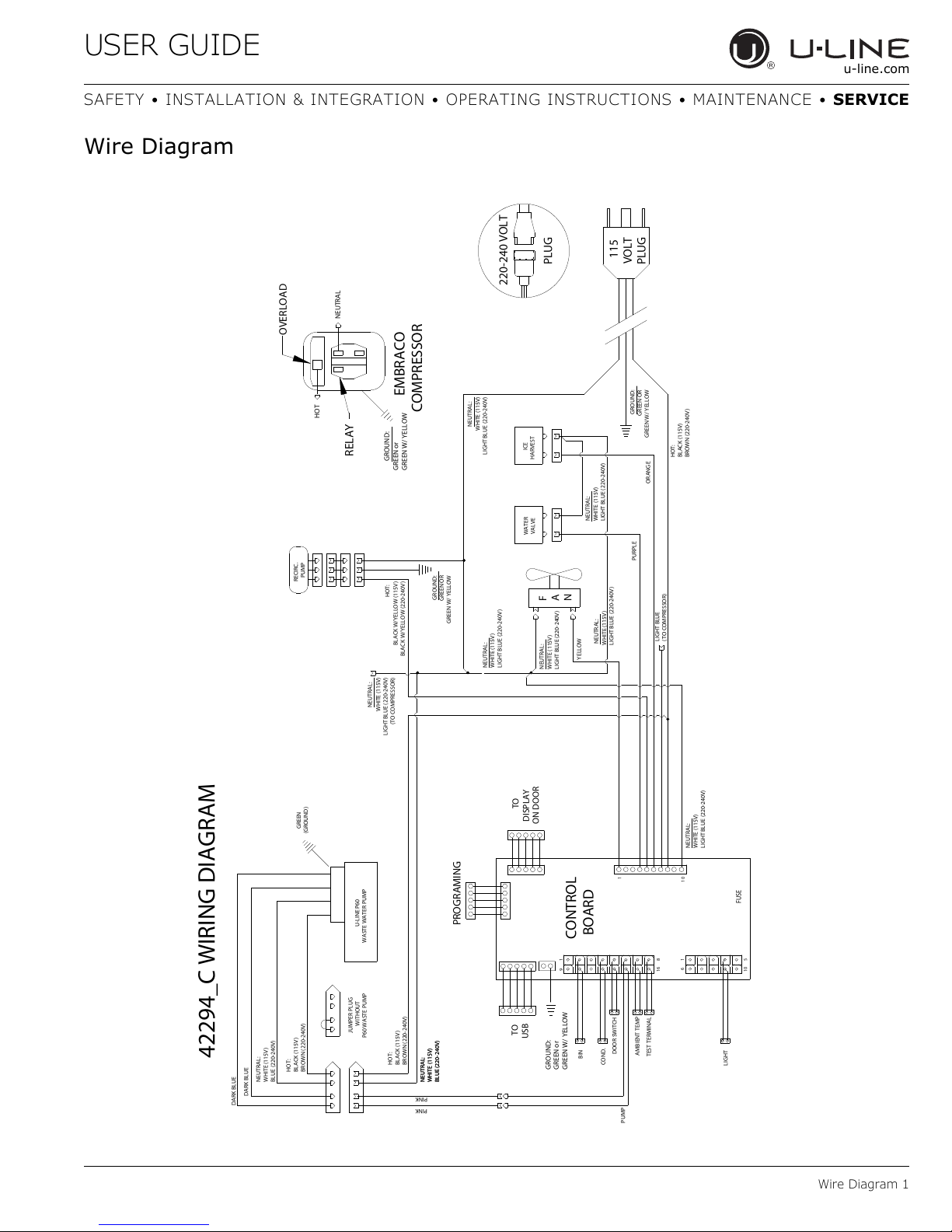

42294_C WIRING DIAGRAM

LIGHT

AMBIENT TEMP

DOOR SWITCH

COND.

BIN

PINK

DARK BLUE

DARK BLUE

JUMPER PLUG

WITHOUT

P60 WASTE PUMP

U-LINE P60

WASTE WATER PUMP

GREEN

(GROUND)

9

1

16

8

6

1

10

5

1

10

LIGHT BLUE

(TO COMPRESSOR)

FAN

NEUTRAL:

WATER

VALVE

ICE

HARVEST

RECIRC.

PUMP

GREEN OR

GREEN W/ YELLOW

GROUND:

WHITE (115V)

LIGHT BLUE (220-240V)

(TO COMPRESSOR)

NEUTRAL:

PURPLE

ORANGE

NEUTRAL:

NEUTRAL:

YELLOW

NEUTRAL:

WHITE (115V)

BLUE (220-240V)

NEUTRAL:

WHITE (115V)

LIGHT BLUE (220-240V)

NEUTRAL:

HOT:

BLACK (115V)

BROWN (220-240V)

BLACK W/YELLOW (115V)

BLACK W/YELLOW (220-240V)

HOT:

HOT:

BLACK (115V)

BROWN (220-240V)

115

VOLT

PLUG

GROUND:

PINK

NEUTRAL:

NEUTRAL:

WHITE (115V)

BLUE (220-240V)

HOT:

BLACK (115V)

BROWN (220-240V)

220-240 VOLT

PLUG

CONTROL

BOARD

FUSE

NEUTRAL

HOT

RELAY

EMBRACO

COMPRESSOR

GREEN or

GREEN W/ YELLOW

GROUND:

OVERLOAD

WHITE (115V)

LIGHT BLUE (220-240V)

WHITE (115V)

LIGHT BLUE (220-240V)

WHITE (115V)

LIGHT BLUE (220-240V)

WHITE (115V)

LIGHT BLUE (220-240V)

WHITE (115V)

LIGHT BLUE (220-240V)

GREEN OR

GREEN W/ YELLOW

PUMP

TEST TERMINAL

NEUTRAL:

WHITE (115V)

BLUE (220-240V)

TO

DISPLAY

TO

USB

GROUND:

GREEN or

GREEN W/ YELLOW

ON DOOR

PROGRAMING

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Wire Diagram

Wire Diagram 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Product Liability

Important Note: Service or repairs must not be performed

on any unit suspected to be involved in a property

damage situation. If a unit has been altered or repaired in

the field prior to U-Line’s evaluation, any claim for

damage may be declined.

Field service technicians are authorized to make an initial

assessment. If in the service technician’s judgment the

damage is the result of a product defect, the product

would be removed and returned to U-Line in an unaltered

condition. The dealer would then be authorized to

permanently replace the end-user’s product at no cost to

the end-user. Please call U-Line immediately at

+1.800.779.2547 to initiate the Return Authorization and

product exchange process.

If the service technician determines the damage is the

result of installation issues (water connection/drain, etc.),

the consumer would be notified and the correction could

be made by the servicer or installer without requiring

removal of the product. In this case, the claim for

damages should be directed to the original installer.

• A Return Authorization Number reference (provided by

U-Line) and customer name when submitting

information.

For shipping:

• Use an OEM shipping carton (U-Line will provide if

needed or packaging can be reused from the

replacement unit) and clearly mark the Return

Authorization Number on the carton before returning

the product.

• When the unit is ready for pickup, contact U-Line at

+1.800.779.2547 and U-Line will make arrangements

for a freight collect shipment.

Upon return to U-Line, the product will be evaluated within

ten business days. No service company is authorized to

make these evaluations in place of U-Line.

U-Line Customer Care staff will review the engineering

evaluation and notify the customer of a valid claim or

provide denial details.

On U-Line Clear Ice product equipped with a drain pump,

the drain pump must be returned along with the unit,

regardless of the drain pump manufacturer.

To complete the damage claim process for the customer,

please forward the following to U-Line via fax

(+1.414.354.5696), email ([e-mail]),

or mail:

• Pictures of the damage, U-Line product, property

damage and installation (supply and drain connections,

if applicable).

• A brief description of the damages and product service

history (if possible).

• Damage estimates.

8900 N. 55th Street • Milwaukee, WI 53223

T: +1.414.354.0300 • F: +1.414.354.354.5696

Website: www.u-line.com

Right product. Right place.

Right temperature Since 1962.

Product Liability 1

USER GUIDE

14 30911- 1 2- XXXX

Year

Month

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

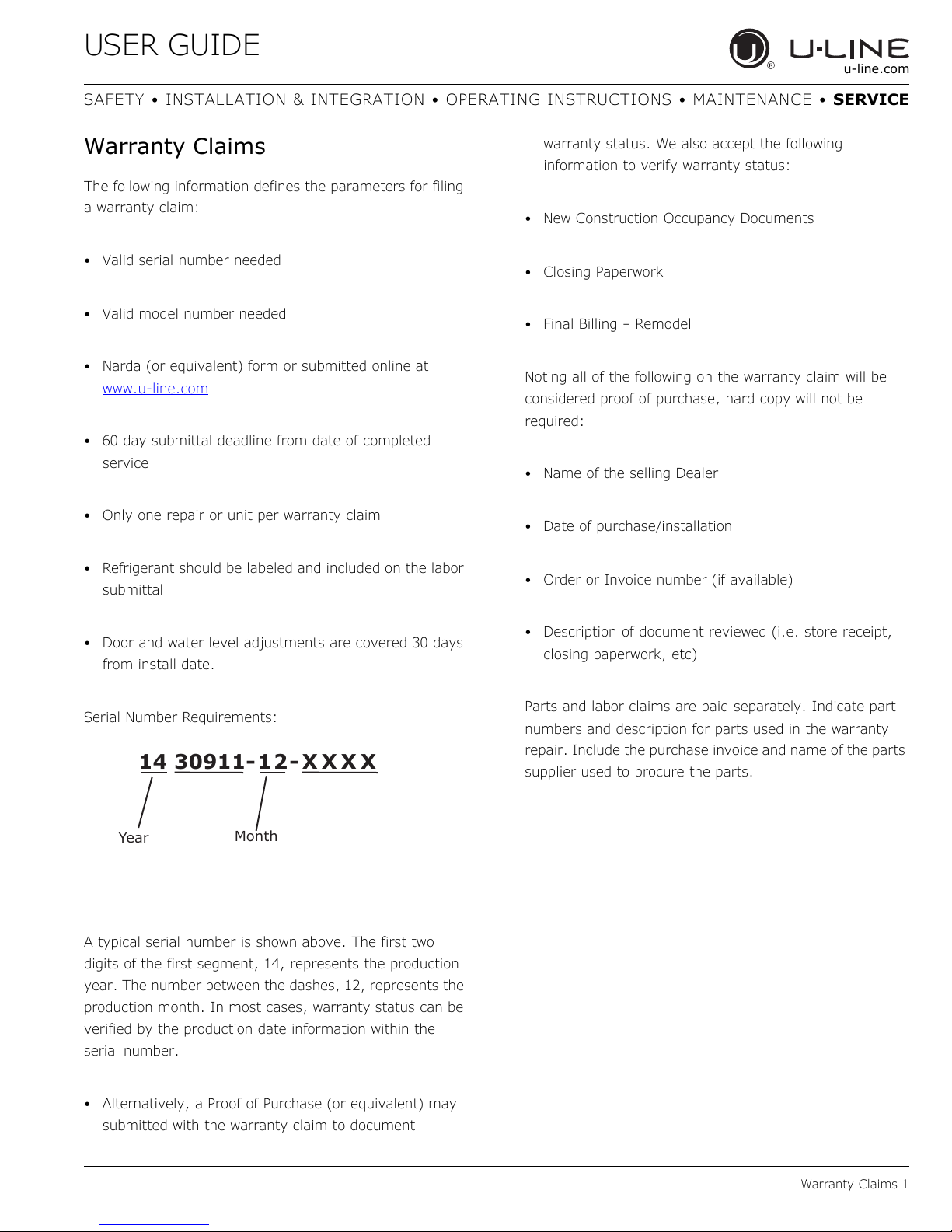

Warranty Claims

The following information defines the parameters for filing

a warranty claim:

• Valid serial number needed

• Valid model number needed

• Narda (or equivalent) form or submitted online at

www.u-line.com

• 60 day submittal deadline from date of completed

service

• Only one repair or unit per warranty claim

• Refrigerant should be labeled and included on the labor

submittal

warranty status. We also accept the following

information to verify warranty status:

• New Construction Occupancy Documents

•Closing Paperwork

• Final Billing – Remodel

Noting all of the following on the warranty claim will be

considered proof of purchase, hard copy will not be

required:

• Name of the selling Dealer

• Date of purchase/installation

• Order or Invoice number (if available)

• Door and water level adjustments are covered 30 days

from install date.

Serial Number Requirements:

A typical serial number is shown above. The first two

digits of the first segment, 14, represents the production

year. The number between the dashes, 12, represents the

production month. In most cases, warranty status can be

verified by the production date information within the

serial number.

• Description of document reviewed (i.e. store receipt,

closing paperwork, etc)

Parts and labor claims are paid separately. Indicate part

numbers and description for parts used in the warranty

repair. Include the purchase invoice and name of the parts

supplier used to procure the parts.

• Alternatively, a Proof of Purchase (or equivalent) may

submitted with the warranty claim to document

Warranty Claims 1

USER GUIDE

NOTICE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Ordering Replacement Parts

Parts may be ordered on-line, by Fax or on the phone.

See our contact information below:

www.U-LineService.com (with service login)

FAX Number: +1.414.354.5696

Phone Number: +1.800.779.2547

Use only genuine U-Line replacement parts. The

use of non-U-Line parts can reduce speed of ice

production, cause water to overflow from ice

maker mold, damage the unit, and void the

warranty.

Warranty parts will be shipped at no charge after U-Line

confirms warranty status. Please provide the model, serial

number, part number and part description. Some parts

will require color or voltage information.

If U-Line requires the return of original parts, we will

inform you when the parts order is taken. This

requirement will be noted on your packing list. A prepaid

shipping label will be included with the replacement part.

Please enclose a copy of the parts packing list and any

labor claims with your return. Please be sure the model

and serial numbers are legible on the paperwork. Tag the

part with the reported defect.

When ordering a non-warranty part, you will need an open

account and tax exemption on file at U-Line. Another

option would be to visit www.u-line.com to locate an

authorized parts distributor in your area.

Ordering Replacement Parts 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

System Diagnosis Guide

REFRIGERATION SYSTEM DIAGNOSIS GUIDE

System
Condition

Normal Normal Slightly below

Overcharge Higher than

Undercharge Lower than

Partial
Restriction

Complete
Restriction

No Gas 0 PSIG to 25" Room

Suction
Pressure

normal

normal

Somewhat
lower than
normal vacuum

In deep
vacuum

Suction
Line

room
temperature

Very cold may
frost heavily

Warm-near
room
temperature

Warm - near
room
temperature

Room
temperature
(cool)

temperature
(cool)

Compressor
Discharge

Very hot Very hot Warm Cold Normal

Slightly warm
to hot

Hot Warm Warm Extremely cold

Very hot Top passes

Room
temperature
(cool)

Cool to hot Room

Condenser Capillary

Hot to warm Cool Cold Higher than

warm - Lower
passes cool
(near room
temperature)
due to liquid

Room
temperature
(cool)

temperature
(cool)

Tube

Room
temperature
(cool) or
colder

Room
temperature
(cool)

Room
temperature
(cool)

Evaporator Wattage

normal

Lower than
near inlet -
Outlet below
room
temperature

Extremely cold
near inlet -
Outlet below
room
temperature
backing up

No refrigeration Lower than

No refrigeration Lower than

normal

Lower than

normal

normal

normal

System Diagnosis Guide 1

USER GUIDE

ULIN_0576_AW

RS

C

OVERLOAD PROTECTOR

STARTING RELAY

RELAY COVER

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

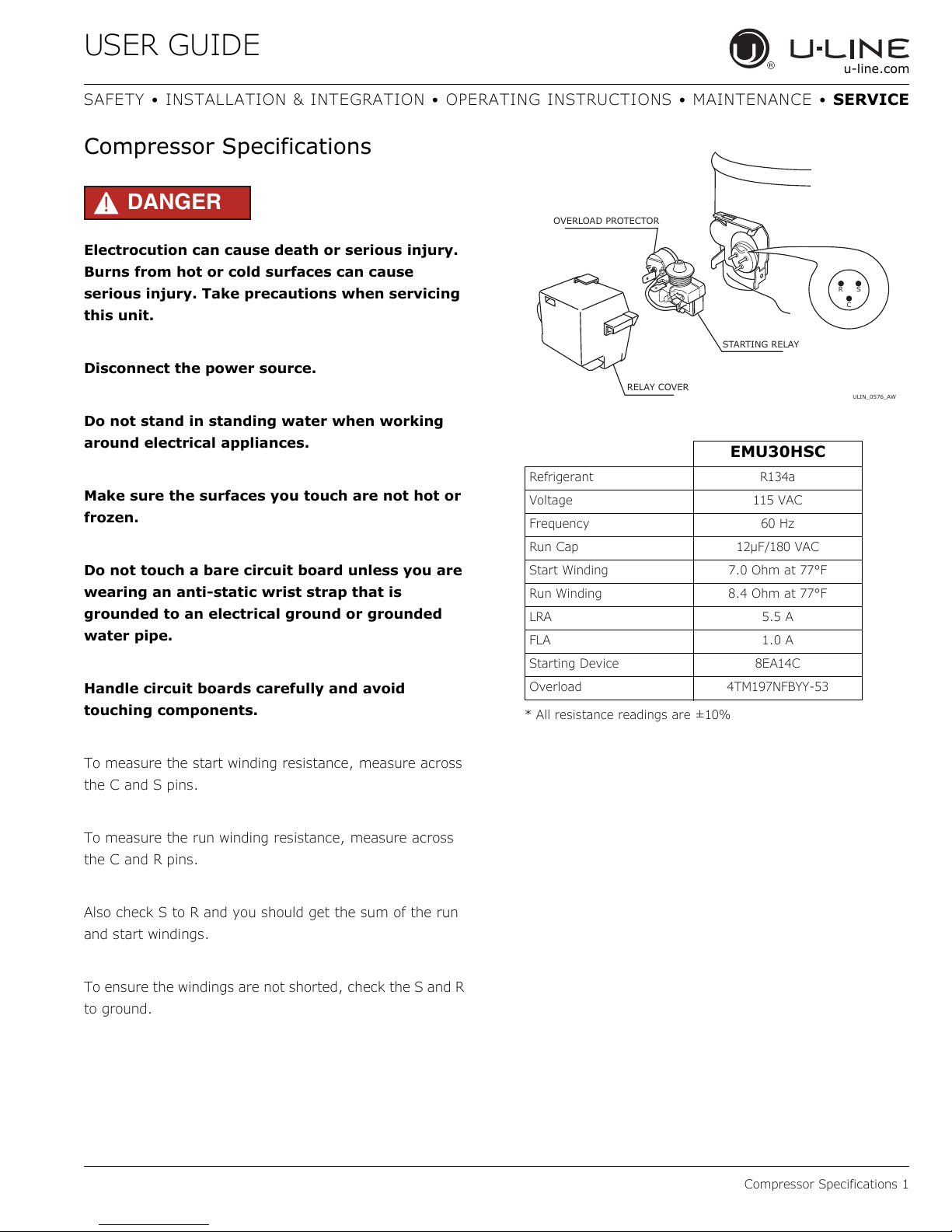

Compressor Specifications

DANGER

!

Electrocution can cause death or serious injury.

Burns from hot or cold surfaces can cause

serious injury. Take precautions when servicing

this unit.

Disconnect the power source.

Do not stand in standing water when working

around electrical appliances.

Make sure the surfaces you touch are not hot or

frozen.

Do not touch a bare circuit board unless you are

wearing an anti-static wrist strap that is

grounded to an electrical ground or grounded

water pipe.

Handle circuit boards carefully and avoid

touching components.

Refrigerant R134a

Voltage 115 VAC

Frequency 60 Hz

Run Cap 12μF/180 VAC

Start Winding 7.0 Ohm at 77°F

Run Winding 8.4 Ohm at 77°F

LRA 5.5 A

FLA 1.0 A

Starting Device 8EA14C

Overload 4TM197NFBYY-53

* All resistance readings are ±10%

EMU30HSC

To measure the start winding resistance, measure across

the C and S pins.

To measure the run winding resistance, measure across

the C and R pins.

Also check S to R and you should get the sum of the run

and start windings.

To ensure the windings are not shorted, check the S and R

to ground.

Compressor Specifications 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Troubleshooting - Extended

SPECIFIC ERRORS AND ISSUES

The technically advanced diagnostic capabilities of the

electronic controls utilized on the 3000 series units allows

for easy and thorough trouble shooting.

Navigation of the control is the key and is explained in the

CONTROL OPERATION section of the manual, along with

control button layout, control function descriptions, a

service mode menu and service menu selection

explanations.

Verification of temperature and thermistor performance

can be identified by directly viewing actual temperature

readings in the service mode.

Component failure issues can be identified through service

mode menu selection, “Relay Toggle” Individual

components can be switched on and off to check for both

proper function of a specific component and also delivery

of supply voltage to the components through the relays

and DC outputs located on the relay/power board.

Listed below are common refrigeration components with a

brief description of the normal operating sounds they

make. NOTE: Your product may not contain all the

components listed.

• Compressor: The compressor makes a hum or pulsing

sound that may be heard when it operates.

• Evaporator: Refrigerant flowing through an evaporator

may sound like boiling liquid.

• Condenser Fan: Air moving through a condenser may

be heard.

• Automatic Defrost Drain Pan: Water may be heard

dripping or running into the drain pan when the unit is

in the defrost cycle.

• Solenoid Valves: An occasional clicking sound may be

heard as solenoid valves are operated.

Included in this section is some diagnostic tips and as

always, if additional help is required please contact the

U-Line Corp, “Customer Care Facility” at +1.800.779.2547

for assistance.

NORMAL OPERATING SOUNDS

All models incorporate rigid foam insulated cabinets to

provide high thermal efficiency and maximum sound

reduction for its internal working components. Despite this

technology, your model may make sounds that are

unfamiliar.

Normal operating sounds may be more noticeable because

of the unit’s environment. Hard surfaces such as cabinets,

wood, vinyl or tiled floors and paneled walls have a

tendency to reflect normal appliance operating noises.

Troubleshooting - Extended 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

TROUBLESHOOTING GUIDE.

Concern Potential Causes Suggested Remedy

No Display or
Interior Lights

No Interior Light Light may be set to OFF

Condensation on
exterior of unit

No Ice Production Is unit level, is the unit getting water, is

Low Ice Production Dirty evaporator, dirty condenser, faulty bin

Ice Does Not Fall
Off During Harvest

Error Message in
Digital Display

Ice is Too Thick/
Thin

Standing Water in
Ice Bin

Poor Ice Quality Is unit level, is the evaporator dirty? Monitor freeze mode to watch water distribution over evaporator,

Unit may be in Sabbath mode Hold for 5 seconds to turn off Sabbath mode, test the door switch

Check LED strip for power
Defective door switch
Is unit exposed to high humidity or high

ambient temps?

circulation pump working?

thermistor

Dirty evaporator, unit not level, faulty hot gas
valve

Check error log View errors in service mode, review error and take corrective action to

Dirty evaporator, water starvation, faulty hot
gas valve

Drain hose is restricted, debris in bin drain
hole, failed drain pump

circuit

Use component testing in service mode and test light circuit,
manually test door switch

Moisture will dissipate as ambient temperature and humidity levels
fall. Keep exterior of unit well polished to protect surface.

Monitor freeze cycle to assure proper water distribution over
evaporator. Go to component testing and turn off fill valve, level unit
if needed.

Clean the evaporator using U-Line cleaner, clean the condenser coil if
needed, check bin thermistor reading in service mode.

Clean the evaporator if needed, level unit if needed, test function of
hot gas bypass valve using relay toggle in service mode.

resolve.

Clean evaporator if needed, check water supply, test harvest mode,
adjust ice thickness.

Make sure drain hose run is as straight as possible. Remove any kinks
or tight bends, pour 1/2 gallon of water into bin to test drain.

level unit if needed, clean evaporator if needed.

Troubleshooting - Extended 2

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

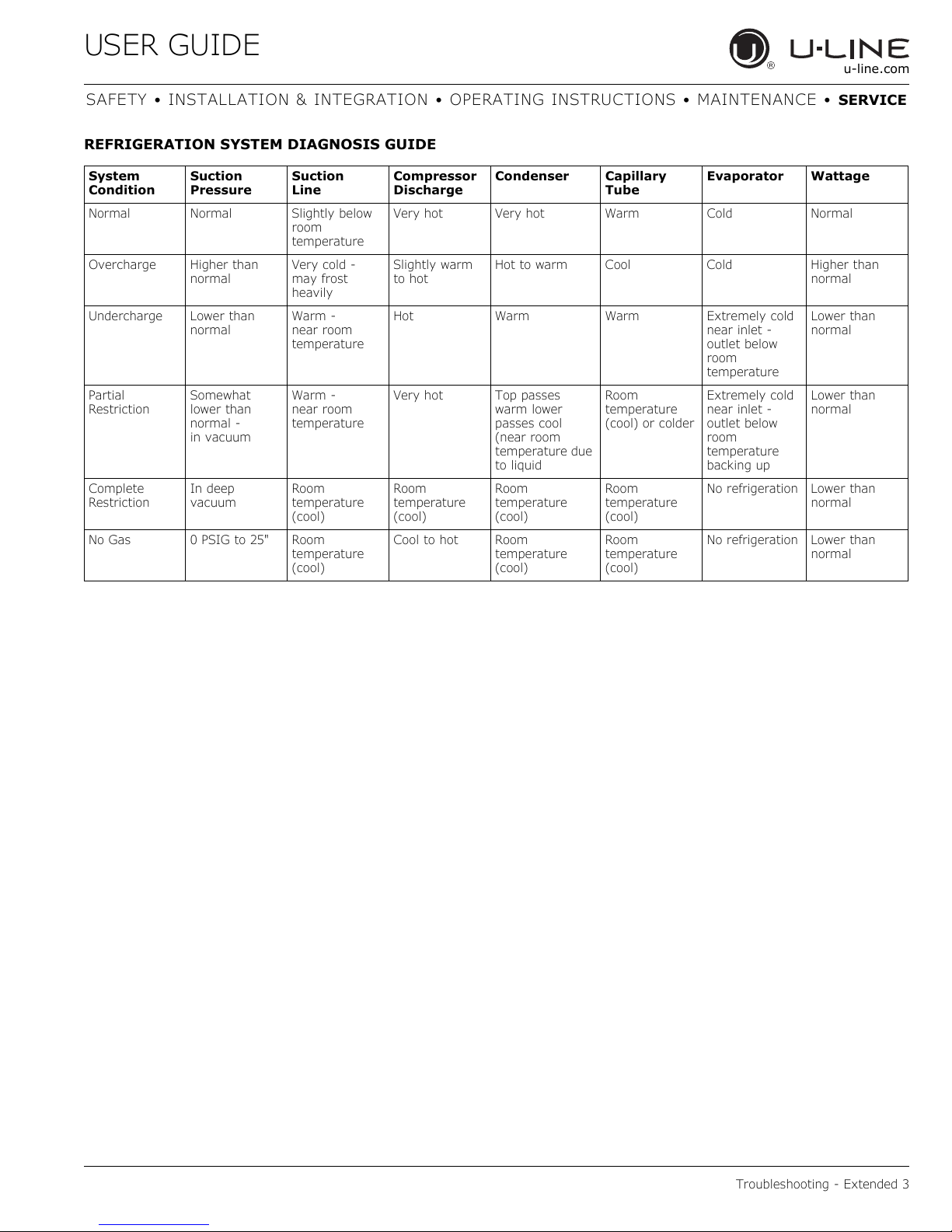

REFRIGERATION SYSTEM DIAGNOSIS GUIDE

System
Condition

Normal Normal Slightly below

Overcharge Higher than

Undercharge Lower than

Partial
Restriction

Complete
Restriction

No Gas 0 PSIG to 25" Room

Suction
Pressure

normal

normal

Somewhat
lower than
normal -
in vacuum

In deep
vacuum

Suction
Line

room
temperature

Very cold -
may frost
heavily

Warm -
near room
temperature

Warm -
near room
temperature

Room
temperature
(cool)

temperature
(cool)

Compressor
Discharge

Very hot Very hot Warm Cold Normal

Slightly warm
to hot

Hot Warm Warm Extremely cold

Very hot Top passes

Room
temperature
(cool)

Cool to hot Room

Condenser Capillary

Hot to warm Cool Cold Higher than

warm lower
passes cool
(near room
temperature due
to liquid

Room
temperature
(cool)

temperature
(cool)

Tube

Room
temperature
(cool) or colder

Room
temperature
(cool)

Room
temperature
(cool)

Evaporator Wattage

normal

Lower than
near inlet -
outlet below
room
temperature

Extremely cold
near inlet -
outlet below
room
temperature
backing up

No refrigeration Lower than

No refrigeration Lower than

normal

Lower than

normal

normal

normal

Troubleshooting - Extended 3

USER GUIDE

Check Voltage

At Wall Outlet

Verify Voltage

At Main Control

Voltage Input

Check Fuse F1
For Continuity

Open Door.

Is the UI Now

Functional?

Replace Main

Board

Replace Reed

Switch.

Replace

Fuse

Replace

Power Cord

Alert Customer

Of Power Failure

Is the Reed

Switch Operating

Properly?

Is the door open? The
Display will not activate
while the door is closed

Inspect Customer UI

and Data Cable

Connect Test Display

To J5.

Cycle Power And

Check For Operation

No Voltage

No Voltage

Voltage

Continuity

Operating

Not Operating

No Continuity

No

No

No

Yes

Yes

Yes

Voltage

Up

Error ID

Number

Of Occurrences Select

Down

RETURN TO MENU

ALL ERRORS

NO COMM 0

ZONE T OPEN 0

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

MAIN CONTROL

The main control board is very robust and is rarely the

cause of system issues. It is important to fully diagnose

the board for any suspected failures before attempting to

remove the board for replacement or service. Follow the

guidelines below to fully test and diagnose the main

control.

Power Fault

If the unit does not (or seems to not) power on, follow the

flow chart below to help diagnose the issue. Before

beginning it is important to first verify the unit is not

simply set to sabbath mode.

ALL ERRORS

The All Errors option keeps record of any system errors.

When an error occurs it is recorded to all errors. The

number next to the error indicates the number of recorded

instances. Errors in the log may not be currently active.

The error log memory is non volatile and is persistent

should power be lost and restored to the unit. See below

for a list of logged errors and their respective descriptions.

ID Description Solution

No Comm Unit lost

communication
to the display.

Bin T Open Bin thermistor circuit

open.

Condenser
T Open

Condenser
thermistor circuit
open.

Bin T Short Bin thermistor circuit

shorted.

Condenser
T Short

Condenser
thermistor circuit
shorted.

Temp Hi

Not used. Not used.

6H+

Temp Hi

Not used. Not used.

12H+

Temp Lo

Not used. Not used.

6H+

Temp Lo

Not used. Not used.

12H+

Door Open 5MDoor switch open for

more then 5
minutes.

Time To
Clean

Water circulation
system requires
cleaning.

Blocked
Drain

Drain pump has
detected a problem.

Check display cable.
Replace if necessary.

Check connection.
Replace if necessary.

Check connection.
Replace if necessary.

Check connection.
Replace if necessary.

Check connection.
Replace if necessary.

Check reed switch and
connection.

Clean unit with 37050
cleaner.

Check drain hose for
restriction or drain pump
for correct operation.

To access All Errors follow the steps below.

1. Press to select “All Errors”.

Troubleshooting - Extended 4

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

2. Press .

3. Press and to scroll through available

information.

4. To clear the error log, press to select “Clear Errors”

and press to confirm.

The refrigerant vapor leaving the evaporator travels

through the suction line to the compressor inlet. The

compressor takes the low pressure vapor and compresses

it, increasing both pressure and temperature. The hot

high pressure gas is pumped out the discharge line and

into the condenser. The cycle continues.

Troubleshooting - Extended 5

USER GUIDE

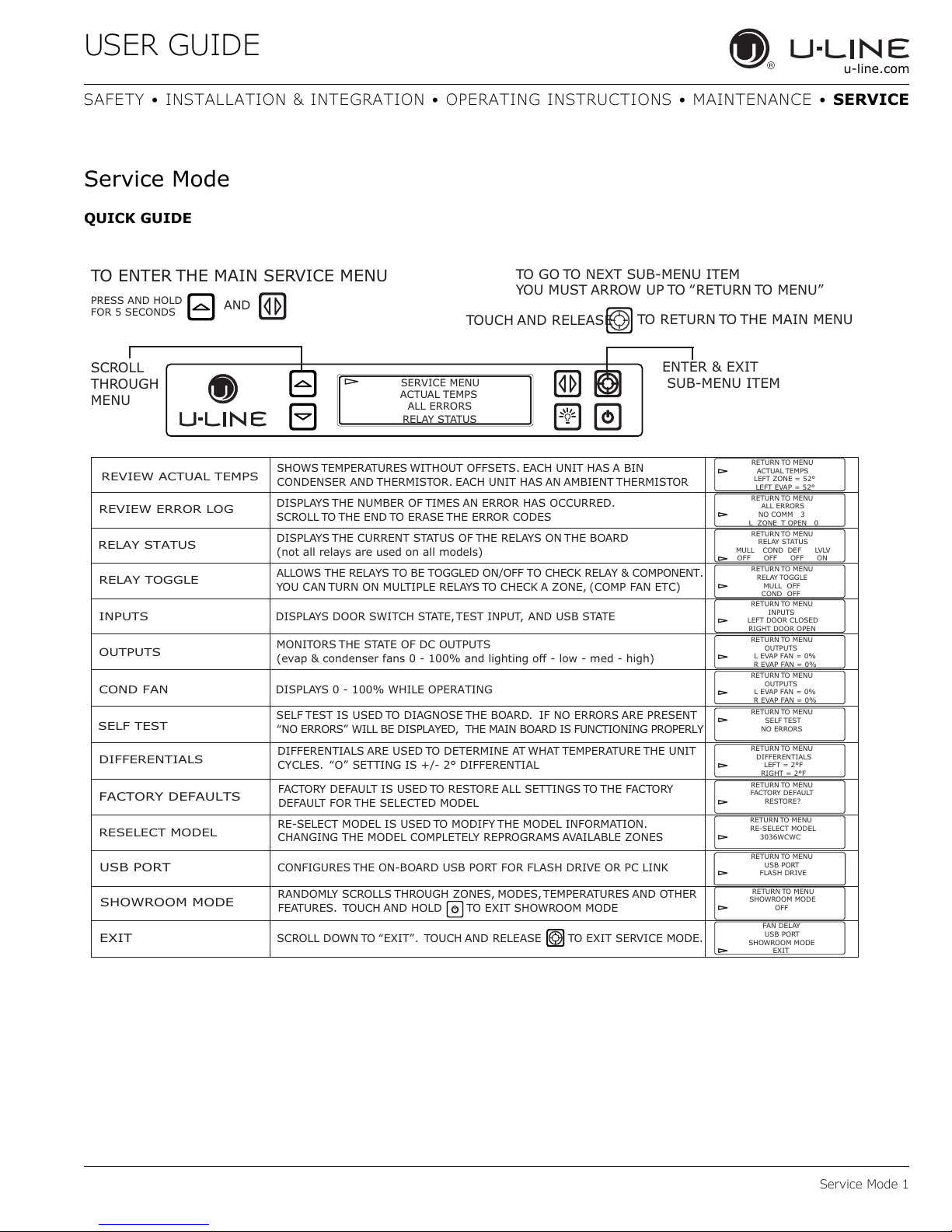

REVIEW ACTUAL TEMPS

REVIEW ERROR LOG

RELAY STATUS

RELAY TOGGLE

INPUTS

O

UTPUTS

OFFSETS

SELF TEST

DIFFERENTIALS

SET POINTS

FACTORY DEFAULTS

RESELECT MODEL

FAN DELAY (Not available
for this model)

USB PORT

SHOWROOM MODE

EXIT

TO ENTER THE MAIN SERVICE MENU

PRESS AND HOLD

FOR 5 SECONDS

AND

SERVICE MENU
ACTUAL TEMPS

RELAY STATUS

ALL ERRORS

ENTER & EXIT
SUB-MENU ITEM

SC

ROLL

TH

ROUGH

MENU

SHOWS TEMPERATURES WITHOUT OFFSETS. EACH UNIT HAS A BIN AND
CONDENSER THERMISTOR. EACH UNIT HAS AN AMBIENT THERMISTOR

RETURN TO MENU

ACTUAL TEMPS

BIN TEMP = 11°C

CONDENSER = 3.5°C

RETURN TO MENU

ALL ERRORS

NO COMM 3

L ZONE T OPEN 0

RETURN TO MENU

RELAY STATUS

MULL COND DEF LVLV

OFF OFF OFF ON

RETURN TO MENU

RELAY TOGGLE

MULL OFF

COND OFF

RETURN TO MENU

INPUTS

DOOR CLOSED

RETURN TO MENU

OUTPUTS

EVAP FAN = 0%

RETURN TO MENU

OFFSETS

BIN = -2°C

LEFT = 2°C

RIGHT = 2°C

RETURN TO MENU

SELF TEST

NO ERRORS

RETURN TO MENU

DIFFERENTIALS

RETURN TO MENU

SET POINTS

BIN = 12°C

RETURN TO MENU
FACTORY DEFAULT

RESTORE?

RETURN TO MENU
RE-SELECT MODEL

3090WCWC

RETURN TO MENU

FAN 2 DELAY ON = 2

RETURN TO MENU

USB PORT

FLASH DRIVE

RETURN TO MENU

SHOWROOM MODE

OFF

FAN DELAY

USB PORT

SHOWROOM MODE

EXIT

RANDOMLY SCROLLS THROUGH ZONES, MODES, TEMPERATURES AND OTHER
FEATURES. TOUCH AND HOLD

TO EXIT SHOWROOM MODE

SCROLL DOWN TO “EXIT”. TOUCH AND RELEASE TO EXIT SERVICE MODE.

CONFIGURES THE ON-BOARD USB PORT FOR FLASH DRIVE OR PC LINK

DISPLAYS THE NUMBER OF TIMES AN ERROR HAS OCCURRED.
SCROLL TO THE END TO ERASE THE ERROR CODES

DISPLAYS THE CURRENT STATUS OF THE RELAYS ON THE BOARD
(not all relays are used on all models)

ALLOWS THE RELAYS TO BE TOGGLED ON/OFF TO CHECK RELAY & COMPONENT.
YOU CAN TURN ON MULTIPLE RELAYS TO CHECK A ZONE, (COMP FAN ETC)

DISPLAYS DOOR SWITCH STATE, TEST INPUT, AND USB STATE

MONITORS THE STATE OF DC OUTPUTS
(evaSFRQGHQVHUIDQVDQGOLJKWLQJRɞOow - med - high)

OFFSETS ARE USED TO ADJUST OR CORRECT THERMISTOR READINGS.
CORRECTED VALUES MAY BE VIEWED THROUGH THE CUSTOMER MENU

SELF TEST IS USED TO DIAGNOSE THE BOARD. IF NO ERRORS ARE PRESENT
“NO ERRORS” WILL BE DISPLAYED, THE MAIN BOARD IS FUNCTIONING PROPERLY

DIFFERENTIALS ARE USED TO DETERMINE AT WHAT TEMPERATURE THE UNIT
CYCLES. “O” SETTING IS +/- 2° DIFFERENTIAL

THE SET POINTS MENU IS USED TO MODIFY THE BIN SET POINT

FACTORY DEFAULT IS USED TO RESTORE ALL SETTINGS TO THE FACTORY
DEFAULT FOR THE SELECTED MODEL

FAN DELAY ALLOWS MODIFICATION OF FAN RUN TIMES BOTH AT THE START
OF A COOLING CYCLE AND AT THE END AFTER THE COMPRESSOR STOPS

RE-SELECT MODEL IS USED TO MODIFY THE MODEL INFORMATION. CHANGING
THE MODEL COMPLETELY REPROGRAMS AVAILABLE ZONES

TO GO TO NEXT SUB-MENU ITEM
YOU MUST ARROW UP TO “RETURN TO MENU”

TOUCH AND RELEASE

TO RETURN TO THE MAIN MENU

Temperature can be displayed
in Fahrenheit or Celsius

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Control Operation - Service

Control Operation - Service 1

USER GUIDE

Up

Select

Down

RETURN TO MENU

ACTUAL TEMPS

ZONE = 37°
EVAP = 52°

Can be displayed in Celsius

Up

Error ID

Number

Of Occurrences Select

Down

RETURN TO MENU

ALL ERRORS

NO COMM 0

ZONE T OPEN 0

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

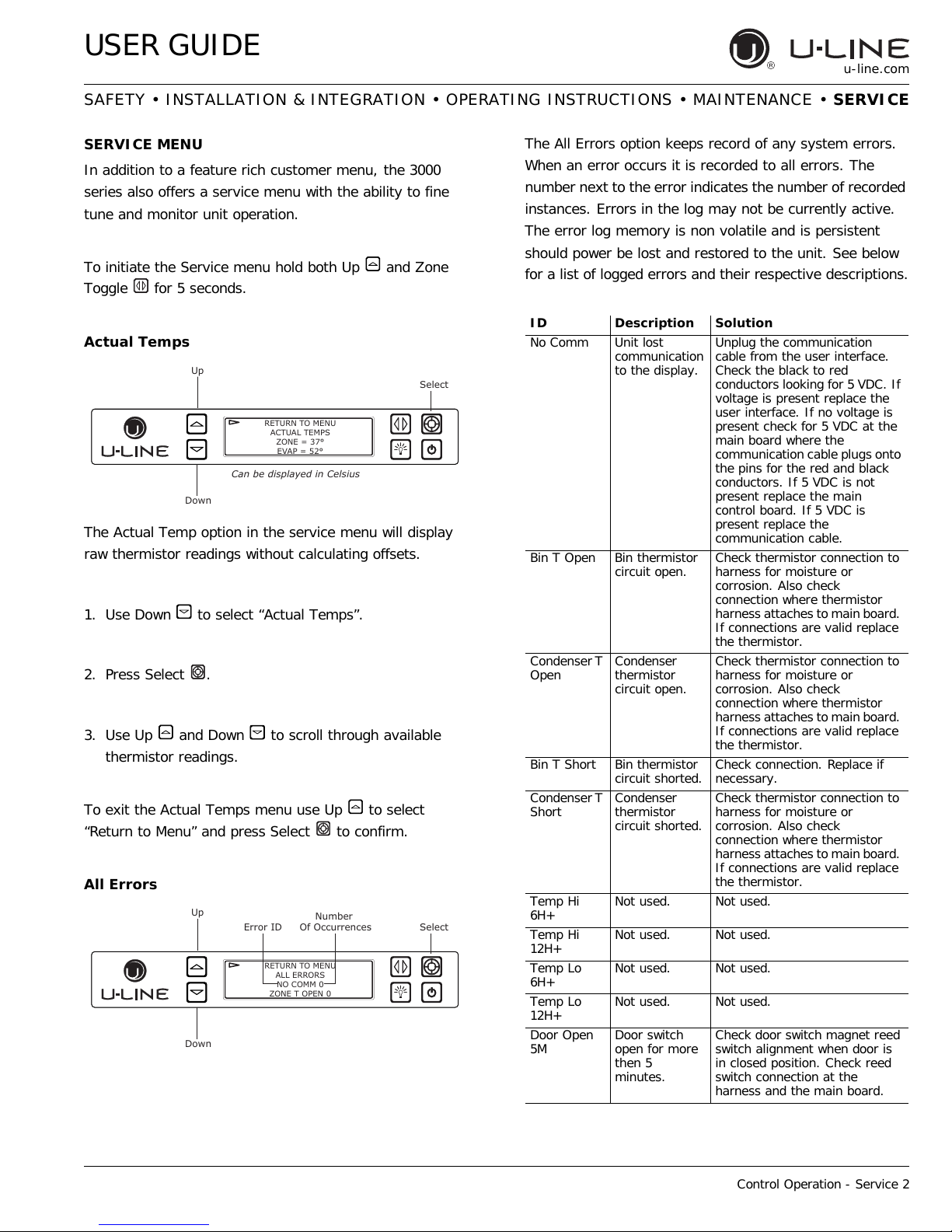

SERVICE MENU

In addition to a feature rich customer menu, the 3000
series also offers a service menu with the ability to fine
tune and monitor unit operation.

To initiate the Service menu hold both Up and Zone
Toggle for 5 seconds.

Actual Temps

The Actual Temp option in the service menu will display
raw thermistor readings without calculating offsets.

1. Use Down to select “Actual Temps”.

2. Press Select .

3. Use Up and Down to scroll through available
thermistor readings.

To exit the Actual Temps menu use Up to select
“Return to Menu” and press Select to confirm.

All Errors

The All Errors option keeps record of any system errors.
When an error occurs it is recorded to all errors. The
number next to the error indicates the number of recorded
instances. Errors in the log may not be currently active.
The error log memory is non volatile and is persistent
should power be lost and restored to the unit. See below
for a list of logged errors and their respective descriptions.

ID Description Solution

No Comm Unit lost

communication
to the display.

Bin T Open Bin thermistor

circuit open.

Condenser T
Open

Condenser
thermistor
circuit open.

Bin T Short Bin thermistor

circuit shorted.

Condenser T
Short

Condenser
thermistor
circuit shorted.

Temp Hi

Not used. Not used.

6H+
Temp Hi

Not used. Not used.

12H+
Temp Lo

Not used. Not used.

6H+
Temp Lo

Not used. Not used.

12H+
Door Open 5MDoor switch

open for more
then 5
minutes.

Unplug the communication
cable from the user interface.
Check the black to red
conductors looking for 5 VDC. If
voltage is present replace the
user interface. If no voltage is
present check for 5 VDC at the
main board where the
communication cable plugs onto
the pins for the red and black
conductors. If 5 VDC is not
present replace the main
control board. If 5 VDC is
present replace the
communication cable.

Check thermistor connection to
harness for moisture or
corrosion. Also check
connection where thermistor
harness attaches to main board.
If connections are valid replace
the thermistor.

Check thermistor connection to
harness for moisture or
corrosion. Also check
connection where thermistor
harness attaches to main board.
If connections are valid replace
the thermistor.

Check connection. Replace if
necessary.

Check thermistor connection to
harness for moisture or
corrosion. Also check
connection where thermistor
harness attaches to main board.
If connections are valid replace
the thermistor.

Check door switch magnet reed
switch alignment when door is
in closed position. Check reed
switch connection at the
harness and the main board.

Control Operation - Service 2

USER GUIDE

Up

Select

Down

RETURN TO MENU

RELAY STATUS

MULL COND DEF LVLV

OFF OFF OFF OFF

Up

Select

Down

RETURN TO MENU

RELAY TOGGLE

MULL OFF
COND OFF

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

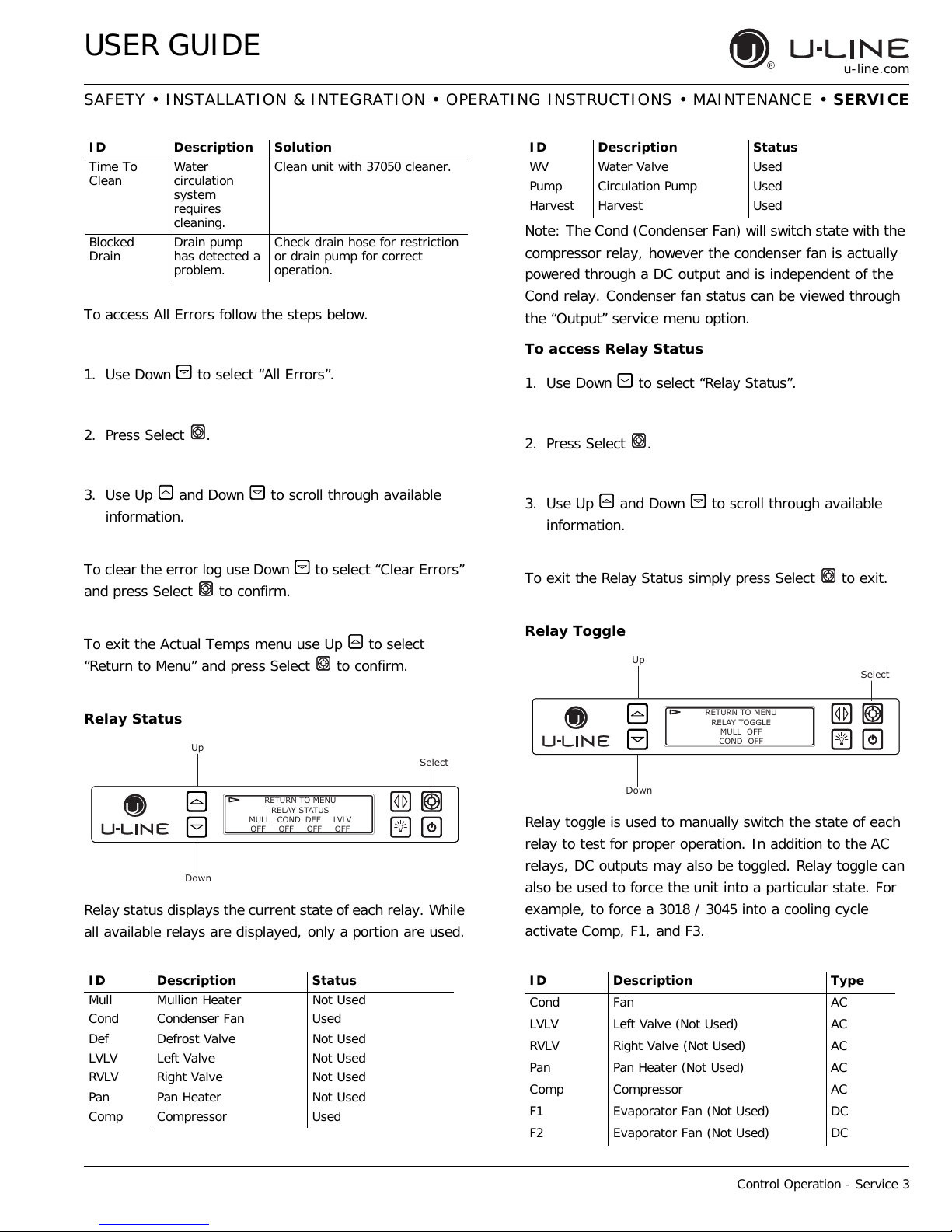

ID Description Solution

Time To
Clean

Blocked
Drain

Water
circulation
system
requires
cleaning.

Drain pump
has detected a
problem.

Clean unit with 37050 cleaner.

Check drain hose for restriction
or drain pump for correct
operation.

To access All Errors follow the steps below.

1. Use Down to select “All Errors”.

2. Press Select .

3. Use Up and Down to scroll through available
information.

To clear the error log use Down to select “Clear Errors”
and press Select to confirm.

ID Description Status

WV Water Valve Used
Pump Circulation Pump Used
Harvest Harvest Used

Note: The Cond (Condenser Fan) will switch state with the
compressor relay, however the condenser fan is actually
powered through a DC output and is independent of the
Cond relay. Condenser fan status can be viewed through
the “Output” service menu option.

To access Relay Status

1. Use Down to select “Relay Status”.

2. Press Select .

3. Use Up and Down to scroll through available
information.

To exit the Relay Status simply press Select to exit.

To exit the Actual Temps menu use Up to select
“Return to Menu” and press Select to confirm.

Relay Status

Relay status displays the current state of each relay. While
all available relays are displayed, only a portion are used.

ID Description Status

Mull Mullion Heater Not Used
Cond Condenser Fan Used
Def Defrost Valve Not Used
LVLV Left Valve Not Used
RVLV Right Valve Not Used
Pan Pan Heater Not Used
Comp Compressor Used

Relay Toggle

Relay toggle is used to manually switch the state of each
relay to test for proper operation. In addition to th e AC
relays, DC outputs may also be toggled. Relay toggl e can
also be used to force the unit into a particular state. For
example, to force a 3018 / 3045 into a cooling cycle
activate Comp, F1, and F3.

ID Description Type

Cond Fan AC
LVLV Left Valve (Not Used) AC
RVLV Right Valve (Not Used) AC
Pan Pan Heater (Not Used) AC
Comp Compressor AC
F1 Evaporator Fan (Not Used) DC
F2 Evaporator Fan (Not Used) DC

Control Operation - Service 3

USER GUIDE

Up

Select

Down

RETURN TO MENU

INPUT STATUS

DOOR OPEN

IN2 OPEN

Up

Select

Down

RETURN TO MENU

OUTPUTS

EVAP FAN=0%

CONDENSER FAN=0%

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

F3 Condenser Fan (Not Used) AC
L1 Cabinet Lighting DC
L2 Cabinet Lighting (Not Used) DC
WV Water Valve AC
Pump Circulation Pump AC
Harvest Harvest AC

To access Relay Toggle

1. Use Down to select “Relay Toggle”.

2. Press Select .

3. Use Up and Down to scroll through each relay or
DC output.

4. Press Select to toggle.

To exit the Relay Toggle menu use Up to select “Return
to Menu” and press Select to confirm.

To access Input Status

1. Use Down to select “Input Status”.

2. Press Select .

3. Use Up and Down to scroll through available
information.

To exit the Input Status menu use Up to select “Return
to Menu” and press Select to confirm.

Outputs

Input Status

Input status displays the current state of each available
input as well as the current USB connection state.

ID Description States

Door Door Switch Open - Closed
IN2 Input 2 - Not Used Open
Test Input Factory Test Input Open
USB USB Connection State Flash - Com Port

Note: USB status shows current connection state. In order
to make a successful connection USB connection type
must be properly set in “USB Port” under the service
menu.

Outputs is used to monitor the state of DC outputs.

ID Description States

Evap Fan Evaporator Fan 0 - 100%
Condenser Fan Condenser Fan 0 - 100%
Light Interior Lighting Off - Low - Med - High

To access Outputs

1. Use Down to select “Outputs”.

2. Press Select

3. Use Up and Down to scroll through available
information.

To exit the Outputs Status menu use Up to select
“Return to Menu” and press Select to confirm.

Control Operation - Service 4

USER GUIDE

NOTICE

NOTICE

Up

Select

Down

RETURN TO MENU

OFFSETS
ZONE = 1°F
EVAP = 1°F

Can be displayed in Celsius

Up

Select

Down

RETURN TO MENU

SELF TEST

NO ERRORS

try “RELAY TOGGLE”

Up

Select

Down

RETURN TO MENU

DIFFERENTIALS

ZONE = 1°F

Can be displayed in Celsius

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Offsets

Customer care MUST be notified and approve of
any changes to the differential before they are
made. Failure to notify customer care will void
the warranty.

Offsets are used to adjust or correct thermistor readings.
Offset values are added to the current thermistor reading
and are then used by the control board to determine
cooling and defrost cycle times. Offsets have a range of
+/- 10°F. Corrected values may be viewed through the
customer “All Temps” menu or TTY output.

Self Test

Self test is used to initiate a self diagnostic report. Any
system faults will be displayed under Self test. If no errors
are present “no errors” will be displayed and the main
control board is functioning properly. If an error is listed
attempt to correct it before changing control board. See
troubleshooting for tips on correcting errors.

To access Self Test

1. Use Down to select “Self Test”.

2. Press Select .

To access Offsets

1. Use Down to select “Offsets”.

2. Press Select .

3. Use Up and Down to scroll through available
thermistors.

To change offset

4. Press Select , the selected thermistor will begin to
flash.

5. Use Up or Down to modify offset value.

6. Press Select to confirm setting.

To exit the Offset menu use Up to select “Return to
Menu” and press Select to confirm.

3. Use Up and Down to scroll through available
information.

To exit the Self Test use Up to select “Return to Menu”
and press Select to confirm.

Differentials

Customer care MUST be notified and approve of
any changes to the differential before they are
made. Failure to notify customer care will void
the warranty.

Control Operation - Service 5

USER GUIDE

NOTICE

p'LɞHUHQWLDO
p'LɞHUHQWLDO
p'LɞHUHQWLDO

6HW3RLQW

7HPSHUDWXUHp)

Up

Select

Down

RETURN TO MENU
FACTORY DEFAULT

RESTORE?

Up

Select

Down

RETURN TO MENU

RE-SELECT MODEL #

3018R

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Differentials are used to determine the maximum variation
from set point and have a range of 0 through 10. The
table below shows the effect of differentials on cooling
cycles with a set point of 45°.

Note: Air temperature does not reflect product
temperatures.

Differential Cycle Start Cycle End

07.76.6

18.36.1

28.85.5

39.45.0

410.04.4

510.53.8

The graph below shows a unit’s cooling cycle over time
with various differentials.

To exit Factory Default use Up to select “Return to
Menu” and press Select to confirm.

Re-Select Model

Before altering model selection, U-Line customer
service must be notified. Failure to notify
customer service will result in voiding of the
manufacturer warranty. Call U-Line Customer
Service for assistance.

After a new model number is selected, power unit must be
removed by unplugging it from the electrical outlet.

Factory Default

Factory Default will restore all setti ngs to their factory
default.

To access Factory Default

1. Use Down to select “Factory Default”.

2. Press Select .

Re-Select Model allows the unit’s model configuration to
be modified. Changing the unit’s model completely
reprograms available zones, relay assignments, DC output
assignments, etc.

To access Re-Select Model

1. Use Down to select “Re-Select Model”.

2. Press Select .

Control Operation - Service 6

USER GUIDE

Up

Select

Down

RETURN TO MENU

USB PORT

PC Link

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

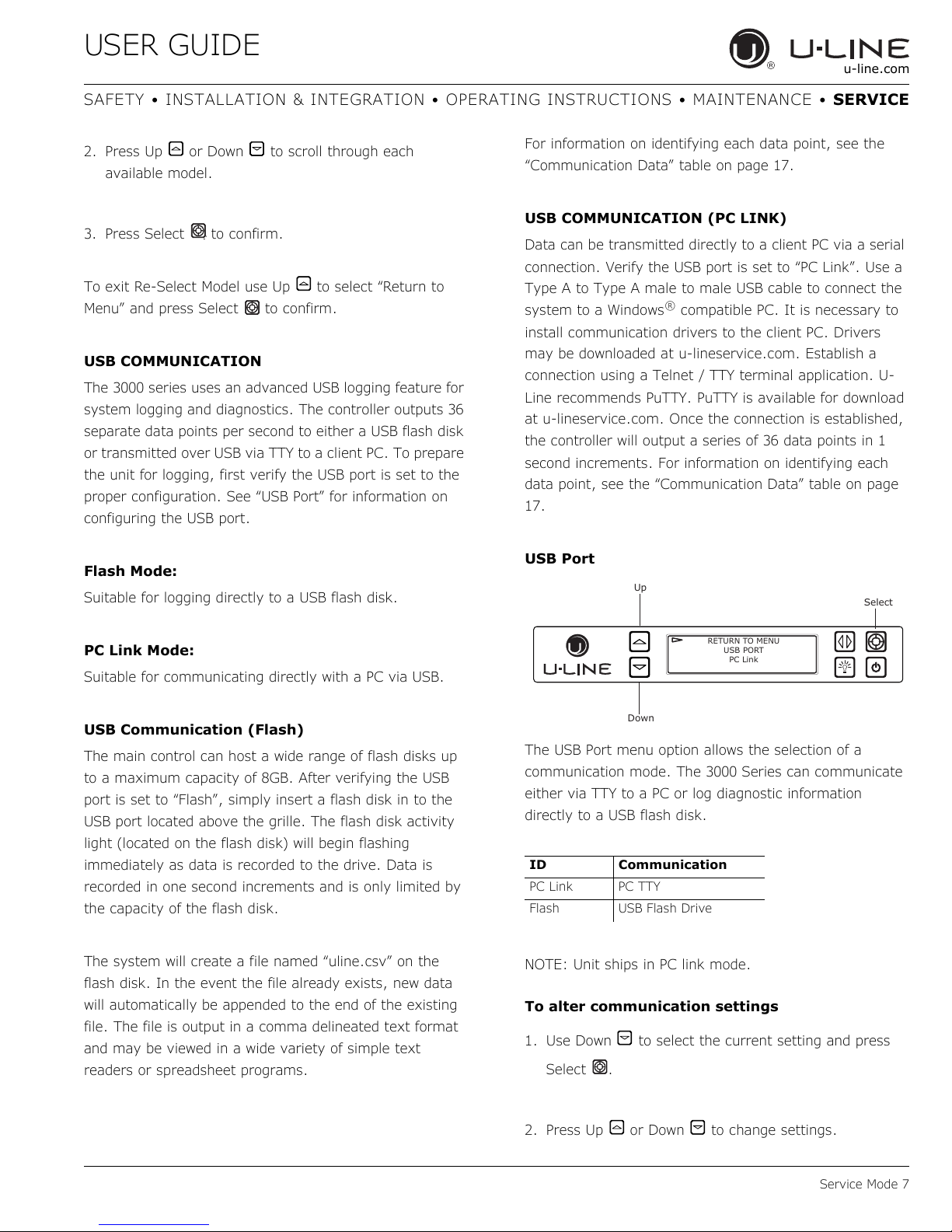

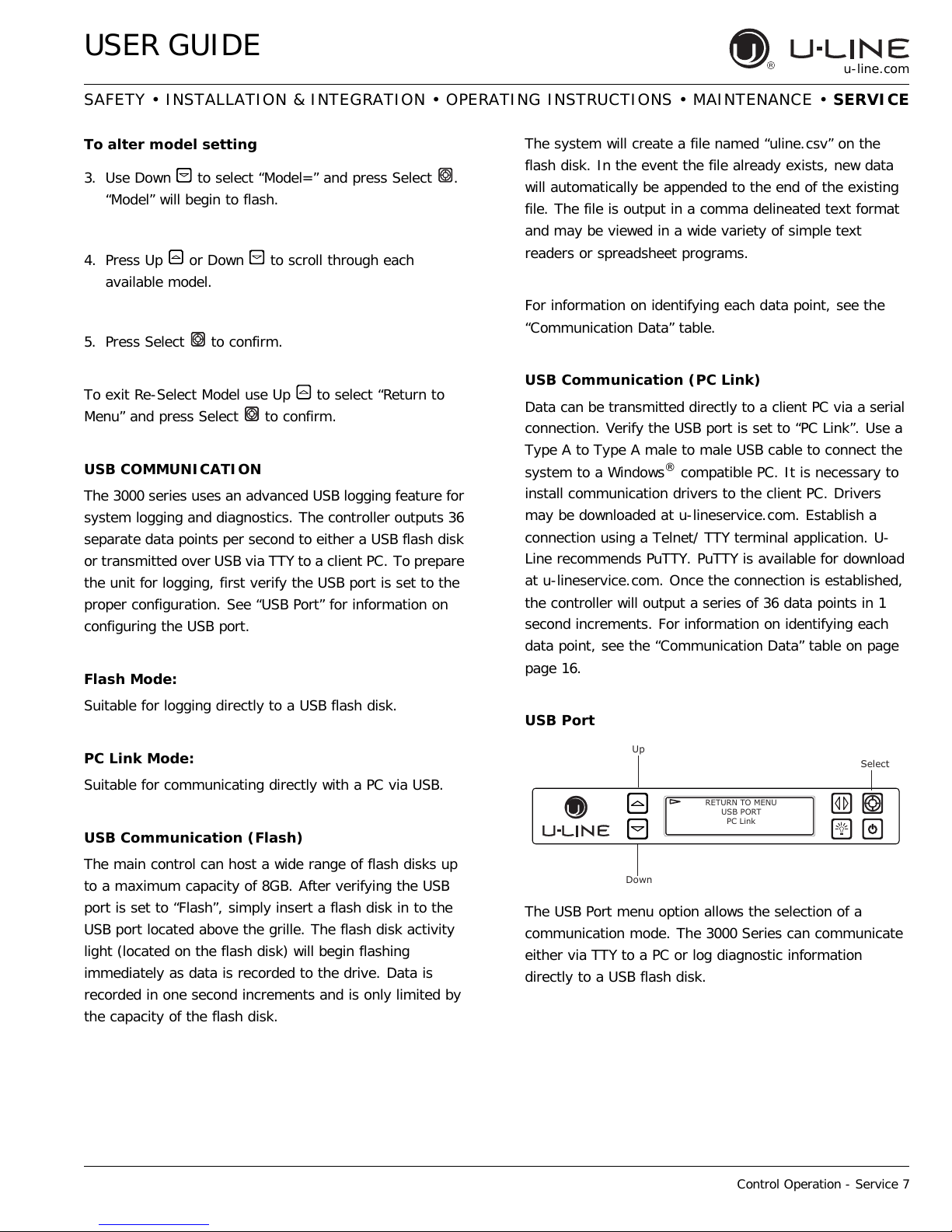

To alter model setting

3. Use Down to select “Model=” and press Select .
“Model” will begin to flash.

4. Press Up or Down to scroll through each
available model.

5. Press Select to confirm.

To exit Re-Select Model use Up to select “Return to
Menu” and press Select to confirm.

USB COMMUNICATION

The 3000 series uses an advanced USB logging feature for
system logging and diagnostics. The controller outputs 36
separate data points per second to either a USB flash disk
or transmitted over USB via TTY to a client PC. To prepare
the unit for logging, first verify the USB port is set to the
proper configuration. See “USB Port” for information on
configuring the USB port.

Flash Mode:

Suitable for logging directly to a USB fla sh disk.

The system will create a file named “uline.csv” on the
flash disk. In the event the file already exists, new data
will automatically be appended to the end of the existing
file. The file is output in a comma delineated text format
and may be viewed in a wide variety of simple text
readers or spreadsheet programs.

For information on identifying each data point, see the
“Communication Data” table.

USB Communication (PC Link)

Data can be transmitted directl y to a c lient P C via a seria l
connection. Verify the USB port is set to “PC Link”. Use a
Type A to Type A male to male USB cable to connect the
system to a Windows

®

compatible PC. It is necessary to
install communication drivers to the client PC. Drivers
may be downloaded at u-lineservice.com. Establish a
connection using a Telnet/ TTY terminal application. U-
Line recommends PuTTY. PuTTY is available for download
at u-lineservice.com. Once the connection is established,
the controller will output a series of 36 data points in 1
second increments. For informati on on identifying each
data point, see the “Communication Data” table on page
page 16.

USB Port

PC Link Mode:

Suitable for communicating directly with a PC via USB.

USB Communication (Flash)

The main control can host a wide range of flash disks up
to a maximum capacity of 8GB. After verifying the USB
port is set to “Flash”, simply insert a flash disk in to the
USB port located above the grille. The flash disk activity
light (located on the flash disk) will begin flashing
immediately as data is recorded to the drive. Data is
recorded in one second increments and is only limited by
the capacity of the flash disk.

The USB Port menu option allows the selection of a
communication mode. The 3000 Series can communicate
either via TTY to a PC or log diagnostic information
directly to a USB flash disk.

Control Operation - Service 7

USER GUIDE

USB

Grille

Up

Select

Down

RETURN TO MENU

SHOWROOM MODE

OFF

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Showroom Mode

ID Communication

PC Link PC TTY
Flash USB Flash Drive

Note: Unit ships in PC link mode.

Showroom displays a number of features and allows the
unit to be powered on without running the cooling system.

To toggle showroom mode

To alter communication settings

1. Use Down to select the current setting and press
Select .

2. Press Up or Down to change settings.

3. Press Select to confirm.

To exit “USB Port” use Up to select “Return to Menu”
and press Select to confirm.

To access USB Port

1. Use Down to select “USB Port”.

2. Press Select .

1. Use Down to select “Showroom Mode”.

2. Press Select .

3. Use Down to select “Off” and press Select . “Off”
will begin to flash.

4. Press Up or Down to toggle between off and on.

5. Press Select to confirm.

If set to “on” showroom mode will begin immediately. To
exit showroom mode press and release Power .

To exit the showroom mode menu use Up to select
“Return to Menu” and press Select to confirm.

Control Operation - Service 8

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Control Defaults

Default Value

Fahrenheit/Celsius* °F °C

Defrost Duration Minutes 0

Next Defrost Hours 0

Thermistor Four OFFSET** 0 —

Thermistor Three OFFSET** 0 —

Thermistor Two OFFSET** -4 —

Thermistor One OFFSET** 0 —

Thermistor One Differential Up** 0 —

Thermistor One Differential Down** 0 —

Thermistor Four Set Point 0 -18

Thermistor Three Set Point 0 -18

Thermistor Two Set Point — —

Refrigeration Set Point 34 1

Light Key 0

Has Ice 0

Maximum Ice Set Point — —

Minimum Ice Set Point — —

Maximum Set Point 45 7

Minimum Set Point 34 1

* 115V models default to Fahrenheit.

220-240V models default to Celsius.

** Offset and Differential always expressed in °F.

Control Defaults 1

USER GUIDE

REVIEW ACTUAL TEMPS

REVIEW ERROR LOG

RELAY STATUS

RELAY TOGGLE

INPUTS

OUTPUTS

SELF TEST

DIFFERENTIALS

FACTORY DEFAULTS

RESELECT MODEL

USB PORT

SHOWROOM MODE

EXIT

TO ENTER THE MAIN SERVICE MENU

PRESS AND HOLD
FOR 5 SECONDS

AND

SERVICE MENU
ACTUAL TEMPS

RELAY STATUS

ALL ERRORS

ENTER & EXIT
SUB-MENU ITEM

SCROLL
THROUGH
MENU

SHOWS TEMPERATURES WITHOUT OFFSETS. EACH UNIT HAS A BIN
CONDENSER AND THERMISTOR. EACH UNIT HAS AN AMBIENT THERMISTOR

RETURN TO MENU

ACTUAL TEMPS

LEFT ZONE = 52°

LEFT EVAP = 52°

RETURN TO MENU

ALL ERRORS

NO COMM 3

L ZONE T OPEN 0

RETURN TO MENU

RELAY STATUS

MULL COND DEF LVLV

OFF OFF OFF ON

RETURN TO MENU

RELAY TOGGLE

MULL OFF

COND OFF

RETURN TO MENU

INPUTS
LEFT DOOR CLOSED
RIGHT DOOR OPEN

RETURN TO MENU

OUTPUTS
L EVAP FAN = 0%
R EVAP FAN = 0%

RETURN TO MENU

OUTPUTS
L EVAP FAN = 0%
R EVAP FAN = 0%

RETURN TO MENU

SELF TEST

NO ERRORS

RETURN TO MENU

DIFFERENTIALS

LEFT = 2°F

RIGHT = 2°F

RETURN TO MENU
FACTORY DEFAULT

RESTORE?

RETURN TO MENU
RE-SELECT MODEL

3036WCWC

RETURN TO MENU

USB PORT

FLASH DRIVE

RETURN TO MENU

SHOWROOM MODE

OFF

FAN DELAY

USB PORT

SHOWROOM MODE

EXIT

RANDOMLY SCROLLS THROUGH ZONES, MODES, TEMPERATURES AND OTHER
FEATURES. TOUCH AND HOLD

TO EXIT SHOWROOM MODE

SCROLL DOWN TO “EXIT”. TOUCH AND RELEASE TO EXIT SERVICE MODE.

CONFIGURES THE ON-BOARD USB PORT FOR FLASH DRIVE OR PC LINK

DISPLAYS THE NUMBER OF TIMES AN ERROR HAS OCCURRED.
SCROLL TO THE END TO ERASE THE ERROR CODES

DISPLAYS THE CURRENT STATUS OF THE RELAYS ON THE BOARD
(not all relays are used on all models)

ALLOWS THE RELAYS TO BE TOGGLED ON/OFF TO CHECK RELAY & COMPONENT.
YOU CAN TURN ON MULTIPLE RELAYS TO CHECK A ZONE, (COMP FAN ETC)

DISPLAYS DOOR SWITCH STATE, TEST INPUT, AND USB STATE

COND FAN

DISPLAYS 0 - 100% WHILE OPERATING

MONITORS THE STATE OF DC OUTPUTS
(evaSFRQGHQVHUIDQVDQGOLJKWLQJRɞOow - med - high)

SELF TEST IS USED TO DIAGNOSE THE BOARD. IF NO ERRORS ARE PRESENT
“NO ERRORS” WILL BE DISPLAYED, THE MAIN BOARD IS FUNCTIONING PROPERLY

DIFFERENTIALS ARE USED TO DETERMINE AT WHAT TEMPERATURE THE UNIT
CYCLES. “O” SETTING IS +/- 2° DIFFERENTIAL

FACTORY DEFAULT IS USED TO RESTORE ALL SETTINGS TO THE FACTORY
DEFAULT FOR THE SELECTED MODEL

RE-SELECT MODEL IS USED TO MODIFY THE MODEL INFORMATION.
CHANGING THE MODEL COMPLETELY REPROGRAMS AVAILABLE ZONES

TO GO TO NEXT SUB-MENU ITEM
YOU MUST ARROW UP TO “RETURN TO MENU”

TOUCH AND RELEASE

TO RETURN TO THE MAIN MENU

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Service Mode

QUICK GUIDE

Service Mode 1

USER GUIDE

Up

Select

Down

RETURN TO MENU

ACTUAL TEMPS

ZONE = 37°
EVAP = 52°

Can be displayed in Celsius

Up

Error ID

Number

Of Occurrences Select

Down

RETURN TO MENU

ALL ERRORS

NO COMM 0

ZONE T OPEN 0

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

SERVICE MENU

In addition to a feature rich customer menu, the 3000

series also offers a service menu with the ability to fine

tune and monitor unit operation.

To initiate the Service menu hold both Up and Zone

Toggle for 5 seconds.

Actual Temps

The Actual Temp option in the service menu will display

raw thermistor readings without calculating offsets.

1. Use Down to select “Actual Temps”.

2. Press Select .

3. Use Up and Down to scroll through available

thermistor readings.

To exit the Actual Temps menu use Up to select

“Return to Menu” and press Select to confirm.

The All Errors option keeps record of any system errors.

When an error occurs it is recorded to all errors. The

number next to the error indicates the number of recorded

instances. Errors in the log may not be currently active.

The error log memory is non volatile and is persistent

should power be lost and restored to the unit. See below

for a list of logged errors and their respective descriptions.

ID Description Solution

No Comm Unit lost

Bin T Open Bin thermistor circuit

Condenser T
Open

Bin T Short Bin thermistor circuit

Condenser T
Short

Temp Hi
6H+

Temp Hi
12H+

Temp Lo
6H+

Temp Lo
12H+

Door Open 5MDoor switch open for

Time To
Clean

Blocked
Drain

communication
to the display.

open.

Condenser
thermistor circuit
open.

shorted.

Condenser
thermistor circuit
shorted.

Not used. Not used.

Not used. Not used.

Not used. Not used.

Not used. Not used.

more then 5
minutes.

Water circulation
system requires
cleaning.

Drain pump has
detected a problem.

Check display cable.
Replace if necessary.

Check connection.
Replace if necessary.

Check connection.
Replace if necessary.

Check connection.
Replace if necessary.

Check connection.
Replace if necessary.

Check reed switch and
connection.

Clean unit with 37050
cleaner.

Check drain hose for
restriction or drain pump
for correct operation.

All Errors

To access All Errors follow the steps below.

1. Use Down to select “All Errors”.

2. Press Select .

3. Use Up and Down to scroll through available

information.

Service Mode 2

USER GUIDE

Up

Select

Down

RETURN TO MENU

RELAY STATUS

MULL COND DEF LVLV

OFF OFF OFF OFF

Up

Select

Down

RETURN TO MENU

RELAY TOGGLE

MULL OFF

COND OFF

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

To clear the error log use Down to select “Clear Errors”

and press Select to confirm.

To exit the Actual Temps menu use Up to select

“Return to Menu” and press Select to confirm.

RELAY STATUS

Relay status displays the current state of each relay. While

all available relays are displayed, only a portion are used.

ID Description Status

Mull Mullion Heater Not Used

Cond Condenser Fan Used

Def Defrost Valve Not Used

LVLV Left Valve Not Used

RVLV Right Valve Not Used

Pan Pan Heater Not Used

Comp Compressor Used

WV Water Valve Used

Pump Circulation Pump Used

Harvest Harvest Used

NOTE: The Cond (Condenser Fan) will switch state with

the compressor relay, however the condenser fan is

actually powered through a DC output and is independent

of the Cond relay. Condenser fan status can be viewed

through the “Output” service menu option.

To access Relay Status

1. Use Down to select “Relay Status”.

2. Press Select .

3. Use Up and Down to scroll through available

information.

To exit the Relay Status simply press Select to exit.

RELAY TOGGLE

Relay toggle is used to manually switch the state of each

relay to test for proper operation. In addition to the AC

relays, DC outputs may also be toggled. Relay toggle can

also be used to force the unit into a particular state. For

example, to force a 3018 / 3045 into a cooling cycle

activate Comp, F1, and F3.

ID Description Type

Cond Fan AC

LVLV Left Valve (Not Used) AC

RVLV Right Valve (Not Used) AC

Pan Pan Heater (Not Used) AC

Comp Compressor AC

F1 Evaporator Fan (Not Used) DC

F2 Evaporator Fan (Not Used) DC

F3 Condenser Fan (Not Used) DC

L1 Cabinet Lighting DC

L2 Cabinet Lighting (Not Used) DC

WV Water Valve AC

Pump Circulation Pump AC

Harvest Harvest AC

Service Mode 3

USER GUIDE

Up

Select

Down

RETURN TO MENU

INPUT STATUS

DOOR OPEN

IN2 OPEN

Up

Select

Down

RETURN TO MENU

OUTPUTS

EVAP FAN=0%

CONDENSER FAN=0%

Up

Select

Down

RETURN TO MENU

OFFSETS
ZONE = 1°F
EVAP = 1°F

Can be displayed in Celsius

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

To access Relay Toggle

1. Use Down to select “Relay Toggle”.

2. Press Select .

3. Use Up and Down to scroll through each relay or

DC output.

4. Press Select to toggle.

To exit the Relay Toggle menu use Up to select “Return

to Menu” and press Select to confirm.

Input Status

3. Use Up and Down to scroll through available

information.

To exit the Input Status menu use Up to select “Return

to Menu” and press Select to confirm.

Outputs

Outputs is used to monitor the state of DC outputs.

ID Description States

Evap Fan Evaporator Fan 0 - 100%

Condenser Fan Condenser Fan 0 - 100%

Light Interior Lighting Off - Low - Med - High

Input status displays the current state of each available

input as well as the current USB connection state.

ID Description States

Door Door Switch Open - Closed

IN2 Input 2 - Not Used Open

Test Input Factory Test Input Open

USB USB Connection State Flash - Com Port

NOTE: USB status shows current connection state. In

order to make a successful connection USB connection

type must be properly set in “USB Port” under the service

menu.

To access Input Status

1. Use Down to select “Input Status”.

2. Press Select .

To access Outputs

1. Use Down to select “Outputs”.

2. Press Select

3. Use Up and Down to scroll through available

information.

To exit the Outputs Status menu use Up to select

“Return to Menu” and press Select to confirm.

Offsets

Service Mode 4

USER GUIDE

NOTICE

NOTICE

Up

Select

Down

RETURN TO MENU

SELF TEST

NO ERRORS

try “RELAY TOGGLE”

Up

Select

Down

RETURN TO MENU

DIFFERENTIALS

ZONE = 1°F

Can be displayed in Celsius

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Self Test

Customer care MUST be notified and approve of

any changes to the differential before they are

made. Failure to notify customer care will void

the warranty.

Offsets are used to adjust or correct thermistor readings.

Offset values are added to the current thermistor reading

and are then used by the control board to determine

cooling and defrost cycle times. Offsets have a range of

+/- 10°F. Corrected values may be viewed through the

customer “All Temps” menu or TTY output.

To access Offsets

Self test is used to initiate a self diagnostic report. Any

system faults will be displayed under Self test. If no errors

are present “no errors” will be displayed and the main

control board is functioning properly. If an error is listed

attempt to correct it before changing control board. See

troubleshooting for tips on correcting errors.

1. Use Down to select “Offsets”.

2. Press Select .

3. Use Up and Down to scroll through available

thermistors.

To change offset

1. Press Select , the selected thermistor will begin to

flash.

2. Use Up or Down to modify offset value.

3. Press Select to confirm setting.

To exit the Offset menu use Up to select “Return to

Menu” and press Select to confirm.

To access Self Test

1. Use Down to select “Self Test”.

2. Press Select .

3. Use Up and Down to scroll through available

information.

To exit the Self Test use Up to select “Return to Menu”

and press Select to confirm.

Differentials

Customer care MUST be notified and approve of

any changes to the differential before they are

made. Failure to notify customer care will void

the warranty.

Service Mode 5

USER GUIDE

NOTICE

p'LɞHUHQWLDO
p'LɞHUHQWLDO
p'LɞHUHQWLDO

Up

Select

Down

RETURN TO MENU

FACTORY DEFAULT

RESTORE?

Up

Select

Down

RETURN TO MENU

RE-SELECT MODEL #

3018R

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Differentials are used to determine the maximum variation

from set point and have a range of 0 through 10. The

table below shows the effect of differentials on cooling

cycles with a set point of 45°.

NOTE: Air temperature does not reflect product

temperatures.

Differential Cycle Start Cycle End

0 46° 44°

1 47° 43°

2 48° 42°

3 49° 41°

4 50° 40°

5 51° 39°

The graph below shows a unit’s cooling cycle over time

with various differentials.

To restore settings to their factory default

1. Use Down to select “Restore?” and press Select .

2. “Restore?” will change to “Restoring...” while settings

are restored. When restoration is complete,

“Restoring...” will return to “Restore”.

To exit Factory Default use Up to select “Return to

Menu” and press Select to confirm.

Re-Select Model

Factory Default

Factory Default will restore all settings to their factory

default.

To access Factory Default

1. Use Down to select “Factory Default”.

2. Press Select .

Before altering model selection, U-Line customer

service must be notified. Failure to notify

customer service will result in voiding of the

manufacturer warranty. Call U-Line Customer

Service for assistance.

Re-Select Model allows the unit’s model configuration to

be modified. Changing the unit’s model completely

reprograms available zones, relay assignments, dc output

assignments, etc.

To access Re-Select Model

1. Use Down to select “Re-Select Model”.

2. Press Select .

To alter model setting

1. Use Down to select “Model=” and press Select .

“Model” will begin to flash.

Service Mode 6

USER GUIDE

Up

Select

Down

RETURN TO MENU

USB PORT

PC Link

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

2. Press Up or Down to scroll through each

available model.

3. Press Select to confirm.

To exit Re-Select Model use Up to select “Return to

Menu” and press Select to confirm.

USB COMMUNICATION

The 3000 series uses an advanced USB logging feature for

system logging and diagnostics. The controller outputs 36

separate data points per second to either a USB flash disk

or transmitted over USB via TTY to a client PC. To prepare

the unit for logging, first verify the USB port is set to the

proper configuration. See “USB Port” for information on

configuring the USB port.

Flash Mode:

Suitable for logging directly to a USB flash disk.

For information on identifying each data point, see the

“Communication Data” table on page 17.

USB COMMUNICATION (PC LINK)

Data can be transmitted directly to a client PC via a serial

connection. Verify the USB port is set to “PC Link”. Use a

Type A to Type A male to male USB cable to connect the

system to a Windows

®

compatible PC. It is necessary to

install communication drivers to the client PC. Drivers

may be downloaded at u-lineservice.com. Establish a

connection using a Telnet / TTY terminal application. U-

Line recommends PuTTY. PuTTY is available for download

at u-lineservice.com. Once the connection is established,

the controller will output a series of 36 data points in 1

second increments. For information on identifying each

data point, see the “Communication Data” table on page

17.

USB Port

PC Link Mode:

Suitable for communicating directly with a PC via USB.

USB Communication (Flash)

The main control can host a wide range of flash disks up

to a maximum capacity of 8GB. After verifying the USB

port is set to “Flash”, simply insert a flash disk in to the

USB port located above the grille. The flash disk activity

light (located on the flash disk) will begin flashing

immediately as data is recorded to the drive. Data is

recorded in one second increments and is only limited by

the capacity of the flash disk.

The system will create a file named “uline.csv” on the

flash disk. In the event the file already exists, new data

will automatically be appended to the end of the existing

file. The file is output in a comma delineated text format

and may be viewed in a wide variety of simple text

readers or spreadsheet programs.

The USB Port menu option allows the selection of a

communication mode. The 3000 Series can communicate

either via TTY to a PC or log diagnostic information

directly to a USB flash disk.

ID Communication

PC Link PC TTY

Flash USB Flash Drive

NOTE: Unit ships in PC link mode.

To alter communication settings

1. Use Down to select the current setting and press

Select .

2. Press Up or Down to change settings.

Service Mode 7

USER GUIDE

USB

Grille

Up

Select

Down

RETURN TO MENU

SHOWROOM MODE

OFF

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

5. Press Select to confirm.

If set to “on” showroom mode will begin immediately. To

exit showroom mode press and release Power .

To exit the showroom mode menu use Up to select

“Return to Menu” and press Select to confirm.

3. Press Select to confirm.

To exit “USB Port” use Up to select “Return to Menu”

and press Select to confirm.

To access USB Port

1. Use Down to select “USB Port”.

2. Press Select .

Showroom Mode

Showroom displays a number of features and allows the

unit to be powered on without running the cooling system.

To toggle showroom mode

1. Use Down to select “Showroom Mode”.

2. Press Select .

3. Use Down to select “Off” and press Select . “Off”

will begin to flash.

4. Press Up or Down to toggle between off and on.

Service Mode 8

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Communication Data ID Table (Sample Temperatures in F)

Field

ID

Sample
Data

Field

ID

Sample
Data

Field

ID

Sample
Data

Field

ID

Sample
Data

12---45678910

Time

Live

1525 --- --- --- --- 85 111 --- 34 1

11 12 13 14 15 16 17 18 19 20

NA Zone

0 0 --- --- --- 2 --- --- --- ---

21 22 23 24 25 26 27 28 29 30

R6

Harvest

7 1 --- 3 0 --- --- --- --- 45

31 32 33 34 35 36 37

Comp
Timer

500 --- 0 0 0 0 0

NA --- BIN

Offset

R7

NA

Comp Cum

Timer

Evap Off Left Door

Fan

1

Defrost

Timer

Temp

Indicator

Fan

2

Fan 1

Timer

NA Condenser

Right Door

Indicator

Fan

3

Fan 2

Timer

Lamp OFF

1 Timer

Temp

R1

Cond

Left

Light

Ambient

Temp

R2

NA

Right
Light

Lamp OFF

2 Timer

CPU

Temp

R3

Comp

Energy

Mode

Current

Zone

R4

Water

Sabbath

Mode

Set

Point

R5

Circ

Power

Field Value Field Value

1 Time in seconds since unit plugged in. 20 R5 Relay Circulation Pump.

2 NA 21 R6 Hot Gas Bypass.

3Not used. 22R7 NA.

4BIN Thermistor. 23Fan 1.

5Not used. 24Fan 2.

6 Condenser temperature. 25 Fan 3.

7 Ambient temperature. 26 Left Light.

8 CPU Temperature. 27 Right Light.

9 Current Bin Temperature. 28 Energy Saver Mode.

10 Set Point. 29 Sabbath Mode.

11 NA 30 Power.

12 Zone offset value in °F/C. 31 Compressor Timer.

13 Evaporator Offset Value in °F/C. 32 Compressor Cumulative Timer.

14 Left Door Indicator. 33 Defrost Timer.

15 Right Door Indicator. 34 Fan 1 Timer.

16 R1 Relay Condenser Fan. 35 Fan 2 Timer.

17 R2 Relay NA. 36 Lamp OFF 1 Timer.

18 R3 Relay Compressor. 37 Lamp OFF 2 Timer.

19 R4 Relay Water Fill Valve.

NOTE: Relay 4 will cycle with relay 6, this is considered normal.

Service Mode 9

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

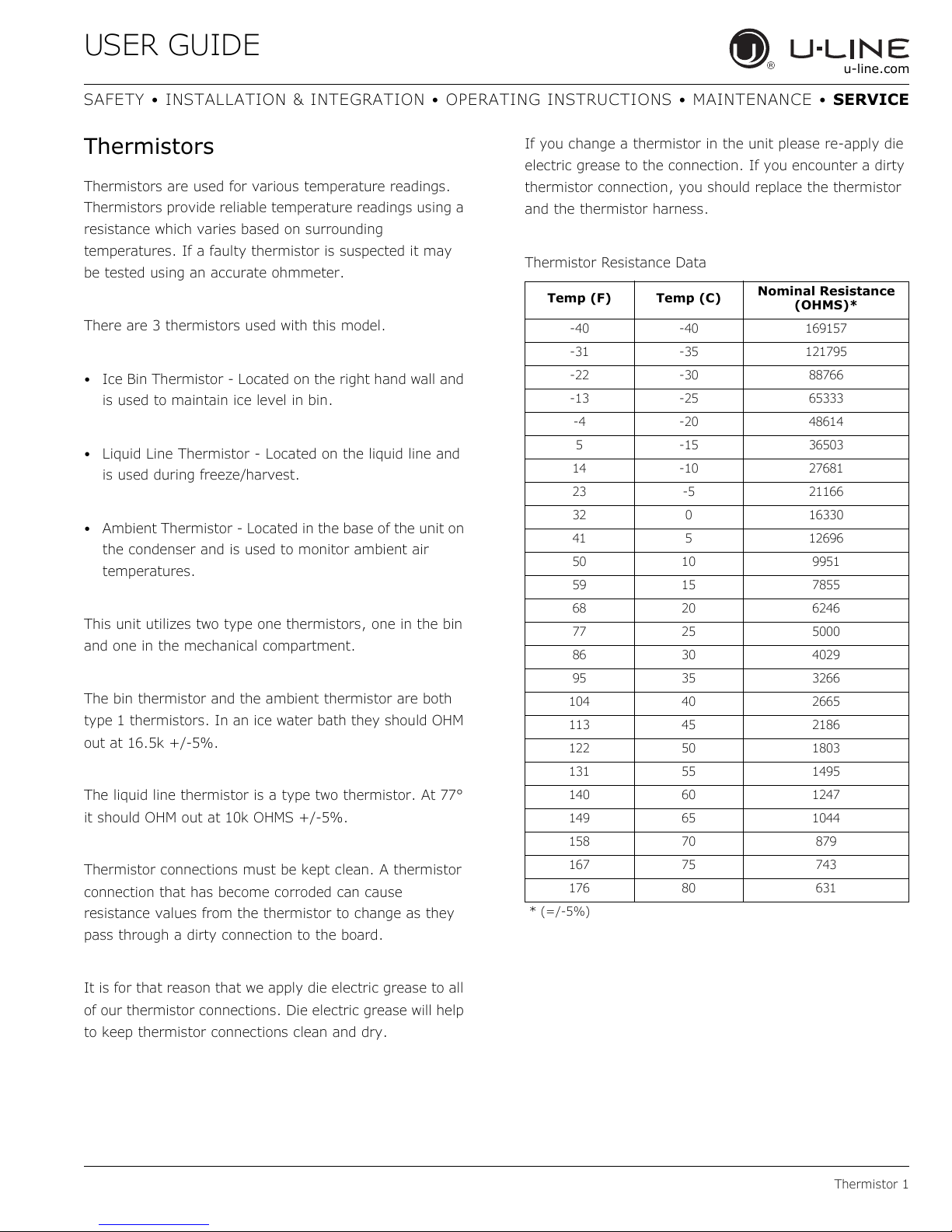

Thermistors

Thermistors are used for various temperature readings.

Thermistors provide reliable temperature readings using a

resistance which varies based on surrounding

temperatures. If a faulty thermistor is suspected it may

be tested using an accurate ohmmeter.

There are 3 thermistors used with this model.

• Ice Bin Thermistor - Located on the right hand wall and

is used to maintain ice level in bin.

• Liquid Line Thermistor - Located on the liquid line and

is used during freeze/harvest.

• Ambient Thermistor - Located in the base of the unit on

the condenser and is used to monitor ambient air

temperatures.

This unit utilizes two type one thermistors, one in the bin

and one in the mechanical compartment.

The bin thermistor and the ambient thermistor are both

type 1 thermistors. In an ice water bath they should OHM

out at 16.5k +/-5%.

The liquid line thermistor is a type two thermistor. At 77°

it should OHM out at 10k OHMS +/-5%.

Thermistor connections must be kept clean. A thermistor

connection that has become corroded can cause

resistance values from the thermistor to change as they

pass through a dirty connection to the board.

If you change a thermistor in the unit please re-apply die

electric grease to the connection. If you encounter a dirty

thermistor connection, you should replace the thermistor

and the thermistor harness.

Thermistor Resistance Data

Temp (F) Temp (C)

-40 -40 169157

-31 -35 121795

-22 -30 88766

-13 -25 65333

-4 -20 48614

5 -15 36503

14 -10 27681

23 -5 21166

32 0 16330

41 5 12696

50 10 9951

59 15 7855

68 20 6246

77 25 5000

86 30 4029

95 35 3266

104 40 2665

113 45 2186

122 50 1803

131 55 1495

140 60 1247

149 65 1044

158 70 879

167 75 743

176 80 631

* (=/-5%)

Nominal Resistance

(OHMS)*

It is for that reason that we apply die electric grease to all

of our thermistor connections. Die electric grease will help

to keep thermistor connections clean and dry.

Thermistor 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Defrost

These models have no defrost options.

Defrost 1
