Installation Guide
29R Refrigerator
www.U-LineService.com
Phone (414) 354-0300 • FAX (414) 354-7905
Service & Parts Tech Lines Phone (800) 779-2547 • FAX (414) 354-5696
OnlineService@U-Line.com
©2005 U-Line Corporation
02/2005
29R Refrigerator
Contents
Exterior Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Cut-Out Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Door Swing/Clearances Information . . . . . . . . . . . . . . 4
Reversing the Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Other Site Requirements . . . . . . . . . . . . . . . . . . . . . . . . 6
Custom 1/4" Thick Door Panel Insert . . . . . . . . . . . . . . 6
Checking Door Alignment . . . . . . . . . . . . . . . . . . . . . . 7
Adjusting Door Alignment . . . . . . . . . . . . . . . . . . . . . . 7
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 8
Leveling Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation of the 29R . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Grille Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Glass Shelf Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Initial Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Start-Up Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 10
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1 Follow Safety Precautions
IMPORTANT
PLEASE READ all instructions completely before
attempting to install or operate the unit.
• This unit requires connection to a grounded (threeprong), polarized receptacle that has been placed by a
qualified electrician in accordance with applicable
electrical codes.
Safety Alert Definitions
Safety items throughout this guide are labeled with a
Danger, Warning or Caution based on the risk type:
DANGER
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
WARNING
Warning means that failure to follow this safety
statement could result in serious personal injury,
or death.
CAUTION
Caution means that failure to follow this safety statement
may result in minor or moderate personal injury, property
or equipment damage.
www.U-LineService.com 2 02/2005
29R Refrigerator
General Precautions
Use this appliance for its intended purpose only and
follow these general precautions along with those listed
throughout this guide:
WARNING
SHOCK HAZARD — Electrical Grounding Required.
• Keep the unit unplugged throughout installation
except during testing.
• Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
• Never use an extension cord to connect power to
the unit.
• Always keep your working area dry.
CAUTION
• Use care when moving and handling the unit. Use
gloves to prevent personal injury from sharp edges.
• Do not lift the unit by the door or door handle.
• Do not install the unit behind closed doors or in any
way that would obstruct airflow to the front grille,
which may cause the unit to malfunction.
2 Inspect and Plan
You have received a carton containing your 29R
Refrigerator with a package inside containing a User
Manual and a Product Registration Card. Complete and
mail the Product Registration Card or register online at
www.U-LineService.com. Once your unit is installed, keep
the User Manual and this Installation Guide in a safe place
for future reference.
29R units are available in vinyl clad cabinets with
matching doors which have a slightly contoured handle
across the top and are reversible. The doors have recessed
front panels that will accept a custom 1/4 inch thick door
panel. Units have three tempered glass shelves.
Please carefully follow the directions that apply to your
unit and your intended design.
Tools/Materials Required
• Screwdrivers — slotted and Phillips head
• 1/4-inch thick door panel material and cutting tools
Inspection
Unwrap and inspect the unit on a flat, level surface
capable of supporting its entire weight.
Exterior Cleaning
(As Required)
Black and White Models:
Black and white surfaces may be cleaned with a mild
detergent and warm water solution. Do not use solventbased or abrasive cleaners. Use a soft sponge and rinse
with clean water. Wipe with a soft, clean towel to prevent
water spotting.
02/2005 3 www.U-LineService.com
29R Refrigerator
3 Prepare Site
Your U-Line product has been designed for either freestanding or built-in installation. When built-in, your unit
does not require additional air space for top, sides or rear.
However, the front grille must NOT be obstructed and
clearance is required for electrical connections in the rear.
Note: Unit can NOT be installed behind a closed cabinet
door.
Cut-Out Dimensions
Filler Panel (Not Provided by U-Line) –
May Be Added Above or Below Unit
to Enclose for a Built-In Look
Typical
Counter
Height
34-1/4"
to
35-1/8"
Cut-Out
Height
28-5/8"
to
28-7/8"
See Electrical
Specifications
for Power Supply
23"
Minimum
Product Dimensions
23"
Including
Handle
28-1/2"
20-13/16"
Figure 2
Door Swing/Clearances Information
Units have a zero clearance for the door to open
90° (see Figure 3). U-Line recommends a minimum door
clearance of 1/4" to accommodate the handle if the unit is
right-hand hinged and installed next to a wall or similar
type of structure.
21-1/16"
Figure 1
Follow the cut-out drawing in Figure 1. The 21-1/16"
width allows 1/4" for ease in installation and removal of
the unit. 24" is the counter depth in most installations.
The unit is 23" deep including the door and handle (see
Figure 2).
Note: It is recommended that the unit is level.
Figure 3
1/4" Min.
90°
Door Swing
Wall
20-7/16"
22-3/8"
www.U-LineService.com 4 02/2005
29R Refrigerator
Reversing the Door
All units may be left- or right-hand opening.
Note: The grille should not yet be installed. If it has been
installed, remove it for door reversing. See Page 9.
To reverse the door:
1. Remove top hinge from cabinet (three screws). See
Figure 4. Hold door to keep it from falling.
2. Lift the door off the bottom hinge.
Figure 4 Figure 5
3. Remove bottom hinge from cabinet (two screws). See
Figure 5
Figure 6
(
both screws on either side.
. Remove screws on opposite side of cabinet
). Note that there may be a nut behind one or
5. Relocate plastic spacer/
bushing on bottom of
door to opposite side,
and place door on
bottom hinge pin. See
Figure 8
. Clean out
Bushing
bushing hole in door
bottom with a
screwdriver if necessary.
6. Remove plastic hole
plug from door handle
and relocate on
Figure 8
opposite side. See
Figure 9
Door Swing
Plastic
Plug Hole
Right Side
.
Right Side
Hinge
Hinge
Screw
Invert
Screw
Invert
Hinge
Plastic
Plug Hole
Left Side
Door Swing
Figure 9
7. Remove pivot screw from top hinge, invert screw and
reinstall pivot screw in top hinge. See
Figure 9
.
8. Remove three plastic
screw plugs from hinge
holes, top of cabinet,
opposite side. Be careful
not to scratch cabinet.
See
Figure 10
.
9. Place door on lower
hinge pin. Invert and
install upper hinge on
door.
Figure 10
Figure 6 Figure 7
4. Install hinge on opposite side, bottom of cabinet. See
Figure 7
. Replace nut on back side where installed.
Align hinge outer edge with cabinet before tightening
screws.
02/2005 5 www.U-LineService.com
29R Refrigerator
10. Fasten upper hinge to
unit (three screws).
Partially tighten screws.
Figure 11
See
11. Adjust door to assure
proper seal. Tighten
upper and lower hinge
screws securely.
12. Replace three plastic
plugs removed in Step 8
into holes on top of
unit. Replace screws in
holes in bottom of unit
on opposite side.
.
Figure 11
Other Site Requirements
Power Supply
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A circuit (normal household current). See
Electrical Specifications on Page 8.
Environmental Requirements
The surrounding air temperature must be at least 50°F
(10°C) but must not exceed 110°F (40°C). Units may be
installed outdoors in a covered area. The unit must not be
located near heat-generating equipment or in direct
sunlight.
4 Prepare and Install Door Panel
Units will accept a Custom 1/4" Thick Insert to harmonize
with or accent the surrounding decor.
If this treatment is not included in this installation, go on
to 5 Adjust Door.
Custom 1/4" Thick Door Panel Insert
Door Panel Preparation
A custom door panel can be inserted into the doorframe.
Custom door panels can be flat or raised, as long as the
maximum panel thickness where inserted into the door
reveal (channel) is 1/4"-thick. For raised panels, the depth
of the reveal is 1/4" on all four sides.
IMPORTANT
Raised panels will reduce the door’s 90° swing/zero
clearance if the unit is installed next to a wall or similar
type of structure (see Page 4).
Cut the panel insert to the following dimensions.
Custom 1/4" Dimensions:
Width: 19-13/16"
Height: 21-13/32"
The door panel must not weigh more than 20 lbs.
Door Panel Installation
Install the insert as follows:
CAUTION
Use care when handling the insert. Insert edges may be
sharp.
Remove top hinge screw pin with a Phillips head
1.
screwdriver. Remove door by tilting forward and lifting
off bottom hinge pin.
www.U-LineService.com 6 02/2005
Figure 12 Figure 13
2. Pull door gasket out of
groove (top edge of door
only). Start in the middle
and pull outward, moving
toward the edge (see
Figure 13
some force.
). This may take
29R Refrigerator
5 Adjust Door
Checking Door Alignment
The unit’s door is aligned at the factory before shipment.
However, its alignment could have been disturbed during
shipment or during door panel installation.
IMPORTANT
Properly aligned, the door's gasket should be firmly in
contact with the cabinet all the way around the door (no
gaps).
1. Carefully examine the door's gasket to assure that it is
firmly in contact with the cabinet.
Note: When inspecting door alignment, make sure the
door gasket is not pinched on the hinge side of the door.
2. If the door is properly aligned, go on to
Power Supply
. If it is not, use the following procedure.
6 Prepare
Adjusting Door Alignment
3. Remove two outside
screws holding door
handle. Slightly separate
door handle from door
(see
Figure 14
4. Pull handle up and off.
5. Slide custom door panel insert into 1/4-inch channel in
door front.
6. Holding door gasket out of the way, replace handle on
door, making sure it is seated properly on insert and
that screw holes line up.
7. Install two small screws removed in
8. Starting at the corners and working inward, push door
gasket into place on door.
9. Place door on bottom hinge pin and install upper hinge
screw.
10. Go on to
).
5 Adjust Door
Figure 14
.
Step 3
.
1. Loosen (do not remove)
top and bottom hinge
screws. See Figure 15.
2. Align door squarely with
cabinet. Make sure gasket
is firmly in contact with
cabinet all the way around
the door (no gaps).
3. Tighten bottom hinge
screws.
4. Tighten top hinge screws.
Go on to
Power Supply
6 Prepare
.
Figure 15
02/2005 7 www.U-LineService.com
29R Refrigerator

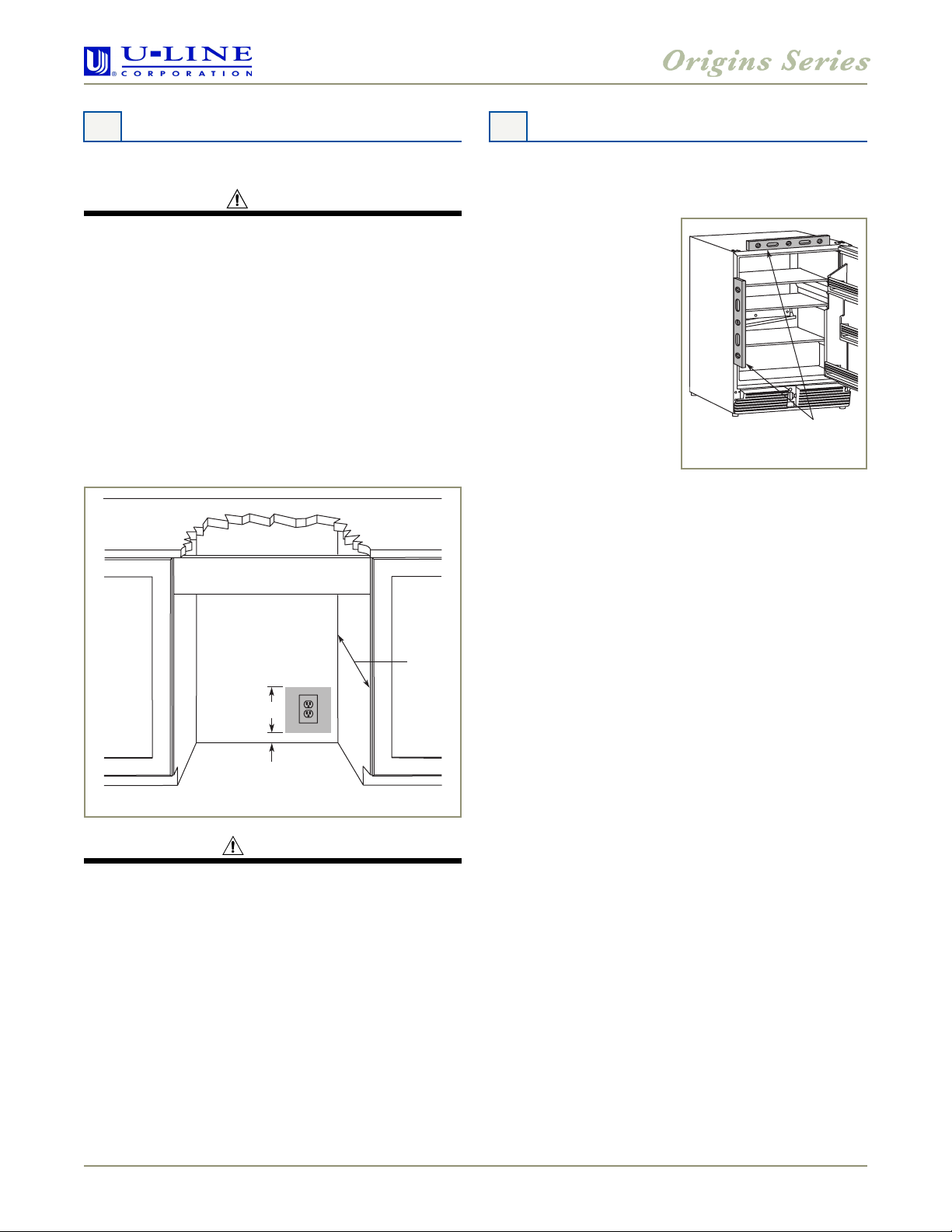

6 Prepare Power Supply
Electrical Specifications
CAUTION
Electrical installation must observe all state and local
codes. This unit requires connection to a grounded (threeprong), polarized receptacle that has been placed by a
qualified electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current).
An individual, properly grounded branch circuit or circuit
breaker is recommended. GFCI (ground fault circuit
interrupter) is usually not required for fixed location
appliances and is not recommended for your unit because
a GFCI could be prone to nuisance tripping. However, be
sure to consult your local codes.
See Figure 16 for recommended receptacle location.
7 Level the Unit
Leveling Information
Note: It is recommended that the unit is level.
Use a level to check the
levelness of the unit from
front to back and from side
to side. Level should be
placed along top edge and
side edge as shown (see
Figure 17). Go on to
8 Install the Unit.
Figure 17
Check
Level
23"
Minimum
7"
1-1/2"
Figure 16
WARNING
SHOCK HAZARD — Electrical Grounding Required.
• Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
• Never use an extension cord to connect power to
the unit.
Go on to 7 Level the Unit.
www.U-LineService.com 8 02/2005
8 Install the Unit
29R Refrigerator
Installation of the 29R
1.
Plug in the power cord.
2. Gently push the unit into position. Be careful not to
entangle the electrical cord.
3. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments. The unit’s top
surface should be approximately 1/8" below the
countertop or filler panel.
Grille Installation
1. Locate and remove the grille screw from the cabinet,
using a standard blade screwdriver (or a 1/4"
nutdriver). See Figure 18
Grille Screw
.
Grille
Hook-Hinge
Unit Base
Front Lip
Hook-Hinge
Figure 19
5. Insert the screw. Do not overtighten.
6. Reinstall control knob.
Glass Shelf Installation
1. Carefully remove the glass shelves from the packaging.
2. Slide the shelves onto lower sets of ribs, making sure
the decorative graphics are on the underside of the
shelves. While edge strips go toward the rear and silver
edge strips go toward the front. See
Figure 20
.
Figure 18
2. Remove the control knob by pulling it away from the
cabinet.
3. Identify the grille screw hole on the grille itself. It is
located toward the top of the middle recessed section
of the grille.
4. Place the two hook-hinges (located on the rear bottom
side of the grille) onto the front lip of the unit base.
Swing the grille up into position, aligning the grille
screw hole on the grille to the grille screw hole on the
cabinet. See
Figure 19
.
Figure 20
02/2005 9 www.U-LineService.com
9 Start-Up for the First Time
Who to Call
Initial Start-Up
The unit is shipped with the control preset to a mid-point
setting between 4 and 5. Assure that setting was not
altered in shipment. No other adjustments should be
necessary at this time. For information about Adjusting
the Temperature Control, see the User Manual.
Start-Up Troubleshooting
Problem
Q:
Unit does not appear to turn on when plugged in.
Solution
A:
Make sure outlet has power (circuit breaker has not
tripped). Be sure that control is not turned to the off
position. Make sure the on/off switch is turned on.
IMPORTANT
See the User Manual’s Troubleshooting Guide for more
solutions.
Service Information
If the need for service arises, contact the dealer from
whom the unit was purchased. State the Model Number
and Serial Number and explain the problem. The Model
and Serial Number plate is located inside unit at upper
right hand corner.
If you need to locate a service company, you can go online
at www.U-LineService.com and search for a service
company by zip code.
For more than four decades, U-Line has distinguished itself as the leader in built-in
U-Line Corporation, located in Milwaukee, WI, is a family operated manufacturer of built-in
undercounter icemakers, Combo
©2005 U-Line Corporation
Publication No. 30065E
02/2005
undercounter ice making, refrigeration and wine storage appliances.
®
refrigerators, refrigerated drawers and refrigerator/freezers.
icemaker/refrigerators, Wine Captain® wine storage units,
Loading...
