U-Line 2275ZWCINT-60 Installation Instructions

Installation Guide

Dual Zone Models

Wine Captain® Models:
2275ZWCS & 2275ZWCOL

www.U-LineService.com

Phone [phone] • FAX [phone]

Service & Parts Tech Lines Phone [phone] • FAX [phone]

[e-mail]

©2008 U-Line Corporation

03/2008

2275 Dual Zone WC Model

Contents

1-Follow Safety Precautions. . . . . . . . . . . . . . . . . . . . . . 2

Safety Alert Definitions . . . . . . . . . . . . . . . . . . . . . . . 2

General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2-Inspect and Plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Tools/Materials Required . . . . . . . . . . . . . . . . . . . . . . 3

Removing Protective Coating . . . . . . . . . . . . . . . . . . 3

Exterior Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3-Prepare The Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Cut-Out Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Door Swing/Clearances Information . . . . . . . . . . . . . 4

4-Other Site Requirements . . . . . . . . . . . . . . . . . . . . . . 4

5-Reversing the Door . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

6-Side-By-Side Installation Instructions . . . . . . . . . . . . 6

7-Prepare Racks and Door Frame . . . . . . . . . . . . . . . . . 6

Rack Removal/Installation. . . . . . . . . . . . . . . . . . . . . . 7

8-Wood Trim Finishing . . . . . . . . . . . . . . . . . . . . . . . . . 7

Staining and Final Finish Application. . . . . . . . . . . . . 7

9-Overlay Frame (2275ZWCOL Only). . . . . . . . . . . . . . . 8

Frame Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Preparing the New Overlay Panel . . . . . . . . . . . . . . . 9

Attaching the Overlay Panel. . . . . . . . . . . . . . . . . . . . 9

Assembling Door to Cabinet. . . . . . . . . . . . . . . . . . . . 10

10-Adjusting The Door. . . . . . . . . . . . . . . . . . . . . . . . . . 11

Checking Door Alignment . . . . . . . . . . . . . . . . . . . . . 11

Adjusting Door Alignment . . . . . . . . . . . . . . . . . . . . . 11

11-Prepare Power Supply. . . . . . . . . . . . . . . . . . . . . . . . 12

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . 12

12-Level The Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Leveling Information . . . . . . . . . . . . . . . . . . . . . . . . . 12

Leveling Tip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

13-Install The Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Anti-Tip Bracket Installation . . . . . . . . . . . . . . . . . . . . 13

Single Unit Installation . . . . . . . . . . . . . . . . . . . . . . . . 13

Side-By-Side Installation . . . . . . . . . . . . . . . . . . . . . . . 14

Installation Troubleshooting. . . . . . . . . . . . . . . . . . . . 14

14-Start-Up For The First Time. . . . . . . . . . . . . . . . . . . . 14

Initial Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Start-Up Troubleshooting . . . . . . . . . . . . . . . . . . . . . 14

15-Service Information . . . . . . . . . . . . . . . . . . . . . . . . . 14

1 Follow Safety Precautions

IMPORTANT

PLEASE READ all instructions completely before
attempting to install or operate the unit.

• This unit requires connection to a grounded (three­prong), polarized receptacle that has been placed by a
qualified electrician in accordance with applicable
electrical codes.

SAFETY ALERT DEFINITIONS

Safety items throughout this guide are labeled with a
Danger, Warning or Caution based on the risk type:

DANGER

Danger means that failure to follow this safety
statement will result in severe personal injury or
death.

WARNING

Warning means that failure to follow this safety
statement could result in serious personal injury,
or death.

CAUTION

Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property or equipment damage.

GENERAL PRECAUTIONS

Use this appliance for its intended purpose only and
follow these general precautions along with those listed
throughout this guide:

WARNING

SHOCK HAZARD — Electrical Grounding Required.

• Keep the unit unplugged throughout installation
except during testing.

• Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.

• Never use an extension cord to connect power to
the unit.

• Always keep your working area dry.

CAUTION

• Use care when moving and handling the unit. Use
gloves to prevent personal injury from sharp
edges.

• Do not lift the unit by the door or door handle.

• Do not install the unit behind closed doors or in
any way that would obstruct airflow to the front
grille, which may cause the unit to malfunction.

www.U-LineService.com 2 03/2008

2275 Dual Zone WC Model

2 Inspect and Plan

Inspect and Plan

You have received a carton containing your 2275ZWC or
2275ZWCOL with a package inside containing a Use and
Care Guide and a Product Registration Card and an Anti­Tip Bracket installation kit 2275ZWCOL units are shipped
with an additional package of hardware. Complete and
mail the Product Registration Card or register online at
www.U-LineService.com. Once your unit is installed, keep
the Use and Care Guide and this Installation Guide in a
safe place for future reference.

2275ZWC units are stainless steel. Stainless steel units are
covered with a protective coating and have been ordered
left- or right-hand hinged. The stainless doors are not
reversible.

2275ZWCOL units are black with a door that requires the
construction of a 3/4” thick wood overlay frame. You must
determine left- or right-hand opening before
construction.

All units come with maple trim racks that can be finished
or stained. Please carefully follow the directions that
apply to your unit and your intended design.

TOOLS/MATERIALS REQUIRED

• Screwdrivers — slotted and Phillips head

• Sandpaper; low odor, water clean up, quick drying
finish; tack cloth and, if desired, water-based wood
stain and synthetic foam brush.

• 3/4” overlay frame material, cutting tools, drill and bits
(2275ZWCOL units).

INSPECTION

Unwrap and inspect the unit on a flat, level surface
capable of supporting its entire weight.

REMOVING PROTECTIVE COATING

(Stainless Steel units only)

When inspecting/installing a stainless steel unit, the
protective coating covering the unit must be removed
first. Start at a corner of the unit/door and pull back the
protective coating to remove it from the unit/door.

After all the protective coating has been removed from
the unit/door, clean all stainless steel surfaces with Claire
Stainless Steel Polish and Cleaner or comparable product,
or a mild detergent and warm water solution and soft
cloth. DO NOT use abrasive cleaning agents.

Note: If cleaning with mild detergent and warm water
solution and soft cloth, the unit MUST be treated with
Claire Stainless Steel Polish and Cleaner or comparable to
prevent discoloration.

EXTERIOR CLEANING

(As Required)

Overlay Models:

• The door, grille and cabinet may be cleaned with a mild
detergent and warm water solution. Do not use
solvent-based or abrasive cleaners. Use a soft sponge
and rinse with clean water. Wipe with a soft, clean
towel to prevent water spotting.

Stainless Surfaces:

• Stainless door panels, handles and frames can discolor
when exposed to chlorine gas, pool chemicals, salt
water or cleaners with bleach.

• Clean any glass door fronts with a non-chlorine glass
cleaner.

• Keep your Stainless unit looking new by cleaning with
a good quality all-in-one stainless steel cleaner/polish
on a monthly basis. For best results use Claire Stainless
Steel Polish and Cleaner, which can be purchased from
U-Line Corporation. (The part number is 173348.)
Comparable products are acceptable. Frequent
cleaning will remove surface contamination that could
lead to rust. Some installations may require cleaning
on a weekly basis.

• Do not clean with steel wool pads.

• Do not use stainless steel cleaners/polishes on
any glass surfaces.

• Do not use cleaners that are not specifically
intended for stainless steel on stainless surfaces
(this includes glass, tile and counter cleaners).

• If any surface discolors or rusting appears, clean it
quickly with Bon-Ami or Barkeepers Friend Cleanser
and a non-abrasive cloth. Always clean in the direction
of the grain. Always finish this process with Claire
Stainless Steel Polish and Cleaner or comparable
product to prevent further problems.

• Use of abrasive pads such as Scotchbrite will
cause the graining in the stainless to become
blurred.

• Rust that is allowed to linger can penetrate into the
surface of the stainless steel and complete removal of
the rust may not be possible.

03/2008 3 www.U-LineService.com

2275 Dual Zone WC Model

3 Prepare The Site

Your U-Line product has been designed for either free­standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides or rear.
However, the front grille must NOT be obstructed and
clearance is required for electrical connection in the rear.

Note: Unit can NOT be installed behind a closed cabinet
door.

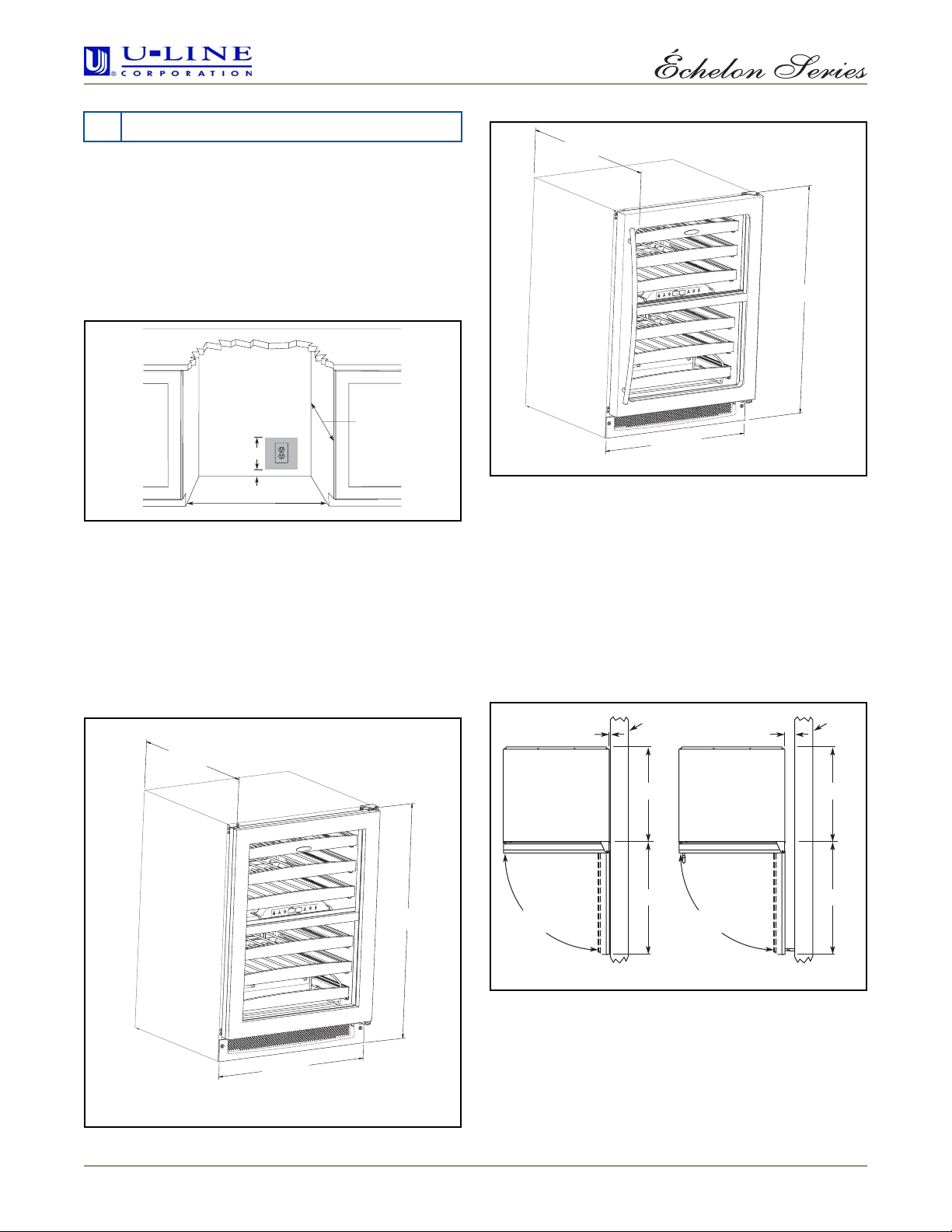

CUT-OUT DIMENSIONS

23-1/4"

7”

1-1/2”

24-3/16”

Figure 1

Follow the cut-out drawing in Figure 1. The 24-3/16"
width allows 1/4" for ease in installation and removal of
the unit. 24" is the cabinet depth in most installations.
The unit is 23-1/4" deep including wood overlay frame on
the 2275ZWCOL (Wood Overlay) model and 23-1/4” deep
including the door (but not the handle) on the 2275ZWCS
(Stainless Steel) models (Figure 2).

PRODUCT DIMENSIONS

23-1/4”

including wood overlay

25-3/8”

including

handle

34-1/8”

23-15/16”

2275ZWCSS

Figure 3

Note: The unit has adjustable feet that can add one
additional inch to height during leveling or to match
adjacent cabinets.

DOOR SWING/CLEARANCES INFORMATION

Wood overlay units have a zero clearance for the door to
open 90° (Figure 4). Stainless steel units require a
minimum of 2-1/8" door clearance to accommodate the
handle if the unit is installed next to a wall or similar type
of structure.

Wall Wall

2-1/8" Min.

34-1/8”

90

Door Swing

Wood Overlay

21"

25-1/2"

90

Door Swing

Stainless Steel

21"

25-1/2"

Figure 4

23-15/16”

2275ZWCOL

Figure 2

www.U-LineService.com 4 03/2008

2275 Dual Zone WC Model

4 Other Site Requirements

POWER SUPPLY

The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A circuit (normal household current). See
Electrical Specifications.

ENVIRONMENTAL REQUIREMENTS

Many U-Line models are designed to operate in harsh
outdoor/marine environments. Special considerations
include the following:

• The units are designed to operate between 50°F (10°C)
and 110°F (40°C). High ambient temperatures (110°F
[40°C] or higher) may reduce the unit’s ability to reach
low temperatures.

• For best performance, keep the unit out of direct
sunlight and away from heat generating equipment.

• In climates where high humidity and dew points are
present, condensation may appear on outside surfaces.
This is considered normal. The condensation will
disappear when the humidity drops.

• U-Line does not recommend installation of glass front
models (Wine Captain
Beverage Centers) as well as the Combo Drawer model
(Refrigerator/Freezer/Ice Maker) outdoors, or in
tropical climates where high humidity and dew point
are present on a regular basis, unless air-conditioning
(typical 72°F, 75%RH) will be used.

®

wine storage models and

ULIN_0015_A

Figure 5

2.

Remove metal hinge plugs (3 each, top and bottom)
from new hinge location. Do not discard (

Figure 6

).

5 Reversing The Door

All U-Line units (except Stainless Steel models) may be
left- or right-hand opening. The door opening is easily
reversed by moving the hinge hardware to the opposite
side. The top hinge hardware will be used on the bottom
of the other side and the bottom hinge hardware will be
used on the top of the other side (see Figure 4).

To reverse the door:

1. Using a Phllips screwdriver, remove top hinge screw

pin from door (Figure 5). Remove door by tilting
forward and lifting off bottom hinge pin.

Hinge plugs

Figure 6

3. Remove top hinge (3 screws), reinstall hinge screw pin,
and remount on opposite side BOTTOM (

hinge screw
pin

hinge screws

ULIN_0003_A

Figure 7

).

Figure 7

03/2008 5 www.U-LineService.com

2275 Dual Zone WC Model

4. Remove the two door closer inserts from the existing
bottom hinge and install as shown on the new bottom
hinge (

Figure 8

door closer inserts

).

Figure 8

5. Remove existing bottom hinge (3 screws) and remount
on opposite side TOP. Remove hinge screw pin.

6. Remove the plastic hole plug from the top of the door
to allow the pivot pin to be inserted in the new
location. Install the plug into the vacated hole on the
opposite side.

7. With bottom of door facing up, remove pivot plate (2
screws), flip over, and remount on opposite side of door

Figure 9

(

). Be sure angled side of plate faces center.

6 Side-By-Side Installation

Instructions

For a complete refreshment center, install your Dual-Zone
unit beside a U-Line Refrigerator, Ice Maker or Combo
Model

(see

Figure 11

Note: Each side-by-side installation will be different.

• Cut-out width for a side-by-side installation is the total
of the widths listed under Cut-Out Dimensions in each
unit’s Installation Guide.

For example:

Placing a 2275 Dual-Zone Wine Captain
2115 series unit would require a cut-out width of:
24-3/16" + 15-3/16" = 39-3/8"

Placing a 2275 Dual-Zone Wine Captain
2175 series unit would require a cut-out width of:
24-3/16" + 24-3/16" = 48-3/8"

No trim kit is required. However, 1/4-inch space needs to

•
be maintained
unobstructed door swing.

• Units must operate from separate, properly grounded
electrical receptacles placed according to each unit’s
Electrical Specifications.

for typical cut-out)

.

®

next to a

®

next to a

between the units to ensure

ULIN_0274_A

Figure 9

8. Holding door upright with top of door tilted forward,
place hole of door pivot plate on bottom hinge screw
pin (

Figure 10

).

9. Tilt top of door into position in top hinge and install top
hinge screw pin.

10. Install metal hinge plugs removed in step 2 in old hinge
holes (3 each, top and bottom).

door pivot plate

bottom hinge screw pin

Figure 10

Typical Side-By-Side Cut-Out

34-1/4"

to

35-1/8"

1/4" Space

Between

Appliances

23-1/4"

7"

4"

Figure 11

7 Prepare Racks and Door Frame

The U-Line Dual-Zone units are equipped with wood
trimmed racks that are coated at the factory with a clear
vinyl sealer, which will adequately protect the wood in
normal usage. A final finish coat was not applied so that
the wood trim could be stained to match dècor or overlay
frame. The trim on the racks may be coated with a final
finish or stained.

2275ZWCOL Models are designed for, and require
installation of, an Overlay Frame. If none of these

www.U-LineService.com 6 03/2008

2275 Dual Zone WC Model

treatments are to be included in this installation, proceed
to Adjust Door.

CAUTION

To prevent permanent damage to the inner liner of
the Dual-Zone units, the rack wood trim MUST be
removed from the unit for staining and/or finishing.
Allow stain/finish to dry thoroughly (at least 24
hours per coat) in accordance with the stain/finish
manufacturer’s instructions prior to re-installing
the wood trim inside the cabinet of the Dual-Zone
unit. Failure to do so may cause the inner liner of
the unit to have a permanent odor, which is not
covered by the warranty.

RACK REMOVAL/INSTALLATION

To remove a rack from the cabinet:

1. Grasp the end of the rack, and gently slide it out until
it stops.

2. Remove any bottles stored on the rack.

ULIN_0162_A

Figure 12

3. Press the left rack release lever
at the same time, lift the corresponding right rack
release lever up, and pull the rack out until it is free of
the tracks and the cabinet.

(Figure 12)

down, and

IMPORTANT

Do not remove the track side rails from the cabinet.

To insert a rack in the cabinet:

1. Align the left and right rack channels with the tracks
in the cabinet, and ensuring an even track
engagement on both sides, gently push the rack into
the cabinet until it stops.

2. Before reloading the rack, ensure proper operation of
the travel stops in the left and right track rails by
pulling the rack out gently until it completely stops.

8 Wood Trim Finishing

Interior components of your U-Line unit are equipped
with a natural wood trim for appearance and durability.
Although this wood trim has been coated with a clear
sealer at the factory, it is recommended that the trim be
stained (if desired) and receive a final finish coating prior
to the unit being put into full-time service.

If staining the trim is desired, it must be done before the
application of any type of final finish. Review the
following staining/final finish and final finish-only
guidelines when staining/ and or sealing the wood to
ensure proper adhesion and durability of the finish.

Note: Glass in door is tinted. Stain may look darker when
door is closed.

STAINING AND FINAL FINISH APPLICATION:

1. Remove all screws securing wood trim to interior
components, and remove the trim from the cabinet
interior.

CAUTION

DO NOT use oil-based stains on wood trim. Vapors
from oil-based stains will permanently penetrate
the liner and will not dissipate over time.

2. Apply Minwax® Water-Based Wood Stain to wood with
a synthetic bristle brush or a foam applicator. Allow
stain to penetrate approximately three minutes. Before
the stain is dry, take a stain dampened rag and remove
any excess stain remaining. Wipe in the direction of the
grain with medium pressure to achieve the desired stain
color.

3. After two hours, repeat step 2. This will even out the
color of the wood.

4. Allow stain to dry for a minimum of three hours before
applying the final finish.

5. If desired, sand the wood with very fine sandpaper to
smooth the surface after the staining process.

6. Remove all dust from the wood, and apply one coat of
Minwax
bristle brush to the wood. This finish should be applied
in a thin coat following the direction of the grain.
Apply the finish to the back and sides of the wood first,
and allow it to dry for two hours. Apply the finish to the
front side of the wood next, and allow it to dry for two
hours. Sand with very fine 220 grit sandpaper. Apply
two addition coats of the finish in the same manner, but
do not sand the trim after the final third coat is applied.

7. Allow the final coat to dry for 24 hours before
reinstalling the trim to the cabinet interior components.

FINAL FINISH-ONLY APPLICATION

1. Remove all screws securing wood trim to interior
components, and remove the trim.

®

Polycrylic® Protective Finish using a synthetic

03/2008 7 www.U-LineService.com

2275 Dual Zone WC Model

2. Lightly scruff sand the wood trim with 280 or finer grit
sandpaper.

3. Remove sanding dust with a clean, dry cloth.

4. The factory-applied seal is compatible with virtually all
finishes. A low odor, water clean up, quick-drying finish
such as Minwax® Polycrylic® Protective Finish is
recommended (Minwax

®

Polycrylic® is an ultra fast­drying water-based finish). Apply a thin coat of a clear,
protective finish, following the container label
directions.

5. Lightly sand and reapply if desired.

6. Allow the final coat to dry for 24 hours before
reinstalling the trim to the cabinet interior components.

Right-hand
isometric view
shown.
Opposite
for left-hand

9 Overlay Frame (2275ZWCOL Only)

FRAME PREPARATION

IMPORTANT

The thickness of the wood overlay panel must be
3/4".

1. Use the following instructions to create or have a
wood overlay panel created for your Échelon Wine
Captain or Beverage Center model as shown in Figure

13.

2. Drill holes for pivot pins, upper door hinge and lower
door hinge as shown.

3. The overlay door panel must be installed in accordance
with the Installation Instructions starting on page 9.

See Detail A

3/8”

NOTE: Final component
is only a picture frame.
No panel inside of rails
and stiles.

NOTE: Front view of
wood panel with
right-hand hinge shown
(mirror image
for left-hand hinge)

3/4”

2-1/4”

Section A-A
Scale 2:1
Typ 4 places

29-3/4”

A

A

Dim A: 23-3/4”
2275WCOL
2175WCOL2
2175BEVOL2

Dim. A

Dim A: 14-3/4”
2115WCOL2

3/4”

See Detail C

Detail A
Scale 2:1

Detail C
Scale 2:1

9/32”

Door top
Ø 3/16” x 11/16” deep

Door bottom
Ø 3/8” x 1/4” deep
Chamfer 1/32” x 45°

9/32

ULIN_1024_A

Figure 13

www.U-LineService.com 8 03/2008

2275 Dual Zone WC Model

PREPARE THE NEW OVERLAY PANEL

IMPORTANT

The overlay door panel must not weigh more than
20 lbs. The thickness of the door panel must be 3/4".

1. Place a towel, or other similar, soft, non-marking
material out on a flat clean surface. Be sure the
material is large enough to have the wood panel not
touch the hard, marking surface.

2. Lay the wood panel out with the front side of the wood
facing down.

3. Cut the foam tape into four pieces, two pieces the
width of the overlay and two pieces the height of the
overlay.

4. Remove adhesive protection strip from one piece of the
cut foam and align the edge of the foam tape to the
inside edge of the overlay as shown, adhering the foam
tape to the overlay

(Figure 14)

.

ATTACHING THE OVERLAY PANEL

7. Remove the top hinge pivot pin with a Phillips
screwdriver and lift door off bottom hinge pin

15)

. Be careful not to lose the door closer insert sets.

Save pivot pin for use later.

Figure 15

(Figure

Figure 14

5. Trim each piece of tape immediately after applying it to
the overlay. Do not allow any overlapping of the foam
tape. Damage to the overlay can occur if the foam tape
is not trimmed correctly

6. If required, attach any optional cabinet hardware to the
wood panel at this time. If an optional cabinet handle is
installed, make sure the mounting screw heads are
below (countersunk) the back surface of the overlay.

Note: After attaching the optional cabinet hardware,
additional supports may be needed to keep panel flat for
next steps.

(Figure 14).

8. Carefully lay the door over the wood panel, making
sure door is orientated correctly (top of door with top
of wood overlay).

9. Pull door gasket out of the groove completely. Start in
the middle and pull outward, moving towards the
corners
careful not to cut or rip the gasket.

(Figure 16)

. This may take some force, but be

Figure 16

03/2008 9 www.U-LineService.com

2275 Dual Zone WC Model

10. After gasket has been removed, place it on a flat, clean
surface.

11. Secure door to the back of the wood overlay using tape
on all four corners. Make sure all four edges are aligned
(Figure 17).

DOOR FRAME

TA PE

TOP OF
OVERLAY

BOTTOM OF
OVERLAY

ULIN_0418_A

Figure 17

12. Use the door frame holes as a guide to lightly punch
pilot holes for the #6 x 1” pan head screws

(Figure 18).

Note: After attaching the wood to the door, double check
the bottom pivot hole location. If the hole in the pivot
bracket is covered by any wood, chase thru the hole with
a 11/32” drill to open hole in door panel. DO NOT drill
deeper than 1/4” deep.

ASSEMBLING DOOR TO CABINET

14. Starting at the corners and working toward the center,
push the door gasket back into place. Make sure gasket
is fully seated on all four sides and corners.

15. Check the closure assembly on the bottom hinge to be
sure it is seated correctly in the bosses in the hinge.

16. Position door over closer. Be sure the door hinge plate
holes align with the bosses on the closer

(Figure 19)

.
Failure to do so will result in the door not sitting in the
proper position and door will not align correctly.
(Sometimes it is helpful to open the door 180° to have
the closer and pivot plate align correctly.)

Figure 18

13. Attach the door to the overlay using #6 x 1” wood
screws.

IMPORTANT

If you decide to drill pilot holes, remove the wood
overlay from the door, and do not use a drill larger
than 7/64”, and do not drill deeper than 3/8”. The
door frame and wood overlay must be aligned
properly or the door will not operate correctly.

Door closers

Figure 19

17. Holding the door in the closed position, install the pivot
post (removed in step 7) thru the top hinge into the top
pivot plate. Tighten securely with a Phillips screwdriver,
making sure post is seated fully.

18. Adjust door as needed for proper closure. Refer to the
following section for adjustment procedures.

www.U-LineService.com 10 03/2008

2275 Dual Zone WC Model

10 Adjusting The Door

CHECKING DOOR ALIGNMENT

The unit’s door is aligned at the factory before shipment.
However, its alignment could have been disturbed during
shipment or during door panel installation.

IMPORTANT

Properly aligned, the door should be 1/8” below the
top of the unit’s cabinet, NOT flush with the top
(Figure 20).

1/8"

Figure 20

1. Compare the top edge of the door to the top edge of
the cabinet.

2. If the door edge is 1/8” below and parallel to the top of
the cabinet, proceed to Prepare Power Supply. If it is
not, note whether the side opposite the hinge needs to
be moved UP or DOWN, and use the following
procedure.

ADJUSTING DOOR ALIGNMENT

1. Using a Phillips screwdriver, remove top hinge screw
pin (Figure 21). Remove door by tilting forward and
lifting off bottom hinge pin.

3. See

Figure 22

. If the top far edge of the door needs to
move UP, move the hinge plate toward the outside of
the door and retighten screws. If the top far edge of the
door needs to move DOWN, move the hinge plate
toward the inside of the door and retighten the screws.

Slotted

Mounting

Holes

Raise

Outside

Door Edge

Angled Edge

Towards Center

of Door

Lower

Outside

Door Edge

Figure 22

4. Mount the door to recheck alignment and repeat steps
2 and 3 if further adjustment is necessary.

5. When top edge of door is parallel to top edge of
cabinet, remove the door and ensure the two screws
are secure.

6. Remove the door closers from the bottom hinge, lean
thoroughly and lubricate the mating surfaces with
petroleum jelly.

7. Reinstall the closers, lining up the bosses with holes in
hinge and hinge plate

().

8. Mount the door, install top hinge pivot pin and proceed
to Prepare Power Supply.

Door

Closer

Inserts

ULIN_0133_A

Boss

Figure 21

2. With door upside-down, loosen but do not remove the

Figure 23

two screws on the door’s bottom hinge plate.

03/2008 11 www.U-LineService.com

2275 Dual Zone WC Model

11 Electrical Specifications

CAUTION

Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle that
has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current).
An individual, properly grounded branch circuit or circuit
breaker is recommended. GFCI (ground fault circuit
interrupter) is usually not required for fixed location
appliances and is not recommended for your unit because
a GFCI could be prone to nuisance tripping. However, be
sure to consult your local codes.

See Figure 24 for recommended receptacle location.

12 Level The Unit

LEVELING INFORMATION

Note: It is recommended that the unit is level.

1. Use a level to check the levelness of the unit from
front to back and from side to side. Level should be
placed along top edge and side edge as shown (Figure

25).

ULIN_1014_A

Figure 25

23-1/4"

7"

1-1/2"

Figure 24

WARNING

SHOCK HAZARD — Electrical Grounding Required.

• Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.

• Never use an extension cord to connect power to
the unit.

Proceed to Level the Unit.

2. If the unit is not level, adjust the feet on the corners of
the unit as necessary (

Figure 26

).

Turn Foot to Adjust

Figure 26

3. Check the levelness after each adjustment and repeat
the previous steps until the unit is level. Proceed to

Install the Unit

.

LEVELING TIP

If the room floor is higher than the floor in the cut-out
opening, adjust the rear feet to achieve a total unit rear

"

height of 1/8

less than the opening’s rear height. Shorten
the unit height in the front by adjusting the front feet.
This allows the unit to be gently tipped into the opening.
Readjust the front feet to level the unit after it is correctly
positioned in the opening.

www.U-LineService.com 12 03/2008

2275 Dual Zone WC Model

13 Install The Unit

ANTI-TIP BRACKET INSTALLATION

1. Locate the two Anti-Tip brackets included inside the
unit..

2. Place the unit into the area where it will be installed.
Check the door, sides and top for a proper fit. Also test
the make sure the door opens and closes freely.

3. Remove grille and place mark on the floor at the front
of the unit. Also place a mark on the floor in the center
of the unit (

Figure 27

).

5. Place the Anti-Tip brackets on the floor against the line
drawn for the outer edge. Mark spots for the screw
holes (

Figure 29

).

6. Use a 1/8” drill to make two starter holes and fasten the
Anti-Tip brackets to the floor using the screws provided.

Drill Holes and
Mount Anti-Tip

Brackets to Floor

Back
Wall

Back

of Unit

Front

of Unit

Figure 29

Marks on floor

Figure 27

4. Remove the unit. Using a square, extend a centerline
20-1/4” toward the back wall (

Figure 28

). At the back
of the centerline, mark a line that measures 11-1/16” to
the left and right. This line services as the back edge for
the Anti-Tip brackets and its furthest points mark the
outer edge of each bracket.

Note: Instructions are shown for built-in installation. Use
same dimensions for free-standing installation.

Line Marks

Front

of Unit

Back
Wall

Back

of Unit

CAUTION

Other hardware is required for floors made of
materials other than wood.

7. Place the unit back into position, making sure the feet
engage the Anti-Tip brackets properly. Check the
alignment of the lines made on the floor in step 3 with
the position of the front feet to ensure proper
positioning.

SINGLE UNIT INSTALLATION

1. Remove the two screws from the opposite side of the
hinge assembly using a Phillips screwdriver (Figure

30).

Right–handed units shown, Left–handed units are mirrored

Marks

on Floor

20-1/4"

11-1/16" 11-1/16"

Centerline

2. Place bracket (part # 14154) over holes and attach to
unit with two screws removed in step 1 using a Phillips
screwdriver. Tighten screws fully.

Figure 30

Figure 28

03/2008 13 www.U-LineService.com

2275 Dual Zone WC Model

3. Recheck the leveling, from front to back and side to
side. Make any necessary adjustments. The unit's top
surface should be approximately 1/8" below the
countertop.

4. Secure bracket into adjoining surface.

SIDE-BY-SIDE INSTALLATION

1. Remove screws shown (Figure 31).

CAUTION

Be sure to remove and discard screw shown. Failure
to do so may cause damage to the bracket and/or
unit.

1/4”

Remove and
discard screw

Figure 31

14 Initial Start-Up

INITIAL START-UP

The unit is shipped with the control preset. No other
adjustments should be necessary at this time. For
information about Adjusting the temperature control, see
the Use and Care Guide.

START-UP TROUBLESHOOTING

Problem

Unit does not appear to turn on when plugged in.

Solution

Make sure outlet has power (circuit breaker has not
tripped). Check to see that control is turned on.

Problem

Light is on when door is closed.

Solution

Touch the LIGHT icon on the diplay panel. This will cancel
out the light function and just allow the light to turn on
and off with the door opening and closing.

The Wine Captain® has an interior light that is
illuminated when the door is opened. The light can be left
on while the door is closed by pressing the LIGHT icon.
This will turn interior light on for 4 hours, then it will turn
off.

2. Place bracket as shown, and re-attach screws to unit
using a Philips screwdriver. Tighten screws fully.

3. Recheck the leveling, from front to back and side to
side. Make any necessary adjustments. The unit's top
surface should be approximately 1/8" below the
countertop.

INSTALLATION TROUBLESHOOTING

Problem

The door remains open unless it is pushed closed.

Solution

The hinges should be self-closing when the door is open
approximately 8”. If this is not the case, make sure the
closers (at the bottom of the hinge pin) are clean, greased
and installed correctly. Also, re-check leveling from front­to-back of the unit and adjust as necessary. Make sure
that pivot plate is installed correctly.

IMPORTANT

See the Use and Care Guide’s Troubleshooting
section for more solutions.

15 Service Information

WHO TO CALL

If the need for service arises, call the U-Line Customer
Care Center directly @ 800-779-2547. To ensure accurate
assistance, please have your Model Number and Serial
Number and an explanation of the problem. The Model
and Serial Number plate is located inside unit at upper
right hand corner.

If you need to locate a service company, you can go online
at www.U-LineService.com and search for a service
company by zip code.

www.U-LineService.com 14 03/2008

2275 Dual Zone WC Model

This page intentionally left blank.

03/2008 15 www.U-LineService.com

For more than four decades, U-Line has distinguished itself as the leader in built-in

undercounter ice making, refrigeration and wine storage appliances.

U-Line Corporation, located in Milwaukee, WI, is a family operated manufacturer of built-in

undercounter icemakers, Combo

©2008 U-Line Corporation
Publication No. 30200E
03/2008 Rev. A

®

icemaker/refrigerators, Wine Captain® wine storage units,

refrigerators, refrigerated drawers and refrigerator/freezers.
