UHER ROYAL STEREO 8000

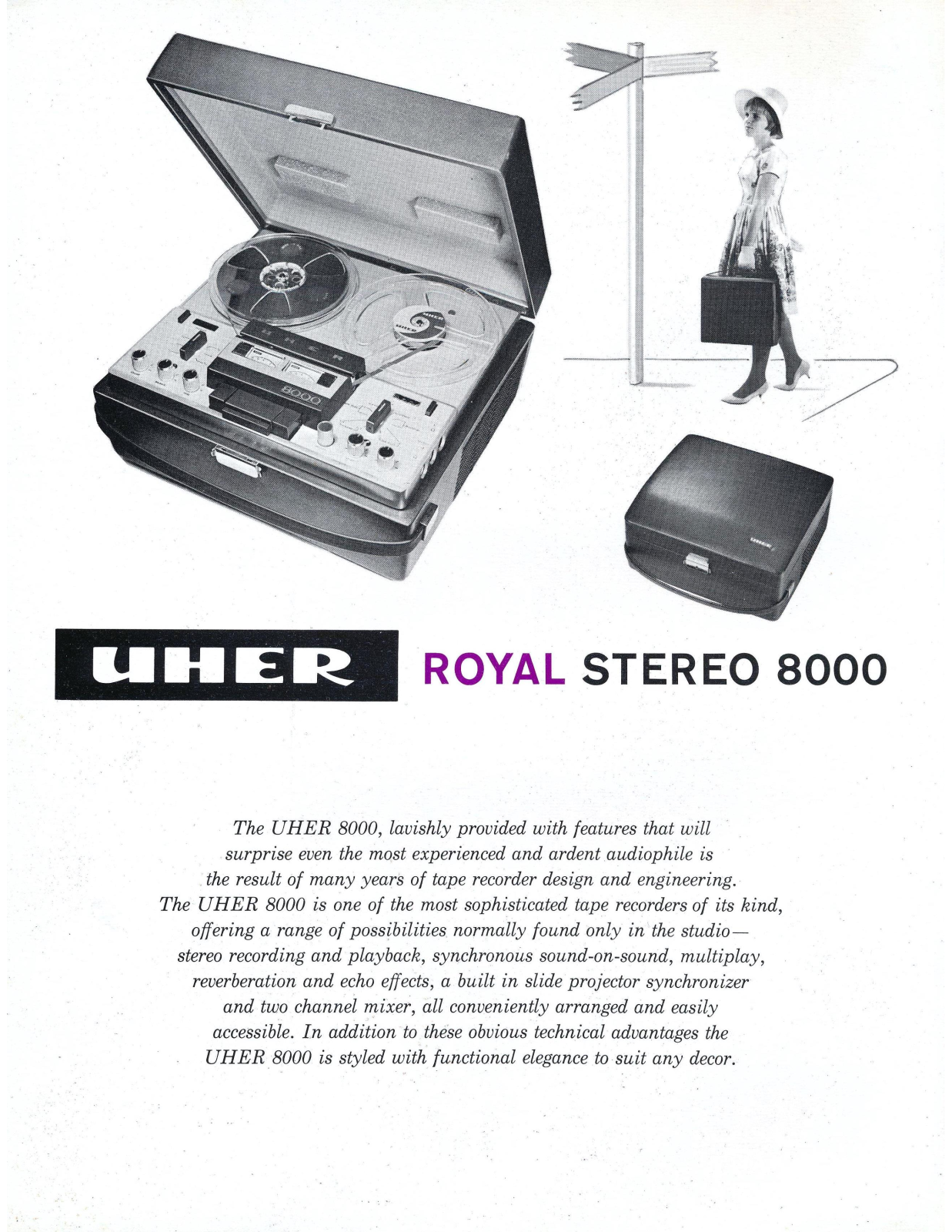

The UHER 8000, lavishly provided with features that will surprise even the most experienced and ardent audiophile is the result of many years of tape recorder design and engineering. The UHER 8000 is one of the most sophisticated tape recorders of its kind, offering a range of possibilities normally found only in the studio stereo recording and playback, synchronous sound-on-sound, multiplay, reverberation and echo effects, a built in slide projector synchronizer and two channel mixer, all conveniently arranged and easily accessible. In addition to these obvious technical advantages the UHER 8000 is styled with functional elegance to suit any decor.
- 4 Tape Speeds
- Stereo Recording and Playback
- Synchronized Sound-on-Sound Recording
- Multiplay
- Reverberation
- Dia-Pilot
- 3 Magnetic Heads
- Acoustic Stop/Start Control
- Input Mixer for Mono and Stereo
- Remote Control
TAPE RECORDER
TECHNICAL SPECIFICATIONS
Four tracks to international standards Tape Speeds : 15/16, 1%, 3¾, 7½ ips Reel Size : up to 7 "
Frequency Response :
50— 4000cps at 15/16 ips 50— 8000cps at 1% ips 50—16000cps at 3% ips 50—20000cps at 7½ ips
Dynamic Range: 50 db Wow and Flutter: 0.15% at 7½ ips (audible frequencies only)
Channel Separation : 50 db
Output Power: 2 x 2 watts (push-pull output stage) Power Supply: 110, 130, 150, 220, 240, 250 volts A.C. 60 cps Dimensions: 16" x 14" x 7" Weight: 27½ lbs
CHASSIS
This tape recorder features a cast aluminum chassis for durability, heavy capstan flywheel and long life oilite bearings.
CASING
The case is of wood, well reinforced, covered with an attractive synthetic black Morocco leather and fitted with a key-operated lock. The unit measures 16" wide, 14" front to back, and 7" high.
ALL TRANSISTOR
The UHER ROYAL STEREO 8000 is fully transistorized (19 transistors).
SPEAKER SYSTEM
The unit has two built-in 5 x 7" loudspeakers, one on each side of the case. The output amplifiers, also transistorized, are capable of putting out a signal of 2 watts per channel, which is more than adequate for an efficient speaker system. For optimum sound reproduction quality however the machine would normally be used to feed an external power amplifier and loudspeakers. At the slowest speed and in the echo mode the tape recorder can be used to check pronunciation in the study of languages: one has simply to say a word or phrase and hear it played back a moment later. The numerous features of this machine provide a wide range of facilities most useful in the study of language or music.
PLAYING TIMES
The playing times listed below pertain to 2400 feet of tape on a 7" reel.
|
TAPE
SPEED |
FREQUENCY
RESPONSE |
PURPOSE | TIME |
|---|---|---|---|
| 15/16 ips | 50-4000 cps |
Longer playing
time |
2 x 8 hours |
| 1% ips | 50-8000 cps |
long playing time
& good fidelity |
2 x 4 hours |
| 3¾ ips | 50-16000 cps |
wide frequency
response |
2 x 2 hours |
| 7½ ips | 50-20000 cps |
the ultimate in
Hi-Fi recording |
2 x 1 hour |
WARRANTY
Six months warranty.

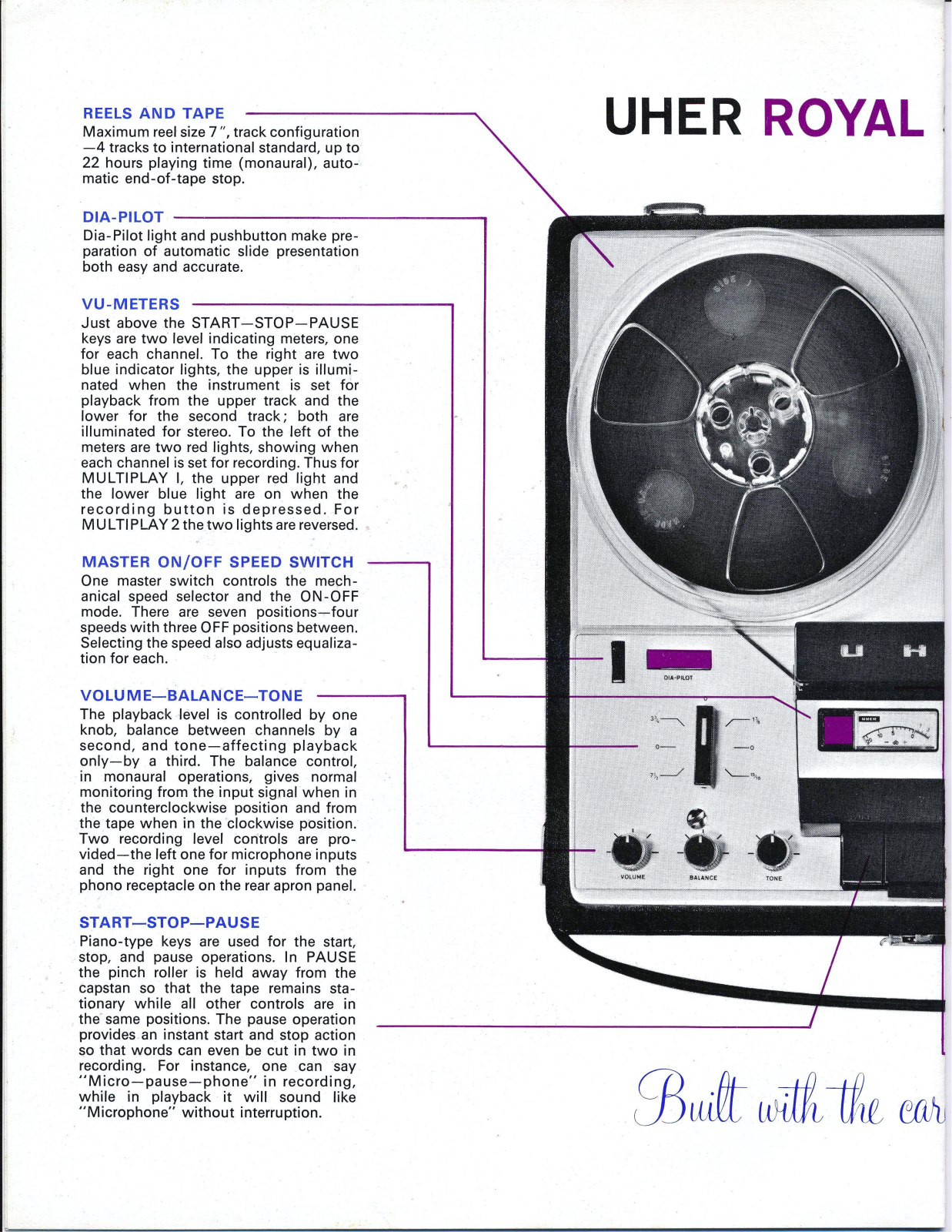

REELS AND TAPE
Maximum reel size 7", track configuration —4 tracks to international standard, up to 22 hours playing time (monaural), automatic end-of-tape stop.
DIA-PILOT -
Dia-Pilot light and pushbutton make preparation of automatic slide presentation both easy and accurate.
VU-METERS —
Just above the START—STOP—PAUSE keys are two level indicating meters, one for each channel. To the right are two blue indicator lights, the upper is illuminated when the instrument is set for playback from the upper track and the lower for the second track; both are illuminated for stereo. To the left of the meters are two red lights, showing when each channel is set for recording. Thus for MULTIPLAY I, the upper red light and the lower blue light are on when the recording button is depressed. For MULTIPLAY 2 the two lights are reversed.
MASTER ON/OFF SPEED SWITCH
One master switch controls the mechanical speed selector and the ON-OFF mode. There are seven positions—four speeds with three OFF positions between. Selecting the speed also adjusts equalization for each.
VOLUME-BALANCE-TONE -
The playback level is controlled by one knob, balance between channels by a second, and tone—affecting playback only—by a third. The balance control, in monaural operations, gives normal monitoring from the input signal when in the counterclockwise position and from the tape when in the clockwise position. Two recording level controls are provided—the left one for microphone inputs and the right one for inputs from the phono receptacle on the rear apron panel.
START-STOP-PAUSE
Piano-type keys are used for the start, stop, and pause operations. In PAUSE the pinch roller is held away from the capstan so that the tape remains stationary while all other controls are in the same positions. The pause operation provides an instant start and stop action so that words can even be cut in two in recording. For instance, one can say "Micro-pause-phone" in recording, while in playback it will sound like "Microphone" without interruption.
UHER ROYAL
Built with the car
STEREO 8000
of a watchmaker...

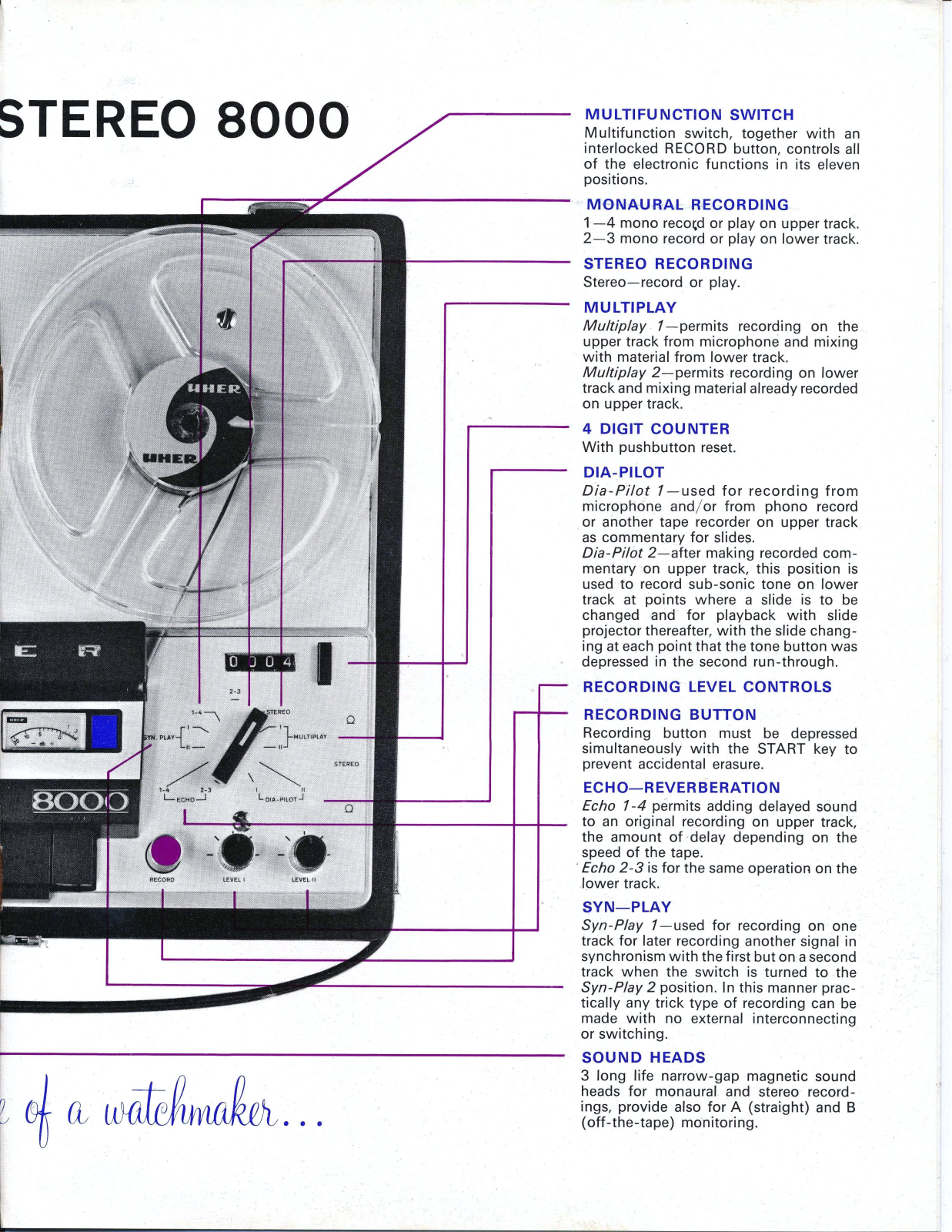

MULTIFUNCTION SWITCH
Multifunction switch, together with an interlocked RECORD button, controls all of the electronic functions in its eleven positions.
MONAURAL RECORDING
1–4 mono record or play on upper track. 2–3 mono record or play on lower track.
STEREO RECORDING
Stereo-record or play.
MULTIPLAY
Multiplay 1—permits recording on the upper track from microphone and mixing with material from lower track.
Multiplay 2 —permits recording on lower track and mixing material already recorded on upper track.
4 DIGIT COUNTER
With pushbutton reset.
DIA-PILOT
Dia-Pilot 1 —used for recording from microphone and/or from phono record or another tape recorder on upper track as commentary for slides.
Dia-Pilot 2—after making recorded commentary on upper track, this position is used to record sub-sonic tone on lower track at points where a slide is to be changed and for playback with slide projector thereafter, with the slide changing at each point that the tone button was depressed in the second run-through.
RECORDING LEVEL CONTROLS
RECORDING BUTTON
Recording button must be depressed simultaneously with the START key to prevent accidental erasure.
ECHO — REVERBERATION
Echo 1-4 permits adding delayed sound to an original recording on upper track, the amount of delay depending on the speed of the tape.
Echo 2-3 is for the same operation on the lower track.
SYN-PLAY
Syn-Play 1—used for recording on one track for later recording another signal in synchronism with the first but on a second track when the switch is turned to the Syn-Play 2 position. In this manner practically any trick type of recording can be made with no external interconnecting or switching.
SOUND HEADS
3 long life narrow-gap magnetic sound heads for monaural and stereo recordings, provide also for A (straight) and B (off-the-tape) monitoring.

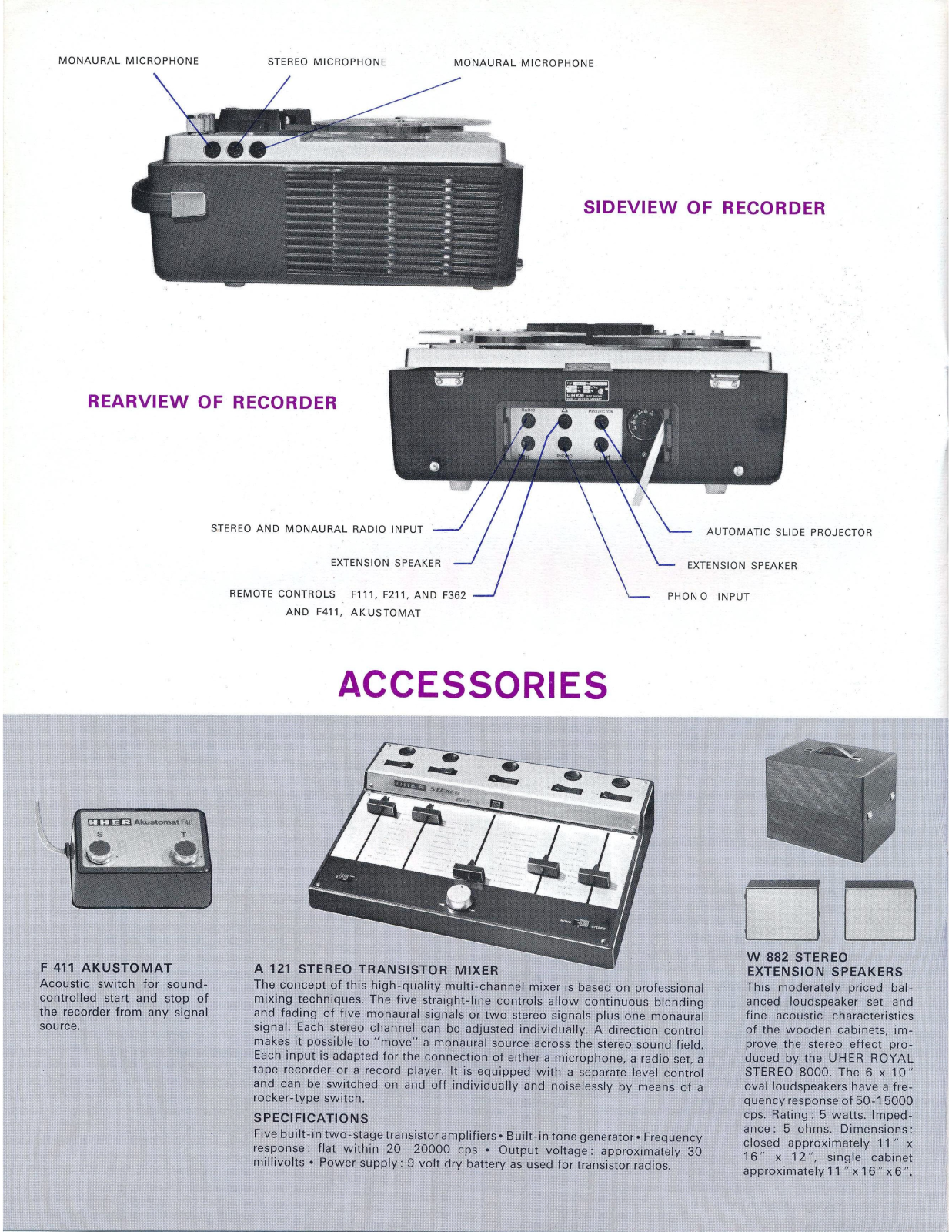

SIDEVIEW OF RECORDER
REARVIEW OF RECORDER
STEREO AND MONAURAL RADIO INPUT
EXTENSION SPEAKER -
REMOTE CONTROLS F111, F211, AND F362 AND F411, AKUSTOMAT
- AUTOMATIC SLIDE PROJECTOR
- EXTENSION SPEAKER
PHONO INPUT
ACCESSORIES
F 411 AKUSTOMAT
Acoustic switch for soundcontrolled start and stop of the recorder from any signal source.
A 121 STEREO TRANSISTOR MIXER
The concept of this high-quality multi-channel mixer is based on professional mixing techniques. The five straight-line controls allow continuous blending and fading of five monaural signals or two stereo signals plus one monaural signal. Each stereo channel can be adjusted individually. A direction control makes it possible to "move" a monaural source across the stereo sound field. Each input is adapted for the connection of either a microphone, a radio set, a tape recorder or a record player. It is equipped with a separate level control and can be switched on and off individually and noiselessly by means of a rocker-type switch.
SPECIFICATIONS
Five built-in two-stage transistor amplifiers • Built-in tone generator • Frequency response : flat within 20–20000 cps • Output voltage : approximately 30 millivolts • Power supply : 9 volt dry battery as used for transistor radios.
W 882 STEREO EXTENSION SPEAKERS
This moderately priced balanced loudspeaker set and fine acoustic characteristics of the wooden cabinets, improve the stereo effect produced by the UHER ROYAL STEREO 8000. The 6 x 10" oval loudspeakers have a frequency response of 50-15000 cps. Rating : 5 watts. Impedance: 5 ohms. Dimensions: closed approximately 11" x 16" x 12", single cabinet approximately 11" x 16" x 6".

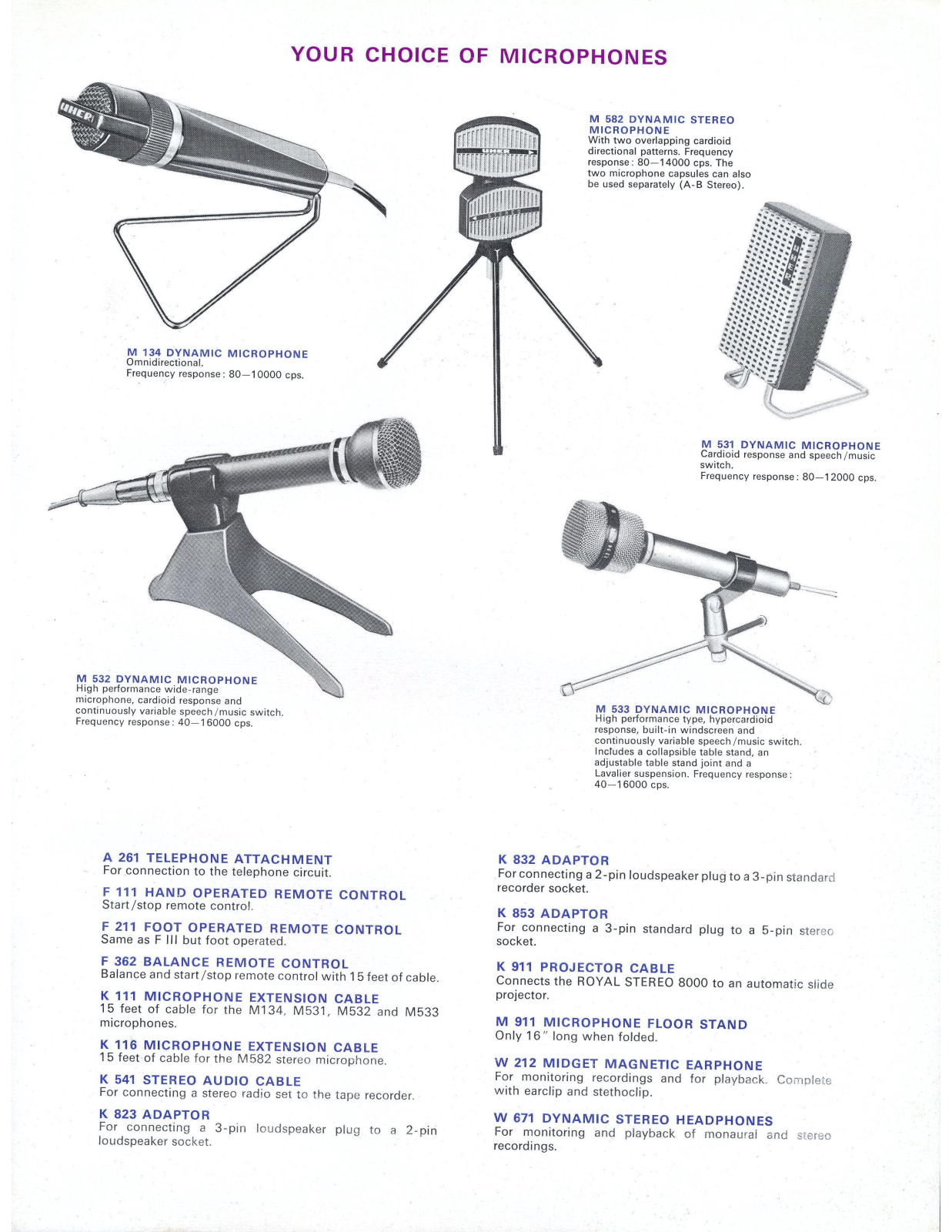

YOUR CHOICE OF MICROPHONES
requency response: 80-10000 cps
M 582 DYNAMIC STEREO
ng cardioid two microphone capsules can also
M 531 DYNAMIC MICROPHONE Frequency response: 80–12000 cps
M 532 DYNAMIC MICROPHONE microphone, cardioid response and continuously variable speech/music switch Frequency response : 40-16000 cps.
E
____
0
M 533 DYNAMIC MICROPHONE High performance type, hypercardioid response, built-in windscreen and 40—16000 cps.
A 261 TELEPHONE ATTACHMENT
F 111 HAND OPERATED REMOTE CONTROL
F 211 FOOT OPERATED REMOTE CONTROL
F 362 BALANCE REMOTE CONTROL Balance and start/stop remote control with 15 feet of cable.
K 111 MICROPHONE EXTENSION CABLE 15 feet of cable for the M134, M531, M532 and M533
K 116 MICROPHONE EXTENSION CABLE
K 541 STEREO AUDIO CABLE For connecting a stereo radio set to the tape recorder.
K 823 ADAPTOR For connecting a 3-pin loudspeaker plug to a 2-pin
K 832 ADADTOR
For connecting a 2-pin loudspeaker plug to a 3-pin standard recorder socket.
K 853 ADAPTOR For connecting a 3-pin standard plug to a 5-pin stereo socket.
K 911 PROJECTOR CABLE Connects the ROYAL STEREO 8000 to an automatic slide
M 911 MICROPHONE FLOOR STAND
W 212 MIDGET MAGNETIC EARPHONE
For monitoring recordings and for playback. Complete with earclip and stethoclip.
W 671 DYNAMIC STEREO HEADPHONES
For monitoring and playback of monaural and stereo recordings.
