Instructions for Ultraprobe 401 Digital Grease Caddy Pro:

I. Overview:

The 401 Digital Grease Caddy Pro is an important element to ultrasound assisted
lubrication. Through uploading and downloading of bearing data it lets users know when
to stop adding lubrication as well as provide data of lubrication history that adds to
analysis of bearing condition to prevent premature failure.

II. Main Features:

A. Basic Components

1. Digital Grease Caddy housing

2. Mount Ball

3. Headphones

4. RAS-MT Magnetic Transducer

5. Charging unit

6. Docking Station

.

2

7 8 9

10

11

12

13

14

B. Main Unit:

7. BNC connector for magnetic mount probe

8. SD card slot

9. Headphone jack

10. On off button

11. Sensitivity/Spin and click dial

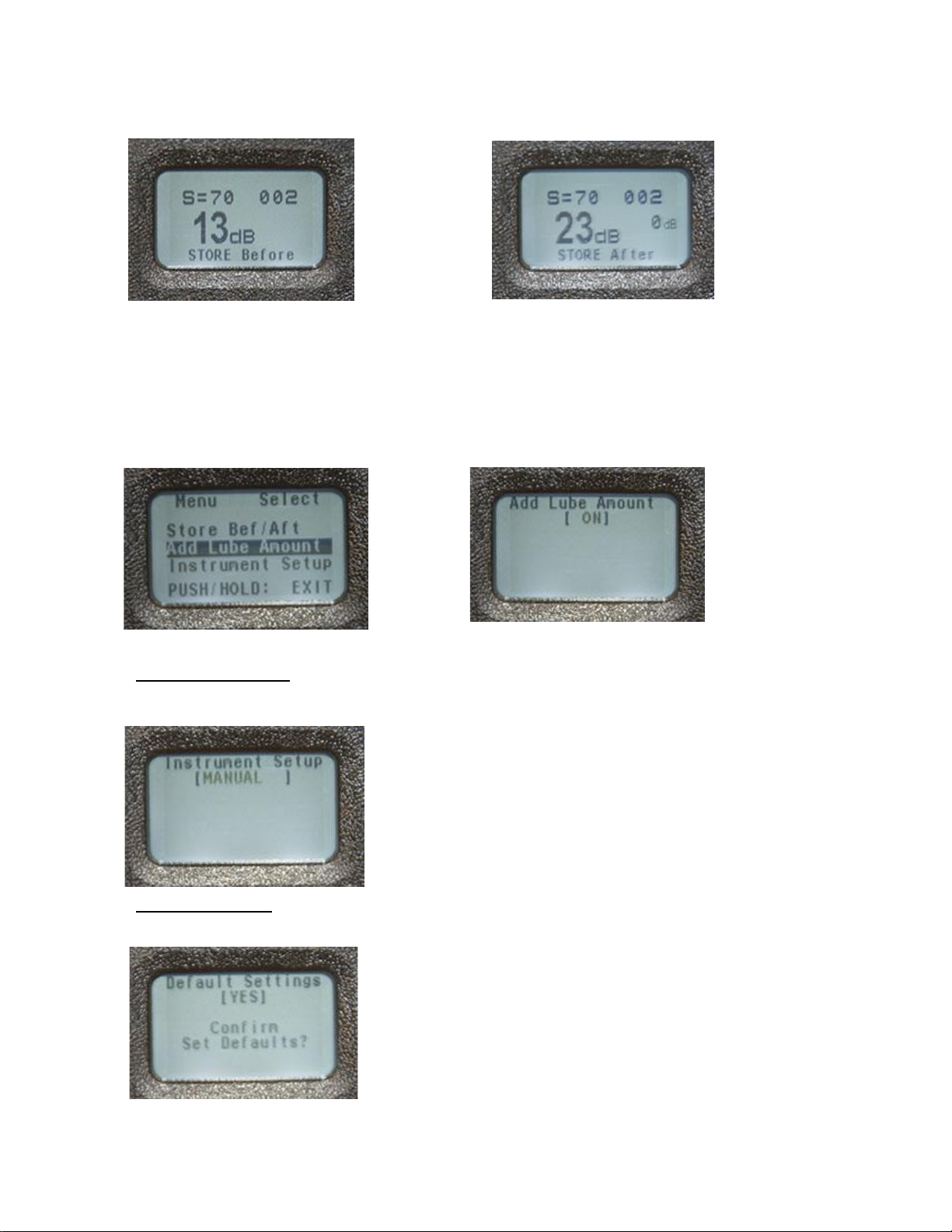

12. Display panel

13. Recharge Jack

14. LED Flash Light

3

C. Grease Gun Mounting Kit

2

15

16

17

18

19

2. Mount Ball

15. Mount

16. Grease Gun Mount foot

17. Open clamp end

18. Clamp Knob

19. Grease Gun Ring with foam strip

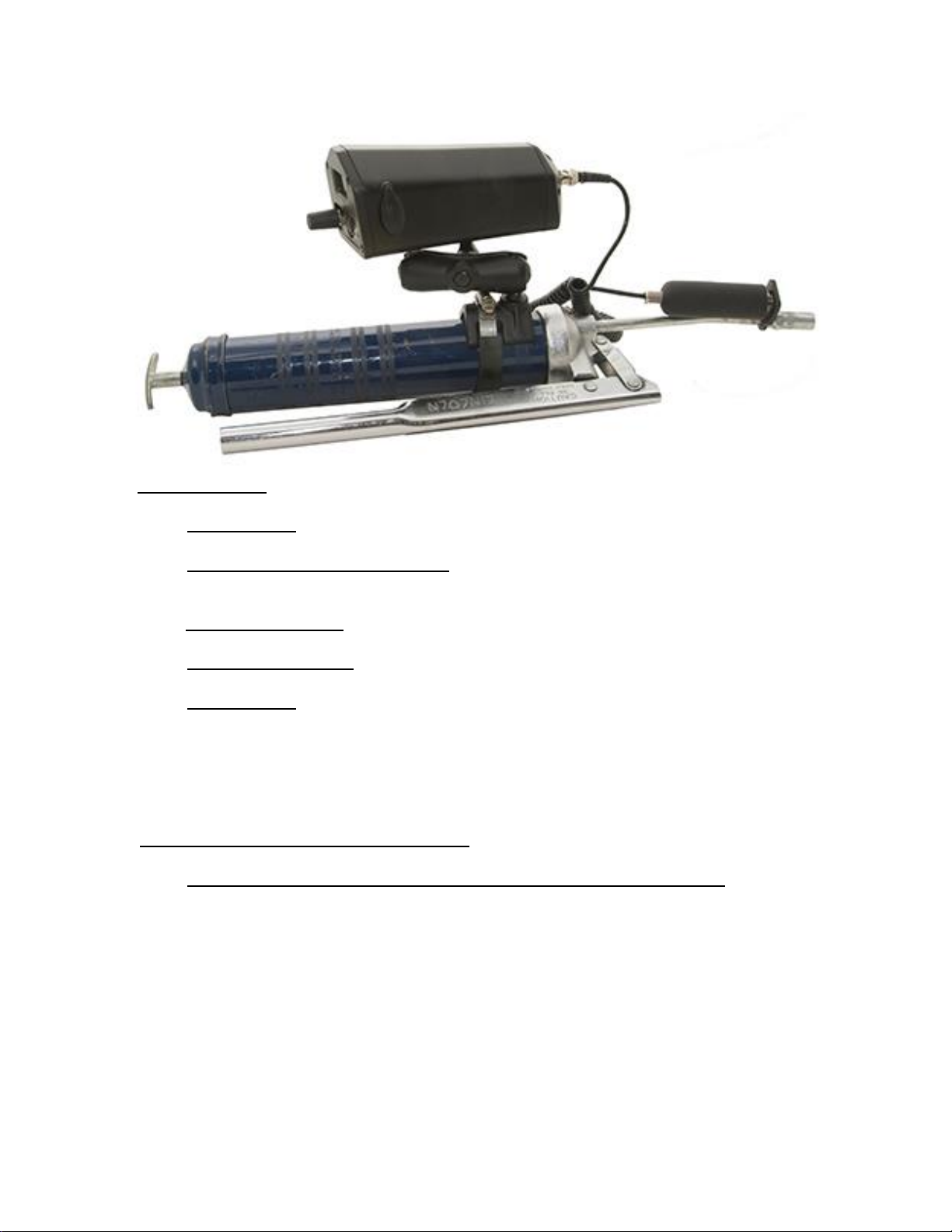

a. Mounting the 401 Digital Grease Caddy to Grease Gun:

1. Screw Mount Ball (2) into threaded fitting on the bottom of the

Digital Grease Caddy housing as shown.

2. Place Mount (14) on Grease gun so that the Grease Gun Mount

Foot (15) is resting on the grease gun.

3. Place Grease Gun Ring with foam strip (18) around the Grease

Gun and over the Mount foot (15).

4. Tighten the Grease Gun Ring until the mount is firmly in place

5. Attach the Digital Grease Caddy by placing the Gun Mount Ball (2)

in the open clamp end (16).

6. Tighten the clamp knob (17).

III. Setup:

a. Attach the 401 Digital Grease Caddy mount to the grease gun as described above.
b. Attach the Magnetic Mount transducer cable (4) to BNC connector (7).
c. Plug in the Headphones (3) to the Headphone jack (9).

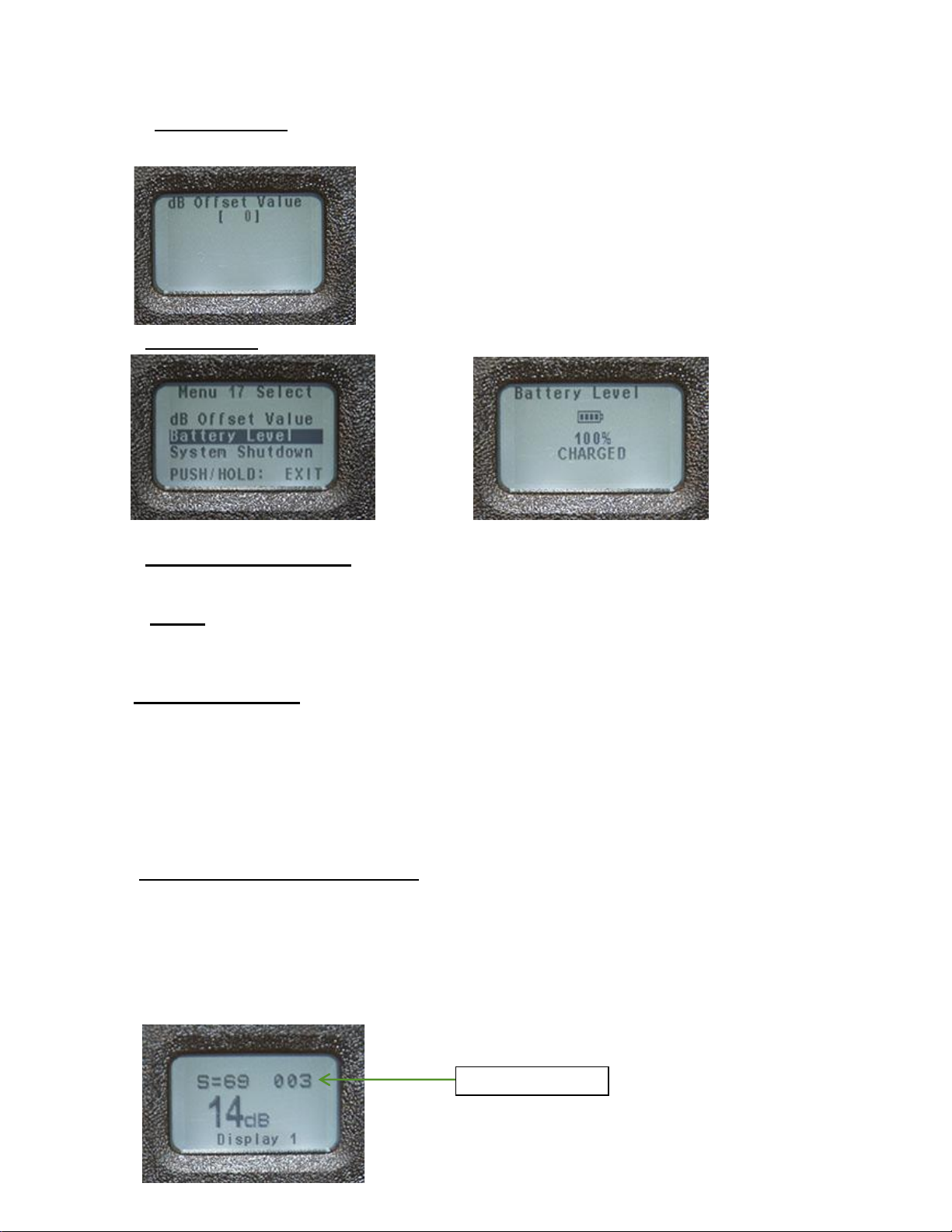

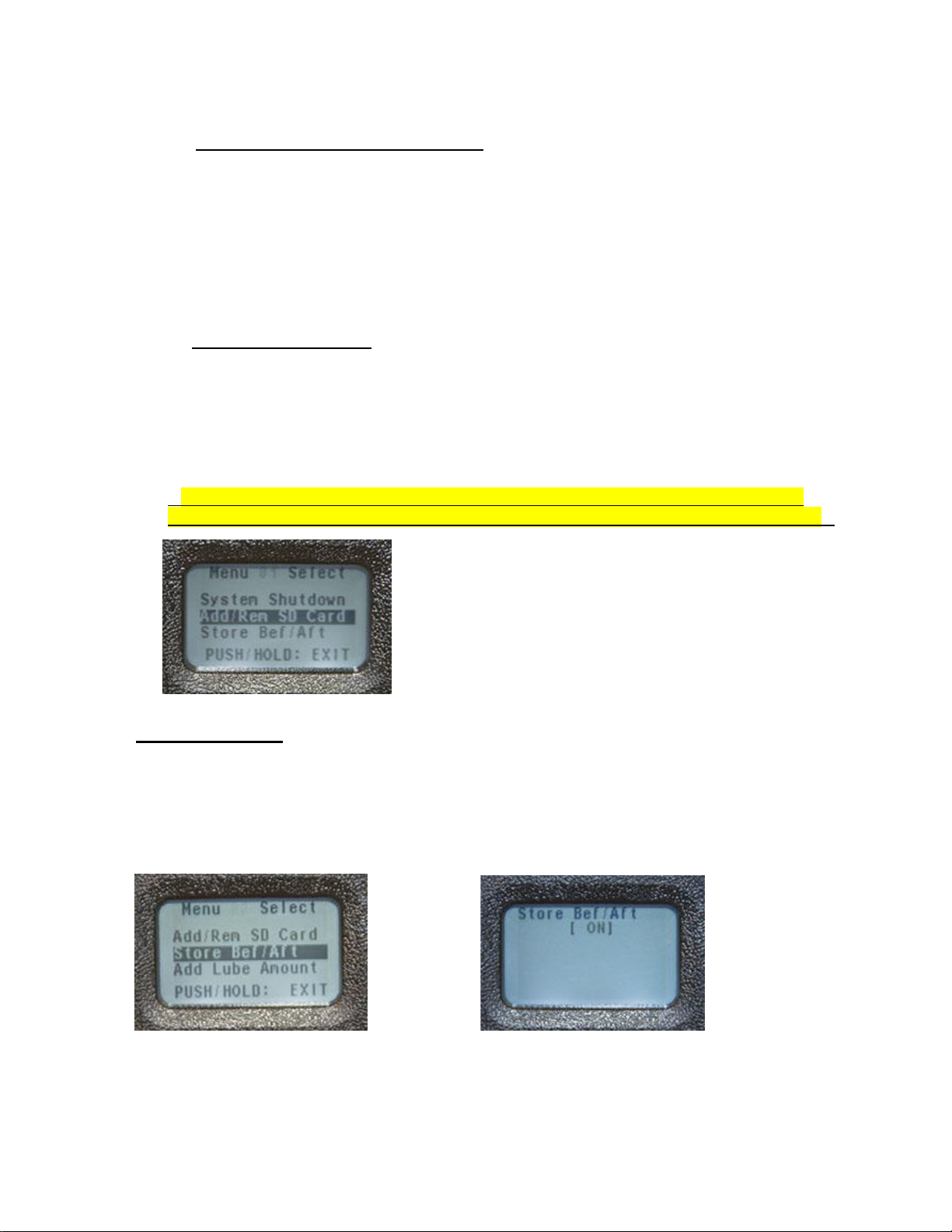

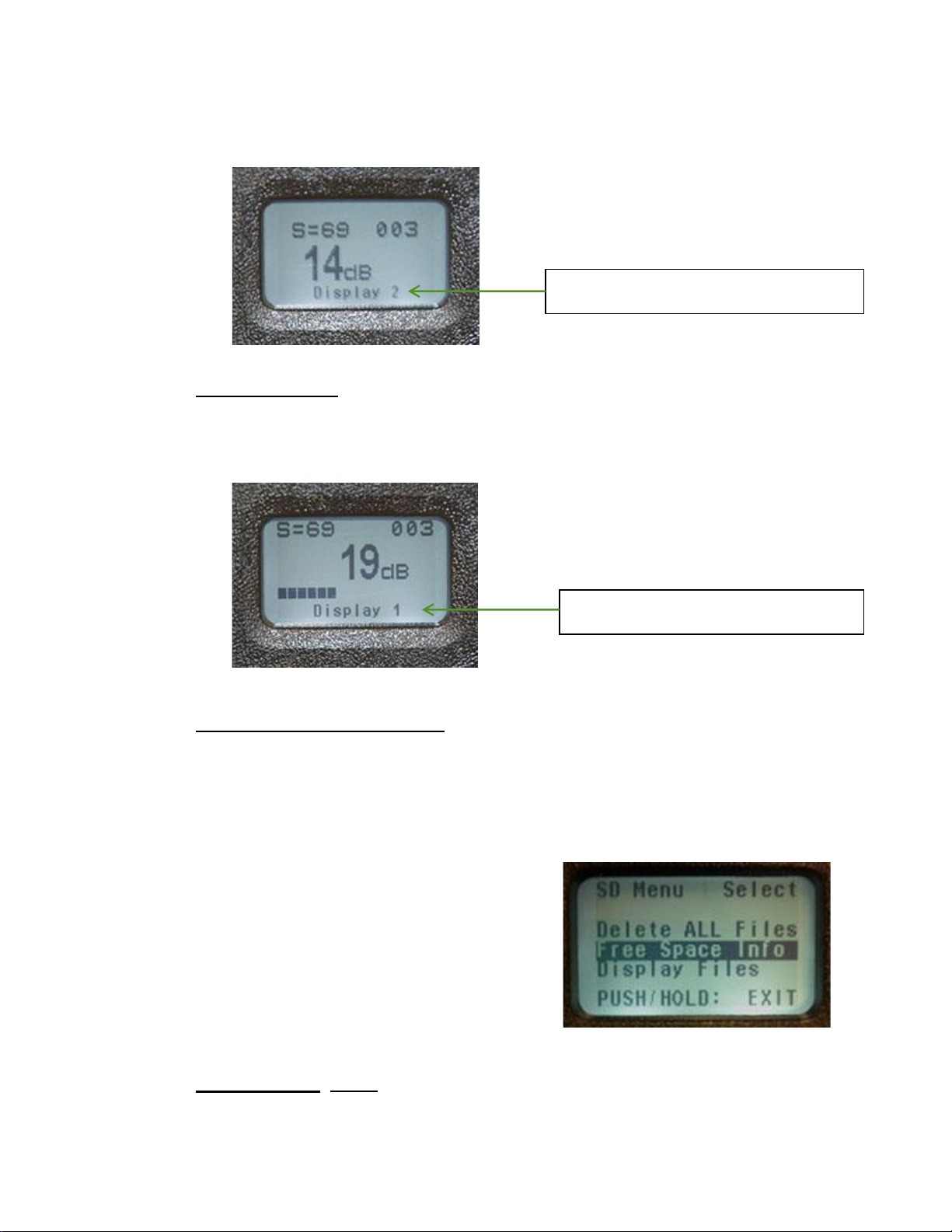

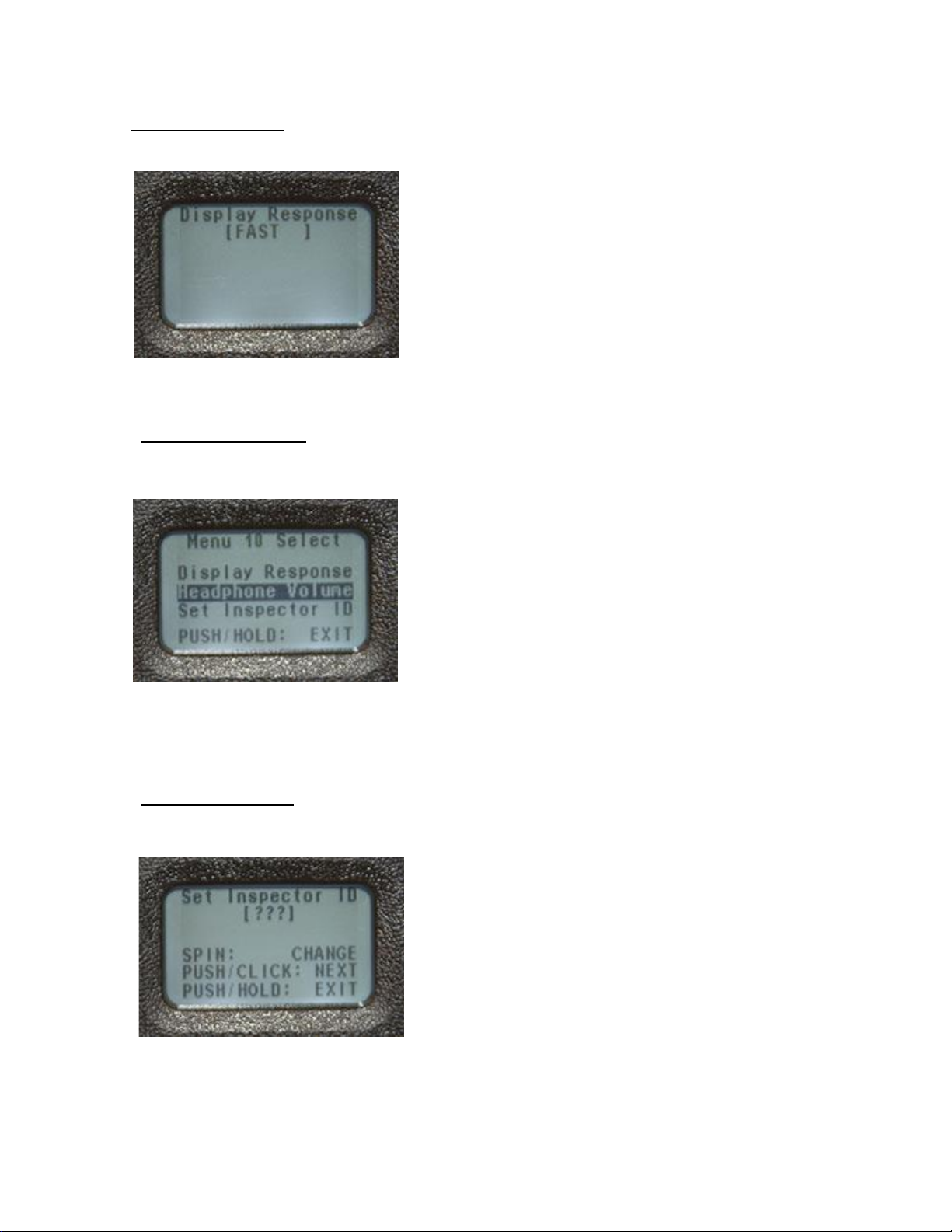

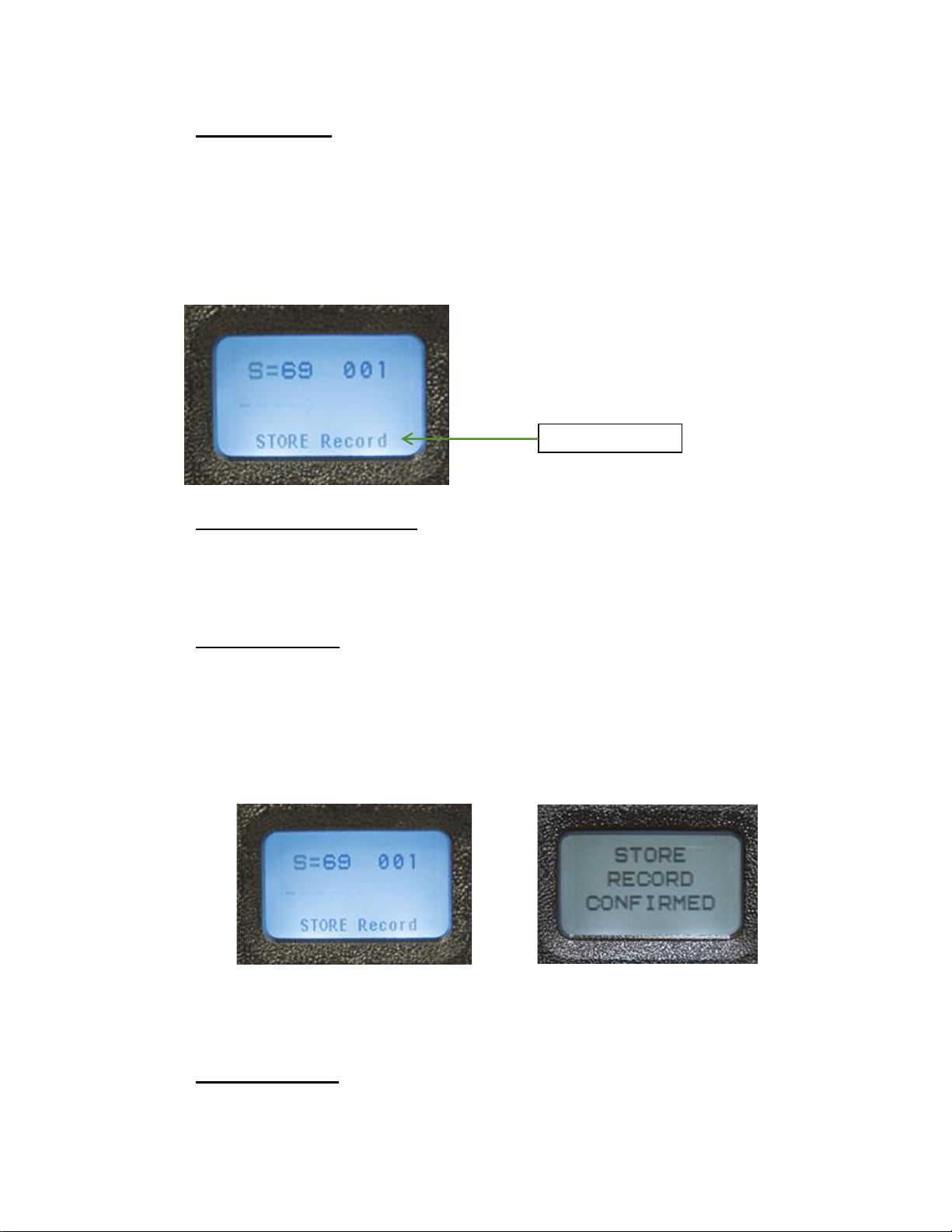

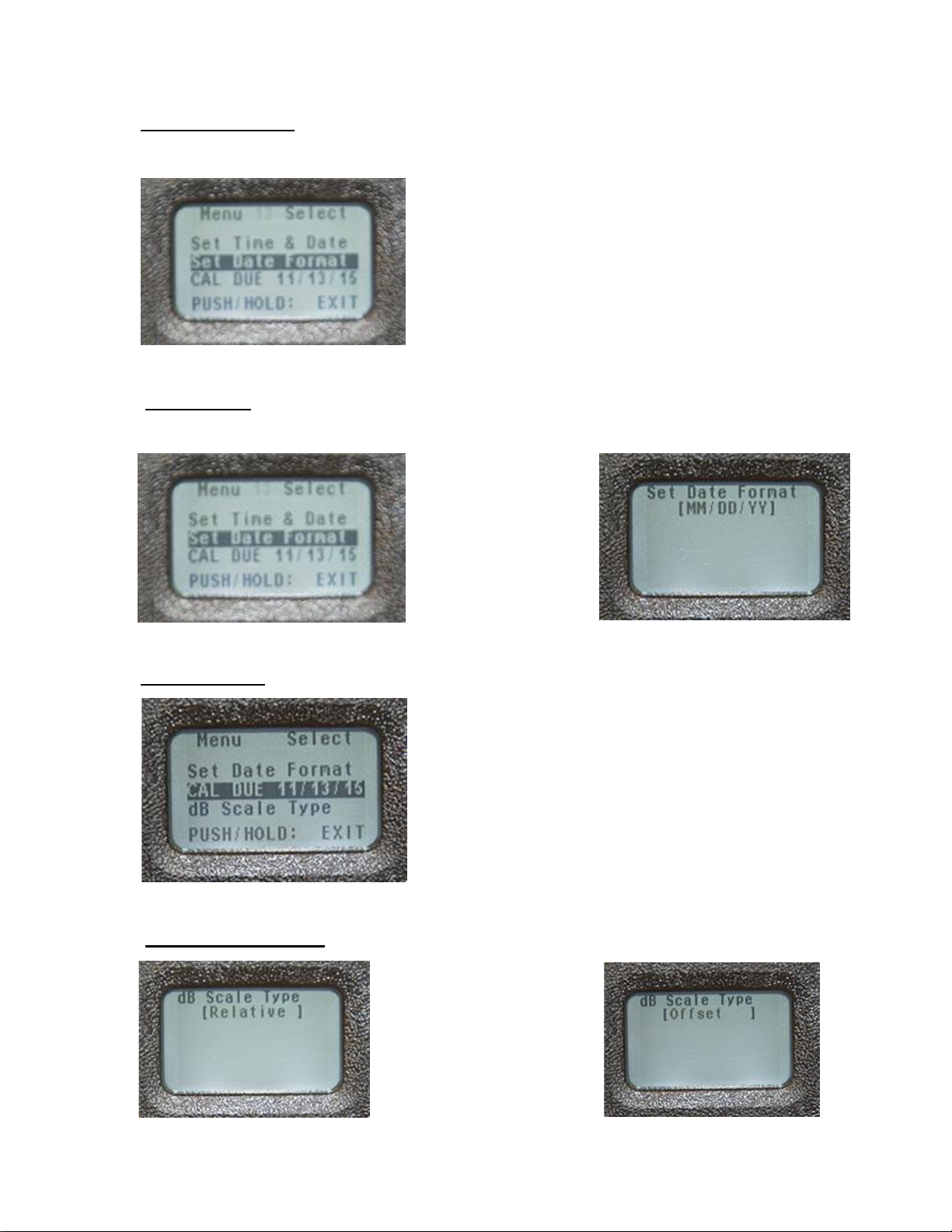

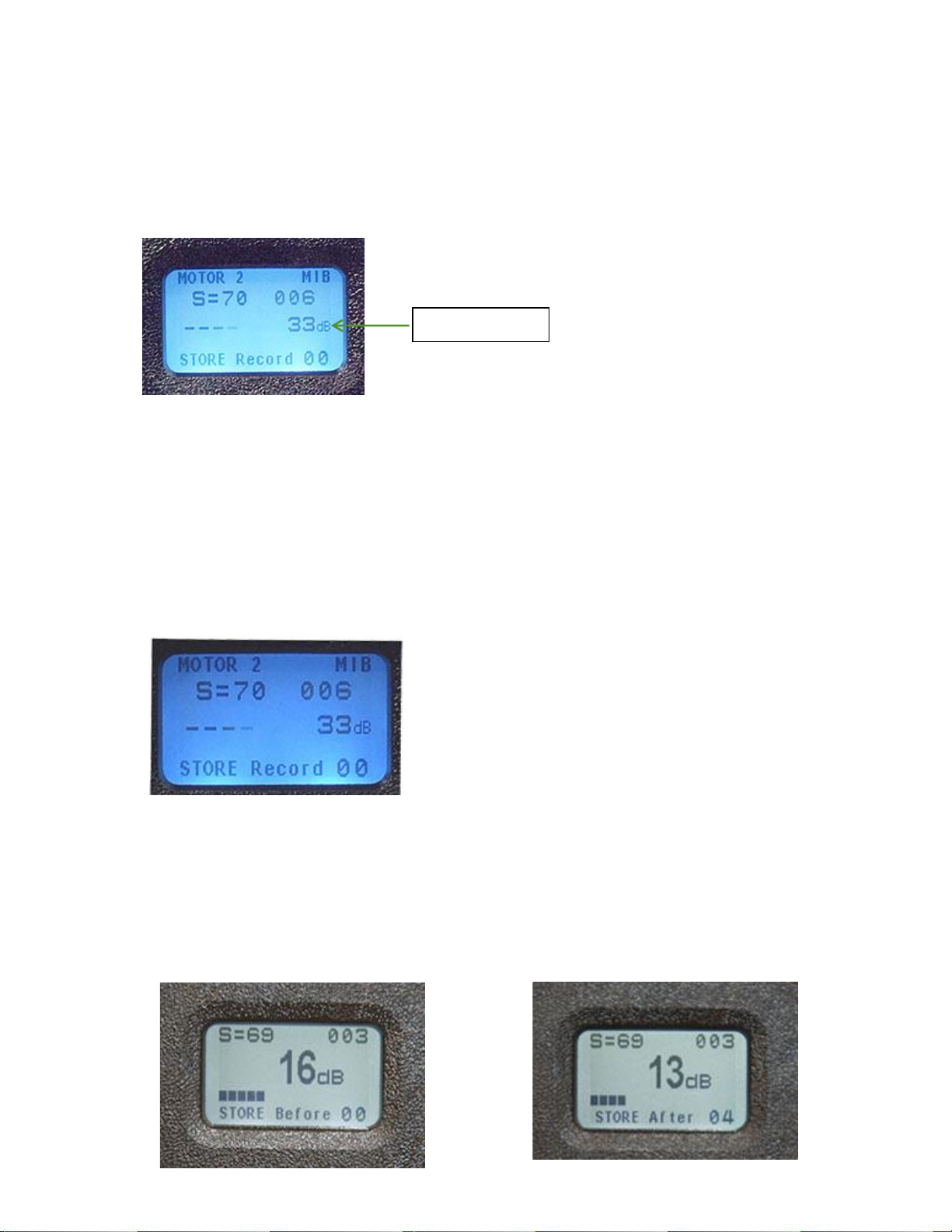

4
