UEi Test Instruments HUB8 User manual

HUB8

Smart Refrigerant Complete Kit

INSTRUCTION MANUAL

ENGLISH

WHP1

Wireless

Hygrometer Probe

WPP1

Wireless Pressure
Probe

Power
Lo-Bat

2 Wireless Hygrometer Probe (WHP1)
2 Wireless Pressure Probe (WPP1)
2 Wireless Pipe Clamp Sensor (WPC2)
1 Wireless Outside Temperature Probe (WOT2)

WPP1

Wireless Pressure
Probe

Power
Lo-Bat

WOT2

Wireless Outside
Temperature

1 Wirelees Vacuum Gauge (WVG2)
14 Batteries (10 AA, 4 AAA)
1 45˚ Coupler
1 Carrying Case

WVG2

Wireless
Vacuum Gauge

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

TABLE OF CONTENTS

Important Safety Warnings .............................3

Symbols ..............................................4

WHP1 Overview .......................................5

WPP1 Overview .......................................6

WPC2 Overview .......................................7

WOT2 Overview .......................................8

WVG2 Overview .......................................9

APP Overview ....................................10-16

Refrigerant Side ................................10-11

Air Side ..........................................12

Vacuum Side ...................................13-14

Unit Screen .......................................15

User Info Screen ...................................15

Support Screen ....................................16

FCC/IC Information ................................17- 18

Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Cleaning ............................................19

Storage .............................................19

Warranty ............................................20

2

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

IMPORTANT SAFETY WARNINGS

WARNING

Read entire Safety Notes section regarding potential hazard and proper instructions before
using these probes. In this manual the word “WARNING” is used to indicate conditions or
actions that may pose physical hazards to the user. The word “CAUTION” is used to indicate
conditions or actions that may damage the instruments.

WARNING

To ensure safe operation and service of these probes, follow these instructions. Failure to
observe these warnings can result in severe injury or death.

WARNING
Not exceed the following maximum pressure limits.
WVG2 Vacuum Gauge maximum over pressure 700 psi.
WPP1 Pressure Gauge maximum over pressure 1000 psi.

WARNING

• Do not open these probes to replace batteries while the probes are connected.

• To avoid false readings, replace batteries if a low battery indicator appears.

• Do not use these probes if they appear damaged.

• Always adhere to national and local safety codes. Use proper personal protective
equipment (PPE).

WARNING
These probes are designed for trade professionals who are familiar with the hazards of

their trade.

Observe all recommended safety procedures that include proper lockout utilization and
use of personal protective equipment that includes safety glasses, gloves and flame
resistant clothing.

3

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

SYMBOLS

Phone Web

Manual Pin

Favorites Connection Strength

WHP1 WPP1

WPC2 WOT2

WVG2 Battery level

Home Units

Tool Box User

Support Refrigerant Tank

4

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

WHP1 (Hygrometer) Overview

WHP1

Wireless

Hygrometer Probe

Screw

GENERAL SPECIFICATIONS

A.

B.

C.

D.

WHP1

Wireless

Hygrometer Probe

• Temperature Range: 14° to 158°F (-10° to 70°C)

• Temperature Accuracy: ±0.5˚F (0.3˚C)

• Relative Humidity Range: 14° to 140°F

(-10° to 60°C)

• Relative Humidity Resolution: 30% to 85% RH

• Relative Humidity Accuracy: ±3% 20% to 80%

otherwise ±5%

• Operating Temperature: 14° to 158°F
(-10° to 70°C)

• Storage Temperature: 13° to 185°F (-25° to 85°C)

• Operating Humidity: 20% RH to 80% RH

• Dimensions: 6.84 in x 1.93 in x 1.53 in

(17.4 cm x 4.9 cm x 3.9 cm)

• Item Weight: 4.4 oz (125 g)

• Certification: CE Conformity, FCC/IC

• Battery Type: (AAA) 2

• Battery Life: 100+ hours

E.

A. Lock Button: Press to open or close probe

Pressing the lock button and opening the probe

powers it on

B. 1/4” diameter probe
C. Magnetic Mount
D. Battery Cover
E. Light: Blinks GREEN when probe is powered

on. Blinks RED when low battery*

CAUTION: Press down Lock Button to release probe.
Failure to do so may break probe and is not covered
under warranty.

* NOTE: Low battery indicator is also in the
“Tool Connection” screen of the app.

Caution: Take care not to lose the screws when

opening battery compartments

• Remove battery cover.

• Replace the old batteries with 2 new
(AAA) batteries.

• Replace the battery cover.

5

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

WPP1 (Pressure Probe) Overview

GENERAL SPECIFICATIONS

• Range: 0 to 725 PSIg

• Resolution: 0.1 PSI

• Accuracy: 0.5% F.S. (at 25˚C ±3˚C) Total 1%

F.S. 32˚ to 158˚F (0˚ to 70˚C)

• Operating Temperature: 14° to 158°F
(-10° to 70°C)

• Storage Temperature: 13° to 185°F (-25° to 85°C)

• Operating Humidity: 30% RH to 85% RH

• Over-range: 1000 PSI

• Dimensions: 6.70 in x 1.56 in x 1.44 in

(17 cm x 4 cm x 3.7 cm)

• Item Weight: 7.4 oz (210 g)

• Certification: CE Conformity, FCC/IC

• Battery Type: (AA) 2

• Battery Life: 100+ hours

A.

B.

C.

D.

E.

Screw

A. Battery cover
B. Light: Blinks GREEN when probe is powered

on and blinks RED when low battery.*
C. Power Button: Hold for one second to
power on

D. 1/4”pressure connector
E. 1/4” pass-through connector

Caution: Max over pressure is 1000 PSI

* NOTE: Low battery indicator is also in the

“Tool Connection” screen of the app.

Battery level displayed in the tool connection
screen to the right of each probe connected.

Caution: Take care not to lose the screws when opening

battery compartments

• Remove battery cover.

• Replace the old batteries with 2 new
(AA) batteries.

• Replace the battery cover.

6

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

WPC2 (Pipe Clamp Sensor) Overview

Screw

GENERAL SPECIFICATIONS

• Range: 32˚ to 176˚F (0˚ to 80˚C)

• Resolution: 0.1˚F

• Accuracy: ±(0.6˚F (0.3˚C))

• Response Time: <30 sec.

• Operating Temperature: 14° to 158°F

(-10° to 70°C)

• Storage Temperature: 13° to 185°F (-25° to 85°C)
Dimensions: 5.66 in x 3.81 in x 1.10 in

A.

B.

* NOTE: Low battery indicator is also in the “Tool Connection”

screen of the app.

(14.4 cm x 9.7 cm x 2.8 cm)

• Item Weight: 2.1 oz (60 g)

• Jaw Opening: Maximum pipe diameter is

1.5 in. (3.8cm)

• Certification: CE Conformity, FCC/IC

• Battery Type: (AA) 1

• Battery Life: 100+ hours

A. Light: Blinks GREEN when probe is powered on

and blinks RED when low battery. *
Opening the clamp powers it on
B. Temperature sensor

• Remove battery cover.

• Replace the old batteries with 1 new
(AA) battery.

• Replace the battery cover.

Caution: Take care not to lose the screws when opening

battery compartments

7

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Screw

WOT2 (Outside Teperature Sensor) Overview

GENERAL SPECIFICATIONS

• Range: 32° to 180°F (0° to 82°C)

C.

• Resolution: 0.1”

• Accuracy: ± 2°F (1°C)

• Operating Temperature: 14° to 158°F

(-10° to 70°C)

• Storage Temperature: 13° to 185°F (-25° to 85°C)

A.

B.

• Operating Humidity: 30% to 85% RH

• Dimensions: 4.75 in x 2.37 in x 1.5 in

• Item Weight: 5.4 oz (153 g)

• Certification: FCC/IC, CE Comformity

• Battery Type: (AA) 2

• Battery Life: 100+ hours

A. Light: Blinks GREEN when probe is powered on

and blinks RED when low battery.*

B. Temperature Sensor
C. Magnetic Hanger Strap

* NOTE: Low battery indicator is also in the

“Tool Connection” screen of the app.

• Remove battery cover.

• Replace the old batteries with 2 new

(AA) battery.

• Replace the battery cover.

8

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

WVG2 (Vacuum Gauge) Overview

GENERAL SPECIFICATIONS

• Range: 0 - 20,000 Microns

C.

• Resolution: 1 micron

• Accuracy: ±5% rdg ±5 microns

• Operating Temperature: 14° to 158°F

(-10° to 70°C)

A.

B.

• Storage Temperature: 13° to 185°F (-25° to 85°C)

• Operating Humidity: 30% to 85% RH

• Dimensions: 5.6 in x 2.37 in x 1.5 in

• Item Weight: 4.2 oz (119 g)

• Certification: FCC/IC, CE Comformity

• Battery Type: (AA) 2

• Battery Life: 100+ hours

A. Light: Blinks GREEN when probe is powered on

and blinks RED when low battery. *

B. Vacuum Gauge Sensor
C. Magnetic Hanger Strap

Maximum over pressure is 700 PSI

Screw

* NOTE: Low battery indicator is also in the
“Tool Connection” screen of the app.

• Remove battery cover.

• Replace the old batteries with 2 new
(AA) battery.

• Replace the battery cover.

*NOTE: For sensor cleaning maintenance see page 19.

9

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

APP Overview

Refrigerant Home Screen:

A.

B.
C.

D.

E.

F.

G.

H.

NOTE: UEi HUB App compatible with Android™ 5.0+, iOS® 10+, iPadOS™

Tool Connection Icon: clicking this will open to the Tools in this section

I.

J.

K.

L.

M.

A. Tool Connection
B. Active Home Screen

(tap or swipe left/right
to view)

C. Suction Line Pressure
D. Suction Line Temperature
E. Refrigerant Favorites

(tap to view, See pg 11)

F. Subcooling
G. Liquid Line Pressure
H. Liquid Line Temperature
I. Refrigerant List

(tap to view, See pg 11)
J. Vapor Saturation

Temperature

K. Outside Dry Blub
L. Vacuum Pressure
M. Liquid Saturation

Temperature

A.

E.

A. Back

B.

C.

D.

10

B. Tool Assigned

F.

C. Forget Tool

D. Tools found but not assigned

E. Battery Level

F. Signal Strength

G. Refresh nearby tools

G.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Refrigerant Home Screen:

Refrigerant List: Tap icon on Refrigerant Home Screen to activate.

Tap stars to add/remove favorites.

R11
R12
R13
R22
R23
R32
R113
R114
R123
R1234YF
R124
R125
R134A
R401A (MP39)
R401B
R402A
R402B
R404A
R406A

R407A
R407C
R407F
R408A
R409A
R410A
R414B (Hotshot)
R416A
R417A
R417C (Hotshot 2)
R420A
R421A
R421B
R422A
R422B(NU22B)
R422C (Oneshot)
R422D
R424A
R427A

R434A (RS-45)
R438 (MO99)
RA438A (MU99)
R448A
R449A
R453A
R458A
R500
R502
R503
R507A
R508B (Suva95)
R513A
R600 (Butane)
R600A (Isobutane)
R601 (Pentane)
R601A (Isobutane)
R1233ZD
R12342E

Refrigerant Favorites Button: displays selected favorite refrigerants for quick

11

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Air Side Screen:

A.

B.

C.

D.

E.

A. Tool Connection
B. Active Home Screen (tap or swipe right to view)
C. Target Delta Temperature
D. Return Dry Bulb Temperature
E. Return Wet Bulb Temperature
F. Delta Temperature (assumes 400 cfm/ton)

Tool Connection Icon: clicking this will open to the Tools in this section

A.

B.

C.

F.

G.

H.

I.

G. Return and Supply Calculations (tap to view)

Return -Relative Humidity
Return - Dew Point
Return - Enthalpy
Supply - Relative Humidity
Supply - Dew Point
Supply - Enthalpy

H.Supply Dry Bulb Temperature
I. Supply Wet Bulb Temperature

E.

A. Back
B. Tool Assigned

F.

C. Forget Tool
D. Tools found but not assigned
E. Battery Level
F. Signal Strength
G. Refresh nearby tools

G.

D.

12

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Vacuum Side Screen:

A. Tool Connection

A.

B.

C.

D.

E.

F.

G.

Evacuation Mode

Toggle Button: tapping this will toggle between Evacuation mode and

Rise Test mode.

H.

B. Active Home Screen (tap or

swipe left to view)

C. Vacuum Reading
D. Deepest Vacuum
E. H2O Saturation;

The Red icon shows when
the saturation point is below
the Ambient Temperature

I.

indicating moisture will be
removed from the system at
this level of vacuum under the

J.

current temperature conditions.

F. Toggle Button

K.

G. Evacuation Target

L.

H. Vacuum Settings

(tap to enter, see pg. 14)

M.

I. Ambient Temperature
J. Below Target Timer
K. Restart Timer
L. Timer
M. Evacuation Rate

A. Tool Connection

A.

B.

C.

D.

E.

F.

B. Active Home Screen (tap or

swipe left to view)

C. H2O Saturation Point

G.

D. Toggle Button
E. Rise Limit

H.

F. Vacuum Settings

I.

(tap to enter, see pg. 14)

G. Vacuum Reading

J.

H. Units

K.

I. Deepest Vacuum; actieved

during this app session

J. Ambient Temperature

L.
M.

K. Rise Test Timer
L. Restart Timer

N.

M. Total Time
N. Rate

Rise Test Mode

13

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

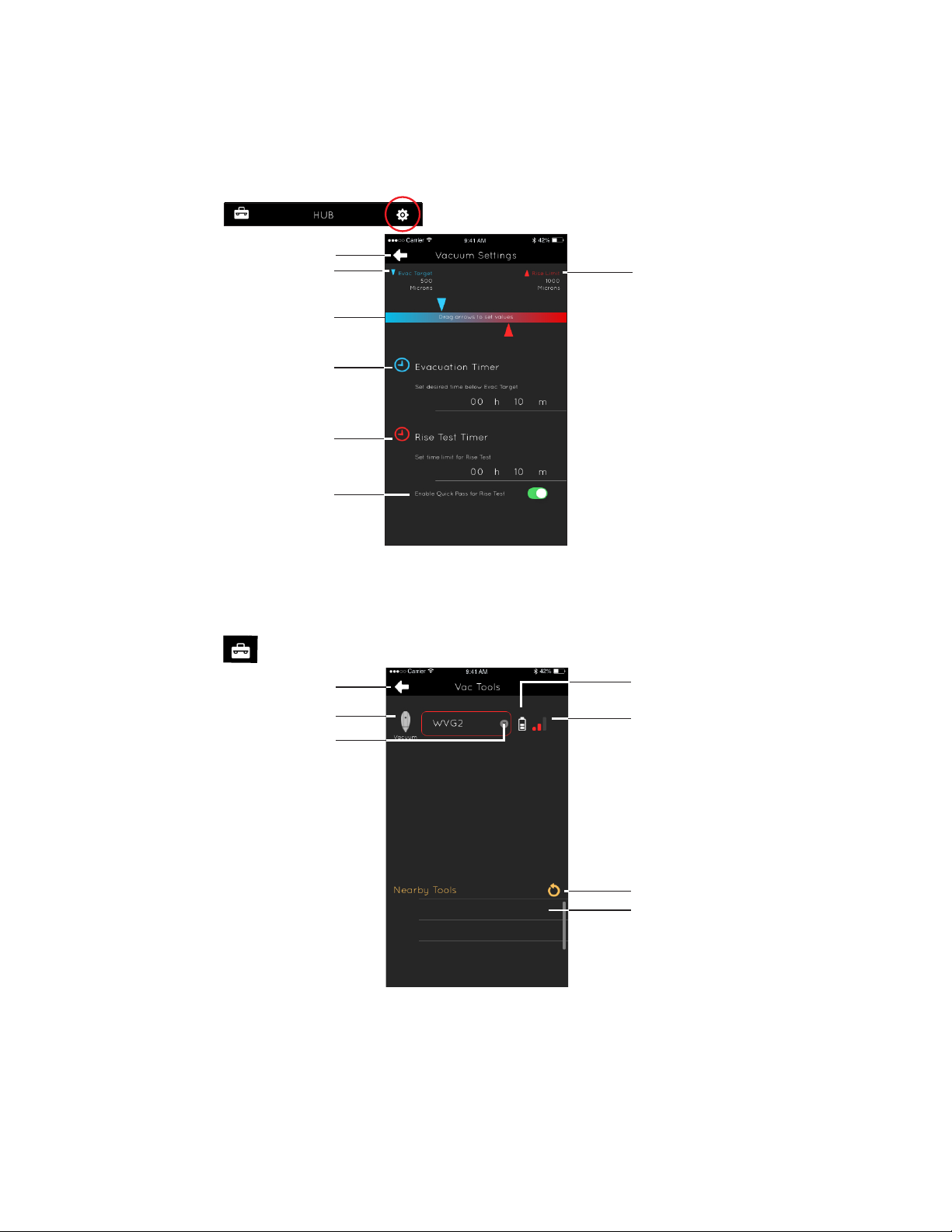

Vacuum Side Screen: tap settings icon to enter

A.
B.

C.

G.

D.

E.

F.

A. Back
B. Evac Target
C. Set Target Valves Bar
D. Evacuation Timer: (Hrs/Mins) set desired

time below Evac Target

FPO

Tool Connection Icon: clicking this will open to the Tools in this section

A.

B.

C.

E. Rise Test Timer: (Hrs/Mins) set time limit

Rise Test

F. Enable quick Pass for Rise Test
G. Rise Limit

D.

E.

F.

G.

A. Back
B. Tool Assigned

C. Forget Tool
D. Battery Level

14

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

E. Signal Strength
F. Refresh nearby tools
G. Tools not connected

Units Screen:

Tap the desired unit label to select preferred units for each measurement.

User Info Screen:

User Info

Enter email address

Enter name

Enter phone number

Save

Enter user information

15

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Support Screen

A.

B.

C.

D.

A. UEi Contacts
B. Manual (English, Spanish and French)

D. Tap to view Features + Benefits Video

16

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

FCC/IC INFORMATION

FCC and IC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC/IC RSS102 radiation exposure limits set forth for an
uncontrolled environment.

This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not
more than that necessary for successful communication.

Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé
pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et
son gain de sorte que la puissance isotrope rayonée équivalente (p.i.r.e.) ne dépasse pas
l’intensité nécessaire à l’établissement d’une communication satisfaisante.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autoris é e aux deux conditions
suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil
doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.

FCC AND IC NOTICE

This device complies with Part 15 of the FCC rules and Industry Canada license-exempt
RSS 247. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference; and (2) this device must accept any interference received,
including interference that may cause undesired operation.

17

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Cet appareil est conforme à la partie 15 des règles de la FCC, ainsi qu’à la norme RSS
247 exempte de licence d’Industrie Canada. Son fonctionnement est soumis aux deux
conditions suivantes : (1) Cet appareil ne doit pas provoquer d’interférences nuisibles;
et (2) cet appareil doit accepter toutes les interférences reçues, y compris celles
susceptibles d’entraîner un dysfonctionnement de l’appareil.

FCC CAUTION

The device must not be co-located or operated in conjunction with any other
antenna or transmitter.

Caution the user that changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.

L’appareil ne doit pas être placé ou utilisé conjointement avec une autre antenne ou un
autre émetteur.

Attention à l’utilisateur que des changements ou des modifications non expressément
approuvés par la partie responsable pour la conformité pourrait annuler l’autorité de
l’utilisateur pour faire fonctionner l’équipement.

a.The device should be installed and operated with a minimum distance of 20cm between
the radiator and your body.

L’appareil doit être installé et utilisé avec une distance minimale de 20 cm entre le radia­teu et votre corps.

b.This device complies with RSS247 of Industry Canada. Cet appareil se conforme à
RSS247 de Canada d’Industrie. This device complies with Industry Canada license­exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device. appareils
radio exempts de licence. Son fonctionnement est sujet aux deux conditions
suivantes: (1) le dispositif ne doit pas produire de brouillage prejudiciable, et (2) ce
dispositif doit accepter tout brouillage recu, y compris un brouillage susceptible de
provoquer un fonctionnement indesirable.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme a la norme NMB-003 du Canada.

18

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Disposal

PLEASE

RECYCLE

Caution: This symbol indicates that equipment and its accessories shall

be subject to separate collection and correct disposal.

Cleaning

Periodically clean your probes case using a damp cloth. DO NOT use abrasive, flammable
liquids, cleaning solvents, or strong detergents as they may damage the finish, impair
safety, or affect the reliability of the structural components.

Cleaning the WVG2 Vacuum Sensor

If the vacuum sensor becomes contaminated with oil, follow this procedure:

1. Power off the WVG2

2. Carefully shake the gauge to remove any large quantities of oil from the sensor

3. Apply a few drops of rubbing alcohol inside the vacuum port
(DO NOT INSERT ANY OBJECT INTO PORT, AS THIS WILL PERMATENTLTLY

DAMAGE THE SENSOR)

4. Place your finger over the port and shake for 30 seconds

5. Remove your finger and allow alcohol to flow out the sensor part

6. Repeat steps 3 to 5 at least three times

7. Allow the sensor to air dry over at least an hour, or pull a vacuum on the sensor to to.
Dry it more quickly

8. Power on the WVG2, which should be ready for use.

NOTE: It is important to remove all the vapors from the sensor, either through air-drying or via
vacuum. Any remaining vapors will cause an incorrect reading

Storage

Remove the batteries when instrument is not in use for a prolonged period of time. Do not
expose to high temperatures or humidity. After a period of storage in extreme conditions
exceeding the limits mentioned in the General Specifications section, allow the instrument
to return to normal operating conditions before using it.

19

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

Warranty

The HUB8 is warranted to be free from defects in materials and workmanship for a period
of 1 year from the date of purchase. If within the warranty period your instrument should
become inoperative from such defects, the unit will be repaired or replaced at UEi’s
option. This warranty covers normal use and does not cover damage which occurs in
shipment or failure which results from alteration, tampering, accident, misuse, abuse,
neglect or improper maintenance. Batteries and consequential damage resulting from
failed batteries are not covered by warranty.

Any implied warranties, including but not limited to implied warranties of merchantability
and fitness for a particular purpose, are limited to the express warranty. UEi shall not
be liable for loss of use of the instrument or other incidental or consequential damages,
expenses, or economic loss, or for any claim or claims for such damage, expenses or
economic loss.

A purchase receipt or other proof of original purchase date will be required before
warranty repairs will be rendered. Instruments out of warranty will be repaired (when
repairable) for a service charge

This warranty gives you specific legal rights. You may also have other rights, which vary
from state to state.

Copyright © 2020 Kane USA Inc. All Rights Reserved.

IOS®, iPadOS™ and Android™ are property of their respective owners.

20192 1/20

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com
