DM515
True RMS 1000V Digital Multimeter
w/Temperature
INSTRUCTION MANUAL
ENGLISH
Apo
DM515
V
600V
CAT I II
1000V
CAT I I
RANGE
SEL
A
10A
MAX
FUSED
MIN/MAX
True RMS
mAμA
400mA
MAX
FUSED
HOLD
FAST
°F°C
CAT III
CAT II
1000V
MAX
600V
μA
A
mA
Temp
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
TABLE OF CONTENTS
FUNCTIONS
FEATURES .................................................................................................................................................... 3
GENERAL SPECIFICATIONS
CATEGORY DEFINITIONS
IMPORTANT SAFETY WARNINGS
CLEANING
OVERVIEW
SYMBOLS .................................................................................................................................................... 6
OPERATING INSTRUCTIONS
AC/DC Voltage: <1000V AC/DC ....................................................................................................6
Resistance: <40M ........................................................................................................................... 7
Continuity ........................................................................................................................................... 7
Diode ................................................................................................................................................... 8
Capacitance ......................................................................................................................................... 8
AC/DC Microamps: 6000A ..........................................................................................................9
AC/DC Milliamps: 400mA .............................................................................................................9
AC/DC Amps: <10A ......................................................................................................................... 10
Temperature C˚/F˚ ............................................................................................................................ 10
Test Lead Notes ................................................................................................................................ 11
Battery Replacement ....................................................................................................................... 11
FCC/IC INFORMATION
WARRANTY ................................................................................................................................................ 12
DISPOSAL
STORAGE
................................................................................................................................................. 3
.................................................................................................................... 3
.......................................................................................................................... 3
......................................................................................................... 4
.................................................................................................................................................... 4
.................................................................................................................................................. 5
............................................................................................................................ 12
.................................................................................................................................................. 12
.................................................................................................................................................. 12
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
FUNCTIONS
• 1000V AC/DC
• 10A AC/DC
• Resistance 40M
• Diode test
• Audible continuity
• Capacitance 9999µF
• Temperature -328˚ to 2462˚F (-200˚ to 1350˚C)
• Microamps
• Milliamps
FEATURES
• True RMS
• Auto/Manual ranging
• Auto power off
• Min/Max
• Hold
• 1 ms Fast response Min/Max
• Low battery indicator
• Rubber boot
• Test lead holders
• Kick stand
• High resolution backlit display
• Fused test lead inputs
• Auto selection
GENERAL SPECIFICATIONS
• Operating Temperature: 32˚ to 122˚F (0˚ to 50˚C)
• Storage Temperature: -44˚ to 122˚F (-20˚ to 50˚C)
• Operating Humidity: <75% max.
• Operating Altitude: 6561 ft (2000m)
• Display: 6,000
• Backlight: Yes
• Over-range: “OL” is displayed
• Dimensions: 6.49” x 3.3”x 2.17”
• Item Weight: 15.0 oz
• Calibration: Recommended annually
• CAT Rating: CAT III 600V/CAT II 1000V
• Certifications: cELTus UL 61010-1:2012 3rd,
CE EN 61010-1:2010 3rd, IEC61010-2-033:2012 Ed.1, EN 61326-1:2013,
FCC, RoHS Compliant, TOV protection, IP 42, 6’ Drop protection
• Battery Type: (AA) 2
• Test Leads: CAT III test leads
• Accuracy: ± (% of reading + # of least significant digits)
CATEGORY DEFINITIONS
Measurement Category Short-Circuit (typical) kA
II < 10
III
IV > 50 Source of the mains installation in the building
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
< 50 Mains distributions parts of the building
a
Location in the building installation
Circuits connected to mains socket outlets and similar
points in the MAINS installation
3
IMPORTANT SAFETY WARNINGS
WARNING
Read entire Safety Notes section regarding potential hazard and proper instructions before using this meter. In this
manual the word “WARNING” is used to indicate conditions or actions that may pose physical hazards to the user. The
word “CAUTION” is used to indicate conditions or actions that may damage this instrument.
WARNING
To ensure safe operation and service of the tester, follow these instructions. Failure to observe these warnings can
result in severe injury or death.
WARNING
• Before each use, verify meter operation by measuring a known voltage or current.
• Never use the meter on a circuit with voltages that exceed the category based rating of this meter.
• Do not use this meter during electrical storms or in wet weather.
• Do not use the meter or test leads if they appear damaged.
• Ensure meter leads are fully seated and keep fingers away from the metal probe contact when making
measurements. Always grip the leads behind the finger guards molded into the probe.
• Do not open the meter to replace batteries while the probes are connected.
• Use caution when working with voltages above 60 DC or 25 AC RMS. Such voltages pose shock hazards.
• To avoid false readings that can lead to electrical shock, replace batteries if a low battery indicator appears.
• Unless measuring voltage or current, shut off and lockout power before measuring resistance or capacitance.
• Always adhere to national and local safety codes. Use proper personal protective equipment (PPE) to prevent shock
and arc blast injury where hazardous live conductors are exposed.
• Always turn off power to a circuit or assembly under test before cutting, unsoldering or breaking the current path.
Even small amounts of current can be dangerous.
• Always disconnect the live test lead before disconnecting the common test lead from the circuit.
• In the event of electrical shock, ALWAYS bring the victim to the emergency room for evaluation, regardless of
victim’s apparent recovery. Electrical shock can cause unstable heart rhythms that may need medical attention.
• If any of the following occur during testing, turn off the power source to the circuit being tested: arching, flame,
smoke, extreme heat, smell of burning materials or discoloration or melting of components.
WARNING
Higher voltages and currents require greater awareness of physical safety hazards. Before connecting the test leads;
turn off power to the circuit under test, set meter to the desired function and range; connect the test leads to the meter
first, then connect to the circuit under test. Reapply power. If an erroneous reading is observed, disconnect power
immediately and recheck all settings and connections.
WARNING
This meter is designed for trade professionals who are familiar with the hazards of their trade. Observe all
recommended safety procedures that include proper lockout utilization and use of personal protective equipment that
includes safety glasses, gloves and flame resistant clothing.
CLEANING
Periodically clean your meters’ case using a damp cloth. DO NOT use abrasive, flammable liquids, cleaning solvents, or strong
detergents as they may damage the finish, impair safety, or affect the reliability of the structural components.
4
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
OVERVIEW
DM515
A
Apo
V
B
C
D
E
F
A. Apo: Auto power off after 30 minutes of use. Press
and hold the HOLD button while turning the meter on
to disable Apo.
B. Digital Backlit Display
C. Range Button
• Press to change from auto ranging to
manual ranging.
• Press repeatedly to select proper range.
• Press and hold to return to auto range
(AT will be displayed on screen).
D. Min/Max Button
• Press to enter MAX/MIN mode.
• In the V, A, mA or Amps function, either select
AC/DC or change to manual ranging before pressing
this button to enter MAX/MIN mode.
• Press repeatedly to alternate between Maximum and
Minimum readings.
• Press and hold to return to live readings.
E. Select Button:
• Press to select AC, DC or Auto Selection in the
following functions: Voltage, A, mA, Amps.
• Press to select °C or °F in the Temperature function.
RANGE
SEL
A
FUSED
10A
MAX
MIN/MAX
True RMS
mAμA
HOLD
FAST
G
H
°F°C
μA
A
mA
Temp
MAX
CAT III
400mA
600V
MAX
CAT II
FUSED
1000V
I
J
K
L
M
N
O
F. Function Dial: Turns on meter and is used to select
the function.
G. Hold/Fast Button
• Press to hold the reading on the display. Press again
to return to live reading.
• Press to enter Fast MAX/MIN mode in
MAX/MIN mode.
• Press again to return to normal MAX/MIN mode.
H. Back Light Button: Press to on back light. Press again
to turn off. Back light duration is 1 minute.
I. Category Max Indicator: Maximum CAT Rating for
fused input jacks.
• Multifunction input port used for measuring: AC or
DC volts, resistance, continuity, diode, capacitance
µA,.mA, Amps, Temperature.
• Use CATIII test leads or higher
J. Recess for magnetic hanger
K. Test Lead Holders
L. Protective Rubber Boot
M. Battery Cover (under protective rubber boot)
N. Kick Stand
O. Serial Number (under kick stand)
5
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
SYMBOLS
Negative AC/DC Voltage or Current Auto-ranging
Overload: Range Exceeded
Hold/Capture Value
Voltage
Auto power off Active Low Battery
Minimum measured
value displayed
A
Amps
μF
Microamps mA Milliamps Diode
Nano Farads Ohms/Resistance Continuity
nF
Degrees Fahrenheit Degrees Celsius Fuse
Warning or Caution Ground
Dangerous Levels
Auto
Auto Selection
AC/DC Voltage: <1000V AC/DC
DM515
DM515
Apo
Apo
AT
RANGE
SEL
A
V
V
MIN/MAX
HOLD
FAST
°F°C
μA
A
mA
Temp
True RMS
mAμA
MAX
CAT III
400mA
600V
MAX
CAT II
10A
FUSED
1000V
MAX
FUSED
WARNING
• Use CATIII rated Test leads or higher.
• Do not attempt to measure more than 1000V AC/DC.
• Do not exceed 25 volts AC or 60 volts DC – RMS at either the common
or multifunction input ports as measured from earth ground.
Features:
RANGE
MIN/MAX
HOLD
Maximum measured
value displayed
Microfarad
High Voltage Indication
SEL
AC VOLTS
Ranges Accuracy Resolution Overload Protection
600mV to 1000V
45Hz to 500Hz 500Hz to 1kHz
±(1.0% +3 dgts) ±(2.0% +3 dgts)
0.1 mV to 1V 1000V
Minimum sensitivity: 0.5V AC (auto selection mode)
DC VOLTS
Ranges Accuracy Resolution Overload Protection
600mV to 1000V ±(0.5% +3 dgts) 0.1 mV to 1V 1000V
Minimum sensitivity: 0.5V DC (auto selection mode)
6
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Resistance: <40M
μA
A
mA
°F°C
μA
A
mA
°F°C
DM515
Apo
Apo
AT
RANGE
A
DM515
V
MIN/MAX
HOLD
SEL
FAST
°F°C
μA
A
mA
Temp
True RMS
mAμA
MAX
CAT III
400mA
600V
MAX
CAT II
10A
FUSED
1000V
MAX
FUSED
Features:
RANGE
MIN/MAX
HOLD
WARNING
• Do not measure resistance on a live circuit.
Ranges Accuracy Resolution Overload Protection
600 to 6M ±(0.8% +5 dgts) 0.1 to 0.001M
40M ±(1.5% +5 dgts) 0.01M
600V
Continuity
DM515
Apo
Apo
DM505
V
RANGE
MIN/MAX
HOLD
SEL
FAST
μA
mA
A
Features:
MIN/MAX
HOLD
• Buzzer sounds at less than 40.
mAμA
A
10A
MAX
FUSED
MAX
CAT III
400mA
600V
MAX
CAT II
FUSED
1000V
WARNING
• Do not measure resistance on a live circuit.
Open Circuit Voltage Audible Threshold Overload Protection
Approx.: <1.0V Approx.: 40 600V
7
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
GOOD DIODE
μA
A
mA
°F°C
A
μA
mA
Diode
BAD DIODE
Open Diode
Displays "OL"
Both directions
• Forward voltage drop if forward biased.
• “OL” if reverse biased.
Features:
Forward Bias
Displays
approx.
voltage drop
Reverse Bias
Displays "OL"
Apo
Apo
RANGE
DM515
DM515
V
V
MIN/MAX
HOLD
FAST
SEL
°F°C
μA
A
mA
Temp
True RMS
A
mAμA
MAX
CAT III
400mA
600V
MAX
CAT II
10A
FUSED
1000V
MAX
FUSED
Open Circuit Voltage Overload Protection
Approx.: <3.0V DC 600V
Capacitance
DM515
Apo
Apo
AT
RANGE
SEL
A
DM515
MIN/MAX
True RMS
mAμA
400mA
MAX
10A
FUSED
MAX
FUSED
Apo
or
V
Apo
'0' Both directions (shorted)
MIN/MAX
V
nF
HOLD
FAST
°F°C
μA
A
mA
Temp
MAX
CAT III
600V
CAT II
1000V
HOLD
V
Features:
RANGE
MIN/MAX
HOLD
Ranges Accuracy Resolution Overload Protection
10nF to 9999µF ±(3.0% +5 dgts) 0.01nF to 1µF 600V
WARNING:
To avoid damaging the meter or euipment under test, safely discharge Capacitors before measuring capacitance.
Large value capacitors should be discharged through an appropriate Resistance load. Use the DC Voltage function
to confirm the capacitor discharge.
8
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com

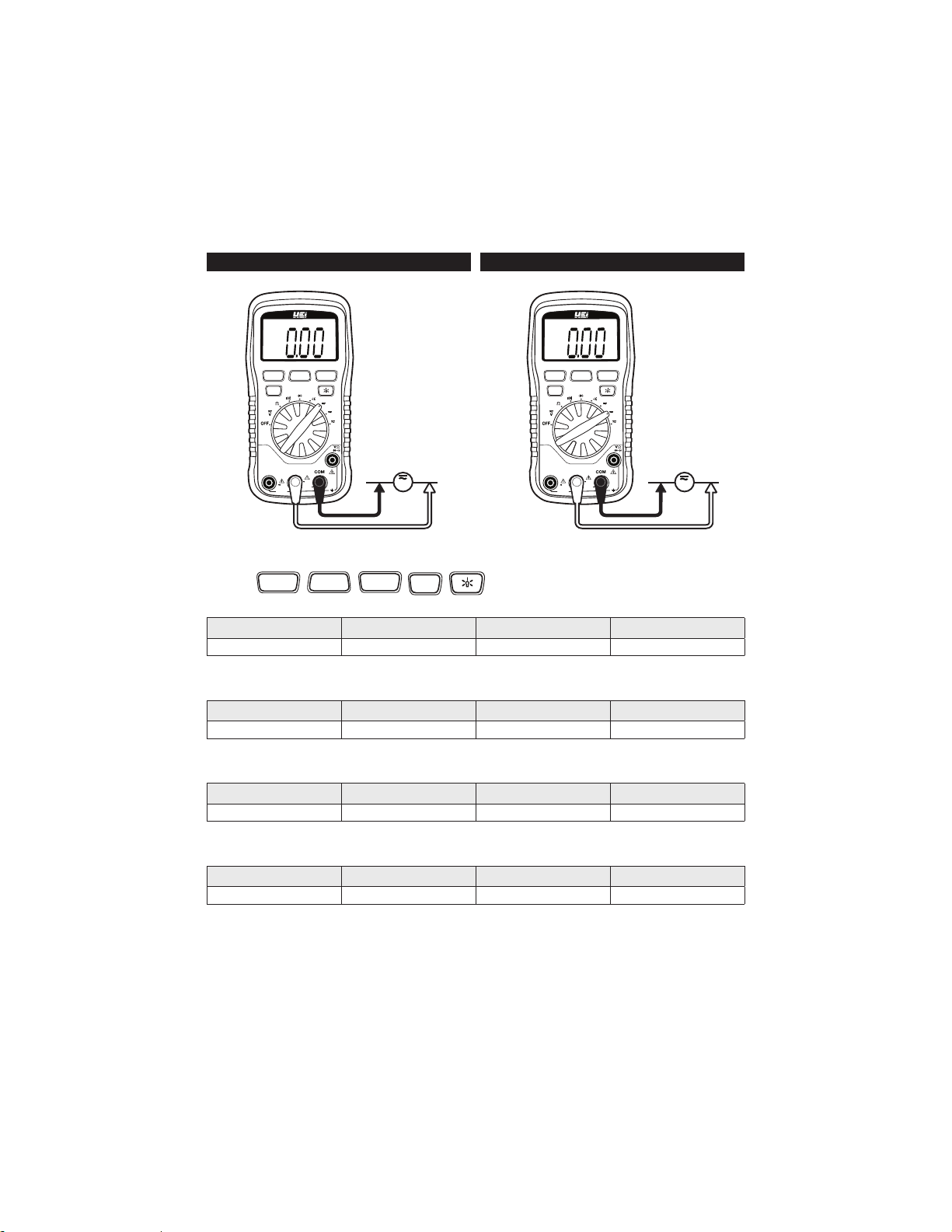

AC/DC Microamps: 6000A AC/DC Milliamps: 400mA
A
μA
mA
A
μA
mA
Apo
Apo
AT
RANGE
A
DM505
DM515
V
μ A
MIN/MAX
HOLD
SEL
FAST
μA
mA
A
mAμA
MAX
CAT III
400mA
600V
MAX
10A
MAX
FUSED
CAT II
FUSED
1000V
μA
Apo
Apo
AT
RANGE
A
SEL
DM505
DM515
m
V
A
MIN/MAX
HOLD
FAST
μA
mA
A
mAμA
MAX
CAT III
400mA
600V
MAX
10A
MAX
FUSED
CAT II
FUSED
1000V
mA
Keep hands behind test lead guards when measuring current levels.
Features:
RANGE
MIN/MAX
HOLD
SEL
ACµA
Ranges Accuracy Resolution Overload Protection
600A to 6000A ±(1.2% +5 dgts) 0.1A to 1A 600mA /1000V Fast Fuse
Minimum sensitivity: 50A AC (auto selection mode only)
DCµA
Ranges Accuracy Resolution Overload Protection
600A to 6000A ±(1.0% +3 dgts) 0.1A to 1A 600mA /1000V Fast Fuse
Minimum sensitivity: 50A DC (auto selection mode only)
ACmA
Ranges Accuracy Resolution Overload Protection
60mA to 400mA ±(1.2% +5 dgts) 0.01mA to 0.1mA 600mA /1000V Fast Fuse
Minimum sensitivity: 5mA AC (auto selection mode only)
DCmA
Ranges Accuracy Resolution Overload Protection
60mA to 400mA ±(1.0% +3 dgts) 0.01mA to 0.1mA 600mA /1000V Fast Fuse
Minimum sensitivity: 5mA DC (auto selection mode only)
9
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
AC/DC Amps: <10A
A
μA
mA
μA
A
mA
°F°C
DM515
DM505
Apo
Apo
AT
RANGE
A
V
MIN/MAX
HOLD
FAST
SEL
μA
mA
A
mAμA
A
MAX
CAT III
400mA
600V
MAX
CAT II
10A
FUSED
1000V
MAX
FUSED
A
WARNING
Keep hands behind test lead guards when measuring current levels.
• Do not attempt to measure more than 10A AC.
Features:
RANGE
MIN/MAX
HOLD
SEL
AC AMPS
Ranges Accuracy Resolution Overload Protection
6A to 10A ±(1.5% +5 dgts) 0.001A to 0.01A 11A/1000V Fast fuse
Minimum sensitivity: 500mA AC (auto selection mode only)
Frequency Bandwidth: 500Hz
CAUTION
: 20A overload for 30 seconds max.
DC AMPS
Ranges Accuracy Resolution Overload Protection
6A to 10A ±(1.2% +5 dgts) 0.001A to 0.01A 11A/1000V Fast fuse
Minimum sensitivity: 500mA DC (auto selection mode only)
CAUTION
: 20A overload for 30 seconds max.
Temperature C˚/F˚
Default = ˚F
DM515
DM515
Apo
Apo
V
HOLD
FAST
°F°C
μA
m
Temp
MAX
CAT III
400mA
600V
MAX
CAT II
FUSED
1000V
Press x1 = ˚C
A
A
• Press Select button to change scale between Fahrenheit and Celsius.
Features:
MIN/MAX
HOLD
SEL
AT
RANGE
MIN/MAX
SEL
True RMS
A
mAμA
10A
MAX
FUSED
°F
Ranges Accuracy Resolution Overload Protection
-328˚ to 999˚F ±(1.5% + 3.6˚F) 0.1˚F
1000˚ to 2462˚F ±(1.5% + 3.0˚F) 1˚F
600V
°C
Ranges Accuracy Resolution Overload Protection
-200˚ to 999˚C ±(1.5% + 2.0˚C) 0.1˚C
1000˚ to 1350˚C ±(1.5% + 2.0˚C) 1˚C
600V
10
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Test Lead Notes
CATIII 1000V Measurement Locations
4mm
• Ensure the test lead shield is pressed firmly in place. Failure to use the CATIV shield increases arc-flash risk.
CATII 1000V Measurement Locations
18mm
• CAT IV shields may be removed for CAT II locations. This will allow testing on recessed conductors such as
standard wall outlets. Take care not to lose the shields.
WARNING
Test lead category protections apply only to test leads and should not be confused with the meter’s specific CAT rating.
Observe the maximum category protection indicated on the meter the test leads are plugged into.
Battery Replacement
• When the batteries are too low for safe operation, the Low Battery indicator will display.
AA
AA
S/N:
S/N:
11
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
FCC/IC INFORMATION
NOTE: This device complies with Part 15 of the FCC Rules and CAN ICES-3(A).
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operations.
INFORMATION TO THE USER
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designedto provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to w hich the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING Any changes or modifications not expressly approved by the manufacturer, could void the user’s authority to
operate equipment.
WARRANTY
The DM515 is warranted to be free from defects in materials and workmanship for a period of 2 years from the
date of purchase. If within the warranty period your instrument should become inoperative from such defects, the
unit will be repaired or replaced at UEi’
occurs in shipment or failure which results from alteration, tampering, accident, misuse, abuse, neglect or improper
maintenance. Batteries and consequential damage resulting from failed batteries are not covered by warranty.
Any implied warranties, including but not limited to implied warranties of merchantability and fitness for a particular
purpose, are limited to the express warranty. UEi shall not be liable for loss of use of the instrument or other
incidental or consequential damages, expenses, or economic loss, or for any claim or claims for such damage,
expenses or economic loss.
A purchase receipt or other proof of original purchase date will be required before warranty repairs will be rendered.
Instruments out of warranty will be repaired (when repairable) for a service charge
s option. This warranty covers normal use and does not cover damage which
This warranty gives you specific legal rights. You may also have other rights, which vary from state to state.
DISPOSAL
CAUTION: This symbol indicates that equipment and its accessories shall be subject to separate collection and
correct disposal.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period of time. Do not expose to high temperatures or humidity.
After a period of storage in extreme conditions exceeding the limits mentioned in the General Specifications section, allow the
instrument to return to normal operating conditions before using it.
Copyright © 2018 Kane USA Inc. All Rights Reserved. 17489 0118
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Loading...
