The DL200 is warranted to be free from defects in materials and workmanship
for a period of two years from the date of purchase. If within the warranty
period your instrument should become inoperative from such defects, the unit
will be repaired or replaced at UEi’s option. This warranty covers normal use
and does not cover damage which occurs in shipment or failure which results
from alteration, tampering, accident, misuse, abuse, neglect or improper
maintenance. Batteries and consequential damage resulting from failed
batteries are not covered by warranty.
Any implied warranties, including but not limited to implied warranties of
merchantability and fitness for a particular purpose, are limited to the express
warranty. UEi shall not be liable for loss of use of the instrument or other
incidental or consequential damages, expenses, or economic loss, or for any
claim or claims for such damage, expenses or economic loss.
A purchase receipt or other proof of original purchase date will be required
before warranty repairs will be rendered. Instruments out of warranty will be
repaired (when repairable) for a service charge
This warranty gives you specific legal rights. You may also have other rights,
which vary from state to state.
DISPOSAL
WARRANTY
CAUTION: This symbol indicates that equipment and its accessories
shall be subject to separate collection and correct disposal.
CLEANING
Periodically clean your meter’s case using a damp cloth. DO NOT use abrasive,
flammable liquids, cleaning solvents, or strong detergents as they may damage the
finish, impair safety, or affect the reliability of the structural components.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period of time.
Do not expose to high temperatures or humidity. After a period of storage in extreme
conditions exceeding the limits mentioned in the General Specifications section, allow
the instrument to return to normal operating conditions before using it.
• Operating Temperature: 32˚ to 104˚F (0˚ to 40˚C)
• Storage Temperature 14˚ to 122˚F (-10˚ to 50˚C)
• Operating Humidity: <75%
• Operating Altitude: 6,562ft (2,000m)
• Pollution Degree: 2
• Display: 3 1/2” digits 2000 count
• Refresh Rate: 3/sec
• Over-range: “OL” is displayed
• Dimensions: 8.66” X 2.72” X 1.56”
• Item Weight: 11.9 oz
• Calibration: Recommended Annually
• CAT Rating: CATIII 600V
• Certifications: cETLus 3rd Edition, CATIII 600V, CE Conformity, IP41,
• Battery Type: (AAA) X 2
• Accuracy: ± (% of reading + # of least significant digits)
RoHS Compliant,
6’ Drop Protection, IEC 61010-1 3rd Edition
IMPORTANT SAFETY WARNINGS
WARNING
Read entire Safety Notes section regarding potential hazard and proper
instructions before using this meter. In this manual the word “WARNING” is
used to indicate conditions or actions that may pose physical hazards to the
user. The word “CAUTION” is used to indicate conditions or actions that may
damage this instrument.
WARNING
To ensure safe operation and service of the tester, follow these instructions.
Failure to observe these warnings can result in severe injury or death.
WARNING
• Before each use, verify meter operation by measuring a known voltage
or current.
• Never use the meter on a circuit with voltages that exceed the category
based rating of this meter.
• Do not use this meter during electrical storms or in wet weather.
• Do not use the meter or test leads if they appear damaged.
• Always grip the leads behind the finger guards molded into the probe.
• Use caution when working with voltages above 60V DC or 25V AC RMS.
Such voltages pose shock hazards.
• To avoid false readings that can lead to electrical shock, replace batteries if
a low battery indicator appears.
• Unless measuring voltage or current, shut off and lockout power before
measuring resistance or capacitance.
• Always adhere to national and local safety codes. Use proper personal
protective equipment (PPE) to prevent shock and arc blast injury where
hazardous live conductors are exposed.
• Always turn off power to a circuit or assembly under test before cutting,
unsoldering or breaking the current path. Even small amounts or current
can be dangerous.
• Always disconnect the live test lead before disconnecting the common test
lead from the circuit.
In the event of electrical shock, ALWAYS bring the victim to the emergency
•
room for evaluation, regardless of victim’s apparent recovery. Electrical
shock can cause unstable heart rhythms that may need medical attention.
• If any of the following occur during testing, turn off the power source to
the circuit being tested: arching, flame, smoke, extreme heat, smell of
burning materials or discoloration/melting of components.
WARNING
Higher voltages and currents require greater awareness of physical safety
hazards. Set meter to desired function prior to applying test leads to a live
circuit. If an erroneous reading is observed, disconnect test leads immediately,
recheck all settings and connections before testing again.
WARNING
This meter is designed for trade professionals who are familiar with the
hazards of their trade. Observe all recommended safety procedures that
include proper lock-out utilization and use of personal protective equipment
that includes safety glasses, gloves and flame resistant clothing.
outlets and similar points in the MAINS
installation
Mains distributions parts of the building
building
OVERVIEW
A
C
F
G
H
I
J
B
600V CAT III 200A
DL200
HOLD
D
E
S/N:
L
M
LOCK
OPEN
CATIII
600V
600V
CATIII
N
CAT III
600V
Ω
V
O
OPEN
LOCK
K
A. Clamp: Measure inductive AC current. Opens to 0.76” (19.10mm).
B. Conductor Alignment Marks: Used to aid the visual alignment of a
conductor when measuring inductive amperage. Greatest accuracy is
achieved when the conductor inside the clamp is centered at the intersection
of these marks.
C. Category Max Indicator: Maximum CAT Rating for Clamp.
D. Hand Guide: Used as a point of reference for the operator’s safety.
E. Clamp Lever: Opens and closes current clamp. Do not allow fingers or objects
to become pinched in the clamp as it closes.
CAUTION: When sliding the clamp lever, be careful not to inadvertently
•
press any button when gripping the meter. That will place the meter in a
mode that was not desired.
F. Hold Button:
• Press once to enable Hold. Press again to return to live readings.
• Captures present value.
• Press and hold the Hold button when meter is in Hold mode to disable
Auto power off mode. Press and hold again to enable Auto power off mode.
• When powering on the meter using this button, the meter will default to
last mode used when meter was powered off.
G. Ohms/Continuity Button:
• Ohms: Press to enter Ohms measurement mode.
• Continuity: Press again to enter Continuity measurement mode.
• AC Amps: Press again to enter AC Amps measurement mode.
H. AC/DC Volts Button:
• AC Volts: Press to enter AC Volts measurement mode.
• DC Volts: Press again to enter DC Volts measurement mode.
AC Amps: Press again to enter AC Amps measurement mode.
•
• Press and hold to power off meter.
I. Display
J. Category Max Indicator: Maximum CAT Rating for test lead connections to
meter.
K. Test Leads: Permanent test leads.
• Multifunction test lead used for measuring: AC or DC volts, Resistance
and Continuity.
L. Serial Number
M. Battery Cover: Easy access for replacing batteries.
N. Battery Cover Latches: Convenient, quick opening.
O. Test lead holders: For storing test leads when not in use.
• Press and hold AC/DC Volts/Power button to power off meter.
• Auto power off (Apo) after 10 minutes of inactivity.
• Press and hold the Hold button when meter is in Hold mode to disable Auto
power off mode. Press and hold again to enable Auto power off mode.
CAT III
600V
Ω
V
AC/DC Voltage: <600V AC/DC
600V CAT III 200A
DL200
HOLD
• Default =
• Press x1 =
• Press x2 =
WARNING
• Do not attempt to measure more than 600V AC/DC.
• Keep hands below line when measuring high current levels.
• Do not exceed 600 volts AC or DC – RMS on either the common or
multifunction test leads as measured from earth ground.
V
CAT III
600V
Ω
V
Select AC or DC Voltage.
Features:
HOLD
AC Volts
RangesResolution AccuracyOverload Protection
1V to 199.9V0.1V
200V to 600V1V
DC Volts
RangesResolution AccuracyOverload Protection
1V to 19.9V0.01V
200V to 600V1V
Minimum measurement AC mV: 500mV/DC mV:40mV
Response time (input; AC 100V): 1 sec
Max displayed value: 660V AC/DC
High warning symbol input voltage > AC30V/ > DC30V
Meter beeps input voltage > AC 601V/ > DC 601V
Input impedance: 10MΩ
Frequency Range: sine wave: 45Hz to 400Hz
Overload protection: 600V AC RMS or 600V DC
±(1.5% + 5 dgts) 600V
±(1.5% + 3 dgts) 600V20V to 199.9V0.1V

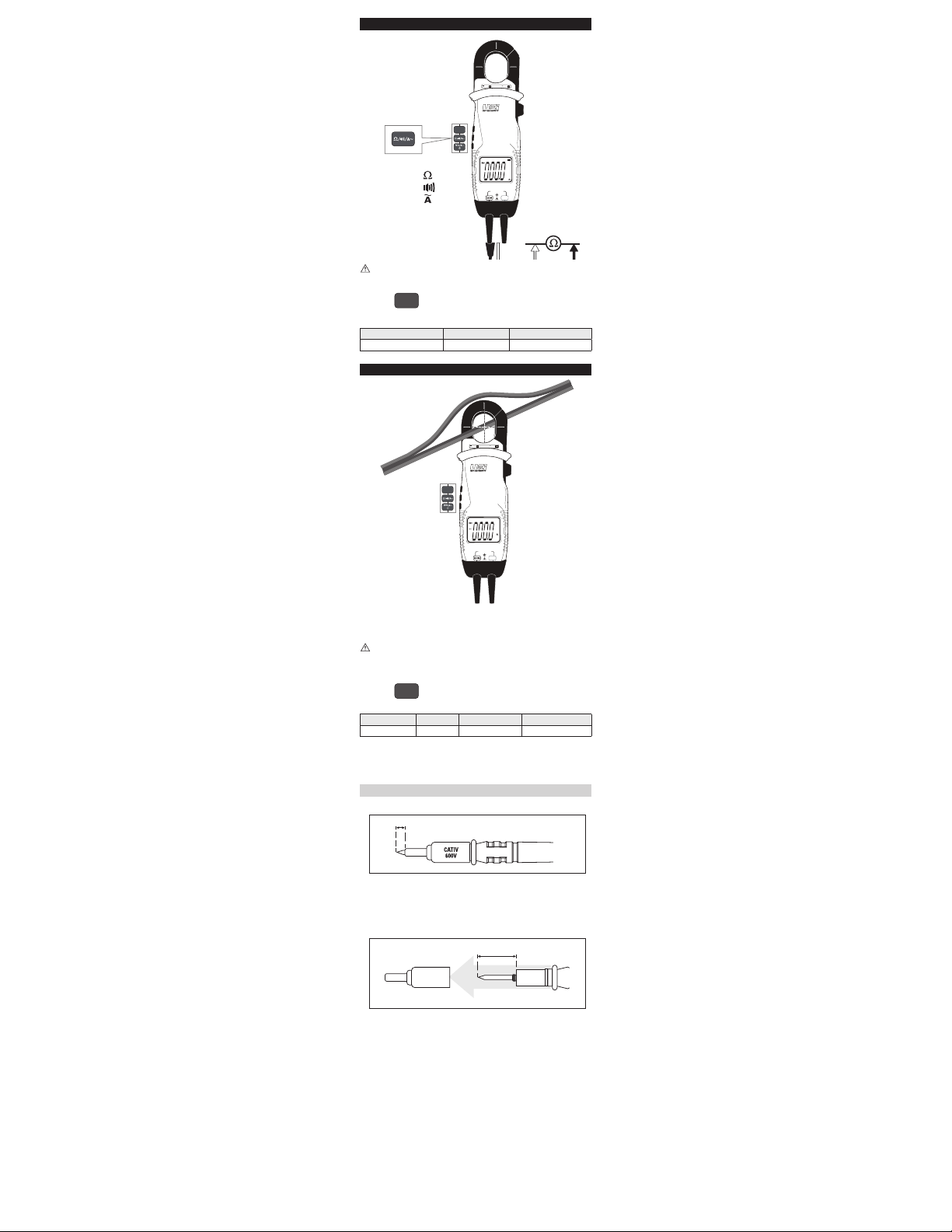

Resistance: <2000Ω
600V CAT III 200A
DL200
HOLD
• Default =
• Press x1 =
• Press x2 =
Features:
HOLD
WARNING
• Do not measure resistance on a live circuit.
Resistance
RangesResolution AccuracyOverload Protection
200Ω to 2000Ω 0.1Ω to 1Ω ±(0.8% + 4 dgts) 600V
Max displayed value: 2200Ω
Overload protection: 600V AC RMS or 600V DC
• Center wire in conductor alignment marks for best accuracy.
• Opposing currents cancel (use line-splitter when necessary).
WARNING
• Keep hands below guard when measuring high current levels.
• Do not attempt to measure more than 200A AC.
Features:
HOLD
AC Amps – Jaw Input
RangesResolution AccuracyOverload Protection
1A to 200A0.1A±(2.0% + 5 dgts) 600V
Frequency Range: sine wave: 45Hz to 400Hz
Maximum Displayed value: AC220A
Minimum Displayed value: AC 500mA
Only
Ω
CATIV 600V Measurement Locations
Test Lead Notes
4mm
• The DL200 is CATIII rated to IEC 61010-1 3rd edition standards. Do not
attempt to measure in locations that requires a CATIV rated meter. Remove
the CATIV test lead caps and use the CATIII 1000V test lead measurement
locations.
CATIII 1000V Measurement Locations
18mm
CATIV
600V
• CATIV shields must be removed for CATII and CATIII locations.
