* Press the Heading Mode button. The drone’s LED lights will
flash alternatively, indicating that the drone has entered
Heading Mode. To turn off Heading Mode, press the
Heading Mode button again.
The drone’s LED lights turn solid,
indicating that Heading Mode is off.
Heading Hold Mode
Low Battery Alarm
When the controller batteries are low, the controller will beep with “di...di..di..”
Land the drone and replace the batteries as soon as possible. Or the drone may
be out of control.
When the drone batteries are low, the controller will beep with “di.di.di......” Land
the drone as soon as possible.
Out of Range Alarm
When the drone is about to fly out of the maximum remote control distance, the
controller will beep with “didi...didi...didi”. Fly back into range immediately .
The drone will be difficult or impossible to control when it is out of range.
Motors Stuck Protection
1. When the propellers get stuck, the drone LED will flash quickly and activate
stuck protection function and the motors will stop running.
2. Pull down the Left Stick to the lowest position . The drone LED becomes solid
and stuck protection will be released , and the drone can fly again.
To know your APP
Download and Install the APP: Flyingsee
The APP is applicable for mobile phone with iOS and Android system, please
download from the mobile phone software store:
1. For Apple device with iOS system, please search Flyingsee in App Store.
2. For Android device with Android system,
please search Flyingsee in Google Play.
3. Scan the QR code on the right or the QR
code in the box to download Flyingsee.
15
www.udirc.com
Using the Flyingsee APP
Pairing your device with the drone
1. Install the Li-po battery into the drone and power on the drone. Put the drone
on a flat surface in a horizontal position. ( Very Important)
2. Enter your device’s set up screen, turn on Wi-Fi (WLAN) and choose udirc-***,
Return to main screen after successful connection.
3. 4.
Flyingsee
Tap this icon to
open the APP.
Go to UIDRC official website for more information about our products.
1
Download the manual and learn how to fly the drone properly.
2
Help & Tips.
4
HOME
Explore UDIRC Drone
1
3
Learn the operation
of drone
Remote control interface
Help
4
5
Select to enter
2
the remote control interface
for real time transmission.
3
Media
View your photos or videos.
5
16
www.udirc.com
Frequency Pairing
Select to enter the remote control interface for real time transmission.
3
Tap the icon in
Real time Transmission Interface
pop-up window.
Enter to the virtual remote interface,
the drone body LED lights change
from flashing to solid, indicating
that the paring is successful and
the drone is ready for fly.
Learn all the APP
icons first
Virtual Control Interface
Introduction to the APP Icons
Home Page Icon
Tap to go back to the Home Page.
Virtual Reality Mode
image image
Flight Route Setting Mode
Tap this icon to enter Virtual Reality Mode to
experience first person view ( only available
when using a VR headset). Tap again to exit
from Virtual Reality Mode.
Tap this icon to enter Flight Route Setting Mode.
Draw a flight route in the right area. The drone
will fly according to the flight route. Tap again
to exit from this mode.
17
www.udirc.com
EMERGENCY
EMERGENCY
The icon is red by default. Tap this icon and the propellers will stop immediately.
The drone will fall straight to the ground. Do not use the EMERGENCY function
except in an emergency.
TF Card Icon
When TF card has not been inserted to the drone camera, then the icon will show
, when the TF card is in, then the icon shows .
Remote Control Signal
To show the strength of WiFi signal of the drone.
Setting
Tap this icon to set parameters. Tap again to exit.
SETTING
Trimming Save Reset
Tap “Save” to save trimmer setting.
Tap”Reset” for factory reset.
Transmission quality 720P 480P
Select the picture transmission resolution.
The choice of Remote Control Mode
Remote Control
The virtual remote controller is hidden by default. Tap the icon to display
the virtual remote controller.
Gravity Induction Mode
Tap this icon to enter Gravity Induction Mode. Tilt the phone to fly left / right
and forward / backward. Tap again to exit from Gravity Induction Mode.
If the mobile phone tilts to the left / right, the Right Ball will
move accordingly enabling the drone to fly left / right.
18
www.udirc.com
If the mobile phone tilts to forward / backward, the Right Ball will
roll forward / backward enabling the drone to fly forward / backward.
Record Video
Tap to record video. The recording time will display at the
bottom of the screen. Tap again to stop recording.
Take Photo
Tap to take a photo.
Heading Hold Mode
Tap and it turns red, indicating that the drones has entered Heading Hold Mode.
Tap again to exit from Heading Hold Mode. The icon turns white.
Access Media
Tap to view or delete the aerial video and photo. Tap the Home Page icon to exit.
High / Low Speed Mode
By default , the drone is in Low Speed. Tap “H” to enter High Speed Mode.
One Button Take Off
Click on this icon and it turns red shortly. The drone will fly up automatically and
stay flying at an altitude of 1.2 meters.
One Button Landing
Tap this icon, the drone will fly down slowly and land on the ground.
All propellers will stop.
H:0.1m
Flying Altitude
The real time flying altitude(Based on the calibration altitude)
19
www.udirc.com
Drone Battery Level
100%
When the drone battery capacity left around 15%, the phone will vibrate to alarm
that the battery is going to run out and you need to fly back and replace the
battery as soon as possible.
APP CALIBRATION
(Do not calibrate before successful frequency pairing)
Move the right ball outward 45 degree (Do not touch the left ball). The drone body
light will flash 3 times, and then become solid , indicating calibration is complete
and the drone is ready to be controlled.
Tips: Crashing the drone may cause it to become imbalanced beyond the level
that can be adjusted by the trimmer button. If this occurs, you can do
the connection with Wi-Fi , pairing and calibration.
Take Off
Move the left ball and right ball at the same time 45 degrees inward.
( This operation is used for start / lock the motor. When the motor is working, it
could be used to stop the motor urgently.)
Move the left ball up slowly, the drone will take off.
20
Landing
Move the left ball down to the lowest position. The drone will land.
Flying Control
If the drone tilts forward or backward
Click the “-”of the Forward /Backward Trim
to adjust the drone if the drone tilts forward.
Click the “+” to adjust the drone if the
To fly up or down:
Move the Left Ball up to fly
up and move the Left Ball
down to fly back down.
The drone will continue flying
at appointed altitude after
release the ball.
To rotate left or right:
Move the Left Ball to the
left to rotate the drone to
the left. Move the Left Ball
to the right to rotate the
drone to the right.
drone tilts backward.
Left Ball Right Ball
If the drone rotates to left or right
Click the ”+” of the Left/Right
Rudder Trim if the drone rotates
left. Click the “-”if the drone
rotates right.
If the drone tilts to the left or right
Click the “+” of the left /Right Flying Trim if
the drone tilts to the left Click the “-”to adjust
the drone if the drones tilts to the right.
To fly right or left
Move the Right Ball to the
left to fly the drone to the
left. Move the right ball to
the right to fly the drone
to right.
To fly forward or backward:
Move the Right Ball up to
fly the drone forward, and
move the Right Ball down
to fly the drone backward.
www.udirc.com
Notice:
1. If you can not find the Wi-Fi signal to connect, turn off Wi-Fi and turn on
again to search and connect.
2. The available Wi-Fi control radius/distance is 20m, please control the
drone within this range.
3. When alternating control from mobile phone to transmitter, the
transmitter left stick must be in the center position, or exit from the APP.
If not then you can not control the drone alternately.
21
Display the photos and video
www.udirc.com
FLYINGSEE 1.0
Home
Explore UDIRC Drone
Learning Drone
Remote control interface
My Gallery
Help
News
Notice
Main menu Media interface
To view the photos and videos.
My Gallery
Internal Memory
Notice: App must be authorized to access the phone gallery, if not, then may
be unavailable to display the video and photos.
The photos are stored in the local phone gallery and TF card, the video is only
stored in the TF card, you need to download the video to the phone gallery and
display it. Please download the video as per APP instruction.
To take photo and record video
1. Insert the TF card to the slot in accordance with Picture 22.
(*TF card is not included)
2. The aerial photo will be saved in your mobile phone
and the TF card, while the video only be saved in the
TF card. But you can download the video to the mobile
phone or view the video on the phone only when the
mobile phone connecting with the drone Wi-Fi and
the TF card in the drone.
Tip: Tap the video icon to save a video when ending recording,
or the video cannot be saved.
3. Power off the drone first when finish aerial photography. Take out TF card and
insert the card to a card reader. Connect the card reader with computer USB
port. After a while, view the aerial photography data from “my computer” ”mobile disk”.
Tip: Please play the video or photo after coping all aerial photography data to
computer and make sure the play software can support AVI format.
Basic parameter for aerial camera: Video DPI 1280*720P
Image Size 1280*720P.
22
Picture 22
www.udirc.com

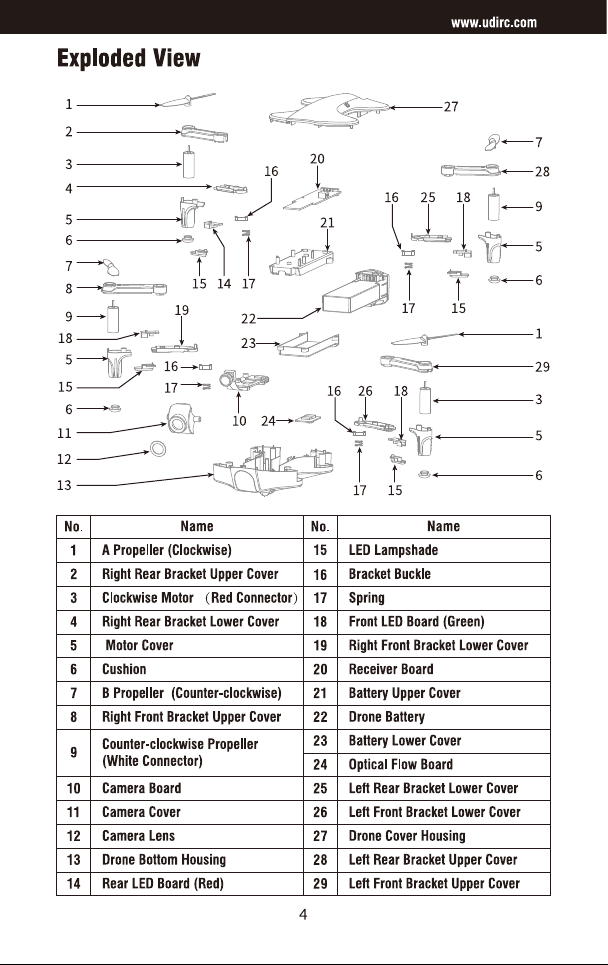

Spare Parts
For convenience, the spare parts are listed for you to choose, which can be
purchased from the local seller.
U29S-01
Drone Housing Cover
U29S-05
Right Front Bracket
Upper Cover
U29S-09
Left Front Bracket
Upper Cover
U29S-13
Bracket Buckle
U29S-02
Drone Bottom Housing
U29S-06
Right Front Bracket
Lower Cover
U29S-10
Left Front Bracket
Lower Cover
U29S-14
Motor Holder
U29S-03
A propeller
U29S-07
Right Rear Bracket
Upper Cover
U29S-11
Left Rear Bracket
Upper Cover
U29S-15
Camera Head Cover
U29S-04
B propeller
U29S-08
Right Rear Bracket
Lower Cover
U29S-12
Left Rear Bracket
Lower Cover
U29S-16
LED Hood
U29S-17
Battery Cover
Housing
U29S-18
Battery Bottom
Housing
U29S-19
Clockwise Motor
（Red and blue wire/
Red Connector）
23
U29S-20
Counter Clockwise Motor
(Black and white wire/
White Connector)
www.udirc.com
U29S-21
Cushion
U29-25
Camera Board
U29S-29
Camera Lens
U29S-33
Hex Wrench
U29S-37
Remote Controller
U29S-22
Spring
U29S-26
Optical Flow Board
U29S-30
Drone Battery
U29S-34
Screw Driver
U29S-23
Camera Cushion
U29S-27
Front LED
Board( Green)
U29S-31
USB charging cable
U29S-35
TF Card
U29S-24
Receiving Board
U29S-28
Rear LED
Board(Red)
U29S-32
Spanner
U29S-36
TF Card Reader
Important Notice
Our company's products are improving all the time, design and specifications
are subject to change without notice.
All the information in this manual has been carefully checked to ensure
accuracy, if any printing errors, our company reserve the final interpretation right.
24
Problem Problem Cause SolutionNo.
The
controller
1
indicator
light is off.
Failed to
pair the
drone with
2
the
controller.
The drone
is underpowered
3
or can not
fly.
The drone
could not
hover and
4
tilts to one
side.
The drone
indicator
5
light is off.
Could not
see the
6
picture.
Hard to control by
7
cellphone.
Can’t
altitude
8
hold.
Can’t
position
9
hold.
The drone’s LED light
is still flashing rapidly
10
after pairing.
The drone’s LED light
is flashing slowly
11
after pairing.
www.udirc.com
Troubleshooting
1. Low battery. 1. Replace the controller battery.
2. The batteries are incorrectly positioned.
3. Poor Contact.
1. Indicator light is off. 1. The same as above.
2. There is an interfering signal nearby. 2. Restart the drone and power on the controller.
3. Mis-operation.
4. The electronic component is damaged for
fiercely crash.
1. The propeller is seriously deformed. 1. Replace the propeller.
2. Low battery. 2. Recharge the drone battery.
3. Incorrect installation of propeller.
1. Improper Calibration.
2. The propeller is seriously deformed. 2. Replace the propeller.
3. The motor holder is deformed after violent
crash.
4. The gyroscope did not reset after a serious
crash.
5. Motor is damaged. 5. Replace the motor.
1. Low battery. 1. Recharge the drone battery.
2. The battery is expired or over discharge
protection.
3. Poor contact. 3. Connect and disconnect the battery.
1. There is an interfering signal nearby.
2. Camera is damaged. 2. Replace Camera.
Not experienced enough.
1. The propeller deformed seriously. 1. Replace propeller.
2. The motor is damaged. 2. Replace the motor.
3. Atmospheric pressure is not stable. 3. Refer the altitude hold mode of use manual .
1. Flying exceed the max recommended altitude. 1. Do not fly the drone higher than 8M
2. Flying in dim light. 2. Fly the drone in a space with good light.
1. The Optical Flow Position board is
damaged.
2. The Optical Flow Position board is
not in good connection with cable.
The Optical Flow Sensor doesn’t
detect moving object.
2. Install the batteries following the polarity
indicators.
3. Clean between the battery and the battery
contacts.
3. Operate the drone step by step in accordance
with the user manual.
4. To buy spare parts from local seller and replace
damaged parts.
3. Install the propeller in accordance with the user
manual.
1. Please refer to the Calibration Instruction.
3. Replace the motor holder parts.
4. Put the drone on the flat ground for about 10s
or restart the drone to calibrate again.
2. Buy a new battery from local seller to replace
the battery or charge the battery in accordance
with the use manual.
1. Practice and read the cellphone controlling
instruction carefully.
Practice and read the cellphone controlling
instruction carefully.
1. Visit local distributor to buy the replacement part.
2. Reconnect the Optical Flow Position board.
It will work normally after the drone takes off.
25
www.udirc.com
FCC Note
FCC Note
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
● Reorient or relocate the receiving a ntenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
WARNING: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
FCC Notice
The equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the
modifications are expressly approved in the instruction manual. Modifications not
authorized by the manufacturer may void user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
26
MADE IN CHINA
www.udirc.com
27
Loading...
