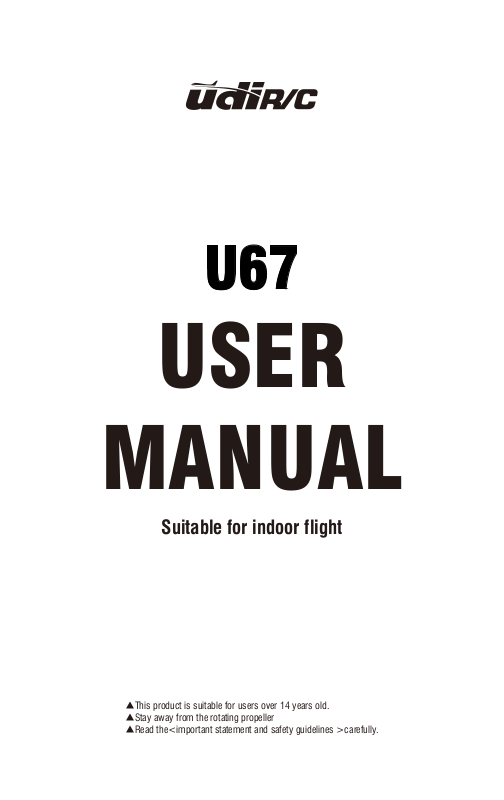

U67
USER
MANUAL
Suitable for indoor flight
▲This product is suitable for users over 14 years old.
▲Stay away from the rotating propeller
▲Read the<important statement and safety guidelines >carefully.
Ready Before Take Off
Drone preparation
Propeller A
Front
Drone indication
Propeller B
Power Switch
ON OFF
Left Right
Main frame
Rear
Propeller D Propeller C
Unfolding Instruction
Charging port
Doll
Unfold the drone arm
Fully unfold the
drone arm shape
2
Handle handling
Installation: Align the cylineder Under the handle to the hole in front of the main
body and press it down to the bottom.
Disassemble: Hold the handle and Pull it down.
Slider drone doll installation
When installed, the doll is loaded into the main body, and then the doll cylinder is
aligned with the buckle on the main body, pressed vertically downward, and the
doll's hand is buckled onto the main handle;
when disassembled, the doll is pulled out vertically upward.
①
③
②
3
Charging Instruction
Battery power is insufficient in the original plant.
It must be charged saturated before it can be used.
Connect the original charging cable with the
drone, and then connect other USB charging
port the drone red indicator keeps bright
when charging and the light turns green
when fully charged.
The drone power button should be
turned off when charging.
Charging port
①
USB adapter
(Not included)
②
Original USB charging line
▲ Only use the original charging line; suggest select Adapters with output
current of 5V 2A .
Transmitter preparation
Automatic show 1
Automatic show 2
Left stick / Trimmer
(Press down)
Take Off /
Landing /
Emergency
Stop Button
Power Indication
Heading Hold Mode
Speedswitch
Power Switch
Battery installation
Open the battery cover on the back
side of the transmitter, according to
the "+-" electrode instruction in the
battery groove, place the battery
with the same type of saturated
power (battery not include).
Battery cover
3×1.5V AAA
Alkaline Batteries
Right Stick
Back side of the transmitter
4
Flight Operation
Transmitter connect with Drone
Frequency Pairing
①
Power on the drone, the drone indicator will change from fast flash to slow flash,
and enter frequency pairing.
Horizontal ground
② Turn on the power on the transmitter, the indicator will flash quickly.
②
Pull the left stick until bottom and then release, and the transmitter indicator will
③
keep bright and sound beep to show frequenc pairing successful.
Push to the right
③
5
Control stick operation
Left stick
Go up
Go down
Clockwise turn
Right stick
Forward
Fly to the left
Backward
Fly to the right
Take off
After the frequency pairing is successful, press "take off/land" button, the transmitter
will sound "di", and the drone will automatically
rises and flies at an altitude of about 1.2 meters.
Landing
During the flight, press the "take off/land"
button, the transmitter will sound "di",
and the drone will land slowly until landing.
Don’t operate the left stick during landing,
otherwise the current command will automatically fail.
Emergency Stop: During the flight, press "take off/land" for about 2 seconds, and
the transmitter will sound "di. di... and the drone crashes directly.
Tip: Do not use the emergency stop function unless in emergency situation.
6
Automatic show 1
Press the “Automatic show 1” button
and the drone will rotate 720°.
Automatic show 2
Press the “Automatic show 2”button, the drone fly forward ,turn back and
return to take off point.
7
Speed mode switch
Press "H/L" it will make the sound"di"di. di" three times to enter high speed mode "H".
Press down it again, it will make the sound"di" ,this indicates to the low speed mode”L.
Press down again， it makes the sound of ‘di’ for twice, it comes to the middle speed
mode “M”.
Medium speed default
Low speed: suitable for beginners to
practice without wind.
Medium speed: suitable for skilled operator
operating in light breeze.
High speed: suitable for professional
operation in outdoor wind
resistance.
Heading Hold Mode
The default setting is NOT Heading hold Mode.
Headless mode means that the user can operate the aircraft without having to
distinguish directions. This mode is suitable for beginners, or when it is difficult to
distinguish the forward and backward direction of the drone.
The headless mode needs to ensure that the front of the drone is consistent with
①
the front of the controller, the controller does not change the direction of the
transmitter, and the drone is always in front of the controller.
When the front of the drone is not consistent with the pilot's front, the drone will
②
lose control or be lost.
Start: press the button of "headless mode",
and the transmitter will sound "didi" to enter the headless mode.
Off: repeat this action, and the transmitter makes a sound of "dididi" to exit the headless
mode.
8
Front
Front
Rear
Rear
Flying Trimmer
Forward / Backward Trimmer
During the flight, if the drone tilts forward,
press down the left stick in the center button,
and push the right stick backwards.
Otherwise push forwards.
Press down
Left and right side flying trimmer
During the flight, if the drone tilts to left, then press down the left stick in the center
button and push the right stick to right to adjust. Otherwise push to left.
Left and right turning trimmer
During the flight, if the drone head rotates to
left,then press down the left stick in the
center button and push the left stick to right.
Otherwise push to left.
9
Drone calibration (When abnormal flying)
After successful frequency alignment,
the right control lever of the transmitter
is pushed to the lower right corner by
45°, and the status indicator of the
drone turns to keep bright after quick
flashing, indicating that the gyroscope
has been calibrated. Release the right
lever.
Tips: When the drone is fiercely impacted or crashed, it may cause the gyro can
not recover and cause difficult control, if so, you can re-pairing&re-calibrate
and put the drone on the level surface.
Unlocking/locking the motor
Push the left and right stick inward to the 45 degree angle simultaneously.
① On standby drone, motor rotation, drone nlocked.
② When the drone is not take off, the motor stops rotating and the drone is locked.
The drone can only take off
when the motor is unlocked.
Altitude Hold Mode
Intelligent flight control system calculates the hovering position, more stable control
feature, makes it easier for beginners to control. Release the stick, the drone will
keep hovering automatically to enable single hand operation and more clearly aerial
photography.
Note: If the propeller is deformed or damaged, Altitude Hold Mode will fail.
If the atmospheric pressure is instability or Typhoon weather, Altitude Hold
Mode can not work well.
Low Battery Alarm
When the transmitter in low battery, the transmitter will beep “di-di” constantly to
remind the user to return home and replace the batteries of thetransmitter as soon
as possible.
When the power of the drone will run out, the drone light will continue to "flash and
stop ".It means that you must return at this time.
10
Stuck Protection
1. When the propellers get stuck, then activate stuck protection function and the
motors stop running.
2. Pull down the left stick to the lowest position and then go back to the center,
stuck protection will be released and the drone can fly again.
Parts Replacement
Propeller Replacement
To remove the propeller, hold the propeller vertically
and then pull the propeller out.
To install the propeller, mount propeller aim the central
shaft of the motor and press down.
There is different A and B remarks on the propeller.
Be sure that the propellers are installed to the correct
motors, which remarked the Letters to identify on the
motor holder, if not, then the drone can not work normally.
A=A B=B
Front
A
A
B
B
D
D
Rear
D=D C= C
C
C
Attention
① Switching sequence. At first, turn on the power of the drone, then turn on the
power of the transmitter. After the end, turn off the power of the drone first, and
then turn off the power of the transmitter.
②
Improper operation caused the crash. It is necessary to check and confirm the
connection of the motor，propeller or battery of the drone and the damage
degree, so that the drone can fly again. If there is damaged, please replace the
new accessories or prone to accident.
11
Drone
Weitht
Propeller Diameter
Maximum flight time
Operating Temperature Range
Operating frequency
Battery
Type of battery
Charging Time
Charging temperature range
Transmitter
Operating frequency
Maximum transmission distance
Operating temperature
Battery
Charger
Output
5V 2A
Parameter
32g（ typical value）
38mm
6 minutes(calm)
0°C to 40°C
2.4GHz
3.7V，220mAh
LiPo
About 40 minutes
5°C to 40°C
2.4GHz
20m (no interference and barrier-free)
0°C to 40°C
3×1.5V AAA battery
Tips: the above data are the test data of UDIRC toy lab, for reference only.
12
The controller
1
2
3
4
5
Problem Problem cause SolutionNO.
Indicator
light is off.
Failed to
pair the
drone with
the
controller.
The drone
is under-
powered or
can not fly.
The drone
could not
hover and
tilts to one
side.
The drone
indicator
light is off.
Troubleshooting
Low battery. Replace the controller battery.
The batteries are incorrectly.
The batteries are incorrectly
positioned.
Indicator light is off. The same as above.
There is an interfering signal nearby. Restart the drone and power on the controller.
Mis-operation. Operate the drone step by step in accordance with the user manual.
The electronic component is
damaged for fiercely crash.
The propeller is seriously deformed. Replace the propeller.
Low battery. Charge the drone battery.
Incorrect installation of propeller.
The propeller is seriously. Replace the propeller.
The motor holder is deformed after violent crash. Replace the motor holder parts.
The gyroscope did not reset after
a serious crash.
Motor is damaged. Replace the motor.
Low battery. Recharge the drone battery.
The battery is expired or over
discharge protection.
Install the batteries following the polarity indicators.
Clean the dirt between the battery and the
battery contacts.
To buy spare parts from local seller and
replace damaged parts.
Install the propeller in accordance with the
user manual.
Put the drone on the flat ground for about 10
minutes or restart the drone to calibrate again.
Buy a new battery from local seller to replace
the battery or charge the battery.
Important Notice
Drone Battery Li-Po Battery Disposal & Recycling
Wasted Lithium-Polymer batteries must not be placed with household
trash. Please contact local environmental or waste agency or the
supplier of your model or your nearest Li-Po battery recycling center.
Our company's products are improving all the time, design and specifications are subject to
change without notice.
All the information in this manual has been carefully checked to ensure accuracy, if any
printing errors, our company reserve the final interpretation right.
13
FCC Note
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
● Reorient or relocate the receiving a ntenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
WARNING: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
FCC Notice:
The equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the
modifications are expressly approved in the instruction manual. Modifications not
authorized by the manufacturer may void user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
FCC Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition with out restriction.
MADE IN CHINA
14
Loading...
