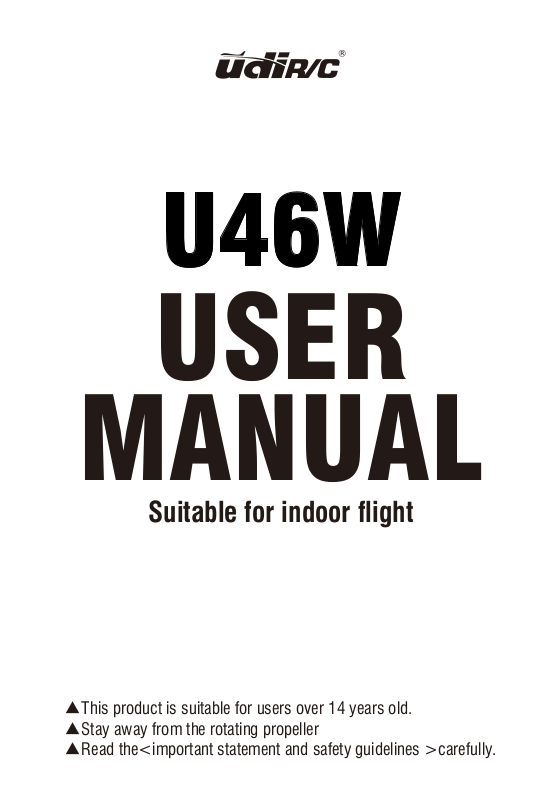

U46W
USER
MANUAL
Suitable for indoor flight
▲This product is suitable for users over 14 years old.
▲Stay away from the rotating propeller
▲Read the<important statement and safety guidelines >carefully.
Propeller A
Drone Cover
Housing
Propeller B
Ready Before Take Off
Drone preparation
Front (Prow)
Propeller B
Main frame
Propeller A
Rear (Tail)
Drone LED
ON OFF
CHA
Rear (Tail)
Camera
Power Switch
Charging port
2
Charging Instruction
Battery power is insufficient in the original plant. It must be charged
saturated before it can be used.
Connect the original charging cable with the drone, and then connect other USB
charging port. The drone red LED keeps bright when charging and the light turns
green when fully charged. The drone power button should be
turned off when charging.
②①
Original Charging Cable
▲ Only use the original charging cable; suggest select Adapters with output current of 5V 2A.
USB adapter
(Not included)
Transmitter preparation
No function
Left stick /
Trimmer
(Press down)
Take Off / Landing /
Emergency
Stop Button
Heading Hold Mode
Speedswitch
Right Stick
Power Switch
Power-LED
Battery installation
Battery cover
Back side of the transmitter
Open the battery cover on the back side of the
transmitter ，according to the "+-" electrode
instruction in the battery groove, place the
battery with the same type of saturated power
(battery not include).
3×1.5V AAA
Alkaline Batteries
3
Flight Operations
Mobile phone connect with Drone
Download and install APP: Flyingsee
This software is suitable for mobile phones
in the IOS and Android system. For detailed
operation, please check the system “HELP”
of APP.
Transmitter connect with Drone
Frequency Pairing
①
Turn on the power on the
transmitter, the power-LED
will flash quickly.
Horizontal ground
②
Pull the left stick until bottom and
then release, the transmitter
power-LED will flash slowly, and
enter frequency pairing.
Power on the drone, the
③
drone LED will change from
flash to keep bright, that
indicates the frequency
pairing is successful.
4
Control stick operation
Left stick
Go up
Go down
Counterclockwise
turn
Clockwise turn
Right stick
Forward
Backward
Fly to the left
Fly to the right
5
Take off
After the frequency pairing is successful, press the "take off/land" button, the
transmitter will sound "di", and the drone will automatically rises and flies at an
altitude of about 1.2 meters.
Landing
During the flight, press the "take off/land"
button, the transmitter will sound "di",
and the drone will land slowly until landing.
Don’t operate the left stick during landing,
otherwise the current command will
automatically fail.
Emergency Stop: During the flight, press
" take off/land" button for about 2 seconds,
the transmitter will sound "di.di..." and the
drone crashes directly.
Tip: Do not use the emergency stop function unless in emergency situation.
Speed mode switch
Press the "H/L" button, the transmitter will sound
"di.di.di", to enter High Speed Mode "H".
Press again, the transmitter will sound "di",
to enter Low Speed Mode “L”.
Press again, the transmitter will sound “di.di”,
to enter Middle Speed Mode “M”.
Medium speed default
Low speed: suitable for beginners to practice without wind.
Medium speed: suitable for skilled operatoroperating in light breeze.
High speed: suitable for professional operation in outdoor wind resistance.
6
Heading Hold Mode
The default setting is NOT Heading Hold Mode.
Heading Hold Mode means that the user can operate the aircraft without having
to distinguish directions. This mode is suitable for beginners, or when it is
difficult to distinguish the forward and backward direction of the drone.
①
The Heading Hold Mode needs to ensure that the front of the drone
is consistent with the front of the controller, the controller does not
change the direction of the transmitter, and the drone is
always in front of the controller.
②
When the front of the drone is not
consistent with the pilot's front, the
drone will lose control or be lost.
Start: Press the "Heading Hold Mode" button,
the transmitter will sound "didi" to enter
the Heading Hold Mode.
Off: Press again, the transmitter will sound "dididi" to exit the Heading Hold Mode.
Front
Rear
7
Flying Trimmer
Forward / Backward Trimmer
During the flight, if the drone tilts forward,
press down the left stick in the center button,
and push the right stick backwards.
Otherwise push forwards.
Press down
Left and right turning trimmer
During the flight, if the drone head rotates to
left,then press down the left stick in the
center button and push the left stick to right.
Otherwise push to left.
Left and right side flying trimmer
During the flight, if the drone tilts to left, then press down the left stick in the
center button and push the right stick to right to adjust. Otherwise push to left.
Drone calibration (When abnormal flying)
After successful frequency alignment,
the right stick is pushed to the lower
right corner by 45°, and the drone LED
turns to keep bright after quick flashing,
indicating that the gyroscope has been
Tips: When the drone is fiercely impacted or crashed, it may cause the gyro can
not recover and cause difficult control, if so, you can re-pairing&re-calibrate
and put the drone on the level surface.
calibrated. Release the right stick.
Unlocking/locking the motor
Push the left and right stick inward to the
45 degree angle simultaneously.
① In standby, unlocked the motor and
working.
② In Working, locked the motor and stop
rotating.
8
Altitude Hold Mode
Intelligent flight control system calculates the hovering position, more stable
control feature, makes it easier for beginners to control. Release the stick, the
drone will keep hovering automatically to enable single hand operation.
Note: If the propeller is deformed or damaged, Altitude Hold Mode will fail.
If the atmospheric pressure is instability or Typhoon weather, Altitude Hold Mode
can not work well.
Low Battery Alarm
Transmitter:
When the transmitter in low battery, the transmitter will continues
to sound “di-di” to remind the user to return home and replace
the batteries of thetransmitter as soon as possible.
Drone:
When the drone in low battery, the drone LED will continue to
"flash and stop ", the drone must return home at this time.
Stuck Protection
①
When the propellers get stuck, then activate stuck protection function and
the motors stop running.
②
Pull down the left stick to the lowest position and then go back to the
center, stuck protection will be released and the drone can fly again.
Out of range alarm
When the drone is out of the remote control distance, the drone LED will
continues to “flash - flash - stop” to alarm the user to return the drone
immediately.
9
Parts Replacement
Propeller Replacement
Disassembly:
Installation:
Attention
① Switching sequence. At first, turn on the power of the transmitter, then turn
②
hold the propeller vertically and then pull the propeller out.
mount propeller aim the central shaft of the motor and press down.
There is different A and B remarks on the propeller. Be sure that the propellers are
installed to the correct motors, which remarked the Letters to identify on the motor
holder, if not, then the drone can not work normally.
Disassembly Installation
B
B
B
Please make sure the propeller
are installed correctly,
otherwise the drone cannot fly.
A
A
A
on the power of the drone. After the end, turn off the power of the drone
first, and then turn off the power of the transmitter.
Improper operation caused the crash. It is necessary to check and confirm
the connection of the motor，propeller or battery of the drone and the
damage degree, so that the drone can fly again. If there is damaged, please
replace the new accessories or prone to accident.
10
Parameter
Drone
Model
Weitht
Maximum
flight time
WIFI Distance
Operating
Temperature Range
Operating frequency
Battery
Type of battery
Charging Time
Charging
temperature range
Transmitter
Operating frequency
Maximum
transmission distance
Operating
temperature Battery
Charger
Output
Size
U46W
23g (typical value)
66×66×37mm
7 minutes(calm)
30m (indoor and
unobstructed)
0°C to 40°C
2.4GHz
3.7V，180mAh
LiPo
About 30 minutes
5°C to 40°C
2.4GHz
15m (indoor and
unobstructed)
0°C to 40°C
3×1.5V AAA
battery
5V 2A
APP / Live View
App Name
Image transmission
system
Real time image
transmission
Operation System
Camera
Image resolution
Static Photography
Mode
Video Resolution
Image mode
Frame Rate
File System
Image format
Video format
TF Card
Operation
Temperature
Flyingsee
2.4G wifi
480 P@20 fps
This software is
suitable for mobile
phones in the
IOS 9.0 or later
and Android 4.4
or later system,
640×480P
Single shoot
640×480P
RGB
25
FAT 32
JPEG
MP4, H.264
Unable
0°C to 40°C
Tips: the above data are the test data of UDIRC toy lab, for reference only.
Li-Po Battery Disposal & Recycling
Wasted Lithium-Polymer batteries should not be placed
with household trash. Please contact local environmental
or waste agency or the supplier of your model or your
nearest Lithium-Polymer batteries recycling center.
11
Troubleshooting Guide
Problem Problem Cause SolutionNo.
1. Low battery. 1. Replace the transmitter battery.
The
2. The battery positive pole and
transmitter
1
2
3
4
5
6
7 1. Not experienced enough.
negative pole are in reverse order.
indicator
light is off
3. Poor Contact.
1. Indicator light is off. 1. The same as above 1.2.3.
2. There is interfering signal nearby.
Fail to pair
the drone
with
3. Mis-operation.
transmitter
4. The electronic component is damaged
for frequent crash.
1. The propeller deformed seriously. 1. Replace the propeller.
The drone
2. Low battery. 2. Recharge the drone battery.
is underpowered or
can not fly.
3. Incorrect installation of propeller.
1. The propeller deformed seriously. 1. Replace propeller.
2. The motor holder deformed. 2. Replace the motor holder.
The drone
could not
hover and
3. The gyro did not reset after violent
tilts to
crash.
one side.
4. The motor is damaged. 4. Replace motor.
1. Low battery. 1. Recharge the drone battery.
The drone
indicator
2. The battery is expired or over
light is off.
discharge protection.
1. There is interfering signal nearby. 1. Cut off the wire and re-connect.
Could not
see the
picture.
2. Damaged camera.
Hard to
control by
cellphone.
2. Install the battery in accordance with
the user manual.
3. Clean the dirt between the battery and
the battery slice.
2. Restart the drone and power on the
transmitter.
3. Operate the drone step by step in
accordance with the user manual.
4. To buy spare parts from local seller
and replace damaged parts.
3. Install the propeller in accordance
with the user manual .
3. Put the drone on the flat ground for
about 10s or restart the the drone to
calibrate again.
2. Buy a new battery from local seller to
replace the battery or charge the battery
in accordance with the use manual.
2. Buy a new camera box from local
seller to replace
1. Practice and read the cellphone
controlling instruction carefully.
12
FCC Note
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
● Reorient or relocate the receiving a ntenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
WARNING: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
13
The equipment may generate or use radio frequency energy. Changes
or modifications to this equipment may cause harmful interference
unless the modifications are expressly approved in the instruction
manual. Modifications not authorized by the manufacturer may void
user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
MADE IN CHINA
Our company's products are improving all the time, design
Important
and specifications are subject to change without notice.
All the information in this manual has been carefully checked
Notice
to ensure accuracy, if any printing errors, our company
reserve the final interpretation right.
14
Loading...
