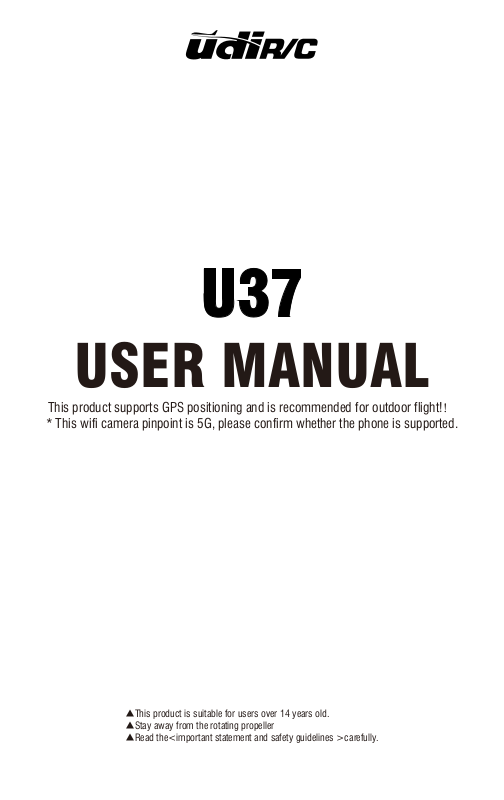

U37
USER MANUAL
This product supports GPS positioning and is recommended for outdoor flight!！
* This wifi camera pinpoint is 5G, please confirm whether the phone is supported.
▲This product is suitable for users over 14 years old.
▲Stay away from the rotating propeller
▲Read the<important statement and safety guidelines >carefully.
Drone Preparation
Ready Before Take Off
Front
Camera
Propeller A
Drone arm A
Propeller B
Right (Front) LED:
Green
Visual system
Right (Rear) LED:
Red
Canopy
Battery
Rear
Front
Rear
Propeller B
Drone arm B
Drone arm ADrone arm B
Propeller A
Left (Front) LED:
Green
TF card slot
Base
Left (Rear) LED:
Red
2
Propeller Installation
Propeller A：Install the parts in the order shown in the picture and tighten
the lock cap counterclockwise.
① Concave lock cap
② Silicone gasket
③ Propeller A
④ Drone arm A
①
②
③
A
④
Disassembe:operation in reverse order.
Propeller B：Install the parts in the order shown in the picture and tighten
the lock cap clockwise
① Flat caps lock
② Silicone gasket
③ Propeller B
④ Drone arm B
Disassembe:operation in reverse order.
3
①
②
③
B
④
Battery Installation and Charge
Battery power is insufficient in the original plant. It must be charged saturated before
it can be used.
Push to the end.
Press the unlock lock
to pull out the battery.
Battery Charge for Drone
Battery power is insufficient in the original plant. It must be charged saturated
before it can be used.
Connect the battery of the drone with the charging cable configured in the original
factory, and then connect it to other USB charging ports.
When charging, the light on the charging line is red and the charge is green.
Original Charging Line
Drone Battery
▲ Only use the original charging line; suggest select Adapters with output current of 5V 2A .
②①
Power adapter (not included)
Installation of TF Card
TF card is not included
Insert the TF card into the slot on the belly of the fuselage, and pay attention to the
metal contact surface orientation of the TF card.
4
Transmitter Preparation
Phone(not include)
Photo/Video Button
Left stick /
Follow (press down)
Return button
Indicator Light
Power Switch
Gimabal adjustment
button
Right stick/
Encircle (press down)
Take off /
Landing button
Battery Installation
Open the battery cover of the remote controller and place the same type of battery
with saturated capacity according to the'+-'electrode indication in the battery cell
( battery needs to be purchased separately ) .
4*1.5V AA battery
Battery cover
5
Mobile Phone Installation
Back of transmitter Back of transmitter
① Straighten the antenna.
Gently pull up the clip
② Pull to the bottom and stop
the metal shaft.
from the notch.
Front of transmitter
③ Open the clip of mobile phone.
Front of transmitter
④ Place the phone in the upper and lower clamps,and the clamp will automatically
clamp the mobile phone.Pay attention to don't clip the buttons on the side of the
phone.
6
Flight Operations
Mobile phone connect with Drone
Download and install APP: UDIGPS
This software is suitable for mobile phones in
the IOS and Android system.
For detailed operation, please check the
system “HELP” of APP.
Transmitter connect with Drone
Frequency Pairing
② Pull the left stick to the lowest position
and let go, the indicator light changed
to slow flash.it indicates the transmitter
enters the frequency state.
① Turn on the power
③ After installing the batteries, the drone is placed on the horizontal ground. After
the navigation light is on for 2 seconds, the fuselage lights become flash, and the
drone and the transmitter are connected to each other successfully. When the
left light of the drone flashes and the right light does not turn on, it is suggested
that the horizontal correction of the compass is needed at this time.
Horizontal ground
7
Compass calibration
Rotate the aircraft horizontally until the transmitter says "di... "Level correction to
complete. When the left light turns to long light and the right light flashes, enter
vertical correction.
Rotate the vehicle vertically until the transmitter says "di... "A sound, vertical
correction over. The four navigation lights are spinning and flashing.
Level Correction Vertical correction
Tips: It’s a must to have the right compass adjustment first each time you start
the drone, or it can’t work normally.
GPS signal search
After the frequency matching is successful, the drone automatically searches for
GPS signals. When the left blue indicator light of the transmitter changes from
flashing to long bright, indicating that the GPS connection is successful. But if you
don’t connect the GPS, the flight height defaults to about 3 meters.
Unlocking the drone
The drone can only take off when the motor is unlocked.
Push the left and right stick inward to the 45
degree angle simultaneously.
On standby drone, motor rotation, drone
Unlocked.
When the drone is not take off, the motor
stops rotating and the drone is locked.
8
Control stick operation
Left stick
Go up
Go down
Forward
Backward
Counterclockwise turn
clockwise turn
Right Stick
Fly to the left
Fly to the right
Take off
After unlocking the motor，press the "take off" button,
and the drone will automatically rise and hover at a
height of about 1.2 meters .
Landing
During the flight，press the“landing”button,
the transmitter make a sound of “di”and the
drone slowly land until landing.
Notice：Don’t operate the left stick during landing, otherwise the current
command will automatically fail.
9
Automatic return
During the flight, press the "return " button, and the
transmitter will sound "di", and the drone will
automatically return to the take off point.
(during returning, the transmitter will continuously
sound "di". To stop homing, just press this button
again.)
During the automatic return, the remote stick is locked. When the drone returns
to the take off point and aligns with the take off direction, the remote stick is
automatically unlocked.
Following mode
While flying, press left stick down, the transmitter
sounds “di”, drone enters the function of following.
Now it can be controlled by the user.
The function is standard by the mobile phone APP signal,
so it’s a must to make the drone and APP connected
normally, turn on the mobile location service at the same time,
otherwise this function is invalid.
Press down
Encircling flight
In flight, press the right stick down, and the transmitter will make the sound of "di".
Then it goes to the function of encircling flight. The drone will fly to a default radius
then it waits for the direction controlled by the user. Adjust the speed and direction
of the drone by manipulating the right stick. It is the minimum radius of the default
radius acquiescently ,so drone flies only in the sub range.
In the state of
encircling flying,
the left stick could
only control the
height of the drone.
Press down
Turn left, the drone flies clockwise; Move
further, the flying speed will become faster.
Turn right, the drone flies counterclockwise;
Move further, the speed will become faster.
Go upward to narrow the radius of
encircling.
Go downside to enlarge the radius of
encircling.
10
Speed mode switch
Press "H/L" it will make the sound"di" ,this indicates to the low speed mode”L.
Press down it again, it makes the sound of ‘di’ for twice, it comes to the middle
speed mode “M”. Press down the key again, it makes "di. di. di" three times to enter
high speed mode "H" .
Low speed: suitable for beginners to practice without wind.
Medium speed: suitable for skilled operator operating in
light breeze.
High speed: suitable for professional operation in outdoor
Back of transmitter
Speed switch
wind resistance.
Gimbal adjustment
Long or short press the adjustment button of the Gimabal to adjust the Angle of
aerial photography of the camera.
Tilting -45° to 0°.
Short press “photo/video ”once to take a picture.
When taking photos, the transmitter will send out a "di" sound.
Video
Long press the "video" button for 1 second to enter
the recording state,to repeat this action to stop r
ecording and save video.
When taking video，the transmitter will send out a“di”sound a long rang.
Notes for Filming
① Photos taken will be saved to mobile picture library and drone TF card; Video can be saved in
TF card first, which can be downloaded to mobile picture library for viewing. Please
download video according to APP prompt. When downloading, maintain the normal
connection between the mobile phone and the flyer, and the TF card is in the card slot.
② The APP must be authorized to read the phone gallery to view the aerial photos.
③ Turn off the power supply of the drone before taking out the TF card.
④ When aerial video is read by computer,it must have corresppnding playback software.
11
Intelligent Hover
Intelligent flight control can calculate the suspended height ,the visual system points
the ground position,GPS coordinates allow the vehicle to stay in your desired
position Buy. The drone is like a camera fixed in the air. Aerial photography and
control are very convenient.
Notice: Drone must be connected to GPS properly in order to give full play to
fixed-point hovering function. Atmospheric pressure or wind force affects
hovering stability.
Low Battery Alarm
When the battery power of the point remote is quickly exhausted, it will make the
sound of “di”“di”“di” constantly to alarm you, now you should land the drone as
soon as possible to charge the battery.
Automatic Return
While flying, in case that the battery of the drone is quickly exhausted, it will make
the sound of “di”.“di” to alarm you, the drone's indicator lights turn from long to
bright. After alarming you, the drone automatically returned to the take-off point.
Notice: After low-battery alarm, the drone will return home.
Meanwhile, its controllable range will be reached to the 20 meter
Out of Range Alarm
When the drone flying out of the max remote control distance, the transmitter will
beep “didi...didi...didi...” to alarm the user to fly back the drone within range
immediately.
Stuck Protection
When the propeller is stuck and does not rotate, the drone will start the automatic
protection function to stop the motor working.
12
Out of Control Protection
Out of control protection refers to the flight control system automatically controls
the drone to fly back to the return point after receiving the remote control signal
(ie, out of control).
The drone does not have the function of avoiding obstacles during the uncontrolled
return flight. The user can set the return altitude value to avoid obstacles on the way
back.
Possibility of entry into runaway protection mode
* The transmitt is off.
* Flight distance exceeds the effective distance of remote control signal transmission.
* There is an obstacle between the transmitter and the drone.
* Transmitter signal is disturbed.
Flying Trimmer
Forward / Backward Trimmer
When take off, if the drone tilts forward , press the trimmer
button, and push the right stick down. Otherwise push it up.
Left / Right Tilts Trimmer
When take of, if the drone tilts to the left, press the trimmer
button,and push the right stick to the right. Otherwise push
Back of transmitter
it to the left.
Trimmer
Left / Right Rotates Trimmer
When flying, if the drone head rotates to the left, press the
trimmer button, and push left stick to right. Otherwise
please push it to the left.
Calibration (This action is used when flying abnormally)
After the calibration of the compass, the
right control lever of the remote control is
pushed to the lower right corner by 45°,
and the remote control emits a sound of
"di",and the aircraft light flashes and
releases,indicating that the gyroscope has
been calibrated.
Tips: When the drone doesn’t appear to use the trim correction flight status, or being hit hard
(or falling abnormally). thus cause the difficulties in controlling. Now frequency making and
adjustment are needed again, drone should be placed on horizontal ground.
13
Attention
① Switching sequence. At first, turn on the power of the transmitter, then turn on the power
of the drone. After the end, turn off the power of the drone first, and then turn off the
power of the transmitter.
② Improper operation caused the crash. It is necessary to check and confirm the connection
of the motor，propeller or battery of the drone and the damage degree, so that the drone
can fly again. If there is damaged, please replace the new accessories or prone to accident.
Parameter
Drone
Weight
Size
Propeller radius
Maximum ascent rate
Maximum descent rate
Maximum speed
Flight altitude limit
Maximum flight time
Maximum wind speed
Maximum tilt angle
Operating TemperatureRange
GNSS
Operating frequency
Drone Battery
Capacity
Voltage
Type of battery
Energy
Net Weight
Charging temperature range
Charging Time
410g
300mm (Diagonal motor shaft spacing)
94mm
1.7m/s
1.7m/s
About 24km/h
250m
18 minutes (calm)
Level 3
35°
0°C to 40°C
GPS / GLONASS
2.4Ghz / 5G wifi
1800mAh
7.4V
LiPo
13.32Wh
About 116.2g
5°C to 40°C
About 7 hours.
Gimbal
Stable
Controllable range
Tips: the above data are the test data of UDIRC toy lab, for reference only.
Single axis（tilt）
Tilting：-45° to 0°
14
Camera
Image resolution
Static Photography Mode
Video Resolution
Image mode
Frame Rate
File System Support
Image format
Video format
TF Card
Operation Temperature
Transmitter
Operation Frequency
Maximum transmission distance
Mobile device bracket
Operating Temperature
Battery
APP
App Name
Image transmission system
Real time image transmission
Operation System
1920×1080p
Single shoot
1920×1080p
RGB Mode
25
FAT 32
JPEG format
MP4 Compressed format H.264
Support Class 10 Micro TF card，
Supreme support 64G.≥10 level Micro TF Card.
0°C - 40°C
2.4Ghz
500m (no interference and barrier-free outside)
Suitable for smartphones
0°C to 40°C
4*1.5 AA
UDIGPS
WiFi 5 GHz
720 p@20 fps
This software is suitable for mobile phones in the
IOS 9.0 or later and Android 4.4 or later system.
Charge
Input
5V 2A
Tips: the above data are the test data of UDIRC toy lab, for reference only.
15
Problem Problem cause SolutionNO.
The controller
Indicator
1
light is off.
Failed to
pair the
drone with
2
the
controller.
The drone
is under-
3
powered or
can not fly.
The drone
could not
hover and
4
tilts to one
side.
The drone
indicator
5
light is off.
Could not see
the picture.
6
Hard to control
7
by cellphone.
Can’t altitude
8
hold.
Can’t position
9
hold.
Searchedbut could not
10
find the GPS signal.
Troubleshooting
Low battery. Replace the controller battery.
The batteries are incorrectly.
The batteries are incorrectly
positioned.
Indicator light is off. The same as above.
There is an interfering signal nearby. Restart the drone and power on the controller.
Mis-operation. Operate the drone step by step in accordance with the user manual.
The electronic component is
damaged for fiercely crash.
The propeller is seriously deformed. Replace the propeller.
Low battery. Charge the drone battery.
Incorrect installation of propeller.
Improper Calibration. Please refer to the Calibration.
The propeller is seriously. Replace the propeller.
The motor holder is deformed after violent crash. Replace the motor holder parts.
The gyroscope did not reset
after a serious crash.
Motor is damaged.
No proofreading compass Reproofreading the compass.
Low battery. Recharge the drone battery.
The battery is expired or over
discharge protection.
Poor contact. Connect and disconnect the battery.
There is an interfering signal nearby.
Camera is damaged. Replace Camera.
Not experienced enough.
The propeller is seriously. Replace propeller.
Motor is damaged Replace the motor.
Atmospheric pressure is not stable. Refer to “Altitude Hold Mode”instruction.
Whether the GPS has connected or not. Search again to connect the GPS signal.
GPS module is damaged. Please replace a new one.
GPS module plug is loose. Please check to see if it’s connected normally.
Install the batteries following the polarity indicators.
Clean the dirt between the battery and the
battery contacts.
To buy spare parts from local seller and
replace damaged parts.
Install the propeller in accordance with the
user manual.
Put the drone on the flat ground for about 10
minutes or restart the drone to calibrate again.
Replace the motor.
Buy a new battery from local seller to replace
the battery or charge the battery.
Practice and read the cellphone controlling
instruction carefully.
Practice and read the cellphone controlling
instruction carefully.
16
Transmitter indicator status and description
No. Transmitter indicator status Description
1
2
3
4
Blue lights out, red lights flash Status after boot-up
Blue lights out，red light flash slowly Enter wait for frequency comparison
Blue lights fast flash，red lights long bright GPS Signal Search
Blue lights and red lights long bright GPS positioned
Important Notice
Drone Battery Li-Po Battery Disposal & Recycling
Wasted Lithium-Polymer batteries must not be placed with household
trash. Please contact local environmental or waste agency or the
supplier of your model or your nearest Li-Po battery recycling center.
Our company's products are improving all the time, design and specifications are subject to
change without notice.
All the information in this manual has been carefully checked to ensure accuracy, if any
printing errors, our company reserve the final interpretation right.
FCC Note
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
● Reorient or relocate the receiving a ntenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
WARNING: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
FCC Notice:
The equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the
modifications are expressly approved in the instruction manual. Modifications not
authorized by the manufacturer may void user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
FCC Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition with out restriction.
MADE IN CHINA
Loading...
