UC Logic Technology PEN2X Users Manual
MousePen M508W / GT-090002
Wireless Mouse / MOS18
Wireless Pen / PEN2A, PEN23, PEN27
USB Wireless Dongle / TWLR2
ENGLISH
MousePen M508W
User Manual
Windows 7 / XP / Vista
Driver Version 1.0
ENGLISH
Contents
I. General
information ............................. ..................1-1
1 Overview............................ ........................1-1
2 Tablet functions...................................................1-1
3 System requirements................................................1-1
4 Driver installations...............................................1-1
5 Hardware
installations.. .................... ........................1-2
6 Verifying Hardware and driver
function.............................. ......................1-2
7 Usage Tips......................... ..............................1-4
7.1 Wake up Digital
Mouse................................. ......................1-4
7.2 Wake up Digital
Pen.................................... .....................1-4
7.3 Double Tapping for Digital
Pen............................. ............................1-4
7.4 Storing the digital
pen .................................... ....................1-4
7.5 Scrolling function of digital
pen.......... ............................ ..................1-4
7.6 Using a pen without an ordinary
mouse ...... ........................... ....................1-4
II. Pen tablet
configuration.......................... .....................2-1

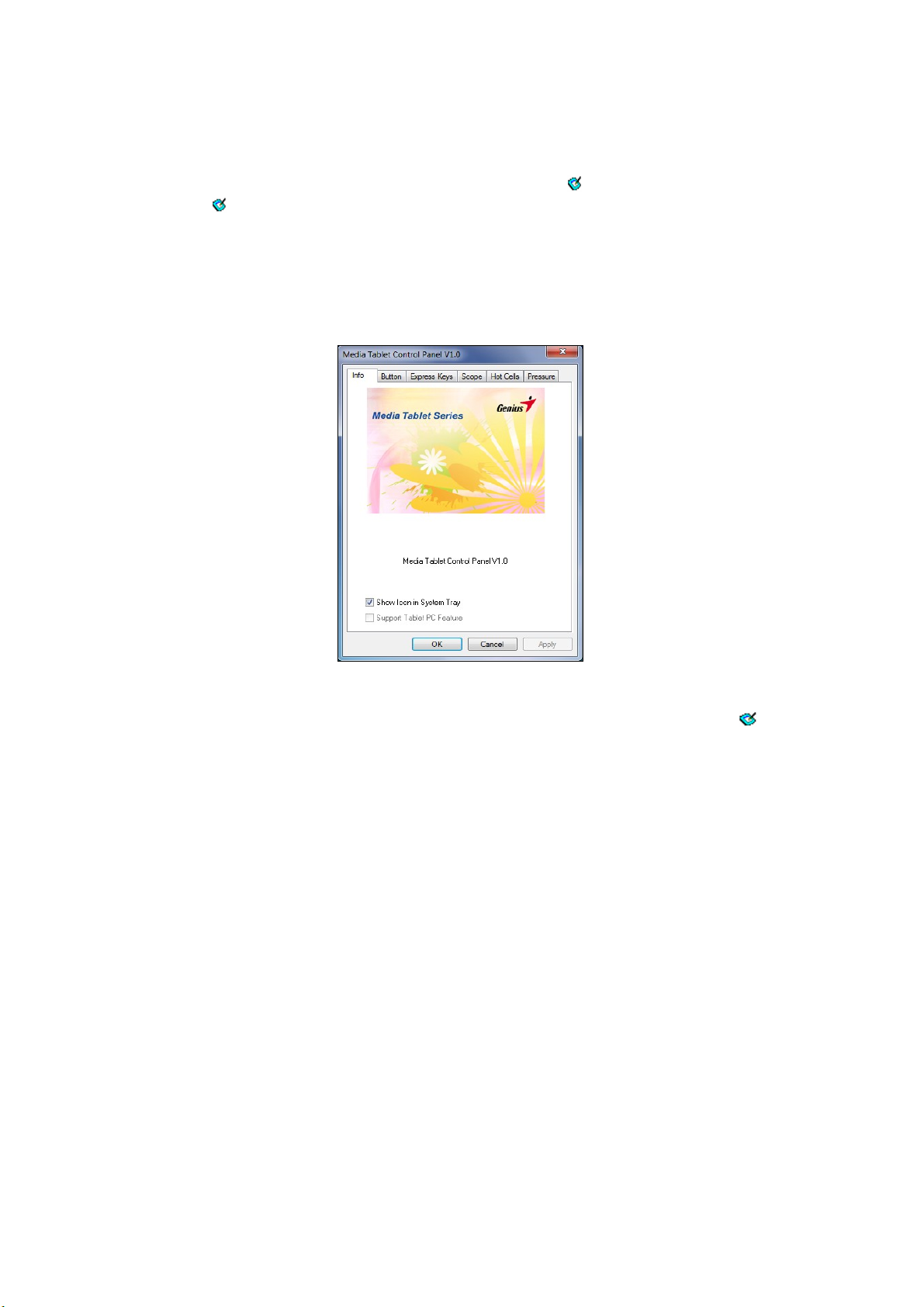

1 The Info
Tab................................. ........................2-1

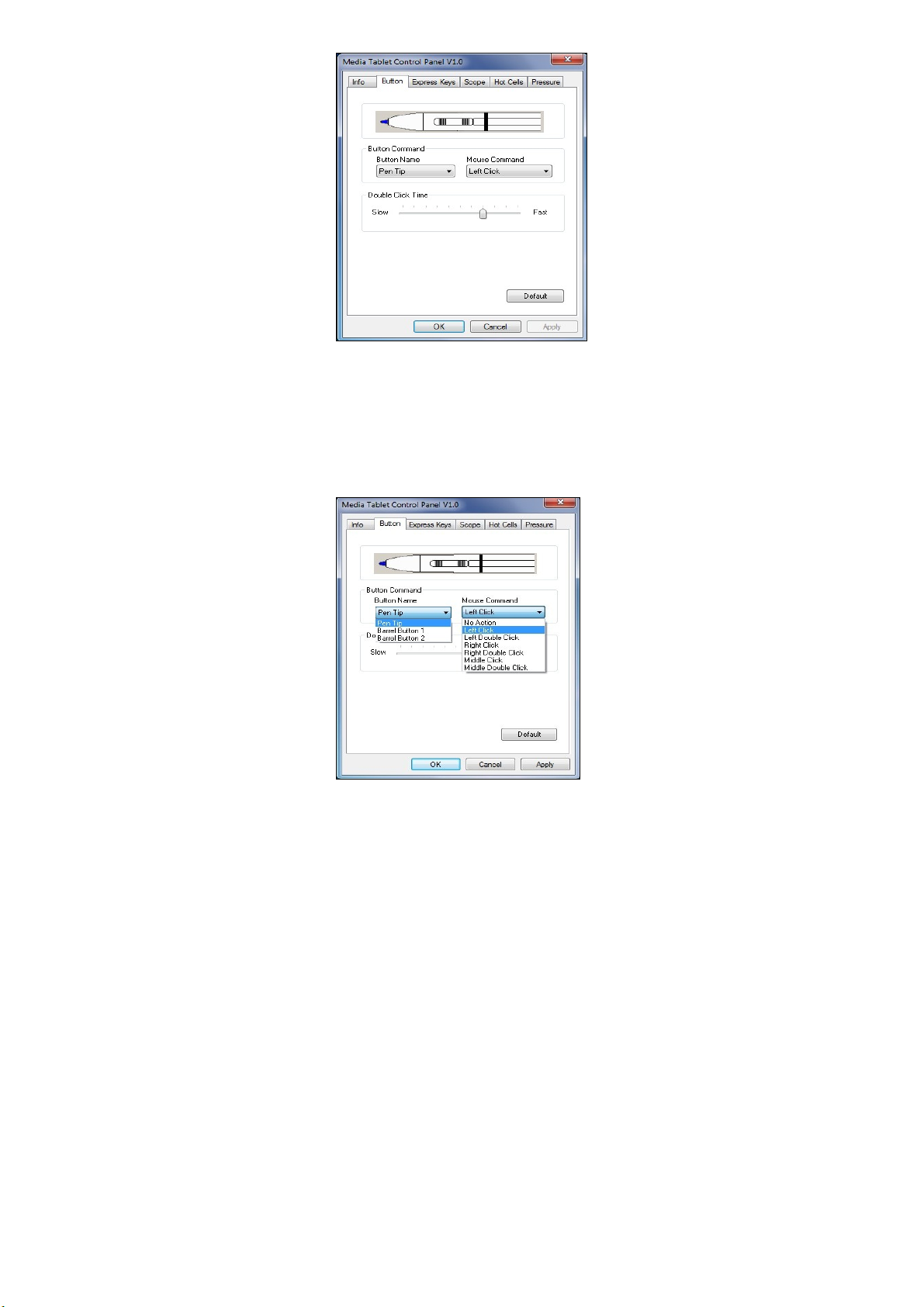

2 The Button
Tab............................ ................. .......2-1
2.1 Button
Name.................................................................2-1
2.2 Double Click
Time....... .........................................................2-2
2.3
Default..............................................................2-2

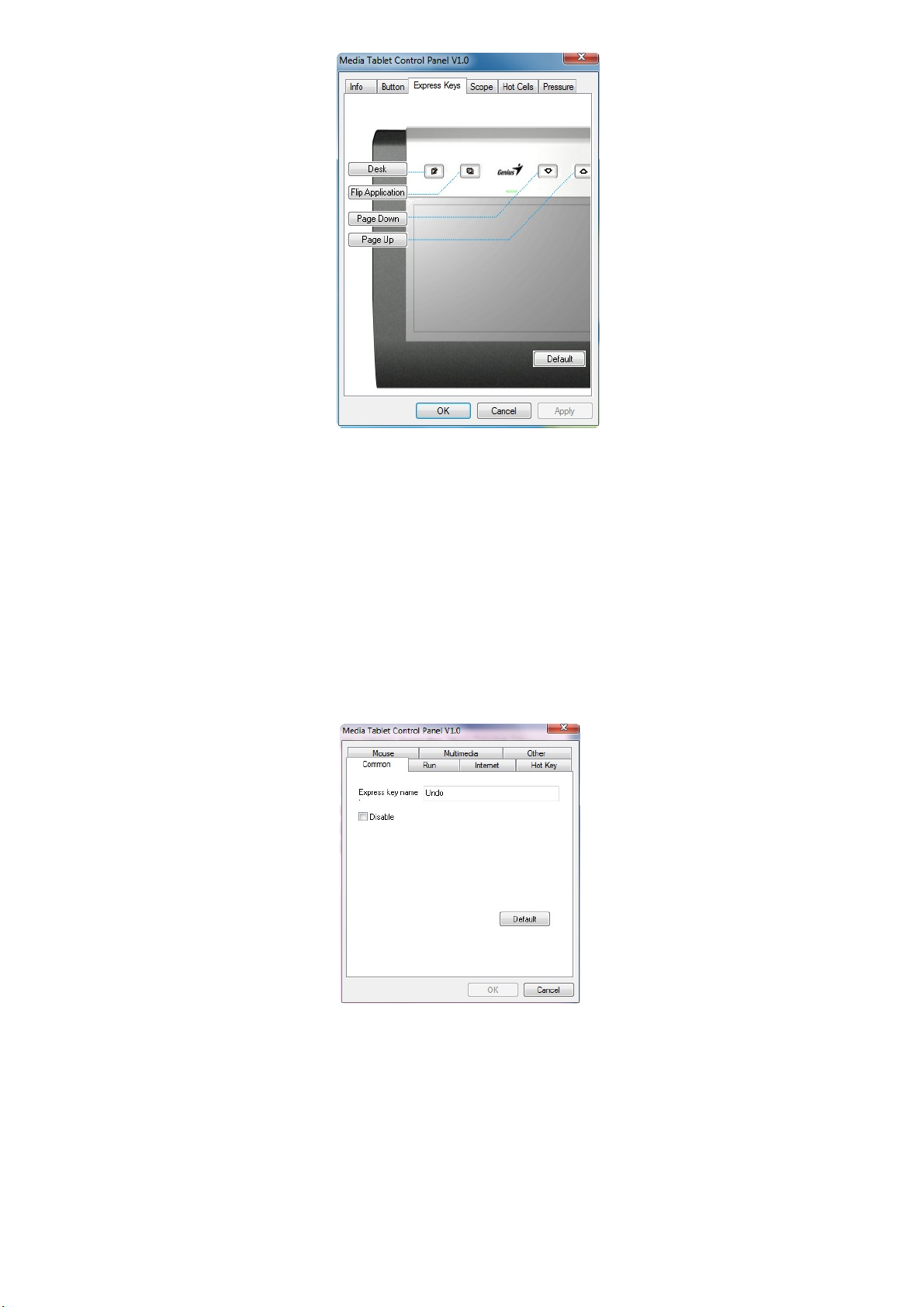

3 Express
Keys.................................................................2-2
3.1
Default..............................................................2-2
3.2 Re-define Express
keys.................................................................2-2
3.3
Common...... ........................................................2-3

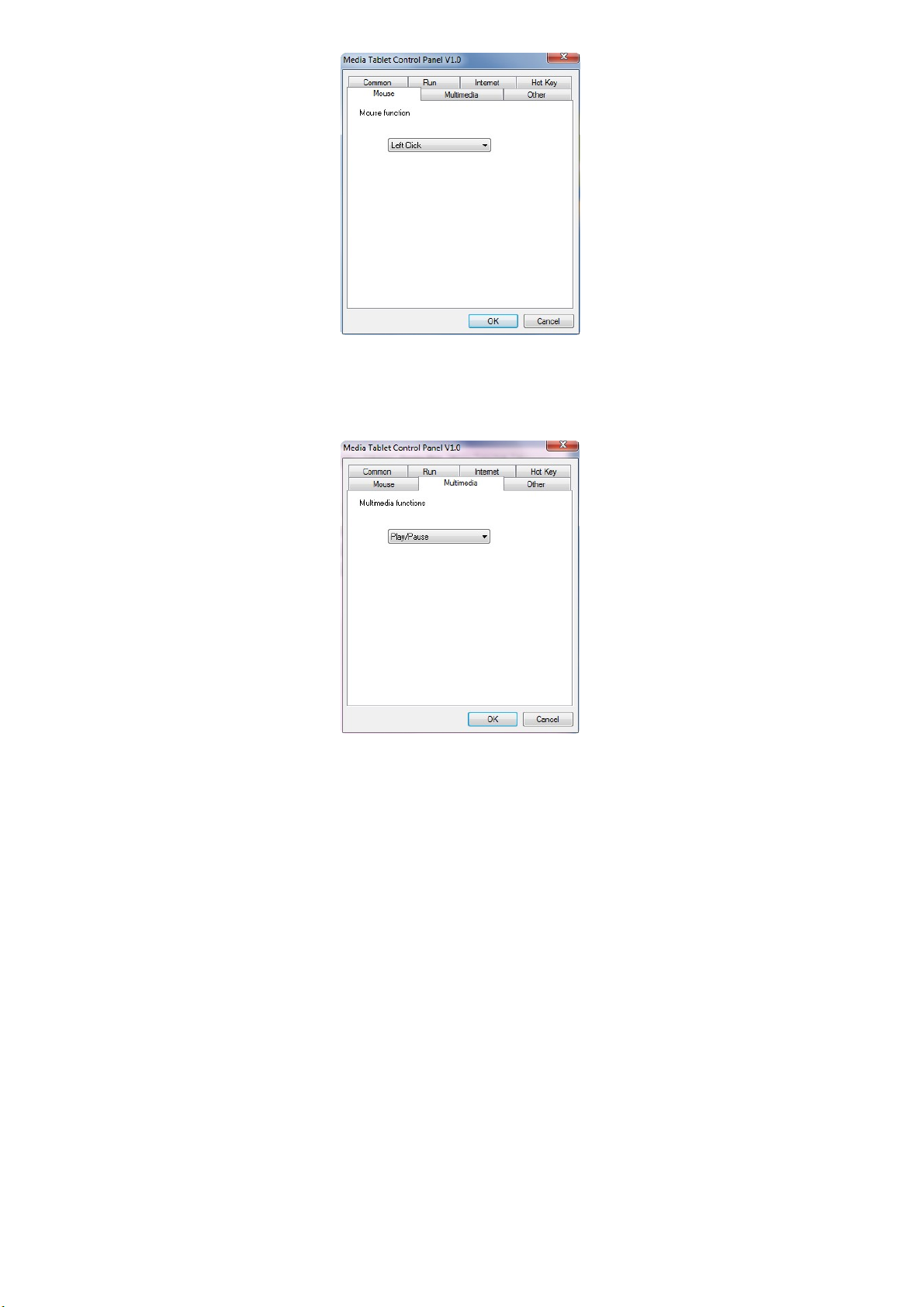

3.4
Mouse................................................................2-4
3.5
Multimedia...........................................................2-4
3.6
Other........... ....................................................2-4

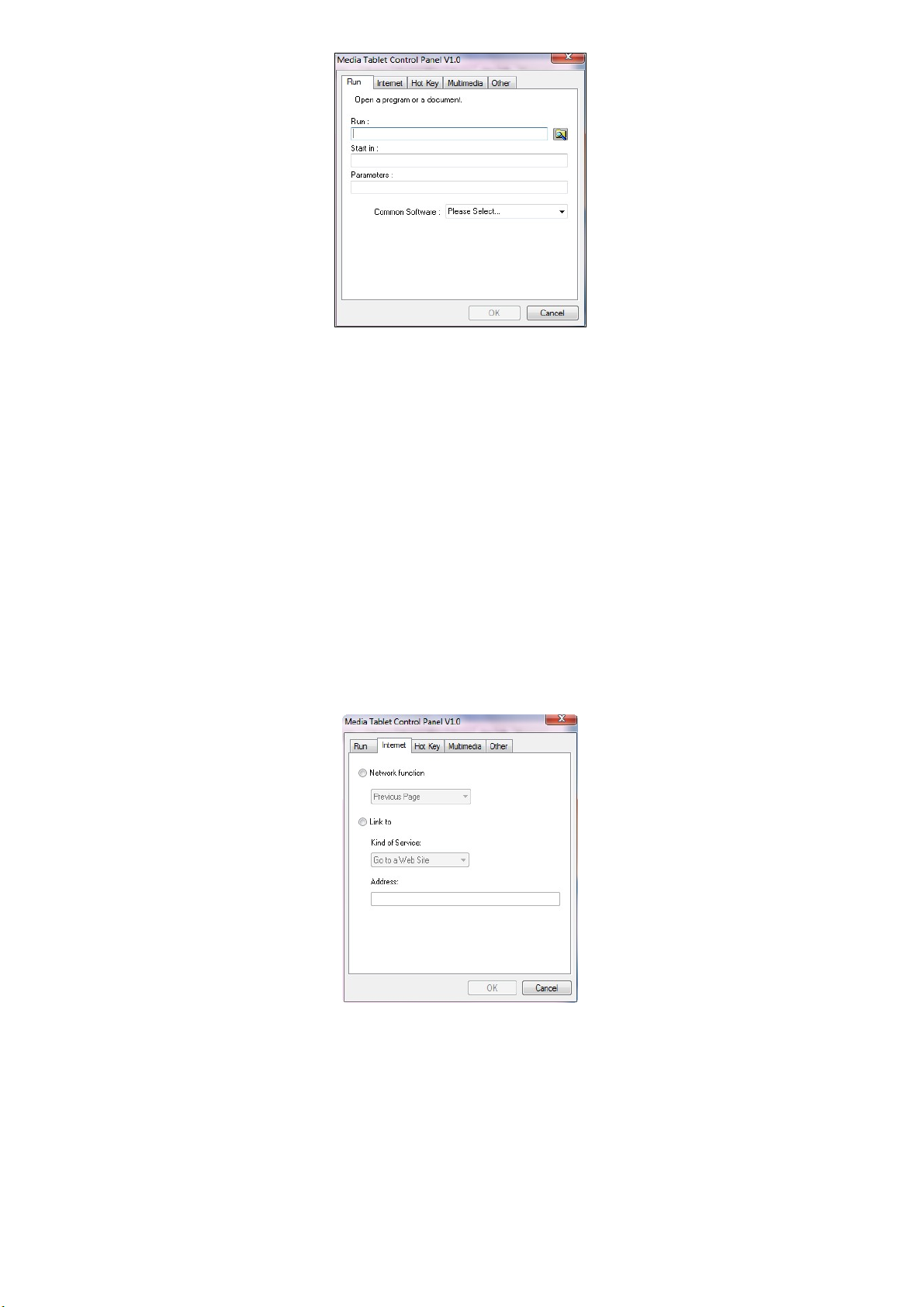

3.7
Run..................................................................2-5
3.8

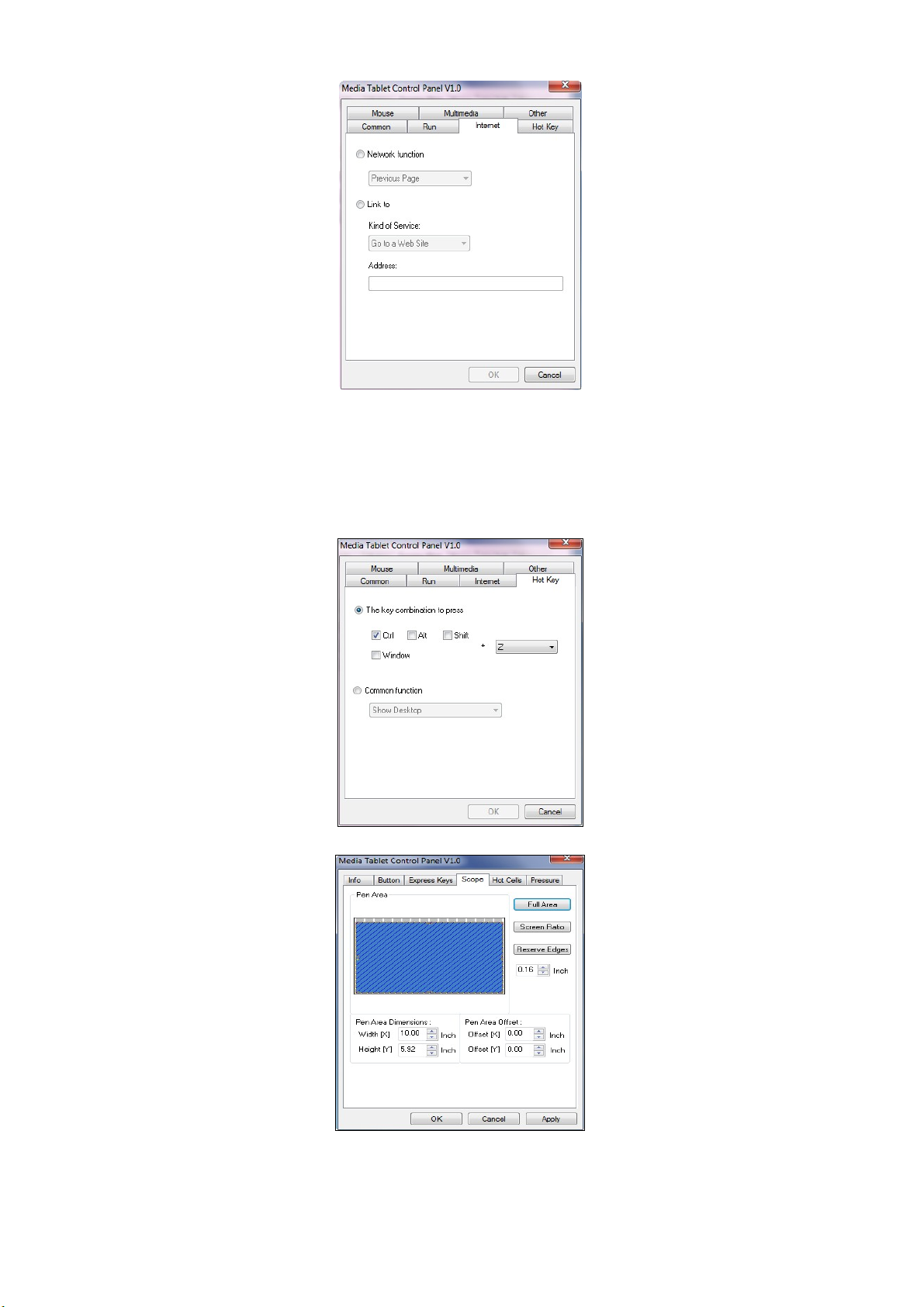

Internet.............................................................2-5
3.9 Hot
Key..................................................................2-6

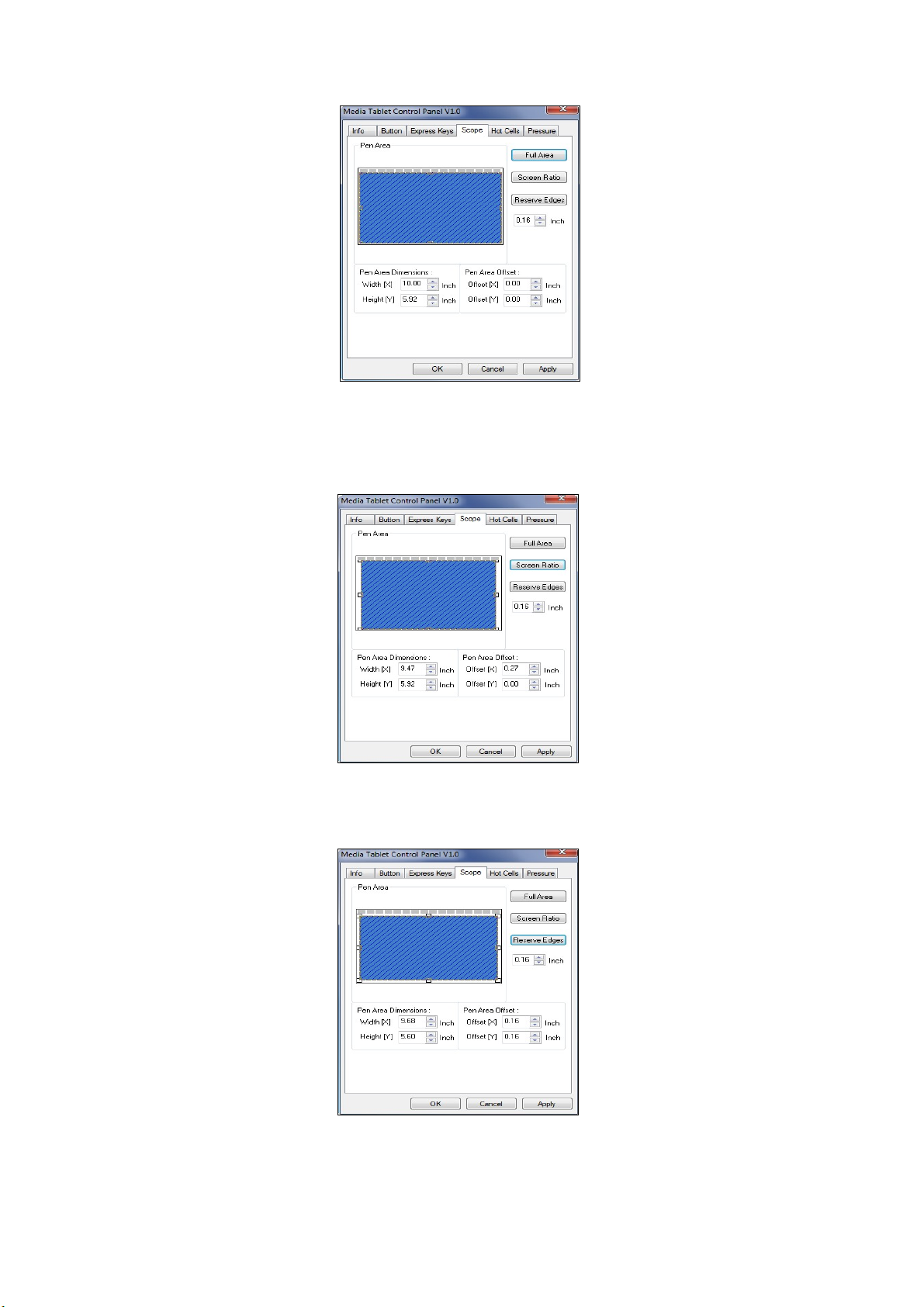

4 The Scope
Tab..................................................................2-6
4.1 Full
Area.................................................................2-6
ENGLISH
4.2 Screen
Ratio................................................................2-7
4.3 Reserve
Edges........ ......................................................2-7
4.4 Pen Area
Dimensions...........................................................2-7
4.5 Pen Area
Offset........ ......................................................2-7

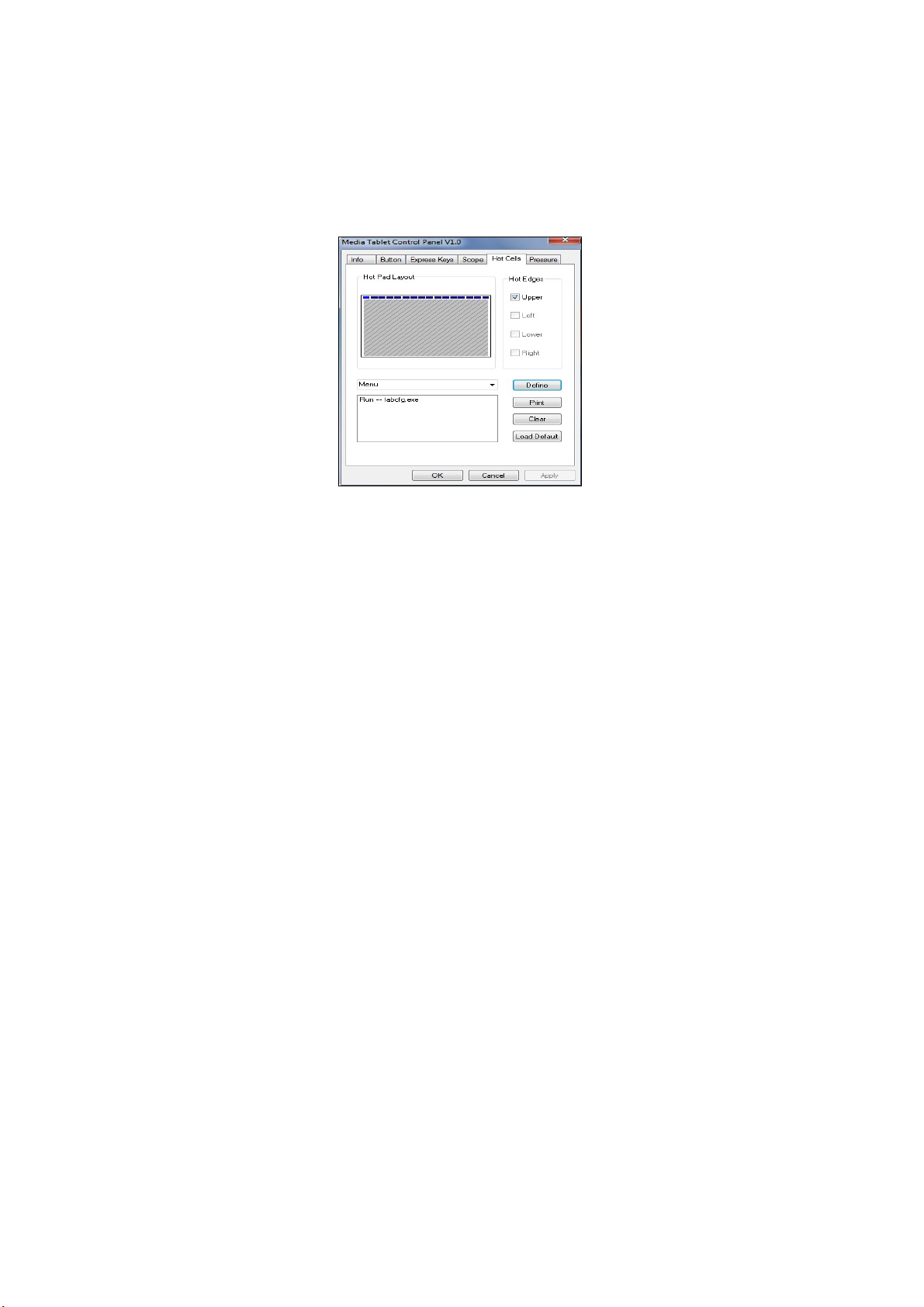

5 Hot Cells define
page.................................................................2-7
5.1 Hot Pad
Layout...............................................................2-8
5.2 Hot
Edges.. ..........................................................2-8
5.3
Print................................................................2-8
5.4
Clear.... ..........................................................2-8
5.5
Define...............................................................2-8
5.5.1 Define Hot Cell -
Run..................................................................2-8
5.5.2 Define Hot Cell -
Internet.............................................................2-8

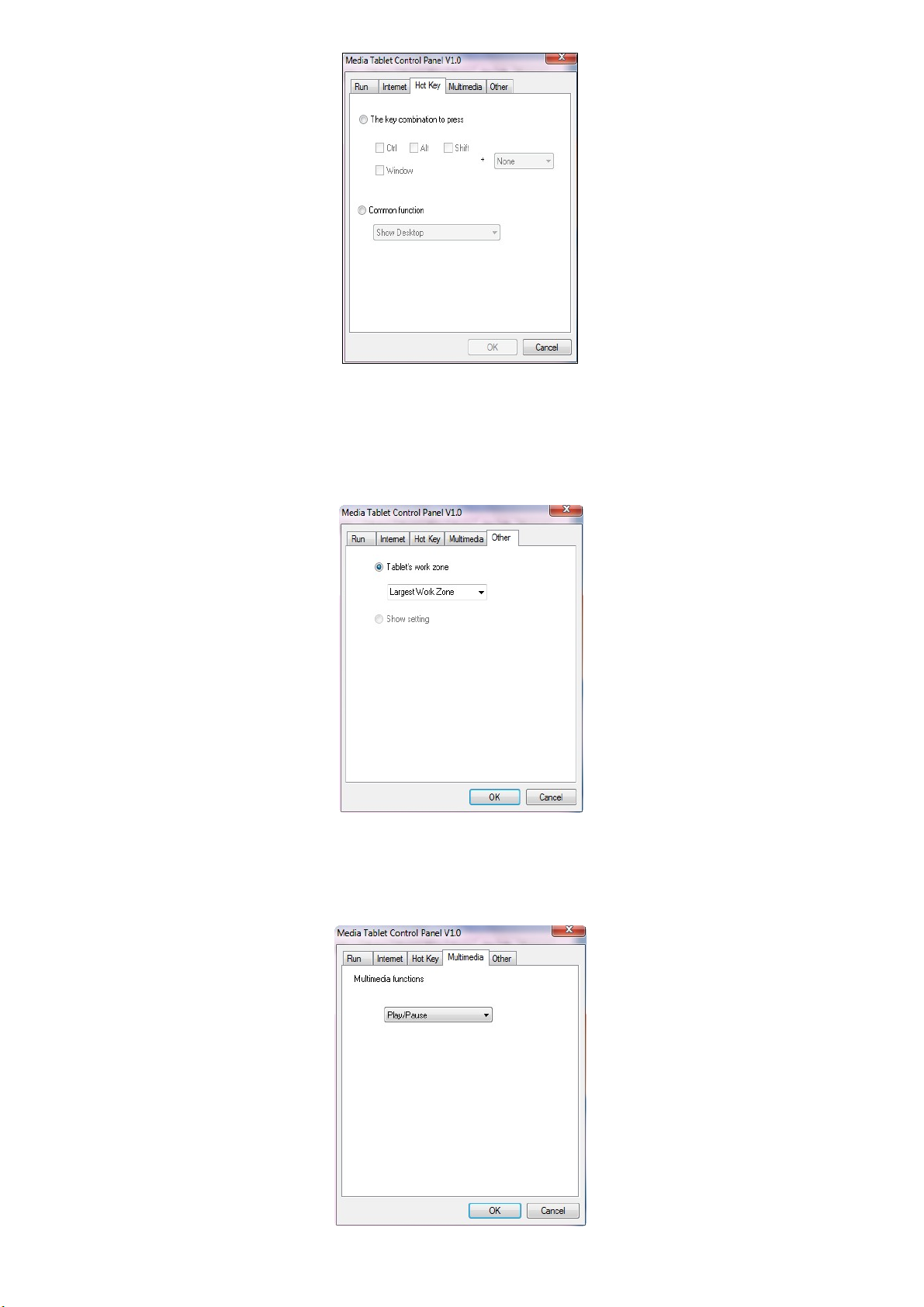

5.5.3 Define Hot Cell - Hot
Key..................................................................2-9
5.5.4 Define Hot Cell -
Other...............................................................2-10
5.5.5 Define Hot Cell –
Multimedia .........................................................2-10
5.6 Load
Default.............................................................2-11

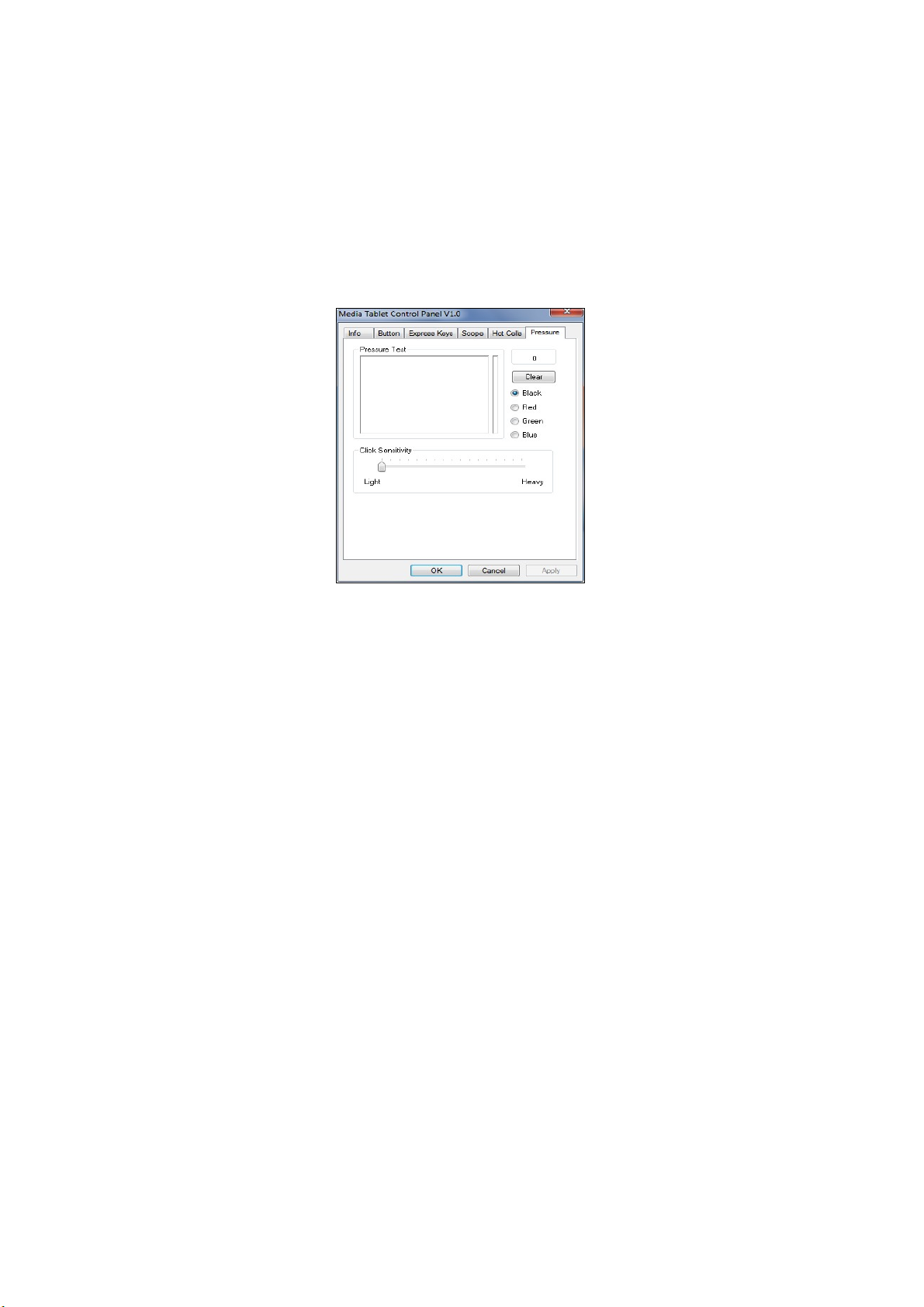

6 The Pressure
Tab.................................................................2-11
6.1 Pressure
Test................................................................2-11
6.2
Clear...............................................................2-11
6.3 Click
Sensitivity.. ......................................................2-11

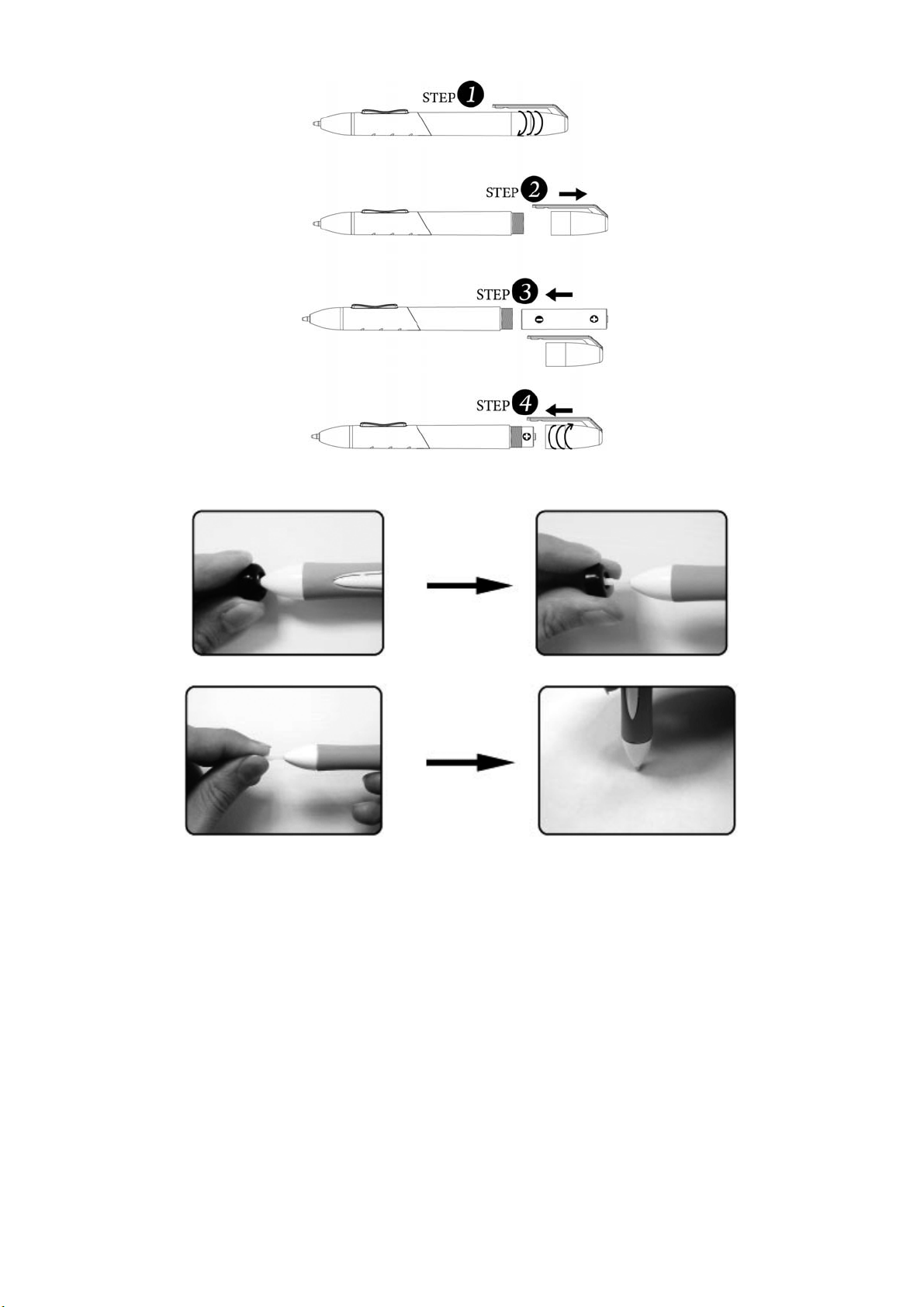

III. Storing the Digital pen and changing the Pen Battery &
Tip............................................... ... ... ... ......3-1
IV. Question &
Answer ..............................................................4-1
*The driver may already be updated to a newer version before/after
packaging. If your installation screen does not match the contents of
this manual, you may need to download the driver, just refer to your
software screen after installation.
ENGLISH 1-1
I. General Information
1.
Overview
Welcome to the world of tablet and digital pen! You are able to discover
how easy to control your personal computer by using a wireless digital
pen to instead of a mouse:
The function of the digital pen is able to draw a line very thin, thick,
light or dark (called pressure sensitivity). You also can write, sign,
annotate documents, and draw, sketch or paint as easily as you would on
normal paper and simulate the functions like pencil, mark pen, brush, or
watercolor pen by using the commercial software packages such as Adobe®
PhotoShop , Corel® Painter and Paint Shop . If MSN Messenger 8.5 or
newer is installed, you create and send digital handwritings and hand
drawn pictures, making communication much more fun and entertaining.
Note: If you cannot enable the handwriting mode in MSN Messenger,
download the relevant handwriting component from Microsoft's website.
2.
Pen Tablet Functions
After installing the device driver, your pen tablet features has the
following functions:
1. Direct pointing – You can move the cursor to any location on the
screen by hovering the digital pen tip over the tablet＇s surface.
2. Three-buttons mouse commands - Your pen tablet provides all functions
of a three- buttons＇ mouse by using its pen tip and two buttons.
3. Pen scrolling – You can scroll documents and Web pages by pressing
the middle button of the digital pen over the tablet＇s working area.
4. Pressure sensitivity – This feature allows you to emulate various
brushes and pencils and you can press down the pen tip harder, lighter,
stronger or thicker, and subtle pencil lines you will receive.
3.
System Requirements
• Windows 7/XP/Vista
• USB port
• DVD-ROM drive
4.
Driver Installations
For Microsoft Windows7, XP and Vista operating systems:
1. Insert the Driver CD into the CD-ROM drive, and wait for the main
installation screen to appear.
2. The main installation screen should appear automatically, or you
can manually start the installation by opening 【My Computer】 □
【CD/DVD Rom】□ then click on the【Setup】program.
3. When installing the driver, follow the installation instructions
on screen and press the “Enter＂ key. After the installation has
completed, reboot the computer.
ENGLISH 1-2
5.
Hardware Installations
1. After installing the driver, please
restart your computer. Then connect the
dongle to your USB port (as left picture)。
2. Put the battery into the back of Wireless
Tablet。
3. Open Wireless Tablet Power。
4. Press Resume button around 4 seconds then
your setting will be finished。
5. After restart your computer, on bottom
right of the screen, you can find the
tablet icon ( ) within there.
★ Please install your drive then connect your
dongle to the USB port. It will avoid
driver installation error or delay while
the system is detecting new hardware.
6.
Verifying Hardware and Driver Functions
Please follow the steps to verify if the wireless tablet is
installed properly︰
1
2
3
4
1-Express Key 8-Dongle
2-LED Indicator 9-Left button
3-Hot-cell 10-Wheel scrolling
4-Working Area 11-Right button
5-Button 2
6-Button 1
7-Pen tip
5
6
7
9
8
10
11
2
ENGLISH 1-3
6
3
4
1 — Power switch
2 — USB Port (For power only)
3 — Digital pen slot
4 — Dongle slot
5 — Battery slot
6 — Resume button
5
The green LED light on the Wireless tablet is the main indicator for
hardware operation and depending on your pen Wireless tablet model may
be located at a different place that shown in the above diagram. This
LED normally stays off, and will only turn it on or off in response to
various conditions. Watch the state of the LED on the Wireless tablet as
you go through these test steps:
1. Tap on any surface with the tip of the pen, or press the left button
of the mouse, to “wake it up＂ if it has gone into standby mode. A
built-in power saving function may have forced the pen or mouse into
the standby mode if either of them is not used for a period of time.
2. As soon as the pen Wireless tablet itself activates, the LED will be
light briefly, and will then go and stay off again.
3. When the Wireless tablet detects the presence of the digital pen or
mouse, the LED will be blinked slowly. This happens either when pen
tip is hovering or placing within the working area which above the
Wireless tablet.
4. When you press a button on the pen barrel, or click on a mouse button,
the LED will be lighted up.
