u-blox TOBY-R2 Technical data

UBX-16005785 - R18 C1-Public www.u-blox.com

TOBY-R2 series

Multi-mode LTE Cat 1 modules with 2G/3G fallback

Data sheet

Abstract

Technical data sheet describing TOBY-R2 series multi-mode cellular modules. The modules are a cost efficient and performance optimized LTE Cat 1 / 3G / 2G multi-mode solution covering up to six LTE bands, up to four 3G UMTS/HSPA bands, and up to four 2G GSM/EDGE bands in the compact TOBY form factor.

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Document information Page 2 of 46 C1-Public

Document information

Title

TOBY-R2 series

Subtitle

Multi-mode LTE Cat 1 modules with 2G/3G fallback

Document type

Data sheet

Document number

UBX-16005785

Revision and date

R18

30-Mar-2021

Disclosure restriction

C1-Public

Product status

Corresponding content status

Functional sample

Draft

For functional testing. Revised and supplementary data will be published later.

In development / Prototype

Objective specification

Target values. Revised and supplementary data will be published later.

Engineering sample

Advance information

Data based on early testing. Revised and supplementary data will be published later.

Initial production

Early production information

Data from product verification. Revised and supplementary data may be published later.

Mass production / End of life

Production information

Document contains the final product specification.

This document applies to the following products:

Product name

Type number

Modem version

Application version

PCN reference

Product status

TOBY-R200

TOBY-R200-02B-00

30.31

A01.01

UBX-17006265

Obsolete

TOBY-R200-02B-01

30.31

A02.00

UBX-17048314

Obsolete

TOBY-R200-02B-02

30.31

A02.01

UBX-18018067

Obsolete

TOBY-R200-02B-03

30.31

A02.02

UBX-18057549

Obsolete

TOBY-R200-02B-04

30.33

A02.02

UBX-19011731

Mass production

TOBY-R200-42B-00

30.53

A01.02

UBX-19045985

Mass production

TOBY-R200-82B-00

30.53

A01.03

UBX-19043497

Mass production

TOBY-R200-03B-00

30.55

A01.00

UBX-20027523

Mass production

TOBY-R202

TOBY-R202-02B-00

30.31

A01.01

UBX-17006265

Obsolete

TOBY-R202-02B-01

30.31

A02.00

UBX-17048314

Obsolete

TOBY-R202-02B-02

30.31

A02.01

UBX-18018067

Obsolete

TOBY-R202-02B-03

30.31

A02.02

UBX-18057549

Obsolete

TOBY-R202-02B-04

30.33

A02.02

UBX-19011731

Mass production

TOBY-R202-02B-34

30.33

A02.04

UBX-19039777

Obsolete

u-blox or third parties may hold intellectual property rights in the products, names, logos and designs included in this document. Copying, reproduction, modification or disclosure to third parties of this document or any part thereof is only permitted with the express written permission of u-blox. The information contained herein is provided “as is” and u-blox assumes no liability for its use. No warranty, either express or implied, is given, including but not limited to, with respect to the accuracy, correctness, reliability and fitness for a particular purpose of the information. This document may be revised by u-blox at any time without notice. For the most recent documents, visit www.u-blox.com. Copyright © u-blox AG.

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Contents Page 3 of 46 C1-Public

Document information ................................................................................................................................ 2

Contents .......................................................................................................................................................... 3

1 Functional description ......................................................................................................................... 5

1.1 Overview ........................................................................................................................................................ 5

1.2 Product features ......................................................................................................................................... 5

1.3 Block diagram .............................................................................................................................................. 6

1.4 Product description .................................................................................................................................... 7

1.5 AT command support ................................................................................................................................ 8

1.6 Supported features .................................................................................................................................... 8

2 Interfaces .............................................................................................................................................. 10

2.1 Power management .................................................................................................................................10

2.1.1 Module supply input (VCC) .............................................................................................................10

2.1.2 RTC supply input / output (V_BCKP) ............................................................................................10

2.1.3 Generic digital interfaces supply output (V_INT) .......................................................................10

2.2 Antenna interfaces ...................................................................................................................................10

2.2.1 Antenna RF interfaces .....................................................................................................................10

2.2.2 Antenna detection ............................................................................................................................10

2.3 System functions ......................................................................................................................................11

2.3.1 Module power-on ..............................................................................................................................11

2.3.2 Module power-off ..............................................................................................................................11

2.3.3 Module reset ......................................................................................................................................12

2.3.4 Module / host configuration selection ..........................................................................................12

2.4 SIM ...............................................................................................................................................................12

2.4.1 SIM interface .....................................................................................................................................12

2.4.2 SIM detection ....................................................................................................................................12

2.5 Serial communication ..............................................................................................................................12

2.5.1 UART interface ..................................................................................................................................13

2.5.2 USB interface .....................................................................................................................................14

2.5.3 DDC (I2C) interface ...........................................................................................................................15

2.5.4 SDIO interface ...................................................................................................................................15

2.6 Audio ............................................................................................................................................................15

2.7 Clock output ...............................................................................................................................................15

2.8 GPIO .............................................................................................................................................................16

3 Pin definition ........................................................................................................................................ 17

3.1 Pin assignment ..........................................................................................................................................17

4 Electrical specifications ................................................................................................................... 22

4.1 Absolute maximum rating.......................................................................................................................22

4.1.1 Maximum ESD ...................................................................................................................................22

4.2 Operating conditions ................................................................................................................................23

4.2.1 Operating temperature range ........................................................................................................23

4.2.2 Supply/power pins ............................................................................................................................23

4.2.3 Current consumption .......................................................................................................................24

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Contents Page 4 of 46 C1-Public

4.2.4 LTE RF characteristics ....................................................................................................................25

4.2.5 3G RF characteristics ......................................................................................................................26

4.2.6 2G RF characteristics ......................................................................................................................27

4.2.7 ANT_DET pin ......................................................................................................................................27

4.2.8 PWR_ON pin .......................................................................................................................................28

4.2.9 RESET_N pin ......................................................................................................................................28

4.2.10 SIM pins ..............................................................................................................................................28

4.2.11 USB pins .............................................................................................................................................29

4.2.12 DDC (I2C) pins ....................................................................................................................................29

4.2.13 Generic Digital Interfaces pins .......................................................................................................29

4.3 Parameters for ATEX applications ........................................................................................................32

5 Mechanical specifications ............................................................................................................... 33

6 Qualification and approvals............................................................................................................. 34

6.1 Reliability tests ..........................................................................................................................................34

6.2 Approvals ....................................................................................................................................................34

7 Product handling & soldering .......................................................................................................... 35

7.1 Packaging ...................................................................................................................................................35

7.1.1 Reels ....................................................................................................................................................35

7.1.2 Tapes ...................................................................................................................................................36

7.2 Moisture sensitivity levels .......................................................................................................................37

7.3 Reflow soldering ........................................................................................................................................37

7.4 ESD precautions ........................................................................................................................................37

8 Default settings .................................................................................................................................. 38

9 Labeling and ordering information ............................................................................................... 39

9.1 Product labeling .........................................................................................................................................39

9.2 Explanation of codes ................................................................................................................................39

9.3 Ordering information ................................................................................................................................40

Appendix ....................................................................................................................................................... 41

Related documentation ........................................................................................................................... 44

Revision history .......................................................................................................................................... 45

Contact .......................................................................................................................................................... 46

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Functional description Page 5 of 46 C1-Public

1 Functional description

1.1 Overview

The TOBY-R2 series comprises LTE Cat 1 / 3G / 2G multi-mode modules in the small TOBY LGA form factor (35.6 x 24.8 mm, 152-pin) that are easy to integrate in compact designs.

TOBY-R2 series modules support up to six LTE bands, up to four 3G UMTS/HSPA bands and up to four 2G GSM/(E)GPRS bands for voice and/or data transmission.

TOBY-R2 series modules are form-factor compatible with u-blox SARA, LISA and LARA cellular module families and are pin-to-pin compatible with u-blox TOBY-L cellular module families: this facilitates easy migration from the u-blox GSM/GPRS, CDMA, UMTS/HSPA, and LTE high data rate modules, maximizes the investments of customers, simplifies logistics, and enables very short time-to-market.

The modules are ideal for applications that are transitioning to LTE from 2G and 3G, due to the long term availability and scalability of LTE networks.

With a range of interface options and an integrated IP stack, the modules are designed to support a wide range of data-centric applications. The unique combination of performance and flexibility make these modules ideally suited for medium speed M2M applications, such as smart energy gateways, remote access video cameras, digital signage, telehealth and telematics.

TOBY-R2 series modules include product versions supporting Voice over LTE (VoLTE) and voice over 3G or 2G (CSFB) for applications that requiring voice, such as security and surveillance systems.

1.2 Product features

Model

Region

Radio access

technology

Positioning

Interfaces

Audio

Features

Grade

LTE bands

UMTS bands GSM bands GNSS via modem AssistNow Software CellLocate® UART

USB 2.0 SDIO * DDC (I2C) GPIOs Analog audio Digital audio Network indication VoLTE Antenna supervisor Rx Diversity Embedded TCP/UDP stack Embedded HTTP, FTP, SSL FOTA

Dual stack IPv4 / IPv6 Standard Professional Automotive

TOBY-R200-02B

North

America

2,4

5,12

850,900

1900,2100

Quad

■ ■ ■

1 1 1 1 9

●

●2

● ● ● ● ●

● ●

TOBY-R200-42B

Global

1,2,4

5,8,12

850,900

1900,2100

Quad

● ● ●

1 1 1 1 9

● ● ● ● ● ● ● ● ● ●

TOBY-R200-82B

Global

1,2,4

5,8,12

850,900

1900,2100

Quad

● ● ●

1 1 1 1 9

●

● ● ● ● ●

● ●

TOBY-R200-03B

Global

1,2,4

5,8,12

850,900

1900,2100

Quad

● ● ●

1 1 1 1 9

●

● ● ● ● ●

● ●

TOBY-R202-02B

North

America

2,4

5,12

850,1900

■ ■ ■

1 1 1 1 9

●

●2

● ● ● ● ●

● ●

● = Supported by all FW version ■ = Supported by "TOBY-R20x-02B-01" FW version onwards * = HW ready

Table 1: TOBY-R2 series main features summary

LTE band 12 is a superset including band 17: LTE band 12 is supported along with Multi-Frequency Band Indicator feature

VoLTE available and AT&T certified

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Functional description Page 6 of 46 C1-Public

1.3 Block diagram

Cellular

Base-band

processor

Memory

Power Management Unit

26 MHz

32.768 kHz

ANT1

transceiver

ANT2

V_INT (I/O)

V_BCKP (RTC)

VCC (Supply)

SIM

USB

GPIO

Power On

External Reset

PAs

LNAsFilters

Filter

Duplexer

Filters

PAs

LNAsFilter

Filter

Duplexer

Filters

LNAsFilter

Filters

LNAsFiltersFilter

Switch

DDC(I2C)

SDIO

UART

Digital audio (I2S)

ANT_DET

Host Select

Figure 1: TOBY-R2 series block diagram

☞ The TOBY-R200-02B, TOBY-R200-42B, TOBY-R200-82B, TOBY-R200-03B and TOBY-R202-02B

modules, i.e. the "02B", "42B", "82B", and "03B" product versions, do not support the following interfaces, which can be left unconnected and should not be driven by external devices:

o SDIO interface o HOST_SELECTx pins

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Functional description Page 7 of 46 C1-Public

1.4 Product description

TOBY-R2 modules provide 4G LTE Cat 1, 3G UMTS / HSPA, 2G GSM/EGPRS multi-mode technology:

• TOBY-R200-02B is designed primarily for operation in North America

• TOBY-R200-03B is designed for worldwide operation, and primarily in North America

• TOBY-R200-42B is designed for worldwide operation, and primarily in North America

• TOBY-R200-82B is designed for worldwide operation, and primarily in North America

• TOBY-R202-02B is designed primarily for operation in North America

4G LTE

3G UMTS/HSDPA/HSUPA

2G GSM/GPRS/EDGE

3GPP Release 9 Long Term Evolution (LTE) Evolved UTRA (E-UTRA) Frequency Division Duplex (FDD) DL Rx Diversity

3GPP Release 9 High Speed Packet Access (HSPA) UMTS Terrestrial Radio Access (UTRA) Frequency Division Duplex (FDD) DL Rx Diversity

3GPP Release 9 Enhanced Data rate GSM Evolution (EDGE) GSM EGPRS Radio Access (GERA) Time Division Multiple Access (TDMA) DL Advanced Rx Performance Phase 1

Band support3:

• TOBY-R200:

• Band 12 (700 MHz)4

• Band 8 (900 MHz)5

• Band 5 (850 MHz)

• Band 4 (1700 MHz)

• Band 2 (1900 MHz)

• Band 1 (2100 MHz)5

• TOBY-R202:

• Band 12 (700 MHz)4

• Band 5 (850 MHz)

• Band 4 (1700 MHz)

• Band 2 (1900 MHz)

Band support:

• TOBY-R200:

• Band 5 (850 MHz)

• Band 8 (900 MHz)

• Band 2 (1900 MHz)

• Band 1 (2100 MHz)

• TOBY-R202:

• Band 5 (850 MHz)

• Band 2 (1900 MHz)

Band support:

• TOBY-R200:

• GSM 850 MHz

• E-GSM 900 MHz

• DCS 1800 MHz

• PCS 1900 MHz

LTE Power Class

• Class 3 (23 dBm)

UMTS/HSDPA/HSUPA Power Class

• Class 3 (24 dBm)

GSM/GPRS (GMSK) Power Class

• Class 4 (33 dBm) for GSM/E-GSM band

• Class 1 (30 dBm) for DCS/PCS band

EDGE (8-PSK) Power Class

• Class E2 (27 dBm) for GSM/E-GSM band

• Class E2 (26 dBm) for DCS/PCS band

Data rate

• LTE category 1:

up to 10.3 Mb/s DL, 5.2 Mb/s UL

Data rate

• HSDPA category 8:

up to 7.2 Mb/s DL

• HSUPA category 6:

up to 5.76 Mb/s UL

Data rate6

• GPRS multi-slot class 337, CS1-CS4,

up to 107 kb/s DL, up to 85.6 kb/s UL

• EDGE multi-slot class 337, MCS1-MCS9,

up to 296 kb/s DL, up to 236.8 kb/s UL

Table 2: TOBY-R2 series LTE, 3G and 2G characteristics

TOBY-R2 series modules provide Voice over LTE (VoLTE)8 as well as Circuit-Switched-Fall-Back (CSFB) audio capability.

TOBY-R2 series modules support all the E-UTRA channel bandwidths for each operating band as per 3GPP TS 36.521-1 [11]:

• Band 12: 1.4 MHz, 3 MHz, 5 MHz, 10 MHz

• Band 5: 1.4 MHz, 3 MHz, 5 MHz, 10 MHz

• Band 4: 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz, 20 MHz

• Band 2: 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz, 20 MHz

LTE band 12 is a superset including band 17: LTE band 12 is supported along with Multi-Frequency Band Indicator feature

Not supported by TOBY-R200-02B product version

GPRS/EDGE multislot class determines the number of timeslots available for upload and download and thus the speed at

which data can be transmitted and received, with higher classes typically allowing faster data transfer rates.

GPRS/EDGE multislot class 33 implies a maximum of 5 slots in DL (reception), 4 slots in UL (transmission) with 6 slots in total.

AT&T certified

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Functional description Page 8 of 46 C1-Public

1.5 AT command support

The TOBY-R2 series modules support AT commands according to 3GPP standards TS 27.007 [8], TS 27.005 [9] and the u-blox AT command extension.

☞ For the complete list of all supported AT commands and their syntax, see the u-blox AT commands

manual [1].

RIL (Radio Interface Layer) software for Android and Embedded Windows is available for TOBY-R2 series modules free of charge; see the Android RIL source code [3] and Windows Embedded RIL source code [4] application notes for supported software deliveries and more information.

1.6 Supported features

Table 3 lists some of the main features supported by TOBY-R2 modules. For more details, see

TOBY-R2 series system integration manual [2] and u-blox AT commands manual [1].

Feature

Description

Network indication

GPIO configured to indicate the network status: registered home network, registered roaming, voice or data call enabled, no service. The feature can be enabled through the +UGPIOC AT command.

Antenna detection

The ANT_DET pin provides antenna presence detection capability, evaluating the resistance from ANT1 and ANT2 pins to GND by means of an external antenna detection circuit implemented on the application board. The antenna detection feature can be enabled through the +UANTR AT command.

Embedded TCP and UDP stack

Embedded TCP/IP and UDP/IP stack including direct link mode for TCP and UDP sockets. Sockets can be set in Direct Link mode to establish a transparent end to end communication with an already connected TCP or UDP socket via serial interface.

FTP, FTPS

File Transfer Protocol as well as Secure File Transfer Protocol (SSL encryption of FTP control channel) functionalities are supported via AT commands.

HTTP, HTTPS

AT commands support Hyper-Text Transfer Protocol and Secure Hyper-Text Transfer Protocol (SSL encryption) functionalities. HEAD, GET, POST, DELETE and PUT operations are available.

Embedded TLS 1.2

With the support of X.509 certificates, Embedded TLS 1.2 provides server and client authentication, data encryption, data signature and enables TCP/IP applications like HTTPS and FTPS to communicate over a secured and trusted connection.

The feature can be configured and enabled by +USECMNG and +USECPRF AT commands.

DNS

Support for DNS functionality.

IPv4/IPv6 dual-stack

Capability to move between IPv4 and dual stack network infrastructures. IPv4 and IPv6 addresses can be used.

BIP

Bearer Independent Protocol for Over-the-Air SIM provisioning. The data transfer to/from the SIM uses either an already active PDP context or a new PDP context established with the APN provided by the SIM card.

Multiple PDP contexts

Up to 8 PDP contexts can be activated, and multi secondary PDP contexts be associated to a primary PDP context

VoLTE and CSFB

Voice over LTE (VoLTE) feature allows voice service over LTE bearer, via embedded IP Multimedia Subsystem (IMS). VoLTE is AT&T certified. Circuit Switched Fall-Back (CSFB) feature allows voice service over circuit switched infrastructure (3G/2G)

Firmware update Over AT commands (FOAT)

Firmware module update Over AT command interfaces. The feature can be enabled and configured through the +UFWUPD AT command.

Firmware update Over The Air (FOTA)

Embedded FOTA client to enable the Firmware module update over the cellular air interface. The feature can be enabled and configured through the +UFWINSTALL AT command.

LTE / 3G Rx Diversity

Improved cellular link quality and reliability on all operating bands, by means of 2 receiving antenna inputs.

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Functional description Page 9 of 46 C1-Public

Feature

Description

GNSS via modem 9

Full access to u-blox positioning chips and modules is available through a dedicated DDC (I2C) interface. This means that from any host processor a single serial port can control the cellular module and the positioning chip or module. For more details, see the GNSS implementation application note [5].

Embedded AssistNow Software 9

Embedded AssistNow Online and AssistNow Offline clients are available to provide better GNSS performance and faster Time-to-First-Fix. An AT command can enable / disable the clients.

CellLocate

® 9

Enables the estimation of device position based on the parameters of the mobile network cells visible to the specific device based on the CellLocate® database:

• Normal scan: only the parameters of the visible home network cells are sent CellLocate® is available via a set of AT commands for CellLocate® service configuration and position

request.

Hybrid Positioning 9

The current module position is provided by a u-blox positioning chip or module or the estimated position from CellLocate® depending on which method provides the best and fastest solution according to the user configuration.

Hybrid positioning is available via a set of AT commands that allow the configuration and the position request.

Wi-Fi via modem 10

Full access to Wi-Fi modules is available through a dedicated SDIO interface. This means that from any host processor a single serial port can control the cellular module and the short range communication module.

DTMF decoder

During a voice call, the Dual-Tone Multi-Frequency detector analyses the RX speech (coming from remote party). The detected DTMF symbols can be output via the related URC.

The feature can be enabled and configured through the +UDTMFCFG and +UDTMFD AT commands.

Smart Temperature Supervisor

Constant monitoring of the module board temperature:

• Warning notification when the temperature approaches an upper or lower predefined threshold

• Shutdown notified and forced when the temperature value is outside the specified range (shutdown

suspended in case of an emergency call in progress)

The Smart Temperature Supervisor feature can be enabled and configured through the +USTS AT command.

☞ The sensor measures board temperature, which can differ from ambient temperature.

Power saving

The power saving configuration is by default disabled, but it can be enabled and configured using the +UPSV AT command. When the power saving is enabled, the module automatically enters the low power idle-mode whenever possible, reducing current consumption.

During idle-mode, the module processor core runs with the RTC 32 kHz reference clock, which is generated by the internal 32 kHz oscillator.

Fast Dormancy

The Fast Dormancy feature, defined in 3GPP Rel.8, allows reduction of current consumption and network utilization during periods of data inactivity. It can be activated and configured by +UFDAC and +UDCONF=61 AT commands.

LTE cDRX

Both the Long DRX Cycle and the Short DRX cycle are supported for LTE Connected Discontinuous Reception, allowing reduction of current consumption and LTE network utilization during periods of data inactivity

Table 3: Some of the main features supported by TOBY-R2 series modules

☞ u-blox is extremely mindful of user privacy. When a position is sent to the CellLocate

server u-blox

is unable to track the SIM used or the specific device.

Not supported by TOBY-R200-02B-00 and TOBY-R202-02B-00

Not supported by "02B", "42B", "82B", or "03B" product versions

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Interfaces Page 10 of 46 C1-Public

2 Interfaces

2.1 Power management

2.1.1 Module supply input (VCC)

TOBY-R2 series modules must be supplied through the three VCC pins by a DC power supply. Voltage must be stable, because during operation the current drawn from VCC can vary by some order of magnitude, especially due to the surging consumption profile of the GSM system (described in the TOBY-R2 series system integration manual [2]). It is important that the system power supply circuit is able to support peak power.

TOBY-R200 modules provide separate supply inputs over the three VCC pins:

• VCC pins #71 and #72 represent the supply input for the internal RF power amplifier, demanding

most of the total current drawn by the module when RF transmission is enabled during a voice/data call

• VCC pin #70 represents the supply input for the internal baseband Power Management Unit and

the internal transceiver, demanding minor part of the total current drawn by the module when RF transmission is enabled during a voice/data call

2.1.2 RTC supply input / output (V_BCKP)

When VCC voltage is within the valid operating range, the internal Power Management Unit (PMU) supplies the Real Time Clock (RTC) and the same supply voltage is available on the V_BCKP pin. If the VCC voltage is under the minimum operating limit (e.g. during not powered mode), the V_BCKP pin can externally supply the RTC.

2.1.3 Generic digital interfaces supply output (V_INT)

TOBY-R2 series modules provide a 1.8 V supply rail output on the V_INT pin, which is internally generated when the module is switched on. The same voltage domain is used internally to supply the generic digital interfaces of the modules. The V_INT supply output can be used in place of an external discrete regulator.

2.2 Antenna interfaces

2.2.1 Antenna RF interfaces

The modules have two RF pins with a characteristic impedance of 50 . The primary antenna pin (ANT1) supports both Tx and Rx, providing the main antenna interface, while the secondary antenna pin (ANT2) supports Rx only for the LTE / 3G Rx diversity configuration.

2.2.2 Antenna detection

The ANT_DET pin is an Analog to Digital Converter (ADC) input with a current source provided by TOBY-R2 modules to sense the antenna presence (as an optional feature). It evaluates the resistance from ANT1 and ANT2 pins to GND by means of an external antenna detection circuit implemented on the application board. For more details, see the TOBY-R2 series system integration manual [2] and the u-blox AT commands manual [1].

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Interfaces Page 11 of 46 C1-Public

2.3 System functions

2.3.1 Module power-on

TOBY-R2 series can be switched on in one of the following ways:

• Rising edge on the VCC pins to a valid voltage for module supply, i.e. applying module supply: the

modules switch on if the VCC supply is applied, starting from a voltage value of less than 2.1 V, with a rise time from 2.3 V to 2.8 V of less than 4 ms, reaching a proper nominal voltage value within VCC operating range.

Alternately, in case for example the fast rise time on VCC rising edge cannot be guaranteed by the application, TOBY-R2 series modules can be switched on from not-powered mode as following:

• RESET_N input pin is held low by the external application during the VCC rising edge, so that the

modules will switch on when the external application releases the RESET_N input pin from the low logic level after the VCC supply voltage stabilizes at its proper nominal value within the operating range

• PWR_ON input pin is held low by the external application during the VCC rising edge, so that the

modules will switch on when the external application releases the PWR_ON input pin from the low logic level after the VCC supply voltage stabilizes at its proper nominal value within the operating range

When the TOBY-R2 series modules are in the power-off mode (i.e. properly switched off as described in section 2.3.2, with valid VCC module supply applied), they can be switched on as follows:

• Low pulse on the PWR_ON pin, which is normally set high by an internal pull-up, for a valid time

period (see section 4.2.8). The PWR_ON line should be driven by open drain, open collector or contact switch.

• Rising edge on the RESET_N pin, i.e. releasing the pin from the low level, normally set high by an

internal pull-up. The RESET_N line should be driven by open drain, open collector or contact switch.

• RTC alarm, i.e. pre-programmed scheduled time by AT+CALA command.

2.3.2 Module power-off

TOBY-R2 series can be properly switched off, saving current parameter settings in the module’s nonvolatile memory and performing a proper network detach, by:

• AT+CPWROFF command (see the u-blox AT commands manual [1]).

• Low pulse on the PWR_ON pin, which is normally set high by an internal pull-up, for a valid time

period (see section 4.2.8). The PWR_ON line should be driven by open drain, open collector or contact switch.

An abrupt under-voltage shutdown occurs on TOBY-R2 series modules when the VCC supply is removed. If this occurs, it is not possible to store the current parameter settings in the module’s nonvolatile memory and to perform the proper network detach.

An abrupt shutdown occurs on TOBY-R2 series modules when a low level is applied on the RESET_N pin, which is normally set high by an internal pull-up. If this occurs, it is not possible to store the current parameter settings in the module’s non-volatile memory and to perform the proper network detach.

An over-temperature or an under-temperature shutdown occurs on TOBY-R2 modules when the temperature measured within the cellular module reaches the dangerous area, if the optional Smart Temperature Supervisor feature is enabled and configured by the dedicated AT command. For more details, see the TOBY-R2 series system integration manual [2] and the u-blox AT commands manual [1], +USTS AT command.

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Interfaces Page 12 of 46 C1-Public

2.3.3 Module reset

TOBY-R2 series modules can be reset (rebooted) by:

• AT+CFUN command (see the u-blox AT commands manual [1]). This causes an “internal” or

“software” reset of the module. The current parameter settings are saved in the module’s non-

volatile memory and a proper network detach is performed.

An abrupt “external” or “hardware” reset occurs when a low level is applied to the RESET_N pin, which is normally set high by an internal pull-up, for a valid time period (see the section 4.2.9). This causes

an “external” or “hardware” reset of the entire module, including the integrated power management

unit, except for the RTC internal block: the V_INT generic digital interfaces supply is switched off and all the digital pins are tri-stated, but the V_BCKP supply and the RTC block are enabled. The current parameter settings are not saved in the module’s non-volatile memory and a proper network detach is not performed. The RESET_N line should be driven by open drain, open collector or contact switch.

2.3.4 Module / host configuration selection

☞ Selection of module / host configuration over HOST_SELECT0 and HOST_SELECT1 pins is not

supported.

TOBY-R2 series modules include two pins (HOST_SELECT0, HOST_SELECT1) for the selection of the module / host application processor configuration.

2.4 SIM

2.4.1 SIM interface

A SIM interface is provided on the VSIM, SIM_IO, SIM_CLK, SIM_RST pins: the high-speed SIM/ME interface is implemented as well as the automatic detection of the required SIM supporting voltage.

Both 1.8 V and 3 V SIM types are supported (1.8 V and 3 V ME). Activation and deactivation with automatic voltage switch from 1.8 V to 3 V is implemented, according to ISO-IEC 7816-3 specifications. The SIM driver supports the PPS procedure for baud-rate selection, according to the values proposed by the SIM card/chip.

2.4.2 SIM detection

TOBY-R2 series modules provide the SIM detection function over the GPIO5 pin to sense the SIM card physical presence (as an optional feature) when the pin of the module is properly connected to the mechanical switch of the SIM car holder (for more details, see the TOBY-R2 series system integration manual [2]).

2.5 Serial communication

TOBY-R2 series provides the following serial communication interfaces:

• UART interface: Universal Asynchronous Receiver/Transmitter serial interface available for the

communication with a host processor (AT commands, data communication, FW update by means of FOAT), for FW update by means of the u-blox EasyFlash tool and for diagnostic.

• USB interface: Universal Serial Bus 2.0 compliant interface available for the communication with

a host application processor (AT commands, data communication, FW update by means of the FOAT feature), for FW update by means of the u-blox EasyFlash tool and for diagnostic.

• DDC interface: I2C bus compatible interface available for the communication with u-blox GNSS

positioning chips/modules and with external I2C devices as an audio codec.

• SDIO interface: Secure Digital Input Output interface available for the communication with

compatible u-blox short range radio communication Wi-Fi modules.

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Interfaces Page 13 of 46 C1-Public

2.5.1 UART interface

TOBY-R2 series modules include a 9-wire unbalanced Universal Asynchronous Receiver/Transmitter serial interface (UART) for communication with an application host processor (AT commands, data communication, FW update by means of the FOAT feature), for FW update by means of the u-blox EasyFlash tool and for diagnostic.

UART features are:

• Complete serial port with RS-232 functionality conforming to the ITU-T V.24

recommendation [14], with CMOS compatible signal levels (0 V for low data bit or ON state and

1.8 V for high data bit or OFF state)

• Data lines (RXD as output, TXD as input), hardware flow control lines (CTS as output, RTS as

input), modem status and control lines (DTR as input, DSR as output, DCD as output, RI as output) are provided

• Hardware flow control (default value), software flow control, or none flow control are supported

• Power saving indication available on the hardware flow control output (CTS line): the line is driven

to the OFF state when the module is not prepared to accept data by the UART interface

• Power saving control over the RTS input or the DTR input can be enabled via AT+UPSV command

(for more details, see the u-blox AT commands manual [1] and TOBY-R2 series system integration manual [2])

• The following baud rates are supported: 9600, 19200, 38400, 57600, 115200 (default baud rate

when autobauding is disabled), 230400, 460800, 921600, 3000000, 3250000, 6000000 and 6500000 bit/s

• One-shot autobauding is supported and it is by default enabled: automatic baud rate detection is

performed only once, at module start up. After the detection, the module works at the fixed baud rate (the detected one) and the baud rate can only be changed via AT command (see u-blox AT commands manual [1], +IPR).

• The following frame format are supported: 8N2, 8N1 (default format when automatic frame

recognition is disabled), 8E1, 8O1, 7E1 and 7O1

• One-shot automatic frame recognition is supported and it is by default enabled in conjunction with

automatic baud rate detection (autobauding): the detection is performed only once, at module start up. After the detection, the module works at the detected frame format and it can only be changed via AT command (see u-blox AT commands manual [1], +ICF).

UART serial interface can be conveniently configured through AT commands: see the u-blox AT commands manual [1] (+IPR, +ICF, +IFC, &K, \Q, +UPSV AT commands) and TOBY-R2 series system integration manual [2].

2.5.1.1 Multiplexer protocol

TOBY-R2 series modules include multiplexer functionality as per 3GPP TS 27.010 [10] on the UART physical link.

This is a data link protocol which uses HDLC-like framing and operates between the module (DCE) and the application processor (DTE), allowing a number of simultaneous sessions over the physical link (UART): the user can concurrently use AT interface on one MUX channel and data communication on another MUX channel.

The following virtual channels are available (for details, see mux implementation application note [6]):

• Channel 0: Multiplexer control

• Channel 1 – 5: AT commands / data connection

• Channel 6: GNSS data tunneling

☞ The GNSS data tunneling channel is not supported by the TOBY-R200-02B-00 and the

TOBY-R202-02B-00 type numbers.

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Interfaces Page 14 of 46 C1-Public

2.5.2 USB interface

TOBY-R2 series modules include a USB High-Speed 2.0 compliant interface with maximum 480 Mbit/s data rate according to the Universal Serial Bus specification revision 2.0 [15]. The module itself acts as a USB device and can be connected to any compatible USB host.

The USB interface is available for the communication with a host application processor (AT commands, data communication, FW update by means of the FOAT feature), for FW update by means of the u-blox EasyFlash tool and for diagnostics.

The USB_D+ / USB_D- lines carry the USB data and signaling. The USB interface is automatically enabled by an external valid USB VBUS supply voltage (5.0 V typical) applied on the VUSB_DET pin.

The USB interface of TOBY-R2 series modules makes available different USB functions with various capabilities and purposes, such as:

• CDC-ACM for AT commands and data communication

• CDC-ACM for GNSS tunneling

• CDC-ACM for SAP (SIM Access Profile)

• CDC-ACM for Diagnostic log

• CDC-NCM for Ethernet-over-USB

☞ CDC-ACM for GNSS tunneling is not supported by TOBY-R200-02B-00 and TOBY-R202-02B-00. ☞ CDC-ACM for SAP, and CDC-NCM for Ethernet-over-USB are not supported by the "02B", "42B",

"82B", and "03B" product versions.

The USB interface provides the following set of USB functions:

• 6 CDC-ACM modem COM ports enumerated as follows:

o USB1: AT and data o USB2: AT and data o USB3: AT and data o USB4: GNSS tunneling o USB5: SAP (SIM Access Profile) o USB6: Primary Log (diagnostic purpose)

The user can concurrently use the AT command interface on one CDC, and Packet-Switched / CircuitSwitched Data communication on another CDC.

For more details regarding USB capabilities, see the TOBY-R2 series system integration manual [2].

USB drivers are available for the following Windows and Windows Embedded operating system platforms:

• Windows 7

• Windows 8

• Windows 8.1

• Windows 10

• Windows Embedded CE 6.0

• Windows Embedded Compact 7

• Windows Embedded Compact 2013

• Windows 10 IoT

TOBY-R2 series modules are compatible with standard Linux/Android USB kernel drivers.

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Interfaces Page 15 of 46 C1-Public

2.5.3 DDC (I2C) interface

☞ Communication with u-blox GNSS receivers over DDC (I2C) interface is not supported by the

TOBY-R200-02B-00 and TOBY-R202-02B-00 type numbers.

TOBY-R2 series modules include an I2C-bus compatible DDC interface (SDA, SCL) available to communicate with a u-blox GNSS receiver and with external I2C devices as an audio codec: the TOBY-R2 module acts as an I2C host which can communicate with I2C local devices in accordance with the I2C bus specifications [16].

For more details regarding the DDC (I2C) interface usage and the integration with a u-blox GNSS receiver, see the TOBY-R2 series system integration manual [2], the GNSS implementation application note [5], and the I2C and GNSS AT commands description in the u-blox AT commands manual [1].

2.5.4 SDIO interface

☞ The SDIO interface is not supported by "02B", "42B", "82B", and "03B" modules product versions.

TOBY-R2 series modules include a 4-bit Secure Digital Input Output interface (SDIO_D0, SDIO_D1, SDIO_D2, SDIO_D3, SDIO_CLK, SDIO_CMD) designed to communicate with external compatible

u-blox short range radio communication Wi-Fi modules.

2.6 Audio

TOBY-R2 series modules support Voice over LTE (VoLTE) as well as Circuit-Switched Fall-Back (CSFB) from LTE to 3G or 2G radio bearer for providing audio services.

TOBY-R2 series modules include a 4-wire I2S digital audio interface (I2S_TXD, I2S_RXD, I2S_CLK, I2S_WA) that can be configured by AT command in PCM mode (short synchronization signal) or in normal I2S mode (long synchronization signal) to transfer digital audio data to/from an external device as an audio codec.

For more details regarding internal audio processing system capabilities, I2S digital audio interface possible configurations, usage and guideline for the integration with an external digital audio device as an audio codec, see the TOBY-R2 series system integration manual [2] and the audio sections in the u-blox AT commands manual [1].

2.7 Clock output

TOBY-R2 series modules provide a digital clock output function on the GPIO6 pin, which can be configured to provide a 13 MHz or 26 MHz square wave. This is mainly designed to feed the clock input of an external audio codec, as the clock output can be configured in “Audio dependent” mode (generating the square wave only when the audio path is active), or in “Continuous” mode.

For more details, see the u-blox AT commands manual [1], +UMCLK AT command.

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Interfaces Page 16 of 46 C1-Public

2.8 GPIO

TOBY-R2 series modules include 9 pins (GPIO1-GPIO5, I2S_TXD, I2S_RXD, I2S_CLK, I2S_WA) that can be configured as general purpose input/output, or to provide custom functions as summarized in

Table 4 (for other details, see the TOBY-R2 series system integration manual [2] and GPIO section in

u-blox AT commands manual [1]).

Function

Description

Default GPIO

Configurable GPIOs

Network status indication

Network status: registered home network, registered roaming, data transmission, no service

GPIO1-GPIO4

GNSS supply enable 11

Enable/disable the supply of u-blox GNSS receiver connected to the cellular module

GPIO2

GPIO1-GPIO4

GNSS data ready 11

Sense when u-blox GNSS receiver connected to the module is ready for sending data by the DDC (I2C)

GPIO3

GNSS RTC sharing 12

RTC synchronization signal to the u-blox GNSS receiver connected to the cellular module

GPIO4 SIM card detection

External SIM card physical presence detection

GPIO5

SIM card hot insertion/removal

Enable / disable SIM interface upon detection of external SIM card physical insertion / removal

GPIO5

I2S digital audio interface

I2S_RXD, I2S_TXD, I2S_CLK, I2S_WA

Wi-Fi control 12

Control of an external Wi-Fi chip or module

General purpose input

Input to sense high or low digital level

All

General purpose output

Output to set the high or the low digital level

GPIO4

All Pin disabled

Tri-state with an internal active pull-down enabled

GPIO1

All

Table 4: GPIO custom functions configuration

Not supported by TOBY-R200-02B-00 and TOBY-R202-02B-00 type numbers, having GPIO2 and GPIO3 by default disabled

Not supported by "02B", "42B", "82B", or "03B" product versions

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Pin definition Page 17 of 46 C1-Public

3 Pin definition

3.1 Pin assignment

SDIO_CMD

SDIO_D0

GND

VCC VCC

GND

ANT_DET

SDA

SIM_IO

SIM_RST

GPIO5 GPIO6

SDIO_D2

SDIO_CLK

RSVD

I2S_WA

I2S_CLK I2S_RXD

SDIO_D1

VCC

GND

SCL

SIM_CLK

VSIM

HOST_SELECT1

RSVD

I2S_TXD

SDIO_D3

V_INT VUSB_DET

GND RSVD

GPIO1

RSVD RSVD

TXD

RSVD

USB_DHOST_SELECT0

GPIO3 RESET_N

V_BCKP

GPIO2

PWR_ON

RXD

USB_D+

GPIO4

9278

93100

79 80 83 85 86 88 8982 84 8781

GND

RSVD

GND

RSVD

GND

RSVD

ANT2

ANT1

145152

43 42 39 37 36 34 3340 38 3541

GND

RSVD

GND

RSVD

GND

99 98 97 96 95 94

106 105 104 103 102 101

108 107

124 123

130 129 128 127 126 125

136 135 134 133 132 131

138 137

144 143 142 141 140 139

151 150 149 148 147 146

114 113 112 111 110 109

120 119 118 117 116 115

122 121

Pin 93-152: GND

TOBY-R2

Top view

RSVD

RI DSR

RSVD

CTS

DTR DCD

RSVD

RTS

RSVD

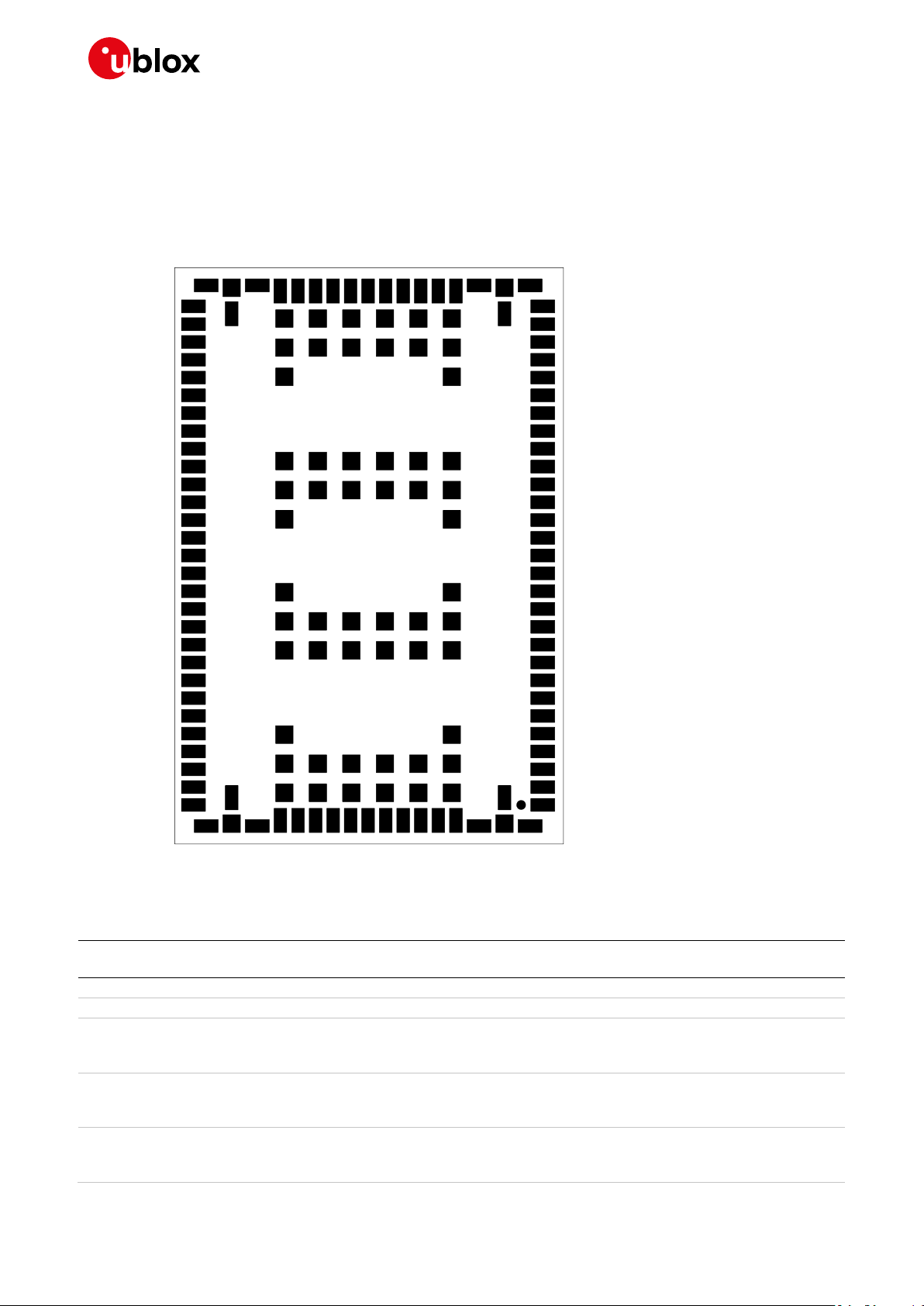

Figure 2: TOBY-R2 series pin assignment (top view)

Name

Power domain

I/O

Description

Remarks

RSVD

N/A

RESERVED pin

Leave unconnected.

GND

N/A

Ground

All GND pins must be connected to ground.

V_BCKP

I/O

RTC supply Input/ Output

1.8 V (typical) generated by the module when VCC supply voltage is within valid operating range.

See section 4.2.2 for detailed electrical specs.

VUSB_DET

VBUS

VBUS USB detect input

VBUS (5 V typical) USB supply generated by the host must be connected to this input pin to enable the USB.

See section 4.2.11 for detailed electrical specs.

V_INT

GDI

Generic Digital Interfaces supply output

1.8 V (typical) generated by the module when it is switched-on and with the RESET_N is not forced low.

See section 4.2.2 for detailed electrical specs.

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Pin definition Page 18 of 46 C1-Public

Name

Power domain

I/O

Description

Remarks

RSVD

N/A

RESERVED pin

This pin has special function: it must be connected to GND to allow module to work properly.

RSVD

N/A

RESERVED pin

Leave unconnected.

RSVD

N/A

RESERVED pin

Leave unconnected.

RSVD

N/A

RESERVED pin

Leave unconnected.

DSR

GDI

O / I/O

UART data set ready / GPIO

Circuit 107 (DSR) in ITU-T V.24. Output driver class A. PU/PD class a. Value at internal reset: T/PU. See section 4.2.13 for detailed electrical specs.

GDI

O / I/O

UART ring indicator / GPIO

Circuit 125 (RI) in ITU-T V.24. Output driver class A. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

DCD

GDI

O / I/O

UART data carrier detect / GPIO

Circuit 109 (DCD) in ITU-T V.24. Output driver class A. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

DTR

GDI

I / I/O

UART data terminal ready / GPIO

Circuit 108/2 (DTR) in ITU-T V.24. Internal active pull-up to V_INT enabled. PU/PD class a Value at internal reset: T/PU. See section 4.2.13 for detailed electrical specs.

RTS

GDI I UART ready to send

Circuit 105 (RTS) in ITU-T V.24. Internal active pull-up to V_INT. PU/PD class a. Value at internal reset: T/PU. See section 4.2.13 for detailed electrical specs.

CTS

GDI O UART clear to send

Circuit 106 (CTS) in ITU-T V.24. Output driver class A. PU/PD class a. Value at internal reset: T/PU. See section 4.2.13 for detailed electrical specs.

TXD

GDI I UART data input

Circuit 103 (TxD) in ITU-T V.24. Internal active pull-up to V_INT. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

RXD

GDI O UART data output

Circuit 104 (RxD) in ITU-T V.24. Output driver class A. PU/PD class a. Value at internal reset: T/PU. See section 4.2.13 for detailed electrical specs.

RSVD

N/A

RESERVED pin

Leave unconnected. Test-Point for diagnostic access is recommended.

RSVD

N/A

RESERVED pin

Leave unconnected. Test-Point for diagnostic access is recommended.

PWR_ON

POS I Power-on input

Internal 10 k pull-up resistor to V_BCKP. See section 4.2.8 for detailed electrical specs.

GPIO1

GDI

I/O

GPIO

GPIO configurable as described in section 2.8. Output driver class A. PU/PD class b. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

GPIO2

GDI

I/O

GPIO

GPIO configurable as described in section 2.8. Output driver class A. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

RESET_N

ERS I External reset input

Internal 10 k pull-up resistor to V_BCKP. See section 4.2.9 for detailed electrical specs.

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Pin definition Page 19 of 46 C1-Public

Name

Power domain

I/O

Description

Remarks

GPIO3

GDI

I/O

GPIO

GPIO configurable as described in section 2.8. Output driver class A. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

GPIO4

GDI

I/O

GPIO

GPIO configurable as described in section 2.8. Output driver class A. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

HOST_SELECT0

GDI

I/O

Selection of module / host processor configuration

Not supported by ‘02B’, ‘42B’, ‘82B’, ‘03B’ versions. See section 4.2.13 for detailed electrical specs.

USB_D-

USB

I/O

USB Data Line D-

90  nominal differential characteristic impedance. Pull-up, pull-down and series resistors as required by

the USB revision 2.0 specification [15] are part of the USB pin driver and need not be provided externally. See section 4.2.11 for detailed electrical specs.

USB_D+

USB

I/O

USB Data Line D+

90  nominal differential characteristic impedance. Pull-up, pull-down and series resistors as required by

the USB revision 2.0 specification [15] are part of the USB pin driver and need not be provided externally. See section 4.2.11 for detailed electrical specs.

RSVD

N/A

RESERVED pin

Leave unconnected.

GND

N/A

Ground

All GND pins must be connected to ground.

RSVD

N/A

RESERVED pin

Leave unconnected.

GND

N/A

Ground

All GND pins must be connected to ground.

RSVD

N/A

RESERVED pin

Leave unconnected.

RSVD

N/A

RESERVED pin

Leave unconnected.

RSVD

N/A

RESERVED pin

Leave unconnected.

RSVD

N/A

RESERVED pin

Leave unconnected.

RSVD

N/A

RESERVED pin

Leave unconnected.

RSVD

N/A

RESERVED pin

Leave unconnected.

RSVD

N/A

RESERVED pin

Leave unconnected.

RSVD

N/A

RESERVED pin

Leave unconnected.

RSVD

N/A

RESERVED pin

Leave unconnected.

RSVD

N/A

RESERVED pin

Leave unconnected.

RSVD

N/A

RESERVED pin

Leave unconnected.

GND

N/A

Ground

All GND pins must be connected to ground.

RSVD

N/A

RESERVED pin

Leave unconnected.

GND

N/A

Ground

All GND pins must be connected to ground.

RSVD

N/A

RESERVED pin

Leave unconnected.

RSVD

N/A

RESERVED pin

Leave unconnected.

RSVD

N/A

RESERVED pin

Leave unconnected.

I2S_WA

GDI

I/O / I/O

I2S word alignment / GPIO

Configurable as I2S word alignment, or GPIO (see 2.8) Output driver class A. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

I2S_TXD

GDI

O / I/O

I2S transmit data / GPIO

Configurable as I2S data output, or GPIO (see 2.8) Output driver class A. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

I2S_CLK

GDI

I/O / I/O

I2S clock / GPIO

Configurable as I2S clock , or as GPIO (see section 2.8). Output driver class A. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Pin definition Page 20 of 46 C1-Public

Name

Power domain

I/O

Description

Remarks

I2S_RXD

GDI

I / I/O

I2S receive data / GPIO

Configurable as I2S data input, or GPIO (see 2.8) Output driver class A. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs

SCL

DDC O I2C bus clock line

Fixed open drain. See section 4.2.12 for detailed electrical specs.

SDA

DDC

I/O

I2C bus data line

Fixed open drain. See section 4.2.12 for detailed electrical specs.

SIM_CLK

SIM O SIM clock

See section 4.2.10 for detailed electrical specs.

SIM_IO

SIM

I/O

SIM data

Internal 4.7 k pull-up resistor to VSIM. See section 4.2.10 for detailed electrical specs.

SIM_RST

SIM O SIM reset

See section 4.2.10 for detailed electrical specs.

VSIM

- O SIM supply output

VSIM = 1.8 V typical or 2.9 V typical generated by the module according to the SIM card/chip voltage type. See section 4.2.2 for detailed electrical specs.

GPIO5

GDI

I/O

GPIO

Configurable for SIM card detection, or GPIO (see 2.8) Output driver class A. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

GPIO6

GDI O Clock output

Configurable clock output (see section 2.7) Output driver class A. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

HOST_SELECT1

GDI

I/O

Selection of module / host processor configuration

Not supported by ‘02B’, ‘42B’, ‘82B’, ‘03B’ versions. See section 4.2.13 for detailed electrical specs.

SDIO_D2

GDI

I/O

SDIO serial data [2]

SDIO not supported by ‘02B’, ‘42B’, ‘82B’, ‘03B’ versions. Output driver class A. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

SDIO_CLK

GDI O SDIO serial clock

SDIO not supported by ‘02B’, ‘42B’, ‘82B’, ‘03B’ versions. Output driver class A. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

SDIO_CMD

GDI

I/O

SDIO command

SDIO not supported by ‘02B’, ‘42B’, ‘82B’, ‘03B’ versions. Output driver class A. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

SDIO_D0

GDI

I/O

SDIO serial data [0]

SDIO not supported by ‘02B’, ‘42B’, ‘82B’, ‘03B’ versions. Output driver class A. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

SDIO_D3

GDI

I/O

SDIO serial data [3]

SDIO not supported by ‘02B’, ‘42B’, ‘82B’, ‘03B’ versions. Output driver class A. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

SDIO_D1

GDI

I/O

SDIO serial data [1]

SDIO not supported by ‘02B’, ‘42B’, ‘82B’, ‘03B’ versions. Output driver class A. PU/PD class a. Value at internal reset: T/PD. See section 4.2.13 for detailed electrical specs.

GND

N/A

Ground

All GND pins must be connected to ground.

VCC

VCC I Module supply input

Supply for BB part on TOBY-R200. Supply for BB part and PA on TOBY-R202. All VCC pins must be connected to external supply. See sections 4.2.2 / 4.2.3 for detailed electrical specs.

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Pin definition Page 21 of 46 C1-Public

Name

Power domain

I/O

Description

Remarks

VCC

VCC I Module supply input

Supply for PA on TOBY-R200. Supply for BB part and PA on TOBY-R202. All VCC pins must be connected to external supply. See sections 4.2.2 / 4.2.3 for detailed electrical specs.

VCC

VCC I Module supply input

Supply for PA on TOBY-R200. Supply for BB part and PA on TOBY-R202. All VCC pins must be connected to external supply. See sections 4.2.2 / 4.2.3 for detailed electrical specs.

GND

N/A

Ground

All GND pins must be connected to ground.

GND

N/A

Ground

All GND pins must be connected to ground.

ANT_DET

ADC I Antenna detection

Antenna presence detection function. See section 4.2.7 for detailed electrical specs.

GND

N/A

Ground

All GND pins must be connected to ground.

RSVD

N/A

RESERVED pin

Leave unconnected.

GND

N/A

Ground

All GND pins must be connected to ground.

GND

N/A

Ground

All GND pins must be connected to ground.

GND

N/A

Ground

All GND pins must be connected to ground.

ANT1

ANT

I/O

Primary antenna

50  nominal characteristic impedance. Main Tx / Rx antenna interface. See sections 4.2.3 / 4.2.5 / 4.2.6 for details.

GND

N/A

Ground

All GND pins must be connected to ground.

GND

N/A

Ground

All GND pins must be connected to ground.

RSVD

N/A

RESERVED pin

Leave unconnected.

GND

N/A

Ground

All GND pins must be connected to ground.

GND

N/A

Ground

All GND pins must be connected to ground.

ANT2

ANT I Secondary antenna

50  nominal characteristic impedance Rx only for Down-Link Rx diversity. See section 4.2.3 for details.

GND

N/A

Ground

All GND pins must be connected to ground.

GND

N/A

Ground

All GND pins must be connected to ground.

GND

N/A

Ground

All GND pins must be connected to ground.

RSVD

N/A

RESERVED pin

Leave unconnected.

GND

N/A

Ground

All GND pins must be connected to ground.

93152

GND

N/A

Ground

All GND pins must be connected to ground.

Table 5: TOBY-R2 series pin-out

☞ For more information about the pin-out, see the TOBY-R2 series system integration manual [2]. ☞ See appendix A for an explanation of abbreviations and terms used.

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Electrical specifications Page 22 of 46 C1-Public

4 Electrical specifications

⚠ Stressing the device above one or more of the ratings listed in the Absolute Maximum Rating

section may cause permanent damage. These are stress ratings only. Operating the module at these or at any conditions other than those specified in the Operating Conditions sections (section

4.2) of the specification should be avoided. Exposure to Absolute Maximum Rating conditions for

extended periods may affect device reliability.

☞ Operating condition ranges define those limits within which the functionality of the device is

guaranteed.

☞ Where application information is given, it is advisory only and does not form part of the

specification.

4.1 Absolute maximum rating

☞ Limiting values given below are in accordance with the Absolute Maximum Rating System

(IEC 134).

Symbol

Description

Condition

Min.

Max.

Unit

VCC

Module supply voltage

Input DC voltage at VCC pin

–0.30

5.00 V V_BCKP

RTC supply voltage

Input DC voltage at V_BCKP pin

–0.15

2.00 V VUSB_DET

USB detection pin

Input DC voltage at VUSB_DET pin

–0.15

5.50 V USB

USB D+/D- pins

Input DC voltage at USB_D+ and USB_D- pins

–1.00

5.50 V GDI

Generic digital interfaces

Input DC voltage at Generic digital interfaces pins

–0.30

3.60

HSIC

HSIC interface

Input DC voltage at HSIC interface pins

–0.30

3.60

DDC

DDC interface

Input DC voltage at DDC interface pins

–0.30

3.60 V SIM

SIM interface

Input DC voltage at SIM interface pins

–0.30

3.60 V ERS

External reset signal

Input DC voltage at RESET_N pin

–0.30

2.10

POS

Power-on input

Input DC voltage at PWR_ON pin

–0.30

2.10

Tstg

Storage Temperature

–40

°C

Table 6: Absolute maximum ratings

⚠ The product is not protected against overvoltage or reversed voltages. If necessary, voltage spikes

exceeding the power supply voltage specification, given in table above, must be limited to values within the specified boundaries by using appropriate protection devices.

4.1.1 Maximum ESD

Parameter

Min

Typ

Max

Unit

Remarks

ESD sensitivity for all pins except ANT1 / ANT2 pins

1000

Human Body Model according to JESD22-A114 ESD sensitivity for ANT1 / ANT2 pins

1000

Human Body Model according to JESD22-A114

ESD immunity for ANT1 / ANT2 pins

4000

Contact Discharge according to IEC 61000-4-2

8000

Air Discharge according to IEC 61000-4-2

Table 7: Maximum ESD ratings

⚠ u-blox cellular modules are Electrostatic Sensitive Devices and require special precautions when

handling. See section 7.4 for ESD handling instructions.

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Electrical specifications Page 23 of 46 C1-Public

4.2 Operating conditions

☞ Unless otherwise indicated, all operating condition specifications are at an ambient temperature

of +25 °C.

⚠ Operation beyond the operating conditions is not recommended and extended exposure beyond

them may affect device reliability.

4.2.1 Operating temperature range

Parameter

Min.

Typical

Max.

Unit

Remarks

Normal operating temperature

–20

+25

+65

°C

Normal operating temperature range (fully functional and meet 3GPP specifications)

Extended operating temperature

–40 +85

°C

Extended operating temperature range (RF performance may be affected outside normal

operating range, though module is fully functional)

Table 8: Environmental conditions

4.2.2 Supply/power pins

Symbol

Parameter

Min.

Typical

Max.

Unit

VCC

Module supply normal operating input voltage13

3.30

3.80

4.40 V

Module supply extended operating input voltage14

3.00

3.80

4.50 V

Module supply extended operating input voltage15

2.80

3.80

4.50

V_BCKP

Real Time Clock supply input voltage

1.00

1.80

1.90

I_BCKP

Real Time Clock supply average current consumption, at V_BCKP = 1.8 V

2.00 µA

Table 9: Input characteristics of the Supply/Power pins

Symbol

Parameter

Min.

Typical

Max.

Unit

VSIM

SIM supply output voltage

1.80 V 2.90 V

V_BCKP

Real Time Clock supply output voltage

1.80 V

I_BCKP

Real Time Clock supply output current capability

V_INT

Generic Digital Interfaces supply output voltage

1.80 V

V_INT_RIPPLE

Generic Digital Interfaces supply output voltage ripple with power saving disabled (AT+UPSV=0)

mVpp

Generic Digital Interfaces supply output voltage ripple with power saving enabled (AT+UPSV=1 / 2 / 3)

mVpp

I_INT

Generic Digital Interfaces supply output current capability

Table 10: Output characteristics of the Supply/Power pins

RF performance may be affected when the input voltage at VCC is outside the herein stated normal operating range limits,

though module is still fully functional when the input voltage at VCC is inside the extended operating range limits.

Range defined for all the VCC pins of TOBY-R202 modules, and the VCC pin #70 (supply input for internal baseband Power Management Unit and the internal transceiver) of TOBY-R200 modules. Input voltage at the related VCC pins must be above the herein stated extended operating range minimum limit to switch-on the TOBY-R2 series modules. The TOBY-R2 series modules may switch-off when the input voltage at the related VCC pins drops below the herein stated extended operating range minimum limit.

Range defined for the VCC pins #71 and #72 (supply input for the internal power amplifier) of TOBY-R200 modules.

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Electrical specifications Page 24 of 46 C1-Public

4.2.3 Current consumption

Mode

Condition

Tx power

Min

Typ 16

Max 17

Unit

Idle-Mode (Power Saving enabled by AT+UPSV, module in low power idle-mode, equivalent to airplane mode)

Averaged current value over a 100-ms period, USB not connected

0.9 mA

Averaged current value over a 100-ms period, USB connected and suspended

1.1 mA

Cyclic Idle/Active-Mode (Power Saving enabled by AT+UPSV, Module registered with network)

Averaged current value over a 10-minute period, USB not connected

1.4 mA

Averaged current value over a 10-minute period, USB connected and suspended

1.6 mA

Active-Mode (Power Saving disabled by AT+UPSV, Module registered with network)

Averaged current value over a 10-minute period, USB not connected

11.1 mA

Averaged current value over a 10-minute period, USB connected and not suspended

29.5 mA

2G Connected Mode (Tx / Rx call enabled)

Pulse current during a 1-slot GMSK Tx burst, 850/900 MHz bands

Maximum

1.5

1.9

Averaged current value over a 10-s period, 2G GMSK call, 1 Tx + 1 Rx slot, 850/900 MHz

Minimum

50 mA

Maximum

220 mA

Averaged current value over a 10-s period, 2G GMSK call, 1 Tx + 1 Rx slot, 1800/1900 MHz

Minimum

50 mA

Maximum

180 mA

3G Connected Mode (Tx / Rx call enabled)

Averaged current value over a 10-s period

Minimum

120 mA

0 dBm

130 mA

12 dBm

175 mA

18 dBm

270 mA

Maximum

490 mA

LTE Connected Mode (Tx / Rx call enabled)

Averaged current value over a 10-s period

Minimum

185 mA

0 dBm

200 mA

12 dBm

245 mA

18 dBm

365 mA

Maximum

540 mA

Table 11: TOBY-R2 series modules VCC current consumption

Parameter

Min

Typ

Max

Unit

Current consumption through the VCC pin #70 of TOBY-R200 modules (supply input for internal baseband Power Management Unit and the internal transceiver)

300

Table 12: TOBY-R200 modules VCC pin #70 current consumption

Typical values with a matched antenna

Maximum values with a mismatched antenna

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Electrical specifications Page 25 of 46 C1-Public

4.2.4 LTE RF characteristics

The LTE bands supported by each TOBY-R2 series module are defined in Table 2, while the following

Table 13 describes the Transmitting and Receiving frequencies for each LTE band according to 3GPP

TS 36.521-1 [11].

Parameter

Min.

Max.

Unit

Remarks

Frequency range Band 12 (700 MHz) 18

Uplink

699

716

MHz

Module transmits

Downlink

729

746

MHz

Module receives

Frequency range Band 5 (850 MHz)

Uplink

824

849

MHz

Module transmits

Downlink

869

894

MHz

Module receives

Frequency range Band 8 (900 MHz)

Uplink

880

915

MHz

Module transmits

Downlink

925

960

MHz

Module receives

Frequency range Band 4 (1700 MHz)

Uplink

1710

1755

MHz

Module transmits

Downlink

2110

2155

MHz

Module receives

Frequency range Band 2 (1900 MHz)

Uplink

1850

1910

MHz

Module transmits

Downlink

1930

1990

MHz

Module receives

Frequency range Band 1 (2100 MHz)

Uplink

1920

1980

MHz

Module transmits

Downlink

2110

2170

MHz

Module receives

Table 13: LTE operating RF frequency bands

TOBY-R2 series modules include a UE Power Class 3 LTE transmitter (see Table 2), with output power and characteristics according to 3GPP TS 36.521-1 [11].

TOBY-R2 series modules LTE receiver characteristics are compliant to 3GPP TS 36.521-1 [11], with LTE conducted receiver sensitivity performance described in Table 14.

Parameter

Min.

Typical

Max.

Unit

Remarks

Receiver input sensitivity Band 12 (700 MHz)

–110.5

dBm

Channel bandwidth = 1.4 MHz

–107.5

dBm

Channel bandwidth = 3 MHz

–105.0

dBm

Channel bandwidth = 5 MHz

–102.5

dBm

Channel bandwidth = 10 MHz

Receiver input sensitivity Band 5 (850 MHz)

–110.0

dBm

Channel bandwidth = 1.4 MHz

–107.5

dBm

Channel bandwidth = 3 MHz

–105.0

dBm

Channel bandwidth = 5 MHz

–102.5

dBm

Channel bandwidth = 10 MHz

Receiver input sensitivity Band 8 (900 MHz)

–110.0

dBm

Channel bandwidth = 1.4 MHz

–107.5

dBm

Channel bandwidth = 3 MHz

–105.0

dBm

Channel bandwidth = 5 MHz

–102.5

dBm

Channel bandwidth = 10 MHz

Receiver input sensitivity Band 4 (1700 MHz)

–110.0

dBm

Channel bandwidth = 1.4 MHz

–107.0

dBm

Channel bandwidth = 3 MHz

–104.5

dBm

Channel bandwidth = 5 MHz

–102.0

dBm

Channel bandwidth = 10 MHz

–100.0

dBm

Channel bandwidth = 15 MHz

–99.0

dBm

Channel bandwidth = 20 MHz

LTE band 12 is a superset including band 17: LTE band 12 is supported along with Multi-Frequency Band Indicator feature

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Electrical specifications Page 26 of 46 C1-Public

Parameter

Min.

Typical

Max.

Unit

Remarks

Receiver input sensitivity Band 2 (1900 MHz)

–109.5

dBm

Channel bandwidth = 1.4 MHz

–107.0

dBm

Channel bandwidth = 3 MHz

–104.5

dBm

Channel bandwidth = 5 MHz

–102.0

dBm

Channel bandwidth = 10 MHz

–100.0

dBm

Channel bandwidth = 15 MHz

–99.0

dBm

Channel bandwidth = 20 MHz

Receiver input sensitivity Band 1 (2100 MHz)

–104.0

dBm

Channel bandwidth = 5 MHz

–101.5

dBm

Channel bandwidth = 10 MHz

–99.5

dBm

Channel bandwidth = 15 MHz

–98.5

dBm

Channel bandwidth = 20 MHz

Condition: 50  source, Throughput > 95%, dual receiver, QPSK modulation, other settings as per 3GPP TS 36.521-1 [11]

Table 14: LTE receiver sensitivity performance

4.2.5 3G RF characteristics

The 3G bands supported by each TOBY-R2 series module are defined in Table 2, while the following

Table 15 describes the Transmitting and Receiving frequencies for each 3G band according to 3GPP

TS 34.121-1 [12].

Parameter

Min.

Max.

Unit

Remarks

Frequency range Band 5 (850 MHz)

Uplink

824

849

MHz

Module transmits

Downlink

869

894

MHz

Module receives

Frequency range Band 8 (900 MHz)

Uplink

880

915

MHz

Module transmits

Downlink

925

960

MHz

Module receives

Frequency range Band 2 (1900 MHz)

Uplink

1850

1910

MHz

Module transmits

Downlink

1930

1990

MHz

Module receives

Frequency range Band 1 (2100 MHz)

Uplink

1920

1980

MHz

Module transmits

Downlink

2110

2170

MHz

Module receives

Table 15: 3G operating RF frequency bands

TOBY-R2 series modules include a UE Power Class 3 3G transmitter (see Table 2), with output power and characteristics according to 3GPP TS 34.121-1 [12].

TOBY-R2 series modules 3G receiver characteristics are compliant to 3GPP TS 34.121-1 [12], with 3G conducted receiver sensitivity performance described in Table 16.

Parameter

Min.

Typical

Max.

Unit

Remarks

Receiver input sensitivity Band 5 (850 MHz)

–115.0

dBm

Downlink RF level for RMC @ BER < 0.1 %

Receiver input sensitivity Band 8 (900 MHz)

–115.0

dBm

Downlink RF level for RMC @ BER < 0.1 %

Receiver input sensitivity Band 2 (1900 MHz)

–114.0

dBm

Downlink RF level for RMC @ BER < 0.1 %

Receiver input sensitivity Band 1 (2100 MHz)

–114.0

dBm

Downlink RF level for RMC @ BER < 0.1 % Condition: 50  source, dual receiver, other settings as per 3GPP TS 34.121-1 [12]

Table 16: 3G receiver sensitivity performance

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Electrical specifications Page 27 of 46 C1-Public

4.2.6 2G RF characteristics

The 2G bands supported by each TOBY-R2 series module are defined in Table 2, while Table 17 describes the Transmitting and Receiving frequencies for each 2G band according to 3GPP TS

51.010-1 [13].

Parameter

Min.

Max.

Unit

Remarks

Frequency range GSM 850

Uplink

824

849

MHz

Module transmits

Downlink

869

894

MHz

Module receives

Frequency range E-GSM 900

Uplink

880

915

MHz

Module transmits

Downlink

925

960

MHz

Module receives

Frequency range DCS 1800

Uplink

1710

1785

MHz

Module transmits

Downlink

1805

1880

MHz

Module receives

Frequency range PCS 1900

Uplink

1850

1910

MHz

Module transmits

Downlink

1930

1990

MHz

Module receives

Table 17: 2G operating RF frequency bands

TOBY-R2 series modules include a GMSK Power Class 4 transmitter for GSM 850 and E-GSM 900 bands, a GMSK Power Class 1 transmitter for DCS 1800 and PCS 1900 bands, a 8-PSK Power Class E2 transmitter for all 2G bands (see Table 2), with output power and characteristics according to 3GPP TS 51.010-1 [13].

TOBY-R2 series modules 2G receiver characteristics are compliant to 3GPP TS 51.010-1 [13], with conducted receiver sensitivity performance described in Table 18.

Parameter

Min.

Typical

Max.

Unit

Remarks

Receiver input sensitivity GSM 850

–110.0

dBm

Downlink RF level @ BER Class II < 2.4 %

Receiver input sensitivity E-GSM 900

–110.0

dBm

Downlink RF level @ BER Class II < 2.4 %

Receiver input sensitivity DCS 1800

–109.0

dBm

Downlink RF level @ BER Class II < 2.4 %

Receiver input sensitivity PCS 1900

–109.0

dBm

Downlink RF level @ BER Class II < 2.4 % Condition: 50  source, other settings as per 3GPP TS 51.010-1 [13]

Table 18: 2G receiver sensitivity performance

4.2.7 ANT_DET pin

Pin name

Parameter

Min.

Typical

Max.

Unit

Remarks

ANT_DET

Output DC current pulse value

µA

Generated by means of the +UANTR AT command

Output DC current pulse time length

330 µs

Generated by means of the +UANTR AT command

Table 19: ANT_DET pin characteristics

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Electrical specifications Page 28 of 46 C1-Public

4.2.8 PWR_ON pin

Pin name

Parameter

Min.

Typical

Max.

Unit

Remarks

PWR_ON

Internal supply for Power-On Input Signal

1.80 V

RTC supply (V_BCKP) Low-level input

–0.30

0.54 V High-level input

1.26 2.10 V

Pull-up resistance

k

Internal active pull-up to V_BCKP

Low-level input current

–180

µA

Low pulse time

µs

Low pulse time to switch-on the module

Low pulse time

1 s Low pulse time to switch-off the module

Table 20: PWR_ON pin characteristics

4.2.9 RESET_N pin

Pin name

Parameter

Min.

Typical

Max.

Unit

Remarks

RESET_N

Internal supply for External Reset Input Signal

1.80 V

RTC supply (V_BCKP) Low-level input

–0.30

0.54 V

High-level input

1.26 2.10 V

Pull-up resistance

k

Internal active pull-up to V_BCKP

Low-level input current

–180

µA Low pulse time

Low pulse time to reset the module

Table 21: RESET_N pin characteristics

4.2.10 SIM pins

The SIM pins are a dedicated interface to the external SIM card/chip. The electrical characteristics fulfill regulatory specification requirements. The values in Table 22 are for information only.

Parameter

Min.

Typical

Max.

Unit

Remarks

Low-level input

0.00 0.35 V VSIM = 1.80 V

0.00 0.57 V VSIM = 2.90 V

High-level input

1.29 3.30 V VSIM = 1.80 V

2.07 3.30 V VSIM = 2.90 V

Low-level output

0.00

0.35 V VSIM = 1.80 V, Max value at IOL = +1.0 mA

0.00

0.35 V VSIM = 2.90 V, Max value at IOL = +1.0 mA

High-level output

1.26

1.80 V

VSIM = 1.80 V, Min value at IOH = –1.0 mA

2.03

2.90 V

VSIM = 2.90 V, Min value at IOH = –1.0 mA

Input / Output leakage current

0.7

µA

0.2V < VIN < 3.3V

Clock frequency on SIM_CLK

3.25 MHz

Internal pull-up resistor on SIM_IO

4.7

k

Internal pull-up to VSIM supply

Table 22: SIM pins characteristics

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Electrical specifications Page 29 of 46 C1-Public

4.2.11 USB pins

USB data lines (USB_D+ / USB_D–) are compliant to the USB 2.0 high-speed specification. See the Universal Serial Bus specification revision 2.0 [15] for detailed electrical characteristics. The values in

Table 23 related to USB 2.0 high-speed physical layer specifications are for information only.

Parameter

Min.

Typ.

Max.

Unit

Remarks

VUSB_DET pin, High-level input

1.50

5.00

5.25 V

VUSB_DET pin, Low-level input

–0.15

0.00

0.40 V

VUSB_DET pin, input current sink

25 µA

High-speed squelch detection threshold (input differential signal amplitude)

100 150

High speed disconnect detection threshold (input differential signal amplitude)

525 625

mV High-speed data signaling input common mode voltage range

–50 500

mV High-speed idle output level

–10 10

mV High-speed data signaling output high level

360 440

mV High-speed data signaling output low level

–10 10

mV Chirp J level (output differential voltage)

700 1100

mV Chirp K level (output differential voltage)

–900

–500

Table 23: USB pins characteristics

4.2.12 DDC (I2C) pins

DDC (I2C) lines (SCL and SDA) are compliant to the I2C-bus standard mode specification. See the I2C-bus specification [16] for detailed electrical characteristics. The values in Table 24 related to the I2C-bus standard mode specifications are for information only.

Parameter

Min

Typical

Max

Unit

Remarks

Internal supply for GDI domain

1.80 V

Digital I/O Interfaces supply (V_INT)

Low-level input

–0.20

0.36 V

High-level input

1.26 2.00 V

Low-level output

0.00

0.35 V Max value at IOL = +1.0 mA

Clock frequency on SCL

100 kHz

Table 24: DDC (I2C) pins characteristics

4.2.13 Generic Digital Interfaces pins

Parameter

Min

Typical

Max

Unit

Remarks

Internal supply for GDI domain

1.80 V

Digital I/O Interfaces supply (V_INT)

Low-level input

–0.20

0.36 V

High-level input

1.26 2.00 V

Low-level output

0.00

0.35 V Max value at IOL = +6.0 mA for driver class A

High-level output

1.45

1.80 V

Min value at IOH = –6.0 mA for driver class A

Internal pull-up input current

–240

µA

PU class a

–110

µA

PU class b

Internal pull-down input current

240

µA

PD class a

100

µA

PD class b

Input/output leakage current

0.7

µA

0.2V < VIN < 2.0V

Table 25: GDI pin characteristics

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Electrical specifications Page 30 of 46 C1-Public

4.2.13.1 AC characteristics of clock output pin

Parameter

Description

Min

Typical

Max

Unit

Remarks

1/T1

GPIO6 clock output frequency

13 MHz

AT+UMCLK=2

26 MHz

AT+UMCLK=3

Table 26: AC characteristics of the GPIO6 clock output pin

4.2.13.2 AC characteristics of I2S pins

Parameter

Description

Min

Typical

Max

Unit

Remarks

1/T1

I2S_WA frequency

8.000

kHz

<I2S_sample_rate>=0

11.025

kHz

<I2S_sample_rate>=1

12.000

kHz

<I2S_sample_rate>=2

16.000

kHz

<I2S_sample_rate>=3

22.050

kHz

<I2S_sample_rate>=4

24.000

kHz

<I2S_sample_rate>=5

32.000

kHz

<I2S_sample_rate>=6

44.100

kHz

<I2S_sample_rate>=7

48.000

kHz

<I2S_sample_rate>=8

1/T2

I2S_CLK frequency

32 1/T1

<I2S_mode> = 2,..,13

I2S_TXD invalid before I2S_CLK edge

<I2S_mode> = 2,..,13

I2S_TXD valid after I2S_CLK edge

<I2S_mode> = 2,..,13

I2S_RXD setup time before I2S_CLK edge

<I2S_mode> = 2,..,13

I2S_RXD hold time after I2S_CLK edge

<I2S_mode> = 2,..,13

Table 27: AC characteristics of digital audio interface (I2S) pins in Normal I2S mode (long synchronization signal), host role

Parameter

Description

Min

Typical

Max

Unit

Remarks

1/T1

I2S_WA frequency

8.000

kHz

<I2S_sample_rate>=0

11.025

kHz

<I2S_sample_rate>=1

12.000

kHz

<I2S_sample_rate>=2

16.000

kHz

<I2S_sample_rate>=3

22.050

kHz

<I2S_sample_rate>=4

24.000

kHz

<I2S_sample_rate>=5

32.000

kHz

<I2S_sample_rate>=6

44.100

kHz

<I2S_sample_rate>=7

48.000

kHz

<I2S_sample_rate>=8

1/T2

I2S_CLK frequency

1/T1

<I2S_mode> = 2,..,13

I2S_TXD invalid before I2S_CLK edge

<I2S_mode> = 2,..,13

I2S_TXD valid after I2S_CLK edge

<I2S_mode> = 2,..,13

I2S_RXD setup time before I2S_CLK edge

<I2S_mode> = 2,..,13

I2S_RXD hold time after I2S_CLK edge

<I2S_mode> = 2,..,13

Table 28: AC characteristics of digital audio interface (I2S) pins in Normal I2S mode (long synchronization signal), device role

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Electrical specifications Page 31 of 46 C1-Public

Parameter

Description

Min

Typical

Max

Unit

Remarks

1/T1

I2S_WA frequency

8.000

kHz

<I2S_sample_rate>=0

11.025

kHz

<I2S_sample_rate>=1

12.000

kHz

<I2S_sample_rate>=2

16.000

kHz

<I2S_sample_rate>=3

22.050

kHz

<I2S_sample_rate>=4

24.000

kHz

<I2S_sample_rate>=5

32.000

kHz

<I2S_sample_rate>=6

44.100

kHz

<I2S_sample_rate>=7

48.000

kHz

<I2S_sample_rate>=8

1/T2

I2S_CLK frequency

18 1/T1

<I2S_mode> = 0

17 1/T1

<I2S_mode> = 1

I2S_WA high begin after I2S_CLK high begin

-24 32

<I2S_mode> = 0, 1

I2S_WA high end after I2S_CLK low end

-24 32

<I2S_mode> = 0, 1

I2S_TXD invalid before I2S_CLK low end

<I2S_mode> = 0, 1

I2S_TXD valid after I2S_CLK high begin

<I2S_mode> = 0, 1

I2S_RXD setup time before I2S_CLK high end

<I2S_mode> = 0, 1 T8

I2S_RXD hold time after I2S_CLK low begin

<I2S_mode> = 0, 1

Table 29: AC characteristics of digital audio interface (I2S) pins in PCM mode (short synchronization signal), host role

Parameter

Description

Min

Typical

Max

Unit

Remarks

1/T1

I2S_WA frequency

8.000

kHz

<I2S_sample_rate>=0

11.025

kHz

<I2S_sample_rate>=1

12.000

kHz

<I2S_sample_rate>=2

16.000

kHz

<I2S_sample_rate>=3

22.050

kHz

<I2S_sample_rate>=4

24.000

kHz

<I2S_sample_rate>=5

32.000

kHz

<I2S_sample_rate>=6

44.100

kHz

<I2S_sample_rate>=7

48.000

kHz

<I2S_sample_rate>=8

1/T2

I2S_CLK frequency

1/T1

<I2S_mode> = 0

1/T1

<I2S_mode> = 1

I2S_WA high begin before I2S_CLK low begin

<I2S_mode> = 0, 1

I2S_WA low begin before I2S_CLK low begin

<I2S_mode> = 0, 1

I2S_TXD invalid before I2S_CLK rising edge

<I2S_mode> = 0, 1

I2S_TXD valid after I2S_CLK rising edge

<I2S_mode> = 0, 1

I2S_RXD setup time before I2S_CLK falling edge

<I2S_mode> = 0, 1 T8

I2S_RXD hold time after I2S_CLK falling edge

<I2S_mode> = 0, 1

Table 30: AC characteristics of digital audio interface (I2S) pins in PCM mode (short synchronization signal), device role

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Electrical specifications Page 32 of 46 C1-Public

4.3 Parameters for ATEX applications

This section provides useful parameters and information to integrate TOBY-R2 series modules in applications intended for use in areas with potentially explosive atmospheres (ATEX), describing:

• Total internal capacitance and inductance of TOBY-R2 series modules (see Table 31)

• Maximum RF output power at the antenna pin of TOBY-R2 series modules (see Table 32)

☞ Any specific applicable requirement for the implementation of the apparatus integrating

TOBY-R2 series modules, intended for use in potentially explosive atmospheres, must be fulfilled according to the exact applicable standards: check the detailed requisites on the pertinent normative for the application, as for example the IEC 60079-0 [17], the IEC 60079-11 [18], and the IEC 60079-26 [19] standards.

☞ The certification of the application device that integrates a TOBY-R2 series module and the

compliance of the application device with all the applicable certification schemes, directives and standards required for use in potentially explosive atmospheres are the sole responsibility of the application device manufacturer.

Table 31 describes the maximum total internal capacitance and the maximum total internal

inductance, considering internal parts tolerance, provided by TOBY-R2 series modules.

Module

Parameter

Description

Value

Unit

TOBY-R200

Maximum total internal capacitance

218

µF

Maximum total internal inductance

26.3

µH

TOBY-R202

Maximum total internal capacitance

214

µF Li

Maximum total internal inductance

26.2

µH

Table 31: TOBY-R2 series maximum total internal capacitance and maximum total internal inductance

Table 32 describes the maximum RF output power transmitted by TOBY-R2 series modules from the

primary antenna (ANT1) pin as Power Class 4 Mobile Station for GSM 850 / E-GSM 900 bands and/or as Power Class 3 User Equipment for LTE / UMTS bands.

Module

Parameter

Description

Value

Unit

TOBY-R200

ANT1 Pout

Maximum RF output power from ANT1 pin

35.0

dBm

TOBY-R202

ANT1 Pout

Maximum RF output power from ANT1 pin

25.0

dBm

Table 32: TOBY-R2 series antenna pin (ANT1) maximum RF output power

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Mechanical specifications Page 33 of 46 C1-Public

5 Mechanical specifications

G H1 J1D F

K M1 M1 M2

ANT1 pin

ANT2 pin

M1 M1 M3

J1 J1

Pin 1

Indicator

Figure 3: TOBY-R2 series dimensions (bottom and side views)

Parameter

Description

Typical

Tolerance

Module height [mm]

35.6

(1401.6 mil)

+0.20/–0.20

(+7.9/–7.9 mil)

Module width [mm]

24.8

(976.4 mil)

+0.20/–0.20

(+7.9/–7.9 mil)

Module thickness [mm]

2.6

(102.4 mil)

+0.27/–0.17

(+10.6/–6.7 mil)

Horizontal edge to lateral pin pitch [mm]

2.4

(94.5 mil)

+0.20/–0.20

(+7.9/–7.9 mil)

Vertical edge to lateral pin pitch [mm]

2.25

(88.6 mil)

+0.20/–0.20

(+7.9/–7.9 mil)

Edge to lateral pin pitch [mm]

1.45

(57.1 mil)

+0.20/–0.20

(+7.9/–7.9 mil)

Lateral pin to pin pitch [mm]

1.1

(43.3 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Lateral pin height [mm]

0.8

(31.5 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Lateral pin close to ANT1 and ANT2 height [mm]

0.9

(35.4 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Lateral pin width [mm]

1.5

(59.1 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Lateral pin to pin distance [mm]

0.3

(11.8 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Lateral pin to pin close to ANT distance [mm]

0.2

(7.9 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Horizontal edge to central pin pitch [mm]

3.15

(124.0 mil)

+0.20/–0.20

(+7.9/–7.9 mil)

Vertical edge to central pin pitch [mm]

7.15

(281.5 mil)

+0.20/–0.20

(+7.9/–7.9 mil)

Central pin to pin horizontal pitch [mm]

1.8

(70.9 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Central pin to pin horizontal pitch [mm]

5.2

(204.7 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Central pin to pin horizontal pitch [mm]

4.5

(177.2 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Central pin to pin vertical pitch [mm]

2.1

(82.7 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Central pin height and width [mm]

1.1

(43.3 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Horizontal edge to corner pin pitch [mm]

1.1

(43.3 mil)

+0.20/–0.20

(+7.9/–7.9 mil)

Horizontal edge to corner pin pitch [mm]

1.25

(49.2 mil)

+0.20/–0.20

(+7.9/–7.9 mil)

Horizontal edge to corner pin pitch [mm]

2.85

(112.2 mil)

+0.20/–0.20

(+7.9/–7.9 mil)

Weight

Module weight [g]

4.8

Table 33: TOBY-R2 series dimensions

☞ Module height tolerance +/–0.20 mm may be exceeded close to the corners of the PCB due to

cutting process: in worst case the Height could be +0.40 mm longer than the typical value.

☞ For information regarding footprint and paste mask recommended for the application board

integrating the cellular module, see TOBY-R2 series system integration manual [2].

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Qualification and approvals Page 34 of 46 C1-Public

6 Qualification and approvals

6.1 Reliability tests

Tests for product family qualifications according to ISO 16750 "Road vehicles - Environmental conditions and testing for electrical and electronic equipment", and appropriate standards.

6.2 Approvals

TOBY-R2 series modules comply with the Directive 2011/65/EU of the European Parliament and the Council on the Restriction of Use of certain Hazardous Substances in Electrical and Electronic Equipment (EU RoHS 2) and its amendment Directive (EU) 2015/863 (EU RoHS 3).

TOBY-R2 series modules are RoHS 3 compliant.

No natural rubbers, hygroscopic materials, or materials containing asbestos are employed.

Table 34 summarizes the main approvals for TOBY-R2 series modules.

Certification scheme

TOBY-R200-02B

TOBY-R200-42B

TOBY-R200-82B

TOBY-R200-03B

TOBY-R202-02B

CE (Europe)

■ ■ ■

■

Model name

TOBY-R200

FCC (United States)

■ ■ ■ ■ ■

Identification number

XPY1EHM44NN

XPY1EHQ24NN

ISED (Canada)

■ ■ ■ ■ ■

Certification number

8595A-1EHM44NN

8595A-1EHQ24NN

ANATEL (Brazil)

■

Certification number

04141-21-05903

PTCRB

■ ■ ■ ■ ■

Model name

TOBY-R200

TOBY-R200-42

TOBY-R200-82

TOBY-R200-03

TOBY-R202

AT&T (network operator)

■ ■ ■ ■

Model name

TOBY-R200

TOBY-R200-82

TOBY-R200-03

TOBY-R202

T-Mobile US (network operator)

□ □ □ □

Model name

TOBY-R200

TOBY-R200-82

TOBY-R200-03

TOBY-R202

U.S. Cellular (network operator)

□ □ □

Model name

TOBY-R200-82

TOBY-R200-03

TOBY-R202

Telus (network operator)

□

Model name

TOBY-R200-82

TOBY-R200-03

Note: ■ = certified as voice and data □ = certified as data only

Table 34: TOBY-R2 series main certification approvals summary

☞ The above listed certifications might not be available for all the different product type numbers.

Please contact the u-blox office or sales representative nearest you for the complete list of certification approvals available for the selected product ordering number.

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Product handling & soldering Page 35 of 46 C1-Public

7 Product handling & soldering

7.1 Packaging

TOBY-R2 series modules are delivered as hermetically sealed, reeled tapes to enable efficient production, production lot set-up and tear-down. For more information about packaging, see the u-blox package information user guide [7].

7.1.1 Reels

TOBY-R2 series modules are deliverable in quantities of 150 pieces on a reel. The modules are delivered using the reel type B3 described in the Figure 4 and in the u-blox package information user guide [7].

Figure 4: TOBY-R2 series modules reel

Parameter

Specification

Reel type

Delivery quantity

150

Table 35: Reel information for TOBY-R2 series modules

Quantities of less than 150 pieces are also available. Contact u-blox for more information.

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Product handling & soldering Page 36 of 46 C1-Public

7.1.2 Tapes

Figure 5 shows the position and the orientation of TOBY-R2 modules as they are delivered on the tape,

while the Figure 6 specifies the tape dimensions.

Feed direction

Pin 1 Sprocket hole

Figure 5: Orientation for TOBY-R2 modules on tape

Figure 6: TOBY-R2 series modules tape

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Product handling & soldering Page 37 of 46 C1-Public

7.2 Moisture sensitivity levels

⚠ TOBY-R2 series modules are Moisture Sensitive Devices (MSD) in accordance to the IPC/JEDEC

specification.

The Moisture Sensitivity Level (MSL) relates to the packaging and handling precautions required. TOBY-R2 series modules are rated at MSL level 4. For more information regarding moisture sensitivity levels, labeling, storage and drying, see the u-blox package information user guide [7].

☞ For MSL standard, see IPC/JEDEC J-STD-020 (can be downloaded from www.jedec.org).

7.3 Reflow soldering

Reflow profiles are to be selected according to u-blox recommendations (see TOBY-R2 series system integration manual [2]).

⚠ Failure to observe these recommendations can result in severe damage to the device!

7.4 ESD precautions

⚠ TOBY-R2 series modules contain highly sensitive electronic circuitry and are Electrostatic

Sensitive Devices (ESD). Handling TOBY-R2 series modules without proper ESD protection may destroy or damage them permanently.

TOBY-R2 series modules are Electrostatic Sensitive Devices (ESD) and require special ESD precautions typically applied to ESD sensitive components.

Table 7 reports the maximum ESD ratings of the TOBY-R2 series modules.

Proper ESD handling and packaging procedures must be applied throughout the processing, handling and operation of any application that incorporates TOBY-R2 series module.

ESD precautions should be implemented on the application board where the module is mounted, as described in the TOBY-R2 series system integration manual [2].

⚠ Failure to observe these recommendations can result in severe damage to the device!

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Default settings Page 38 of 46 C1-Public

8 Default settings

Interface

AT settings

Comments

UART interface

AT interface enabled

AT command mode is enabled by default on the UART physical interface

AT+IPR=0

One-shot automatic baud rate detection enabled

AT+ICF=3,1

Frame format: 8 bits, no parity, 1 stop bit

☞ Since AT+IPR=0 is the default value (one-shot automatic baud rate

detection enabled), the AT+ICF value in the profile is not applied (AT+IPR=0 overrules the AT+ICF setting) and the one-shot automatic frame detection is active.

AT&K3

HW flow control enabled

AT&S1

DSR line set ON in data mode and set OFF in command mode

AT&D1

Upon an ON-to-OFF transition of DTR, the module enters online command state and issues an OK result code

AT&C1

Circuit 109 changes in accordance with the carrier detect status; ON if the carrier is detected, OFF otherwise

MUX disabled

Multiplexing mode can be enabled by +CMUX AT command providing following channels:

• Channel 0: Multiplexer control

• Channel 1 – 5: AT commands / data connection

• Channel 6: GNSS data tunneling19

USB interface

Enabled

6 USB CDCs (Communications Device Class) by default available:

• USB1: AT and data

• USB2: AT and data

• USB3: AT and data

• USB4: GNSS tunneling19

• USB5: SAP (SIM access profile)20

• USB6: primary log (diagnostic purpose)

AT&K3

HW flow control enabled

AT&S1

DSR line set ON in data mode and set OFF in command mode

AT&D1

Upon an ON-to-OFF transition of DTR, the module enters online command state and issues an OK result code

AT&C1

Circuit 109 changes in accordance with the carrier detect status; ON if the carrier is detected, OFF otherwise

Power saving

AT+UPSV=0

Disabled

Network registration

AT+COPS=0

Self network registration

Table 36: TOBY-R2 series default settings

See the u-blox AT commands manual [1] and the TOBY-R2 series system integration manual [2] for information about further settings and factory-programmed values.

Not supported by TOBY-R200-02B-00, TOBY-R202-02B-00

Not supported by "02B", "42B", "82B", or "03B" product versions

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Labeling and ordering information Page 39 of 46 C1-Public

9 Labeling and ordering information

9.1 Product labeling

The labels of TOBY-R2 series modules include important product information as described in this section.

Figure 7 illustrates the label of all the TOBY-R2 series modules, and includes: u-blox logo, production

lot, Pb-free marking, product type number, IMEI number, certifications’ info, and production country.

1588

xxB-xx

TOBY-R2xx

Figure 7: TOBY-R2 series module label

9.2 Explanation of codes

Three different product code formats are used. The Product Name is used in documentation such as this data sheet and identifies all the u-blox products, independent of packaging and quality grade. The Ordering Code includes options and quality, while the Type Number includes the hardware and firmware versions. Table 37 details these 3 different formats:

Format

Structure

Product Name

PPPP-TGVV

Ordering Code

PPPP-TGVV-MMQ

Type Number

PPPP-TGVV-MMQ-XX

Table 37: Product code formats

Table 38 explains the parts of the product code.

Code

Meaning

Example

PPPP

Form factor

TOBY

Platform (Technology and Generation)

• Dominant technology: G: GSM; U: HSUPA; C: CDMA 1xRTT; N: NB-IoT;

R: LTE low data rate (Cat 1 and below); L: LTE high data rate (Cat 3 and above)

• Generation: 1…9

Variant function set based on the same platform [00…99]

Major product version [00…99]

Product grade

• B = professional

• A = automotive

Minor product version (not relevant for certification)

Default value is 00

Table 38: Part identification code

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Labeling and ordering information Page 40 of 46 C1-Public

9.3 Ordering information

Ordering number

Product

TOBY-R200-02B

Module supporting LTE Cat 1 bands 2 / 4 / 5 / 12, HSPA bands 1 / 2 / 5 / 8, (E)GPRS quad-band. Mainly designed for operation in North America.

35.6 x 24.8 x 2.6 mm, 150 pcs/reel

TOBY-R200-42B

Module supporting LTE Cat 1 bands 1 / 2 / 4 / 5 / 8 / 12, HSPA bands 1 / 2 / 5 / 8, (E)GPRS quad-band. Mainly designed for global coverage, primarily in North America.

35.6 x 24.8 x 2.6 mm, 150 pcs/reel

TOBY-R200-82B

Module supporting LTE Cat 1 bands 1 / 2 / 4 / 5 / 8 / 12, HSPA bands 1 / 2 / 5 / 8, (E)GPRS quad-band. Mainly designed for global coverage, primarily in North America.

35.6 x 24.8 x 2.6 mm, 150 pcs/reel

TOBY-R200-03B

Module supporting LTE Cat 1 bands 1 / 2 / 4 / 5 / 8 / 12, HSPA bands 1 / 2 / 5 / 8, (E)GPRS quad-band. Mainly designed for global coverage, primarily in North America.

35.6 x 24.8 x 2.6 mm, 150 pcs/reel

TOBY-R202-02B

Module supporting LTE Cat 1 bands 2 / 4 / 5 / 12, HSPA bands 2 / 5. Mainly designed for operation in North America.

35.6 x 24.8 x 2.6 mm, 150 pcs/reel

Table 39: Product ordering codes

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Appendix Page 41 of 46 C1-Public

Appendix

A Glossary

Abbreviation

Definition

ACM

Abstract Control Model

ADC

Analog to Digital Converter

ANATEL

Agência Nacional de Telecomunicações - National Telecommunications Agency (Brazil)

Baseband

BER

Bit Error Rate

BIP

Bearer Independent Protocol

CBS

Cell Broadcast Services

CDC

Communication Device Class

CDMA

Code-Division Multiple Access

CLK

Clock

CMOS

Complementary Metal-Oxide-Semiconductor

CSFB

Circuit-Switched Fall-Back

CTS

Clear To Send

Direct Current

DCD

Data Carrier Detect

DCE

Data Communication Equipment

DCS

Digital Cellular System

DDC

Display Data Channel

Down Link (Reception)

DRX

Discontinuous Reception

DSR

Data Set Ready

DTE

Data Terminal Equipment

DTMF

Dual Tone Multi Frequency

DTR

Data Terminal Ready

EDGE

Enhanced Data rates for GSM Evolution

EGPRS

Enhanced General Packet Radio Service

ERS

External Reset Input Signal

ESD

Electrostatic Discharge

FCC

Federal Communications Commission United States

FDD

Frequency Division Duplex

FOAT

Firmware (update) Over AT commands

FOTA

Firmware (update) Over-The-Air

FTP

File Transfer Protocol

Firmware

GDI

Generic Digital Interface

GERA

GSM EGPRS Radio Access

GMSK

Gaussian Minimum-Shift Keying modulation

GND

Ground

GNSS

Global Navigation Satellite System

GPIO

General Purpose Input/Output

GPRS

General Packet Radio Services

GSM

Global System for Mobile communications

HDLC

High-level Data Link Control

HSDPA

High Speed Downlink Packet Access

HSIC

High Speed Inter-Chip

HSPA

High Speed Packet Access

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Appendix Page 42 of 46 C1-Public

Abbreviation

Definition

HSUPA

High Speed Uplink Packet Access

HTTP

HyperText Transfer Protocol

Hardware

I/O

Input/Output

I2C

Inter-Integrated Circuit

I2S

Inter-IC Sound

Integrated Circuit

IEC

International Electrotechnical Commission

IMEI

International Mobile Equipment Identity

IMS

IP Multimedia System

Internet Protocol

ISED

Innovation, Science and Economic Development (Canadian government)

ISO

International Organization for Standardization

ITU

International Telecommunications Union

LGA

Land Grid Array

LTE

Long-Term Evolution

M2M

Machine to Machine

Mobile Equipment

MSD

Moisture Sensitive Device

MSL

Moisture Sensitivity Level

MUX

Multiplexer

N/A

Not Applicable

NCM

Network Control Model

Power Amplifier

PCB

Printed Circuit Board

PCM

Pulse Code Modulation

PCN

Product Change Notification

Pull-Down

PMU

Power Management Unit

PPS

Protocol and Parameter Selection

PTCRB

PCS Type Certification Review Board

Pull-Up

PU/PD

Pull-Up/Pull-Down

QPSK

Quadrature Phase Shift Keying

Radio Frequency

Ring Indicator

RIL

Radio Interface Layer

RMC

Reference Measurement Channel

RTC

Real Time Clock

RTS

Request To Send

Receive Signal

SAP

SIM Access Profile

SCL

Serial Clock

SDA

Serial Data

SDIO

Secure Digital Input Output

SIM

Subscriber Identity Module

SMS

Short Message Service

SSL

Secure Sockets Layer

TCP

Transmission Control Protocol

TCP/IP

Transmission Control Protocol/Internet Protocol

TDMA

Time-Division Multiple Access

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Appendix Page 43 of 46 C1-Public

Abbreviation

Definition

TLS

Transport Layer Security

Technical Specification

TXD

Transmit Data

UART

Universal Asynchronous Receiver/Transmitter

UDP

User Datagram Protocol

User Equipment

Uplink (Transmission)

UMTS

Universal Mobile Telecommunications System

URC

Unsolicited Result Code

USB

Universal Serial Bus

Word Alignment

Table 40: Explanation of the abbreviations and terms used

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Related documentation Page 44 of 46 C1-Public

Revision history

Revision

Date

Name

Comments

R01

03-Mar-2016

sses

Initial release

R02

31-May-2016

sses

Improved description of VCC, power-on, reset, host select, UART, USB, GPIO pins

R03

11-Jul-2016

sses

Added current consumption and RF performance figures Remarked HSDPA category 8 Updated description of power-on, reset, host select, UART, USB pins

R04

22-Sep-2016

sses

Updated status to advance information Updated PWR_ON, ANT_DET, GPIO and clock output description. Added 2G current consumption figures.

R05

10-Oct-2016

lpah

Document reverted to objective specification TOBY-R200-02B prototypes information. Added remark in mechanical specifications.

R06

22-Dec-2016

sses

Document applicability updated to TOBY-R200 and TOBY-R202 Updated power-on and power-off sections.

R07

09-Feb-2017

sses

Updated GPRS / EDGE multi-slot class. Added AC characteristics of I2S pins and other minor characteristics.

R08

02-Mar-2017

sses

Updated extended VCC range of TOBY-R200 modules. Updated VUSB_DET pin logical levels input ranges.

R09

03-Aug-2017

sses

Extended document applicability to TOBY-R200-02B-01 / TOBY-R202-02B-01.

R10

22-May-2018

lpah

Extended document applicability to TOBY-R200-02B-02 / TOBY-R202-02B-02.

R11

02-Oct-2018

lpah

Added TOBY-R202 T-Mobile certification

R12

07-Dec-2018

lpah

Extended document applicability to TOBY-R200-02B-03 / TOBY-R202-02B-03.

R13

10-Jun-2019

lpah

Extended document applicability to TOBY-R200-02B-04 / TOBY-R202-02B-04. Revised RoHS and approval section. Added parameters for ATEX applications.

R14

30-Aug-2019

lpah / sses

Extended document applicability to TOBY-R200-42B / TOBY-R200-82B.

R15

16-Sep-2019

lpah

Updated the TOBY-R200-82B application version

R16

11-Oct-2019

lpah

Updated the TOBY-R200-42B product status

R17

25-Nov-2019

lpah

Updated the TOBY-R200-82B product status and audio interface support

R18

30-Mar-2021

sses

Extended document applicability to TOBY-R200-03B

TOBY-R2 series - Data sheet

UBX-16005785 - R18 Contact Page 46 of 46 C1-Public

Contact

For complete contact information, visit us at www.u-blox.com.

u-blox Offices

North, Central and South America

u-blox America, Inc.

Phone: +1 703 483 3180 Email: info_us@u-blox.com

Regional Office West Coast:

Phone: +1 408 573 3640 Email: info_us@u-blox.com

Technical Support:

Phone: +1 703 483 3185 Email: support@u-blox.com

Headquarters Europe, Middle East, Africa

u-blox AG

Phone: +41 44 722 74 44 Email: info@u-blox.com Support: support@u-blox.com

Asia, Australia, Pacific

u-blox Singapore Pte. Ltd.

Phone: +65 6734 3811 Email: info_ap@u-blox.com Support: support_ap@u-blox.com

Regional Office Australia:

Phone: +61 3 9566 7255 Email: info_anz@u-blox.com Support: support_ap@u-blox.com

Regional Office China (Beijing):

Phone: +86 10 68 133 545 Email: info_cn@u-blox.com Support: support_cn@u-blox.com

Regional Office China (Chongqing):

Phone: +86 23 6815 1588 Email: info_cn@u-blox.com Support: support_cn@u-blox.com

Regional Office China (Shanghai):

Phone: +86 21 6090 4832 Email: info_cn@u-blox.com Support: support_cn@u-blox.com

Regional Office China (Shenzhen):

Phone: +86 755 8627 1083 Email: info_cn@u-blox.com Support: support_cn@u-blox.com

Regional Office India:

Phone: +91 80 405 092 00 Email: info_in@u-blox.com Support: support_in@u-blox.com

Regional Office Japan (Osaka):

Phone: +81 6 6941 3660 Email: info_jp@u-blox.com Support: support_jp@u-blox.com

Regional Office Japan (Tokyo):

Phone: +81 3 5775 3850 Email: info_jp@u-blox.com Support: support_jp@u-blox.com

Regional Office Korea:

Phone: +82 2 542 0861 Email: info_kr@u-blox.com Support: support_kr@u-blox.com

Regional Office Taiwan:

Phone: +886 2 2657 1090 Email: info_tw@u-blox.com Support: support_tw@u-blox.com

u-blox TOBY-R2 Technical data

Specifications and Main Features

Frequently Asked Questions

User Manual

Document information

Contents

1 Functional description

1.1 Overview

1.2 Product features

1.3 Block diagram

1.4 Product description

1.5 AT command support

1.6 Supported features

2 Interfaces

2.1 Power management

2.1.1 Module supply input (VCC)

2.1.2 RTC supply input / output (V_BCKP)

2.1.3 Generic digital interfaces supply output (V_INT)

2.2 Antenna interfaces

2.2.1 Antenna RF interfaces

2.2.2 Antenna detection

2.3 System functions

2.3.1 Module power-on

2.3.2 Module power-off

2.3.3 Module reset

2.3.4 Module / host configuration selection

2.4 SIM

2.4.1 SIM interface

2.4.2 SIM detection

2.5 Serial communication

2.5.1 UART interface

2.5.1.1 Multiplexer protocol

2.5.2 USB interface

2.5.3 DDC (I2C) interface

2.5.4 SDIO interface

2.6 Audio

2.7 Clock output

2.8 GPIO

3 Pin definition

3.1 Pin assignment

4 Electrical specifications

4.1 Absolute maximum rating

4.1.1 Maximum ESD

4.2 Operating conditions

4.2.1 Operating temperature range

4.2.2 Supply/power pins

4.2.3 Current consumption

4.2.4 LTE RF characteristics

4.2.5 3G RF characteristics

4.2.6 2G RF characteristics

4.2.7 ANT_DET pin

4.2.8 PWR_ON pin

4.2.9 RESET_N pin

4.2.10 SIM pins

4.2.11 USB pins

4.2.12 DDC (I2C) pins

4.2.13 Generic Digital Interfaces pins

4.2.13.1 AC characteristics of clock output pin

4.2.13.2 AC characteristics of I2S pins

4.3 Parameters for ATEX applications

5 Mechanical specifications

6 Qualification and approvals

6.1 Reliability tests

6.2 Approvals

7 Product handling & soldering

7.1 Packaging

7.1.1 Reels

7.1.2 Tapes

7.2 Moisture sensitivity levels

7.3 Reflow soldering

7.4 ESD precautions

8 Default settings

9 Labeling and ordering information

9.1 Product labeling

9.2 Explanation of codes

9.3 Ordering information

Appendix

Related documentation

Revision history

Contact
