u blox SARAU260 User Manual

Abstract

This document describes the features and the system integration of the SARA-G3 series GSM/GPRS cellular modules and the SARA-U2 GSM/EGPRS/HSPA cellular modules.

These modules are complete and cost efficient solutions offering voice and/or data communication over diverse cellular radio access technologies in the same compact SARA form factor: the SARA-G3 series support up to 4-band GSM/GPRS while the SARA-U2 series support 2-band high-speed HSPA and up to 2-band GSM/EGPRS.

www.u-blox.com

UBX-13000995 - R08

SARA-G3 and SARA-U2 series

GSM/GPRS and GSM/EGPRS/HSPA Cellular Modules

System Integration Manual

SARA-G3 and SARA-U2 series - System Integration Manual

Document Information

Title

SARA-G3 and SARA-U2 series

Subtitle

GSM/GPRS and GSM/EGPRS/HSPA Cellular Modules

Document type

System Integration Manual

Document number

UBX-13000995

Revision, date

R08

29-Apr-2014

Document status

Objective Specification

Document status explanation

Objective Specification

Document contains target values. Revised and supplementary data will be published later.

Advance Information

Document contains data based on early testing. Revised and supplementary data will be published later.

Early Production Information

Document contains data from product verification. Revised and supplementary data may be published later.

Production Information

Document contains the final product specification.

Product name

Type number

Firmware version

PCN / IN

SARA-G300

SARA-G300-00S-00

08.58

GSM.G2-TN-13007

SARA-G310

SARA-G310-00S-00

08.58

GSM.G2-TN-13007

SARA-G340

SARA-G340-00S-00

08.49

UBX-14000382

SARA-G350

SARA-G350-00S-00

08.49

GSM.G2-TN-13002

SARA-G350 ATEX

SARA-G350-00X-00

08.49

GSM.G2-TN-13002

SARA-U260

SARA-U260-00S-00

TBD

SARA-U270

SARA-U270-00S-00

TBD

SARA-U280

SARA-U280-00S-00

TBD

SARA-U290

SARA-U290-00S-00

TBD

SARA-U290-60S-00

TBD

This document applies to the following products:

u-blox reserves all rights to this document and the information contained herein. Products, names, logos and designs described herein may in whole or in part be subject to intellectual property rights. Reproduction, use, modification or disclosure to third parties of this document or any part thereof without the express permission of u-blox is strictly prohibited.

The information contained herein is provided “as is” and u-blox assumes no liability for the use of the information. No warranty, either express or implied, is given, including but not limited, with respect to the accuracy, correctness, reliability and fitness for a particular purpose of the information. This document may be revised by u-blox at any time. For most recent documents, please visit www.u-blox.com.

Trademark Notice

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All other registered trademarks or trademarks mentioned in this document are property of their respective owners.

UBX-13000995 - R08

Page 2 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Preface

u-blox Technical Documentation

As part of our commitment to customer support, u-blox maintains an extensive volume of technical documentation for our products. In addition to our product-specific technical data sheets, the following manuals are available to assist u-blox customers in product design and development.

 AT Commands Manual: This document provides the description of the AT commands supported by the

u-blox cellular modules.

 System Integration Manual: This document provides the description of u-blox cellular modules’ system

from the hardware and the software point of view, it provides hardware design guidelines for the optimal integration of the cellular modules in the application device and it provides information on how to set up production and final product tests on application devices integrating the cellular modules.

 Application Notes: These documents provide guidelines and information on specific hardware and/or

software topics on u-blox cellular modules. See Related documents for a list of application notes related to your cellular module.

How to use this Manual

The SARA-G3 and SARA-U2 series System Integration Manual provides the necessary information to successfully design in and configure these u-blox cellular modules.

This manual has a modular structure. It is not necessary to read it from the beginning to the end. The following symbols are used to highlight important information within the manual:

An index finger points out key information pertaining to module integration and performance.

A warning symbol indicates actions that could negatively impact or damage the module.

Questions

If you have any questions about u-blox cellular Integration:

 Read this manual carefully.  Contact our information service on the homepage http://www.u-blox.com

Technical Support

Worldwide Web

Our website (www.u-blox.com) is a rich pool of information. Product information and technical documents can be accessed 24h a day.

By E-mail

If you have technical problems or cannot find the required information in the provided documents, contact the closest Technical Support office. To ensure that we process your request as soon as possible, use our service pool email addresses rather than personal staff email addresses. Contact details are at the end of the document.

Helpful Information when Contacting Technical Support

When contacting Technical Support, have the following information ready:

 Module type (e.g. SARA-G350) and firmware version  Module configuration  Clear description of your question or the problem  A short description of the application  Your complete contact details

UBX-13000995 - R08 Objective Specification Preface

Page 3 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Preface ................................................................................................................................ 3

Contents .............................................................................................................................. 4

1 System description ....................................................................................................... 8

1.1 Overview .............................................................................................................................................. 8

1.2 Architecture ........................................................................................................................................ 10

1.2.1 Internal blocks ............................................................................................................................. 12

1.3 Pin-out ............................................................................................................................................... 13

1.4 Operating modes ................................................................................................................................ 18

1.5 Supply interfaces ................................................................................................................................ 20

1.5.1 Module supply input (VCC) ......................................................................................................... 20

1.5.2 RTC supply input/output (V_BCKP) .............................................................................................. 29

1.5.3 Generic digital interfaces supply output (V_INT) ........................................................................... 30

1.6 System function interfaces .................................................................................................................. 31

1.6.1 Module power-on ....................................................................................................................... 31

1.6.2 Module power-off ....................................................................................................................... 34

1.6.3 Module reset ............................................................................................................................... 36

1.6.4 External 32 kHz signal input (EXT32K) ......................................................................................... 37

1.6.5 Internal 32 kHz signal output (32K_OUT) .................................................................................... 37

1.7 Antenna interface ............................................................................................................................... 38

1.7.1 Antenna RF interface (ANT) ......................................................................................................... 38

1.7.2 Antenna detection interface (ANT_DET) ...................................................................................... 39

1.8 SIM interface ...................................................................................................................................... 39

1.8.1 (U)SIM card interface ................................................................................................................... 39

1.8.2 SIM card detection interface (SIM_DET) ....................................................................................... 39

1.9 Serial interfaces .................................................................................................................................. 40

1.9.1 Asynchronous serial interface (UART)........................................................................................... 40

1.9.2 Auxiliary asynchronous serial interface (UART AUX) ..................................................................... 53

1.9.3 USB interface............................................................................................................................... 53

1.9.4 DDC (I2C) interface ...................................................................................................................... 55

1.10 Audio interface ............................................................................................................................... 57

1.10.1 Analog audio interface ................................................................................................................ 57

1.10.2 Digital audio interface ................................................................................................................. 59

1.10.3 Voice-band processing system ..................................................................................................... 61

1.11 General Purpose Input/Output (GPIO) ............................................................................................. 64

1.12 Reserved pins (RSVD) ...................................................................................................................... 68

1.13 System features............................................................................................................................... 69

1.13.1 Network indication ...................................................................................................................... 69

1.13.2 Antenna detection ...................................................................................................................... 69

1.13.3 Jamming detection ...................................................................................................................... 69

UBX-13000995 - R08 Objective Specification Contents

Page 4 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

1.13.4 TCP/IP and UDP/IP ....................................................................................................................... 70

1.13.5 FTP .............................................................................................................................................. 70

1.13.6 HTTP ........................................................................................................................................... 70

1.13.7 SMTP ........................................................................................................................................... 70

1.13.8 SSL .............................................................................................................................................. 71

1.13.9 Dual stack IPv4/IPv6 ..................................................................................................................... 71

1.13.10 Smart temperature management ............................................................................................. 72

1.13.11 AssistNow clients and GNSS integration ................................................................................... 74

1.13.12 Hybrid positioning and CellLocateTM ......................................................................................... 75

1.13.13 Firmware upgrade Over AT (FOAT) .......................................................................................... 77

1.13.14 Firmware upgrade Over The Air (FOTA) .................................................................................... 77

1.13.15 In-Band modem (eCall / ERA-GLONASS) .................................................................................. 78

1.13.16 SIM Access Profile (SAP) ........................................................................................................... 78

1.13.17 Power saving ........................................................................................................................... 80

2 Design-in ..................................................................................................................... 81

2.1 Overview ............................................................................................................................................ 81

2.2 Supply interfaces ................................................................................................................................ 82

2.2.1 Module supply (VCC) .................................................................................................................. 82

2.2.2 RTC supply (V_BCKP) ................................................................................................................... 93

2.2.3 Interface supply (V_INT) ............................................................................................................... 95

2.3 System functions interfaces ................................................................................................................ 96

2.3.1 Module power-on (PWR_ON) ...................................................................................................... 96

2.3.2 Module reset (RESET_N) .............................................................................................................. 97

2.3.3 32 kHz signal (EXT32K and 32K_OUT) ......................................................................................... 98

2.4 Antenna interface ............................................................................................................................. 100

2.4.1 Antenna RF interface (ANT) ....................................................................................................... 100

2.4.2 Antenna detection interface (ANT_DET) .................................................................................... 105

2.5 SIM interface .................................................................................................................................... 108

2.6 Serial interfaces ................................................................................................................................ 114

2.6.1 Asynchronous serial interface (UART)......................................................................................... 114

2.6.2 Auxiliary asynchronous serial interface (UART AUX) ................................................................... 119

2.6.3 Universal Serial Bus (USB) .......................................................................................................... 121

2.6.4 DDC (I2C) interface .................................................................................................................... 123

2.7 Audio interface ................................................................................................................................. 129

2.7.1 Analog audio interface .............................................................................................................. 129

2.7.2 Digital audio interface ............................................................................................................... 135

2.8 General Purpose Input/Output (GPIO) ............................................................................................... 138

2.9 Reserved pins (RSVD) ........................................................................................................................ 139

2.10 Module placement ........................................................................................................................ 139

2.11 Module footprint and paste mask ................................................................................................. 140

2.12 Thermal guidelines ........................................................................................................................ 141

2.13 ESD guidelines .............................................................................................................................. 143

2.13.1 ESD immunity test overview ...................................................................................................... 143

UBX-13000995 - R08 Objective Specification Contents

Page 5 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

2.13.2 ESD immunity test of u-blox SARA-G3 and SARA-U2 reference designs..................................... 143

2.13.3 ESD application circuits .............................................................................................................. 144

2.14 SARA-G350 ATEX integration in explosive atmospheres applications ............................................ 146

2.14.1 General guidelines ..................................................................................................................... 146

2.14.2 Guidelines for VCC supply circuit design ................................................................................... 147

2.14.3 Guidelines for antenna RF interface design ................................................................................ 148

2.15 Schematic for SARA-G3 and SARA-U2 series module integration .................................................. 149

2.15.1 Schematic for SARA-G300 / SARA-G310 modules integration ................................................... 149

2.15.2 Schematic for SARA-G340 / SARA-G350 modules integration ................................................... 150

2.15.3 Schematic for SARA-U2 series modules integration ................................................................... 151

2.16 Design-in checklist ........................................................................................................................ 152

2.16.1 Schematic checklist ................................................................................................................... 152

2.16.2 Layout checklist ......................................................................................................................... 153

2.16.3 Antenna checklist ...................................................................................................................... 153

3 Handling and soldering ........................................................................................... 154

3.1 Packaging, shipping, storage and moisture preconditioning ............................................................. 154

3.2 Handling ........................................................................................................................................... 154

3.3 Soldering .......................................................................................................................................... 155

3.3.1 Soldering paste.......................................................................................................................... 155

3.3.2 Reflow soldering ....................................................................................................................... 155

3.3.3 Optical inspection ...................................................................................................................... 156

3.3.4 Cleaning .................................................................................................................................... 156

3.3.5 Repeated reflow soldering ......................................................................................................... 157

3.3.6 Wave soldering.......................................................................................................................... 157

3.3.7 Hand soldering .......................................................................................................................... 157

3.3.8 Rework ...................................................................................................................................... 157

3.3.9 Conformal coating .................................................................................................................... 157

3.3.10 Casting ...................................................................................................................................... 157

3.3.11 Grounding metal covers ............................................................................................................ 157

3.3.12 Use of ultrasonic processes ........................................................................................................ 157

4 Approvals .................................................................................................................. 158

4.1 Product certification approval overview ............................................................................................. 158

4.2 Federal Communications Commission and Industry Canada notice ................................................... 159

4.2.1 Safety warnings review the structure ......................................................................................... 159

4.2.2 Declaration of conformity – United States only .......................................................................... 159

4.2.3 Modifications ............................................................................................................................ 160

4.3 R&TTED and European conformance CE mark .................................................................................. 161

4.4 Anatel certification ........................................................................................................................... 162

4.5 SARA-G350 ATEX conformance for use in explosive atmospheres .................................................... 163

5 Product testing ......................................................................................................... 164

5.1 u-blox in-series production test ......................................................................................................... 164

5.2 Test parameters for OEM manufacturer ............................................................................................ 164

UBX-13000995 - R08 Objective Specification Contents

Page 6 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

5.2.1 “Go/No go” tests for integrated devices .................................................................................... 165

5.2.2 Functional tests providing RF operation ..................................................................................... 165

Appendix ........................................................................................................................ 168

A Migration between LISA and SARA-G3 modules ................................................... 168

A.1 Overview .......................................................................................................................................... 168

A.2 Checklist for migration ..................................................................................................................... 169

A.3 Software migration ........................................................................................................................... 170

A.4 Hardware migration.......................................................................................................................... 170

A.4.1 Supply interfaces ....................................................................................................................... 170

A.4.2 System functions interfaces ....................................................................................................... 171

A.4.3 Antenna interface ..................................................................................................................... 172

A.4.4 SIM interface ............................................................................................................................. 173

A.4.5 Serial interfaces ......................................................................................................................... 173

A.4.6 Audio interfaces ........................................................................................................................ 174

A.4.7 GPIO pins .................................................................................................................................. 174

A.4.8 Reserved pins ............................................................................................................................ 174

A.4.9 Pin-out comparison between LISA and SARA-G3 ....................................................................... 175

B Migration between SARA-G3 and SARA-U2 ........................................................... 180

B.1 Overview .......................................................................................................................................... 180

B.2 Pin-out comparison between SARA-G3 and SARA-U2 ...................................................................... 181

B.3 Schematic for SARA-G3 and SARA-U2 integration ............................................................................ 183

C Glossary .................................................................................................................... 184

Related documents......................................................................................................... 186

Revision history .............................................................................................................. 187

Contact ............................................................................................................................ 188

UBX-13000995 - R08 Objective Specification Contents

Page 7 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Module

Data rate

Bands

Interfaces

Audio

Functions

3G Up-Link [Mb/s]

3G Down-Link [Mb/s]

2G Up-Link [kb/s]

2G Down-Link [kb/s]

3G bands [MHz]

2G bands [MHz]

UART

SPI

USB

DDC (I

GPIO

Analog audio

Digital audio over USB

Digital audio over I

Network indication

Antenna supervisor

Jamming detection

Embedded TCP / UDP

Embedded HTTP, FTP

Embedded SSL / TLS

GNSS via Modem

AssistNow Software

CellLocate

FW update via serial

eCall / ERA-GLONASS

Low power idle-mode

ATEX certification

Dual stack IPv4/IPv6

SARA-G300

42.8

85.6 900/1800

2 • E

SARA-G310

42.8

85.6 4-band

2 • E

SARA-G340

42.8

85.6 900/1800

2 1 4 1 1 • • • • • • • • • • •

SARA-G350

42.8

85.6 4-band

2 1 4 1 1 • • • • • • • • • • •

SARA-G350 ATEX

42.8

85.6 4-band

2 1 4 1 1 • • • • • • • • • • • •

SARA-U260

5.76

7.2

85.6

236.8

850/1900

1 1 1 9 F 1 • • • • • • • • • • •

•

SARA-U270

5.76

7.2

85.6

236.8

900/2100

900/1800

1 1 1 9 F 1 • • • • • • • • • • • •

•

SARA-U280

5.76

7.2

850/1900

1 1 1 9 F 1 • • • • • • • • • • • •

SARA-U290

5.76

7.2

900/2100

1 1 1 9 F 1 • • • • • • • • • • • • •

E = 32 kHz signal at EXT32K input pin is required for low power idle-mode F = not supported by initial FW release

1 System description

1.1 Overview

SARA-G3 series GSM/GPRS cellular modules and SARA-U2 series GSM/EGPRS/HSPA cellular modules are versatile solutions offering voice and/or data communication over diverse radio access technologies in the same miniature SARA LGA form factor (26 x 16 mm) that allows seamless drop-in migration between the two SARA-G3 and SARA-U2 series and easy migration to u-blox LISA-U series GSM/EGPRS/HSPA+ modules, LISA-C2 series CDMA modules, TOBY-L1 series LTE modules and to TOBY-L2 series GSM/EGPRS/DC-HSPA+/LTE modules.

SARA-G350 and SARA-G340 are respectively quad-band and dual-band full feature GSM/GPRS cellular modules with a comprehensive feature set including an extensive set of internet protocols and access to u-blox GNSS positioning chips and modules, with embedded A-GPS (AssistNow Online and AssistNow Offline) functionality.

SARA-G310 and SARA-G300 are respectively quad-band and dual-band GSM/GPRS cellular modules targeted for high volume cost sensitive applications, providing GSM/GPRS functionalities with a reduced set of additional features to minimize the customer’s total cost of ownership.

SARA-U2 series include variants supporting band combination for North America and band combination for Europe, Asia and other countries. For each combination, a complete UMTS/GSM variant and a cost-saving UMTS-only variant are available. All SARA-U2 series modules provide a rich feature set including an extensive set of internet protocols, dual-stack IPv4 / IPv6 and access to u-blox GNSS positioning chips and modules, with embedded A-GPS (AssistNow Online and AssistNow Offline) functionality.

Table 1 describes a summary of interfaces and features provided by SARA-G3 and SARA-U2 series modules.

Table 1: SARA-G3 series1 and SARA-U2 series2 features summary

SARA-G350 ATEX modules provide the same feature set of the SARA-G350 modules plus the certification for use in potentially explosive

atmospheres. Unless otherwise specified, SARA-G350 refers to all SARA-G350 ATEX modules and SARA-G350 modules.

SARA-U290 modules include ‘00’ and ‘60’ FW versions: SARA-U290-60S is approved and locked for SoftBank Japanese network operator.

UBX-13000995 - R08 Objective Specification System description

Page 8 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Item

SARA-U260

SARA-U270

SARA-G300 / SARA-G340

SARA-G310 / SARA-G350

Protocol stack

3GPP Release 7

3GPP Release 99

MS class

Class B3

Bands4

GSM 850 MHz PCS 1900 MHz

E-GSM 900 MHz DCS 1800 MHz

GSM 850 MHz E-GSM 900 MHz DCS 1800 MHz PCS 1900 MHz

Power class

Class 4 (33 dBm) for 850 band Class 1 (30 dBm) for 1900 band

Class 4 (33 dBm) for 900 band Class 1 (30 dBm) for 1800 band

Class 4 (33 dBm) for 850/900 bands Class 1 (30 dBm) for 1800/1900 bands

PS data rate5

GPRS multi-slot class 126 CS 1-4, 85.6 kb/s DL CS 1-4, 85.6 kb/s UL EDGE multi-slot class 126 MCS 1-9, 236.8 kb/s DL MCS 1-4, 70.4 kb/s UL

GPRS multi-slot class 107 CS 1-4, 85.6 kb/s DL CS 1-4, 42.8 kb/s UL5

GPRS multi-slot class 107 CS 1-4, 85.6 kb/s DL CS 1-4, 42.8 kb/s UL

CS data rate5

Up to 9.6 kb/s DL/UL Transparent mode Non transparent mode

Item

SARA-U260

SARA-U270

SARA-U280

SARA-U290

Protocol stack

3GPP Release 7

UE class

Class A8

Bands

Band V (850 MHz) Band II (1900 MHz)

Band VIII (900 MHz) Band I (2100 MHz)

Band V (850 MHz) Band II (1900 MHz)

Band VIII (900 MHz) Band I (2100 MHz)

Power class

Class 3 (24 dBm) for all bands

PS data rate5

HSUPA category 6

5.76 Mb/s UL HSDPA category 8

7.2 Mb/s DL

HSUPA category 6

5.76 Mb/s UL HSDPA category 8

7.2 Mb/s DL

HSUPA category 6

5.76 Mb/s UL HSDPA category 8

7.2 Mb/s DL

HSUPA category 6

5.76 Mb/s UL HSDPA category 8

7.2 Mb/s DL

CS data rate5

Up to 64 kb/s DL/UL

Table 2 reports a summary of 2G cellular characteristics of SARA-G3 and SARA-U2 series modules.

Table 2: SARA-G3 series and SARA-U2 series 2G characteristics summary

Table 3 reports a summary of 3G cellular characteristics of SARA-U2 series modules.

Table 3: SARA-U2 series 3G characteristics summary

Device can be attached to both GPRS and GSM services (i.e. Packet Switch and Circuit Switch mode) using one service at a time. The 2G 850 / 1900 MHz and 3G 850 / 1900 MHz bands are mainly operative in America. The 2G 900 / 1800 MHz and 3G 900 / 2100 MHz

bands are mainly operative in Europe, Asia and other countries.

The maximum bit rate of the module depends on the actual network environmental conditions and settings. GPRS/EDGE multi-slot class 12 implies a maximum of 4 slots in DL (reception) and 4 slots in UL (transmission) with 5 slots in total. GPRS multi-slot class 10 implies a maximum of 4 slots in DL (reception) and 2 slots in UL (transmission) with 5 slots in total. Device can work simultaneously in Packet Switch and Circuit Switch mode: voice calls are possible while the data connection is active

without any interruption in service.

UBX-13000995 - R08 Objective Specification System description

Page 9 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Memory

V_BCKP (RTC)

V_INT (I/O)

32 kHz

26 MHz

Transceiver

Power

Management

ANT

SAW Filter

Switch

VCC (Supply)

32 kHz

Auxiliary UART

SIM

UART

Power-On

Reset

Cellular

BaseBand

Processor

Memory

V_BCKP (RTC)

V_INT (I/O)

26 MHz

32.768 kHz

Transceiver

Power

Management

Cellular BaseBand Processor

ANT

SAW Filter

Switch

VCC (Supply)

Auxiliary UART

DDC (for GNSS)

SIM Card Detection

SIM

UART

Power-On

Reset

Digital Audio

Analog Audio

GPIO

Antenna Detection

1.2 Architecture

Figure 1 summarizes the architecture of SARA-G300 and SARA-G310 modules, while Figure 2 summarizes the architecture of SARA-G340 and SARA-G350 modules, describing the internal blocks of the modules, consisting of the RF, Baseband and Power Management main sections, and the available interfaces.

Figure 1: SARA-G300 and SARA-G310 modules block diagram

Figure 2: SARA-G340 and SARA-G350 modules block diagram

UBX-13000995 - R08 Objective Specification System description

Page 10 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Memory

V_BCKP (RTC)

V_INT (I/O)

Transceiver

Power

Management

Cellular BaseBand Processor

ANT

VCC (Supply)

USB

DDC (I2C)

SIM card detection

SIM

UART

Power-On

Reset

Digital audio (I2S)

GPIO

Antenna detection

3G PA

26 MHz

Duplexer

Filter

Switch

2G PA

LNA

32.768 kHz

Memory

V_BCKP (RTC)

V_INT (I/O)

Transceiver

Power

Management

Cellular

BaseBand

Processor

ANT

VCC (Supply)

USB

DDC (I2C)

SIM card detection

SIM

UART

Power-On

Reset

Digital audio (I2S)

GPIO

Antenna detection

3G PA

26 MHz

Duplexer

Filter

Switch

LNA

32.768 kHz

Figure 3 summarizes the architecture of SARA-U260 and SARA-U270 modules, while Figure 4 summarizes the architecture of SARA-U280 and SARA-U290 modules, describing the internal blocks of the modules, consisting of the RF, Baseband and Power Management main sections, and the available interfaces.

Figure 3: SARA-U260 and SARA-U270 modules block diagram

Figure 4: SARA-U280 and SARA-U290 modules block diagram

UBX-13000995 - R08 Objective Specification System description

Page 11 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

1.2.1 Internal blocks

SARA-G3 and SARA-U2 series modules internally consist of the RF, Baseband and Power Management sections here described with more details than the simplified block diagrams of Figure 1, Figure 2, Figure 3 and Figure 4.

RF section

The RF section is composed of the following main elements:

 2G / 3G RF transceiver performing modulation, up-conversion of the baseband I/Q signals, down-conversion

and demodulation of the RF received signals. The RF transceiver includes:

Constant gain direct conversion receiver with integrated LNAs Highly linear RF quadrature GMSK demodulator Digital Sigma-Delta transmitter GMSK modulator Fractional-N Sigma-Delta RF synthesizer

3.8 GHz VCO Digital controlled crystal oscillator

 2G / 3G Power Amplifier, which amplifies the signals modulated by the RF transceiver  RF switch, which connects the antenna input/output pin (ANT) of the module to the suitable RX/TX path  RX diplexer SAW (band pass) filters  26 MHz crystal, connected to the digital controlled crystal oscillator to perform the clock reference in

active-mode or connected-mode

Baseband and Power Management section

The Baseband and Power Management section is composed of the following main elements:

 Baseband processor, a mixed signal ASIC which integrates:

Microprocessor for controller functions DSP core for 2G / 3G Layer 1 and audio processing Dedicated peripheral blocks for parallel control of the digital interfaces Audio analog front-end

 Memory system in a multi-chip package integrating two devices:

NOR flash non-volatile memory RAM volatile memory

 Voltage regulators to derive all the system supply voltages from the module supply VCC  Circuit for the RTC clock reference in low power idle-mode:

SARA-G340, SARA-G350 and SARA-U2 series modules are equipped with an internal 32.768 kHz crystal connected to the oscillator of the RTC (Real Time Clock) block that gives the RTC clock reference needed to provide the RTC functions as well as to reach the very low power idle-mode (with power saving configuration enabled by the AT+UPSV command).

SARA-G300 and SARA-G310 modules are not equipped with an internal 32.768 kHz crystal: a proper 32 kHz signal must be provided at the EXT32K input pin of the modules to give the RTC clock reference and to provide the RTC functions as well as to reach the very low power idle-mode (with power saving configuration enabled by AT+UPSV). The 32K_OUT output pin of SARA-G300 and SARA-G310 provides a 32 kHz reference signal suitable only to feed the EXT32K input pin, furnishes the reference clock for the RTC, and allows low power idle-mode and RTC functions support with modules switched on.

UBX-13000995 - R08 Objective Specification System description

Page 12 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Function

Pin Name

Module

Pin No

I/O

Description

Remarks

Power

VCC

All

51, 52, 53

Module supply input

VCC pins are internally connected each other. VCC supply circuit affects the RF performance and

compliance of the device integrating the module with applicable required certification schemes. See section 1.5.1 for functional description and requirements for the VCC module supply. See section 2.2.1 for external circuit design-in.

GND

All

1, 3, 5, 14, 20-22, 30, 32, 43, 50, 54, 55, 57-61, 63-96

N/A

Ground

GND pins are internally connected each other. External ground connection affects the RF and thermal performance of the device. See section 1.5.1 for functional description. See section 2.2.1 for external circuit design-in.

V_BCKP

All 2 I/O

Real Time Clock supply input/output

V_BCKP = 2.3 V (typical) on SARA-G3 series. V_BCKP = 1.8 V (typical) on SARA-U2 series. V_BCKP is generated by internal low power linear

regulator when valid VCC supply is present. See section 1.5.2 for functional description. See section 2.2.2 for external circuit design-in.

V_INT

All 4 O

Generic Digital Interfaces supply output

V_INT = 1.8 V (typical), generated by internal DC/DC regulator when the module is switched on.

See section 1.5.3 for functional description. See section 2.2.3 for external circuit design-in.

System

PWR_ON

All

15 I Power-on input

High input impedance: input voltage level has to be properly fixed, e.g. adding external pull-up. See section 1.6.1 for functional description. See section 2.3.1 for external circuit design-in.

RESET_N

All

18 I External reset input

A series Schottky diode is integrated in the module as protection, and then an internal 10 k pull-up resistor to V_INT is provided. See section 1.6.3 for functional description. See section 2.3.2 for external circuit design-in.

EXT32K

SARA-G300 SARA-G310

31 I 32 kHz input

Input for RTC reference clock, needed to enter the low power idle-mode and provide RTC functions.

See section 1.6.4 for functional description. See section 2.3.3 for external circuit design-in.

32K_OUT

SARA-G300 SARA-G310

24 O 32 kHz output

32 kHz output suitable only to feed the EXT32K input giving the RTC reference clock, allowing low power idle-mode and RTC functions support.

See section 1.6.5 for functional description. See section 2.3.3 for external circuit design-in.

Antenna

ANT

All

I/O

RF input/output for antenna

50  nominal characteristic impedance. Antenna circuit affects the RF performance and compliance of the device integrating the module with applicable required certification schemes. See section 1.7 for functional description and requirements for the antenna RF interface. See section 2.4 for external circuit design-in.

ANT_DET

SARA-G340 SARA-G350 SARA-U2

62 I Input for antenna detection

ADC input for antenna detection function. See section 1.7.2 for functional description. See section 2.4.2 for external circuit design-in.

1.3 Pin-out

Table 4 lists the pin-out of the SARA-G3 and SARA-U2 series modules, with pins grouped by function.

UBX-13000995 - R08 Objective Specification System description

Page 13 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Function

Pin Name

Module

Pin No

I/O

Description

Remarks

SIM

VSIM

All

41 O SIM supply output

VSIM = 1.80 V typ. or 2.85 V typ. automatically generated according to the connected SIM type.

See section 1.8 for functional description. See section 2.5 for external circuit design-in.

SIM_IO

All

I/O

SIM data

Data input/output for 1.8 V / 3 V SIM Internal 4.7 k pull-up to VSIM. See section 1.8 for functional description. See section 2.5 for external circuit design-in.

SIM_CLK

All

38 O SIM clock

3.25 MHz clock output for 1.8 V / 3 V SIM See section 1.8 for functional description. See section 2.5 for external circuit design-in.

SIM_RST

All

40 O SIM reset

Reset output for 1.8 V / 3 V SIM See section 1.8 for functional description. See section 2.5 for external circuit design-in.

SIM_DET

All

I / I/O

SIM detection / GPIO

1.8 V input for SIM presence detection function. Pin configurable also as GPIO on SARA-U2 series. See section 1.8.2 for functional description. See section 2.5 for external circuit design-in.

UART

RXD

All

13 O UART data output

1.8 V output, Circuit 104 (RXD) in ITU-T V.24, for AT, data, FOAT on SARA-G3 series modules, for AT, data, FOAT, FW upgrade via EasyFlash tool and diagnostic on SARA-U2 series modules.

See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

TXD

All

12 I UART data input

1.8 V input, Circuit 103 (TXD) in ITU-T V.24, for AT, data, FOAT on SARA-G3 series modules, for AT, data, FOAT, FW upgrade via EasyFlash tool and diagnostic on SARA-U2 series modules.

Internal active pull-up to V_INT. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

CTS

All

11 O UART clear to send output

1.8 V output, Circuit 106 (CTS) in ITU-T V.24. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

RTS

All

10 I UART ready to send input

1.8 V input, Circuit 105 (RTS) in ITU-T V.24. Internal active pull-up to V_INT. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

DSR

All 6 O

UART data set ready output

1.8 V output, Circuit 107 (DSR) in ITU-T V.24. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

All 7 O

UART ring indicator output

1.8 V output, Circuit 125 (RI) in ITU-T V.24. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

DTR

All 9 I

UART data terminal ready input

1.8 V input, Circuit 108/2 (DTR) in ITU-T V.24. Internal active pull-up to V_INT. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

DCD

All 8 O

UART data carrier detect output

1.8 V input, Circuit 109 (DCD) in ITU-T V.24. See section 1.9.1 for functional description. See section 2.6.1 for external circuit design-in.

UBX-13000995 - R08 Objective Specification System description

Page 14 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Function

Pin Name

Module

Pin No

I/O

Description

Remarks

Auxiliary UART

RXD_AUX

SARA-G3

28 O Auxiliary UART data output

1.8 V output, Circuit 104 (RXD) in ITU-T V.24, for FW upgrade via EasyFlash tool and diagnostic.

Access by external test-point is recommended. See section 1.9.2 for functional description. See section 2.6.2 for external circuit design-in.

TXD_AUX

SARA-G3

29 I Auxiliary UART data input

1.8 V input, Circuit 103 (TXD) in ITU-T V.24, for FW upgrade via EasyFlash tool and diagnostic. Access by external test-point is recommended. Internal active pull-up to V_INT.

See section 1.9.2 for functional description. See section 2.6.2 for external circuit design-in.

USB

VUSB_DET

SARA-U2

17 I USB detect input

High-Speed USB 2.0 interface input for VBUS (5 V typical) USB supply sense. USB available for AT, data, FOAT, FW upgrade via EasyFlash tool and diagnostic.

See section 1.9.3 for functional description. See section 2.6.3 for external circuit design-in.

USB_D-

SARA-U2

I/O

USB Data Line D-

High-Speed USB 2.0 interface data line for AT, data, FOAT, FW upgrade via EasyFlash tool and diagnostic.

90  nominal differential impedance. Pull-up, pull-down and series resistors as required by USB 2.0 specifications [14] are part of the USB pin driver and need not be provided externally. See section 1.9.3 for functional description. See section 2.6.3 for external circuit design-in.

USB_D+

SARA-U2

I/O

USB Data Line D+

High-Speed USB 2.0 interface data line for AT, data, FOAT, FW upgrade via EasyFlash tool and diagnostic.

DDC

SCL

SARA-G340 SARA-G350 SARA-U2

27 O I2C bus clock line

1.8 V open drain, for the communication with the u-blox positioning modules / chips. Communication with other external I2C-slave devices as an audio codec is additionally supported by SARA-U2 series.

External pull-up required. See section 1.9.4 for functional description. See section 2.6.4 for external circuit design-in.

SDA

SARA-G340 SARA-G350 SARA-U2

I/O

I2C bus data line

1.8 V open drain, for the communication with u-blox positioning modules / chips. Communication with other external I2C-slave devices as an audio codec is additionally supported by SARA-U2 series.

External pull-up required. See section 1.9.4 for functional description. See section 2.6.4 for external circuit design-in.

UBX-13000995 - R08 Objective Specification System description

Page 15 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Function

Pin Name

Module

Pin No

I/O

Description

Remarks

Analog Audio

MIC_BIAS

SARA-G340 SARA-G350

46 O Microphone supply output

Supply output (2.2 V typ) for external microphone. See section 1.10.1 for functional description. See section 2.7.1 for external circuit design-in.

MIC_GND

SARA-G340 SARA-G350

47 I Microphone analog reference

Local ground for the external microphone (reference for the analog audio uplink path). See section 1.10.1 for functional description. See section 2.7.1 for external circuit design-in.

MIC_N

SARA-G340 SARA-G350

48 I Differential analog audio input (negative)

Differential analog audio signal input (negative) shared for all the analog uplink path modes: handset, headset, hands-free mode.

No internal DC blocking capacitor. See section 1.10.1 for functional description. See section 2.7.1 for external circuit design-in.

MIC_P

SARA-G340 SARA-G350

49 I Differential analog audio input (positive)

Differential analog audio signal input (positive) shared for all the analog uplink path modes: handset, headset, hands-free mode.

No internal DC blocking capacitor. See section 1.10.1 for functional description. See section 2.7.1 for external circuit design-in.

SPK_P

SARA-G340 SARA-G350

44 O Differential analog audio output (positive)

Differential analog audio signal output (positive) shared for all the analog downlink path modes: earpiece, headset and loudspeaker mode.

See section 1.10.1 for functional description. See section 2.7.1 for external circuit design-in.

SPK_N

SARA-G340 SARA-G350

45 O Differential analog audio output (negative)

Differential analog audio signal output (negative) shared for all the analog downlink path modes: earpiece, headset and loudspeaker mode.

See section 1.10.1 for functional description. See section 2.7.1 for external circuit design-in.

Digital Audio

I2S_CLK

SARA-G340 SARA-G350 SARA-U2

O / I/O

I2S clock / GPIO

1.8 V serial clock for PCM / normal I2S modes. Pin configurable also as GPIO on SARA-U2 series. See section 1.10.2 for functional description. See section 2.7.2 for external circuit design-in.

I2S_RXD

SARA-G340 SARA-G350 SARA-U2

I / I/O

I2S receive data / GPIO

1.8 V data input for PCM / normal I2S modes. Pin configurable also as GPIO on SARA-U2 series. Internal active pull-down to GND. See section 1.10.2 for functional description. See section 2.7.2 for external circuit design-in.

I2S_TXD

SARA-G340 SARA-G350 SARA-U2

O / I/O

I2S transmit data / GPIO

1.8 V data output for PCM / normal I2S modes. Pin configurable also as GPIO on SARA-U2 series. See section 1.10.2 for functional description. See section 2.7.2 for external circuit design-in.

I2S_WA

SARA-G340 SARA-G350 SARA-U2

O / I/O

I2S word alignment / GPIO

1.8 V word alignment for PCM / normal I2S modes Pin configurable also as GPIO on SARA-U2 series. See section 1.10.2 for functional description. See section 2.7.2 for external circuit design-in.

CODEC_CLK

SARA-U2

19 O Clock output

1.8 V master clock output for external audio codec See section 1.10.2 for functional description. See section 2.7.2 for external circuit design-in

UBX-13000995 - R08 Objective Specification System description

Page 16 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Function

Pin Name

Module

Pin No

I/O

Description

Remarks

GPIO

GPIO1

SARA-G340 SARA-G350 SARA-U2

I/O

GPIO

1.8 V GPIO by default configured as pin disabled. See section 1.11 for functional description. See section 2.8 for external circuit design-in.

GPIO2

SARA-G340 SARA-G350 SARA-U2

I/O

GPIO

1.8 V GPIO by default configured to provide the custom GNSS supply enable function. See section 1.11 for functional description. See section 2.8 for external circuit design-in.

GPIO3

SARA-G340 SARA-G350 SARA-U2

I/O

GPIO

1.8 V GPIO by default configured to provide the custom GNSS data ready function. See section 1.11 for functional description. See section 2.8 for external circuit design-in.

GPIO4

SARA-G340 SARA-G350 SARA-U2

I/O

GPIO

1.8 V GPIO by default configured to provide the custom GNSS RTC sharing function. See section 1.11 for functional description. See section 2.8 for external circuit design-in.

Reserved

RSVD

All

N/A

RESERVED pin

This pin must be connected to ground. See section 2.9

RSVD

SARA-G3

17, 19

N/A

RESERVED pin

Leave unconnected. See section 2.9

RSVD

SARA-G340 SARA-G350 SARA-U2

N/A

RESERVED pin

Internally not connected. Leave unconnected. See section 2.9

RSVD

SARA-G300 SARA-G310

16, 23, 25-27, 34-37

N/A

RESERVED pin

Pin disabled. Leave unconnected. See section 2.9

RSVD

SARA-G300 SARA-G310 SARA-U2

44-49

N/A

RESERVED pin

Leave unconnected. See section 2.9

RSVD

SARA-G300 SARA-G310

N/A

RESERVED pin

Leave unconnected. See section 2.9

Table 4: SARA-G3 and SARA-U2 series modules pin definition, grouped by function

UBX-13000995 - R08 Objective Specification System description

Page 17 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

General Status

Operating Mode

Definition Power-down

Not-Powered Mode

VCC supply not present or below operating range: module is switched off.

Power-Off Mode

VCC supply within operating range and module is switched off.

Normal Operation

Idle-Mode

Module processor core runs with 32 kHz reference, that is generated by:

 The internal 32 kHz oscillator (SARA-G340, SARA-G350 and SARA-U2 series)  The 32 kHz signal provided at the EXT32K pin (SARA-G300 and SARA-G310)

Active-Mode

Module processor core runs with 26 MHz reference generated by the internal oscillator.

Connected-Mode

Voice or data call enabled and processor core runs with 26 MHz reference.

Operating Mode

Description

Transition between operating modes

Not-Powered

Module is switched off. Application interfaces are not accessible. Internal RTC operates on SARA-G340/G350,

SARA-U2 if a valid voltage is applied to V_BCKP. Additionally, a proper external 32 kHz signal must be fed to EXT32K on SARA-G300/G310 modules to let internal RTC timer running.

When VCC supply is removed, the module enters not-powered mode. When in not-powered mode, the modules cannot be switched on by

PWR_ON, RESET_N or RTC alarm. When in not-powered mode, the modules can be switched on applying

VCC supply (see 2.3.1) so that the module switches from not-powered to active-mode.

Power-Off

Module is switched off: normal shutdown by an appropriate power-off event (see 1.6.2).

Application interfaces are not accessible. Internal RTC operates on SARA-G340/G350,

SARA-U2 as V_BCKP is internally generated. A proper external 32 kHz signal must be fed to the EXT32K pin on SARA-G300/G310 to let RTC timer running that otherwise is not in operation.

When the module is switched off by an appropriate power-off event (see 1.6.2), the module enters power-off mode from active-mode.

When in power-off mode, the modules can be switched on by PWR_ON, RESET_N or RTC alarm (see 2.3.1): the module switches from power-off to active-mode.

When VCC supply is removed, the module switches from power-off mode to not-powered mode.

Idle

The module is not ready to communicate with an external device by means of the application interfaces as configured to reduce consumption.

The module automatically enters idle-mode whenever possible if power saving is enabled by the AT+UPSV command (see u-blox AT Commands Manual [3]), reducing power consumption (see section 1.5.1.4).

The CTS output line indicates when the UART interface is disabled/enabled due to the module idle/active-mode according to power saving and HW flow control settings (see 1.9.1.3, 1.9.1.4).

Power saving configuration is not enabled by default: it can be enabled by AT+UPSV (see the u-blox AT Commands Manual [3]).

A proper 32 kHz signal must be fed to the EXT32K pin of SARA-G300/G310 modules to let idle-mode that otherwise cannot be reached (this is not needed for the other SARA-G3 and SARA-U2 series modules).

The module automatically switches from active-mode to idle-mode whenever possible if power saving is enabled (see sections 1.5.1.4,

1.9.1.4 and to the u-blox AT Commands Manual [3], AT+UPSV). The module wakes up from idle to active mode in the following events:

 Automatic periodic monitoring of the paging channel for the

paging block reception according to network conditions (see

1.5.1.4, 1.9.1.4)

 Automatic periodic enable of the UART interface to receive and

send data, if AT+UPSV=1 power saving is set (see 1.9.1.4)

 RTC alarm occurs (see u-blox AT Commands Manual [3], +CALA)  Data received on UART interface, according to HW flow control

(AT&K) and power saving (AT+UPSV) settings (see 1.9.1.4)

 RTS input line set to the ON state by the DTE, if HW flow control

is disabled by AT&K3 and AT+UPSV=2 is set (see 1.9.1.4)

 DTR input line set to the ON state by the DTE, if AT+UPSV=3

power saving is set (see 1.9.1.4)

 USB detection, applying 5 V (typ.) to VUSB_DET input (see 1.9.3)  The connected USB host forces a remote wakeup of the module

as USB device (see 1.9.3)

 GNSS data ready: when the GPIO3 pin is informed by the

connected u-blox GNSS receiver that it is ready to send data over the DDC (I2C) communication interface (see 1.11, 1.9.4)

1.4 Operating modes

SARA-G3 modules have several operating modes. The operating modes defined in Table 5 and described in detail in Table 6 provide general guidelines for operation.

Table 5: Module operating modes definition

UBX-13000995 - R08 Objective Specification System description

Page 18 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Operating Mode

Description

Transition between operating modes

Active

The module is ready to communicate with an external device by means of the application interfaces unless power saving configuration is enabled by the AT+UPSV command (see sections 1.5.1.4, 1.9.1.4 and to the u-blox AT Commands Manual [3]).

When the module is switched on by an appropriate power-on event (see 2.3.1), the module enters active-mode from not-powered or power-off mode.

If power saving configuration is enabled by the AT+UPSV command, the module automatically switches from active to idle-mode whenever possible and the module wakes up from idle to active-mode in the events listed above (see idle to active transition description).

When a voice call or a data call is initiated, the module switches from active-mode to connected-mode.

Connected

A voice call or a data call is in progress. The module is ready to communicate with an

external device by means of the application interfaces unless power saving configuration is enabled by the AT+UPSV command (see sections 1.5.1.4, 1.9.1.4 and the u-blox AT Commands Manual [3]).

When a voice call or a data call is initiated, the module enters connected-mode from active-mode.

When a voice call or a data call is terminated, the module returns to the active-mode.

Switch ON:

• Apply VCC

If power saving is enabled

and there is no activity for

a defined time interval

Any wake up event described in the module operating modes summary table above

Incoming/outgoing call or

other dedicated device

network communication

No RF Tx/Rx in progress, Call terminated, Communication dropped

Remove VCC

Switch ON:

• PWR_ON

• RTC alarm

• RESET_N

(SARA-U2)

Not

powered

Power off

ActiveConnected Idle

Switch OFF:

• AT+CPWROFF

• PWR_ON

(SARA-U2)

Table 6: Module operating modes description

Figure 5 describes the transition between the different operating modes.

Figure 5: Operating modes transition

UBX-13000995 - R08 Objective Specification System description

Page 19 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Item

Requirement

Remark

VCC nominal voltage

Within VCC normal operating range:

3.35 V min. / 4.50 V max for SARA-G3 series

3.30 V min. / 4.40 V max for SARA-U2 series

The module cannot be switched on if VCC voltage value is below the normal operating range minimum limit. Ensure that the input voltage at VCC pins is above the minimum limit of the normal operating range for at least more than 3 s after the module switch-on.

VCC voltage during normal operation

Within VCC extended operating range:

3.00 V min. / 4.50 V max for SARA-G3 series

3.10 V min. / 4.50 V max for SARA-U2 series

The module may switch off when VCC voltage drops below the extended operating range minimum limit. Operation above extended operating range limit is not recommended and may affect device reliability.

VCC average current

Considerably withstand maximum average current consumption value in connected-mode conditions specified in the SARA-G3 series Data Sheet [1] and in the SARA-U2 series Data Sheet [2].

The maximum average current consumption can be greater than the specified value according to the actual antenna mismatching, temperature and VCC voltage.

See 1.5.1.2, 1.5.1.3 for connected-mode current profiles.

VCC peak current

Withstand the maximum peak current consumption specified in the SARA-G3 series Data Sheet [1] and in the SARA-U2 series Data Sheet [2].

The specified maximum peak of current consumption occurs during GSM single transmit slot in 850/900 MHz connected-mode, in case of mismatched antenna.

See 1.5.1.2 for 2G connected-mode current profiles.

VCC voltage drop during 2G Tx slots

Lower than 400 mV

VCC voltage drop directly affects the RF compliance with applicable certification schemes. Figure 7 describes VCC voltage drop during Tx slots.

VCC voltage ripple during 2G/3G Tx

Lower than 30 mVpp if f

ripple

≤ 200 kHz

Lower than 10 mVpp if 200 kHz < f

ripple

≤ 400 kHz

Lower than 2 mVpp if f

ripple

> 400 kHz

VCC voltage ripple directly affects the RF compliance with applicable certification schemes. Figure 7 describes VCC voltage ripple during Tx slots.

VCC under/over-shoot at start/end of Tx slots

Absent or at least minimized

VCC under/over-shoot directly affects the RF compliance with applicable certification schemes. Figure 7 describes VCC voltage under/over-shoot.

1.5 Supply interfaces

1.5.1 Module supply input (VCC)

The modules must be supplied via the three VCC pins that represent the module power supply input. The VCC pins are internally connected to the RF power amplifier and to the integrated Power Management Unit:

all supply voltages needed by the module are generated from the VCC supply by integrated voltage regulators, including V_BCKP Real Time Clock supply, V_INT digital interfaces supply and VSIM SIM card supply.

During operation, the current drawn by the SARA-G3 and SARA-U2 series modules through the VCC pins can vary by several orders of magnitude. This ranges from the high peak of current consumption during GSM transmitting bursts at maximum power level in connected-mode (as described in section 1.5.1.2), to the low current consumption during low power idle-mode with power saving enabled (as described in section 1.5.1.4).

1.5.1.1 VCC supply requirements

Table 7 summarizes the requirements for the VCC module supply. See section 2.2.1 for all the suggestions to properly design a VCC supply circuit compliant to the requirements listed in Table 7.

VCC supply circuit affects the RF compliance of the device integrating SARA-G3 and SARA-U2

series modules with applicable required certification schemes as well as antenna circuit design. Compliance is guaranteed if the VCC requirements summarized in the Table 7 are fulfilled.

For the additional specific requirement for SARA-G350 ATEX modules integration in potentially explosive

atmospheres applications, see section 2.14.

Table 7: Summary of VCC supply requirements

UBX-13000995 - R08 Objective Specification System description

Page 20 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Time [ms]

RX slot

unused

slot

unused

slot

unused

slot

unused

slot

MON

slot

unused

slot

RX slot

unused

slot

unused

slot

unused

slot

unused

slot

MON

slot

unused

slot

GSM frame

4.615 ms

(1 frame = 8 slots)

Current [A]

200 mA

60-120 mA

1900 mA

Peak current

depends on

TX power

GSM frame

4.615 ms

(1 frame = 8 slots)

1.5

1.0

0.5

0.0

2.0

60-120 mA

10-40 mA

1.5.1.2 VCC current consumption in 2G connected-mode

When a GSM call is established, the VCC consumption is determined by the current consumption profile typical of the GSM transmitting and receiving bursts.

The current consumption peak during a transmission slot is strictly dependent on the transmitted power, which is regulated by the network. The transmitted power in the transmit slot is also the more relevant factor for determining the average current consumption.

If the module is transmitting in 2G single-slot mode (as in GSM talk mode) in the 850 or 900 MHz bands, at the maximum RF power control level (approximately 2 W or 33 dBm in the Tx slot/burst), the current consumption can reach an high peak / pulse (see SARA-G3 series Data Sheet [1] and SARA-U2 series Data Sheet [2]) for

576.9 µs (width of the transmit slot/burst) with a periodicity of 4.615 ms (width of 1 frame = 8 slots/burst), so with a 1/8 duty cycle according to GSM TDMA (Time Division Multiple Access).

If the module is transmitting in 2G single-slot mode in the 1800 or 1900 MHz bands, the current consumption figures are quite less high than the one in the low bands, due to 3GPP transmitter output power specifications.

During a GSM call, current consumption is not so significantly high in receiving or in monitor bursts and it is low in the bursts unused to transmit / receive.

Figure 6 shows an example of the module current consumption profile versus time in GSM talk mode.

Figure 6: VCC current consumption profile versus time during a GSM call (1 TX slot, 1 RX slot)

UBX-13000995 - R08 Objective Specification System description

Page 21 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Time

undershoot

overshoot

ripple

drop

Voltage

3.8 V (typ)

slot

unused

slot

unused

slot

unused

slot

unused

slot

MON

slot

unused

slot

unused

slot

unused

slot

unused

slot

unused

slot

MON

slot

unused

slot

GSM frame

4.615 ms

(1 frame = 8 slots)

GSM frame

4.615 ms

(1 frame = 8 slots)

Time [ms]

RX slot

unused

slot

unused

slot

unused

slot

MON

slot

unused

slot

RX slot

unused

slot

unused

slot

TX slot

slot

unused

slot

MON

slot

unused

slot

GSM frame

4.615 ms

(1 frame = 8 slots)

Current [A]

60-120mA

GSM frame

4.615 ms

(1 frame = 8 slots)

1.5

1.0

0.5

0.0

60-120mA

10-40mA

200mA

Peak current

depends on

TX power

1600 mA

Figure 7 illustrates VCC voltage profile versus time during a GSM call, according to the related VCC current consumption profile described in Figure 6.

Figure 7: Description of the VCC voltage profile versus time during a GSM call (1 TX slot, 1 RX slot)

When a GPRS connection is established, more than one slot can be used to transmit and/or more than one slot can be used to receive. The transmitted power depends on network conditions, which set the peak current consumption, but following the GPRS specifications the maximum transmitted RF power is reduced if more than one slot is used to transmit, so the maximum peak of current is not as high as can be in case of a GSM call.

If the module transmits in GPRS multi-slot class 10 or 12, in 850 or 900 MHz bands, at maximum RF power level, the consumption can reach a quite high peak but lower than the one achievable in 2G single-slot mode. This happens for 1.154 ms (width of the 2 Tx slots/bursts) in case of multi-slot class 10 or for 2.308 ms (width of the 4 Tx slots/bursts) in case of multi-slot class 12, with a periodicity of 4.615 ms (width of 1 frame = 8 slots/bursts), so with a 1/4 or 1/2 duty cycle, according to GSM TDMA.

If the module is in GPRS connected-mode in 1800 or 1900 MHz bands, consumption figures are lower than in the 850 or 900 MHz band, due to 3GPP Tx power specifications.

Figure 8 reports the current consumption profiles in GPRS connected-mode, in the 850 or 900 MHz bands, with 2 slots used to transmit and 1 slot used to receive, as for the GPRS multi-slot class 10.

Figure 8: VCC current consumption profile versus time during a GPRS multi-slot class 10 connection (2 TX slots, 1 RX slot)

Figure 9 reports the current consumption profiles in GPRS connected-mode, in the 850 or 900 MHz bands, with 4 slots used to transmit and 1 slot used to receive, as for the GPRS multi-slot class 12.

UBX-13000995 - R08 Objective Specification System description

Page 22 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Time [ms]

slot

unused

slot

MON

slot

unused

slot

unused

slot

MON

slot

unused

slot

GSM frame

4.615 ms

(1 frame = 8 slots)

Current [A]

60-120mA

GSM frame

4.615 ms

(1 frame = 8 slots)

1.5

1.0

0.5

0.0

60-120mA

10-40mA

200mA

Peak current depends on

TX power

1600 mA

Figure 9: VCC current consumption profile versus time during a GPRS multi-slot class 12 connection (4 TX slots, 1 RX slot)

For detailed current consumption values during 2G single-slot or multi-slot connection see SARA-G3 series Data Sheet [1] and SARA-U2 series Data Sheet [2].

UBX-13000995 - R08 Objective Specification System description

Page 23 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Time

[ms]

3G frame

10 ms

(1 frame = 15 slots)

Current [mA]

Depends

on TX power

170 mA

1 slot

666 µs

850 mA

300

200

100

500

400

600

700

800

1.5.1.3 VCC current consumption in 3G connected mode

During a 3G connection, the SARA-U2 modules can transmit and receive continuously due to the Frequency Division Duplex (FDD) mode of operation with the Wideband Code Division Multiple Access (WCDMA).

The current consumption depends again on output RF power, which is always regulated by network commands. These power control commands are logically divided into a slot of 666 µs, thus the rate of power change can reach a maximum rate of 1.5 kHz.

There are no high current peaks as in the 2G connection, since transmission and reception are continuously enabled due to FDD WCDMA implemented in the 3G that differs from the TDMA implemented in the 2G case.

In the worst scenario, corresponding to a continuous transmission and reception at maximum RF output power (approximately 250 mW or 24 dBm), the average current drawn by the module at the VCC pins is high (see the SARA-U2 series Data Sheet [2]). Even at lowest RF output power level (approximately 0.01 µW or -50 dBm), the average current is still not so low as in the equivalent 2G case, also due to module continuous baseband processing and transceiver activity.

Figure 10 shows an example of current consumption profile of SARA-U2 series modules in 3G WCDMA/HSPA continuous transmission and reception mode. For detailed current consumption values during a 3G connection see the SARA-U2 series Data Sheet [2].

Figure 10: VCC current consumption profile versus time during a 3G connection (TX and RX continuously enabled)

UBX-13000995 - R08 Objective Specification System description

Page 24 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

20-30 ms

IDLE MODE ACTIVE MODE IDLE MODE

300-600 µA

Active Mode

Enabled

Idle Mode

Enabled

300-600 µA

60-120 mA

2G case: 0.44-2.09 s 3G case: 0.61-5.09 s

IDLE MODE

20-30 ms

ACTIVE MODE

Time [s]

Current [mA]

100

Time [ms]

Current [mA]

100

4-5 mA

60-120 mA

Enabled

20-40 mA

DSP

Enabled

1.5.1.4 VCC current consumption in cyclic idle/active-mode (power saving enabled)

The power saving configuration is by default disabled, but it can be enabled using the appropriate AT command (see u-blox AT Commands Manual [3], AT+UPSV command). When power saving is enabled, the module automatically enters low power idle-mode whenever possible, reducing current consumption.

During idle-mode, the module processor runs with 32 kHz reference clock:

 the internal oscillator automatically generates the 32 kHz clock on SARA-G340, SARA-G350, SARA-U2 series  a valid 32 kHz signal must be properly provided to the EXT32K input pin of the SARA-G300 and

SARA-G310 modules to let low power idle-mode, that otherwise cannot be reached by these modules.

When the power saving configuration is enabled and the module is registered or attached to a network, the module automatically enters the low power idle-mode whenever possible, but it must periodically monitor the paging channel of the current base station (paging block reception), in accordance to the 2G or 3G system requirements, even if connected-mode is not enabled by the application. When the module monitors the paging channel, it wakes up to the active-mode, to enable the reception of paging block. In between, the module switches to low power idle-mode. This is known as discontinuous reception (DRX).

The module processor core is activated during the paging block reception, and automatically switches its reference clock frequency from 32 kHz to the 26 MHz used in active-mode.

The time period between two paging block receptions is defined by the network. This is the paging period parameter, fixed by the base station through broadcast channel sent to all users on the same serving cell.

 In case of 2G radio access technology, the paging period varies from 470.8 ms (DRX = 2, length of 2 x 51

2G frames = 2 x 51 x 4.615 ms) up to 2118.4 ms (DRX = 9, length of 9 x 51 2G frames = 9 x 51 x 4.615 ms)

 In case of 3G radio access technology, the paging period can vary from 640 ms (DRX = 6, i.e. length of 26

3G frames = 64 x 10 ms) up to 5120 ms (DRX = 9, length of 29 3G frames = 512 x 10 ms).

Figure 11 roughly describes the current consumption profile of SARA-G340, SARA-G350 and SARA-U2 series, or specifically of SARA-G300 and SARA-G310 modules when their EXT32K input pin is fed by an external 32 kHz signal with characteristics compliant to the one specified in SARA-G3 series Data Sheet [1], when power saving is enabled. The module is registered with the network, automatically enters the very low power idle-mode, and periodically wakes up to active-mode to monitor the paging channel for paging block reception.

Figure 11: VCC current consumption profile versus time of SARA-G340, SARA-G350, SARA-U2 series or SARA-G300, SARA-G310 (with the EXT32K input fed by a proper external 32 kHz signal), when registered with the network, with power saving enabled: the very low power idle-mode is reached and periodical wake up to active-mode are performed to monitor the paging channel

UBX-13000995 - R08 Objective Specification System description

Page 25 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

20-30 ms

IDLE MODE ACTIVE MODE IDLE MODE

3-4 mA

Active Mode

Enabled

Idle Mode

Enabled

3-4 mA

60-120 mA

0.44-2.09 s

IDLE MODE

20-30 ms

ACTIVE MODE

Time [s]

Current [mA]

100

Time [ms]

Current [mA]

100

4-5 mA

60-120 mA

Enabled

20-40 mA

DSP

Enabled

Figure 12 roughly describes the current consumption profile of SARA-G300 and SARA-G310 modules when the EXT32K input pin is fed by the 32K_OUT output pin provided by these modules, when power saving is enabled. The module is registered with the network, automatically enters the low power idle-mode and periodically wakes up to active-mode to monitor the paging channel for paging block reception.

Figure 12: VCC current consumption profile versus time of the SARA-G300 and SARA-G310 modules (with the EXT32K input pin fed by the 32K_OUT output pin provided by these modules), when registered with the network, with power saving enabled: the low power idle-mode is reached and periodical wake up to active-mode are performed to monitor the paging channel

For detailed current consumption values with the module registered with 2G or 3G network with power saving enabled (cyclic idle/active-mode) see SARA-G3 series Data Sheet [1] and SARA-U2 series Data Sheet [2].

UBX-13000995 - R08 Objective Specification System description

Page 26 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

ACTIVE MODE

60-120 mA

0.47-2.12 s

Paging period

Time [s]

Current [mA]

100

Time [ms]

Current [mA]

100

3-5 mA

60-120 mA

Enabled

20-40 mA

DSP

Enabled

3-5 mA

1.5.1.5 VCC current consumption in fixed active-mode (power saving disabled)

Power saving configuration is by default disabled, or it can be disabled using the appropriate AT command (see u-blox AT Commands Manual [3], AT+UPSV command). When power saving is disabled, the module does not automatically enter idle-mode whenever possible: the module remains in active-mode.

The module processor core is activated during active-mode, and the 26 MHz reference clock frequency is used. Figure 13 roughly describes the current consumption profile of SARA-G300 and SARA-G310 modules when the

EXT32K input pin is fed by external 32 kHz signal with characteristics compliant to the one specified in SARA-G3 series Data Sheet [1], or by the 32K_OUT output pin provided by these modules, when power saving is disabled.

The module is registered with the network, active-mode is maintained, and the receiver and the DSP are periodically activated to monitor the paging channel for paging block reception.

Figure 13: VCC current consumption profile versus time of the SARA-G300 / SARA-G310 modules (with the EXT32K input pin fed by proper external 32 kHz signal or by 32K_OUT output pin), when registered with the network, with power saving disabled: the active-mode is always held, and the receiver and the DSP are periodically activated to monitor the paging channel

UBX-13000995 - R08 Objective Specification System description

Page 27 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

ACTIVE MODE

10-18 mA

60-120 mA

2G case: 0.47-2.12 s

3G case: 0.64-5.12 s

Paging period

Time [s]

Current [mA]

100

Time [ms]

Current [mA]

100

10-18 mA

60-120 mA

Enabled

20-40 mA

DSP

Enabled

10-18 mA

Figure 14 roughly describes the current consumption profile of SARA-G340, SARA-G350, SARA-U2 series or the current consumption profile of SARA-G300 / SARA-G310 modules when their EXT32K input is not fed by a signal (left unconnected), when power saving is disabled: the module is registered with the network, activemode is maintained, and the receiver and the DSP are periodically activated to monitor the paging channel for paging block reception.

Figure 14: VCC current consumption profile versus time of SARA-G340, SARA-G350, SARA-U2 series or SARA-G300, SARA-G310 (with the EXT32K input pin not fed by any 32 kHz signal), when registered with the network, with power saving disabled: the active-mode is always held, and the receiver and the DSP are periodically activated to monitor the paging channel

For detailed current consumption values with the module registered with 2G or 3G network with power saving disabled (fixed active-mode) see the SARA-G3 series Data Sheet [1] and SARA-U2 series Data Sheet [2].

UBX-13000995 - R08 Objective Specification System description

Page 28 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Baseband

Processor

VCC

V_BCKP

Linear

LDO

RTC

Power

Management

SARA-G340 / SARA-G350

SARA-U2 series

32 kHz

Baseband

Processor

VCC

V_BCKP

Linear

LDO

RTC

Power

Management

SARA-G300 / SARA-G310

32 kHz

EXT32K

V_BCKP voltage value

RTC value reliability

Notes

1.00 V < V_BCKP < 2.40 V

RTC oscillator does not stop operation RTC value read after a restart of the system is reliable

V_BCKP within operating range

0.05 V < V_BCKP < 1.00 V

RTC oscillator does not necessarily stop operation RTC value read after a restart of the system is not reliable

V_BCKP below operating range

0.00 V < V_BCKP < 0.05 V

RTC oscillator stops operation RTC value read after a restart of the system is reliable

V_BCKP below operating range

1.5.2 RTC supply input/output (V_BCKP)

The V_BCKP pin of SARA-G3 and SARA-U2 series modules connects the supply for the Real Time Clock (RTC) and Power-On internal logic. This supply domain is internally generated by a linear LDO regulator integrated in the Power Management Unit, as described in Figure 15. The output of this linear regulator is always enabled when the main voltage supply provided to the module through the VCC pins is within the valid operating range, with the module switched off or switched on.

Figure 15: RTC supply input/output (V_BCKP) and 32 kHz RTC timing reference clock simplified block diagram

The RTC provides the module time reference (date and time) that is used to set the wake-up interval during the idle-mode periods between network paging, and is able to make available the programmable alarm functions.

The RTC functions are available also in power-down mode when the V_BCKP voltage is within its valid range (specified in the “Input characteristics of Supply/Power pins” table in the SARA-G3 series Data Sheet [1] and SARA-U2 series Data Sheet [2]) and, for SARA-G300 / SARA-G310 modules only, when their EXT32K input pin is fed by an external 32.768 kHz signal with proper characteristics (specified in the “EXT32K pin characteristics” table in SARA-G3 series Data Sheet [1]). See the u-blox AT Commands Manual [3] for more details.

The RTC can be supplied from an external back-up battery through the V_BCKP, when the main voltage supply is not provided to the module through VCC. This lets the time reference (date and time) run until the V_BCKP voltage is within its valid range, even when the main supply is not provided to the module.

The RTC oscillator does not necessarily stop operation (i.e. the RTC counting does not necessarily stop) when V_BCKP voltage value drops below the specified operating range minimum limit (1.00 V): the RTC value read after a system restart could be not reliable, as explained in Table 8.

Table 8: RTC value reliability as function of V_BCKP voltage value

Consider that the module cannot switch on if a valid voltage is not present on VCC even when the RTC is supplied through V_BCKP (meaning that VCC is mandatory to switch on the module).

UBX-13000995 - R08 Objective Specification System description

Page 29 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Baseband

Processor

VCC

V_INT

Switching

Step-Down

Digital I/O

Interfaces

Power

Management

SARA-G3 / SARA-U2 series

The RTC has very low power consumption, but is highly temperature dependent. For example at 25 °C, with the V_BCKP voltage equal to the typical output value, the current consumption is approximately 2 µA (see the

“Input characteristics of Supply/Power pins” table in the SARA-G3 series Data Sheet [1] and SARA-U2 series Data Sheet [2] for the detailed specification), whereas at 70 °C and an equal voltage the current consumption

increases to 5-10 µA. If V_BCKP is left unconnected and the module main voltage supply is removed from VCC, the RTC is supplied

from the bypass capacitor mounted inside the module. However, this capacitor is not able to provide a long buffering time: within few milliseconds the voltage on V_BCKP will go below the valid range (1 V min). This has no impact on cellular connectivity, as all the module functionalities do not rely on date and time setting.

1.5.3 Generic digital interfaces supply output (V_INT)

The same 1.8 V voltage domain used internally to supply the generic digital interfaces of SARA-G3 and SARA-U2 series modules is also available on the V_INT supply output pin, as described in Figure 16.

Figure 16: SARA-G3 and SARA-U2 series interfaces supply output (V_INT) simplified block diagram

The internal regulator that generates the V_INT supply is a switching step-down converter that is directly supplied from VCC. The voltage regulator output is set to 1.8 V (typical) when the module is switched on and it is disabled when the module is switched off.

The switching regulator operates in Pulse Width Modulation (PWM) for greater efficiency at high output loads when the module is in active-mode or in connected-mode. When the module is in low power idle-mode between paging periods and with power saving configuration enabled by the appropriate AT command, it automatically switches to Pulse Frequency Modulation (PFM) for greater efficiency at low output loads. See the u-blox AT Commands Manual [3], +UPSV command.

UBX-13000995 - R08 Objective Specification System description

Page 30 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

SARA-G3

SARA-U2

From Not-Powered Mode

Applying valid VCC supply voltage (i.e. VCC rise edge), ramping from 2.5 V to 3.2 V within 4 ms

Applying valid VCC supply voltage (i.e. VCC rise edge), ramping from 2.5 V to 3.2 V within 1 ms

From Power-Off Mode

Low level on PWR_ON pin for 5 ms min.

Low pulse on PWR_ON pin for 50 µs min. / 80 µs max.

RTC alarm programmed by AT+CALA command (Not supported by SARA-G300 / SARA-G310)

RTC alarm programmed by AT+CALA command

RESET_N pin released from low level

Baseband

Processor

PWR_ON

SARA-G3 / SARA-U2 series

Power-on

Power

Management

Power-on

1.6 System function interfaces

1.6.1 Module power-on

1.6.1.1 Switch-on events

Table 9 summarizes the possible switch-on events for the SARA-G3 and SARA-U2 series modules.

Table 9: Summary of SARA-G3 and SARA-U2 modules’ switch-on events

When the SARA-G3 and SARA-U2 series modules are in the not-powered mode (i.e. switched off with the VCC module supply not applied), they can be switched on by:

 Rising edge on the VCC supply input to a valid voltage for modules supply: the modules switch on applying

VCC supply starting from a voltage value lower than 2.25 V, providing a fast VCC voltage slope, as it must

ramp from 2.5 V to 3.2 V within 4 ms on SARA-G3 modules and within 1 ms on SARA-U2 modules, and reaching a proper nominal VCC voltage value within the normal operating range.

 Alternately, the RESET_N pin can be held low during the VCC rising edge, so that the module switches on

by releasing the RESET_N pin when the VCC voltage stabilizes at its nominal value within the normal range.

The status of the PWR_ON input pin of SARA-G3 and SARA-U2 series modules while applying the VCC module supply is not relevant: during this phase the PWR_ON pin can be set high or low by the external circuit.

When the SARA-G3 and SARA-U2 series modules are in the power-off mode (i.e. switched off by means of the AT+CPWROFF command, with valid VCC module supply applied), they can be switched on by:

 Low level / pulse on PWR_ON pin, which is normally set high by an external pull-up, for a valid time period.

As described in Figure 17, there is no internal pull-up resistor on the PWR_ON pin of the modules: the pin has high input impedance and is weakly pulled high by the internal circuit. Therefore the external circuit must be able to hold the high logic level stable, e.g. providing an external pull-up resistor (for design-in see section 2.3.1).

The PWR_ON input voltage thresholds are different from the other generic digital interfaces of the modules: refer to SARA-G3 series Data Sheet [1] and SARA-U2 series Data Sheet [2] for detailed electrical characteristics.

Figure 17: PWR_ON input description

The SARA-G340, SARA-G350 and SARA-U2 series can be also switched on from power-off mode by:

 RTC alarm pre-programmed by AT+CALA command at specific time (see u-blox AT Commands Manual [3]).

The SARA-U2 series modules can be also switched on from power-off mode by:

 Low pulse on the RESET_N pin, which is normally set high by an internal pull-up (refer to section 1.6.3 and

to the SARA-U2 series Data Sheet [2] for the description of the RESET_N input electrical characteristics).

UBX-13000995 - R08 Objective Specification System description

Page 31 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

VCC

V_BCKP

PWR_ON

SARA-U2 RESET_N

V_INT

SARA-G3 RESET_N

Internal Reset

System State

Digital Pins State

Interna l Reset → Operationa l Operational

Tristate / Floating

OFF

Interna l Reset

Start of interface

configuration

Module interfaces

are configured

Start-up

event

1.6.1.2 Switch-on sequence from not-powered mode

Figure 19 shows the modules power-on sequence from the not-powered mode, describing the following phases:

 The external supply is applied to the VCC module supply inputs, representing the start-up event.  The status of the PWR_ON input pin while applying the VCC module supply is not relevant: during this

phase the PWR_ON pin can be set high or low by the external circuit, but in Figure 19 it is assumed that the PWR_ON line rise suddenly to high logic level due to external pull-up connected to V_BCKP or VCC.

 The V_BCKP RTC supply output is suddenly enabled by the module as VCC reaches a valid voltage value.  The RESET_N line of SARA-U2 series rise suddenly to high logic level due to internal pull-up to V_BCKP.  All the generic digital pins of the modules are tri-stated until the switch-on of their supply source (V_INT):

any external signal connected to the generic digital pins must be tri-stated or set low at least until the activation of the V_INT supply output to avoid latch-up of circuits and allow a proper boot of the module.

 The V_INT generic digital interfaces supply output is enabled by the integrated power management unit.  The RESET_N line of SARA-G3 series rise suddenly to high logic level due to internal pull-up to V_INT.  The internal reset signal is held low by the integrated power management unit: the baseband processor core

and all the digital pins of the modules are held in reset state.

 When the internal reset signal is released by the integrated power management unit, the processor core

starts to configure the digital pins of the modules to each default operational state.

 The duration of this pins’ configuration phase differs within generic digital interfaces (3 s typical) and the

USB interface due to specific host / device enumeration timings (5 s typical, see section 1.9.3). The host application processor should not send any AT command over the AT interfaces (USB, UART) of the modules until the end of this interfaces’ configuration phase to allow a proper boot of the module.

 After the interfaces’ configuration phase, the application can start sending AT commands, and the following

starting procedure is suggested to check the effective completion of the module internal boot sequence: send AT and wait for the response with a 30 s timeout, iterate it 4 times without resetting or removing the

VCC supply of the module, and then run the application

Figure 18: SARA-G3 and SARA-U2 series power-on sequence from not-powered mode

The Internal Reset signal is not available on a module pin, but the application can monitor the V_INT pin Before the switch-on of the generic digital interface supply source (V_INT) of the module, no voltage

UBX-13000995 - R08 Objective Specification System description

Page 32 of 188

to sense the start of the power-on sequence.

driven by an external application should be applied to any generic digital interface of the modules.

SARA-G3 and SARA-U2 series - System Integration Manual

VCC

V_BCKP

PWR_ON

SARA-U2 RESET_N

V_INT

SARA-G3 RESET_N

Internal Reset

System State

Digital Pins State

Internal Reset → Operational Operational

Tristate / Floating

OFF

Internal Reset

Start of interface

configuration

Module interfaces

are configured

Start-up

event

1.6.1.3 Switch-on sequence from power-off mode

Figure 19 shows the modules power-on sequence from the power-off mode, describing the following phases:

 The external supply is still applied to the VCC inputs as it is assumed that the module has been previously

switched off by means of the AT+CPWROFF command: the V_BCKP output is internally enabled as proper VCC is present, the RESET_N of SARA-U2 series is set to high logic level due to internal pull-up to V_BCKP, the PWR_ON is set to high logic level due to external pull-up connected to V_BCKP or VCC.

 The PWR_ON input pin is set low for a valid time period, representing the start-up event.  All the generic digital pins of the modules are tri-stated until the switch-on of their supply source (V_INT):

and all the digital pins of the modules are held in reset state.

 When the internal reset signal is released by the integrated power management unit, the processor core

starts to configure the digital pins of the modules to each default operational state.

 The duration of this pins’ configuration phase differs within generic digital interfaces (3 s typical) and the

 After the interfaces’ configuration phase, the application can start sending AT commands, and the following

VCC supply of the module, and then run the application.

Figure 19: SARA-G3 and SARA-U2 series power-on sequence from power-off mode

UBX-13000995 - R08 Objective Specification System description

Page 33 of 188

to sense the start of the power-on sequence.

driven by an external application should be applied to any generic digital interface of the modules.

SARA-G3 and SARA-U2 series - System Integration Manual

1.6.2 Module power-off

1.6.2.1 Switch-off events

The SARA-G3 and SARA-U2 series modules can be properly switched off by:

 AT+CPWROFF command (more details in u-blox AT Commands Manual [3]).

The SARA-U2 series modules can be properly switched off also by:

 Low pulse on the PWR_ON pin, which is normally set high by an external pull-up, for a valid time period

(see the SARA-U2 series Data Sheet [2] for the detailed electrical characteristics of the PWR_ON input).

In both the cases listed above, the current parameter settings are saved in the module’s non-volatile memory and a proper network detach is performed: these are the correct ways to switch off the modules.

An abrupt under-voltage shutdown occurs on SARA-G3 and SARA-U2 series modules when the VCC module supply is removed, but in this case the current parameter settings are not saved in the module’s non-volatile memory and a proper network detach cannot be performed.

It is highly recommended to avoid an abrupt removal of the VCC supply during SARA-G3 and SARA-U2

series modules normal operations: the power off procedure must be properly started by the appplication, as by the AT+CPWROFF command, waiting the command response for a proper time period (see u-blox AT Commands Manual [3]), and then a proper VCC supply must be held at least until the end of the

modules’ internal power off sequence, which occurs when the generic digital interfaces supply output

(V_INT) is switched off by the module.

An abrupt hardware shutdown occurs on SARA-U2 modules when a low level is applied to the RESET_N input. In this case, the current parameter settings are not saved in the module’s non-volatile memory and a proper network detach is not performed.

It is highly recommended to avoid an abrupt hardware shutdown of the module by forcing a low level on

the RESET_N input pin during module normal operation: the RESET_N line should be set low only if reset or shutdown via AT commands fails or if the module does not reply to a specific AT command after a time period longer than the one defined in the u-blox AT Commands Manual [3].

An over-temperature or an under-temperature shutdown occurs on SARA-G3 and SARA-U2 series modules when the temperature measured within the cellular module reaches the dangerous area, if the optional Smart Temperature Supervisor feature is enabled and configured by the dedicated AT command. For more details see section 1.13.10 and to the u-blox AT Commands Manual [3], +USTS AT command.

The Smart Temperature Supervisor feature is not supported by SARA-G300 and SARA-G310.

UBX-13000995 - R08 Objective Specification System description

Page 34 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

VCC

V_BCKP

PWR_ON

SARA-U2 RESET_N

V_INT

SARA-G3 RESET_N

Internal Reset

System State

Digital Pins State Operational

OFF

Tristate / Floating

Operational → Tristate

AT+CPWROFF

sent to the module

replied by the module

VCC

can be removed

1.6.2.2 Switch-off sequence by AT+CPWROFF

Figure 20 describes the SARA-G3 and SARA-U2 series modules power-off sequence, properly started sending the AT+CPWROFF command, allowing storage of current parameter settings in the module’s non-volatile memory and a proper network detach, with the following phases:

 When the +CPWROFF AT command is sent, the module starts the switch-off routine.  The module replies OK on the AT interface: the switch-off routine is in progress.  At the end of the switch-off routine, all the digital pins are tri-stated and all the internal voltage regulators

are turned off, including the generic digital interfaces supply (V_INT), except the RTC supply (V_BCKP).

 Then, the module remains in power-off mode as long as a switch on event does not occur (e.g. applying a

proper low level to the PWR_ON input, or applying a proper low level to the RESET_N input), and enters not-powered mode if the supply is removed from the VCC pins.

Figure 20: SARA-G3 and SARA-U2 series power-off sequence description

The Internal Reset signal is not available on a module pin, but the application can monitor the V_INT pin The duration of each phase in the SARA-G3 and SARA-U2 series modules’ switch-off routines can largely

UBX-13000995 - R08 Objective Specification System description

Page 35 of 188

to sense the end of the SARA-G3 and SARA-U2 series power-off sequence.

vary depending on the application / network settings and the concurrent module activities.

SARA-G3 and SARA-U2 series - System Integration Manual

Baseband

Processor

RESET_N

SARA-U2 series

Reset

Power

Management

Reset

10k

V_BCKP

Baseband

Processor

RESET_N

SARA-G3 series

Reset

10k

V_INT

1.6.3 Module reset

SARA-G3 and SARA-U2 series modules can be properly reset (rebooted) by:

 AT+CFUN command (see the u-blox AT Commands Manual [3] for more details).

This command causes an “internal” or “software” reset of the module, which is an asynchronous reset of the

module baseband processor. The current parameter settings are saved in the module’s non-volatile memory and a proper network detach is performed: this is the proper way to reset the modules.

An abrupt hardware reset occurs on SARA-G3 and SARA-U2 series modules when a low level is applied on the RESET_N input pin for a specific time period. In this case, the current parameter settings are not saved in the module’s non-volatile memory and a proper network detach is not performed.

It is highly recommended to avoid an abrupt hardware reset of the module by forcing a low level on the

RESET_N input during modules normal operation: the RESET_N line should be set low only if reset or shutdown via AT commands fails or if the module does not provide a reply to a specific AT command after a time period longer than the one defined in the u-blox AT Commands Manual [3].

As described in Figure 21, both the SARA-G3 and SARA-U2 series modules are equipped with an internal pull-up resistor which pulls the line to the high logic level when the RESET_N pin is not forced low from the external. The pull-up is internally biased by V_INT on SARA-G3 modules and is biased by V_BCKP on SARA-U2 modules. A series Schottky diode is mounted inside the SARA-G3 modules, increasing the RESET_N input voltage range. Refer to the SARA-G3 series Data Sheet [1] and the SARA-U2 series Data Sheet [2] for the detailed electrical characteristics of the RESET_N input.

Figure 21: RESET_N input description

When a low level is applied to the RESET_N input, it causes an “external” or “hardware” reset of the modules, with the following behavior of SARA-G3 and SARA-U2 series modules due to different internal circuits:

 SARA-G3 modules: reset of the processor core, excluding the Power Management Unit and the RTC block.

The V_INT generic digital interfaces supply is switched on and each digital pin is set in its internal reset state. The V_BCKP supply and the RTC block are switched on.

 SARA-U2 modules: reset of the processor core and the Power Management Unit, excluding the RTC block.

The V_INT generic digital interfaces supply is switched off and all digital pins are tri-stated (not supplied). The V_BCKP supply and the RTC block are switched on.

Before the switch-on of the generic digital interface supply source (V_INT) of the module, no voltage

driven by an external application should be applied to any generic digital interface of the modules.

The internal reset state of all digital pins is reported in the pin description table in the SARA-G3 series

Data Sheet [1] and in the SARA-U2 series Data Sheet [2].

UBX-13000995 - R08 Objective Specification System description

Page 36 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

1.6.4 External 32 kHz signal input (EXT32K)

The EXT32K pin is not available on SARA-G340, SARA-G350 and SARA-U2 series modules.

The EXT32K pin of SARA-G300 / SARA-G310 modules is an input pin that must be fed by a proper 32 kHz signal to make available the reference clock for the Real Time Clock (RTC) timing, used by the module processor when in the low power idle-mode.

SARA-G300 / SARA-G310 modules can enter the low power idle-mode only if a proper 32 kHz signal is provided at the EXT32K input pin, with power saving configuration enabled by the AT+UPSV command. In this way the different current consumption figures can be reached with the EXT32K input fed by the 32K_OUT output or by a proper external 32 kHz signal (for more details see section 1.5.1.4 and to “Current consumption” section in SARA-G3 series Data Sheet [1]).

SARA-G300 / SARA-G310 modules can provide the RTC functions (as RTC timing by AT+CCLK command and RTC alarm by AT+CALA command) only if a proper 32 kHz signal is provided at the EXT32K input pin. The RTC functions will be available only when the module is switched on if the EXT32K input is fed by the 32K_OUT output, or they will be available also when the module is not powered or switched off if the EXT32K input is fed by a proper external 32 kHz signal.

SARA-G3 series Data Sheet [1] describes the detailed electrical characteristics of the EXT32K input pin. The 32 kHz reference clock for the RTC timing is automatically generated by the internal oscillator provided on

the SARA-G340, SARA-G350 and SARA-U2 series modules: the same pin (31) is a reserved (RSVD) pin internally not connected, since an external 32 kHz signal is not needed to enter the low power idle-mode and to provide the RTC functions.

1.6.5 Internal 32 kHz signal output (32K_OUT)

The 32K_OUT pin is not available on SARA-G340, SARA-G350 and SARA-U2 series modules.

The 32K_OUT pin of SARA-G300 / SARA-G310 modules is an output pin that provides a 32 kHz reference signal generated by the module, suitable only to feed the EXT32K input pin of SARA-G300 / SARA-G310 modules, to make available the reference clock for the Real Time Clock (RTC) timing, so that the modules can enter the low power idle-mode and can provide the RTC functions with modules switched on.

The 32K_OUT pin does not provide the 32 kHz output signal when the SARA-G300 / SARA-G310 modules are in power down mode: the EXT32K input pin must be fed by an external proper 32 kHz signal to make available the RTC functions when the modules are not powered or switched off.

SARA-G340, SARA-G350 and SARA-U2 series modules do not provide the 32K_OUT output, as there is no EXT32K input to feed on the modules: the pin 24 constitute the GPIO3 on these modules.

UBX-13000995 - R08 Objective Specification System description

Page 37 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Item

Requirements

Remarks

Impedance

50  nominal characteristic impedance

The impedance of the antenna RF connection must match the 50  impedance of the ANT pin.

Frequency Range

See the SARA-G3 series Data Sheet [1] and the SARA-U2 series Data Sheet [2]

The required frequency range of the antenna depends on the operating bands of the used modules.

V.S.W.R Return Loss

< 2:1 recommended, < 3:1 acceptable S11 < -10 dB recommended, S11 < -6 dB acceptable

The impedance of the antenna termination must match as much as possible the 50  impedance of the ANT pin over the operating frequency range.

Input Power

> 2 W peak

The antenna termination must withstand the maximum peak of power transmitted by the modules during a GSM single-slot call.

Gain

See section 4.2.2 for gain limits

The antenna gain must not exceed the herein specified value to comply with FCC radiation exposure limits.

Detection

Application board with antenna detection circuit

If antenna detection is required by the custom application, proper antenna detection circuit must be implemented on the application board as described in section 2.4.2.

Antenna assembly with built-in diagnostic circuit

If antenna detection is required by the custom application, the external antenna assembly must be provided with proper diagnostic circuit as described in section 2.4.2.

1.7 Antenna interface

1.7.1 Antenna RF interface (ANT)

The ANT pin of SARA-G3 and SARA-U2 series modules represents the RF input/output for transmission and reception of the 2G or 3G RF signals. The ANT pin has a nominal characteristic impedance of 50  and must be connected to the antenna through a 50  transmission line to allow proper RF transmission and reception in operating bands.

1.7.1.1 Antenna RF interface requirements

Table 10 summarizes the requirements for the antenna RF interface (ANT). See section 2.4.1 for suggestions to properly design an antenna circuit compliant to these requirements.

The antenna circuit affects the RF compliance of the device integrating SARA-G3 and SARA-U2

series module with applicable required certification schemes. Compliance is guaranteed if the antenna RF interface (ANT) requirements summarized in Table 10 are fulfilled.

Table 10: Summary of antenna RF interface (ANT) requirements

For the additional specific requirement for SARA-G350 ATEX modules integration in potentially explosive

atmospheres applications, see section 2.14.

UBX-13000995 - R08 Objective Specification System description

Page 38 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

1.7.2 Antenna detection interface (ANT_DET)

Antenna detection interface (ANT_DET) is not supported by SARA-G300 and SARA-G310 modules.

The antenna detection is based on ADC measurement. The ANT_DET pin is an Analog to Digital Converter (ADC) provided to sense the antenna presence.

The antenna detection function provided by ANT_DET pin is an optional feature that can be implemented if the application requires it. The antenna detection is forced by the +UANTR AT command. See the u-blox AT Commands Manual [3] for more details on this feature.

The ANT_DET pin generates a DC current (20 µA for 5.4 ms on SARA-G340 / SARA-G350, 10 µA for 128 µs on SARA-U2 modules) and measures the resulting DC voltage, thus determining the resistance from the antenna connector provided on the application board to GND. So, the requirements to achieve antenna detection functionality are the following:

 an RF antenna assembly with a built-in resistor (diagnostic circuit) must be used  an antenna detection circuit must be implemented on the application board

See section 2.4.2 for antenna detection circuit on application board and diagnostic circuit on antenna assembly design-in guidelines.

1.8 SIM interface

1.8.1 (U)SIM card interface

SARA-G3 and SARA-U2 series modules provide a high-speed SIM/ME interface, including automatic detection and configuration of the voltage required by the connected (U)SIM card or chip.

Both 1.8 V and 3 V SIM types are supported: activation and deactivation with automatic voltage switch from

1.8 V to 3 V is implemented, according to ISO-IEC 7816-3 specifications. The VSIM supply output pin provides internal short circuit protection to limit start-up current and protect the device in short circuit situations.

The SIM driver supports the PPS (Protocol and Parameter Selection) procedure for baud-rate selection, according to the values determined by the SIM Card.

SIM Application Toolkit is supported by all SARA-G3 and SARA-U2 series except SARA-G300 and SARA-G310.

1.8.2 SIM card detection interface (SIM_DET)

Not supported by SARA-G300-00S and SARA-G310-00S modules.

The SIM_DET pin is configured as an external interrupt to detect the SIM card mechanical / physical presence. The pin is configured as input with an internal active pull-down enabled, and it can sense SIM card presence only if properly connected to the mechanical switch of a SIM card holder as described in section 2.5:

 Low logic level at SIM_DET input pin is recognized as SIM card not present  High logic level at SIM_DET input pin is recognized as SIM card present

The SIM card detection function provided by SIM_DET pin is an optional feature that can be implemented / used or not according to the application requirements: an Unsolicited Result Code (URC) is generated each time that there is a change of status (for more details see the u-blox AT Commands Manual [3], “simind” value of the <descr> parameter of the +CIND and +CMER commands.

The optional function “SIM card hot insertion/removal” can be additionally enabled on the SARA-U2 modules’ SIM_DET pin by AT commands (see section 1.11 and u-blox AT Commands Manual [3], +UGPIOC, +UDCONF).

UBX-13000995 - R08 Objective Specification System description

Page 39 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

1.9 Serial interfaces

SARA-G3 and SARA-U2 series modules provide the following serial communication interfaces:

 UART interface: 9-wire unbalanced 1.8 V asynchronous serial interface available for AT commands, data

communication, FW upgrades by means of the FOAT feature (see 1.9.1)

 Auxiliary UART interface (not supported by SARA-U2 series): 3-wire unbalanced 1.8 V asynchronous serial

interface available for FW upgrades by means of the u-blox EasyFlash tool and for diagnostic (see 1.9.2)

 USB interface (not supported by SARA-G3 series): High-Speed USB 2.0 compliant interface available for AT

commands, data communication, FW upgrades by means of the FOAT feature, FW upgrades by means of the u-blox EasyFlash tool and for diagnostic (see 1.9.3)

 DDC interface (not supported by SARA-G300 / SARA-G310): I

communication with u-blox positioning chips / modules and additionally, except for SARA-G3 series, with other external I2C devices as an audio codec (see 1.9.4)

1.9.1 Asynchronous serial interface (UART)

1.9.1.1 UART features

The UART interface is a 9-wire 1.8 V unbalanced asynchronous serial interface available for AT commands and for packet-switched / circuit-switched data communication on all the SARA-G3 and SARA-U2 series modules.

The UART interface provides RS-232 functionality conforming to the ITU-T V.24 Recommendation (more details available in ITU Recommendation [10]), with CMOS compatible signal levels: 0 V for low data bit or ON state, and 1.8 V for high data bit or OFF state. For detailed electrical characteristics see SARA-G3 series Data Sheet [1] and SARA-U2 series Data Sheet [2].

SARA-G3 and SARA-U2 series modules are designed to operate as a 2G or 3G cellular modem, which represents the Data Circuit-terminating Equipment (DCE) according to the ITU-T V.24 Recommendation [10]. The application processor connected to the module through the UART interface represents the Data Terminal Equipment (DTE).

C compatible 1.8 V interface available for the

The signal names of SARA-G3 and SARA-U2 series modules’ UART interface conform to the ITU-T V.24

Recommendation [10]: e.g. the TXD line represents the data transmitted by the DTE (application

processor data line output) and received by the DCE (module data line input).

All flow control handshakes are supported by the UART interface and can be set by appropriate AT commands (see u-blox AT Commands Manual [3], &K, +IFC, \Q AT commands): hardware flow control (RTS/CTS), software flow control (XON/XOFF), or none flow control.

Hardware flow control is enabled by default.

SARA-G3 modules support the autobauding: the baud rate automatic detection is performed each time the DTE sends AT commands. After the detection the module works at the detected baud rate and the baud rate can be runtime changed by the DTE or by AT command (see u-blox AT Commands Manual [3], +IPR command).

SARA-U2 modules support only the one-shot autobauding: the baud rate automatic detection is performed only once, at module start up. After the detection the module works at the detected baud rate and the baud rate can only be changed by AT command (see u-blox AT Commands Manual [3], +IPR command).

SARA-G3 modules’ autobauding and SARA-U2 modules’ one-shot autobauding are enabled by default.

UBX-13000995 - R08 Objective Specification System description

Page 40 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

D0 D1 D2 D3 D4 D5 D6 D7

Start of 1-Byte transfer

Start Bit (Always 0)

Possible Start of

next transfer

Stop Bit (Always 1)

bit

= 1/(Baudrate)

Normal Transfer, 8N1

The following baud rates can be configured by AT command (see u-blox AT Commands Manual [3], +IPR):

 1200 b/s  2400 b/s  4800 b/s  9600 b/s  19200 b/s  38400 b/s  57600 b/s  115200 b/s, default value when the autobauding or the one-shot autobauding are disabled  230400 b/s  460800 b/s  921600 b/s

460800 b/s and 921600 b/s baud rates are not supported by SARA-G3 series modules. 1200 b/s and 230400 b/s baud rates cannot be automatically detected by SARA-G3 series modules. 460800 b/s and 921600 b/s baud rates cannot be automatically detected by SARA-U2 series modules.

SARA-G3 modules support the automatic frame recognition in conjunction with autobauding. SARA-U2 modules support the one-shot automatic frame recognition in conjunction with one-shot autobauding.

SARA-G3 series modules’ automatic frame recognition and SARA-U2 series modules’ one-shot automatic

frame recognition are enabled by default, as autobauding and one-shot autobauding.

The following frame formats can be configured by AT command (see u-blox AT Commands Manual [3], +ICF):

 8N1 (8 data bits, No parity, 1 stop bit), default frame configuration with fixed baud rate  8E1 (8 data bits, even parity, 1 stop bit)  8O1 (8 data bits, odd parity, 1 stop bit)  8N2 (8 data bits, No parity, 2 stop bits)  7E1 (7 data bits, even parity, 1 stop bit)  7O1 (7 data bits, odd parity, 1 stop bit)

Figure 22 describes the 8N1 frame format, which is the default configuration with fixed baud rate.

Figure 22: Description of UART default frame format (8N1) with fixed baud rate

UBX-13000995 - R08 Objective Specification System description

Page 41 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Interface

AT Settings

Comments

UART interface

AT interface: enabled

AT command interface is enabled by default on the UART physical interface

AT+IPR=0

Automatic baud rate detection enabled by default on SARA-G3 series One-shot automatic baud rate detection enabled by default on SARA-U2 series

AT+ICF=0

Automatic frame format recognition enabled by default on SARA-G3 series One-shot automatic frame format recognition enabled by default on SARA-U2 series

AT&K3

HW flow control enabled by default

AT&S1

DSR line set ON in data mode9 and set OFF in command mode9

AT&D1

Upon an ON-to-OFF transition of DTR, the DCE enters online command mode9 and issues an OK result code

AT&C1

Circuit 109 changes in accordance with the Carrier detect status; ON if the Carrier is detected, OFF otherwise

MUX protocol: disabled

Multiplexing mode is disabled by default and it can be enabled by AT+CMUX command. The following virtual channels are defined:

 Channel 0: control channel  Channel 1: AT and Data  Channel 2: AT and Data  Channel 3: AT and Data (not available on SARA-G300 / SARA-G310 modules)  Channel 4: AT and Data (not available on SARA-G300 / SARA-G310 modules)  Channel 5: AT and Data (not available on SARA-G300 / SARA-G310 modules)  Channel 6: GNSS tunneling (not available on SARA-G300 / SARA-G310 modules)  Channel 7: SIM Access Profile (not available on SARA-G3 series modules)

The module firmware can be updated over the UART interface by means of:

 the Firmware upgrade Over AT (FOAT) feature, on all the SARA-G3 and SARA-U2 series modules  the u-blox EasyFlash tool, on SARA-U2 series modules only

For more details on FW upgrade procedures see section 1.13 and Firmware update application note [25].

1.9.1.2 UART AT interface configuration

The UART interface of SARA-G3 and SARA-U2 series modules is available as AT command interface with the default configuration described in Table 11 (for more details and information about further settings, see the u-blox AT Commands Manual [3]).

Table 11: Default UART AT interface configuration

Refer to the u-blox AT Commands Manual [3] for the definition of the interface data mode, command mode and online command mode.

UBX-13000995 - R08 Objective Specification System description

Page 42 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

1.9.1.3 UART signal behavior

At the module switch-on, before the UART interface initialization (as described in the power-on sequence reported in Figure 18 or Figure 19), each pin is first tri-stated and then is set to its related internal reset state10. At the end of the boot sequence, the UART interface is initialized, the module is by default in active-mode, and the UART interface is enabled as AT commands interface.

The configuration and the behavior of the UART signals after the boot sequence are described below. See section 1.4 for definition and description of module operating modes referred to in this section.

RXD signal behavior

The module data output line (RXD) is set by default to the OFF state (high level) at UART initialization. The module holds RXD in the OFF state until the module does not transmit some data.

TXD signal behavior

The module data input line (TXD) is set by default to the OFF state (high level) at UART initialization. The TXD line is then held by the module in the OFF state if the line is not activated by the DTE: an active pull-up is enabled inside the module on the TXD input.

CTS signal behavior

The module hardware flow control output (CTS line) is set to the ON state (low level) at UART initialization. If the hardware flow control is enabled, as it is by default, the CTS line indicates when the UART interface is

enabled (data can be sent and received). The module drives the CTS line to the ON state or to the OFF state when it is either able or not able to accept data from the DTE over the UART (see 1.9.1.4 for more details).

If hardware flow control is enabled, then when the CTS line is OFF it does not necessarily mean that the

module is in low power idle-mode, but only that the UART is not enabled, as the module could be forced to stay in active-mode for other activities, e.g. related to the network or related to other interfaces.

When the multiplexer protocol is active, the CTS line state is mapped to FCon / FCoff MUX command for

flow control issues outside the power saving configuration while the physical CTS line is still used as a power state indicator. For more details, see Mux Implementation Application Note [23].

The CTS hardware flow control setting can be changed by AT commands (for more details, see u-blox AT Commands Manual [3], AT&K, AT\Q, AT+IFC AT command).

If the hardware flow control is not enabled, the CTS line after the UART initialization behaves as following:

 on SARA-U2 modules the CTS line is always held in the ON state  on SARA-G3 modules the CTS line is set in the ON or OFF state accordingly to the power saving state as

illustrated in Figure 25 if AT+UPSV=2 is set, and the CTS line is held in the ON state otherwise

When the power saving configuration is enabled and the hardware flow-control is not implemented in the

DTE/DCE connection, data sent by the DTE can be lost: the first character sent when the module is in the low power idle-mode will not be a valid communication character (see 1.9.1.4 for more details).

Refer to the pin description table in the SARA-G3 series Data Sheet [1] and SARA-U2 series Data Sheet [2].

UBX-13000995 - R08 Objective Specification System description

Page 43 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

RTS signal behavior

The hardware flow control input (RTS line) is set by default to the OFF state (high level) at UART initialization. The module then holds the RTS line in the OFF state if the line is not activated by the DTE: an active pull-up is enabled inside the module on the RTS input.

If the HW flow control is enabled, as it is by default, the module monitors the RTS line to detect permission from the DTE to send data to the DTE itself. If the RTS line is set to the OFF state, any on-going data transmission from the module is interrupted until the subsequent RTS line change to the ON state.

The DTE must still be able to accept a certain number of characters after the RTS line is set to the OFF

state: the module guarantees the transmission interruption within two characters from RTS state change.

Module behavior according to RTS hardware flow control status can be configured by AT commands (for more details, see u-blox AT Commands Manual [3], AT&K, AT\Q, AT+IFC command descriptions).

If AT+UPSV=2 is set and HW flow control is disabled, the module monitors the RTS line to manage the power saving configuration:

 When an OFF-to-ON transition occurs on the RTS input line, the UART is enabled and the module wakes up

to active-mode: after ~20 ms from the OFF-to-ON transition the UART / module wake up is completed and data can be received without loss. The module cannot enter the low power idle-mode and the UART is kept enabled as long as the RTS input line is held in the ON state

 If the RTS input line is set to the OFF state by the DTE, the UART is disabled (held in low power mode) and

the module automatically enters low power idle-mode whenever possible

For more details, see section 1.9.1.4 and u-blox AT Commands Manual [3], AT+UPSV command.

DSR signal behavior

If AT&S1 is set, as it is by default, the DSR module output line is set by default to the OFF state (high level) at UART initialization. The DSR line is then set to the OFF state when the module is in command mode or in online command mode and is set to the ON state when the module is in data mode (see the u-blox AT Commands Manual [3] for the definition of the interface data mode, command mode and online command mode).

If AT&S0 is set, the DSR module output line is set by default to the ON state (low level) at UART initialization and is then always held in the ON state.

DTR signal behavior

The DTR module input line is set by default to the OFF state (high level) at UART initialization. The module then holds the DTR line in the OFF state if the line is not activated by the DTE: an active pull-up is enabled inside the module on the DTR input.

Module behavior according to DTR status can be changed by AT command (for more details, see u-blox AT Commands Manual [3], AT&D command description).

If AT+UPSV=3 is set, the DTR line is monitored by the module to manage the power saving configuration:

 When an OFF-to-ON transition occurs on the DTR input line, the UART is enabled and the module wakes up

 If the DTR input line is set to the OFF state by the DTE, the UART is disabled (held in low power mode) and

the module automatically enters low power idle-mode whenever possible

For more details, see section 1.9.1.4 and u-blox AT Commands Manual [3], AT+UPSV command.

AT+UPSV=3 power saving configuration control by the DTR input is not supported by SARA-G3 modules.

UBX-13000995 - R08 Objective Specification System description

Page 44 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

DCD signal behavior

If AT&C1 is set, as it is by default, the DCD module output line is set by default to the OFF state (high level) at UART initialization. The module then sets the DCD line according to the carrier detect status: ON if the carrier is detected, OFF otherwise. For voice calls, DCD is set to the ON state when the call is established. For a data call there are the following scenarios (see the u-blox AT Commands Manual [3] for the definition of the interface data mode, command mode and online command mode):

 Packet Switched Data call: Before activating the PPP protocol (data mode) a dial-up application must

provide the ATD*99***<context_number># to the module: with this command the module switches from command mode to data mode and can accept PPP packets. The module sets the DCD line to the ON state, then answers with a CONNECT to confirm the ATD*99 command. The DCD ON is not related to the context activation but with the data mode

 Circuit Switched Data call: To establish a data call, the DTE can send the ATD<number> command to the

module which sets an outgoing data call to a remote modem (or another data module). Data can be transparent (non reliable) or non transparent (with the reliable RLP protocol). When the remote DCE accepts the data call, the module DCD line is set to ON and the CONNECT <communication baudrate> string is returned by the module. At this stage the DTE can send characters through the serial line to the data module which sends them through the network to the remote DCE attached to a remote DTE

The DCD is set to ON during the execution of the +CMGS, +CMGW, +USOWR, +USODL AT commands

requiring input data from the DTE: the DCD line is set to the ON state as soon as the switch to binary/text input mode is completed and the prompt is issued; DCD line is set to OFF as soon as the input mode is interrupted or completed (for more details see the u-blox AT Commands Manual [3]).

The DCD line is kept in the ON state, even during the online command mode, to indicate that the data

call is still established even if suspended, while if the module enters command mode, the DSR line is set to the OFF state. For more details see DSR signal behavior description.

For scenarios when the DCD line setting is requested for different reasons (e.g. SMS texting during online

command mode), the DCD line changes to guarantee the correct behavior for all the scenarios. For instance, in case of SMS texting in online command mode, if the data call is released, the DCD line is kept to ON till the SMS command execution is completed (even if the data call release would request the DCD setting to OFF).

If AT&C0 is set, the DCD module output line is set by default to the ON state (low level) at UART initialization and is then always held in the ON state.

UBX-13000995 - R08 Objective Specification System description

Page 45 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

SMS arrives

time [s]

RI ON

RI OFF

SMS

time [s]

RI ON

RI OFF

time [s]

151050

RI ON

RI OFF

Call incomes

time [s]

151050

RI ON

RI OFF

Call incomes

RI signal behavior

The RI module output line is set by default to the OFF state (high level) at UART initialization. Then, during an incoming call, the RI line is switched from the OFF state to the ON state with a 4:1 duty cycle and a 5 s period (ON for 1 s, OFF for 4 s, see Figure 23), until the DTE attached to the module sends the ATA string and the module accepts the incoming data call. The RING string sent by the module (DCE) to the serial port at constant time intervals is not correlated with the switch of the RI line to the ON state.

Figure 23: RI behavior during an incoming call

The RI line can notify an SMS arrival. When the SMS arrives, the RI line switches from OFF to ON for 1 s (see Figure 24), if the feature is enabled by the AT+CNMI command (see the u-blox AT Commands Manual [3]).

Figure 24: RI behavior at SMS arrival

This behavior allows the DTE to stay in power saving mode until the DCE related event requests service. For SMS arrival, if several events coincidently occur or in quick succession each event independently triggers the RI line, although the line will not be deactivated between each event. As a result, the RI line may stay to ON for more than 1 s.

If an incoming call is answered within less than 1 s (with ATA or if auto-answering is set to ATS0=1) than the RI line is set to OFF earlier.

As a result:

RI line monitoring cannot be used by the DTE to determine the number of received SMSes. For multiple events (incoming call plus SMS received), the RI line cannot be used to discriminate the two

events, but the DTE must rely on the subsequent URCs and interrogate the DCE with proper commands.

The RI line can additionally notify all the URCs and all the incoming data (PPP, Direct Link, sockets, FTP), if the feature is enabled by the AT+URING command (for more details see u-blox AT Commands Manual [3]): the RI line is asserted when one of the configured events occur and it remains asserted for 1 s unless another configured event will happen, with the same behavior described in Figure 24.

The AT+URING command for the notification of all the URCs and all the incoming data (PPP, Direct Link,

sockets, FTP) over the RI line output is not supported by SARA-G3 modules.

UBX-13000995 - R08 Objective Specification System description

Page 46 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

AT+UPSV

HW flow control

RTS line

DTR line

Communication during idle-mode and wake up

Enabled (AT&K3)

ON or OFF

Data sent by the DTE are correctly received by the module. Data sent by the module is correctly received by the DTE.

Enabled (AT&K3)

OFF

ON or OFF

Data sent by the DTE is correctly received by the module. Data sent by the module is buffered by the module and will be correctly received by the DTE when it is ready to receive data (i.e. RTS line will be ON).

Disabled (AT&K0)

ON or OFF

Data sent by the DTE is correctly received by the module. Data sent by the module is correctly received by the DTE if it is ready to receive data, otherwise data is lost.

Enabled (AT&K3)

ON or OFF

Data sent by the DTE should be buffered by the DTE and will be correctly received by the module when active-mode is entered. Data sent by the module is correctly received by the DTE.

Enabled (AT&K3)

OFF

ON or OFF

Data sent by the DTE should be buffered by the DTE and will be correctly received by the module when active-mode is entered. Data sent by the module is buffered by the module and will be correctly received by the DTE when it is ready to receive data (i.e. RTS line will be ON).

Disabled (AT&K0)

ON or OFF

The first character sent by the DTE is lost, but after ~20 ms the UART and the module are waked up: recognition of subsequent characters is guaranteed after the complete UART / module wake-up. Data sent by the module is correctly received by the DTE if it is ready to receive data, otherwise data is lost.

Enabled (AT&K3)

ON or OFF

Not Applicable: HW flow control cannot be enabled with AT+UPSV=2.

Disabled (AT&K0)

ON or OFF

Data sent by the DTE is correctly received by the module. Data sent by the module is correctly received by the DTE if it is ready to receive data, otherwise data is lost.

Disabled (AT&K0)

OFF

ON or OFF

Data sent by the DTE is lost by SARA-U2 modules. The first character sent by the DTE is lost by SARA-G3 modules, but after ~20 ms the UART and the module are waked up: recognition of subsequent characters is guaranteed after the complete UART / module wake-up. Data sent by the module is correctly received by the DTE if it is ready to receive data, otherwise data is lost.

1.9.1.4 UART and power-saving

The power saving configuration is controlled by the AT+UPSV command (for the complete description, see u-blox AT Commands Manual [3]). When power saving is enabled, the module automatically enters low power idle-mode whenever possible, and otherwise the active-mode is maintained by the module (see section 1.4 for definition and description of module operating modes referred to in this section).

The AT+UPSV command configures both the module power saving and also the UART behavior in relation to the power saving. The conditions for the module entering idle-mode also depend on the UART power saving configuration.

Three different power saving configurations can be set by the AT+UPSV command:

 AT+UPSV=0, power saving disabled: module forced on active-mode and UART interface enabled (default)  AT+UPSV=1, power saving enabled: module cyclic active / idle-mode and UART enabled / disabled  AT+UPSV=2, power saving enabled and controlled by the UART RTS input line  AT+UPSV=3, power saving enabled and controlled by the UART DTR input line

The AT+UPSV=3 power saving configuration is not supported by SARA-G3 modules.

The different power saving configurations that can be set by the +UPSV AT command are described in details in the following subsections. Table 12 summarizes the UART interface communication process in the different power saving configurations, in relation with HW flow control settings and RTS input line status. For more details on the +UPSV AT command description, refer to u-blox AT commands Manual [3].

UBX-13000995 - R08 Objective Specification System description

Page 47 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

AT+UPSV

HW flow control

RTS line

DTR line

Communication during idle-mode and wake up

Enabled (AT&K3)

Data sent by the DTE is correctly received by the module. Data sent by the module is correctly received by the DTE.

Enabled (AT&K3)

OFF

Data sent by the DTE is lost by the module. Data sent by the module is correctly received by the DTE.

Enabled (AT&K3)

OFF

Enabled (AT&K3)

OFF

Data sent by the DTE is lost by the module. Data sent by the module is buffered by the module and will be correctly received by the DTE when it is ready to receive data (i.e. RTS line will be ON).

Disabled (AT&K0)

ON or OFF

Data sent by the DTE is correctly received by the module. Data sent by the module is correctly received by the DTE if it is ready to receive data, otherwise data are lost.

Disabled (AT&K0)

ON or OFF

OFF

Data sent by the DTE is lost by the module. Data sent by the module is correctly received by the DTE if it is ready to receive data, otherwise data are lost.

Table 12: UART and power-saving summary

AT+UPSV=0: power saving disabled, fixed active-mode

The module does not enter idle-mode and the UART interface is enabled (data can be sent and received): the

CTS line is always held in the ON state after UART initialization. This is the default configuration.

AT+UPSV=1: power saving enabled, cyclic idle/active-mode

On SARA-G3 modules, when the AT+UPSV=1 command is issued by the DTE, the UART is disabled after the timeout set by the second parameter of the +UPSV AT command (for more details see u-blox AT commands Manual [3]).

On SARA-U2 modules, when the AT+UPSV=1 command is issued by the DTE, the UART is immediately disabled. Afterwards, the UART of SARA-G3 and SARA-U2 series modules is periodically enabled to receive or send data

and, if data has not been received or sent over the UART, the interface is automatically disabled whenever possible according to the timeout configured by the second parameter of the +UPSV AT command.

The module automatically enters the low power idle-mode whenever possible but it wakes up to active-mode according to the UART periodic wake up so that the module cyclically enters the low power idle-mode and the active-mode. Additionally, the module wakes up to active-mode according to any required activity related to the network or any other required activity related to the functions / interfaces of the module.

The UART is enabled, and the module does not enter low power idle-mode, in the following cases:

 During the periodic UART wake up to receive or send data  If the module needs to transmit some data over the UART (e.g. URC)  During a CSD data call and a PSD data call with external context activation  On SARA-G3 modules, during a voice call  If a character is sent by the DTE with HW flow control disabled, the first character sent causes the system

wake-up due to the “wake up via data reception” feature described in the following subsection, and the UART will be then kept enabled after the last data received according to the timeout set by the second parameter of the AT+UPSV=1 command

The module, outside an active call, periodically wakes up from idle-mode to active-mode to monitor the paging channel of the current base station (paging block reception), according to 2G or 3G discontinuous reception (DRX) specification.

UBX-13000995 - R08 Objective Specification System description

Page 48 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

time [s]

CTS ON

CTS OFF

UART disabled

~10 ms (min)

UART enabled

~9.2 s (default)

UART enabled

Data input

0.47- 2.10 s

The time period between two paging receptions is defined by the current base station (i.e. by the network):

 If the module is registered with a 2G network, the paging reception period can vary from ~0.47 s (DRX = 2,

i.e. 2 x 51 2G-frames) up to ~2.12 s (DRX = 9, i.e. 9 x 51 2G-frames)

 If the module is registered with a 3G network, the paging reception period can vary from 0.64 s (DRX = 6,

i.e. 26 3G-frames) up to 5.12 s (DRX = 9, i.e. 29 3G-frames)

The time period of the UART enable/disable cycle is configured differently when the module is registered with a 2G network compared to when the module is registered with a 3G network:

 2G: the UART is synchronously enabled to every paging reception on SARA-G3 modules, whereas the UART

is not necessarily enabled at every paging reception on SARA-U2 modules: the UART is enabled concurrently to a paging reception, and then, as data has not been received or sent, the UART is disabled until the first paging reception that occurs after a timeout of 2.0 s, and therefore the interface is enabled again

 3G: the UART is asynchronously enabled to paging receptions, as the UART is enabled for ~20 ms, and then,

if data are not received or sent, the UART is disabled for 2.5 s, and afterwards the interface is enabled again

 Not registered: when a module is not registered with a network, the UART is enabled for ~20 ms, and then,

if data has not been received or sent, the UART is disabled for ~2.1 s on SARA-G3 modules or for 2.5 s on SARA-U2 modules, and afterwards the interface is enabled again

The module active-mode duration outside an active call depends on:

 Network parameters, related to the time interval for the paging block reception (minimum of ~11 ms)  Duration of UART enable time in absence of data reception (~20 ms)  The time period from the last data received at the serial port during the active-mode: the module does not

enter idle-mode until a timeout expires. The second parameter of the +UPSV AT command configures this timeout, from 40 2G-frames (i.e. 40 x 4.615 ms = 184 ms) up to 65000 2G-frames (i.e. 65000 x 4.615 ms = 300 s). Default value is 2000 2G-frames (i.e. 2000 x 4.615 ms = 9.2 s)

The active-mode duration can be extended indefinitely since every subsequent character received during the active-mode, resets and restarts the timer.

The timeout is ignored only by SARA-U2 modules immediately after AT+UPSV=1 has been sent, so that the UART interface is disabled and the module may enter idle-mode immediately after the AT+UPSV=1 is sent

The hardware flow-control output (CTS line) indicates when the UART interface is enabled (data can be sent and received over the UART), if HW flow control is enabled, as illustrated in Figure 25.

Figure 25: CTS behavior with power saving enabled (AT+UPSV=1) and HW flow control enabled: the CTS output line indicates when the UART interface of the module is enabled (CTS = ON = low level) or disabled (CTS = OFF = high level)

UBX-13000995 - R08 Objective Specification System description

Page 49 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

AT+UPSV=2: power saving enabled and controlled by the RTS line

This configuration can only be enabled with the module hardware flow control disabled by AT&K0 command. The UART interface is immediately disabled after the DTE sets the RTS line to OFF. Then, the module automatically enters idle-mode whenever possible according to any required activity related to

the network or any other required activity related to the functions / interfaces of the module. The UART is disabled as long as the RTS line is held to OFF, but the UART is enabled in the following cases:

 If the module needs to transmit some data over the UART (e.g. URC)  During a CSD data call and a PSD data call with external context activation  On SARA-G3 modules, during a voice call  On SARA-G3 modules, if a data is sent by the DTE, it causes the system wake-up due to the “wake up via

data reception” feature described in the following subsection, and the UART will be then kept enabled after the last data received according to the timeout previously set with the AT+UPSV=1 configuration

When an OFF-to-ON transition occurs on the RTS input line, the UART is re-enabled and the module, if it was in idle-mode, switches from idle to active-mode after ~20 ms: this is the UART and module “wake up time”.

If the RTS line is set to ON by the DTE the module is not allowed to enter the low power idle-mode and the UART is kept enabled.

On SARA-G3 modules, the CTS output line indicates the power saving state as illustrated in Figure 25,

even with AT+UPSV=2.

AT+UPSV=3: power saving enabled and controlled by the DTR line

The AT+UPSV=3 power saving configuration is not supported by SARA-G3 modules.

The AT+UPSV=3 configuration can be enabled regardless the flow control setting on UART. In particular, the HW flow control can be enabled (AT&K3) or disabled (AT&K0) on UART during this configuration.

The UART interface is immediately disabled after the DTE sets the DTR line to OFF. Then, the module automatically enters idle-mode whenever possible according to any required activity related to

the network or any other required activity related to the functions / interfaces of the module. The UART is disabled as long as the DTR line is set to OFF, but the UART is enabled in the following cases:

 If the module needs to transmit some data over the UART (e.g. URC)  During a CSD data call and a PSD data call with external context activation

When an OFF-to-ON transition occurs on the DTR input line, the UART is re-enabled and the module, if it was in idle-mode, switches from idle to active mode after 20 ms: this is the UART and module “wake up time”.

If the DTR line is set to ON by the DTE, the module is not allowed to enter idle-mode and the UART is kept enabled until the DTR line is set to OFF.

When the AT+UPSV=3 configuration is enabled, the DTR input line can still be used by the DTE to control the module behavior according to AT&D command configuration (see u-blox AT Commands Manual [3]).

The CTS output line indicates the UART power saving state as illustrated in Figure 25, if HW flow control

is enabled with AT+UPSV=3.

UBX-13000995 - R08 Objective Specification System description

Page 50 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

OFF

DCE UART is enabled for 2000 GSM frames (~9.2 s)

time

Wake up time: ~20 ms

time

TXD input

Wake up character

Not recognized by DCE

UART

OFF

Wake up via data reception

The UART wake up via data reception consists of a special configuration of the module TXD input line that causes the system wake-up when a low-to-high transition occurs on the TXD input line. In particular, the UART is enabled and the module switches from the low power idle-mode to active-mode within ~20 ms from the first character received: this is the system “wake up time”.

As a consequence, the first character sent by the DTE when UART is disabled (i.e. the wake up character) is not a valid communication character even if the wake up via data reception configuration is active, because it cannot be recognized, and the recognition of the subsequent characters is guaranteed only after the complete system wake-up (i.e. after ~20 ms).

The UART wake up via data reception configuration is active in the following cases:

 On SARA-G3 series, the TXD input line is configured to wake up the system via data reception if:

o AT+UPSV=1 is set with HW flow control disabled o AT+UPSV=2 is set with HW flow control disabled, and the RTS line is set OFF

 On SARA-U2 series, the TXD input line is configured to wake up the system via data reception only if

o AT+UPSV=1 is set with hardware flow control disabled

On SARA-U2 series, the UART wake up via data reception configuration is not active on the TXD input,

and therefore all the data sent by the DTE is lost, if:

o AT+UPSV=2 is set with HW flow control disabled, and the RTS line is set OFF o AT+UPSV=3 is set, regardless HW flow control setting, and the DTR line is set OFF

Figure 26 and Figure 27 show examples of common scenarios and timing constraints:

 AT+UPSV=1 power saving configuration is active and the timeout from last data received to idle-mode start

is set to 2000 frames (AT+UPSV=1,2000)

 Hardware flow control is disabled

Figure 26 shows the case where the module UART is disabled and only a wake-up is forced. In this scenario the only character sent by the DTE is the wake-up character; as a consequence, the DCE module UART is disabled when the timeout from last data received expires (2000 frames without data reception, as the default case).

Figure 26: Wake-up via data reception without further communication

UBX-13000995 - R08 Objective Specification System description

Page 51 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

DCE UART is enabled for 2000 GSM frames (~9.2s)

after the last data received

time

Wake up time: ~20 ms

time

Wake up character

Not recognized by DCE

Valid characters Recognized by DCE

OFF

TXD input

UART

OFF

Figure 27 shows the case where in addition to the wake-up character further (valid) characters are sent. The wake up character wakes-up the module UART. The other characters must be sent after the “wake up time” of ~20 ms. If this condition is satisfied, the module (DCE) recognizes characters. The module will disable the UART after 2000 GSM frames from the latest data reception.

Figure 27: Wake-up via data reception with further communication

The “wake-up via data reception” feature cannot be disabled. In command mode

DTE must always send a character to the module before the “AT” prefix set at the beginning of each command line: the first character is ignored if the module is in active-mode, or it represents the wake-up character if the module is in idle-mode.

In command mode

command line: the first character is not ignored if the module is in active-mode (i.e. the module replies “OK”), or it represents the wake up character if the module is in low power idle-mode (i.e. the module does not reply).

, if autobauding is enabled and the DTE does not implement HW flow control, the

, if autobauding is disabled, the DTE must always send a dummy “AT” before each

No wake-up character or dummy “AT” is required from the DTE during a voice or data call since the

module UART interface continues to be enabled and does not need to be woken-up. Furthermore in data mode11 a dummy “AT” would affect the data communication.

Additional considerations for SARA-U2 modules

SARA-U2 modules are forced to stay in active-mode if the USB is connected and not suspended, and therefore the AT+UPSV=1, AT+UPSV=2 or AT+UPSV=3 settings are overruled but they have effect on the UART behavior: they configure UART interface power saving, so that UART is enabled / disabled according to the AT+UPSV=1, AT+UPSV=2 or AT+UPSV=3 settings.

To set the AT+UPSV=1, AT+UPSV=2 or AT+UPSV=3 configuration over the USB interface of SARA-U2 modules, the autobauding must be previously disabled on the UART by the +IPR AT command over the used AT interface (the USB), and this +IPR AT command configuration must be saved in the module’ non-volatile memory (see u-blox AT Commands Manual [3]). Then, after the subsequent module re-boot, AT+UPSV=1, AT+UPSV=2 or AT+UPSV=3 can be issued over the used AT interface (the USB): all the AT profiles are updated accordingly.

Refer to the u-blox AT Commands Manual [3] for the definition of the interface data mode, command mode and online command mode.

UBX-13000995 - R08 Objective Specification System description

Page 52 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

1.9.1.5 Multiplexer protocol (3GPP 27.010)

SARA-G3 and SARA-U2 series modules have a software layer with MUX functionality, the 3GPP TS 27.010 Multiplexer Protocol [13], available on the UART physical link. The auxiliary UART, the USB and the DDC (I2C)

serial interfaces do not support the multiplexer protocol. This is a data link protocol (layer 2 of OSI model) which uses HDLC-like framing and operates between the

module (DCE) and the application processor (DTE) and allows a number of simultaneous sessions over the used physical link (UART or SPI): the user can concurrently use AT command interface on one MUX channel and Packet-Switched / Circuit-Switched Data communication on another multiplexer channel. Each session consists of a stream of bytes transferring various kinds of data such as SMS, CBS, PSD, GNSS, AT commands in general. This permits, for example, SMS to be transferred to the DTE when a data connection is in progress.

The following virtual channels are defined:

For more details, refer to Mux implementation Application Note [23].

1.9.2 Auxiliary asynchronous serial interface (UART AUX)

The auxiliary UART interface is not available on SARA-U2 series modules.

SARA-G3 modules provide the auxiliary UART interface: it is a 3-wire unbalanced 1.8 V asynchronous serial interface (only the RXD_AUX data output and TXD_AUX data input are provided), available for module FW upgrade by means of the u-blox EasyFlash tool and for diagnostic purpose.

The AT commands interface is not available on the auxiliary UART interface.

1.9.3 USB interface

The USB interface is not available on SARA-G3 series modules.

1.9.3.1 USB features

SARA-U2 modules include a High-Speed USB 2.0 compliant interface with maximum data rate of 480 Mb/s between the module and a host processor.

The module itself acts as a USB device and can be connected to any USB host such as a Personal Computer or an embedded application microprocessor for AT commands, data communication, FW upgrade by means of the FOAT feature, FW upgrade by means of the u-blox EasyFlash tool and for diagnostic purpose.

The USB_D+/USB_D- pins carry USB serial data and signaling while the VUSB_DET input pin senses the VBUS USB supply presence (nominally +5 V at the source) to detect the host connection and enable the interface.

The USB interface of the module is enabled only if a valid voltage is detected by the VUSB_DET input (see the SARA-U2 series Data Sheet [2]). Neither the USB interface, nor the whole module is supplied by the VUSB_DET input: the VUSB_DET senses the USB supply voltage and absorbs few microamperes.

UBX-13000995 - R08 Objective Specification System description

Page 53 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

SARA-U2 modules provide by default the following USB profile with the listed set of available USB functions (USB CDCs, Communications Device Classes):

 USB1: AT and Data (AT command interface and packet-switched / circuit-switched data communication)  USB2: AT and Data (AT command interface and packet-switched / circuit-switched data communication)  USB3: AT and Data (AT command interface and packet-switched / circuit-switched data communication)  USB4: GPS (tunneling communication with the u-blox GNSS receiver connected over I

C interface)

 USB5: Primary Log (diagnostic purpose)  USB6: Secondary Log (diagnostic purpose)  USB7: SAP (SIM Access Profile)

The user can concurrently use the AT command interface on one CDC, and packet-switched / circuit-switched data communication on another CDC.

The module firmware can be upgraded over the USB interface using the u-blox EasyFlash tool or by means of AT command (for more details see section 1.13.13 and Firmware update application note [25]).

Audio over USB capabilities can be enabled by specific AT command (refer to u-blox AT Commands Manual [3]): the Audio Device Class provides a streaming interface, which transfers audio data on isochronous pipes.

The USB Audio Device Class is not supported by initial firmware release.

USB CDC/ACM drivers are available for the following operating system platforms:

 Windows 2000  Windows XP  Windows Vista  Windows 7  Windows 8  Windows CE 5.0  Windows Embedded CE 6.0  Windows Embedded Compact 7  Windows Embedded Automotive 7  Windows Mobile 5  Windows Mobile 6  Windows Mobile 6.1  Windows Mobile 6.5

SARA-U2 modules are compatible with standard Linux/Android USB kernel drivers.

The USB profile of SARA-U2 module identifies itself by its VID (Vendor ID) and PID (Product ID) combination, included in the USB device descriptor according to the USB 2.0 specifications [14].

VID and PID of the SARA-U2 module USB profile with the set of USB functions described in details above (AT and Data, GNSS tunneling, Diagnostic, SAP) are the following:

 VID = 0x1546  PID = 0x1102

UBX-13000995 - R08 Objective Specification System description

Page 54 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

If the USB interface of a SARA-U2 module is connected to the host before the module switch on, or if the module is reset with the USB interface connected to the host, the VID and PID are automatically updated runtime, after the USB detection. First, VID and PID are the following:

 VID = 0x058B  PID = 0x0041

This VID and PID combination identifies a USB profile where the set of USB functions described in details above (AT and Data, GNSS tunneling, Diagnostic, SAP) are not available: AT commands must not be sent to the module over the USB profile identified by this VID and PID combination.

Then, after a time period (roughly 5 s, depending on the host / device enumeration timings), the VID and PID are updated to the following ones, which are related to the SARA-U2 module USB profile with the set of USB functions described in details above (AT and Data, GNSS tunneling, Diagnostic, SAP):

 VID = 0x1546  PID = 0x1102

1.9.3.2 USB and power saving

If power saving is enabled by the AT+UPSV command, the modules automatically enter the USB suspended state when the device has observed no bus traffic for a specified time period (see the USB 2.0 specifications [14]). In suspended state, the module maintains any USB internal status as device. In addition, the module enters the suspended state when the hub port it is attached to is disabled. This is referred to as USB selective suspend.

The module exits suspend mode when there is bus activity. If the USB is connected and not suspended, the module is forced to stay in active-mode, therefore the AT+UPSV settings are overruled but they have effect on the power saving configuration of the other interfaces.

The modules are capable of USB remote wake-up signaling: i.e. it may request the host to exit suspend mode or selective suspend by using electrical signaling to indicate remote wake-up. This notifies the host that it should resume from its suspended mode, if necessary, and service the external event. Remote wake-up is accomplished using electrical signaling described in the USB 2.0 specifications [14].

For the module current consumption description with power saving enabled and USB suspended, or with power saving disabled and USB not suspended, see sections 1.5.1.4, 1.5.1.5 and SARA-U2 series Data Sheet [2].

1.9.4 DDC (I

C) interface

SARA-G300 and SARA-G310 modules do not support DDC (I

C) interface.

An I2C bus compatible Display Data Channel (DDC) interface for communication with u-blox GNSS receivers is available on SDA and SCL pins of SARA-G340, SARA-G350 and SARA-U2 modules. Only this interface provides the communication between the u-blox cellular module and u-blox positioning chips and modules.

SARA-U2 modules additionally support the communication with other external I2C devices as an audio codec. The AT commands interface is not available on the DDC (I2C) interface. DDC (I2C) slave-mode operation is not supported: the cellular module can act as master only, and the connected

u-blox GNSS receiver or any other external I2C devices acts as slave in the DDC (I2C) communication. Two lines, serial data (SDA) and serial clock (SCL), carry information on the bus. SCL is used to synchronize data

transfers, and SDA is the data line. To be compliant to the I2C bus specifications, the module interface pins are open drain output and pull up resistors must be externally provided conforming to the I2C bus specifications [15].

u-blox has implemented special features in SARA-G340, SARA-G350 and SARA-U2 modules to ease the design effort required for the integration of a u-blox cellular module with a u blox GNSS receiver.

UBX-13000995 - R08 Objective Specification System description

Page 55 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Combining a u-blox cellular module with a u-blox GNSS receiver allows designers to have full access to the positioning receiver directly via the cellular module: it relays control messages to the GNSS receiver via a dedicated DDC (I2C) interface. A 2nd interface connected to the positioning receiver is not necessary: AT commands via the UART or USB serial interface of the cellular module allows a fully control of the GNSS receiver from any host processor.

SARA-G340, SARA-G350 and SARA-U2 modules feature embedded GNSS aiding that is a set of specific features developed by u-blox to enhance GNSS performance, decreasing the Time To First Fix (TTFF), thus allowing to calculate the position in a shorter time with higher accuracy.

SARA-G340, SARA-G350 and SARA-U2 modules support these GNSS aiding types:

 Local aiding  AssistNow Online  AssistNow Offline  AssistNow Autonomous

The embedded GNSS aiding features can be used only if the DDC (I2C) interface of the cellular module is connected to the u-blox GNSS receivers.

SARA-G340, SARA-G350 and SARA-U2 cellular modules provide additional custom functions over GPIO pins to improve the integration with u-blox positioning chips and modules. GPIO pins can handle:

 GNSS receiver power-on/off: “GNSS supply enable” function provided by GPIO2 improves the positioning

receiver power consumption. When the GNSS functionality is not required, the positioning receiver can be completely switched off by the cellular module that is controlled by AT commands

 The wake up from idle-mode when the GNSS receiver is ready to send data: “GNSS data ready” function

provided by GPIO3 improves the cellular module power consumption. When power saving is enabled in the cellular module by the AT+UPSV command and the GNSS receiver does not send data by the DDC (I2C) interface, the module automatically enters idle-mode whenever possible. With the “GNSS data ready” function the GNSS receiver can indicate to the cellular module that it is ready to send data by the DDC (I2C) interface: the positioning receiver can wake up the cellular module if it is in idle-mode, so the cellular module does not lose the data sent by the GNSS receiver even if power saving is enabled

 The RTC synchronization signal to the GNSS receiver: “GNSS RTC sharing” function provided by GPIO4

improves GNSS receiver performance, decreasing the Time To First Fix (TTFF), and thus allowing to calculate the position in a shorter time with higher accuracy. When GPS local aiding is enabled, the cellular module automatically uploads data such as position, time, ephemeris, almanac, health and ionospheric parameter from the positioning receiver into its local memory, and restores this to the GNSS receiver at the next power up of the positioning receiver

For more details regarding the handling of the DDC (I

C) interface, the GNSS aiding features and the GNSS related functions over GPIOs, see section 1.11, to the u-blox AT Commands Manual [3] (AT+UGPS, AT+UGPRF, AT+UGPIOC AT commands) and the GNSS Implementation Application Note [24].

“GNSS data ready” and “GNSS RTC sharing” functions are not supported by all u-blox GNSS receivers

HW or ROM/FW versions. See the GNSS Implementation Application Note [24] or to the Hardware Integration Manual of the u-blox GNSS receivers for the supported features.

As additional improvement for the GNSS receiver performance, the V_BCKP supply output of SARA-G340, SARA-G350 and SARA-U2 modules can be connected to the V_BCKP supply input pin of u-blox positioning chips and modules to provide the supply for the GNSS real time clock and backup RAM when the VCC supply of the cellular module is within its operating range and the VCC supply of the GNSS receiver is disabled.

This enables the u-blox positioning receiver to recover from a power breakdown with either a hot start or a warm start (depending on the duration of the GNSS receiver VCC outage) and to maintain the configuration settings saved in the backup RAM.

UBX-13000995 - R08 Objective Specification System description

Page 56 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

1.10 Audio interface

SARA-G300 and SARA-G310 modules do not support audio interface.

The following audio interfaces are provided by SARA-G3 and SARA-U2 series modules:

 SARA-G340 and SARA-G350 modules provide one analog audio interface and one digital audio interface  SARA-U2 modules provide one digital audio interface

The audio interfaces can be selected and set by the dedicated AT command +USPM (refer to the u-blox AT Commands Manual [3]): this command allows setting the audio path mode, composed by the uplink audio path

and the downlink audio path. Each uplink path mode defines the physical input (i.e. the analog or the digital audio input) and the set of

parameters to process the uplink audio signal (uplink gains, uplink digital filters, echo canceller parameters). For example the “Headset microphone” uplink path uses the differential analog audio input with the default parameters for the headset profile.

Each downlink path mode defines the physical output (i.e. the analog or the digital audio output) and the set of parameters to process the downlink audio signal (downlink gains, downlink digital filters and sidetone). For

example the “Mono headset” downlink path uses the differential analog audio output with the default

parameters for the headset profile. The set of parameters to process the uplink or the downlink audio signal can be changed with dedicated AT

commands for each uplink or downlink path and then stored in two profiles in the non volatile memory (refer to u-blox AT Commands Manual [3] for Audio parameters tuning commands).

1.10.1 Analog audio interface

SARA-U2 modules do not provide analog audio interface.

1.10.1.1 Uplink path

SARA-G340 / SARA-G350 pins related to the analog audio uplink path are:

 MIC_P / MIC_N: Differential analog audio signal inputs (positive/negative). These two pins are internally

directly connected to the differential input of an integrated Low Noise Amplifier, without any internal series capacitor for DC blocking. The LNA output is internally connected to the digital processing system by an integrated sigma-delta analog-to-digital converter

 MIC_BIAS: Supply output for an external microphone. The pin is internally connected to the output of a low

noise LDO linear regulator provided with proper internal bypass capacitor to guarantee stable operation of the linear regulator

 MIC_GND: Local ground for the external microphone. The pin is internally connected to ground as a sense

line as the reference for the analog audio input

The analog audio input is selected when the parameter <main_uplink> in AT+USPM command is set to “Headset microphone”, “Handset microphone” or “Hands-free microphone”: the uplink analog path profiles use the same physical input but have different sets of audio parameters (for more details, refer to u-blox AT

Commands Manual [3], AT+USPM, AT+UMGC, AT+UUBF, AT+UHFP commands). SARA-G3 series Data Sheet [1] provides the detailed electrical characteristics of the analog audio uplink path.

UBX-13000995 - R08 Objective Specification System description

Page 57 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

1.10.1.2 Downlink path

SARA-G340 / SARA-G350 pins related to the analog audio downlink path are:

 SPK_P / SPK_N: Differential analog audio signal output (positive/negative). These two pins are directly

connected internally to the differential output of a low power audio amplifier, for which the input is connected internally to the digital processing system by to an integrated digital-to-analog converter.

The analog audio output is selected when the parameter <main_downlink> in AT+USPM command is set to

“Normal earpiece”, “Mono headset” or “Loudspeaker”: the downlink analog path profiles use the same

physical output but have different sets of audio parameters (for more details, refer to the u-blox AT Commands Manual [3], AT+USPM, AT+USGC, AT+UDBF, AT+USTN commands).

The differential analog audio output of SARA-G340 and SARA-G350 modules (SPK_P / SPK_N) is able to directly drive loads with resistance rating greater than 14 : it can be directly connected to a headset earpiece or handset earpiece but cannot directly drive a 8  or 4  loudspeaker for the hands-free mode.

SARA-G3 series Data Sheet [1] provides the detailed electrical characteristics of the analog audio downlink path.

Warning: excessive sound pressure from headphones can cause hearing loss.

1.10.1.3 Headset mode

Headset mode is the default audio operating mode of the modules. The headset profile is configured when the

uplink audio path is set to “Headset microphone” and the downlink audio path is set to “Mono headset” (refer

to u-blox AT Commands Manual [3]: AT+USPM command: <main_uplink>, <main_downlink> parameters).

1.10.1.4 Handset mode

The handset profile is configured when the uplink audio path is set to “Handset microphone” and the downlink audio path is set to “Normal earpiece” (refer to u-blox AT commands manual [3]: AT+USPM command:

<main_uplink>, <main_downlink> parameters).

1.10.1.5 Hands-free mode

The hands-free profile is configured when the uplink audio path is set to “Hands-free microphone” and the downlink audio path is set to “Loudspeaker” (refer to u-blox AT commands manual [3]: AT+USPM command: <main_uplink>, <main_downlink> parameters).

Hands-free functionality is implemented using appropriate digital signal processing algorithms for voice-band handling (echo canceller and automatic gain control), managed via software (refer to u-blox AT commands manual [3], AT+UHFP command).

UBX-13000995 - R08 Objective Specification System description

Page 58 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

1.10.2 Digital audio interface

SARA-G340, SARA-G350 and SARA-U2 modules provide one 1.8 V bidirectional 4-wire (I2S_TXD data output, I2S_RXD data input, I2S_CLK clock, I2S_WA world alignment) I2S digital audio interface that can be used for

digital audio communication with external digital audio devices as an audio codec. The I2S interface can be set to two modes, by the <I2S_mode> parameter of the AT+UI2S command:

 PCM mode  Normal I

The I2S interface can be set to two configurations, by the <I2S_Master_Slave> parameter of AT+UI2S:

 Master mode  Slave mode

SARA-G340 and SARA-G350 modules do not support I

The sample rate of transmitted/received words can be set, by the <I2S_sample_rate> parameter of AT+UI2S, to:

 8 kHz  11.025 kHz  12 kHz  16 kHz  22.05 kHz  24 kHz  32 kHz  44.1 kHz  48 kHz

S mode

S slave mode: module acts as master only.

SARA-G340 and SARA-G350 modules do not support the <I2S_sample_rate> parameter of AT+UI2S: the

sample rate is fixed at 8 kHz only.

The <main_uplink> and <main_downlink> parameters of the AT+USPM command must be properly configured to select the I2S digital audio interfaces paths (for more details, refer to u-blox AT Commands Manual [3]):

 <main_uplink> must be properly set to select:

o the I

 <main_downlink> must be properly set to select:

o the I

Parameters of digital path can be configured and saved as described in the u-blox AT Commands Manual [3], +USGC, +UMGC, +USTN AT commands. Analog gain parameters are not used when digital path is selected.

The I2S receive data input and the I2S transmit data output signals are respectively connected in parallel to the analog microphone input and speaker output signals, so resources available for analog path can be shared:

 Digital filters and digital gains are available in both uplink and downlink direction  Ringer tone and service tone are mixed on the TX path when active (downlink)  The HF algorithm acts on I

Refer to the u-blox AT Commands Manual [3]: AT+UI2S command for possible settings of I

S interface (using I2S_RXD module input)

S interface (using I2S_TXD module output)

S path

S interface.

UBX-13000995 - R08 Objective Specification System description

Page 59 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

1.10.2.1 I

S interface – PCM mode

Main features of the I2S interface in PCM mode (configurable by AT+UI2S command):

 I

S runs in PCM – short alignment mode

 I

S word alignment signal is configured by the <I2S_sample_rate> parameter

 I

S word alignment is set high for 1 or 2 clock cycles for the synchronization, and then is set low for 16 clock cycles of sample width. The frame length, according to the length of the high pulse for the synchronization, can be 1 + 16 = 17 bits or 2 + 16 = 18 bits

 I

S clock frequency depends on the frame length and the sample rate. It can be 17 x <I2S_sample_rate> or 18 x <I2S_sample_rate>

 I

S transmit and I2S receive data are 16 bit words long with the same sampling rate as I2S word alignment, mono. Data is in 2’s complement notation. MSB is transmitted first

 When I

S word alignment toggles high, the first synchronization bit is always low. Second synchronization bit (present only in case of 2 bit long I2S word alignment configuration) is MSB of the transmitted word (MSB is transmitted twice in this case)

 I

S transmit data changes on I2S clock rising edge, I2S receive data changes on I2S clock falling edge

1.10.2.2 I

S interface – Normal I2S mode

Normal I2S supports:

 16 bits word  Mono interface  Sample rate: <I2S_sample_rate> parameter

Main features of I2S interface in normal I2S mode (configurable by AT+UI2S command):

 I

S runs in normal I2S – long alignment mode

 I

S word alignment signal always runs at the <I2S_sample_rate> and synchronizes 2 channels (timeslots on

word alignment high, word alignment low)

 I

S transmit data is composed of 16 bit words, dual mono (the words are written on both channels). Data are in 2’s complement notation. MSB is transmitted first. The bits are written on I2S clock rising or falling edge (configurable)

 I

S receive data is read as 16 bit words, mono (words are read only on the timeslot with WA high). Data is

read in 2’s complement notation. MSB is read first. The bits are read on the I2S clock edge opposite to I2S

transmit data writing edge (configurable)

 I

S clock frequency is 16 bits x 2 channels x <I2S_sample_rate>

The modes are configurable through a specific AT command (refer to the related section in the u-blox AT Commands Manual [3], +UI2S AT command) and the following parameters can be set:

 MSB can be 1 bit delayed or non-delayed on I

 I

S transmit data can change on rising or falling edge of I2S clock signal

 I

S receive data are read on the opposite front of I2S clock signal

S word alignment edge

UBX-13000995 - R08 Objective Specification System description

Page 60 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

I2S_RXD

Switch

MIC

Uplink

Analog Gain

Uplink

Filter 2

Uplink Filter 1

Radio TX

Uplink

Digital Gain

Downlink

Filter 1

Downlink

Filter 2

MIDI

Player

SPK

Switch

I2Sx TX

I2S_TXD

Scal_Rec

Digital Gain

SPK

Analog Gain

Gain_Out

Digital Gain

From

Radio RX

Speech

Level

I2Sx RX

Sample Based Processing Frame Based Processing

Circular

Buffer

Sidetone

Digital Gain

DAC

ADC

Tone

Generator

AMR

Player

Hands-Free

Voiceband Sample Buffer

1.10.3 Voice-band processing system

1.10.3.1 SARA-G340 / SARA-G350 modules audio processing

The voice-band processing on the SARA-G340 / SARA-G350 modules is implemented in the DSP core inside the baseband chipset. The analog audio front-end of the chipset is connected to the digital system through 16 bit ADC converters in the uplink path, and through 16 bit DAC converters in the downlink path. External digital audio devices can directly be interfaced to the DSP digital processing part via the I2S digital interface. The analog amplifiers are skipped in this case.

The voice-band processing system can be split up into three different blocks:

 Sample-based Voice-band Processing (single sample processed at 8 kHz, every 125 µs)  Frame-based Voice-band Processing (frames of 160 samples are processed every 20 ms)  MIDI synthesizer running at 47.6 kHz

These three blocks are connected by buffers and sample rate converters (for 8 to 47.6 kHz conversion)

Figure 28: SARA-G340 / SARA-G350 modules audio processing system block diagram

The sample-based voice-band processing main task is to transfer the voice-band samples from either analog audio front-end uplink path or I2Sx RX path to the Voice-band Sample Buffer and from the Voice-band Sample Buffer to the analog audio front-end downlink path and/or I2Sx TX path. While doing this the samples are scaled by digital gains and processed by digital filters both in the uplink and downlink direction and the sidetone is generated mixing scaled uplink samples to the downlink samples (refer to the u-blox AT Commands Manual [3], +UUBF, +UDBF, +UMGC, +USGC, +USTN commands).

The frame-based voice-band processing implements the Hands-Free algorithm. This consists of the Echo Canceller, the Automatic Gain Control and the Noise Suppressor. Hands-Free algorithm acts on the uplink signal only. Algorithms are configurable with AT commands (refer to the u-blox AT Commands Manual [3], +UHFP command). The frame-based voice-band processing also implements an AMR player. The speech uplink path final block before radio transmission is the speech encoder. Symmetrically, on downlink path, the starting block is the speech decoder which extracts speech signal from the radio receiver.

The circular buffer is a 3000 word buffer to store and mix the voice-band samples from Midi synthesizer. The buffer has a circular structure, so that when the write pointer reaches the end of the buffer, it is wrapped to the begin address of the buffer.

UBX-13000995 - R08 Objective Specification System description

Page 61 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Switch

I2S_RXD

UBF

2/6

UBF

1/5

Hands-

free

Radio TX

Uplink

Digital Gain

I2S_TXD

Switch

Scal_Rec

Digital Gain

Tone

Generator

I2Sx RX

UBF

4/8

UBF

3/7

DBF

3/7

DBF

4/8

DBF

1/5

DBF

2/6

Legend: UBF= Uplink Biquad Filter DBF = Downlink Biquad Filter

I2Sx TX

Sidetone

From

Radio RX

Speech level

PCM

Player

Mix_Afe

Two different sample-based sample rate converters are used: an interpolator, required to convert the sample-based voice-band processing sampling rate of 8 kHz to the analog audio front-end output rate of

47.6 kHz; a decimator, required to convert the circular buffer sampling rate of 47.6 kHz to the I2Sx TX or the uplink path sample rate of 8 kHz.

The following speech codecs are supported by SARA-G340 / SARA-G350 firmware on the DSP:

 GSM Half Rate (TCH/HS)  GSM Full Rate (TCH/FS)  GSM Enhanced Full Rate (TCH/EFR)  3GPP Adaptive Multi Rate (AMR) (TCH/AFS+TCH/AHS)

o In AMR Full Rate (AFS) the Active CODEC Set is selected from an overall set of 8 data rates:

12.2 – 10.2 – 7.95 – 7.40 – 6.70 – 5.90 – 5.15 – 4.75 kb/s

o In AMR Half Rate (AHS) the overall set comprises 6 different data rates:

7.95 – 7.40 – 6.70 – 5.90 – 5.15 – 4.75 kb/s

1.10.3.2 SARA-U2 modules audio processing system

The voiceband processing on the SARA-U2 modules is implemented in the DSP core inside the baseband chipset. The external digital audio devices can be interfaced directly to the DSP digital processing part via the I2S digital interface. With exception of the speech encoder/decoder, audio processing can be controlled by AT commands.

The audio processing is implemented within the different blocks of the voiceband processing system:

 Sample-based Voice-band Processing (single sample processed at 16 kHz for Wide Band AMR codec or

8 kHz for all other speech codecs)

 Frame-based Voice-band Processing (frames of 320 samples for Wide Band AMR codec or 160 samples for

all other speech codecs are processed every 20 ms)

These blocks are connected by buffers (circular buffer and voiceband sample buffer) and sample rate converters (for 8 / 16 to 47.6 kHz conversion).

The voiceband audio processing implemented in the DSP core of SARA-U2 modules is summarized in Figure 29.

Figure 29: SARA-U2 modules audio processing system block diagram

UBX-13000995 - R08 Objective Specification System description

Page 62 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

SARA-U2 modules audio signal processing algorithms are:

 Speech encoding (uplink) and decoding (downlink).The following speech codecs are supported in firmware

on the DSP for speech encoding and decoding: GERAN GMSK codecs

o GSM HR (GSM Half Rate) o GSM FR (GSM Full Rate) o GSM EFR (GSM Enhanced Full Rate) o HR AMR (GSM Half Rate Adaptive Multi Rate - Narrow Band) o FR AMR (GSM Full Rate Adaptive Multi Rate - Narrow Band) o FR AMR-WB (GSM Full Rate Adaptive Multi Rate - Wide Band)

UTRAN codecs:

o UMTS AMR2 (UMTS Adaptive Multi Rate version 2 – Narrow Band) o UMTS AMR-WB (UMTS Adaptive Multi Rate – Wide Band)

 Mandatory sub-functions:

o Discontinuous transmission, DTX (GSM 46.031, 46.041, 46.081 and 46.093 standards) o Voice activity detection, VAD (GSM 46.032, 46.042, 46.082 and 46.094 standards) o Background noise calculation (GSM 46.012, 46.022, 46.062 and 46.092 standards)

 Function configurable via specific AT commands (refer to the u-blox AT Commands Manual [3])

o Signal routing: +USPM command o Analog amplification, digital amplification: +USGC, +CLVL, +CRSL, +CMUT command o Digital filtering: +UUBF, +UDBF commands o Hands-free algorithms (echo cancellation, Noise suppression, Automatic Gain control) +UHFP

command

o Sidetone generation (feedback of uplink speech signal to downlink path): +USTN command o Playing/mixing of alert tones:

Service tones: Tone generator with 3 sinus tones +UPAR command User generated tones: Tone generator with a single sinus tone +UTGN command PCM audio files (for prompting): The storage format of PCM audio files is 8 kHz sample rate, signed

16 bits, little endian, mono

UBX-13000995 - R08 Objective Specification System description

Page 63 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

1.11 General Purpose Input/Output (GPIO)

SARA-G300 and SARA-G310 modules do not support GPIOs.

SARA-G340, SARA-G350 and SARA-U2 modules provide pins which can be configured as general purpose input or output, or can be configured to provide special functions via u-blox AT commands (for further details refer to the u-blox AT Commands Manual [3], +UGPIOC, +UGPIOR, +UGPIOW, +UGPS, +UGPRF):

 SARA-G340 and SARA-G350 modules provide 4 configurable GPIO pins: GPIO1, GPIO2, GPIO3, GPIO4  SARA-U2 modules provide 9 configurable GPIO pins: GPIO1, GPIO2, GPIO3, GPIO4, I2S_RXD, I2S_TXD,

I2S_CLK, I2S_WA, SIM_DET

The following functions are available:

 Network status indication:

The GPIO1, or the GPIO2, GPIO3, GPIO4 and, on SARA-U2 series only, the SIM_DET, alternatively from their default settings, can be configured to indicate network status (i.e. no service, registered home network, registered visitor network, voice or data call enabled), setting the parameter <gpio_mode> of AT+UGPIOC command to 2.

No GPIO pin is by default configured to provide the “Network status indication” function. The “Network status indication” mode can be provided only on one pin per time: it is not possible to

simultaneously set the same mode on another pin. The pin configured to provide the “Network status indication” function is set as

o Continuous Low,

if no service (no network coverage or not registered)

o Cyclically High for 100 ms, Low for 2 s,

if registered home 2G network

o Cyclically High for 50 ms, Low for 50 ms, High for 50 ms, Low for 2 s,

if registered home 3G network

o Cyclically High for 100 ms, Low for 100 ms, High for 100 ms, Low for 2 s,

if registered visitor 2G network (roaming)

o Cyclically High for 50 ms, Low for 50 ms, High for 50 ms, Low for 100 ms,

if registered visitor 3G network (roaming)

o Continuous High,

if voice or data 2G/3G call enabled

 GSM Tx burst indication:

GPIO1 pin can be configured by AT+UGPIOC to indicate when a GSM Tx burst/slot occurs, setting the parameter <gpio_mode> of AT+UGPIOC command to 9.

No GPIO pin is by default configured to provide the “GSM Tx burst indication” function. The pin configured to provide the “GSM Tx burst indication” function is set as

o High, since ~10 µs before the start of first Tx slot, until ~5 µs after the end of last Tx slot o Low, otherwise

SARA-U280 and SARA-U290 modules do not support the “GSM Tx burst indication” function on GPIO1,

as the modules do not support 2G radio access technology.

UBX-13000995 - R08 Objective Specification System description

Page 64 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

 GNSS supply enable:

The GPIO2 is by default configured by AT+UGPIOC command to enable or disable the supply of the u-blox GNSS receiver connected to the cellular module.

The GPIO1, GPIO3, GPIO4 pins and, on SARA-U2 series only, also the SIM_DET pin, can be configured to

provide the “GNSS supply enable” function, alternatively to the default GPIO2 pin, setting the parameter <gpio_mode> of AT+UGPIOC command to 3. The “GNSS supply enable” mode can be provided only on

one pin per time: it is not possible to simultaneously set the same mode on another pin. The pin configured to provide the “GNSS supply enable” function is set as

o High, to switch on the u-blox GNSS receiver, if AT+UGPS parameter <mode> is set to 1 o Low, to switch off the u-blox GNSS receiver, if AT+UGPS parameter <mode> is set to 0 (default)

 GNSS data ready:

Only the GPIO3 pin provides the “GNSS data ready” function, to sense when a u-blox GNSS receiver connected to the cellular module is ready to send data via the DDC (I2C) interface, setting the parameter <gpio_mode> of AT+UGPIOC command to 4.

The pin configured to provide the “GNSS data ready” function is set as

o Input, to sense the line status, waking up the cellular module from idle-mode when the u-blox

GNSS receiver is ready to send data via the DDC (I2C) interface, if the first AT+UGPS parameter is set to 1 and the first AT+UGPRF parameter is set to 16

o Tri-state with an internal active pull-down enabled, otherwise (default setting)

 GNSS RTC sharing:

Only the GPIO4 pin provides the “GNSS RTC sharing” function, to provide an RTC (Real Time Clock) synchronization signal to the u-blox GNSS receiver connected to the cellular module, setting the parameter <gpio_mode> of AT+UGPIOC command to 5.

The pin configured to provide the “GNSS RTC sharing” function is set as

o Output, to provide an RTC (Real Time Clock) synchronization signal to the u-blox GNSS receiver if

the first AT+UGPS parameter is set to 1 and the first AT+UGPRF parameter is set to 32

o Low, otherwise (default setting)

 SIM card detection:

The SIM_DET pin of SARA-G3 modules is by default configured to detect SIM card mechanical presence and this configuration cannot be changed by AT command.

The SIM_DET pin of SARA-U2 modules is by default configured to detect SIM card mechanical presence as default setting of the AT+UGPIOC command: the “SIM card detection” function is enabled as the parameter <gpio_mode> of AT+UGPIOC command is set to 7 (default setting).

The SIM_DET pin configured to provide the “SIM card detection” function is set as

o Input with an internal active pull-down enabled, to sense SIM card mechanical presence

The SIM_DET pin can sense the SIM card mechanical presence only if properly connected to the mechanical switch of a SIM card holder as described in section 2.5:

o Low logic level at SIM_DET input pin is recognized as SIM card not present o High logic level at SIM_DET input pin is recognized as SIM card present

SARA-U2 modules provide the additional function “SIM card hot insertion/removal” on the SIM_DET pin, which can be enabled using the AT+UDCONF=50 command if the “SIM card detection” function is enabled by AT+UGPIOC (for more details see u-blox AT Commands Manual [3]): in this case the SIM interface of the SARA-U2 modules is disabled when a Low logic level is recognized at SIM_DET input pin (within 20 ms from the start of the Low level) and it is enabled when an High logic level at SIM_DET input pin is recognized.

SARA-G3 series do not support the additional function “SIM card hot insertion/removal”

UBX-13000995 - R08 Objective Specification System description

Page 65 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

 Module status indication:

The GPIO1 pin of SARA-U2 modules can be configured to indicate module status (power-off mode, i.e. module switched off, versus idle, active or connected mode, i.e. module switched on), by properly setting the parameter <gpio_mode> of AT+UGPIOC command to 10.

No GPIO pin is by default configured to provide the “Module status indication”. The pin configured to provide the “Module status indication” function is set as

o High, when the module is switched on (any operating mode during module normal operation) o Low, when the module is switched off (power off mode)

SARA-G3 series do not support “Module status indication” function.

 Module operating mode indication:

The SIM_DET pin of SARA-U2 modules can be configured to indicate module operating mode status (the low power idle-mode versus active or connected mode), by properly setting the parameter <gpio_mode> of AT+UGPIOC command to 11.

No GPIO pin is by default configured to provide the “Module operating mode indication”. The pin configured to provide the “Module operating mode indication” function is set as

o Output / High, when the module is in active or connected mode o Output / Low, when the module is in idle-mode (that can be reached if power saving is enabled by

+UPSV AT command: for further details see u-blox AT Commands Manual [3])

SARA-G3 series do not support “Module operating mode indication”.

 I

S digital audio interface: The I2S_RXD, I2S_TXD, I2S_CLK, I2S_WA pins of SARA-U2 modules are by default configured as the I2S

digital audio interface. Only these pins of SARA-U2 modules can be configured as the I2S digital audio interface, by correctly setting

the parameter <gpio_mode> of AT+UGPIOC command to 12 (default setting).

SARA-G3 series do not support the I

 General purpose input:

All the GPIOs can be configured as input to sense high or low digital level through AT+UGPIOR command, setting the parameter <gpio_mode> of AT+UGPIOC command to 1.

The “General purpose input” mode can be provided on more than one pin at a time. No GPIO pin is by default configured as “General purpose input”. The pin configured to provide the “General purpose input” function is set as

o Input, to sense high or low digital level by AT+UGPIOR command.

 General purpose output:

All the GPIOs can be configured as output to set the high or the low digital level through AT+UGPIOW command, setting the parameter <gpio_mode> of +UGPIOC AT command to 0.

The “General purpose output” mode can be provided on more than one pin per time. No GPIO pin is by default configured as “General purpose output”. The pin configured to provide the “General purpose output” function is set as

o Output / Low, if the parameter <gpio_out_val> of AT+UGPIOW command is set to 0 o Output / High, if the parameter <gpio_out_val> of AT+UGPIOW command is set to 1

S digital audio interface over GPIOs.

UBX-13000995 - R08 Objective Specification System description

Page 66 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Module

Name

Description

Remarks

SARA-G340 SARA-G350

GPIO1

GPIO

By default, the pin is configured as Pin disabled. Can be alternatively configured by the AT+UGPIOC command as

 Output  Input  Network Status Indication  GNSS Supply Enable  GSM Tx Burst Indication

SARA-U260 SARA-U270

GPIO1

GPIO

By default, the pin is configured as Pin disabled. Can be alternatively configured by the AT+UGPIOC command as

 Output  Input  Network Status Indication  GNSS Supply Enable  GSM Tx Burst Indication  Module Status Indication

SARA-U280 SARA-U290

GPIO1

GPIO

By default, the pin is configured as Pin disabled. Can be alternatively configured by the AT+UGPIOC command as

 Output  Input  Network Status Indication  GNSS Supply Enable  Module Status Indication

SARA-G340 SARA-G350 SARA-U2 series

GPIO2

GPIO

By default, the pin is configured to provide GNSS Supply Enable function. Can be alternatively configured by the +UGPIOC command as

 Output  Input  Network Status Indication  Pin disabled

SARA-G340 SARA-G350 SARA-U2 series

GPIO3

GPIO

By default, the pin is configured to provide GNSS Data Ready function. Can be alternatively configured by the +UGPIOC command as

 Output  Input  Network Status Indication  GNSS Supply Enable  Pin disabled

SARA-G340 SARA-G350 SARA-U2 series

GPIO4

GPIO

By default, the pin is configured to provide GNSS RTC sharing function. Can be alternatively configured by the +UGPIOC command as

 Output  Input  Network Status Indication  GNSS Supply Enable  Pin disabled

 Pin disabled:

All the GPIOs can be configured in tri-state with an internal active pull-down enabled, as a not used pin, setting the parameter <gpio_mode> of +UGPIOC AT command to 255.

The “Pin disabled” mode can be provided on more than one pin per time: it is possible to simultaneously set the same mode on another pin (also on all the GPIOs).

The pin configured to provide the “Pin disabled” function is set as

o Tri-state with an internal active pull-down enabled

Table 13 describes the configurations of all SARA-G340, SARA-G350 and SARA-U2 modules’ GPIO pins.

UBX-13000995 - R08 Objective Specification System description

Page 67 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Module

Name

Description

Remarks

SARA-G340 SARA-G350

SIM_DET

SIM detection

By default, the pin is configured to provide SIM card detection function. The pin cannot be alternatively configured by the +UGPIOC command.

SARA-U2 series

SIM_DET

GPIO

By default, the pin is configured to provide SIM card detection function. Can be alternatively configured by the +UGPIOC command as

 Output  Input  Network Status Indication  GNSS Supply Enable  Module Operating Mode Indication  Pin disabled

SARA-U2 series

I2S_WA

GPIO

By default, the pin is configured to provide I2S word alignment function. Can be alternatively configured by the +UGPIOC command as

 Output  Input  Pin disabled

SARA-U2 series

I2S_TXD

GPIO

By default, the pin is configured to provide I2S data output function. Can be alternatively configured by the +UGPIOC command as

 Output  Input  Pin disabled

SARA-U2 series

I2S_CLK

GPIO

By default, the pin is configured to provide I2S clock function. Can be alternatively configured by the +UGPIOC command as

 Output  Input  Pin disabled

SARA-U2 series

I2S_RXD

GPIO

By default, the pin is configured to provide I2S data input function. Can be alternatively configured by the +UGPIOC command as

 Output  Input  Pin disabled

Table 13: GPIO pins configurations

1.12 Reserved pins (RSVD)

SARA-G3 and SARA-U2 series modules have pins reserved for future use: they can all be left unconnected on the application board, except the RSVD pin number 33 that must be externally connected to ground.

UBX-13000995 - R08 Objective Specification System description

Page 68 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

1.13 System features

1.13.1 Network indication

Not supported by SARA-G300 and SARA-G310 modules.

For the detailed description, see section 1.11 and to u-blox AT Commands Manual [3], GPIO commands.

1.13.2 Antenna detection

Not supported by SARA-G300 and SARA-G310 modules.

ANT_DET pin of SARA-G340, SARA-G350 and SARA-U2 series modules is an Analog to Digital Converter (ADC) provided to sense the presence of an external antenna when optionally set by the +UANTR AT command.

The external antenna assembly must be provided with a built-in resistor (diagnostic circuit) to be detected, and an antenna detection circuit must be implemented on the application board properly connecting the antenna detection input (ANT_DET) to the antenna RF interface (ANT).

For more details regarding feature description and detection / diagnostic circuit design-in see sections 1.7.2 and

2.4.2, and to the u-blox AT Commands Manual [3].

1.13.3 Jamming detection

Not supported by SARA-G300 and SARA-G310 modules.

In real network situations modules can experience various kind of out-of-coverage conditions: limited service conditions when roaming to networks not supporting the specific SIM, limited service in cells which are not

suitable or barred due to operators’ choices, no cell condition when moving to poorly served or highly interfered

areas. In the latter case, interference can be artificially injected in the environment by a noise generator covering

a given spectrum, thus obscuring the operator’s carriers entitled to give access to the cellular service. The Jamming Detection Feature detects such “artificial” interference and reports the start and stop of such

conditions to the client, which can react appropriately by e.g. switching off the radio transceiver to reduce power consumption and monitoring the environment at constant periods.

The feature detects, at radio resource level, an anomalous source of interference and signals it to the client with an unsolicited indication when the detection is entered or released. The jamming condition occurs when:

 The module has lost synchronization with the serving cell and cannot select any other cell  The band scan reveals at least n carriers with power level equal or higher than threshold  On all such carriers, no synchronization is possible

The client can configure the number of minimum disturbing carriers and the power level threshold by using the AT+UCD command [3].

The jamming condition is cleared when any of the above mentioned statements does not hold. The congestion (i.e. jamming) detection feature can be enabled and configured by the +UCD AT command (for

more details see the u-blox AT Commands Manual [3]).

UBX-13000995 - R08 Objective Specification System description

Page 69 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

1.13.4 TCP/IP and UDP/IP

Not supported by SARA-G300 and SARA-G310 modules.

Via the AT commands it is possible to access the embedded TCP/IP and UDP/IP stack functionalities over the Packet Switched data connection. For more details about AT commands see u-blox AT Commands Manual [3].

Direct Link mode for TCP and UDP sockets is supported. Sockets can be set in Direct Link mode to establish a transparent end-to-end communication with an already connected TCP or UDP socket via serial interface. In Direct Link mode, data sent to the serial interface from an external application processor is forwarded to the network and vice-versa.

To avoid data loss while using Direct Link, enable HW flow control on the serial interface.

1.13.5 FTP

Not supported by SARA-G300 and SARA-G310 modules.

SARA-G340, SARA-G350 and SARA-U2 series modules support the File Transfer Protocol functionalities via AT commands. Files are read and stored in the local file system of the module.

SARA-U2 series modules support also Secure File Transfer Protocol functionalities providing SSL encryption. For more details about AT commands see the u-blox AT Commands Manual [3].

1.13.6 HTTP

Not supported by SARA-G300 and SARA-G310 modules.

SARA-G340, SARA-G350 and SARA-U2 modules support Hyper-Text Transfer Protocol functionalities as an HTTP client is implemented: HEAD, GET, POST, DELETE and PUT operations are available. The file size to be uploaded / downloaded depends on the free space available in the local file system (FFS) at the moment of the operation. Up to 4 HTTP client contexts can simultaneously be used.

SARA-U2 modules support also Secure Hyper-Text Transfer Protocol functionalities providing SSL encryption. For more details about AT commands see the u-blox AT Commands Manual [3].

1.13.7 SMTP

Not supported by SARA-G300, SARA-G310 and SARA-U2 modules.

SARA-G340 and SARA-G350 modules support SMTP client functionalities. It is possible to specify the common parameters (e.g. server data, authentication method, etc. can be specified), to send an email to a SMTP server. Emails can be sent with or without attachment. Attachments are stored in the module local file system.

For more details about AT commands see the u-blox AT Commands Manual [3].

UBX-13000995 - R08 Objective Specification System description

Page 70 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

SSL features

TLS

Certificates

Data Encryption

Message authentication algorithms

TLS_RSA_WITH_AES_128_CBC_SHA

TLSv1

RSA key exchange

AES 128 bits in CipherBlockChaining mode

SHA1 160 bits

TLS_RSA_WITH_RC4_128_SHA

TLSv1

RSA key exchange

RC4 128 bits in stream mode

SHA1 160 bits

TLS_RSA_WITH_RC4_128_MD5

TLSv1

RSA key exchange

RC4 128 bits in stream mode

MD5 128 bits

TLS_RSA_WITH_NULL_SHA

TLSv1

RSA key exchange

No data encryption

SHA1 160 bits

1.13.8 SSL

Not supported by SARA-G3 modules.

SARA-U2 modules support the Transport Layer Security (TLS) / Secure Sockets Layer (SSL) cryptographic protocols to provide security over the FTP and HTTP protocols.

The following features are supported:

 Protocol: TLS version 1  Certificate types: RSA  Certificate key size: up to 4096 bit  Certificate signature: MD5, SHA1, SHA256, SHA512  Data encryption algorithms:

o AES 128 bits in CipherBlockChaining mode o RC4 128 bit in stream mode

 Message authentication algorithms:

o SHA1: 160 bits o MD5: 128 bits

The SARA-U2 modules:

o support the server authentication without the root certificate verification o do not support the mutual authentication (use of client certificates)

Table 14 lists the TLS cipher suite registry values supported by SARA-U2 series modules.

Table 14: SARA-U2 TLS cipher suite registry

1.13.9 Dual stack IPv4/IPv6

Not supported by SARA-G3 modules.

SARA-U2 modules support both Internet Protocol version 4 and Internet Protocol version 6. For more details about dual stack IPv4/IPv6 see the u-blox AT Commands Manual [3].

UBX-13000995 - R08 Objective Specification System description

Page 71 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Warning

area

-1

-2

Valid temperature range

Safe

area

Dangerous

area

Dangerous

area

Warning

area

1.13.10 Smart temperature management

Not supported by SARA-G300 and SARA-G310 modules.

Cellular modules – independent of the specific model – always have a well-defined operating temperature range. This range should be respected to guarantee full device functionality and long life span.

Nevertheless there are environmental conditions that can affect operating temperature, e.g. if the device is located near a heating/cooling source, if there is/is not air circulating, etc.

The module itself can also influence the environmental conditions; such as when it is transmitting at full power. In this case its temperature increases very quickly and can raise the temperature nearby.

The best solution is always to properly design the system where the module is integrated. Nevertheless an extra check/security mechanism embedded into the module is a good solution to prevent operation of the device outside of the specified range.

Smart Temperature Supervisor (STS)

The Smart Temperature Supervisor is activated and configured by a dedicated AT+USTS command. See u-blox AT Commands Manual [3] for more details.

The cellular module measures the internal temperature (Ti) and its value is compared with predefined thresholds to identify the actual working temperature range.

Temperature measurement is done inside the module: the measured value could be different from the

environmental temperature (Ta).

Figure 30: Temperature range and limits

The entire temperature range is divided into sub-regions by limits (see Figure 30) named t-2, t-1, t+1 and t+2.

 Within the first limit, (t  In the Warning Area, (t

< Ti < t+1), the cellular module is in the normal working range, the Safe Area

-1

< Ti < t.1) or (t+1 < Ti < t+2), the cellular module is still inside the valid temperature

-2

range, but the measured temperature approaches the limit (upper or lower). The module sends a warning to the user (through the active AT communication interface), which can take, if possible, the necessary actions to return to a safer temperature range or simply ignore the indication. The module is still in a valid and good working condition

 Outside the valid temperature range, (Ti < t

) or (Ti > t+2), the device is working outside the specified range

-2

and represents a dangerous working condition. This condition is indicated and the device shuts down to avoid damage

For security reasons the shutdown is suspended in case an emergency call in progress. In this case the

device switches off at call termination.

The user can decide at anytime to enable/disable the Smart Temperature Supervisor feature. If the feature

is disabled there is no embedded protection against disallowed temperature conditions.

UBX-13000995 - R08 Objective Specification System description

Page 72 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

IF STS

enabled

Read

temperature

(t-1<Ti<t+1)

(t-2<Ti<t+2)

Send

notification

(warning)

Send

notification

(dangerous)

Wait emergency

call termination

emerg.

call in

progress

Shut the device

down

Yes

Send

shutdown

notification

Feature enabled

(full logic or

indication only)

Full Logic

Enabled

Feature disabled:

no action

Temperature is within normal operating range

Yes

Tempetature is within warning area

Tempetature is outside valid temperature range

Featuere enabled in full logic mode

Feature enabled in indication only mode: no further actions

Send

notification

(safe)

Previously

outside of

Safe Area

Tempetature is back to safe area

No further actions

Yes

Figure 31 shows the flow diagram implemented in the SARA-G340 and SARA-G350 modules for the Smart Temperature Supervisor.

Figure 31: Smart Temperature Supervisor (STS) flow diagram

UBX-13000995 - R08 Objective Specification System description

Page 73 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Symbol

Parameter

Temperature

Remarks

t-2

Low temperature shutdown

–40 °C

Equal to the absolute minimum temperature rating for the cellular module (the lower limit of the extended temperature range)

t-1

Low temperature warning

–30 °C

10 °C above t-2

t+1

High temperature warning

+85 °C

10 °C below t+2. The higher warning area for upper range ensures that any countermeasures used to limit the thermal heating will become effective, even considering some thermal inertia of the complete assembly.

t+2

High temperature shutdown

+95 °C

Equal to the internal temperature Ti measured in the worst case operating condition at typical supply voltage when the ambient temperature Ta in the reference setup (*) equals the absolute maximum temperature rating (upper limit of the extended temperature range)

(*) SARA-G340 / SARA-G350 module mounted on a 79 x 62 x 1.41 mm 4-Layers PCB with a high coverage of copper in still air conditions

Threshold definitions

When the module application operates at extreme temperatures with Smart Temperature Supervisor enabled, the user should note that outside the valid temperature range the device automatically shut s down as described above.

The input for the algorithm is always the temperature measured within the cellular module (Ti, internal). This value can be higher than the working ambient temperature (Ta, ambient), since (for example) during transmission at maximum power a significant fraction of DC input power is dissipated as heat. This behavior is partially compensated by the definition of the upper shutdown threshold (t+2) that is slightly higher than the declared environmental temperature limit.

Table 15 defines the temperature thresholds for SARA-G340 and SARA-G350 modules.

Table 15: Thresholds definition for Smart Temperature Supervisor on the SARA-G340 and SARA-G350 modules

The sensor measures board temperature inside the shields, which can differ from ambient temperature.

1.13.11 AssistNow clients and GNSS integration

Not supported by SARA-G300 and SARA-G310 modules.

For customers using u-blox GNSS receivers, SARA-G340, SARA-G350 and SARA-U2 modules feature embedded AssistNow clients. AssistNow A-GPS provides better GNSS performance and faster Time-To-First-Fix. The clients can be enabled and disabled with an AT command (see the u-blox AT Commands Manual [3]).

SARA-G340, SARA-G350 and SARA-U2 modules act as a stand-alone AssistNow client, making AssistNow available with no additional requirements for resources or software integration on an external host micro controller. Full access to u-blox positioning receivers is available via the cellular modules, through a dedicated DDC (I2C) interface, while the available GPIOs can handle the positioning chipset / module power-on/off. This means that the cellular module and the positioning chips and modules can be controlled through a single serial port from any host processor.

UBX-13000995 - R08 Objective Specification System description

Page 74 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

1.13.12 Hybrid positioning and CellLocate

Not supported by SARA-G300 and SARA-G310 versions.

Although GNSS is a widespread technology, reliance on the visibility of extremely weak GNSS satellite signals means that positioning is not always possible, particularly in shielded environments such as indoors and enclosed park houses, or when a GNSS jamming signal is present. The situation can be improved by augmenting GNSS receiver data with network cell information to provide a level of redundancy that can benefit numerous applications.

Positioning through cellular information: CellLocateTM

u-blox CellLocateTM enables the device position estimation based on the parameters of the mobile network cells visible to the specific device. To estimate its position the module sends the CellLocateTM server the parameters of network cells visible to it using a UDP connection. In return the server provides the estimated position based on the CellLocateTM database. SARA-G340, SARA-G350 and SARA-U2 modules can either send the parameters of the visible home network cells only (normal scan) or the parameters of all surrounding cells of all mobile operators (deep scan).

The CellLocateTM database is compiled from the position of devices which observed, in the past, a specific cell or set of cells (historical observations) as follows:

1. Several devices reported their position to the CellLocate server when observing a specific cell (the As in the

picture represent the position of the devices which observed the same cell A)

2. CellLocate

server defines the area of Cell A visibility

UBX-13000995 - R08 Objective Specification System description

Page 75 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

3. If a new device reports the observation of Cell A CellLocate

is able to provide the estimated position from

the area of visibility

4. The visibility of multiple cells provides increased accuracy based on the intersection of areas of visibility.

CellLocateTM is implemented using a set of two AT commands that allow configuration of the CellLocateTM service (AT+ULOCCELL) and requesting position according to the user configuration (AT+ULOC). The answer is provided in the form of an unsolicited AT command including latitude, longitude and estimated accuracy.

The accuracy of the position estimated by CellLocate

depends on the availability of historical

observations in the specific area.

Hybrid positioning

With u-blox hybrid positioning technology, u-blox cellular modules can be triggered to provide their current position using either a u-blox GNSS receiver or the position estimated from CellLocate. The choice depends on which positioning method provides the best and fastest solution according to the user configuration, exploiting the benefit of having multiple and complementary positioning methods.

Hybrid positioning is implemented through a set of three AT commands that allow GNSS receiver configuration (AT+ULOCGNSS), CellLocateTM service configuration (AT+ULOCCELL), and requesting the position according to the user configuration (AT+ULOC). The answer is provided in the form of an unsolicited AT command including latitude, longitude and estimated accuracy (if the position has been estimated by CellLocateTM), and additional parameters if the position has been computed by the GNSS receiver.

The configuration of mobile network cells does not remain static (e.g. new cells are continuously added or existing cells are reconfigured by the network operators). For this reason, when a hybrid positioning method has been triggered and the GNSS receiver calculates the position, a database self-learning mechanism has been implemented so that these positions are sent to the server to update the database and maintain its accuracy.

UBX-13000995 - R08 Objective Specification System description

Page 76 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

The use of hybrid positioning requires a connection via the DDC (I2C) bus between the SARA-G340 / SARA-G350 cellular modules and the u-blox GNSS receiver (see section 2.6.4).

See GNSS Implementation Application Note [24] for the complete description of the feature.

u-blox is extremely mindful of user privacy. When a position is sent to the CellLocate server u-blox is

unable to track the SIM used or the specific device.

1.13.13 Firmware upgrade Over AT (FOAT)

Overview

This feature allows upgrading the module Firmware over the UART interface, using AT Commands.

 AT command AT+UFWUPD triggers a reboot followed by the upgrade procedure at specified a baud rate

(see u-blox AT Commands Manual [3] for more details)

 Both Xmodem-1k protocol (1024 bytes packets) and Xmodem protocol (128 bytes packets) can be used for

downloading the new firmware image via a terminal application

 A special boot loader on the module performs firmware installation, security verifications and module reboot  Firmware authenticity verification is performed via a security signature during the download. The firmware is

then installed, overwriting the current version. In case of power loss during this phase, the boot loader detects a fault at the next wake-up, and restarts the firmware download from the Xmodem-1k handshake. After completing the upgrade, the module is reset again and wakes-up in normal boot

FOAT procedure

The application processor must proceed in the following way:

 Send the AT+UFWUPD command through UART interface, specifying the file type and the desired baud rate  Reconfigure serial communication at selected baud rate, without flow control with the used protocol  Send the new FW image via the used protocol

For more details, see the Firmware Update Application Note [25].

1.13.14 Firmware upgrade Over The Air (FOTA)

Not supported by SARA-G300 and SARA-G310 modules. Supported upon request on SARA-G340, SARA-G350 and SARA-U2 modules.

This feature allows upgrading the module firmware over the air, i.e. over the cellular network. The main idea with updating firmware over the air is to reduce the amount of data required for transmission to the module. This is achieved by downloading only a “delta file” instead of the full firmware. The delta contains only the differences between the two firmware versions (old and new), and is compressed.

For more details, see the Firmware Update Application Note [25].

UBX-13000995 - R08 Objective Specification System description

Page 77 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

1.13.15 In-Band modem (eCall / ERA-GLONASS)

Not supported by SARA-G300 / SARA-G310 / SARA-U260 / SARA-U280 modules.

SARA-G340, SARA-G350 and SARA-U2 modules support an In-Band modem solution for the European eCall and the Russian ERA-GLONASS emergency call applications over cellular networks, implemented according to 3GPP TS 26.267 [22], BS EN 16062:2011 [30] and ETSI TS 122 101 [31] specifications.

eCall (European) and ERA-GLONASS (Russian) are initiatives to combine mobile communications and satellite positioning to provide rapid assistance to motorists in the event of a collision. The eCall automated emergency response system is based on GPS, and the ERA-GLONASS is based on the GLONASS positioning system.

When activated, the in-vehicle systems (IVS) automatically initiate an emergency call carrying both voice and data (including location data) directly to the nearest Public Safety Answering Point (PSAP) to determine whether rescue services should be dispatched to the known position.

Figure 32: eCall and ERA-GLONASS automated emergency response systems diagram flow

For more details regarding the In-Band modem solution for the European eCall and the Russian ERA-GLONASS emergency call applications see the u-blox eCall / ERA-GLONASS Application Note [29].

1.13.16 SIM Access Profile (SAP)

Not supported by SARA-G3 modules.

SIM access profile (SAP) feature allows SARA-U2 modules to access and use a remote (U)SIM card instead of the local SIM card directly connected to the module (U)SIM interface.

SARA-U2 modules provide a dedicated USB SAP channel and dedicated multiplexer SAP channel over UART for communication with the remote (U)SIM card.

The communication between SARA-U2 modules and the remote SIM is conformed to client-server paradigm: the SARA-U2 module is the SAP client establishing a connection and performing data exchange to an SAP server directly connected to the remote SIM that is used by SARA-U2 module for GSM/UMTS network operations. The SAP communication protocol is based on the SIM Access Profile Interoperability Specification [28].

SARA-U2 modules do not support SAP server role: the module acts as SAP client only.

A typical application using the SAP feature is the scenario where a device such as an embedded car-phone with an integrated SARA-U2 module uses a remote SIM included in an external user device (e.g. a simple SIM card reader or a portable phone), which is brought into the car. The car-phone accesses the GSM/UMTS network using the remote SIM in the external device.

UBX-13000995 - R08 Objective Specification System description

Page 78 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Device including SARA-U2

GSM/UMTS

Interface

SAP

Serial Interface

(SAP channel over

USB or UART)

Local SIM

(opti onal)

SARA-U2

SAP Client

Application

Processor

Device including SIM

SAP

Serial Interface

Remote SIM

Mobile

Equipment

SAP Server

Device including SARA-U2

SAP

Serial Interface

(SAP channel over

USB or UART)

GSM/UMTS

Interface

Local SIM

(opti onal)

SARA-U2

SAP Client

Application

Processor

SAP

Bluetooth

Interface

Bluetooth

Transceiver

Device including SIM

Remote SIM

Mobile

Equipment

SAP Server

Bluetooth

Transceiver

SARA-U2 modules, acting as an SAP client, can be connected to an SAP server by a completely wired connection, as shown in Figure 33.

Figure 33: Remote SIM access via completely wired connection

As stated in the SIM Access Profile Interoperability Specification [28], the SAP client can be connected to the SAP server by means of a Bluetooth wireless link, using additional Bluetooth transceivers. In this case, the application processor wired to SARA-U2 modules establishes and controls the Bluetooth connection using the SAP profile, and routes data received over a serial interface channel to data transferred over a Bluetooth interface and vice versa, as shown in Figure 34.

Figure 34: Remote SIM access via Bluetooth and wired connection

The application processor can start an SAP connection negotiation between SARA-U2 module SAP client and an SAP server using custom AT command (for more details refer to u-blox AT Commands Manual [3]).

While the connection with the SAP server is not fully established, the SARA-U2 module continues to operate with the attached (local) SIM, if present. Once the connection is established and negotiated, the SARA-U2 module performs a detach operation from the local SIM followed by an attach operation to the remote one. Then the remotely attached SIM is used for any GSM/UMTS network operation.

URC indications are provided to inform the user about the state of both the local and remote SIM. The insertion and the removal of the local SIM card are notified if a proper card presence detection circuit using the SIM_DET pin of SARA-U2 modules is implemented as shown in the section 2.5, and if the related “SIM card detection”

and “SIM hot insertion/removal” functions are enabled by AT commands (for more details see u-blox AT Commands Manual [3], +UGPIOC, +UDCONF=50 AT commands).

Upon SAP deactivation, the SARA-U2 modules perform a detach operation from the remote SIM followed by an attach operation to the local one, if present.

UBX-13000995 - R08 Objective Specification System description

Page 79 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

1.13.17 Power saving

The power saving configuration is by default disabled, but it can be enabled using the AT+UPSV command. When power saving is enabled, the module automatically enters the low power idle-mode whenever possible, reducing current consumption.

During low power idle-mode, the module is not ready to communicate with an external device by means of the application interfaces, since it is configured to reduce power consumption. It can be woken up from idle-mode to active-mode by the connected application processor, by the connected u-blox positioning receiver or by network activities, as described in Table 6.

During idle-mode, the module processor core runs with the RTC 32 kHz reference clock, which is generated by:

 The internal 32 kHz oscillator, in case of SARA-G340, SARA-G350 and SARA-U2 modules  The 32 kHz signal provided at the EXT32K input pin, in case of SARA-G300 and SARA-G310 modules

SARA-G300 and SARA-G310 need a 32 kHz signal at EXT32K input to reach the low power idle-mode.

For the complete description of the AT+UPSV command, refer to the u-blox AT Commands Manual [3]. For the definition and the description of SARA-G3 and SARA-U2 series modules operating modes, including the

events forcing transitions between the different operating modes, refer to section 1.4. For the description of current consumption in idle and active operating modes, refer to sections 1.5.1.4, 1.5.1.5. For the description of the UART settings related to module power saving configuration, refer to section 1.9.1.4. For the description of the USB settings related to module power saving configuration, refer to section 1.9.3.2. For the description of the EXT32K input and related application circuit design-in, refer to sections 1.6.4, 2.3.3.

UBX-13000995 - R08 Objective Specification System description

Page 80 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

2 Design-in

2.1 Overview

For an optimal integration of SARA-G3 and SARA-U2 series modules in the final application board follow the design guidelines stated in this section.

Every application circuit must be properly designed to guarantee the correct functionality of the related interface, however a number of points require higher attention during the design of the application device.

The following list provides a ranking of importance in the application design, starting from the highest relevance:

1. Module antenna connection: ANT and ANT_DET pins. Antenna circuit directly affects the RF compliance of

the device integrating a SARA-G3 and SARA-U2 series module with the applicable certification schemes. Very carefully follow the suggestions provided in section 2.4 for schematic and layout design.

2. Module supply: VCC and GND pins. The supply circuit affects the RF compliance of the device integrating a

SARA-G3 and SARA-U2 series module with applicable certification schemes as well as antenna circuit design. Very carefully follow the suggestions provided in section 2.2.1 for schematic and layout design.

3. USB interface: USB_D+, USB_D- and VUSB_DET pins. Accurate design is required to guarantee USB 2.0

high-speed interface functionality. Carefully follow the suggestions provided in the related section 2.6.1 for schematic and layout design.

4. SIM interface: VSIM, SIM_CLK, SIM_IO, SIM_RST, SIM_DET pins. Accurate design is required to guarantee

SIM card functionality and compliance with applicable conformance standards, reducing also the risk of RF coupling. Carefully follow the suggestions provided in section 2.5 for schematic and layout design.

5. System functions: RESET_N, PWR_ON pins. Accurate design is required to guarantee that the voltage level

is well defined during operation. Carefully follow the suggestions provided in section 2.3 for schematic and layout design.

6. Analog audio interface: MIC_BIAS, MIC_GND, MIC_P, MIC_N uplink and SPK_P, SPK_N downlink pins.

Accurate design is required to obtain clear and high quality audio reducing the risk of noise from audio lines due to both supply burst noise coupling and RF detection. Carefully follow the suggestions provided in section 2.7.1 for schematic and layout design.

7. Other digital interfaces: UART and auxiliary UART interfaces, DDC I

interface and GPIOs. Accurate design is required to guarantee proper functionality and reduce the risk of digital data frequency harmonics coupling. Follow the suggestions provided in sections 2.6.1, 2.6.2, 2.6.4,

2.7.2 and 2.8 for schematic and layout design.

8. 32 kHz signal: the EXT32K input pin and the 32K_OUT output pin of SARA-G300 and SARA-G310 modules

require accurate layout design as it may affect the stability of the RTC reference. Follow the suggestions provided in section 2.3.3 for schematic and layout design.

9. Other supplies: the V_BCKP RTC supply input/output and the V_INT digital interfaces supply output.

Accurate design is required to guarantee proper functionality. Follow the suggestions provided in sections

2.2.2 and 2.2.3 for schematic and layout design.

C-compatible interface, digital audio

UBX-13000995 - R08 Objective Specification Design-in

Page 81 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Main Supply

Available?

Battery

Li-Ion 3.7 V

Linear LDO

Regulator

Main Supply

Voltage > 5V?

Switching Step-Down

Regulator

No, portable device

No, less than 5 V

Yes, greater than 5 V

Yes, always available

2.2 Supply interfaces

2.2.1 Module supply (VCC)

2.2.1.1 General guidelines for VCC supply circuit selection and design

VCC pins are internally connected, but connect all the available pins to the external supply to minimize the

power loss due to series resistance. GND pins are internally connected but connect all the available pins to solid ground on the application board,

since a good (low impedance) connection to external ground can minimize power loss and improve RF and thermal performance.

SARA-G3 and SARA-U2 series modules must be supplied through the VCC pins by a proper DC power supply that should comply with the module VCC requirements summarized in Table 7.

The proper DC power supply can be selected according to the application requirements (see Figure 35) between the different possible supply sources types, which most common ones are the following:

 Switching regulator  Low Drop-Out (LDO) linear regulator  Rechargeable Lithium-ion (Li-Ion) or Lithium-ion polymer (Li-Pol) battery  Primary (disposable) battery

Figure 35: VCC supply concept selection

The DC/DC switching step-down regulator is the typical choice when the available primary supply source has a nominal voltage much higher (e.g. greater than 5 V) than the modules VCC operating supply voltage. The use of switching step-down provides the best power efficiency for the overall application and minimizes current drawn from the main supply source. Refer to sections 2.2.1.2 and 2.2.1.6, 2.2.1.9, 2.2.1.10 for specific design-in.

The use of an LDO linear regulator becomes convenient for a primary supply with a relatively low voltage (e.g. less than 5 V). In this case the typical 90% efficiency of the switching regulator diminishes the benefit of voltage step-down and no true advantage is gained in input current savings. On the opposite side, linear regulators are not recommended for high voltage step-down as they dissipate a considerable amount of energy in thermal power. Refer to sections 2.2.1.3 and 2.2.1.6, 2.2.1.9, 2.2.1.10 for specific design-in.

If the modules are deployed in a mobile unit where no permanent primary supply source is available, then a battery will be required to provide VCC. A standard 3-cell Li-Ion or Li-Pol battery pack directly connected to VCC is the usual choice for battery-powered devices. During charging, batteries with Ni-MH chemistry typically reach a maximum voltage that is above the maximum rating for VCC, and should therefore be avoided. Refer to sections 2.2.1.4 and 2.2.1.6, 2.2.1.9, 2.2.1.10 for specific design-in.

The use of a primary (not rechargeable) battery is uncommon, since the most cells available are seldom capable of delivering the burst peak current for a GSM call due to high internal resistance. Refer to sections 2.2.1.5 and

2.2.1.6, 2.2.1.9, 2.2.1.10 for specific design-in.

UBX-13000995 - R08 Objective Specification Design-in

Page 82 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

Keep in mind that the use of rechargeable batteries requires the implementation of a suitable charger circuit which is not included in SARA-G3 and SARA-U2 series modules. The charger circuit has to be designed to prevent over-voltage on VCC pins of the module, and it should be selected according to the application requirements: a DC/DC switching charger is the typical choice when the charging source has an high nominal voltage (e.g. ~12 V), whereas a linear charger is the typical choice when the charging source has a relatively low nominal voltage (~5 V). If both a permanent primary supply / charging source (e.g. ~12 V) and a rechargeable back-up battery (e.g. 3.7 V Li-Pol) are available at the same time in the application as possible supply source, then a proper charger / regulator with integrated power path management function can be selected to supply the module while simultaneously and independently charging the battery. Refer to sections 2.2.1.7, 2.2.1.8

2.2.1.6, 2.2.1.9, and 2.2.1.10 for specific design-in.

The usage of more than one DC supply at the same time should be carefully evaluated: depending on the supply source characteristics, different DC supply systems can result as mutually exclusive.

The usage of a regulator or a battery not able to withstand the maximum peak current consumption specified in the SARA-G3 series Data Sheet [1] and in the SARA-U2 series Data Sheet [2] is generally not recommended. However, if the selected regulator or battery is not able to withstand the maximum peak current of the module, it must be able to withstand at least the maximum average current consumption value specified in the SARA-G3 series Data Sheet [1] and in the SARA-U2 series Data Sheet [2]. The additional energy required by the module during a 2G Tx slot can be provided by an appropriate bypass tank capacitor or supercapacitor with very large capacitance and very low ESR placed close to the module VCC pins. Depending on the actual capability of the selected regulator or battery, the required capacitance can be considerably larger than 1 mF and the required ESR can be in the range of few tens of m. Carefully evaluate the implementation of this solution since aging and temperature conditions significantly affect the actual capacitor characteristics.

The following sections highlight some design aspects for each of the supplies listed above providing application circuit design-in compliant with the module VCC requirements summarized in Table 7.

For the additional specific guidelines for SARA-G350 ATEX modules integration in potentially explosive

atmospheres applications, refer to section 2.14.

2.2.1.2 Guidelines for VCC supply circuit design using a switching regulator

The use of a switching regulator is suggested when the difference from the available supply rail to the VCC value is high: switching regulators provide good efficiency transforming a 12 V or greater voltage supply to the typical

3.8 V value of the VCC supply. The characteristics of the switching regulator connected to VCC pins should meet the following prerequisites to

comply with the module VCC requirements summarized in Table 7:

 Power capability: the switching regulator with its output circuit must be capable of providing a voltage

value to the VCC pins within the specified operating range and must be capable of delivering to VCC pins the specified maximum peak / pulse current with 1/8 duty cycle (refer to the SARA-G3 series Data Sheet [1] or the SARA-U2 series Data Sheet [2])

 Low output ripple: the switching regulator together with its output circuit must be capable of providing a

clean (low noise) VCC voltage profile

 High switching frequency: for best performance and for smaller applications select a switching frequency

≥ 600 kHz (since L-C output filter is typically smaller for high switching frequency). The use of a switching regulator with a variable switching frequency or with a switching frequency lower than 600 kHz must be carefully evaluated since this can produce noise in the VCC voltage profile and therefore negatively impact GSM modulation spectrum performance. An additional L-C low-pass filter between the switching regulator output to VCC supply pins can mitigate the ripple on VCC, but adds extra voltage drop due to resistive losses on series inductors

UBX-13000995 - R08 Objective Specification Design-in

Page 83 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

SARA-G3 / SARA-U2

12V

C2C1

VIN

RUN

SYNC

BOOST

GND

C7 C8

VCC

GND

Reference

Description

Part Number - Manufacturer

10 µF Capacitor Ceramic X7R 5750 15% 50 V

C5750X7R1H106MB - TDK

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

680 pF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71H681KA01 - Murata

22 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1H220JZ01 - Murata

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

470 nF Capacitor Ceramic X7R 0603 10% 25 V

GRM188R71E474KA12 - Murata

22 µF Capacitor Ceramic X5R 1210 10% 25 V

GRM32ER61E226KE15 - Murata

330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m

T520D337M006ATE045 - KEMET

Schottky Diode 40 V 3 A

MBRA340T3G - ON Semiconductor

10 µH Inductor 744066100 30% 3.6 A

744066100 - Wurth Electronics

470 k Resistor 0402 5% 0.1 W

2322-705-87474-L - Yageo

15 k Resistor 0402 5% 0.1 W

2322-705-87153-L - Yageo

22 k Resistor 0402 5% 0.1 W

2322-705-87223-L - Yageo

390 k Resistor 0402 1% 0.063 W

RC0402FR-07390KL - Yageo

100 k Resistor 0402 5% 0.1 W

2322-705-70104-L - Yageo

Step-Down Regulator MSOP10 3.5 A 2.4 MHz

LT3972IMSE#PBF - Linear Technology

 PWM mode operation: it is preferable to select regulators with Pulse Width Modulation (PWM) mode.

While in connected-mode Pulse Frequency Modulation (PFM) mode and PFM/PWM mode, transitions must be avoided to reduce the noise on the VCC voltage profile. Switching regulators that are able to switch between low ripple PWM mode and high efficiency burst or PFM mode can be used, provided the mode transition occurs when the module changes status from idle/active-mode to connected-mode (where current consumption increases to a value greater than 100 mA): it is permissible to use a regulator that switches from the PWM mode to the burst or PFM mode at an appropriate current threshold (e.g. 60 mA)

 Output voltage slope: the use of the soft start function provided by some voltage regulators should be

carefully evaluated, since the VCC pins voltage must ramp from 2.5 V to 3.2 V in less than 1 ms to switch on the SARA-U2 modules or in less than 4 ms to switch on the SARA-G3 modules by applying VCC supply, that otherwise can be switched on by forcing a low level on the RESET_N pin during the VCC rising edge and then releasing the RESET_N pin when the VCC supply voltage stabilizes at its proper nominal value

Figure 36 and the components listed in Table 16 show an example of a high reliability power supply circuit, where the module VCC is supplied by a step-down switching regulator capable of delivering to VCC pins the specified maximum peak / pulse current, with low output ripple and with fixed switching frequency in PWM mode operation greater than 1 MHz.

Figure 36: Suggested schematic design for the VCC voltage supply application circuit using a step-down regulator

Table 16: Suggested components for the VCC voltage supply application circuit using a step-down regulator

UBX-13000995 - R08 Objective Specification Design-in

Page 84 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

SARA-G3 / SARA-U2

12V

C6C1

VCC

INH

FSW

SYNC

OUT

GND

COMP

VCC

Reference

Description

Part Number - Manufacturer

22 µF Capacitor Ceramic X5R 1210 10% 25 V

GRM32ER61E226KE15 – Murata

100 µF Capacitor Tantalum B_SIZE 20% 6.3V 15m

T520B107M006ATE015 – Kemet

5.6 nF Capacitor Ceramic X7R 0402 10% 50 V

GRM155R71H562KA88 – Murata

6.8 nF Capacitor Ceramic X7R 0402 10% 50 V

GRM155R71H682KA88 – Murata

56 pF Capacitor Ceramic C0G 0402 5% 50 V

GRM1555C1H560JA01 – Murata

220 nF Capacitor Ceramic X7R 0603 10% 25 V

GRM188R71E224KA88 – Murata

Schottky Diode 25V 2 A

STPS2L25 – STMicroelectronics

5.2 µH Inductor 30% 5.28A 22 m

MSS1038-522NL – Coilcraft

4.7 k Resistor 0402 1% 0.063 W

RC0402FR-074K7L – Yageo

910  Resistor 0402 1% 0.063 W

RC0402FR-07910RL – Yageo

82  Resistor 0402 5% 0.063 W

RC0402JR-0782RL – Yageo

8.2 k Resistor 0402 5% 0.063 W

RC0402JR-078K2L – Yageo

39 k Resistor 0402 5% 0.063 W

RC0402JR-0739KL – Yageo

Step-Down Regulator 8-VFQFPN 3 A 1 MHz

L5987TR – ST Microelectronics

Figure 37 and the components listed in Table 17 show an example of a low cost power supply circuit, where the VCC module supply is provided by a step-down switching regulator capable of delivering to VCC pins the specified maximum peak / pulse current, transforming a 12 V supply input.

Figure 37: Suggested low cost solution for the VCC voltage supply application circuit using step-down regulator

Table 17: Suggested components for low cost solution VCC voltage supply application circuit using a step-down regulator

2.2.1.3 Guidelines for VCC supply circuit design using a Low Drop-Out (LDO) linear regulator

The use of a linear regulator is suggested when the difference from the available supply rail and the VCC value is low: linear regulators provide high efficiency when transforming a 5 V supply to a voltage value within th e module VCC normal operating range.

The characteristics of the LDO linear regulator connected to the VCC pins should meet the following prerequisites to comply with the module VCC requirements summarized in Table 7:

 Power capabilities: the LDO linear regulator with its output circuit must be capable of providing a proper

voltage value to the VCC pins and of delivering to VCC pins the specified maximum peak / pulse current with 1/8 duty cycle (refer to the SARA-G3 series Data Sheet [1] or the SARA-U2 series Data Sheet [2])

 Power dissipation: the power handling capability of the LDO linear regulator must be checked to limit its

junction temperature to the maximum rated operating range (i.e. check the voltage drop from the max input voltage to the min output voltage to evaluate the power dissipation of the regulator)

UBX-13000995 - R08 Objective Specification Design-in

Page 85 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

C1 R1

IN OUT

ADJ

GND

C2R2

SHDN

SARA-G3 / SARA-U2

VCC

GND

Reference

Description

Part Number - Manufacturer

C1, C2

10 µF Capacitor Ceramic X5R 0603 20% 6.3 V

GRM188R60J106ME47 - Murata

47 k Resistor 0402 5% 0.1 W

RC0402JR-0747KL - Yageo Phycomp

9.1 k Resistor 0402 5% 0.1 W

RC0402JR-079K1L - Yageo Phycomp

3.9 k Resistor 0402 5% 0.1 W

RC0402JR-073K9L - Yageo Phycomp

LDO Linear Regulator ADJ 3.0 A

LT1764AEQ#PBF - Linear Technology

 Output voltage slope: the use of the soft start function provided by some voltage regulator should be

Figure 38 and the components listed in Table 18 show an example of a power supply circuit, where the VCC module supply is provided by an LDO linear regulator capable of delivering the specified maximum peak / pulse current, with proper power handling capability.

It is recommended to configure the LDO linear regulator to generate a voltage supply value slightly below the maximum limit of the module VCC normal operating range (e.g. ~4.1 V as in the circuit described in Figure 38 and Table 18). This reduces the power on the linear regulator and improves the thermal design of the supply circuit.

Figure 38: Suggested schematic design for the VCC voltage supply application circuit using an LDO linear regulator

Table 18: Suggested components for VCC voltage supply application circuit using an LDO linear regulator

2.2.1.4 Guidelines for VCC supply circuit design using a rechargeable Li-Ion or Li-Pol battery

Rechargeable Li-Ion or Li-Pol batteries connected to the VCC pins should meet the following prerequisites to comply with the module VCC requirements summarized in Table 7:

 Maximum pulse and DC discharge current: the rechargeable Li-Ion battery with its output circuit must be

capable of delivering to VCC pins the specified maximum peak / pulse current with 1/8 duty cycle, and a DC current greater than the module maximum average current consumption (refer to the SARA-G3 series Data Sheet [1] or the SARA-U2 series Data Sheet [2]). The maximum pulse discharge current and the maximum DC discharge current are not always reported in battery data sheets, but the maximum DC discharge current is typically almost equal to the battery capacity in Amp-hours divided by 1 hour

 DC series resistance: the rechargeable Li-Ion battery with its output circuit must be capable of avoiding a

VCC voltage drop greater than 400 mV during transmit bursts

UBX-13000995 - R08 Objective Specification Design-in

Page 86 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

2.2.1.5 Guidelines for VCC supply circuit design using a primary (disposable) battery

The characteristics of a primary (non-rechargeable) battery connected to VCC pins should meet the following prerequisites to comply with the module VCC requirements summarized in Table 7:

 Maximum pulse and DC discharge current: the non-rechargeable battery with its output circuit must be

capable of delivering to VCC pins the specified maximum peak / pulse current with 1/8 duty cycle, and a DC current greater than the module maximum average current consumption (refer to the SARA-G3 series Data Sheet [1] or the SARA-U2 series Data Sheet [2]). The maximum pulse and the maximum DC discharge current is not always reported in battery data sheets, but the maximum DC discharge current is typically almost equal to the battery capacity in Amp-hours divided by 1 hour

 DC series resistance: the non-rechargeable battery with its output circuit must be capable of avoiding a

VCC voltage drop greater than 400 mV during transmit bursts

2.2.1.6 Additional guidelines for VCC supply circuit design

To reduce voltage drops, use a low impedance power source. The resistance of the power supply lines (connected to the VCC and GND pins of the module) on the application board and battery pack should also be considered and minimized: cabling and routing must be as short as possible to minimize power losses.

Three pins are allocated for VCC supply. Another twenty pins are designated for GND connection. Even if all the VCC pins and all the GND pins are internally connected within the module, it is recommended to properly connect all of them to supply the module to minimize series resistance losses.

To avoid voltage drop undershoot and overshoot at the start and end of a transmit burst during a single-slot 2G voice/data call (when current consumption on the VCC supply can rise up to the maximum peak / pulse current specified in the SARA-G3 series Data Sheet [1] or in the SARA-U2 series Data Sheet [2]), place a bypass capacitor with large capacitance (more than 100 µF) and low ESR near the VCC pins, for example:

 330 µF capacitance, 45 m ESR (e.g. KEMET T520D337M006ATE045, Tantalum Capacitor)

The use of very large capacitors (i.e. greater then 1000 µF) on the VCC line should be carefully evaluated, since the voltage at the VCC pins voltage must ramp from 2.5 V to 3.2 V in less than 1 ms to switch on the SARA-U2 modules or in less than 4 ms to switch on the SARA-G3 modules by applying VCC supply, that otherwise can be switched on by forcing a low level on the RESET_N pin during the VCC rising edge and then releasing the RESET_N pin when the VCC supply voltage stabilizes at its proper nominal value.

To reduce voltage ripple and noise, especially if the application device integrates an internal antenna, place the following bypass capacitors near the VCC pins:

 100 nF capacitor (e.g Murata GRM155R61C104K) to filter digital logic noise from clocks and data sources  10 nF capacitor (e.g. Murata GRM155R71C103K) to filter digital logic noise from clocks and data sources  56 pF capacitor with Self-Resonant Frequency in 800/900 MHz range (e.g. Murata GRM1555C1E560J) to

filter transmission EMI in the GSM/EGSM bands

 15 pF capacitor with Self-Resonant Frequency in 1800/1900 MHz range (e.g. Murata GRM1555C1E150J) to

filter transmission EMI in the DCS/PCS bands

A series ferrite bead for GHz band noise (e.g. Murata BLM18EG221SN1) can be placed close to the VCC pins of the module for additional noise filtering, but in general it is not strictly required.

Figure 39 shows the complete configuration but the mounting of each single component depends on the

application design: it is recommended to provide all the VCC bypass capacitors as described in Figure 39 and Table 19 if the application device integrates an internal antenna.

UBX-13000995 - R08 Objective Specification Design-in

Page 87 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

GND

C3 C2

SARA-G3 / SARA-U2

VCC

3V8

Reference

Description

Part Number - Manufacturer

330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m

T520D337M006ATE045 - KEMET

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C104KA01 - Murata

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

56 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1E560JA01 - Murata

15 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1E150JA01 - Murata

Figure 39: Suggested schematic and layout design for the VCC bypass capacitors to reduce ripple / noise on VCC voltage profile and to avoid undershoot / overshoot on VCC voltage drops

Table 19: Suggested components to reduce ripple / noise on VCC and to avoid undershoot/ overshoot on VCC voltage drops

ESD sensitivity rating of the VCC supply pins is 1 kV (Human Body Model according to JESD22-A114).

Higher protection level can be required if the line is externally accessible on the application board, e.g. if accessible battery connector is directly connected to VCC pins. Higher protection level can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to accessible point.

2.2.1.7 Guidelines for external battery charging circuit

Application devices that are powered by a Li-Ion (or Li-Polymer) battery pack should implement a suitable battery charger design as SARA-G3 and SARA-U2 series modules do not have an on-board charging circuit.

In the application circuit example described in Figure 40, a rechargeable Li-Ion (or Li-Polymer) battery pack, that features proper pulse and DC discharge current capabilities and proper DC series resistance, is directly connected to the VCC supply input of the module. Battery charging is fully managed by the STMicroelectronics L6924U Battery Charger IC that, from a USB source (5.0 V typ.), charges as a linear charger the battery, in three phases:

 Pre-charge constant current (active when the battery is deeply discharged): the battery is charged with a

low current, set to 10% of the fast-charge current

 Fast-charge constant current: the battery is charged with the maximum current, configured by the value

of an external resistor to a value suitable for USB power source (~500 mA)

 Constant voltage: when the battery voltage reaches the regulated output voltage (4.2 V), the L6924U

starts to reduce the current until the charge termination is done. The charging process ends when the charging current reaches the value configured by an external resistor to ~15 mA or when the charging timer reaches the value configured by an external capacitor to ~9800 s

Using a battery pack with an internal NTC resistor, the L6924U can monitor the battery temperature to protect the battery from operating under unsafe thermal conditions.

The L6924U, as linear charger, is more suitable for applications where the charging source has a relatively low nominal voltage (~5 V), so that a switching charger is suggested for applications where the charging source has a relatively high nominal voltage (e.g. ~12 V, refer to the following section 2.2.1.8 for specific design-in), even if

UBX-13000995 - R08 Objective Specification Design-in

Page 88 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

C5 C8

GND

C7C6 C9

SARA-G3 / SARA-U2

VCC

USB

Supply

IUSB

IAC

IEND

TPRG

VIN

VINSNS

MODE

ISEL

C2C1

GND

VOUT

VOSNS

VREF

Li-Ion/Li-Pol Battery Pack

Li-Ion/Li-Polymer Battery Charger IC

Reference

Description

Part Number - Manufacturer

Li-Ion (or Li-Polymer) battery pack with 470  NTC

Various manufacturer

C1, C4

1 µF Capacitor Ceramic X7R 0603 10% 16 V

GRM188R71C105KA12 - Murata

C2, C6

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

1 nF Capacitor Ceramic X7R 0402 10% 50 V

GRM155R71H102KA01 - Murata

330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m

T520D337M006ATE045 - KEMET

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R61A104KA01 - Murata

56 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1E560JA01 - Murata

15 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1E150JA01 - Murata

D1, D2

Low Capacitance ESD Protection

CG0402MLE-18G - Bourns

R1, R2

24 k Resistor 0402 5% 0.1 W

RC0402JR-0724KL - Yageo Phycomp

3.3 k Resistor 0402 5% 0.1 W

RC0402JR-073K3L - Yageo Phycomp

1.0 k Resistor 0402 5% 0.1 W

RC0402JR-071K0L - Yageo Phycomp

Single Cell Li-Ion (or Li-Polymer) Battery Charger IC for USB port and AC Adapter

L6924U - STMicroelectronics

the L6924U can also charge from an AC wall adapter as its input voltage range is tolerant up to 12 V: when a current-limited adapter is used, it can operate in quasi-pulse mode, reducing power dissipation.

Figure 40: Li-Ion (or Li-Polymer) battery charging application circuit

Table 20: Suggested components for Li-Ion (or Li-Polymer) battery charging application circuit

2.2.1.8 Guidelines for external battery charging and power path management circuit

Application devices where both a permanent primary supply / charging source (e.g. ~12 V) and a rechargeable back-up battery (e.g. 3.7 V Li-Pol) are available at the same time as possible supply source should implement a suitable charger / regulator with integrated power path management function to supply the module and the whole device while simultaneously and independently charging the battery.

Figure 41 reports a simplified block diagram circuit showing the working principle of a charger / regulator with integrated power path management function. This component allows the system to be powered by a permanent primary supply source (e.g. ~12 V) using the integrated regulator which simultaneously and independently recharges the battery (e.g. 3.7 V Li-Pol) that represents the back-up supply source of the system: the power path management feature permits the battery to supplement the system current requirements when the primary supply source is not available or cannot deliver the peak system currents.

UBX-13000995 - R08 Objective Specification Design-in

Page 89 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

GND

Power path management IC

VoutVin

Li-Ion/Li-Pol Battery Pack

GND

System

12 V

Primary

Source

Charge

controller

DC/DC converter

and battery FET

control logic

Vbat

A power management IC should meet the following prerequisites to comply with the module VCC requirements summarized in Table 7:

 High efficiency internal step down converter, compliant with the performances specified in section 2.2.1.2  Low internal resistance in the active path Vout – Vbat, typically lower than 50 m  High efficiency switch mode charger with separate power path control

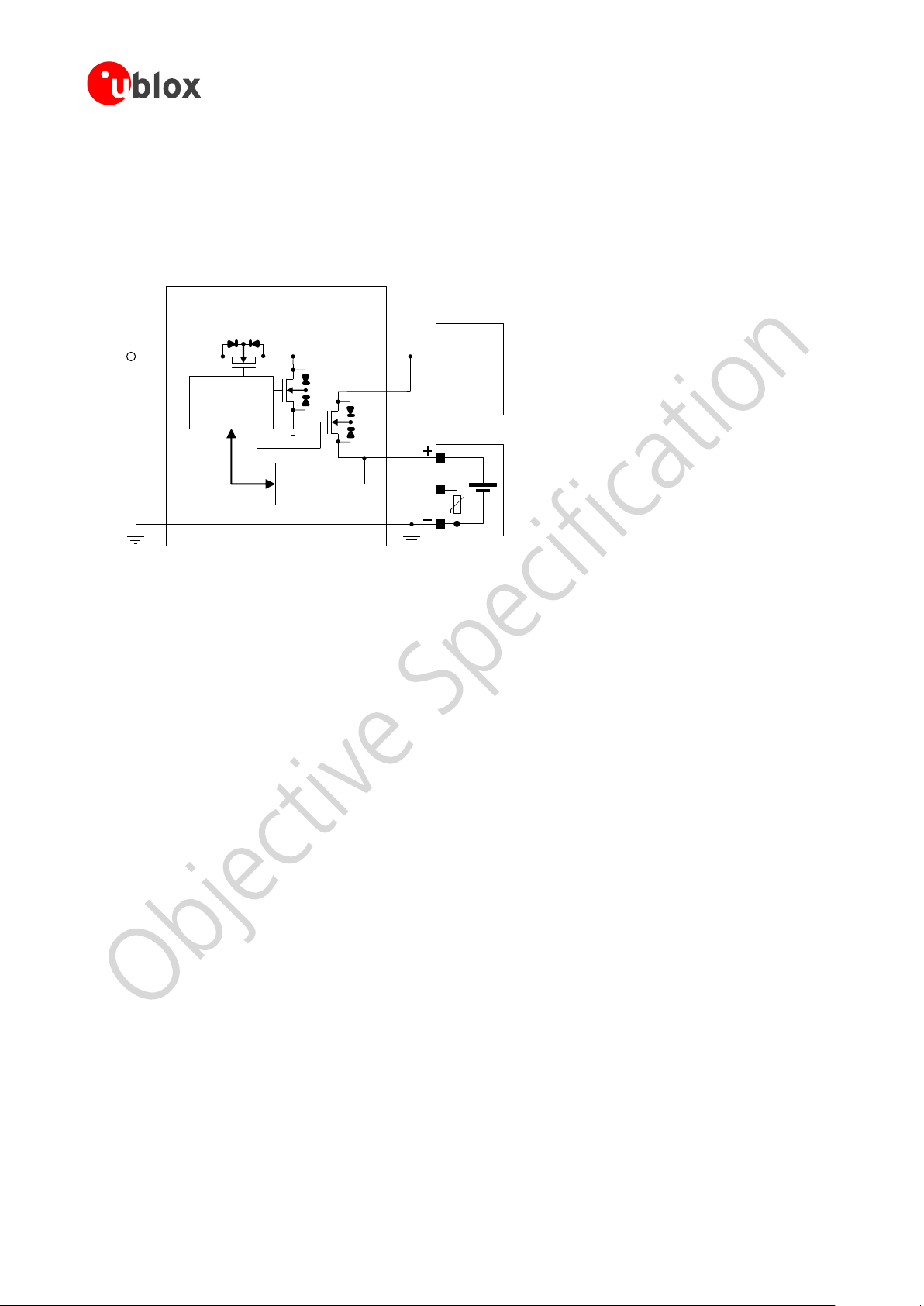

Figure 41: Charger / regulator with integrated power path management circuit block diagram

Figure 42 and the components listed in Table 21 provide an application circuit example where the MPS MP2617 switching charger / regulator with integrated power path management function provides the supply to the cellular module while concurrently and autonomously charging a suitable Li-Ion (or Li-Polymer) battery with proper pulse and DC discharge current capabilities and proper DC series resistance according to the rechargeable battery recommendations described in section 2.2.1.4.

The MP2617 IC constantly monitors the battery voltage and selects whether to use the external main primary supply / charging source or the battery as supply source for the module, and starts a charging phase accordingly.

The MP2617 IC normally provides a supply voltage to the module regulated from the external main primary source allowing immediate system operation even under missing or deeply discharged battery: the integrated switching step-down regulator is capable to provide up to 3 A output current with low output ripple and fixed

1.6 MHz switching frequency in PWM mode operation. The module load is satisfied in priority, then the integrated switching charger will take the remaining current to charge the battery.

Additionally, the power path control allows an internal connection from battery to the module with a low series internal ON resistance (40 m typical), in order to supplement additional power to the module when the current demand increases over the external main primary source or when this external source is removed.

Battery charging is managed in three phases:

 Pre-charge constant current (active when the battery is deeply discharged): the battery is charged with a

low current, set to 10% of the fast-charge current

 Fast-charge constant current: the battery is charged with the maximum current, configured by the value

of an external resistor to a value suitable for the application

 Constant voltage: when the battery voltage reaches the regulated output voltage (4.2 V), the current is

progressively reduced until the charge termination is done. The charging process ends when the charging current reaches the 10% of the fast-charge current or when the charging timer reaches the value configured by an external capacitor

UBX-13000995 - R08 Objective Specification Design-in

Page 90 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

C7 C10

GND

C9C8 C11

SARA-G3 / SARA-U2

VCC

Primary

Source

ILIM

ISET

TMR

AGND

VIN

C2C1

12V

NTC

PGND

SYS

BAT

Li-Ion/Li-Pol Battery Pack

Li-Ion/Li-Polymer Battery

Charger / Regulator with

Power Path Managment

VCC

C3 C6

BST

Reference

Description

Part Number - Manufacturer

Li-Ion (or Li-Polymer) battery pack with 10 k NTC

Various manufacturer

C1, C5, C6

22 µF Capacitor Ceramic X5R 1210 10% 25 V

GRM32ER61E226KE15 - Murata

C2, C4, C9

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R61A104KA01 - Murata

1 µF Capacitor Ceramic X7R 0603 10% 25 V

GRM188R71E105KA12 - Murata

330 µF Capacitor Tantalum D_SIZE 6.3 V 45 m

T520D337M006ATE045 - KEMET

10 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R71C103KA01 - Murata

C10

56 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1E560JA01 - Murata

C11

15 pF Capacitor Ceramic C0G 0402 5% 25 V

GRM1555C1E150JA01 - Murata

D1, D2

Low Capacitance ESD Protection

CG0402MLE-18G - Bourns

R1, R3

10 k Resistor 0402 5% 1/16 W

RC0402JR-0710KL - Yageo Phycomp

1.0 k Resistor 0402 5% 0.1 W

RC0402JR-071K0L - Yageo Phycomp

1.2 µH Inductor 6 A 21 m 20%

7447745012 - Wurth

Li-Ion/Li-Polymer Battery DC/DC Charger / Regulator with integrated Power Path Management function

MP2617 - Monolithic Power Systems (MPS)

Using a battery pack with an internal NTC resistor, the MP2617 can monitor the battery temperature to protect the battery from operating under unsafe thermal conditions.

Several parameters as the charging current, the charging timings, the input current limit, the input voltage limit, the system output voltage can be easily set according to the specific application requirements, as the actual electrical characteristics of the battery and the external supply / charging source: proper resistors or capacitors have to be accordingly connected to the related pins of the IC.

Figure 42: Li-Ion (or Li-Polymer) battery charging and power path management application circuit

Table 21: Suggested components for Li-Ion (or Li-Polymer) battery charging and power path management application circuit

UBX-13000995 - R08 Objective Specification Design-in

Page 91 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

2.2.1.9 Guidelines for VCC supply layout design

Good connection of the module VCC pins with DC supply source is required for correct RF performance. Guidelines are summarized in the following list:

 All the available VCC pins must be connected to the DC source.  VCC connection must be as wide as possible and as short as possible.  Any series component with Equivalent Series Resistance (ESR) greater than few milliohms must be avoided.  VCC connection must be routed through a PCB area separated from sensitive analog signals and sensitive

functional units: it is good practice to interpose at least one layer of PCB ground between VCC track and other signal routing.

 Coupling between VCC and audio lines (especially microphone inputs) must be avoided, because the typical

GSM burst has a periodic nature of approx. 217 Hz, which lies in the audible audio range.

 The tank bypass capacitor with low ESR for current spikes smoothing described in Figure 39 and Table 19

should be placed close to the VCC pins. If the main DC source is a switching DC-DC converter, place the large capacitor close to the DC-DC output and minimize the VCC track length. Otherwise consider using separate capacitors for DC-DC converter and cellular module tank capacitor.

 The bypass capacitors in the pF range described in Figure 39 and Table 19 should be placed as close as

possible to the VCC pins. This is highly recommended if the application device integrates an internal antenna.

 Since VCC is directly connected to RF Power Amplifiers, voltage ripple at high frequency may result in

unwanted spurious modulation of transmitter RF signal. This is more likely to happen with switching DC-DC converters, in which case it is better to select the highest operating frequency for the switcher and add a large L-C filter before connecting to the SARA-G3 and SARA-U2 series modules in the worst case.

 If VCC is protected by transient voltage suppressor to ensure that the voltage maximum ratings are not

exceeded, place the protecting device along the path from the DC source toward the cellular module, preferably closer to the DC source (otherwise protection functionality may be compromised).

2.2.1.10 Guidelines for grounding layout design

Good connection of the module GND pins with application board solid ground layer is required for correct RF performance. It significantly reduces EMC issues and provides a thermal heat sink for the module.

 Connect each GND pin with application board solid GND layer. It is strongly recommended that each GND

pin surrounding VCC pins have one or more dedicated via down to the application board solid ground layer.

 The VCC supply current flows back to main DC source through GND as ground current: provide adequate

return path with suitable uninterrupted ground plane to main DC source.

 If the application board is a multilayer PCB, then it is required to connect together each GND area with

complete via stack down to main board ground layer.

 It is recommended to implement one layer of the application board as ground plane as wide as possible.  Good grounding of GND pins also ensures thermal heat sink. This is critical during call connection, when the

real network commands the module to transmit at maximum power: proper grounding helps prevent module overheating.

UBX-13000995 - R08 Objective Specification Design-in

Page 92 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

SARA-G3 series

SARA-U2 series

(a)

V_BCKP

SARA-G3 series

SARA-U2 series

(superCap)

(b)

V_BCKP

SARA-G3 series

SARA-U2 series

(c)

V_BCKP

Reference

Description

Part Number - Manufacturer

100 µF Tantalum Capacitor

GRM43SR60J107M - Murata

4.7 k Resistor 0402 5% 0.1 W

RC0402JR-074K7L - Yageo Phycomp

70 mF Capacitor

XH414H-IV01E - Seiko Instruments

2.2.2 RTC supply (V_BCKP)

2.2.2.1 Guidelines for V_BCKP circuit design

If RTC timing is required to run for a time interval of T [s] at 25 °C when VCC supply is removed, place a capacitor with a nominal capacitance of C [µF] at the V_BCKP pin. Choose the capacitor using the following formula:

C [µF] = (Current_Consumption [µA] x T [s]) / Voltage_Drop [V]

= 1.5 x T [s] for SARA-G3 series = 2.5 x T [s] for SARA-U2 series

For example, a 100 µF capacitor (such as the Murata GRM43SR60J107M) can be placed at V_BCKP to provide a long buffering time. This capacitor holds V_BCKP voltage within its valid range for around 70 s (SARA-G3 series) or for around 40 s (SARA-U2 series) at 25 °C, after the VCC supply is removed.

If a very long buffering time is required, a 70 mF super-capacitor (e.g. Seiko Instruments XH414H-IV01E) can be placed at V_BCKP, with a 4.7 k series resistor to hold the V_BCKP voltage within its valid range for ~13 hours (SARA-G3 series) or for ~8 hours (SARA-U2 series) at 25 °C, after the VCC supply is removed. The purpose of the series resistor is to limit the capacitor charging current due to the large capacitor specifications, and also to let a fast rise time of the voltage value at the V_BCKP pin after VCC supply has been provided. These capacitors allow the time reference to run during battery disconnection.

Figure 43: Real time clock supply (V_BCKP) application circuits: (a) using a 100 µF capacitor to let the RTC run for ~1 minute after VCC removal; (b) using a 70 mF capacitor to let RTC run for ~10 hours after VCC removal; (c) using a non-rechargeable battery

Table 22: Example of components for V_BCKP buffering

If longer buffering time is required to allow the RTC time reference to run during a disconnection of the VCC supply, then an external battery can be connected to V_BCKP pin. The battery should be able to provide a proper nominal voltage and must never exceed the maximum operating voltage for V_BCKP (specified in the Input characteristics of Supply/Power pins table in the SARA-G3 series Data Sheet [1] or in the SARA-U2 series Data Sheet [2]). The connection of the battery to V_BCKP should be done with a suitable series resistor for a rechargeable battery, or with an appropriate series diode for a non-rechargeable battery. The purpose of the series resistor is to limit the battery charging current due to the battery specifications, and also to allow a fast rise time of the voltage value at the V_BCKP pin after the VCC supply has been provided. The purpose of the series diode is to avoid a current flow from the module V_BCKP pin to the non-rechargeable battery.

If the RTC timing is not required when the VCC supply is removed, it is not needed to connect the

V_BCKP pin to an external capacitor or battery. In this case the date and time are not updated when VCC

UBX-13000995 - R08 Objective Specification Design-in

Page 93 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

is disconnected. If VCC is always supplied, then the internal regulator is supplied from the main supply and there is no need for an external component on V_BCKP.

Combining a SARA-G3 or a SARA-U2 cellular module with a u-blox GNSS positioning receiver, the positioning receiver VCC supply is controlled by the cellular module by means of the “GNSS supply enable” function provided by the GPIO2 of the cellular module. In this case the V_BCKP supply output of the cellular module can be connected to the V_BCKP backup supply input pin of the GNSS receiver to provide the supply for the positioning real time clock and backup RAM when the VCC supply of the cellular module is within its operating range and the VCC supply of the GNSS receiver is disabled. This enables the u-blox GNSS receiver to recover from a power breakdown with either a hot start or a warm start (depending on the duration of the positioning VCC outage) and to maintain the configuration settings saved in the backup RAM. Refer to section 2.6.4 for more details regarding the application circuit with a u-blox GNSS receiver.

On SARA-G300 and SARA-G310 modules, the V_BCKP supply output can be used to supply an external 32 kHz oscillator which provides a 32 kHz signal to the EXT32K input pin as reference clock for the RTC timing, so that the modules can enter the low power idle-mode and can make available the RTC functions.

The internal regulator for V_BCKP is optimized for low leakage current and very light loads. Do not apply

loads which might exceed the limit for maximum available current from V_BCKP supply, as this can cause malfunctions in the module. SARA-G3 series Data Sheet [1] and SARA-U2 series Data Sheet [2] describe the detailed electrical characteristics.

V_BCKP supply output pin provides internal short circuit protection to limit start-up current and protect the device in short circuit situations. No additional external short circuit protection is required.

ESD sensitivity rating of the V_BCKP supply pin is 1 kV (Human Body Model according to JESD22-A114).

Higher protection level can be required if the line is externally accessible on the application board, e.g. if an accessible back-up battery connector is directly connected to V_BCKP pin, and it can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to the accessible point.

2.2.2.2 Guidelines for V_BCKP layout design

RTC supply (V_BCKP) requires careful layout: avoid injecting noise on this voltage domain as it may affect the stability of the 32 kHz oscillator.

UBX-13000995 - R08 Objective Specification Design-in

Page 94 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

2.2.3 Interface supply (V_INT)

2.2.3.1 Guidelines for V_INT circuit design

The V_INT digital interfaces 1.8 V supply output can be mainly used to:

 Pull-up DDC (I  Pull-up SIM detection signal (see section 2.5 for more details)  Supply voltage translators to connect digital interfaces of the module to a 3.0 V device (see section 2.6.1)  Supply a 1.8 V u-blox 6 or subsequent GNSS receiver (see section 2.6.4 for more details)  Indicate when the module is switched on (see sections 1.6.1, 1.6.2 for more details)

C) interface signals (see section 2.6.4 for more details)

Do not apply loads which might exceed the limit for maximum available current from V_INT supply, as

this can cause malfunctions in internal circuitry supplies to the same domain. The SARA-G3 series Data Sheet [1] and the SARA-U2 series Data Sheet [2] describe the detailed electrical characteristics.

V_INT can only be used as an output; do not connect any external regulator on V_INT.

Since the V_INT supply is generated by an internal switching step-down regulator, the V_INT voltage ripple can range from 15 mVpp during active-mode or connected-mode (when the switching regulator operates in PWM mode), to 90 mVpp (SARA-G3 series) or 70 mVpp (SARA-U2 series) in low power idle-mode (when the switching regulator operates in PFM mode).

It is not recommended to supply sensitive analog circuitry without adequate filtering for digital noise.

V_INT supply output pin provides internal short circuit protection to limit start-up current and protect the device in short circuit situations. No additional external short circuit protection is required.

ESD sensitivity rating of the V_INT supply pin is 1 kV (Human Body Model according to JESD22-A114).

Higher protection level could be required if the line is externally accessible on the application board. Higher protection level can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to accessible point.

If the V_INT supply output is not required by the customer application, since DDC (I

detection functions are not used, voltage translations of digital interfaces are not needed and sensing when the module is switched on is not needed, the V_INT pin can be left unconnected to external components, but it is recommended providing direct access on the application board by means of accessible testpoint directly connected to the V_INT pin.

2.2.3.2 Guidelines for V_INT layout design

V_INT digital interfaces supply output is generated by an integrated switching step-down converter, used

internally to supply the digital interfaces. Because of this, it can be a source of noise: avoid coupling with sensitive signals.

C) interface and SIM

UBX-13000995 - R08 Objective Specification Design-in

Page 95 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

SARA-G3 series SARA-U2 series

Rext

V_BCKP

PWR_ON

Power-on

push button

ESD

Open

Drain Output

Application

Processor

SARA-G3 series SARA-U2 series

Rext

V_BCKP

PWR_ON

Reference

Description

Remarks

Rext

100 kΩ Resistor 0402 5% 0.1 W

External pull-up resistor

ESD

CT0402S14AHSG - EPCOS

Varistor array for ESD protection

2.3 System functions interfaces

2.3.1 Module power-on (PWR_ON)

2.3.1.1 Guidelines for PWR_ON circuit design

Connecting the PWR_ON input to a push button that shorts the PWR_ON pin to ground, provide an external pull-up resistor (e.g. 100 kΩ) biased by the V_BCKP supply pin of the module, as described in Figure 44 and Table 23. Connecting the PWR_ON input to a push button, the pin will be externally accessible on the application device: according to EMC/ESD requirements of the application, provide an additional ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) on the line connected to this pin, close to accessible point.

The PWR_ON pin has high input impedance and is weakly pulled to the high level on the module. Avoid

keeping it floating in a noisy environment. To hold the high logic level stable, the PWR_ON pin must be connected to a pull-up resistor (e.g. 100 kΩ) biased by the V_BCKP supply pin of the module.

ESD sensitivity rating of the PWR_ON pin is 1 kV (Human Body Model according to JESD22-A114). Higher

protection level can be required if the line is externally accessible on the application board, e.g. if an accessible push button is directly connected to PWR_ON pin. Higher protection level can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to accessible point.

When connecting the PWR_ON input to an external device (e.g. application processor), use an open drain output on the external device with an external pull-up resistor (e.g. 100 kΩ) biased by the V_BCKP supply pin of the module, as described in Figure 44 and Table 23.

A compatible push-pull output of an application processor can also be used: in this case the pull-up can be provided to pull the PWR_ON level high when the application processor is switched off. If the high-level voltage of the push-pull output pin of the application processor is greater than the maximum input voltage operating range of the V_BCKP pin (refer to the SARA-G3 series Data Sheet [1] and the SARA-U2 series Data Sheet [2]), the V_BCKP supply cannot be used to bias the pull-up resistor: the supply rail of the application processor or the module VCC supply could be used, but this increases the V_BCKP (RTC supply) current consumption when the module is in not-powered mode (VCC supply not present). Using a push-pull output of the external device, take care to fix the proper level in all the possible scenarios to avoid an inappropriate module switch-on.

Figure 44: PWR_ON application circuits using a push button and an open drain output of an application processor

Table 23: Example of pull-up resistor and ESD protection for the PWR_ON application circuit

It is recommended to provide direct access to the PWR_ON pin on the application board by means of

accessible testpoint directly connected to the PWR_ON pin.

UBX-13000995 - R08 Objective Specification Design-in

Page 96 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

SARA-G3 series

SARA-U2 series

RESET_N

Reset

push button

ESD

Open

Drain Output

Application

Processor

SARA-G3 series

SARA-U2 series

RESET_N

Reference

Description

Remarks

ESD

Varistor for ESD protection

CT0402S14AHSG - EPCOS

2.3.1.2 Guidelines for PWR_ON layout design

The power-on circuit (PWR_ON) requires careful layout since it is the sensitive input available to switch on the SARA-G3 and SARA-U2 series modules until a valid VCC supply is provided after that the module has been switched off by the AT+CPWROFF command: ensure that the voltage level is well defined during operation and no transient noise is coupled on this line, otherwise the module might detect a spurious power-on request.

2.3.2 Module reset (RESET_N)

2.3.2.1 Guidelines for RESET_N circuit design

As described in Figure 21, the module has an internal pull-up resistor on the reset input line: an external pull-up is not required on the application board.

Connecting the RESET_N input to a push button that shorts the RESET_N pin to ground, the pin will be externally accessible on the application device: according to EMC/ESD requirements of the application, provide an additional ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) on the line connected to this pin, close to accessible point, as described in Figure 45 and Table 24.

ESD sensitivity rating of the RESET_N pin is 1 kV (Human Body Model according to JESD22-A114). Higher

protection level can be required if the line is externally accessible on the application board, e.g. if an accessible push button is directly connected to RESET_N pin. Higher protection level can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to accessible point.

Connecting the RESET_N input to an external device (e.g. application processor), an open drain output can be directly connected without any external pull-up, as described in Figure 45 and Table 24: the internal pull-up resistor provided by the module pulls the line to the high logic level when the RESET_N pin is not forced low by the application processor. A compatible push-pull output of an application processor can be used too.

Figure 45: RESET_N application circuits using a push button and an open drain output of an application processor

Table 24: Example of ESD protection component for the RESET_N application circuit

If the external reset function is not required by the customer application, the RESET_N input pin can be

left unconnected to external components, but it is recommended providing direct access on the application board by means of accessible testpoint directly connected to the RESET_N pin.

UBX-13000995 - R08 Objective Specification Design-in

Page 97 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

32K_OUT

SARA-G300

SARA-G310

EXT32K

V_BCKP

GND

SARA-G300

SARA-G310

EXT32K

32 kHz Oscillator

GND

CLKOUT

VCC

Reference

Description

Remarks

100 nF Capacitor Ceramic X7R 0402 10% 16 V

GRM155R61A104KA01 - Murata

Low Power Clock Oscillator 32.768 kHz

OV-7604-C7 - Micro Crystal or SG-3040LC - EPSON TOYOCOM

2.3.2.2 Guidelines for RESET_N layout design

The reset circuit (RESET_N) requires careful layout due to the pin function: ensure that the voltage level is well defined during operation and no transient noise is coupled on this line, otherwise the module might detect a spurious reset request. It is recommended to keep the connection line to RESET_N as short as possible.

2.3.3 32 kHz signal (EXT32K and 32K_OUT)

The EXT32K and 32K_OUT pins are not available on SARA-G340, SARA-G350 and SARA-U2 modules.

2.3.3.1 Guidelines for EXT32K and 32K_OUT circuit design

The application circuit of Figure 46 describes how the 32K_OUT output pin of SARA-G300 / SARA-G310 modules can be connected to the EXT32K input pin, providing the 32 kHz signal which constitutes the Real Time Clock (RTC) reference clock, so that the modules can enter the low power idle-mode, reaching low current consumption figures (refer to the section 1.5.1.4 and to the SARA-G3 series Data Sheet [1]), and can provide the RTC functions when the module is switched on.

Figure 46: EXT32K application circuit using the 32 kHz signal provided by the 32K_OUT output

The application circuit of Figure 47 and Table 25 describe how an external oscillator can be connected to the EXT32K input pin of SARA-G300 / SARA-G310 modules, providing the external 32 kHz signal which constitutes the RTC reference clock, so that the modules can enter the very low power idle-mode, reaching very low current consumption figures (refer to the section 1.5.1.4 and to the SARA-G3 series Data Sheet [1]), and can provide the RTC functions when the RTC block is switched on since the V_BCKP voltage is within the valid range.

Figure 47: EXT32K application circuit using an external 32 kHz oscillator

Table 25: Example of components for the EXT32K application circuit

UBX-13000995 - R08 Objective Specification Design-in

Page 98 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

The two different solutions described in Figure 46 and Figure 47 are alternative and mutually exclusive: only one of the two proposed solutions must be implemented according to the required current consumption figures for the idle-mode (for the detailed characteristics see the SARA-G3 series Data Sheet [1]).

As additional solution, alternative and mutually exclusive to the two described in Figure 46 and Figure 47, a proper 32 kHz signal can be provided to the EXT32K input by the used application processor, if capable.

The EXT32K input and the 32K_OUT output are not available on SARA-G340 and SARA-G350 modules since the internal oscillator generates the 32 kHz RTC reference clock.

ESD sensitivity rating of the EXT32K input pin and the 32K_OUT output pin is 1 kV (Human Body Model

according to JESD22-A114). Higher protection level can be required if the line is externally accessible on the application board. Higher protection level can be achieved by mounting an ESD protection (e.g. EPCOS CA05P4S14THSG varistor array) close to accessible point.

If the customer application does not require the low power idle-mode and the RTC functions, the EXT32K

input pin and the 32K_OUT output pin can be left not connected.

2.3.3.2 Guidelines for EXT32K and 32K_OUT layout design

The EXT32K input pin and the 32K_OUT output pin require accurate layout design: avoid injecting noise on these pins as it may affect the stability of the RTC timing reference.

UBX-13000995 - R08 Objective Specification Design-in

Page 99 of 188

SARA-G3 and SARA-U2 series - System Integration Manual

2.4 Antenna interface

The ANT pin, provided by all the SARA-G3 and SARA-U2 series modules, represents the RF input/output used to transmit and receive the 2G/3G RF cellular signals: the antenna must be connected to this pin. The ANT pin has a nominal characteristic impedance of 50  and must be connected to the antenna through a 50  transmission line to allow transmission and reception of radio frequency (RF) signals in the 2G and 3G operating bands.

2.4.1 Antenna RF interface (ANT)

2.4.1.1 General guidelines for antenna selection and design

The cellular antenna is the most critical component to be evaluated: care must be taken about it at the start of the design development, when the physical dimensions of the application board are under analysis/decision, since the RF compliance of the device integrating a SARA-G3 and SARA-U2 series module with all the applicable required certification schemes depends from antenna radiating performance.

Cellular antennas are typically available as:

 External antenna (e.g. linear monopole):

o External antenna usage basically does not imply physical restrictions on the design of the PCB

where the SARA-G3 and SARA-U2 series module is mounted

o The radiation performance mainly depends on the antenna: select the antenna with optimal

radiating performance in the operating bands

o If antenna detection functionality is required, select an antenna assembly provided with a proper

built-in diagnostic circuit with a resistor connected to ground: see guidelines in section 2.4.2

o Select an RF cable with minimum insertion loss: additional insertion loss due to low quality or long

cable reduces radiation performance

o Select a suitable 50  connector providing proper PCB-to-RF-cable transition: it is recommended to

strictly follow the layout and cable termination guidelines provided by the connector manufacturer

 Integrated antenna (PCB antennas such as patches or ceramic SMT elements):

o Internal integrated antenna implies physical restriction to the design of the PCB: the ground plane

can be reduced down to a minimum size that must be similar to the quarter of the wavelength of the minimum frequency that has to be radiated. As numerical example:

Frequency = 824 MHz  Wavelength = 36.4 cm  Minimum GND plane size = 9.1 cm

o The radiation performance depends on the whole PCB and antenna system design, including

product mechanical design and usage: select the antenna with optimal radiating performance in the operating bands according to the mechanical specifications of the PCB and the whole product

o Select a complete custom antenna designed by an antenna manufacturer if the required ground

plane dimensions are very small (e.g. less than 6.5 cm long and 4 cm wide): the antenna design process should begin at the start of the whole product design process

o Select an integrated antenna solution provided by an antenna manufacturer if the required ground

plane dimensions are large enough according to the related integrated antenna solution specifications: the antenna selection and the definition of its placement in the product layout should begin at the start of the product design process

o It is highly recommended to strictly follow the detailed and specific guidelines provided by the

antenna manufacturer regarding correct installation and deployment of the antenna system, including PCB layout and matching circuitry

o Further to the custom PCB and product restrictions, the antenna may require tuning to obtain the

required performance for compliance with the applicable certification schemes. It is recommended to ask the antenna manufacturer for the design-in guidelines related to the custom application

UBX-13000995 - R08 Objective Specification Design-in

Page 100 of 188

u blox SARAU260 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Preface

Contents

1 System description

1.1 Overview

1.2 Architecture

1.2.1 Internal blocks

RF section

Baseband and Power Management section

1.3 Pin-out

1.4 Operating modes

1.5 Supply interfaces

1.5.1 Module supply input (VCC)
