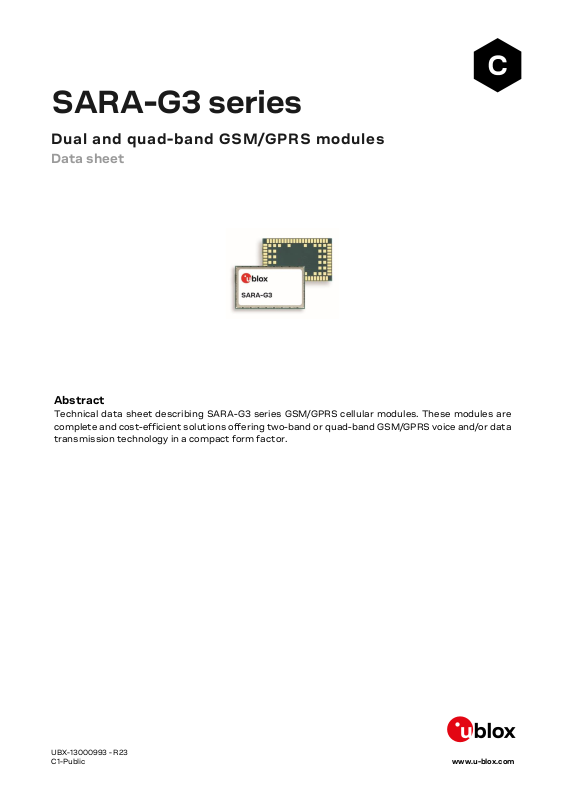

u-blox SARA-G3 Data sheet

UBX-13000993 - R23 C1-Public www.u-blox.com

SARA-G3 series

Dual and quad-band GSM/GPRS modules

Data sheet

Abstract

Technical data sheet describing SARA-G3 series GSM/GPRS cellular modules. These modules are complete and cost-efficient solutions offering two-band or quad-band GSM/GPRS voice and/or data transmission technology in a compact form factor.

SARA-G3 series - Data sheet

UBX-13000993 - R23 Document information Page 2 of 47 C1-Public

Document information

Title

SARA-G3 series

Subtitle

Dual and quad-band GSM/GPRS modules

Document type

Data sheet

Document number

UBX-13000993

Revision and date

R23

03-Feb-2021

Disclosure restriction

C1-Public

Product status

Corresponding content status

Functional sample

Draft

For functional testing. Revised and supplementary data will be published later.

In development / Prototype

Objective Specification

Target values. Revised and supplementary data will be published later.

Engineering sample

Advance Information

Data based on early testing. Revised and supplementary data will be published later.

Initial production

Early Production Information

Data from product verification. Revised and supplementary data may be published later.

Mass production / End of life

Production Information

Document contains the final product specification.

This document applies to the following products:

Product name

Type number

Modem version

Application version

PCN reference

Product status

SARA-G300

SARA-G300-00S-01

08.58

A01.01

UBX-16010060

Obsolete

SARA-G310

SARA-G310-00S-01

08.58

A01.01

UBX-16010060

Obsolete

SARA-G340

SARA-G340-00S-00

08.49

N.A.

UBX-14000382

Obsolete

SARA-G340-01S-00

08.70

A00.02

UBX-14039634

Obsolete

SARA-G340-02S-00

08.90

A00.02

UBX-16001074

Obsolete

SARA-G340-02S-01

08.90

A01.13

UBX-20057620

End of life

SARA-G340 ATEX

SARA-G340-02X-00

08.90

A00.02

UBX-16017766

Obsolete

SARA-G340-02X-01

08.90

A01.13

UBX-20057620

End of life

SARA-G350

SARA-G350-00S-00

08.49

N.A.

GSM.G2-TN-13002

Obsolete

SARA-G350-01S-00

08.70

A00.02

UBX-14039634

Obsolete

SARA-G350-01B-00

08.70

A00.02

UBX-14039634

Obsolete

SARA-G350-02S-00

08.90

A00.02

UBX-16001074

Obsolete

SARA-G350-02S-01

08.90

A01.13

UBX-18008871

Mass production

SARA-G350 ATEX

SARA-G350-00X-00

08.49

N.A.

GSM.G2-TN-13002

Obsolete

SARA-G350-02X-00

08.90

A00.02

UBX-17048555

Obsolete

SARA-G350-02X-01

08.90

A01.13

UBX-18008871

Mass production

u-blox or third parties may hold intellectual property rights in the products, names, logos and designs included in this document. Copying, reproduction, modification or disclosure to third parties of this document or any part thereof is only permitted with the express written permission of u-blox. The information contained herein is provided “as is” and u-blox assumes no liability for its use. No warranty, either express or implied, is given, including but not limited to, with respect to the accuracy, correctness, reliability and fitness for a particular purpose of the information. This document may be revised by u-blox at any time without notice. For the most recent documents, visit www.u-blox.com. Copyright © u-blox AG.

SARA-G3 series - Data sheet

UBX-13000993 - R23 Contents Page 3 of 47 C1-Public

Document information ................................................................................................................................ 2

Contents .......................................................................................................................................................... 3

1 Functional description ......................................................................................................................... 5

1.1 Overview ........................................................................................................................................................ 5

1.2 Product features ......................................................................................................................................... 5

1.3 Block diagram .............................................................................................................................................. 6

1.4 Product description .................................................................................................................................... 7

1.5 AT command support ................................................................................................................................ 8

1.6 Supported features .................................................................................................................................... 8

2 Interfaces ................................................................................................................................................ 11

2.1 Power management .................................................................................................................................. 11

2.1.1 Module supply input (VCC) .............................................................................................................. 11

2.1.2 RTC supply input/output (V_BCKP) ............................................................................................... 11

2.1.3 Digital I/O interfaces supply output (V_INT) ................................................................................ 11

2.2 Antenna ........................................................................................................................................................ 11

2.2.1 Antenna RF interface (ANT) ............................................................................................................ 11

2.2.2 Antenna detection (ANT_DET) ....................................................................................................... 11

2.3 System functions .......................................................................................................................................12

2.3.1 Module power-on (PWR_ON) ...........................................................................................................12

2.3.2 Module power-off ...............................................................................................................................12

2.3.3 Module reset (RESET_N) ..................................................................................................................12

2.3.4 External 32 kHz signal input (EXT32K) .........................................................................................12

2.3.5 Internal 32 kHz signal output (32K_OUT) .................................................................................... 13

2.4 SIM ............................................................................................................................................................... 13

2.4.1 (U)SIM interface ................................................................................................................................ 13

2.4.2 SIM card detection (SIM_DET) ....................................................................................................... 13

2.5 Serial interfaces ........................................................................................................................................ 13

2.5.1 Asynchronous serial interface (UART) ......................................................................................... 14

2.5.2 Auxiliary asynchronous serial interface (AUX UART) ................................................................ 15

2.5.3 DDC (I2C compatible) interface ..................................................................................................... 15

2.6 Audio ............................................................................................................................................................ 16

2.7 GPIO ............................................................................................................................................................. 16

3 Pin definition ......................................................................................................................................... 17

3.1 Pin assignment ........................................................................................................................................... 17

4 Electrical specifications .................................................................................................................... 22

4.1 Absolute maximum rating....................................................................................................................... 22

4.1.1 Maximum ESD ................................................................................................................................... 22

4.2 Operating conditions ................................................................................................................................ 23

4.2.1 Operating temperature range ........................................................................................................ 23

4.2.2 Module thermal resistance ............................................................................................................. 23

SARA-G3 series - Data sheet

UBX-13000993 - R23 Contents Page 4 of 47 C1-Public

4.2.3 Supply/Power pins ............................................................................................................................ 24

4.2.4 Current consumption ....................................................................................................................... 25

4.2.5 RF performance ................................................................................................................................ 26

4.2.6 ANT_DET pin ...................................................................................................................................... 26

4.2.7 PWR_ON pin ....................................................................................................................................... 27

4.2.8 RESET_N pin ...................................................................................................................................... 27

4.2.9 EXT32K pin ......................................................................................................................................... 27

4.2.10 SIM pins .............................................................................................................................................. 28

4.2.11 Generic Digital Interfaces pins ....................................................................................................... 28

4.2.12 DDC (I2C) pins .................................................................................................................................... 31

4.2.13 Audio pins ........................................................................................................................................... 31

5 Mechanical specifications ............................................................................................................... 32

6 Qualification and approvals............................................................................................................. 34

6.1 Reliability tests .......................................................................................................................................... 34

6.2 Approvals .................................................................................................................................................... 34

6.2.1 SARA-G3 series ................................................................................................................................. 34

6.2.2 SARA-G340 ATEX and SARA-G350 ATEX .................................................................................. 35

7 Product handling .................................................................................................................................. 37

7.1 Packaging ................................................................................................................................................... 37

7.1.1 Reels .................................................................................................................................................... 37

7.1.2 Tapes ................................................................................................................................................... 38

7.2 Moisture sensitivity levels ....................................................................................................................... 38

7.3 Reflow soldering ........................................................................................................................................ 39

7.4 ESD precautions ........................................................................................................................................ 39

8 Default settings .................................................................................................................................. 40

9 Labeling and ordering information ................................................................................................ 41

9.1 Product labeling ......................................................................................................................................... 41

9.2 Explanation of codes ................................................................................................................................ 42

9.3 Ordering information ................................................................................................................................ 43

Appendix ....................................................................................................................................................... 44

A Glossary ................................................................................................................................................. 44

Related documentation ........................................................................................................................... 45

Revision history .......................................................................................................................................... 46

Contact ........................................................................................................................................................... 47

SARA-G3 series - Data sheet

UBX-13000993 - R23 Functional description Page 5 of 47 C1-Public

1 Functional description

1.1 Overview

SARA-G3 series modules are versatile 2.5G GSM/GPRS cellular modules in a miniature LGA (Land Grid Array) form factor. Featuring low power consumption, the SARA-G3 series combines baseband, RF transceiver, power management unit, and power amplifier in a single, easy-to-integrate solution. SARA-G3 modules provide a fully qualified and certified solution, reducing cost and enabling short time to market. These modules are ideally suited for M2M applications such as: Automatic Meter Reading (AMR), Remote Monitoring Automation and Control (RMAC), surveillance and security, eCall, road pricing, asset tracking, fleet management, anti-theft systems and Point of Sales (PoS) terminals. SARA-G340 (dual-band) and SARA-G350 (quad-band) are full feature GSM/GPRS cellular modules with a comprehensive feature set including an extensive set of internet protocols. The modules also provide fully integrated access to u-blox GNSS positioning chips and modules, with embedded A-GPS (AssistNow Online and AssistNow Offline) functionality. Any host processor connected to the cellular module through a single serial port can control both the cellular module and the positioning chip / module. SARA-G310 (quad-band) and SARA-G300 (dual-band) are GSM/GPRS cellular modules targeted for high volume cost-sensitive applications, providing GSM/GPRS functionalities with a reduced set of additional features to minimize the customer’s total cost of ownership. The SARA-G3 series’ compact form factor and LGA pads allow fully automated assembly with standard pick & place and reflow soldering equipment for cost-efficient, high-volume production.

1.2 Product features

Module

Data Rate

Bands

Positioning

Interfaces

Audio

Features

Grade

GPRS multi

-slot class 10

GSM/GPRS 4

-band

GSM/GPRS 2

-band 900/1800

GNSS receiver GNSS via modem AssistNow

Software

CellLocate

UART

SPI

USB 2.0 GPIO

DDC for u

-blox GNSS receivers

Analog Audio Digital Audio Network indication Antenna supervisor Jamming detection Embedded TCP/UDP stack Embedded FTP, HTTP, SMTP Embedded SSL Dual stack IPv4/IPv6 FW update via

serial interface

eCall / ERA

-GLONASS

Low power idle

-mode

ATEX certification Standard Professional Automotive

SARA-G300

• • 2 • ■ •

SARA-G310

• • 2 • ■ •

SARA-G340

• • • • • 2 4 • • • • • • • •

○

□

• • • •

SARA-G340 ATEX

• • • • • 2 4 • • • • • • • •

○

□

• • • • •

SARA-G350

• • • • • 2 4 • • • • • • • •

○

□

• • • •

SARA-G350 ATEX

• • • • • 2 4 • • • • • • • •

□

• • • • •

● = supported by all product versions ○ = supported by product versions “01” onwards

■ = 32 kHz signal at EXT32K input is required for low power idle-mode □ = supported by product versions “02” onwards

Table 1: SARA-G3 series – summary of modules’ main features1

SARA-G340 ATEX and SARA-G350 ATEX modules provide the same feature set as the SARA-G340 and SARA-G350 modules

respectively, with the additional certification for use in potentially explosive atmospheres. Unless otherwise specified, SARAG340 refers to all SARA-G340 ATEX and SARA-G340 modules; in the same way SARA-G350 refers to both SARA-G350 ATEX and SARA-G350 modules.

SARA-G3 series - Data sheet

UBX-13000993 - R23 Functional description Page 6 of 47 C1-Public

1.3 Block diagram

Memory

V_BCKP (RTC)

V_INT (I/O)

32 kHz

26 MHz

transceiver

Power

Management

Baseband

ANT

SAW filter

Switch

VCC (Supply)

32 kHz

Auxiliary UART

SIM card

UART

Power-on

Reset

Figure 1: SARA-G300 and SARA-G310 block diagram

Memory

V_BCKP (RTC)

V_INT (I/O)

26 MHz

32.768 kHz

transceiver

Power

Management

Baseband

ANT

SAW filter

Switch

VCC (Supply)

Auxiliary UART

DDC (for GPS/GNSS)

SIM card detection

SIM card

UART

Power-on

Reset

Digital audio

Analog audio

GPIO

Antenna detection

Figure 2: SARA-G340 and SARA-G350 block diagram

SARA-G3 series - Data sheet

UBX-13000993 - R23 Functional description Page 7 of 47 C1-Public

1.4 Product description

Item

SARA-G300

SARA-G310

SARA-G340

SARA-G350

GSM/GPRS Protocol Stack

3GPP Release 99

3GPP Release 99 Mobile Station Class

Class B 2

GSM/GPRS Bands

E-GSM 900 MHz DCS 1800 MHz

GSM 850 MHz E-GSM 900 MHz DCS 1800 MHz PCS 1900 MHz

E-GSM 900 MHz DCS 1800 MHz

GSM 850 MHz E-GSM 900 MHz DCS 1800 MHz PCS 1900 MHz

GSM/GPRS Power Class

Class 4 (33 dBm) for 900 band

Class 1 (30 dBm) for 1800 band

Class 4 (33 dBm) for 850/900 bands

Class 1 (30 dBm) for 1800/1900 bands

Class 4 (33 dBm) for 900 band

Class 1 (30 dBm) for 1800 band

Class 4 (33 dBm) for 850/900 bands

Class 1 (30 dBm) for 1800/1900 bands

Packet Switched Data Rate

GPRS multi-slot class 10 3 Coding scheme CS1-CS4 Up to 85.6 kb/s DL 4 Up to 42.8 kb/s UL 4

GPRS multi-slot class 10 3 Coding scheme CS1-CS 4 Up to 85.6 kb/s DL 4 Up to 42.8 kb/s UL 4

Circuit Switched Data Rate

Up to 9.6 kb/s DL/UL 4 Transparent mode Non-transparent mode

Network Operation Modes

I to III

Table 2: SARA-G3 series GSM/GPRS characteristics summary

The network automatically configures the channel encoding used by the module, depending on conditions and the quality of the radio link between cell phone and base station. If the channel is very noisy, the network may use the most robust coding scheme (CS-1) to ensure higher reliability. If the channel provides good conditions, the network can use the least robust but fastest coding scheme (CS-4) to obtain optimum speed.

Basic features

Supplementary services

Short Message Service (SMS)

Display of Called Number 5

Call Hold/Resume (HOLD) 5

Text and PDU mode supported

Indication of Call Progress Signals 5

Call Waiting (CW) 5

Mobile-Originating SMS (MO SMS)

Country/PLMN Indication

Call Forwarding (CFU, CFB, CFNRy, CFNRc) 5

Mobile-Terminating SMS (MT SMS)

Country/PLMN Selection

Call Barring (BAOC, BOIC, BOIC-exHC, BAIC, BIC_Roam) 5

SMS indication and acknowledgement International Access Function 5

Call Deflection (CD) 5

SMS Cell Broadcast (CBS)

Service Indicator

Explicit Call Transfer (ECT) 5

SMS during circuit-switched calls 5

Emergency Calls Capabilities 5

Multi-Party (MTPY) 5

SMS over CSD

Dual Tone Multi Frequency (DTMF)

Calling Line Identification Presentation (CLIP) 5

SMS over PSD Subscription Identity Management

Calling Line Identification Restriction (CLIR) 5

SMS storage on SIM

Service Provider Indication

Connected Line Identification Presentation (CoLP) 5

SMS storage on module memory 5

Abbreviated Dialing 5

Connected Line Identification Restriction (CoLR) 5

Concatenated SMS

Device can be attached to both GPRS and GSM services (i.e. Packet Switch and Circuit Switch mode) using one service at a

time.

GPRS multi-slot class 10 implies a maximum of 4 slots in DL (reception) and 2 slots in UL (transmission) with 5 slots in total.

The maximum bit rate of the module depends on the current network settings.

Supported only by SARA-G340 and SARA-G350 modules

SARA-G3 series - Data sheet

UBX-13000993 - R23 Functional description Page 8 of 47 C1-Public

Basic features

Supplementary services

Short Message Service (SMS)

Fixed Number Dialing 5

Unstructured Supplementary Services Data (USSD)

Barring of Dialed Numbers 5

Advice of Charge Charging (AoCC, AoCI) 5

SIM Application Toolkit 5

Calling Name Presentation (CNAP) 5

ME-SIM lock

Network Identify and Time Zone (NITZ)

Table 3: SARA-G3 series mobile stations: basic features, supplementary services, and SMS service summary6

1.5 AT command support

The module supports AT commands according to 3GPP standards: TS 27.007 [9], 27.005 [10],

27.010 [11], and the u-blox AT command extension.

☞ For the complete list of the supported AT commands and their syntax, see the u-blox AT

commands manual [1].

RIL (Radio Interface Layer) software for Android and Embedded Windows is available for SARA-G3 modules free of charge; see the Android RIL Production delivery [6] application note for more information.

1.6 Supported features

Table 4 describes the main features supported by SARA-G3 modules. For more details, see the SARA-

G3 / SARA-U2 series system integration manual [2] and the u-blox AT commands manual [1].

Feature

Module

Description

Network Indication

SARA-G340 / SARA-G350

GPIO configured to indicate the network status: registered home network, registered roaming, voice or data call enabled, no service.

The network indication feature can be enabled through a custom AT command (see the u-blox AT commands manual [1], +UGPIOC AT command).

Antenna Detection

SARA-G340 / SARA-G350

The ANT_DET pin provides antenna presence detection capability, evaluating the resistance from the ANT pin to GND by means of an external antenna detection circuit implemented on the application board. The antenna detection feature can be enabled through a custom AT command (see the u-blox AT commands manual [1], +UANTR AT command).

Jamming detection

SARA-G340 / SARA-G350

Detects “artificial” interference that obscures the operator’s carriers providing

access to the GSM service and reports the start and stop of such conditions to the application processor (AP). The AP can react appropriately, e.g. by switching off the radio transceiver to reduce power consumption and monitoring the environment at constant periods.

The jamming detection feature can be enabled and configured through a custom AT command (see the u-blox AT commands manual [1], +UCD AT command).

Jamming condition indication over GPIO 7

SARA-G340 / SARA-G350

The jamming condition can be reported by a GPIO of the module as enabled and configured through a custom AT commands (see the u-blox AT commands manual [1], +UCD and +UGPIOC AT commands).

Second AT interface 7

SARA-G340 / SARA-G350

AT command mode available on both the UART and the Auxiliary UART interfaces.

See the u-blox AT commands manual [1], +USIO AT command for further details regarding serial interfaces configuration selection.

Embedded TCP/IP and UDP/IP

SARA-G340 / SARA-G350

Embedded TCP/IP and UDP/IP stack including direct link mode for TCP and UDP sockets.

These functionalities are supported via AT commands (for more details see the u-blox AT commands manual [1]).

Supported by “02” product versions onwards

SARA-G3 series - Data sheet

UBX-13000993 - R23 Functional description Page 9 of 47 C1-Public

Feature

Module

Description

The sockets can be configured in Direct Link mode to establish a transparent end-to-end communication with an already connected TCP or UDP socket via serial interface.

FTP, FTPS 8

SARA-G340 / SARA-G350

File Transfer Protocol as well as Secure File Transfer Protocol (SSL encryption of FTP control channel) functionalities are supported via AT commands.

HTTP, HTTPS 8

SARA-G340 / SARA-G350

Hyper-Text Transfer Protocol as well as Secure Hyper-Text Transfer Protocol (SSL encryption) functionalities are supported via AT commands. HEAD, GET, POST, DELETE and PUT operations are available. Up to 4 client contexts can be simultaneously used.

Embedded TLS 1.2 7

SARA-G340 / SARA-G350

With the support of X.509 certificates, Embedded TLS 1.2 provides server and client authentication, data encryption, data signature and enables TCP/IP applications like HTTPS and FTPS to communicate over a secured and trusted connection.

The feature can be configured and enabled by +USECMNG and +USECPRF AT commands.

IPv4/IPv6 dual-stack 9

SARA-G340 / SARA-G350

Capability to move between IPv4 and dual stack network infrastructures. IPv4 and IPv6 addresses can be used.

GPS/GNSS via Modem

SARA-G340 / SARA-G350

Full access to u-blox positioning chips and modules is available through a dedicated DDC (I2C) interface. A single serial port from any host processor can control both the cellular module and the positioning chips / modules. For more details, see the GNSS implementation application note [3].

AssistNow Software

SARA-G340 / SARA-G350

Embedded AssistNow Online and AssistNow Offline clients to provide full developed to provide better GNSS performance and faster Time-to-First-Fix. The clients can be enabled / disabled with an AT command.

CellLocate®

SARA-G340 / SARA-G350

Enables the estimation of device position based on the parameters of the mobile network cells visible to the specific device based on the CellLocate® database:

• Normal scan: parameters of the visible home network cells are only sent

• Deep scan: parameters of all surrounding cells of all mobile operators are sent

CellLocate® is implemented using a set of AT commands for CellLocate® service configuration and position request.

Hybrid Positioning

SARA-G340 / SARA-G350

Provides the module’s current position using a u-blox positioning chip or module or the estimated position from CellLocate®, depending on which positioning method provides the best and fastest solution according to the user configuration.

Hybrid positioning is implemented through a set of AT commands that allow the configuration and the position request.

Firmware update Over AT commands (FOAT)

All

Firmware module upgrade over the UART interface using AT command.

BIP 9

SARA-G340 / SARA-G350

Bearer Independent Protocol for Over-the-Air SIM provisioning. The data transfer to/from the SIM uses either an already active PDP context or a new PDP context established with the APN provided by the SIM card.

In-Band modem

SARA-G340 / SARA-G350

In-Band modem solution for eCall and ERA-GLONASS emergency call applications over cellular networks implemented according to the 3GPP TS

26.267 specification [12]. When activated, the in-vehicle eCall / ERA-GLONASS system (IVS) creates an emergency call carrying both voice and data (including vehicle position data)

directly to the nearest Public Safety Answering Point (PSAP) to determine whether rescue services should be dispatched to the known position.

DTMF decoder

SARA-G340 / SARA-G350

During a voice call, the Dual-Tone Multi-Frequency detector analyses the RX speech (coming from remote party). The detected DTMF symbols can be output via related URC. For more details, see the +UDTMFD AT command.

FTPS and HTTPS supported by “01” product versions onwards

Supported by “02” product versions onwards

SARA-G3 series - Data sheet

UBX-13000993 - R23 Functional description Page 10 of 47 C1-Public

Feature

Module

Description

Automatic selection of authentication type 9

SARA-G340 / SARA-G350

Automatic selection of authentication type during PDP context activation. The module will sequentially try different authentication protocols (none/CHAP/PAP) until the authentication succeeds.

The feature can be enabled through the +UPSD and +UAUTHREQ AT commands.

Signal quality report for PS calls 9

SARA-G340 / SARA-G350

The quality of the GPRS UL and/or DL connection is returned by the AT+CSQ command.

Network Friendly Mode 9

SARA-G340 / SARA-G350

When the Network Friendly Mode is enabled, the module reacts to service request denials by using time-spaced, randomized or delayed retry schemes according to GSMA IoT Device Connection Efficiency Guidelines [13].

The feature can be enabled through the +UNFM, +UNFMCONF, +URPM AT commands.

Smart Temperature Supervisor

SARA-G340 / SARA-G350

Constant monitoring of the module board temperature:

• Warning notification when the temperature approaches an upper or lower

predefined threshold

• Shutdown notified and forced when the temperature value is outside the

specified range (shutdown suspended in case of an emergency call in progress)

The Smart Temperature Supervisor feature can be enabled or disabled through an AT command (see the u-blox AT commands manual [1], +USTS AT command)

The sensor measures board temperature inside the shields, which can differ from ambient temperature.

Power saving

All

The power saving configuration is by default disabled, but it can be configured using an AT command. When power saving is enabled, the module automatically enters the low power idle-mode whenever possible, reducing current consumption. During idle-mode, the module processor core runs with the RTC 32 kHz reference clock, which is generated by:

• The internal 32 kHz oscillator, in case of SARA-G340 and SARA-G350

modules

• The 32 kHz signal provided at the EXT32K input pin, in case of SARA-G300

and SARA-G310 modules

For more details, see the SARA-G3 / SARA-U2 series system integration manual [2] and the u-blox AT commands manual [1], +UPSV AT command.

Table 4: SARA-G3 series’ main supported features

☞ u-blox is extremely mindful of user privacy. When a position is sent to the CellLocate

server, u-blox

is unable to track the SIM used or the specific device.

SARA-G3 series - Data sheet

UBX-13000993 - R23 Interfaces Page 11 of 47 C1-Public

2 Interfaces

2.1 Power management

2.1.1 Module supply input (VCC)

SARA-G3 modules must be supplied through the three VCC pins by a DC power supply. Voltages must be stable: during operation, the current drawn from VCC can vary by some order of magnitude, especially due to the surging consumption profile of the GSM system (described in the SARA-G3 / SARA-U2 series system integration manual [2]). It is important that the system power supply circuit is able to support peak power.

SARA-G3 modules product versions “02” onwards provide separate supply inputs over the three VCC pins:

• VCC pins #52 and #53 represent the supply input for the internal RF power amplifier, demanding

most of the total current drawn of the module when RF transmission is enabled during a voice/data call

• VCC pin #51 represents the supply input for the internal baseband Power Management Unit and

the internal transceiver, demanding minor part of the total current drawn of the module when RF transmission is enabled during a voice/data call

2.1.2 RTC supply input/output (V_BCKP)

V_BCKP is the Real Time Clock (RTC) supply of SARA-G3 modules. When VCC voltage is within the

valid operating range, the internal Power Management Unit (PMU) supplies the RTC and the same supply voltage is available on V_BCKP pin. If the VCC voltage is under the minimum operating limit (e.g. during not powered mode), the V_BCKP pin can externally supply the RTC.

2.1.3 Digital I/O interfaces supply output (V_INT)

SARA-G3 modules provide an internally generated supply rail output for digital interfaces (V_INT). This can be used in place of an external discrete regulator to supply pull-up resistors on the DDC interface. This optimizes the bill of material for various applications, e.g. with u-blox positioning modules operating at 1.8 V.

2.2 Antenna

2.2.1 Antenna RF interface (ANT)

The ANT pin has an impedance of 50  and provides the RF antenna interface of SARA-G3 modules.

2.2.2 Antenna detection (ANT_DET)

The ANT_DET pin is an Analog to Digital Converter (ADC) input provided only by SARA-G340 and SARA-G350 modules to sense the antenna presence (as optional feature), evaluating the resistance from the ANT pin to GND by means of an external antenna detection circuit implemented on the application board. For more details, see the SARA-G3 / SARA-U2 series system integration manual [2] and the u-blox AT commands manual [1], +UANTR.

SARA-G3 series - Data sheet

UBX-13000993 - R23 Interfaces Page 12 of 47 C1-Public

2.3 System functions

2.3.1 Module power-on (PWR_ON)

SARA-G3 modules can be switched on in one of the following ways:

• Rising edge on the VCC pin to a valid voltage for module supply, i.e. applying module supply

• Low level on the PWR_ON input pin, i.e. forcing the pin (normally high with external pull-up) to a

low level for a valid time period (see section 4.2.7). The PWR_ON pin requires an external pull-up resistor to set its value to logic high and may not be left floating

• RTC alarm, i.e., pre-programmed scheduled time (see the u-blox AT commands manual [1],

AT+CALA)

☞ SARA-G300 and SARA-G310 cannot be switched on with RTC alarm.

2.3.2 Module power-off

SARA-G3 modules can be properly switched off, with storage of current settings and network detach, by:

• AT+CPWROFF command

An abrupt under-voltage shutdown occurs on SARA-G3 modules when the VCC supply drops below the extended operating range minimum limit, but in this case it is not possible to perform the storing of the current parameter settings in the module’s non-volatile memory as well as the proper network detach.

An over-temperature or an under-temperature shutdown occurs on SARA-G3 modules when the temperature measured within the cellular module reaches the dangerous area, if the optional Smart Temperature Supervisor feature is enabled and configured by the dedicated AT command. For more details, see the SARA-G3 / SARA-U2 series system integration manual [2] and the u-blox AT commands manual [1], +USTS AT command.

2.3.3 Module reset (RESET_N)

SARA-G3 modules can be properly reset (rebooted), with storage of current parameter settings in the module’s non-volatile memory and proper network detach, in this way:

• AT+CFUN command (see the u-blox AT commands manual [1]). This causes an “internal” or

“software” reset of the module.

An abrupt “external” or “hardware” reset occurs when a low level is applied to the RESET_N pin, which is normally set high by an internal pull-up, for a valid time period (see section 4.2.8), but in this case it is not possible to perform the storing of the current parameter settings as well as the proper network detach.

2.3.4 External 32 kHz signal input (EXT32K)

SARA-G300 and SARA-G310 provide the EXT32K input pin that must be fed by a proper 32 kHz signal to furnish the reference clock for the RTC, allowing very low power idle-mode and RTC functions support. See section 4.2.9 for detailed electrical specifications for the 32 kHz signal.

SARA-G340 and SARA-G350 do not provide the EXT32K input pin. An internal 32 kHz oscillator automatically generates the reference clock for the RTC, allowing very low power idle-mode and RTC functions support.

SARA-G3 series - Data sheet

UBX-13000993 - R23 Interfaces Page 13 of 47 C1-Public

2.3.5 Internal 32 kHz signal output (32K_OUT)

SARA-G300 and SARA-G310 provide the 32K_OUT output pin which gives a 32 kHz reference signal suitable only to feed the EXT32K input pin of SARA-G300 / SARA-G310 modules, furnishing the reference clock for the RTC, allowing low power idle-mode and RTC functions support with modules switched on.

SARA-G340 and SARA-G350 do not provide the 32K_OUT output; there is no EXT32K input on these modules.

2.4 SIM

2.4.1 (U)SIM interface

A (U)SIM card interface is available via the VSIM, SIM_IO, SIM_CLK, SIM_RST pins of SARA-G3 series modules: the high-speed SIM/ME interface is implemented as well as the automatic detection of the required SIM supporting voltage.

Both 1.8 V and 3 V SIM types are supported: activation and deactivation with automatic voltage switch from 1.8 V to 3 V are implemented, according to ISO-IEC 7816-3 Specifications. The SIM driver supports the PPS procedure for baud-rate selection, according to the values proposed by the SIM Card.

2.4.2 SIM card detection (SIM_DET)

☞ Not supported by SARA-G300-00S and SARA-G310-00S modules.

The SIM_DET pin of SARA-G3 modules is a digital input provided to sense the SIM card presence (as an optional feature), when it is properly connected to the mechanical switch of the SIM card holder (for more details, see the SARA-G3 / SARA-U2 series system integration manual [2]).

2.5 Serial interfaces

SARA-G3 modules provide the following serial communication interfaces:

• UART interface: 9-wire unbalanced 1.8 V asynchronous serial interface supporting

o AT command mode o Data mode and Online command mode

o MUX functionality, including dedicated GNSS tunneling virtual channel

o FW upgrades by means of the FOAT feature

• Auxiliary UART interface: 3-wire unbalanced 1.8 V asynchronous serial interface supporting o AT command mode

o GNSS tunneling

o FW upgrades by means of the u-blox EasyFlash tool o Trace log capture (diagnostic purpose)

• DDC interface

: I2C-bus compatible interface supporting

o Communication with u-blox GPS/GNSS positioning chips / modules

See the u-blox AT commands manual [1] for the definition of the interface data mode and online command mode.

GNSS tunneling is not supported by SARA-G300 and SARA-G310 modules.

AT command mode and GNSS tunneling are not supported over the Auxiliary UART of SARA-G3 modules product versions

“00” and “01”.

DDC I2C-bus compatible interface is not supported by SARA-G300 and SARA-G310 modules.

SARA-G3 series - Data sheet

UBX-13000993 - R23 Interfaces Page 14 of 47 C1-Public

2.5.1 Asynchronous serial interface (UART)

The UART interface is a 9-wire unbalanced 1.8 V asynchronous serial interface provided on all SARA-G3 modules for communication with an application processor, supporting:

• AT command mode

• Data mode and Online command mode

• MUX functionality, including dedicated GNSS tunneling virtual channel

• FW upgrades by means of the FOAT feature

UART characteristics are:

• Complete serial port with RS-232 functionality conforming to the ITU-T V.24 Recommendation [8], with CMOS compatible signal levels (0 V for low data bit or ON state and 1.8 V for high data bit or OFF state)

• Data lines (RXD as output, TXD as input), hardware flow control lines (CTS as output, RTS as input), modem status and control lines (DTR as input, DSR as output, DCD as output, RI as output) are provided

• Hardware flow control (default value), software flow control, or none flow control are supported

• Power saving indication available on the hardware flow control output (CTS line): the line is driven

to the OFF state when the module is not ready to accept data signals

• 2'400, 4'800, 9'600, 19'200, 38'400, 57'600, 115'200 b/s baud rates are supported

• Auto baud rate detection (autobauding) is the default configuration

• Frame format can be: 8N1 (8 data bits, no parity, 1 stop bit), or 8N2 (8 data bits, no parity, 2 stop

bits), or 8E1 (8 data bits, even parity, 1 stop bit), or 8O1 (8 data bits, odd parity, 1 stop bit), or 7E1 (7 data bits, even parity, 1 stop bit), or 7O1 (7 data bits, odd parity, 1 stop bit)

• Automatic frame recognition is supported: this feature is the default configuration and it is enabled in conjunction with the auto baud rate detection only

• Default frame configuration with fixed baud is 8N1 (8 data bits, no parity, 1 stop bit),

2.5.1.1 Multiplexer protocol

SARA-G3 module has a software layer with MUX functionality, 3GPP TS 27.010 [11], available on the UART physical link.

This is a data link protocol (layer 2 of OSI model) which uses HDLC-like framing and operates between the module (DCE) and the application processor (DTE), and allows a number of simultaneous sessions over the physical link (UART): the user can concurrently use AT command interface on one MUX channel and data communication on another MUX channel.

SARA-G340 and SARA-G350 modules define the following virtual channels:

• Channel 0: control channel

• Channel 1 – 5: AT commands / data connection

• Channel 6: GNSS tunneling

SARA-G300 and SARA-G310 modules define the following virtual channels:

• Channel 0: control channel

• Channel 1 – 2: AT commands / data connection

For more details, see the Mux implementation application note [4].

See the u-blox AT commands manual [1] for the definition of the interface data mode and online command mode.

GNSS tunneling is not supported by SARA-G300 and SARA-G310 modules.

SARA-G3 series - Data sheet

UBX-13000993 - R23 Interfaces Page 15 of 47 C1-Public

2.5.2 Auxiliary asynchronous serial interface (AUX UART)

The auxiliary UART interface is a 3-wire unbalanced 1.8 V asynchronous serial interface available on all SARA-G3 modules, supporting 16

• AT command mode

• GNSS tunneling mode

• FW upgrades by means of the u-blox EasyFlash tool

• Trace log capture (diagnostic purpose)

Auxiliary UART characteristics are:

• Only the RXD_AUX data output and the TXD_AUX data input are provided, with CMOS compatible signal levels (0 V for low data bit or ON state and 1.8 V for high data bit or OFF state)

• Characteristics in AT command mode

o Baud rate can be: 2'400, 4'800, 9'600, 19'200, 38'400, 57'600, 115'200 b/s, with default value

115'200 b/s

o Frame format can be: 8N1, or 8N2, or 8E1, or 8O1, or 7E1, or 7O1, with default value 8N1 o Automatic baud rate detection (autobauding) and automatic frame recognition are not

supported

o Software flow control, or None flow control (default value) are supported

• Characteristics in GNSS tunneling mode

o Baud rate is 115'200 b/s o Frame format is 8N1 (8 data bits, no parity, 1 stop bit) o None flow control is supported

• Characteristics for FW upgrade and diagnostic trace modes:

o 115'200, 230'400, 460'800, 921'600 b/s baud rates are supported o Frame format is 8N1 (8 data bits, no parity, 1 stop bit) o None flow control is supported

2.5.3 DDC (I2C compatible) interface

SARA-G340 and SARA-G350 modules provide an I2C compatible DDC interface on the SCL and SDA pins exclusively for the communication with u-blox GNSS positioning chips / modules.

See the u-blox AT commands manual [1], +USIO AT command for further details regarding serial interfaces configuration

selection.

AT command mode and GNSS tunneling are not supported over the Auxiliary UART of SARA-G3 modules product versions

“00” and “01”.

SARA-G3 series - Data sheet

UBX-13000993 - R23 Interfaces Page 16 of 47 C1-Public

2.6 Audio

SARA-G340 and SARA-G350 modules provide analog and digital audio interfaces:

• Analog audio input: o Differential analog audio input (MIC_P, MIC_N) shared for all the analog audio path modes: the

pins can be connected to the output of an external analog audio device or can be connected to an external microphone by means of a simple circuit implemented on the application board

o Supply output for an external microphone (MIC_BIAS): the pin can provide the bias to an

external microphone by means of a simple circuit implemented on the application board

o Local ground for the external microphone (MIC_GND): the pin can provide the reference for the

differential analog audio input as sense ground line for the external microphone circuit

• Analog audio output: o Differential audio output (SPK_P, SPK_N) shared for all the analog audio path modes: the pins

can be connected to the input of an external analog audio device or can be connected to an external speaker

• I2S digital audio interface: o 4-wire digital audio interface (I2S_TXD, I2S_RXD, I2S_CLK, I2S_WA) that can be configured by

AT command in PCM or in normal I2S mode

For more details regarding audio interfaces configuration and usage, see the u-blox AT commands manual [1] and the SARA-G3 / SARA-U2 series system integration manual [2].

2.7 GPIO

SARA-G340 and SARA-G350 modules provide 4 GPIO pins (GPIO1-GPIO4) that can be configured for general purpose input/output, or to provide custom functions via u-blox AT commands (for further details, see the SARA-G3 / SARA-U2 series system integration manual [2] and to u-blox AT commands manual [1], +UGPIOC, +UGPIOR, +UGPIOW, +UGPS, +UGPRF).

Table 5 summarizes the custom functions available on the GPIO pins of SARA-G340 / SARA-G350

modules.

Function

Description

Default GPIO

Configurable GPIOs

GNSS supply enable

Enable/disable the supply of u-blox positioning chips and modules connected to cellular module

GPIO2

GPIO1, GPIO2, GPIO3, GPIO4

GNSS data ready

Sense when u-blox positioning chip / module connected to cellular module is ready for sending data by the DDC (I2C)

GPIO3

GNSS RTC sharing

RTC (Real Time Clock) synchronization signal to u-blox positioning chips and modules connected to cellular module

GPIO4

GPIO4 Network status indication

Indicates network status: registered home network, registered roaming, data transmission, no service

GPIO1, GPIO2, GPIO3, GPIO4

GSM Tx-burst indication

Indicates when a GSM Tx burst/slot occurs

GPIO1

Jamming condition indication

Indicates when a jamming condition occurs

GPIO1, GPIO2, GPIO3, GPIO4

General purpose input

Input to sense high or low digital level

GPIO1, GPIO2, GPIO3, GPIO4

General purpose output

Output to set the high or the low digital level

GPIO1, GPIO2, GPIO3, GPIO4

Pad disabled

Tri-state with an internal active pull-down enabled

GPIO1

GPIO1, GPIO2, GPIO3, GPIO4

Table 5: GPIO custom functions configuration

SARA-G3 series - Data sheet

UBX-13000993 - R23 Pin definition Page 17 of 47 C1-Public

3 Pin definition

3.1 Pin assignment

64 63 61 60 58 57 55 54

22 23 25 26 28 29 31 32

65 66 67 68 69 70

71 72 73 74 75 76

77 78

79 80

81 82

83 84

85 86 87 88 89 90

91 92 93 94 95 96

CTS

RTS

DCD

V_INT

V_BCKP

GND

RSVD

RESET_N

RSVD

PWR_ON

RXD

TXD

24 27 30

5962 56

GND

DSR

DTR

GND

RSVD

GND

RXD_AUX

TXD_AUX

EXT32K

GND

RSVD

32K_OUT

RSVD

GND

RSVD

GND

VCC

RSVD

SIM_CLK

SIM_IO

VSIM

SIM_DET

VCC

RSVD

SIM_RST

RSVD

GND

RSVD

ANT

SARA-G300

SARA-G310

Top view

Pin 65-96: GND

64 63 61 60 58 57 55 54

22 23 25 26 28 29 31 32

65 66 67 68 69 70

71 72 73 74 75 76

77 78

79 80

81 82

83 84

85 86 87 88 89 90

91 92 93 94 95 96

CTS

RTS

DCD

V_INT

V_BCKP

GND

RSVD

RESET_N

GPIO1

PWR_ON

RXD

TXD

24 27 30

5962 56

GND

DSR

DTR

GND

RSVD

GND

RXD_AUX

TXD_AUX

RSVD

GND

GPIO2

GPIO3

SDA

SCL

GPIO4

GND

SPK_P

MIC_BIAS

MIC_GND

MIC_P

GND

VCC

RSVD

I2S_TXD

I2S_CLK

SIM_CLK

SIM_IO

VSIM

SIM_DET

VCC

MIC_N

SPK_N

SIM_RST

I2S_RXD

I2S_WA

GND

ANT_DET

ANT

SARA-G340 SARA-G350

Top view

Pin 65-96: GND

Figure 3: SARA-G3 series modules – pin assignments

SARA-G3 series - Data sheet

UBX-13000993 - R23 Pin definition Page 18 of 47 C1-Public

Module

Name

Power domain

I/O

Description

Remarks

All

GND - N/A

Ground

All the GND pads must be connected to ground.

All

V_BCKP

I/O

Real Time Clock supply input/output

V_BCKP = 2.3 V (typical) generated by the module to supply the Real Time Clock when VCC supply voltage is within valid operating range.

See section 4.2.3 for detailed electrical specs.

All

GND - N/A

Ground

All the GND pads must be connected to ground.

All

V_INT

Digital I/O Interfaces supply output

V_INT = 1.8V (typical) generated by the module when it is switched-on.

See section 4.2.3 for detailed electrical specs.

All

GND - N/A

Ground

All the GND pads must be connected to ground.

All

DSR

GDI O UART data set ready

Circuit 107 (DSR) in ITU-T V.24. Output driver class A.

PU/PD class a. Value at reset: T/PU. See section 4.2.11 for detailed electrical specs.

All

GDI O UART ring indicator

Circuit 125 (RI) in ITU-T V.24. Output driver class A.

PU/PD class b. Value at reset: T/PU. See section 4.2.11 for detailed electrical specs.

All

DCD

GDI

UART data carrier detect

Circuit 109 (DCD) in ITU-T V.24. Output driver class A. PU/PD class a. Value at reset: T/PU. See section 4.2.11 for detailed electrical specs.

All

DTR

GDI

UART data terminal ready

Circuit 108/2 (DTR) in ITU-T V.24. Internal active pull-up to V_INT enabled.

PU/PD class b. Value at reset: T/PU. See section 4.2.11 for detailed electrical specs.

All

RTS

GDI I UART ready to send

Circuit 105 (RTS) in ITU-T V.24. Internal active pull-up to V_INT enabled.

PU/PD class c. Value at reset: T/PU. See section 4.2.11 for detailed electrical specs.

All

CTS

GDI O UART clear to send

Circuit 106 (CTS) in ITU-T V.24. Output driver class A. PU/PD class c. Value at reset: T/PD. See section 4.2.11 for detailed electrical specs.

All

TXD

GDI

UART transmitted data

Circuit 103 (TxD) in ITU-T V.24. Internal active pull-up to V_INT enabled. PU/PD class a. Value at reset: T/PU. See section 4.2.11 for detailed electrical specs.

All

RXD

GDI O UART received data

Circuit 104 (RxD) in ITU-T V.24. Output driver class B.

PU/PD class a. Value at reset: T/PU. See section 4.2.11 for detailed electrical specs.

All

GND - N/A

Ground

All the GND pads must be connected to ground.

All

PWR_ON

POS I Power-on input

The PWR_ON pin has high input impedance: don’t leave it floating in noisy environment (an external pull-up resistor is required). See section 4.2.7 for detailed electrical specs.

SARA-G350 SARA-G340

GPIO1

GDI

I/O

GPIO

Configurable GPIO: see Table 5 for the available custom functions.

Output driver class A. PU/PD class b. Value at reset: T/PD.

See section 4.2.11 for detailed electrical specs.

SARA-G310 SARA-G300

RSVD

N/A

RESERVED pin

Pin disabled. Leave unconnected.

SARA-G3 series - Data sheet

UBX-13000993 - R23 Pin definition Page 19 of 47 C1-Public

Module

Name

Power domain

I/O

Description

Remarks

All

RSVD

N/A

RESERVED pin

Leave unconnected.

All

RESET_N

ERS I Reset signal

A series Schottky diode is integrated in the module as protection, and then an internal 10 k pull-up resistor to V_INT is provided. See section 4.2.8 for detailed electrical specs. For more details regarding module reset, see [2].

All

RSVD

N/A

RESERVED pin

Leave unconnected.

All

GND - N/A

Ground

All the GND pads must be connected to ground.

All

GND - N/A

Ground

All the GND pads must be connected to ground.

All

GND - N/A

Ground

All the GND pads must be connected to ground.

SARA-G350 SARA-G340

GPIO2

GDI

I/O

GPIO

By default, the pin is configured to provide the GNSS supply enable function.

Output driver class A. PU/PD class b. Value at reset: T/PD.

See section 4.2.11 for detailed electrical specs.

SARA-G310 SARA-G300

RSVD

N/A

RESERVED pin

Pin disabled. Leave unconnected.

SARA-G350 SARA-G340

GPIO3

GDI

I/O

GPIO

By default, the pin is configured to provide the GNSS data ready function. Output driver class B. PU/PD class c. Value at reset: T/PD.

See section 4.2.11 for detailed electrical specs.

SARA-G310 SARA-G300

32K_OUT

- O 32 kHz output

32 kHz output suitable only to feed the EXT32K input giving the RTC reference clock, allowing low power idle-mode and RTC functions support.

SARA-G350 SARA-G340

GPIO4

GDI

I/O

GPIO

By default, the pin is configured to provide the GNSS RTC sharing function. Output driver class A. PU/PD class b. Value at reset: T/PD. See section 4.2.11 for detailed electrical specs.

SARA-G310 SARA-G300

RSVD

N/A

RESERVED pin

Pin disabled. Leave unconnected.

SARA-G350 SARA-G340

SDA

DDC

I/O

I2C bus data line

Fixed open drain. No internal pull-up. Value at reset: T. See section 4.2.12 for detailed electrical specs.

SARA-G310 SARA-G300

RSVD

N/A

RESERVED pin

Pin disabled. Leave unconnected.

SARA-G350 SARA-G340

SCL

DDC O I2C bus clock line

Fixed open drain. No internal pull-up. Value at reset: T. See section 4.2.12 for detailed electrical specs.

SARA-G310 SARA-G300

RSVD

N/A

RESERVED pin

Pin disabled. Leave unconnected.

All

RXD_AUX

GDI

Auxiliary UART received data

Circuit 104 (RxD) in ITU-T V.24. Output driver class B.

PU/PD class a. Value at reset: T/PU. See section 4.2.11 for detailed electrical specs.

All

TXD_AUX

GDI

Auxiliary UART transmitted data

Circuit 103 (TxD) in ITU-T V.24. Internal active pull-up to V_INT enabled. PU/PD class a. Value at reset: T/PU. See section 4.2.11 for detailed electrical specs.

All

GND - N/A

Ground

All the GND pads must be connected to ground.

SARA-G350 SARA-G340

RSVD

N/A

RESERVED pin

Internally not connected. Leave unconnected.

SARA-G3 series - Data sheet

UBX-13000993 - R23 Pin definition Page 20 of 47 C1-Public

Module

Name

Power domain

I/O

Description

Remarks

SARA-G310 SARA-G300

EXT32K

- I 32 kHz input

Input for RTC reference clock, needed to enter the low power idle-mode and provide RTC functions.

See section 4.2.9 for detailed electrical specs.

All

GND - N/A

Ground

All the GND pads must be connected to ground.

All

RSVD

N/A

RESERVED pin

This pin must be connected to GND.

SARA-G350 SARA-G340

I2S_WA

GDI O I2S word alignment

Output driver class A. PU/PD class c. Value at reset: T/PU.

See section 4.2.11 for detailed electrical specs.

SARA-G310 SARA-G300

RSVD

N/A

RESERVED pin

Pin disabled. Leave unconnected.

SARA-G350 SARA-G340

I2S_TXD

GDI O I2S transmit data

Output driver class B. PU/PD class c. Value at reset: T/PD.

See section 4.2.11 for detailed electrical specs.

SARA-G310 SARA-G300

RSVD

N/A

RESERVED pin

Pin disabled. Leave unconnected.

SARA-G350 SARA-G340

I2S_CLK

GDI O I2S clock

Output driver class B. PU/PD class a. Value at reset: T/PU. See section 4.2.11 for detailed electrical specs.

SARA-G310 SARA-G300

RSVD

N/A

RESERVED pin

Pin disabled. Leave unconnected.

SARA-G350 SARA-G340

I2S_RXD

GDI I I2S receive data

Internal active pull-down enabled. PU/PD class a. Value at reset: T/PD. See section 4.2.11 for detailed electrical specs.

SARA-G310 SARA-G300

RSVD

N/A

RESERVED pin

Pin disabled. Leave unconnected.

All

SIM_CLK

SIM O SIM clock

Value at reset: L. See section 4.2.10 for detailed electrical specs.

All

SIM_IO

SIM

I/O

SIM data

Internal 4.7k pull-up to VSIM. Value at reset: L. See section 4.2.10 for detailed electrical specs.

All

SIM_RST

SIM O SIM reset

Value at reset: L. See section 4.2.10 for detailed electrical specs.

All

VSIM

- O SIM supply output

VSIM = 1.80 V typical if SIM card = 1.8V type. VSIM = 2.85 V typical if SIM card = 3.0V type.

See section 4.2.3 for detailed electrical specs.

All

SIM_DET

GDI I SIM detection

SIM card presence detection function. PU/PD class a. Value at reset: T/PU. See section 4.2.11 for detailed electrical specs.

All

GND - N/A

Ground

All the GND pads must be connected to ground.

SARA-G350 SARA-G340

SPK_P

AUDIO

Differential analog audio output (positive)

Differential analog audio output shared for all the analog audio path modes.

See section 4.2.13 for detailed electrical specs.

SARA-G310 SARA-G300

RSVD

N/A

RESERVED pin

Leave unconnected.

SARA-G350 SARA-G340

SPK_N

AUDIO

Differential analog audio output (negative)

Differential analog audio output shared for all the analog audio path modes.

See section 4.2.13 for detailed electrical specs.

SARA-G310 SARA-G300

RSVD

N/A

RESERVED pin

Leave unconnected.

SARA-G350 SARA-G340

MIC_BIA S

AUDIO

Microphone supply output

Supply output for the external microphone. See section 4.2.13 for detailed electrical specs.

SARA-G3 series - Data sheet

UBX-13000993 - R23 Pin definition Page 21 of 47 C1-Public

Module

Name

Power domain

I/O

Description

Remarks

SARA-G310 SARA-G300

RSVD

N/A

RESERVED pin

Leave unconnected.

SARA-G350 SARA-G340

MIC_GND

AUDIO

Microphone analog reference

Local ground for the external microphone (reference for the differential analog audio input).

See section 4.2.13 for detailed electrical specs.

SARA-G310 SARA-G300

RSVD

N/A

RESERVED pin

Leave unconnected.

SARA-G350 SARA-G340

MIC_N

AUDIO

Differential analog audio input (negative)

Differential analog audio input shared for all the analog audio path modes. See section 4.2.13 for detailed electrical specs.

SARA-G310 SARA-G300

RSVD

N/A

RESERVED pin

Leave unconnected.

SARA-G350 SARA-G340

MIC_P

AUDIO

Differential analog audio input (positive)

Differential analog audio input shared for all the analog audio path modes.

See section 4.2.13 for detailed electrical specs.

SARA-G310 SARA-G300

RSVD

N/A

RESERVED pin

Leave unconnected. 50

All

GND - N/A

Ground

All the GND pads must be connected to ground.

All

VCC - I

Module supply input

All VCC pins must be connected to external supply. Supply input for internal BB PMU and transceiver on SARA-G3 modules product versions ‘02’ onward. See section 4.2.3, 4.2.4 for detailed electrical spec.

All

VCC - I

Module supply input

All VCC pins must be connected to external supply. Supply input for the internal RF power amplifier on

SARA-G3 modules product versions ‘02’ onward. See section 4.2.3, 4.2.4 for detailed electrical spec.

All

VCC - I

Module supply input

All VCC pins must be connected to external supply. Supply input for the internal RF power amplifier on

SARA-G3 modules product versions ‘02’ onward. See section 4.2.3, 4.2.4 for detailed electrical spec.

All

GND - N/A

Ground

All the GND pads must be connected to ground.

All

GND - N/A

Ground

All the GND pads must be connected to ground.

All

ANT - I/O

RF antenna

50  nominal impedance See section 4.2.5 for detailed electrical specs.

All

GND - N/A

Ground

All the GND pads must be connected to ground.

All

GND - N/A

Ground

All the GND pads must be connected to ground.

All

GND - N/A

Ground

All the GND pads must be connected to ground.

All

GND - N/A

Ground

All the GND pads must be connected to ground.

All

GND - N/A

Ground

All the GND pads must be connected to ground.

SARA-G350 SARA-G340

ANT_DET

ADC I Antenna detection

Antenna presence detection function. See section 4.2.6 for detailed electrical specs.

SARA-G310 SARA-G300

RSVD

N/A

RESERVED pin

Leave unconnected. 63

All

GND - N/A

Ground

All the GND pads must be connected to ground.

All

GND - N/A

Ground

All the GND pads must be connected to ground.

65-96

All

GND - N/A

Ground

All the GND pads must be connected to ground.

Table 6: SARA-G3 series module pin-out

☞ For more information about pin-out, see the SARA-G3 / SARA-U2 series system integration

manual [2].

☞ For an explanation of abbreviations and terms used, see appendix A.

SARA-G3 series - Data sheet

UBX-13000993 - R23 Electrical specifications Page 22 of 47 C1-Public

4 Electrical specifications

⚠ Stressing the device above one or more of the ratings listed in the Absolute Maximum Rating

section may cause permanent damage. These are stress ratings only. Operating the module at these or at any conditions other than those specified in the Operating Conditions sections (chapter 4.2) of the specification should be avoided. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability.

☞ Operating conditions ranges define those limits within which the functionality of the device is

guaranteed.

☞ Electrical characteristics are defined according to the verification on a representative number of

samples or according to the simulation.

☞ Where application information is given, it is advisory only and does not form part of the

specification.

4.1 Absolute maximum rating

☞ Limiting values given below are in accordance with the Absolute Maximum Rating System

(IEC 134).

Symbol

Description

Condition

Min

Max

Unit

VCC

Module supply voltage

Input DC voltage at VCC pins

-0.15

5.5 V V_BCKP

RTC supply voltage

Input DC voltage at V_BCKP pin

-0.15

2.5

GDI

Generic digital interfaces

Input DC voltage at Generic digital interfaces pins

-0.15

2.2

DDC

DDC interface

Input DC voltage at DDC interface pins

-0.15

3.6 V SIM

SIM interface

Input DC voltage at SIM interface pins

-0.30

3.6 V ERS

External reset signal

Input DC voltage at RESET_N pin

-0.15

6.0 V POS

Power-on signal

Input DC voltage at PWR_ON pin

-0.15

6.0

AUDIO

Audio pins

Input DC voltage at Audio pins

-0.15

3.0

ADC

Antenna detection pin

Input DC voltage at ANT_DET pin

-0.15

3.0 V P_ANT

Antenna power

In-band input RF power at ANT pin

-8

dBm

Rho_ANT

Antenna ruggedness

Output RF load mismatch ruggedness at ANT pin

20:1

VSWR

Tstg

Storage temperature range

-40

+85

°C

Table 7: Absolute maximum ratings

⚠ The product is not protected against overvoltage or reversed voltages. If necessary, voltage spikes

exceeding the power supply voltage specification, given in table above, must be limited to values within the specified boundaries by using appropriate protection devices.

4.1.1 Maximum ESD

Parameter

Min

Typical

Max

Unit

Remarks

ESD sensitivity for all pins except ANT pin

1000

Human Body Model according to JESD22-A114

ESD sensitivity for ANT pin

1000

Human Body Model according to JESD22-A114

ESD immunity for ANT pin

4000

Contact Discharge according to IEC 61000-4-2

8000

Air Discharge according to IEC 61000-4-2

Table 8: Maximum ESD ratings

⚠ u-blox cellular modules are Electrostatic Sensitive Devices (ESD) and require special precautions

when handling. See section 7.4 for ESD handling instructions.

SARA-G3 series - Data sheet

UBX-13000993 - R23 Electrical specifications Page 23 of 47 C1-Public

4.2 Operating conditions

☞ Unless otherwise specified, all operating condition specifications are at an ambient temperature

of +25 °C.

⚠ Operation beyond the operating conditions is not recommended and extended exposure beyond

them may affect device reliability.

4.2.1 Operating temperature range

Symbol

Parameter

Module

Min

Typical

Max

Units

Remarks

Topr

Operating temperature range

All

-40

+25

+85

°C

All

-30 +85

°C

Normal operating range see chapter 4.2.1.1

All

-40 +85

°C

Extended operating range see chapter 4.2.1.2

Table 9: Environmental conditions

4.2.1.1 Normal operating temperature range

SARA-G3 series modules are fully functional and meet 3GPP specifications across the specified temperature range.

4.2.1.2 Extended operating temperature range

SARA-G3 series modules are fully functional across the specified temperature range. RF performance may be affected outside the normal operating temperature range.

4.2.2 Module thermal resistance

Symbol

Parameter

Min

Typical

Max

Unit

Remarks

th,M-A

Module-to-Ambient thermal resistance

10.6 °C/W

Thermal resistance from the module internal temperature sensor to the ambient, with the module mounted on a 79 mm x 62 mm x 1.41 mm 4-layer PCB with a high coverage of copper in still air conditions

th,M-C

Module-to-Case thermal resistance

1.7 °C/W

Thermal resistance from the module internal temperature sensor to the module case, evaluated as the thermal resistance from the module internal temperature sensor to the ambient, with the module mounted on a 79 mm x 62 mm x 1.41 mm 4-layer PCB with a high coverage of copper, with a robust aluminum heat-sink on the back of the application board, with forced air ventilation.

Table 10: SARA-G3 series modules thermal resistance

SARA-G3 series - Data sheet

UBX-13000993 - R23 Electrical specifications Page 24 of 47 C1-Public

4.2.3 Supply/Power pins

Symbol

Parameter

Min

Typical

Max

Unit

VCC

Module supply normal operating voltage 18

3.35

3.80

4.50 V

Module supply extended operating voltage 19

3.00 4.50 V

Module supply extended operating voltage 20

2.80 4.50

ICC_PEAK 21

Module peak of current consumption through all the VCC pins, during a GSM 1-slot transmit burst at maximum power level, with a matched antenna

1.50

1.60

A Module peak of current consumption through all the VCC pins, during a GSM 1-slot transmit burst at maximum power level, with a mismatched antenna

1.90

A Module peak of current consumption through the VCC pin #51 of SARA-G3 modules product versions “02” onwards

300

mA V_BCKP

Real Time Clock Supply input voltage

1.00

2.30

2.40

I_BCKP

Real Time Clock Supply average current consumption, at V_BCKP = 2.3 V

2.00 µA

Table 11: Input characteristics of Supply/Power pins

Symbol

Parameter

Min

Typical

Max

Unit

VSIM

SIM Supply

1.76

1.80

1.84

2.78

2.85

2.91

V_BCKP

Real Time Clock Supply output voltage

2.19

2.30

2.42 V I_BCKP

Real Time Clock Supply output current capability

V_INT

Digital I/O Interfaces supply output voltage

1.75

1.80

1.85

V_INT_RIPPLE

Digital I/O Interfaces supply output peak-to-peak voltage ripple during active or connected mode

Digital I/O Interfaces supply output peak-to-peak voltage ripple during low power idle mode with power saving enabled

mV I_INT

Digital I/O Interfaces supply output current capability

Table 12: Output characteristics of Supply/Power pins

The input voltage at all the VCC must be above the normal operating range minimum limit to switch-on the module. Module is still fully functional when the input voltage at the VCC pins drops below the herein stated normal operating range minimum limit, but RF performance may be affected.

Range defined for all the VCC pins of product versions “00” and “01”, and the VCC pin #51 (supply input for internal baseband

Power Management Unit and the internal transceiver) of product versions “02” onwards. Module may switch off when the input

voltage at the related pins drops below the herein stated extended operating range minimum limit.

Range defined for the VCC pins #52 and #53 (supply input for the internal power amplifier) of product versions “02” onwards.

Use this figure to dimension maximum current capability of power supply.

SARA-G3 series - Data sheet

UBX-13000993 - R23 Electrical specifications Page 25 of 47 C1-Public

4.2.4 Current consumption

Mode

Module

Band

Condition

Min

Typ

Max

Unit

Power Off Mode

All - Module is switched off by AT+CPWROFF

µA

Idle-Mode (Power Saving enabled by AT+UPSV, module in low power idlemode, equivalent to +CFUN=4 or +COPS=2)

SARA-G300 SARA-G310

Averaged current over a 100-ms period, EXT32K fed by external 32.768 kHz signal

0.3

0.4

Averaged current over a 100-ms period, EXT32K fed by 32K_OUT output signal

3.9

4.0

SARA-G340 SARA-G350

Averaged current over a 100-ms period

0.3

0.4

Cyclic Idle/Active-Mode (Power Saving enabled by AT+UPSV, Module registered with network)

SARA-G300 SARA-G310

All

Averaged current over a 10-minute period, DRX = 922, AT+UPSV=2 EXT32K fed by external 32.768 kHz signal

0.6

0.8

Averaged current over a 10-minute period, DRX = 922, AT+UPSV=2 EXT32K fed by 32K_OUT output signal

4.2

4.4

Averaged current over a 10-minute period, DRX = 523, AT+UPSV=1 EXT32K fed by external 32.768 kHz signal

0.9

1.1

Averaged current over a 10-minute period, DRX = 523, AT+UPSV=1 EXT32K fed by 32K_OUT output signal

4.5

4.7

mA SARA-G340 SARA-G350

All

Averaged current over a 10-minute period, DRX = 922, AT+UPSV=2

0.6

0.8

Averaged current over a 10-minute period, DRX = 523, AT+UPSV=1

0.9

1.1

Active-Mode (Power Saving disabled by AT+UPSV, Module registered with network)

SARA-G300 SARA-G310

All

Averaged current over a 10-minute period, DRX = 523, AT+UPSV=0 (default) EXT32K fed by external 32.768 kHz signal

4.2

4.4

mA Averaged current over a 10-minute period, DRX = 523, AT+UPSV=0 (default) EXT32K fed by 32K_OUT output signal

4.5

4.7

Averaged current over a 10-minute period, DRX = 523, AT+UPSV=0 (default) EXT32K not fed

18.0

18.2

mA SARA-G340 SARA-G350

All

Averaged current over a 10-minute period, DRX = 523, AT+UPSV=0 (default)24

2.9

3.1

GSM Connected Mode (Call enabled)

All

850, 900

Averaged current over a 10-second period, 1 Tx + 1 Rx slot Maximum Tx power (32.2 dBm typ.)

200

250

1800, 1900

Averaged current over a 10-second period, 1 Tx + 1 Rx slot Maximum Tx power (29.2 dBm typ.)

150

200

GPRS Connected Mode (Call enabled)

All

850, 900

Averaged current over a 10-second period, 2 Tx + 3 Rx slots Maximum Tx power (30.5 dBm typ.)

300

350

1800, 1900

Averaged current over a 10-second period, 2 Tx + 3 Rx slots Maximum Tx power (27.5 dBm typ.)

210

260

Table 13: VCC current consumption25

Module is registered with the network, with a paging period of 2.12 s (2G network DRX setting = 9), with none neighbour cell.

Module is registered with the network, with a paging period of 1.18 s (2G network DRX setting = 5), with 16 neighbour cells.

18.2 mA typical, 18.4 mA maximum for SARA-G340 and SARA-G350 modules product versions “00”

Averaged values for module current consumption through VCC pins in the listed modes/conditions

SARA-G3 series - Data sheet

UBX-13000993 - R23 Electrical specifications Page 26 of 47 C1-Public

4.2.5 RF performance

Parameter

Min

Max

Unit

Remarks

Frequency range - GSM 850

Uplink

824

849

MHz

Module transmit

Downlink

869

894

MHz

Module receive

Frequency range - E-GSM 900

Uplink

880

915

MHz

Module transmit

Downlink

925

960

MHz

Module receive

Frequency range - DCS 1800

Uplink

1710

1785

MHz

Module transmit

Downlink

1805

1880

MHz

Module receive

Frequency range - PCS 1900

Uplink

1850

1910

MHz

Module transmit

Downlink

1930

1990

MHz

Module receive

Table 14: Operating RF frequency bands

Parameter

Min

Typical

Max

Unit

Remarks

Receiver input sensitivity - GSM 850

-109 dBm

Downlink RF level @ BER Class II < 2.4 %

Receiver input sensitivity - E-GSM 900

-109 dBm

Downlink RF level @ BER Class II < 2.4 %

Receiver input sensitivity - DCS 1800

-109 dBm

Downlink RF level @ BER Class II < 2.4 %

Receiver input sensitivity - PCS 1900

-109 dBm

Downlink RF level @ BER Class II < 2.4 %

Condition: 50  source

Table 15: Receiver sensitivity performance

Parameter

Min

Typical

Max

Unit

Remarks

Maximum output power GSM 850 / E-GSM 900

32.2 dBm

Uplink burst RF power for GSM or GPRS 1-slot TCH at maximum output power control level (PCL 5 or Gamma 3)

30.5 dBm

Uplink burst RF power for GPRS 2-slot TCH at maximum output power control level (Gamma 3)

Maximum output power DCS 1800 / PCS 1900

29.2 dBm

Uplink burst RF power for GSM or GPRS 1-slot TCH at maximum output power control level (PCL 0 or Gamma 3)

27.5 dBm

Uplink burst RF power for GPRS 2-slot TCH at maximum output power control level (Gamma 3)

Condition: 50  output load

Table 16: Transmitter maximum output power

4.2.6 ANT_DET pin

Pin name

Parameter

Min

Typical

Max

Unit

Remarks

ANT_DET

Output DC current pulse value

20 µA

Output DC current pulse time length

3.7

5.4

8.1

Table 17: ANT_DET pin characteristics

SARA-G3 series - Data sheet

UBX-13000993 - R23 Electrical specifications Page 27 of 47 C1-Public

4.2.7 PWR_ON pin

Pin name

Parameter

Min

Typical

Max

Unit

Remarks

PWR_ON

Internal supply for Power-On Input Signal

2.19

2.30

2.42 V Real Time Clock supply (V_BCKP) L-level input

-0.10

0.65 V High input impedance (no internal pull-up)

H-level input

2.00 4.50 V High input impedance (no internal pull-up)

L-level input current

-8 µA

PWR_ON low time to switch-on the module

Table 18: PWR_ON pin characteristics

4.2.8 RESET_N pin

Pin name

Parameter

Min

Typical

Max

Unit

Remarks

RESET_N

Internal supply for External Reset Signal

1.75

1.80

1.85 V Digital I/O Interfaces supply (V_INT)

L-level input

-0.10

0.15

A series Schottky diode is integrated in the module as protection: the module senses a low level when the RESET_N pin is forced low.

H-level input

1.40 4.50

A series Schottky diode is integrated in the module as protection: the module senses a low level when the RESET_N pin is forced low.

Pull-up resistance

k

Internal pull-up to V_INT after the internal series Schottky diode

L-level input current

-180 µA

RESET_N low time to perform a proper reset

SARA-G340, SARA-G350

RESET_N low time to perform a proper reset

3000

SARA-G300, SARA-G310

Table 19: RESET_N pin characteristics

4.2.9 EXT32K pin

Pin name

Parameter

Min

Typical

Max

Unit

Remarks

EXT32K

L-level input

-0.25

0.20 V

H-level input

V_BCKP – 0.20

V_BCKP + 0.25

V_BCKP = 2.3 V (typical) generated by the internal LDO linear regulator when valid VCC supply is present.

Input clock frequency

32.765

32.768

32.771

kHz

Frequency tolerance: +/- 100 ppm

Table 20: EXT32K pin characteristics

SARA-G3 series - Data sheet

UBX-13000993 - R23 Electrical specifications Page 28 of 47 C1-Public

4.2.10 SIM pins

Parameter

Min

Typical

Max

Unit

Remarks

Low-level input

0.37 V VSIM = 1.80 V

0.60 V VSIM = 2.85 V

High-level input

1.22 3.30 V VSIM = 1.80 V

1.95 3.30 V VSIM = 2.85 V

Low-level output

0.00

0.35 V VSIM = 1.80 V, Max value at IOL = +1.0 mA

0.00

0.35 V VSIM = 2.85 V, Max value at IOL = +1.0 mA

High-level output

1.45

1.80 V

VSIM = 1.80 V, Min value at IOH = -1.0 mA

2.50

2.85 V

VSIM = 2.85 V, Min value at IOH = -1.0 mA

Input/Output leakage current

0.7

µA

0.2 V < VIN < 3.3 V

Internal pull-up resistor on SIM_IO to VSIM

4.7

k Clock frequency on SIM_CLK

3.25 MHz

Table 21: SIM pins characteristics

4.2.11 Generic Digital Interfaces pins

Parameter

Min

Typical

Max

Unit

Remarks

Internal supply for GDI domain

1.75

1.80

1.85 V Digital I/O Interfaces supply (V_INT)

Input characteristic: L-level input

-0.20

0.35 V

Input characteristic: H-level input

1.30 1.95 V

Output characteristics: L-level output

0.00

0.20 V Max value at IOL = +3.0 mA for Driver Class A

0.00

0.35 V Max value at IOL = +6.0 mA for Driver Class A

0.00

0.20 V Max value at IOL = +2.5 mA for Driver Class B

0.00

0.35 V Max value at IOL = +5.0 mA for Driver Class B

Output characteristics: H-level output

1.60

1.80 V

Min value at IOH = -3.0 mA for Driver Class A

1.45

1.80 V

Min value at IOH = -6.0 mA for Driver Class A

1.60

1.80 V

Min value at IOH = -2.5 mA for Driver Class B

1.45

1.80 V

Min value at IOH = -5.0 mA for Driver Class B

Input/Output leakage current

0.7

µA

0.2 V < VIN < 1.95 V

Pull-up input current

-102 µA

PU Class a

-55 µA

PU Class b

-31 µA

PU Class c

Pull-down input current

103 µA

PD Class a

51 µA

PD Class b

27 µA

PD Class c

Table 22: GDI pins characteristics

SARA-G3 series - Data sheet

UBX-13000993 - R23 Electrical specifications Page 29 of 47 C1-Public

4.2.11.1 AC characteristics of digital audio interfaces pins

The 4-wire I2S digital audio interfaces can be configured in 2 different modes:

• Normal I2S mode with host role

• PCM mode with host role

Normal I2S mode with host role

I2S_TX / I2S_WA

I2S_RX

I2S_CLK

Figure 4: AC characteristics of digital audio interface in normal I2S mode (<I2S_mode> = 2, 4, 6, 8, 10, 12)

I2S_TX / I2S_WA

I2S_RX

I2S_CLK

Figure 5: AC characteristics of digital audio interface in normal I2S mode (<I2S_mode> = 3, 5, 7, 9, 11, 13)

Parameter

Description

Min

Typical

Max

Unit

Remarks

I2S_CLK period

3.902

3.906

µs

<I2S_mode> = 2,..,13

1/T1

I2S_CLK frequency

256 kHz

<I2S_mode> = 2,..,13

I2S_CLK high time

1.933

1.953

µs

<I2S_mode> = 2,..,13

I2S_CLK low time

1.933

1.953

µs

<I2S_mode> = 2,..,13

I2S_WA period

125.0

µs

<I2S_mode> = 2,..,13

I2S_WA frequency

kHz

<I2S_mode> = 2,..,13

I2S_TX invalid before I2S_CLK low end

<I2S_mode> = 2,4,6,8,10,12

I2S_TX invalid before I2S_CLK high end

<I2S_mode> = 3,5,7,9,11,13

I2S_TX valid after I2S_CLK high begin

<I2S_mode> = 2,4,6,8,10,12

I2S_TX valid after I2S_CLK low begin

<I2S_mode> = 3,5,7,9,11,13

I2S_RX setup time before I2S_CLK high end

<I2S_mode> = 2,4,6,8,10,12

I2S_RX setup time before I2S_CLK low end

<I2S_mode> = 3,5,7,9,11,13

I2S_RX hold time after I2S_CLK low begin

<I2S_mode> = 2,4,6,8,10,12

I2S_RX hold time after I2S_CLK high begin

<I2S_mode> = 3,5,7,9,11,13

Table 23: AC characteristics of digital audio interface in normal I2S mode (<I2S_mode> = 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13)

SARA-G3 series - Data sheet

UBX-13000993 - R23 Electrical specifications Page 30 of 47 C1-Public

PCM mode with host role

T4 T5

T6 T7

I2S_RX

I2S_CLK

I2S_WA

LSB

I2S_TX

LSB

MSB

Figure 6: AC characteristics of digital audio interface in PCM mode (<I2S_mode> = 0)

T4 T5

T6 T7

I2S_WA

I2S_CLK

I2S_RX

LSB

MSB

I2S_TX

LSB

T9T1T2

Figure 7: AC characteristics of digital audio interface in PCM mode (<I2S_mode> = 1)

Parameter

Description

Min

Typical

Max

Unit

Remarks

I2S_CLK period

6.940

6.944

µs

<I2S_mode> = 0

7.349

7.353

µs

<I2S_mode> = 1

1/T1

I2S_CLK frequency

144 kHz

<I2S_mode> = 0

136 kHz

<I2S_mode> = 1

I2S_CLK low time

3.452

3.472

µs

<I2S_mode> = 0

3.656

3.676

µs

<I2S_mode> = 1

I2S_CLK high time

3.452

3.472

µs

<I2S_mode> = 0

3.656

3.676

µs

<I2S_mode> = 1

I2S_WA period

125.0

µs

<I2S_mode> = 0,1

I2S_WA frequency

kHz

<I2S_mode> = 0,1

I2S_CLK high begin to I2S_WA high begin

-24 31

<I2S_mode> = 0,1

I2S_CLK low end to I2S_WA high end

-24 31

<I2S_mode> = 0,1

I2S_TX invalid before I2S_CLK low end

<I2S_mode> = 0,1

I2S_TX valid after I2S_CLK high begin

<I2S_mode> = 0,1

I2S_RX setup time before I2S_CLK high end

<I2S_mode> = 0,1

I2S_RX hold time after I2S_CLK low begin

<I2S_mode> = 0,1

Table 24: AC characteristics of digital audio interface in PCM mode (<I2S_mode> = 0, 1)

SARA-G3 series - Data sheet

UBX-13000993 - R23 Electrical specifications Page 31 of 47 C1-Public

4.2.12 DDC (I2C) pins

Parameter

Min

Typical

Max

Unit

Remarks

Internal supply for DDC domain

1.75

1.80

1.85 V Digital I/O Interfaces supply (V_INT)

L-level input

-0.20

0.35 V In accordance with I2C bus specification

H-level input

1.30 3.30 V In accordance with I2C bus specification

L-level output

0.00

0.40 V Max value at IOL = +3.0 mA

Input/Output leakage current

0.7

µA

0.2 V < VIN < 3.3 V

Clock frequency on SCL

100 kHz

Table 25: DDC pins characteristics

4.2.13 Audio pins

Pin name

Parameter

Min

Typical

Max

Unit

Remarks

MIC_BIAS

Microphone supply output voltage

2.2 V

Provided by MIC_BIAS output pin with MIC_GND pin as reference.

Microphone supply output current

4.0

Provided by MIC_BIAS output pin with MIC_GND pin as reference

Load capacitance

Proper internal bypass capacitor is already provided to guarantee stable operation: an external capacitor cannot be directly connected to MIC_BIAS pin, but can be provided after a proper series resistor.

Load resistance

k

MIC_GND

Microphone ground

MIC_GND pin is internally connected to GND as a sense line

Table 26: Microphone supply (MIC_BIAS) characteristics

Pin name

Parameter

Min

Typical

Max

Unit

Remarks

MIC_P/MIC_N

Differential input voltage

0.8

Vpp

Full scale differential voltage

Differential input resistance

k Common mode DC voltage

0.5 V

No internal DC blocking capacitor

Input capacitance

5 10

No internal DC blocking capacitor

Signal to noise

Gain stage = +12 dB, Bandwidth 300-3900 Hz

Signal to distortion (THD)

Power supply rejection

85 dB

Table 27: Differential audio transmit path (MIC_P, MIC_N) input characteristics

Pin name

Parameter

Min

Typical

Max

Unit

Remarks

SPK_P/SPK_N

Maximum differential output voltage

4.0

4.1

4.2

Vpp

Full scale differential open circuit voltage

Common mode output voltage

1.25 V Output current limit

200

Output load resistance

14 

Single-ended output load capacitance

250

Signal to noise

80 dB

Load = 16 , Gain stage = +0 dB, Input signal = 0 dBFS, Code 0, A-weighted

Signal to distortion (THD)

70 dB

Load = 16 , Input signal = 0 dBFS

Table 28: Differential audio receive path (SPK_P, SPK_N) output characteristics

SARA-G3 series - Data sheet

UBX-13000993 - R23 Mechanical specifications Page 32 of 47 C1-Public

5 Mechanical specifications

K M1 M1 M2

H 2

ANT

Pin 1

Indicator

G H1 J1

D D

Figure 8: SARA-G3 series dimensions (bottom and sides views)

Parameter

Description

Typical Tolerance

Module Height [mm]

26.0

(1023.6 mil)

+0.20/-0.20

(+7.9/-7.9 mil)

Module Width [mm]

16.0

(629.9 mil)

+0.20/-0.20

(+7.9/-7.9 mil)

Module Thickness 26 [mm]

2.4

(94.5 mil)

+0.25/-0.15

(+9.8/-5.9 mil)

Horizontal Edge to Lateral Pin Pitch [mm]

2.0

(78.7 mil)

+0.20/-0.20

(+7.9/-7.9 mil)

Vertical Edge to Lateral Pin Pitch [mm]

2.5

(98.4 mil)

+0.20/-0.20

(+7.9/-7.9 mil)

Edge to Lateral Pin Pitch [mm]

1.05

(41.3 mil)

+0.20/-0.20

(+7.9/-7.9 mil)

Lateral Pin to Pin Pitch [mm]

1.1

(43.3 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Lateral Pin Height [mm]

0.8

(31.5 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Lateral Pin close to ANT Height [mm]

0.9

(35.4 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Lateral Pin Width [mm]

1.5

(59.1 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Lateral Pin to Pin Distance [mm]

0.3

(11.8 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Lateral Pin to Pin close to ANT Distance [mm]

0.2

(7.9 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Horizontal Edge to Central Pin Pitch [mm]

2.75

(108.3 mil)

+0.20/-0.20

(+7.9/-7.9 mil)

Vertical Edge to Central Pin Pitch [mm]

2.75

(108.3 mil)

+0.20/-0.20

(+7.9/-7.9 mil)

Central Pin to Pin Horizontal Pitch [mm]

1.8

(70.9 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Central Pin to Pin Horizontal Pitch [mm]

3.6

(141.7 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Central Pin to Pin Vertical Pitch [mm]

2.1

(82.7 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Central Pin Height and Width [mm]

1.1

(43.3 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Horizontal Edge to Pin 1 Indicator Pitch [mm]

0.9

(35.4 mil)

+0.20/-0.20

(+7.9/-7.9 mil)

Vertical Edge to Pin 1 Indicator Pitch [mm]

1.0

(39.4 mil)

+0.20/-0.20

(+7.9/-7.9 mil)

Pin 1 Indicator Height and Width [mm]

0.6

(23.6 mil)

+0.05/-0.05

(+2.0/-2.0 mil)

Weight

Module Weight [g]

< 3

Table 29: SARA-G3 series dimensions

3.0 mm typical module thickness for SARA-G3 modules product versions “00” and “01”

SARA-G3 series - Data sheet

UBX-13000993 - R23 Mechanical specifications Page 33 of 47 C1-Public

☞ The module height tolerance +/–0.20 mm may be exceeded close to the corners of the PCB due to

the cutting process: in worst cases, the height could be +0.40 mm longer than the typical value.

☞ For information regarding suggested footprint (i.e. copper mask) and stencil (i.e. paste mask)

layout to be implemented on the application board, see SARA-G3 / SARA-U2 series system integration manual [2].

SARA-G3 series - Data sheet

UBX-13000993 - R23 Qualification and approvals Page 34 of 47 C1-Public

6 Qualification and approvals

6.1 Reliability tests

Tests for product family qualifications are according to ISO 16750 “Road vehicles - Environmental conditions and testing for electrical and electronic equipment“, and appropriate standards.

6.2 Approvals

6.2.1 SARA-G3 series

SARA-G3 series modules comply with the Directive 2011/65/EU of the European Parliament and the Council on the Restriction of Use of certain Hazardous Substances in Electrical and Electronic Equipment (EU RoHS 2) and its amendment Directive (EU) 2015/863 (EU RoHS 3).

SARA-G3 series modules are RoHS 3 compliant.

No natural rubbers, hygroscopic materials, or materials containing asbestos are employed.

Table 30 lists the SARA-G3 series modules main approvals.

Certification Scheme

SARA-G300

SARA-G310

SARA-G340

SARA-G350

GCF (Global Certification Forum)

• • •

•

CE (European Conformity)

• • •

•

FCC (US Federal Communications Commission) FCC Identification number

•

XPYSARAG350

•

XPYSARAG350

ISED (Innovation, Science and Economic Development Canada)27 IC certification number

•

8595A-SARAG350

•

8595A-SARAG350

ANATEL (Agência Nacional de Telecomunicações Brazil)

•

RCM (Australia Regulatory Compliance)

•

EurAsEC (Eurasian Economic Community Certification)

•

Ukraine Certification

• • •

•

Israel Certification

•

China Certification

•

NCC (National Communications Commission Taiwan)

•

ICASA (Ind. Communications Authority South Africa)

•

Vodafone (Network Operator)

• •

•

Orange (Network Operator)

• •

•

TIM (Telecom Italia Mobile Network Operator)

•

Rogers (Canadian Network Operator)

•

British Telecom (Network Operator)

•

Deutsche Telekom (Network Operator)

•

Table 30: SARA-G3 series main certification approvals

☞ The above listed certifications might not be available for all the different product type numbers.

Please contact the u-blox office or sales representative nearest you for the full comprehensive list of approvals and for further specific info about all country, conformance and network operators’ certifications currently in place for the selected product ordering number.

Formerly known as IC (Industry Canada)

SARA-G3 series - Data sheet

UBX-13000993 - R23 Qualification and approvals Page 35 of 47 C1-Public

6.2.2 SARA-G340 ATEX and SARA-G350 ATEX

SARA-G340 ATEX and SARA-G350 ATEX modules, in addition to the approvals for main certification schemes (see section 6.2.1), are certified as components intended for use in potentially explosive atmospheres compliant to the following standards:

• IEC 60079-0

• IEC 60079-11

• IEC 60079-26

The certification number of SARA-G340 ATEX and SARA-G350 ATEX modules according to the ATEX directive 2014/34/EU is:

• SIQ 13 ATEX 032 U

The certification number of SARA-G340 ATEX and SARA-G350 ATEX modules according to the IECEx conformity assessment system is:

• IECEx SIQ 13.0004U

According to the standards listed above, the SARA-G340 ATEX and SARA-G350 ATEX modules are certified with the following marking:

• Ex II 1G, Ex ia IIC/IIB

According to the marking stated above, the SARA-G340 ATEX and SARA-G350 ATEX modules are certified as electrical equipment of:

• group ‘II’: intended for use in areas with explosive gas atmosphere other than mines susceptible

to firedamp

• category ‘1G’: intended for use in zone 0 hazardous areas, in which explosive atmospheres caused

by mixtures of air and gases, vapors or mists are present continuously, for long periods or frequently

• level of protection ‘ia’: intrinsically safe apparatus with very high level of protection, not capable of

causing ignition in normal operation and with the application of one countable fault or a combination of any two countable fault plus those non-countable faults which give the most onerous condition

• subdivision ‘IIC/IIB’: intended for use in areas where the nature of the explosive gas atmosphere is

considered very dangerous based on the Maximum Experimental Safe Gap or the Minimum Ignition Current ratio of the explosive gas atmosphere in which the equipment may be installed (a typical gas is hydrogen), so that the modules are also suitable for applications intended for use in subdivision IIB (typical gas is ethylene) and subdivision IIA (a typical gas is propane)

Section 4.2.1 defines the temperature range of use of SARA-G340 ATEX and SARA-G350 ATEX modules.

The RF radiating profile of SARA-G340 ATEX and SARA-G350 ATEX modules is compliant to all the applicable 3GPP / ETSI standards, with a maximum of 2 W RF pulse power and 1.15 mJ RF pulse energy according to the GSM/GPRS power class stated in Table 2.

Section 9.1 describes the nameplate of SARA-G340 ATEX and SARA-G350 ATEX modules (see Figure

12 and Figure 13).

The following maximum input and equivalent parameters must be considered in sub-division IIC:

• Ui = 3.8 V

• Ii = 1.6 A (burst)

• Pi = 2.5 W

• Ci = 103 µF

• Li = 4.1 µH

SARA-G3 series - Data sheet

UBX-13000993 - R23 Qualification and approvals Page 36 of 47 C1-Public

The following maximum input and equivalent parameters must be considered in sub-divisions IIB, IIA:

• Ui = 4.2 V

• Ii = 2.5 A (burst)

• Pi = 2.5 W

• Ci = 103 µF

• Li = 4.1 µH

☞ For more information about the integration of SARA-G340 ATEX and SARA-G350 ATEX modules

in applications intended for use in potentially explosive atmospheres, see the SARA-G3 / SARA-U2 series system integration manual [2].

SARA-G3 series - Data sheet

UBX-13000993 - R23 Product handling Page 37 of 47 C1-Public

7 Product handling

7.1 Packaging

SARA-G3 series modules are delivered as hermetically sealed, reeled tapes to enable efficient production, production lot set-up and tear-down. For more information about packaging, see the u-blox Package information guide [5].

Figure 9: Reeled SARA-G3 series modules

7.1.1 Reels

SARA-G3 series modules are deliverable in quantities of 250 pieces on a reel. SARA-G3 series modules are delivered using reel Type B as described in the u-blox Package information guide [5].

Parameter

Specification

Reel type

Delivery quantity

250

Table 31: Reel information for SARA-G3 series modules

☞ Quantities of less than 250 pieces are also available. Contact u-blox for more information.

SARA-G3 series - Data sheet

UBX-13000993 - R23 Product handling Page 38 of 47 C1-Public

7.1.2 Tapes

Figure 10 specifies the dimensions and orientations of the tapes for SARA-G3 series module.

Figure 10: Dimensions for SARA-G3 series on tape

Parameter

Value

16.8

26.8

3.2

Table 32: SARA-G3 series tape dimensions (mm)

☞ Note 1: 10 sprocket hole pitch cumulative tolerance ± 0.2. ☞ Note 2: Pocket position relative to sprocket hole measured as true position of pocket, not pocket

hole.

☞ Note 3: A

and B0 are calculated on a plane at a distance “R” above the bottom of the pocket.

7.2 Moisture sensitivity levels

⚠ SARA-G3 series modules are Moisture Sensitive Devices (MSD) in accordance to the IPC/JEDEC

specification.

The Moisture Sensitivity Level (MSL) relates to the packaging and handling precautions required. SARA-G3 series modules are rated at MSL level 4. For more information regarding moisture sensitivity levels, labeling, storage and drying, see the u-blox Package information guide [5].

☞ For MSL standard see IPC/JEDEC J-STD-020 (can be downloaded from www.jedec.org).

SARA-G3 series - Data sheet

UBX-13000993 - R23 Product handling Page 39 of 47 C1-Public

7.3 Reflow soldering

Reflow profiles are to be selected according to u-blox recommendations (see SARA-G3 / SARA-U2 Series system integration manual [2]).

⚠ Failure to observe these precautions can result in severe damage to the device!

7.4 ESD precautions

⚠ SARA-G3 series modules contain highly sensitive electronic circuitry and are Electrostatic

Sensitive Devices (ESD). Handling SARA-G3 series modules without proper ESD protection may destroy or damage them permanently.

SARA-G3 series modules are Electrostatic Sensitive Devices (ESD) and require special ESD precautions typically applied to ESD sensitive components.

Table 8 reports the maximum ESD ratings of the SARA-G3 modules.

Proper ESD handling and packaging procedures must be applied throughout the processing, handling and operation of any application that incorporates SARA-G3 series modules.

ESD precautions should be implemented on the application board where the module is mounted, as described in the SARA-G3 / SARA-U2 Series system integration manual [2].

⚠ Failure to observe these precautions can result in severe damage to the device!

SARA-G3 series - Data sheet

UBX-13000993 - R23 Default settings Page 40 of 47 C1-Public

8 Default settings

Interface

Settings

Comments

UART interface

AT interface: enabled

AT command interface is by default enabled on the UART physical interface

AT+IPR=0

Automatic baud rate detection enabled by default

AT+ICF=0

Automatic frame format recognition enabled by default

AT&K3

HW flow control enabled

AT&S1

DSR line set ON in data mode and set OFF in command mode

AT&D1

Upon an ON-to-OFF transition of DTR, the DCE enters online command state and issues an OK result code

AT&C1

Circuit 109 changes in accordance with the Carrier detect status; ON if the Carrier is detected, OFF otherwise

MUX protocol: disabled

Multiplexing mode is by default disabled and it can be configured by AT+CMUX command. SARA-G340 and SARA-G350 modules define the following virtual channels:

• Channel 0: control channel

• Channel 1 – 5: AT commands / data connection

• Channel 6: GNSS tunneling

SARA-G300 and SARA-G310 modules define the following virtual channels:

• Channel 0: control channel

• Channel 1 – 2: AT commands / data connection

AUX UART interface

AT interface: disabled

AT command interface is by default disabled on the AUX UART physical interface, and it can be configured by AT+USIO command (see the u-blox AT commands manual [1])

Power Saving

AT+UPSV=0

Disabled

Network registration

AT+COPS=0

Self network registration

Table 33: SARA-G3 series default settings

SARA-G3 series - Data sheet

UBX-13000993 - R23 Labeling and ordering information Page 41 of 47 C1-Public

9 Labeling and ordering information

9.1 Product labeling

The labels of SARA-G3 series modules include important product information as described in this section.

Figure 11 illustrates the label of all the SARA-G3 series modules except for SARA-G340 ATEX and

SARA-G350 ATEX, and includes: u-blox logo, production lot, Pb-free marking, product Type Number, IMEI number, certification info and production country.

XXXXXXXXXX

XXXXXXXXXX XXXXX-XXXXXXXX

ANATEL:

xxx-xx

FCC ID: IC:

Figure 11: Label of SARA-G3 modules (except for SARA-G340 ATEX and SARA-G350 ATEX)

Figure 12 illustrates the label of SARA-G350 ATEX modules, and includes: u-blox logo, production lot,

Pb-free marking, product Type Number, IMEI number, ATEX marking with the IECEx and ATEX certificate numbers and category classification, FCC and IC certification numbers and production country.

02X-00

Figure 12: Label of SARA-G350 ATEX modules

SARA-G3 series - Data sheet

UBX-13000993 - R23 Labeling and ordering information Page 42 of 47 C1-Public

Figure 13 illustrates the label of SARA-G340 ATEX modules, and includes: u-blox logo, production lot,

Pb-free marking, product Type Number, IMEI number, ATEX marking with the IECEx and ATEX certificate numbers and category classification, Notified Body number and production country.

SARA-G340

02X-00

Figure 13: Label of SARA-G340 ATEX modules

☞ For information about the approval codes and for all the certificates of compliancy of SARA-G3

series modules, see our website (www.u-blox.com) or contact the u-blox office or sales representative nearest you.

9.2 Explanation of codes

Three different product code formats are used. The Product Name is used in documentation such as this data sheet and identifies all u-blox products, independent of packaging and quality grade. The Ordering Code includes options and quality, while the Type Number includes the hardware and firmware versions. Table 34 below details these three different formats:

Format

Structure

Product Name

SARA-TGVV

Ordering Code

SARA-TGVV-TTQ

Type Number

SARA-TGVV-TTQ-XX

Table 34: Product code formats

Table 35 explains the parts of the product code.

Code

Meaning

Example

SARA

Form factor

SARA

Platform [G: GSM; U: HSUPA; C: CDMA 1xRTT; N: NB-IoT; R: LTE low data rate (Cat 1 and below); L: LTE high data rate (Cat 3 and above)]

G: GSM G

Platform generation, e.g. chip or function set [1…9]

Variant based on the same platform [00…99]

Product Version [00…99]

Quality grade / Production site

• S = professional / made in Austria

• A = automotive / made in Austria

• X = ATEX / made in Austria

• B = professional / made in Brazil

XX Default value is 00

Table 35: Part identification code

SARA-G3 series - Data sheet

UBX-13000993 - R23 Labeling and ordering information Page 43 of 47 C1-Public

9.3 Ordering information

Ordering No.

Description

SARA-G300-00S

2-band GSM/GPRS class 10 module

26.0 x 16.0 x 3.0 mm, 250 pcs/reel

SARA-G310-00S

4-band GSM/GPRS class 10 module

26.0 x 16.0 x 3.0 mm, 250 pcs/reel

SARA-G340-00S

2-band GSM/GPRS class 10 module Supporting Audio, I2C for u-blox GNSS receivers, AssistNow, CellLocate®, Embedded TCP/UDP,

FTP/HTTP/SMTP, eCall / ERA-GLONASS, Network indication, Antenna supervisor, Jamming detection and other features

26.0 x 16.0 x 3.0 mm, 250 pcs/reel

SARA-G340-01S

2-band GSM/GPRS class 10 module Supporting the same feature-set of the “00” product version plus SSL for FTP and HTTP, Multi GNSS

Assistance (MGA) server and other features

26.0 x 16.0x 3.0 mm, 250 pcs/reel

SARA-G340-02S

2-band GSM/GPRS class 10 module Supporting the same feature-set of the “01” product version plus second AT interface, improved SSL/TLS,

IPv4/IPv6 dual-stack, Bearer Independent Protocol, Network Friendly Mode and other features

26.0 x 16.0 x 2.4 mm, 250 pcs/reel

SARA-G340-02X

2-band GSM/GPRS class 10 module Supporting the same feature-set of the “02S” product version ATEX / IECEx certified

26.0 x 16.0 x 2.4 mm, 250 pcs/reel

SARA-G350-00S

4-band GSM/GPRS class 10 module Supporting Audio, I2C for u-blox GNSS receivers, AssistNow, CellLocate®, Embedded TCP/UDP,

FTP/HTTP/SMTP, eCall / ERA-GLONASS, Network indication, Antenna supervisor, Jamming detection and other features

26.0 x 16.0 x 3.0 mm, 250 pcs/reel

SARA-G350-00X

4-band GSM/GPRS class 10 module Supporting the same feature-set of the “00S” product version ATEX / IECEx certified

26.0 x 16.0 x 3.0 mm, 250 pcs/reel

SARA-G350-01S

4-band GSM/GPRS class 10 module Supporting the same feature-set of the “00” product version plus SSL for FTP and HTTP, Multi GNSS Assistance (MGA) server and other features

26.0 x 16.0 x 3.0 mm, 250 pcs/reel

SARA-G350-01B

4-band GSM/GPRS class 10 module Supporting the same feature-set of the “01S” product version Made in Brazil

26.0 x 16.0 x 3.0 mm, 250 pcs/reel

SARA-G350-02S

4-band GSM/GPRS class 10 module Supporting the same feature-set of the “01” product version plus second AT interface, improved SSL/TLS,

IPv4/IPv6 dual-stack, Bearer Independent Protocol, Network Friendly Mode and other features

26.0 x 16.0 x 2.4 mm, 250 pcs/reel

SARA-G350-02X

4-band GSM/GPRS class 10 module Supporting the same feature-set of the “02S” product version ATEX / IECEx certified

26.0 x 16.0 x 2.4 mm, 250 pcs/reel

Table 36: Product ordering codes

SARA-G3 series - Data sheet

UBX-13000993 - R23 Appendix Page 44 of 47 C1-Public

Appendix

A Glossary

Abbreviation

Definition

ADC

Analog to Digital Converter

AT Command Interpreter Software Subsystem, or attention

ATEX

Atmospheres Explosive

Base-Band

BER

Bit Error Rate

DCE

Data Communication Equipment

DDC

Display Data Channel (I2C compatible) Interface

Down-link (Reception)

Driver Class

Output Driver Class: see Table 22 for definition

DRX

Discontinuous Reception

DTE

Data Terminal Equipment

ERS

External Reset Input Signal

GDI

Generic Digital Interfaces (power domain)

GND

Ground

GNSS

Global Navigation Satellite System

GPIO

General Purpose Input Output

GPRS

General Packet Radio Service

GPS

Global Positioning System

GSM

Global System for Mobile Communication

I2C

Inter-Integrated Circuit Interface

I2S

Inter-IC Sound Interface

LGA

Land Grid Array

N/A

Not Applicable

Open Drain

Power Amplifier

PCN / IN

Product Change Notification / Information Note

Pull-Down

PMU

Power Management Unit

POS

Power-On Input Signal

Pull-Up

PU/PD Class

Pull-Up / Pull-Down Class: see Table 22 for definition

RMC

Reference Measurement Channel

SIM

Subscriber Identity Module

SPI

Serial Peripheral Interface

T/PD

Tristate with internal active Pull-Down enabled

T/PU

Tristate with internal active Pull-Up enabled

TBD

To Be Defined

UART

Universal Asynchronous Receiver-Transmitter serial interface

Up-link (Transmission)

USB

Universal Serial Bus interface

Table 37: Explanation of the abbreviations and terms used

SARA-G3 series - Data sheet

UBX-13000993 - R23 Related documentation Page 45 of 47 C1-Public

Revision history

Revision

Date

Name

Comments

Jun. 22, 2012

lpah / sses

Initial release

Sep. 05, 2012

sses

Corrected module pin numbering and dimensions

Oct. 19, 2012

sses

Added ESD immunity rating for ANT pin; Added current consumption ratings

Nov. 07, 2012

sses

Added the technical description of SARA-G300 and SARA-G310 modules Updated current consumption ratings

Mar. 08, 2013

lpah / sses

Updated status to Advance Information

Apr. 12, 2013

lpah

Updated status to Preliminary

May 23, 2013

lpah

Updated status to Objective Specification; CSD supported by SARA-G300 / G310

May 27, 2013

lpah

GPRS multi-slot class 10 supported by SARA-G300 / SARA-G310 Last revision with docu number GSM.G2-HW-12001

Jul. 05, 2013

sses

Updated status to Advance Information Added the technical description of SARA-G350 ATEX modules and description of

32K_OUT pin for SARA-G300 / G310; Updated current consumption ratings

Jul. 31, 2013

lpah

Updated status to Preliminary SIM detection not supported by SARA-G300 and SARA-G310 modules Last revision with old document number GSM.G2-HW-12001

R11

23-Jan-2014

lpah

Updated status to Objective Specification Extended the document applicability to SARA-G340 modules

R12

30-Jun-2014

mrod

Updated document status to Advance Information. Extended the document applicability to the SARA-G340-01S, SARA-G350-01S and SARA-G350-01B modules versions. Updated information about RIL and USSD. Updated current consumption ratings with AT+UPSV=0.

R13

17-Oct-2014

mrod

Updated document status to Early Preliminary Information.

R14

14-May-2015

lpah

Updated document status to Preliminary Information. Updated allowed baud rates for AT interface

R15

15-Dec-2015

sses

Reverted status to Advanced Information Extended the document applicability to SARA-G3 modules “02” product versions

R16

29-Jan-2016

sses

Updated document status to Early Preliminary Information. Added detailed VCC current consumption characteristics and enlarged VCC supply extended operating voltage range for SARA-G3 “02” product versions.

R17

12-May-2016

sses

Extended the document applicability to SARA-G300-00S-01 / SARA-G310-00S-01. Updated the ATEX label.

R18

21-Jul-2016

lpah

Extended the document applicability to SARA-G340 ATEX module

R19

24-Apr-2017

lpah

"Disclosure restriction" replaces "Document status" on pg 2 and document footer

R20

03-Aug-2017

lpah

Extended document applicability to SARA-G350-02X Updated label and approvals information

R21

16-Feb-2018

lpah

Extended document applicability to SARA-G340-02S-01, SARA-G340-02X-01, SARA-G350-02S-01, SARA-G350-02X-01

R22

03-Jul-2019

lpah

Updated SARA-G300-00S / SARA-G310-00S product status Updated mechanical tolerance.

R23

03-Feb-2021

alos

Updated SARA-G340 status

SARA-G3 series - Data sheet

UBX-13000993 - R23 Contact Page 47 of 47 C1-Public

Contact

For complete contact information, visit us at www.u-blox.com.

u-blox Offices

North, Central and South America

u-blox America, Inc.

Phone: +1 703 483 3180 E-mail: info_us@u-blox.com

Regional Office West Coast:

Phone: +1 408 573 3640 E-mail: info_us@u-blox.com

Technical Support:

Phone: +1 703 483 3185 E-mail: support@u-blox.com

Headquarters Europe, Middle East, Africa

u-blox AG

Phone: +41 44 722 74 44 E-mail: info@u-blox.com Support: support@u-blox.com

Asia, Australia, Pacific

u-blox Singapore Pte. Ltd.

Phone: +65 6734 3811 E-mail: info_ap@u-blox.com Support: support_ap@u-blox.com

Regional Office Australia:

Phone: +61 3 9566 7255 E-mail: info_anz@u-blox.com Support: support_ap@u-blox.com

Regional Office China (Beijing):

Phone: +86 10 68 133 545 E-mail: info_cn@u-blox.com Support: support_cn@u-blox.com

Regional Office China (Chongqing):

Phone: +86 23 6815 1588 E-mail: info_cn@u-blox.com Support: support_cn@u-blox.com

Regional Office China (Shanghai):

Phone: +86 21 6090 4832 E-mail: info_cn@u-blox.com Support: support_cn@u-blox.com

Regional Office China (Shenzhen):

Phone: +86 755 8627 1083 E-mail: info_cn@u-blox.com Support: support_cn@u-blox.com

Regional Office India:

Phone: +91 80 405 092 00 E-mail: info_in@u-blox.com Support: support_in@u-blox.com

Regional Office Japan (Osaka):

Phone: +81 6 6941 3660 E-mail: info_jp@u-blox.com Support: support_jp@u-blox.com

Regional Office Japan (Tokyo):

Phone: +81 3 5775 3850 E-mail: info_jp@u-blox.com Support: support_jp@u-blox.com

Regional Office Korea:

Phone: +82 2 542 0861 E-mail: info_kr@u-blox.com Support: support_kr@u-blox.com

Regional Office Taiwan:

Phone: +886 2 2657 1090 E-mail: info_tw@u-blox.com Support: support_tw@u-blox.com

u-blox SARA-G3 Data sheet

Specifications and Main Features

Frequently Asked Questions

User Manual

Document information

Contents

1 Functional description

1.1 Overview

1.2 Product features

1.3 Block diagram

1.4 Product description

1.5 AT command support

1.6 Supported features

2 Interfaces

2.1 Power management

2.1.1 Module supply input (VCC)

2.1.2 RTC supply input/output (V_BCKP)

2.1.3 Digital I/O interfaces supply output (V_INT)

2.2 Antenna

2.2.1 Antenna RF interface (ANT)

2.2.2 Antenna detection (ANT_DET)

2.3 System functions

2.3.1 Module power-on (PWR_ON)

2.3.2 Module power-off

2.3.3 Module reset (RESET_N)

2.3.4 External 32 kHz signal input (EXT32K)

2.3.5 Internal 32 kHz signal output (32K_OUT)

2.4 SIM

2.4.1 (U)SIM interface

2.4.2 SIM card detection (SIM_DET)

2.5 Serial interfaces

2.5.1 Asynchronous serial interface (UART)

2.5.1.1 Multiplexer protocol

2.5.2 Auxiliary asynchronous serial interface (AUX UART)

2.5.3 DDC (I2C compatible) interface

2.6 Audio

2.7 GPIO

3 Pin definition

3.1 Pin assignment

4 Electrical specifications

4.1 Absolute maximum rating

4.1.1 Maximum ESD

4.2 Operating conditions

4.2.1 Operating temperature range

4.2.1.1 Normal operating temperature range

4.2.1.2 Extended operating temperature range

4.2.2 Module thermal resistance

4.2.3 Supply/Power pins

4.2.4 Current consumption

4.2.5 RF performance

4.2.6 ANT_DET pin

4.2.7 PWR_ON pin

4.2.8 RESET_N pin

4.2.9 EXT32K pin

4.2.10 SIM pins

4.2.11 Generic Digital Interfaces pins

4.2.11.1 AC characteristics of digital audio interfaces pins

Normal I2S mode with host role

PCM mode with host role

4.2.12 DDC (I2C) pins

4.2.13 Audio pins

5 Mechanical specifications

6 Qualification and approvals

6.1 Reliability tests

6.2 Approvals

6.2.1 SARA-G3 series

6.2.2 SARA-G340 ATEX and SARA-G350 ATEX

7 Product handling

7.1 Packaging

7.1.1 Reels

7.1.2 Tapes

7.2 Moisture sensitivity levels

7.3 Reflow soldering

7.4 ESD precautions

8 Default settings

9 Labeling and ordering information

9.1 Product labeling

9.2 Explanation of codes

9.3 Ordering information

Appendix
