u blox LILYW1 User Manual
Abstract
This technical data sheet describes LILY-W1 series short range Wi-Fi
frontend modules. These host-based modules are ultra-compact
cost efficient IEEE 802.11b/g/n Wi-Fi front end modules in the LILY
form factor. This module series includes variants with or without
internal antenna and LTE filter. It includes an integrated
MAC/Baseband processor and RF front-end components. It can
connect to a host through its SDIO or USB interface.
www.u-blox.com
UBX-15000203 - R04
LILY-W1 series
Host-based Wi-Fi modules
Data Sheet
Document Information
Title
LILY-W1 series
Subtitle
Host-based Wi-Fi modules
Document type
Data Sheet
Document number
UBX-15000203
Revision and date
R04
07-Jul-2016
Document status
Early Production Information
Document status explanation
Objective Specification
Document contains target values. Revised and supplementary data will be published later.
Advance Information
Document contains data based on early testing. Revised and supplementary data will be published later.
Early Production Information
Document contains data from product verification. Revised and supplementary data may be published later.
Production Information
Document contains the final product specification.
Product name
Type number
Firmware version
PCN / IN reference
LILY-W131
LILY-W131-00B-00
-
-
LILY-W132
LILY-W132-00B-00
-
-
This document applies to the following products:
LILY-W1 series - Data Sheet
u-blox reserves all rights to this document and the information contained herein. Products, names, logos and designs described herein may in
whole or in part be subject to intellectual property rights. Reproduction, use, modification or disclosure to third parties of this document or
any part thereof without the express permission of u-blox is strictly prohibited.
The information contained herein is provided “as is” and u-blox assumes no liability for the use of the information. No warranty, either
express or implied, is given, including but not limited, with respect to the accuracy, correctness, reliability and fitness for a particular purpose
of the information. This document may be revised by u-blox at any time. For most recent documents, visit www.u-blox.com.
Copyright © 2016, u-blox AG.
u-blox® is a registered trademark of u-blox Holding AG in the EU and other countries.
UBX-15000203 - R04 Early Production Information Contents
Page 2 of 38
LILY-W1 series - Data Sheet
Contents
Contents .............................................................................................................................. 3
1 Functional description .................................................................................................. 5
1.1 Overview .............................................................................................................................................. 5
1.2 Product features ................................................................................................................................... 5
1.3 Block diagram ....................................................................................................................................... 6
1.4 Product description ............................................................................................................................... 6
1.5 Supported features ............................................................................................................................... 7
1.6 Wi-Fi performance ................................................................................................................................ 7
1.7 MAC addresses ..................................................................................................................................... 8
2 Interfaces ...................................................................................................................... 9
2.1 Host interfaces ...................................................................................................................................... 9
2.1.1 USB interface................................................................................................................................. 9
2.1.2 SDIO interface ............................................................................................................................... 9
2.2 Antenna interfaces ............................................................................................................................. 10
2.2.1 Internal antenna .......................................................................................................................... 10
2.2.2 External RF antenna interface ...................................................................................................... 10
2.3 Power supply interfaces ...................................................................................................................... 11
2.4 Power mode interfaces ....................................................................................................................... 11
2.4.1 Reset ........................................................................................................................................... 11
2.4.2 Power down ................................................................................................................................ 11
2.4.3 Sleep ........................................................................................................................................... 11
3 Pin definition .............................................................................................................. 12
3.1 Pin assignment ................................................................................................................................... 12
4 Electrical specifications .............................................................................................. 15
4.1 Absolute maximum ratings ................................................................................................................. 15
4.1.1 Maximum ESD ratings ................................................................................................................. 15
4.2 Operating conditions .......................................................................................................................... 15
4.2.1 Temperature range ...................................................................................................................... 15
4.2.2 Power supply ............................................................................................................................... 15
4.2.3 Power consumption .................................................................................................................... 16
4.2.4 I/O DC characteristics .................................................................................................................. 18
4.2.5 USB characteristics ...................................................................................................................... 18
4.2.6 SDIO characteristics ..................................................................................................................... 19
4.2.7 Wi-Fi receiver characteristics ........................................................................................................ 20
4.2.8 LTE coexistence characteristics (LILY-W132 only) ......................................................................... 20
4.2.9 Wi-Fi transmitter characteristics ................................................................................................... 21
5 Mechanical specifications .......................................................................................... 22
UBX-15000203 - R04 Early Production Information Contents
Page 3 of 38
LILY-W1 series - Data Sheet
5.1 Dimensions ......................................................................................................................................... 22
5.2 Module weight ................................................................................................................................... 23
6 Qualification and approvals ...................................................................................... 24
6.1 Approvals ........................................................................................................................................... 24
6.2 European Union regulatory compliance .............................................................................................. 24
6.3 Safety Compliance .............................................................................................................................. 24
6.4 FCC and IC Compliance ...................................................................................................................... 24
6.4.1 IC compliance.............................................................................................................................. 24
6.4.2 Conformité aux normes d’IC ....................................................................................................... 24
6.4.3 FCC statement ............................................................................................................................ 25
6.4.4 Labeling requirements for end product ........................................................................................ 26
6.4.5 FCC and IC IDs ............................................................................................................................ 26
7 Antennas ..................................................................................................................... 27
7.1 Antenna accessories ........................................................................................................................... 27
7.2 Approved antennas ............................................................................................................................ 28
7.2.1 Single band antennas .................................................................................................................. 28
7.2.2 Dual-band antennas .................................................................................................................... 31
8 Product handling ........................................................................................................ 32
8.1 Packaging ........................................................................................................................................... 32
8.1.1 Reels ........................................................................................................................................... 32
8.1.2 Tapes .......................................................................................................................................... 32
8.2 Moisture sensitivity levels .................................................................................................................... 33
8.3 Reflow soldering ................................................................................................................................. 33
8.4 ESD precautions .................................................................................................................................. 33
9 Labeling and ordering information ........................................................................... 34
9.1 Product labeling .................................................................................................................................. 34
9.2 Explanation of codes........................................................................................................................... 35
9.3 Ordering information .......................................................................................................................... 35
Appendix .......................................................................................................................... 36
A Glossary ...................................................................................................................... 36
Related documents........................................................................................................... 37
Revision history ................................................................................................................ 37
Contact .............................................................................................................................. 38
UBX-15000203 - R04 Early Production Information Contents
Page 4 of 38
LILY-W1 series - Data Sheet
1 Functional description
1.1 Overview
The LILY-W1 series modules are ultra-compact Wi-Fi frontend modules including variants with or without an
internal antenna and LTE filter. It is designed for integration with an LTE radio application. The LILY-W1 module,
when integrated with an LTE radio application provides local area communication to Wi-Fi standards and cellular
backhaul to 2G, 3G or LTE standards. LILY-W1 supports IEEE 802.11b/g/n standards. It includes an integrated
MAC/Baseband processor, RF front-end components and band pass filter. The LILY-W132 with internal antenna
has a very sharp BAW filter specially designed for optimal LTE and Wi-Fi coexistence applications.
The modules will be radio type approved for Europe (CE), the United States (FCC), and Industry Canada (IC). The
modules are developed for reliable, high demanding industrial devices and applications and delivers high
performance.
1.2 Product features
Table 1: LILY-W1 series main features summary
UBX-15000203 - R04 Early Production Information Functional description
Page 5 of 38
LILY-W1 series - Data Sheet
1.3 Block diagram
The LILY-W1 is available in the following two versions – LILY-W132 with antenna RF pin and a regular band pass
filter and LILY-W131 with internal antenna and an LTE coexistence band pass filter.
Figure 1: Block diagram of LILY-W1
1.4 Product description
The LILY-W1 series modules are ultra-compact Wi-Fi front-end modules with USB and SDIO host interfaces with
a module outline of only 14.0 x 10.0 mm. The module supports Wi-Fi IEEE 802.11b/g/n and is developed for
reliable, high demanding industrial devices and applications, and delivers high performance. LILY-W1 includes an
integrated MAC/Baseband processor and RF front-end components and supports station and micro access point
operation (up to 8 clients), 802.11 PHY data rates up to 72 Mbps, AES-CCMP and WAPI encryption. The module
has an internal one time programmable (OTP) memory, which for example, stores radio configuration and the
MAC address. The IO voltage level can be either 1.8 V or 3.3 V.
The module is available in the following two antenna versions:
LILY-W132 with an internal PIFA antenna and an integrated LTE BAW band pass filter for optimal LTE
and Wi-Fi coexistence applications.
LILY-W131 with an antenna pin for an external antenna and a regular band pass filter. The LILY-W131
version with external antenna supports antenna diversity via control signals for an external antenna
switch.
The LILY-W1 module series is specially designed to be integrated together with an LTE radio application. Their
combined features provide local area communication to Wi-Fi standards and cellular backhaul to 2G, 3G or LTE
standards. The LILY-W132 has an integrated LTE filter for optimal coexistence between Wi-Fi and LTE. For
designs where an LTE filter is not required or implemented externally, the LILY-W131 with antenna pin is
optimal.
The Wi-Fi modules are radio-type approved for Europe (CE), the United States (FCC), and Industry Canada (IC).
UBX-15000203 - R04 Early Production Information Functional description
Page 6 of 38
1.5 Supported features
Feature
Description
Standards
IEEE 802.11b/g/n
Frequency bands
2.4 GHz, channel 1-11 (2.412 GHz - 2.462)
Channel bandwidth
20 MHz
Data rates
802.11b
1, 2, 5.5 and 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48 and 54 Mbps
802.11n
MCS0-MCS7 (max 72.2Mbps)
Hardware supported Encryptions/Decryption
AES/CCMP, AES/CMAC, WAPI, WEP/TKIP
Maximum output power
19 dBm EIRP*
Maximum sensitivity
-97 dBm EIRP*
802.11n features
1-stream STBC reception
Short guard interval
RIFS on receive path for 802.11n packets
Greenfield Tx/Rx
Additional IEEE 802.11 support
802.11e quality of service
802.11h transmit power control
802.11i enhanced security
802.11k radio resource measurement**
802.11n block acknowledgment extension
802.11r fast hand-off for AP roaming**
Fully supports clients (stations) implementing IEEE
Wi-Fi direct connectivity
Wi-Fi Standards IEEE 802.11b/g/n
Integrated high effective antenna or antenna pin
Equipped with a LTE coexistence BAW filter (only LILY-W132)
Extended operating temperature range of -40 °C to +85 °C
Selectable 1.8 V or 3.3 V IO levels
RF tuned from factory
Contains dual MAC addresses
Station and micro access point operation (up to 8 clients)
802.11 PHY data rates up to 72 Mbps
AES-CCMP hardware encryption
WAPI encryption supported by hardware
High transmission power and high sensitivity
Radio type approved for Europe
Approval for US (FCC) and Canada (IC)
Compliance with EMC standards
Medical approval
1.6 Wi-Fi performance
LILY-W1 series - Data Sheet
*
RF power including maximum antenna gain (3 dBi).
**
Supported by hardware but not supported by firmware currently.
Table 2: LILY-W1 series Wi-Fi characteristics
UBX-15000203 - R04 Early Production Information Functional description
Page 7 of 38
LILY-W1 series - Data Sheet
MAC address
Assignment
Last bit of MAC address
Example
Module1, address 1
Wi-Fi 0 D4:CA:6E:90:04:90
Module1, address 2
(free for use)
1
D4:CA:6E:90:04:91
Module2, address 1
Wi-Fi 0 D4:CA:6E:90:04:92
Module2, address 2
(free for use)
1
D4:CA:6E:90:04:93
1.7 MAC addresses
The LILY-W1 module series has two unique consecutive MAC addresses reserved for each module, from which
the first address is stored in the configuration memory during production. The first address is available in the
Data Matrix on the label (see chapter 9). The second consecutive MAC address is not stored in the configuration
memory but is reserved for usage with the module.
Table 3: Example of MAC address assignment for two modules
The Engineering Samples of LILY-W1 has only one reserved MAC address. This Wi-Fi MAC address is
available in the Data Matrix on the label. The last bit of the Engineering Samples MAC addresses can be
either 0 or 1.
UBX-15000203 - R04 Early Production Information Functional description
Page 8 of 38
LILY-W1 series - Data Sheet
2 Interfaces
2.1 Host interfaces
The module has two high speed host interfaces:
USB (default): USB 2.0 device interface with LPM support
SDIO: SDIO 2.0 device interface
Only one interface should be used in an application and the interface is selected by the USB/SDIO-n signal.
2.1.1 USB interface
USB is the default interface; USB/SDIO-n signal has an internal pull-up and need not be connected while using
the USB interface as mentioned in Pin definition section. The USB device interface is compliant with the Universal
Serial Bus Specification, Revision 2.0, April 27, 2000. A USB host uses the USB cable bus and the USB 2.0 device
interface to communicate with the module. Main features of the USB device interface include:
High/full speed operation (480/12 Mbps)
Suspend/host resume/device resume (remote wake-up)
Built-in DMA engine that reduces interrupt loads on the embedded processor and reduces the system
bus bandwidth requirement for serving the USB device operation
Supports Link Power Management (LPM), corresponding host resume, or device resume (remote
wakeup) to exit from L1 sleep state
The USB voltage levels depend on the USB speed. See Electrical specifications section for additional information.
2.1.2 SDIO interface
SDIO is activated by pulling down the USB/SDIO-n signal as mentioned in the Pin definition section. The module
supports an SDIO device interface that conforms to the industry standard SDIO Full-Speed card specification.
The module acts as the device on the SDIO bus. The host unit can access registers of the SDIO interface directly
and can access shared memory in the device through the use of BARs and a DMA engine. Main features of the
SDIO device interface include:
On-chip memory used for CIS
Supports 1-bit and 4-bit SDIO transfer modes at the full clock range of 0 to 50 MHz
Special interrupt register for information exchange
Allows card to interrupt host
SDIO 2.0 device interface (1-bit SDIO, 4-bit SDIO transfer modes at full clock range up to 50 MHz). All
mandatory SDIO commands are supported.
In 4-bit SDIO mode, data is transferred on all 4 data pins (SDIO_D[3:0]), and the interrupt pin is not available for
exclusive use as it is utilized as a data transfer line. Thus, if the interrupt function is required, a special timing is
required to provide interrupts. The 4-bit SDIO mode provides the highest data transfer possible, up to 100 Mbps.
The required pull up for SD interface on SD_CMD, SD_D [3:0] should be provided by the host. The pull up value
is between 10 k to 100k Ω according to the SDIO v3.0 specifications. 33 Ω inline resistors may be needed to
help with signal integrity. The SDIO signals levels are selectable according to the VCC_IO 1.8/3.3 voltage levels as
mentioned in the Power supply interfaces section.
See LILY-W1 series System Integration Manual [2] for more information about SDIO design.
UBX-15000203 - R04 Early Production Information Interfaces
Page 9 of 38
LILY-W1 series - Data Sheet
2.2 Antenna interfaces
The LILY-W1 series supports either an internal antenna (LILY-W132) or external antennas connected through an
antenna pin (LILY-W131).
2.2.1 Internal antenna
The LILY-W132 has an internal (embedded) 2.4 GHz PIFA antenna. The internal antenna is a PIFA antenna
specifically designed and optimized for the LILY form factor.
Keep a minimum clearance of 5 mm between the antenna and the casing. Keep a minimum 10 mm free space
from metal around the antenna including the area below. If a metal enclosure is required, use LILY-W131 and an
external antenna.
It is recommended to place the LILY-W132 module so that the internal antenna is in the corner of the host PCB
(the corner closest to Pin 11 should be in the corner). The antenna side (short side closest to the antenna),
positioned along one side of the host PCB ground plane is the second best option. It is beneficial to have a large
solid ground plane on the host PCB and have a good grounding on the LILY-W132 module. Minimum ground
plane size is 24x30 mm but recommended is more than 50x50 mm.
The LILY-W132 module has an integrated LTE BAW band pass filter for optimal LTE and Wi-Fi coexistence
applications.
The ANT signal is not available on the solder pins of the LILY-W132 module and no antenna diversity
functionality is available.
2.2.2 External RF antenna interface
The LILY-W131 module has an antenna signal (ANT) pin with a characteristic impedance of 50 Ω for using an
external antenna. The antenna signal supports both Tx and Rx.
The external antenna, for example, can be an SMD antenna (or PCB integrated antenna) on the host board. An
antenna connector for using an external antenna via a coaxial cable could also be implemented. A cable antenna
might be necessary to use if the module is mounted in a shielded enclosure such as a metal box or cabinet.

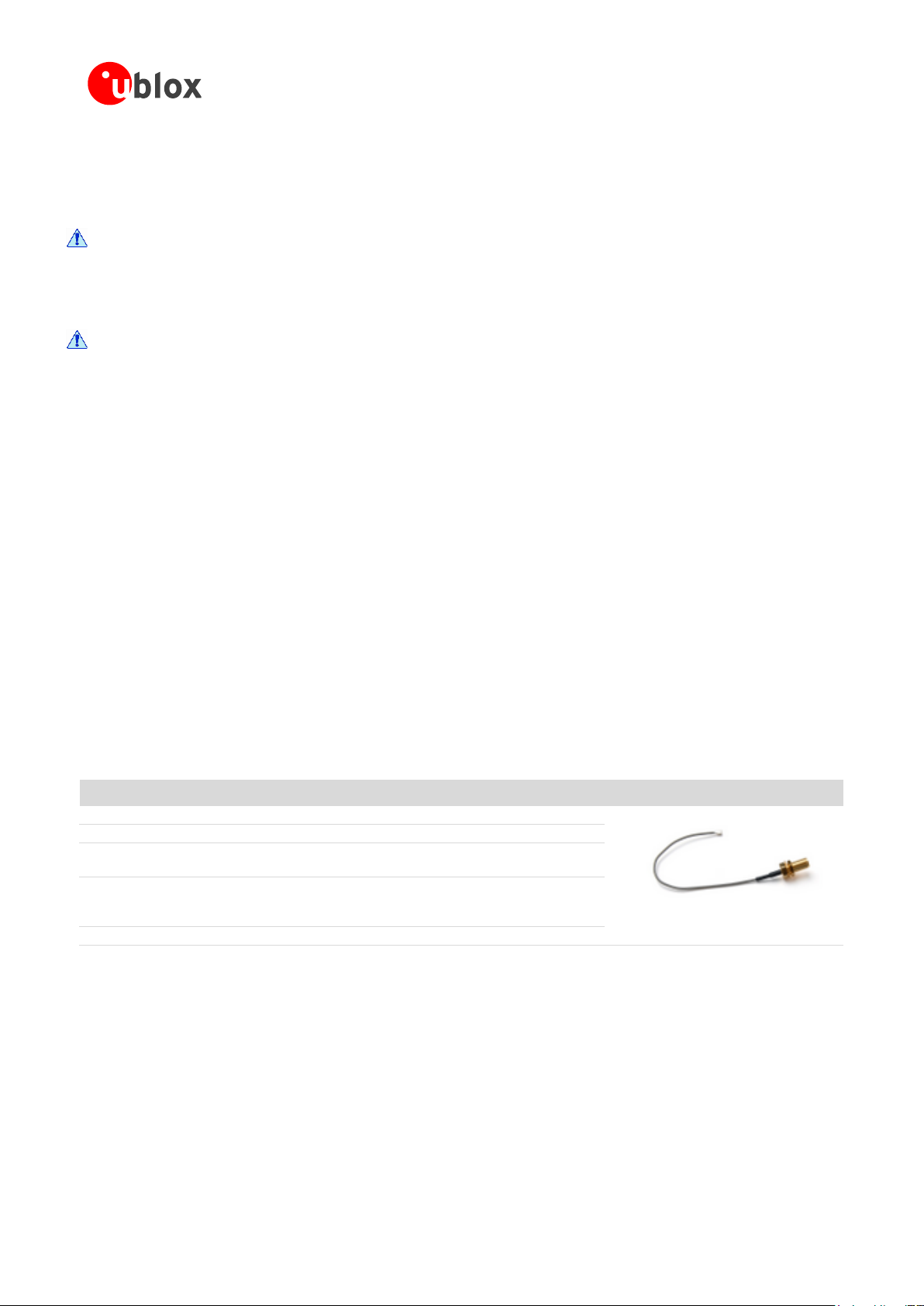

An external antenna connector (U.FL. connector) reference design (see LILY-W131 Antenna Connector -
Reference Design [5]) are available and must be followed to comply with the LILY-W1 FCC/IC modular approvals.

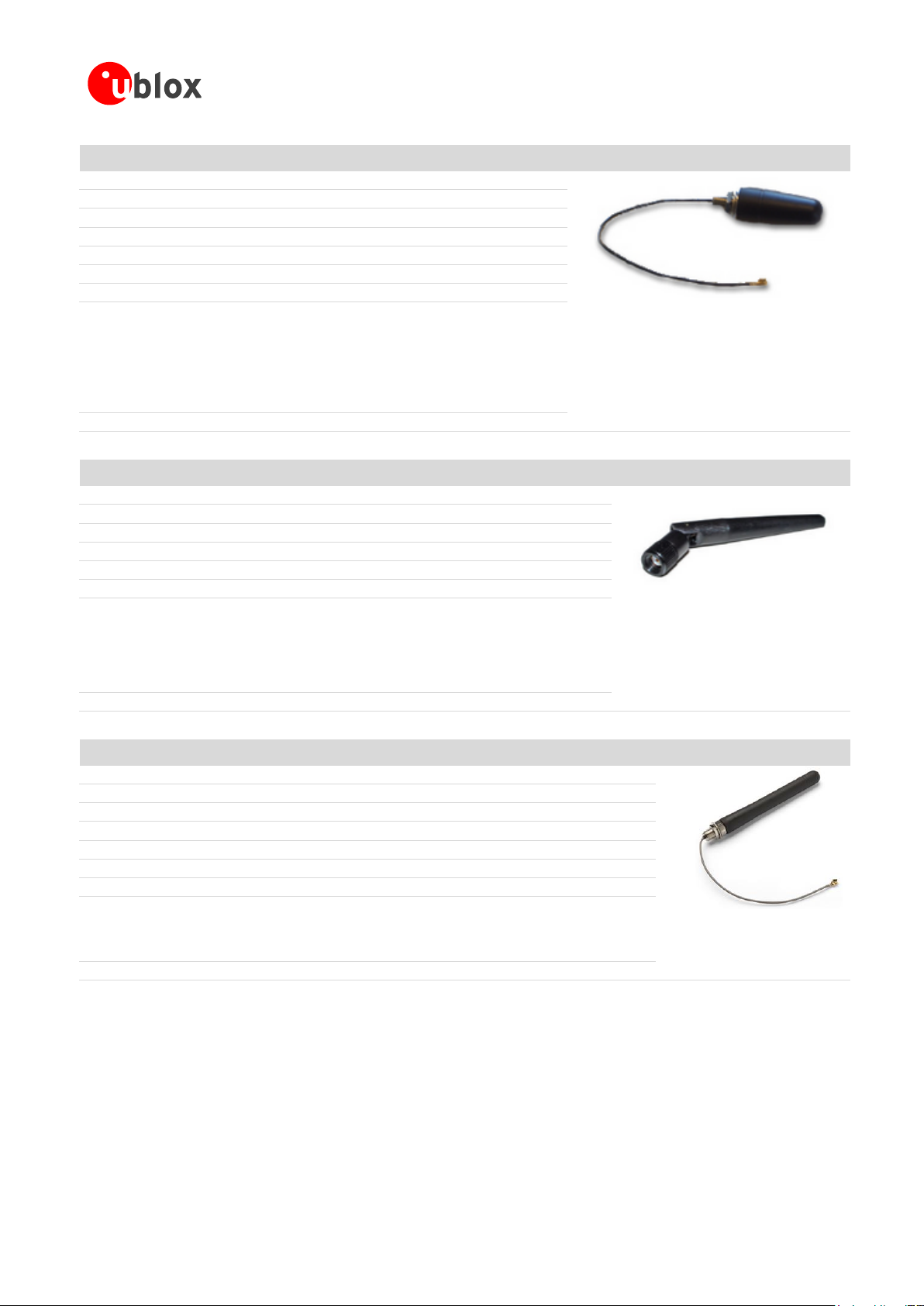

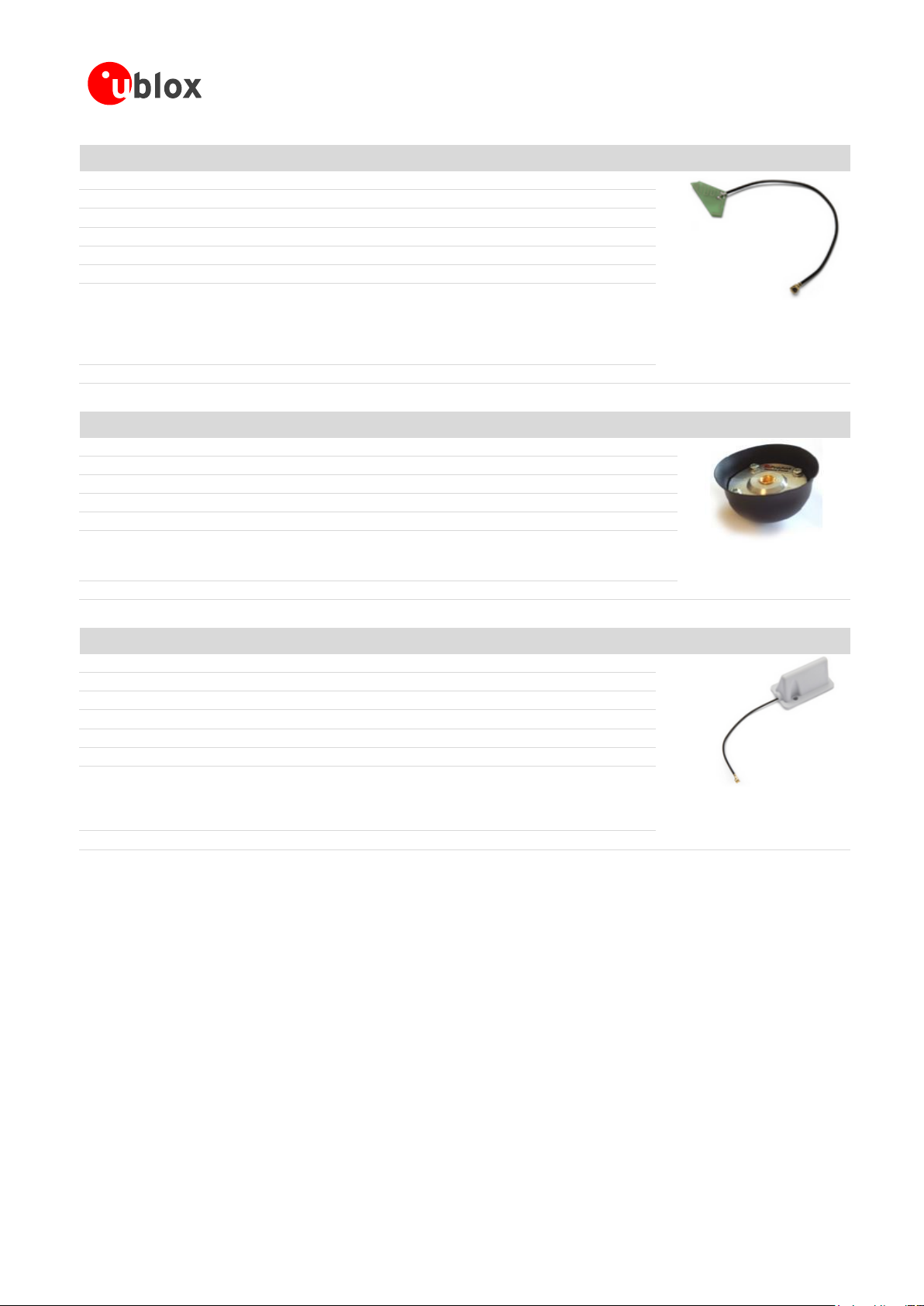

Also see and the list of approved antennas (section 7.2).
The LILY-W131 module also supports an antenna diversity solution with an external antenna switch (see Figure
2). The switch is controlled by the ANT_SEL and the inverse ANT_SEL-n control signals are controlled from
LILY-W131. See LILY-W1 series System Integration Manual [2] for more information about antenna switch
design.
Figure 2: LILY-W131 antenna diversity solution with an external antenna switch controlled by LILY-W131
The LILY-W131 can be used in coexistence with a LTE modem. An external additional LTE band pass filter may be
required depending on the location of the antennas. Refer to LILY-W1 series System Integration Manual [2] for a
list of suitable LTE filters.
The FCC/IC modular approvals are not including an additional LTE filter or an antenna switch design.
UBX-15000203 - R04 Early Production Information Interfaces
Page 10 of 38
LILY-W1 series - Data Sheet
2.3 Power supply interfaces
The power for LILY-W1 series modules is supplied through VCC and VCC_IO pins by DC voltage.
The system power supply circuit must be able to support peak power (add 20% as margin over listed type
current consumption), as during operation, the current drawn from VCC and VCC_IO can vary
significantly based on the power consumption profile of the Wi-Fi technology.
The separate VCC_IO pin enables integration of the module in either a 1.8 V or 3.3 V application without any
level converters. The module performs calibration when the device is powered up.
2.4 Power mode interfaces
The LILY-W1 series modules support external power management control through the Power Down (PD-n), Host
wake up (HOST_WKUP) and the Wake up (WAKE_UP) signals.
2.4.1 Reset
The module is reset to its default operating state under the following conditions:
Internal reset: The module is reset, and the internal CPU starts the boot sequence when the following
internal reset events occur:
o Power-on reset (POR): Device receives power supplies rise (triggers internal POR circuit)
o Software/Firmware reset: Host driver issues a soft reset
External pin assertion (PD-n): The module is reset, and the internal CPU begins the boot sequence when
the PD-n input pin transitions from low to high following the power-up sequence. See Power down
section for more information.
2.4.2 Power down
For applications that do not use Wi-Fi, the device can be put into a low-leakage mode of operation using the
one of the following methods:
Using PD-n pin: The power-down state provides the lowest leakage mode of operation. Assert PD-n low
to enter power-down. This must be met to enter a power-down state.
All rails powered off: Alternatively, VCC and VCC_IO can be powered off. In this case, the state of the
PD-n pin is irrelevant.
During power-up the PD-n signal should be low or following the VCC signal.
2.4.3 Sleep
The module Power Save Mode (PSM) implementation is achieved through the coordination of the driver,
firmware, and hardware signals HOST_WKUP and WAKE_UP. See LILY-W1 series System Integration Manual [2]
for more information.
UBX-15000203 - R04 Early Production Information Interfaces
Page 11 of 38
3 Pin definition
3.1 Pin assignment
LILY-W1 series - Data Sheet
Figure 3: LILY-W1 series pin assignment (top view).
The GND pins for LILY-W1 module are located on the bottom side and are not visible in the Figure 3. See the
Dimensions section for more information about these GND pins.
The signals are available on castellation pins on the edge of the PCB. The ANT signals are not available on
the LILY-W132 module with internal antenna.
UBX-15000203 - R04 Early Production Information Pin definition
Page 12 of 38
Loading...
