u-blox EVK-NINA-B3 Series, EVK-NINA-B301, EVK-NINA-B302, EVK-NINA-B312, EVK-NINA-B311 User Manual



B3 series

5 low energy modules. It also describes the different options for debugging

EVK-NINA-B3

Evaluation Kit for NINA-B3 modules

User Guide

Abstract

This document describes how to set up the EVK-NINA-B3 evaluation kit to evaluate NINAstandalone Bluetooth® and the development capabilities included in the evaluation board.

www.u-blox.com

UBX-17056481 - R03

EVK-NINA-B3 - User Guide

u-blox or third parties may hold intellectual property rights in the products, names, logos and designs included in this document. Copying, reproduction, modification or disclosure to third parties of this document or any part thereof is only permitted with the express written permission of u The information contained herein is provided “as is” and u implied, is given, including but not limited purpose of the information. This document may be revised by u documents, visit www.u Copyright © u

Document Information

Title EVK-NINA-B3

Subtitle Evaluation Kit for NINA-B3 modules

Document type User Guide

Document number UBX-17056481

Revision and date R03 13-Sep-2018

Disclosure Restriction

This document applies to the following products:

Product name Type number Firmware version PCN reference

EVK-NINA-B301 EVK-NINA-B301-00 EVK-NINA-B311 EVK-NINA-B311-00 EVK-NINA-B302 EVK-NINA-B302-00 -

EVK-NINA-B312 EVK-NINA-B312-00 -

UBX-17056481 - R03 Page 2 of 31

-blox AG.

-blox.com.

to, with respect to the accuracy, correctness, reliability and fitness for a particular

-blox.

-blox assumes no liability for its use. No warranty, either express or

-blox at any time without notice. For the most recent

EVK-NINA-B3 - User Guide

1 Product description

1.1 Overview

The u-blox EVK-NINA-B3 evaluation kit is a versatile development platform that allows quick prototyping of a variety of extreme low-power Internet of Things (IoT) applications, using full Bluetooth 5, NFC, and IEEE 802.15.4.

The u-blox EVK-NINA-B3 boards are available in the following four variants, depending on the required antenna and software solution:

• EVK-NINA-B301, with an open CPU NINA-B301 module and an antenna connector for connecting to external antennas.

• EVK-NINA-B311, with a NINA-B311 module including u-blox connectivity software, and an antenna connector for connecting to external antennas.

• EVK-NINA-B302, with an open CPU NINA-B302 module that includes an internal antenna (a unique

2.4 GHz metal sheet antenna, soldered on to the module).

• EVK-NINA-B312, with a NINA-B312 module including u-blox connectivity software and an internal antenna (a unique 2.4 GHz metal sheet antenna soldered on to the module).

The evaluation board provides access to all of the 38 GPIO pins and interfaces available on the NINA-B3 modules through a variety of connectors and interfaces including Arduino™ Uno R3 and Raspberry Pi header connectors.

The stand-alone NINA-B3 modules include an Arm flash and 256 kB RAM, running at a system clock of 64 MHz. This has been integrated inside the Nordic Semiconductor nRF52840 chip that the modules are based on. The evaulation board provides simple USB drag-n-drop programming and a SEGGER J-Link debug interface that can be used with the open CPU variants of the EVK. Nordic provides a free Software Development Kit (SDK) with a broad selection of drivers, libraries, and example applications that can be used for rapid prototyping.

®

Cortex®-M4F microcontroller with 1 MB internal

Figure 1: EVK-NINA-B311 evaluation board

UBX-17056481 - R03 Product description Page 4 of 31

EVK-NINA-B3 - User Guide

⚠ Take care when handling the EVK-NINA-B302 or EVK-NINA-B312. Applying force to the NINA

module might damage the internal antenna.

1.2 Kit includes

The EVK-NINA-B3 evaluation kit includes the following:

• NINA-B3 evaluation board

• 2.4 GHz antenna with u.fl connector (only in EVK-NINA-B301 and EVK-NINA-B311)

• NFC antenna

• USB cable

• Quick Start card

1.3 Key features

• u-blox NINA-B3 Bluetooth Low Energy module based on the Nordic nRF52840 chipset

o Full Bluetooth 5 support o NFC tag functionality o 802.15.4 PHY o Integrated Arm Cortex-M4 microcontroller with 1 MB flash, 256 kB RAM, and 64 MHz

system clock

o USB 2.0 o Wide 1.7-3.6 V supply range

• The NINA-B3 module supports different interfaces that can be configured to any of the 38 available GPIO pin(s):

o 8 analog capable inputs o 12 PWM capable outputs o 3x SPI o 2x UART with HW flow control o 2x I2C o 1x I2S o 1x PDM input o 1x Quadrature decoder

• Full UART to USB converter with a Virtual COM port, allowing control of the extended UART features of the u-blox connectivity software

• On-board J-Link debugger/programmer

o Mass Storage Device interface to PC, for drag-n-drop programming o Debug port o An additional Virtual COM port that, for example, may be connected to add-on boards

or to a debug UART on the NINA-B3

• Dedicated USB connector for the NINA-B3 USB interface

• Additional flash memory can be added to the board for use by the NINA-B3 module

• RGB LED and push-buttons

• Arduino UNO R3 and Raspberry Pi compatible pin header interfaces

• Jumper headers and level shifters allow for flexible powering options of the NINA-B3 module, even

with full board support. They isolate the module entirely and control each power net separately in order to precisely measure low power applications or disconnect only unused parts of the board to save battery life.

• Multiple board power supply options

o 5-12 V power plug o 5 V USB supply o 5-12 V Arduino VIN input

• Battery holder supporting CR2032 coin cell batteries

UBX-17056481 - R03 Product description Page 5 of 31

EVK-NINA-B3 - User Guide

1.4 EVK-NINA-B3 block diagram

The block diagram of EVK-NINA-B3 is shown in Figure 2.

Figure 2: EVK-NINA-B3 block diagram

The block diagram shows the major interfaces and internal connections of the EVK-NINA-B3. The following sections describes in detail how the different interfaces are connected and may be used, as well as how the evaluation board may be configured to suit the needs of the user.

1.5 Connectors

Figure 3 shows the available connectors of the EVK-NINA-B3 and their layout. Table 1 describes the connectors and their uses in detail.

UBX-17056481 - R03 Product description Page 6 of 31

EVK-NINA-B3 - User Guide

Figure 3: Available connectors and their pinout

Connector annotation

J5 Power supply 2.1 mm power jack, the center pin is the positive terminal. 5 – 12 V input.

J17 Power supply Pin header that can be used to connect external power supplies. 5 – 12 V input.

BT1 Battery holder

J11

J10

J12

J21

J8

J16

Table 1: EVK-NINA-B3 connector description

Function Description

CR2032 coin cell battery holder. CR2032 usually has a 3 V potential when fully charged.

NFC antenna connector

2.4 GHz RF antenna connector

Cortex Debug connector

Cortex Debug+ETM connector

Power supply, COM port and debug USB

Power supply and NINA USB port

Pin header that connects to the u-blox NFC antenna included in the kit.

U.FL coaxial connector that can be used to connect antennas or RF equipment. This connector is only included in the EVK-NINA-B301/EVK-NINA-B311.

10-pin, 50 mil pitch connector that can be used to connect external debuggers to the NINA-B3 module. The NINA-B3 modules support Serial Wire debug (SWD) and Serial Wire Viewer, but not JTAG debug.

20-pin, 50 mil pitch connector. This extended connector has the same features as J12, but also allows for instruction trace operations via the Embedded Trace Macrocell (ETM) of the Cortex-M4 microcontroller inside the NINA-B3 module. This requires a special external debugger. Note that the 50 mil pitch pin header is not soldered onto the evaluation board by default.

The main USB connector that is used to program, debug, and communicate with the NINA module. It can also be used to power the entire board.

Additional USB connector directly connected to the NINA-B3 USB interface. Can also be used to power the entire board.

1.6 Powering options

Power can be supplied to the board in any of the following ways:

• Via any of the USB connectors, J8 or J16

• Using the power jack, J5

• Using the Arduino interface VIN pin

• Using the pin header J17

UBX-17056481 - R03 Product description Page 7 of 31

EVK-NINA-B3 - User Guide

• Plugging in a battery to the battery holder BT1

These power supply sources are distributed to the rest of the board as shown in Figure 4.

Figure 4: Block diagram of the power net distribution

1.6.1 Selecting the power configuration jumpers

The EVK-NINA-B3 offers flexible powering options for the NINA-B3 module and the board itself. To configure this, jumpers are added or removed to pin headers, shorting two of the pins together and connecting or disconnecting different power nets on the evaluation board. Figure 5 shows the location of the power configuration jumper headers. The 3V3 net is supplied by the board and will always be powered as long as any of the power sources shown in Figure 4 are connected. The 3V3 net will not provide power unless a jumper is added to jumper header J7.

Figure 5: Jumper headers J7 and J22 are used to select power configurations

UBX-17056481 - R03 Product description Page 8 of 31

EVK-NINA-B3 - User Guide

this net must be floating to prevent back currents. If a HAT is connected, this net can

Connector annotation

J7 1 3V3

J22 1 VCC

Table 2: Pinout of jumper headers J7 and J22 used to configure the board power nets

Pin number

2 3V3_PI

3 VBAT_DIODE

4 VDD_NINA

5 VBAT Battery + terminal

6 VDD_NINA

7 3V3

8 VDD_NINA

9 3V3

10 VDD_MCU

11 GND Ground net.

12 GND Ground net.

2 VCC_IO

3 VDD_NINA

4 VDD_IO

5 GND Ground net.

6 GND Ground net.

Schematic net name

Description

Regulated 3.3 V net. This net is supplied by the board and will always be powered as long as a power source is connected.

Connects to the Raspberry Pi header’s (J14) 3V3 pins. If a Raspberry Pi is connected,

be shorted to the EVK 3.3 V supply to power the HAT.

To protect the battery from current back surges, connect the battery to the NINA module via a protection diode using this pin.

Connects to J22 pin 3, from where it can be connected to the module supply pin or somewhere else.

Regulated 3.3 V net. This net is supplied by the board and will always be powered as long as a power source is connected.

Connects to J22 pin 3, from where it can be connected to the module supply pin or somewhere else.

Regulated 3.3 V net. This net is supplied by the board and will always be powered as long as a power source is connected.

Supply net for the board functions not directly connected to the NINA module; Interface MCU, USB hub, UART to USB converter etc.

NINA module voltage supply that connects to the module VCC pin. Shorted to the VCC_IO net via 0 Ω resistor R4 by default.

Connects to the NINA module VCC_IO pin. Shorted to the VCC net via 0 Ω resistor R4 by default.

Connects to J7 pins 4, 6 and 8. Short J22 pins 1 and 3 allow the EVK to power the NINA module.

Supply net for LEDs and peripherals connected directly to the NINA module. Short J22 pins 2 and 4 use the NINA module I/O voltage as supply.

The following sections describe different jumper configurations and power scenarios that is available on the board, including the default configuration.

⚠ Check the jumper positions carefully; if a jumper is connected in a wrong way, it can permanently

damage the components that are on or connected to the board.

1.6.2 Default power, 3.3 V

This is the default power configuration for the evaluation board, and the jumpers are installed out of the box with this power configuration. All board peripherals are powered up, the NINA module is directly supplied by the board and everything is running at 3.3 V.

Figure 6: Jumper positions for default power configuration

UBX-17056481 - R03 Product description Page 9 of 31

EVK-NINA-B3 - User Guide

Connector annotation

J7 7, 8 Selects the board regulated 3.3 V net as source for the VDD_NINA net.

J22 1, 3

Table 3: Jumper positions for default power configuration

Add jumper to pins

9, 10 Powers up the Interface MCU, USB hub, and UART to USB converter with 3.3 V.

2, 4

Description

Powers up the NINA module. The NINA VCC and VCC_IO pins are connected to the selected source for the VDD_NINA net.

Powers up the peripherals directly connected to NINA such as LEDs and external memory with the NINA supply voltage.

1.6.3 Battery powered, 3 V

When using a battery, Figure 7 shows the default configuration. The battery voltage is connected to VDD_NINA, which in turn, is connected to the NINA-B3 VCC supply. If needed, a jumper can be added to J22 pins 2 and 4 to supply LEDs and other peripherals with power, as long as this does not exceed the maximum current rating of the battery. If the NINA module has to be configured, the VDD_MCU net can be connected to enable PC communications by adding a jumper to J7 pins 9 and 10.

Figure 7: Jumper positions for battery powered operation, two jumpers are optional

Connector annotation

J7 5, 6 Selects the battery connected to the battery holder as source for the VDD_NINA net.

J22 1, 3

Table 4: Jumper positions for battery powered operation, two jumpers are optional

Add jumper to pins

9, 10 (Optional) Powers up the Interface MCU, USB hub, and UART to USB converter with 3.3 V.

2, 4

Description

Powers up the NINA module. The NINA VCC and VCC_IO pins are connected to the selected source for the VDD_NINA net.

(Optional) Powers up the peripherals directly connected to NINA such as LEDs and external memory with the NINA supply voltage.

1.6.4 Battery powered with protection diode, 2.7 V

This use case is meant to protect the battery from current back surges. When using the NFC interface, there is a risk that the applied electromagnetic field can cause back surges that will typically damage a non-chargeable battery. To prevent this damage, a schottky diode can be added in series to the battery, which will block any back current surges. A jumper should then be added to J7 pins - 3 and 4 instead of 5 and 6.

The diode will lower the voltage level of the battery by about 0.3 V.

Figure 8: Jumper positions for battery powered operation with a protection diode, two jumpers are optional

UBX-17056481 - R03 Product description Page 10 of 31

EVK-NINA-B3 - User Guide

Connector annotation

J7 3, 4 Selects the diode protected battery as a source for the VDD_NINA net.

J22 1, 3

Table 5: Jumper positions for battery powered operation with a protection diode, two jumpers are optional

Add jumper to pins

9, 10 (Optional) Powers up the Interface MCU, USB hub, and UART to USB converter with 3.3 V.

2, 4

Description

Powers up the NINA module. The NINA VCC and VCC_IO pins are connected to the selected source for the VDD_NINA net.

(Optional) Powers up the peripherals directly connected to NINA such as LEDs and external memory with the NINA supply voltage.

1.6.5 External supply

When measuring current consumption or performing other NINA-B3 module characterization measurements, it can be useful to power the module with an external source such as a DC power analyzer. In such a case, all jumpers can be removed and the required supply nets can be fed externally by connecting to the pin headers. For example, the NINA-B3 module can be powered by connecting an external supply directly to the J22 pin 1 and GND.

☞ Take care that unpowered parts of the board are properly isolated. If a voltage is applied to the

signal of an unpowered device, current might leak through various protection circuits of the device. This might give false readings when measuring current consumption etc.

Figure 9 below shows a few optional jumper connections that can be helpful when supplying the module with an external supply.

Figure 9: Optional jumper positons while using an external power supply

Connector annotation

J7 7, 8 (Optional) Selects the board regulated 3.3 V net as a source for the VDD_NINA net.

J22 3, 4

Table 6: Optional jumper positons while using an external supply

Add jumper to pins

9, 10 (Optional) Powers up the Interface MCU, USB hub, and UART to USB converter with 3.3 V.

Description

(Optional) Powers up the peripherals directly connected to NINA such as LEDs and external memory with the selected source for the VDD_NINA net.

1.6.6 Raspberry Pi HAT

When connecting a HAT to the Raspberry Pi interface, the following jumper configuration can be used. Depending on how the NINA module should communicate with a test PC over USB or with the HAT, the VDD_MCU net could be left unpowered.

⚠ The 3V3_PI supply net must only be powered when connecting to a Raspberry Pi expansion board

(HAT). If connecting to a Raspberry Pi board, the jumper must be disconnected.

Figure 10: Jumper configuration when connected to a Raspberry Pi HAT

UBX-17056481 - R03 Product description Page 11 of 31

EVK-NINA-B3 - User Guide

Connector annotation

J7 1,2 Connects the 3V3_PI net to the regulated 3.3 V supply.

J22 1, 3

Table 7: Jumper configuration when connected to a Raspberry Pi HAT

Add jumper to pins

7, 8 Selects the board regulated 3.3 V net as a source for the VDD_NINA net.

9, 10 (Optional) Powers up the Interface MCU, USB hub, and UART to USB converter with 3.3 V.

2, 4

Description

Powers up the NINA module. The NINA VCC and VCC_IO pins are connected to the selected source for the VDD_NINA net.

(Optional) Powers up the peripherals directly connected to NINA such as LEDs and external memory with the NINA supply voltage.

1.7 Arduino interface

The EVK-NINA-B3 includes a set of pin headers and mounting holes that are compatible with certain Arduino or Arduino inspired shields. Figure 11 shows the layout of the Arduino interface and Table 8 explains the pinout in more detail. Section 1.7.1 describes what specifications must be met for a shield to be compatible for use with the EVK-NINA-B3.

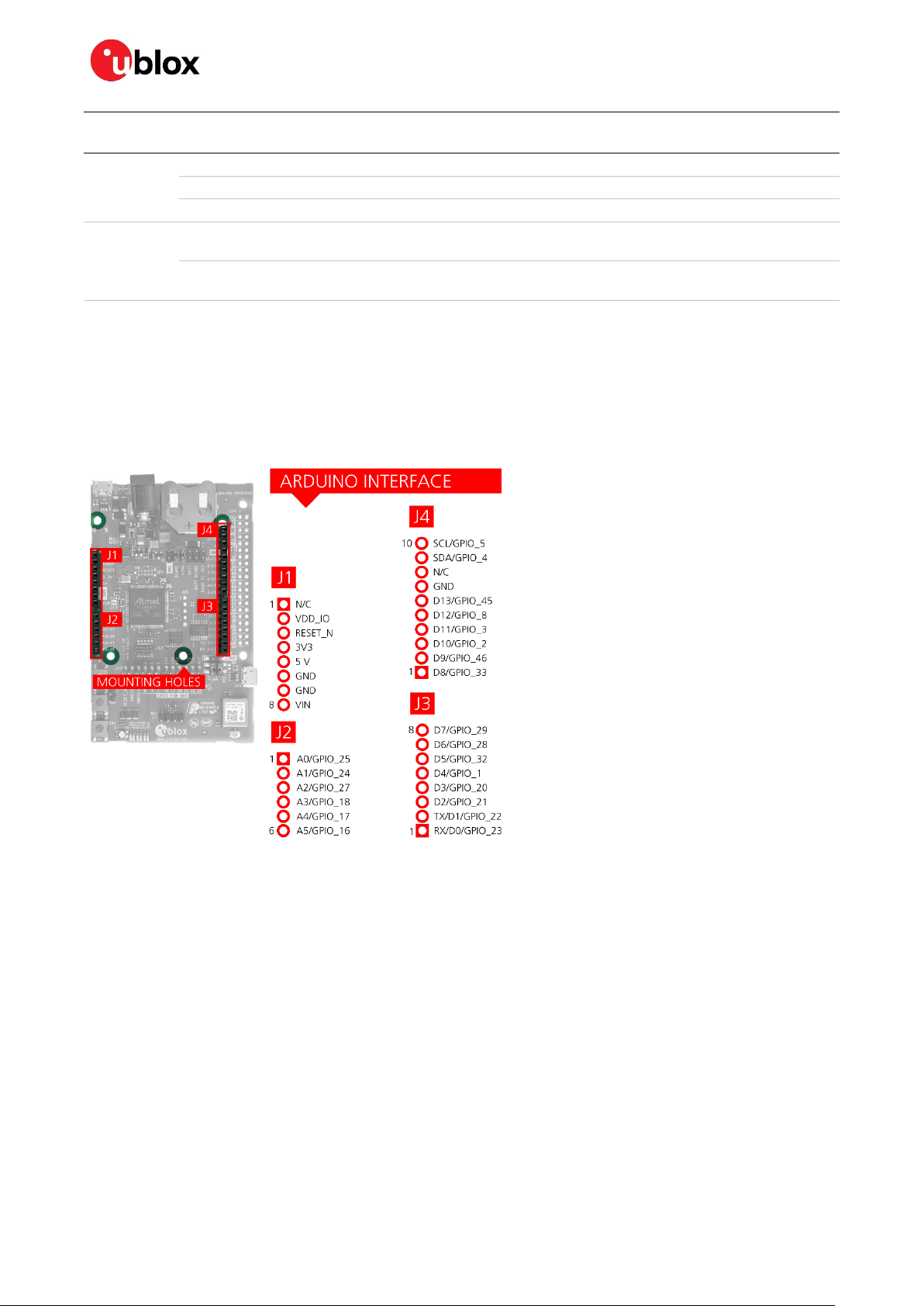

Figure 11: Pin headers that are compatible with some Arduino shields

UBX-17056481 - R03 Product description Page 12 of 31

EVK-NINA-B3 - User Guide

Conn.

J1 1 N/C Not Connected - - Not connected

J2 1 A0 Analog input GPIO_25 P0.04 Analog function capable GPIO

J3 1 D0/RX Digital I/O, UART RX

J4 1 D8 Digital I/O GPIO_33 P1.09

Table 8: Pinout of the Arduino UNO R3 compatible interface

Arduino

No.

2 IOREF

3 RESET Reset signal input. Active low logic RESET_N P0.18

4 3.3V 3.3 V DC regulated supply output 3V3 -

5 5V 5 V regulated supply output 5V -

6 GND Ground GND GND

7 GND Ground GND GND

8 VIN External DC supply input, 5 – 12 VDC VIN -

2 A1 Analog input GPIO_24 P0.30 Analog function capable GPIO

3 A2 Analog input GPIO_27 P0.05 Analog function capable GPIO

4 A3 Analog input

5 A4 Analog input

6 A5 Analog input

2 D1/TX Digital I/O, UART TX

3 D2 Digital I/O

4 D3 Digital I/O

5 D4 Digital I/O GPIO_1 P0.13

6 D5 Digital I/O GPIO_32 P0.11

7 D6 Digital I/O GPIO_28 P0.09

8 D7 Digital I/O GPIO_29 P0.10

2 D9 Digital I/O GPIO_46 P0.12

3 D10 Digital I/O GPIO_2 P0.14

4 D11 Digital I/O GPIO_3 P0.15

5 D12 Digital I/O GPIO_8 P1.00

6 D13 Digital I/O GPIO_45 P0.07

7 GND Ground GND

8 AREF Analog reference voltage level - - Not connected

9 SDA I2C data signal GPIO_4 P0.16

10 SCL I2C clock signal GPIO_5 P0.24

Description

I/O reference voltage level. Selectable by user to 1.7 – 3.6 V

Schematic net name

VDD_IO - See section 1.6

SWITCH_2/ GPIO_18

UART_DSR/ GPIO_17

UART_DTR/ GPIO_16

UART_RXD/ GPIO_23

UART_TXD/ GPIO_22

UART_CTS/ GPIO_21

UART_RTS/ GPIO_20

nRF52 pin

P0.02

P0.28

P0.03

P0.29 UART_RXD signal on NINA-B31

P1.13 UART_TXD signal on NINA-B31

P1.12 UART_CTS signal on NINA-B31

P0.31 UART_RTS signal on NINA-B31

Alternate functions and notes

Cannot be used as supply input, use VIN instead. Only supplied by USB VBUS.

Analog function capable GPIO, SWITCH_2 on NINA-B31. This signal is pulled low when the button SW2 is pressed

Analog function capable GPIO, UART_DSR signal on NINA-B31

Analog function capable GPIO, UART_DTR signal on NINA-B31

Signal not connected by defualt, configured for NFC use

UBX-17056481 - R03 Product description Page 13 of 31

EVK-NINA-B3 - User Guide

1.7.1 Arduino shield compatibility

The EVK-NINA-B3 has an I/O voltage range of 1.7-3.6 V. It can therefore be used only with shields that also support an I/O voltage within this range.

The EVK-NINA-B3 has a pinout that is compatible with some Arduino or Arduino inspired shields. This section describes the features of the EVK pins that a shield must comply with:

• IOREF: The I/O voltage level of the NINA-B3 module is 3.3 V by default, but the EVK can be modified to allow other voltages (1.7-3.6 V).

• RESET: Is connected to the RESET button (SW0).

• 3.3 V: A regulated 3.3 V output. Should not be used as a voltage supply input, use the VIN pin

instead.

• 5 V: Is only a 5 V supply output if the EVK is being powered by USB. If any other power configuration is used, this pin will be unconnected (floating). It is safe to connect an external 5 V supply to this pin even when a USB cable is connected. This pin cannot be used to power the board, use the VIN pin instead.

• VIN: May be used as a 5 -12 V supply input to power the EVK-NINA-B3.

• Pin 0 (RX): Is connected to the NINA-B3 UART RX pin (NINA pin 23).

• Pin 1 (TX): Is connected to the NINA-B3 UART TX pin (NINA pin 22).

Note on SCL/SDA: On some Arduino boards, the I

2

C signals, SCL, and SDA are connected to the pins A4 and A5 and to the SCL and SDA pins in the top right hand corner. Since these pins will be shorted together it might cause problems when connected to the EVK-NINA-B3, which has not shorted these pins together.

Note on digital I/O pins: Some of the digital I/O pins can be connected to the on-board debug MCU, thus allowing serial communication and flashing/debugging over USB. This can cause interference on the signals that are also used by an Arduino shield. See section 1.10 on how to disconnect these signals from the debug MCU.

1.8 Raspberry Pi compatible interface

The EVK-NINA-B3 includes a 40-pin GPIO header that can be used to interface with either a Raspberry Pi computer board or with a Raspberry Pi expansion board (HAT). The EVK-NINA-B3 uses different hardware and software configurations depending on if it is connected to a Pi or a HAT; the differences are covered in this section. The default configuration is to connect to a Pi.

Not all the Raspberry Pi versions and HATs are supported, since it requires the 40-pin GPIO header, which older versions did not have. Table 9 lists the compatible Raspberry Pi versions.

Compatible Raspberry Pi boards

Raspberry Pi 1 Model A+

Raspberry Pi 1 Model B+

Raspberry Pi 2 Model B

Raspberry Pi 3 Model B

Raspberry Pi Zero

Raspberry Pi Zero W

Table 9: Compatible Raspberry Pi boards

UBX-17056481 - R03 Product description Page 14 of 31

EVK-NINA-B3 - User Guide

Figure 12: Pin header J14 that is compatible with the Raspberry Pi GPIO connectors

Figure 12 shows the layout of the Raspberry Pi interface and Table 10 explains the pinout in detail. There are three mounting holes that can be used for increased mechanical stability. The two on either side of connector J14 are common to all Raspberry Pi boards, but the third one is only compatible with the Pi Zero boards.

UBX-17056481 - R03 Product description Page 15 of 31

EVK-NINA-B3 - User Guide

Conn.

J14 1 3.3 V 3.3 V supply pin 3V3_PI - Not connected by default, see section 1.6

Raspberry

No.

Pi pin

2 5 V 5 V supply pin 5V -

3 GPIO02 Digital I/O GPIO_5 P0.24

4 5 V 5 V supply pin 5V -

5 GPIO03 Digital I/O GPIO_4 P0.16

6 GND Ground GND GND

7 GPIO04 Digital I/O GPIO_3 P0.15

8 GPIO14 Digital I/O, UART TX/RX RASP_TXD P0.29

9 GND Ground GND GND

10 GPIO15 Digital I/O, UART RX/TX RASP_RXD P1.13

11 GPIO17 Digital I/O GPIO_2 P0.14

12 GPIO18 Digital I/O GPIO_1 P0.13

13 GPIO27 Digital I/O GPIO_52 P0.19

14 GND Ground GND GND

15 GPIO22 Digital I/O GPIO_51 P0.17

16 GPIO23 Digital I/O GPIO_50 P0.20

17 3.3 V 3.3 V supply pin 3V3_PI - Not connected by default, see section 1.6

18 GPIO24 Digital I/O GPIO_49 P0.22

19 GPIO10 Digital I/O GPIO_48 P0.21

20 GND Ground GND GND

21 GPIO09 Digital I/O GPIO_47 P0.23

22 GPIO25 Digital I/O GPIO_46 P0.12

23 GPIO11 Digital I/O GPIO_45 P0.07

24 GPIO08 Digital I/O GPIO_44 P0.27

25 GND Ground GND GND

26 GPIO07 Digital I/O GPIO_43 P0.06

27 ID_SD

28 ID_SC

29 GPIO05 Digital I/O GPIO_40 P1.15

30 GND Ground GND GND

31 GPIO06 Digital I/O GPIO_39 P1.11

Description

EEPROM config I2C data signal

EEPROM config I2C clock signal

Schematic net name

GPIO_42 P0.26

GPIO_41 P1.14

nRF52 pin

Alternate functions and notes

Cannot be used as supply input. Supplied by USB VBUS and protected from back powering.

Connected to NINA UART_RXD pin by default, see section 1.8.2

Connected to NINA UART_TXD pin by default, see section 1.8.2

Connected to NINA through a solder bridge, if the solder bridge is cut this pin will be left floating

Connected to NINA through a solder bridge, if the bridge is cut this pin will be left floating

Should only be used to read or simulate HAT EEPROMs, see section 1.8.3

UBX-17056481 - R03 Product description Page 16 of 31

EVK-NINA-B3 - User Guide

Conn.

Table 10: Pinout of the Raspberry Pi compatible interface

Raspberry

No.

Pi pin

32 GPIO12 Digital I/O GPIO_38 P1.10

33 GPIO13 Digital I/O GPIO_37 P1.03

34 GND Ground GND GND

35 GPIO19 Digital I/O GPIO_36 P1.02

36 GPIO16 Digital I/O GPIO_35 P1.01

37 GPIO26 Digital I/O GPIO_34 P1.08

38 GPIO20 Digital I/O GPIO_33 P1.09

39 GND Ground GND GND

40 GPIO21 Digital I/O GPIO_32 P0.11

Description

Schematic net name

nRF52 pin

Alternate functions and notes

1.8.1 Powering considerations

There are two voltage nets used in the Raspberry Pi interface - 3V3_PI and 5V. Both the 3V3_PI and 5V nets can be used to power HATs, but should not be used when connecting to a Raspberry Pi. See section 1.6.6 for more information.

⚠ The 3V3_PI power net must not be connected to the 3.3 V supply when connected to a Raspberry

Pi board. It could damage both the boards.

1.8.2 UART

The Raspberry Pi interface provides two pins that can be used for UART communications GPIO14 and GPIO15. In UART communications, signals are always connected RX <-> TX and vice versa. This means

that on a Raspberry Pi board GPIO14 will be TX and on a HAT it will be RX. To support talking to both HATs and Pi boards, the zero Ω resistors - R57, R58, R59 and R60 can be used to toggle the NINA TX and RX pins between GPIO14 and GPIO15. If a NINA-B30 is used, this switch can also be made in the software. By default, the EVK-NINA-B3 will be configured to simulate a HAT, and GPIO14 is connected to the NINA UART_RXD pin and GPIO15 is connected to the NINA UART_TXD pin.

1.8.3 EEPROM support

The Raspberry Pi interface supports a unique EEPROM solution to store the HAT specific GPIO configurations on the HAT board, to be read by the Raspberry Pi before configuring its GPIOs. The two pins used for this - ID_SD and ID_SC, are connected to the NINA-B3 module. The NINA module can thus either read the GPIO configuration from a HAT, or simulate an EEPROM and send configurations to a connected Pi. This requires a NINA-B30 module and a custom built application.

It is not mandatory to use this EEPROM solution; if not used, the two NINA pins GPIO_42 and GPIO_41 can be left unconfigured.

Two pull-up resistors - R44 and R50, can be added to the I the evaluation board by default.

Visit https://github.com/raspberrypi/hats/blob/master/designguide.md for more information on the ID EEPROM specification.

2

C lines if needed. They are not mounted on

UBX-17056481 - R03 Product description Page 17 of 31

EVK-NINA-B3 - User Guide

1.9 Buttons and LEDs

Figure 13: Position of the push-buttons and LEDs on the evaluation board

Annotation Function Description

SW0 Reset button Connected directly to the NINA RESET_N pin.

SW1 User button

SW2 User button

Table 11: EVK-NINA-B3 buttons

Annotation Function Description Color

DS1 UART CTS LED Connected to the NINA UART_CTS (GPIO_21) pin via jumper header J9

DS2 UART RTS LED Connected to the NINA UART_RTS (GPIO_20) pin via jumper header J9

DS3 Interface MCU LED

DS4 Interface MCU LED Error LED

DS5 UART DTR LED Connected to the NINA UART_DTR (GPIO_16) pin via jumper header J9

DS6 UART DSR LED Connected to the NINA UART_DSR (GPIO_17) pin via jumper header J9

DS7 UART TXD LED Connected to the NINA UART_TXD (GPIO_22) pin via jumper header J9

DS8 UART RXD LED Connected to the NINA UART_RXD (GPIO_23) pin via jumper header J9

DS9 RGB LED

Table 12: EVK-NINA-B3 LED indicators

Push button for application use. Connected directly to the NINA SWITCH_1 (GPIO_7) pin

Push button for application use. Connected directly to the NINA SWITCH_2 (GPIO_18) pin

Blinks on USB enumeration and activity, lit when the Interface MCU is connected via USB

Connected to the NINA RED (GPIO_1), GREEN (GPIO_7) and BLUE (GPIO_8) pins via jumper header J19

1.10 Disconnecting NINA signals from board peripherals

All evaluation board peripherals, such as level shifters, LEDs, and the interface MCU will be connected to the NINA-B3 module by default. This might not suit all evaluation scenarios. All peripherals can be switched off by disconnecting their power supplies (see section 1.6), but if only specific signals have to be isolated, it will require finer control. All the NINA module signals that are connected to board peripherals have thus been routed via jumper headers, so that jumpers can be pulled or added as needed by the evaluation board user, isolating, or connecting specific signals. Figure 14 shows the layout of these jumper headers.

UBX-17056481 - R03 Product description Page 18 of 31

EVK-NINA-B3 - User Guide

Figure 14: Jumper headers J19 and J9 that are used to isolate specific NINA signals

Connector annotation

J19 1 RESET_N Reset signal, active low

J9 1

Table 13: Pinout of jumper headers - J19 and J9

Pin number

2 RESET_N_I Connects to the Interface MCU’s reset line

3 SWDIO SWD data signal

4 SWDIO_I Interface MCU SWD data signal, used to program/debug the NINA module

5 SWDCLK SWD clock signal

6 SWDCLK_I Interface MCU SWD data signal, used to program/debug the NINA module

7 GPIO_8

8 BLUE RGB diode blue signal, active low

9

10 GREEN RGB diode green signal, active low

11 GPIO_1

12 RED RGB diode red signal, active low

2 UART_DTR_I UART to USB DTR signal

3

4 UART_DSR_I UART to USB DSR signal

5

6 UART_RTS_I UART to USB RTS signal

7

8 UART_CTS_I UART to USB CTS signal

9

10 UART_TXD_I UART to USB TXD signal

11

12 UART_RXD_I UART to USB RXD signal

Schematic net name

GPIO_7/ SWITCH_1

GPIO_16/ UART_DTR

GPIO_17/ UART_DSR

GPIO_20/ UART_RTS

GPIO_21/ UART_CTS

GPIO_22/ UART_TXD

GPIO_23/ UART_RXD

Description

NINA-B30: GPIO or TRACE NINA-B31: BLUE signal

NINA-B30: GPIO, can be used as either user LED output or push-button input NINA-B31: SWITCH_1 and GREEN signal

NINA-B30: GPIO, can be used as user LED output NINA-B31: RED signal

NINA-B30: analog capable GPIO signal NINA-B31: UART DTR output

NINA-B30: analog capable GPIO signal NINA-B31: UART DSR input

NINA-B30: analog capable GPIO signal NINA-B31: UART RTS output

NINA-B30: GPIO signal NINA-B31: UART CTS input

NINA-B30: GPIO signal NINA-B31: UART TXD output

NINA-B30: analog capable GPIO signal NINA-B31: UART RXD input

UBX-17056481 - R03 Product description Page 19 of 31

EVK-NINA-B3 - User Guide

1.11 Software debug options

You can debug the software using the following two options in EVK-NINA-B3:

• Onboard debug solution available on the USB connector

• Using an external debugger connected to J12 connector

An external debugger connected to the J12 connector is useful when powering the evaluation board with the CR2032 coin cell battery, or through the external power supply connector J5. It could also be useful in a scenario where the debug MCU interface has been disconnected from the NINA-B3 module using the jumpers on J9 header. The SEGGER J-Link software [4] is required to debug using the onboard J-Link hardware on the EVK-NINA-B3.

UBX-17056481 - R03 Product description Page 20 of 31

EVK-NINA-B3 - User Guide

2 Setting up the evaluation board

2.1 Evaluation board setup

The EVK-NINA-B311/EVK-NINA-B312 will be delivered with the u-blox connectivity software installed on the module. Before connecting the module, download and install the latest u-blox s-center evaluation software from the u-blox website.

To use Bluetooth Low Energy on the EVK-NINA-B311/EVK-NINA-B301, connect a 2.4 GHz antenna to the U.FL antenna connector (J10). The EVK-NINA-B312/EVK-NINA-B302 has an onboard antenna.

Plug in either an external power supply in J5 connector or connect to a USB host with a USB cable attached to J8 connector. You can also power the evaluation board with a CR2032 coin cell battery. The status light (DS6) will turn green, indicating it has power. The NFC antenna can be connected to the J11 connector.

⚠ Be careful to check polarity before connecting an external power supply to the EVK-NINA-B3

evaluation board. Center conductor is positive (+) and the ring is negative (-).

The operating system will install the correct drivers automatically. The drivers will only need to be installed the first time you connect the unit to a new computer.

⚠ If the drivers are not installed automatically, download the nRFgo Studio from

www.nordicsemi.com to get the Jlink CDC UART driver.

A COM port will automatically be assigned to the unit by Windows. Do the following to view the assigned COM ports on Windows 7:

• Open the Control Panel and click Hardware and Sound.

• Click Device Manager in Devices and Printers. This will open Device Manager window where you

can view the assigned COM ports.

To view the assigned COM ports on Windows 10, right-click on the Windows Start button and select Device Manager.

2.2 Starting up

2.2.1 EVK-NINA-B311 and EVK-NINA-B312

Perform the following steps to enable communication with the module:

1. Start the u-blox s-center evaluation software.

2. Use the default baudrate 115200, 8N1 with flow control.

3. You will now be able to communicate with the module through AT commands.

For a list of available AT commands, see the u-blox Short Range AT Commands Manual [3]. To get started with basic use case set up of the EVK-NINA-B3 with u-blox connectivity software, see the NINA-B31 Getting Started [5].

2.2.2 EVK-NINA-B301 and EVK-NINA-B302

If you would like to use the EVK-NINA-B3 together with Nordic Semiconductor SDK, refer to the Software section of the NINA-B3 System Integration Manual [2].

UBX-17056481 - R03 Setting up the evaluation board Page 21 of 31

EVK-NINA-B3 - User Guide

2.3 Getting the latest software

Go to the u-blox support webpage to obtain the latest available firmware. Instructions on reflashing the EVK-NINA-B3 can be found in the Software section of the NINA-B3 System Integration Manual [2].

UBX-17056481 - R03 Setting up the evaluation board Page 22 of 31

EVK-NINA-B3 - User Guide

Appendix

A Schematics

Top view

Bottom view

UBX-17056481 - R03 Appendix Page 23 of 31

CURRENT MEASUREME NT AND NINA POWER SUPPLY

VDD_NI NA VCC_IO VDD_IO

E

DNI

R6

VCC

R4

0R

J22

21

43

65

DEFAULT JUMPER CONFIG: POS 1-3 AND 2-4 REMOVIN G JUMPE R AT POS 2-4 WILL DISCONNECT

LEDS ETC. IF SUPPLYING VCC FROM BATTERY REMOVIN G R4 WILL ALLOW SEPAR ATE VCC_IO

SUPPLY AT J22 (ON NINA-B3 VCC_IO = VCC )

D

C

VBUS_N INA

B

POPULAT ING R6 WILL ALLOW CURRE NT MEASURE MEN TS AT J22

(QSPI _D3)

(QSPI _D1)

(QSPI _D2)

(QSPI _D0)

(QSPI _CS)

(QSPI_ CLK)

(RED)

VCC

VCC_IO

(GREEN / BOOT )

(BLUE/ SWO/

TRACE_ D0)

10%

C52

C17

100N

(TRACE _D2)

10%

(TRACE _D3)

C18

100N

GPIO_4 7

BI

GPIO_4 8

BI

GPIO_4 9

BI

GPIO_5 0

BI

GPIO_5 1

BI

GPIO_5 2

BI

USB_DP

BI

USB_DM

BI

GPIO_1

BI

GPIO_2

BI

GPIO_3

BI

GPIO_4

BI

GPIO_5

BI

SWITCH _1

BI

GPIO_8

BI

GPIO_3 2

BI

GPIO_3 3

BI

GPIO_3 4

BI

GPIO_3 5

BI

GPIO_3 6

BI

SWDCLK

GPIO_51

GPIO_49

GPIO_50

ublox_nina_b3

30

47

292827

GND_30

GPIO_29

GPIO_47

GPIO_48

SWDCLK

GND_12

ANT

GND_14

141213

15

11

5251504948

53

54

55

GND_53

USB_DP

GPIO_52

USB_DM

1

GPIO_1

2

GPIO_2

3

GPIO_3

4

GPIO_4

5

GPIO_5

6

GND_6

7

GPIO_7

8

GPIO_8

9

VCC_IO

10

VCC GPIO_16

31 32

GPIO_32

33

GPIO_33

34

GPIO_34

35

GPIO_35

36

GPIO_36

GPIO_28

SWDIO

NFC_2

NFC_1

26

GPIO_27

GND_26

GPIO_2 9

GPIO_2 8

464544

GPIO_45

GPIO_46

RESET_N

GPIO_44

GPIO_25

GPIO_24

GPIO_23

GPIO_22

GPIO_21

GPIO_20

GPIO_18

GPIO_17

GPIO_42VBUS

GPIO_41

GPIO_40

GPIO_39

GPIO_38

GPIO_37

12345678

J19

21

RESET_ N

C24

330P 10%

R18

R22

0R

DNI

0R

0

R23

0R

0

J11

C51

330P

DNI

10%

R24

0

0R

1

2

3

4

NFC ANTENNA

CONNECTOR

DNI

C25

330P 10%

SWDIO_ I SWDCLK _I

GPIO_2 7

GPIO_4 6

GPIO_4 5

GPIO_4 4

GPIO_4 3

43

M1

GPIO_43

25

GPIO_2 5

24

GPIO_2 4

23

UART_R XD

22

UART_T XD

21

UART_C TS

20

UART_R TS

19

RESET_ N

18

SWITCH _2

17

UART_D SR

16

UART_D TR

42

GPIO_4 2

41

GPIO_4 1

40

GPIO_4 0

39

GPIO_3 9

38

GPIO_3 8

37

GPIO_3 7

BI

(TRACE _D1)

(TRACE _CLK)

BI

SWDIO

BI

BIBI

BLUE RESET_ N_I

UART_D TR_I UART_D SR_I UART_R TS_I UART_C TS_I UART_T XD_I UART_R XD_I

NOTE! DNI = NOT MOUNTED

PRODUCT VARIANTS

BOM B311: NINA-B311 WITH ANTENNA PIN: MOUNT NINA-B311 ON M1

BOM B312: NINA-B311 WITH INTERNAL ANTENNA:

SWDIO SWDCLK GPIO_8 SWITCH _1 GPIO_1

UART_D TR UART_D SR UART_R TS UART_C TS UART_T XD UART_R XD

JUMPER HEADERS USED TO CONNECT GPIOS TO VARIOUS BOARD FUN CTIONS ALL POSISTI ONS MOUNT ED BY DEFAULT

VDD_IO VDD_M CU

10%

C47

100N

10%

C19

100N

8 2 3 4 5

1

14

10

19

10%

C20

1

3

5

7

9

11

J9

1

3

5

7

9

11

ti_txs0104epwr

OE

A1 B1

A2

A3

A4

VCCA

VCCB

GND=GN D

10%

C48

100N

TXS0108

OE

1

A1

3

A2 B2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

2

VCCA

VCCB GND

100N

RESET_ N_I

2

43

SWDIO_ I

4

65

SWDCLK _I

6

87

BLUE

8

109

GREEN

10

1211

RED

12

21

UART_D TR_I

2

43

UART_D SR_I

4

65

UART_R TS_I

6

87

UART_C TS_I

8

109

UART_T XD_I

10

1211

UART_R XD_I

12

U9

13

SWDIO_ LVL

12

SWDCLK _LVL

B2

11

SWO_LV L

B3

10

RESET_ N_LVL

B4

TO INTERFA CE MCU

U4

20

UART_D TR_LVL

B1

18

UART_D SR_LVL

17

UART_R TS_LVL

B3

16

UART_C TS_LVL

B4

15

UART_T XD_LVL

B5

14

UART_R XD_LVL

B6

13

B7

12

B8

TO FTDI CHIP

11

BI

LEVEL SHIFTERS

E

D

C

B

MOUNT NINA-B312 ON M1 J10 DNI

A A

BOM_B312=DNI

1

ADD2GND

GND=GN D

J10

ANTENNA U.FL CONNECTOR

ANT

DESIGN BY :

DATE :

GROUP :

AJOH Wed Jan 24 1 5:2 8:27 2018 u-blox AG $Change: 11397 9

U-BLOX AG

THALWIL

SWITZERLAND

345678 2

DRAWING TITLE :

NINA MODULE

A3

EVB-NINA-B3

PAGE 1 OF 6

VERSION :PROJECT :

PCB_VER.:

ICM:

02

A

1

12345678

E

D

E

D

THIS PAGE IS INTENTIONALLY LEFT BLANK DUE TO LICENSE AGREEMENTS

C

B

A A

DESIGN BY :

DATE :

GROUP :

AJOH Wed Jan 24 1 5:2 8:26 2018 u-blox AG PAGE 2 OF 6

U-BLOX AG

THALWIL

SWITZERLAND

345678 2

DRAWING TITLE :

INTERFACE MCU

A3

EVB-NINA-B3

VERSION :PROJECT :

PCB_VER.:

ICM:

$Change: 11397 9

02

A

1

B

12345678

SB1

QSPI_C LK

E

NOTE! DNI = NOT MOUNTED

QSPI_C S

QSPI_D 0

QSPI_D 1

QSPI_D 2

QSPI_D 3

GPIO_5 2

BI

GPIO_5 1

BI

GPIO_5 0

BI

GPIO_4 9

BI

GPIO_4 7

BI

GPIO_5 2_SB

SB2

GPIO_5 1_SB

SB3

GPIO_5 0_SB

SB4

GPIO_4 8_SBGPIO_4 8

SB5

GPIO_4 9_SB

SB6

GPIO_4 7_SB

BI

E

SOLDER BRIDGES

VDD_IO

U10

25

GPIO_4 9

D

R54 R56

100K

1%

10%

BI

VDD_MC UVDD_MC U

R55

100K 1%

BOOT STRAPPING CONFIG

100K 1%

VDD_MC U

C23

C45

100N

4U7

10%

USB_FT DI_DM USB_FT DI_DP

20%

10

9 8

11

C46

100N 10%

U8

3V3OUT

USBDM

USBDP

RESET_N

12

VCC

ftdi_ft231x

GND_3

GND_13

3

13

20

TXD

RXD

VCCIO

RTS_N

CTS_N

DTR_N

DSR_N

DCD_N

RI_N

CBUS0

CBUS1

CBUS2

CBUS3

GND_21

21

VBUS_M CU VDD_MC U

R51

1%

100K

C

B

BI

USB_HU B_DM

USB_HU B_DP

8P2

+/-0.5 P

X2

24.000 MHZ 30PPM

+/-0.5 P

C15C14

8P2

HUB_DE TECT

R52

100K 1%

XTAL1 XTAL2

C53

100N 10%

U2

19

USBDM_UP OCS2_N

20

USBDP_UP

21

XTALOUT

22 9

XTALIN

23

PLLFILT

24

RBIAS

R53

12K

1%

VDD_MC U

C16

100N 10%

HUB_RE SET_N

181

16

SMBCLK

RESET_N

SUSP_IND

VBUS_DET

microchip_usb2422

USBDP_DN2

USBDM_DN2

USBDP_DN1

USBDM_DN1

VDD33_1 V DD33_18

534

2 17

131415

SMBDATANC

6

NON_RE M0 NON_RE M1 CFG_SE L

PRTPWR2

CRFILT

VDD33_9

OCS1_N

PRTPWR1

TP3

12 11 10

8 7

C21 C22

1U 1U 10%

DHSD_P

DHSD_N CBUS3

R2

5%

39R

DFSD_P

DFSD_N

39R

5%

R3

GPIO_4 7

GPIO_5 2 GPIO_5 1

17

UART_R XD_LV L

1

UART_T XD_LV L

19

UART_C TS_LV L

6

UART_R TS_LV L

18

UART_D SR_LV L

4

UART_D TR_LV L

5 2

15

CBUS0

14

CBUS1

7

CBUS2

16

3

SIO2

7

SIO3

6

SCK

1

CE_N

4

GND

DNI

200 MIL PITCH 8-PIN SOP FOOTPRI NT FOR EXTERNAL MEMORY

BI

RXLED# BLINKS WHEN RECEIVI NG DATA VIA USB, IE. NINA RX

SO/SIO1SI/SIO0

VDD

BI

TP4

TP6

RXLED#

BI

TXLED#

TP7

TP5

GPIO_4 8GPIO_5 0

D

8

C54

100N 10%

DNI

C

B

A A

DESIGN BY :

DATE :

GROUP :

AJOH Wed Jan 24 1 5:2 8:26 2018 u-blox AG $Change: 11397 9

U-BLOX AG

THALWIL

SWITZERLAND

345678 2

DRAWING TITLE :

HUB, FTDI AND FLASH

A3

EVB-NINA-B3

PAGE 3 OF 6

VERSION :PROJECT :

PCB_VER.:

ICM:

02

A

1

12345678

GPIO_2 5 GPIO_2 4 GPIO_2 7 SWITCH _2 UART_D SR UART_D TR

VDD_IO

J1

1

2

3

RESET_ N

3

4

E

5

6

7

8

J2

1

2

3

4

5

6

D

VDD_IO

J12

1

2

3

4

5

6

7

8

109

CORTEX DEBUG

C

3V3

BI

ARDUINO INTERFACE

21

SWDIO

43

SWDCLK

65

GPIO_8

87

109

RESET_ N

DEBUG CONNECTOR S

VIN

5V

BI

J4

10

9 8 7 6 5 4 3 2

1

GPIO_4

9 8 7

GPIO_4 5

6

GPIO_8

5

GPIO_3

4

GPIO_2

3

GPIO_4 6

2

GPIO_3 3

1

GPIO_5

10

J3

8 7 6 5 4 3 2

1

GPIO_2 8

7

GPIO_3 2

6

GPIO_1

5

UART_R TS

4

UART_C TS

3

UART_T XD

2

UART_R XD

1

GPIO_2 9

8

VDD_IO

J21

21

1

3

5

7

9

11

13

15

SWDIO

2

43

SWDCLK

4

65

GPIO_8

6

87

8

109

RESET_ N

10

1211

GPIO_4 5

12

1413

GPIO_8

14

1615

GPIO_4 6

16

1817

GPIO_3 2

181917

2019

GPIO_3 3

20

DNI

CORTEX DEBUG + ETM

430 451 031 836

BI

BOOT JUMPER

J18

2 1

SWITCH _1

RESET_ N

BI

10%

C9

BI

SWITCH _1

BI

100N

1

3

10%

DNI

C10

100N

SW0

1

3

2

4

RESET

430 481 031 816

SW1

2

4

SWITCH 1

BI

SWITCH _2

3V3

IMCU_B OOT

R41

10K 1%

BUTTONS

VDD_IO

5%

BI

R44

DNI

I2C PULL UPS

UART_T XD

BI

UART_R XD

BI

5%

3K9

R50

DNI

GPIO_4 3

GPIO_4 4

R57

RASP_T XD

DNI

R58

RASP_R XD

0R

R59

RASP_T XD

0R

R60

RASP_R XD

DNI

RX/TX SELECTION

3V3_PI

J14

GPIO_5

BI

GPIO_4 GPIO_3

BI

GPIO_2

BI

GPIO_5 2_SB GPIO_5 1_SB

BI

GPIO_4 8_SB

BI

GPIO_4 7_SB

BI

GPIO_4 0 GPIO_3 9

BI

GPIO_3 7 GPIO_3 6

BI

GPIO_3 4

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

DNI

TP26TP24

10%

100N

TP27

10%

C49 C11

100N

21

2

43

4

65

6

87

8

109

10

1211

12

1413

14

1615

16

1817

18

2019

20

2221

22

2423

24

2625

26

2827

28

3029

30

3231

32

3433

34

3635

36

3837

38

4039

40

430 481 031 816

SW2

1

3

DNI

SWITCH 2

430 481 031 816

SW3

1

3

DNI

MCU BOOT

RASP_T XD RASP_R XD GPIO_1

GPIO_5 0_SB GPIO_4 9_SB

GPIO_4 6 GPIO_4 4GPIO_4 5 GPIO_4 3 GPIO_4 1GPIO_4 2

GPIO_3 8

GPIO_3 5 GPIO_3 3 GPIO_3 2

2

4

DNI

2

4

E

D

5V

BI

C

RASPBER RY PI INTER FAC E

VDD_IO

B

GREEN

BI

RED

BI

BLUE

BI

DS9

wurth_150141m173100

B

1

R

A

G

74LVC3G07

1

VCC=VD D_IO;G ND=GND

2

3

4

R19 R20 R21

2K7 5% 5%

71

53

26

1K0 1 K0

5%

BI

BI BI

A A

NOTE! DNI = NOT MOUNTED

LEDS

UART_C TS_I

UART_R TS_I

UART_D TR_I

VDD_IO

A

DS1

GREEN

C A

74LVC3G07 74LVC3G07

71

1

53

1

26

1

VCC=VD D_IO;G ND=GND

CTS_LE D

RTS_LE D

DTR_LE D

1K0 5%

DS5

DS2

ORANGE

C

R11R10

1K0 5%

C A

1K0

5%

BI

CBUS1

CBUS2

UART_D SR_I

DESIGN BY :

DATE :

GROUP :

VCC=VD D_IO;G ND=GND

AJOH Wed Jan 24 1 5:2 8:26 2018 u-blox AG $Change: 11397 9

VDD_IO

DS8

DS7

GREEN

C A

U7U3 U5

71

RXD_LE D

1

53

TXD_LE D

1

26

DSR_LE D

1

1K05%1K0 5%

U-BLOX AG

THALWIL

SWITZERLAND

345678 2

DS6

ORANGE

GREEN

C A

R39R40

DRAWING TITLE :

R8R7

1K0

5%

HEADERS & BUTTONS

A3

EVB-NINA-B3

PAGE 4 OF 6

VERSION :PROJECT :

PCB_VER.:

ICM:

02

A

1

B

12345678

E

EXTERNAL SUPPLY

D

C

B

GNDA

5-12 V

CON_PWR_03_SWITCH

VBAT

3V

BT1

J8

1

VUSB

USB MICRO B

2

R1

10M 5%

C6

100N

3 4 5

10%

USB_DM _MCUCO N USB_DP _MCUCO N

DM

DP

N.C.

GND

SGND=G NDA

SUSB_M ICRO_B _4THGN D

VBUS_M CU

VBUS_N INA

D2

D7

CA

DCDC_IN

VIN

J5

1 2 3

F1

FUSE

21

J17

COIN CELL BATTERY AT 3V

VBUS_M CU

TP35

TP8

TP9

TP38

USBLC6 2SC6

I/O1 I/O1 I/O2 I/O2

2

L1

30%2U2

C50

4U7

10%

C3

C2

10U

100N

D3

CA

CATAN

D6

11

PVIN_1

12

PVIN_2

10

AVIN

SW_1

SW_2

SW_3

VOS

13

EN

9

SS/TR

10%

8

C5

3N3

DEF

7

FSW

PG

FB

AGND

PGND_1

PGND_2

L2

1

2

3

14

4

5

6

15

16

U1TPS6213X

3.3V REGULATED

20%2U2

R5

100K 1%

BATTERY PROTECTION: NFC CAN CAUSE REVERSE

C7

22U 10%

CURRENT FLOW

GND=GND

62132 3.3V VERSION

VBUS_M CU

D1

VCCGND

USB

J16

VUSB

61 43

5

USB_HU B_DM

USB_HU B_DP

BI

10%

C1

100N

USB MICRO B

DM

DP

N.C.

GND

SGND=A GND

SUSB_M ICRO_B _4THGN D

GNDA

VBUS_N INA

TP1

1

2

USB_DM _CON

3

USB_DP _CON USB_DP _RES

4 5

100N

R26

10M 5%

C8

TP2

10%

2

3V3

D4

POWER SOURCE SELECTOR

USBLC6 2SC6

I/O1 I/O1 I/O2 I/O2

VCCGND

CA

VBUS_N INA

D8

61 43

5

10%

C13

100N

J7

1

3

5

7

9

11

USB_DM _RES

E

3V3_PIVBAT

2

4

6

8

10

12

VDD_NI NA

2121 43 65 87 109 1211

TP10

R27

39R

5%

R35

39R

5%

TP11

USB_DM

USB_DP

VDD_MC U

D

C

BI

B

'ZERO VOLT DIODE' - PROTECTS FROM BACK CURRENT ON VBUS LINES 5V NET CAN ONLY BE

5V

P_CHANN EL_ MOSFET

DMG2305UX

21

4

E2 C2

5 2

10K 5%

BASE_1

6

A A

3

BASE_1 BASE_2

B1

1

E1C1

VBUS_M CU

3

D

G S

5%

47K

R25

10K

R36R9

5V

P_CHANN EL_ MOSFET

4

5 2

BASE_2

5%

6

Q3Q1

E2 C2

B2

B1B2

E1C1

DMG2305UX

3

1

VBUS_N INA

21

3

D

Q4Q2

G S

5%

47K

R43

POWERED BY USB

DESIGN BY :

DATE :

GROUP :

AJOH Wed Jan 24 1 5:2 8:26 2018 u-blox AG $Change: 11397 9

NOTE! DNI = NOT MOUNTED

U-BLOX AG

THALWIL

SWITZERLAND

345678 2

DRAWING TITLE :

POWER SUPPLY

A3

EVB-NINA-B3

PAGE 5 OF 6

VERSION :PROJECT :

PCB_VER.:

ICM:

02

A

1

EVK-NINA-B3 - User Guide

B Glossary

Abbreviation Definition

API Application Programming Interface

CTS Clear To Send

EVK Evaluation Kit

GND Ground

GPIO General-Purpose Input/Output

LED Light-Emitting Diode

MCU Micro Controller Unit

MSD Mass Storage Device

NFC Near Field Communication

U.FL Coaxial RF connector

USB Universal Serial Bus

RTS Request To Send

SDK Software Development Kit

SPA Serial Port Application

UART Universal Asynchronous Receiver/Transmitter

Table 14: Explanation of the abbreviations and terms used

UBX-17056481 - R03 Appendix Page 29 of 31

EVK-NINA-B3 - User Guide

them on

Revision history

Revision Date Name Comments

R01 07-Feb-2018 cmag, ajoh, kgom Initial release.

R02 6-Jul-2018 kgom Included reference to NINA-B31 Getting Started guide in section 2.2.1.

R03 13-Sep-2018 mape

Added information about Open CPU devices and how to use Windows 10 host (section 2.1).

UBX-17056481 - R03 Related documents Page 30 of 31

EVK-NINA-B3 - User Guide

Contact

For complete contact information, visit us at www.u-blox.com.

u-blox Offices

North, Central and South America

u-blox America, Inc.

Phone: +1 703 483 3180 E-mail: info_us@u-blox.com

Regional Office West Coast:

Phone: +1 408 573 3640 E-mail: info_us@u-blox.com

Technical Support:

Phone: +1 703 483 3185 E-mail: support@u-blox.com

Headquarters Europe, Middle East, Africa

u-blox AG

Phone: +41 44 722 74 44 E-mail: info@u-blox.com Support: support@u-blox.com

Asia, Australia, Pacific

u-blox Singapore Pte. Ltd.

Phone: +65 6734 3811 E-mail: info_ap@u-blox.com Support: support_ap@u-blox.com

Regional Office Australia:

Phone: +61 2 8448 2016 E-mail: info_anz@u-blox.com Support: support_ap@u-blox.com

Regional Office China (Beijing):

Phone: +86 10 68 133 545 E-mail: info_cn@u-blox.com Support: support_cn@u-blox.com

Regional Office China (Chongqing):

Phone: +86 23 6815 1588 E-mail: info_cn@u-blox.com Support: support_cn@u-blox.com

Regional Office China (Shanghai):

Phone: +86 21 6090 4832 E-mail: info_cn@u-blox.com Support: support_cn@u-blox.com

Regional Office China (Shenzhen):

Phone: +86 755 8627 1083 E-mail: info_cn@u-blox.com Support: support_cn@u-blox.com

Regional Office India:

Phone: +91 80 405 092 00 E-mail: info_in@u-blox.com Support: support_in@u-blox.com

Regional Office Japan (Osaka):

Phone: +81 6 6941 3660 E-mail: info_jp@u-blox.com Support: support_jp@u-blox.com

Regional Office Japan (Tokyo):

Phone: +81 3 5775 3850 E-mail: info_jp@u-blox.com Support: support_jp@u-blox.com

Regional Office Korea:

Phone: +82 2 542 0861 E-mail: info_kr@u-blox.com Support: support_kr@u-blox.com

Regional Office Taiwan:

Phone: +886 2 2657 1090 E-mail: info_tw@u-blox.com Support: support_tw@u-blox.com

UBX-17056481 - R03 Contact Page 31 of 31

u-blox EVK-NINA-B3 Series, EVK-NINA-B301, EVK-NINA-B302, EVK-NINA-B312, EVK-NINA-B311 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Document Information

Contents

1 Product description

1.1 Overview

1.2 Kit includes

1.3 Key features

1.4 EVK-NINA-B3 block diagram

1.5 Connectors

1.6 Powering options

1.6.1 Selecting the power configuration jumpers

1.6.2 Default power, 3.3 V

1.6.3 Battery powered, 3 V

1.6.4 Battery powered with protection diode, 2.7 V

1.6.5 External supply

1.6.6 Raspberry Pi HAT

1.7 Arduino interface

1.7.1 Arduino shield compatibility

1.8 Raspberry Pi compatible interface

1.8.1 Powering considerations

1.8.2 UART

1.8.3 EEPROM support

1.9 Buttons and LEDs

1.10 Disconnecting NINA signals from board peripherals

1.11 Software debug options

2 Setting up the evaluation board

2.1 Evaluation board setup

2.2 Starting up

2.2.1 EVK-NINA-B311 and EVK-NINA-B312

2.2.2 EVK-NINA-B301 and EVK-NINA-B302

2.3 Getting the latest software

Appendix

A Schematics

B Glossary

Related documents

Revision history

Contact
