Ublox EMMY-W1, LILY-W1, JODY-W2 User Manual



Fi and Bluetooth modules with

W1 module with

Android integration for NXP­based modules

EMMY-W1, LILY-W1 and JODY-W2

Application note

Abstract

This document describes the procedures for integrating u-blox Wi­Android BSP. Based on an example that describes how to integrate the EMMY­Android 9, the same procedures are also relevant for integrating other u-blox modules based on NXP
chipsets with different Android versions.

UBX-19035432 - R02
C1-Public www.u-blox.com

Android integration for NXP-based modules - Application note

u-blox or third parties may hold intellectual property rights in the products, names, logos and designs included in this
document. Copying, reproduction, modification or disclosure to third parties of this document or any part thereof is only
permitted with the express written permission of u
The information contained herein is provided “as is” and u
implied, is given, including but not limited
purpose of the information. This document may be revised by u
documents, visit www.u
Copyright © u

Document information

Title Android integration for NXP-based modules

Subtitle EMMY-W1, LILY-W1 and JODY-W2

Document type Application note

Document number UBX-19035432

Revision and date R02 8-Sep-2020

Disclosure restriction C1-Public

This document applies to the following products:

Product name Firmware version (tested) Product status

EMMY-W1 SD-WLAN-UART-BT-8887-U16-MMC-W15.44.19.p36-15.100.19.p36-C4X15657_A2-GPL

SD-WLAN-SD-BT-8887-U16-MMC-W15.68.19.p38-15.26.19.p38-C4X15659_A2-MGPL

LILY-W1 SD-UAPSTA-8801-U16-X86-W14.68.36.p146-C4X14666_B0-MGPL

USB-UAPSTA-8801-U16-X86-W14.68.36.p146-C4X14666_B0-MGPL

JODY-W2 SD-WLAN-UART-BT-8987-U16-MMC-W16.87.10.p33-16.26.10.p33-C4X16651-MGPL

SD-WLAN-SD-BT-8987-U16-MMC-W16.68.10.p33-16.26.10.p33-C4X16651-MGPL

Mass production

Mass production

Engineering
Sample

UBX-19035432 - R02 Document information Page 2 of 40
C1-Public

-blox AG.

-blox.com.

to, with respect to the accuracy, correctness, reliability and fitness for a particular

-blox.

-blox assumes no liability for its use. No warranty, either express or

-blox at any time without notice. For the most recent

Android integration for NXP-based modules - Application note

Contents

Document information ................................................................................................................................ 2

Contents .......................................................................................................................................................... 3

1 Introduction ............................................................................................................................................. 5

1.1 Scope ............................................................................................................................................................. 5

1.2 Workflow ....................................................................................................................................................... 6

2 Components and device setup .......................................................................................................... 7

2.1 Host platform ............................................................................................................................................... 7

2.2 Setup ............................................................................................................................................................. 8

2.3 Build system ................................................................................................................................................. 8

2.4 Software packages ..................................................................................................................................... 8

2.4.1 Android Open Source Project ........................................................................................................... 8

2.4.2 Driver package ..................................................................................................................................... 9

2.4.3 Vendor HAL ........................................................................................................................................ 11

3 Wi-Fi integration ................................................................................................................................. 12

3.1 Wi-Fi architecture ..................................................................................................................................... 12

3.2 Components ............................................................................................................................................... 13

3.2.1 Manifest ............................................................................................................................................. 13

3.2.2 Driver source ...................................................................................................................................... 14

3.2.2.1 Build driver ................................................................................................................................. 14

3.2.3 Firmware binary ................................................................................................................................ 16

3.2.4 Vendor HAL ........................................................................................................................................ 16

3.3 Integration with Android .......................................................................................................................... 17

3.3.1 Driver and HAL selection ................................................................................................................. 17

3.3.2 Enable HAL library ............................................................................................................................ 17

3.3.3 File placement ................................................................................................................................... 17

3.3.4 Additional packages ......................................................................................................................... 17

3.3.5 Define interfaces ............................................................................................................................... 18

3.3.6 Starting supplicant .......................................................................................................................... 18

3.3.7 Loading the Wi-Fi driver .................................................................................................................. 19

3.3.8 Patching the SE Linux policy .......................................................................................................... 20

4 Bluetooth integration ........................................................................................................................ 21

4.1 Bluetooth architecture ............................................................................................................................. 21

4.2 Components ............................................................................................................................................... 21

4.2.1 Driver source ...................................................................................................................................... 21

4.3 Integration with Android .......................................................................................................................... 22

4.3.1 Makefile changes .............................................................................................................................. 22

4.3.2 BT interface configuration .............................................................................................................. 22

4.3.3 SE-Linux labelling ............................................................................................................................. 22

4.3.4 Permission settings ......................................................................................................................... 22

4.3.5 Additional packages ......................................................................................................................... 23

UBX-19035432 - R02 Contents Page 3 of 40
C1-Public

Android integration for NXP-based modules - Application note

5 Integrating SDIO-SDIO driver ......................................................................................................... 24

5.1 Driver sources and compilation .............................................................................................................. 24

5.2 Integration with Android .......................................................................................................................... 25

5.2.1 File placement ................................................................................................................................... 25

5.2.2 Loading the driver ............................................................................................................................. 25

5.2.3 Configuring the Bluetooth interface ............................................................................................. 25

5.2.4 SE-Linux labelling ............................................................................................................................. 26

5.2.5 Permission settings ......................................................................................................................... 26

5.2.6 Patch the Bluetooth code................................................................................................................ 26

6 Flashing the image ............................................................................................................................. 27

6.1 Download and build UUU ......................................................................................................................... 27

6.2 Flashing the eMMC using Linux machine ............................................................................................ 27

6.3 Flashing the eMMC on Windows PC ..................................................................................................... 28

7 Validation .............................................................................................................................................. 29

7.1 Wi-Fi bring up ............................................................................................................................................. 29

7.2 Station mode.............................................................................................................................................. 31

7.3 Access point mode .................................................................................................................................... 32

7.4 Throughput measurements ................................................................................................................... 32

7.5 Wi-Fi Direct ................................................................................................................................................. 33

7.6 Bluetooth bring up .................................................................................................................................... 34

7.7 Bluetooth verification ............................................................................................................................... 35

Appendix ....................................................................................................................................................... 37

A Glossary ................................................................................................................................................. 37

Related documentation ........................................................................................................................... 38

Revision history .......................................................................................................................................... 39

Contact .......................................................................................................................................................... 40

UBX-19035432 - R02 Contents Page 4 of 40
C1-Public

Android integration for NXP-based modules - Application note

Module

Interface

Driver package

SD-WLAN-SD-BT-8887-U16-MMC-W15.68.19.p38-15.26.19.p38-C4X15659_A2-MGPL

SDIO-UART

SDIO-UART

SD-WLAN-UART-BT-8987-U16-MMC-W16.87.10.p33-16.26.10.p33-C4X16651-MGPL

1 Introduction

u-blox have integrated and tested several modules, based on NXP1 chipsets, with different Android
versions. This application note describes the essential procedures for integrating NXP-based u-blox
modules with Android 9 or above.

Although this document describes how to integrate the EMMY-W1 module with Android 9 using
SDIO-UART driver package, the given procedures are also relevant for integrating other NXP-based u­blox modules.

Section 3 and section 4 explain the procedures for integrating Wi-Fi and Bluetooth using SDIO and
UART, respectively.

Section 5 describes the additional changes that are required for designs that use the SDIO interface
for both radios.

☞ The Android package is provided by the host platform vendor. In this case, NXP semiconductors

who manufacture i.MX8 EVK platforms. The package is a customized version of the Android open
source package 9.0.0_2.3.4.

☞ The procedures described in this document are applicable to all u-blox modules based on NXP

chipsets – regardless of the Android package.

☞ All vendors that manufacture host platforms for Android development must provide the

appropriate set of kernel package and Android sources.

☞ Platform vendors normally integrate at least one Wi-Fi module with their manufactured platform.

Before starting any integration of u-blox modules, be sure to read the user guide for the EVK [2]
and host platform.

The supported module interfaces and the drivers used to test them are shown in Table 1.

EMMY-W1

LILY-W1

JODY-W2

Table 1: Driver packages used for tested interfaces

SDIO-SDIO

SD-WLAN-UART-BT-8887-U16-MMC-W15.44.19.p36-15.100.19.p36-C4X15657_A2-GPL

USB USB-UAPSTA-8801-U16-X86-W14.68.36.p146-C4X14666_B0-MGPL
SDIO SD-UAPSTA-8801-U16-X86-W14.68.36.p146-C4X14666_B0-MGPL
SDIO-SDIO SD-WLAN-SD-BT-8987-U16-MMC-W16.68.10.p33-16.26.10.p33-C4X16651-MGPL

1.1 Scope

Several regular use cases supported by Wi-Fi and Bluetooth, including station mode, access point,
peer to peer and BT connection, are routinely tested against the interfaces supported by u-blox
modules.

1

Earlier chipsets were sold under the banner of Marvell Semiconductors. After the acquisition, the packages and libraries are

renamed with NXP as the vendor.

UBX-19035432 - R02 Introduction Page 5 of 40
C1-Public

Android integration for NXP-based modules - Application note

u-blox have used the following hardware and software components for the integration:

• Android BSP: Android_9.0.0_2.3.4

• Host platform: i.MX8 MQ EVK

• Short range host-based module: EMMY-W1 (SDIO-UART)

• Driver: SD-WLAN-UART-BT-8887-U16-MMC-W15.44.19.p36-15.100.19.p36-C4X15657_A2-

GPL

• Wireless HAL: NXP Vendor HAL - v005

☞ The main body of this document is primarily targeted towards the integration of the module

through the SDIO-UART interface. For information describing integration of the module through
the SDIO-SDIO interface, see section 5. When integrating u-blox modules based on NXP chipsets,
make sure that you have access to the appropriate System integration manual (SIM) and Data
sheet (DS) for your product.

1.2 Workflow

Use the following workflow to integrate the module:

1. Detect the module on host platform.
Check if the device is detected first on the machine after booting up. This step does not require
any change in the source code. Verifying this ensures that hardware integration is correct.

2. Load the driver and firmware followed by interface up.
Compile the driver and try to load during the initialization sequence. Communication with the
module has been established when the interfaces are shown after the firmware download.

3. Initialize Wi-Fi background services and libraries to bring up the interface.
At this point different layers in Android stack are connected and end-to-end communication is
established. The stack then confirms that the vendor HAL is configured properly.

4. Connect the GUI and check for individual use-cases: Station mode, Access point, Wi-Fi Direct, and
Bluetooth. For further details see section 7.

UBX-19035432 - R02 Introduction Page 6 of 40
C1-Public

Android integration for NXP-based modules - Application note

2 Components and device setup

2.1 Host platform

The u-blox EVK is evaluated together with the MCIMX8M-EVK host platform from NXP. The
configuration setup for the EVK and NXP host platform communication is shown in the Figure 2.

MCIMX8M-EVK supports the following features:

• Industrial grade NXP IMX8M host processor

• Support for both Yocto and Android

• Extensive peripherals for most evaluation scenarios

• Evolving update of BSP for the host platform

For more detailed information, check the specifications of the MCIMX8M-EVK Evaluation Kit for the
i.MX 8M Applications Processor [16].

Figure 1: NXP iMX8 MQEVK

UBX-19035432 - R02 Components and device setup Page 7 of 40
C1-Public

Android integration for NXP-based modules - Application note

compiler gdisk m4 libz-dev bison flex libssl-dev curl android-tools-fsutils

2.2 Setup

Figure 2 shows the typical setup configuration for EVK with host platform communication.

i.MX8 MQ EVK

(NXP)

Figure 2: EVK and host platform communication

u-blox EVK

UART communication via USB (Bluetooth)

SDIO communication (Wi-Fi)
sddsdsdsdsds(hshshshshshs(Wi-Fi)

SMA connectors for
Wi-Fi and Bluetooth
antennas

2.3 Build system

A Linux host (for example Ubuntu 16.04 LTS) is required. You use this host to compile the Android
code. The recommended hardware requirements for the host include:

• Intel i7 or Xeon recommended

• 16GB+ RAM

• 200GB+ hard disk (SSD recommended)

2.4 Software packages

Different packages such as the Android open source code, drivers and HAL package required to
integrate the u-blox modules based on the NXP chipset with Android 9 or above are explained in brief
in the sections below.

2.4.1 Android Open Source Project

This section explains the procedure for building the Android image from scratch on an NXP i.MX8
platform. The following software packages are available for the host platform:

• Android 9.0.0_2.3.4

☞ The following process is generally relevant for the above packages and any future versions of the

Android BSP from NXP. The version of the Linux kernel integrated with this image is:

Follow the process outlined below to build the hardware image:

1. Install the appropriate packages.

$: apt install uuid uuid-dev zlib1g-dev liblz-dev liblzo2-2 liblzo2-dev lzop git­core curl u-boot-tools mtd-utils android-tools-fsutils openjdk-8-jdk device-tree-

2. Setup the download.

Install the

repo tool first when using the manifest repository.

4.14.98.

UBX-19035432 - R02 Components and device setup Page 8 of 40
C1-Public

Android integration for NXP-based modules - Application note

Interface

See chapters 3 and 4.

$: export PATH=${PATH}:~/bin

$: source ./imx-p9.0.0_2.3.4/imx_android_setup.sh
$: source build/envsetup.sh

$: mkdir ~/bin

$: curl https://storage.googleapis.com/git-repo-downloads/repo > ~/bin/repo
$: chmod a+x ~/bin/repo

3. Download the manifest.

Download and extract the source directory from the link:

https://www.nxp.com/webapp/Download?colCode=P9.0.0_2.3.4_ANDROID_SOURCE&appType=l
icense

The directory includes the necessary configuration to fetch packages from the different
repositories.

4. Setup the source.

Run the setup script to clone Android source code. It is a modified version of open-source package
to cater the host platforms developed by NXP. It will have changes pertaining to device trees,
display drivers etc.. This typically takes 5-6 hours - dependent on the network speed and machine.

Path: imx-p9.0.0_2.3.4/

At this point, all the files and directories needed for Android image building are downloaded in the
folder

android_build. Before starting the build procedure, integrate the device driver and make

the necessary changes in different layers to work with the Wi-Fi and Bluetooth module.

5. Setup the build environment.

Enter the following terminal command to configure the Android build:

Path: imx-p9.0.0_2.3.4/android_build/

6. Enter the Android
images can be found in

lunch commandthe build has completed successfully. All build artefacts and

android_build/out/target/product/evk_8mq/.

2.4.2 Driver package

The reference driver developed by NXP is distributed exclusively to customers that have signed a
Limited Use License Agreement (LULA-M) with u-blox or Nondisclosure Agreement (NDA) with NXP.
To obtain the driver package and vendor HAL, contact u-blox support for your area, as shown in the
Contact section of this document.

The EMMY-W1 module is based on the NXP 88W8887 chipset. It can be connected to the host in
couple of ways using different physical interfaces that use the driver packages, as shown in Table 3.
For information about the specific driver packages used for testing each module variant, see Table 1.

Driver package

SDIO-UART-XX SDIO UART

SDIO-SDIO-XX SDIO SDIO

Table 2: Physical interfaces and driver packages

Wi-Fi Bluetooth

For information about the specific driver packages used for testing each module variant, see Table 1.

The SDIO-UART driver package structure is described below:

UBX-19035432 - R02 Components and device setup Page 9 of 40
C1-Public

Remarks

See section 5.

Android integration for NXP-based modules - Application note

SD-WLAN-UART-BT-8887-U16-MMC-W15.44.19.p36-15.100.19.p36-C4X15657_A2-GPL (Dec 2019)

├── FwImage sduart8887_combo_a2.bin is used for operating
│ ├── sd8887_wlan_a2.bin Wi-Fi and Bluetooth modules in Android. Rest
│ ├── sduart8887_combo_a2.bin are needed for individual radios.
│ └── uart8887_bt_a2.bin
├── SD-UAPSTA-8887-U16-MMC-W15.44.19.p36-C4X15657_A2-app-src.tgz
├── SD-UAPSTA-8887-U16-MMC-W15.44.19.p36-C4X15657_A2-GPL-src.tgz
├── SD-UAPSTA-8887-U16-MMC-W15.44.19.p36-C4X15657_A2-mlan-src.tgz
└── UART-BT-8887-U16-X86-15.100.19.p36-2.2-M2614100-GPL-src.tgz

UBX-19035432 - R02 Components and device setup Page 10 of 40
C1-Public

Android integration for NXP-based modules - Application note

NXP_Vendor_hal_005

└── wlan_lib  Glue layer between wpa_supplicant and the framework

2.4.3 Vendor HAL

Both the driver package (SD-WLAN-UART-BT-8887-U16-MMC-W15.44.19.p36-15.100.19.p36­C4X15657_A2-GPL) and vendor HAL (NXP Vendor HAL - v005) are developed by NXP

2

. It is expected
that the HAL structure will remain the same for all future packages. Moreover, all extracted library
content must be kept in specific path so that the HAL can compile together with future Android
builds.

├── libbt  Source code for vendor HAL for Bluetooth
│ └── conf  Conf file specific to Bluetooth of the combo chip
└── wlan

├── 1.2  Service to integrate with native Wi-Fi framework
├── config  Config files needed to start wpa_supplicant
├── libwifi-hal  Library which provides services specific to scanning
│ └── wifi_hal-mrvl collection of stats used by the host framework.

2

The driver and vendor HAL have been previously developed by Mavell and some places in the soure code still use Marvell designations.

UBX-19035432 - R02 Components and device setup Page 11 of 40
C1-Public

Android integration for NXP-based modules - Application note

3 Wi-Fi integration

3.1 Wi-Fi architecture

Android applications use managers to access system services like Wi-Fi. These managers access
some of the vendor-specific functionalities through Hardware Abstraction Layer (HAL).

The Wi-Fi manager accesses the kernel through several layers, including HAL, as shown in Figure 3.

Figure 3: Android Wi-Fi architecture

WifiSettings is an application in the default AOSP build used to control Wi-Fi connections. It uses
WifiManager to access Wi-Fi services.

WifiManager provides the following functionalities:

• Provides a list of configured networks

• Monitors the current active Wi-Fi network

• Scans local access points and connects to the network that caters best for the user.

Each action of the Wi-Fi operation is managed in several different logical layers of the module. The
initialization process is shown in Figure 4.

UBX-19035432 - R02 Wi-Fi integration Page 12 of 40
C1-Public

Android integration for NXP-based modules - Application note

Figure 4: Sequence diagram of Wi-Fi initialization

☞ Most problems in the initialization process are encountered during the loading and activation of

Wi-Fi. The Wi-Fi state machine should be of some help in debugging these kind of issues. Once the
Wi-Fi is enabled, further operations like scan and join perform smoothly as they do not need any
external intervention from the vendor-specific layers.

To get the Wi-Fi driver up and running, several changes must be made to the files and configurations.
Various files provided by the chip vendor must be altered to cater for the integration.

3.2 Components

3.2.1 Manifest

To choose the right HIDL interface among the options integrated in AOSP, several changes must be
made in the file manifest.

The Wi-Fi HAL chosen in the manifest and shown below uses HIDL interface to communicate with
WifiServices. The manifest must contain the tags that are shown and must be added if they are not
present already.

☞ If the BSP received from vendor already has these manifest snippets with a different version, then

do not alter it. The presence of these snippets indicate the version of the native library that is
tested by the vendor.

UBX-19035432 - R02 Wi-Fi integration Page 13 of 40
C1-Public

Android integration for NXP-based modules - Application note

File: android_build/device/fsl/imx8m/evk_8mq/manifest.xml

</hal>

File: android_build/device/fsl/imx8m/evk_8mq/BoardConfig.mk

TARGET_KERNEL_DEFCONFIG := android_defconfig

<hal format="hidl">
<name>android.hardware.wifi</name>
<transport>hwbinder</transport>
<version>1.2</version>

<interface>
<name>IWifi</name>
<instance>default</instance>
</interface>

</hal>
<hal format="hidl">
<name>android.hardware.wifi.supplicant</name>
<transport>hwbinder</transport>

<version>1.1</version>
<interface>
<name>ISupplicant</name>

<instance>default</instance>
</interface>
</hal>
<hal format="hidl">

<name>android.hardware.wifi.hostapd</name>
<transport>hwbinder</transport>
<version>1.0</version>
<interface>
<name>IHostapd</name>
<instance>default</instance>
</interface>

3.2.2 Driver source

NXP releases driver packages regularly and to obtain updated features and bug fixes we recommend
that you use the latest package. The package from NXP requires the contents of different folders to
be arranged in a format that reflects the destination of wireless drivers.

Destination: android_build/vendor/nxp­opensource/kernel_imx/drivers/net/wireless/marvell/mrvl8887/

├── muart_src  Copy the contents of UART-BT-8887-XX into this folder
└── wlan_src  Copy the contents of SD-UAPSTA-8887-XX into this folder

├── Makefile
├── mlan
├── mlinux
└── mapp

3.2.2.1 Build driver

When building the kernel, select the MRVL8887 driver for the host platform. In the BoardConfig.mk file,
check the
be modified.

TARGET_KERNEL_DEFCONFIG parameter that defines which kernel configuration file needs to

☞ The exact file that needs to be modified can vary between different Android distributions.

UBX-19035432 - R02 Wi-Fi integration Page 14 of 40
C1-Public

Android integration for NXP-based modules - Application note

CONFIG_MRVL8887=m

Path: android_build/vendor/nxp-

it will be build 2 modules sd8xxx.ko and mlan.ko

Path: android_build/vendor/nxp-

$(MAKE) -C $(MRVL_ANDROID_SRC_MUART) clean

The kernel configuration file shown in this example, android_defconfig, is included in the

../arm64/configs/ directory. The path is relative to the architecture of the host platform, such as

32bit arm, 64bit arm, and so on. Add the configuration option to include NXP driver.

File: android_build/vendor/nxp­opensource/kernel_imx/arch/arm64/configs/android_defconfig

CONFIG_WLAN_VENDOR_MARVELL=y

The module can be built after the driver has been selected. Select the source code to build the kernel
modules by making changes shown below:

Path: android_build/vendor/nxp-opensource/kernel_imx/drivers/
/net/wireless/marvell/Makefile

obj-$(CONFIG_MRVL8887) += mrvl8887/wlan_src/
obj-$(CONFIG_MRVL8887) += mrvl8887/muart_src/

Path: android_build/vendor/nxp­opensource/kernel_imx/drivers/net/wireless/marvell/Kconfig

source "drivers/net/wireless/marvell/mrvl8887/Kconfig"

Once the driver is copied correctly, it also needs

Makefile and Kconfig so that the drivers are built

along with the Android kernel. The two samples shown below can be used for compiling the drivers.

opensource/kernel_imx/drivers/net/wireless/marvell/mrvl8887/Kconfig

config MRVL8887
tristate "Marvell WiFi Driver for SD8887"
default m
depends on CFG80211

---help--­ This adds support for wireless adapters based on Marvell

802.11n/ac chipsets. If you choose to build it as a module,

opensource/kernel_imx/drivers/net/wireless/marvell/mrvl8887/Makefile

ANDROID_CROSS_COMPILE:=$(abspath .)/prebuilts/gcc/linux-x86/arm/arm-linux-androideabi-

4.9/bin/arm-linux-androideabi-

MRVL_ANDROID_SRC_WLAN:= $(LOCAL_PATH)/wlan_src
MRVL_ANDROID_SRC_MUART:= $(LOCAL_PATH)/muart_src

default:
$(MAKE) -j -C $(KDIR) M=$(MRVL_ANDROID_SRC_WLAN) ARCH=arm
CROSS_COMPILE=$(ANDROID_CROSS_COMPILE) SOURCE_DIR=$(MRVL_ANDROID_SRC_WLAN) modules
$(MAKE) -j -C $(KDIR) M=$(MRVL_ANDROID_SRC_MUART) ARCH=arm
CROSS_COMPILE=$(ANDROID_CROSS_COMPILE) SOURCE_DIR=$(MRVL_ANDROID_SRC_MUART) modules

clean:
$(MAKE) -C $(MRVL_ANDROID_SRC_WLAN) clean

☞ Some of the paths shown in the Makefile above can vary depending on the Android package

supplied from the host platform vendor. Ensure that changes are made accordingly. Several
variables, like the path for cross compiler and architecture, might not be needed in the
These variables are handled by default settings in the Android build system. All the compiler
options are included.

UBX-19035432 - R02 Wi-Fi integration Page 15 of 40
C1-Public

Makefile.

Android integration for NXP-based modules - Application note

sduart8887_combo_a2.bin

Source: SDUART.8887.U16-MMC-W15.44.19.p36-15.100.19.p36-C4X15657_A2-GPL/FwImage

Destination Path: android_build/vendor/nxp/imx-firmware/mrvl/88W8887/

Destination Path: android_build/hardware/nxp/

When all the files are copied, the final directory should look exactly like this:

Path: android_build/vendor/nxp­opensource/kernel_imx/drivers/net/wireless/marvell/mrvl8887

├── Kconfig New files as mentioned above for compiling drivers.
├── Makefile
├── muart_src

└── wlan_src

├── mapp
├── mlan

└── mlinux

3.2.3 Firmware binary

Different variants of the firmware are added in the package by default. Choose one of the firmware
binaries shown in Table 4.

Firmware Wi-Fi Bluetooth

sd8887_wlan_a2.bin

uart8887_bt_a2.bin

SDIO N/A

SDIO UART

N/A UART

Table 3: Firmware images used with the EMMY-W1 module

To copy the final image, firmware files must be copied to the following path:

☞ Choose the firmware binary based on the usage of the module for applications. The

sduart8887_combo_a2.bin file is recommended as it supports both Wi-Fi and Bluetooth

functionality.

3.2.4 Vendor HAL

NXP provides a vendor HAL library that is integrated in the vendor-specific implementation. The
library includes native commands used in the upper layers.

Copy the entire directory that includes this library from the extracted package, as shown below:

Source: NXP Vendor HAL - v005

Once extracted the folder should look like below:

├── bt
│ └── libbt
│ ├── conf
│ │ └── bt_vendor_8887.conf
│ └── source_code
└── wlan

├── Android.mk
├── libwifi-hal

└── wlan_lib

UBX-19035432 - R02 Wi-Fi integration Page 16 of 40
C1-Public

Android integration for NXP-based modules - Application note

File: android_build/device/fsl/imx8m/evk_8mq/BoardConfig.mk

$(KERNEL_OUT)/drivers/net/wireless/marvell/mrvl8887/wlan_src/sd8xxx.ko

File: android_build/frameworks/opt/net/wifi/libwifi_hal/Android.mk

LIB_WIFI_HAL := libwifi-hal-mrvl

3.3 Integration with Android

3.3.1 Driver and HAL selection

Enable Marvell components to be used with the Android. This requires you to define libraries, drivers,
and so on.

BOARD_WLAN_DEVICE := mrvl
BOARD_HAVE_BLUETOOTH_MRVL := true

BOARD_HOSTAPD_PRIVATE_LIB := lib_driver_cmd_mrvl
BOARD_WPA_SUPPLICANT_PRIVATE_LIB := lib_driver_cmd_mrvl
BOARD_VENDOR_KERNEL_MODULES += \

$(KERNEL_OUT)/drivers/net/wireless/marvell/mrvl8887/muart_src/hci_uart.ko \
$(KERNEL_OUT)/drivers/net/wireless/marvell/mrvl8887/wlan_src/mlan.ko \

☞ Along with defining Marvell components, ensure that configurations pertaining to other

Wi-Fi and Bluetooth vendors are disabled in this file. For example, BOARD_HAVE_BLUETOOTH_BCM,
WIFI_DRIVER_FW_PATH_PARAM must be disabled to avoid compilation and run-time errors.

3.3.2 Enable HAL library

Enable Marvell HAL implementation library.

3.3.3 File placement

The host platform specific Makefile in the Android source code must include the required changes to
copy the files to the right directories.

File: android_build/device/fsl/imx8m/evk_8mq/evk_8mq.mk

# Wi-Fi and Bluetooth Firmware

PRODUCT_COPY_FILES += vendor/nxp/imx­firmware/mrvl/88W8887/sduart8887_combo_a2.bin:$(TARGET_COPY_OUT_VENDOR)/firmware/mrvl/

sduart8887_combo_a2.bin

# WiFi Marvell HAL libraries
PRODUCT_PACKAGES += \

libbt-vendor \
lib_driver_cmd_mrvl

# Supplicant config files
PRODUCT_COPY_FILES += \

device/fsl/common/wifi/wpa_supplicant.conf:vendor/etc/wifi/wpa_supplicant.conf \

device/fsl/common/wifi/p2p_supplicant.conf:vendor/etc/wifi/p2p_supplicant.conf

3.3.4 Additional packages

The Wi-Fi hardware abstraction layer (HAL) provides standard interfaces that expose device
hardware capabilities to the higher-level Java API framework. It includes the following HIDL packages:

• Vendor HAL

• Supplicant HAL

UBX-19035432 - R02 Wi-Fi integration Page 17 of 40
C1-Public

Android integration for NXP-based modules - Application note

wificond

setprop wifi.direct.interface p2p0

oneshot

When a framework API makes a call to access device hardware interface, the Android system loads
the library module for that hardware component. These abstraction layers are already part of the
AOSP and are chosen as part of the manifest changes in section 3.2.1.

The following packages are needed for the execution of the complete Wi-Fi stack:

• android.hardware.wifi@1.0-service: This is the root of the HAL module and is the service invoked

by the native framework.

• Wifilogd: This is a logging module used for debug and analysis

• Wificond: It communicates with the Wi-Fi driver over standard nl80211 commands.

Add the appropriate components into the host platform specific file, as shown below:

File: android_build/device/fsl/imx8m/evk_8mq/evk_8mq.mk

# Wi-Fi additional packages
PRODUCT_PACKAGES += \
android.hardware.wifi@1.0-service \

wifilogd \

3.3.5 Define interfaces

Set the global interfaces for Wi-Fi operation during host platform initialization.

File: android_build/device/fsl/imx8m/evk_8mq/init.rc

setprop wlan.driver.status ok

setprop wifi.interface wlan0

3.3.6 Starting supplicant

Add a service to invoke the supplicant when triggered by upper layers.

File: android_build/device/fsl/imx8m/evk_8mq/init.rc

service wpa_supplicant /vendor/bin/hw/wpa_supplicant \

-ip2p0 -Dnl80211 -c/vendor/etc/wifi/p2p_supplicant.conf \

-puse_multi_chan_concurrent=1 \

-N -iwlan0 -Dnl80211 -c/vendor/etc/wifi/wpa_supplicant.conf \

-puse_multi_chan_concurrent=1 \

-C /data/vendor/wifi/wpa/sockets \

-e/data/misc/wifi/entropy.bin -g@android:wpa_wlan0
class main
socket wpa_wlan0 dgram 660 wifi wifi
user root
group root
disabled

As shown in the command above, for wpa_supplicant to run, it needs couple of configuration files.
Contents of these files are as below. These files are copied into the root file system as specified in the
section 3.3.3.

UBX-19035432 - R02 Wi-Fi integration Page 18 of 40
C1-Public

Android integration for NXP-based modules - Application note

p2p_no_group_iface=1

Path: android_build/device/fsl/common/init/init.insmod.sh

setprop $2 1

Path: android_build/device/fsl/imx8m/evk_8mq/early.init.cfg

vendor/lib/modules/hci_uart.ko

Path: android_build/device/fsl/common/wifi/wpa_supplicant.conf

update_config=1
eapol_version=1
ap_scan=1
fast_reauth=1
pmf=1
p2p_add_cli_chan=1

Path: android_build/device/fsl/common/wifi/p2p_supplicant.conf

update_config=1
eapol_version=1
ap_scan=1
fast_reauth=1
pmf=1
p2p_add_cli_chan=1

3.3.7 Loading the Wi-Fi driver

Drivers are loaded using an insmod script which references a configuration file with paths to the kernel
modules. Both the script and configuration are added in the file excerpt shown below.

#! /vendor/bin/sh

# cfg file format:
# [path for modules along with parameters]

cfg_file=$1

if [ -f $cfg_file ]; then
while IFS=" " read -r line
do
insmod $line
done < $cfg_file
fi

# set property even if there is no insmod config
# as property value "1" is expected in early-boot trigger

Configuration file for the

vendor/lib/modules/mlan.ko

vendor/lib/modules/sd8xxx.ko fw_name=mrvl/sduart8887_combo_a2.bin cfg80211_wext=0xf
sta_name=wlan wfd_name=p2p p2p_enh=1 drv_mode=0x5 cal_data_cfg=none

insmod script.

With the script and the configuration files now included, they must now be invoked in

init time.

UBX-19035432 - R02 Wi-Fi integration Page 19 of 40
C1-Public

Android integration for NXP-based modules - Application note

Path: android_build/device/fsl/imx8m/evk_8mq/init.rc

oneshot

Path: android_build/device/fsl/imx8m/

on early-init
start early_init_sh

service early_init_sh /vendor/bin/init.insmod.sh /vendor/etc/early.init.cfg
sys.all.early_init.ready
class main
user root
group root system
disabled

3.3.8 Patching the SE Linux policy

To edit files on the root file system or use any device node, explicit permissions must be given to the
vendor HAL layers. You set these permissions by applying
below.

Command: git apply policy_changes_androidp.patch

The patch applies the appropriate permissions for both Wi-Fi and Bluetooth.

policy_changes_androidp.patch, as shown

☞ Contact your local u-blox support team for the patch file.

UBX-19035432 - R02 Wi-Fi integration Page 20 of 40
C1-Public

Android integration for NXP-based modules - Application note

CONFIG_USB_SERIAL_FTDI_SIO=y

4 Bluetooth integration

4.1 Bluetooth architecture

To enable Bluetooth, you must execute the appropriate set of configuration and files. The logical
functions of the stack in relation to the Bluetooth architecture are shown in Figure 5.

Figure 5: Bluetooth architecture

4.2 Components

4.2.1 Driver source

AOSP includes the HCI UART as an embedded driver in the kernel. NXP provides a modified version of
this code, which is needed for the EMMY-W1 series modules. To enable HCI UART driver you need to
include some changes in the code parameters. These parameters can include different compile
options, like m or y, and need to be set as shown in the snippet below. Note that the configuration
parameter option CONFIG_USB_SERIAL_FTDI_SIO is only necessary if you are accessing UART
interface over FTDI.

File: android_build/vendor/nxp-opensource/kernel_imx/arch/arm/configs/
imx_v7_android_defconfig

CONFIG_BT_HCIUART=m
CONFIG_USB_SERIAL=y

The build and compilation of the proprietary HCI UART driver is described in section 3.2.2.1. Section

3.3.1 describes how the drivers are built into a specific location for loading during the initialization
phase of the Android configuration.

UBX-19035432 - R02 Bluetooth integration Page 21 of 40
C1-Public

Android integration for NXP-based modules - Application note

└── wlan

Path: android_build/device/fsl/imx8m/evk_8mq/BoardConfig.mk

BOARD_HAVE_BLUETOOTH_MRVL := true

bd_address = 12:34:56:78:9a:bc

/dev/ttyUSB0 u:object_r:tty_device:s0

4.3 Integration with Android

As described earlier, NXP_Vendor_hal_005 contains the vendor library for Bluetooth. To build this
together with the other modules it must be copied to the correct path as shown below.

Path: android_build/hardware/marvell/

├── libbt  Vendor HAL for Bluetooth

4.3.1 Makefile changes

To specify the vendor for Bluetooth, include the following variables into the BoardConfig.mk file.

BOARD_HAVE_BLUETOOTH := true

Ensure that Bluetooth configurations from other vendors are removed from BoardConfig.mk.

4.3.2 BT interface configuration

Default values needed for BT interface are defined in the libbt. These parameters can be changed in
the application design. In which case, these are specified in the
module. A file example is shown below.

bt_vendor.conf file pertaining to the

Path: android_build/hardware/marvell/bt/libbt-vendor/conf/bt_vendor_8887.conf

mchar_port = /dev/ttyUSB0

is_uart_port = 1
baudrate_bt = 115200
baudrate_fw_init = 3000000

Several of the parameters shown above can vary between different u-blox modules, namely:

• mchar_port is needed when UART is used as an interface for BT communication. Along with it,

is_uart_port must also to be set. Configuration of the SDIO interface is described in section 5.2.3.

• baudrate_bt and

baudrate_fw_init must be carefully chosen to suit the design of the module. The

values used here should match with the baud rate programmed in the module’s OTP memory.
Otherwise, communication fails regardless of whether the file descriptor opens successfully.

4.3.3 SE-Linux labelling

Assign permission to the device node /dev/ttyUSB0. Although permissions are modified with chmod at
the start of the init, Android policy prevents file access.

Explicit file permissions can be configured, as shown below:

File: android_build/device/fsl/imx8m/evk_8mq/sepolicy/file_contexts

4.3.4 Permission settings

Bluetooth is connected over UART using USB. Make the necessary permission changes so that the
Android stack can access the port for each read-write.

UBX-19035432 - R02 Bluetooth integration Page 22 of 40
C1-Public

Android integration for NXP-based modules - Application note

chmod 0666 /dev/ttyUSB0

chown bluetooth bluetooth /sys/class/rfkill/rfkill0/state

File: android_build/device/fsl/imx8m/evk_8mq/init.rc

setprop hw.bluetooth 1

# /dev/ttyUSB0 is the connected port on i.MX8 EVK

☞ In the above example, /dev/ttyUSB0 is the port to connect the UART interface over USB. This can

be arranged differently depending on the type of connection to the module. The port in this
configuration must be in sync with the port configuration file of the vendor

4.3.5 Additional packages

AOSP provides a default Bluetooth stack that supports both Bluetooth BR/EDR and Bluetooth Low
Energy. The android.hardware.bluetooth package provides the interface required between the
Bluetooth controller and stack.

To enable the package, include the variables shown below into the build configuration:

File: android_build/device/fsl/imx8m/evk_8mq/evk_8mq.mk

# Bluetooth HAL
PRODUCT_PACKAGES += \

libbt-vendor \

android.hardware.bluetooth@1.0-impl \
android.hardware.bluetooth@1.0-service

Check with your system platform provider to ensure that an
has been implemented on your platform.

rfkill driver for Bluetooth on/off control

The platform BSP should implement an
on Bluetooth control through

Configure the
the system

File: android_build/device/fsl/imx8m/evk_8mq/init.rc

# Configure bluetooth

chmod 0660 /sys/class/rfkill/rfkill0/state

rfkill<id> state to set Bluetooth (on/off) control. Set the rfkill<id> permissions in

init.rc file to ensure that the Bluetooth process can access it.

/sys/class/rfkill/rfkill<id>/state.

rfkill driver that allows the Android Bluetooth stack to turn

UBX-19035432 - R02 Bluetooth integration Page 23 of 40
C1-Public

Android integration for NXP-based modules - Application note

└── SD-BT-CHAR-8887-U16-MMC-15.26.19.p38-C4X14113_A2-GPL-src.tgz

Destination Path: android_build/vendor/nxp-

└── mlinux 2 modules are built out of this source sd8xxx, mlan.

source "drivers/net/wireless/marvell/mrvl8887/Kconfig"

5 Integrating SDIO-SDIO driver

This section explains the explicit changes required to integrate the SDIO-SDIO variant of the
EMMY-W1 driver used with Android 9.

5.1 Driver sources and compilation

To operate Bluetooth over SDIO interface mbtchar0 device node is used. The mbtc (SD-BT-CHAR) driver
is part of the
package from NXP.

The various components of this driver are listed below.

SD-WLAN-SD-BT-8887-U16-MMC-W15.68.19.p38-15.26.19.p38-C4X15659_A2-MGPL (Mar 2020)

├── FwImage sd8887_uapsta_a2.bin is used for operating
│ ├── sd8887_uapsta_a2.bin Wi-Fi and Bluetooth modules in Android. Rest
│ ├── sd8887_wlan_a2.bin are needed for individual radios.
│ └── sd8887_bt_a2.bin
├── SD-UAPSTA-8887-U16-MMC-W15.68.19.p38-C4X15659_A2-app-src.tgz
├── SD-UAPSTA-8887-U16-MMC-W15.68.19.p38-C4X15659_A2-MGPL-src.tgz
├── SD-UAPSTA-8887-U16-MMC-W15.68.19.p38-C4X15659_A2-mlan-src.tgz

SD-WLAN-SD-BT-8887-U16-MMC-W15.68.19.p38-15.26.19.p38-C4X15659_A2-MGPL.zip

Extract and copy the sources in the directories as mentioned below:

opensource/kernel_imx/drivers/net/wireless/marvell/mrvl8887

├── mbtc_src  Copy the contents of SD-BT-CHAR-8887-XX into this folder
└── wlan_src  Copy the contents of SD-UAPSTA-8887-XX into this folder

├── Makefile
├── mapp  Applications for configurations
├── mlan Driver code for Wi-Fi module.

Once the sources are copied they need to be selected to be compiled as mentioned below.

Path: android_build/vendor/nxp-opensource/kernel_imx/drivers/
/net/wireless/marvell/Makefile

obj-$(CONFIG_MRVL8887) += mrvl8887/wlan_src/
obj-$(CONFIG_MRVL8887) += mrvl8887/mbtc_src/

Path: android_build/vendor/nxp­opensource/kernel_imx/drivers/net/wireless/marvell/Kconfig

☞ Note that CONFIG_MRVL8887 must be enabled before selecting the mrvl8887 folder in the Android

kernel sources, as described in section 3.2.2.1.
right

mbtc driver path as shown in the snippet below. Kconfig remains same.

Makefile needs some modification to pick up the

UBX-19035432 - R02 Integrating SDIO-SDIO driver Page 24 of 40
C1-Public

Android integration for NXP-based modules - Application note

Path: android_build/vendor/nxp-

$(MAKE) -C $(MRVL_ANDROID_SRC_MBTC) clean

File: android_build/device/fsl/imx8m/evk_8mq/evk_8mq.mk

887_uapsta_a2.bin

File: android_build/device/fsl/imx8m/evk_8mq/BoardConfig.mk

$(KERNEL_OUT)/drivers/net/wireless/marvell/mrvl8887/wlan_src/sd8xxx.ko

Path: android_build/device/fsl/imx8m/evk_8mq/early.init.cfg

vendor/lib/modules/mbt8xxx.ko

bd_address = 12:34:56:78:9a:bc

opensource/kernel_imx/drivers/net/wireless/marvell/mrvl8887/Makefile

ANDROID_CROSS_COMPILE:=$(abspath .)/prebuilts/gcc/linux-x86/arm/arm-linux-androideabi-

4.9/bin/arm-linux-androideabi-

MRVL_ANDROID_SRC_WLAN:= $(LOCAL_PATH)/wlan_src
MRVL_ANDROID_SRC_MBTC:= $(LOCAL_PATH)/mbtc_src

default:
$(MAKE) -j -C $(KDIR) M=$(MRVL_ANDROID_SRC_WLAN) ARCH=arm
CROSS_COMPILE=$(ANDROID_CROSS_COMPILE) SOURCE_DIR=$(MRVL_ANDROID_SRC_WLAN) modules

$(MAKE) -j -C $(KDIR) M=$(MRVL_ANDROID_SRC_MBTC) ARCH=arm
CROSS_COMPILE=$(ANDROID_CROSS_COMPILE) SOURCE_DIR=$(MRVL_ANDROID_SRC_MBTC) modules

clean:
$(MAKE) -C $(MRVL_ANDROID_SRC_WLAN) clean

5.2 Integration with Android

5.2.1 File placement

Copy the firmware in the designated location. The firmware binaries should be copied in the Android
source as mentioned in the section 3.2.3.

# Wi-Fi and Bluetooth Firmware
PRODUCT_COPY_FILES += vendor/nxp/imx­firmware/mrvl/88W8887/sd8887_uapsta_a2.bin:$(TARGET_COPY_OUT_VENDOR)/firmware/mrvl/sd8

Include the drivers. Additionally mbt8xxx.ko is needed for Bluetooth.

BOARD_VENDOR_KERNEL_MODULES += \

$(KERNEL_OUT)/drivers/net/wireless/marvell/mrvl8887/mbtc_src/mbt8xxx.ko \
$(KERNEL_OUT)/drivers/net/wireless/marvell/mrvl8887/wlan_src/mlan.ko \

5.2.2 Loading the driver

Follow the instructions in section 3.3.7 for loading the driver. The configuration file for the SDIO
drivers changes as below.

vendor/lib/modules/mlan.ko

vendor/lib/modules/sd8xxx.ko fw_name=mrvl/sd8887_uapsta_a2.bin cal_data_cfg=none
cfg80211_wext=0xf sta_name=wlan wfd_name=p2p p2p_enh=1 drv_mode=0x5

5.2.3 Configuring the Bluetooth interface

as default port, could set

Path: android_build/hardware/marvell/bt/libbt-vendor/conf/bt_vendor_8887.conf

mbt_port = /dev/mbtchar0

UBX-19035432 - R02 Integrating SDIO-SDIO driver Page 25 of 40
C1-Public

mbt_port in conf file like below. For further details, see section 4.3.2.

The default Bluetooth SD/USB port in libbt is /dev/mbtchar0. If the query response is not the same

Android integration for NXP-based modules - Application note

/dev/mbtchar0 u:object_r:tty_device:s0

File: android_build/device/fsl/imx8m/evk_8mq/init.rc

chmod 0666 /dev/mbtchar0

5.2.4 SE-Linux labelling

Explicit permission can be set to the device node

File: android_build/device/fsl/imx8m/evk_8mq/sepolicy/file_contexts

mbtchar0,

as shown below:

5.2.5 Permission settings

The SDIO driver for Bluetooth creates a separate device node
hardware. For the vendor HAL to communicate to the driver, some permissions in the init.rc file need
to be set. Use the chmod command to set the permissions, as shown below.

# /dev/mbtchar0 is the device node created

mbtchar0

for operating with the

☞ Before enabling Bluetooth, make sure that this device node is created.

5.2.6 Patch the Bluetooth code

Patch the system Bluetooth using the snippet below.

diff --git a/bluetooth/1.0/default/h4_protocol.cc
b/bluetooth/1.0/default/h4_protocol.cc

index df40507..73cb1fd 100644

--- a/bluetooth/1.0/default/h4_protocol.cc
+++ b/bluetooth/1.0/default/h4_protocol.cc
@@ -30,20 +30,13 @@ namespace bluetooth {
namespace hci {

size_t H4Protocol::Send(uint8_t type, const uint8_t* data, size_t length) {

- struct iovec iov[] = {{&type, sizeof(type)},

- {const_cast<uint8_t*>(data), length}};

- ssize_t ret = 0;

- do {

- ret = TEMP_FAILURE_RETRY(writev(uart_fd_, iov, sizeof(iov) / sizeof(iov[0])));

- } while (-1 == ret && EAGAIN == errno);
+ // TODO(bcf): Fix the driver to handle this split into multiple writes.
+ std::vector<uint8_t> tmp;
+ tmp.reserve(1 + length);

+ tmp.push_back(type);
+ tmp.insert(tmp.end(), data, data + length);

- if (ret == -1) {

- ALOGE("%s error writing to UART (%s)", __func__, strerror(errno));

- } else if (ret < static_cast<ssize_t>(length + 1)) {

- ALOGE("%s: %d / %d bytes written - something went wrong...", __func__,

- static_cast<int>(ret), static_cast<int>(length + 1));

- }

- return ret;
+ return WriteSafely(uart_fd_, tmp.data(), tmp.size());
}

void H4Protocol::OnPacketReady() {

UBX-19035432 - R02 Integrating SDIO-SDIO driver Page 26 of 40
C1-Public

Android integration for NXP-based modules - Application note

git clone https://github.com/NXPmicro/mfgtools.git

make

Path: android_build/out/target/product/evk_8mq/uuu_imx_android_flash.sh

Command: sh uuu_imx_android_flash.sh –f imx8mq –a -e

Command: fastboot reboot

6 Flashing the image

Use UUU (Universal Update Utility) to flash the image to the eMMC of the i.MX8 MQ EVK.

6.1 Download and build UUU

For UUU source code and other information about this utility, see

https://github.com/NXPmicro/mfgtools.

Follow the procedure outlined below to build the utility:

cd mfgtools
sudo apt-get install libusb-1.0-0-dev libzip-dev libbz2-dev pkg-config cmake libssl-dev

cmake .

Once the utility has been built, copy the binary uuu to any default binary path used in the system like

/usr/sbin/

6.2 Flashing the eMMC using Linux machine

for example.

Set the DIP switches to select the eMMC device to flash, as shown below.

Switch D1 D2 D3 D4

SW801 OFF OFF ON OFF

SW802 OFF ON N/A N/A

Table 4: eMMC DIP pre-flash device switch settings

Connect the EVK to the Linux machine using a type-C USB cable. The required script for flashing is
present in the build folder.

Run the following

sh command to flash the eMMC :

☞ Some of the arguments to the script can vary in later versions of Android BSP or UUU. To display

the help menu, simply run the script without defining any input.

⚠ In some cases the script might get stuck during execution. This typically happens while flashing

the eMMC for the first time. In these instances, run the following command to restart the process.

When the flash is complete, set the DIP switches as they are shown below and switch on the EVK.

Switch D1 D2 D3 D4

SW801 OFF OFF ON OFF

SW802 ON OFF N/A N/A

Table 5: eMMC DIP post-flash device switch settings

UBX-19035432 - R02 Flashing the image Page 27 of 40
C1-Public

Android integration for NXP-based modules - Application note

Path: android_build/out/target/product/evk_8mq/uuu_imx_android_flash.bat

Command: .\uuu_imx_android_flash.bat –f imx8mq –a –e

6.3 Flashing the eMMC on Windows PC

Connect the EVK to the Windows machine using a type-C USB cable.

Run the batch script to flash the eMMC:

Before running this command, some more utilities are needed on Windows. For more information, see
the WIN7 User Guide for MFGTools [13].

UBX-19035432 - R02 Flashing the image Page 28 of 40
C1-Public

Android integration for NXP-based modules - Application note

HCI UART driver ver 2.2-M2614100

7 Validation

After the image has been flashed and the host platform has booted, check that the following files,
required for Wi-Fi, are present in the path locations shown below:

Type File name Path

Firmware sduart8887_combo_a2.bin /vendor/firmware/mrvl/

Drivers mlan.ko, sd8xxx.ko, hci_uart.ko /vendor/lib/modules/

SUPPLICANT wpa_supplicant /vendor/bin/hw/

CLIENT wpa_cli /vendor/bin/

WPA CONF file wpa_supplicant.conf /vendor/etc/wifi/

P2P CONF file p2p_supplicant.conf /vendor/etc/wifi/

HOSTAPD hostapd /vendor/bin/hw/

Table 6: List of files

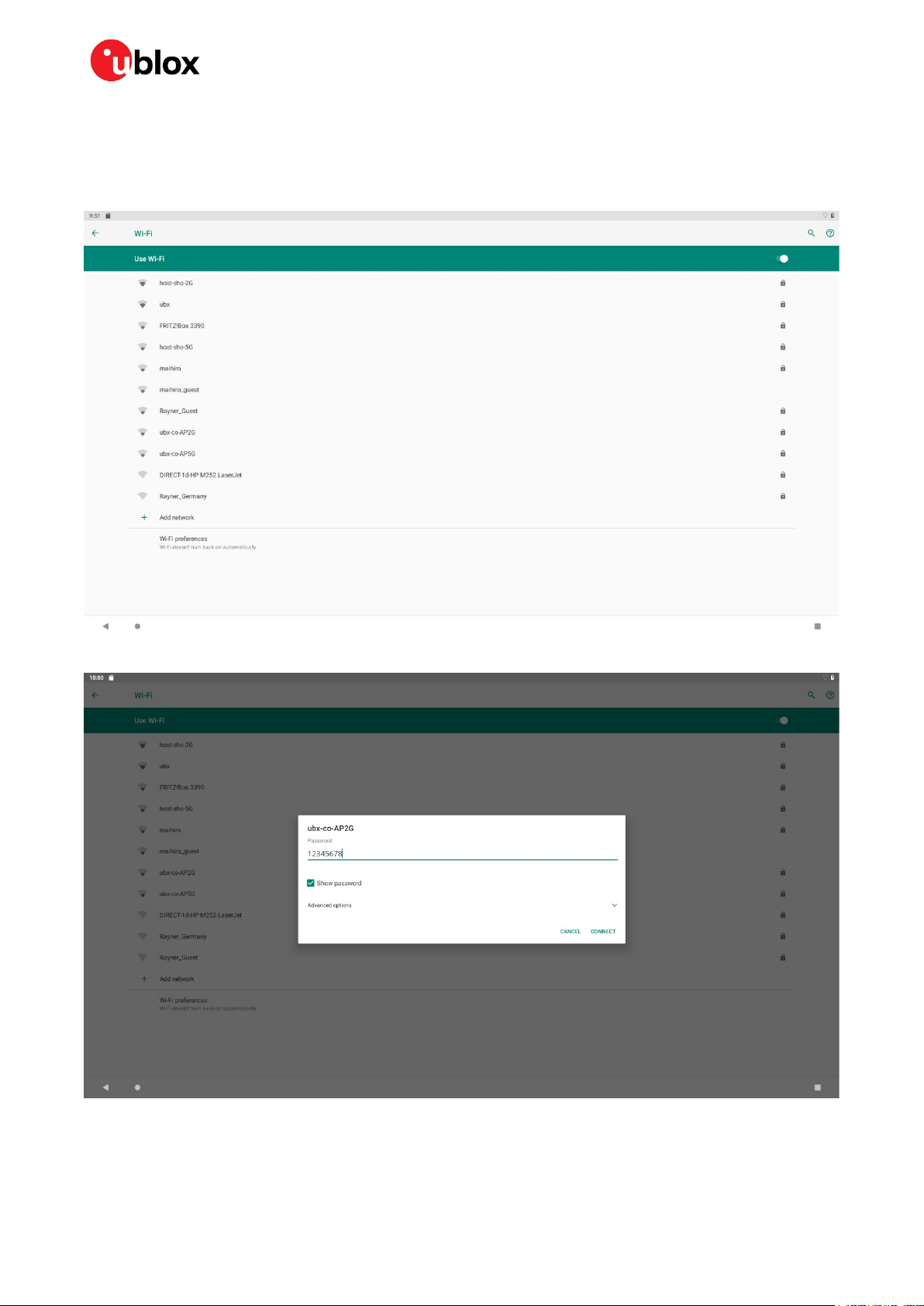

7.1 Wi-Fi bring up

Wi-Fi can be used in the following modes:

• Station mode

• Access point mode

• Wi-Fi Direct mode

All the modes have been tested and verified to work with Android 9 (Android Pie) and the EMMY-W1
module. After all components have been successfully built and installed, as described in sections 3
and 4, the following kernel messages are output in the kernel log during the host boot.

Check the post-boot log copy of the message buffer in the /var/log/dmesg log to ensure that the
driver and firmware are loaded correctly.

evk_8mq:/ # dmesg

mlan: module license 'Marvell Proprietary' taints kernel.
Disabling lock debugging due to kernel taint
Registered swp emulation handler

Console: switching to colour dummy device 80x25
watchdogd: watchdogd started (interval 10, margin 20)!
wlan: Loading MWLAN driver

vendor=0x02DF device=0x9135 class=0 function=1
SDIO: max_segs=128 max_seg_size=65535

rx_work=1 cpu_num=4
wlan: Enable TX SG mode
wlan: Enable RX SG mode

Request firmware: mrvl/sduart8887_combo_a2.bin
random: crng init done
Wlan: FW download over, firmwarelen=621692 downloaded 621692
usb 1-1.4: new low-speed USB device number 6 using xhci-hcd

WLAN FW is active

fw_cap_info=0x187bff03, dev_cap_mask=0xffffffff
SDIO rx aggr: 1 block_size=412

wlan: Enable RX SG mode

mpa_rx_buf_size=65280
wlan: version = SD8887-15.44.19.p36-C4X15C657-GPL-(FP44)

wlan: Driver loaded successfully

UBX-19035432 - R02 Validation Page 29 of 40
C1-Public

Android integration for NXP-based modules - Application note

RX bytes:0 TX bytes:0

svc wifi enable

...

Check that all the drivers are loaded correctly using lsmod command.

evk_8mq:/ # lsmod

Module Size Used by
hci_uart 49152 0
sd8xxx 626688 0

The expected interfaces after the host platform boots are shown below:

evk_8mq:/ # ifconfig
wlan0 Link encap:Ethernet HWaddr d4:ca:6e:00:1b:16 Driver wlan_sdio
UP BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000

RX bytes:0 TX bytes:0
p2p0 Link encap:Ethernet HWaddr d6:ca:6e:00:1b:16 Driver wlan_sdio
BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0

TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000

Enable the Wi-Fi using the command below. This translates to switching on the Wi-Fi in the GUI.

Use the

logcat command to verify the driver and firmware (shown as bold in the log example below)

are accessible to the android framework.

evk_8mq:/ # logcat

WificondControl: Setting up interface for client mode
wificond: subscribe scan result for interface with index: 7
hwservicemanager: getTransport: Cannot find entry
SupplicantStaIfaceHal: Can't call setupIface, ISupplicantStaIface is null

android_os_HwBinder: HwBinder: Starting thread pool for
default::android.hardware.wifi.supplicant@1.0::ISupplicant

WifiNative: Interface state changed on Iface:{Name=wlan0,Id=0,Type=STA}, isUp=true

WifiNative: Successfully setup Iface:{Name=wlan0,Id=0,Type=STA}
WifiClientModeManager: sending scan available broadcast: false

WifiClientModeManager: Wifi is ready to use for client mode
WifiClientModeManager: sending scan available broadcast: true
WifiStateMachinePrime: State changed from client mode. state = 3
WifiStateMachinePrime: client mode active

WifiStateMachine: entering ConnectModeState: ifaceName = wlan0
WifiStateMachine: setupClientMode() ifacename = wlan0
WifiP2pService: Wifi enabled=true, P2P Interface availability=true, Number of clients=0
WifiP2pService: Wifi enabled=true, P2P Interface availability=true

wpa_supplicant: the nl80211 driver cmd is MACADDR
wpa_supplicant: the nl80211 driver cmd len is 7
WifiScanningService: wifi driver loaded with scan capabilities: max buckets=16

WifiStateMachine: Setting OUI to DA-A1-19
WifiVendorHal: Driver: 15.44.19.p36 Firmware: 15.44.19.p36

UBX-19035432 - R02 Validation Page 30 of 40
C1-Public

Android integration for NXP-based modules - Application note

7.2 Station mode

Using the system settings on the host platform, scan and connect to the APs in the environment.

Settings > Wi-Fi & internet > Wi-Fi

Figure 6: Wi-Fi scanning

Figure 7: Wi-Fi connecting to a secured AP (WPA2-PSK)

UBX-19035432 - R02 Validation Page 31 of 40
C1-Public

Android integration for NXP-based modules - Application note

7.3 Access point mode

Access point mode (AP) is used for tethering the internet bandwidth from cellular with the other peers
in the environment. This mode is also used for sharing big data files between the devices.

By default, AP operates at 2.4 GHz. You can choose for AP operation at 5 GHz in the location settings.
To enable 5 GHz operation with Android enable CFG80211_INTERNAL_REGDB, as shown below:

Path: android_build/vendor/nxp-opensource/kernel_imx/net/wireless/Kconfig
config CFG80211_INTERNAL_REGDB

bool "use statically compiled regulatory rules database" if EXPERT
default y
depends on CFG80211

Copy the
also be provided with this when building the kernel. The database file,
channels supported in different countries. For further information about the
database, check the official Linux Wireless Wiki [7].

To configure the Wi-Fi hotspot settings shown in Figure 8, select:

Settings > Connections > Network & internet> Hotspot & tethering > Wi-Fi hotspot

db.txt file from the online repository [14] to the same location. A country database must

db.txt contains the list of

wireless-regdb

Figure 8: Wi-Fi hotspot creation

7.4 Throughput measurements

In general iperf is a reliable utility for measuring network throughput. On Android, an application
can be used for the purpose of measurement. “iPerf for Android” is a tool used for running different
versions of

UBX-19035432 - R02 Validation Page 32 of 40
C1-Public

iperf(2/3). For further information about the iperf tool and APK, see reference [15].

Android integration for NXP-based modules - Application note

7.5 Wi-Fi Direct

The Wi-Fi Direct standard used to connect Wi-Fi devices to one another is used in in a variety of
different use cases, like Wi-Fi display that works between two peers.

To enable Wi-Fi Direct, select:

Settings > Connections > Wi-Fi > Wi-Fi preferences > Wi-Fi Direct

Figure 9: Wi-Fi Direct scanning

Figure 10: Wi-Fi Direct accept

UBX-19035432 - R02 Validation Page 33 of 40
C1-Public

Android integration for NXP-based modules - Application note

Figure 11: Wi-Fi Direct connected state

☞ Wi-Fi display functionality is not yet supported in the Android image supplied by NXP. At the

moment, this functionality requires some additional application level libraries with the Wi-Fi direct
protocol.

7.6 Bluetooth bring up

Once the files are placed in the expected paths, Bluetooth will be enabled. Android services can also
be used to enable Bluetooth using the below-mentioned command.

# Enable Bluetooth via command line

service call bluetooth_manager 6
# Disable Bluetooth via command line
service call bluetooth_manager 8

To otherwise enable Bluetooth from the GUI, select:

Settings > Bluetooth & device connection > Bluetooth

UBX-19035432 - R02 Validation Page 34 of 40
C1-Public

Android integration for NXP-based modules - Application note

bt_core_module: module_start_up Started module "hci_module"

Some logs from the Android system when Bluetooth is successfully enabled are provided below:

bt_stack_manager: event_start_up_stack is bringing up the stack

bt_core_module: module_start_up Starting module "btif_config_module"
bt_core_module: module_start_up Started module "btif_config_module"
bt_core_module: module_start_up Starting module "btsnoop_module"

bt_core_module: module_start_up Started module "btsnoop_module"
bt_core_module: module_start_up Starting module "hci_module"
bt_hci : hci_module_start_up
bt_osi_thread: run_thread: thread id 1896, thread name hci_thread started

bt_hci : hci_initialize
bt_hci : hci_module_start_up starting async portion
bt_hci : hci_initialize: IBluetoothHci::getService() returned 0xa4086ce0 (remote)
android.hardware.bluetooth@1.0-impl: BluetoothHci::initialize()
android.hardware.bluetooth@1.0-impl: Open vendor library loaded
bt-vnd-mrvl: bt_vnd_mrvl_if_op(L414): opcode = 0
bt-vnd-mrvl: bt_vnd_mrvl_if_op(L426): power on -------------------------------------­bt-vnd-mrvl: bt_vnd_mrvl_if_op(L414): opcode = 3

bt-vnd-mrvl: bt_vnd_mrvl_if_op(L443): open serial port------------------------------­bt-vnd-mrvl: bt_vnd_mrvl_if_op(L449): baudrate_bt 3000000
bt-vnd-mrvl: bt_vnd_mrvl_if_op(L450): baudrate_default 115200
android.hardware.bluetooth@1.0-impl: OnFirmwareConfigured result: 0
android.hardware.bluetooth@1.0-impl: Firmware configured in 0.000s
bt-vnd-mrvl: bt_vnd_mrvl_if_op(L414): opcode = 5
android.hardware.bluetooth@1.0-impl: OnFirmwareConfigured: lpm_timeout_ms 0

bt-vnd-mrvl: bt_vnd_mrvl_if_op(L414): opcode = 6
android.hardware.bluetooth@1.0-impl: low_power_mode_cb result: 0
android.hardware.bluetooth@1.0-impl: OnFirmwareConfigured Calling

StartLowPowerWatchdog()
bt_hci : event_finish_startup

7.7 Bluetooth verification

Basic Bluetooth involves a discovery scan followed by connection between the two devices. The same
connection can be used for different applications such as file sharing or audio streaming. File transfer
using images between the devices works successfully and has been verified.

UBX-19035432 - R02 Validation Page 35 of 40
C1-Public

Android integration for NXP-based modules - Application note

Figure 12: Bluetooth scanning

Figure 13: Bluetooth connect

UBX-19035432 - R02 Validation Page 36 of 40
C1-Public

Android integration for NXP-based modules - Application note

Appendix

A Glossary

Abbreviation Definition

AOSP Android Open Source Project

ASCII American Standard Code for Information Interchange

ARM Arm (Advanced RISC Machines) Holdings

AEC Automotive electronics council

BBR Battery backed RAM

BER Bit error rate

CPU Central processing unit

UTC Coordinated Universal Time

DTE Data terminal equipment

DC Direct current

DRX Discontinuous reception

DDC Display data channel

DL Down link (Reception)

BT Bluetooth

Wi-Fi Wireless Fidelity

AP Access Point

Table 7: Explanation of the abbreviations and terms used

UBX-19035432 - R02 Appendix Page 37 of 40
C1-Public

Android integration for NXP-based modules - Application note

Related documentation

[1] EMMY-W1 series system integration manual, UBX-15024929
[2] EVK-EMMY-W1 user guide, UBX-15012713
[3] EVK-LILY-W1 user guide, UBX-15030290
[4] EVK-JODY-W2 user guide, UBX-19027118
[5] EMMY-W1 series data sheet, UBX-15011785
[6] Cross reference platform for Android code browsing:

http://aosp.opersys.com/xref/android-9.0.0_r47/

[7] Documentation of internal regulatory domain usage in kernel:

https://wireless.wiki.kernel.org/en/developers/regulatory/wireless-regdb

[8] Android support forum for open source code, building and any other queries:

https://source.android.com/setup

[9] Implementing SELinux:

https://source.android.com/security/selinux/implement

[10] Android Pie integration guide from Marvell: MV-S302867-00B_Android P Vendor HAL porting
[11] Makefile architecture and reference:

https://developer.android.com/ndk/guides/android_mk

[12] System architecture of Wi-Fi for Android:

https://source.android.com/devices/tech/connect/wifi-overview

[13] WIN7 User Guide for using MFGTools:

https://github.com/NXPmicro/mfgtools/wiki/WIN7-User-Guide

[14] Wireless regulatory database for CRDA:

https://git.kernel.org/pub/scm/linux/kernel/git/sforshee/wireless-regdb.git/tree/

[15] iPerf for Android:

https://apkpure.com/iperf-for-android/com.magicandroidapps.iperf

[16] MCIMX8M-EVK Evaluation Kit for the i.MX 8M Applications Processor:

https://www.nxp.com/design/development-boards/i-mx-evaluation-and-development-

boards/evaluation-kit-for-the-i-mx-8m-applications-processor:MCIMX8M-EVK

☞ For product change notifications and regular updates of u-blox documentation, register on our

website, www.u-blox.com.

UBX-19035432 - R02 Related documentation Page 38 of 40
C1-Public

Android integration for NXP-based modules - Application note

Revision history

Revision Date Name Comments

R01 30-Oct-2019 aheg Initial release.

R02 8-Sep-2020 aheg Extended the document scope to include other modules based on NXP

chipsets LILY-W1 and JODY-W2. Included updates to reflect the change in
host platform from i.MX6 SABRE-SD to i.MX8 MQ EVK.

UBX-19035432 - R02 Revision history Page 39 of 40
C1-Public

Android integration for NXP-based modules - Application note

Contact

For complete contact information, visit us at www.u-blox.com.

u-blox Offices

North, Central and South America

u-blox America, Inc.

Phone: [phone]
E-mail: [e-mail]

Regional Office West Coast:

Phone: [phone]
E-mail: [e-mail]

Technical Support:

Phone: [phone]
E-mail: [e-mail]

Headquarters
Europe, Middle East, Africa

u-blox AG

Phone: [phone]
E-mail: [e-mail]
Support: [e-mail]

Asia, Australia, Pacific

u-blox Singapore Pte. Ltd.

Phone: [phone]
E-mail: [e-mail]
Support: [e-mail]

Regional Office Australia:

Phone: [phone]
E-mail: [e-mail]
Support: [e-mail]

Regional Office China (Beijing):

Phone: [phone]
E-mail: [e-mail]
Support: [e-mail]

Regional Office China (Chongqing):

Phone: [phone]
E-mail: [e-mail]
Support: [e-mail]

Regional Office China (Shanghai):

Phone: [phone]
E-mail: [e-mail]
Support: [e-mail]

Regional Office China (Shenzhen):

Phone: [phone]
E-mail: [e-mail]
Support: [e-mail]

Regional Office India:

Phone: [phone]
E-mail: [e-mail]
Support: [e-mail]

Regional Office Japan (Osaka):

Phone: [phone]
E-mail: [e-mail]
Support: [e-mail]

Regional Office Japan (Tokyo):

Phone: [phone]
E-mail: [e-mail]
Support: [e-mail]

Regional Office Korea:

Phone: [phone]
E-mail: [e-mail]
Support: [e-mail]

Regional Office Taiwan:

Phone: [phone]
E-mail: [e-mail]
Support: [e-mail]

UBX-19035432 - R02 Contact Page 40 of 40
C1-Public
